This document summarizes a presentation on wearable technology for sports performance and technique monitoring. It discusses how technology availability and the uptake of smartphones have enabled new monitoring systems. A variety of sensor and component options are reviewed, as well as the need to consider requirements of different stakeholders like athletes, coaches and fans. The presentation emphasizes that successful solutions require understanding minimum viable products and managing systems architecture. It provides an example product called Xelflex that illustrates how different applications require different technological approaches and no single size fits all.

1. 13 March 2015 WEAR15-P-006 v1.0
Commercially Confidential
Does one size fit all?
Ruth Thomson, Martin Brock
Wearable Tech Expo – London – 11th March 2015
Presented in the Performance Sports Track
at the Wearable Tech Expo 2015
http://www.wearabletechnologyshow.net/spo
rt-fitness-track

2. 13 March 2015 WEAR15-P-006 v1.02Commercially Confidential
 Introduction
 Technology options
 Stakeholder requirements
 Designing a successful solution
 Example: XelfleX
Does one size fit all?

3. 13 March 2015 WEAR15-P-006 v1.03Commercially Confidential

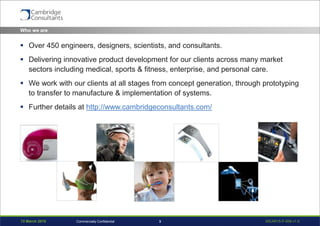

Who we are
 Over 450 engineers, designers, scientists, and consultants.
 Delivering innovative product development for our clients across many market
sectors including medical, sports & fitness, enterprise, and personal care.
 We work with our clients at all stages from concept generation, through prototyping
to transfer to manufacture & implementation of systems.
 Further details at http://www.cambridgeconsultants.com/

4. 13 March 2015 WEAR15-P-006 v1.04Commercially Confidential
Sports performance and technique monitoring…
THEN… NOW…

5. 13 March 2015 WEAR15-P-006 v1.05Commercially Confidential

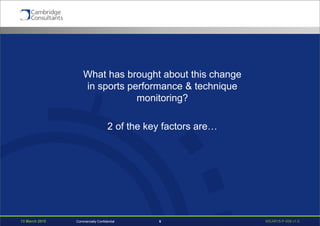

What has brought about this change
in sports performance & technique
monitoring?
2 of the key factors are…

6. 13 March 2015 WEAR15-P-006 v1.06Commercially Confidential

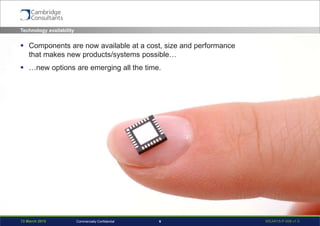

Technology availability
 Components are now available at a cost, size and performance
that makes new products/systems possible…
 …new options are emerging all the time.

7. 13 March 2015 WEAR15-P-006 v1.07Commercially Confidential
Uptake of smartphones reduces the cost of entry for new products/systems…
 The uptake of smartphones means that most
consumers already have part of the system
in their pocket
 Wearable tech systems can effectively ‘piggy
back’ on this existing infrastructure
– Cost benefits
– Data capture is effectively omnipresent

8. 13 March 2015 WEAR15-P-006 v1.08Commercially Confidential

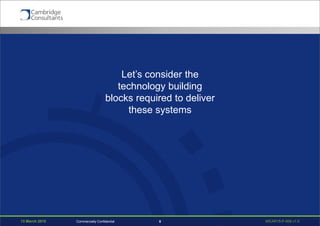

Let’s consider the
technology building
blocks required to deliver
these systems

9. 13 March 2015 WEAR15-P-006 v1.09Commercially Confidential
Technology – what are the options?
Wearable device(s)
Wearable

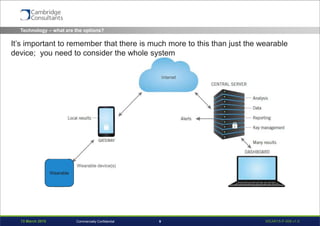

It’s important to remember that there is much more to this than just the wearable
device; you need to consider the whole system

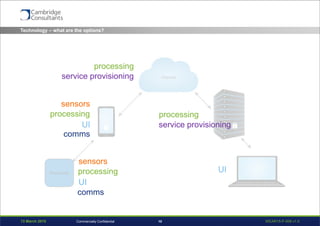

10. 13 March 2015 WEAR15-P-006 v1.010Commercially Confidential
Wearable device(s)
Wearable
Technology – what are the options?
sensors
UI
processing
comms
processing
processing
UI
service provisioning
service provisioning
sensors
UI
processing
comms

11. 13 March 2015 WEAR15-P-006 v1.011Commercially Confidential
Wearable device(s)
Wearable
Technology – what are the options?
accelerometer
gyroscope
ECG
optical (PPG)
GPS
EEG
altimeter
pressure
GSR
lactate
camera
GPS
accelerometer
camera
algorithms
processor
power
security
antenna
Bluetooth classic
BLE
WiFi
GSM
NFC
4G
WiFi
algorithms
processor
power
security
LEDs
haptics
display
auditory
display
haptics
auditory
magnetometer

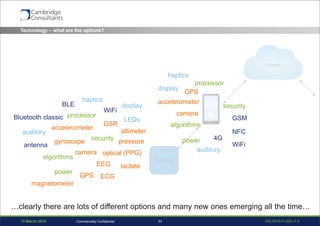

…clearly there are lots of different options and many new ones emerging all the time…

12. 13 March 2015 WEAR15-P-006 v1.012Commercially Confidential
…if you included all these technology components in a single solution you might end
up looking like this…

13. 13 March 2015 WEAR15-P-006 v1.013Commercially Confidential
Does one size fit all?!
Clearly…NO!
…or worse…like this!…

14. 13 March 2015 WEAR15-P-006 v1.014Commercially Confidential
Does one size fit all?
 Introduction
 Technology options
 Stakeholder requirements
 Designing a successful solution
 Example: XelfleX

15. 13 March 2015 WEAR15-P-006 v1.015Commercially Confidential
Clearly one size doesn’t fit all,
and to develop a successful
solution it’s important to consider
the requirements of the
stakeholders who will use and
interact with your product/system

16. 13 March 2015 WEAR15-P-006 v1.016Commercially Confidential
Angle of movement
What are the requirements? What is actually needed?
Technique
Heart rate
Waterproof
Weight
Think about the different requirements for different sports, and what
the athletes want to know…

17. 13 March 2015 WEAR15-P-006 v1.017Commercially Confidential
What are the requirements? What is actually needed?
Accuracy
Cost
Ease of use
Set up time
Data security
Think about the different requirements for athletes at different levels
in sport…from mass market consumers to elite athletes…

18. 13 March 2015 WEAR15-P-006 v1.018Commercially Confidential
What are the requirements? What is actually needed?
coach
sports
scientist
media
fans
Think about the different requirements for the different stakeholders
involved in a single sport.…it’s not just all about the athlete, you
also need to consider…

19. 13 March 2015 WEAR15-P-006 v1.019Commercially Confidential
What are the requirements? What is actually needed?
coach
sports
scientist
media
fans

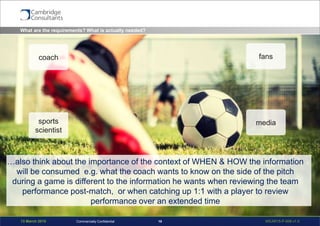

…also think about the importance of the context of WHEN & HOW the information
will be consumed e.g. what the coach wants to know on the side of the pitch
during a game is different to the information he wants when reviewing the team
performance post-match, or when catching up 1:1 with a player to review
performance over an extended time

20. 13 March 2015 WEAR15-P-006 v1.020Commercially Confidential
Does one size fit all?
 Introduction
 Technology options
 Stakeholder requirements
 Designing a successful solution
 Example: XelfleX

21. 13 March 2015 WEAR15-P-006 v1.021Commercially Confidential
We’ve already talked about the
importance of understanding the
requirements of the stakeholders
When designing a successful
solution it is also important to
consider…

22. 13 March 2015 WEAR15-P-006 v1.022Commercially Confidential

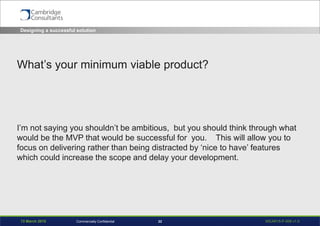

What’s your minimum viable product?
I’m not saying you shouldn’t be ambitious, but you should think through what
would be the MVP that would be successful for you. This will allow you to
focus on delivering rather than being distracted by ‘nice to have’ features
which could increase the scope and delay your development.
Designing a successful solution

23. 13 March 2015 WEAR15-P-006 v1.023Commercially Confidential

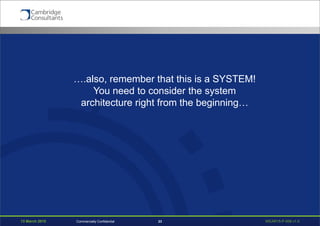

….also, remember that this is a SYSTEM!
You need to consider the system
architecture right from the beginning…

24. 13 March 2015 WEAR15-P-006 v1.024Commercially Confidential

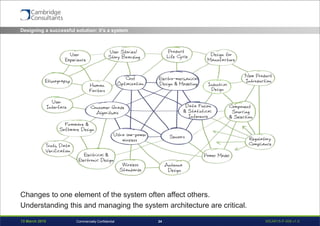

Changes to one element of the system often affect others.
Understanding this and managing the system architecture are critical.
Designing a successful solution: it’s a system

25. 13 March 2015 WEAR15-P-006 v1.025Commercially Confidential
Designing a successful solution: it’s a system

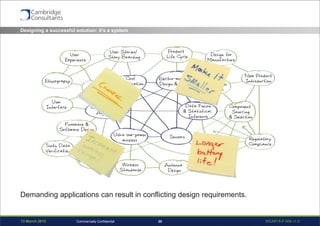

Demanding applications can result in conflicting design requirements.

26. 13 March 2015 WEAR15-P-006 v1.026Commercially Confidential
Does one size fit all?
 Introduction
 Technology options
 Stakeholder requirements
 Designing a successful solution
 Example: XelfleX

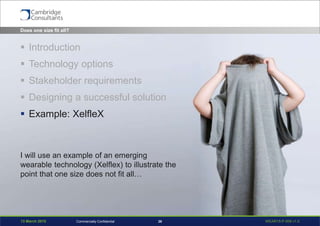

I will use an example of an emerging
wearable technology (Xelflex) to illustrate the
point that one size does not fit all…

27. 13 March 2015 WEAR15-P-006 v1.027Commercially Confidential
XelfleX – making garments inherently smart
 A novel type of ‘smart’ textile that
makes garments inherently smart.
 As a plastic optical fibre based
technology it’s cheap, comfortable,
robust, safe and washable.

28. 13 March 2015 WEAR15-P-006 v1.028Commercially Confidential

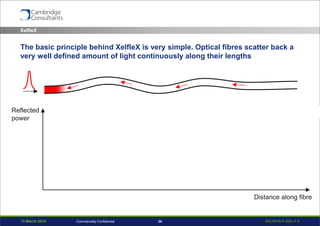

The basic principle behind XelfleX is very simple. Optical fibres scatter back a
very well defined amount of light continuously along their lengths
XelfleX
Distance along fibre
Reflected
power

29. 13 March 2015 WEAR15-P-006 v1.029Commercially Confidential

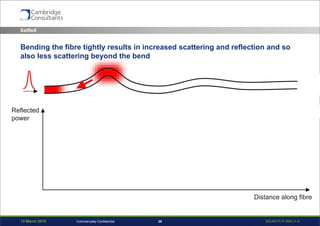

Bending the fibre tightly results in increased scattering and reflection and so
also less scattering beyond the bend
XelfleX
Distance along fibre
Reflected
power

30. 13 March 2015 WEAR15-P-006 v1.030Commercially Confidential

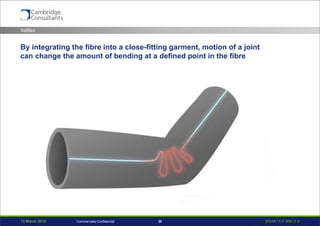

By integrating the fibre into a close-fitting garment, motion of a joint
can change the amount of bending at a defined point in the fibre
Xelflex

31. 13 March 2015 WEAR15-P-006 v1.031Commercially Confidential

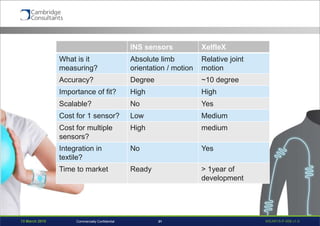

INS sensors XelfleX
What is it
measuring?
Absolute limb
orientation / motion
Relative joint
motion
Accuracy? Degree ~10 degree
Importance of fit? High High
Scalable? No Yes
Cost for 1 sensor? Low Medium
Cost for multiple
sensors?
High medium
Integration in
textile?
No Yes
Time to market Ready > 1year of
development

32. 13 March 2015 WEAR15-P-006 v1.032Commercially Confidential
Does one size fit all?
 Introduction
 Technology options
 Stakeholder requirements
 Designing a successful solution
 Example: XelfleX

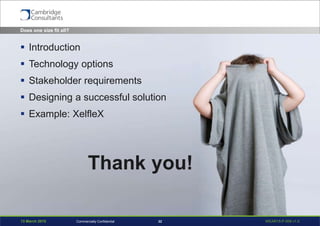

Thank you!
