First Name: Rainer Last Name: Winkler Title: Do Visualizations help during development? Using Moose while coding. Type: Talk Youtube: https://youtu.be/0ttLYM1tkek Abstract: I will discuss how visualizations can help while coding. I explain the intention behind the visualization tool RW-Moose-Diagram (http://www.smalltalkhub.com/#!/ ~RainerWinkler/RW-Moose-Diagram) which is based on Moose and Roassal. It is used to make dependency diagrams that focus on a certain aspect of an application. It supports comments; elements can be dragged; changes to diagrams can be stored. I speak about the experiences I made while using it with ABAP and Smalltalk. The main intention was to make understanding code easier while working with Legacy code. I discuss also in which cases it can help while working with new applications that have a very high test coverage. Bio: Rainer Winkler is developer for SAP applications specialized in SAP tools for reporting. He is interested in software maintenance and in getting Legacy code under control. He works primarily with ABAP and enjoyed to learn Pharo recently to utilize Roassal and Moose.

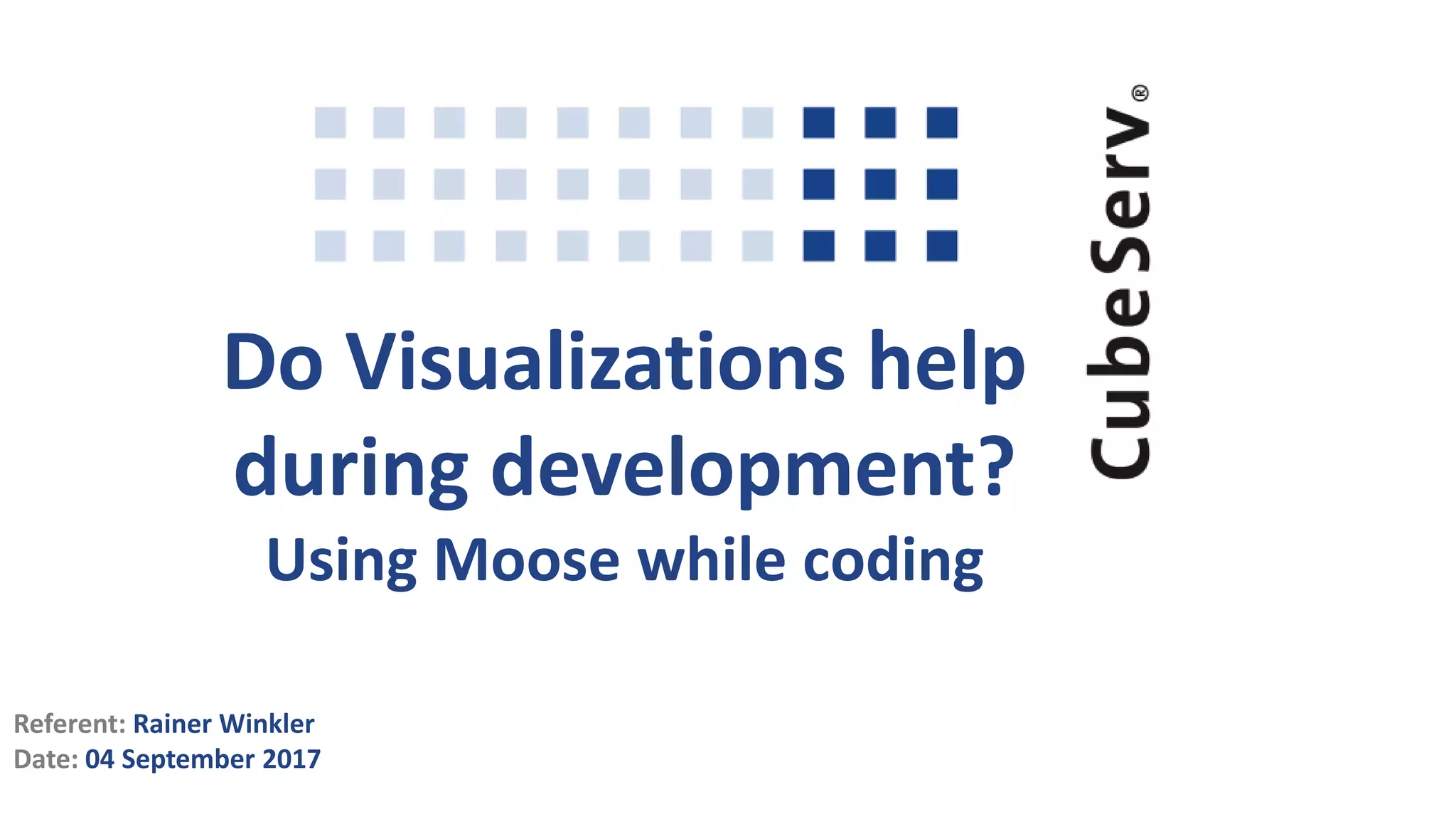

1. Do Visualizations help
during development?
Using Moose while coding
Referent: Rainer Winkler
Date: 04 September 2017

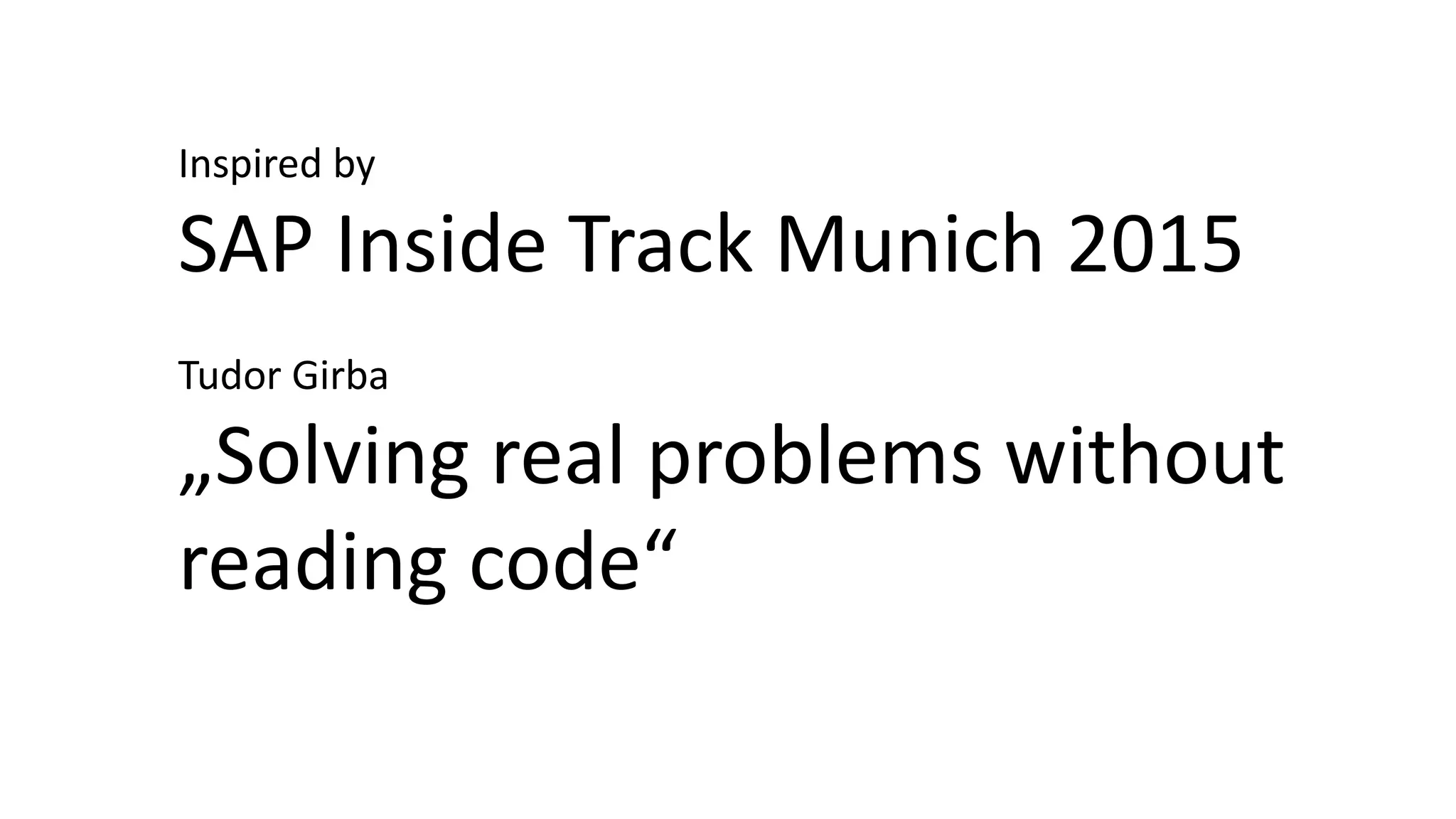

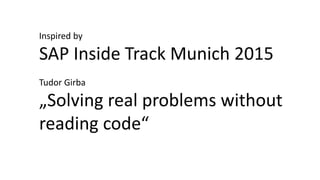

2. Inspired by
SAP Inside Track Munich 2015
Tudor Girba
„Solving real problems without
reading code“

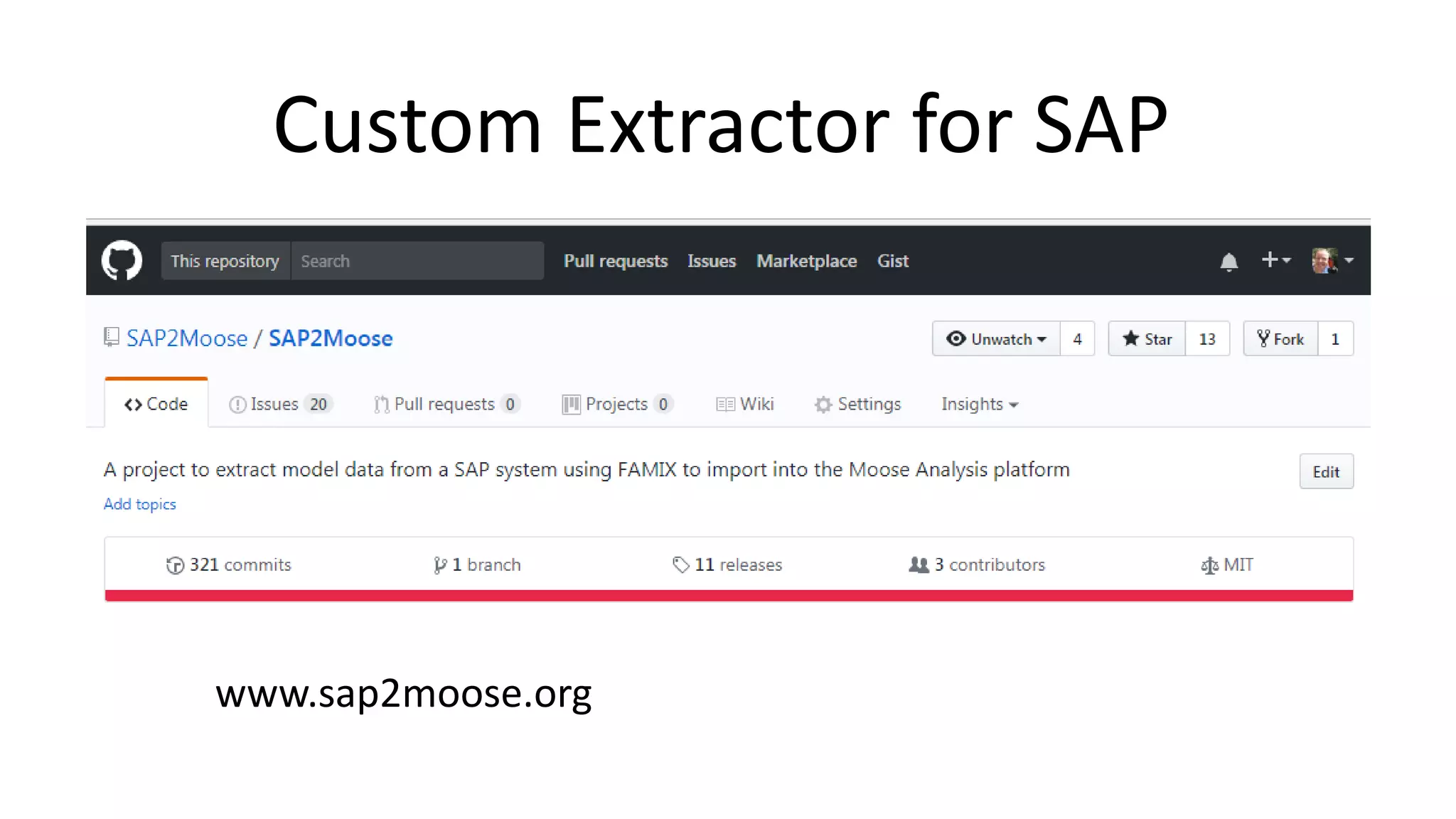

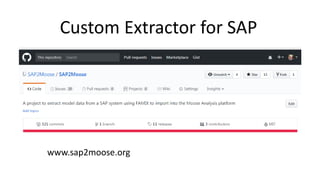

3. Custom Extractor for SAP
www.sap2moose.org

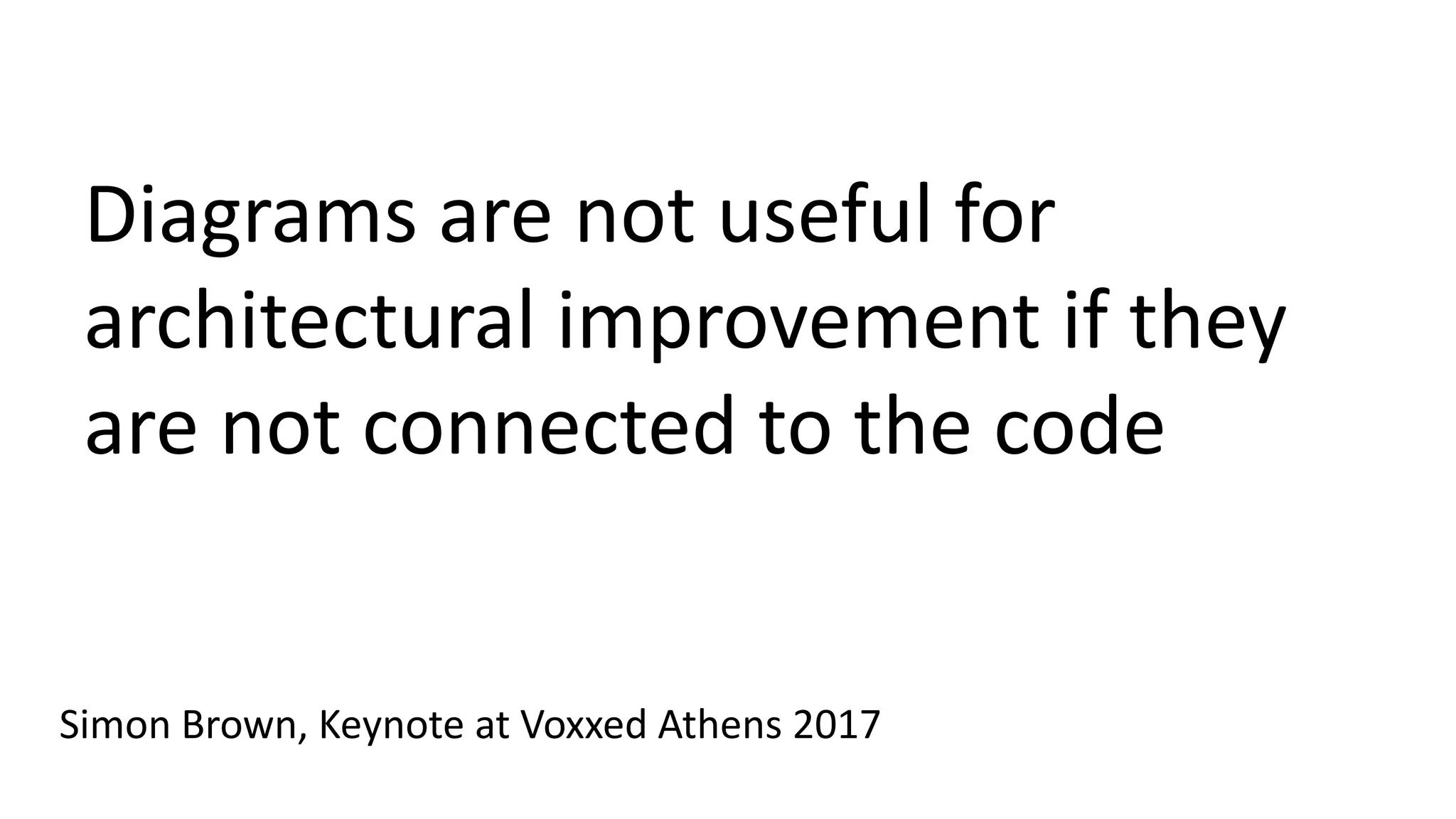

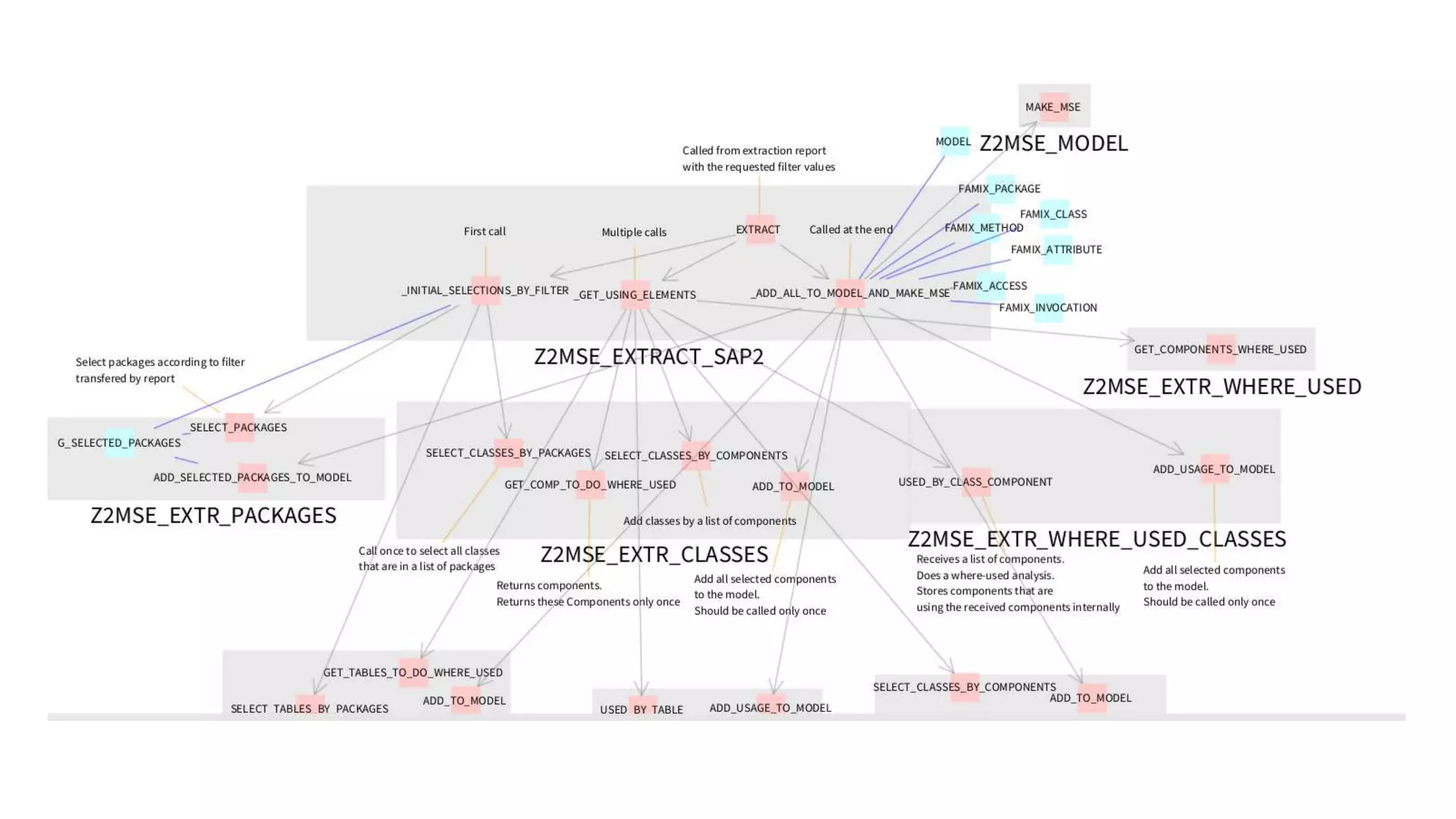

6. Diagrams are not useful for
architectural improvement if they
are not connected to the code
Simon Brown, Keynote at Voxxed Athens 2017

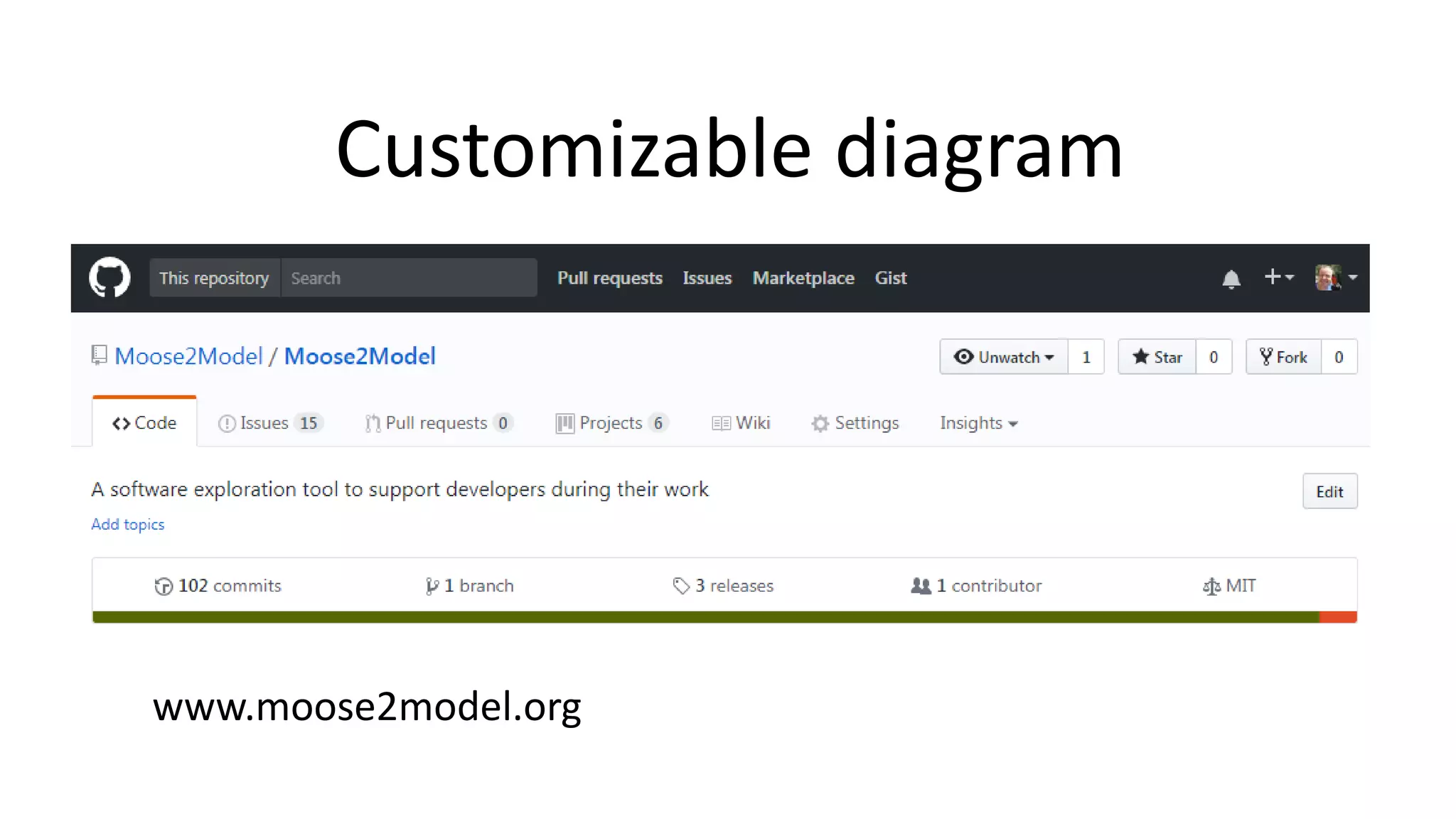

8. Customizable diagram
www.moose2model.org

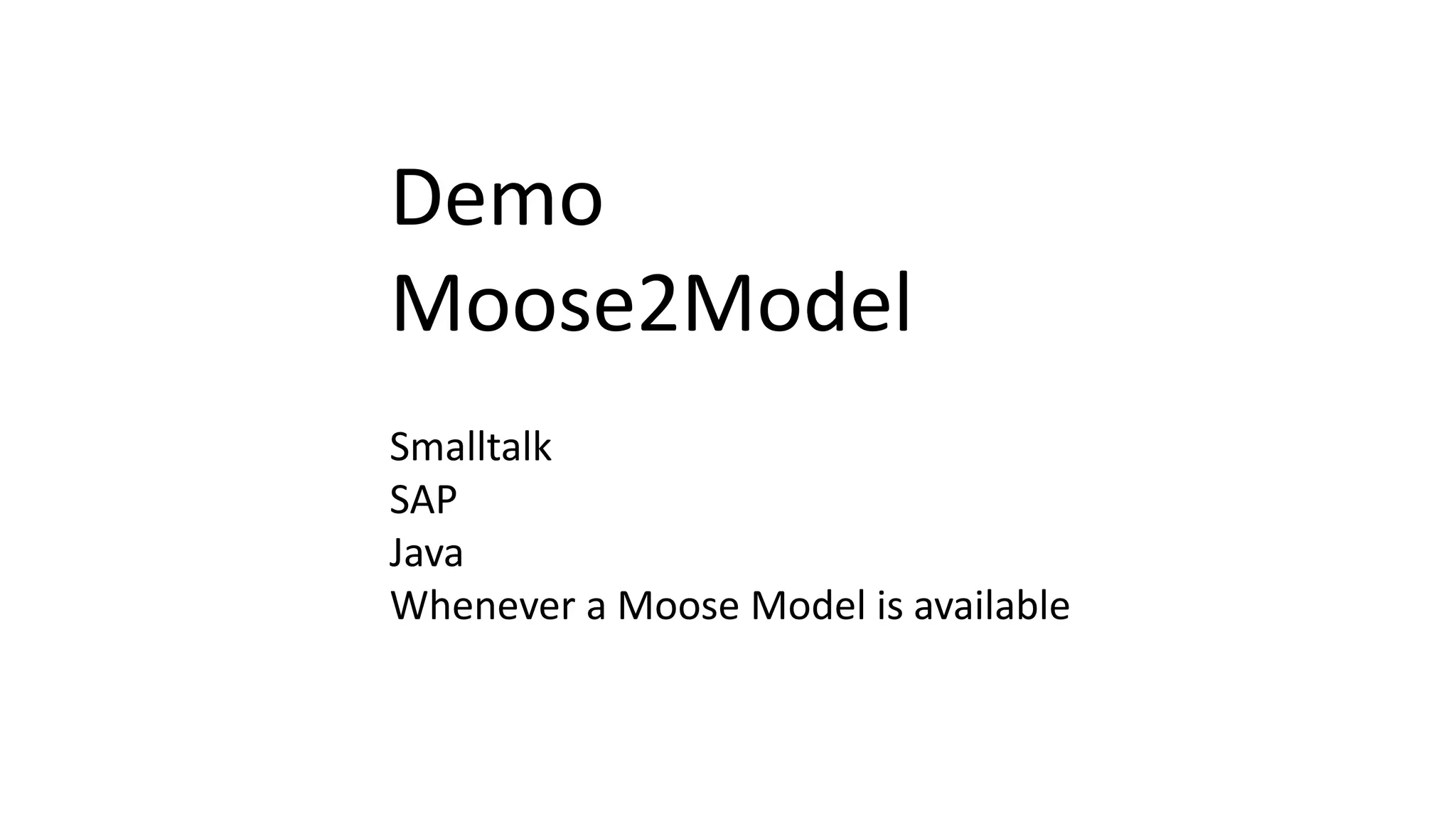

9. Demo
Moose2Model
Smalltalk
SAP
Java
Whenever a Moose Model is available

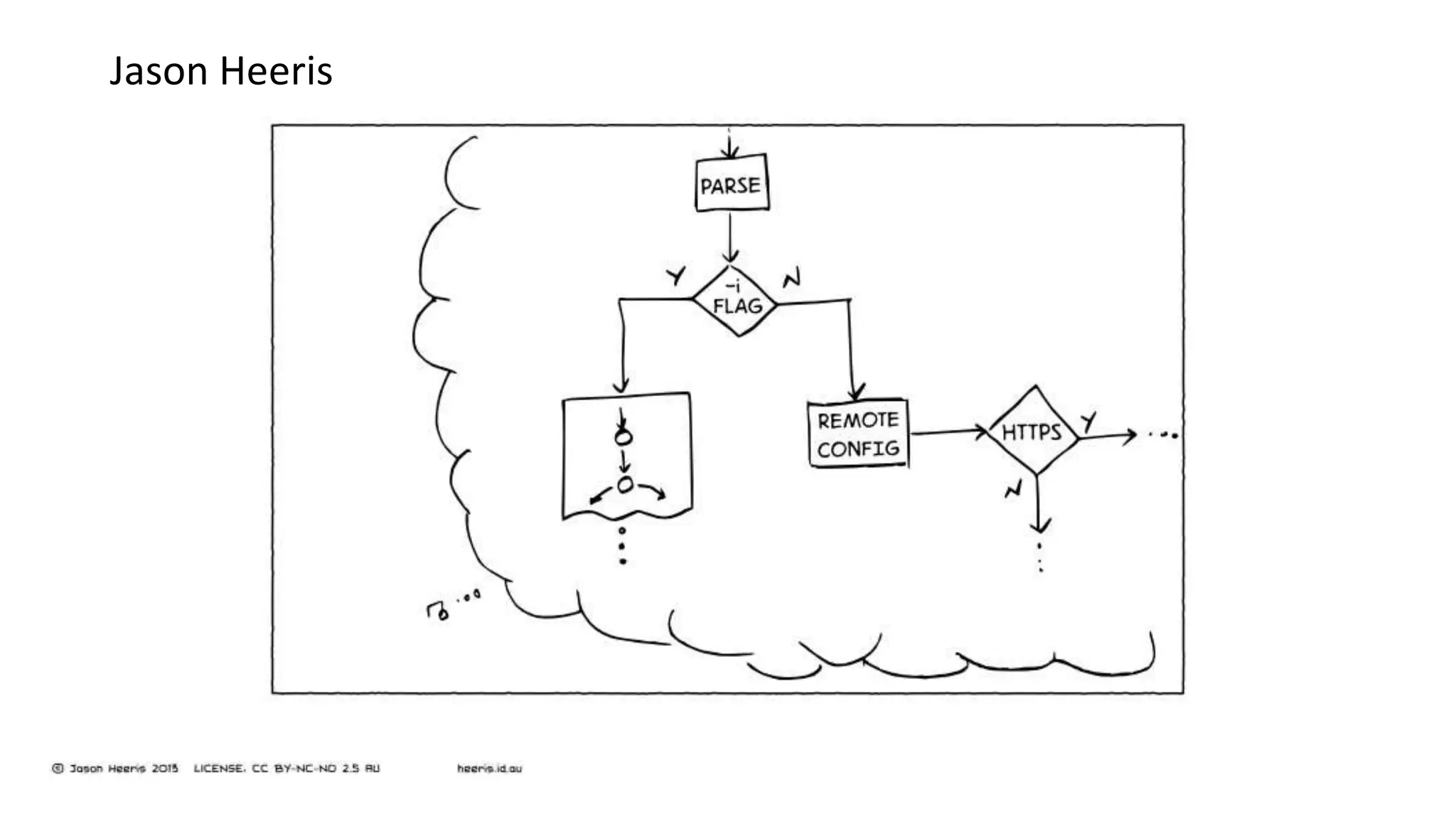

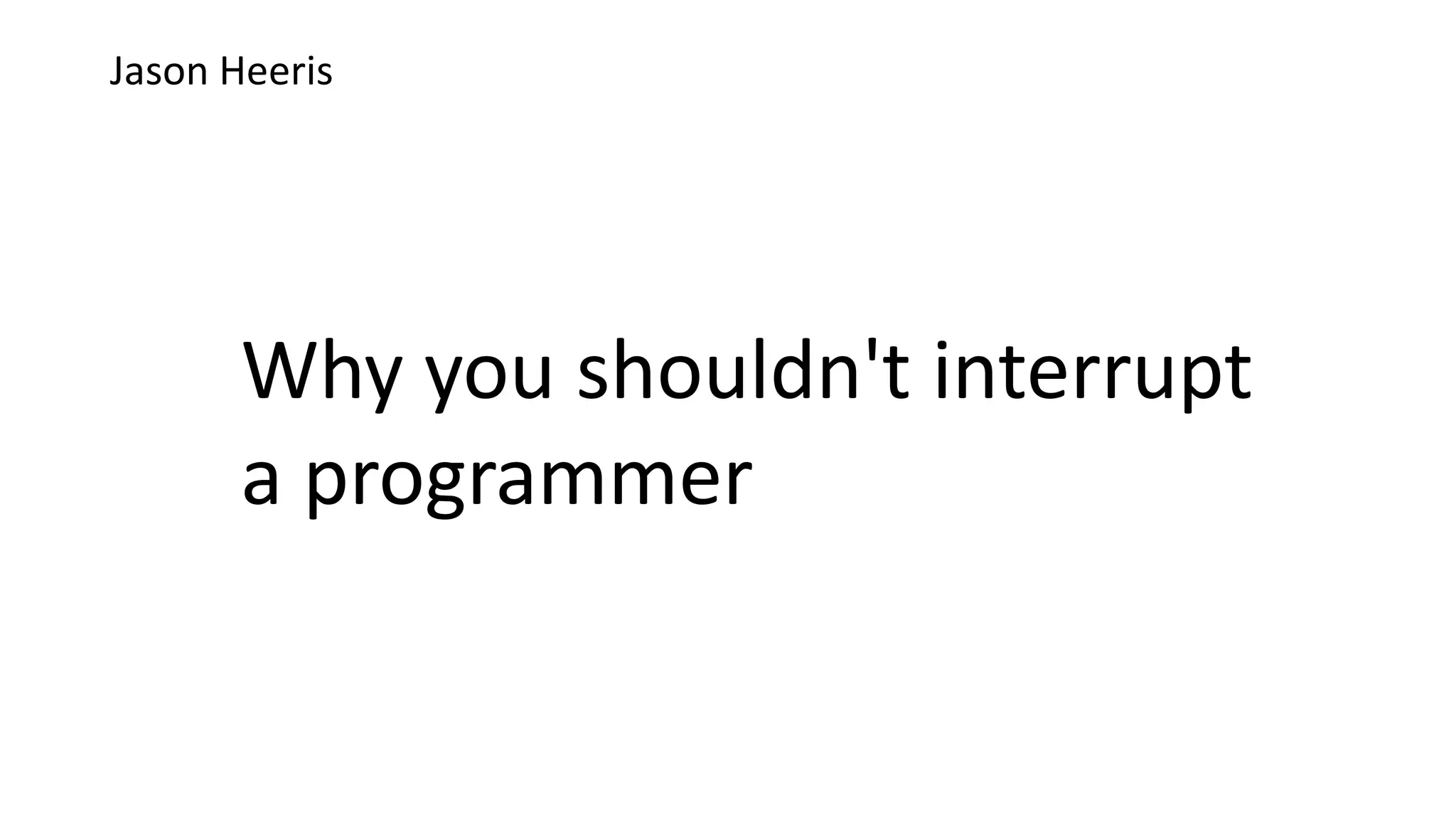

10. Why you shouldn't interrupt
a programmer
Jason Heeris

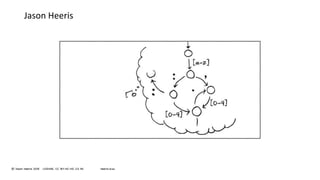

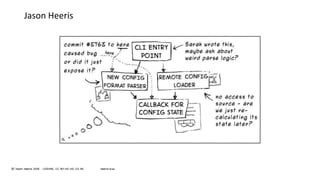

11. Jason Heeris

12. Jason Heeris

13. Jason Heeris

14. Jason Heeris

15. Jason Heeris

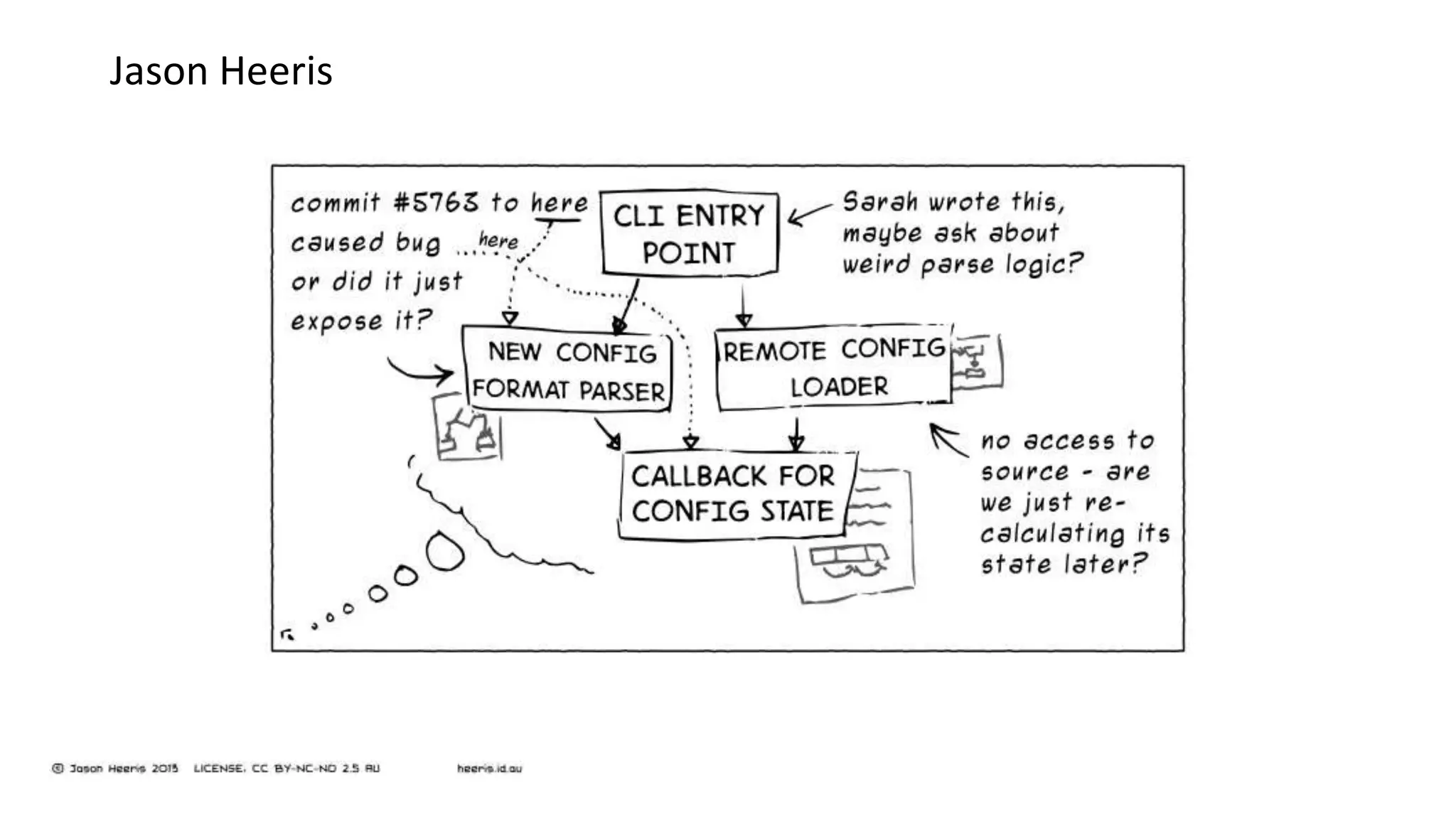

16. Jason Heeris

17. Jason Heeris

18. Jason Heeris

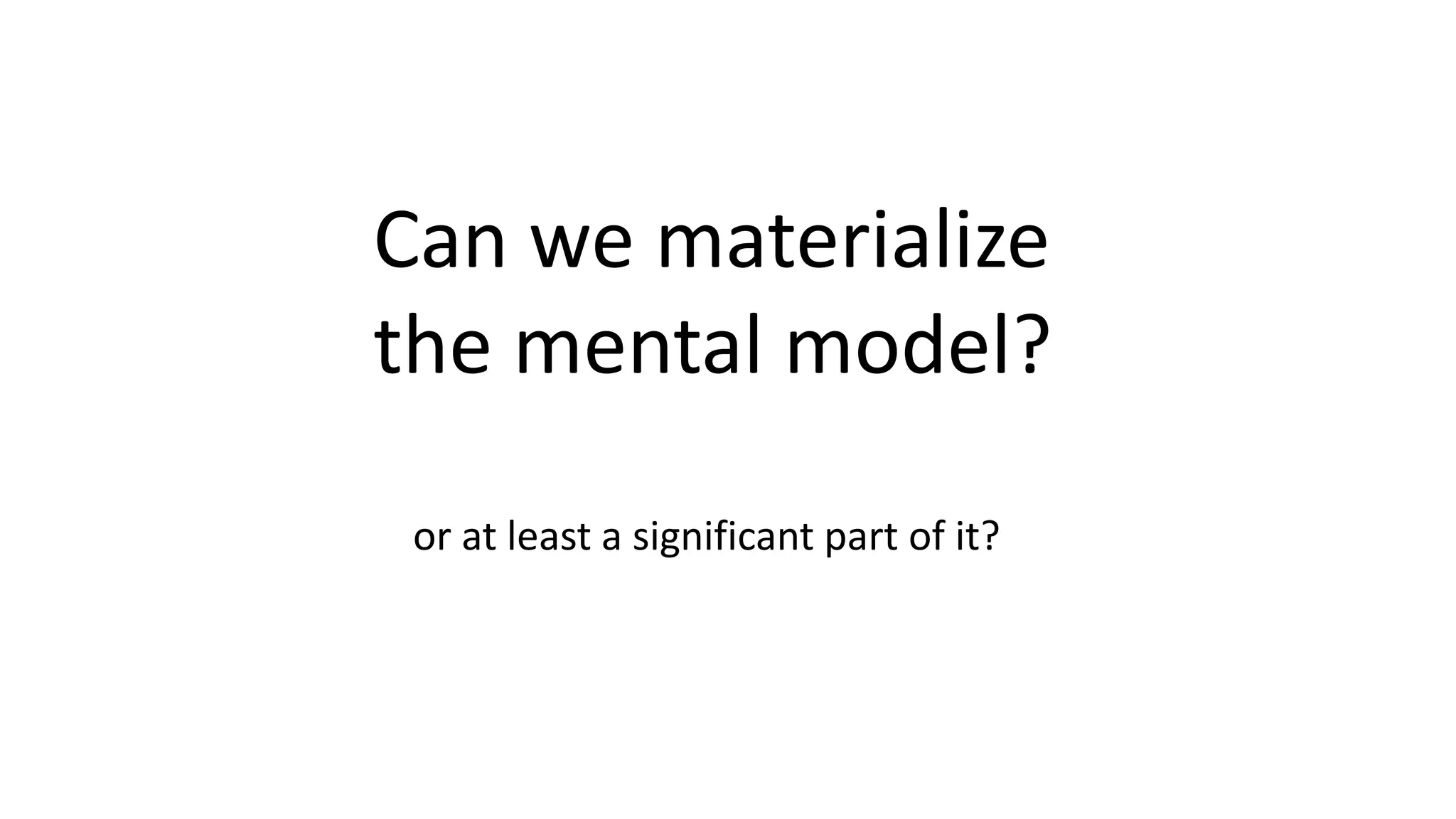

19. Can we materialize
the mental model?
or at least a significant part of it?

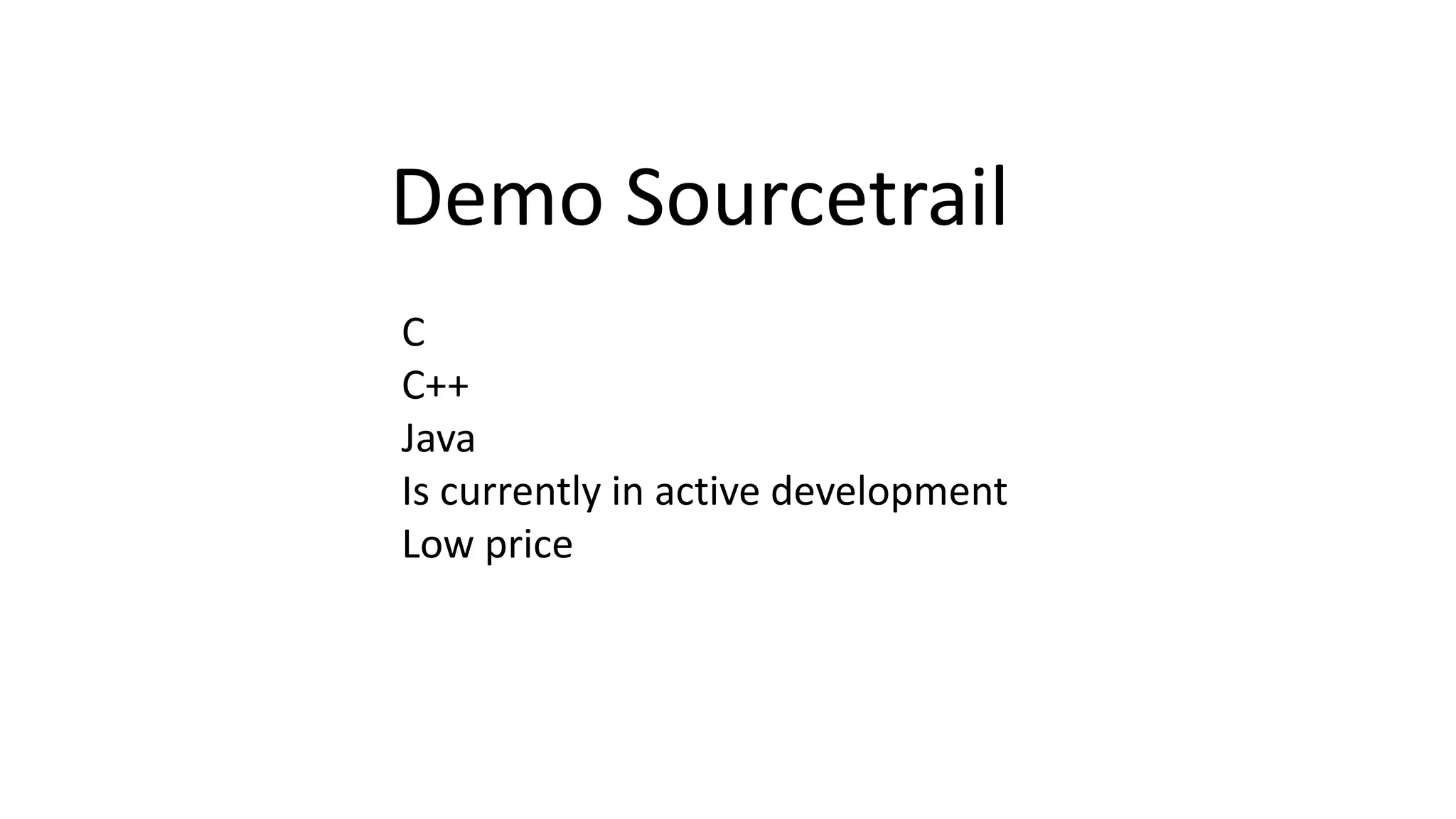

20. Demo Sourcetrail
C
C++
Java
Is currently in active development
Low price

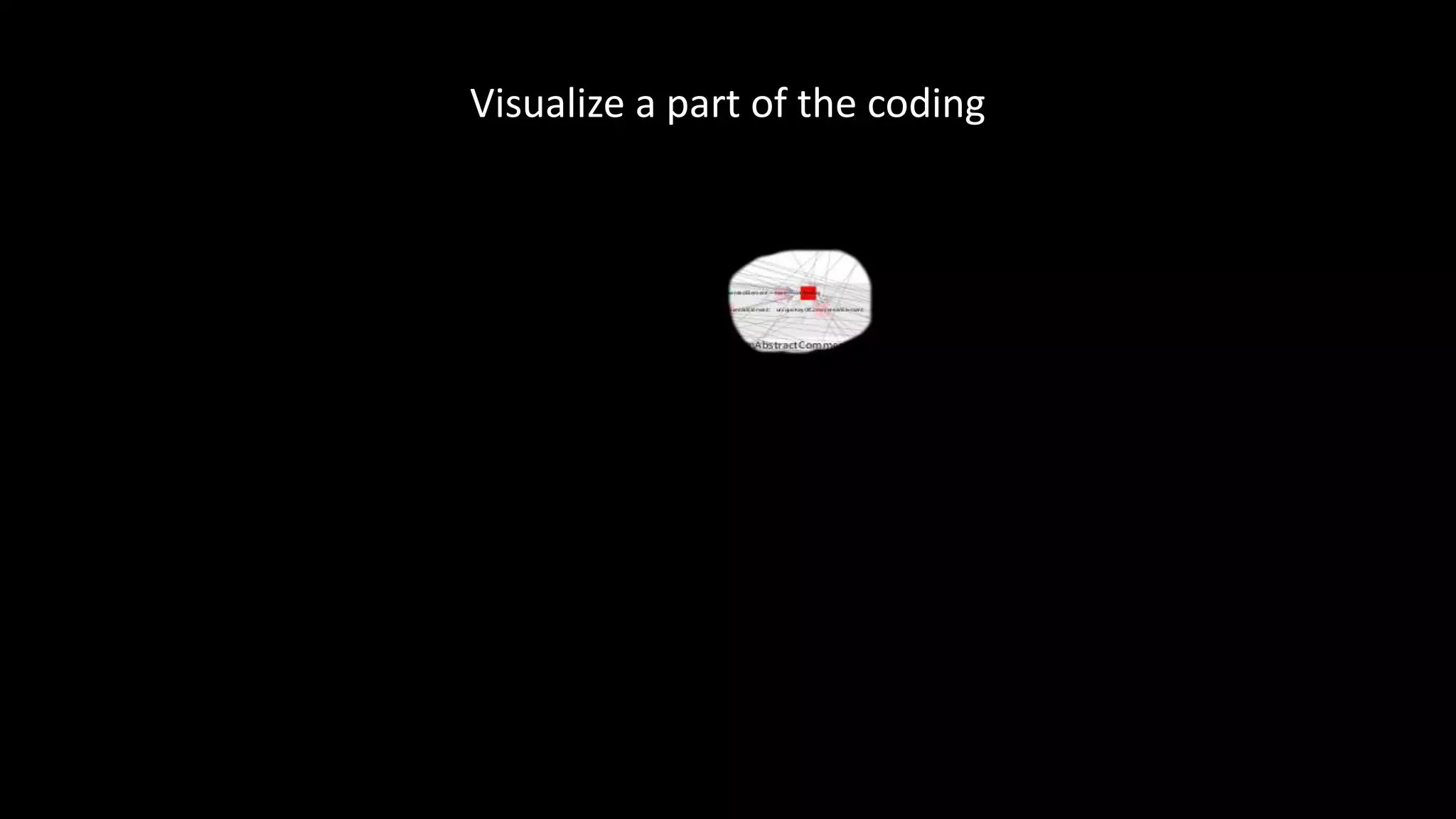

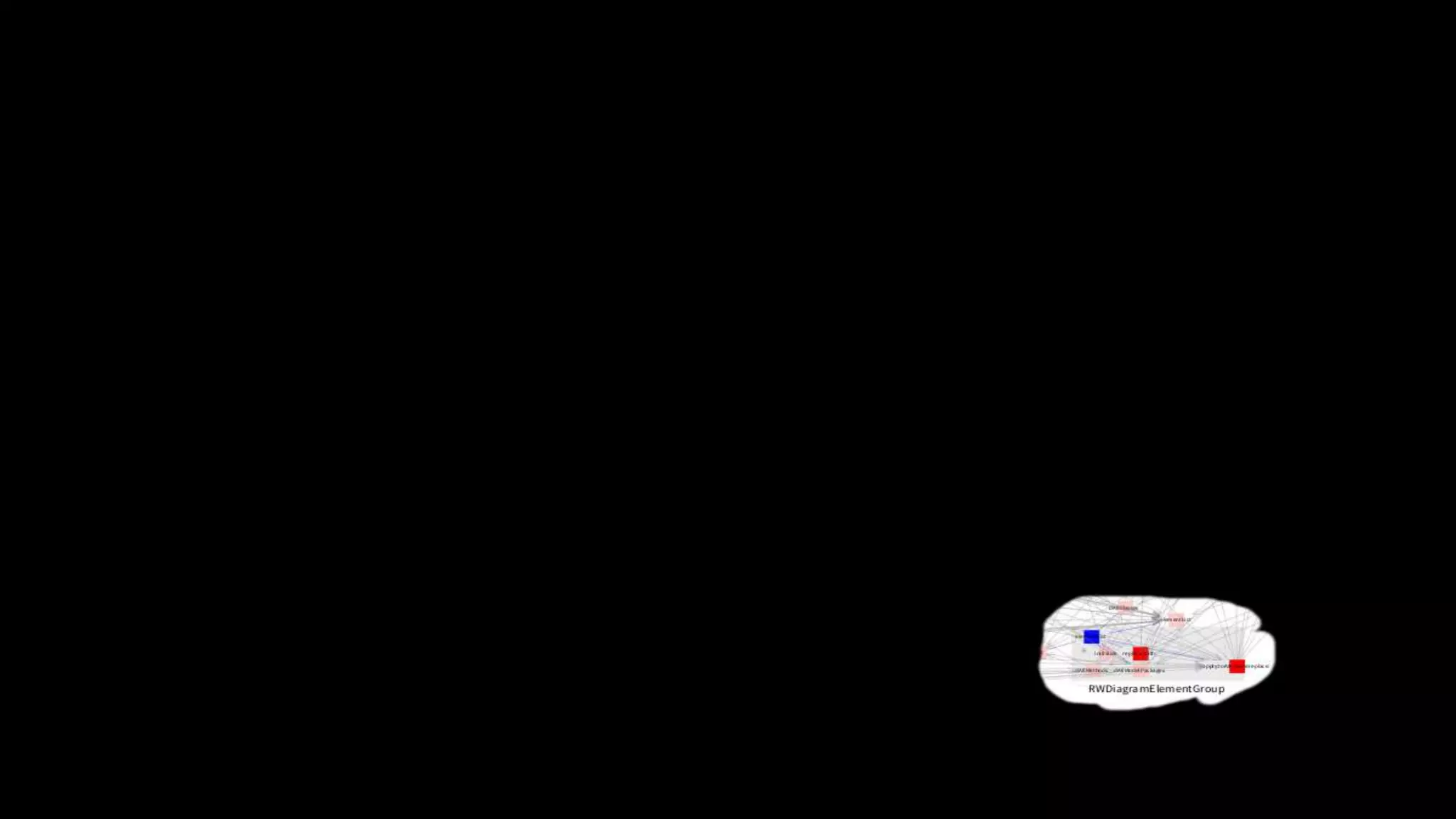

22. Visualize a part of the coding

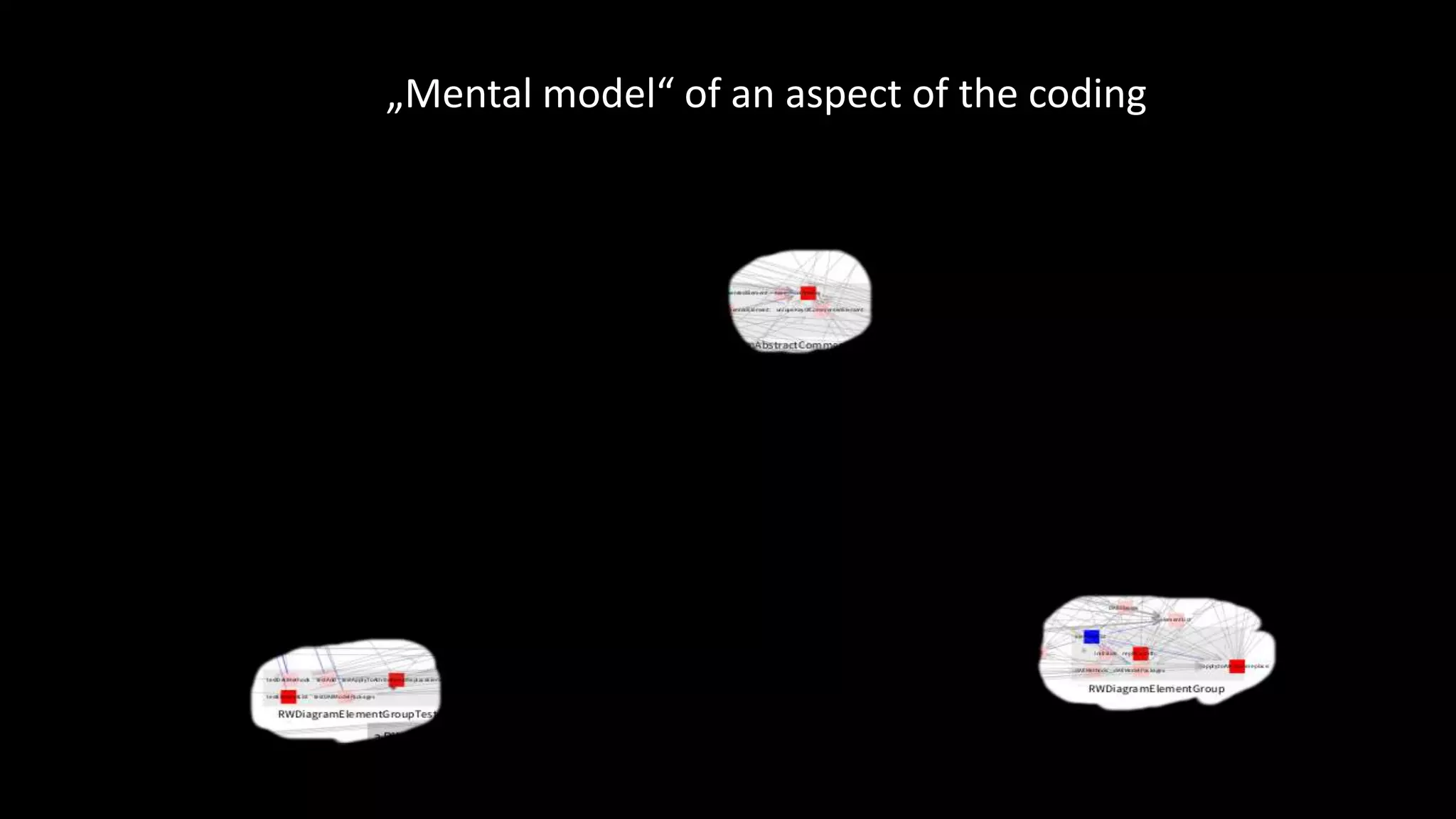

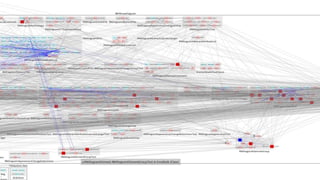

25. „Mental model“ of an aspect of the coding

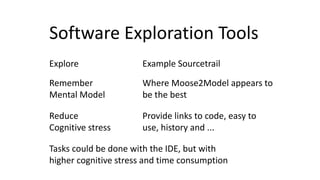

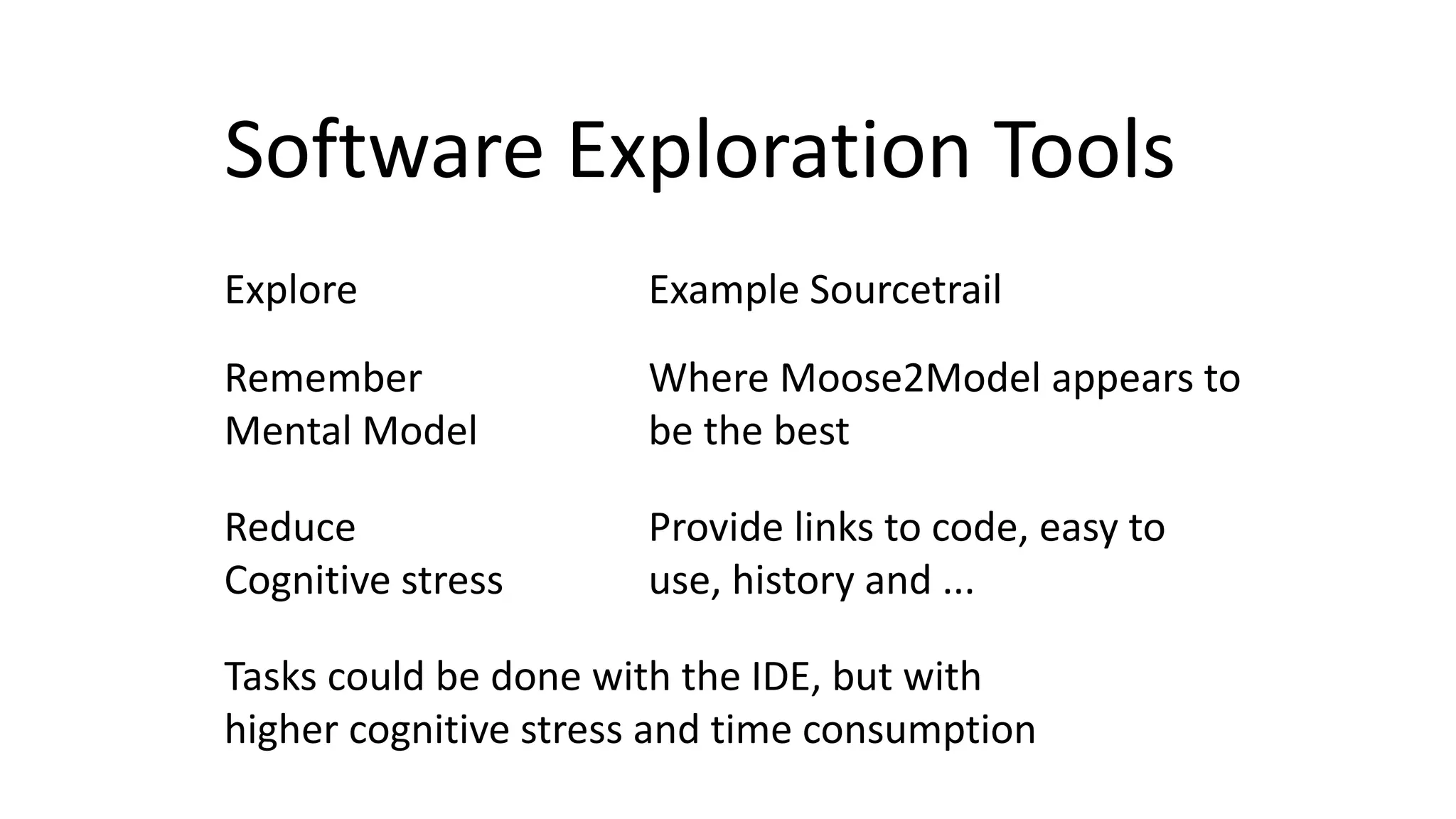

27. Software Exploration Tools
Explore Example Sourcetrail
Remember
Mental Model
Where Moose2Model appears to
be the best
Reduce
Cognitive stress
Provide links to code, easy to
use, history and ...
Tasks could be done with the IDE, but with
higher cognitive stress and time consumption

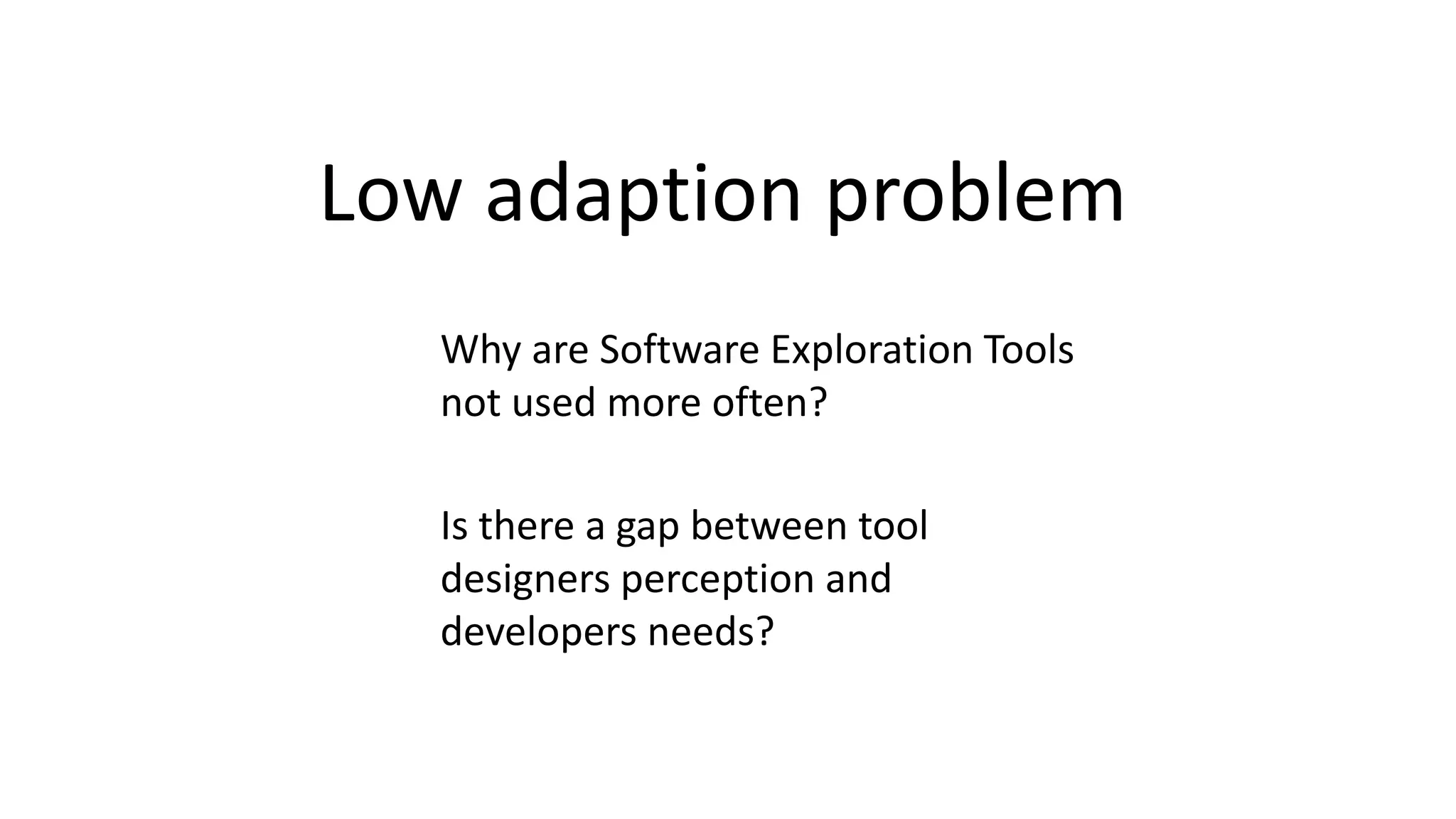

28. Low adaption problem
Why are Software Exploration Tools
not used more often?
Is there a gap between tool
designers perception and
developers needs?

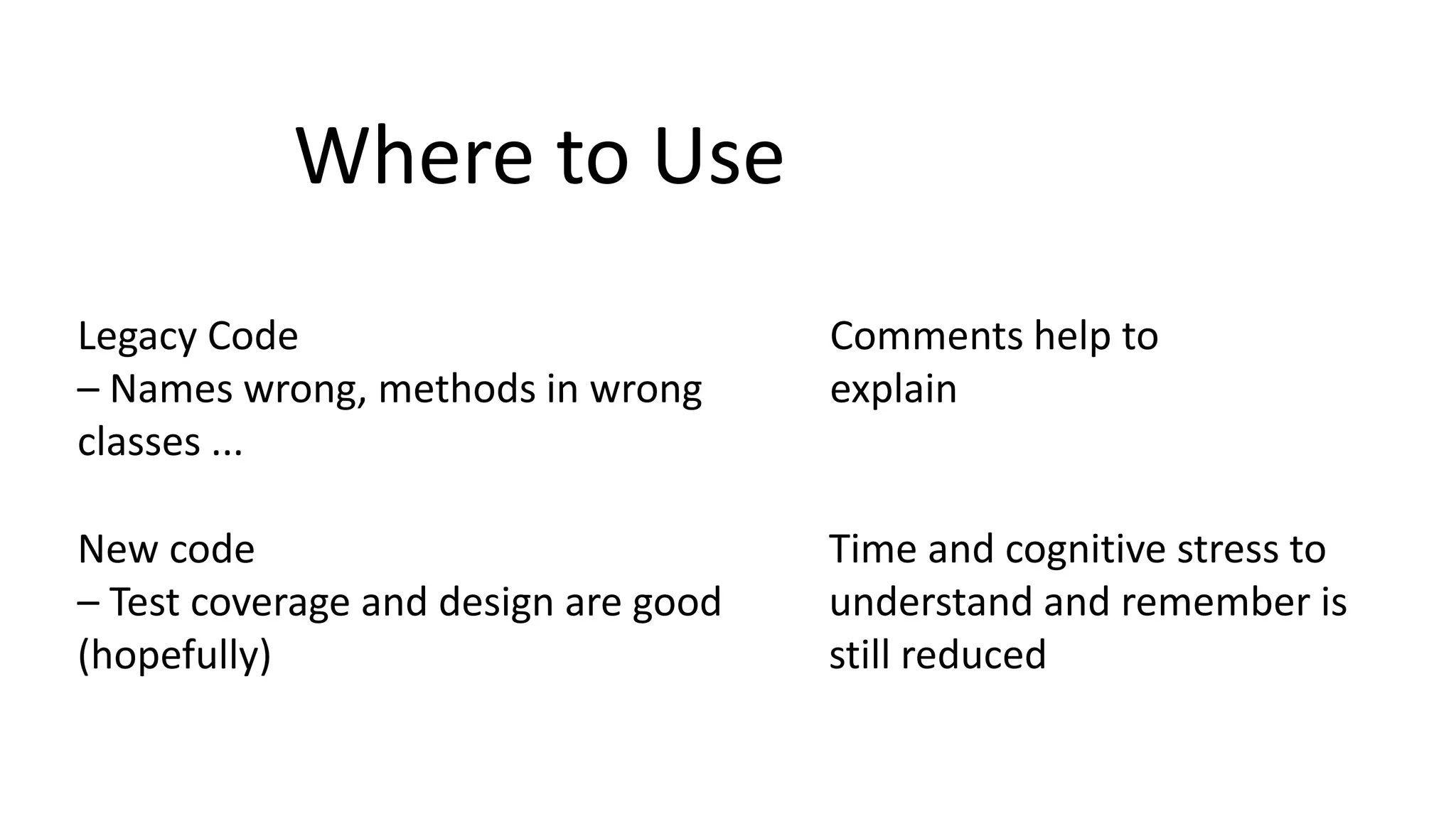

29. Where to Use
Legacy Code
– Names wrong, methods in wrong
classes ...
Comments help to
explain
New code
– Test coverage and design are good
(hopefully)
Time and cognitive stress to
understand and remember is
still reduced

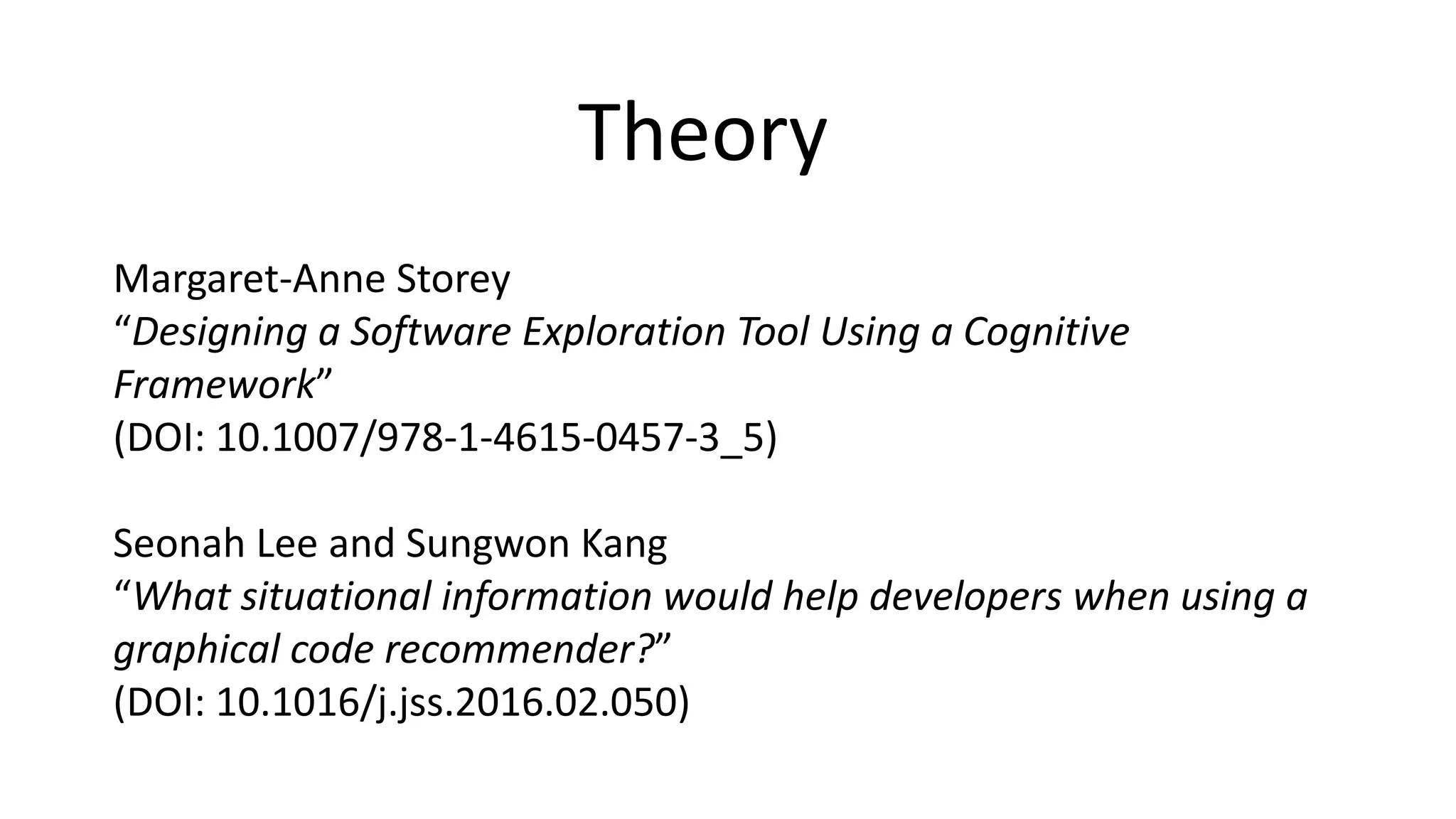

30. Theory
Margaret-Anne Storey
“Designing a Software Exploration Tool Using a Cognitive
Framework”
(DOI: 10.1007/978-1-4615-0457-3_5)
Seonah Lee and Sungwon Kang
“What situational information would help developers when using a
graphical code recommender?”
(DOI: 10.1016/j.jss.2016.02.050)

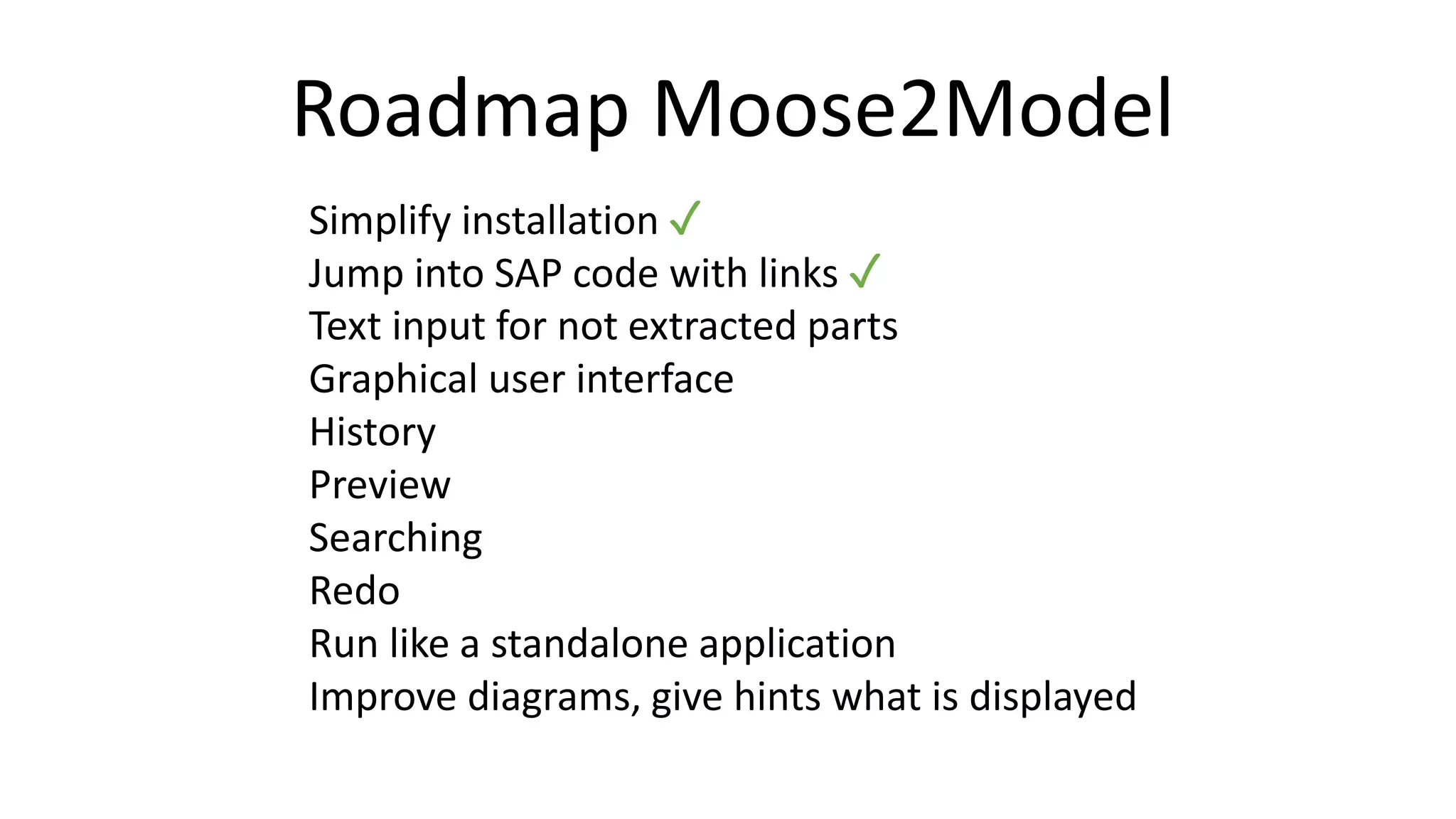

31. Roadmap Moose2Model
Simplify installation ✓
Jump into SAP code with links ✓
Text input for not extracted parts
Graphical user interface
History
Preview
Searching
Redo
Run like a standalone application
Improve diagrams, give hints what is displayed

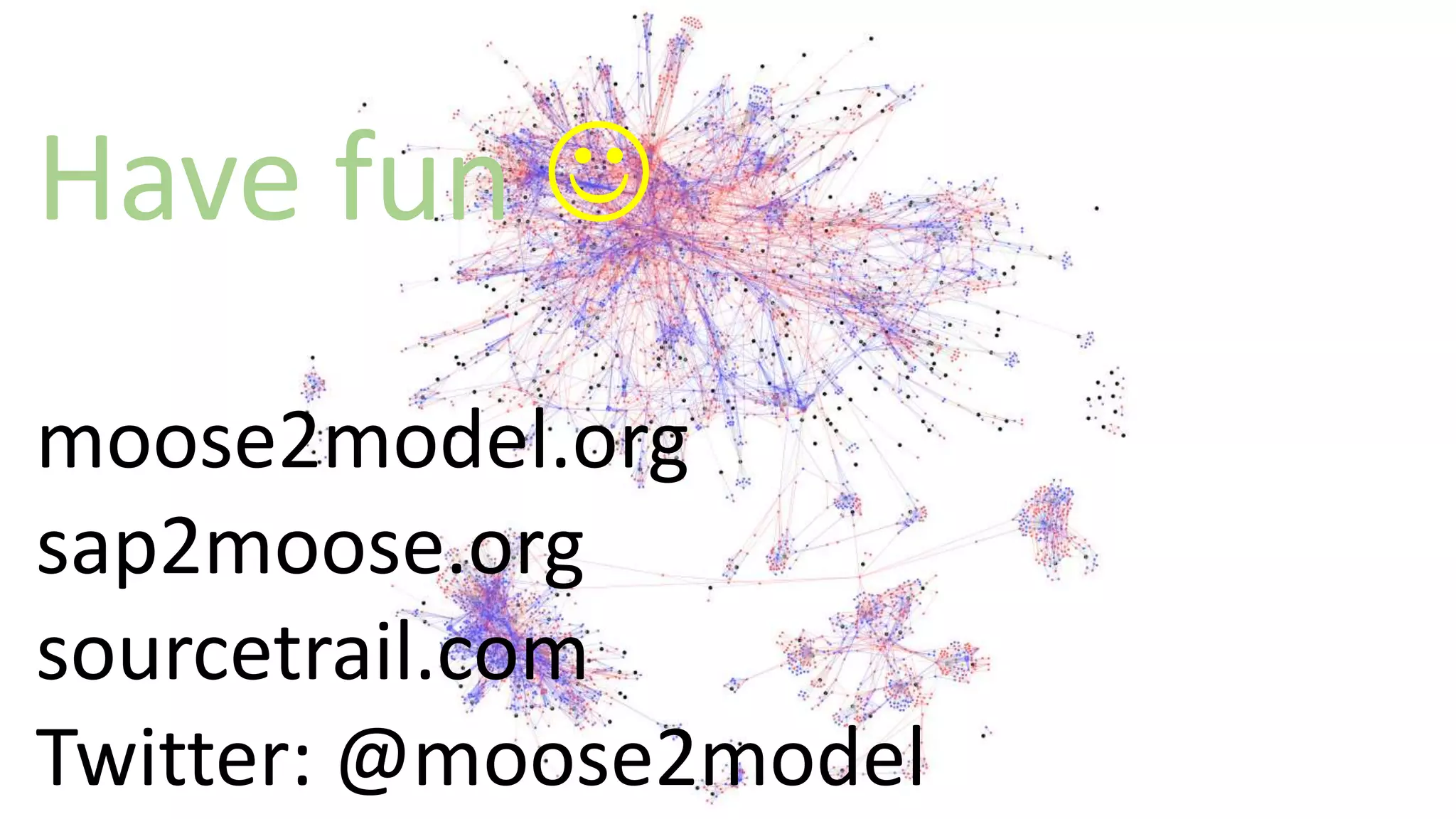

32. Have fun 
moose2model.org
sap2moose.org
sourcetrail.com
Twitter: @moose2model

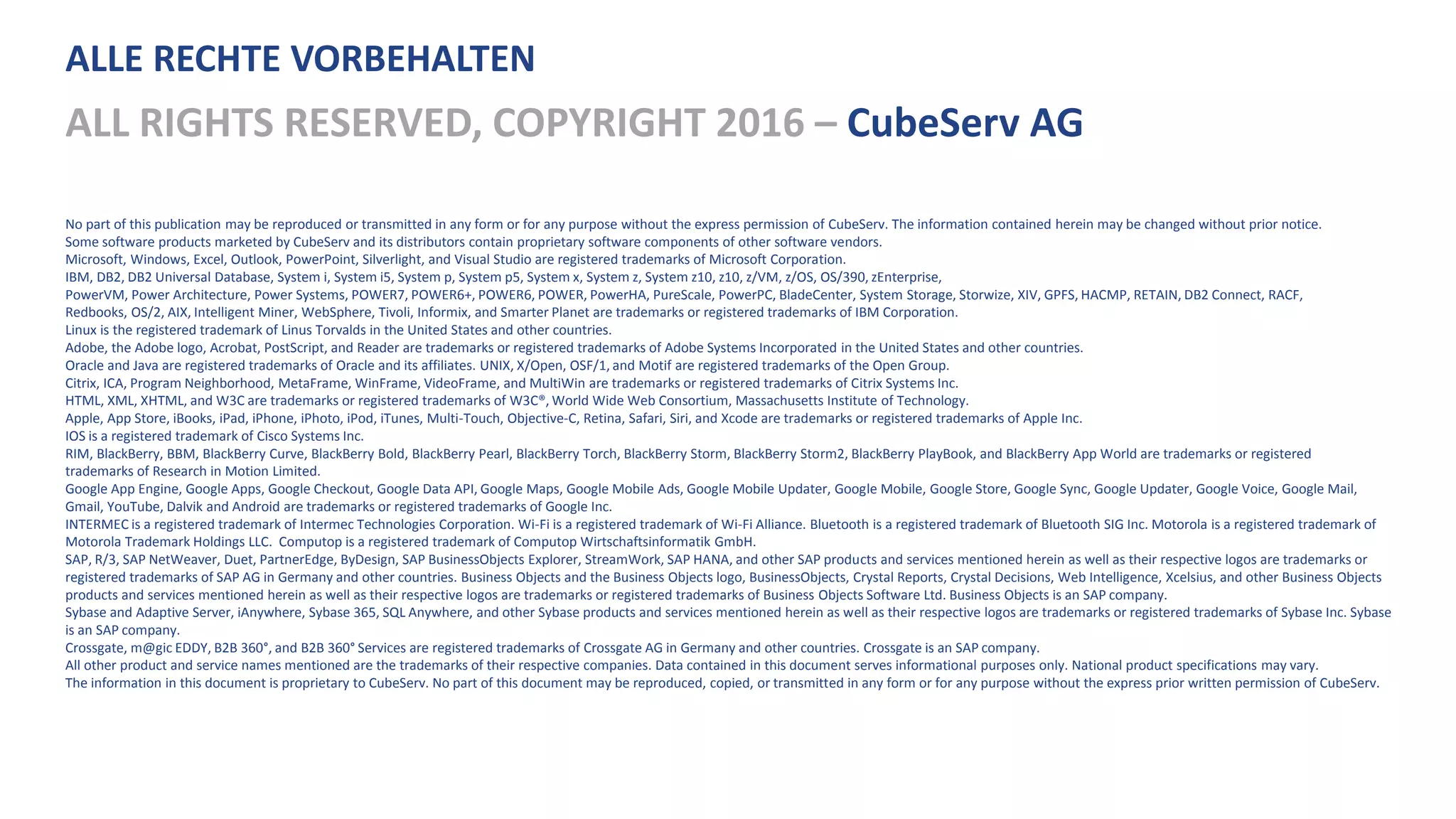

33. No part of this publication may be reproduced or transmitted in any form or for any purpose without the express permission of CubeServ. The information contained herein may be changed without prior notice.
