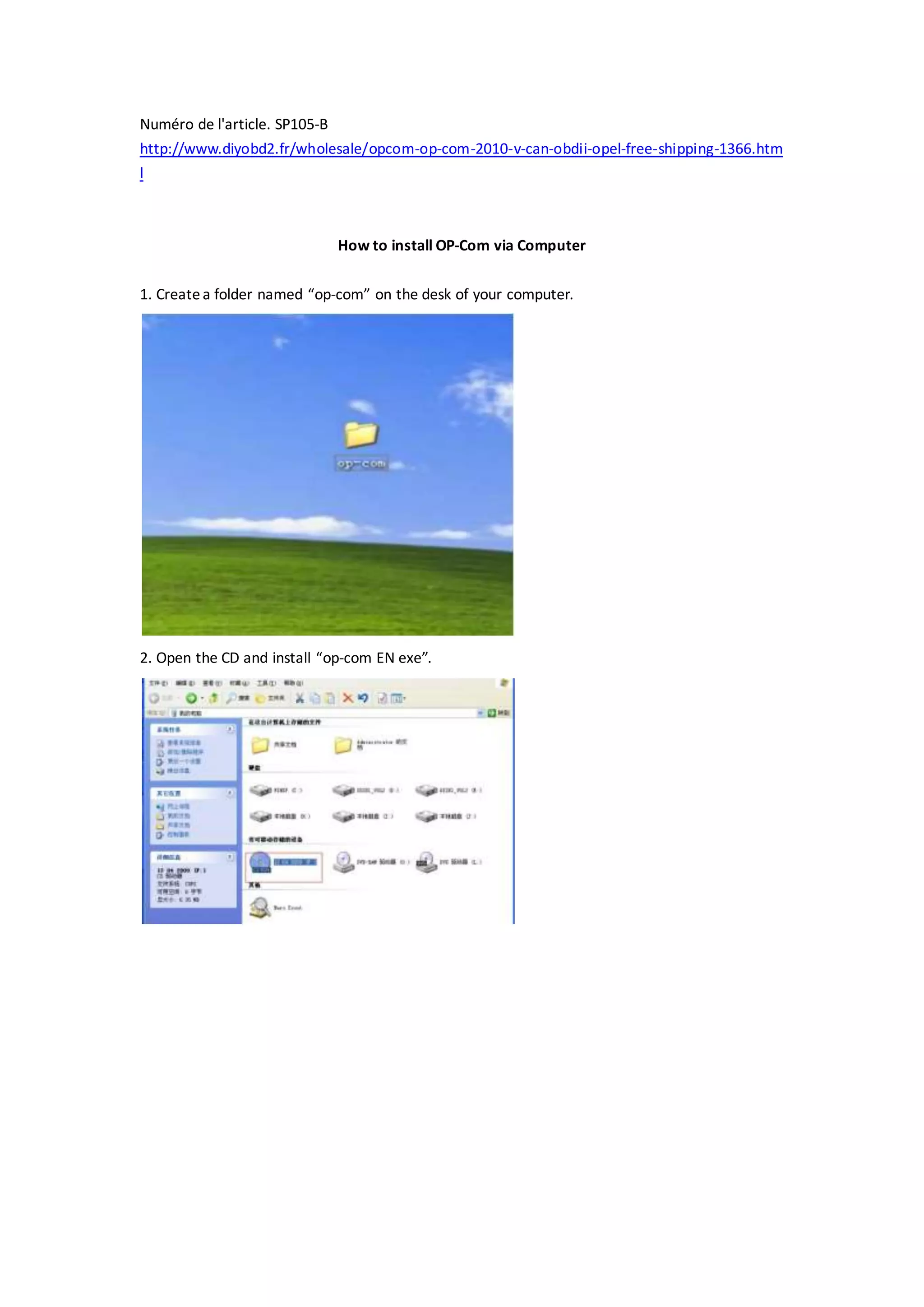

How to install OP-Com via Computer
1. Create a folder named “op-com” on the desk of your computer.
2. Open the CD and install “op-com EN exe”.

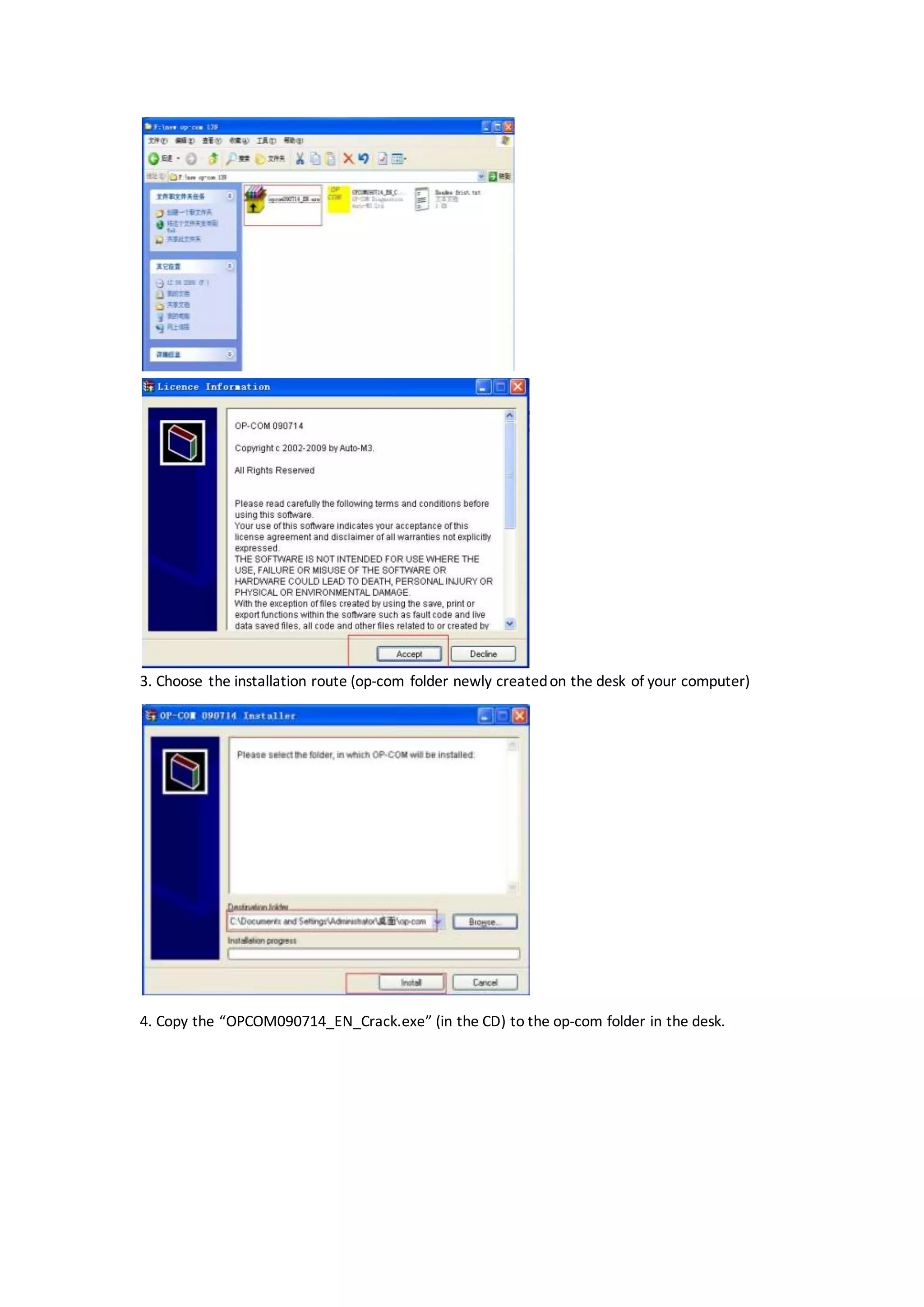

2. 3. Choose the installation route (op-com folder newly created on the desk of your computer)
4. Copy the “OPCOM090714_EN_Crack.exe” (in the CD) to the op-com folder in the desk.

3. 5. Connect the op com diagnostic interface with your computer (the computer will tell you to
install the drive of op-com, and then choose to install it from the list or the designated place).
And Click “Next step”. (Shown by red marks at picture)
6. Choose the install route of driver installation.

5. 7. Driver installation ends, check the place of op-com driver (my computer > management >
device management > universal serial cable). You can see the op-com driver below (if not, it
means that you cannot install it right)

6. 8. Open the op-com (in the desk), then open “OPCOM090714_EN_Crack.exe” to activate the
software.
9. Select “Settings”, and then click “Test Interface”.

7. 10. If you can run the procedure smoothly, activation code (save config) will be given to you, next
to click “close”.
