Jonathan Moore's portfolio contains a variety of planning and design projects from his academic and professional experience. It includes a master plan for a high-density development in Seoul, South Korea, precedent studies of new towns, revitalization plans for neighborhoods, aviation facility design, GIS analysis of Detroit, and personal design of a waterfront cottage. The portfolio demonstrates experience with urban planning, architecture, engineering, and data analysis across residential, commercial and infrastructure projects at various scales.

1. PORTFOLIO
Jonathan Moore

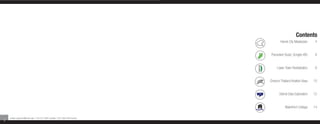

2. Contents
Hanok City Masterplan 4
Precedent Study: Songdo IBD 6
Lower Town Revitalization 8
Chevron Thailand Aviation Base 10
Detroit Data Exploration 12
Waterfront Cottage 14
contact: jadamsm@umich.edu / 734.272.3804 (mobile) / 207.548.2458 (home)
2

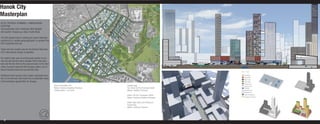

3. Hanok City
Masterplan
UP 631 PHYSICAL PLANNING + URBAN DESIGN
CAPSTONE
Final publication work; Pedestrian Mall highlight
Site location: Yongsan-gu, Seoul, South Korea
100,000 people living in working per square-kilometer;
provisions for a rapidly aging population; no greater than
50% residential land use
These were the contest rules for the Vertical Cities Asia
2012 International Design Competition.
Our studio’s plan uses an arching park system to con-
nect the site with the future Yongsan Park to the site’s
east and the Han River to the sout and west. At the site’s
center, the park intersects with Yongsan station, one of
Seoul’s busiest transit and commercial hubs.
key - axo n
Additional transit systems and a highly-calculated provi- Residential
Commercial
sion of services also help make this a sustainable nexus High School
of live/work/play opportunities for all ages. Green Roof
Rooftop Open Space
Hanok City Illustrative Plan Opposite Page: Ground Level Public Space
Medium: Sketchup, Kerkythea, Photoshop Top: Hanok City Parc Promenade Section Developer
Jonathan Moore + Erin Guido Medium: Sketchup, Photoshop Mandated Dedication
Negotiated Public Space
Bottom Left: Parc Promenade in Winter Under Construction
Medium: Sketchup, Kerkythea, Photoshop Underground Parking
Bottom Right: Block Level Phasing and
Programming.
Medium: Sketchup, Photoshop
4

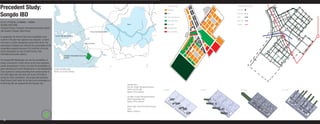

4. Precedent Study: LAND USE LEGEND
Residential
TRANSPORTATION LEGEND
Bus Stop
Songdo IBD Office
Public Use/Institutional
Bike Path
Road
Public Green Space Water Taxi
UP 631 PHYSICAL PLANNING + URBAN
Seoul Golf Course Subway
DESIGN CAPSTONE
Precedent Study of Songdo International Business District Residential/Retail
Site location: Songdo, South Korea Gimpo International Airport Commercial/Office
Incheon International Airport
In preparation for Vertical Cities Asia competition each
student in the planning capstone was assigned a recent
new town or similar development around the world. The Port of Incheon
exploration of Songdo was critical to the groundwork of the
competition proposal because of its proximity to the site
and its designation as one of South Korea’s new
international business districts.
Songdo International Business
District
The Songdo IBD Masterplan not only the possibilities of
foreign investment in South Korea as the most expensive
private development in history, but also the possibilities of
green planning and smart infrastructure in new devlopment. Songdo Orientation Map
Cisco Systems is wiring everything from private homes to Medium: Esri ArcGIS, Illustrator
the traffic lights with new tech and much of the IBD is
aiming for LEED certification. This project demonstrates
South Korea’s bold vision for its future and encouraged us
to think big with our proposal for the Yongsan site. Opposite Page:
Top Left: Songdo International Business
District Land Use Map 6.20 9am 6.20 3pm 12.21 9am 12.21 3pm
Medium: Rhino, Illustrator
Top Right: Songdo International Business
District Transportation Map
Medium: Rhino, Illustrator
Bottom Right: Central Park District Shadow
Study
Medium: Sketchup
6

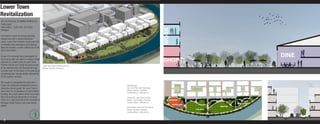

5. Lower Town
Revitalization
UP 518 PHYSICAL PLANNING WORKSHOP
Final project
Site location: Lower town, Ann Arbor,
WORK
Michigan
Ann Arbor is known for being a bustling
college town with a vibrant downtown
scene. Lower Town however is one area that
continually vexes developers and planners
alike and remains a under-utilized part of the
city’s urban fabric.
As part of a semester-long investigation of DINE
the area we split into teams to explore design
solutions for smaller parts of Lower Town. SHOP
Another student and myself focused on part Lower Town Riverfront Blocks and Park
of the riverfront that runs through the area. Medium: Sketchup, Photoshop
Curently much of the space is occupied by an
uninspiring park, storage facility and parking
lot for a power company.
We sought to reinvigorate the area with a
mixed-use residential development and an Opposite Page:
interactive learning-park. As Lower Town is Top: Lower Town New Streetscape
also known for an abudance of drab student Medium: Illustrator, Photoshop
Jonathan Moore + Michelle Lam
housing, this would seek to attract more fam-
ilies and working professionals to the area, Bottom Left: Lower Town Park Plan
which is in close proximity to the University of Medium: Hand Drawing, Photoshop playground
Michigan Health System and local Amtrak Jonathan Moore + Michelle Lam pond gardens
learning pool
station. ridge field
Bottom Right: Lower Town Park Square
Medium: Illustrator, Photoshop tree stand
Jonathan Moore + Michelle Lam
8

6. Chevron Thailand
Aviation Base
DYNAMIC ENGINEERING CONSULTANTS
Front-End Engineering Design Report for Additional Works
Site location: Nakorn sri Thammarat, Thailand
As part of the Aviation Consolidation Project, Chevron
requested the design of additional facilities to better
support its operations. The additions included interior work,
such as: new officies, a rennovation of the counter check-in
facilities, new hangar workshops; and new external facilities
such as: a covered walkway, shaded van parking, a new
waiting lounge, a new ramp office, and a shaded smoking
area.
In addition to writing and revising written portions of the
report, I worked with DEC engineers and Fenn architects
(DEC partners) to draft 3d models in Sketchup from 2d
plans.
Chevron Aviation Base
Specifically, I modeled the hangar workshops, waiting medium: sketchup, autocad
lounge, shaded van parking, ramp office, shaded smoking Jonathan Moore + Fenn Designers
area and edited portions of the facade.
Opposite Page:
Top left: Hangar Workshop Perspective
Medium: Sketchup, Photoshop
Top Right: Ramp Office
Medium: Skechup, Photoshop
Bottom (from left to right): Waiting Lounge,
Hangar Workshops, Smoking Shelter,
Ramp Office, Parking Sun Shade Models
Medium: Sketchup
10

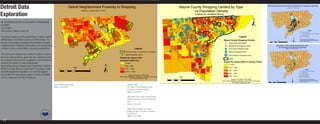

7. Detroit Data Detroit Neighborhood Proximity to Shopping Wayne County Shopping Centers by Type Multi-Family Housing Permits in Proximity to Proposed Light Rail
Created by Jonathan Moore, 4/26/11
Created by Jonathan Moore, 4/26/11
vs Population Density
Exploration Created by Jonathan Moore
UP 406 INTRODUCTION TO GEOGRAPHIC INFORMATION
SYSTEMS
Final Project
Site Location: Wayne County, MI
± Legend
Proposed Light Rail
Multi-Fam Hsing Permits close to Proposed Rail
Detroit Major Roads
This project tasked us with using ArcMap to explore spatial Legend Census Tracts 2000
relationships in the Wayne County and Detroit Areas. The
±
Source: US Census, ESRI Tiger, detroitmi.gov
Wayne County Shopping Centers 4 2
Miles
0 4
(City of Detroit Department of Planning and Development),
NAD_1983_StatePlane_Michigan_South_FIPS_2113_Feet
GCS_North_American_1983
fist part of the project investigated the proximity of Detroit Single-Stand Alone Retail
neighborhoods to shopping opportunities vs the proximity of Neighborhood Shopping Center Education and Cultural Building Permits
in Proximity to Proposed Light Rail
all Wayne County communities to shopping opportunities. Legend Community Shopping Center Created by Jonathan Moore, 4/26/11
Tracts more than 1.5 mi Away from Shopping Regional Shopping Center "
) "
)
"
)
The second part required each student to explore a topic of
"
)
"
)
Detroit Shopping Centers Super-Regional Shopping Center
"
)
"
)
their own interest within a given data set. I wanted to see if
"
)
People per square mile
Detroit
the recorded building permits suggested a concentration of Population 2000/ Area "
)
^^
People Per Square Mile in Census Tracts "
) ^
±
multi-family housing or cultural/educational
"
)
"
0- 4000
"
) ) "
)
^
^
)^
"^
"
)
^^
0- 750.0
"
") )
)" " "
) )
opportunities along a proposed light-rail corridor in Detroit. " "
) " "
) ) "
)
)
4001 - 7500
"
)
"
)
"
) "
) "
)
Miles
"
)
750.1 - 1600 "
) "
)
While the limited data and small scale of my project make
"
)
""
)) "
)
4 2 0 4 7501 - 10000 ^
" "" "
) )) ) Legend
1601 - 2400
"
) ""
))
"
)
concrete projections impossible, the result did suggest
"
) "
) ^ Museum/Library/Art Gallery Permits
10010 - 17020 ^
"
) School Permits
2401 - 3350
that the light-rail route would support a variety of families, Source: US Census, ESRI Tiger
Proposed Light Rail
Detroit Major Roads
NAD_1983_StatePlane_Michigan_South_FIPS_2113_Feet Miles 3351 - 5700
schools, museums and other institutions. Census Tracts 2000
±
GCS_North_American_1983 6 3 0 6
Source: US Census, ESRI Tiger Source: US Census, ESRI Tiger, detroitmi.gov
(City of Detroit Department of Planning and Development),
NAD_1983_StatePlane_Michigan_South_FIPS_2113_Feet 4 2
Miles
0 4
NAD_1983_StatePlane_Michigan_South_FIPS_2113_Feet
GCS_North_American_1983
GCS_North_American_1983
Detroit Shopping Center Map Opposite Page:
Medium: Esri ArcGIS Left: Wayne County Shopping Centers
Compared to Population Density
Medium: Esri ArcGIS
Upper Right: Multi-Family Housing Building
Permits in Proximity to Proposed Light-Rail
Line
Medium: Esri ArcGIS
Middle Right: Education and Cultural
Building Permits in Proximity to Proposed
Light-Rail Line
Medium: Esri ArcGIS
12

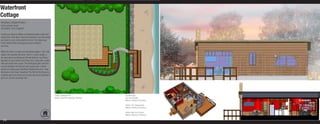

8. Waterfront
Cottage
PERSONAL DESIGN PROJECT
future getaway house
site location: to be imagined...
Growing up along the Maine and Massachusetts coasts and
visiting their many lakes I have long desired to one day design
and build my own small waterfront home. This desire was
further stoked while landscaping during undergrad
summers.
While this effort is modest and decidedly amateur, I feel I still
capture the essential elements I want in a future design: a
yin-yang layout combining an intimate bedroom and library
opposite an open kitchen and living room, along with a water
view and ample deck space. The landscaping also uses thie
contrast between intimate and open spaces with a flower
garden and sitting area offsetting a flexible lawn area. I used
dimensions from Sarah Susanka’s The Not So Big House as
a starting point and chose lots of wood and stone materials to
give it an old and naturalistic feel.
Cottage Landscape Plan Opposite Page:
Medium: AutoCAD, Photoshop, Sketchup Top: Front Elevation
Medium: Sketchup, Photoshop
Bottom Left: Cottage Interior
Medium: Sketchup, Photoshop
Bottom Right: Front Section
Medium: Sketchup, Photoshop
14
