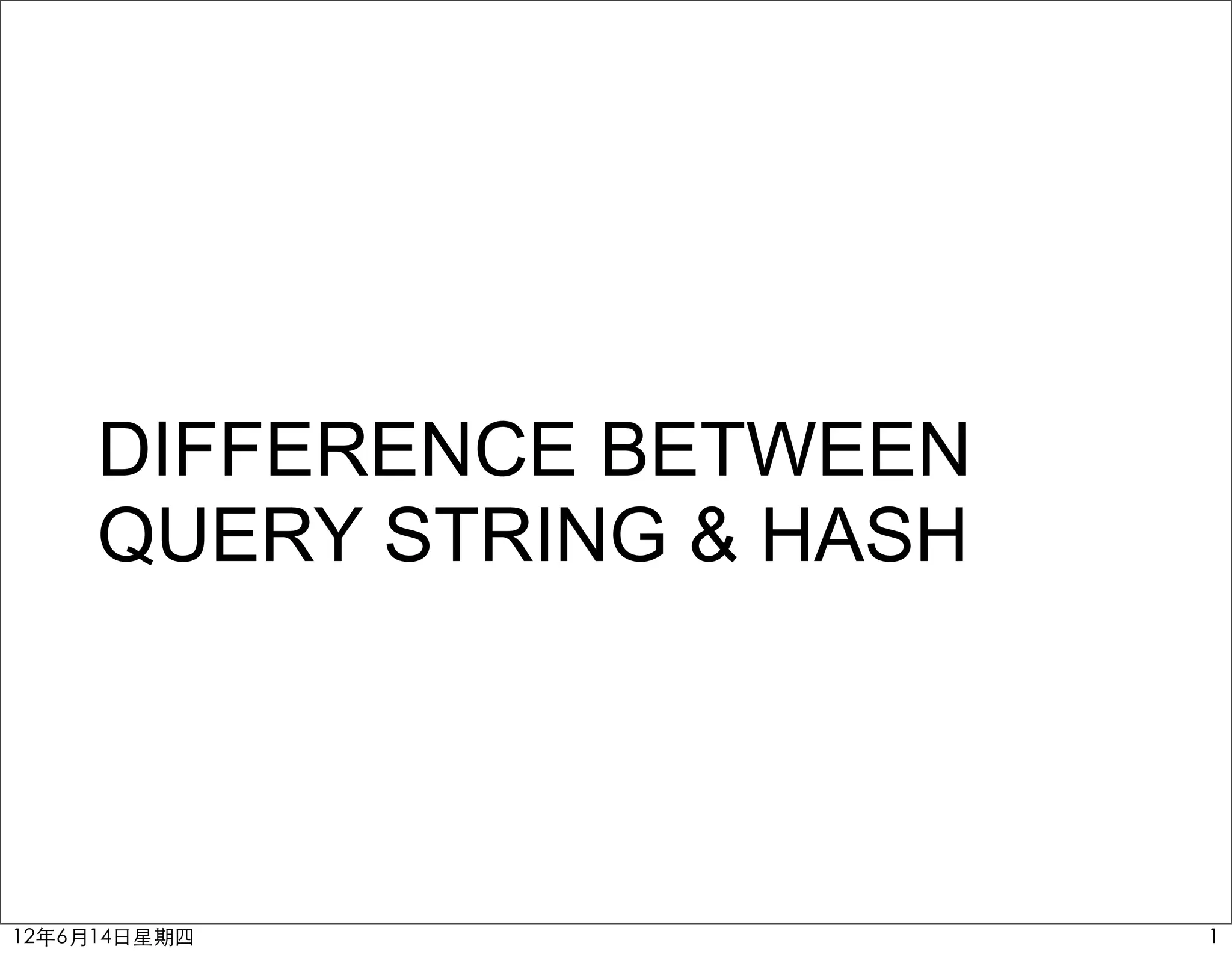

DIFFERENCE BETWEEN
     QUERY STRING & HASH




12年6月14日星期四                1

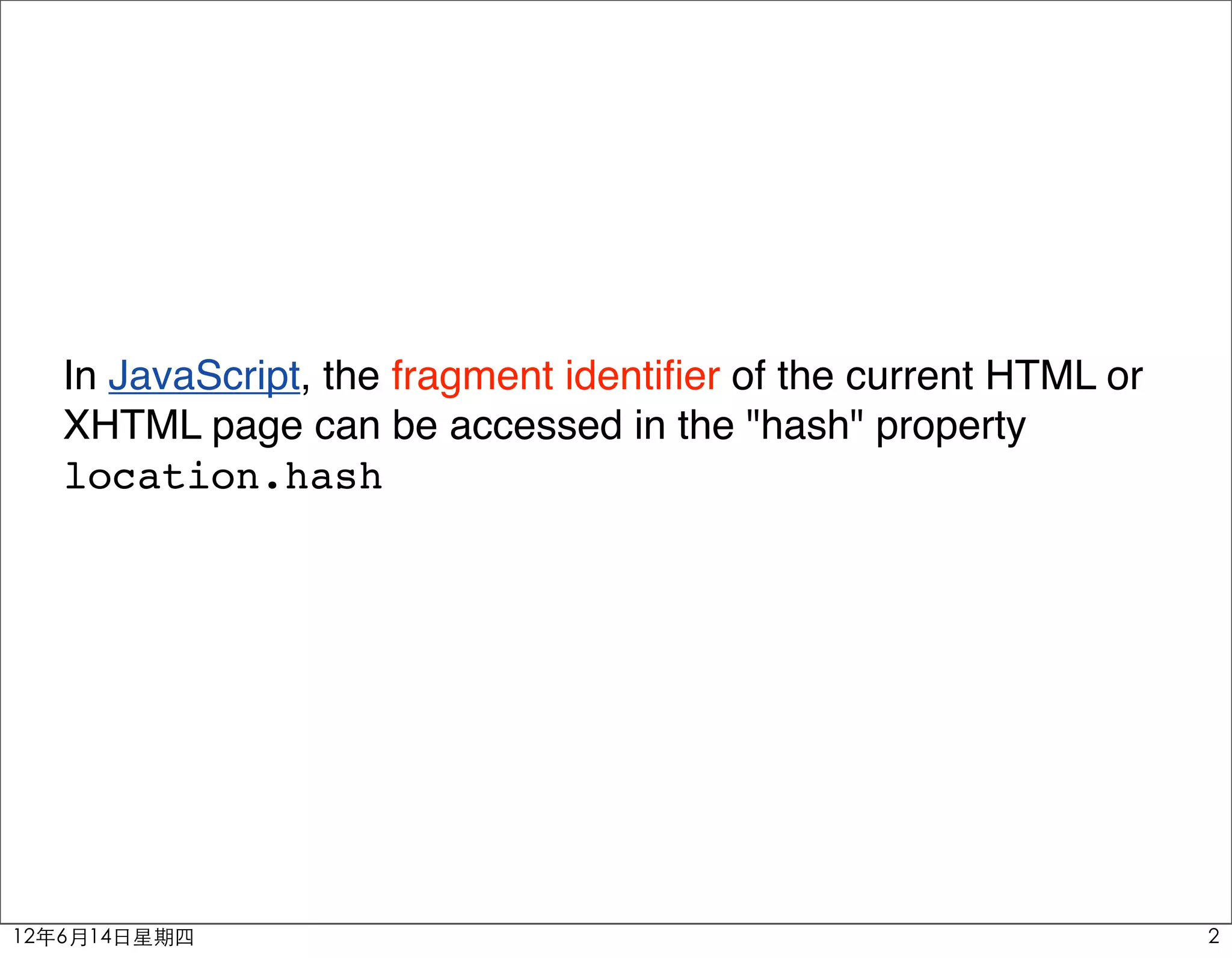

In JavaScript, the fragment identifier of the current HTML or
   XHTML page can be accessed in the "hash" property
   location.hash




12年6月14日星期四                                                       2
Common




12年6月14日星期四   3

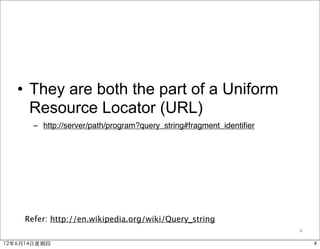

• They are both the part of a Uniform
     Resource Locator (URL)
       – http://server/path/program?query_string#fragment_identifier




     Refer: http://en.wikipedia.org/wiki/Query_string
                                                                      4

12年6月14日星期四                                                               4
Difference




12年6月14日星期四     5
delimiter [difference]




12年6月14日星期四                 6

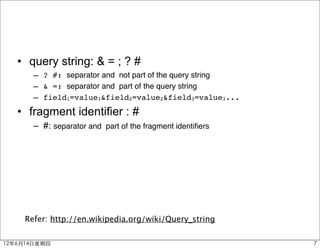

• query string: & = ; ? #
       – ? #: separator and not part of the query string
       – & =: separator and part of the query string
       – field1=value1&field2=value2&field3=value3...
   • fragment identifier : #
       – #: separator and part of the fragment identifiers




     Refer: http://en.wikipedia.org/wiki/Query_string

12年6月14日星期四                                                 7
url encoding[difference]




12年6月14日星期四                   8

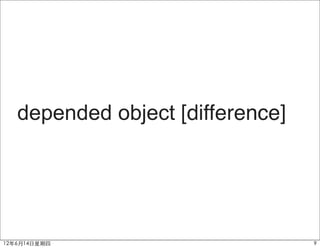

depended object [difference]




12年6月14日星期四                       9

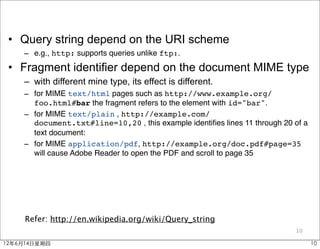

• Query string depend on the URI scheme
    – e.g., http: supports queries unlike ftp:.
 • Fragment identifier depend on the document MIME type
    – with different mine type, its effect is different.
    – for MIME text/html pages such as http://www.example.org/
      foo.html#bar the fragment refers to the element with id="bar".
    – for MIME text/plain , http://example.com/
      document.txt#line=10,20 , this example identifies lines 11 through 20 of a
      text document:
    – for MIME application/pdf, http://example.org/doc.pdf#page=35
      will cause Adobe Reader to open the PDF and scroll to page 35




     Refer: http://en.wikipedia.org/wiki/Query_string
                                                                           10

12年6月14日星期四                                                                       10

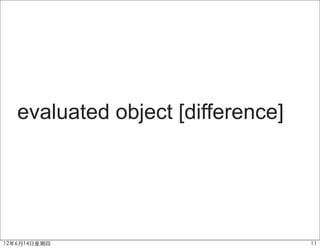

evaluated object [difference]




12年6月14日星期四                        11

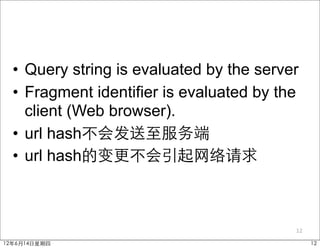

• Query string is evaluated by the server
  • Fragment identifier is evaluated by the
    client (Web browser).
  • url hash不会发送至服务端
  • url hash的变更不会引起网络请求



                                          12

12年6月14日星期四                                    12

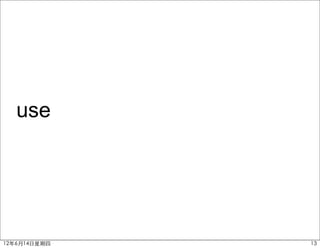

use




12年6月14日星期四   13

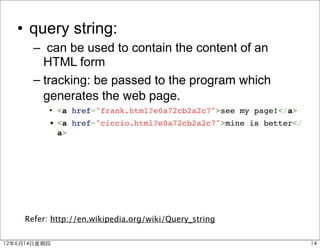

• query string:
       – can be used to contain the content of an
         HTML form
       – tracking: be passed to the program which
         generates the web page.
           • <a href="frank.html?e0a72cb2a2c7">see my page!</a>
           • <a href="ciccio.html?e0a72cb2a2c7">mine is better</
             a>




     Refer: http://en.wikipedia.org/wiki/Query_string

12年6月14日星期四                                                        14

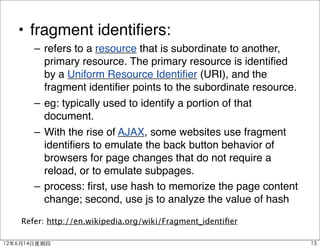

• fragment identifiers:
       – refers to a resource that is subordinate to another,
         primary resource. The primary resource is identified
         by a Uniform Resource Identifier (URI), and the
         fragment identifier points to the subordinate resource.
       – eg: typically used to identify a portion of that
         document.
       – With the rise of AJAX, some websites use fragment
         identifiers to emulate the back button behavior of
         browsers for page changes that do not require a
         reload, or to emulate subpages.
       – process: first, use hash to memorize the page content
         change; second, use js to analyze the value of hash

    Refer: http://en.wikipedia.org/wiki/Fragment_identifier

12年6月14日星期四                                                       15

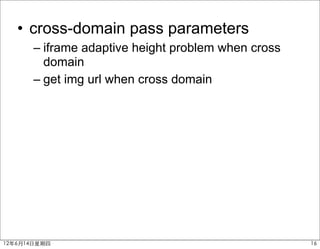

• cross-domain pass parameters
       – iframe adaptive height problem when cross
         domain
       – get img url when cross domain




12年6月14日星期四                                          16

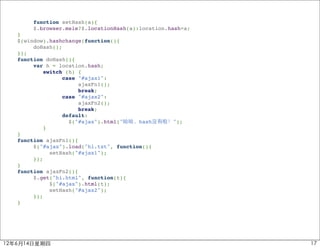

function setHash(a){
   !    $.browser.msie?$.locationHash(a):location.hash=a;
   }
   $(window).hashchange(function(){
   !    doHash();
   });
   function doHash(){
   !    var h = location.hash;
            switch (h) {
                  case "#ajax1":
                       ajaxFn1();
                       break;
                  case "#ajax2":
                       ajaxFn2();
                       break;
                  default:
                    $("#ajax").html("哈哈,hash没有啦!");
            }
   }
   function ajaxFn1(){
   !    $("#ajax").load("hi.txt", function(){
   !    !     setHash("#ajax1");
   !    });
   }
   function ajaxFn2(){
   !    $.get("hi.html", function(t){
   !    !     $("#ajax").html(t);
   !    !     setHash("#ajax2");
   !    });
   }




12年6月14日星期四                                                 17

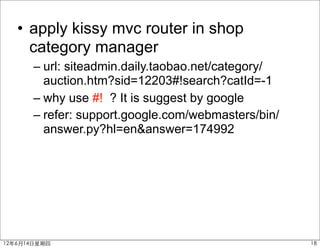

• apply kissy mvc router in shop
     category manager
       – url: siteadmin.daily.taobao.net/category/
         auction.htm?sid=12203#!search?catId=-1
       – why use #! ? It is suggest by google
       – refer: support.google.com/webmasters/bin/
         answer.py?hl=en&answer=174992




12年6月14日星期四                                          18

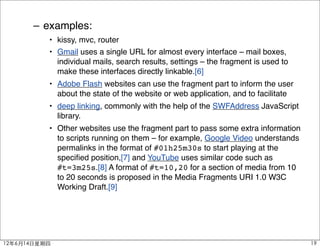

– examples:
          • kissy, mvc, router
          • Gmail uses a single URL for almost every interface – mail boxes,
            individual mails, search results, settings – the fragment is used to
            make these interfaces directly linkable.[6]
          • Adobe Flash websites can use the fragment part to inform the user
            about the state of the website or web application, and to facilitate
          • deep linking, commonly with the help of the SWFAddress JavaScript
            library.
          • Other websites use the fragment part to pass some extra information
            to scripts running on them – for example, Google Video understands
            permalinks in the format of #01h25m30s to start playing at the
            specified position,[7] and YouTube uses similar code such as
            #t=3m25s.[8] A format of #t=10,20 for a section of media from 10
            to 20 seconds is proposed in the Media Fragments URI 1.0 W3C
            Working Draft.[9]




12年6月14日星期四                                                                        19

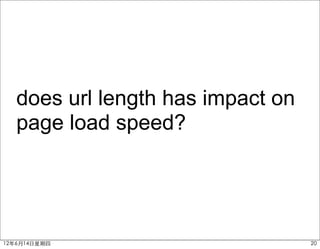

does url length has impact on
   page load speed?




12年6月14日星期四                        20

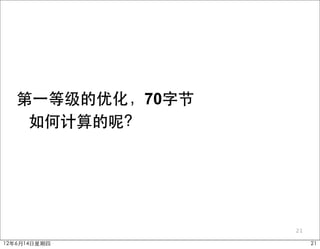

第一等级的优化,70字节
    如何计算的呢?




                  21

12年6月14日星期四            21

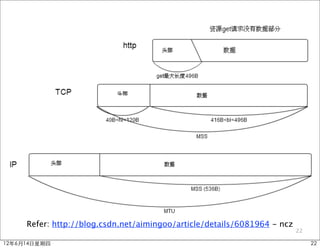

Refer: http://blog.csdn.net/aimingoo/article/details/6081964 - ncz
                                                                          22

12年6月14日星期四                                                                    22

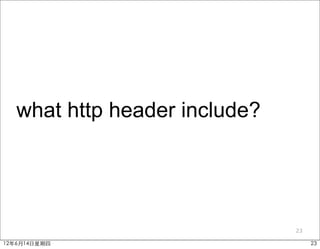

what http header include?




                               23

12年6月14日星期四                         23

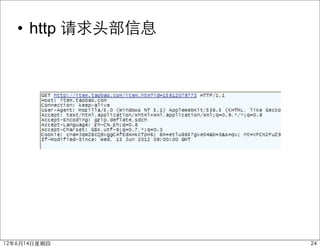

• http 请求头部信息




12年6月14日星期四        24
•    资源文件的get请求http头部的最大长度是496字节
   •    http头部包含两大部分:
         ★ 可缺省的: 占 184字节
         ★ 必须的:占496-184 = 312字节, 包含:get , user-agent, cookie
             ‣ 其中cookie可被缓存,所以相当与长度为0字节
             ‣ user-agent的长度在214字节左右
             ‣ 故剩下get部分的长度 = 496-214-78个字节
   •    这么做的效果:当我们总是从浏览器端发出最小化的HTTP请求时,网络总是可以最快速的将请求提
        交到服务器,无需等待多个包并组合。这在慢速网络,以及存在大量丢包的网络中效果将为极为明
        显。简单地说,如果有人在局域网中用迅雷或BT,那么最小化HTTP请求将会使网页的浏览体验提升
        得相当相当明显。




       Refer: http://blog.csdn.net/aimingoo/article/details/6081964 - ncz

12年6月14日星期四                                                                 25
use




12年6月14日星期四   26
• But with 78 bytes url, what we can do is very little. One
     common url is longer than this length.
   • eg: http://assets.daily.taobao.net/apps/taesite/platinum/
     scripts/common/mods/shop/custom-banner/custom-
     banner.js (109 bytes)
