1. DI Server, DI API, B1WS
Details & Methodologies

2. Abhishek Sur
Product Head, InSync Solutions
Abhishek is the Product Head for InSync’s product :
APPSeConnect. an integration platform connecting
Ecommerce and ERP. He is also a Microsoft MVP in
Client App Dev since 2011, C#, WPF and Azure
Insiders and an author of a number of books. He is a
renowned public speaker and technology buff. He
holds a Masters degree in Computers along with
various other certificates.
Twitter : @abhi2434
Email : abhishek.s@insync.co.in
Presented by

3. Organized by
A Product Company making eCommerce
Businesses more efficient through their
product - “APPSeCONNECT”, which
integrates E-Commerce stores with
back-office ERP Systems.

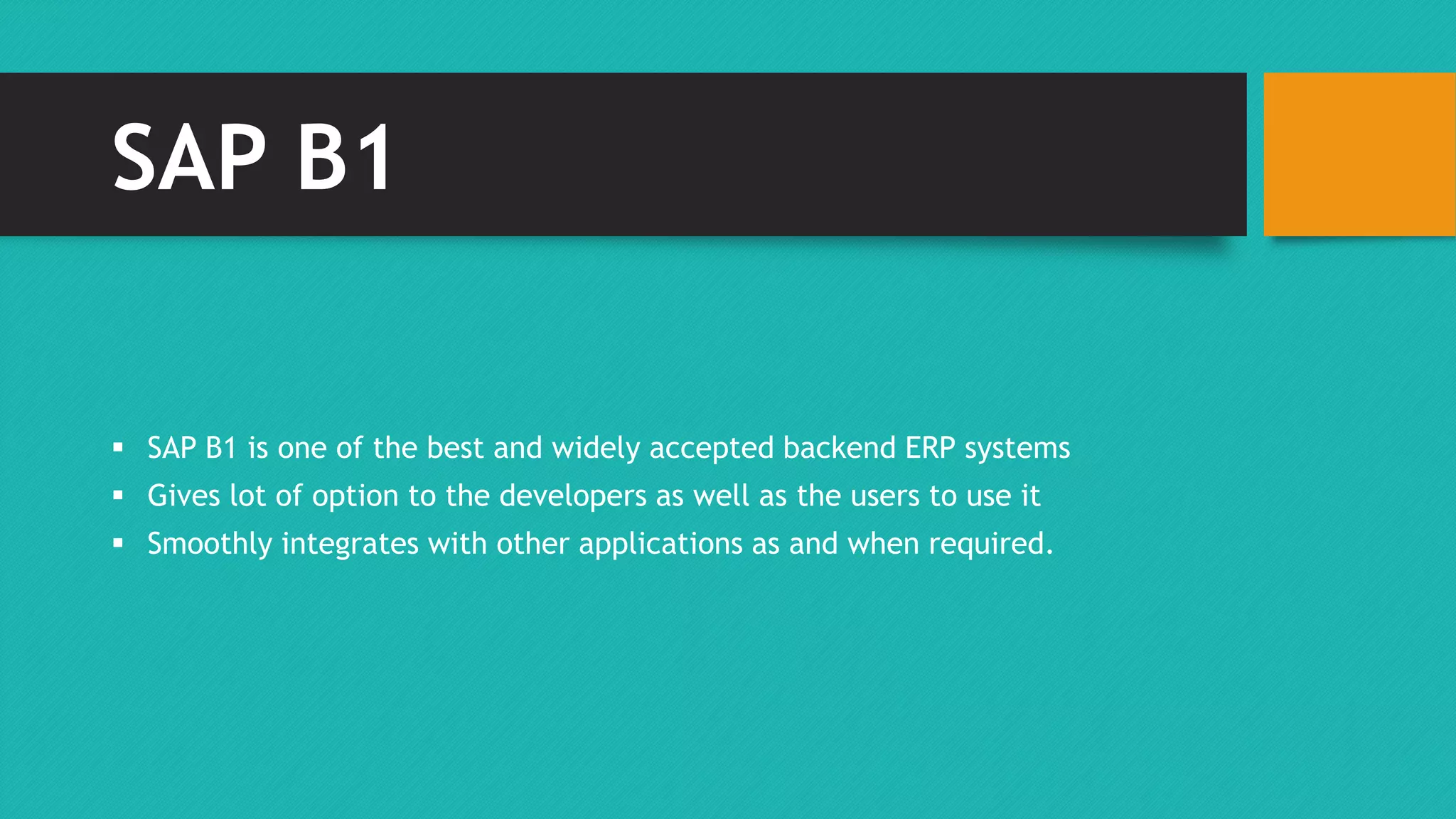

4. SAP B1
 SAP B1 is one of the best and widely accepted backend ERP systems
 Gives lot of option to the developers as well as the users to use it
 Smoothly integrates with other applications as and when required.

5. Third Party Systems Integration with
SAP Business One
Different techniques through which Third Party
Systems Integration with SAP Business One
usually happens.

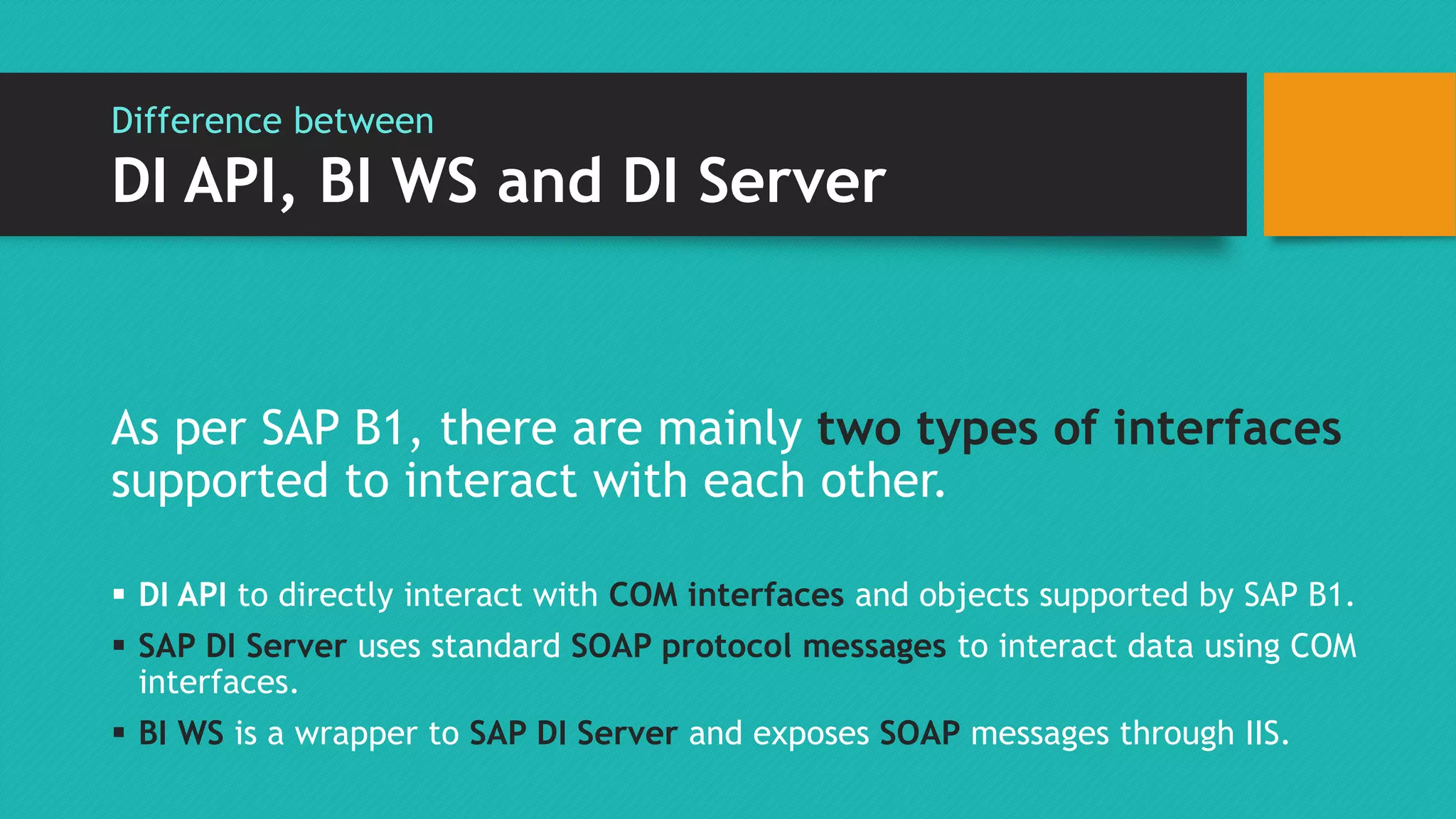

6. Difference between
DI API, BI WS and DI Server
As per SAP B1, there are mainly two types of interfaces
supported to interact with each other.
 DI API to directly interact with COM interfaces and objects supported by SAP B1.
 SAP DI Server uses standard SOAP protocol messages to interact data using COM
interfaces.
 BI WS is a wrapper to SAP DI Server and exposes SOAP messages through IIS.

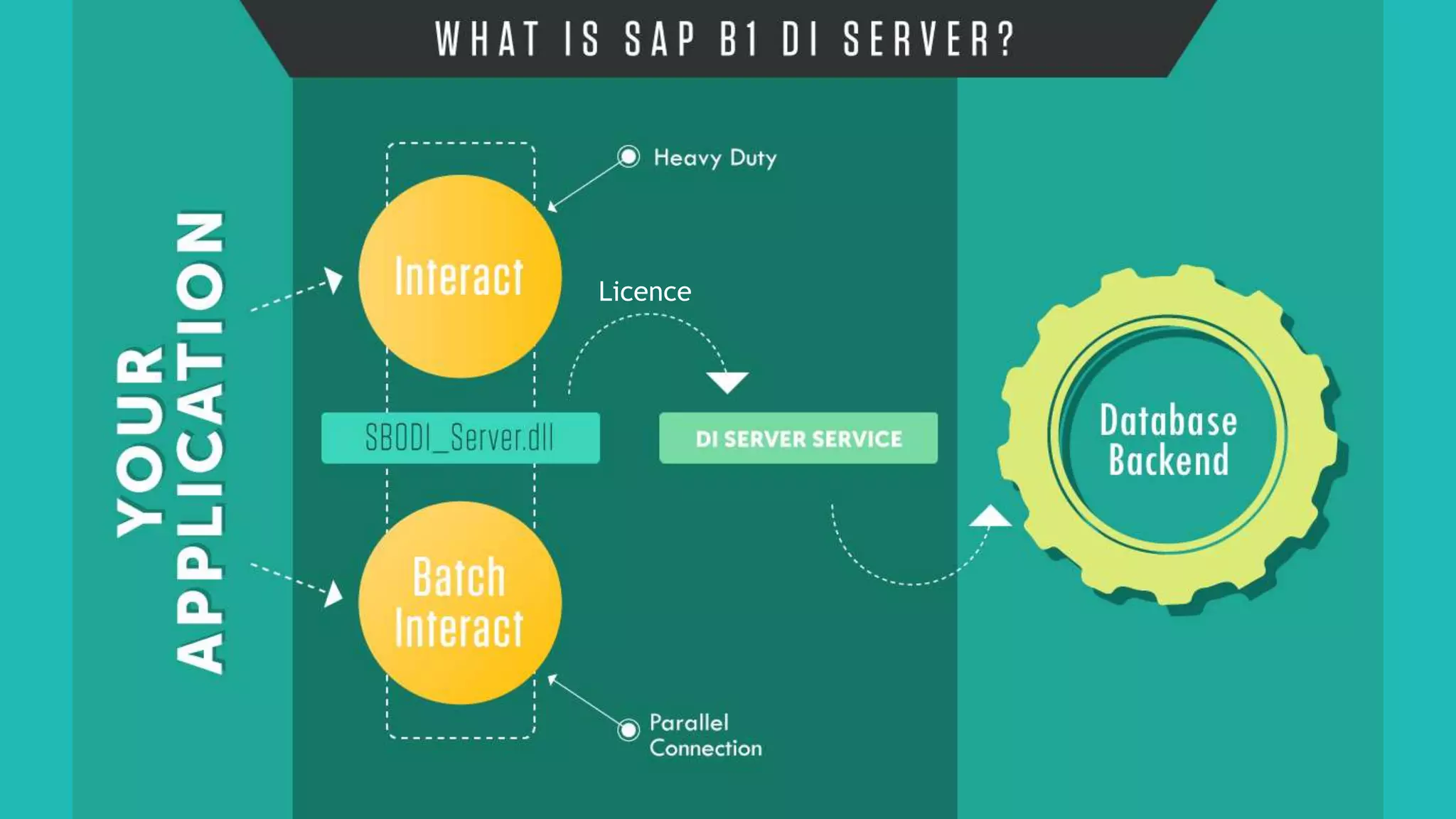

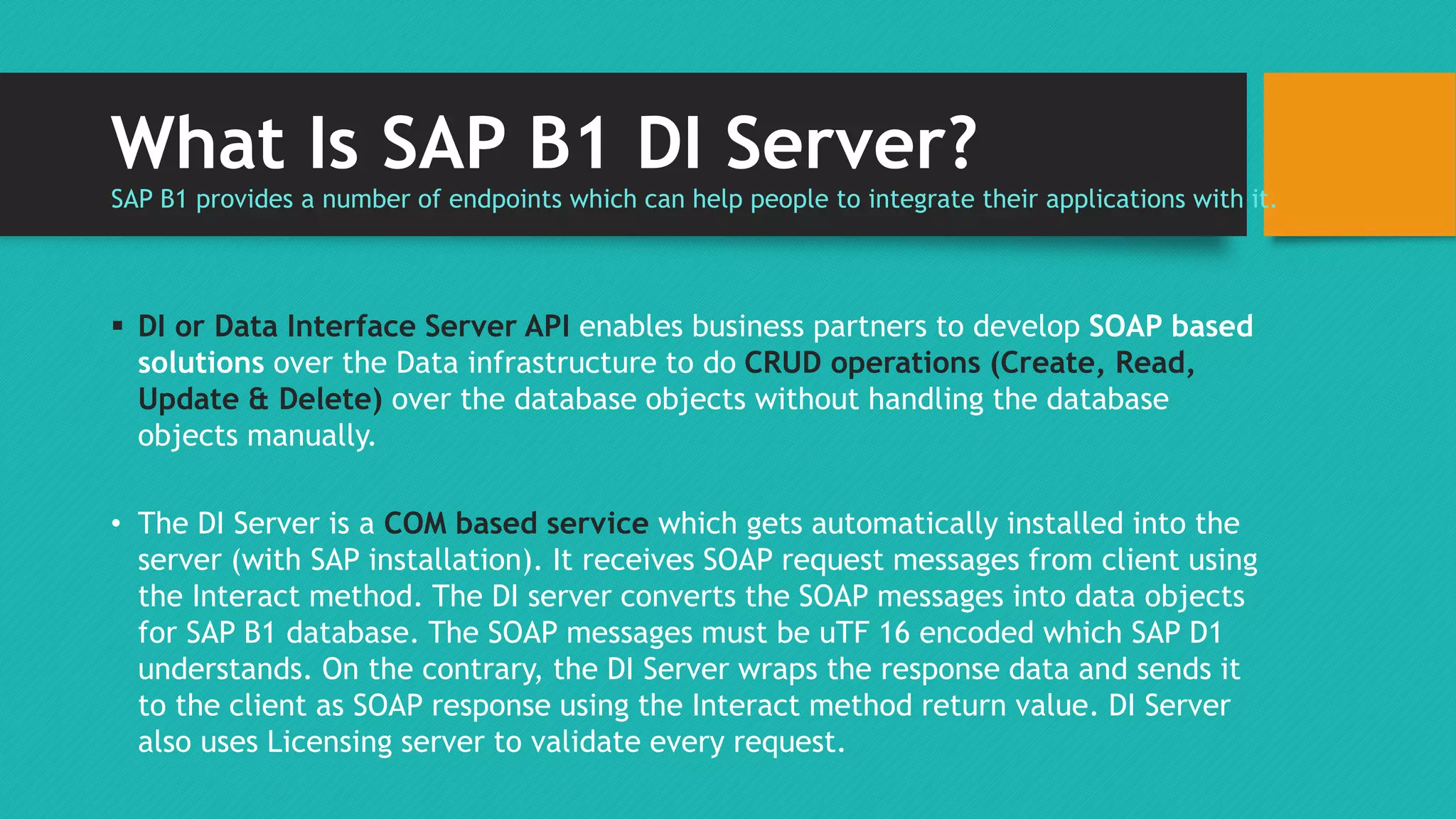

7. What Is SAP B1 DI Server?
SAP B1 provides a number of endpoints which can help people to integrate their applications with it.
 DI or Data Interface Server API enables business partners to develop SOAP based
solutions over the Data infrastructure to do CRUD operations (Create, Read,
Update & Delete) over the database objects without handling the database
objects manually.
• The DI Server is a COM based service which gets automatically installed into the
server (with SAP installation). It receives SOAP request messages from client using
the Interact method. The DI server converts the SOAP messages into data objects
for SAP B1 database. The SOAP messages must be uTF 16 encoded which SAP D1
understands. On the contrary, the DI Server wraps the response data and sends it
to the client as SOAP response using the Interact method return value. DI Server
also uses Licensing server to validate every request.

8. Licence

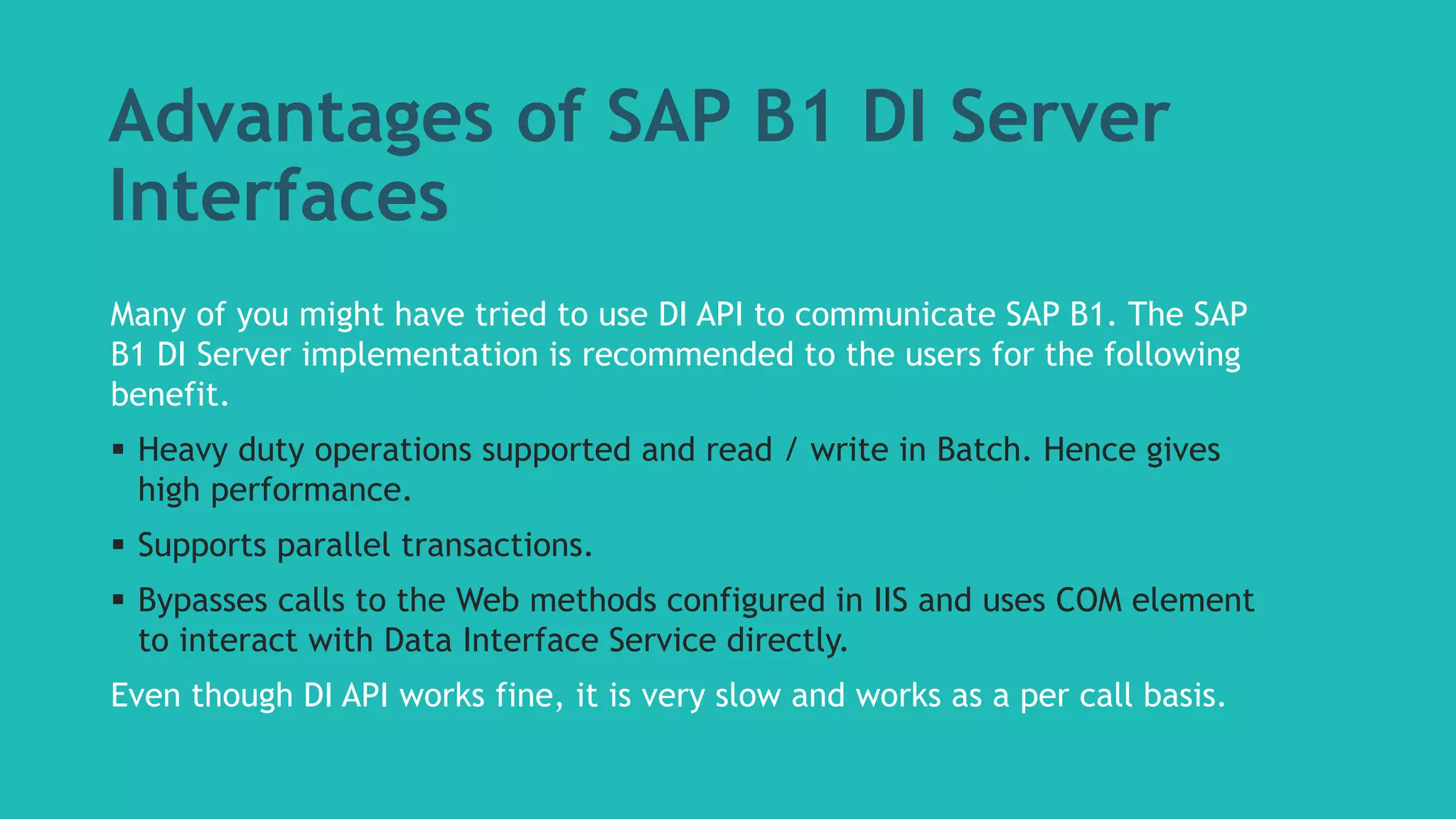

9. Advantages of SAP B1 DI Server
Interfaces
Many of you might have tried to use DI API to communicate SAP B1. The SAP
B1 DI Server implementation is recommended to the users for the following
benefit.
 Heavy duty operations supported and read / write in Batch. Hence gives
high performance.
 Supports parallel transactions.
 Bypasses calls to the Web methods configured in IIS and uses COM element
to interact with Data Interface Service directly.
Even though DI API works fine, it is very slow and works as a per call basis.

10. DEMO

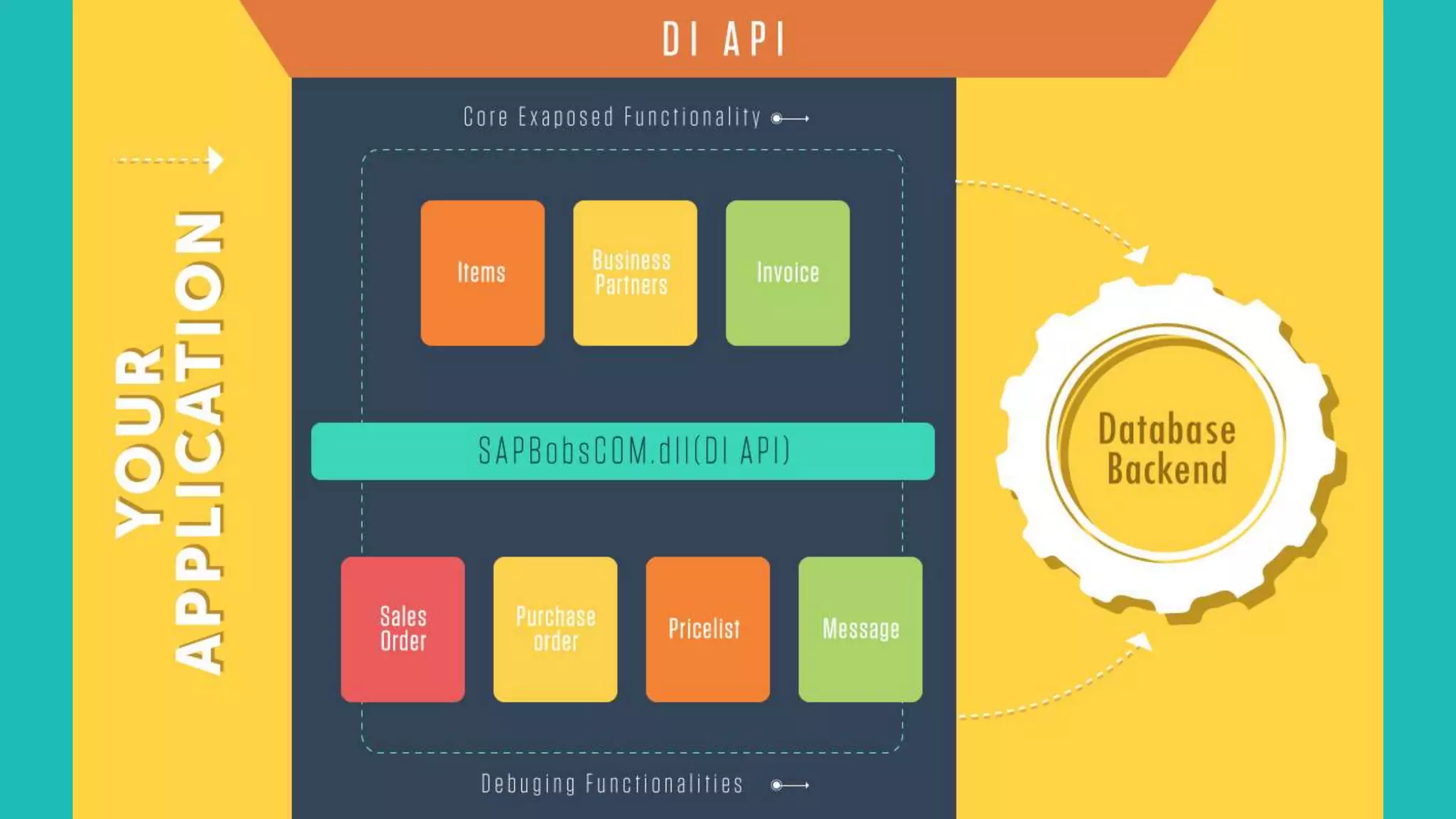

11. DI API
• Application directly takes reference to the functionalities and sends
data according to the API provided by SAP.
• As there is no standard maintained on input and output data, the
data is more specific and also gives specific output related to call.
• Here the SAPBobsCOM.dll is used to reference the business objects
exposed through SAP B1.

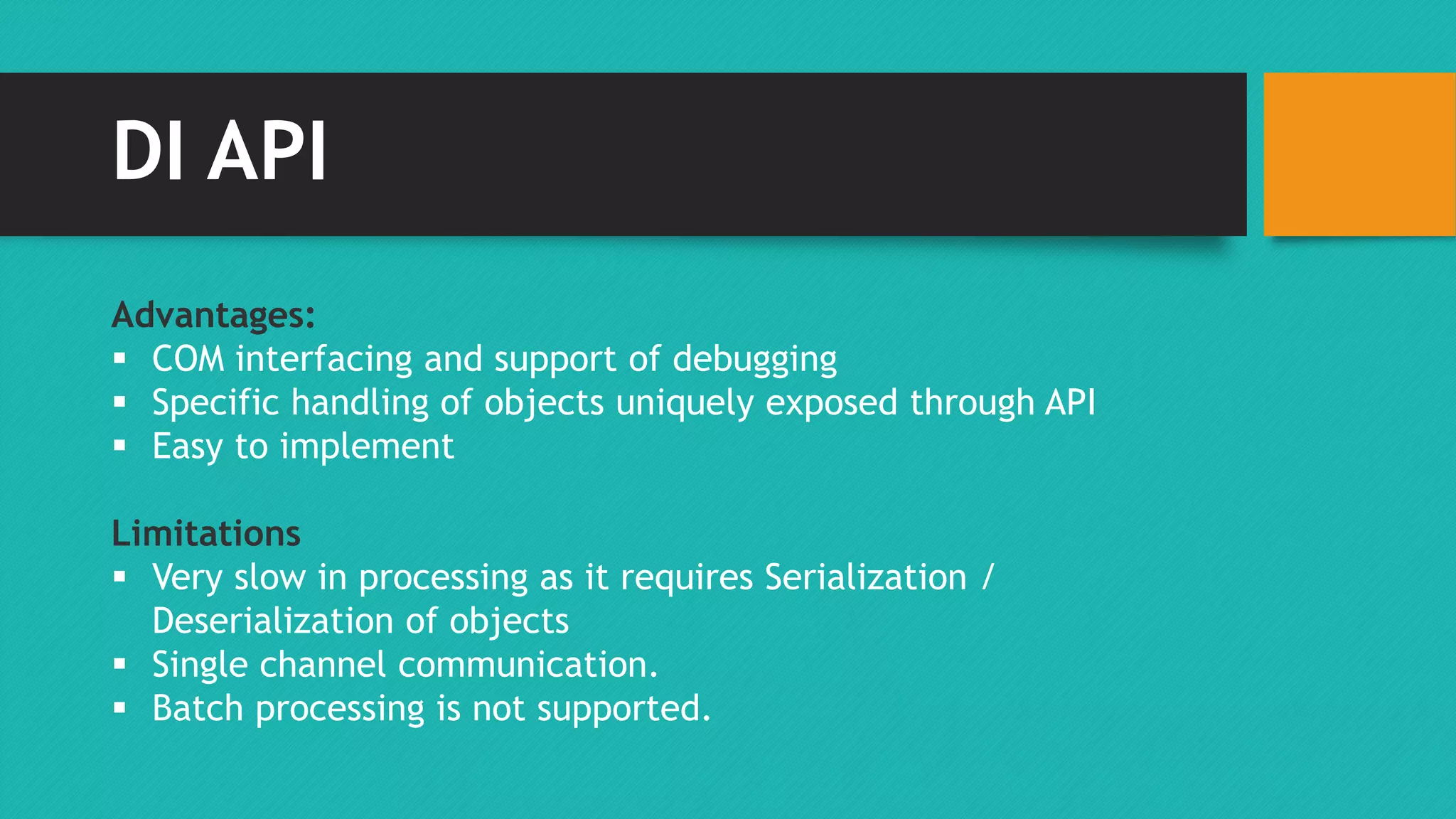

13. DI API
Advantages:
 COM interfacing and support of debugging
 Specific handling of objects uniquely exposed through API
 Easy to implement
Limitations
 Very slow in processing as it requires Serialization /
Deserialization of objects
 Single channel communication.
 Batch processing is not supported.

14. DEMO

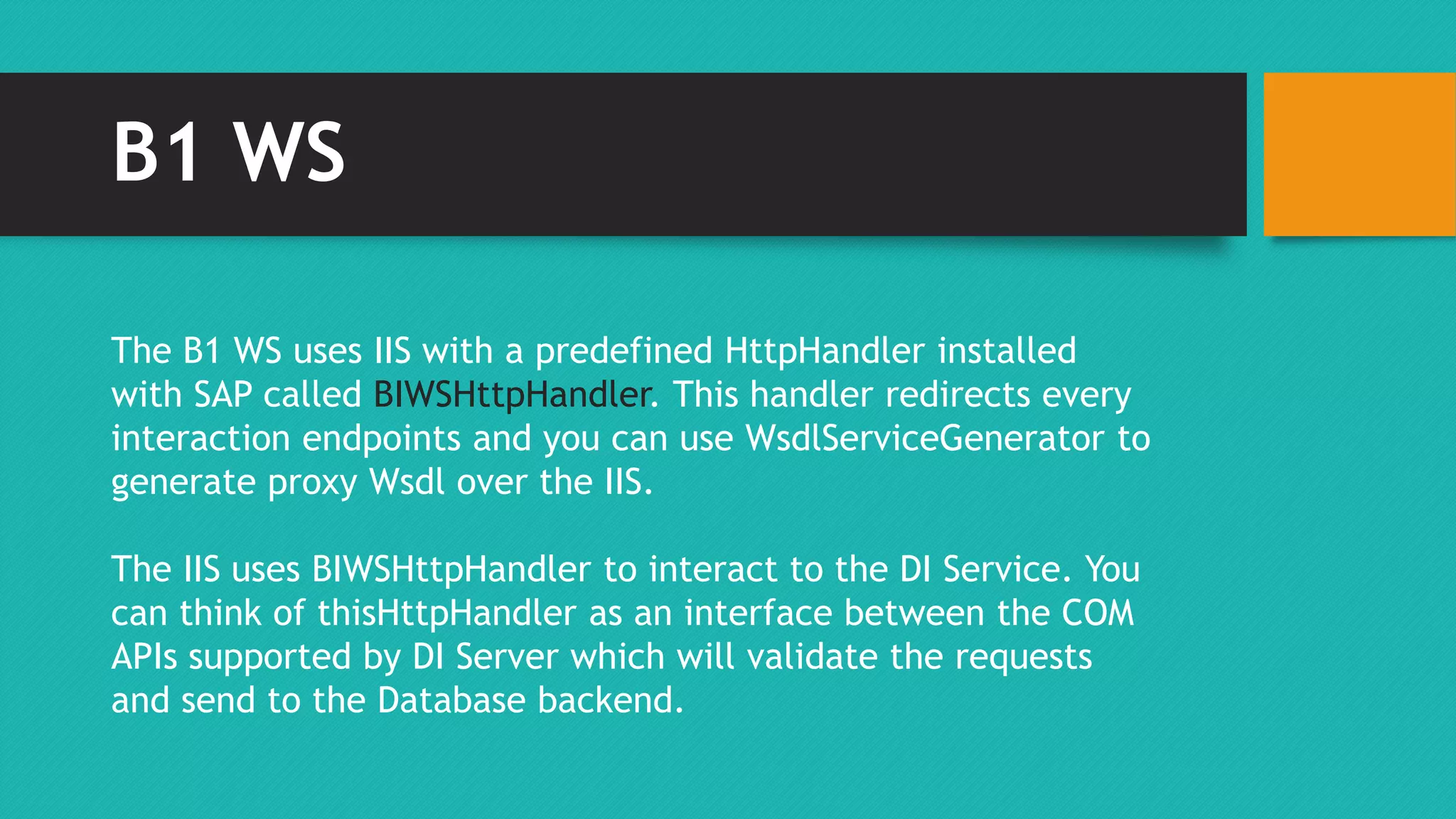

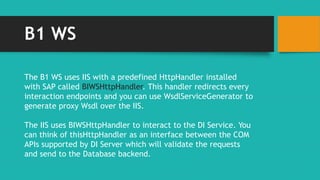

15. B1 WS

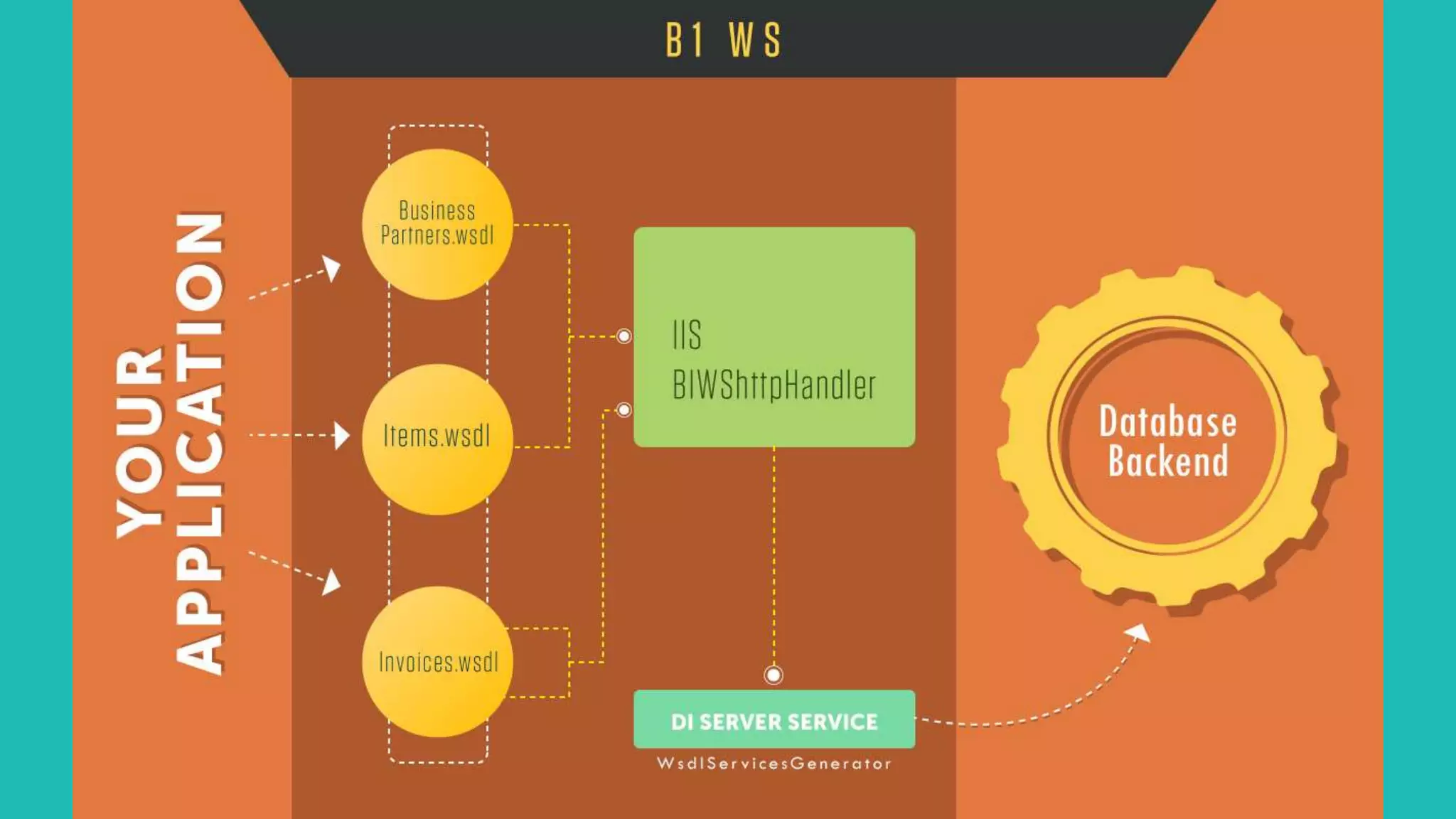

The B1 WS uses IIS with a predefined HttpHandler installed
with SAP called BIWSHttpHandler. This handler redirects every
interaction endpoints and you can use WsdlServiceGenerator to
generate proxy Wsdl over the IIS.
The IIS uses BIWSHttpHandler to interact to the DI Service. You
can think of thisHttpHandler as an interface between the COM
APIs supported by DI Server which will validate the requests
and send to the Database backend.

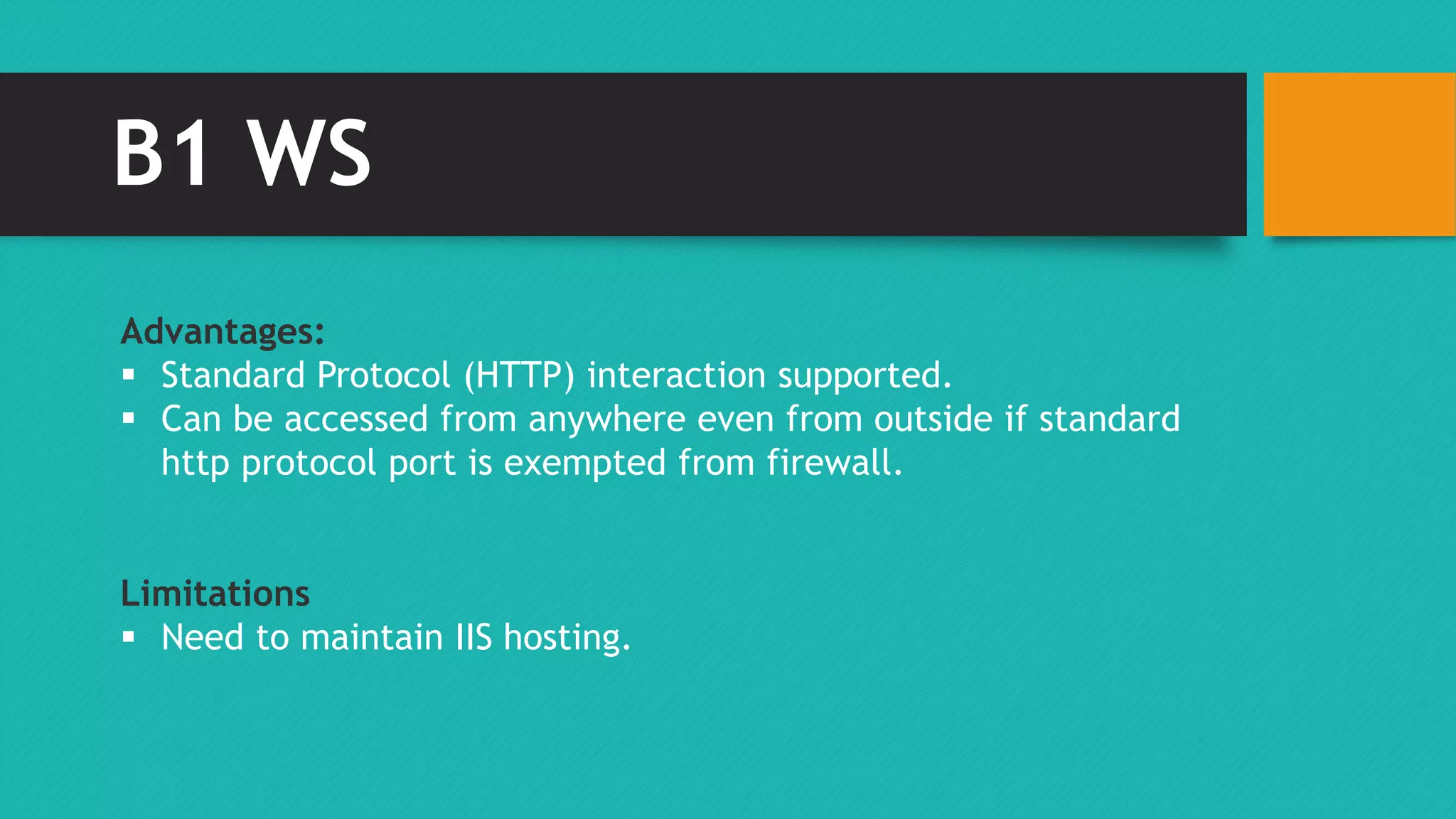

17. B1 WS
Advantages:
 Standard Protocol (HTTP) interaction supported.
 Can be accessed from anywhere even from outside if standard
http protocol port is exempted from firewall.
Limitations
 Need to maintain IIS hosting.
