1. Develop Fast, Deploy Faster
Advantages of APS Scripting
Miguel Sanchez miguel-sanchez-galan
msgalan@gmail.com
howToBrothers.com

2. Learn. Connect. Collaborate.

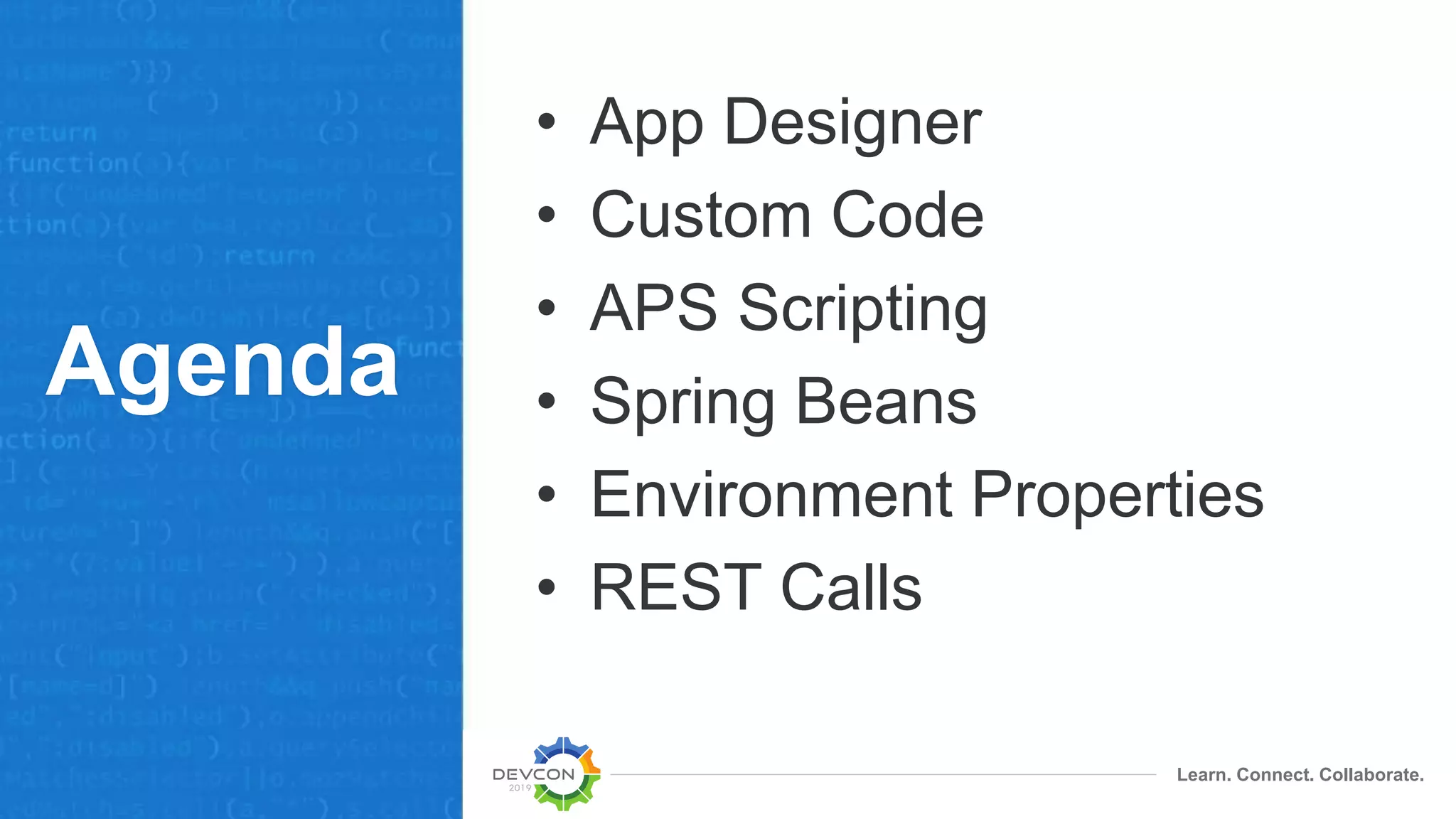

Agenda
• App Designer
• Custom Code
• APS Scripting
• Spring Beans
• Environment Properties
• REST Calls

3. Development is all about TIME

4. Learn. Connect. Collaborate.
Development is all about TIME
Time traveling is just
too dangerous

5. App Designer

6. Learn. Connect. Collaborate.

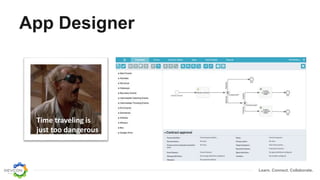

App Designer
Time traveling is
just too dangerous

7. Learn. Connect. Collaborate.
App Designer
Drag & Drop
Configuration
Custom Code

8. Custom Code

9. Learn. Connect. Collaborate.

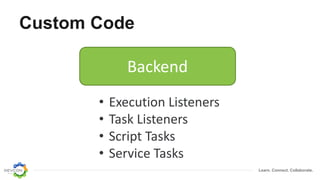

Custom Code
Backend
• Execution Listeners
• Task Listeners
• Script Tasks
• Service Tasks

10. Learn. Connect. Collaborate.
Custom Code
Script Backed
vs
Java BackedWhich one to choose?

11. Script vs Java

12. Learn. Connect. Collaborate.

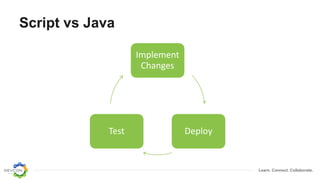

Script vs Java
Implement
Changes
DeployTest

13. Learn. Connect. Collaborate.

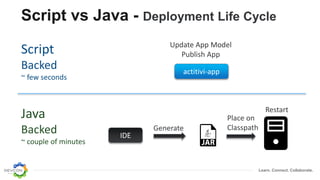

Script vs Java - Deployment Life Cycle
IDE
Update App Model
Publish App
Restart
Place on
Classpath
actitivi-app
Generate
Java
Backed
~ couple of minutes
Script
Backed
~ few seconds

14. Learn. Connect. Collaborate.

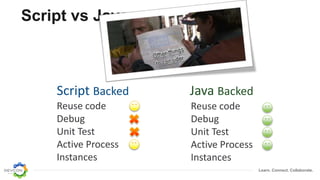

Script vs Java
Update App Model
Publish App
Java Backed
Reuse code
Debug
Unit Test
Active Process
Instances
Script Backed
Reuse code
Debug
Unit Test
Active Process
Instances

15. Learn. Connect. Collaborate.

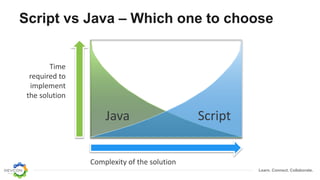

Script vs Java – Which one to choose
Time
required to
implement
the solution
Complexity of the solution
ScriptJava

16. APS Scripting

17. Learn. Connect. Collaborate.
APS Scripting
Enable scripts
Set properties
validator.editor.bpmn.disable.scripttask=false
validator.editor.bpmn.disable.scripttask.groovy=false
File: activiti-app.properties
Location: activiti-appWEB-INFclassesMETA-INFactiviti-app
Let’s make it work

18. Learn. Connect. Collaborate.
APS Scripting
Enable scripts
Uncomment the language you want to use
File: whitelisted-scripts.conf
Location: activiti-appWEB-INFclassesactiviti
Let’s make it work

19. Learn. Connect. Collaborate.
APS Scripting – Update Active Processes
• SetProcessDefinitionVersionCmd(processDefinitionId, processDefinitionVersion));
• dynamicBpmnService.saveProcessDefinitionInfo(processDefinitionId, infoNode);

20. Script Listeners

21. Learn. Connect. Collaborate.

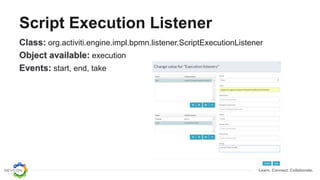

Script Execution Listener
Class: org.activiti.engine.impl.bpmn.listener.ScriptExecutionListener
Object available: execution
Events: start, end, take

22. Learn. Connect. Collaborate.

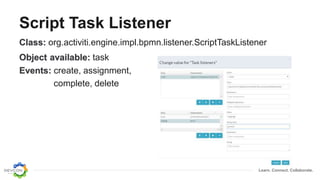

Script Task Listener
Class: org.activiti.engine.impl.bpmn.listener.ScriptTaskListener
Object available: task
Events: create, assignment,
complete, delete

23. Learn. Connect. Collaborate.
Secure Script Listeners
File: activiti-app.properties
Location: activiti-appWEB-INFclassesMETA-INFactiviti-app

24. Learn. Connect. Collaborate.

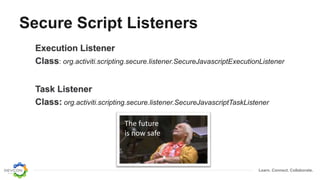

Secure Script Listeners
Execution Listener
Class: org.activiti.scripting.secure.listener.SecureJavascriptExecutionListener
Task Listener
Class: org.activiti.scripting.secure.listener.SecureJavascriptTaskListener
The future
is now safe

25. Script Task

26. Learn. Connect. Collaborate.

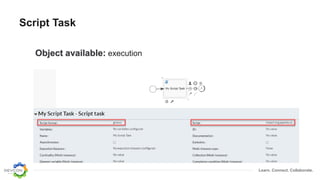

Script Task
Object available: execution

27. Learn. Connect. Collaborate.

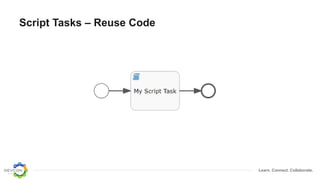

Script Tasks – Reuse Code

28. Learn. Connect. Collaborate.
Script Task - Reuse Code

29. Spring Beans

30. Learn. Connect. Collaborate.

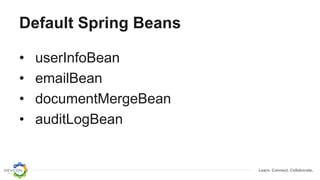

Default Spring Beans
• userInfoBean
• emailBean
• documentMergeBean
• auditLogBean

31. Learn. Connect. Collaborate.

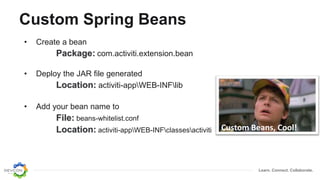

Custom Spring Beans
• Create a bean
Package: com.activiti.extension.bean
• Deploy the JAR file generated
Location: activiti-appWEB-INFlib
• Add your bean name to
File: beans-whitelist.conf
Location: activiti-appWEB-INFclassesactiviti Custom Beans, Cool!

32. Environment Variables

33. Learn. Connect. Collaborate.

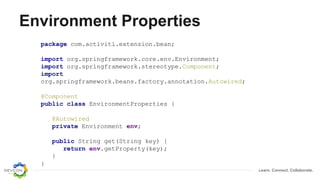

Environment Properties
package com.activiti.extension.bean;
import org.springframework.core.env.Environment;
import org.springframework.stereotype.Component;
import
org.springframework.beans.factory.annotation.Autowired;
@Component
public class EnvironmentProperties {
@Autowired
private Environment env;
public String get(String key) {
return env.getProperty(key);
}
}

34. Learn. Connect. Collaborate.

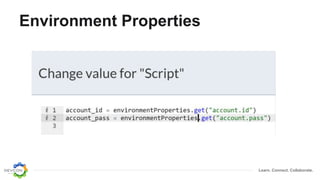

Environment Properties

35. Logging

36. Learn. Connect. Collaborate.

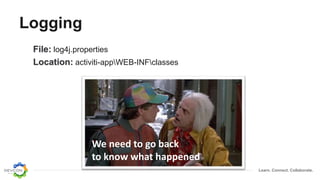

Logging
File: log4j.properties
Location: activiti-appWEB-INFclasses
We need to go back
to know what happened

37. Learn. Connect. Collaborate.

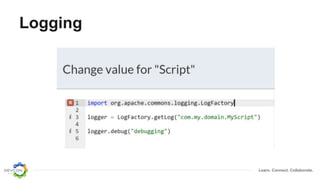

Logging

38. REST Calls

39. Learn. Connect. Collaborate.
REST Calls

40. Learn. Connect. Collaborate.

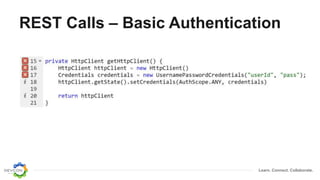

REST Calls – Basic Authentication

41. Learn. Connect. Collaborate.

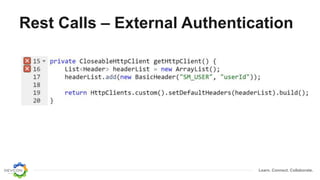

Rest Calls – External Authentication

42. Learn. Connect. Collaborate.

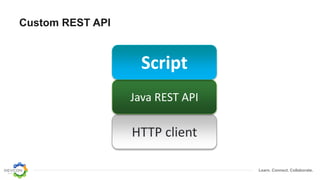

Custom REST API
HTTP client
Java REST API
Script

43. Learn. Connect. Collaborate.

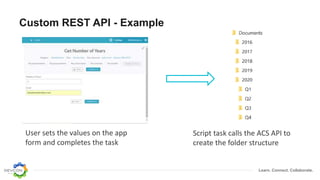

Custom REST API - Example
User sets the values on the app
form and completes the task
Script task calls the ACS API to
create the folder structure

44. Learn. Connect. Collaborate.

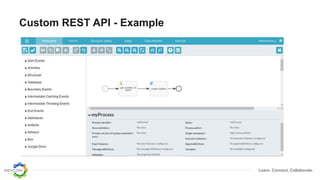

Custom REST API - Example

45. Learn. Connect. Collaborate.
Custom REST API - Example
• execution.getVariable(“numberofyears")
• acsApi.createFolder(parentNodeId, “name")

46. Learn. Connect. Collaborate.

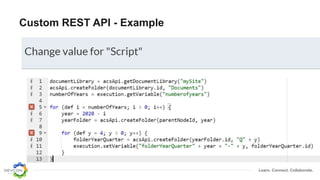

Custom REST API - Example

47. Learn. Connect. Collaborate.
Final Thoughts

48. Learn. Connect. Collaborate.
Q & A
HowToBrothers.com
