DEPENDENCY INJECTION
PART 1
Alastair Smith (after Mark Seemann)

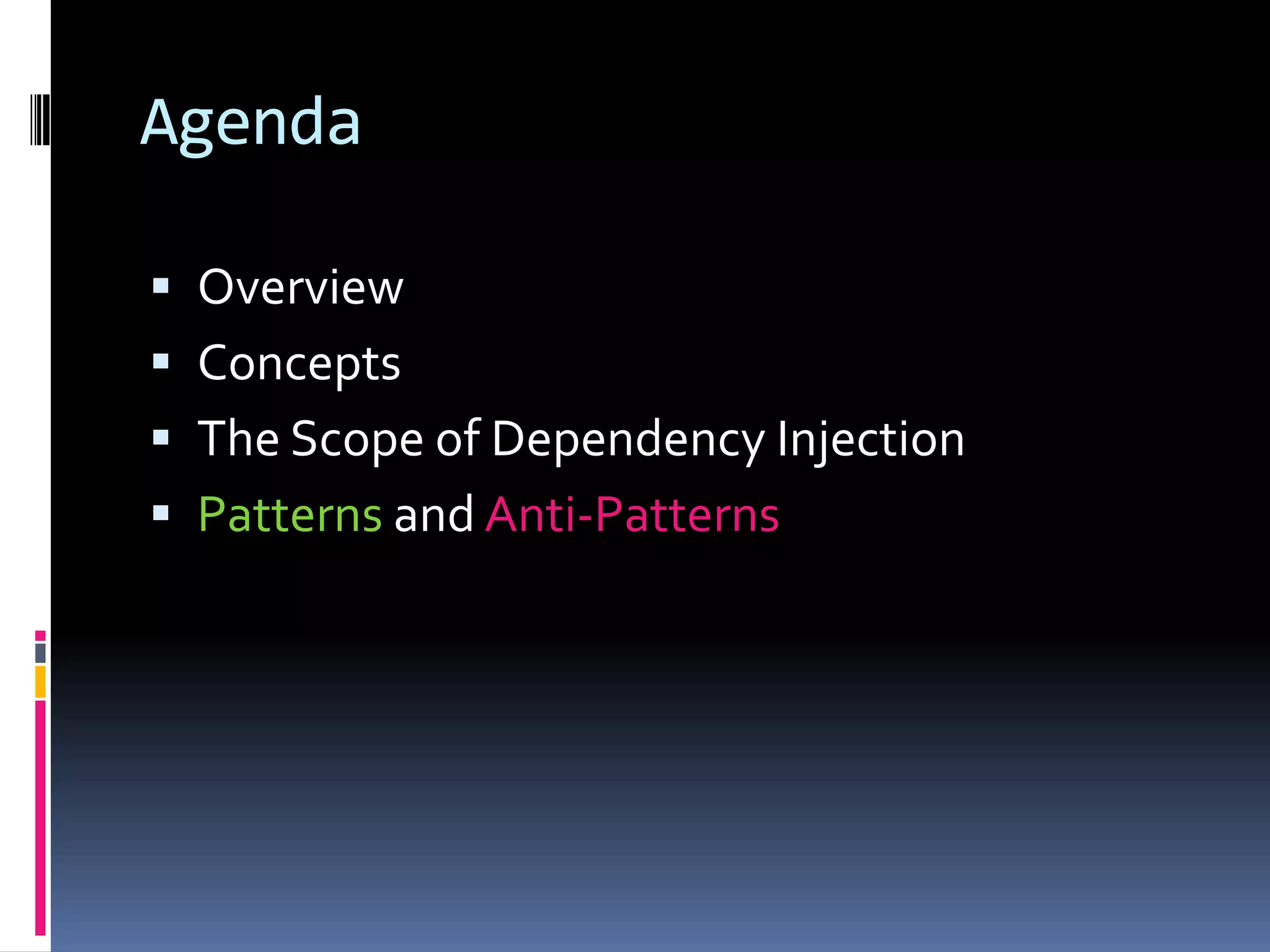

Agenda
 Overview
 Concepts
 The Scope of Dependency Injection
 Patterns and Anti-Patterns

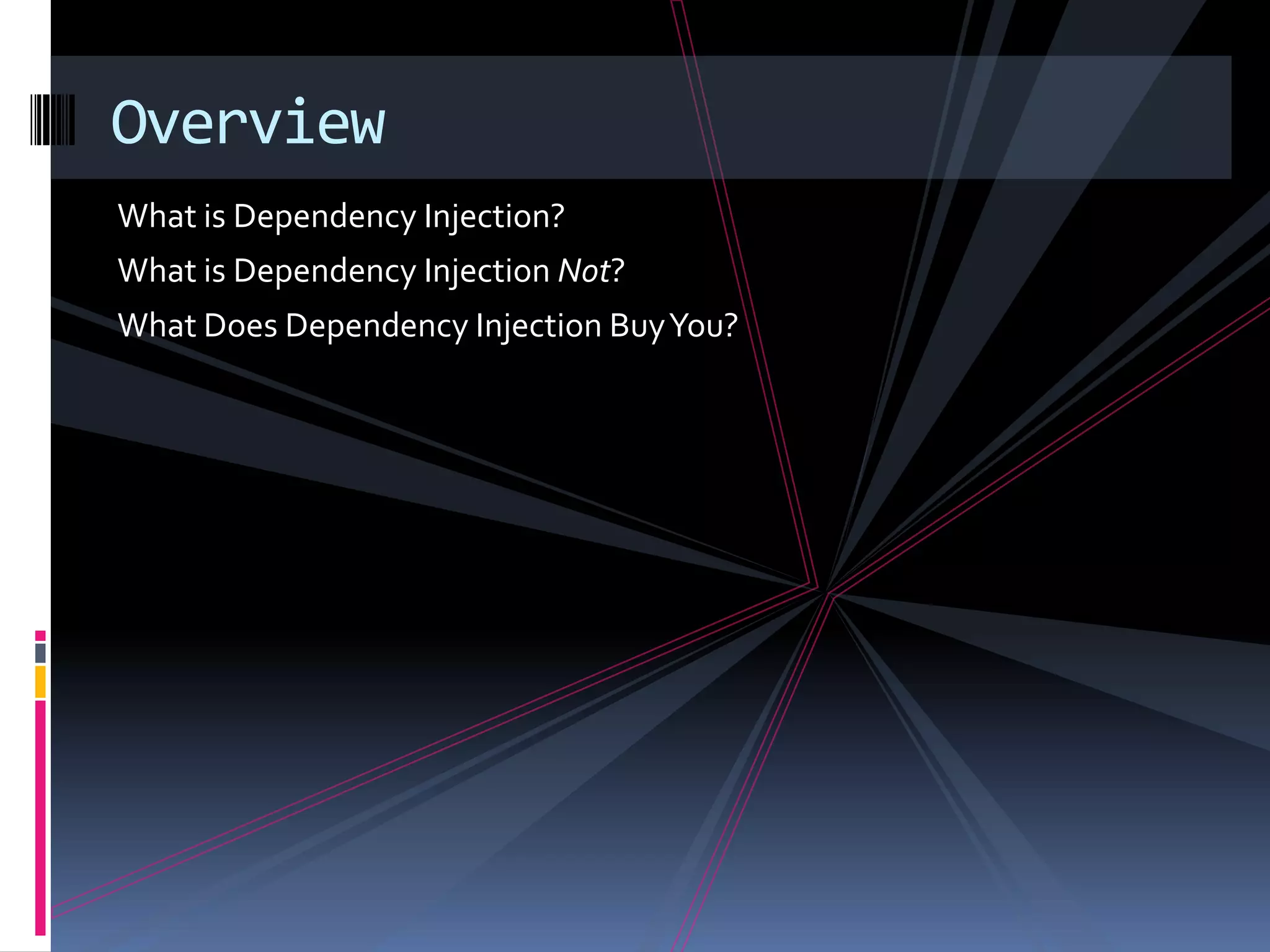

What is Dependency Injection?
What is Dependency Injection Not?
What Does Dependency Injection BuyYou?
Overview

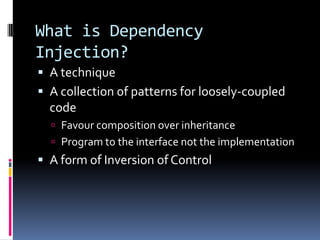

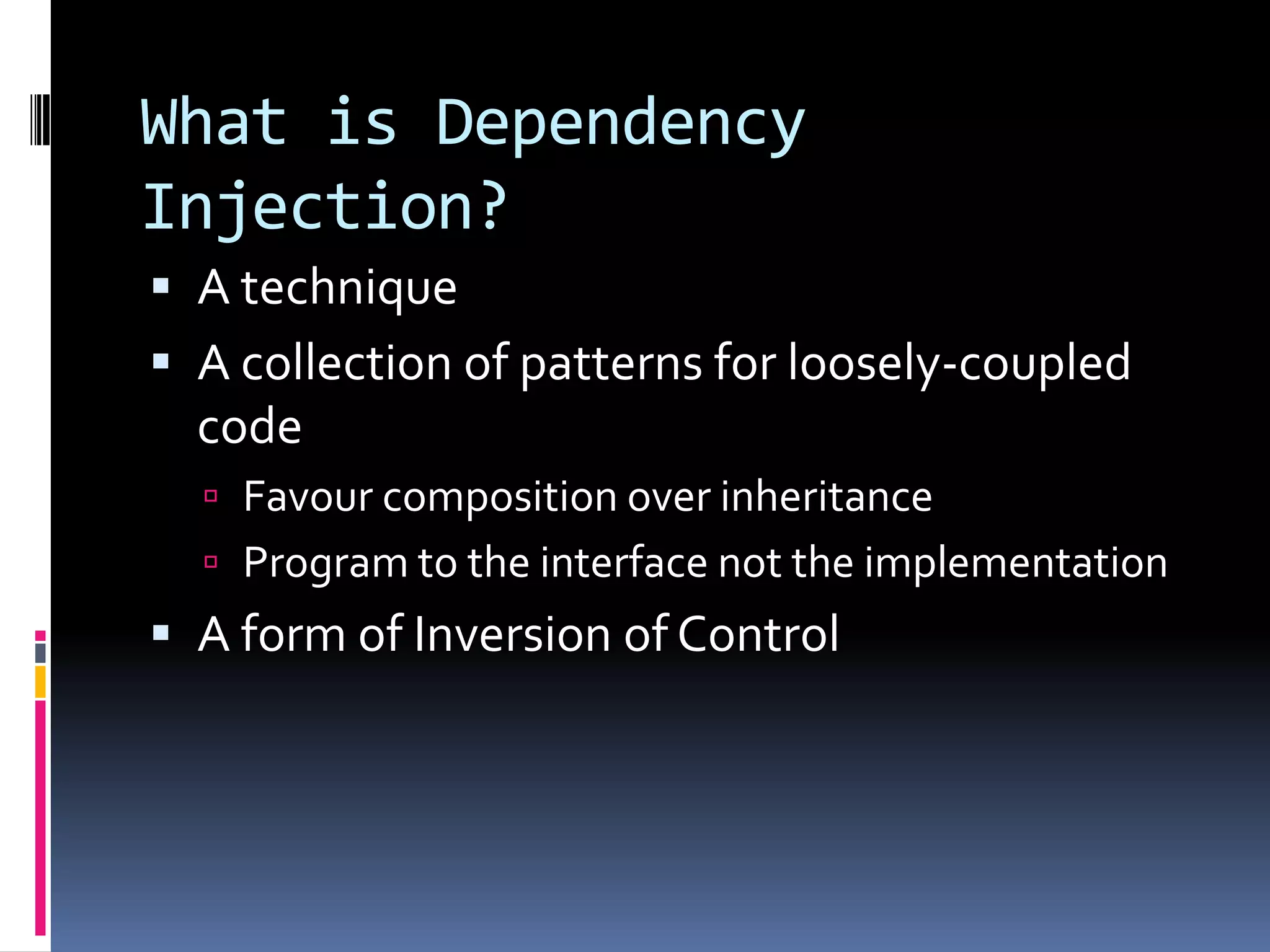

What is Dependency
Injection?
 A technique
 A collection of patterns for loosely-coupled
code
 Favour composition over inheritance
 Program to the interface not the implementation
 A form of Inversion of Control

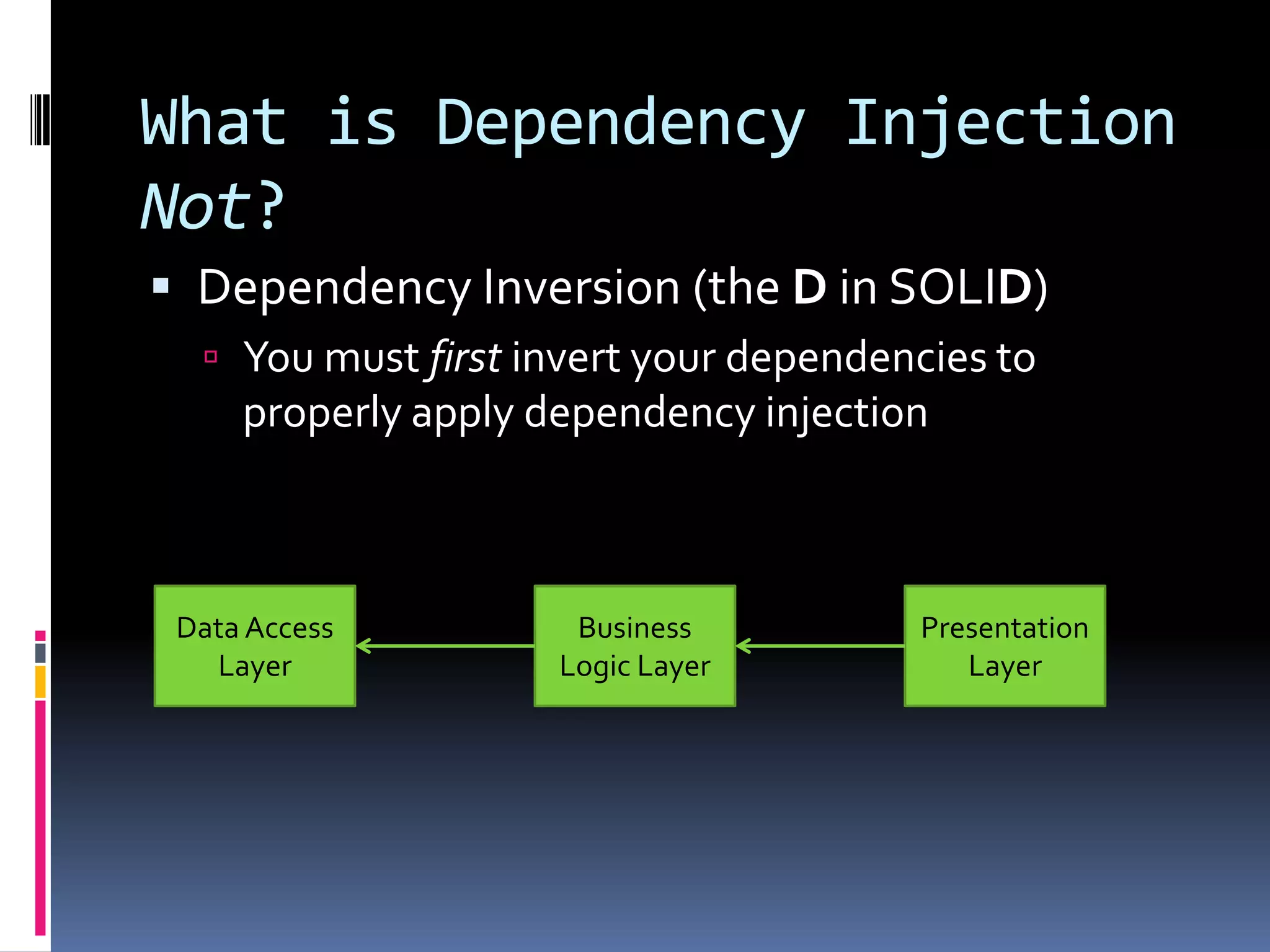

What is Dependency Injection
Not?
 Dependency Inversion (the D in SOLID)
 You must first invert your dependencies to
properly apply dependency injection
Data Access
Layer
Business
Logic Layer
Presentation
Layer

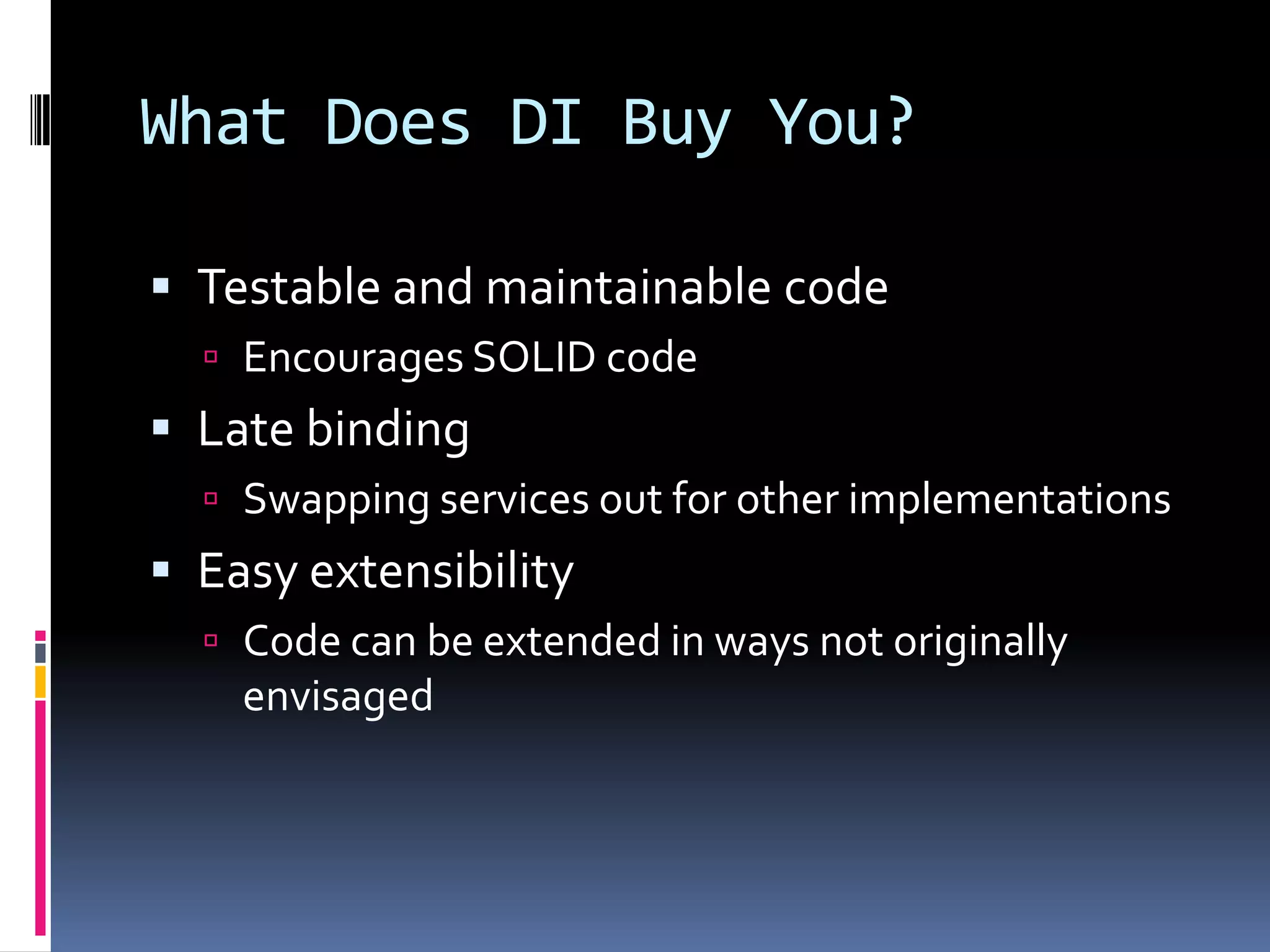

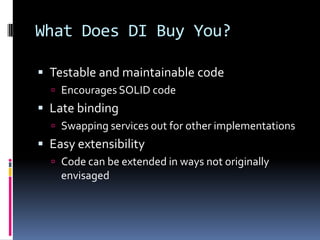

What Does DI Buy You?
 Testable and maintainable code
 Encourages SOLID code
 Late binding
 Swapping services out for other implementations
 Easy extensibility
 Code can be extended in ways not originally
envisaged

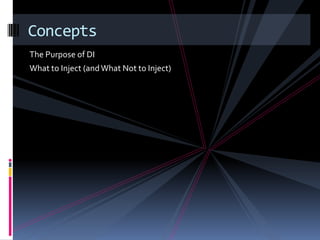

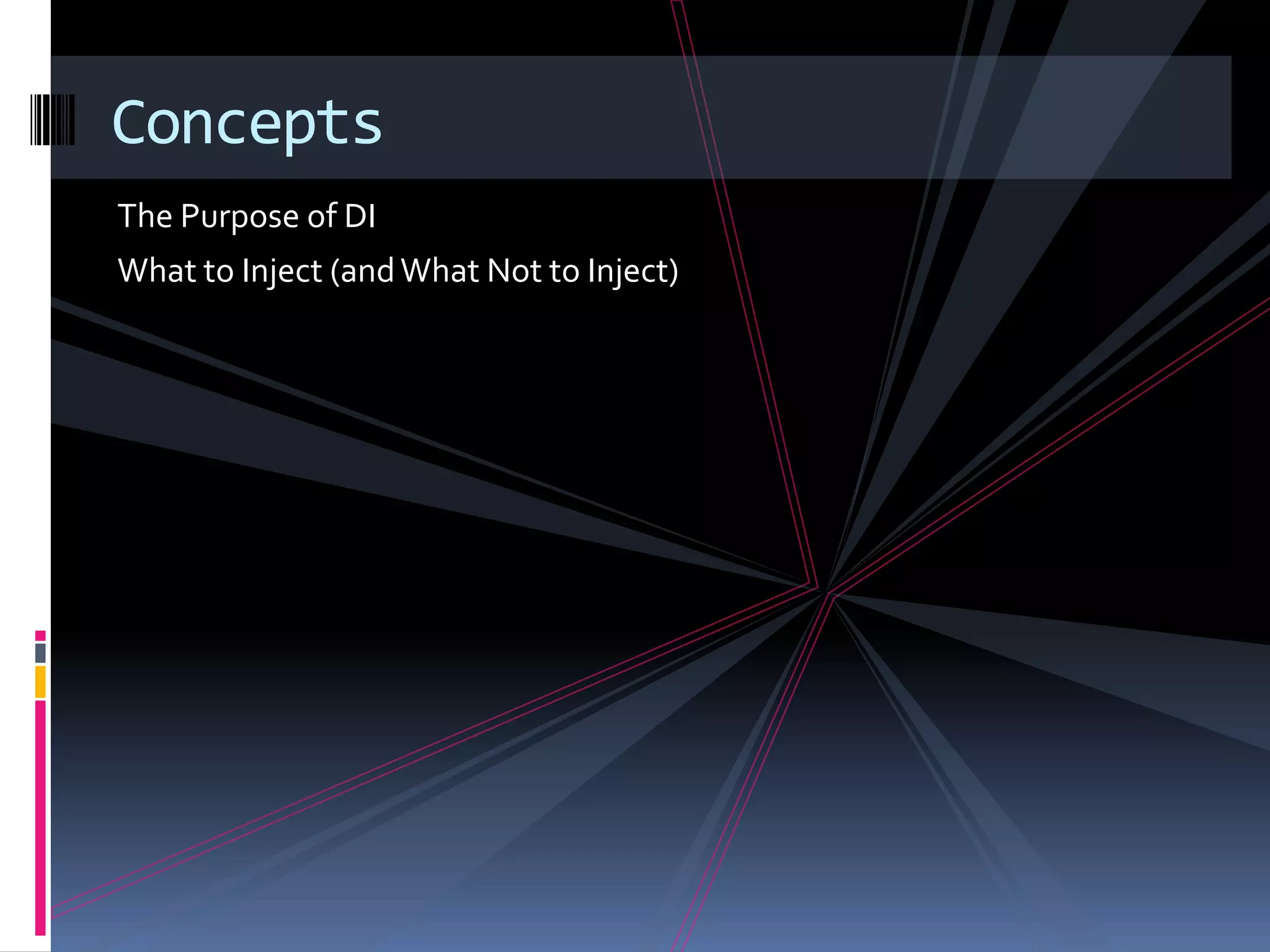

The Purpose of DI
What to Inject (andWhat Not to Inject)
Concepts

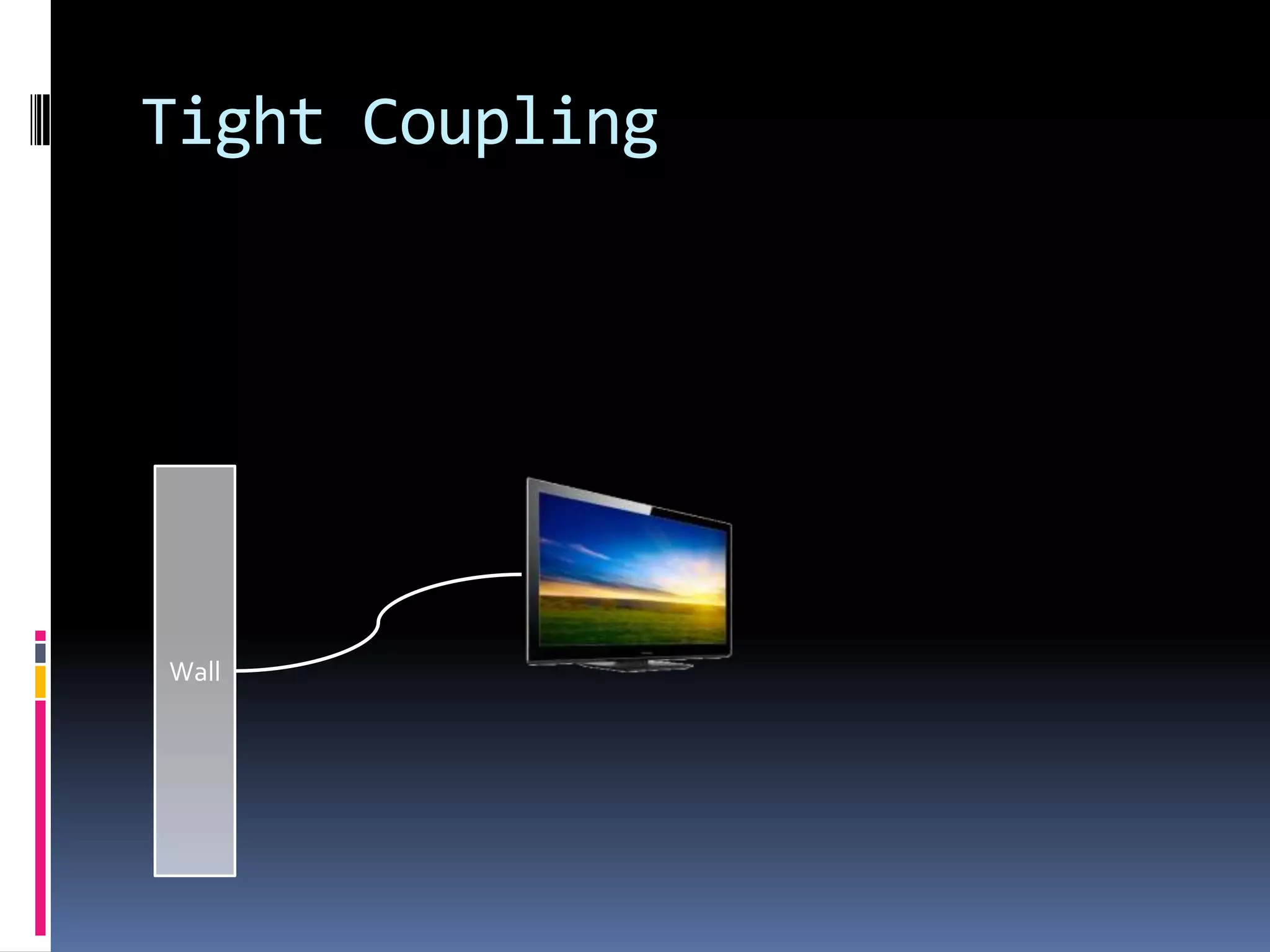

Tight Coupling
Wall

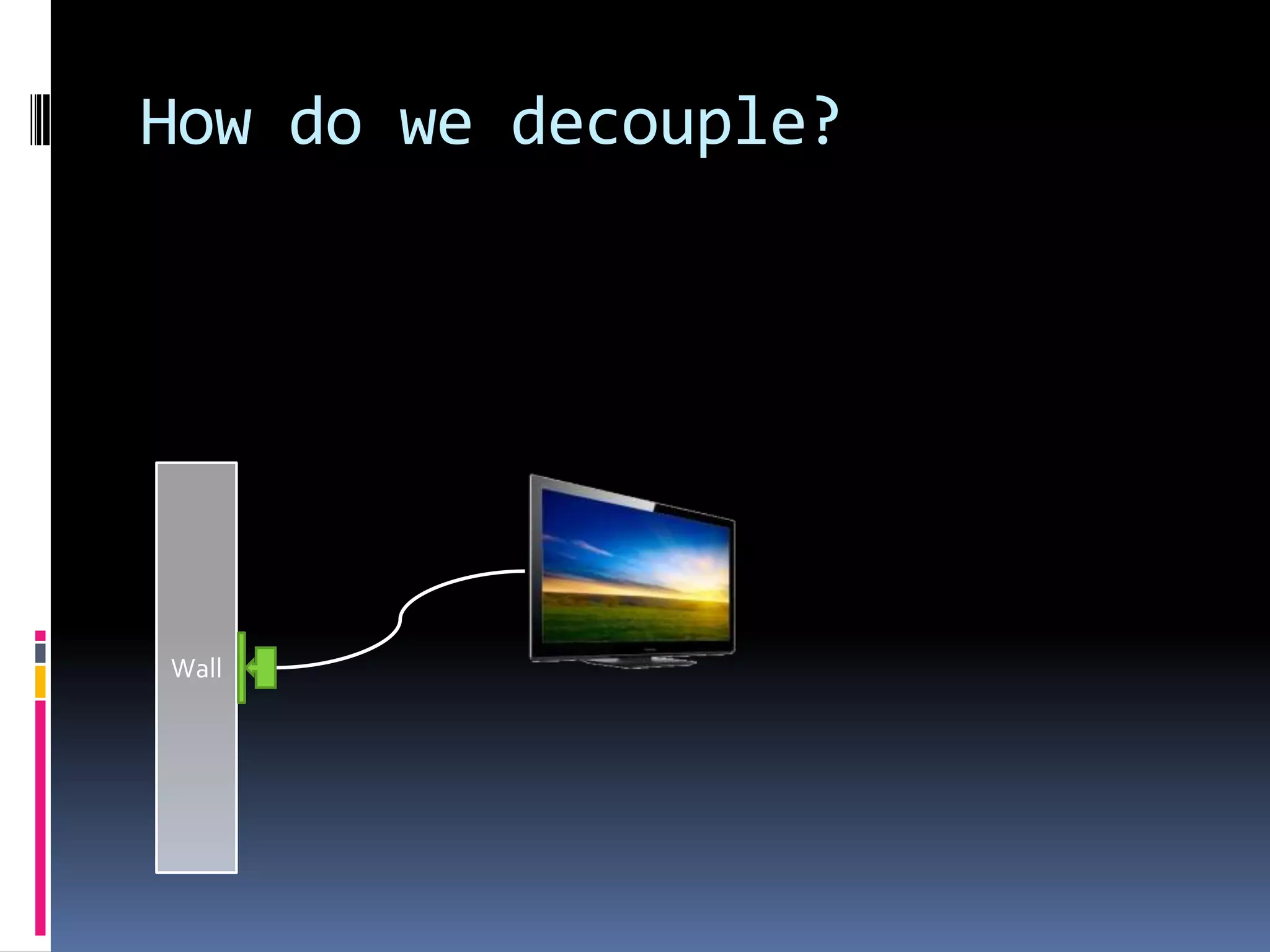

How do we decouple?
Wall

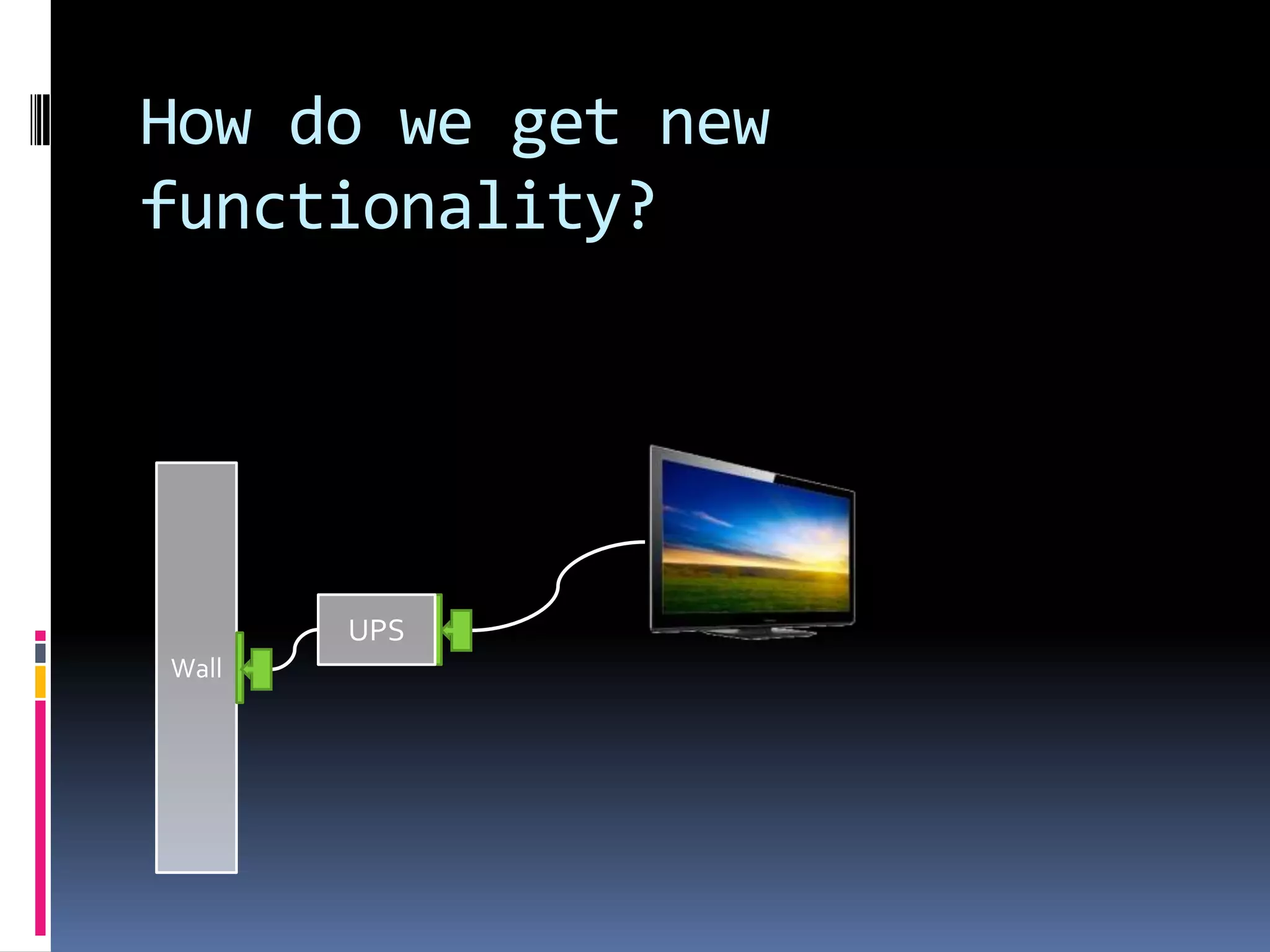

How do we get new
functionality?
Wall
UPS

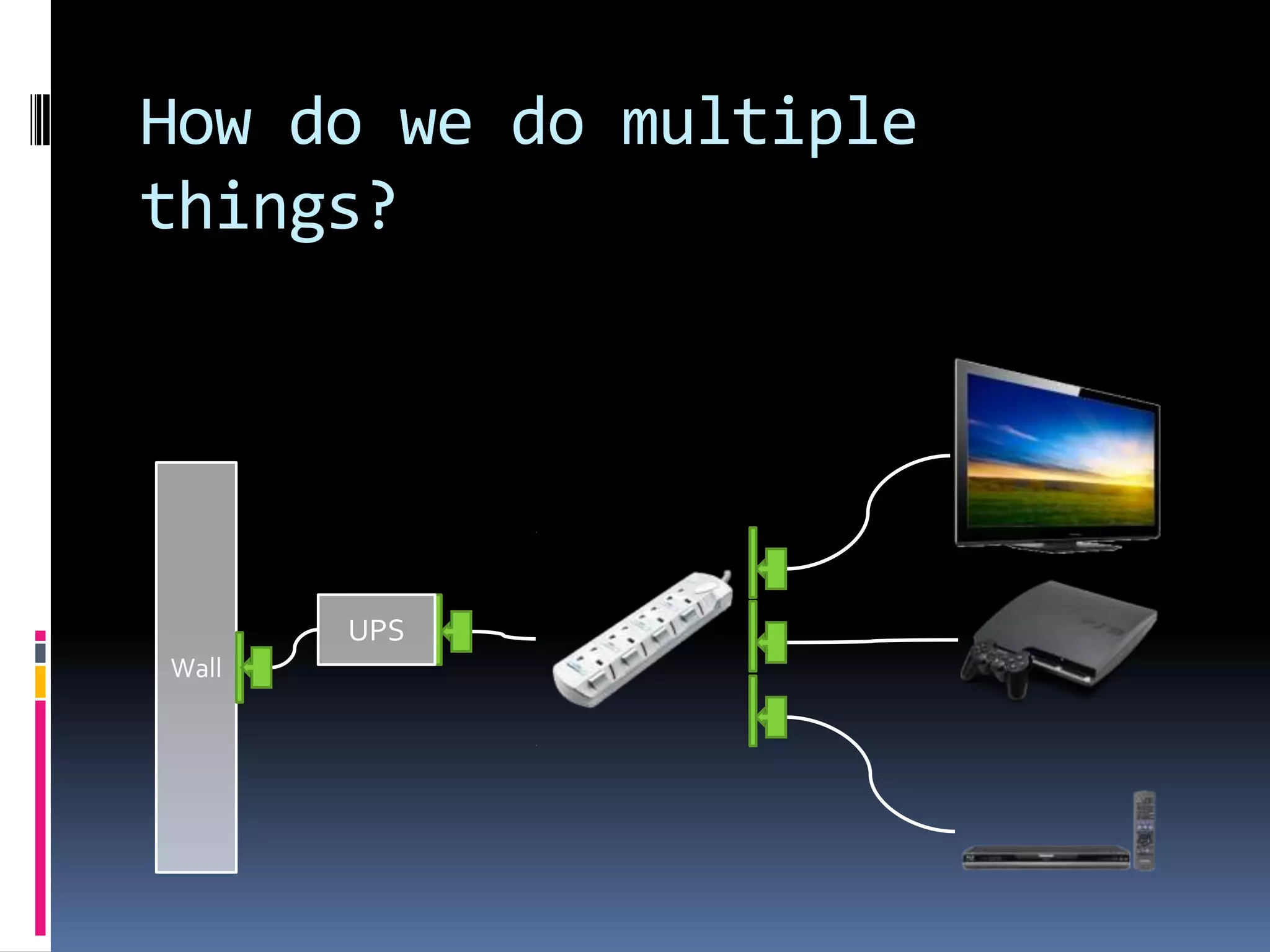

How do we do multiple
things?
Wall
UPS

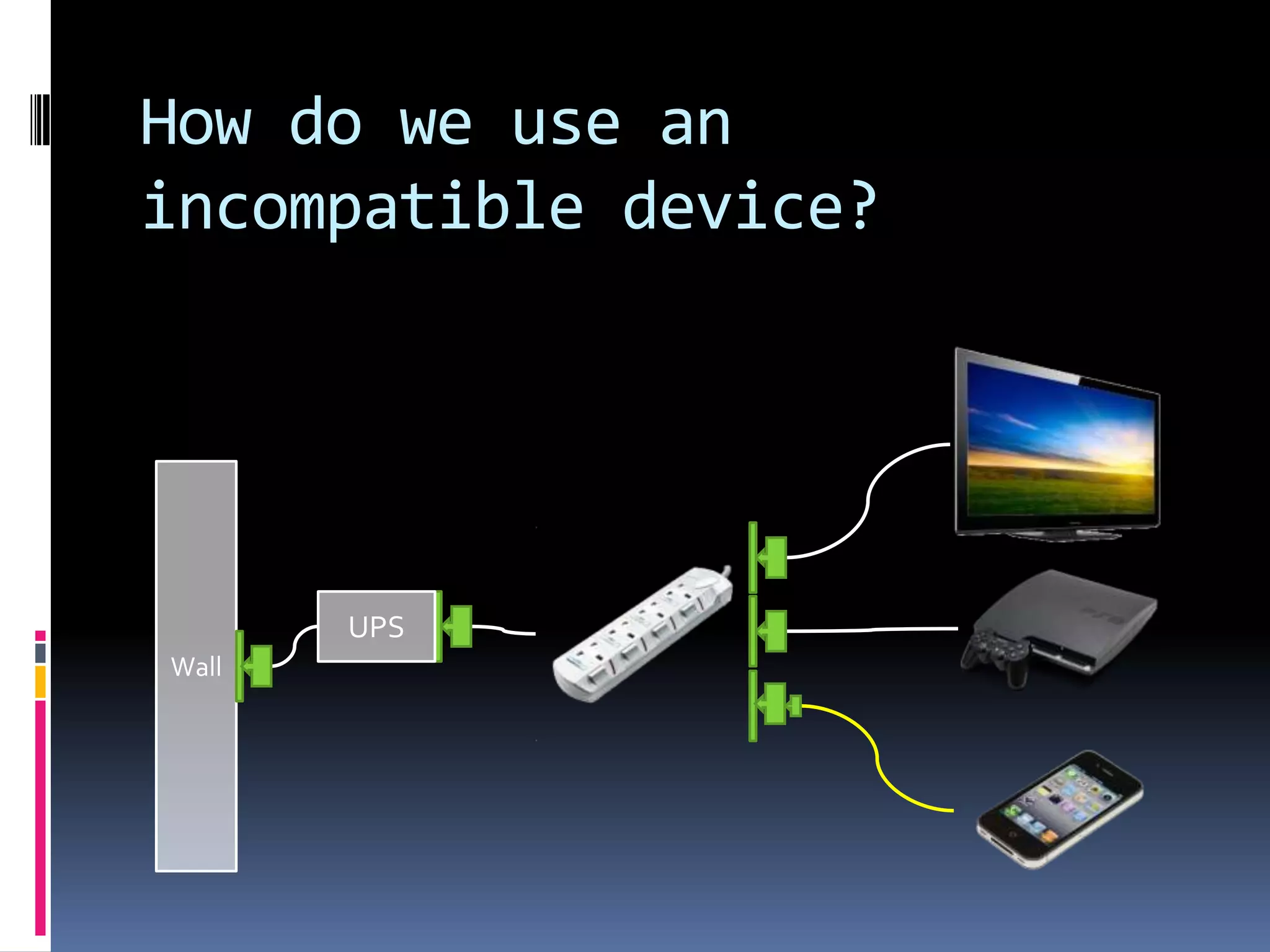

How do we use an
incompatible device?
Wall
UPS
Design Patterns will only
get you so far
 How you assemble your bricks matters

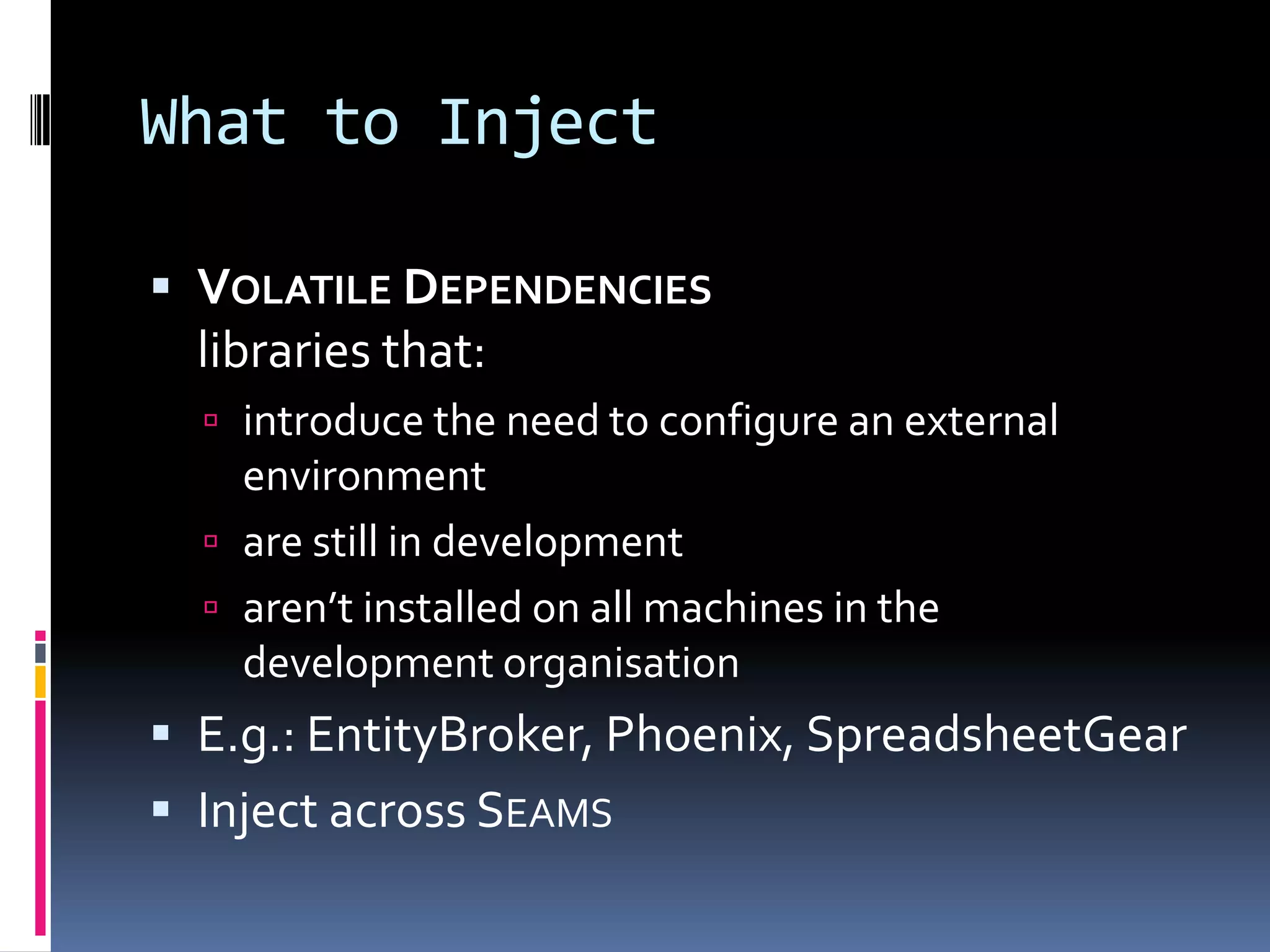

What to Inject
 VOLATILE DEPENDENCIES
libraries that:
 introduce the need to configure an external
environment
 are still in development
 aren’t installed on all machines in the
development organisation
 E.g.: EntityBroker, Phoenix, SpreadsheetGear
 Inject across SEAMS

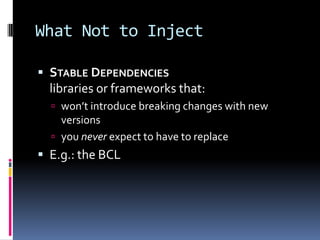

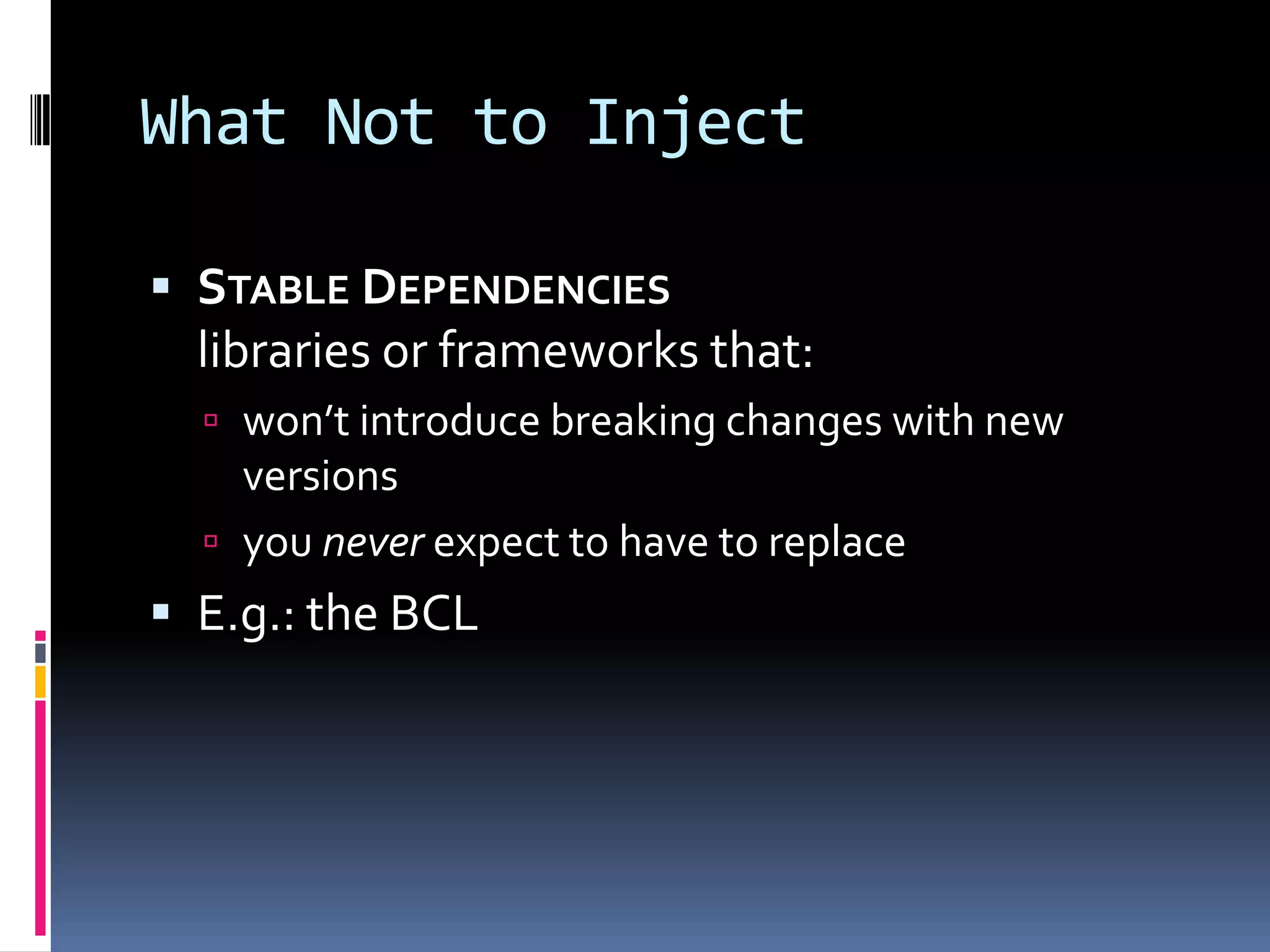

What Not to Inject
 STABLE DEPENDENCIES
libraries or frameworks that:
 won’t introduce breaking changes with new
versions
 you never expect to have to replace
 E.g.: the BCL

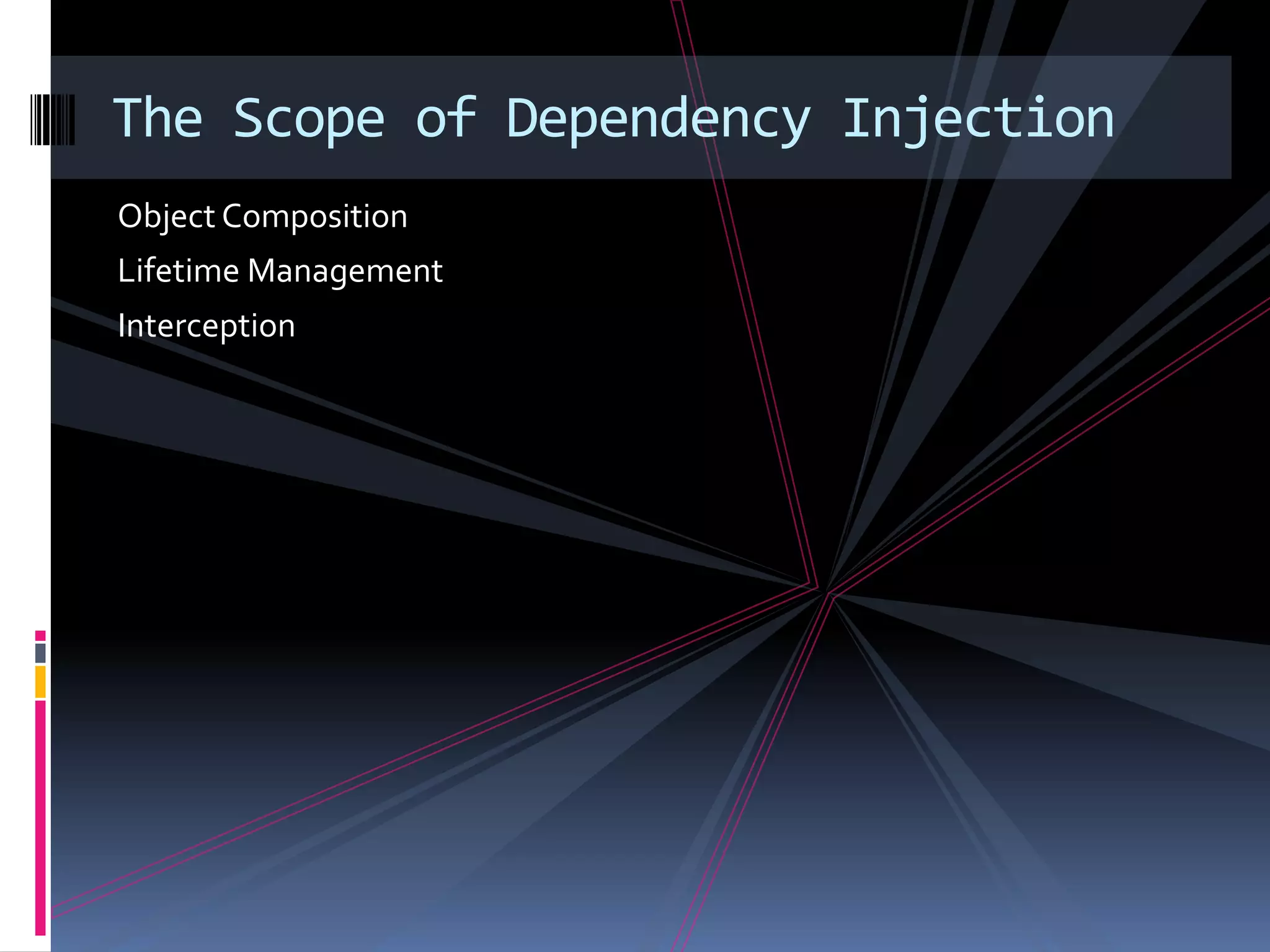

Object Composition
Lifetime Management
Interception
The Scope of Dependency Injection

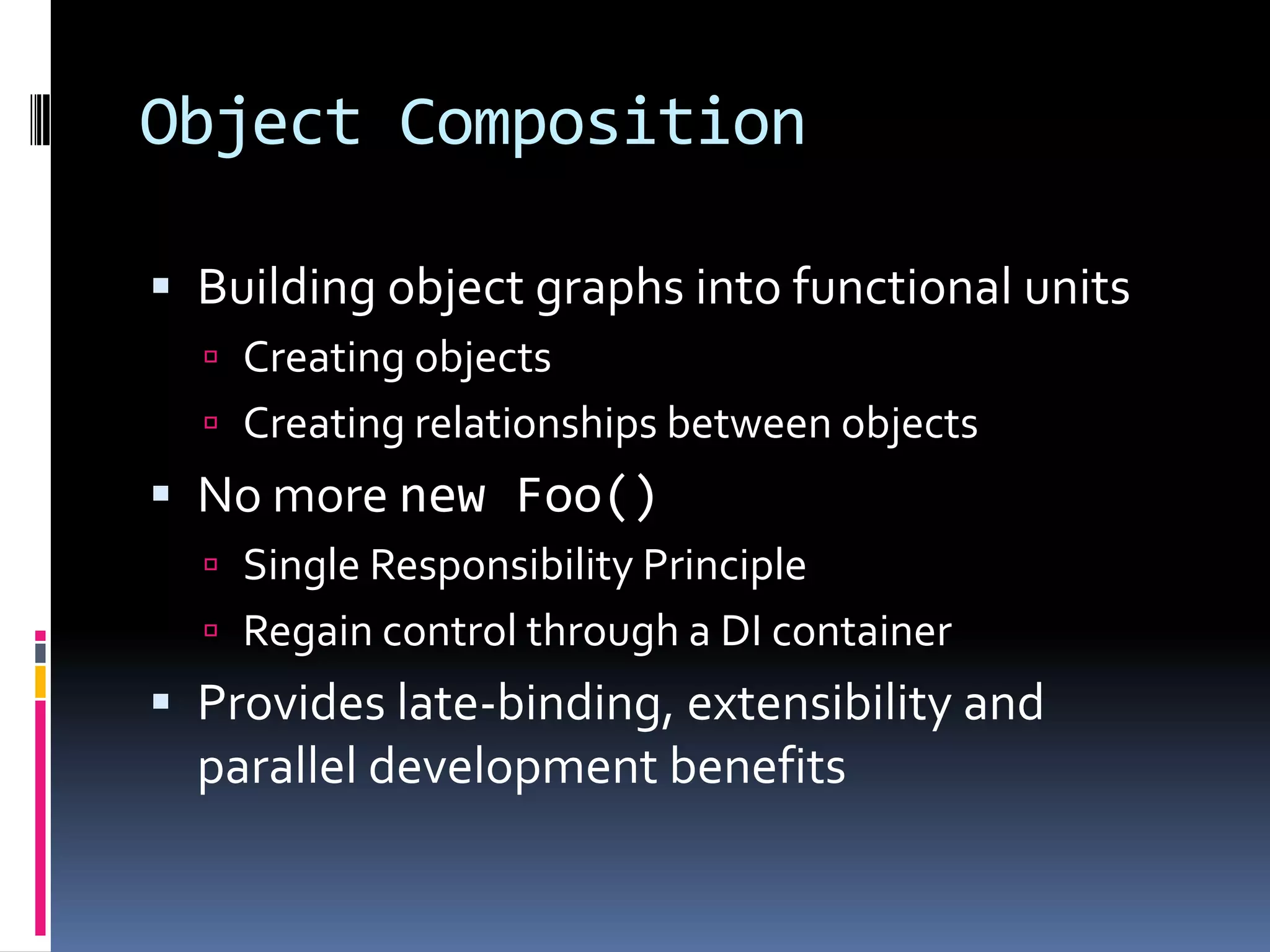

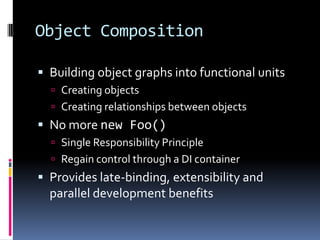

Object Composition
 Building object graphs into functional units
 Creating objects
 Creating relationships between objects
 No more new Foo()
 Single Responsibility Principle
 Regain control through a DI container
 Provides late-binding, extensibility and
parallel development benefits

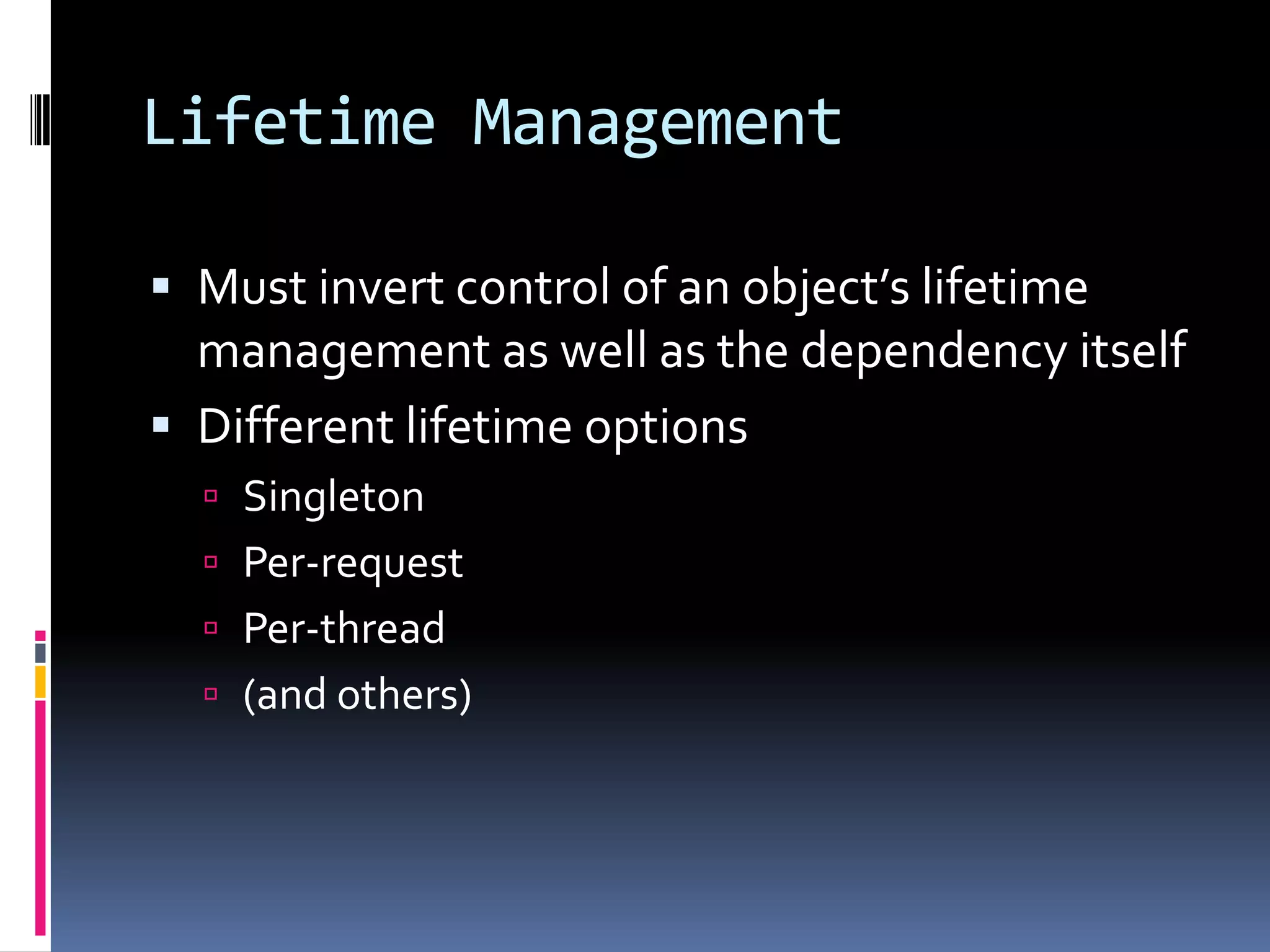

Lifetime Management
 Must invert control of an object’s lifetime
management as well as the dependency itself
 Different lifetime options
 Singleton
 Per-request
 Per-thread
 (and others)

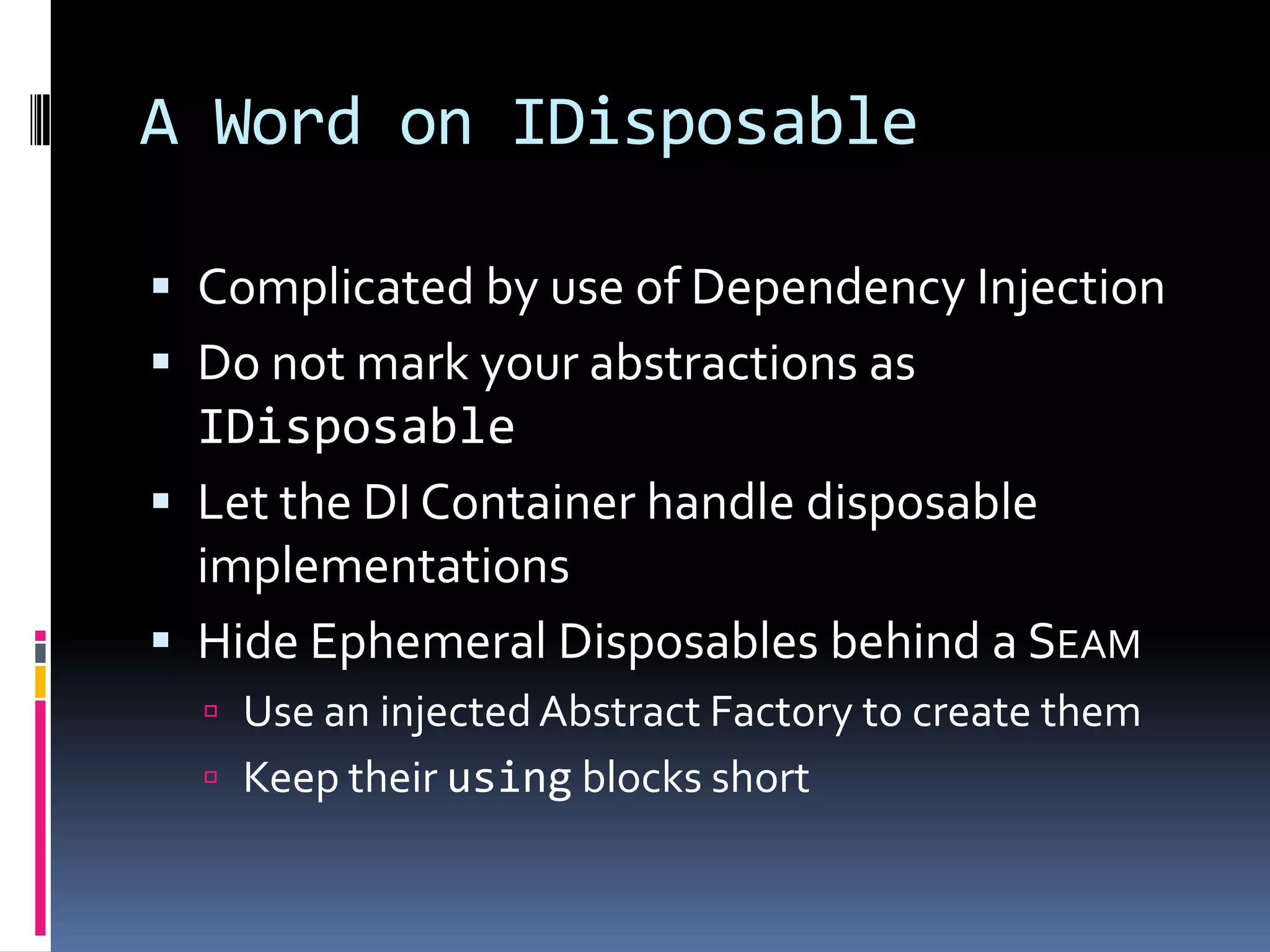

A Word on IDisposable
 Complicated by use of Dependency Injection
 Do not mark your abstractions as
IDisposable
 Let the DI Container handle disposable
implementations
 Hide Ephemeral Disposables behind a SEAM
 Use an injectedAbstract Factory to create them
 Keep their using blocks short

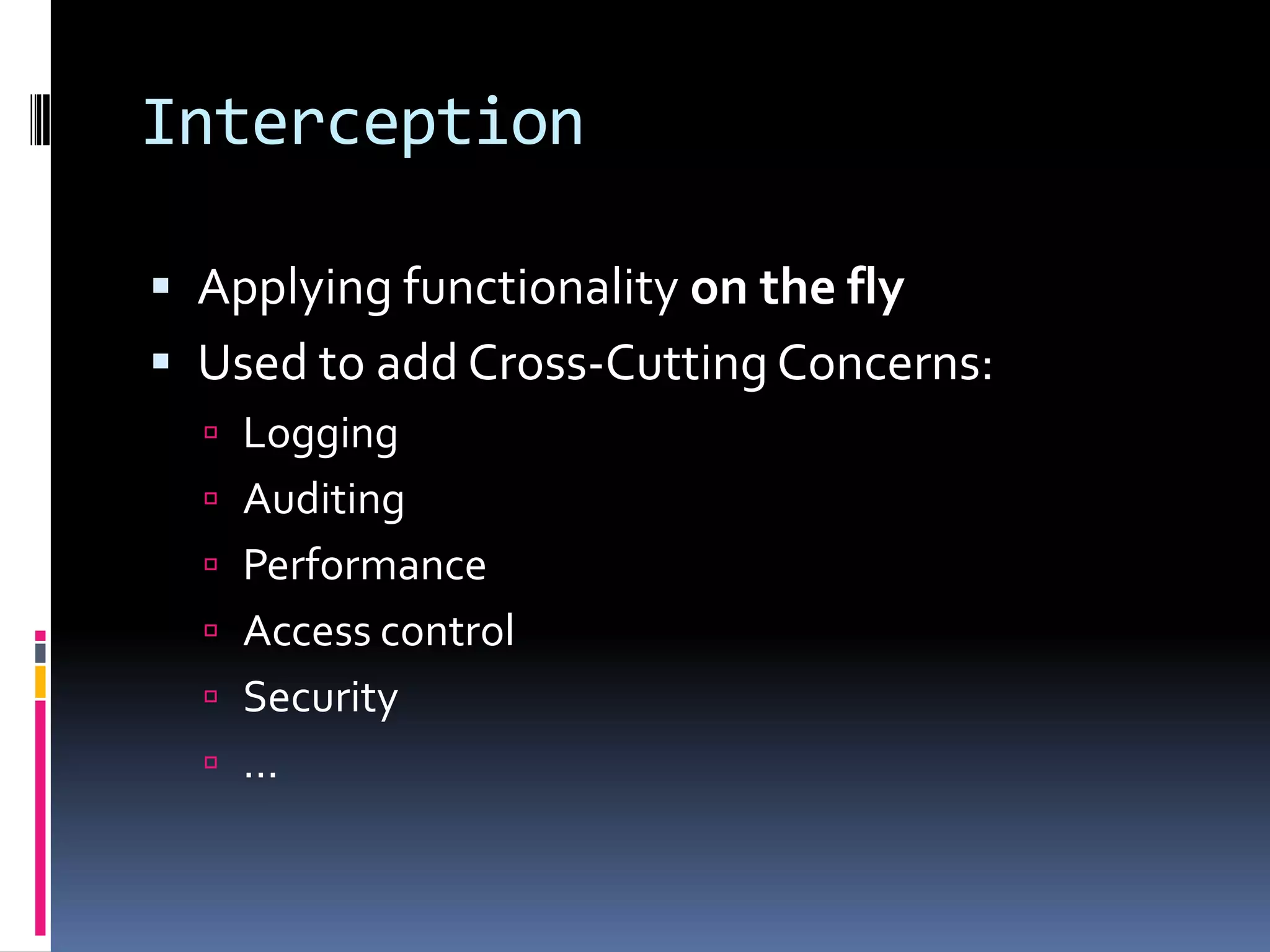

Interception
 Applying functionality on the fly
 Used to add Cross-Cutting Concerns:
 Logging
 Auditing
 Performance
 Access control
 Security
 ...

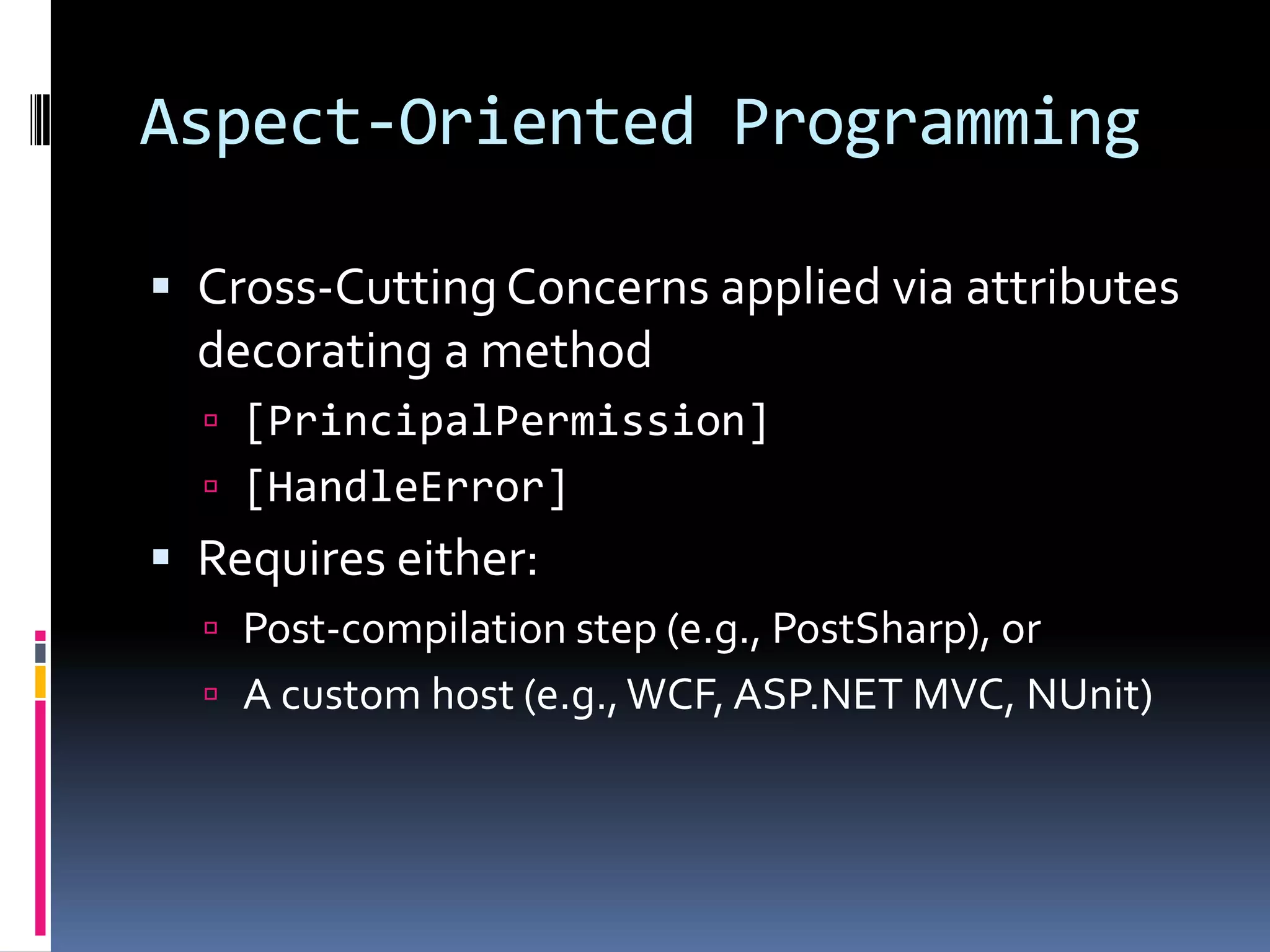

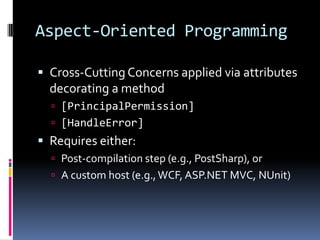

Aspect-Oriented Programming
 Cross-Cutting Concerns applied via attributes
decorating a method
 [PrincipalPermission]
 [HandleError]
 Requires either:
 Post-compilation step (e.g., PostSharp), or
 A custom host (e.g.,WCF, ASP.NET MVC, NUnit)

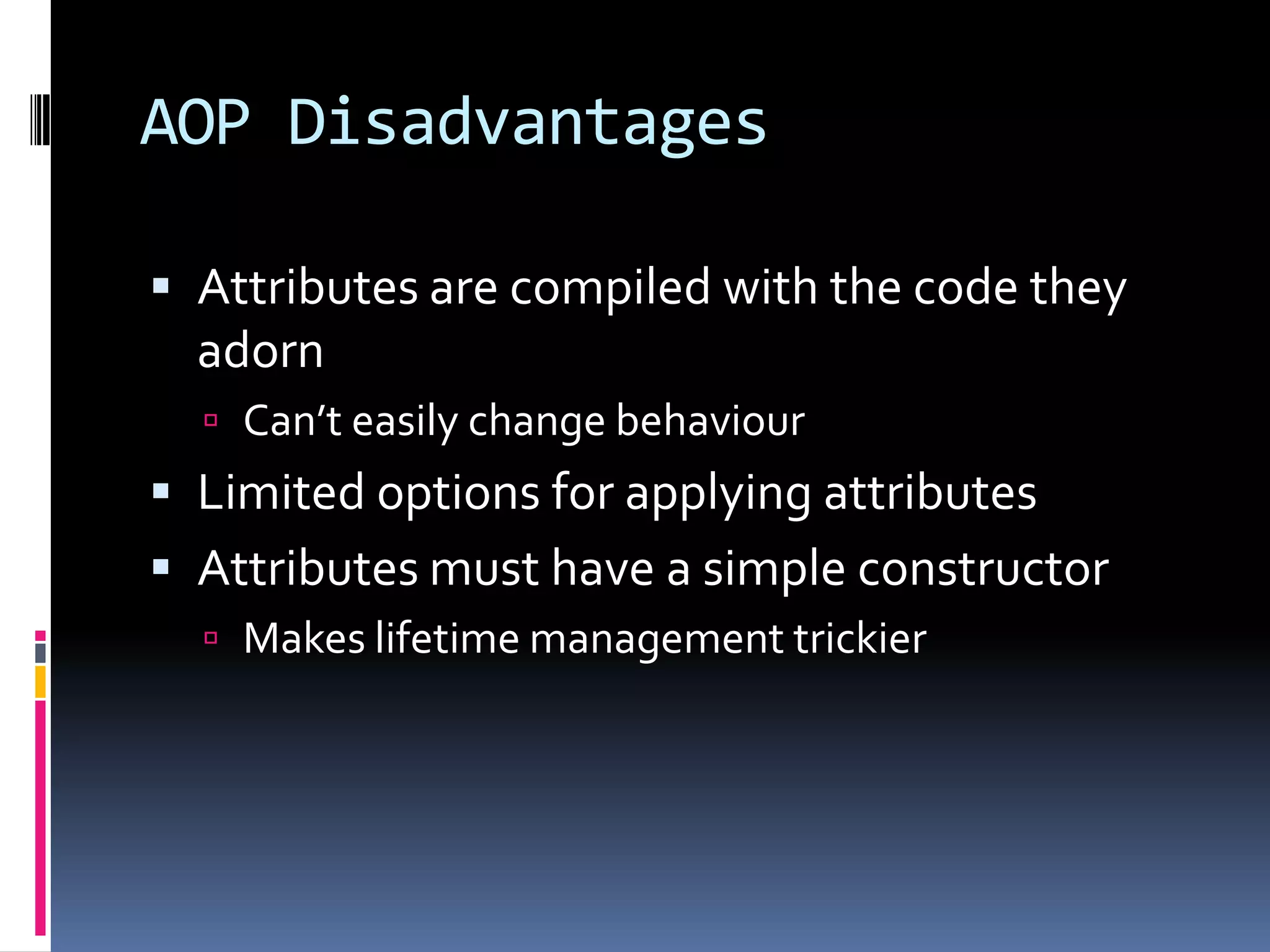

AOP Disadvantages
 Attributes are compiled with the code they
adorn
 Can’t easily change behaviour
 Limited options for applying attributes
 Attributes must have a simple constructor
 Makes lifetime management trickier

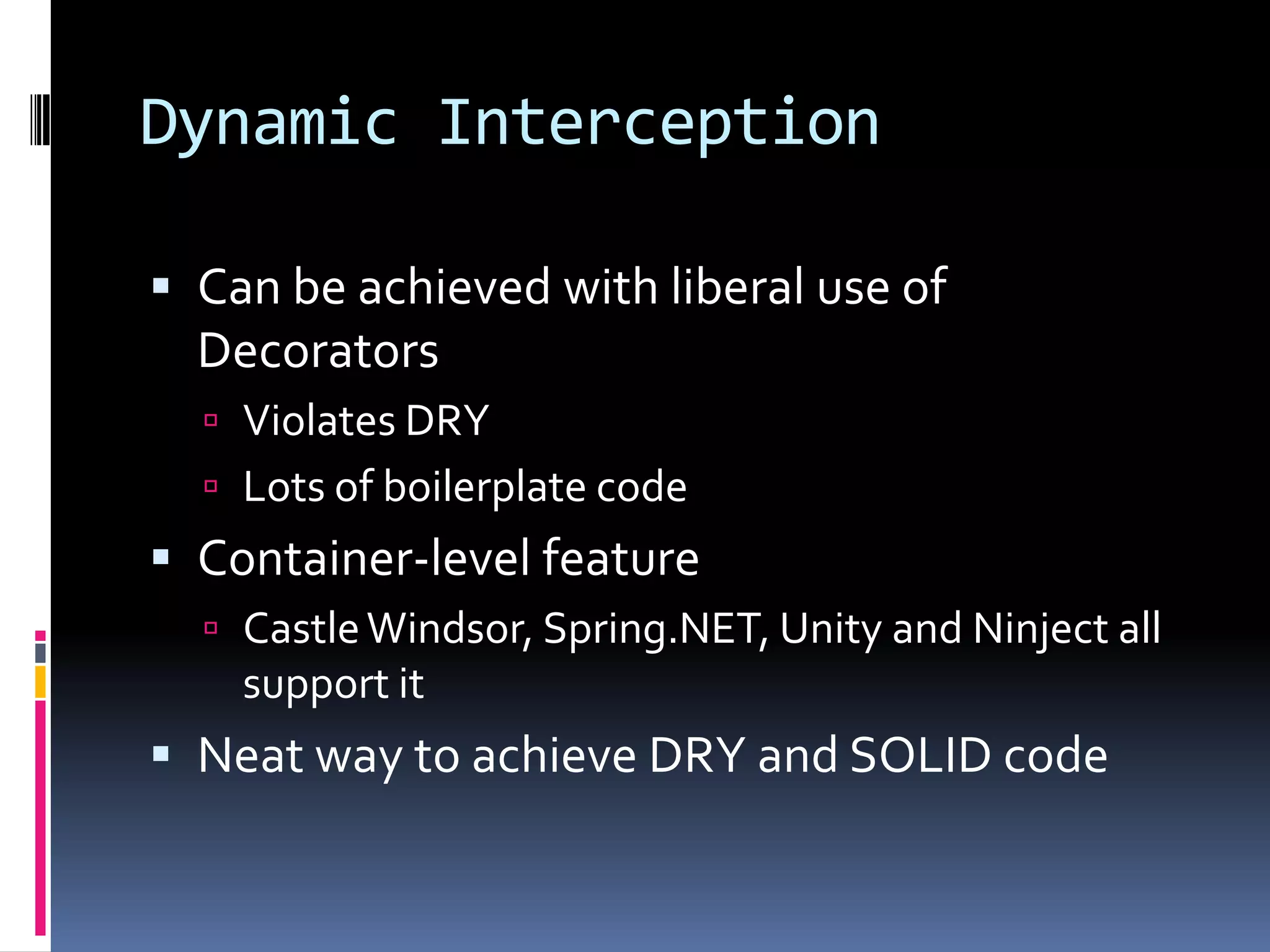

Dynamic Interception
 Can be achieved with liberal use of
Decorators
 Violates DRY
 Lots of boilerplate code
 Container-level feature
 CastleWindsor, Spring.NET, Unity and Ninject all
support it
 Neat way to achieve DRY and SOLID code

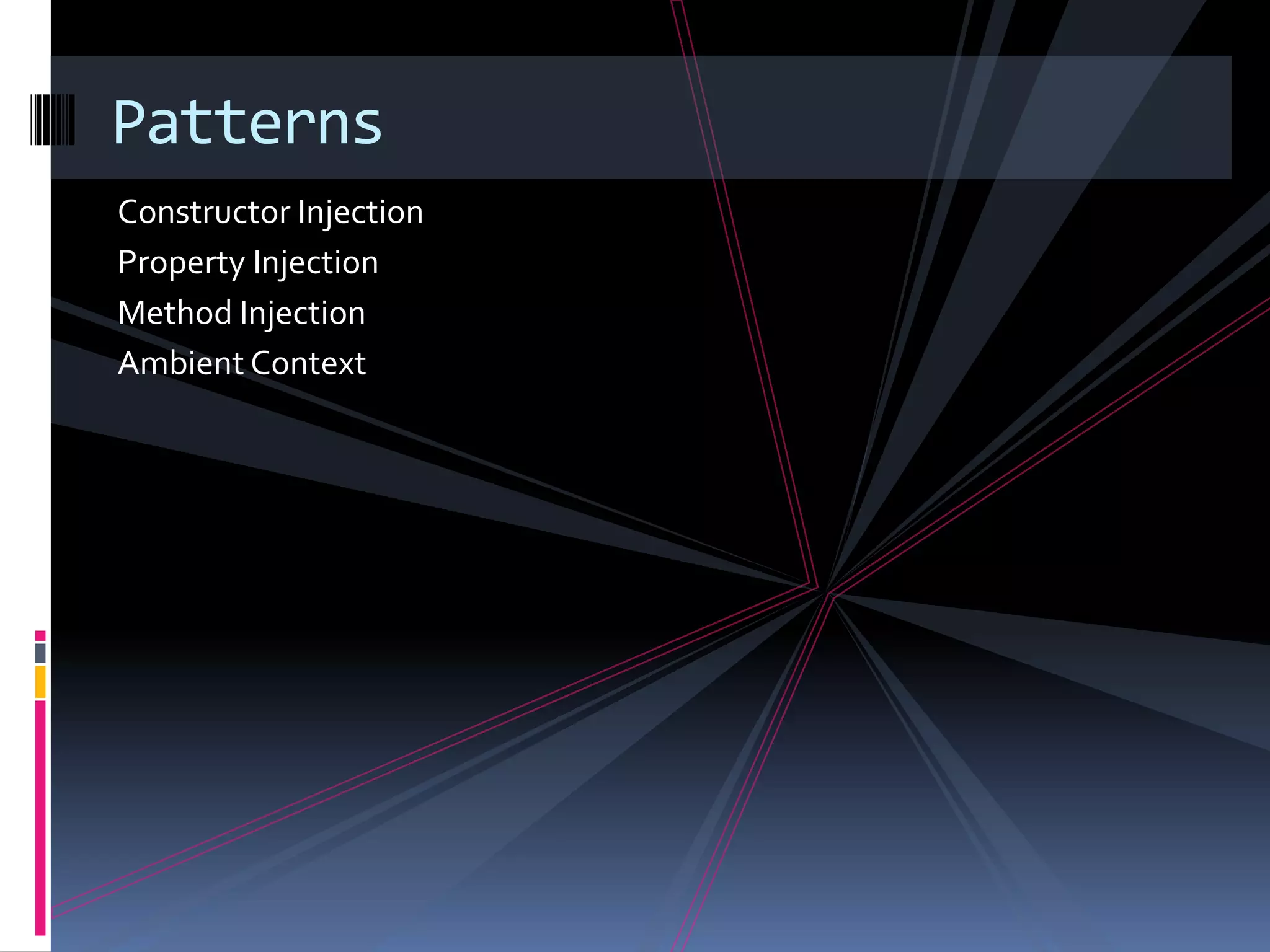

Constructor Injection
Property Injection
Method Injection
Ambient Context
Patterns

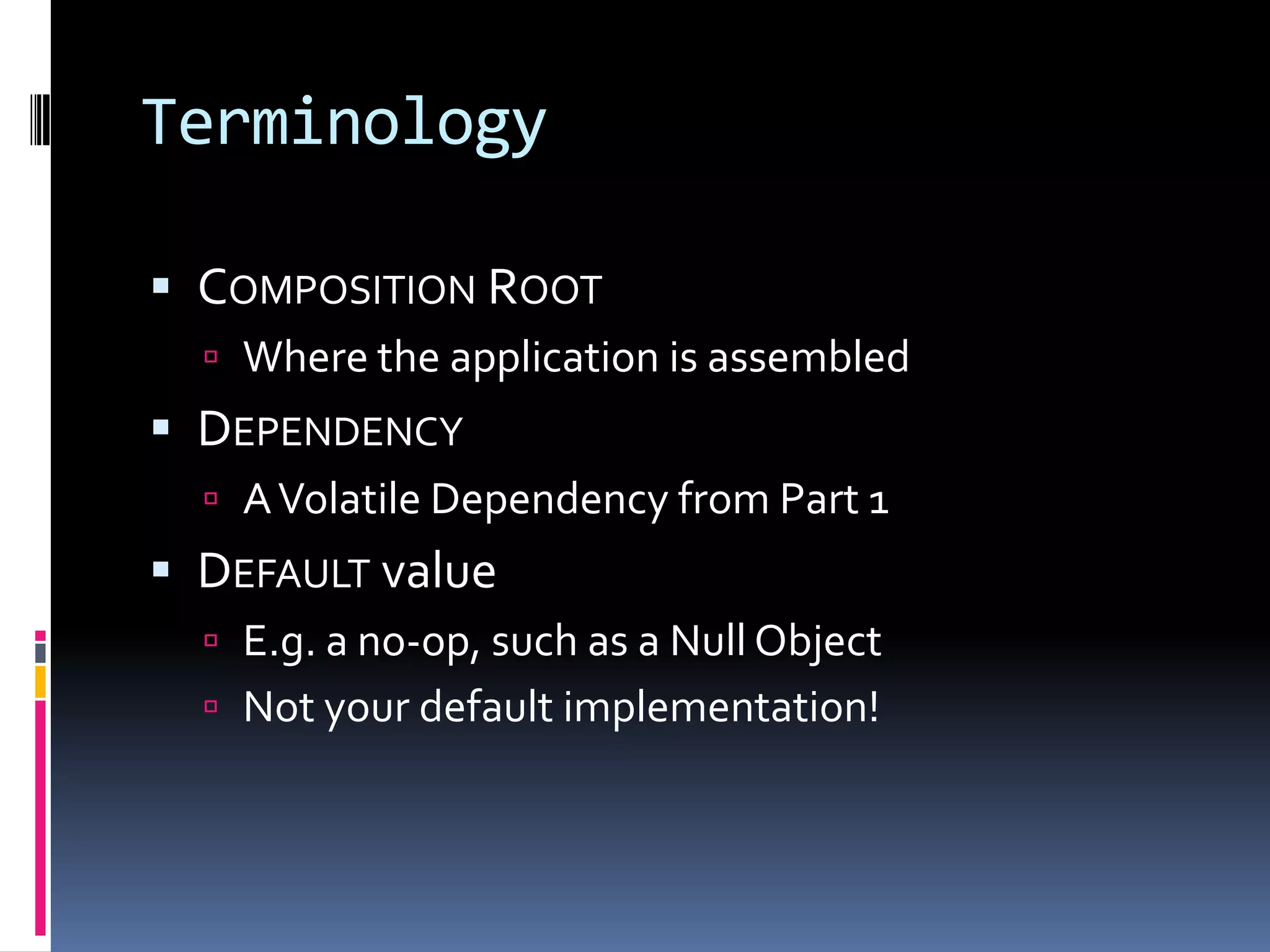

Terminology
 COMPOSITION ROOT
 Where the application is assembled
 DEPENDENCY
 AVolatile Dependency from Part 1
 DEFAULT value
 E.g. a no-op, such as a Null Object
 Not your default implementation!

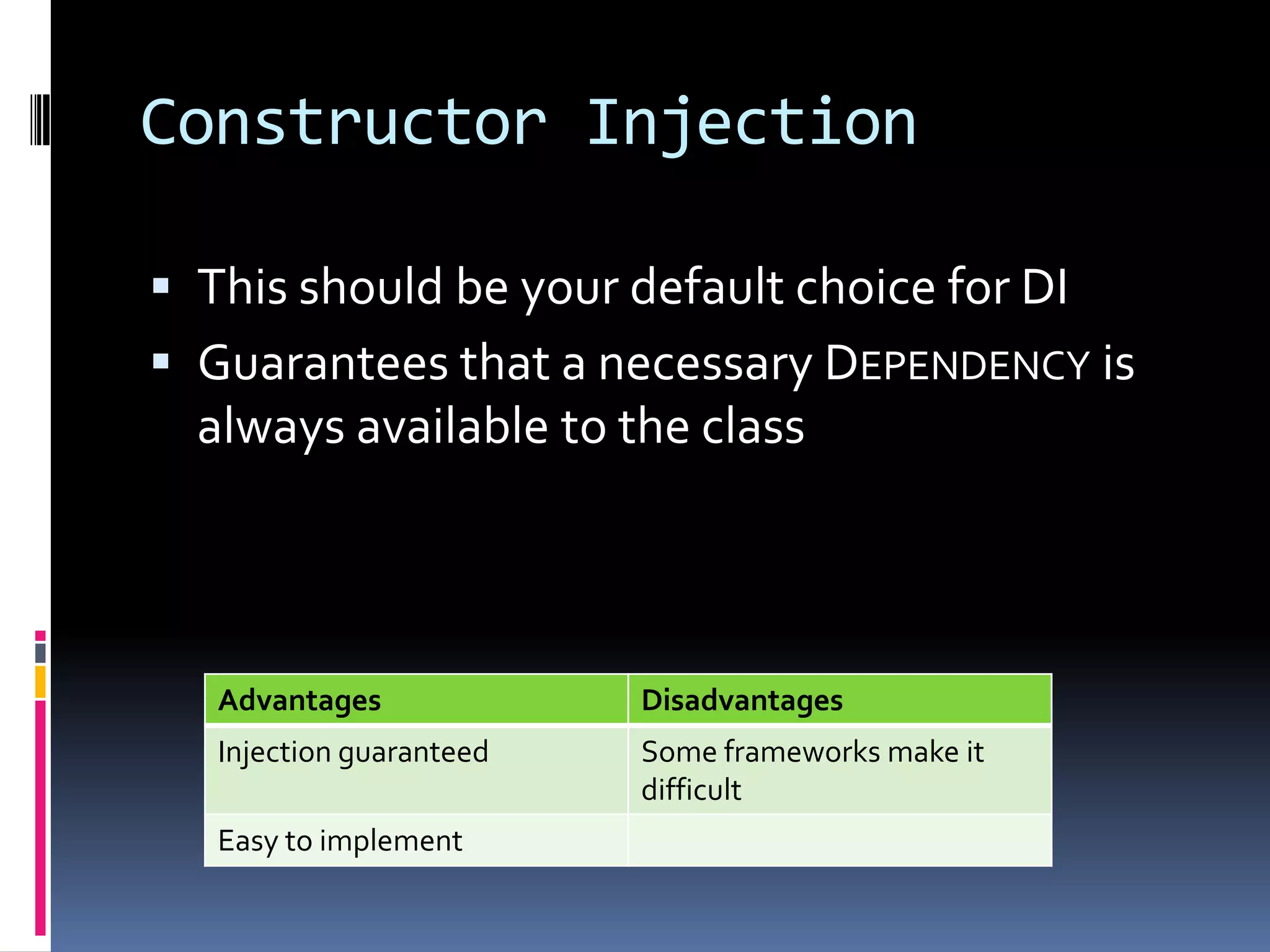

Constructor Injection
 This should be your default choice for DI
 Guarantees that a necessary DEPENDENCY is
always available to the class
Advantages Disadvantages
Injection guaranteed Some frameworks make it
difficult
Easy to implement

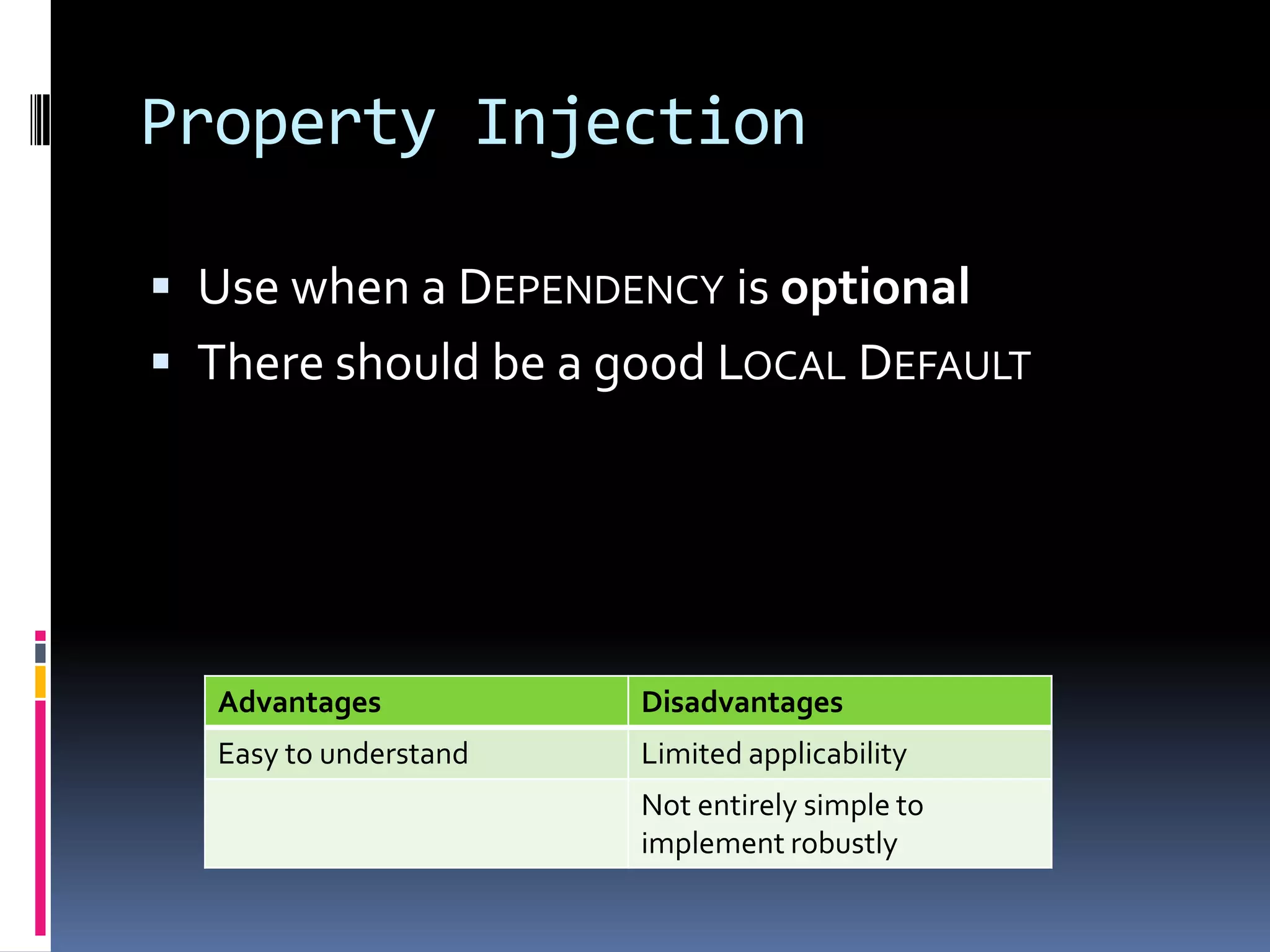

Property Injection
 Use when a DEPENDENCY is optional
 There should be a good LOCAL DEFAULT
Advantages Disadvantages
Easy to understand Limited applicability
Not entirely simple to
implement robustly

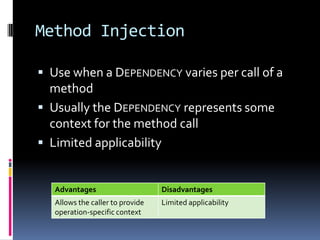

Method Injection
 Use when a DEPENDENCY varies per call of a
method
 Usually the DEPENDENCY represents some
context for the method call
 Limited applicability
Advantages Disadvantages
Allows the caller to provide
operation-specific context
Limited applicability

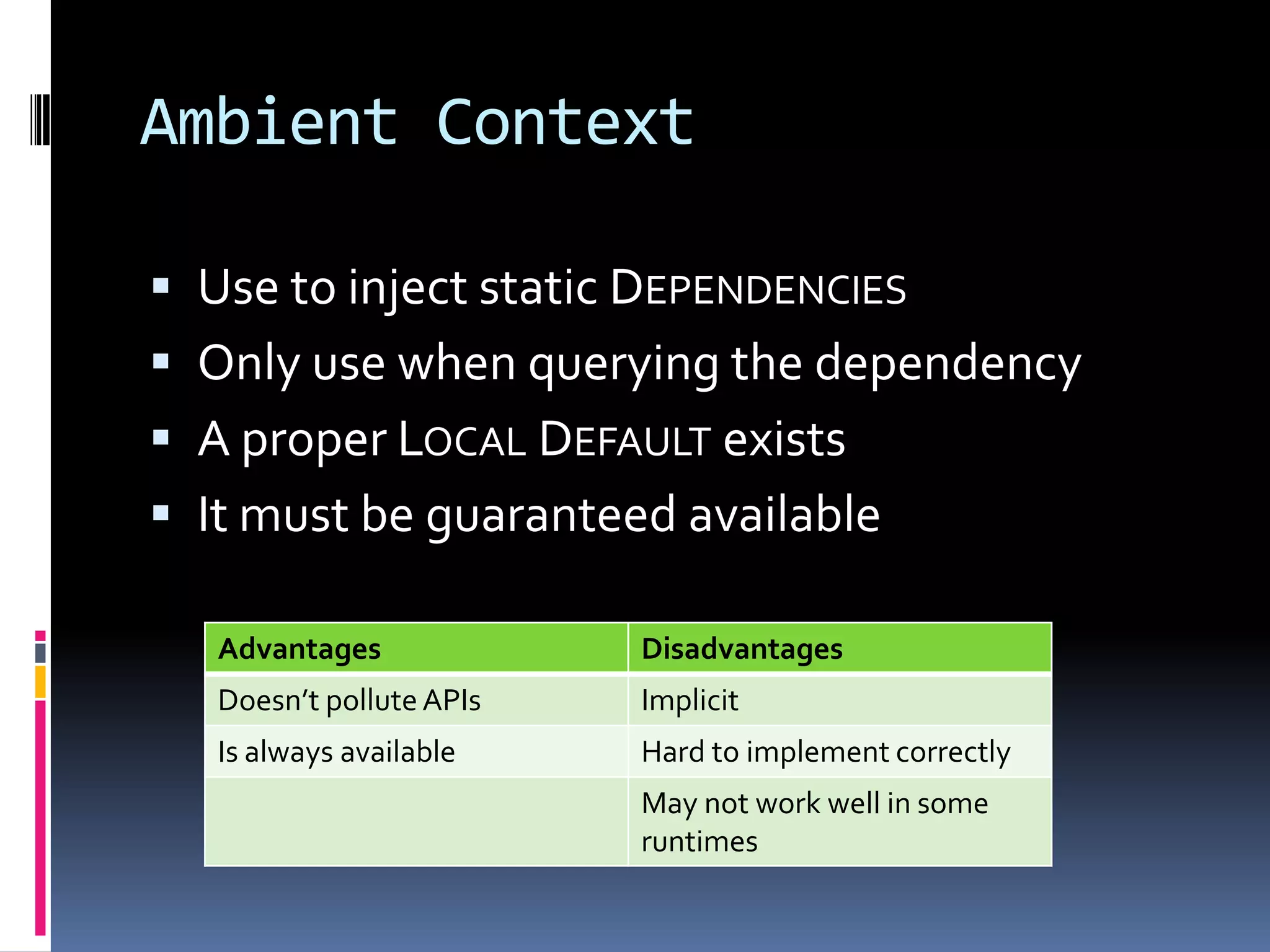

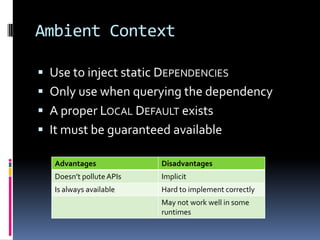

Ambient Context
 Use to inject static DEPENDENCIES
 Only use when querying the dependency
 A proper LOCAL DEFAULT exists
 It must be guaranteed available
Advantages Disadvantages
Doesn’t polluteAPIs Implicit
Is always available Hard to implement correctly
May not work well in some
runtimes

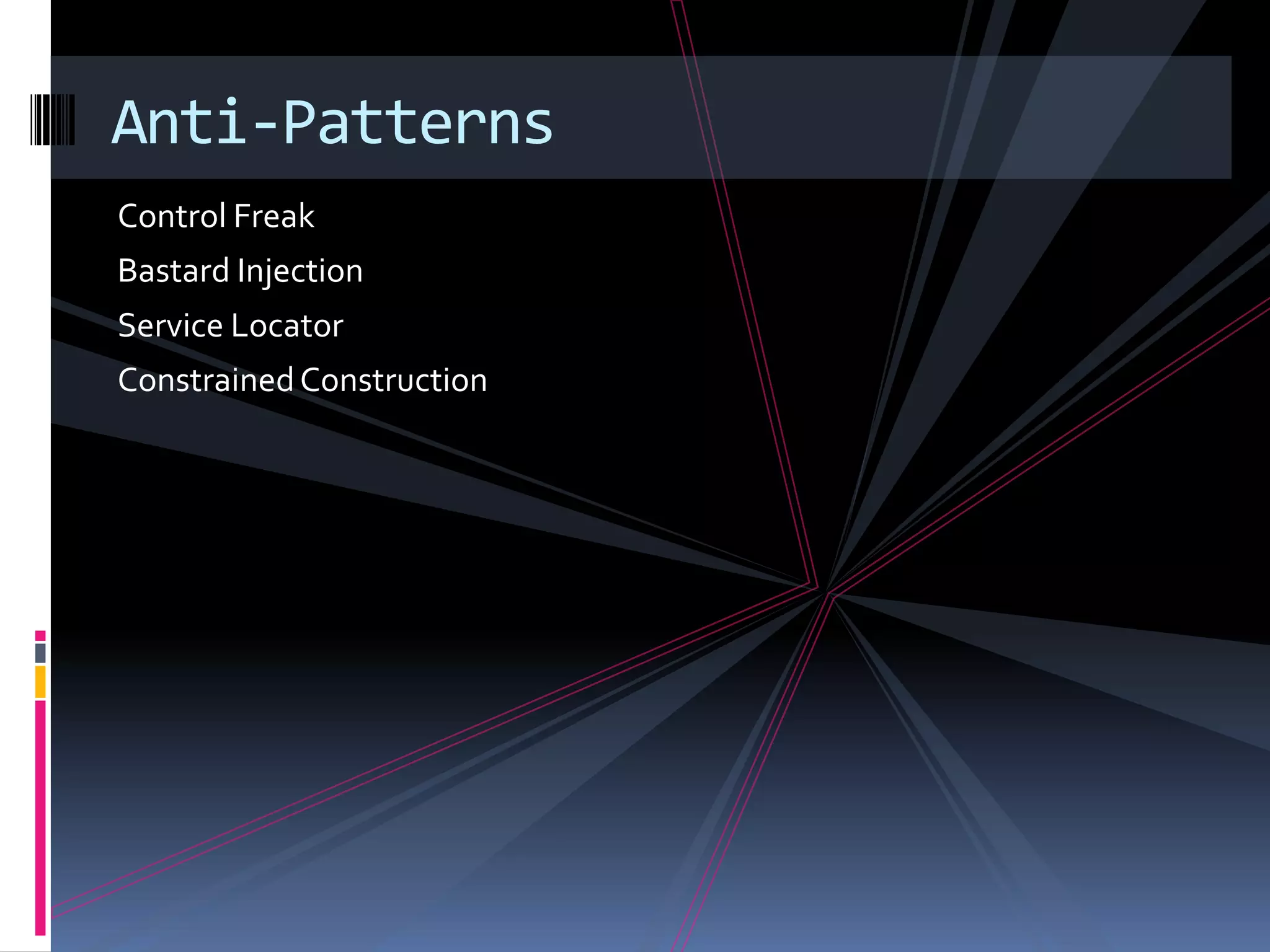

Control Freak
Bastard Injection
Service Locator
ConstrainedConstruction
Anti-Patterns

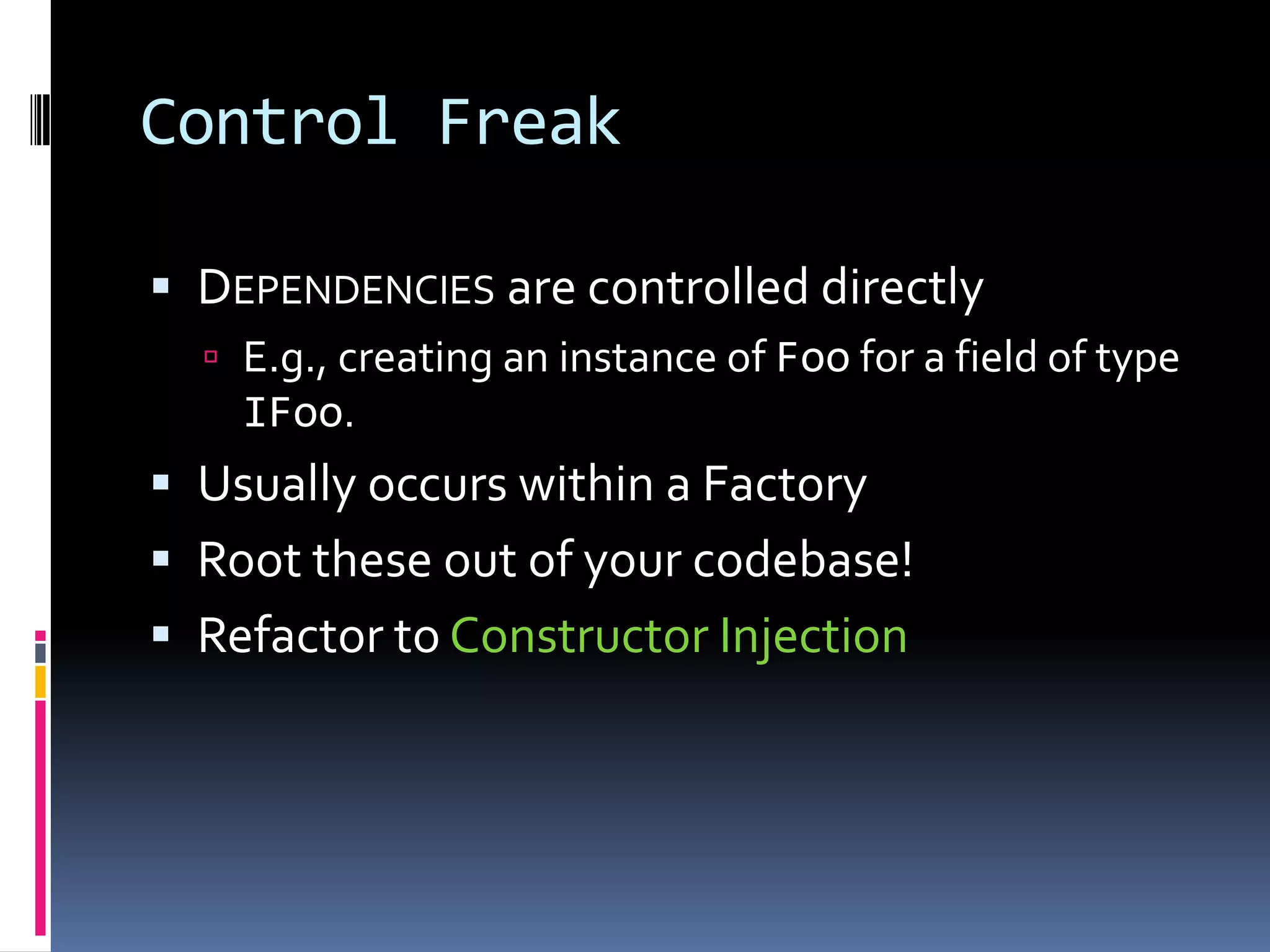

Control Freak
 DEPENDENCIES are controlled directly
 E.g., creating an instance of Foo for a field of type
IFoo.
 Usually occurs within a Factory
 Root these out of your codebase!
 Refactor to Constructor Injection

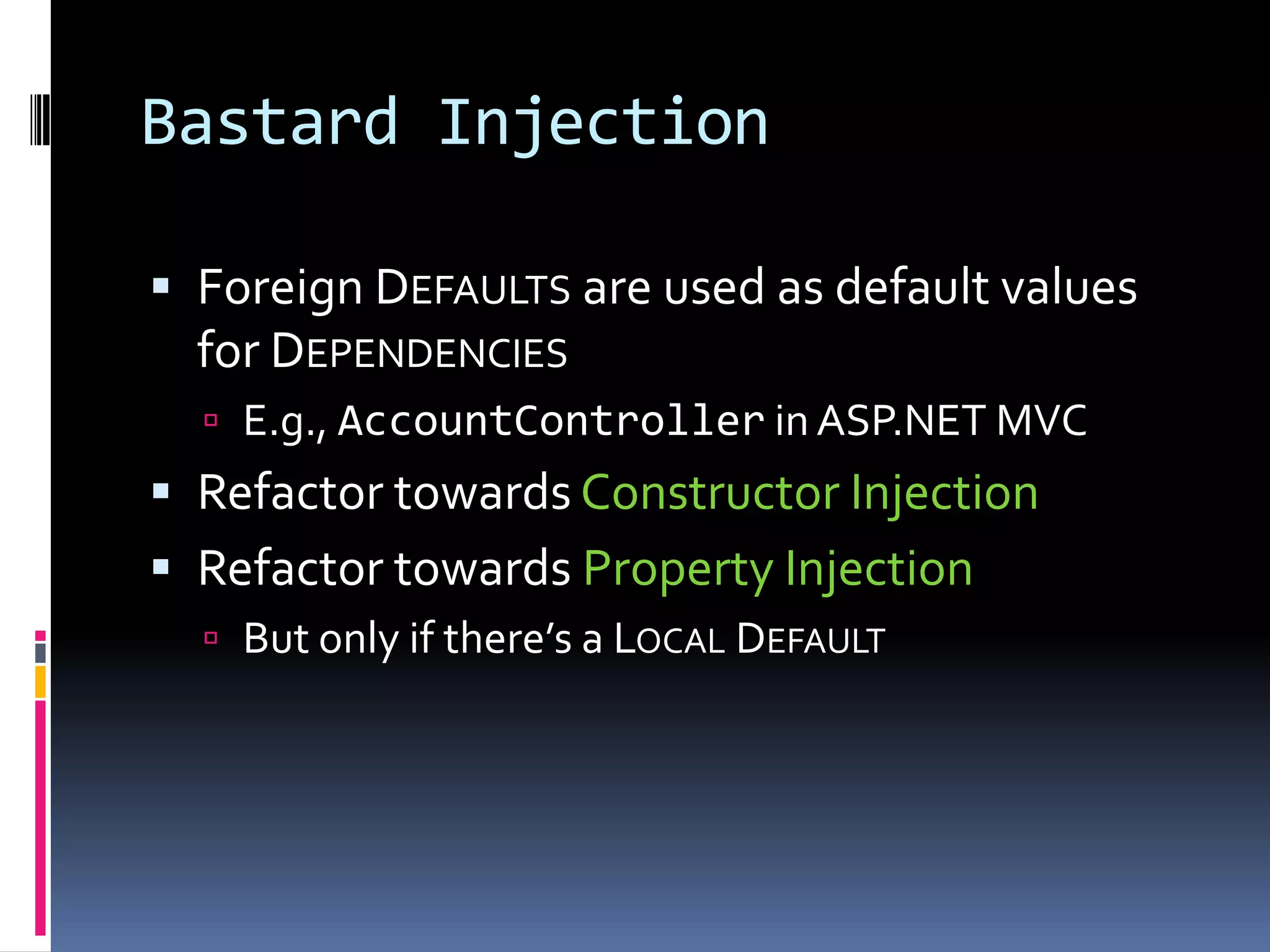

Bastard Injection
 Foreign DEFAULTS are used as default values
for DEPENDENCIES
 E.g., AccountController in ASP.NET MVC
 Refactor towards Constructor Injection
 Refactor towards Property Injection
 But only if there’s a LOCAL DEFAULT

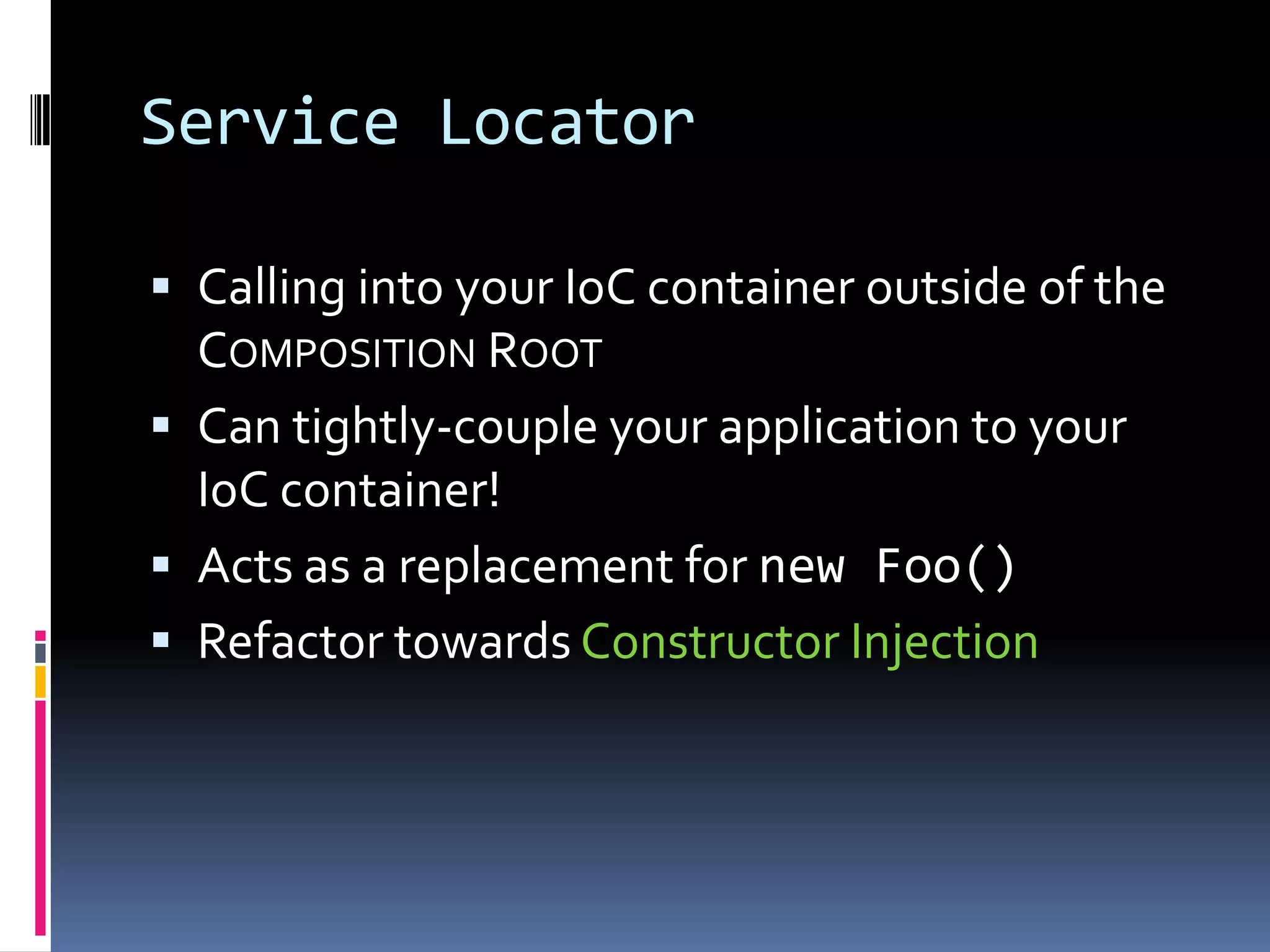

Service Locator
 Calling into your IoC container outside of the
COMPOSITION ROOT
 Can tightly-couple your application to your
IoC container!
 Acts as a replacement for new Foo()
 Refactor towards Constructor Injection

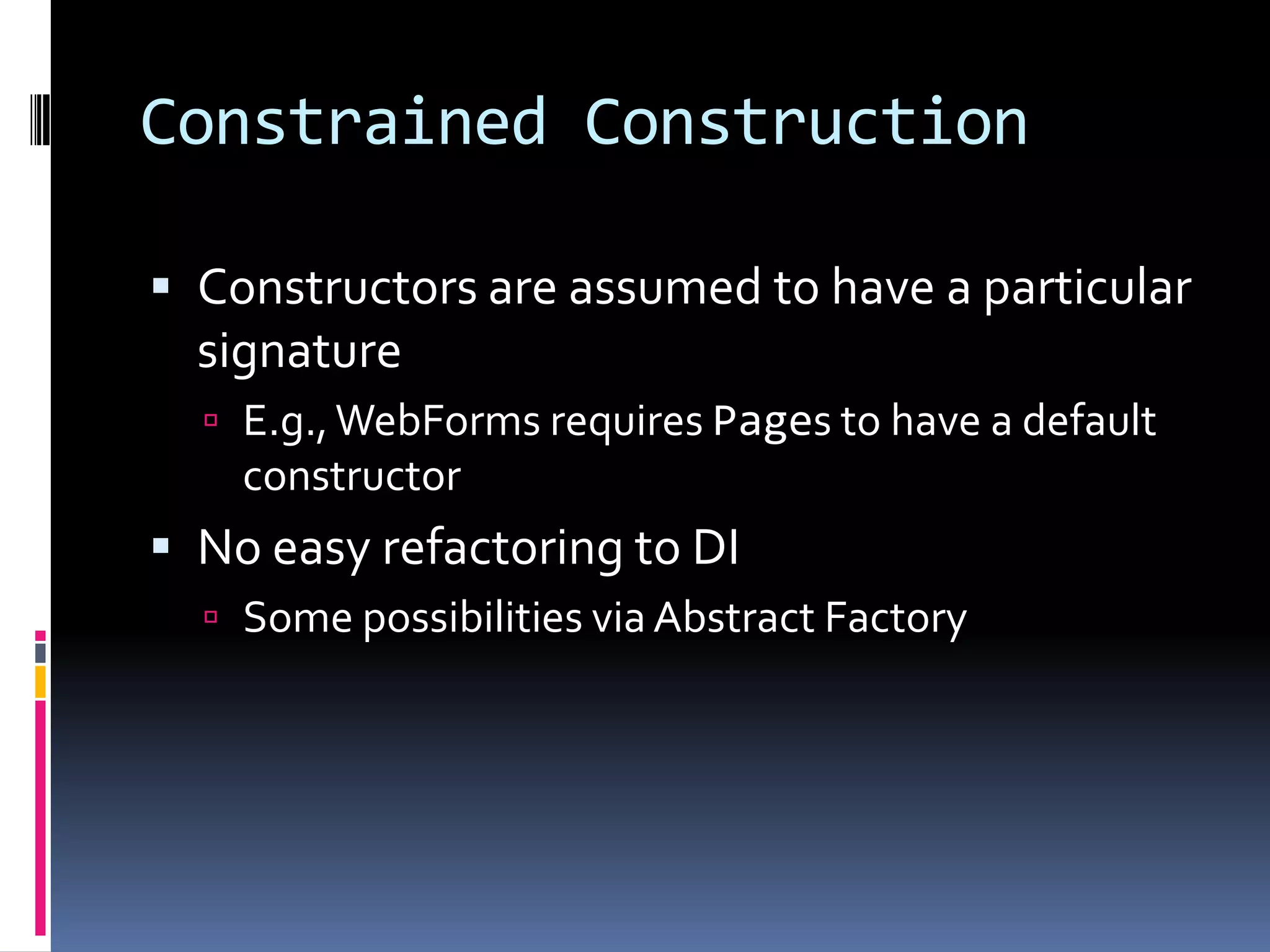

Constrained Construction
 Constructors are assumed to have a particular
signature
 E.g.,WebForms requires Pages to have a default
constructor
 No easy refactoring to DI
 Some possibilities via Abstract Factory

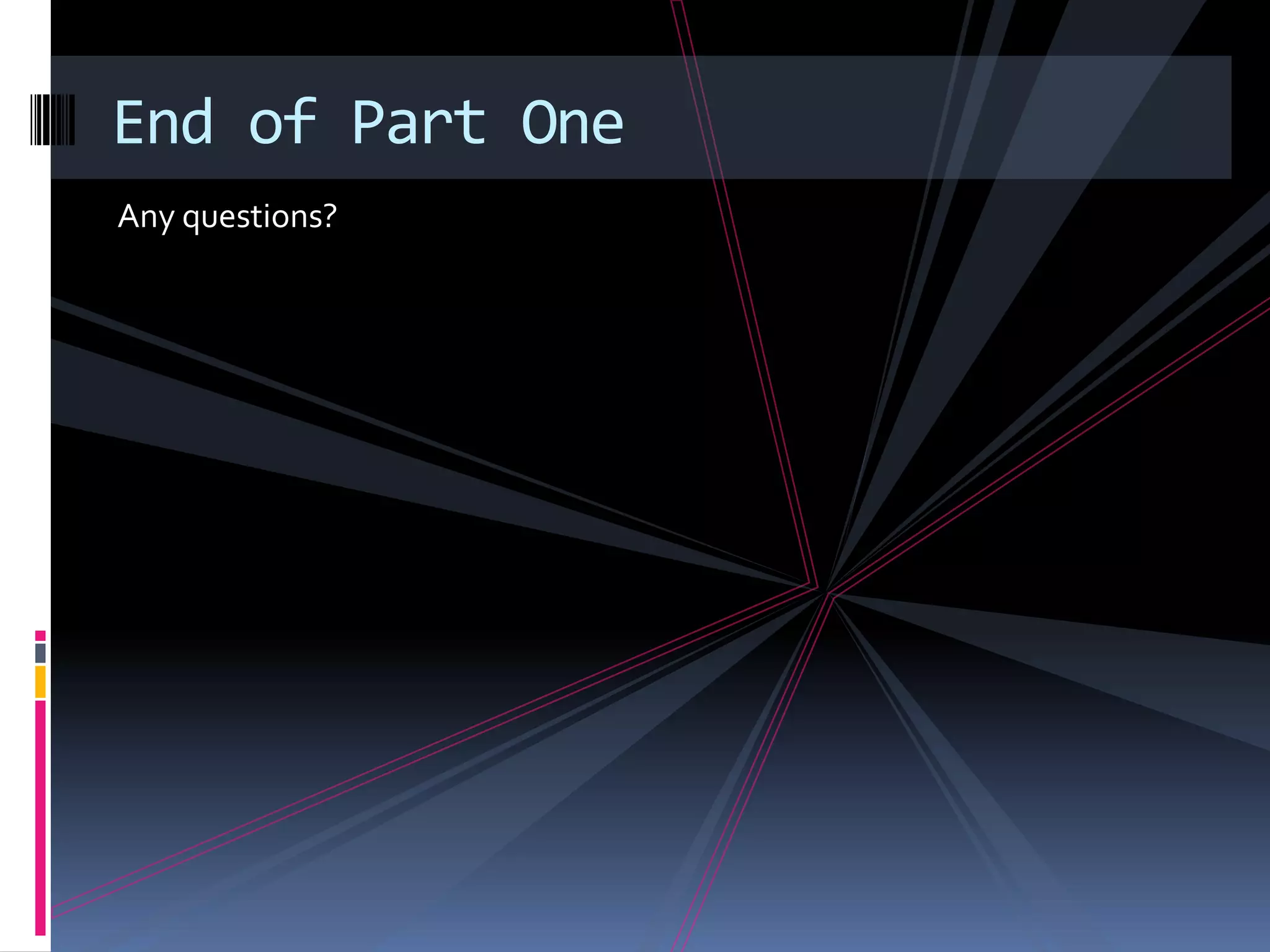

Any questions?
End of Part One

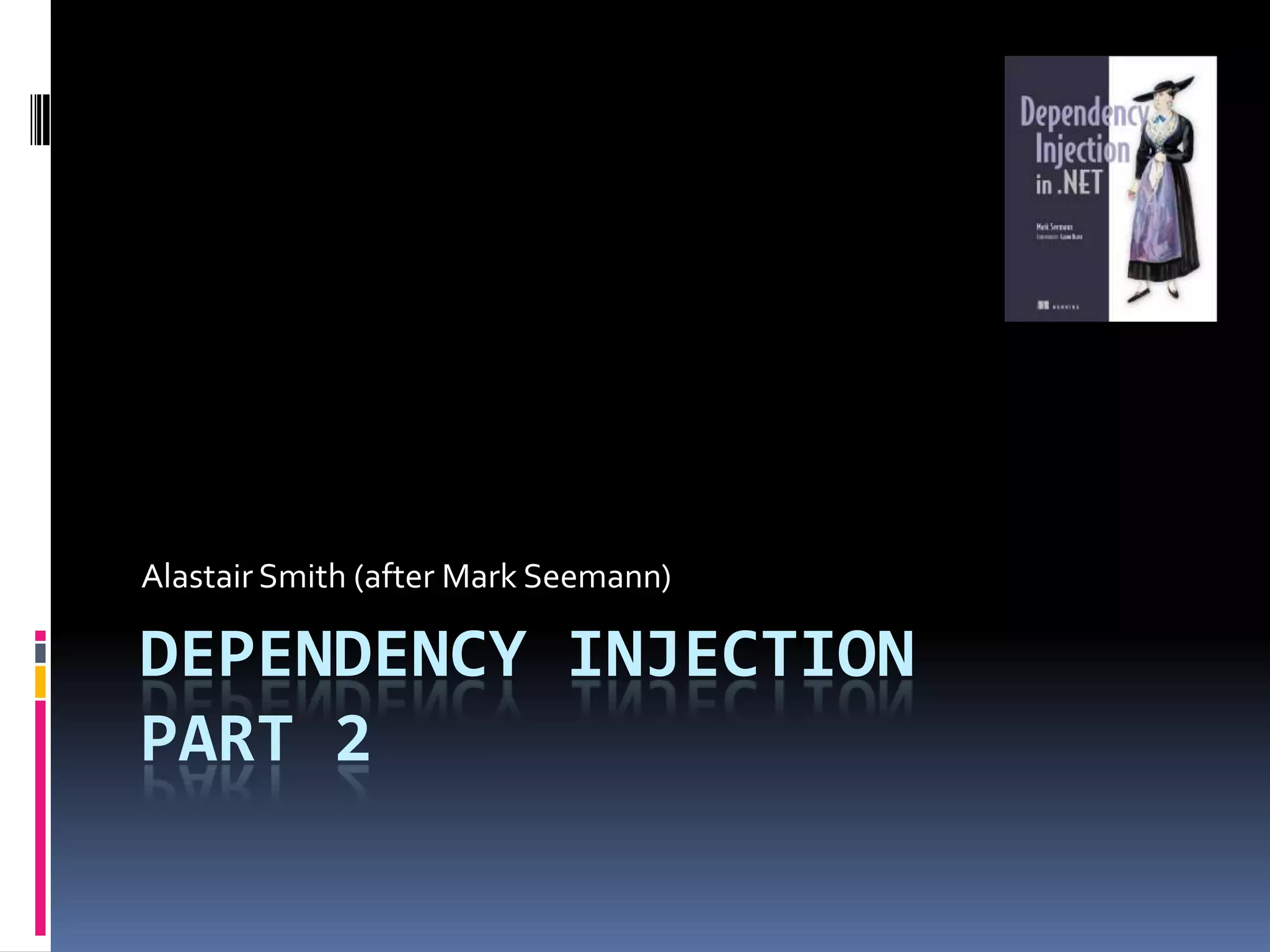

DEPENDENCY INJECTION
PART 2
Alastair Smith (after Mark Seemann)

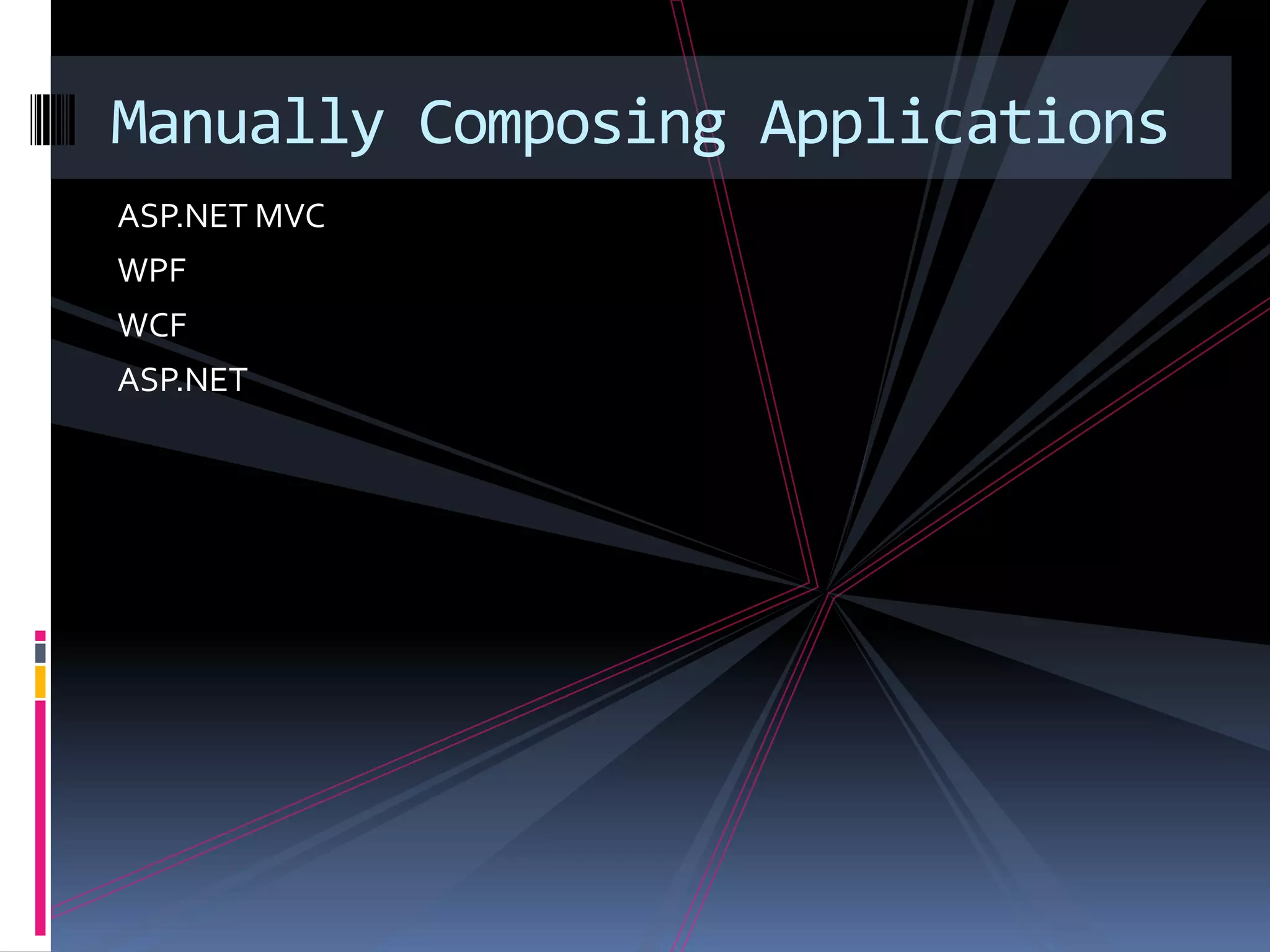

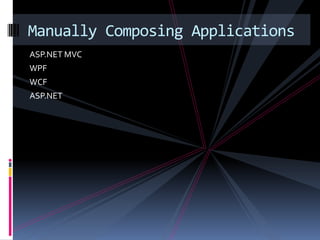

ASP.NET MVC
WPF
WCF
ASP.NET
Manually Composing Applications

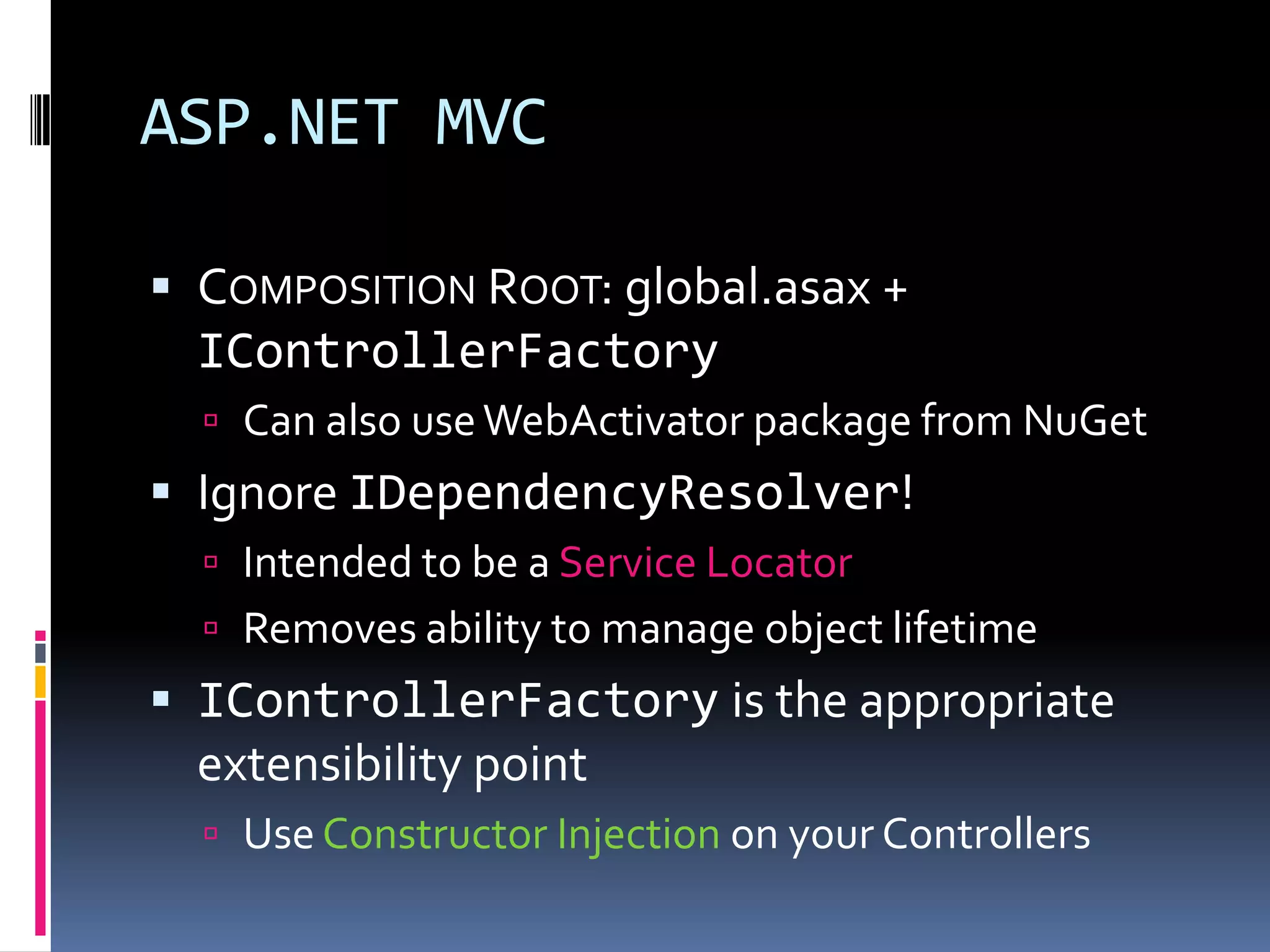

ASP.NET MVC
 COMPOSITION ROOT: global.asax +
IControllerFactory
 Can also useWebActivator package from NuGet
 Ignore IDependencyResolver!
 Intended to be a Service Locator
 Removes ability to manage object lifetime
 IControllerFactory is the appropriate
extensibility point
 Use Constructor Injection on your Controllers

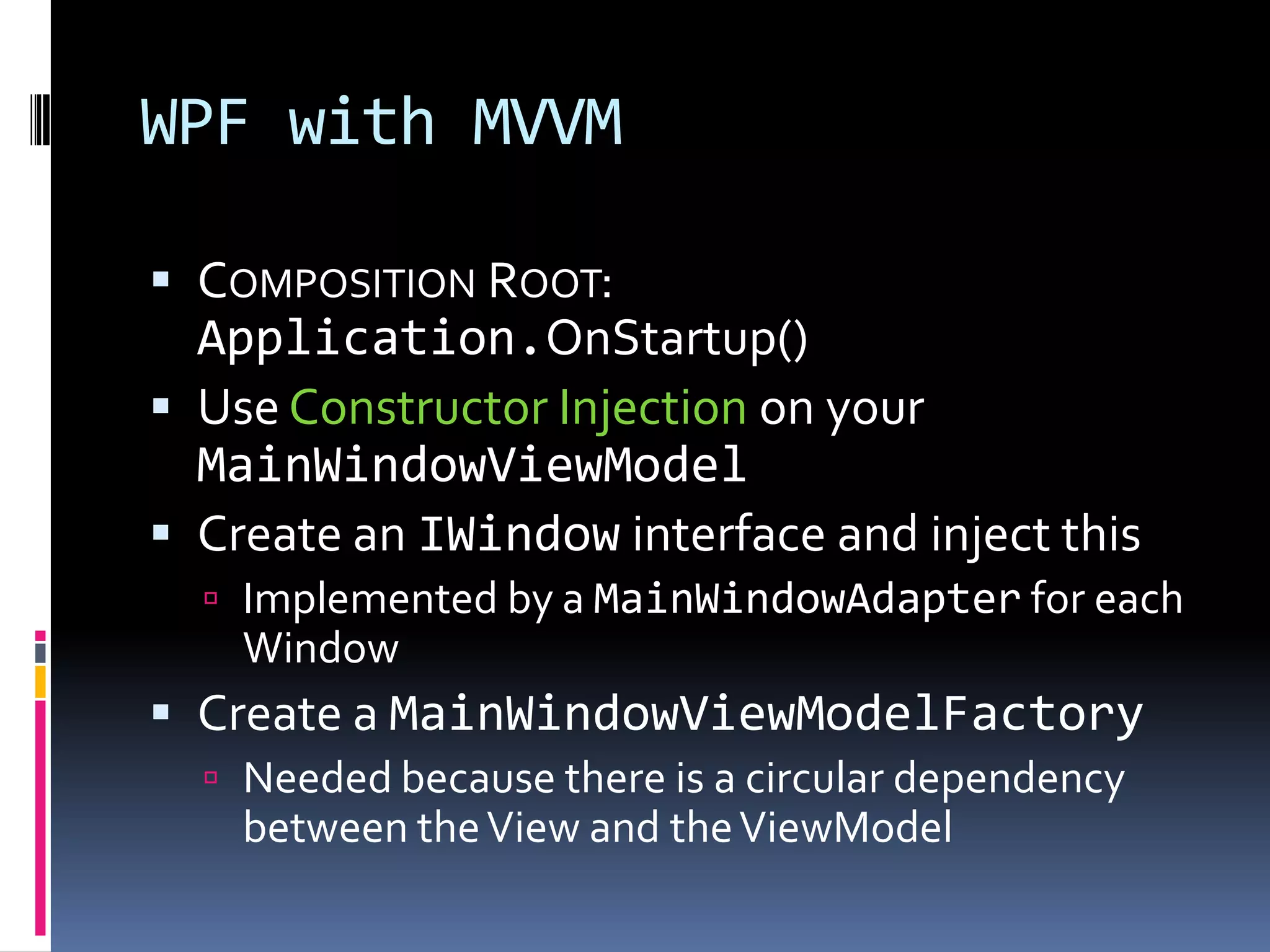

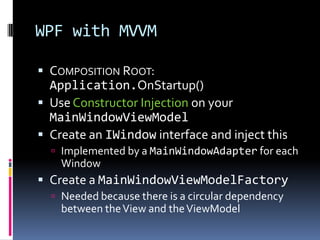

WPF with MVVM
 COMPOSITION ROOT:
Application.OnStartup()
 Use Constructor Injection on your
MainWindowViewModel
 Create an IWindow interface and inject this
 Implemented by a MainWindowAdapter for each
Window
 Create a MainWindowViewModelFactory
 Needed because there is a circular dependency
between theView and theViewModel

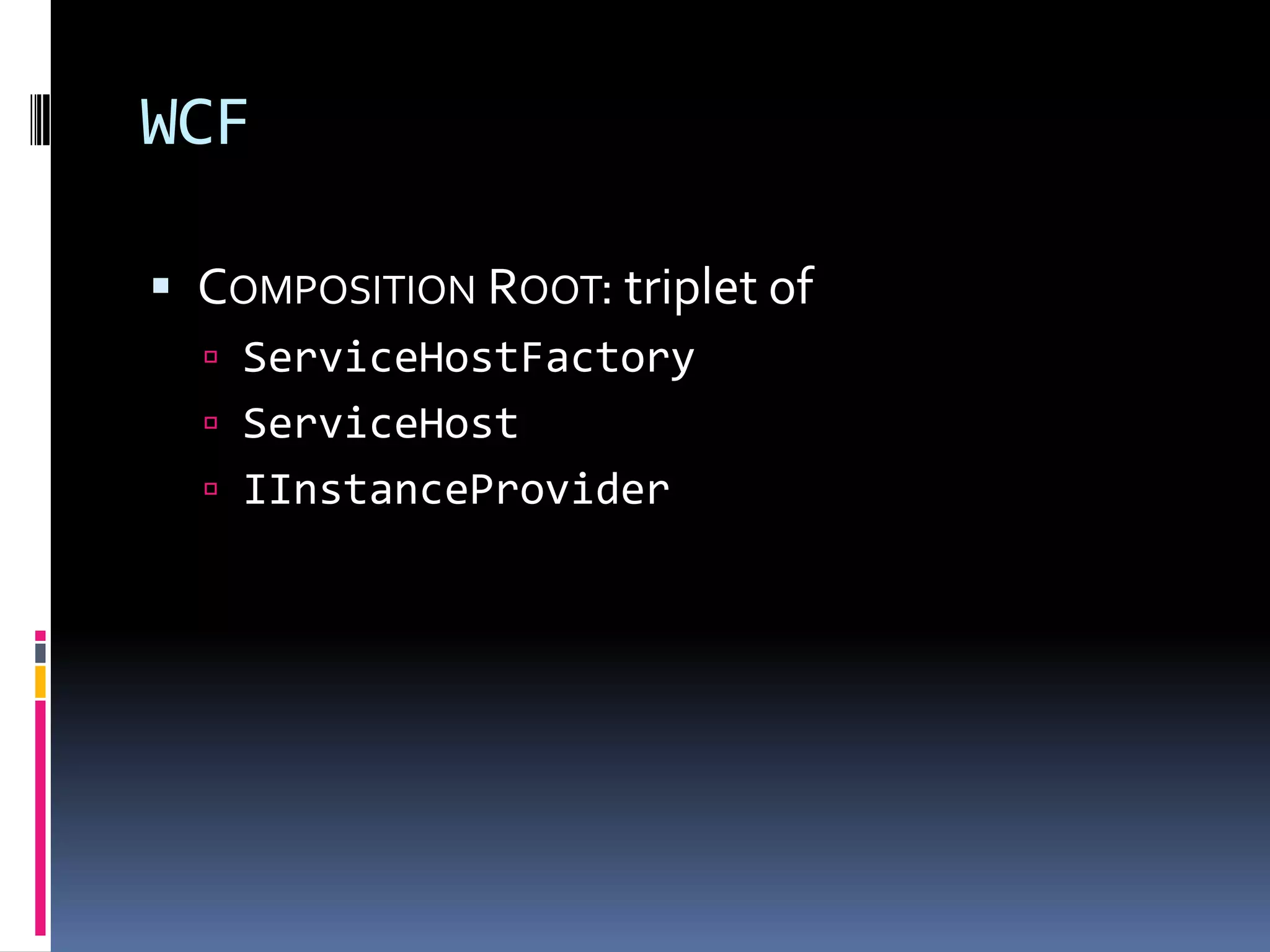

WCF
 COMPOSITION ROOT: triplet of
 ServiceHostFactory
 ServiceHost
 IInstanceProvider

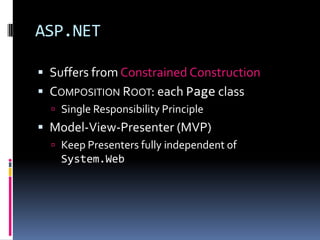

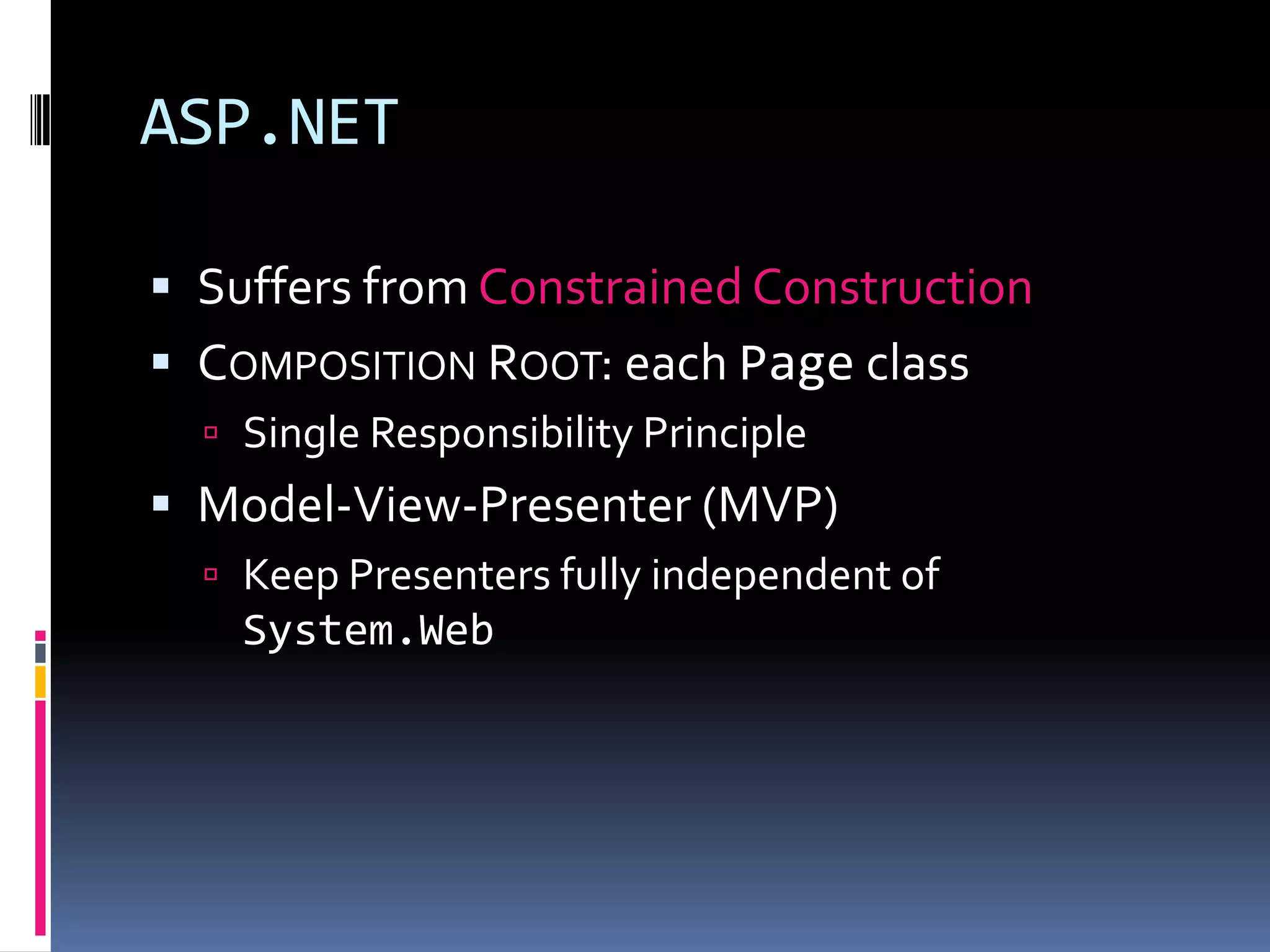

ASP.NET
 Suffers from Constrained Construction
 COMPOSITION ROOT: each Page class
 Single Responsibility Principle
 Model-View-Presenter (MVP)
 Keep Presenters fully independent of
System.Web
Any questions?
End of Part Two
