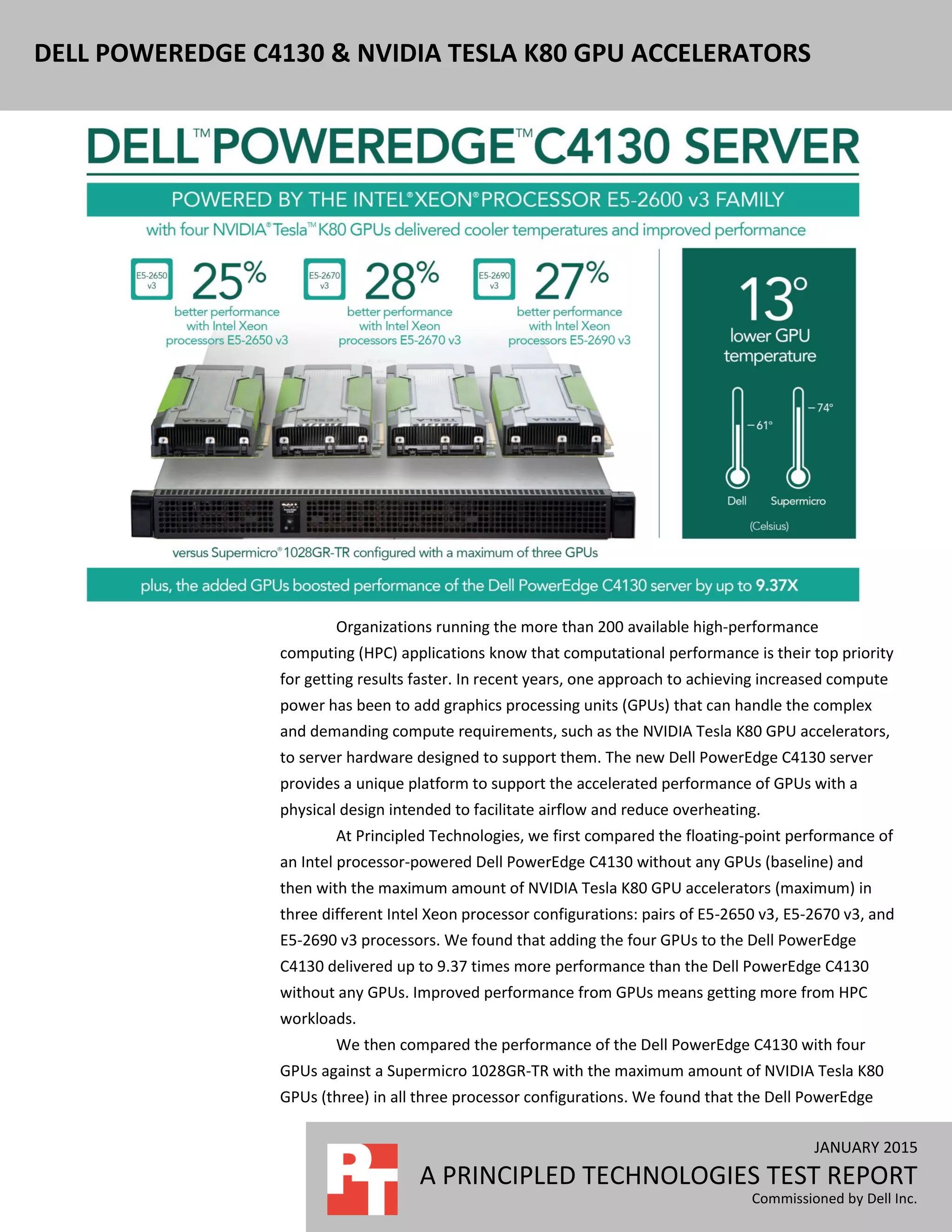

JANUARY 2015
A PRINCIPLED TECHNOLOGIES TEST REPORT
Commissioned by Dell Inc.
DELL POWEREDGE C4130 & NVIDIA TESLA K80 GPU ACCELERATORS
Organizations running the more than 200 available high-performance
computing (HPC) applications know that computational performance is their top priority
for getting results faster. In recent years, one approach to achieving increased compute
power has been to add graphics processing units (GPUs) that can handle the complex
and demanding compute requirements, such as the NVIDIA Tesla K80 GPU accelerators,
to server hardware designed to support them. The new Dell PowerEdge C4130 server
provides a unique platform to support the accelerated performance of GPUs with a
physical design intended to facilitate airflow and reduce overheating.
At Principled Technologies, we first compared the floating-point performance of
an Intel processor-powered Dell PowerEdge C4130 without any GPUs (baseline) and
then with the maximum amount of NVIDIA Tesla K80 GPU accelerators (maximum) in
three different Intel Xeon processor configurations: pairs of E5-2650 v3, E5-2670 v3, and
E5-2690 v3 processors. We found that adding the four GPUs to the Dell PowerEdge
C4130 delivered up to 9.37 times more performance than the Dell PowerEdge C4130
without any GPUs. Improved performance from GPUs means getting more from HPC
workloads.
We then compared the performance of the Dell PowerEdge C4130 with four
GPUs against a Supermicro 1028GR-TR with the maximum amount of NVIDIA Tesla K80
GPUs (three) in all three processor configurations. We found that the Dell PowerEdge
A Principled Technologies test report 2Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators

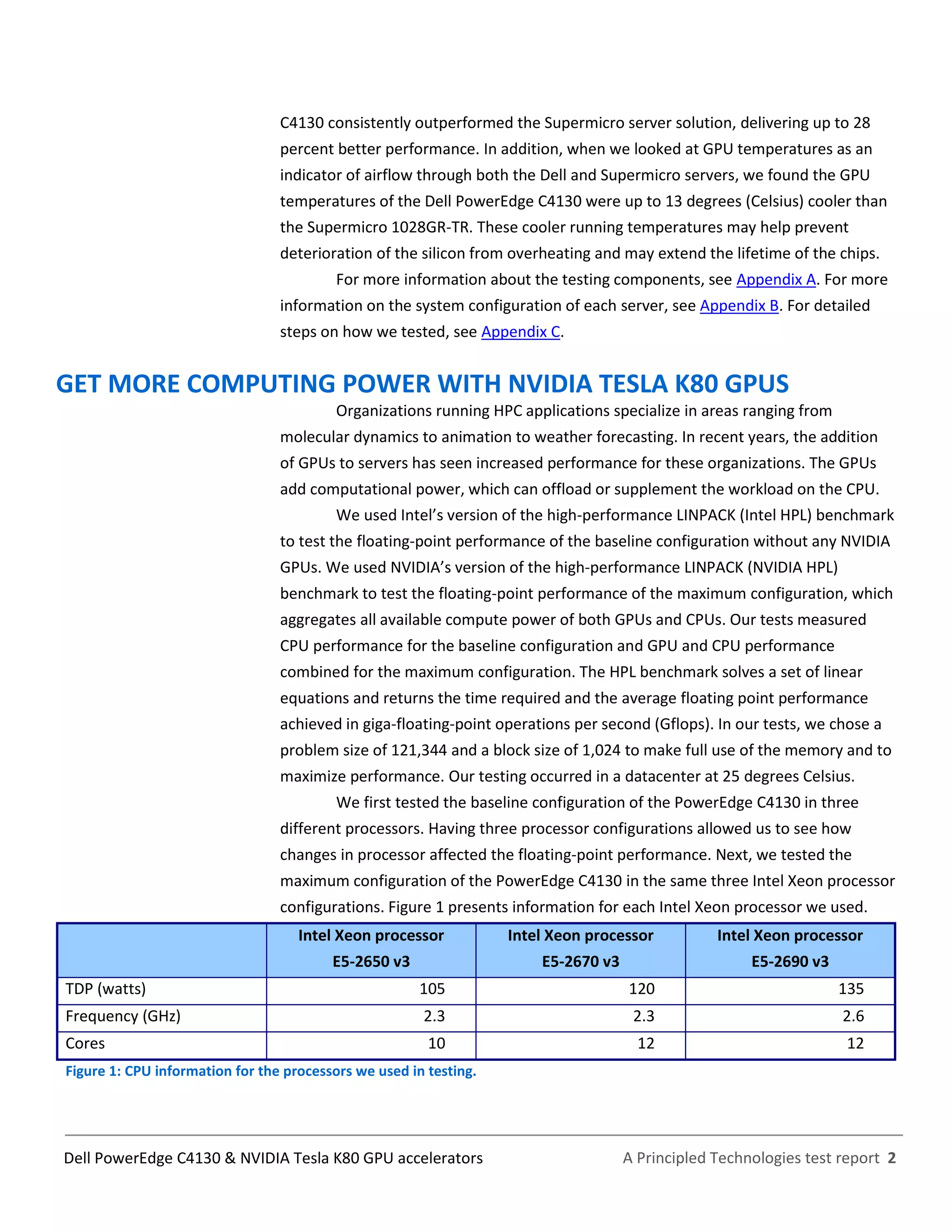

C4130 consistently outperformed the Supermicro server solution, delivering up to 28
percent better performance. In addition, when we looked at GPU temperatures as an
indicator of airflow through both the Dell and Supermicro servers, we found the GPU
temperatures of the Dell PowerEdge C4130 were up to 13 degrees (Celsius) cooler than
the Supermicro 1028GR-TR. These cooler running temperatures may help prevent
deterioration of the silicon from overheating and may extend the lifetime of the chips.
For more information about the testing components, see Appendix A. For more
information on the system configuration of each server, see Appendix B. For detailed
steps on how we tested, see Appendix C.
GET MORE COMPUTING POWER WITH NVIDIA TESLA K80 GPUS
Organizations running HPC applications specialize in areas ranging from
molecular dynamics to animation to weather forecasting. In recent years, the addition
of GPUs to servers has seen increased performance for these organizations. The GPUs
add computational power, which can offload or supplement the workload on the CPU.
We used Intel’s version of the high-performance LINPACK (Intel HPL) benchmark
to test the floating-point performance of the baseline configuration without any NVIDIA
GPUs. We used NVIDIA’s version of the high-performance LINPACK (NVIDIA HPL)
benchmark to test the floating-point performance of the maximum configuration, which
aggregates all available compute power of both GPUs and CPUs. Our tests measured
CPU performance for the baseline configuration and GPU and CPU performance
combined for the maximum configuration. The HPL benchmark solves a set of linear
equations and returns the time required and the average floating point performance
achieved in giga-floating-point operations per second (Gflops). In our tests, we chose a
problem size of 121,344 and a block size of 1,024 to make full use of the memory and to
maximize performance. Our testing occurred in a datacenter at 25 degrees Celsius.
We first tested the baseline configuration of the PowerEdge C4130 in three
different processors. Having three processor configurations allowed us to see how
changes in processor affected the floating-point performance. Next, we tested the
maximum configuration of the PowerEdge C4130 in the same three Intel Xeon processor
configurations. Figure 1 presents information for each Intel Xeon processor we used.
Intel Xeon processor
E5-2650 v3
Intel Xeon processor
E5-2670 v3
Intel Xeon processor
E5-2690 v3
TDP (watts) 105 120 135
Frequency (GHz) 2.3 2.3 2.6
Cores 10 12 12
Figure 1: CPU information for the processors we used in testing.
A Principled Technologies test report 3Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators

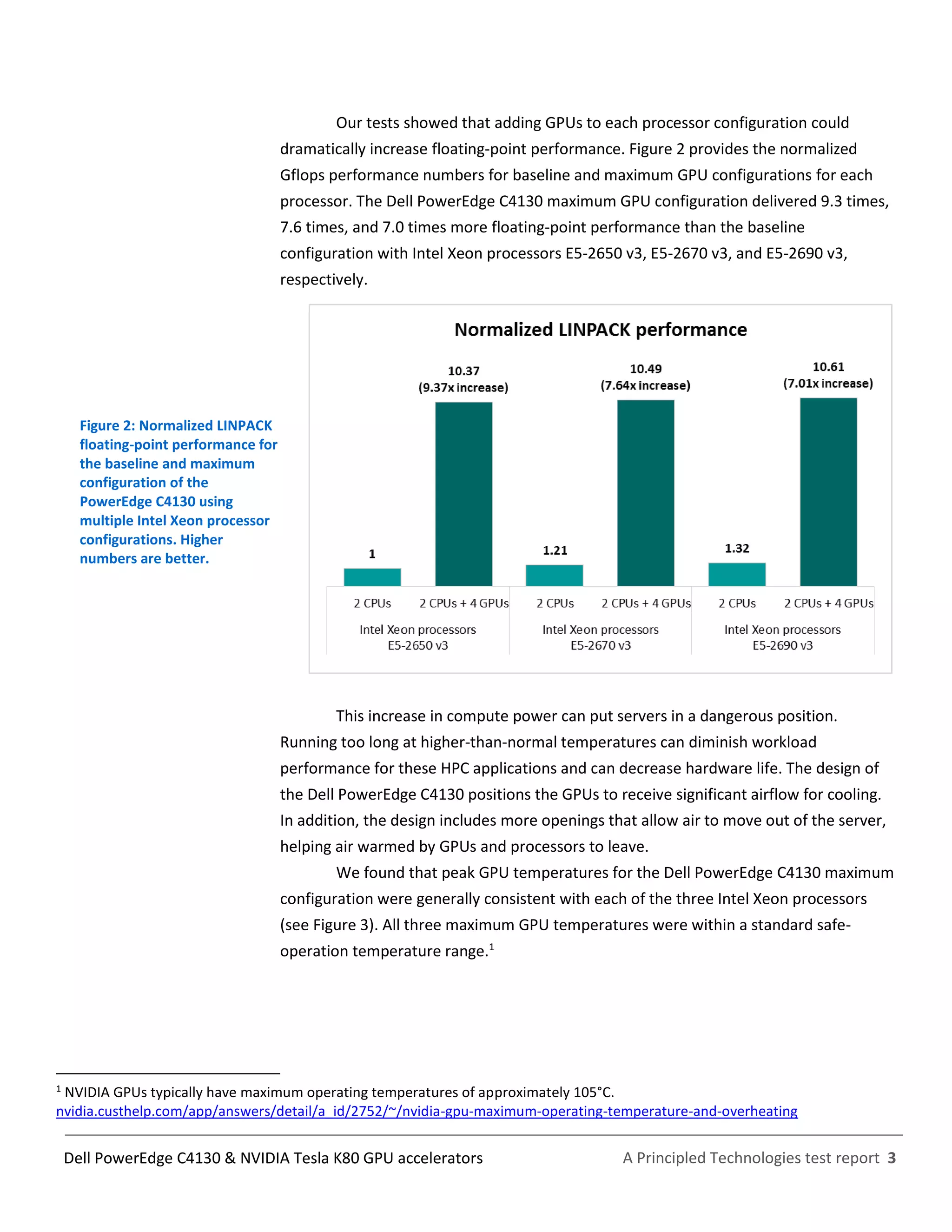

Our tests showed that adding GPUs to each processor configuration could
dramatically increase floating-point performance. Figure 2 provides the normalized
Gflops performance numbers for baseline and maximum GPU configurations for each
processor. The Dell PowerEdge C4130 maximum GPU configuration delivered 9.3 times,
7.6 times, and 7.0 times more floating-point performance than the baseline
configuration with Intel Xeon processors E5-2650 v3, E5-2670 v3, and E5-2690 v3,
respectively.
Figure 2: Normalized LINPACK
floating-point performance for
the baseline and maximum
configuration of the
PowerEdge C4130 using
multiple Intel Xeon processor
configurations. Higher
numbers are better.
This increase in compute power can put servers in a dangerous position.
Running too long at higher-than-normal temperatures can diminish workload
performance for these HPC applications and can decrease hardware life. The design of
the Dell PowerEdge C4130 positions the GPUs to receive significant airflow for cooling.
In addition, the design includes more openings that allow air to move out of the server,
helping air warmed by GPUs and processors to leave.
We found that peak GPU temperatures for the Dell PowerEdge C4130 maximum
configuration were generally consistent with each of the three Intel Xeon processors
(see Figure 3). All three maximum GPU temperatures were within a standard safe-
operation temperature range.1
1
NVIDIA GPUs typically have maximum operating temperatures of approximately 105°C.
nvidia.custhelp.com/app/answers/detail/a_id/2752/~/nvidia-gpu-maximum-operating-temperature-and-overheating
A Principled Technologies test report 4Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators

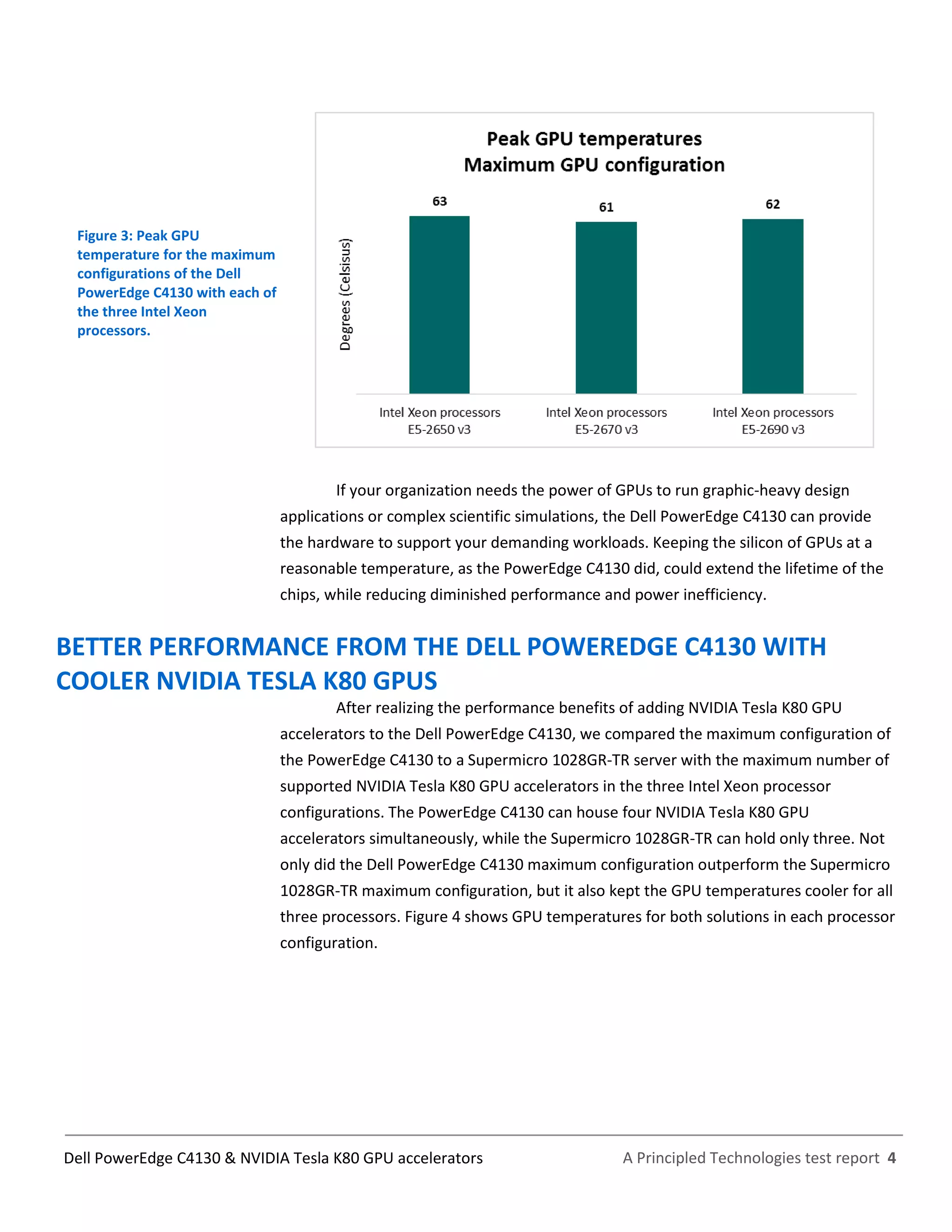

Figure 3: Peak GPU
temperature for the maximum
configurations of the Dell
PowerEdge C4130 with each of
the three Intel Xeon
processors.
If your organization needs the power of GPUs to run graphic-heavy design
applications or complex scientific simulations, the Dell PowerEdge C4130 can provide
the hardware to support your demanding workloads. Keeping the silicon of GPUs at a
reasonable temperature, as the PowerEdge C4130 did, could extend the lifetime of the
chips, while reducing diminished performance and power inefficiency.
BETTER PERFORMANCE FROM THE DELL POWEREDGE C4130 WITH
COOLER NVIDIA TESLA K80 GPUS
After realizing the performance benefits of adding NVIDIA Tesla K80 GPU
accelerators to the Dell PowerEdge C4130, we compared the maximum configuration of
the PowerEdge C4130 to a Supermicro 1028GR-TR server with the maximum number of
supported NVIDIA Tesla K80 GPU accelerators in the three Intel Xeon processor
configurations. The PowerEdge C4130 can house four NVIDIA Tesla K80 GPU
accelerators simultaneously, while the Supermicro 1028GR-TR can hold only three. Not
only did the Dell PowerEdge C4130 maximum configuration outperform the Supermicro
1028GR-TR maximum configuration, but it also kept the GPU temperatures cooler for all
three processors. Figure 4 shows GPU temperatures for both solutions in each processor
configuration.
A Principled Technologies test report 5Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators

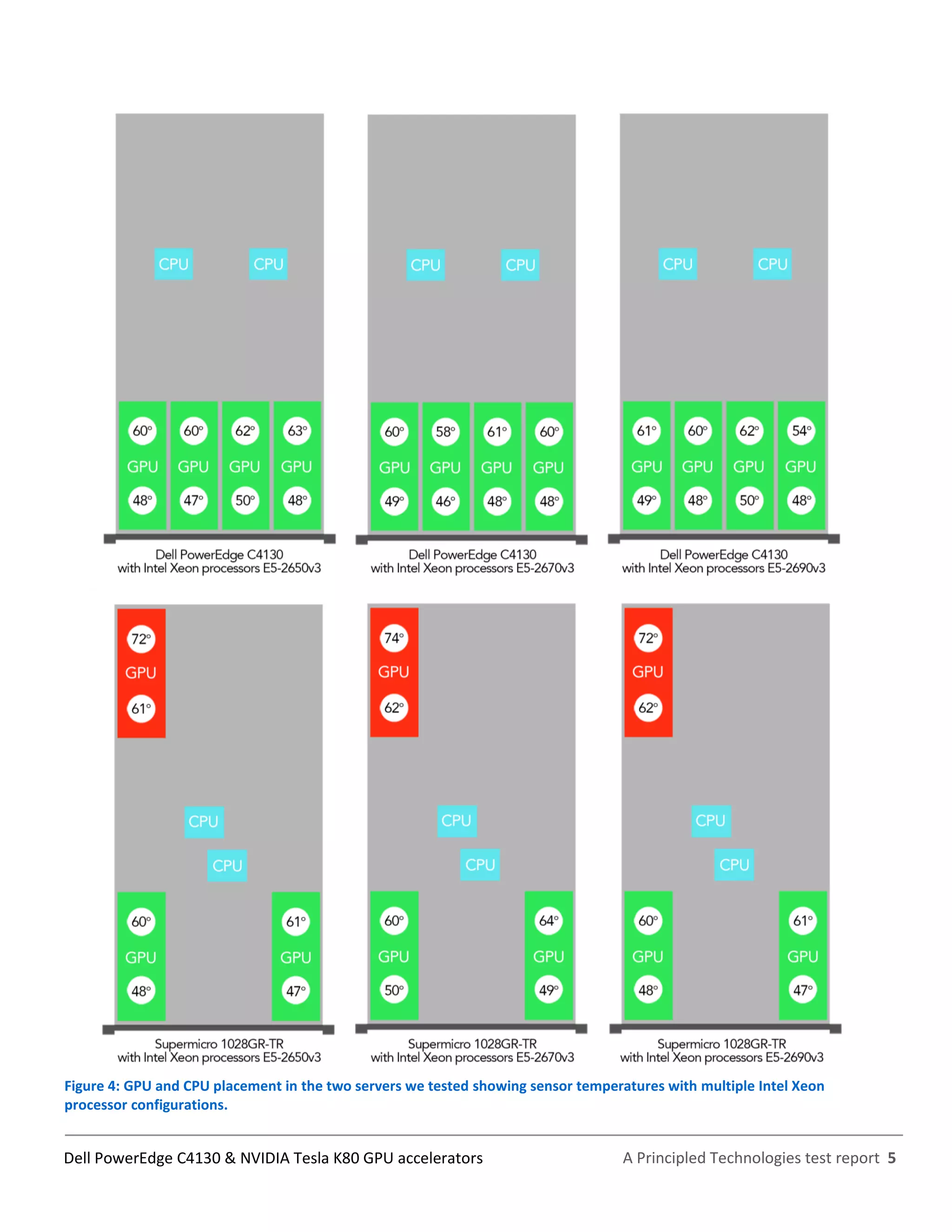

Figure 4: GPU and CPU placement in the two servers we tested showing sensor temperatures with multiple Intel Xeon
processor configurations.
A Principled Technologies test report 6Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators

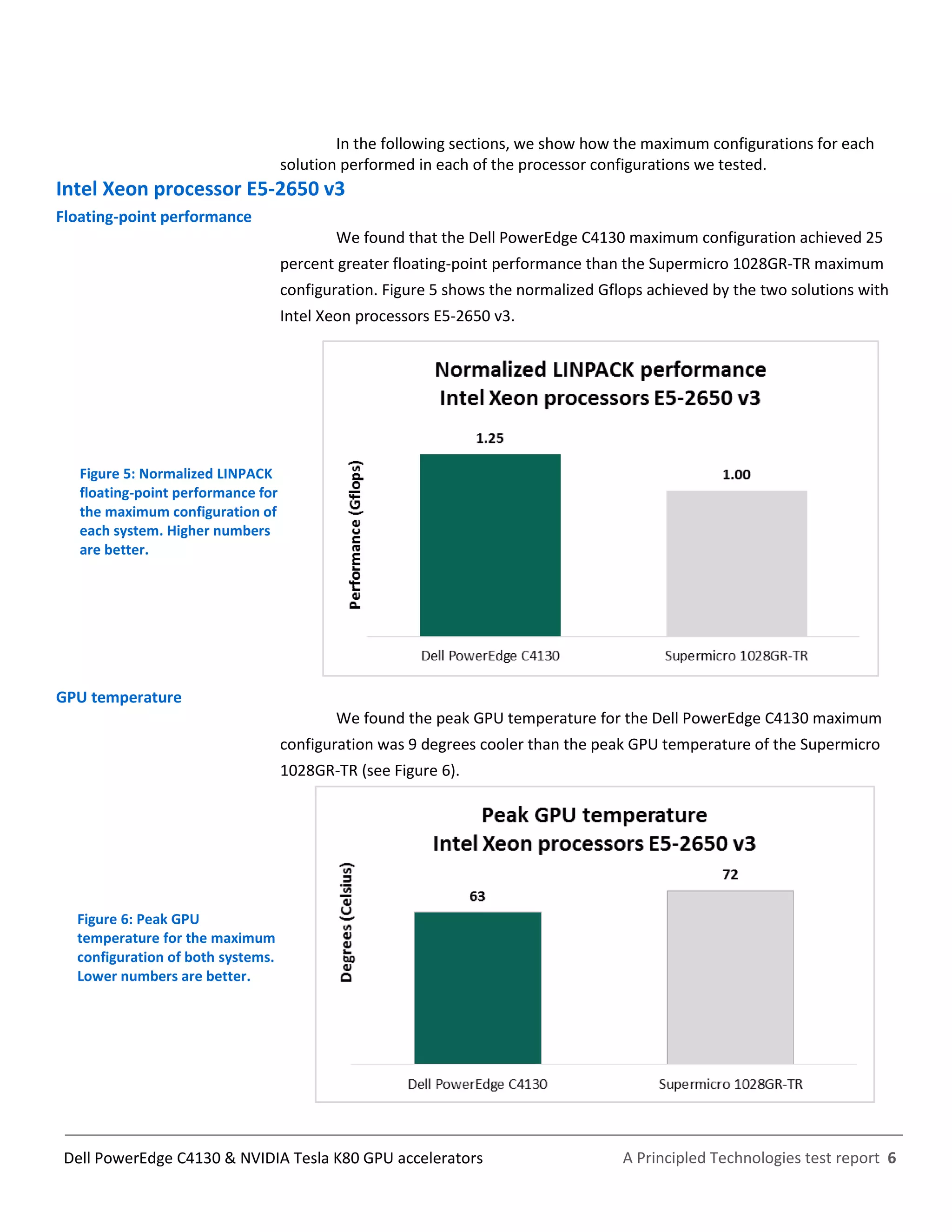

In the following sections, we show how the maximum configurations for each
solution performed in each of the processor configurations we tested.
Intel Xeon processor E5-2650 v3
Floating-point performance
We found that the Dell PowerEdge C4130 maximum configuration achieved 25
percent greater floating-point performance than the Supermicro 1028GR-TR maximum
configuration. Figure 5 shows the normalized Gflops achieved by the two solutions with
Intel Xeon processors E5-2650 v3.
Figure 5: Normalized LINPACK
floating-point performance for
the maximum configuration of
each system. Higher numbers
are better.
GPU temperature
We found the peak GPU temperature for the Dell PowerEdge C4130 maximum
configuration was 9 degrees cooler than the peak GPU temperature of the Supermicro
1028GR-TR (see Figure 6).
Figure 6: Peak GPU
temperature for the maximum
configuration of both systems.
Lower numbers are better.
A Principled Technologies test report 7Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators

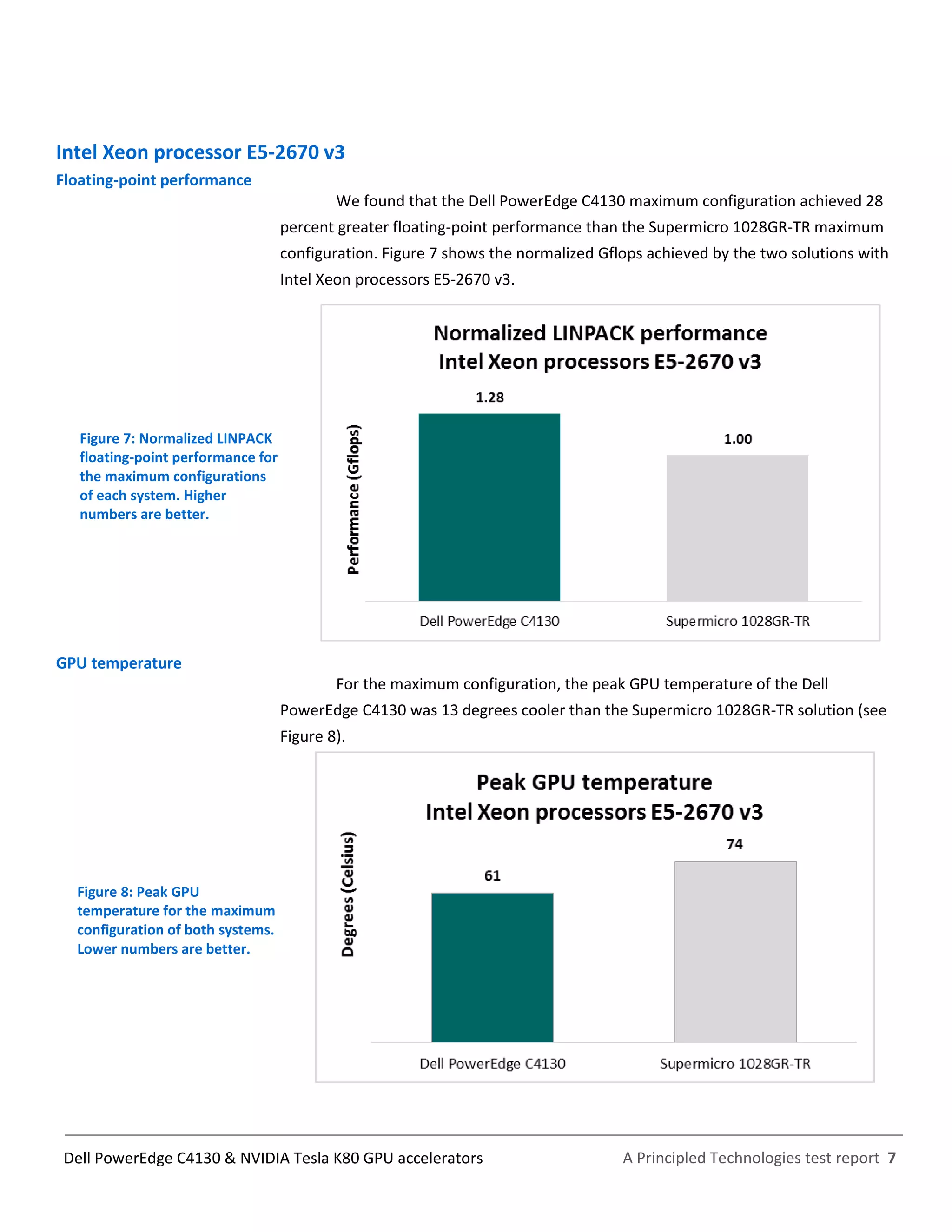

Intel Xeon processor E5-2670 v3
Floating-point performance
We found that the Dell PowerEdge C4130 maximum configuration achieved 28
percent greater floating-point performance than the Supermicro 1028GR-TR maximum
configuration. Figure 7 shows the normalized Gflops achieved by the two solutions with
Intel Xeon processors E5-2670 v3.
Figure 7: Normalized LINPACK
floating-point performance for
the maximum configurations
of each system. Higher
numbers are better.
GPU temperature
For the maximum configuration, the peak GPU temperature of the Dell
PowerEdge C4130 was 13 degrees cooler than the Supermicro 1028GR-TR solution (see
Figure 8).
Figure 8: Peak GPU
temperature for the maximum
configuration of both systems.
Lower numbers are better.
A Principled Technologies test report 8Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators

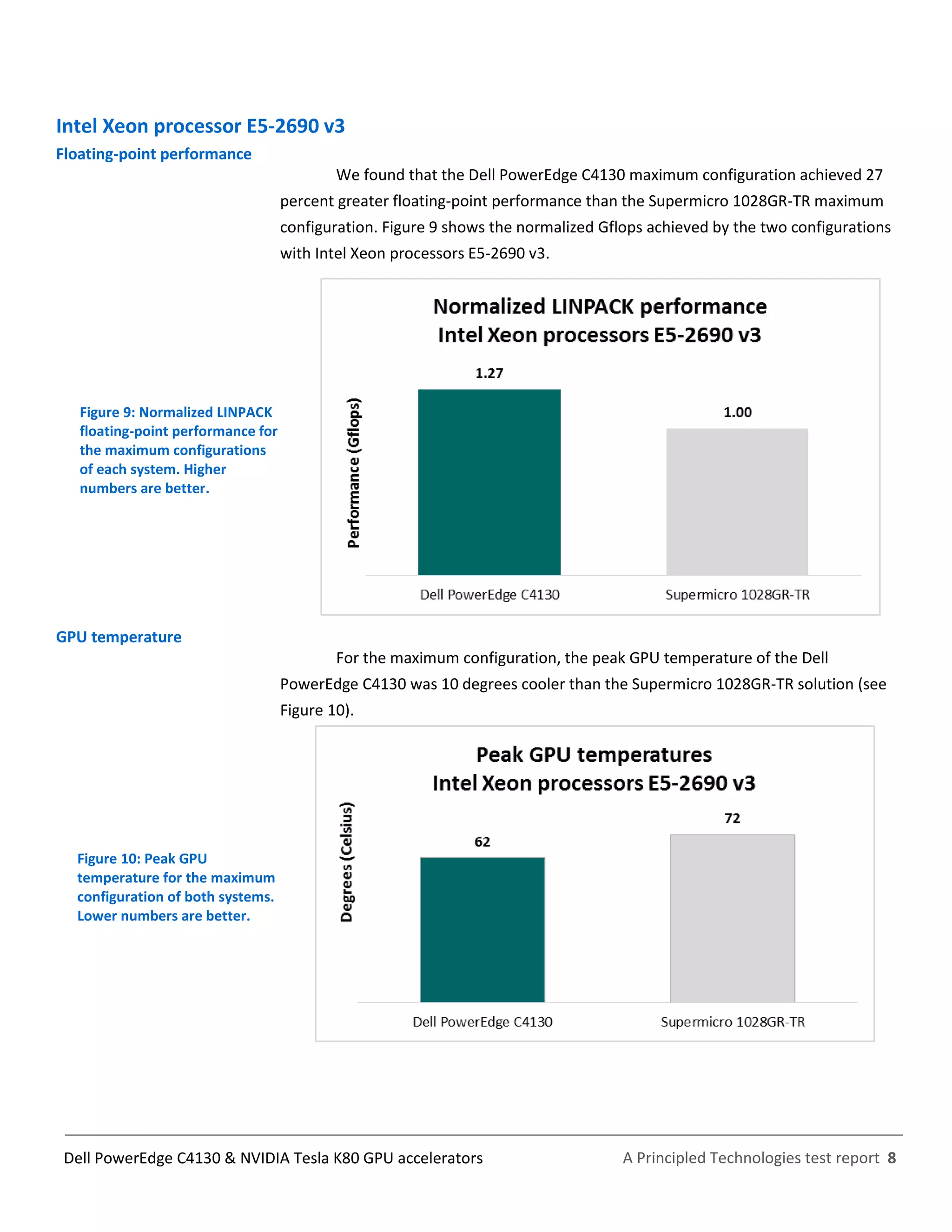

Intel Xeon processor E5-2690 v3
Floating-point performance
We found that the Dell PowerEdge C4130 maximum configuration achieved 27
percent greater floating-point performance than the Supermicro 1028GR-TR maximum
configuration. Figure 9 shows the normalized Gflops achieved by the two configurations
with Intel Xeon processors E5-2690 v3.
Figure 9: Normalized LINPACK
floating-point performance for
the maximum configurations
of each system. Higher
numbers are better.
GPU temperature
For the maximum configuration, the peak GPU temperature of the Dell
PowerEdge C4130 was 10 degrees cooler than the Supermicro 1028GR-TR solution (see
Figure 10).
Figure 10: Peak GPU
temperature for the maximum
configuration of both systems.
Lower numbers are better.
A Principled Technologies test report 9Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators

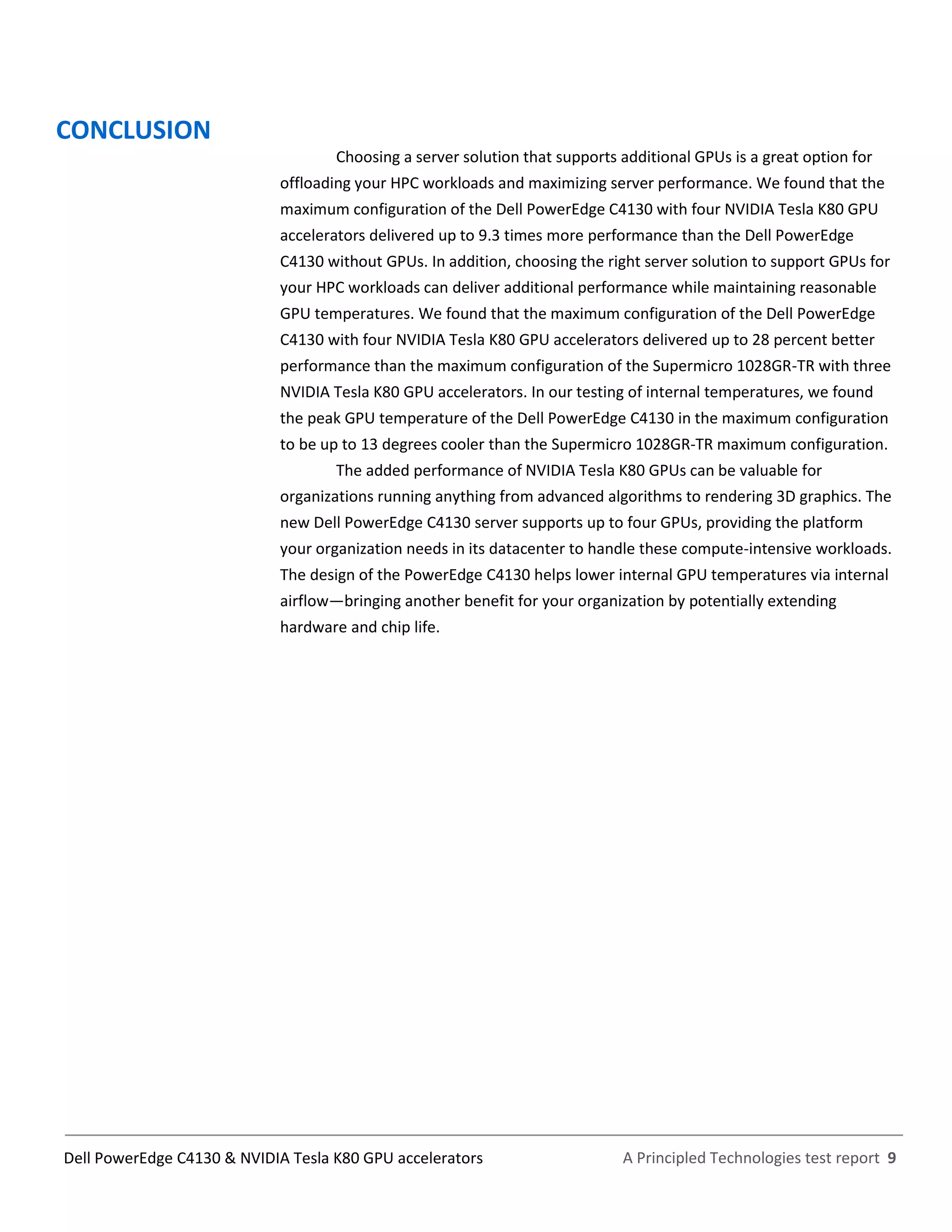

CONCLUSION
Choosing a server solution that supports additional GPUs is a great option for
offloading your HPC workloads and maximizing server performance. We found that the
maximum configuration of the Dell PowerEdge C4130 with four NVIDIA Tesla K80 GPU
accelerators delivered up to 9.3 times more performance than the Dell PowerEdge
C4130 without GPUs. In addition, choosing the right server solution to support GPUs for
your HPC workloads can deliver additional performance while maintaining reasonable
GPU temperatures. We found that the maximum configuration of the Dell PowerEdge
C4130 with four NVIDIA Tesla K80 GPU accelerators delivered up to 28 percent better
performance than the maximum configuration of the Supermicro 1028GR-TR with three
NVIDIA Tesla K80 GPU accelerators. In our testing of internal temperatures, we found
the peak GPU temperature of the Dell PowerEdge C4130 in the maximum configuration
to be up to 13 degrees cooler than the Supermicro 1028GR-TR maximum configuration.
The added performance of NVIDIA Tesla K80 GPUs can be valuable for
organizations running anything from advanced algorithms to rendering 3D graphics. The
new Dell PowerEdge C4130 server supports up to four GPUs, providing the platform
your organization needs in its datacenter to handle these compute-intensive workloads.
The design of the PowerEdge C4130 helps lower internal GPU temperatures via internal
airflow—bringing another benefit for your organization by potentially extending
hardware and chip life.
A Principled Technologies test report 10Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators

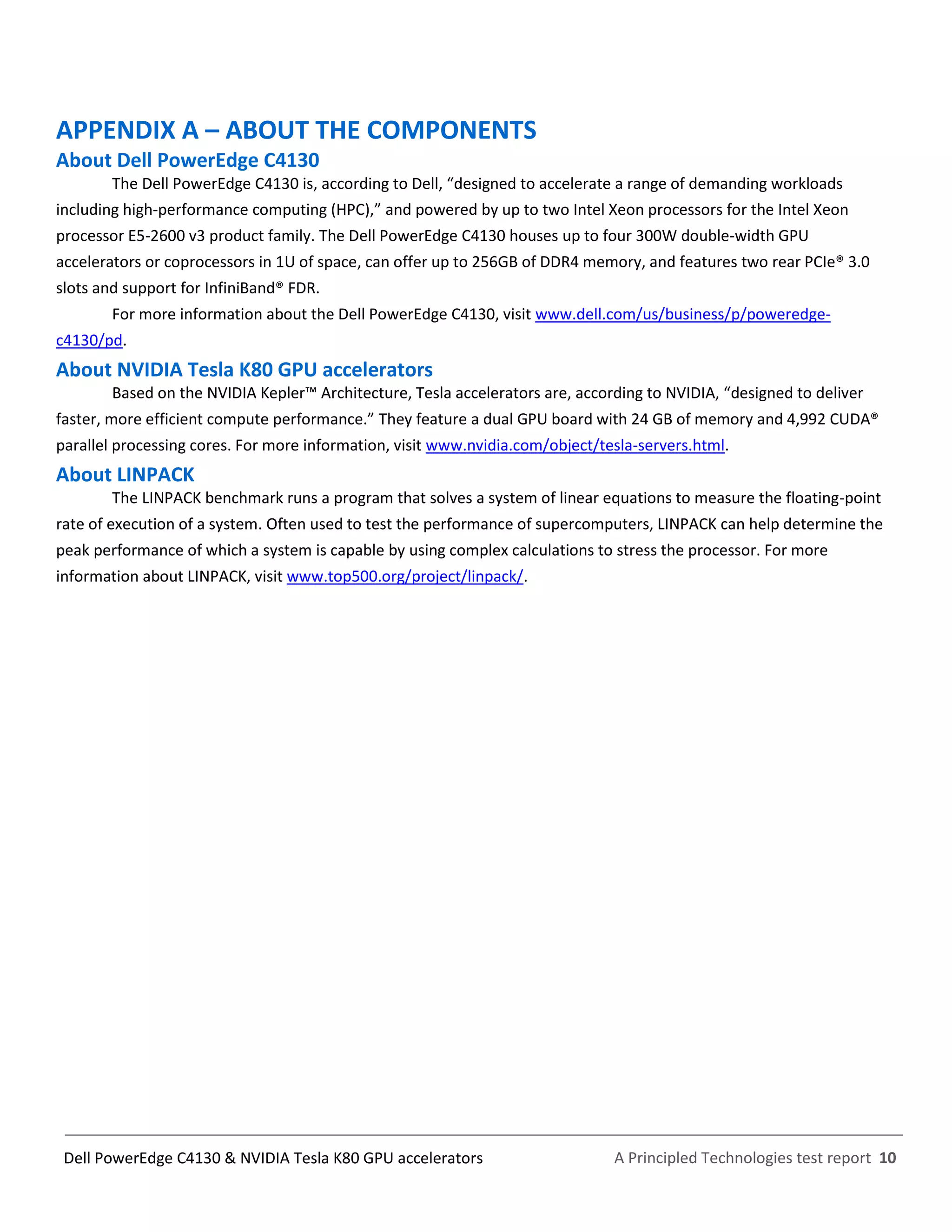

APPENDIX A – ABOUT THE COMPONENTS
About Dell PowerEdge C4130
The Dell PowerEdge C4130 is, according to Dell, “designed to accelerate a range of demanding workloads
including high-performance computing (HPC),” and powered by up to two Intel Xeon processors for the Intel Xeon
processor E5-2600 v3 product family. The Dell PowerEdge C4130 houses up to four 300W double-width GPU
accelerators or coprocessors in 1U of space, can offer up to 256GB of DDR4 memory, and features two rear PCIe® 3.0
slots and support for InfiniBand® FDR.
For more information about the Dell PowerEdge C4130, visit www.dell.com/us/business/p/poweredge-
c4130/pd.
About NVIDIA Tesla K80 GPU accelerators
Based on the NVIDIA Kepler™ Architecture, Tesla accelerators are, according to NVIDIA, “designed to deliver
faster, more efficient compute performance.” They feature a dual GPU board with 24 GB of memory and 4,992 CUDA®
parallel processing cores. For more information, visit www.nvidia.com/object/tesla-servers.html.
About LINPACK
The LINPACK benchmark runs a program that solves a system of linear equations to measure the floating-point
rate of execution of a system. Often used to test the performance of supercomputers, LINPACK can help determine the
peak performance of which a system is capable by using complex calculations to stress the processor. For more
information about LINPACK, visit www.top500.org/project/linpack/.
A Principled Technologies test report 11Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators
APPENDIX B – SYSTEM CONFIGURATION INFORMATION
Figure 11 provides detailed configuration information for the test systems.
System Dell PowerEdge C4130 Supermicro 1028GR-TR
Power supplies
Total number 2 2
Vendor and model number Dell D1600E-S0 Delta Electronics DPS-1600CB
Wattage of each (W) 1600 1600
Cooling fans
Total number 8 10
Vendor and model number Delta Electronics GFM0412SS-D Delta Electronics GFC0412DS
Dimensions (h × w) of each 1″ × 1″ 1″ × 1″
Volts 12 12
Amps 2.0 1.5
General
Number of processor packages 2 2
Number of cores per processor 20, 24, 24 20, 24, 24
Number of hardware threads per
core
2, 2, 2 2, 2, 2
System power management policy Performance Default (performance)
CPU
Vendor Intel Intel
Name Xeon Xeon
Model number
E5-2650 v3,
E5-2670 v3,
E5-2690 v3
E5-2650 v3,
E5-2670 v3,
E5-2690 v3
Socket type FCLGA2011-3 FCLGA2011-3
Core frequency (GHz) 2.3, 2.3, 2.6 2.3, 2.3, 2.6
Bus frequency (GT/s) 9.6, 9.6, 9.6 9.6, 9.6, 9.6
L1 cache 768 KB (all processors) 768 KB (all processors)
L2 cache 3,072 KB (all processors) 3,072 KB (all processors)
L3 cache 25, 30, 30 MB 25, 30, 30 MB
Platform
Vendor and model number Dell PowerEdge C4130 Supermicro 1028GR-TR
Motherboard model number 0797FV X10DRG-H
BIOS name and version Dell 0.3.5 American Megatrends 1.0
BIOS settings Performance Default (performance)
A Principled Technologies test report 12Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators
System Dell PowerEdge C4130 Supermicro 1028GR-TR
Memory module(s)
Total RAM in system (GB) 128 128
Vendor and model number Hynix HMA41GR7MFR8N Hynix HMA41GR7MFR8N
Type PC4-2133P PC4-2133P
Speed (MHz) 2,133 2,133
Speed running in the system (MHz) 2,133 2,133
Timing/Latency (tCL-tRCD-tRP-
tRASmin)
11-11-11-33 11-11-11-33
Size (GB) 8 8
Number of RAM module(s) 16 16
Chip organization Dual-sided Dual-sided
Rank Double Double
Operating system
Name CentOS 7 CentOS 7
Build number 3.10.0-123.9.2.el7.x86_64 3.10.0-123.9.2.el7.x86_64
File system XFS XFS
Language English English
RAID controller
Vendor and model number Embedded Intel SATA Controller Embedded Intel SATA Controller
Driver version 3.0 3.0
Cache size (MB) N/A N/A
Solid-state drives
Vendor and model number Dell 1H4WG Samsung MZ-7PA2560/0D1
Number of drives 1 1
Size (GB) 60 256
Type SATA SSD SATA SSD
Ethernet adapters
Vendor and model number Intel I350 Gigabit NIC Intel I350 Gigabit NIC
Type Ethernet Ethernet
Driver 5.0.5-k 5.0.5-k
Figure 11: System configuration information for the test systems.
A Principled Technologies test report 13Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators
APPENDIX C – HOW WE TESTED
On both the Dell PowerEdge C4130 and the Supermicro 1028GR-TR, we configured the BIOS settings for HPL
performance and then installed minimal CentOS 7 onto the local storage. We installed Intel MKL 11.2 and used the
included HPL 2.1 executable and libraries to run the baseline (processor only) configurations. For the maximum
configurations, we installed NVIDIA’s distribution of the HPL 2.1 executable, along with NVIDIA CUDA 6.5, OpenMPI 1.6.5
libraries, and the NVIDIA 340.32 GPU driver.
Installing and configuring the BIOS and operating system
On both servers, we configured the BIOS to run on physical cores only and in the best possible performance
settings. We then created a single-drive RAID0 volume using the onboard storage controllers and installed the minimal
installation of CentOS 7 onto the local storage. We then installed necessary packages and updated the kernel.
Configuring the BIOS
1. During POST, press the appropriate key to enter the BIOS menu (F2 on the Dell PowerEdge C4130, and
Delete on the Supermicro 1028GR-TR).
2. In BIOS, navigate to the Processor menu and turn off Intel Virtualization Technology (Hyper-Threading).
3. On the Dell PowerEdge C4130, navigate to the System Profile menu and choose the Performance profile.
4. On both servers, save the BIOS settings and exit the BIOS menu.
Installing CentOS 7
1. Connect the installation media to the server. We used the virtual optical drive available on both servers’ out-
of-band management consoles.
2. Boot to the installation media.
3. At the splash screen, select Install CentOS 7 and press Enter.
4. For language, choose your desired language, and click Continue. We chose English (United States).
5. At the Installation Summary screen, configure the Date & Time to match your time zone.
6. Set the Software Selection to Minimal Install.
7. Set the Installation Destination to Automatic partitioning.
8. Configure the Network & Hostname for your testing network.
9. Click Begin Installation.
10. During the installation process, set the Root Password. We elected not to create another user for this setup.
11. Once the installation is completed, disconnect the installation media and click Reboot.
Updating the operating system
1. Begin an SSH session with the server, and log in as the root user.
2. To install the necessary packages for setup, enter the following command:
yum -y install kernel-devel libXi-devel libXmu-devel openmpi-devel pciutils
lm_sensors numactl
3. To update the kernel and included packages, enter the following command:
yum -y update
A Principled Technologies test report 14Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators

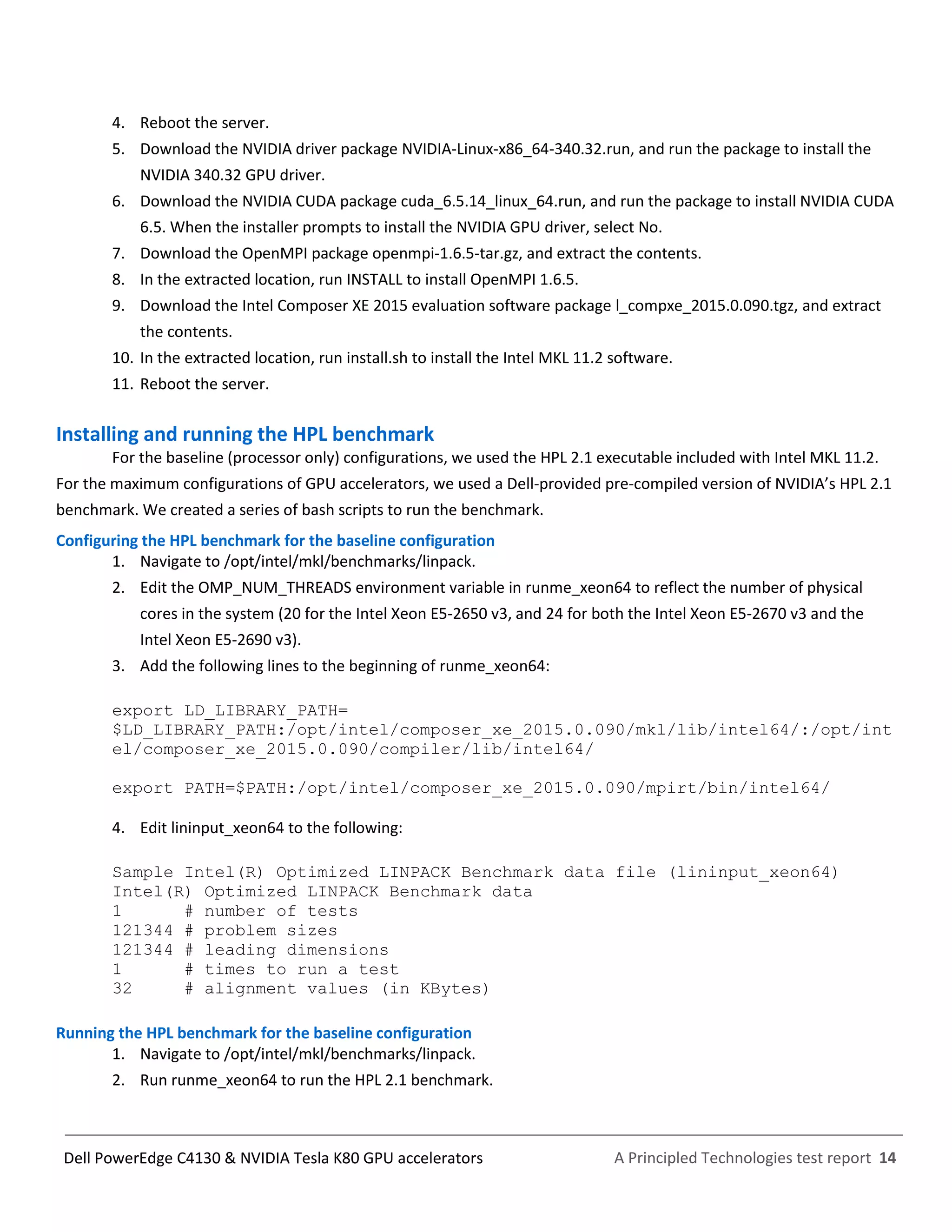

4. Reboot the server.
5. Download the NVIDIA driver package NVIDIA-Linux-x86_64-340.32.run, and run the package to install the
NVIDIA 340.32 GPU driver.
6. Download the NVIDIA CUDA package cuda_6.5.14_linux_64.run, and run the package to install NVIDIA CUDA
6.5. When the installer prompts to install the NVIDIA GPU driver, select No.
7. Download the OpenMPI package openmpi-1.6.5-tar.gz, and extract the contents.
8. In the extracted location, run INSTALL to install OpenMPI 1.6.5.
9. Download the Intel Composer XE 2015 evaluation software package l_compxe_2015.0.090.tgz, and extract
the contents.
10. In the extracted location, run install.sh to install the Intel MKL 11.2 software.
11. Reboot the server.
Installing and running the HPL benchmark
For the baseline (processor only) configurations, we used the HPL 2.1 executable included with Intel MKL 11.2.
For the maximum configurations of GPU accelerators, we used a Dell-provided pre-compiled version of NVIDIA’s HPL 2.1
benchmark. We created a series of bash scripts to run the benchmark.
Configuring the HPL benchmark for the baseline configuration
1. Navigate to /opt/intel/mkl/benchmarks/linpack.
2. Edit the OMP_NUM_THREADS environment variable in runme_xeon64 to reflect the number of physical
cores in the system (20 for the Intel Xeon E5-2650 v3, and 24 for both the Intel Xeon E5-2670 v3 and the
Intel Xeon E5-2690 v3).
3. Add the following lines to the beginning of runme_xeon64:
export LD_LIBRARY_PATH=
$LD_LIBRARY_PATH:/opt/intel/composer_xe_2015.0.090/mkl/lib/intel64/:/opt/int
el/composer_xe_2015.0.090/compiler/lib/intel64/
export PATH=$PATH:/opt/intel/composer_xe_2015.0.090/mpirt/bin/intel64/
4. Edit lininput_xeon64 to the following:
Sample Intel(R) Optimized LINPACK Benchmark data file (lininput_xeon64)
Intel(R) Optimized LINPACK Benchmark data
1 # number of tests
121344 # problem sizes
121344 # leading dimensions
1 # times to run a test
32 # alignment values (in KBytes)
Running the HPL benchmark for the baseline configuration
1. Navigate to /opt/intel/mkl/benchmarks/linpack.
2. Run runme_xeon64 to run the HPL 2.1 benchmark.
A Principled Technologies test report 15Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators

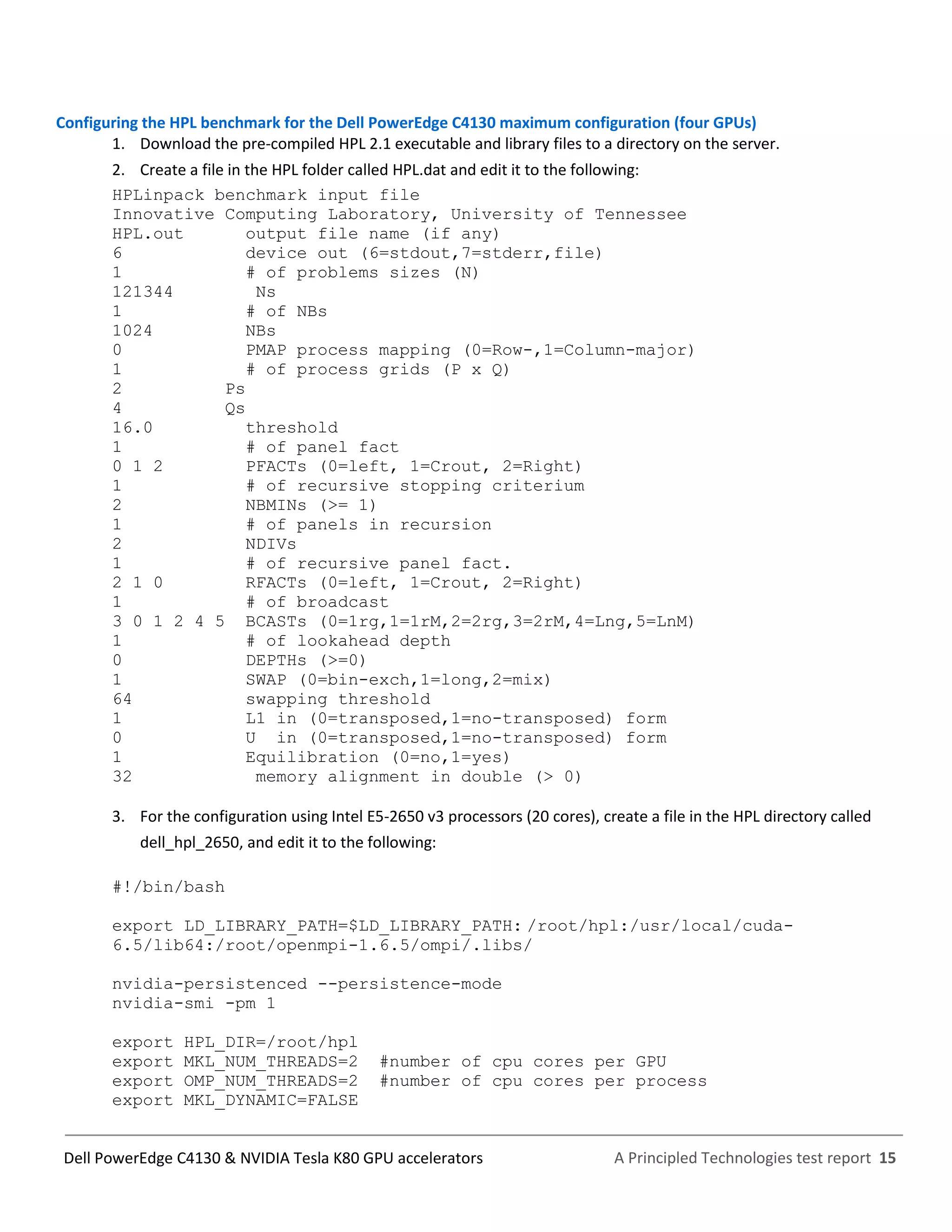

Configuring the HPL benchmark for the Dell PowerEdge C4130 maximum configuration (four GPUs)
1. Download the pre-compiled HPL 2.1 executable and library files to a directory on the server.
2. Create a file in the HPL folder called HPL.dat and edit it to the following:
HPLinpack benchmark input file
Innovative Computing Laboratory, University of Tennessee
HPL.out output file name (if any)
6 device out (6=stdout,7=stderr,file)
1 # of problems sizes (N)
121344 Ns
1 # of NBs
1024 NBs
0 PMAP process mapping (0=Row-,1=Column-major)
1 # of process grids (P x Q)
2 Ps
4 Qs
16.0 threshold
1 # of panel fact
0 1 2 PFACTs (0=left, 1=Crout, 2=Right)
1 # of recursive stopping criterium
2 NBMINs (>= 1)
1 # of panels in recursion
2 NDIVs
1 # of recursive panel fact.
2 1 0 RFACTs (0=left, 1=Crout, 2=Right)
1 # of broadcast
3 0 1 2 4 5 BCASTs (0=1rg,1=1rM,2=2rg,3=2rM,4=Lng,5=LnM)
1 # of lookahead depth
0 DEPTHs (>=0)
1 SWAP (0=bin-exch,1=long,2=mix)
64 swapping threshold
1 L1 in (0=transposed,1=no-transposed) form
0 U in (0=transposed,1=no-transposed) form
1 Equilibration (0=no,1=yes)
32 memory alignment in double (> 0)
3. For the configuration using Intel E5-2650 v3 processors (20 cores), create a file in the HPL directory called
dell_hpl_2650, and edit it to the following:
#!/bin/bash
export LD_LIBRARY_PATH=$LD_LIBRARY_PATH: /root/hpl:/usr/local/cuda-
6.5/lib64:/root/openmpi-1.6.5/ompi/.libs/
nvidia-persistenced --persistence-mode
nvidia-smi -pm 1
export HPL_DIR=/root/hpl
export MKL_NUM_THREADS=2 #number of cpu cores per GPU
export OMP_NUM_THREADS=2 #number of cpu cores per process
export MKL_DYNAMIC=FALSE
A Principled Technologies test report 16Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators

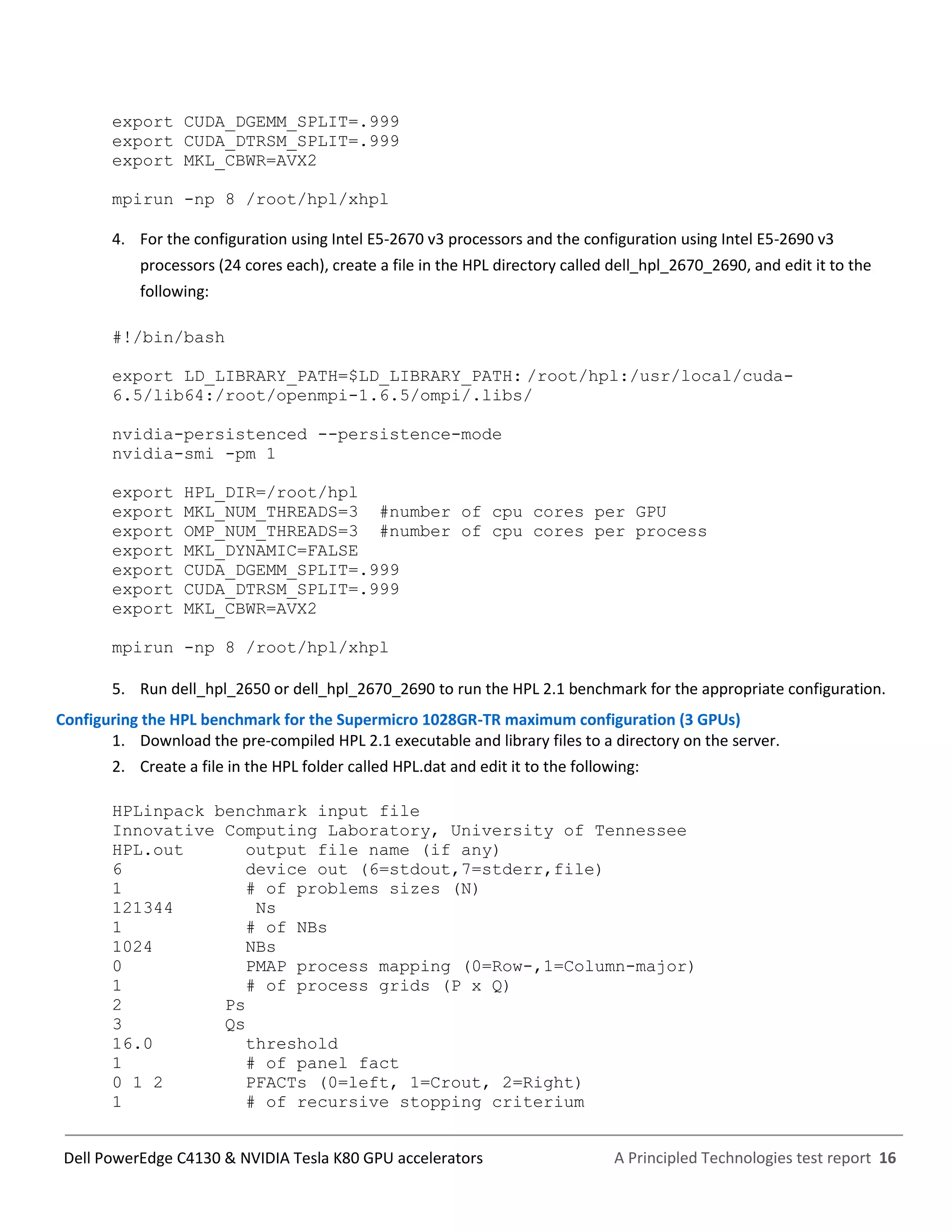

export CUDA_DGEMM_SPLIT=.999
export CUDA_DTRSM_SPLIT=.999
export MKL_CBWR=AVX2
mpirun -np 8 /root/hpl/xhpl
4. For the configuration using Intel E5-2670 v3 processors and the configuration using Intel E5-2690 v3
processors (24 cores each), create a file in the HPL directory called dell_hpl_2670_2690, and edit it to the
following:
#!/bin/bash
export LD_LIBRARY_PATH=$LD_LIBRARY_PATH: /root/hpl:/usr/local/cuda-
6.5/lib64:/root/openmpi-1.6.5/ompi/.libs/
nvidia-persistenced --persistence-mode
nvidia-smi -pm 1
export HPL_DIR=/root/hpl
export MKL_NUM_THREADS=3 #number of cpu cores per GPU
export OMP_NUM_THREADS=3 #number of cpu cores per process
export MKL_DYNAMIC=FALSE
export CUDA_DGEMM_SPLIT=.999
export CUDA_DTRSM_SPLIT=.999
export MKL_CBWR=AVX2
mpirun -np 8 /root/hpl/xhpl
5. Run dell_hpl_2650 or dell_hpl_2670_2690 to run the HPL 2.1 benchmark for the appropriate configuration.
Configuring the HPL benchmark for the Supermicro 1028GR-TR maximum configuration (3 GPUs)
1. Download the pre-compiled HPL 2.1 executable and library files to a directory on the server.
2. Create a file in the HPL folder called HPL.dat and edit it to the following:
HPLinpack benchmark input file
Innovative Computing Laboratory, University of Tennessee
HPL.out output file name (if any)
6 device out (6=stdout,7=stderr,file)
1 # of problems sizes (N)
121344 Ns
1 # of NBs
1024 NBs
0 PMAP process mapping (0=Row-,1=Column-major)
1 # of process grids (P x Q)
2 Ps
3 Qs
16.0 threshold
1 # of panel fact
0 1 2 PFACTs (0=left, 1=Crout, 2=Right)
1 # of recursive stopping criterium
A Principled Technologies test report 17Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators

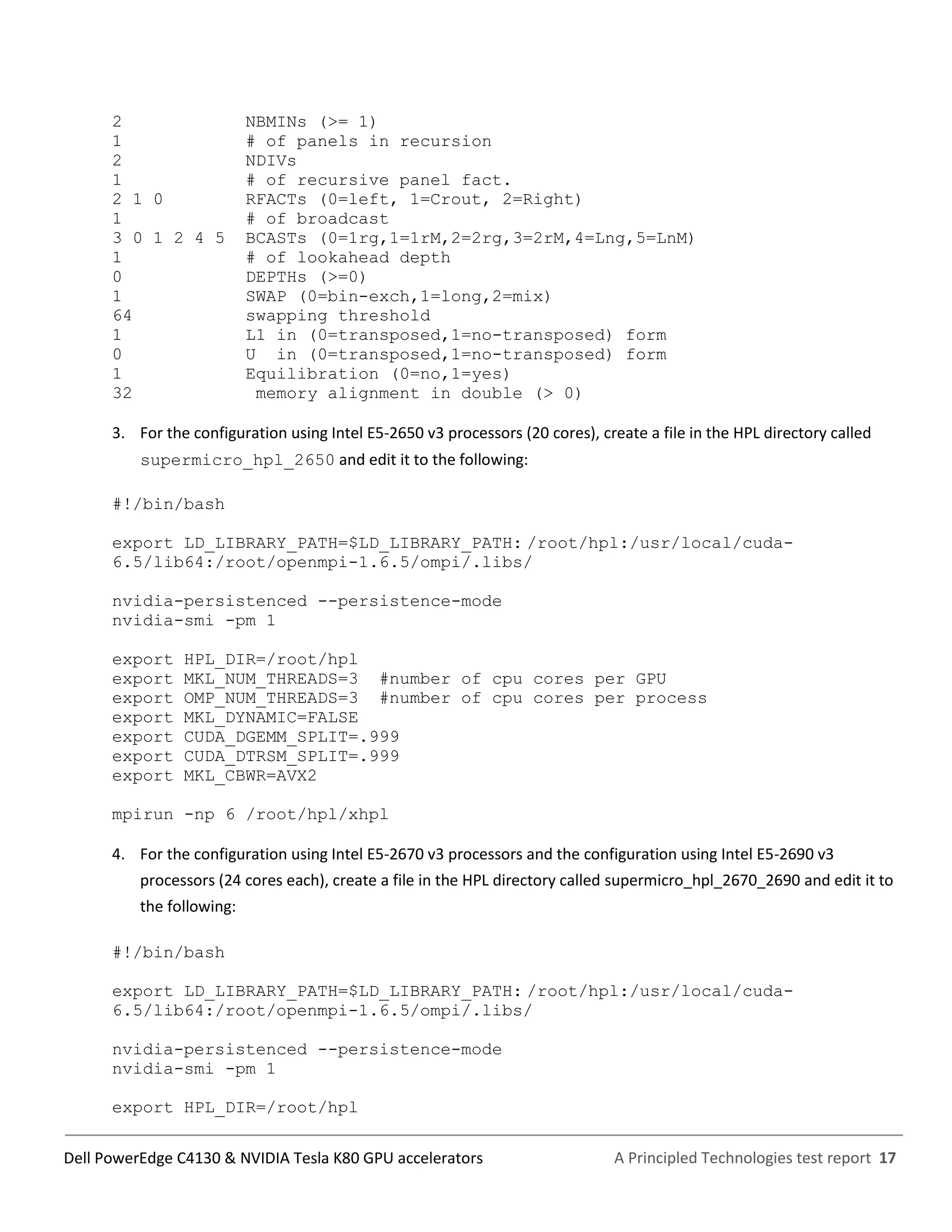

2 NBMINs (>= 1)
1 # of panels in recursion
2 NDIVs
1 # of recursive panel fact.
2 1 0 RFACTs (0=left, 1=Crout, 2=Right)
1 # of broadcast
3 0 1 2 4 5 BCASTs (0=1rg,1=1rM,2=2rg,3=2rM,4=Lng,5=LnM)
1 # of lookahead depth
0 DEPTHs (>=0)
1 SWAP (0=bin-exch,1=long,2=mix)
64 swapping threshold
1 L1 in (0=transposed,1=no-transposed) form
0 U in (0=transposed,1=no-transposed) form
1 Equilibration (0=no,1=yes)
32 memory alignment in double (> 0)
3. For the configuration using Intel E5-2650 v3 processors (20 cores), create a file in the HPL directory called
supermicro_hpl_2650 and edit it to the following:
#!/bin/bash
export LD_LIBRARY_PATH=$LD_LIBRARY_PATH: /root/hpl:/usr/local/cuda-
6.5/lib64:/root/openmpi-1.6.5/ompi/.libs/
nvidia-persistenced --persistence-mode
nvidia-smi -pm 1
export HPL_DIR=/root/hpl
export MKL_NUM_THREADS=3 #number of cpu cores per GPU
export OMP_NUM_THREADS=3 #number of cpu cores per process
export MKL_DYNAMIC=FALSE
export CUDA_DGEMM_SPLIT=.999
export CUDA_DTRSM_SPLIT=.999
export MKL_CBWR=AVX2
mpirun -np 6 /root/hpl/xhpl
4. For the configuration using Intel E5-2670 v3 processors and the configuration using Intel E5-2690 v3
processors (24 cores each), create a file in the HPL directory called supermicro_hpl_2670_2690 and edit it to
the following:
#!/bin/bash
export LD_LIBRARY_PATH=$LD_LIBRARY_PATH: /root/hpl:/usr/local/cuda-
6.5/lib64:/root/openmpi-1.6.5/ompi/.libs/
nvidia-persistenced --persistence-mode
nvidia-smi -pm 1
export HPL_DIR=/root/hpl

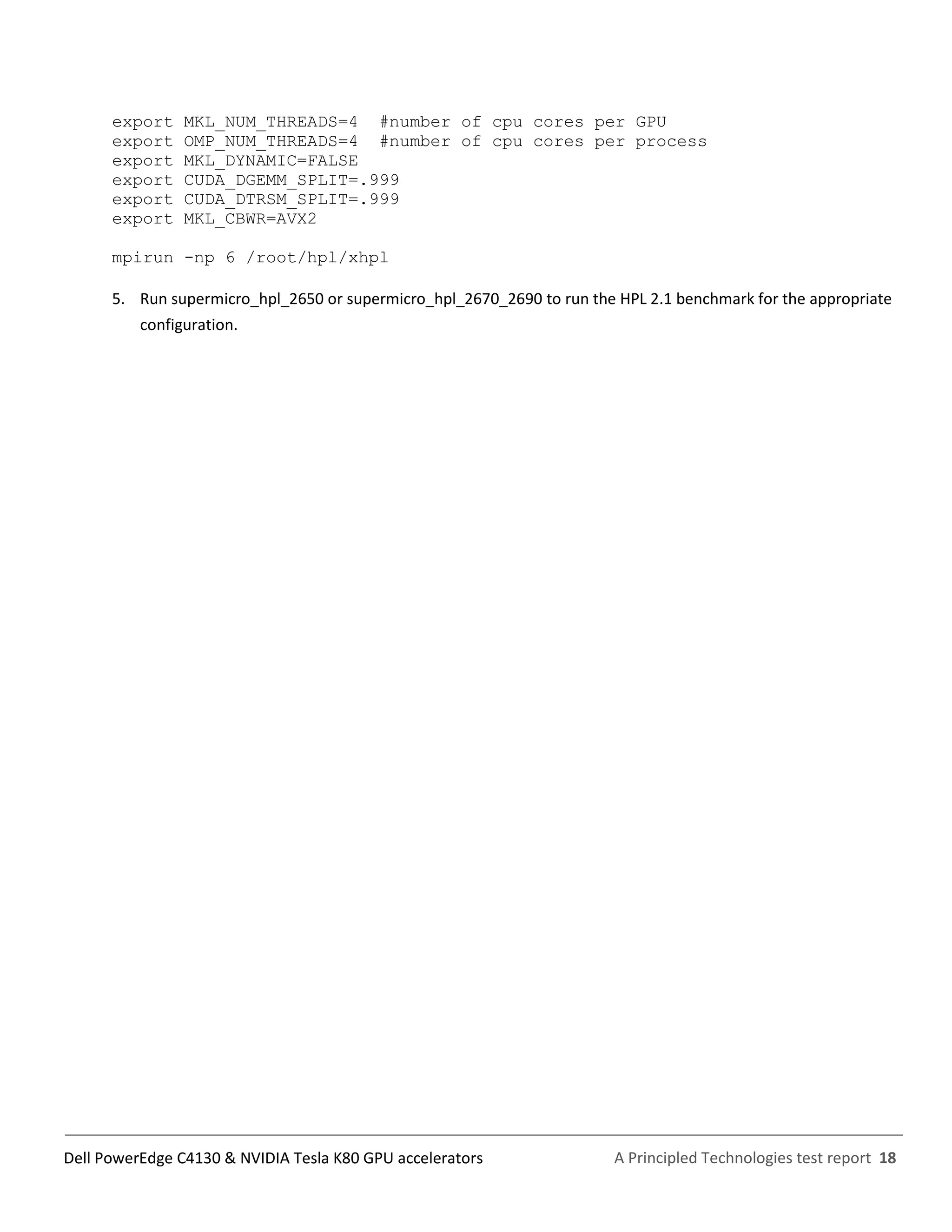

A Principled Technologies test report 18Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators
export MKL_NUM_THREADS=4 #number of cpu cores per GPU
export OMP_NUM_THREADS=4 #number of cpu cores per process
export MKL_DYNAMIC=FALSE
export CUDA_DGEMM_SPLIT=.999
export CUDA_DTRSM_SPLIT=.999
export MKL_CBWR=AVX2
mpirun -np 6 /root/hpl/xhpl
5. Run supermicro_hpl_2650 or supermicro_hpl_2670_2690 to run the HPL 2.1 benchmark for the appropriate
configuration.

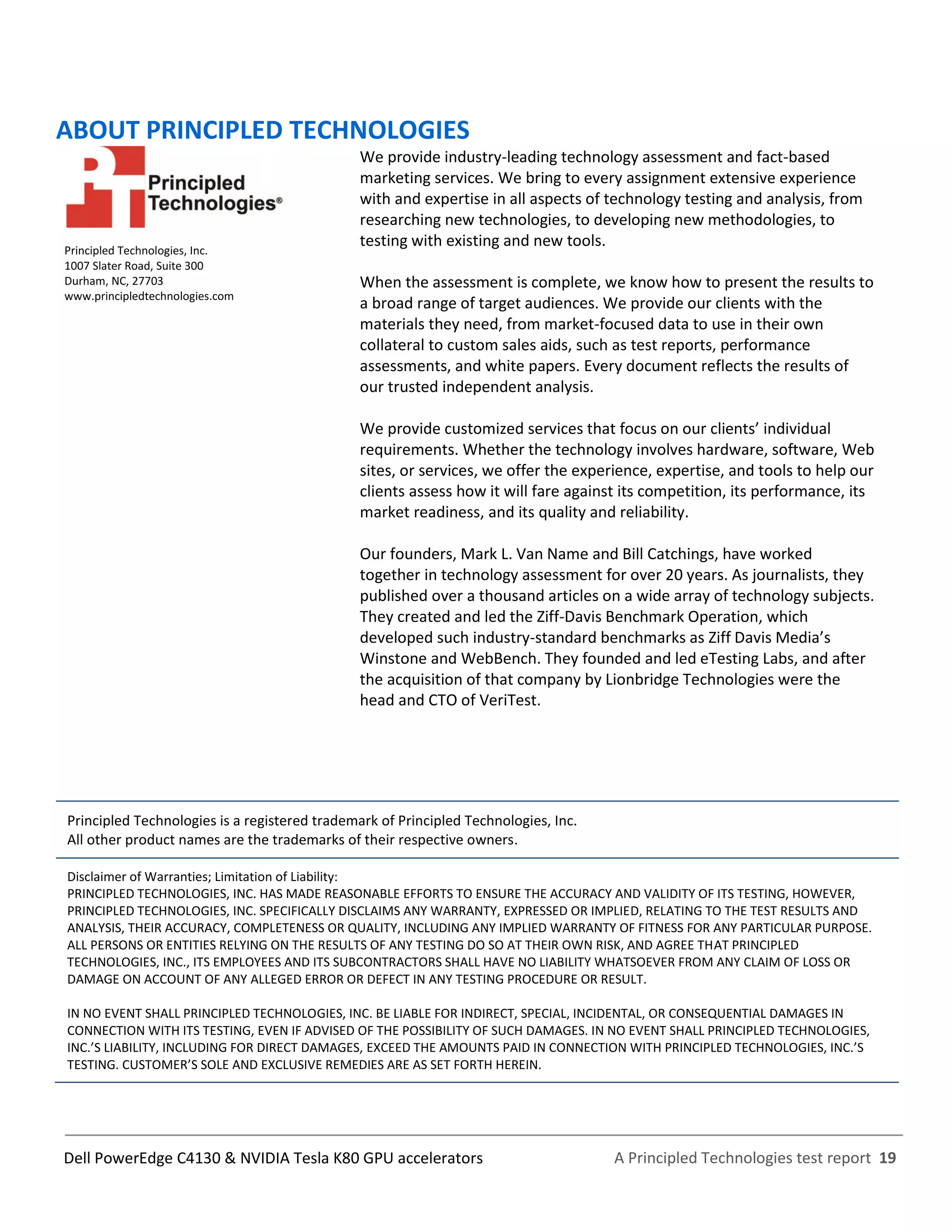

A Principled Technologies test report 19Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators
ABOUT PRINCIPLED TECHNOLOGIES
Principled Technologies, Inc.
1007 Slater Road, Suite 300
Durham, NC, 27703
www.principledtechnologies.com
We provide industry-leading technology assessment and fact-based
marketing services. We bring to every assignment extensive experience
with and expertise in all aspects of technology testing and analysis, from
researching new technologies, to developing new methodologies, to
testing with existing and new tools.
When the assessment is complete, we know how to present the results to
a broad range of target audiences. We provide our clients with the
materials they need, from market-focused data to use in their own
collateral to custom sales aids, such as test reports, performance
assessments, and white papers. Every document reflects the results of
our trusted independent analysis.
We provide customized services that focus on our clients’ individual
requirements. Whether the technology involves hardware, software, Web
sites, or services, we offer the experience, expertise, and tools to help our
clients assess how it will fare against its competition, its performance, its
market readiness, and its quality and reliability.
Our founders, Mark L. Van Name and Bill Catchings, have worked
together in technology assessment for over 20 years. As journalists, they
published over a thousand articles on a wide array of technology subjects.
They created and led the Ziff-Davis Benchmark Operation, which
developed such industry-standard benchmarks as Ziff Davis Media’s
Winstone and WebBench. They founded and led eTesting Labs, and after
the acquisition of that company by Lionbridge Technologies were the
head and CTO of VeriTest.
Principled Technologies is a registered trademark of Principled Technologies, Inc.
All other product names are the trademarks of their respective owners.
Disclaimer of Warranties; Limitation of Liability:
PRINCIPLED TECHNOLOGIES, INC. HAS MADE REASONABLE EFFORTS TO ENSURE THE ACCURACY AND VALIDITY OF ITS TESTING, HOWEVER,
PRINCIPLED TECHNOLOGIES, INC. SPECIFICALLY DISCLAIMS ANY WARRANTY, EXPRESSED OR IMPLIED, RELATING TO THE TEST RESULTS AND
ANALYSIS, THEIR ACCURACY, COMPLETENESS OR QUALITY, INCLUDING ANY IMPLIED WARRANTY OF FITNESS FOR ANY PARTICULAR PURPOSE.
ALL PERSONS OR ENTITIES RELYING ON THE RESULTS OF ANY TESTING DO SO AT THEIR OWN RISK, AND AGREE THAT PRINCIPLED
TECHNOLOGIES, INC., ITS EMPLOYEES AND ITS SUBCONTRACTORS SHALL HAVE NO LIABILITY WHATSOEVER FROM ANY CLAIM OF LOSS OR
DAMAGE ON ACCOUNT OF ANY ALLEGED ERROR OR DEFECT IN ANY TESTING PROCEDURE OR RESULT.
IN NO EVENT SHALL PRINCIPLED TECHNOLOGIES, INC. BE LIABLE FOR INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES IN
CONNECTION WITH ITS TESTING, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL PRINCIPLED TECHNOLOGIES,
INC.’S LIABILITY, INCLUDING FOR DIRECT DAMAGES, EXCEED THE AMOUNTS PAID IN CONNECTION WITH PRINCIPLED TECHNOLOGIES, INC.’S
TESTING. CUSTOMER’S SOLE AND EXCLUSIVE REMEDIES ARE AS SET FORTH HEREIN.

More Related Content

What's hot

VDI with Dell EqualLogic hybrid arrays: A comparative study with the industry...
VDI with Dell EqualLogic hybrid arrays: A comparative study with the industry...VDI with Dell EqualLogic hybrid arrays: A comparative study with the industry...
VDI with Dell EqualLogic hybrid arrays: A comparative study with the industry...
Principled Technologies

MT58 High performance graphics for VDI: A technical discussion
MT58 High performance graphics for VDI: A technical discussionMT58 High performance graphics for VDI: A technical discussion
MT58 High performance graphics for VDI: A technical discussion
Dell EMC World

MT23 Benefits of Modular Computing from Data Center to Branch Office
MT23 Benefits of Modular Computing from Data Center to Branch OfficeMT23 Benefits of Modular Computing from Data Center to Branch Office
MT23 Benefits of Modular Computing from Data Center to Branch Office
Dell EMC World

Vdi Optimisation As A Service Flyer
Vdi   Optimisation As A Service FlyerVdi   Optimisation As A Service Flyer
Vdi Optimisation As A Service FlyerPeter Mayo

Comparing the TCO of Desktops
Comparing the TCO of DesktopsComparing the TCO of Desktops
Comparing the TCO of Desktops
Desktone

10 Key Considerations For Selecting Hyper-Converged Infrastructure
10 Key Considerations For Selecting Hyper-Converged Infrastructure10 Key Considerations For Selecting Hyper-Converged Infrastructure
10 Key Considerations For Selecting Hyper-Converged Infrastructure
Heather Salmons Newswanger

MT41 Dell EMC VMAX: Ask the Experts
MT41 Dell EMC VMAX: Ask the Experts MT41 Dell EMC VMAX: Ask the Experts
MT41 Dell EMC VMAX: Ask the Experts
Dell EMC World

Application Optimized Performance: Choosing the Right Instance (CPN212) | AWS...
Application Optimized Performance: Choosing the Right Instance (CPN212) | AWS...Application Optimized Performance: Choosing the Right Instance (CPN212) | AWS...
Application Optimized Performance: Choosing the Right Instance (CPN212) | AWS...
Amazon Web Services

The Foundation of the Software Defined Data Center
The Foundation of the Software Defined Data CenterThe Foundation of the Software Defined Data Center
The Foundation of the Software Defined Data Center
Arraya Solutions

PCF-VxRail-ReferenceArchiteture
PCF-VxRail-ReferenceArchiteturePCF-VxRail-ReferenceArchiteture
PCF-VxRail-ReferenceArchitetureVuong Pham

Dell - The Incredible Shrinking Datacenter
Dell - The Incredible Shrinking DatacenterDell - The Incredible Shrinking Datacenter
Dell - The Incredible Shrinking Datacenter
NEXTtour

Manage easier, deliver faster, innovate more - Top 10 facts on Dell Enterpris...
Manage easier, deliver faster, innovate more - Top 10 facts on Dell Enterpris...Manage easier, deliver faster, innovate more - Top 10 facts on Dell Enterpris...
Manage easier, deliver faster, innovate more - Top 10 facts on Dell Enterpris...
Dell World

Get more I/O performance on fewer servers with Intel Optane DC SSDs - Infogra...
Get more I/O performance on fewer servers with Intel Optane DC SSDs - Infogra...Get more I/O performance on fewer servers with Intel Optane DC SSDs - Infogra...
Get more I/O performance on fewer servers with Intel Optane DC SSDs - Infogra...
Principled Technologies

Fujitsu World Tour 2017 - Compute Platform For The Digital World
Fujitsu World Tour 2017 - Compute Platform For The Digital WorldFujitsu World Tour 2017 - Compute Platform For The Digital World
Fujitsu World Tour 2017 - Compute Platform For The Digital World
Fujitsu India

Presentazione Tintri - Clouditalia @ VMUGIT UserCon 2015
Presentazione Tintri - Clouditalia @ VMUGIT UserCon 2015Presentazione Tintri - Clouditalia @ VMUGIT UserCon 2015
Presentazione Tintri - Clouditalia @ VMUGIT UserCon 2015
VMUG IT

MT25 Server technology trends, workload impacts, and the Dell Point of View
MT25 Server technology trends, workload impacts, and the Dell Point of ViewMT25 Server technology trends, workload impacts, and the Dell Point of View
MT25 Server technology trends, workload impacts, and the Dell Point of View
Dell EMC World

Hdx optimization and best practices
Hdx optimization and best practicesHdx optimization and best practices
Hdx optimization and best practices
Nuno Alves

Move your desktop to the cloud for $1 day
Move your desktop to the cloud for $1 day Move your desktop to the cloud for $1 day
Move your desktop to the cloud for $1 day
Desktone

Elevate your e-commerce business by upgrading to the Dell EMC PowerEdge R740x...
Elevate your e-commerce business by upgrading to the Dell EMC PowerEdge R740x...Elevate your e-commerce business by upgrading to the Dell EMC PowerEdge R740x...
Elevate your e-commerce business by upgrading to the Dell EMC PowerEdge R740x...
Principled Technologies

Defining the Value of a Modular, Scale out Storage Architecture
Defining the Value of a Modular, Scale out Storage ArchitectureDefining the Value of a Modular, Scale out Storage Architecture
Defining the Value of a Modular, Scale out Storage Architecture
NetApp


What's hot (20)

VDI with Dell EqualLogic hybrid arrays: A comparative study with the industry...
VDI with Dell EqualLogic hybrid arrays: A comparative study with the industry...VDI with Dell EqualLogic hybrid arrays: A comparative study with the industry...
VDI with Dell EqualLogic hybrid arrays: A comparative study with the industry...

MT58 High performance graphics for VDI: A technical discussion
MT58 High performance graphics for VDI: A technical discussionMT58 High performance graphics for VDI: A technical discussion
MT58 High performance graphics for VDI: A technical discussion

MT23 Benefits of Modular Computing from Data Center to Branch Office
MT23 Benefits of Modular Computing from Data Center to Branch OfficeMT23 Benefits of Modular Computing from Data Center to Branch Office
MT23 Benefits of Modular Computing from Data Center to Branch Office

Vdi Optimisation As A Service Flyer
Vdi   Optimisation As A Service FlyerVdi   Optimisation As A Service Flyer
Vdi Optimisation As A Service Flyer

Comparing the TCO of Desktops
Comparing the TCO of DesktopsComparing the TCO of Desktops
Comparing the TCO of Desktops

10 Key Considerations For Selecting Hyper-Converged Infrastructure
10 Key Considerations For Selecting Hyper-Converged Infrastructure10 Key Considerations For Selecting Hyper-Converged Infrastructure
10 Key Considerations For Selecting Hyper-Converged Infrastructure

MT41 Dell EMC VMAX: Ask the Experts
MT41 Dell EMC VMAX: Ask the Experts MT41 Dell EMC VMAX: Ask the Experts
MT41 Dell EMC VMAX: Ask the Experts

Application Optimized Performance: Choosing the Right Instance (CPN212) | AWS...
Application Optimized Performance: Choosing the Right Instance (CPN212) | AWS...Application Optimized Performance: Choosing the Right Instance (CPN212) | AWS...
Application Optimized Performance: Choosing the Right Instance (CPN212) | AWS...

The Foundation of the Software Defined Data Center
The Foundation of the Software Defined Data CenterThe Foundation of the Software Defined Data Center
The Foundation of the Software Defined Data Center

PCF-VxRail-ReferenceArchiteture
PCF-VxRail-ReferenceArchiteturePCF-VxRail-ReferenceArchiteture
PCF-VxRail-ReferenceArchiteture

Dell - The Incredible Shrinking Datacenter
Dell - The Incredible Shrinking DatacenterDell - The Incredible Shrinking Datacenter
Dell - The Incredible Shrinking Datacenter

Manage easier, deliver faster, innovate more - Top 10 facts on Dell Enterpris...
Manage easier, deliver faster, innovate more - Top 10 facts on Dell Enterpris...Manage easier, deliver faster, innovate more - Top 10 facts on Dell Enterpris...
Manage easier, deliver faster, innovate more - Top 10 facts on Dell Enterpris...

Get more I/O performance on fewer servers with Intel Optane DC SSDs - Infogra...
Get more I/O performance on fewer servers with Intel Optane DC SSDs - Infogra...Get more I/O performance on fewer servers with Intel Optane DC SSDs - Infogra...
Get more I/O performance on fewer servers with Intel Optane DC SSDs - Infogra...

Fujitsu World Tour 2017 - Compute Platform For The Digital World
Fujitsu World Tour 2017 - Compute Platform For The Digital WorldFujitsu World Tour 2017 - Compute Platform For The Digital World
Fujitsu World Tour 2017 - Compute Platform For The Digital World

Presentazione Tintri - Clouditalia @ VMUGIT UserCon 2015
Presentazione Tintri - Clouditalia @ VMUGIT UserCon 2015Presentazione Tintri - Clouditalia @ VMUGIT UserCon 2015
Presentazione Tintri - Clouditalia @ VMUGIT UserCon 2015

MT25 Server technology trends, workload impacts, and the Dell Point of View
MT25 Server technology trends, workload impacts, and the Dell Point of ViewMT25 Server technology trends, workload impacts, and the Dell Point of View
MT25 Server technology trends, workload impacts, and the Dell Point of View

Hdx optimization and best practices
Hdx optimization and best practicesHdx optimization and best practices
Hdx optimization and best practices

Move your desktop to the cloud for $1 day
Move your desktop to the cloud for $1 day Move your desktop to the cloud for $1 day
Move your desktop to the cloud for $1 day

Elevate your e-commerce business by upgrading to the Dell EMC PowerEdge R740x...
Elevate your e-commerce business by upgrading to the Dell EMC PowerEdge R740x...Elevate your e-commerce business by upgrading to the Dell EMC PowerEdge R740x...
Elevate your e-commerce business by upgrading to the Dell EMC PowerEdge R740x...

Defining the Value of a Modular, Scale out Storage Architecture
Defining the Value of a Modular, Scale out Storage ArchitectureDefining the Value of a Modular, Scale out Storage Architecture
Defining the Value of a Modular, Scale out Storage Architecture


Similar to Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators

Dell PowerEdge C4130 & Intel Xeon Phi coprocessor 7120P
Dell PowerEdge C4130 & Intel Xeon Phi coprocessor 7120PDell PowerEdge C4130 & Intel Xeon Phi coprocessor 7120P
Dell PowerEdge C4130 & Intel Xeon Phi coprocessor 7120P
Principled Technologies

Accelerate performance on machine learning workloads with the Dell EMC PowerE...
Accelerate performance on machine learning workloads with the Dell EMC PowerE...Accelerate performance on machine learning workloads with the Dell EMC PowerE...
Accelerate performance on machine learning workloads with the Dell EMC PowerE...
Principled Technologies

Accelerate performance on machine learning workloads with the Dell EMC PowerE...
Accelerate performance on machine learning workloads with the Dell EMC PowerE...Accelerate performance on machine learning workloads with the Dell EMC PowerE...
Accelerate performance on machine learning workloads with the Dell EMC PowerE...
Principled Technologies

Workstation heat and power usage: Lenovo ThinkStation P700 vs. Dell Precision...
Workstation heat and power usage: Lenovo ThinkStation P700 vs. Dell Precision...Workstation heat and power usage: Lenovo ThinkStation P700 vs. Dell Precision...
Workstation heat and power usage: Lenovo ThinkStation P700 vs. Dell Precision...
Principled Technologies

Workstation heat and power usage: Lenovo ThinkStation P900 vs. Dell Precision...
Workstation heat and power usage: Lenovo ThinkStation P900 vs. Dell Precision...Workstation heat and power usage: Lenovo ThinkStation P900 vs. Dell Precision...
Workstation heat and power usage: Lenovo ThinkStation P900 vs. Dell Precision...
Principled Technologies

Hardware upgrades to improve database, SharePoint, Exchange, and file server ...
Hardware upgrades to improve database, SharePoint, Exchange, and file server ...Hardware upgrades to improve database, SharePoint, Exchange, and file server ...
Hardware upgrades to improve database, SharePoint, Exchange, and file server ...
Principled Technologies

Database performance: Dell PowerEdge R730xd vs. Lenovo ThinkServer RD650
Database performance: Dell PowerEdge R730xd vs. Lenovo ThinkServer RD650Database performance: Dell PowerEdge R730xd vs. Lenovo ThinkServer RD650
Database performance: Dell PowerEdge R730xd vs. Lenovo ThinkServer RD650
Principled Technologies

Improving energy efficiency in the data center: Endure higher temperatures wi...
Improving energy efficiency in the data center: Endure higher temperatures wi...Improving energy efficiency in the data center: Endure higher temperatures wi...
Improving energy efficiency in the data center: Endure higher temperatures wi...
Principled Technologies

Improving energy efficiency in the data center: Endure higher temperatures wi...
Improving energy efficiency in the data center: Endure higher temperatures wi...Improving energy efficiency in the data center: Endure higher temperatures wi...
Improving energy efficiency in the data center: Endure higher temperatures wi...
Principled Technologies

Consolidating Oracle database servers on the Dell PowerEdge R930
Consolidating Oracle database servers on the Dell PowerEdge R930Consolidating Oracle database servers on the Dell PowerEdge R930
Consolidating Oracle database servers on the Dell PowerEdge R930
Principled Technologies

Upgrade to Dell EMC PowerEdge R940 servers with VMware vSphere 7.0 and gain g...
Upgrade to Dell EMC PowerEdge R940 servers with VMware vSphere 7.0 and gain g...Upgrade to Dell EMC PowerEdge R940 servers with VMware vSphere 7.0 and gain g...
Upgrade to Dell EMC PowerEdge R940 servers with VMware vSphere 7.0 and gain g...
Principled Technologies

Workstation heat and power usage: Lenovo ThinkStation P500 vs. Dell Precision...
Workstation heat and power usage: Lenovo ThinkStation P500 vs. Dell Precision...Workstation heat and power usage: Lenovo ThinkStation P500 vs. Dell Precision...
Workstation heat and power usage: Lenovo ThinkStation P500 vs. Dell Precision...
Principled Technologies

Increase density and performance with upgrades from Intel and Dell
Increase density and performance with upgrades from Intel and DellIncrease density and performance with upgrades from Intel and Dell
Increase density and performance with upgrades from Intel and Dell
Principled Technologies

Serve more customers with the Dell EMC PowerEdge R740 and 2nd Generation Inte...
Serve more customers with the Dell EMC PowerEdge R740 and 2nd Generation Inte...Serve more customers with the Dell EMC PowerEdge R740 and 2nd Generation Inte...
Serve more customers with the Dell EMC PowerEdge R740 and 2nd Generation Inte...
Principled Technologies

Database server comparison: Dell PowerEdge R630 vs. Lenovo ThinkServer RD550
Database server comparison: Dell PowerEdge R630 vs. Lenovo ThinkServer RD550Database server comparison: Dell PowerEdge R630 vs. Lenovo ThinkServer RD550
Database server comparison: Dell PowerEdge R630 vs. Lenovo ThinkServer RD550
Principled Technologies

Consolidating Oracle database servers onto Dell PowerEdge R920 running Oracle VM
Consolidating Oracle database servers onto Dell PowerEdge R920 running Oracle VMConsolidating Oracle database servers onto Dell PowerEdge R920 running Oracle VM
Consolidating Oracle database servers onto Dell PowerEdge R920 running Oracle VM
Principled Technologies

Presentation (1).pptx
Presentation (1).pptxPresentation (1).pptx
Presentation (1).pptx
AryanDhage1

Component upgrades from Intel and Dell can increase VM density and boost perf...
Component upgrades from Intel and Dell can increase VM density and boost perf...Component upgrades from Intel and Dell can increase VM density and boost perf...
Component upgrades from Intel and Dell can increase VM density and boost perf...
Principled Technologies

Give your workforce stronger system performance and longer battery life with ...
Give your workforce stronger system performance and longer battery life with ...Give your workforce stronger system performance and longer battery life with ...
Give your workforce stronger system performance and longer battery life with ...
Principled Technologies

Better email response time using Microsoft Exchange 2013 with the Dell PowerE...
Better email response time using Microsoft Exchange 2013 with the Dell PowerE...Better email response time using Microsoft Exchange 2013 with the Dell PowerE...
Better email response time using Microsoft Exchange 2013 with the Dell PowerE...
Principled Technologies


Similar to Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators (20)

Dell PowerEdge C4130 & Intel Xeon Phi coprocessor 7120P
Dell PowerEdge C4130 & Intel Xeon Phi coprocessor 7120PDell PowerEdge C4130 & Intel Xeon Phi coprocessor 7120P
Dell PowerEdge C4130 & Intel Xeon Phi coprocessor 7120P

Accelerate performance on machine learning workloads with the Dell EMC PowerE...
Accelerate performance on machine learning workloads with the Dell EMC PowerE...Accelerate performance on machine learning workloads with the Dell EMC PowerE...
Accelerate performance on machine learning workloads with the Dell EMC PowerE...

Accelerate performance on machine learning workloads with the Dell EMC PowerE...
Accelerate performance on machine learning workloads with the Dell EMC PowerE...Accelerate performance on machine learning workloads with the Dell EMC PowerE...
Accelerate performance on machine learning workloads with the Dell EMC PowerE...

Workstation heat and power usage: Lenovo ThinkStation P700 vs. Dell Precision...
Workstation heat and power usage: Lenovo ThinkStation P700 vs. Dell Precision...Workstation heat and power usage: Lenovo ThinkStation P700 vs. Dell Precision...
Workstation heat and power usage: Lenovo ThinkStation P700 vs. Dell Precision...

Workstation heat and power usage: Lenovo ThinkStation P900 vs. Dell Precision...
Workstation heat and power usage: Lenovo ThinkStation P900 vs. Dell Precision...Workstation heat and power usage: Lenovo ThinkStation P900 vs. Dell Precision...
Workstation heat and power usage: Lenovo ThinkStation P900 vs. Dell Precision...

Hardware upgrades to improve database, SharePoint, Exchange, and file server ...
Hardware upgrades to improve database, SharePoint, Exchange, and file server ...Hardware upgrades to improve database, SharePoint, Exchange, and file server ...
Hardware upgrades to improve database, SharePoint, Exchange, and file server ...

Database performance: Dell PowerEdge R730xd vs. Lenovo ThinkServer RD650
Database performance: Dell PowerEdge R730xd vs. Lenovo ThinkServer RD650Database performance: Dell PowerEdge R730xd vs. Lenovo ThinkServer RD650
Database performance: Dell PowerEdge R730xd vs. Lenovo ThinkServer RD650

Improving energy efficiency in the data center: Endure higher temperatures wi...
Improving energy efficiency in the data center: Endure higher temperatures wi...Improving energy efficiency in the data center: Endure higher temperatures wi...
Improving energy efficiency in the data center: Endure higher temperatures wi...

Improving energy efficiency in the data center: Endure higher temperatures wi...
Improving energy efficiency in the data center: Endure higher temperatures wi...Improving energy efficiency in the data center: Endure higher temperatures wi...
Improving energy efficiency in the data center: Endure higher temperatures wi...

Consolidating Oracle database servers on the Dell PowerEdge R930
Consolidating Oracle database servers on the Dell PowerEdge R930Consolidating Oracle database servers on the Dell PowerEdge R930
Consolidating Oracle database servers on the Dell PowerEdge R930

Upgrade to Dell EMC PowerEdge R940 servers with VMware vSphere 7.0 and gain g...
Upgrade to Dell EMC PowerEdge R940 servers with VMware vSphere 7.0 and gain g...Upgrade to Dell EMC PowerEdge R940 servers with VMware vSphere 7.0 and gain g...
Upgrade to Dell EMC PowerEdge R940 servers with VMware vSphere 7.0 and gain g...

Workstation heat and power usage: Lenovo ThinkStation P500 vs. Dell Precision...
Workstation heat and power usage: Lenovo ThinkStation P500 vs. Dell Precision...Workstation heat and power usage: Lenovo ThinkStation P500 vs. Dell Precision...
Workstation heat and power usage: Lenovo ThinkStation P500 vs. Dell Precision...

Increase density and performance with upgrades from Intel and Dell
Increase density and performance with upgrades from Intel and DellIncrease density and performance with upgrades from Intel and Dell
Increase density and performance with upgrades from Intel and Dell

Serve more customers with the Dell EMC PowerEdge R740 and 2nd Generation Inte...
Serve more customers with the Dell EMC PowerEdge R740 and 2nd Generation Inte...Serve more customers with the Dell EMC PowerEdge R740 and 2nd Generation Inte...
Serve more customers with the Dell EMC PowerEdge R740 and 2nd Generation Inte...

Database server comparison: Dell PowerEdge R630 vs. Lenovo ThinkServer RD550
Database server comparison: Dell PowerEdge R630 vs. Lenovo ThinkServer RD550Database server comparison: Dell PowerEdge R630 vs. Lenovo ThinkServer RD550
Database server comparison: Dell PowerEdge R630 vs. Lenovo ThinkServer RD550

Consolidating Oracle database servers onto Dell PowerEdge R920 running Oracle VM
Consolidating Oracle database servers onto Dell PowerEdge R920 running Oracle VMConsolidating Oracle database servers onto Dell PowerEdge R920 running Oracle VM
Consolidating Oracle database servers onto Dell PowerEdge R920 running Oracle VM

Presentation (1).pptx
Presentation (1).pptxPresentation (1).pptx
Presentation (1).pptx

Component upgrades from Intel and Dell can increase VM density and boost perf...
Component upgrades from Intel and Dell can increase VM density and boost perf...Component upgrades from Intel and Dell can increase VM density and boost perf...
Component upgrades from Intel and Dell can increase VM density and boost perf...

Give your workforce stronger system performance and longer battery life with ...
Give your workforce stronger system performance and longer battery life with ...Give your workforce stronger system performance and longer battery life with ...
Give your workforce stronger system performance and longer battery life with ...

Better email response time using Microsoft Exchange 2013 with the Dell PowerE...
Better email response time using Microsoft Exchange 2013 with the Dell PowerE...Better email response time using Microsoft Exchange 2013 with the Dell PowerE...
Better email response time using Microsoft Exchange 2013 with the Dell PowerE...


More from Principled Technologies

Investing in GenAI: Cost‑benefit analysis of Dell on‑premises deployments vs....
Investing in GenAI: Cost‑benefit analysis of Dell on‑premises deployments vs....Investing in GenAI: Cost‑benefit analysis of Dell on‑premises deployments vs....
Investing in GenAI: Cost‑benefit analysis of Dell on‑premises deployments vs....
Principled Technologies

Workstations powered by Intel can play a vital role in CPU-intensive AI devel...
Workstations powered by Intel can play a vital role in CPU-intensive AI devel...Workstations powered by Intel can play a vital role in CPU-intensive AI devel...
Workstations powered by Intel can play a vital role in CPU-intensive AI devel...
Principled Technologies

Enable security features with no impact to OLTP performance with Dell PowerEd...
Enable security features with no impact to OLTP performance with Dell PowerEd...Enable security features with no impact to OLTP performance with Dell PowerEd...
Enable security features with no impact to OLTP performance with Dell PowerEd...
Principled Technologies

Dell APEX Cloud Platform for Red Hat OpenShift: An easily deployable and powe...
Dell APEX Cloud Platform for Red Hat OpenShift: An easily deployable and powe...Dell APEX Cloud Platform for Red Hat OpenShift: An easily deployable and powe...
Dell APEX Cloud Platform for Red Hat OpenShift: An easily deployable and powe...
Principled Technologies

Dell APEX Cloud Platform for Red Hat OpenShift: An easily deployable and powe...
Dell APEX Cloud Platform for Red Hat OpenShift: An easily deployable and powe...Dell APEX Cloud Platform for Red Hat OpenShift: An easily deployable and powe...
Dell APEX Cloud Platform for Red Hat OpenShift: An easily deployable and powe...
Principled Technologies

Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...
Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...
Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...
Principled Technologies

Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...
Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...
Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...
Principled Technologies

Realize 2.1X the performance with 20% less power with AMD EPYC processor-back...
Realize 2.1X the performance with 20% less power with AMD EPYC processor-back...Realize 2.1X the performance with 20% less power with AMD EPYC processor-back...
Realize 2.1X the performance with 20% less power with AMD EPYC processor-back...
Principled Technologies

Improve performance and gain room to grow by easily migrating to a modern Ope...
Improve performance and gain room to grow by easily migrating to a modern Ope...Improve performance and gain room to grow by easily migrating to a modern Ope...
Improve performance and gain room to grow by easily migrating to a modern Ope...
Principled Technologies

Boost PC performance: How more available memory can improve productivity
Boost PC performance: How more available memory can improve productivityBoost PC performance: How more available memory can improve productivity
Boost PC performance: How more available memory can improve productivity
Principled Technologies

Deploy with confidence: VMware Cloud Foundation 5.1 on next gen Dell PowerEdg...
Deploy with confidence: VMware Cloud Foundation 5.1 on next gen Dell PowerEdg...Deploy with confidence: VMware Cloud Foundation 5.1 on next gen Dell PowerEdg...
Deploy with confidence: VMware Cloud Foundation 5.1 on next gen Dell PowerEdg...
Principled Technologies

Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...
Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...
Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...
Principled Technologies

A comparison of security features in Dell, HP, and Lenovo PC systems
A comparison of security features in Dell, HP, and Lenovo PC systemsA comparison of security features in Dell, HP, and Lenovo PC systems
A comparison of security features in Dell, HP, and Lenovo PC systems
Principled Technologies

Increase security, sustainability, and efficiency with robust Dell server man...
Increase security, sustainability, and efficiency with robust Dell server man...Increase security, sustainability, and efficiency with robust Dell server man...
Increase security, sustainability, and efficiency with robust Dell server man...
Principled Technologies

Increase security, sustainability, and efficiency with robust Dell server man...
Increase security, sustainability, and efficiency with robust Dell server man...Increase security, sustainability, and efficiency with robust Dell server man...
Increase security, sustainability, and efficiency with robust Dell server man...
Principled Technologies

Scale up your storage with higher-performing Dell APEX Block Storage for AWS ...
Scale up your storage with higher-performing Dell APEX Block Storage for AWS ...Scale up your storage with higher-performing Dell APEX Block Storage for AWS ...
Scale up your storage with higher-performing Dell APEX Block Storage for AWS ...
Principled Technologies

Scale up your storage with higher-performing Dell APEX Block Storage for AWS
Scale up your storage with higher-performing Dell APEX Block Storage for AWSScale up your storage with higher-performing Dell APEX Block Storage for AWS
Scale up your storage with higher-performing Dell APEX Block Storage for AWS
Principled Technologies

Get in and stay in the productivity zone with the HP Z2 G9 Tower Workstation
Get in and stay in the productivity zone with the HP Z2 G9 Tower WorkstationGet in and stay in the productivity zone with the HP Z2 G9 Tower Workstation
Get in and stay in the productivity zone with the HP Z2 G9 Tower Workstation
Principled Technologies

Open up new possibilities with higher transactional database performance from...
Open up new possibilities with higher transactional database performance from...Open up new possibilities with higher transactional database performance from...
Open up new possibilities with higher transactional database performance from...
Principled Technologies

Improving database performance and value with an easy migration to Azure Data...
Improving database performance and value with an easy migration to Azure Data...Improving database performance and value with an easy migration to Azure Data...
Improving database performance and value with an easy migration to Azure Data...
Principled Technologies


More from Principled Technologies (20)

Investing in GenAI: Cost‑benefit analysis of Dell on‑premises deployments vs....
Investing in GenAI: Cost‑benefit analysis of Dell on‑premises deployments vs....Investing in GenAI: Cost‑benefit analysis of Dell on‑premises deployments vs....
Investing in GenAI: Cost‑benefit analysis of Dell on‑premises deployments vs....

Workstations powered by Intel can play a vital role in CPU-intensive AI devel...
Workstations powered by Intel can play a vital role in CPU-intensive AI devel...Workstations powered by Intel can play a vital role in CPU-intensive AI devel...
Workstations powered by Intel can play a vital role in CPU-intensive AI devel...

Enable security features with no impact to OLTP performance with Dell PowerEd...
Enable security features with no impact to OLTP performance with Dell PowerEd...Enable security features with no impact to OLTP performance with Dell PowerEd...
Enable security features with no impact to OLTP performance with Dell PowerEd...

Dell APEX Cloud Platform for Red Hat OpenShift: An easily deployable and powe...
Dell APEX Cloud Platform for Red Hat OpenShift: An easily deployable and powe...Dell APEX Cloud Platform for Red Hat OpenShift: An easily deployable and powe...
Dell APEX Cloud Platform for Red Hat OpenShift: An easily deployable and powe...

Dell APEX Cloud Platform for Red Hat OpenShift: An easily deployable and powe...
Dell APEX Cloud Platform for Red Hat OpenShift: An easily deployable and powe...Dell APEX Cloud Platform for Red Hat OpenShift: An easily deployable and powe...
Dell APEX Cloud Platform for Red Hat OpenShift: An easily deployable and powe...

Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...
Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...
Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...

Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...
Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...
Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...

Realize 2.1X the performance with 20% less power with AMD EPYC processor-back...
Realize 2.1X the performance with 20% less power with AMD EPYC processor-back...Realize 2.1X the performance with 20% less power with AMD EPYC processor-back...
Realize 2.1X the performance with 20% less power with AMD EPYC processor-back...

Improve performance and gain room to grow by easily migrating to a modern Ope...
Improve performance and gain room to grow by easily migrating to a modern Ope...Improve performance and gain room to grow by easily migrating to a modern Ope...
Improve performance and gain room to grow by easily migrating to a modern Ope...

Boost PC performance: How more available memory can improve productivity
Boost PC performance: How more available memory can improve productivityBoost PC performance: How more available memory can improve productivity
Boost PC performance: How more available memory can improve productivity

Deploy with confidence: VMware Cloud Foundation 5.1 on next gen Dell PowerEdg...
Deploy with confidence: VMware Cloud Foundation 5.1 on next gen Dell PowerEdg...Deploy with confidence: VMware Cloud Foundation 5.1 on next gen Dell PowerEdg...
Deploy with confidence: VMware Cloud Foundation 5.1 on next gen Dell PowerEdg...

Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...
Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...
Upgrade your cloud infrastructure with Dell PowerEdge R760 servers and VMware...

A comparison of security features in Dell, HP, and Lenovo PC systems
A comparison of security features in Dell, HP, and Lenovo PC systemsA comparison of security features in Dell, HP, and Lenovo PC systems
A comparison of security features in Dell, HP, and Lenovo PC systems

Increase security, sustainability, and efficiency with robust Dell server man...
Increase security, sustainability, and efficiency with robust Dell server man...Increase security, sustainability, and efficiency with robust Dell server man...
Increase security, sustainability, and efficiency with robust Dell server man...

Increase security, sustainability, and efficiency with robust Dell server man...
Increase security, sustainability, and efficiency with robust Dell server man...Increase security, sustainability, and efficiency with robust Dell server man...
Increase security, sustainability, and efficiency with robust Dell server man...

Scale up your storage with higher-performing Dell APEX Block Storage for AWS ...
Scale up your storage with higher-performing Dell APEX Block Storage for AWS ...Scale up your storage with higher-performing Dell APEX Block Storage for AWS ...
Scale up your storage with higher-performing Dell APEX Block Storage for AWS ...

Scale up your storage with higher-performing Dell APEX Block Storage for AWS
Scale up your storage with higher-performing Dell APEX Block Storage for AWSScale up your storage with higher-performing Dell APEX Block Storage for AWS
Scale up your storage with higher-performing Dell APEX Block Storage for AWS

Get in and stay in the productivity zone with the HP Z2 G9 Tower Workstation
Get in and stay in the productivity zone with the HP Z2 G9 Tower WorkstationGet in and stay in the productivity zone with the HP Z2 G9 Tower Workstation
Get in and stay in the productivity zone with the HP Z2 G9 Tower Workstation

Open up new possibilities with higher transactional database performance from...
Open up new possibilities with higher transactional database performance from...Open up new possibilities with higher transactional database performance from...
Open up new possibilities with higher transactional database performance from...

Improving database performance and value with an easy migration to Azure Data...
Improving database performance and value with an easy migration to Azure Data...Improving database performance and value with an easy migration to Azure Data...
Improving database performance and value with an easy migration to Azure Data...


Recently uploaded

Slack (or Teams) Automation for Bonterra Impact Management (fka Social Soluti...
Slack (or Teams) Automation for Bonterra Impact Management (fka Social Soluti...Slack (or Teams) Automation for Bonterra Impact Management (fka Social Soluti...
Slack (or Teams) Automation for Bonterra Impact Management (fka Social Soluti...
Jeffrey Haguewood

GraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge GraphGraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge Graph
Guy Korland

Transcript: Selling digital books in 2024: Insights from industry leaders - T...
Transcript: Selling digital books in 2024: Insights from industry leaders - T...Transcript: Selling digital books in 2024: Insights from industry leaders - T...
Transcript: Selling digital books in 2024: Insights from industry leaders - T...
BookNet Canada

Mission to Decommission: Importance of Decommissioning Products to Increase E...
Mission to Decommission: Importance of Decommissioning Products to Increase E...Mission to Decommission: Importance of Decommissioning Products to Increase E...
Mission to Decommission: Importance of Decommissioning Products to Increase E...
Product School

FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdfFIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance

UiPath Test Automation using UiPath Test Suite series, part 3
UiPath Test Automation using UiPath Test Suite series, part 3UiPath Test Automation using UiPath Test Suite series, part 3
UiPath Test Automation using UiPath Test Suite series, part 3
DianaGray10

Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024
Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024
Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024
Tobias Schneck

Accelerate your Kubernetes clusters with Varnish Caching
Accelerate your Kubernetes clusters with Varnish CachingAccelerate your Kubernetes clusters with Varnish Caching
Accelerate your Kubernetes clusters with Varnish Caching
Thijs Feryn

Dev Dives: Train smarter, not harder – active learning and UiPath LLMs for do...
Dev Dives: Train smarter, not harder – active learning and UiPath LLMs for do...Dev Dives: Train smarter, not harder – active learning and UiPath LLMs for do...
Dev Dives: Train smarter, not harder – active learning and UiPath LLMs for do...
UiPathCommunity

To Graph or Not to Graph Knowledge Graph Architectures and LLMs
To Graph or Not to Graph Knowledge Graph Architectures and LLMsTo Graph or Not to Graph Knowledge Graph Architectures and LLMs
To Graph or Not to Graph Knowledge Graph Architectures and LLMs
Paul Groth

AI for Every Business: Unlocking Your Product's Universal Potential by VP of ...
AI for Every Business: Unlocking Your Product's Universal Potential by VP of ...AI for Every Business: Unlocking Your Product's Universal Potential by VP of ...
AI for Every Business: Unlocking Your Product's Universal Potential by VP of ...
Product School

From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...
From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...
From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...
Product School

GenAISummit 2024 May 28 Sri Ambati Keynote: AGI Belongs to The Community in O...
GenAISummit 2024 May 28 Sri Ambati Keynote: AGI Belongs to The Community in O...GenAISummit 2024 May 28 Sri Ambati Keynote: AGI Belongs to The Community in O...
GenAISummit 2024 May 28 Sri Ambati Keynote: AGI Belongs to The Community in O...
Sri Ambati

From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...
From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...
From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...
Product School

Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdfSmart TV Buyer Insights Survey 2024 by 91mobiles.pdf
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf
91mobiles

Unsubscribed: Combat Subscription Fatigue With a Membership Mentality by Head...
Unsubscribed: Combat Subscription Fatigue With a Membership Mentality by Head...Unsubscribed: Combat Subscription Fatigue With a Membership Mentality by Head...
Unsubscribed: Combat Subscription Fatigue With a Membership Mentality by Head...
Product School

Empowering NextGen Mobility via Large Action Model Infrastructure (LAMI): pav...
Empowering NextGen Mobility via Large Action Model Infrastructure (LAMI): pav...Empowering NextGen Mobility via Large Action Model Infrastructure (LAMI): pav...
Empowering NextGen Mobility via Large Action Model Infrastructure (LAMI): pav...
Thierry Lestable

DevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA ConnectDevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA Connect
Kari Kakkonen

PHP Frameworks: I want to break free (IPC Berlin 2024)
PHP Frameworks: I want to break free (IPC Berlin 2024)PHP Frameworks: I want to break free (IPC Berlin 2024)
PHP Frameworks: I want to break free (IPC Berlin 2024)
Ralf Eggert

FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf
FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdfFIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf
FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf
FIDO Alliance


Recently uploaded (20)

Slack (or Teams) Automation for Bonterra Impact Management (fka Social Soluti...
Slack (or Teams) Automation for Bonterra Impact Management (fka Social Soluti...Slack (or Teams) Automation for Bonterra Impact Management (fka Social Soluti...
Slack (or Teams) Automation for Bonterra Impact Management (fka Social Soluti...

GraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge GraphGraphRAG is All You need? LLM & Knowledge Graph
GraphRAG is All You need? LLM & Knowledge Graph

Transcript: Selling digital books in 2024: Insights from industry leaders - T...
Transcript: Selling digital books in 2024: Insights from industry leaders - T...Transcript: Selling digital books in 2024: Insights from industry leaders - T...
Transcript: Selling digital books in 2024: Insights from industry leaders - T...

Mission to Decommission: Importance of Decommissioning Products to Increase E...
Mission to Decommission: Importance of Decommissioning Products to Increase E...Mission to Decommission: Importance of Decommissioning Products to Increase E...
Mission to Decommission: Importance of Decommissioning Products to Increase E...

FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdfFIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf

UiPath Test Automation using UiPath Test Suite series, part 3
UiPath Test Automation using UiPath Test Suite series, part 3UiPath Test Automation using UiPath Test Suite series, part 3
UiPath Test Automation using UiPath Test Suite series, part 3

Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024
Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024
Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024

Accelerate your Kubernetes clusters with Varnish Caching
Accelerate your Kubernetes clusters with Varnish CachingAccelerate your Kubernetes clusters with Varnish Caching
Accelerate your Kubernetes clusters with Varnish Caching

Dev Dives: Train smarter, not harder – active learning and UiPath LLMs for do...
Dev Dives: Train smarter, not harder – active learning and UiPath LLMs for do...Dev Dives: Train smarter, not harder – active learning and UiPath LLMs for do...
Dev Dives: Train smarter, not harder – active learning and UiPath LLMs for do...

To Graph or Not to Graph Knowledge Graph Architectures and LLMs
To Graph or Not to Graph Knowledge Graph Architectures and LLMsTo Graph or Not to Graph Knowledge Graph Architectures and LLMs
To Graph or Not to Graph Knowledge Graph Architectures and LLMs

AI for Every Business: Unlocking Your Product's Universal Potential by VP of ...
AI for Every Business: Unlocking Your Product's Universal Potential by VP of ...AI for Every Business: Unlocking Your Product's Universal Potential by VP of ...
AI for Every Business: Unlocking Your Product's Universal Potential by VP of ...

From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...
From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...
From Daily Decisions to Bottom Line: Connecting Product Work to Revenue by VP...

GenAISummit 2024 May 28 Sri Ambati Keynote: AGI Belongs to The Community in O...
GenAISummit 2024 May 28 Sri Ambati Keynote: AGI Belongs to The Community in O...GenAISummit 2024 May 28 Sri Ambati Keynote: AGI Belongs to The Community in O...
GenAISummit 2024 May 28 Sri Ambati Keynote: AGI Belongs to The Community in O...

From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...
From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...
From Siloed Products to Connected Ecosystem: Building a Sustainable and Scala...

Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdfSmart TV Buyer Insights Survey 2024 by 91mobiles.pdf
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf

Unsubscribed: Combat Subscription Fatigue With a Membership Mentality by Head...
Unsubscribed: Combat Subscription Fatigue With a Membership Mentality by Head...Unsubscribed: Combat Subscription Fatigue With a Membership Mentality by Head...
Unsubscribed: Combat Subscription Fatigue With a Membership Mentality by Head...

Empowering NextGen Mobility via Large Action Model Infrastructure (LAMI): pav...
Empowering NextGen Mobility via Large Action Model Infrastructure (LAMI): pav...Empowering NextGen Mobility via Large Action Model Infrastructure (LAMI): pav...
Empowering NextGen Mobility via Large Action Model Infrastructure (LAMI): pav...

DevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA ConnectDevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA Connect

PHP Frameworks: I want to break free (IPC Berlin 2024)
PHP Frameworks: I want to break free (IPC Berlin 2024)PHP Frameworks: I want to break free (IPC Berlin 2024)
PHP Frameworks: I want to break free (IPC Berlin 2024)

FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf
FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdfFIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf
FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf


Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators

  • 1. JANUARY 2015 A PRINCIPLED TECHNOLOGIES TEST REPORT Commissioned by Dell Inc. DELL POWEREDGE C4130 & NVIDIA TESLA K80 GPU ACCELERATORS Organizations running the more than 200 available high-performance computing (HPC) applications know that computational performance is their top priority for getting results faster. In recent years, one approach to achieving increased compute power has been to add graphics processing units (GPUs) that can handle the complex and demanding compute requirements, such as the NVIDIA Tesla K80 GPU accelerators, to server hardware designed to support them. The new Dell PowerEdge C4130 server provides a unique platform to support the accelerated performance of GPUs with a physical design intended to facilitate airflow and reduce overheating. At Principled Technologies, we first compared the floating-point performance of an Intel processor-powered Dell PowerEdge C4130 without any GPUs (baseline) and then with the maximum amount of NVIDIA Tesla K80 GPU accelerators (maximum) in three different Intel Xeon processor configurations: pairs of E5-2650 v3, E5-2670 v3, and E5-2690 v3 processors. We found that adding the four GPUs to the Dell PowerEdge C4130 delivered up to 9.37 times more performance than the Dell PowerEdge C4130 without any GPUs. Improved performance from GPUs means getting more from HPC workloads. We then compared the performance of the Dell PowerEdge C4130 with four GPUs against a Supermicro 1028GR-TR with the maximum amount of NVIDIA Tesla K80 GPUs (three) in all three processor configurations. We found that the Dell PowerEdge
  • 2. A Principled Technologies test report 2Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators C4130 consistently outperformed the Supermicro server solution, delivering up to 28 percent better performance. In addition, when we looked at GPU temperatures as an indicator of airflow through both the Dell and Supermicro servers, we found the GPU temperatures of the Dell PowerEdge C4130 were up to 13 degrees (Celsius) cooler than the Supermicro 1028GR-TR. These cooler running temperatures may help prevent deterioration of the silicon from overheating and may extend the lifetime of the chips. For more information about the testing components, see Appendix A. For more information on the system configuration of each server, see Appendix B. For detailed steps on how we tested, see Appendix C. GET MORE COMPUTING POWER WITH NVIDIA TESLA K80 GPUS Organizations running HPC applications specialize in areas ranging from molecular dynamics to animation to weather forecasting. In recent years, the addition of GPUs to servers has seen increased performance for these organizations. The GPUs add computational power, which can offload or supplement the workload on the CPU. We used Intel’s version of the high-performance LINPACK (Intel HPL) benchmark to test the floating-point performance of the baseline configuration without any NVIDIA GPUs. We used NVIDIA’s version of the high-performance LINPACK (NVIDIA HPL) benchmark to test the floating-point performance of the maximum configuration, which aggregates all available compute power of both GPUs and CPUs. Our tests measured CPU performance for the baseline configuration and GPU and CPU performance combined for the maximum configuration. The HPL benchmark solves a set of linear equations and returns the time required and the average floating point performance achieved in giga-floating-point operations per second (Gflops). In our tests, we chose a problem size of 121,344 and a block size of 1,024 to make full use of the memory and to maximize performance. Our testing occurred in a datacenter at 25 degrees Celsius. We first tested the baseline configuration of the PowerEdge C4130 in three different processors. Having three processor configurations allowed us to see how changes in processor affected the floating-point performance. Next, we tested the maximum configuration of the PowerEdge C4130 in the same three Intel Xeon processor configurations. Figure 1 presents information for each Intel Xeon processor we used. Intel Xeon processor E5-2650 v3 Intel Xeon processor E5-2670 v3 Intel Xeon processor E5-2690 v3 TDP (watts) 105 120 135 Frequency (GHz) 2.3 2.3 2.6 Cores 10 12 12 Figure 1: CPU information for the processors we used in testing.
  • 3. A Principled Technologies test report 3Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators Our tests showed that adding GPUs to each processor configuration could dramatically increase floating-point performance. Figure 2 provides the normalized Gflops performance numbers for baseline and maximum GPU configurations for each processor. The Dell PowerEdge C4130 maximum GPU configuration delivered 9.3 times, 7.6 times, and 7.0 times more floating-point performance than the baseline configuration with Intel Xeon processors E5-2650 v3, E5-2670 v3, and E5-2690 v3, respectively. Figure 2: Normalized LINPACK floating-point performance for the baseline and maximum configuration of the PowerEdge C4130 using multiple Intel Xeon processor configurations. Higher numbers are better. This increase in compute power can put servers in a dangerous position. Running too long at higher-than-normal temperatures can diminish workload performance for these HPC applications and can decrease hardware life. The design of the Dell PowerEdge C4130 positions the GPUs to receive significant airflow for cooling. In addition, the design includes more openings that allow air to move out of the server, helping air warmed by GPUs and processors to leave. We found that peak GPU temperatures for the Dell PowerEdge C4130 maximum configuration were generally consistent with each of the three Intel Xeon processors (see Figure 3). All three maximum GPU temperatures were within a standard safe- operation temperature range.1 1 NVIDIA GPUs typically have maximum operating temperatures of approximately 105°C. nvidia.custhelp.com/app/answers/detail/a_id/2752/~/nvidia-gpu-maximum-operating-temperature-and-overheating
  • 4. A Principled Technologies test report 4Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators Figure 3: Peak GPU temperature for the maximum configurations of the Dell PowerEdge C4130 with each of the three Intel Xeon processors. If your organization needs the power of GPUs to run graphic-heavy design applications or complex scientific simulations, the Dell PowerEdge C4130 can provide the hardware to support your demanding workloads. Keeping the silicon of GPUs at a reasonable temperature, as the PowerEdge C4130 did, could extend the lifetime of the chips, while reducing diminished performance and power inefficiency. BETTER PERFORMANCE FROM THE DELL POWEREDGE C4130 WITH COOLER NVIDIA TESLA K80 GPUS After realizing the performance benefits of adding NVIDIA Tesla K80 GPU accelerators to the Dell PowerEdge C4130, we compared the maximum configuration of the PowerEdge C4130 to a Supermicro 1028GR-TR server with the maximum number of supported NVIDIA Tesla K80 GPU accelerators in the three Intel Xeon processor configurations. The PowerEdge C4130 can house four NVIDIA Tesla K80 GPU accelerators simultaneously, while the Supermicro 1028GR-TR can hold only three. Not only did the Dell PowerEdge C4130 maximum configuration outperform the Supermicro 1028GR-TR maximum configuration, but it also kept the GPU temperatures cooler for all three processors. Figure 4 shows GPU temperatures for both solutions in each processor configuration.
  • 5. A Principled Technologies test report 5Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators Figure 4: GPU and CPU placement in the two servers we tested showing sensor temperatures with multiple Intel Xeon processor configurations.
  • 6. A Principled Technologies test report 6Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators In the following sections, we show how the maximum configurations for each solution performed in each of the processor configurations we tested. Intel Xeon processor E5-2650 v3 Floating-point performance We found that the Dell PowerEdge C4130 maximum configuration achieved 25 percent greater floating-point performance than the Supermicro 1028GR-TR maximum configuration. Figure 5 shows the normalized Gflops achieved by the two solutions with Intel Xeon processors E5-2650 v3. Figure 5: Normalized LINPACK floating-point performance for the maximum configuration of each system. Higher numbers are better. GPU temperature We found the peak GPU temperature for the Dell PowerEdge C4130 maximum configuration was 9 degrees cooler than the peak GPU temperature of the Supermicro 1028GR-TR (see Figure 6). Figure 6: Peak GPU temperature for the maximum configuration of both systems. Lower numbers are better.
  • 7. A Principled Technologies test report 7Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators Intel Xeon processor E5-2670 v3 Floating-point performance We found that the Dell PowerEdge C4130 maximum configuration achieved 28 percent greater floating-point performance than the Supermicro 1028GR-TR maximum configuration. Figure 7 shows the normalized Gflops achieved by the two solutions with Intel Xeon processors E5-2670 v3. Figure 7: Normalized LINPACK floating-point performance for the maximum configurations of each system. Higher numbers are better. GPU temperature For the maximum configuration, the peak GPU temperature of the Dell PowerEdge C4130 was 13 degrees cooler than the Supermicro 1028GR-TR solution (see Figure 8). Figure 8: Peak GPU temperature for the maximum configuration of both systems. Lower numbers are better.
  • 8. A Principled Technologies test report 8Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators Intel Xeon processor E5-2690 v3 Floating-point performance We found that the Dell PowerEdge C4130 maximum configuration achieved 27 percent greater floating-point performance than the Supermicro 1028GR-TR maximum configuration. Figure 9 shows the normalized Gflops achieved by the two configurations with Intel Xeon processors E5-2690 v3. Figure 9: Normalized LINPACK floating-point performance for the maximum configurations of each system. Higher numbers are better. GPU temperature For the maximum configuration, the peak GPU temperature of the Dell PowerEdge C4130 was 10 degrees cooler than the Supermicro 1028GR-TR solution (see Figure 10). Figure 10: Peak GPU temperature for the maximum configuration of both systems. Lower numbers are better.
  • 9. A Principled Technologies test report 9Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators CONCLUSION Choosing a server solution that supports additional GPUs is a great option for offloading your HPC workloads and maximizing server performance. We found that the maximum configuration of the Dell PowerEdge C4130 with four NVIDIA Tesla K80 GPU accelerators delivered up to 9.3 times more performance than the Dell PowerEdge C4130 without GPUs. In addition, choosing the right server solution to support GPUs for your HPC workloads can deliver additional performance while maintaining reasonable GPU temperatures. We found that the maximum configuration of the Dell PowerEdge C4130 with four NVIDIA Tesla K80 GPU accelerators delivered up to 28 percent better performance than the maximum configuration of the Supermicro 1028GR-TR with three NVIDIA Tesla K80 GPU accelerators. In our testing of internal temperatures, we found the peak GPU temperature of the Dell PowerEdge C4130 in the maximum configuration to be up to 13 degrees cooler than the Supermicro 1028GR-TR maximum configuration. The added performance of NVIDIA Tesla K80 GPUs can be valuable for organizations running anything from advanced algorithms to rendering 3D graphics. The new Dell PowerEdge C4130 server supports up to four GPUs, providing the platform your organization needs in its datacenter to handle these compute-intensive workloads. The design of the PowerEdge C4130 helps lower internal GPU temperatures via internal airflow—bringing another benefit for your organization by potentially extending hardware and chip life.
  • 10. A Principled Technologies test report 10Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators APPENDIX A – ABOUT THE COMPONENTS About Dell PowerEdge C4130 The Dell PowerEdge C4130 is, according to Dell, “designed to accelerate a range of demanding workloads including high-performance computing (HPC),” and powered by up to two Intel Xeon processors for the Intel Xeon processor E5-2600 v3 product family. The Dell PowerEdge C4130 houses up to four 300W double-width GPU accelerators or coprocessors in 1U of space, can offer up to 256GB of DDR4 memory, and features two rear PCIe® 3.0 slots and support for InfiniBand® FDR. For more information about the Dell PowerEdge C4130, visit www.dell.com/us/business/p/poweredge- c4130/pd. About NVIDIA Tesla K80 GPU accelerators Based on the NVIDIA Kepler™ Architecture, Tesla accelerators are, according to NVIDIA, “designed to deliver faster, more efficient compute performance.” They feature a dual GPU board with 24 GB of memory and 4,992 CUDA® parallel processing cores. For more information, visit www.nvidia.com/object/tesla-servers.html. About LINPACK The LINPACK benchmark runs a program that solves a system of linear equations to measure the floating-point rate of execution of a system. Often used to test the performance of supercomputers, LINPACK can help determine the peak performance of which a system is capable by using complex calculations to stress the processor. For more information about LINPACK, visit www.top500.org/project/linpack/.
  • 11. A Principled Technologies test report 11Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators APPENDIX B – SYSTEM CONFIGURATION INFORMATION Figure 11 provides detailed configuration information for the test systems. System Dell PowerEdge C4130 Supermicro 1028GR-TR Power supplies Total number 2 2 Vendor and model number Dell D1600E-S0 Delta Electronics DPS-1600CB Wattage of each (W) 1600 1600 Cooling fans Total number 8 10 Vendor and model number Delta Electronics GFM0412SS-D Delta Electronics GFC0412DS Dimensions (h × w) of each 1″ × 1″ 1″ × 1″ Volts 12 12 Amps 2.0 1.5 General Number of processor packages 2 2 Number of cores per processor 20, 24, 24 20, 24, 24 Number of hardware threads per core 2, 2, 2 2, 2, 2 System power management policy Performance Default (performance) CPU Vendor Intel Intel Name Xeon Xeon Model number E5-2650 v3, E5-2670 v3, E5-2690 v3 E5-2650 v3, E5-2670 v3, E5-2690 v3 Socket type FCLGA2011-3 FCLGA2011-3 Core frequency (GHz) 2.3, 2.3, 2.6 2.3, 2.3, 2.6 Bus frequency (GT/s) 9.6, 9.6, 9.6 9.6, 9.6, 9.6 L1 cache 768 KB (all processors) 768 KB (all processors) L2 cache 3,072 KB (all processors) 3,072 KB (all processors) L3 cache 25, 30, 30 MB 25, 30, 30 MB Platform Vendor and model number Dell PowerEdge C4130 Supermicro 1028GR-TR Motherboard model number 0797FV X10DRG-H BIOS name and version Dell 0.3.5 American Megatrends 1.0 BIOS settings Performance Default (performance)
  • 12. A Principled Technologies test report 12Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators System Dell PowerEdge C4130 Supermicro 1028GR-TR Memory module(s) Total RAM in system (GB) 128 128 Vendor and model number Hynix HMA41GR7MFR8N Hynix HMA41GR7MFR8N Type PC4-2133P PC4-2133P Speed (MHz) 2,133 2,133 Speed running in the system (MHz) 2,133 2,133 Timing/Latency (tCL-tRCD-tRP- tRASmin) 11-11-11-33 11-11-11-33 Size (GB) 8 8 Number of RAM module(s) 16 16 Chip organization Dual-sided Dual-sided Rank Double Double Operating system Name CentOS 7 CentOS 7 Build number 3.10.0-123.9.2.el7.x86_64 3.10.0-123.9.2.el7.x86_64 File system XFS XFS Language English English RAID controller Vendor and model number Embedded Intel SATA Controller Embedded Intel SATA Controller Driver version 3.0 3.0 Cache size (MB) N/A N/A Solid-state drives Vendor and model number Dell 1H4WG Samsung MZ-7PA2560/0D1 Number of drives 1 1 Size (GB) 60 256 Type SATA SSD SATA SSD Ethernet adapters Vendor and model number Intel I350 Gigabit NIC Intel I350 Gigabit NIC Type Ethernet Ethernet Driver 5.0.5-k 5.0.5-k Figure 11: System configuration information for the test systems.
  • 13. A Principled Technologies test report 13Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators APPENDIX C – HOW WE TESTED On both the Dell PowerEdge C4130 and the Supermicro 1028GR-TR, we configured the BIOS settings for HPL performance and then installed minimal CentOS 7 onto the local storage. We installed Intel MKL 11.2 and used the included HPL 2.1 executable and libraries to run the baseline (processor only) configurations. For the maximum configurations, we installed NVIDIA’s distribution of the HPL 2.1 executable, along with NVIDIA CUDA 6.5, OpenMPI 1.6.5 libraries, and the NVIDIA 340.32 GPU driver. Installing and configuring the BIOS and operating system On both servers, we configured the BIOS to run on physical cores only and in the best possible performance settings. We then created a single-drive RAID0 volume using the onboard storage controllers and installed the minimal installation of CentOS 7 onto the local storage. We then installed necessary packages and updated the kernel. Configuring the BIOS 1. During POST, press the appropriate key to enter the BIOS menu (F2 on the Dell PowerEdge C4130, and Delete on the Supermicro 1028GR-TR). 2. In BIOS, navigate to the Processor menu and turn off Intel Virtualization Technology (Hyper-Threading). 3. On the Dell PowerEdge C4130, navigate to the System Profile menu and choose the Performance profile. 4. On both servers, save the BIOS settings and exit the BIOS menu. Installing CentOS 7 1. Connect the installation media to the server. We used the virtual optical drive available on both servers’ out- of-band management consoles. 2. Boot to the installation media. 3. At the splash screen, select Install CentOS 7 and press Enter. 4. For language, choose your desired language, and click Continue. We chose English (United States). 5. At the Installation Summary screen, configure the Date & Time to match your time zone. 6. Set the Software Selection to Minimal Install. 7. Set the Installation Destination to Automatic partitioning. 8. Configure the Network & Hostname for your testing network. 9. Click Begin Installation. 10. During the installation process, set the Root Password. We elected not to create another user for this setup. 11. Once the installation is completed, disconnect the installation media and click Reboot. Updating the operating system 1. Begin an SSH session with the server, and log in as the root user. 2. To install the necessary packages for setup, enter the following command: yum -y install kernel-devel libXi-devel libXmu-devel openmpi-devel pciutils lm_sensors numactl 3. To update the kernel and included packages, enter the following command: yum -y update
  • 14. A Principled Technologies test report 14Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators 4. Reboot the server. 5. Download the NVIDIA driver package NVIDIA-Linux-x86_64-340.32.run, and run the package to install the NVIDIA 340.32 GPU driver. 6. Download the NVIDIA CUDA package cuda_6.5.14_linux_64.run, and run the package to install NVIDIA CUDA 6.5. When the installer prompts to install the NVIDIA GPU driver, select No. 7. Download the OpenMPI package openmpi-1.6.5-tar.gz, and extract the contents. 8. In the extracted location, run INSTALL to install OpenMPI 1.6.5. 9. Download the Intel Composer XE 2015 evaluation software package l_compxe_2015.0.090.tgz, and extract the contents. 10. In the extracted location, run install.sh to install the Intel MKL 11.2 software. 11. Reboot the server. Installing and running the HPL benchmark For the baseline (processor only) configurations, we used the HPL 2.1 executable included with Intel MKL 11.2. For the maximum configurations of GPU accelerators, we used a Dell-provided pre-compiled version of NVIDIA’s HPL 2.1 benchmark. We created a series of bash scripts to run the benchmark. Configuring the HPL benchmark for the baseline configuration 1. Navigate to /opt/intel/mkl/benchmarks/linpack. 2. Edit the OMP_NUM_THREADS environment variable in runme_xeon64 to reflect the number of physical cores in the system (20 for the Intel Xeon E5-2650 v3, and 24 for both the Intel Xeon E5-2670 v3 and the Intel Xeon E5-2690 v3). 3. Add the following lines to the beginning of runme_xeon64: export LD_LIBRARY_PATH= $LD_LIBRARY_PATH:/opt/intel/composer_xe_2015.0.090/mkl/lib/intel64/:/opt/int el/composer_xe_2015.0.090/compiler/lib/intel64/ export PATH=$PATH:/opt/intel/composer_xe_2015.0.090/mpirt/bin/intel64/ 4. Edit lininput_xeon64 to the following: Sample Intel(R) Optimized LINPACK Benchmark data file (lininput_xeon64) Intel(R) Optimized LINPACK Benchmark data 1 # number of tests 121344 # problem sizes 121344 # leading dimensions 1 # times to run a test 32 # alignment values (in KBytes) Running the HPL benchmark for the baseline configuration 1. Navigate to /opt/intel/mkl/benchmarks/linpack. 2. Run runme_xeon64 to run the HPL 2.1 benchmark.
  • 15. A Principled Technologies test report 15Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators Configuring the HPL benchmark for the Dell PowerEdge C4130 maximum configuration (four GPUs) 1. Download the pre-compiled HPL 2.1 executable and library files to a directory on the server. 2. Create a file in the HPL folder called HPL.dat and edit it to the following: HPLinpack benchmark input file Innovative Computing Laboratory, University of Tennessee HPL.out output file name (if any) 6 device out (6=stdout,7=stderr,file) 1 # of problems sizes (N) 121344 Ns 1 # of NBs 1024 NBs 0 PMAP process mapping (0=Row-,1=Column-major) 1 # of process grids (P x Q) 2 Ps 4 Qs 16.0 threshold 1 # of panel fact 0 1 2 PFACTs (0=left, 1=Crout, 2=Right) 1 # of recursive stopping criterium 2 NBMINs (>= 1) 1 # of panels in recursion 2 NDIVs 1 # of recursive panel fact. 2 1 0 RFACTs (0=left, 1=Crout, 2=Right) 1 # of broadcast 3 0 1 2 4 5 BCASTs (0=1rg,1=1rM,2=2rg,3=2rM,4=Lng,5=LnM) 1 # of lookahead depth 0 DEPTHs (>=0) 1 SWAP (0=bin-exch,1=long,2=mix) 64 swapping threshold 1 L1 in (0=transposed,1=no-transposed) form 0 U in (0=transposed,1=no-transposed) form 1 Equilibration (0=no,1=yes) 32 memory alignment in double (> 0) 3. For the configuration using Intel E5-2650 v3 processors (20 cores), create a file in the HPL directory called dell_hpl_2650, and edit it to the following: #!/bin/bash export LD_LIBRARY_PATH=$LD_LIBRARY_PATH: /root/hpl:/usr/local/cuda- 6.5/lib64:/root/openmpi-1.6.5/ompi/.libs/ nvidia-persistenced --persistence-mode nvidia-smi -pm 1 export HPL_DIR=/root/hpl export MKL_NUM_THREADS=2 #number of cpu cores per GPU export OMP_NUM_THREADS=2 #number of cpu cores per process export MKL_DYNAMIC=FALSE
  • 16. A Principled Technologies test report 16Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators export CUDA_DGEMM_SPLIT=.999 export CUDA_DTRSM_SPLIT=.999 export MKL_CBWR=AVX2 mpirun -np 8 /root/hpl/xhpl 4. For the configuration using Intel E5-2670 v3 processors and the configuration using Intel E5-2690 v3 processors (24 cores each), create a file in the HPL directory called dell_hpl_2670_2690, and edit it to the following: #!/bin/bash export LD_LIBRARY_PATH=$LD_LIBRARY_PATH: /root/hpl:/usr/local/cuda- 6.5/lib64:/root/openmpi-1.6.5/ompi/.libs/ nvidia-persistenced --persistence-mode nvidia-smi -pm 1 export HPL_DIR=/root/hpl export MKL_NUM_THREADS=3 #number of cpu cores per GPU export OMP_NUM_THREADS=3 #number of cpu cores per process export MKL_DYNAMIC=FALSE export CUDA_DGEMM_SPLIT=.999 export CUDA_DTRSM_SPLIT=.999 export MKL_CBWR=AVX2 mpirun -np 8 /root/hpl/xhpl 5. Run dell_hpl_2650 or dell_hpl_2670_2690 to run the HPL 2.1 benchmark for the appropriate configuration. Configuring the HPL benchmark for the Supermicro 1028GR-TR maximum configuration (3 GPUs) 1. Download the pre-compiled HPL 2.1 executable and library files to a directory on the server. 2. Create a file in the HPL folder called HPL.dat and edit it to the following: HPLinpack benchmark input file Innovative Computing Laboratory, University of Tennessee HPL.out output file name (if any) 6 device out (6=stdout,7=stderr,file) 1 # of problems sizes (N) 121344 Ns 1 # of NBs 1024 NBs 0 PMAP process mapping (0=Row-,1=Column-major) 1 # of process grids (P x Q) 2 Ps 3 Qs 16.0 threshold 1 # of panel fact 0 1 2 PFACTs (0=left, 1=Crout, 2=Right) 1 # of recursive stopping criterium
  • 17. A Principled Technologies test report 17Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators 2 NBMINs (>= 1) 1 # of panels in recursion 2 NDIVs 1 # of recursive panel fact. 2 1 0 RFACTs (0=left, 1=Crout, 2=Right) 1 # of broadcast 3 0 1 2 4 5 BCASTs (0=1rg,1=1rM,2=2rg,3=2rM,4=Lng,5=LnM) 1 # of lookahead depth 0 DEPTHs (>=0) 1 SWAP (0=bin-exch,1=long,2=mix) 64 swapping threshold 1 L1 in (0=transposed,1=no-transposed) form 0 U in (0=transposed,1=no-transposed) form 1 Equilibration (0=no,1=yes) 32 memory alignment in double (> 0) 3. For the configuration using Intel E5-2650 v3 processors (20 cores), create a file in the HPL directory called supermicro_hpl_2650 and edit it to the following: #!/bin/bash export LD_LIBRARY_PATH=$LD_LIBRARY_PATH: /root/hpl:/usr/local/cuda- 6.5/lib64:/root/openmpi-1.6.5/ompi/.libs/ nvidia-persistenced --persistence-mode nvidia-smi -pm 1 export HPL_DIR=/root/hpl export MKL_NUM_THREADS=3 #number of cpu cores per GPU export OMP_NUM_THREADS=3 #number of cpu cores per process export MKL_DYNAMIC=FALSE export CUDA_DGEMM_SPLIT=.999 export CUDA_DTRSM_SPLIT=.999 export MKL_CBWR=AVX2 mpirun -np 6 /root/hpl/xhpl 4. For the configuration using Intel E5-2670 v3 processors and the configuration using Intel E5-2690 v3 processors (24 cores each), create a file in the HPL directory called supermicro_hpl_2670_2690 and edit it to the following: #!/bin/bash export LD_LIBRARY_PATH=$LD_LIBRARY_PATH: /root/hpl:/usr/local/cuda- 6.5/lib64:/root/openmpi-1.6.5/ompi/.libs/ nvidia-persistenced --persistence-mode nvidia-smi -pm 1 export HPL_DIR=/root/hpl
  • 18. A Principled Technologies test report 18Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators export MKL_NUM_THREADS=4 #number of cpu cores per GPU export OMP_NUM_THREADS=4 #number of cpu cores per process export MKL_DYNAMIC=FALSE export CUDA_DGEMM_SPLIT=.999 export CUDA_DTRSM_SPLIT=.999 export MKL_CBWR=AVX2 mpirun -np 6 /root/hpl/xhpl 5. Run supermicro_hpl_2650 or supermicro_hpl_2670_2690 to run the HPL 2.1 benchmark for the appropriate configuration.
  • 19. A Principled Technologies test report 19Dell PowerEdge C4130 & NVIDIA Tesla K80 GPU accelerators ABOUT PRINCIPLED TECHNOLOGIES Principled Technologies, Inc. 1007 Slater Road, Suite 300 Durham, NC, 27703 www.principledtechnologies.com We provide industry-leading technology assessment and fact-based marketing services. We bring to every assignment extensive experience with and expertise in all aspects of technology testing and analysis, from researching new technologies, to developing new methodologies, to testing with existing and new tools. When the assessment is complete, we know how to present the results to a broad range of target audiences. We provide our clients with the materials they need, from market-focused data to use in their own collateral to custom sales aids, such as test reports, performance assessments, and white papers. Every document reflects the results of our trusted independent analysis. We provide customized services that focus on our clients’ individual requirements. Whether the technology involves hardware, software, Web sites, or services, we offer the experience, expertise, and tools to help our clients assess how it will fare against its competition, its performance, its market readiness, and its quality and reliability. Our founders, Mark L. Van Name and Bill Catchings, have worked together in technology assessment for over 20 years. As journalists, they published over a thousand articles on a wide array of technology subjects. They created and led the Ziff-Davis Benchmark Operation, which developed such industry-standard benchmarks as Ziff Davis Media’s Winstone and WebBench. They founded and led eTesting Labs, and after the acquisition of that company by Lionbridge Technologies were the head and CTO of VeriTest. Principled Technologies is a registered trademark of Principled Technologies, Inc. All other product names are the trademarks of their respective owners. Disclaimer of Warranties; Limitation of Liability: PRINCIPLED TECHNOLOGIES, INC. HAS MADE REASONABLE EFFORTS TO ENSURE THE ACCURACY AND VALIDITY OF ITS TESTING, HOWEVER, PRINCIPLED TECHNOLOGIES, INC. SPECIFICALLY DISCLAIMS ANY WARRANTY, EXPRESSED OR IMPLIED, RELATING TO THE TEST RESULTS AND ANALYSIS, THEIR ACCURACY, COMPLETENESS OR QUALITY, INCLUDING ANY IMPLIED WARRANTY OF FITNESS FOR ANY PARTICULAR PURPOSE. ALL PERSONS OR ENTITIES RELYING ON THE RESULTS OF ANY TESTING DO SO AT THEIR OWN RISK, AND AGREE THAT PRINCIPLED TECHNOLOGIES, INC., ITS EMPLOYEES AND ITS SUBCONTRACTORS SHALL HAVE NO LIABILITY WHATSOEVER FROM ANY CLAIM OF LOSS OR DAMAGE ON ACCOUNT OF ANY ALLEGED ERROR OR DEFECT IN ANY TESTING PROCEDURE OR RESULT. IN NO EVENT SHALL PRINCIPLED TECHNOLOGIES, INC. BE LIABLE FOR INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH ITS TESTING, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL PRINCIPLED TECHNOLOGIES, INC.’S LIABILITY, INCLUDING FOR DIRECT DAMAGES, EXCEED THE AMOUNTS PAID IN CONNECTION WITH PRINCIPLED TECHNOLOGIES, INC.’S TESTING. CUSTOMER’S SOLE AND EXCLUSIVE REMEDIES ARE AS SET FORTH HEREIN.
