3. Deep Dive Into the Scala Native Internals

4. What is Scala Native?
Part 1

5. Scala JVM

6. What is Scala Native?
● Created by Denys Shabelin at EPFL
● Ahead of time compiler
● Dedicated runtime containing subset of Java standard library.
● Since 2020 maintained by Scala Center
● Low-level operations and interop with C
● Instant startup and targeting high peak performance

7. How its made?
Part 2

8. Native Intermediate Representation (NIR)
● Definitions
○ Low level: Var, Const, Declare, Define
○ High level Class, Trait, Module
● Types:
○ Primitives,
○ Aggregates - Struct, fixed size Arrays
○ References: Ref, Array, Null, Unit
○ Special types: Function, Var, Varargs, Nothing
● Values:
○ Low-level
■ Local and Global identifiers
■ Primitive value types
■ Structs and Arrays
○ High-level
■ ClassOf, String, Const, Unit
● Instructions
○ Label, Let
○ Control Flow - Jump, Call, If, Try, Throw
● Operands
○ Low-level:
■ Store, Load
■ Call, Stackalloc
■ Add, Comp, Conv
○ High-level:
■ Method, Classalloc,
■ SizeOf, As, Is,
■ Box, Unbox
● Attributes
○ Inlining hints
○ Linking informations: link, stub
○ Extern

9. Native Intermediate Representation (NIR)
● Single Static Assignment based
● Strongly typed
● Supports high-level oriented structures
● Single top-level scope
● Globally unique mangled names

10. Name mangling
<mangled-name> ::= _S <defn-name>
<defn-name> ::=
T <name> // top-level name
M <name> <sig-name> // member name
<sig-name> ::=
F <name> <scope> // field name
R <type-name>+ E // constructor
name
D <name> <type-name>+ E <scope> // method name
C <name> // c extern
name
G <name> // generated
name
…
<name> ::= <length number> [-] <chars>
<type-name> ::=
v // c vararg
R _ // c pointer type-name
R <type-name>+ E // c function type-name
S <type-name>+ E // c anonymous struct type-
name
A <type-name> <number> _ // c array type-name
b // scala.Byte
s // scala.Short
i // scala.Int
j // scala.Long
z // scala.Boolean
c // scala.Char
f // scala.Float
d // scala.Double
u // scala.Unit
l // scala.Null
n // scala.Nothing
L <nullable-type-name> // type-name

11. Native Intermediate Representation (NIR)
module @"T5Test$" : @"T6FooCls", @"T8BarTrait" // Class definition
noinline def @"M5Test$D4mainLAL16java.lang.String_uEO" : (@"T5Test$", array[@"T16java.lang.String"]) => unit { // Function definition
%3(%1 : @"T5Test$", %2 : array[@"T16java.lang.String"]): // Function arguments
%4 = var[int]
%5 = classalloc @"T8Test$Bar"
%6 = call[(@"T8Test$Bar", int) => unit] @"M8Test$BarRiE" : ptr(%5 : !?@"T8Test$Bar", int 42)
%7 = method %5 : !?@"T8Test$Bar", "D3intiEO"
%8 = call[(@"T8Test$Bar") => int] %7 : ptr(%5 : !?@"T8Test$Bar")
%9 = varstore %4 : var[int], %8 : int
%10 = varload %4 : var[int]
%11 = iadd[int] int 42, %10 : int
%12 = imul[int] %11 : int, int 2
%13 = varstore %4 : var[int], %12 : int
ret %13 : unit
}

12. Pipeline schema

13. Compiler plugin
● One of last Scala compiler phases
● Traverses ASTs transforming Class, Def and Val definitions to NIR
blocks
● Collects types informations and attributes from annotations
● Collects positions from Trees
● Adapts external function calls
● Creates binary NIR files

14. Intrinsic functions
● Defined as Scala Native primitives
● Not possible to implement in Scala
● Evaluated in compile-time
● Used for internal low-level operations: stackalloc, pointer load / store,
etc.

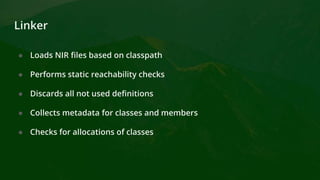

15. Linker
● Loads NIR files based on classpath
● Performs static reachability checks
● Discards all not used definitions
● Collects metadata for classes and members
● Checks for allocations of classes

16. Optimizer
● Strongly base of type information inferencing
● Functions inlining / polymorphic inlining
● Partial evaluation
● Partial escape analysis
● Method deduplication

17. Code generation phase
● Creating class virtual tables and memory layouts
● Code injects
○ Main program loop
○ Trait dispatch tables
○ Class / module initializers and accessors
○ Runtime informations and metadata

18. Lowering phase
● Lowers high-level operations to sequence of low-level instructions
● Static / dynamic method dispatch
● Provides handling of runtime exceptions
● Dead code elimination

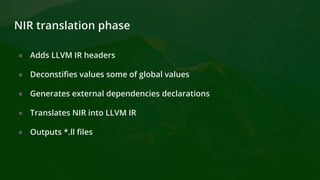

19. NIR translation phase
● Adds LLVM IR headers
● Deconstifies values some of global values
● Generates external dependencies declarations
● Translates NIR into LLVM IR
● Outputs *.ll files

20. Clang build
● Compiling native sources
● Compiling SN code from LLVM IR
● Linking as one application or shared library

21. Scala Native Roadmap 2021
Part 3

22. Goals for Scala Native in 2021
● Support for multithreading
● Scala 3 frontend
● Extending available subset of Java standard library
● Stabilization, bug fixes and performance improvements.

23. Wojciech_Maz
wmazur@virtuslab.com
scala-native/scala-native
