Debugging Distributed Systems - Devoxx Belgium 2016 [Extended]

Donny Nadolny, PagerDuty#Devoxx #distsys
Debugging Distributed Systems
Donny Nadolny
PagerDuty

What is ZooKeeper
• Distributed system for building distributed systems
• Small in-memory ﬁlesystem

ZooKeeper API
• create directory
• create file (ZooKeeper term:“node”)
• atomically update a file
• watch a file for changes
• create “ephemeral” file (goes away when client does)
• create sequential file (concurrent attempts to create are
ordered)

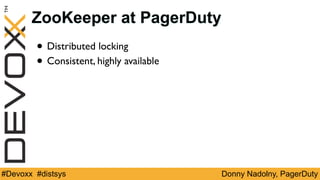

ZooKeeper at PagerDuty
• Distributed locking
• Consistent, highly available

Current Talk: Debugging Distributed Systems
For Cassandra Consistency Issues, See:

ZooKeeper at PagerDuty
• Distributed locking
• Consistent, highly available

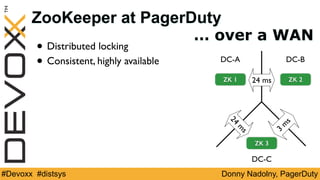

ZK 3
ZK 1 ZK 2
DC-A
DC-C
DC-B
24 ms
24
m
s
3
m
s
… over a WAN

ZooKeeper Overview

The Failure
• Network trouble, one follower falls behind
• ZooKeeper gets stuck - leader still up
1
2
DBSize

The Failure
• Network trouble, one follower falls behind
• ZooKeeper gets stuck - leader still up
2
DBSize
1
2
1.5
1

Recovery
• Restart all nodes
• Restart leader
2
DBSize
1
2
1.5
1
3 3

First Hint
• Leader logs: “Too busy to snap, skipping”

Fault Injection
• Disk slow? let’s test:
•sshfs donny@some_server:/home/donny /mnt
• Similar failure proﬁle

Fault Injection
• Disk slow? let’s test:
•sshfs donny@some_server:/home/donny /mnt
• Similar failure proﬁle
• Re-examine disk latency… nope, was a red herring

Health Checks
• First warning: application monitoring
• High-level application checks are good because they catch
many problems, but don’t tell you the cause
• Monitoring ZooKeeper: used ruok

Deep Health Checks
• Added deep health check:
• write to one ZooKeeper key
• read from ZooKeeper key

"LearnerHandler-/123.45.67.89:45874" prio=10 tid=0x00000000024bb800 nid=0x3d0d runnable
[0x00007fe6c3193000]
java.lang.Thread.State: RUNNABLE
at java.net.SocketOutputStream.socketWrite0(Native Method)
at java.net.SocketOutputStream.socketWrite(SocketOutputStream.java:113)
…
at org.apache.jute.BinaryOutputArchive.writeBuffer(BinaryOutputArchive.java:118)
…
at org.apache.jute.BinaryOutputArchive.writeRecord(BinaryOutputArchive.java:123)
at org.apache.zookeeper.server.DataTree.serializeNode(DataTree.java:1115)
- locked <0x00000000d4cd9e28> (a org.apache.zookeeper.server.DataNode)
at org.apache.zookeeper.server.DataTree.serializeNode(DataTree.java:1130)
…
at org.apache.zookeeper.server.ZKDatabase.serializeSnapshot(ZKDatabase.java:467)
at org.apache.zookeeper.server.quorum.LearnerHandler.run(LearnerHandler.java:493)
The Stack Trace
1
2
3

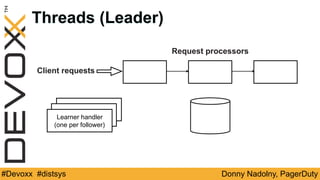

Threads (Leader)
Request processors
Learner handler
(one per follower)
Client requests

🔒
🔒
Threads (Leader)
Request processors
Learner handler
(one per follower)
Client requests
🔒
🔓
🔓

Threads (Leader)
Request processors
Learner handler
(one per follower)
Client requests
🔒

Threads (Leader)
Request processors
Learner handler
(one per follower)
Client requests
🔒
🔒

Threads (Leader)
Request processors
Learner handler
(one per follower)
Client requests
🔒
🔒 🔒

void serializeNode(OutputArchive output, String path) {
DataNode node = getNode(path);
String[] children = {};
synchronized (node) {
output.writeString(path, "path");
output.writeRecord(node, "node");
children = node.getChildren();
}
for (String child : children) {
serializeNode(output, path + "/" + child);
}
}
Write Snapshot Code (simplified)
Blocking network write

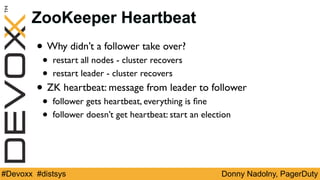

ZooKeeper Heartbeat
• Why didn’t a follower take over?
• restart all nodes - cluster recovers
• restart leader - cluster recovers
• ZK heartbeat: message from leader to follower
• follower gets heartbeat, everything is ﬁne
• follower doesn’t get heartbeat: start an election

Threads (Leader)
Request processors
Learner handler
(one per follower)
Client requests
Quorum Peer
Followers
❤ ❤ ❤
🔒
🔒 🔒

TCP

Follower LeaderESTABLISHED ESTABLISHED
Packet 1
ACK
… SYN, SYN-ACK, ACK …
TCP Data Transmission

Follower LeaderESTABLISHED ESTABLISHED
Packet 1

ESTABLISHED ESTABLISHED
Packet 1
Packet 1
~200ms
Follower Leader

Packet 1
Packet 1
~200ms
Packet 1
~200ms
Follower Leader

Packet 1
Packet 1
~200ms
Packet 1
~200ms
~400ms
Packet 1
Follower Leader

Packet 1
Packet 1
~200ms
Packet 1
~200ms
~400ms
Packet 1
~800ms
Packet 1
Follower Leader

Packet 1
Packet 1
~200ms
Packet 1
~200ms
~400ms
Packet 1
~800ms
~
120sec
Packet 1
Packet 1
120sec
CLOSED
15 retries
…
Follower Leader

TCP Retransmission (Linux Defaults)
• Retransmission timeout (RTO) is based on latency
• TCP_RTO_MIN = 200 ms
• TCP_RTO_MAX = 2 minutes
• /proc/sys/net/ipv4/tcp_retries2 = 15 retries
• 0.2 + 0.2 + 0.4 + 0.8 + … + 120 = 924.8 seconds (15.5 mins)

Packet 1
Packet 1
~200ms
Packet 1
~200ms
~400ms
Packet 1
~800ms
~
120sec
Packet 1
Packet 1
120sec
CLOSED
15.5 mins (or more)
…
Follower Leader

Timeline
1. Network trouble begins - packet loss / latency
2. Follower falls behind, restarts, requests snapshot
3. Leader begins to send snapshot
4. Snapshot transfer stalls
5. Follower ZooKeeper restarts, attempts to close connection
6. Network heals
7. … Leader still stuck

FIN/ACK
FIN
ACK
LAST_ACK
CLOSED
TIME_WAIT
CLOSED
60 seconds
FIN_WAIT1

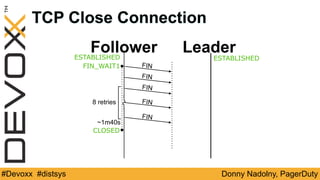

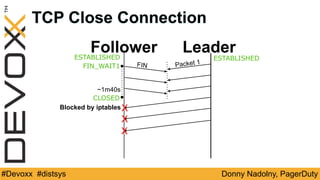

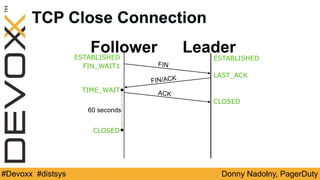

TCP Close Connection
Follower Leader

CLOSED
~1m40s
FIN_WAIT1 FIN
FIN
FIN
FIN
FIN
8 retries
~
Follower Leader

CLOSED
~1m40s
FIN_WAIT1 FIN Packet 1
CLOSED
~15.5 mins
Follower Leader

CLOSED
~1m40s
CLOSED
RST
Follower Leader

06:51:47 iptables: WARN: IN=eth0 OUT= MAC=00:0d:
12:34:56:78:12:34:56:78:12:34:56:78 SRC=<leader_ip>
DST=<follower_ip> LEN=54 TOS=0x00 PREC=0x00 TTL=44 ID=36370 DF
PROTO=TCP SPT=3888 DPT=36416 WINDOW=227 RES=0x00 ACK PSH URGP=0
syslog - Dropped Packets on Follower

CLOSED
~1m40s
Blocked by iptablesX
Follower Leader
X
X

iptables
iptables -A INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT
iptables -A INPUT -p tcp --dport 80 -j ACCEPT
... more rules to accept connections …
iptables -A INPUT -j DROP

iptables
iptables -A INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT
iptables -A INPUT -p tcp --dport 80 -j ACCEPT
... more rules to accept connections …
iptables -A INPUT -j DROP
But: iptables connections != netstat connections

conntrack Timeouts
• From linux/net/netﬁlter/nf_conntrack_proto_tcp.c:
• [TCP_CONNTRACK_LAST_ACK] = 30 SECS

Follower Leader
CLOSED
~51.2s
FIN_WAIT1 FIN
FIN
FIN
FIN
FIN
~25.6s
kernel TCPconntrack
LAST_ACK
30s
30s
30s
30s
CLOSED
~12.8s
30s
~81.2s
~102.4s

The Full Story
• Packet loss
• Follower falls behind, requests snapshot
• (Packet loss continues) follower closes connection
• Follower conntrack forgets connection
• Leader now stuck for ~15 mins, even if network heals

(Alternative: kill the follower)

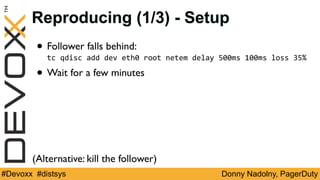

Reproducing (1/3) - Setup
• Follower falls behind:
tc qdisc add dev eth0 root netem delay 500ms 100ms loss 35%
• Wait for a few minutes

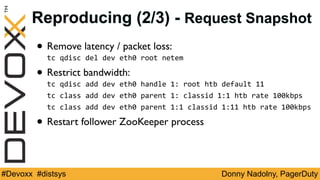

Reproducing (2/3) - Request Snapshot
• Remove latency / packet loss:
tc qdisc del dev eth0 root netem
• Restrict bandwidth:
tc qdisc add dev eth0 handle 1: root htb default 11
tc class add dev eth0 parent 1: classid 1:1 htb rate 100kbps
tc class add dev eth0 parent 1:1 classid 1:11 htb rate 100kbps
• Restart follower ZooKeeper process

Reproducing (3/3) - Close Connection
• Block trafﬁc to leader:
iptables -A OUTPUT -p tcp -d <leader ip> -j DROP
• Remove bandwidth restriction:
tc qdisc del dev eth0 root
• Kill follower ZooKeeper process, kernel tries to close connection
• Monitor conntrack status, wait for entry to disappear, ~80 seconds:
conntrack -L | grep <leader ip>
• Allow trafﬁc to leader:
iptables -D OUTPUT -p tcp -d <leader ip> -j DROP

IPsec

Follower Leader
ESP (UDP)
ESP (UDP)
IPsec
TCP data
IPsec
TCP data
IPsec

IPsec Phase 1
IPsec Phase 2
TCP data
IPsec - Establish Connection
Follower Leader

TCP data

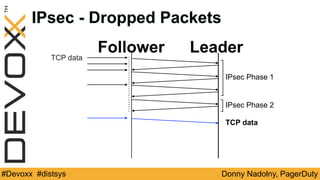

IPsec - Dropped Packets
TCP data
IPsec Phase 1
IPsec Phase 2
Follower Leader

IPsec Heartbeat

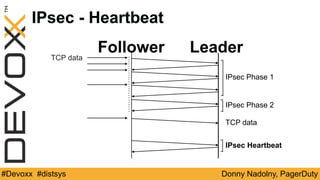

IPsec - Heartbeat
TCP data
TCP data
IPsec Phase 1
IPsec Phase 2
Follower Leader

Lessons

Lesson 1
• Don’t lock and block
• TCP can block for a really long time
• Interfaces / abstract methods make analysis harder

Lesson 2
• Automate debug info collection (stack trace, heap dump,
transaction logs, etc)

Lesson 3
• Application/dependency checks should be deep health checks!
• Leader/follower heartbeats should be deep health checks!

Questions?
Link:
“Network issues can cause cluster to hang due to near-deadlock”
https://issues.apache.org/jira/browse/ZOOKEEPER-2201

“Mess With The Network” Cheat Sheet
#add latency
tc qdisc add dev eth0 root netem delay 500ms 100ms loss 25%
#remove latency
tc qdisc del dev eth0 root netem
#restrict bandwidth
tc qdisc add dev eth0 handle 1: root htb default 11
tc class add dev eth0 parent 1: classid 1:1 htb rate 100kbps
tc class add dev eth0 parent 1:1 classid 1:11 htb rate 100kbps
#remove bandwidth restriction
tc qdisc del dev eth0 root
#tip: when doing latency / loss / bandwidth restriction:
#run "sleep 60 && <tc delete command> & disown" in case you lose ssh access
#capture packets, then open locally in wireshark
tcpdump -n "src host 123.45.67.89 or dst host 123.45.67.89" -i eth0 -s 65535 -w /tmp/packet.dump
iptables -A OUTPUT -p tcp --dport 4444 -j DROP #block traffic
iptables -D OUTPUT -p tcp --dport 4444 -j DROP #allow traffic
#can use INPUT / OUTPUT chain for incoming / outgoing traffic
#other options: --dport <dest port>, --sport <src port>, -s <source ip>, -d <dest ip>
#configure database/application local data directory to be /mnt, then use tools above against 123.45.67.89
sshfs me@123.45.67.89:/tmp/data /mnt
#alternative: nbd (network block device)
netstat -peanut #network connections, regular kernel view
conntrack -L #network connections, iptables view
