TITLE

Your Documents and Other Content:
Managing Unstructured Data

Date: August 14,
2012
Time: 2:00 PM ET
Presented by: Dr. Peter Aiken

PRODUCED BY CLASSIFICATION DATE SLIDE
DATA BLUEPRINT 10124-C W. BROAD ST, GLEN ALLEN, VA 23060 EDUCATION 8/14/2012 1
1/26/2010 © Copyright this and previous years by Data Blueprint - all rights reserved!

TITLE
Commonly Asked Questions
1) Will I get copies of the slides after the
event?

YES*

2) Is this being recorded so I can view it
afterwards?

YES*


Get Social With Us!
TITLE


Get Social With Us!
TITLE

Live Twitter Feed
Join the conversation!
Follow us:
@datablueprint
@paiken
Ask questions and submit
your comments: #dataed


Get Social With Us!
TITLE

Live Twitter Feed Like Us on Facebook
Join the conversation! www.facebook.com/
Follow us: datablueprint
@datablueprint Post questions and
comments
@paiken
Find industry news, insightful
your comments: #dataed content
and event updates.


Get Social With Us!
TITLE

Live Twitter Feed Like Us on Facebook Join the Group
Join the conversation! www.facebook.com/ Data Management &
Follow us: datablueprint Business Intelligence
@datablueprint Post questions and Ask questions, gain insights
comments and collaborate with fellow
@paiken
Find industry news, insightful data management
content professionals
your comments: #dataed
and event updates.


TITLE

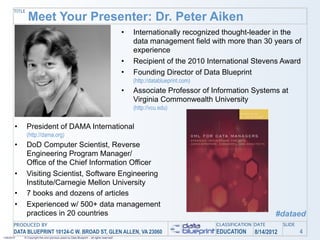

Meet Your Presenter: Dr. Peter Aiken
• Internationally recognized thought-leader in the
data management field with more than 30 years of
experience
• Recipient of the 2010 International Stevens Award
• Founding Director of Data Blueprint
(http://datablueprint.com)
• Associate Professor of Information Systems at
Virginia Commonwealth University
(http://vcu.edu)

• President of DAMA International
(http://dama.org)
• DoD Computer Scientist, Reverse
Engineering Program Manager/
Office of the Chief Information Officer
• Visiting Scientist, Software Engineering
Institute/Carnegie Mellon University
• 7 books and dozens of articles
• Experienced w/ 500+ data management
practices in 20 countries #dataed

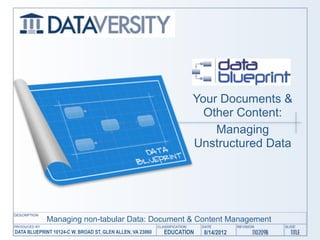

Your Documents &
Other Content:
Managing
Unstructured Data

Managing non-tabular Data: Document & Content Management
DATA BLUEPRINT 10124-C W. BROAD ST, GLEN ALLEN, VA 23060 EDUCATION 8/14/2012

TITLE

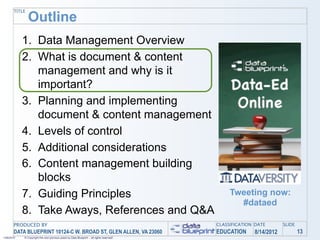

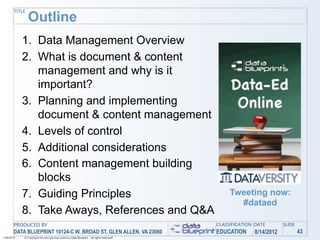

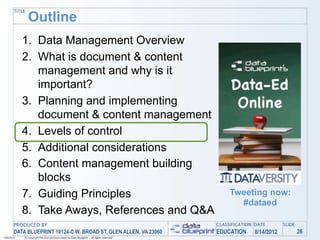

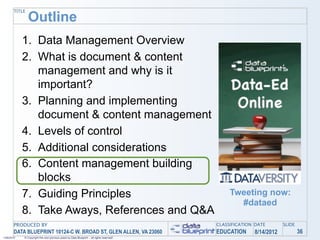

Outline
1. Data Management Overview
2. What is document & content
management and why is it
important?
3. Planning and implementing
document & content management
4. Levels of control
5. Additional considerations
6. Content management building
blocks

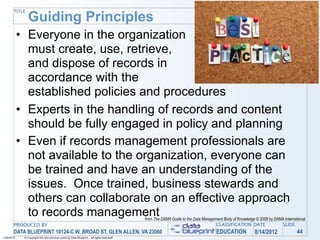

7. Guiding Principles Tweeting now:
#dataed
8. Take Aways, References and Q&A

TITLE

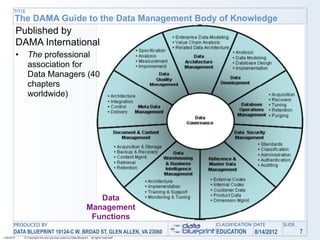

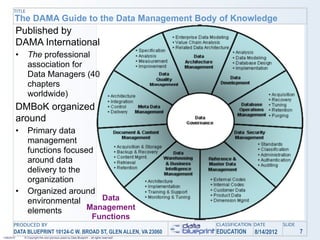

The DAMA Guide to the Data Management Body of Knowledge

Data
Management
Functions

TITLE
Published by
DAMA International
• The professional
association for
Data Managers (40
chapters
worldwide)

Data
Management
Functions

TITLE
Published by
DAMA International
• The professional
association for
Data Managers (40
chapters
worldwide)
DMBoK organized
around
• Primary data
management
functions focused
around data
delivery to the
organization
• Organized around
environmental Data
elements Management
Functions

TITLE


TITLE

Environmental Elements

TITLE

Amazon:
http://
www.amazon.com/
DAMA-Guide-
Management-
Knowledge-DAMA-
DMBOK/dp/
0977140083
Or enter the terms
"dama dm bok" at the
Amazon search
engine

Environmental Elements

TITLE

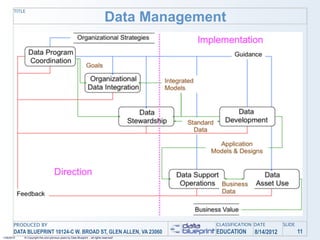

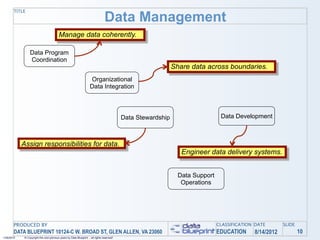

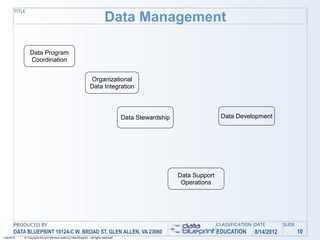

Data Management


TITLE

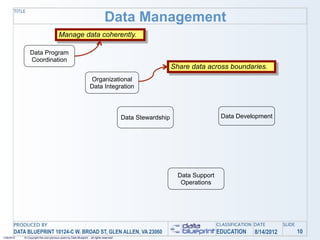

Data Management

Data Program
Coordination

Organizational
Data Integration

Data Stewardship Data Development

Data Support
Operations

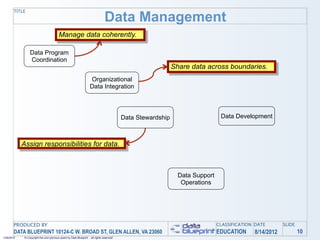

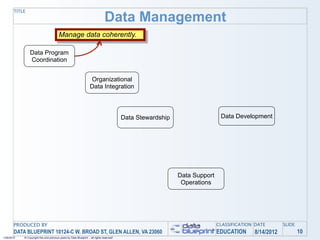

TITLE
Data Management
Manage data coherently.

Data Program
Coordination

Organizational
Data Integration


Data Support
Operations


TITLE
Data Management

Data Program
Coordination
Share data across boundaries.
Organizational
Data Integration


Data Support
Operations


TITLE
Data Management

Data Program
Coordination
Organizational
Data Integration


Assign responsibilities for data.

Data Support
Operations


TITLE
Data Management

Data Program
Coordination
Organizational
Data Integration


Engineer data delivery systems.

Data Support
Operations


TITLE
Data Management

Data Program
Coordination
Organizational
Data Integration


Engineer data delivery systems.

Data Support
Operations

Maintain data availability.

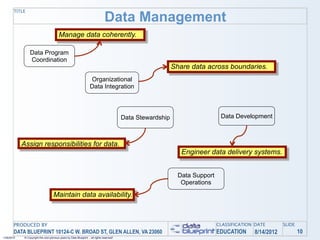

TITLE
Data Management


TITLE

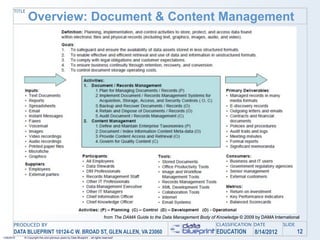

Overview: Document & Content Management

from The DAMA Guide to the Data Management Body of Knowledge © 2009 by DAMA International

TITLE
Outline
important?
blocks
#dataed

TITLE

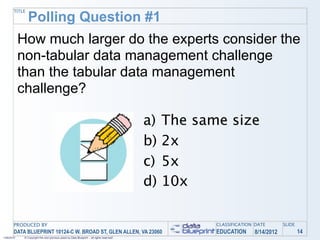

Polling Question #1
How much larger do the experts consider the
non-tabular data management challenge
than the tabular data management
challenge?

a) The same size
b) 2x
c) 5x
d) 10x


TITLE
Increasing Scope & Volume of Data Management


TITLE
Increasing Scope & Volume of Data Management

5 X Tabular and Non-Tabular Data

1 X Tabular Data


TITLE

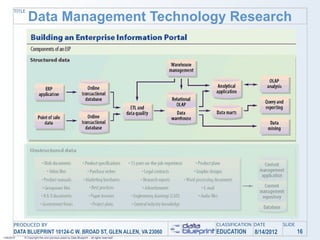

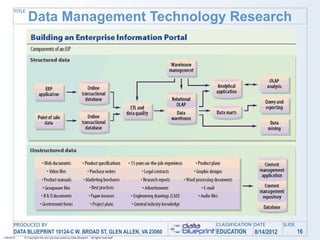

Data Management Technology Research


TITLE

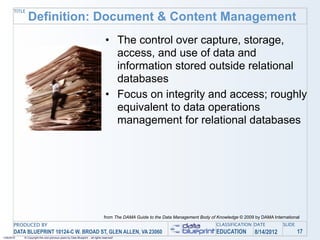

Definition: Document & Content Management


TITLE
• The control over capture, storage,
access, and use of data and
information stored outside relational
databases


TITLE
databases
• Focus on integrity and access; roughly
equivalent to data operations
management for relational databases


TITLE
databases
• Looks beyond the purely operational
focus


TITLE
databases
• Looks beyond the purely operational
focus
• Strategic and tactical focus overlaps with other data
management functions in addressing the need for data
governance, architecture, security, managed meta-
data, and data quality for unstructured data

TITLE

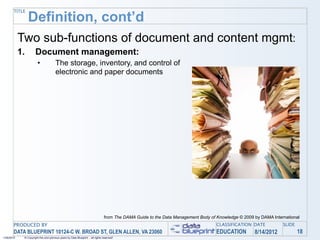

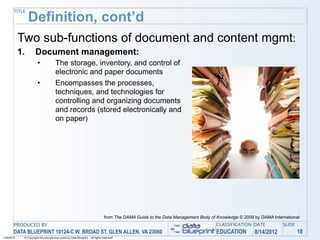

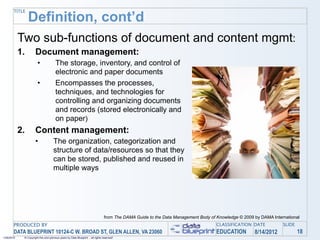

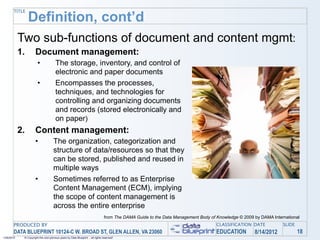

Definition, cont’d
Two sub-functions of document and content mgmt:


TITLE
1. Document management:
• The storage, inventory, and control of
electronic and paper documents


TITLE
• Encompasses the processes,
techniques, and technologies for
controlling and organizing documents
and records (stored electronically and
on paper)


TITLE
on paper)
2. Content management:
• The organization, categorization and
structure of data/resources so that they
can be stored, published and reused in
multiple ways


TITLE
on paper)
2. Content management:
• The organization, categorization and
structure of data/resources so that they
can be stored, published and reused in
multiple ways
• Sometimes referred to as Enterprise
Content Management (ECM), implying
the scope of content management is
across the entire enterprise

TITLE

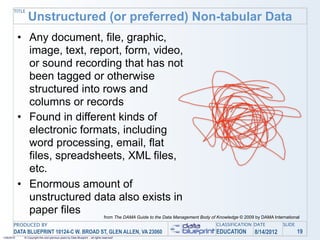

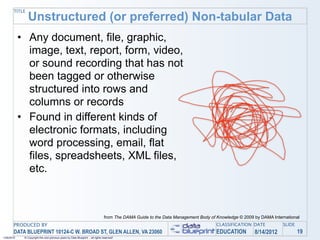

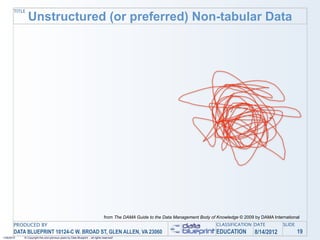

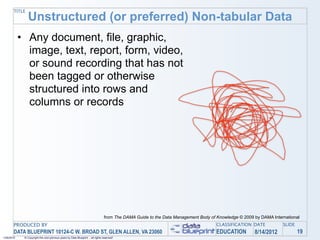

Unstructured (or preferred) Non-tabular Data


TITLE
• Any document, file, graphic,
image, text, report, form, video,
or sound recording that has not
been tagged or otherwise
structured into rows and
columns or records


TITLE
columns or records
• Found in different kinds of
electronic formats, including
word processing, email, flat
files, spreadsheets, XML files,
etc.


TITLE
columns or records
• Found in different kinds of
electronic formats, including
word processing, email, flat
files, spreadsheets, XML files,
etc.
• Enormous amount of
unstructured data also exists in
paper files from The DAMA Guide to the Data Management Body of Knowledge © 2009 by DAMA International

TITLE

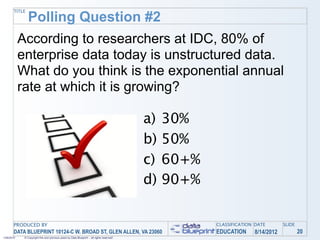

Polling Question #2
According to researchers at IDC, 80% of
enterprise data today is unstructured data.
What do you think is the exponential annual
rate at which it is growing?

a) 30%
b) 50%
c) 60+%
d) 90+%


TITLE

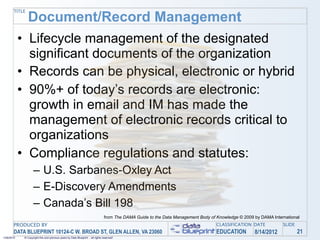

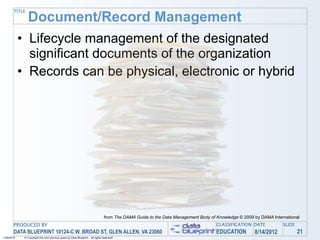

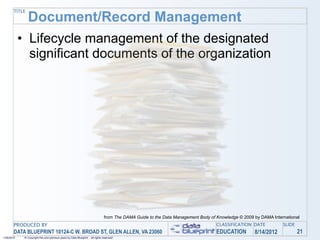

Document/Record Management


TITLE
• Lifecycle management of the designated
significant documents of the organization


TITLE
• Records can be physical, electronic or hybrid


TITLE
• 90%+ of today’s records are electronic:
growth in email and IM has made the
management of electronic records critical to
organizations


TITLE
• 90%+ of today’s records are electronic:
growth in email and IM has made the
management of electronic records critical to
organizations
• Compliance regulations and statutes:
– U.S. Sarbanes-Oxley Act
– E-Discovery Amendments
– Canada’s Bill 198

TITLE
Outline
important?
blocks
#dataed

TITLE

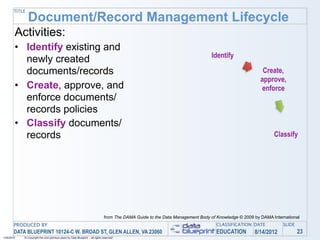

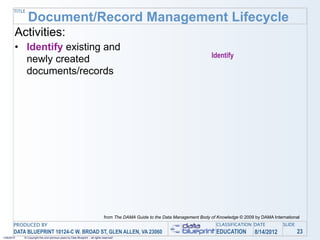

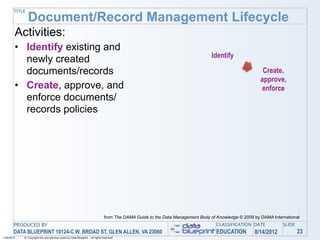

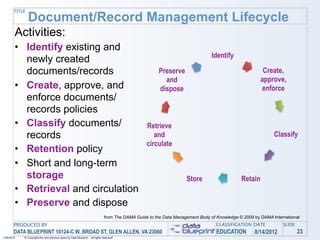

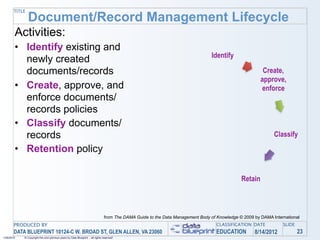

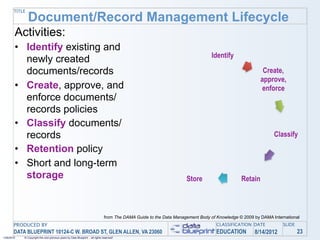

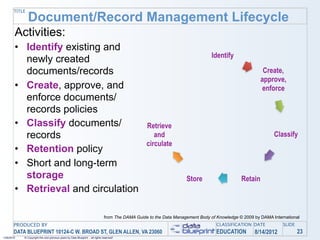

Document/Record Management Lifecycle


TITLE
Activities:


TITLE
Activities:
• Identify existing and
Identify
newly created
documents/records


TITLE
Activities:
Identify
newly created
documents/records Create,
approve,
• Create, approve, and enforce
enforce documents/
records policies


TITLE
Activities:
Identify
newly created
approve,
enforce documents/
records policies
• Classify documents/
records Classify


TITLE
Activities:
Identify
newly created
approve,
enforce documents/
records policies
records Classify

• Retention policy

Retain


TITLE
Activities:
Identify
newly created
approve,
enforce documents/
records policies
records Classify

• Short and long-term
storage Store Retain


TITLE
Activities:
Identify
newly created
approve,
enforce documents/
records policies
• Classify documents/ Retrieve
records and Classify
circulate
• Retrieval and circulation


TITLE
Activities:
Identify
newly created
documents/records Preserve Create,
and approve,
• Create, approve, and dispose enforce
enforce documents/
records policies
• Classify documents/ Retrieve
records and Classify
circulate
• Retrieval and circulation
• Preserve and dispose

TITLE

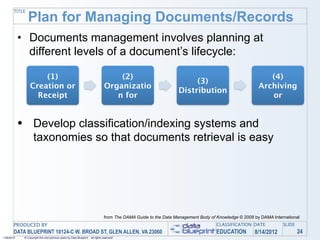

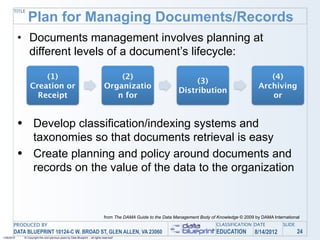

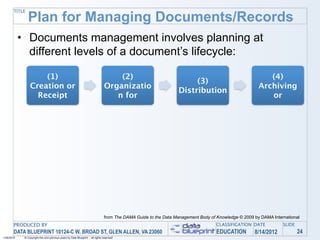

Plan for Managing Documents/Records


TITLE
• Documents management involves planning at
different levels of a document’s lifecycle:

(1) (2) (4)
(3)
Creation or Organizatio Archiving
Distribution
Receipt n for or


TITLE

(1) (2) (4)
(3)
Distribution
Receipt n for or

• Develop classification/indexing systems and
taxonomies so that documents retrieval is easy


TITLE

(1) (2) (4)
(3)
Distribution
Receipt n for or

• Create planning and policy around documents and
records on the value of the data to the organization


TITLE

(1) (2) (4)
(3)
Distribution
Receipt n for or

• Create planning and policy around documents and
records on the value of the data to the organization
• Establish, communicate, and enforce policies,
procedures and best practices for documents

TITLE

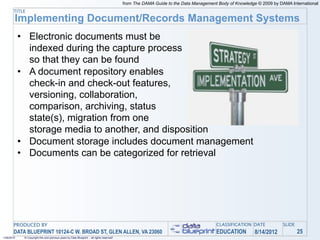

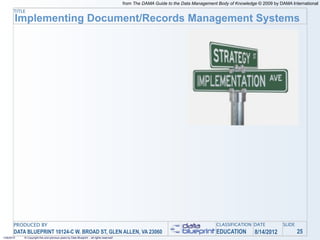

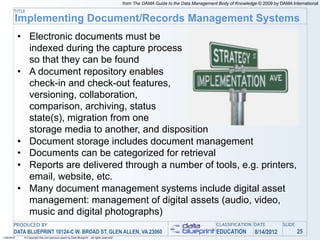

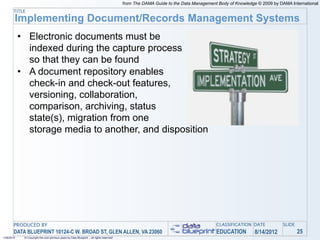

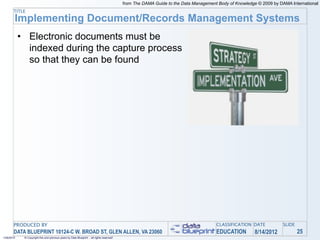

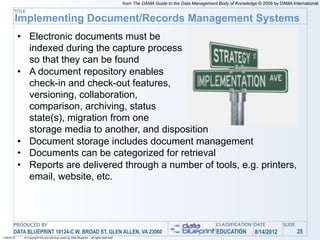

Implementing Document/Records Management Systems


TITLE
• Electronic documents must be
indexed during the capture process
so that they can be found


TITLE
• A document repository enables
check-in and check-out features,
versioning, collaboration,
comparison, archiving, status
state(s), migration from one
storage media to another, and disposition


TITLE
• Document storage includes document management


TITLE
• Documents can be categorized for retrieval


TITLE
• Reports are delivered through a number of tools, e.g. printers,
email, website, etc.


TITLE
• Reports are delivered through a number of tools, e.g. printers,
email, website, etc.
• Many document management systems include digital asset
management: management of digital assets (audio, video,
music and digital photographs)

TITLE
Outline
important?
blocks
#dataed

TITLE

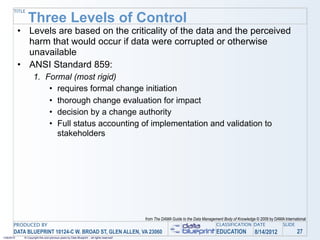

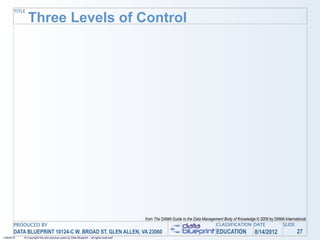

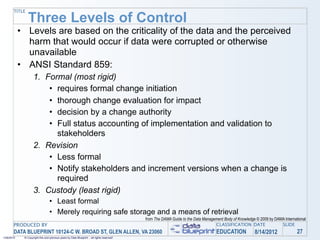

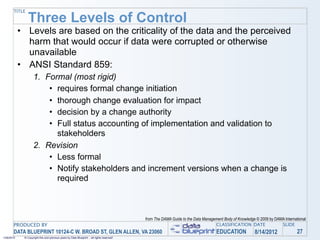

Three Levels of Control


TITLE

• Levels are based on the criticality of the data and the perceived
harm that would occur if data were corrupted or otherwise
unavailable


TITLE

unavailable
• ANSI Standard 859:
1. Formal (most rigid)
• requires formal change initiation
• thorough change evaluation for impact
• decision by a change authority
• Full status accounting of implementation and validation to
stakeholders


TITLE

unavailable
stakeholders
2. Revision
• Less formal
• Notify stakeholders and increment versions when a change is
required


TITLE

unavailable
stakeholders
2. Revision
• Less formal
• Notify stakeholders and increment versions when a change is
required
3. Custody (least rigid)
• Least formal
• Merely requiring safe storage and a means of retrieval

TITLE

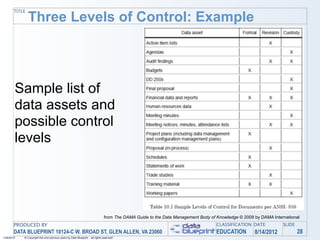

Three Levels of Control: Example

Sample list of
data assets and
possible control
levels


TITLE

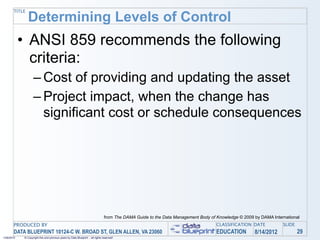

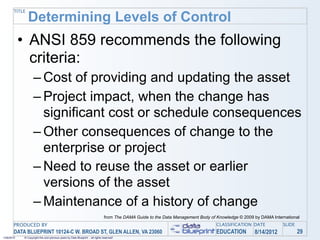

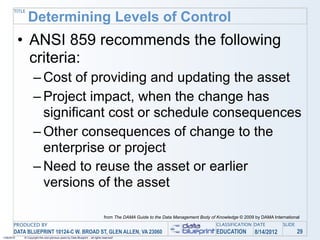

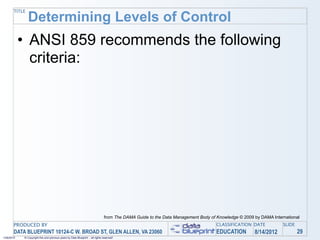

Determining Levels of Control


TITLE
• ANSI 859 recommends the following
criteria:


TITLE
criteria:
– Cost of providing and updating the asset


TITLE
criteria:
– Project impact, when the change has
significant cost or schedule consequences


TITLE
criteria:
– Other consequences of change to the
enterprise or project


TITLE
criteria:
– Need to reuse the asset or earlier
versions of the asset


TITLE
criteria:
– Need to reuse the asset or earlier
versions of the asset
– Maintenance of a history of change

TITLE
Outline
important?
blocks
#dataed

TITLE

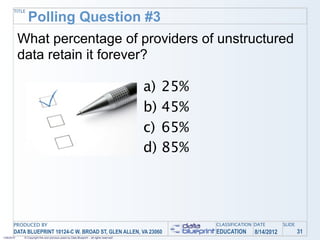

Polling Question #3
What percentage of providers of unstructured
data retain it forever?

a) 25%
b) 45%
c) 65%
d) 85%


TITLE

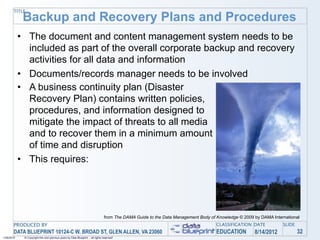

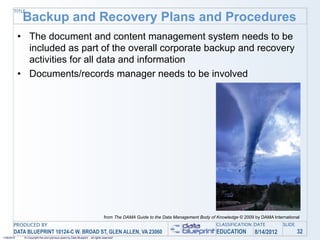

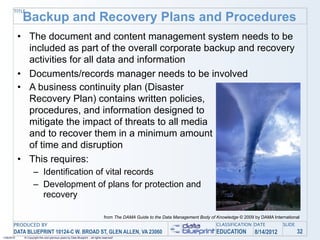

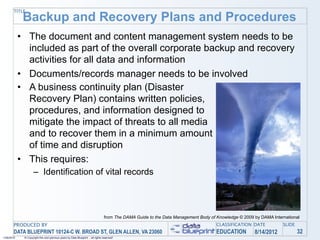

Backup and Recovery Plans and Procedures


TITLE
• The document and content management system needs to be
included as part of the overall corporate backup and recovery
activities for all data and information


TITLE
• Documents/records manager needs to be involved


TITLE
• A business continuity plan (Disaster
Recovery Plan) contains written policies,
procedures, and information designed to
mitigate the impact of threats to all media
and to recover them in a minimum amount
of time and disruption
• This requires:


TITLE
• This requires:
– Identification of vital records


TITLE
• This requires:
– Development of plans for protection and
recovery


TITLE
• This requires:
– Development of plans for protection and
recovery
– Maintenance of these plans

TITLE

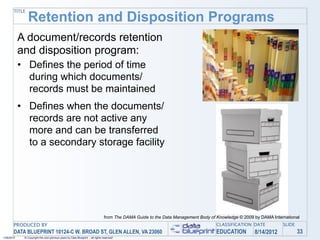

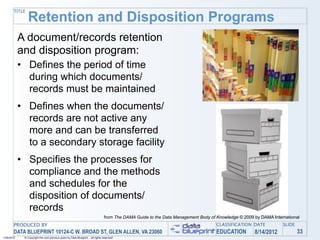

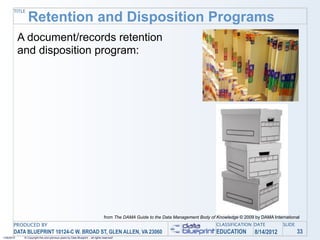

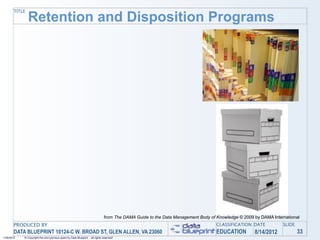

Retention and Disposition Programs


TITLE

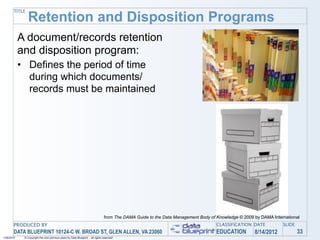

A document/records retention
and disposition program:


TITLE
• Defines the period of time
during which documents/
records must be maintained


TITLE
• Defines when the documents/
records are not active any
more and can be transferred
to a secondary storage facility


TITLE
• Defines when the documents/
records are not active any
more and can be transferred
to a secondary storage facility
• Specifies the processes for
compliance and the methods
and schedules for the
disposition of documents/
records

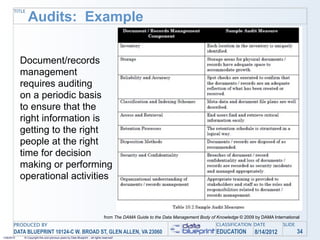

Audits: Example
TITLE

Document/records
management
requires auditing
on a periodic basis
to ensure that the
right information is
getting to the right
people at the right
time for decision
making or performing
operational activities


TITLE

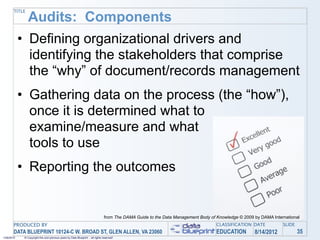

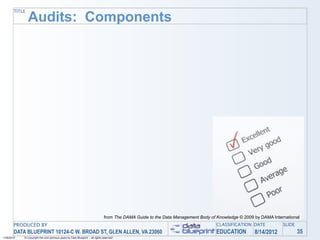

Audits: Components


TITLE

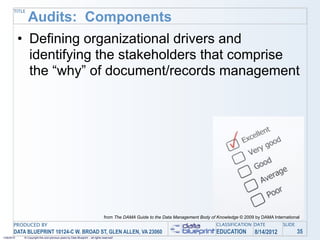

Audits: Components
• Defining organizational drivers and
identifying the stakeholders that comprise
the “why” of document/records management


TITLE
Audits: Components
• Gathering data on the process (the “how”),
once it is determined what to
examine/measure and what
tools to use


TITLE
Audits: Components
tools to use
• Reporting the outcomes


TITLE

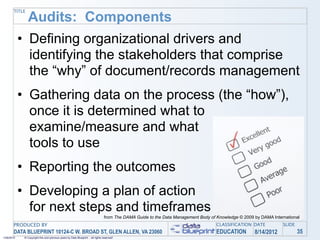

Audits: Components
tools to use
• Reporting the outcomes
• Developing a plan of action
for next steps and timeframes

TITLE
Outline
important?
blocks
#dataed

TITLE
Document & Content Management

      
      
      
      
      
      

      


TITLE

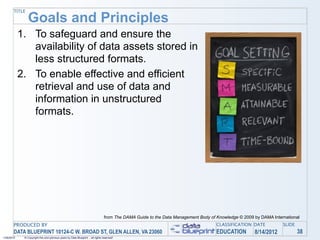

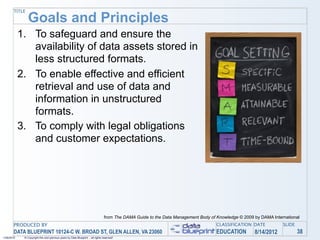

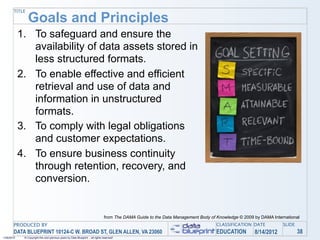

Goals and Principles


TITLE

1. To safeguard and ensure the
availability of data assets stored in
less structured formats.


TITLE

2. To enable effective and efficient
retrieval and use of data and
information in unstructured
formats.


TITLE

formats.
3. To comply with legal obligations
and customer expectations.


TITLE

formats.
4. To ensure business continuity
through retention, recovery, and
conversion.


TITLE

formats.
4. To ensure business continuity
through retention, recovery, and
conversion.
5. To control document storage
operating costs.

TITLE

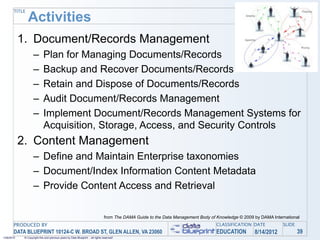

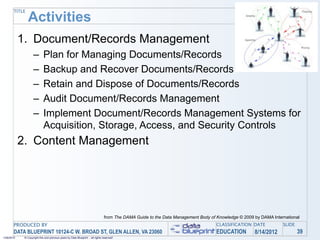

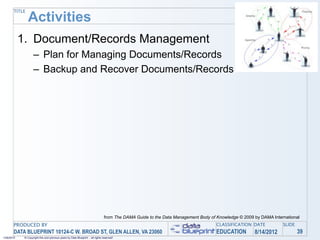

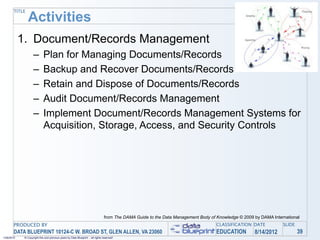

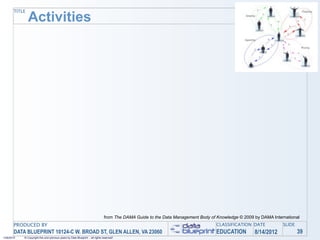

Activities


TITLE
Activities
1. Document/Records Management


TITLE
Activities
– Plan for Managing Documents/Records


TITLE
Activities
– Backup and Recover Documents/Records


TITLE
Activities
– Retain and Dispose of Documents/Records


TITLE
Activities
– Audit Document/Records Management
– Implement Document/Records Management Systems for
Acquisition, Storage, Access, and Security Controls


TITLE
Activities
2. Content Management


TITLE
Activities
– Define and Maintain Enterprise taxonomies


TITLE
Activities
– Document/Index Information Content Metadata


TITLE
Activities
– Provide Content Access and Retrieval


TITLE
Activities
– Provide Content Access and Retrieval
– Govern for Quality Content

TITLE

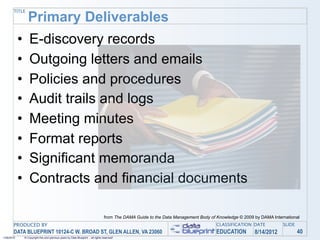

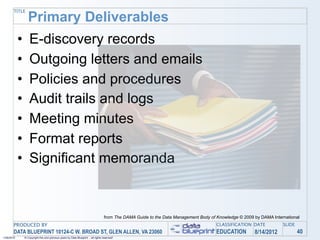

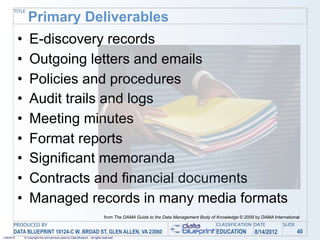

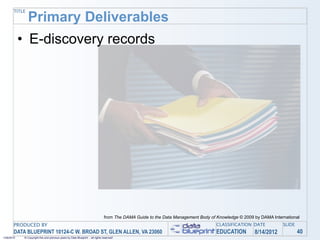

Primary Deliverables


TITLE
• E-discovery records


TITLE
• Outgoing letters and emails


TITLE
• Policies and procedures


TITLE
• Audit trails and logs


TITLE
• Meeting minutes


TITLE
• Meeting minutes
• Format reports


TITLE
• Meeting minutes
• Format reports
• Significant memoranda


TITLE
• Meeting minutes
• Format reports
• Contracts and financial documents


TITLE
• Meeting minutes
• Format reports
• Contracts and financial documents
• Managed records in many media formats

TITLE

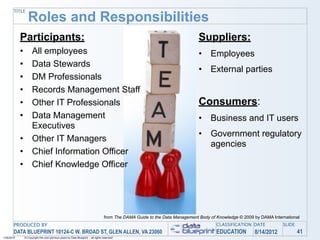

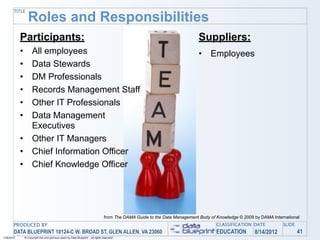

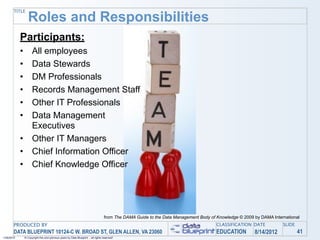

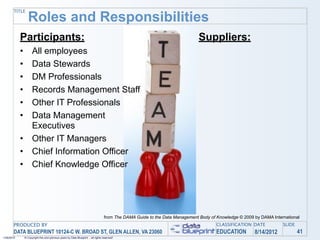

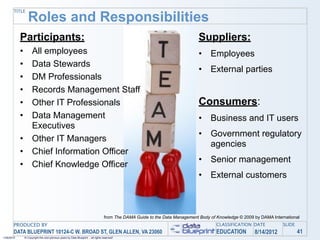

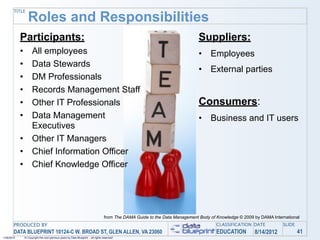

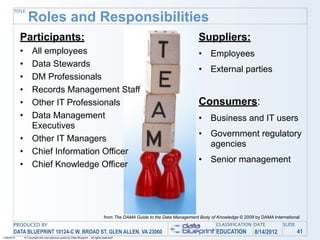

Roles and Responsibilities


TITLE
Participants:
• All employees
• Data Stewards
• DM Professionals
• Records Management Staff
• Other IT Professionals
• Data Management
Executives
• Other IT Managers
• Chief Information Officer
• Chief Knowledge Officer


TITLE
Participants: Suppliers:
• All employees
• Data Stewards
• Data Management
Executives


TITLE
• All employees • Employees
• Data Stewards
• Data Management
Executives


TITLE
• Data Stewards
• External parties
• Data Management
Executives


TITLE
• Data Stewards
• Other IT Professionals Consumers:
• Data Management
Executives


TITLE
• Data Stewards
• Data Management • Business and IT users
Executives


TITLE
• Data Stewards
Executives
• Government regulatory
agencies


TITLE
• Data Stewards
Executives
agencies
• Senior management


TITLE
• Data Stewards
Executives
agencies
• Senior management
• External customers


TITLE

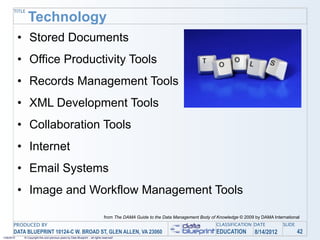

Technology
• Stored Documents
• Office Productivity Tools
• Records Management Tools
• XML Development Tools
• Collaboration Tools
• Internet
• Email Systems
• Image and Workflow Management Tools


TITLE
Outline
important?
blocks
#dataed

Guiding Principles
TITLE

• Everyone in the organization
must create, use, retrieve,
and dispose of records in
accordance with the
established policies and procedures
• Experts in the handling of records and content
should be fully engaged in policy and planning
• Even if records management professionals are
not available to the organization, everyone can
be trained and have an understanding of the
issues. Once trained, business stewards and
others can collaborate on an effective approach
to records management from The DAMA Guide to the Data Management Body of Knowledge © 2009 by DAMA International

TITLE
Outline
important?
blocks
#dataed

TITLE
Overview: Document & Content Management


TITLE

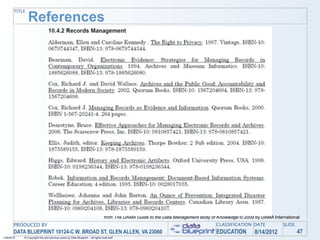

References


TITLE

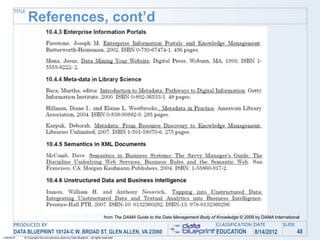

References, cont’d


TITLE
Questions?

+ =

It’s your turn!
Use the chat feature or Twitter (#dataed) to submit
your questions to Peter now.


TITLE
Upcoming Events
September Webinar:
Let’s Talk Metadata:
Strategies and Successes
September 11, 2012 @ 2:00 PM – 3:30 PM ET
(11:00 AM-12:30 PM PT)
October Webinar:
Engineering Solutions to Data Quality Challenges
October 9, 2012 @ 2:00 PM – 3:30 PM ET
(11:00 AM-12:30 PM PT)
Sign up here:
• www.datablueprint.com/webinar-schedule
• www.Dataversity.net
Brought to you by:


Data-Ed Online: Your Documents and Other Content: Managing Unstructured Data

More Related Content

Viewers also liked

Similar to Data-Ed Online: Your Documents and Other Content: Managing Unstructured Data

More from Data Blueprint

Recently uploaded

Data-Ed Online: Your Documents and Other Content: Managing Unstructured Data

Editor's Notes
