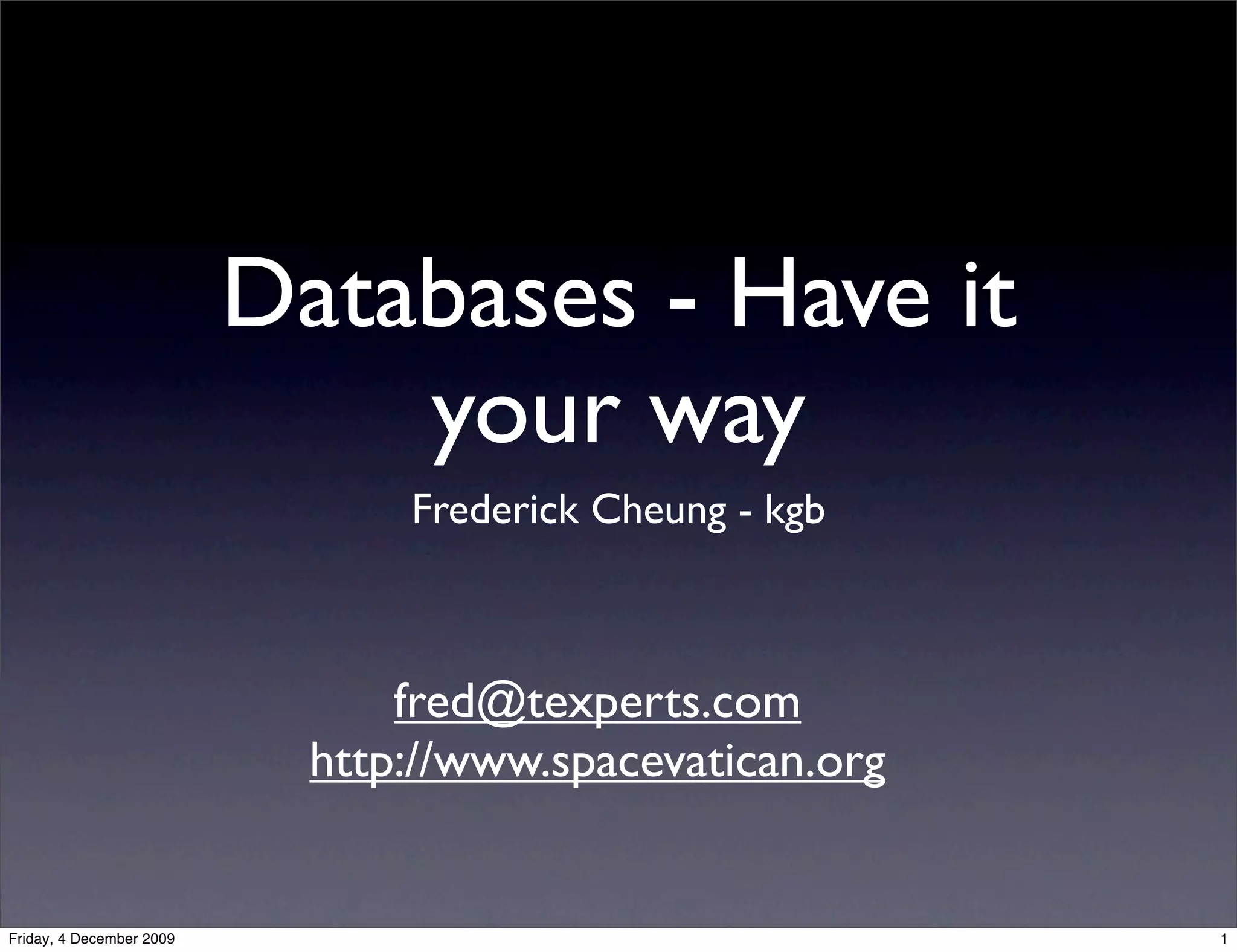

1. Databases - Have it
your way
Frederick Cheung - kgb
fred@texperts.com
http://www.spacevatican.org
Friday, 4 December 2009 1

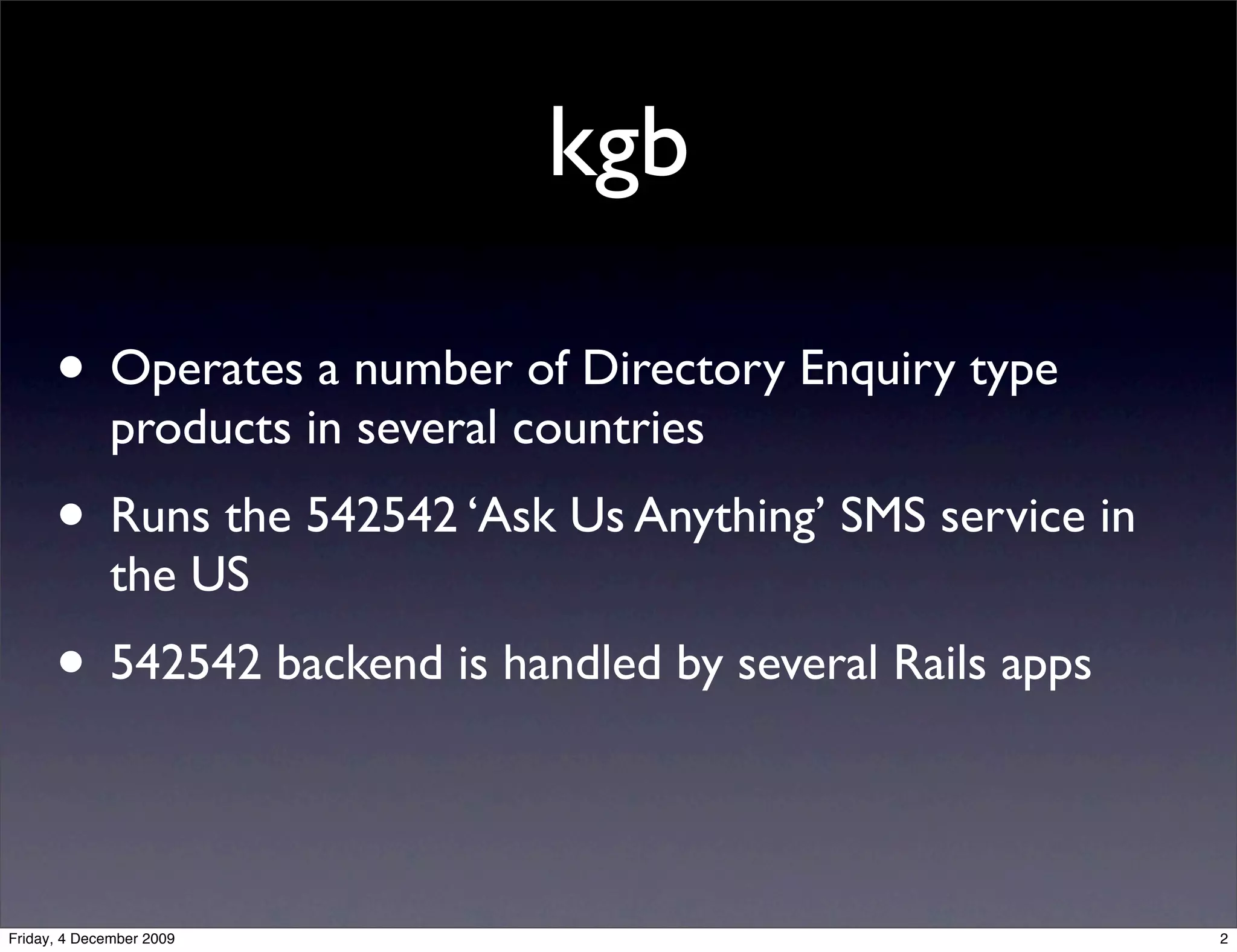

2. kgb
• Operates a number of Directory Enquiry type
products in several countries
• Runs the 542542 ‘Ask Us Anything’ SMS service in
the US
• 542542 backend is handled by several Rails apps
Friday, 4 December 2009 2

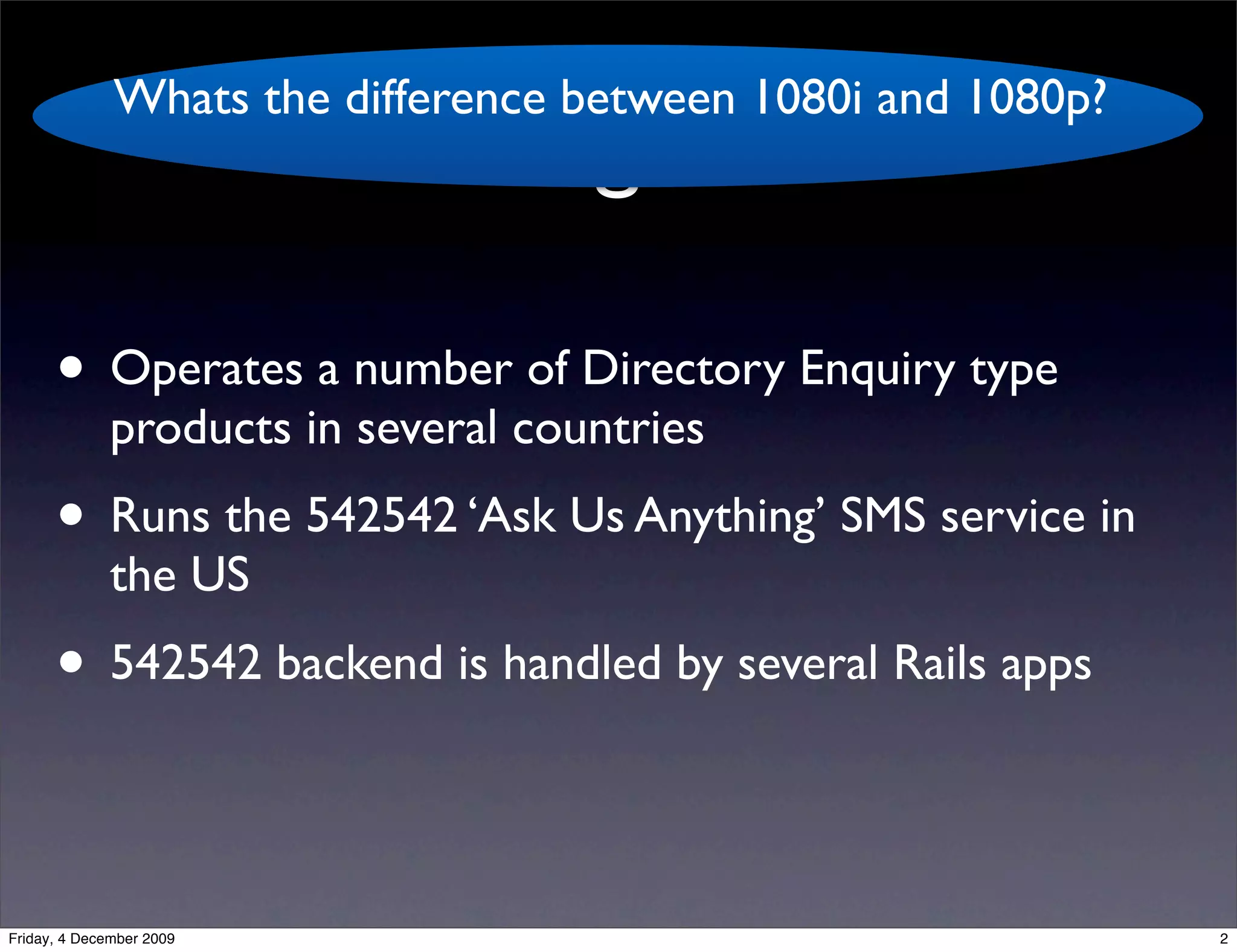

3. Whats the difference between 1080i and 1080p?
kgb
• Operates a number of Directory Enquiry type
products in several countries
• Runs the 542542 ‘Ask Us Anything’ SMS service in
the US
• 542542 backend is handled by several Rails apps
Friday, 4 December 2009 2

4. Whats the difference between 1080i and 1080p?
kgb
What is the address for the sperm bank of Pittsburgh?
• Operates a number of Directory Enquiry type
products in several countries
• Runs the 542542 ‘Ask Us Anything’ SMS service in
the US
• 542542 backend is handled by several Rails apps
Friday, 4 December 2009 2

5. Whats the difference between 1080i and 1080p?
kgb
What is the address for the sperm bank of Pittsburgh?
• Operates a number of Directory Enquiry type
products in several countries
• Runs the Greyhound bus station in Rochester, NY?
Where is
the 542542 ‘Ask Us Anything’ SMS service in
the US
• 542542 backend is handled by several Rails apps
Friday, 4 December 2009 2

6. Whats the difference between 1080i and 1080p?
kgb
What is the address for the sperm bank of Pittsburgh?
• Operates a number of Directory Enquiry type
products in several countries
• Runs the Greyhound bus station in Rochester, NY?
Where is
the 542542 ‘Ask Us Anything’ SMS service in
the US
• 542542 backend is handled by several Rails apps
Is marijuana legal in Oregon?
Friday, 4 December 2009 2

7. Whats the difference between 1080i and 1080p?
kgb
What is the address for the sperm bank of Pittsburgh?
• Operates a number of Directory Enquiry type
products in several countries
• Runs the Greyhound bus station in Rochester, NY?
Where is
the 542542 ‘Ask Us Anything’ SMS service in
the US
• 542542 backend is handled by several Rails apps
Is marijuana legal in Oregon?
What is the longest life span of a dog in recorded history?
Friday, 4 December 2009 2

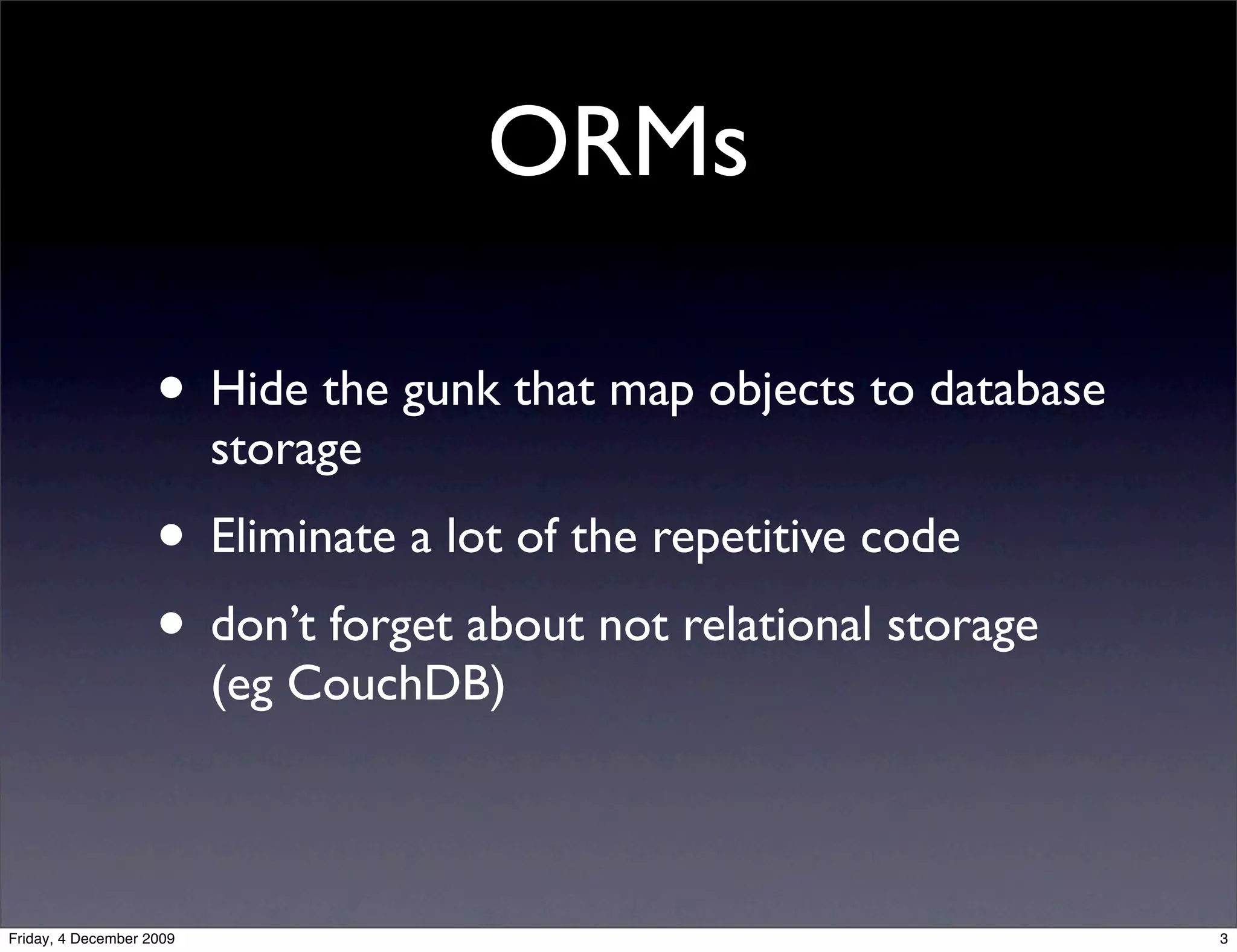

8. ORMs
• Hide the gunk that map objects to database
storage
• Eliminate a lot of the repetitive code
• don’t forget about not relational storage
(eg CouchDB)
Friday, 4 December 2009 3

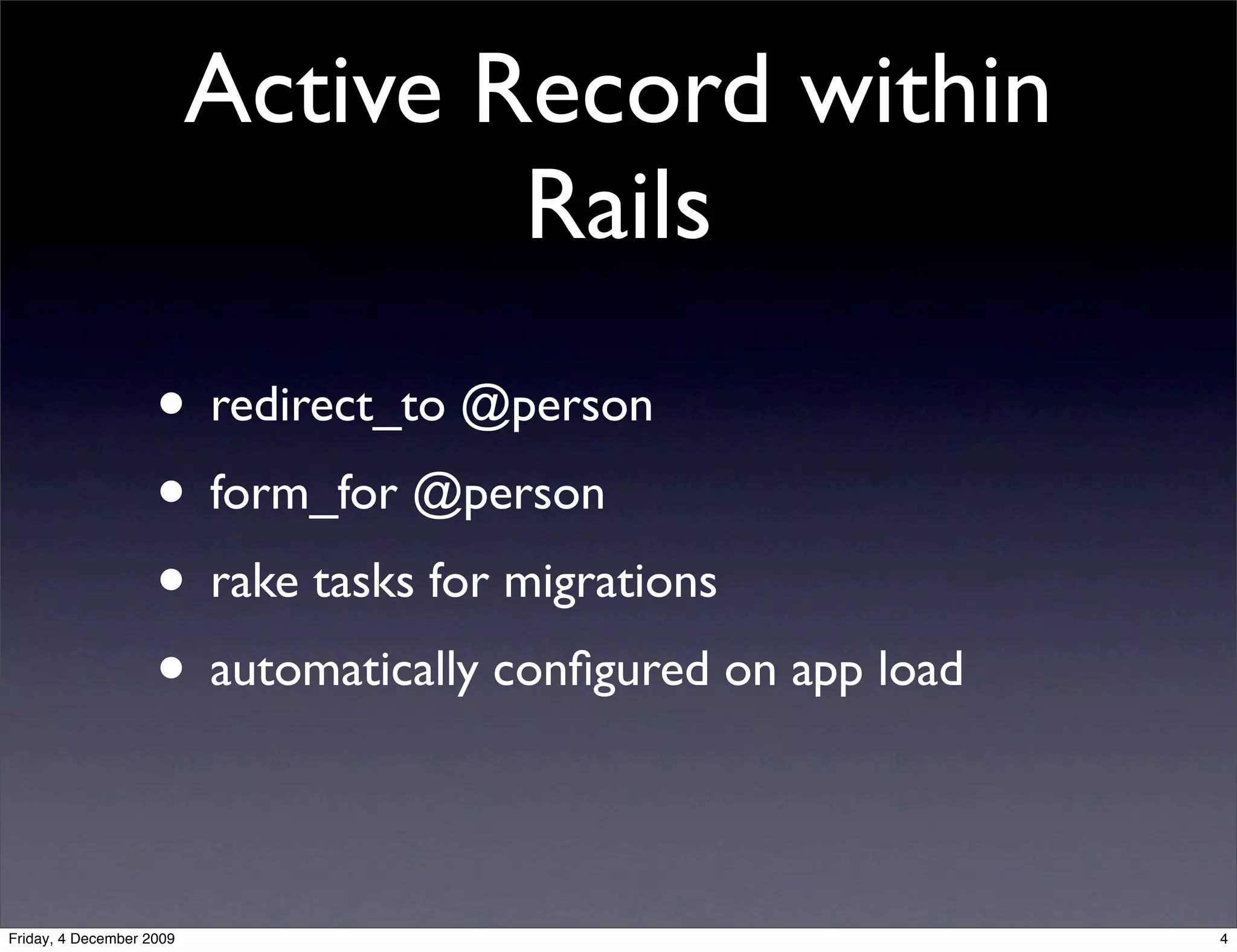

9. Active Record within
Rails
• redirect_to @person
• form_for @person
• rake tasks for migrations
• automatically configured on app load
Friday, 4 December 2009 4

10. What ORM
agnosticism isn’t
• gsub(‘ActiveRecord’, ‘DataMapper’)
• Not trying to make all ORM libraries look
the same
Friday, 4 December 2009 5

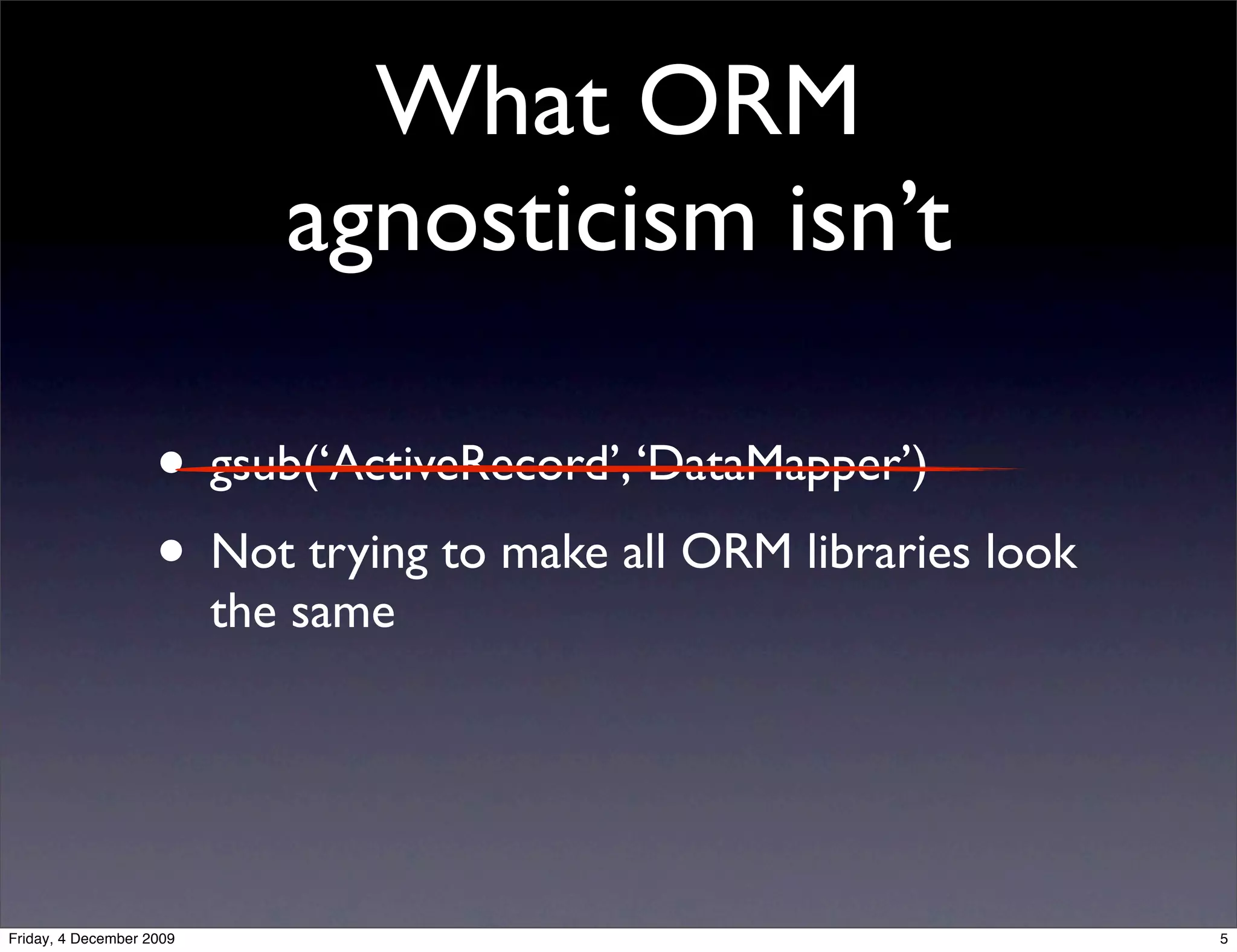

11. What ORM
agnosticism isn’t
• gsub(‘ActiveRecord’, ‘DataMapper’)
• Not trying to make all ORM libraries look
the same
Friday, 4 December 2009 5

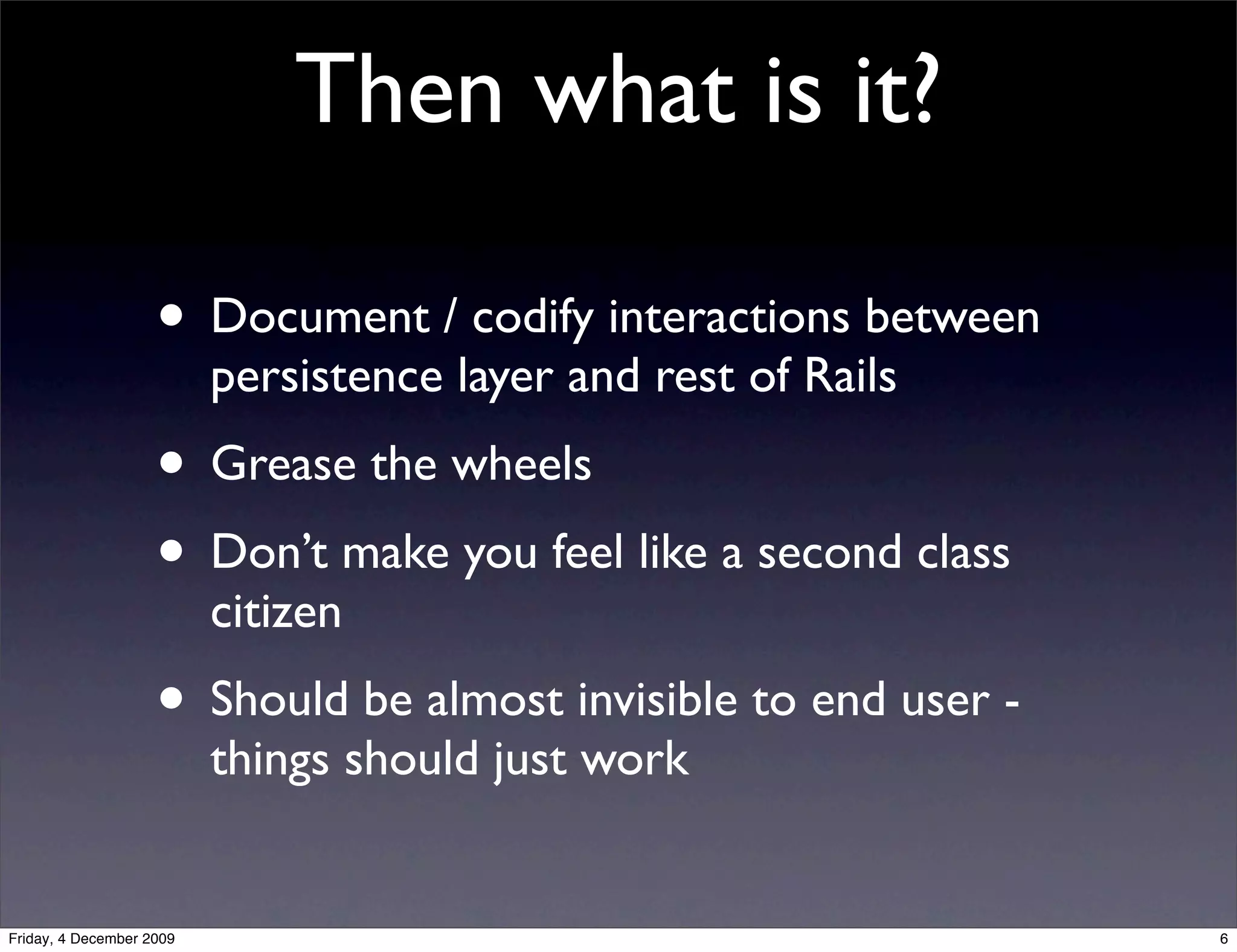

12. Then what is it?
• Document / codify interactions between
persistence layer and rest of Rails
• Grease the wheels
• Don’t make you feel like a second class
citizen
• Should be almost invisible to end user -
things should just work
Friday, 4 December 2009 6

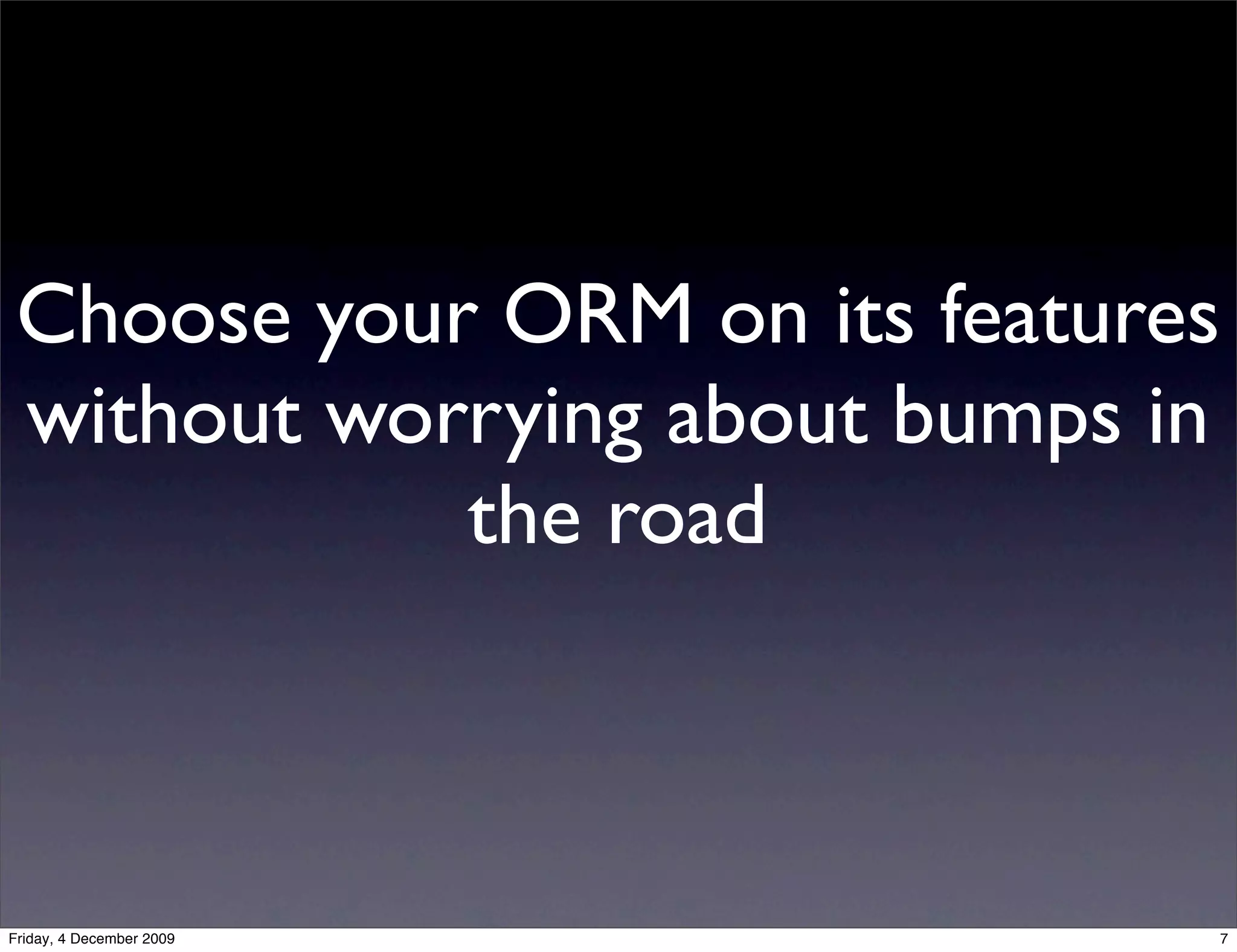

13. Choose your ORM on its features
without worrying about bumps in
the road
Friday, 4 December 2009 7

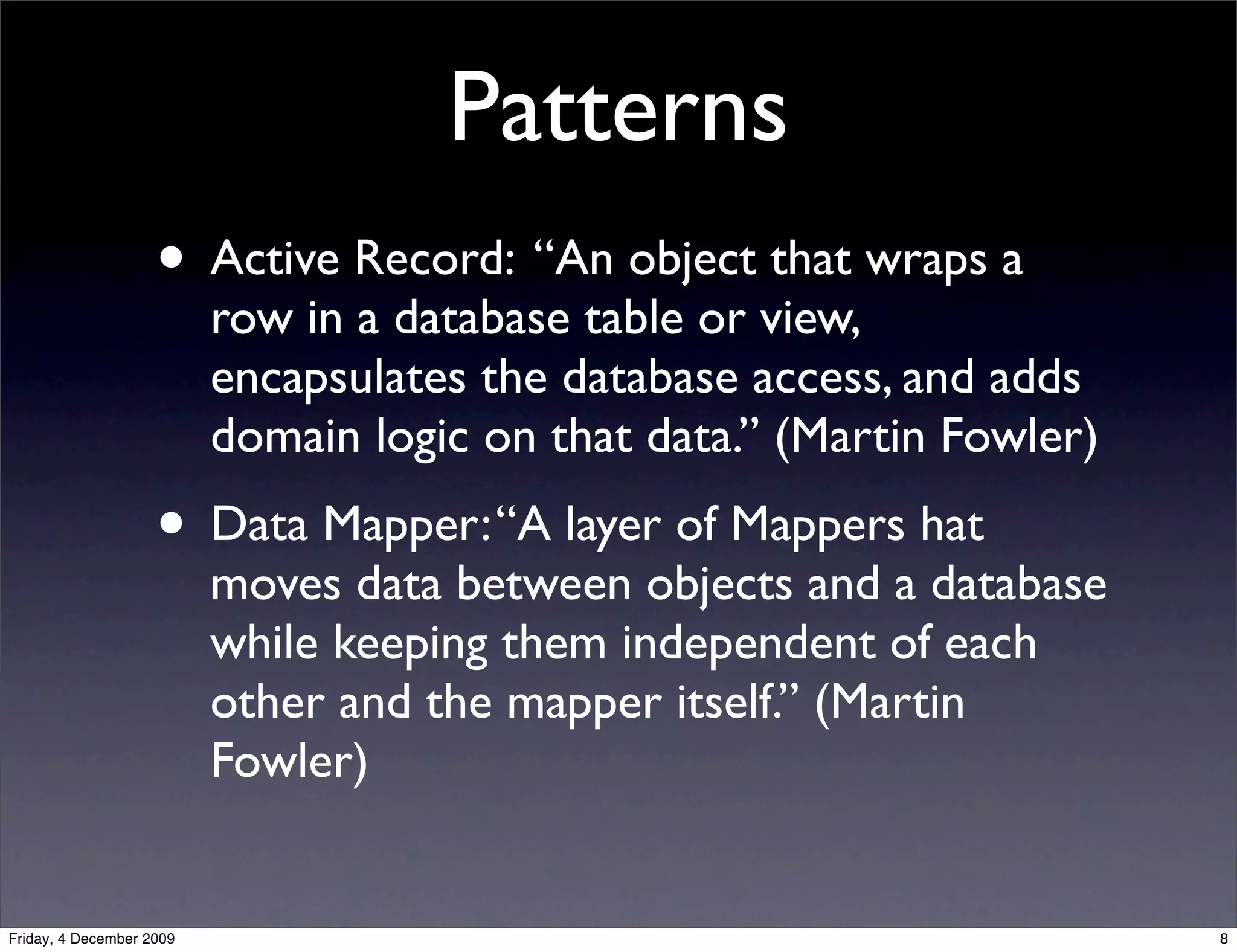

14. Patterns
• Active Record: “An object that wraps a
row in a database table or view,
encapsulates the database access, and adds
domain logic on that data.” (Martin Fowler)
• Data Mapper: “A layer of Mappers hat
moves data between objects and a database
while keeping them independent of each
other and the mapper itself.” (Martin
Fowler)
Friday, 4 December 2009 8

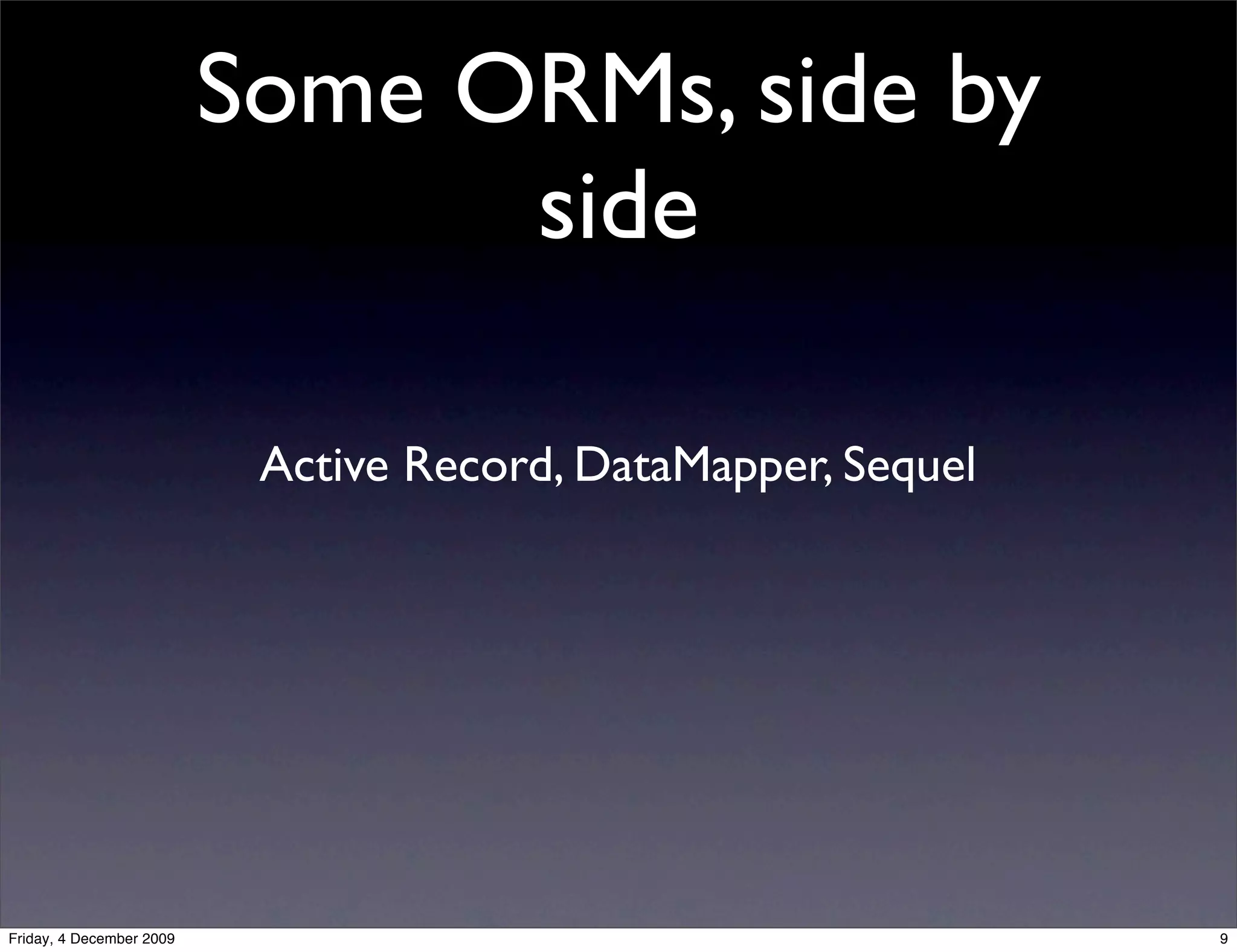

15. Some ORMs, side by
side
Active Record, DataMapper, Sequel
Friday, 4 December 2009 9

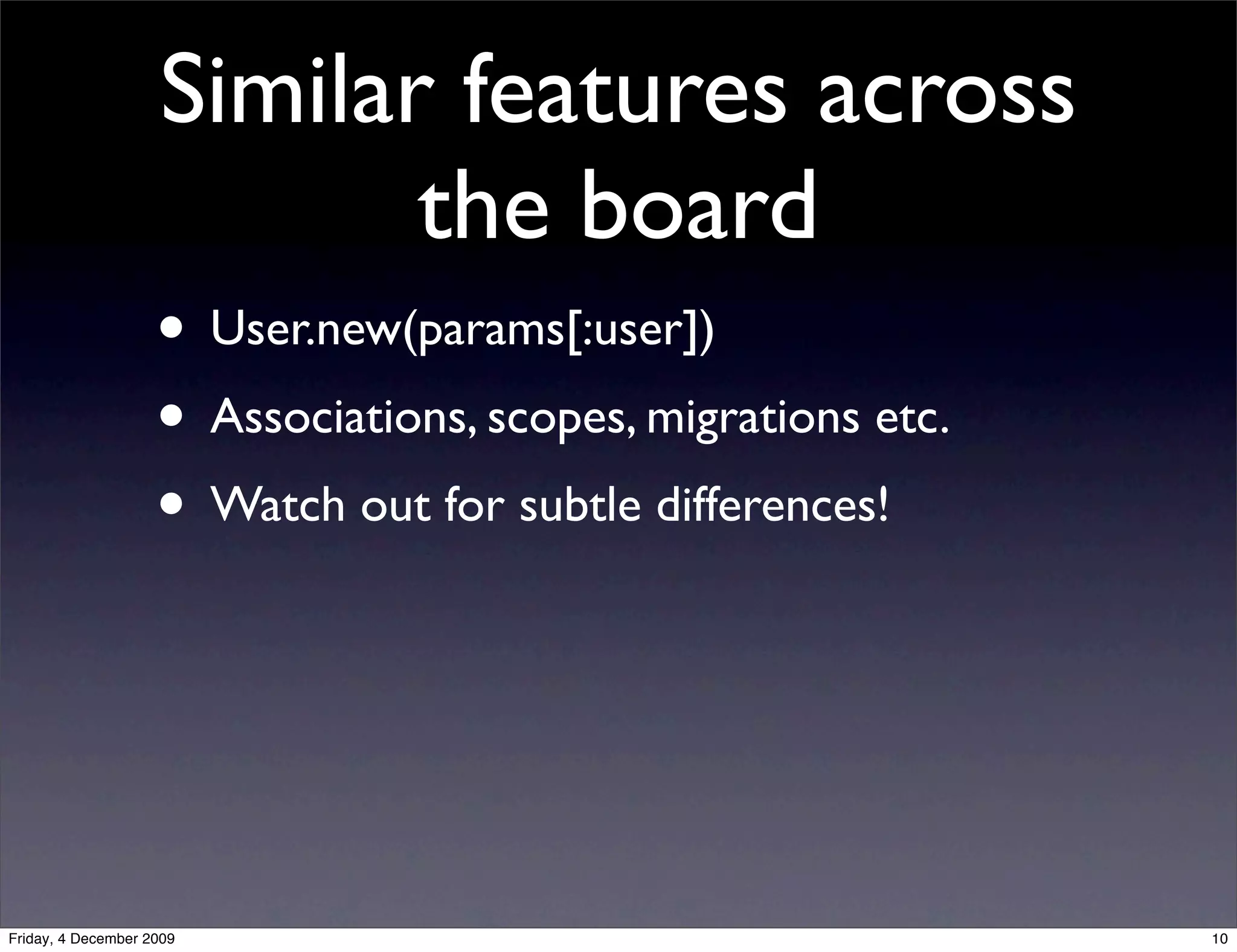

16. Similar features across
the board
• User.new(params[:user])
• Associations, scopes, migrations etc.
• Watch out for subtle differences!
Friday, 4 December 2009 10

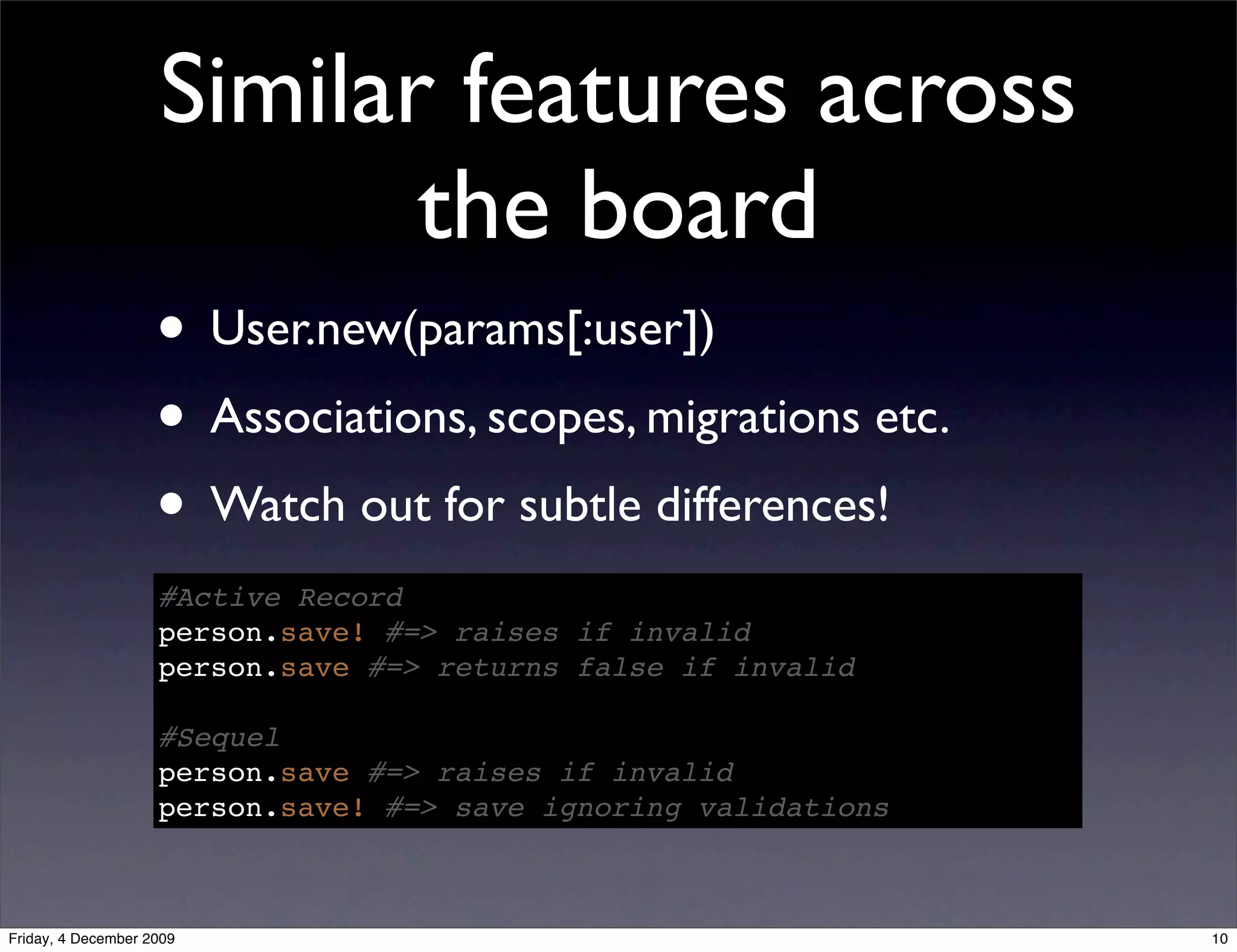

17. Similar features across
the board
• User.new(params[:user])
• Associations, scopes, migrations etc.
• Watch out for subtle differences!
#Active Record
person.save! #=> raises if invalid
person.save #=> returns false if invalid
#Sequel
person.save #=> raises if invalid
person.save! #=> save ignoring validations
Friday, 4 December 2009 10

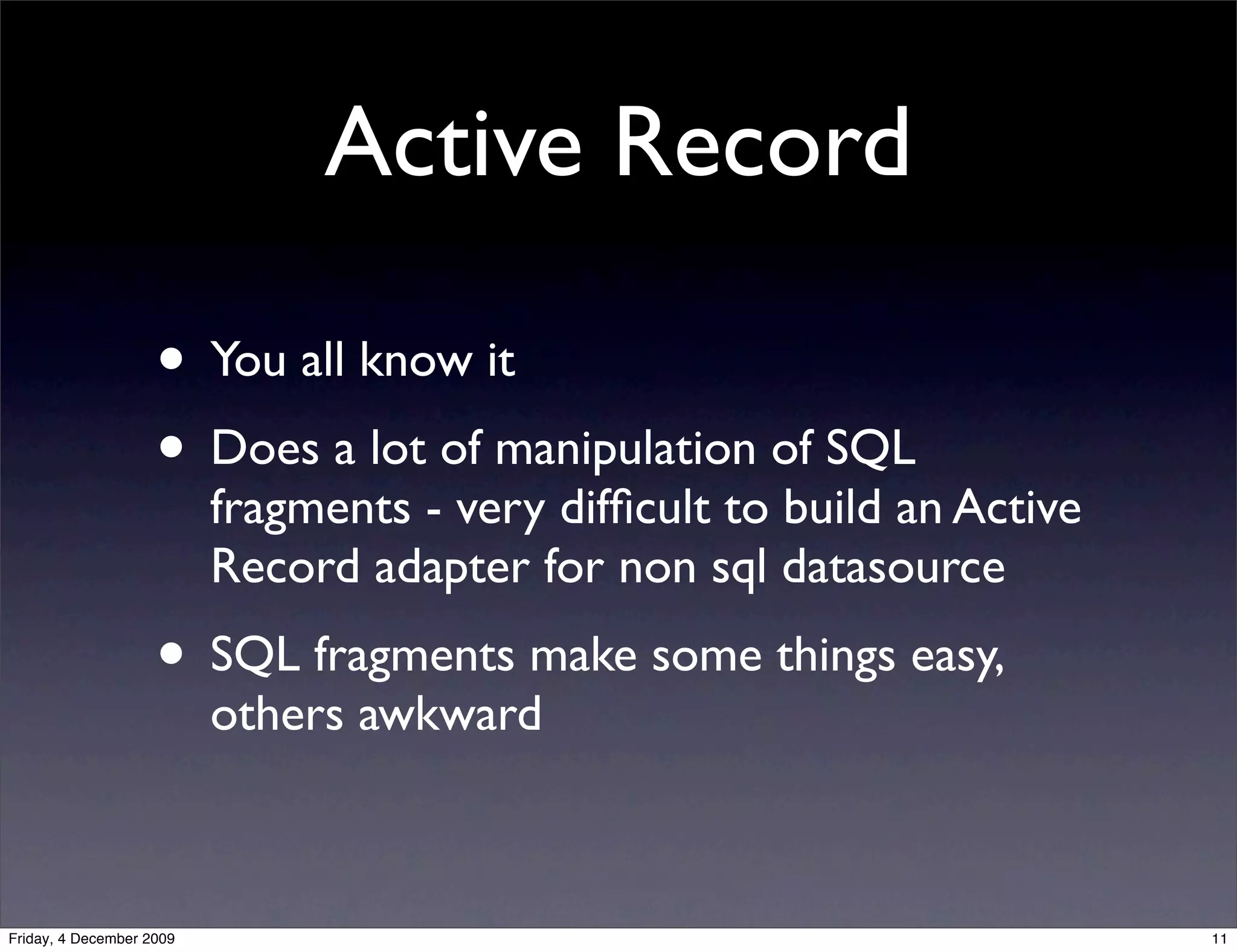

18. Active Record
• You all know it
• Does a lot of manipulation of SQL
fragments - very difficult to build an Active
Record adapter for non sql datasource
• SQL fragments make some things easy,
others awkward
Friday, 4 December 2009 11

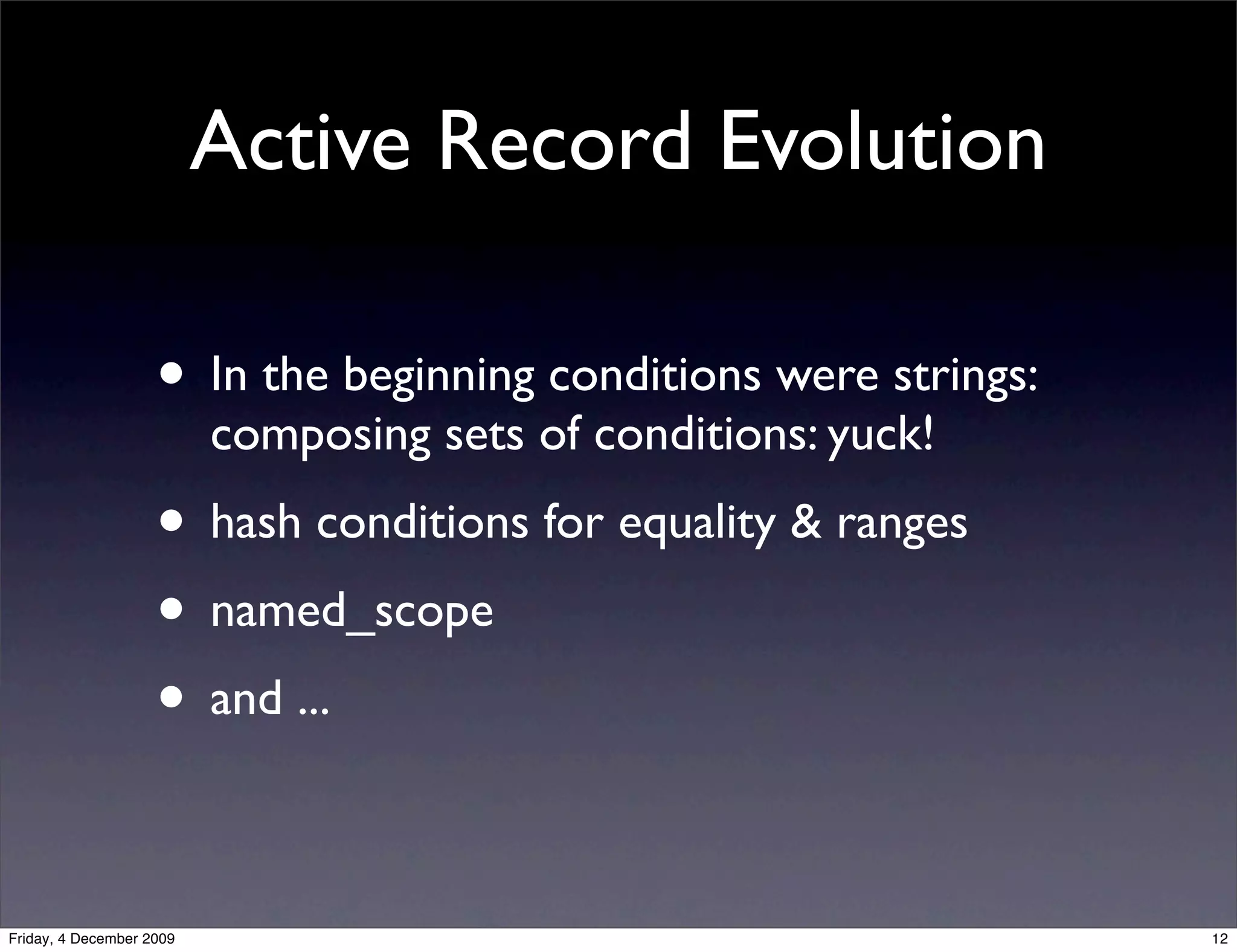

19. Active Record Evolution
• In the beginning conditions were strings:
composing sets of conditions: yuck!
• hash conditions for equality & ranges
• named_scope
• and ...
Friday, 4 December 2009 12

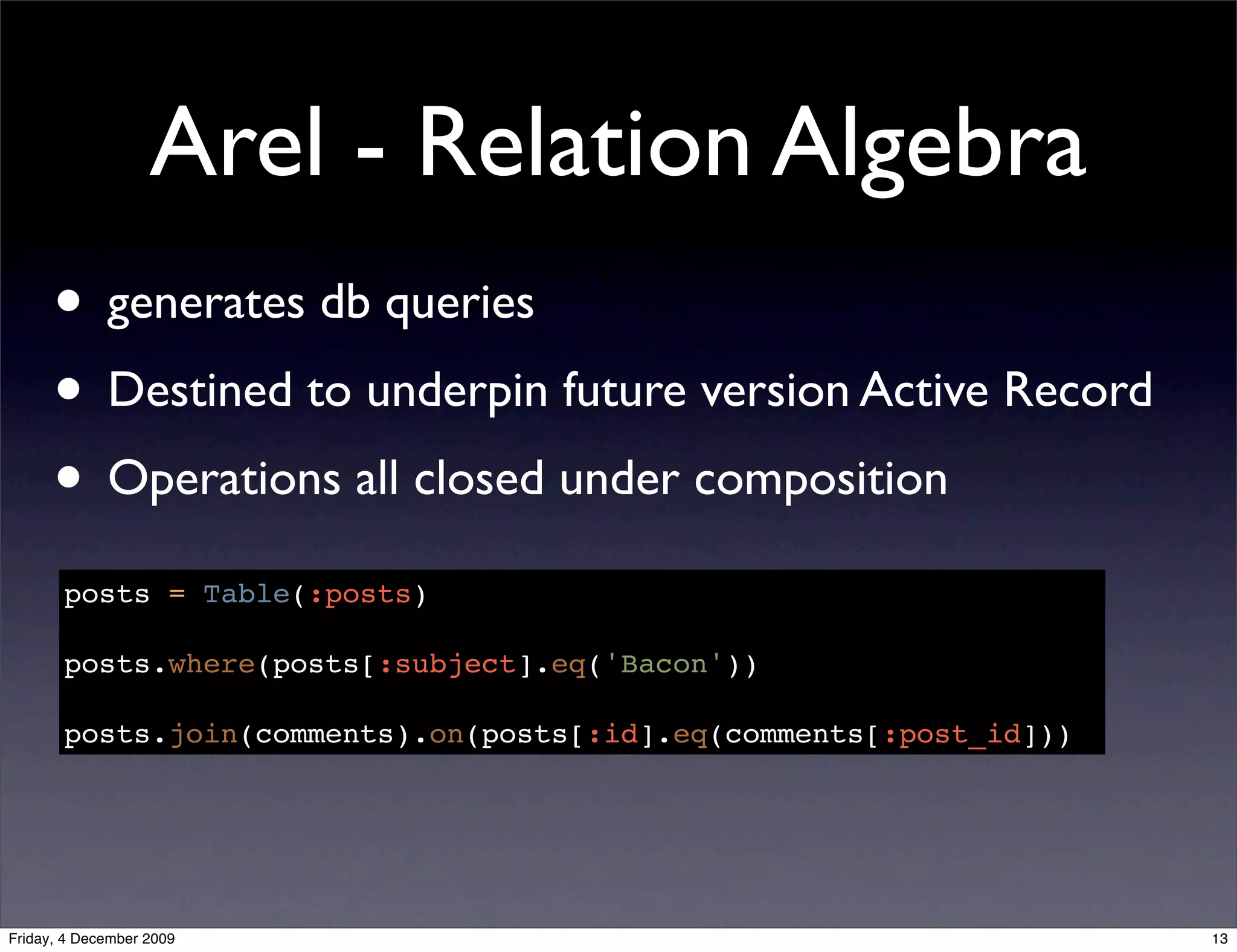

20. Arel - Relation Algebra
• generates db queries
• Destined to underpin future version Active Record
• Operations all closed under composition
posts = Table(:posts)
posts.where(posts[:subject].eq('Bacon'))
posts.join(comments).on(posts[:id].eq(comments[:post_id]))
Friday, 4 December 2009 13

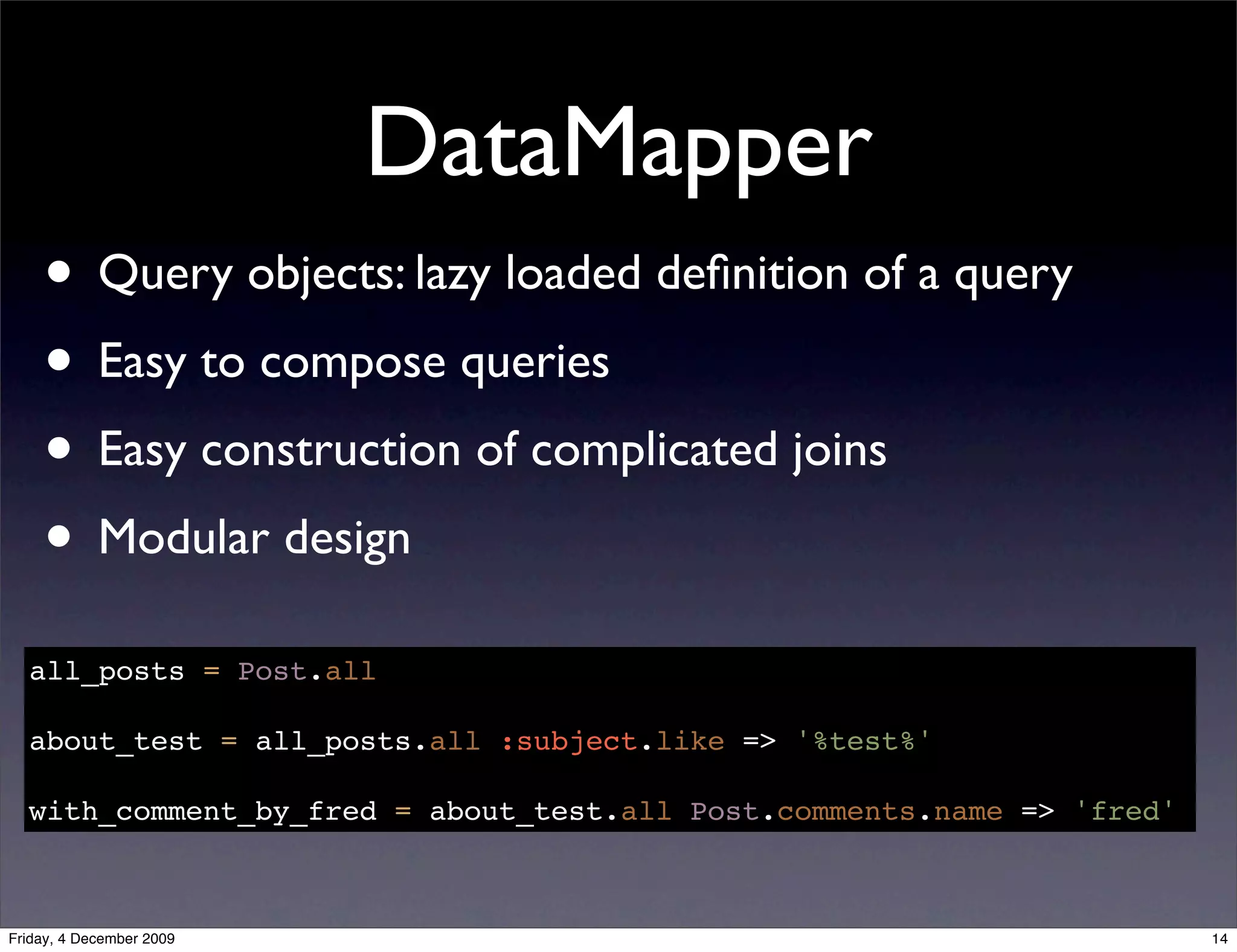

21. DataMapper
• Query objects: lazy loaded definition of a query
• Easy to compose queries
• Easy construction of complicated joins
• Modular design
all_posts = Post.all
about_test = all_posts.all :subject.like => '%test%'
with_comment_by_fred = about_test.all Post.comments.name => 'fred'
Friday, 4 December 2009 14

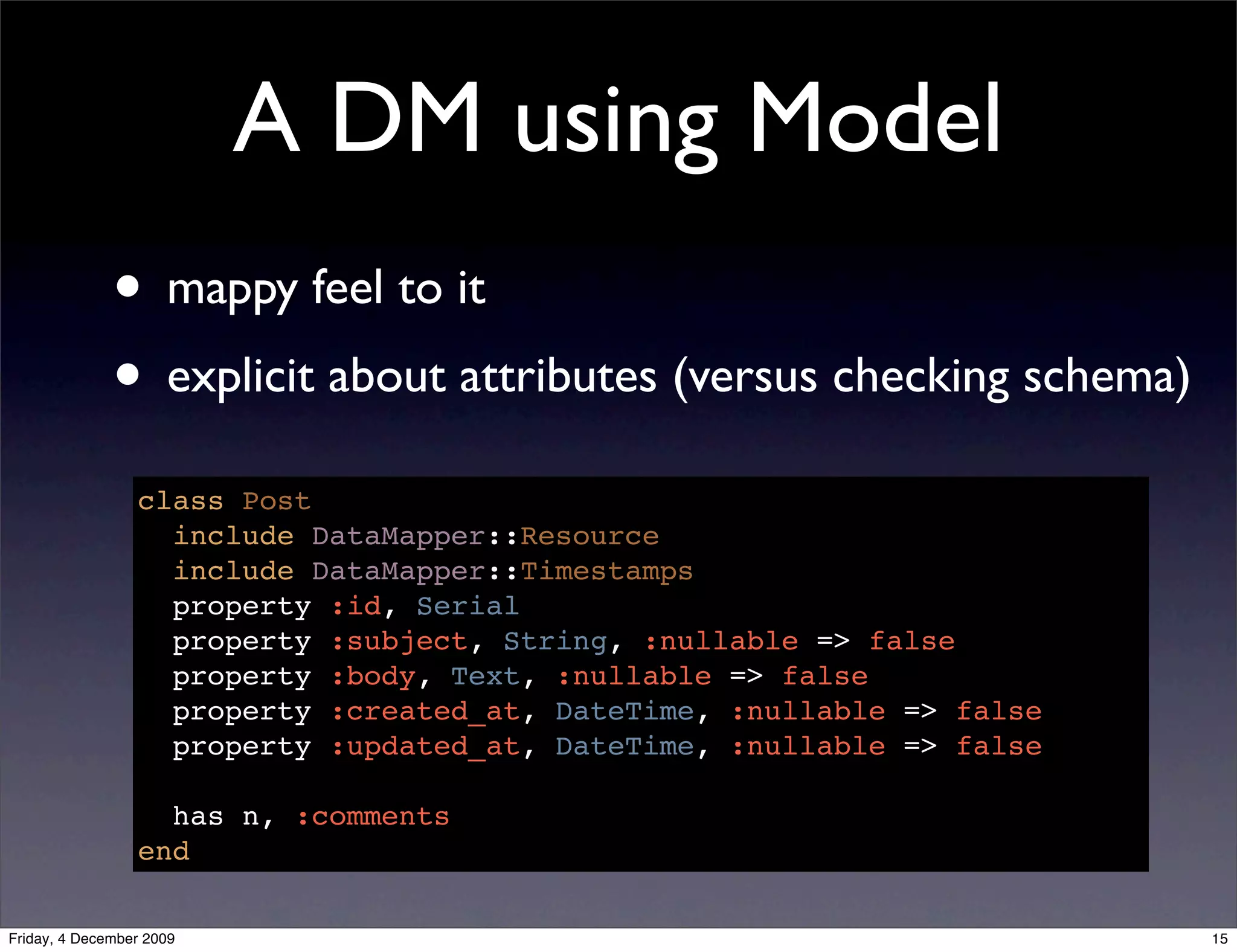

22. A DM using Model
• mappy feel to it
• explicit about attributes (versus checking schema)
class Post
include DataMapper::Resource
include DataMapper::Timestamps
property :id, Serial
property :subject, String, :nullable => false
property :body, Text, :nullable => false
property :created_at, DateTime, :nullable => false
property :updated_at, DateTime, :nullable => false
has n, :comments
end
Friday, 4 December 2009 15

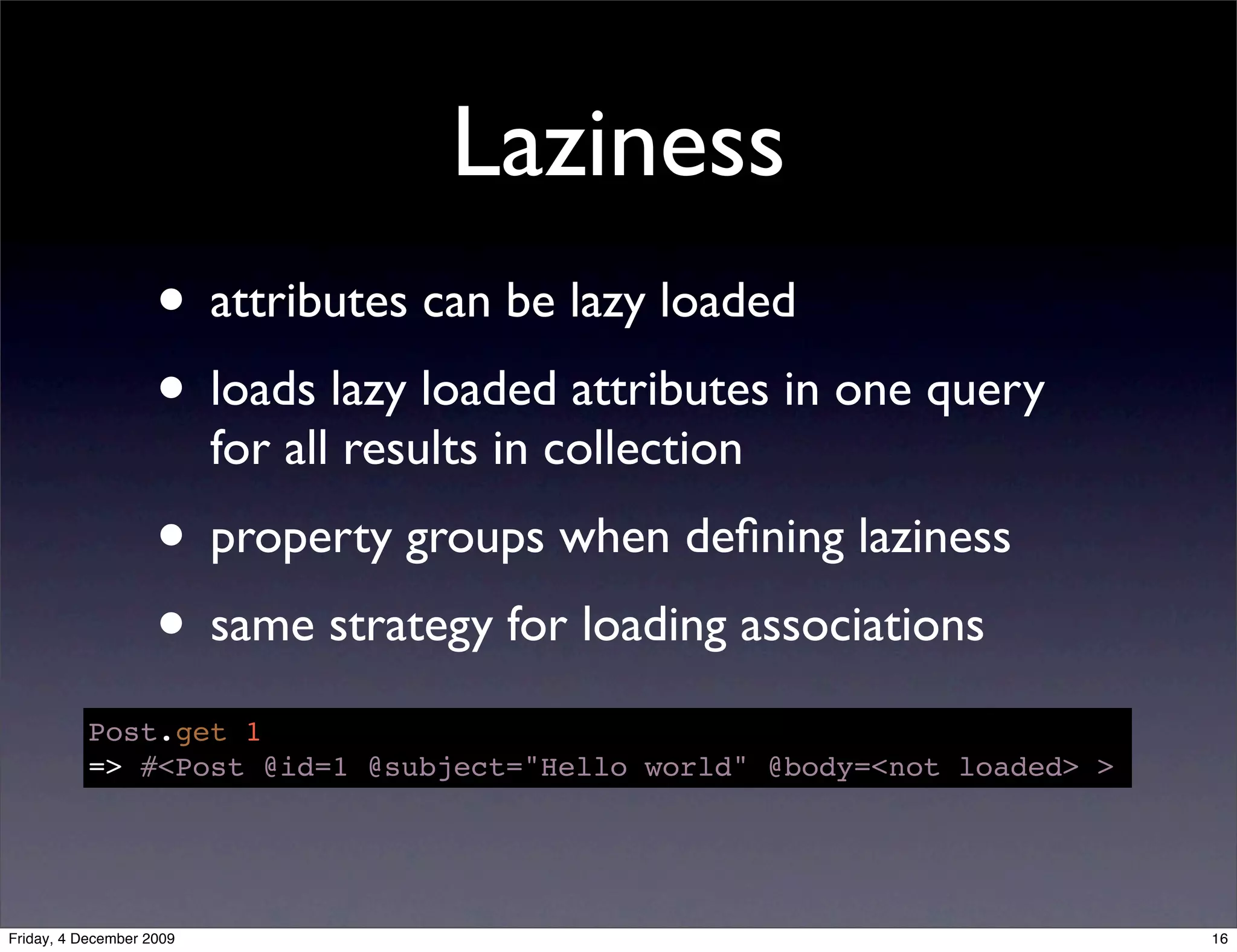

23. Laziness
• attributes can be lazy loaded
• loads lazy loaded attributes in one query
for all results in collection
• property groups when defining laziness
• same strategy for loading associations
Post.get 1
=> #<Post @id=1 @subject="Hello world" @body=<not loaded> >
Friday, 4 December 2009 16

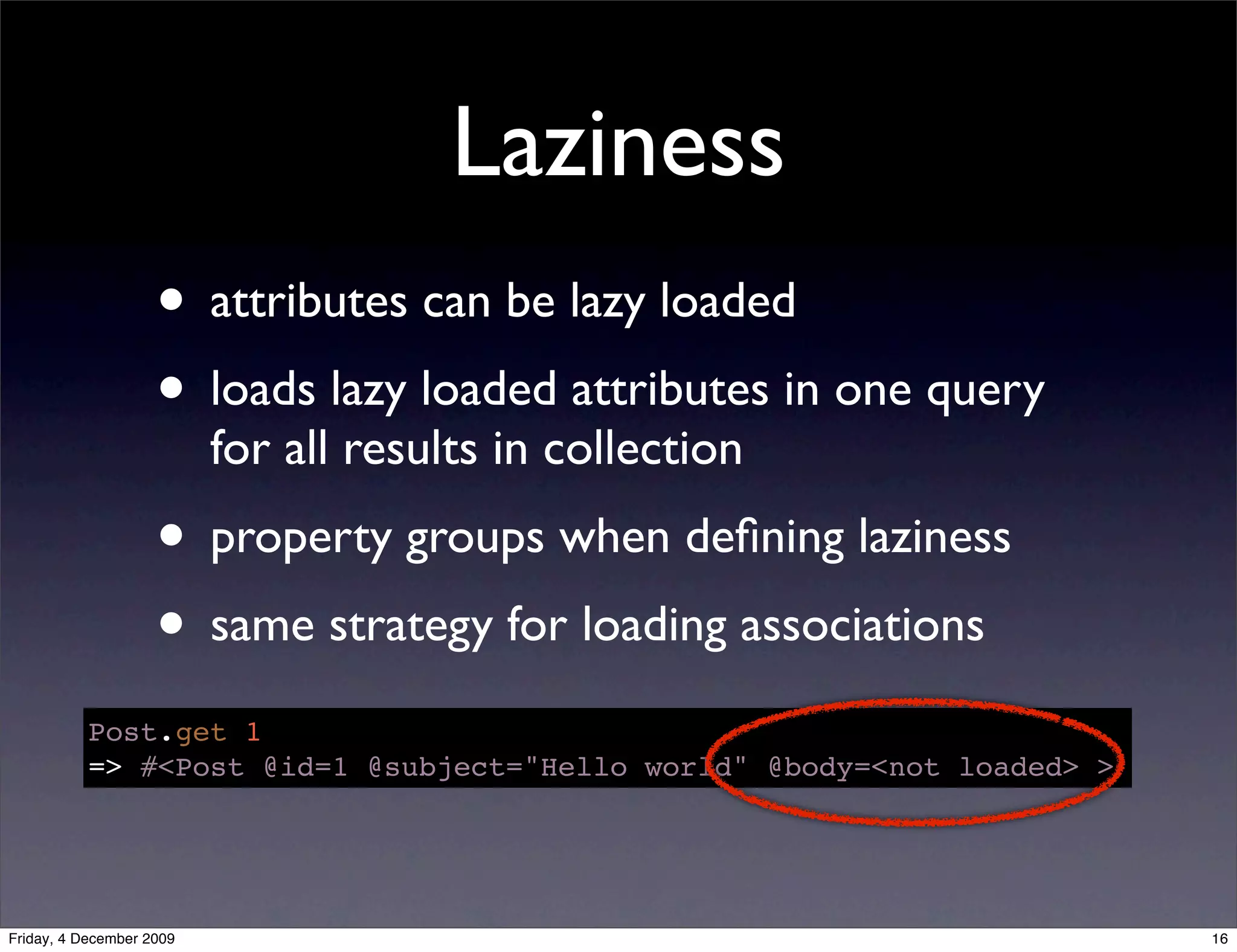

24. Laziness
• attributes can be lazy loaded
• loads lazy loaded attributes in one query
for all results in collection
• property groups when defining laziness
• same strategy for loading associations
Post.get 1
=> #<Post @id=1 @subject="Hello world" @body=<not loaded> >
Friday, 4 December 2009 16

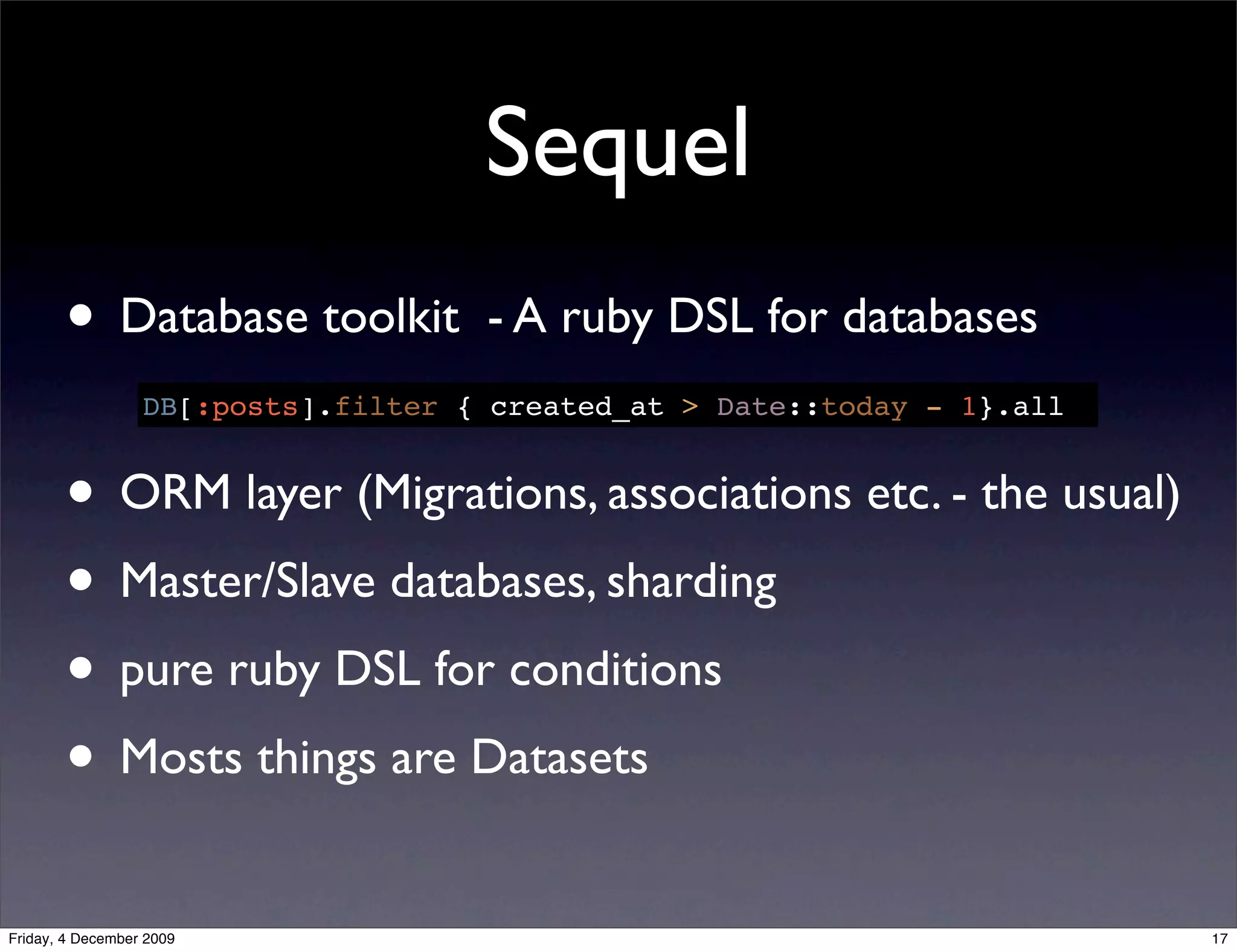

25. Sequel
• Database toolkit - A ruby DSL for databases
DB[:posts].filter { created_at > Date::today - 1}.all
• ORM layer (Migrations, associations etc. - the usual)
• Master/Slave databases, sharding
• pure ruby DSL for conditions
• Mosts things are Datasets
Friday, 4 December 2009 17

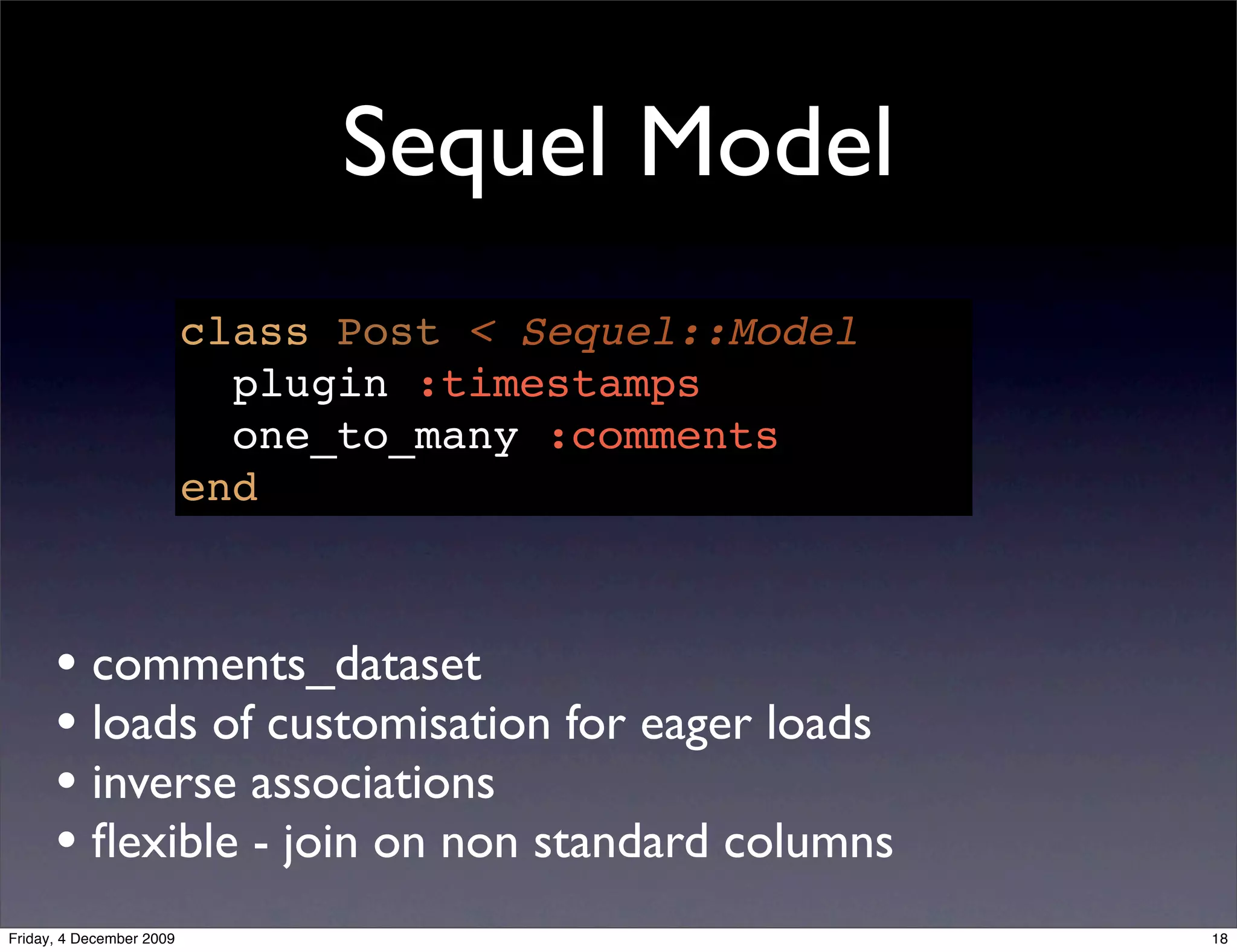

26. Sequel Model
class Post < Sequel::Model
plugin :timestamps
one_to_many :comments
end
• comments_dataset
• loads of customisation for eager loads
• inverse associations
• flexible - join on non standard columns
Friday, 4 December 2009 18

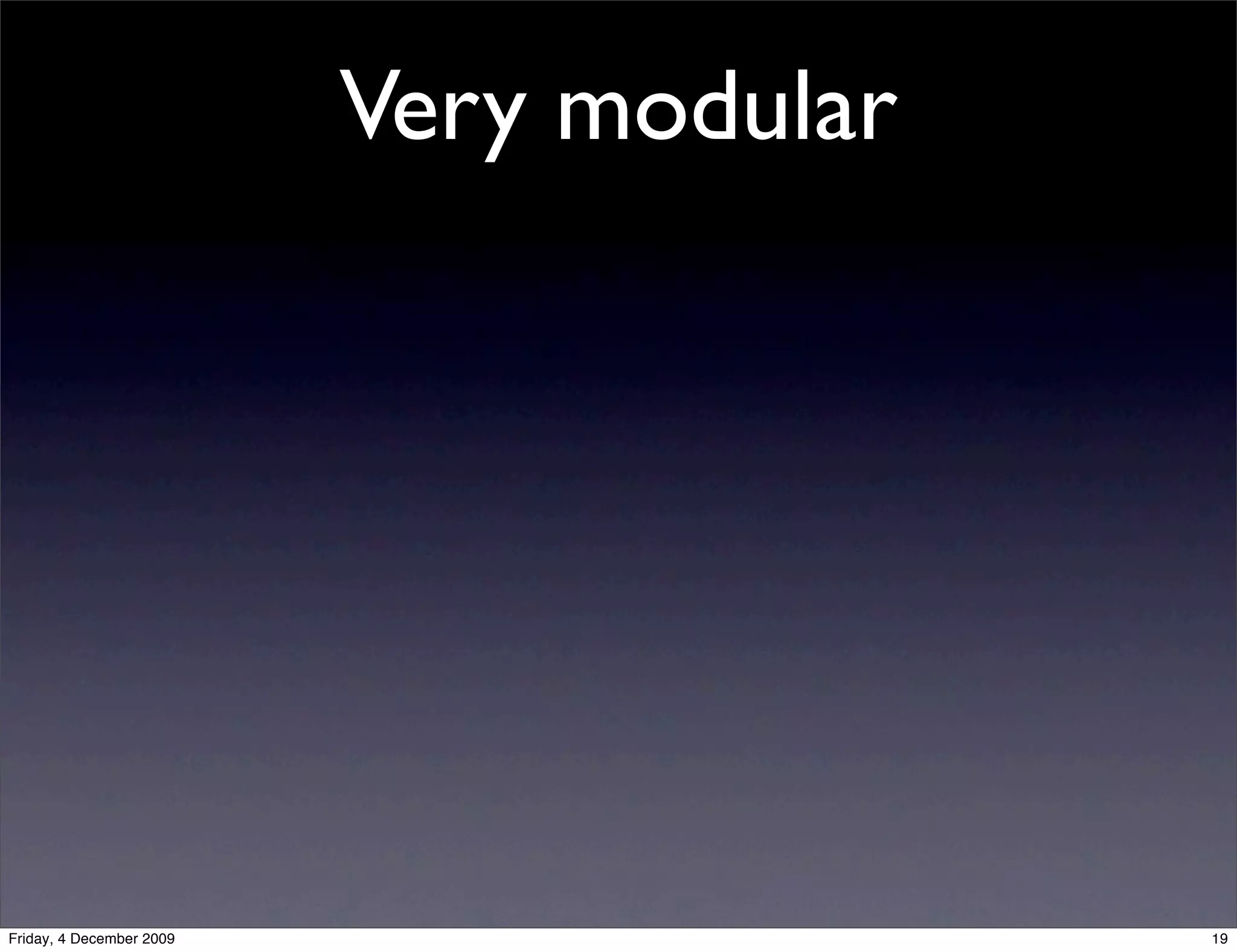

27. Very modular
Friday, 4 December 2009 19

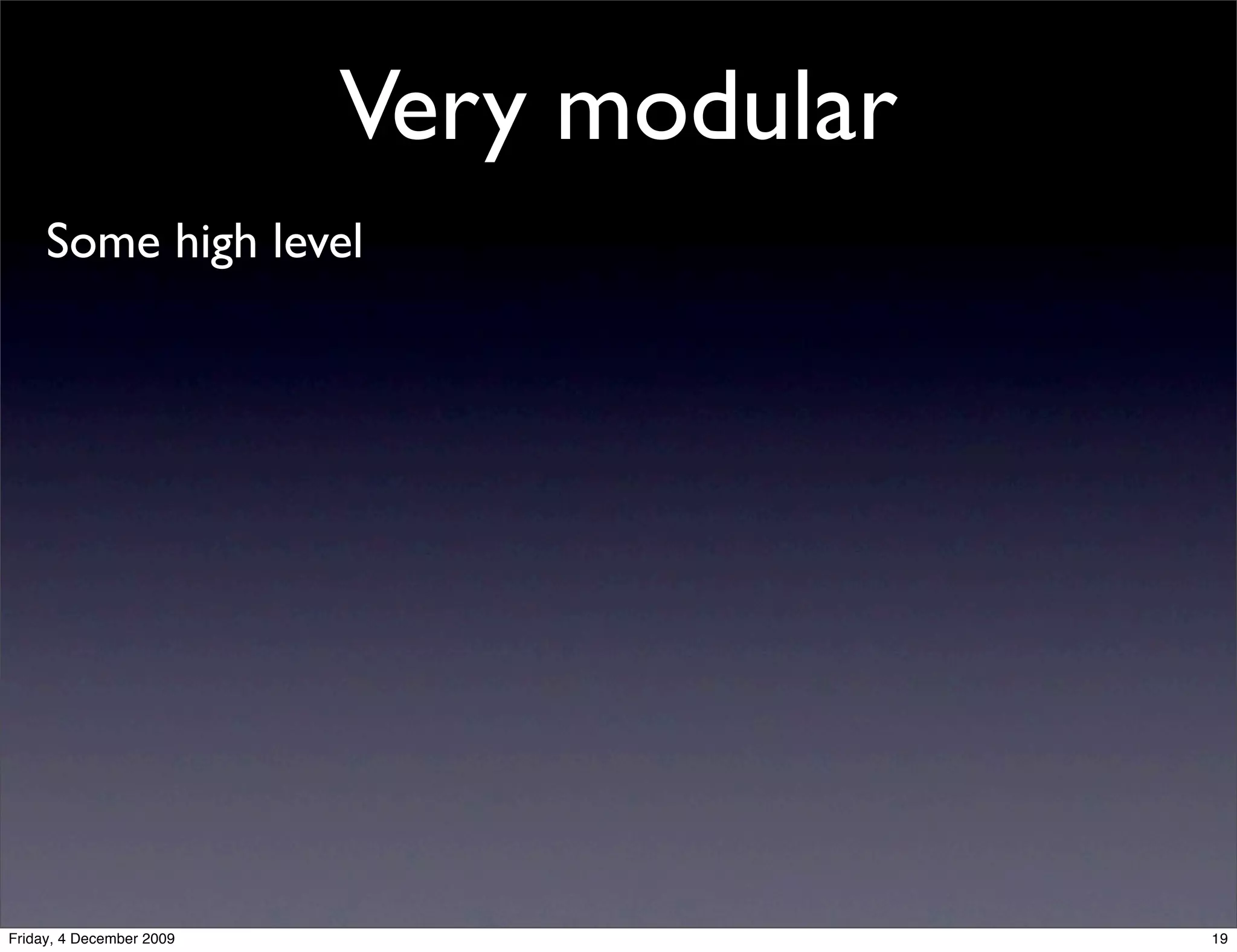

28. Very modular
Some high level
Friday, 4 December 2009 19

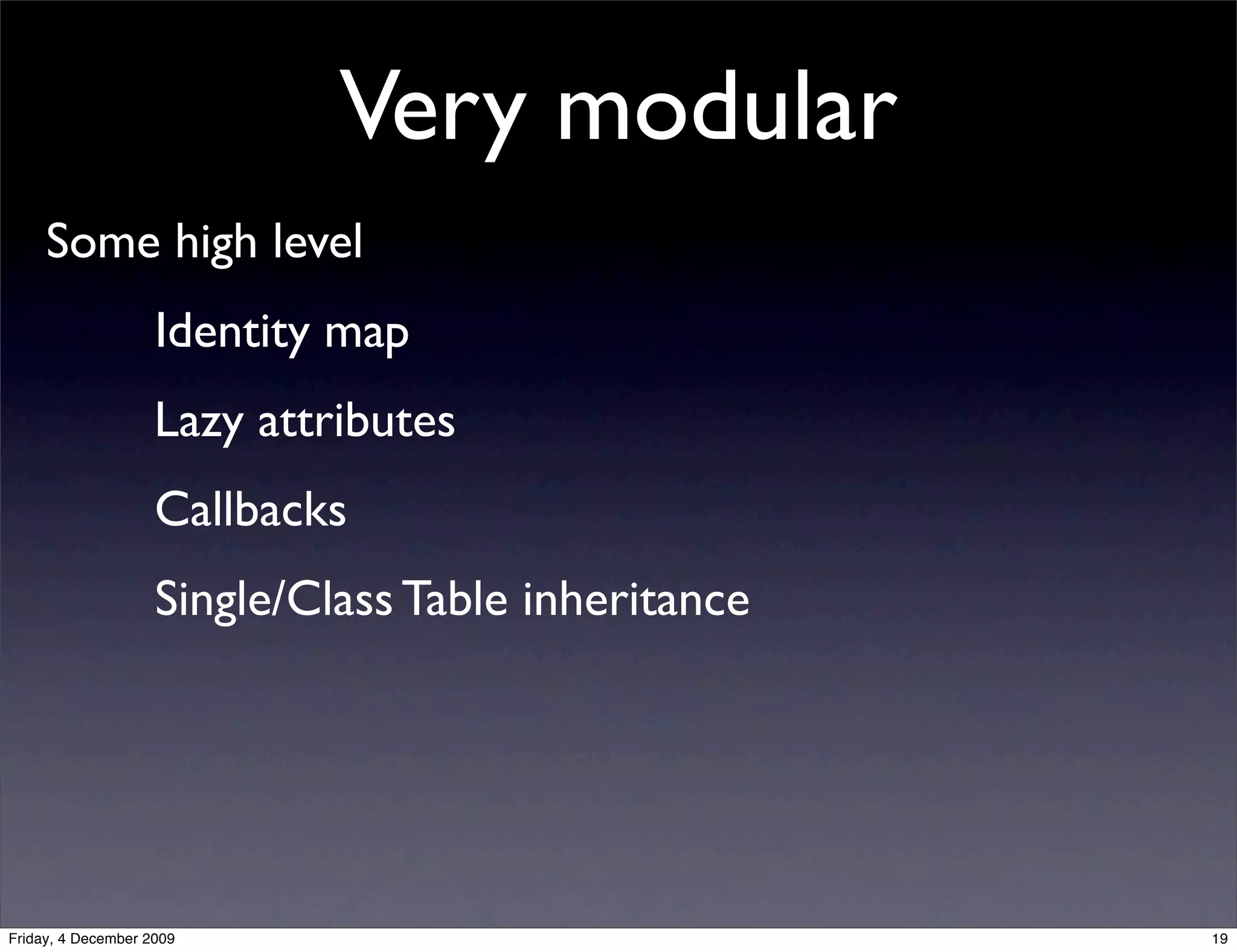

29. Very modular
Some high level
Identity map
Lazy attributes
Callbacks
Single/Class Table inheritance
Friday, 4 December 2009 19

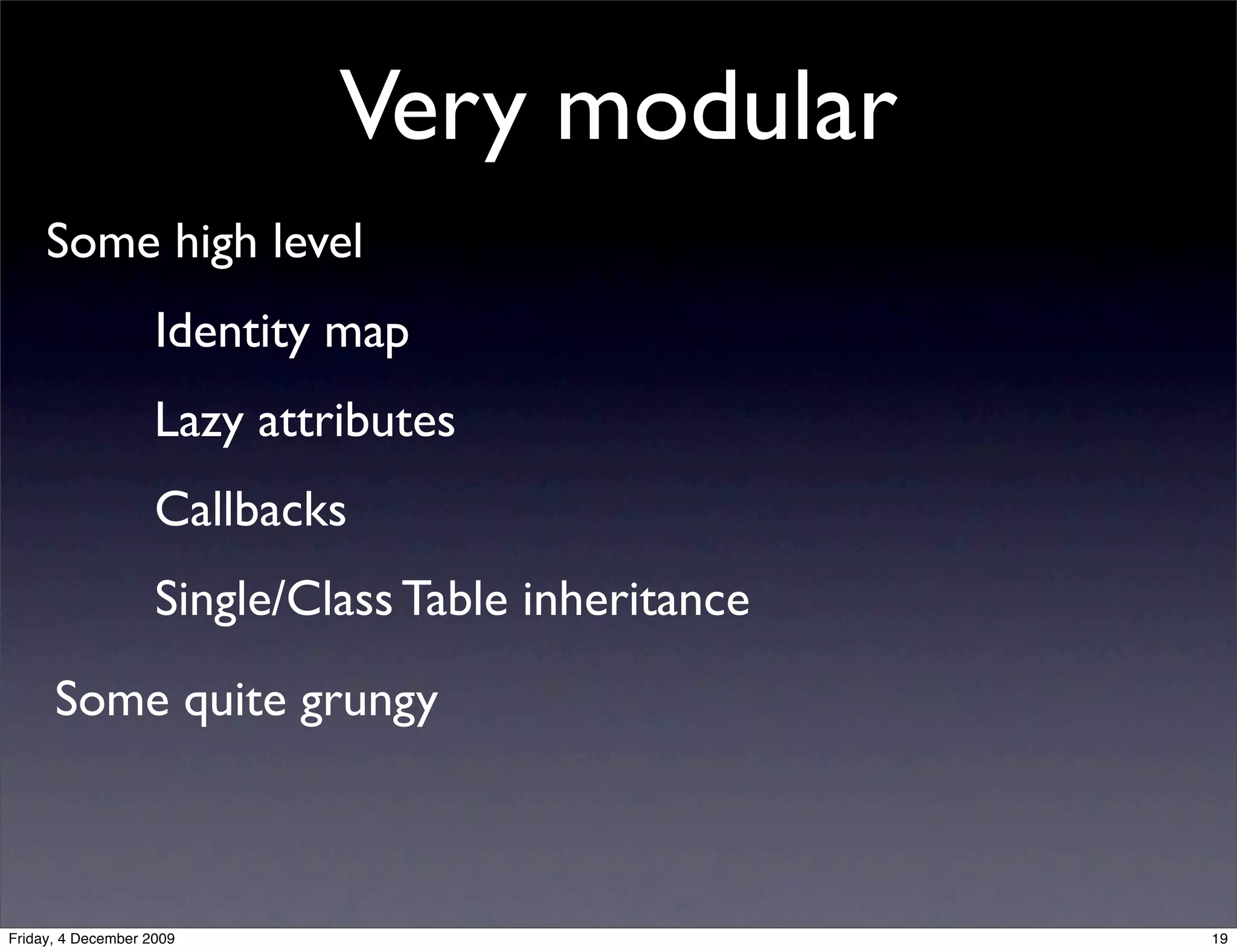

30. Very modular
Some high level
Identity map
Lazy attributes
Callbacks
Single/Class Table inheritance
Some quite grungy
Friday, 4 December 2009 19

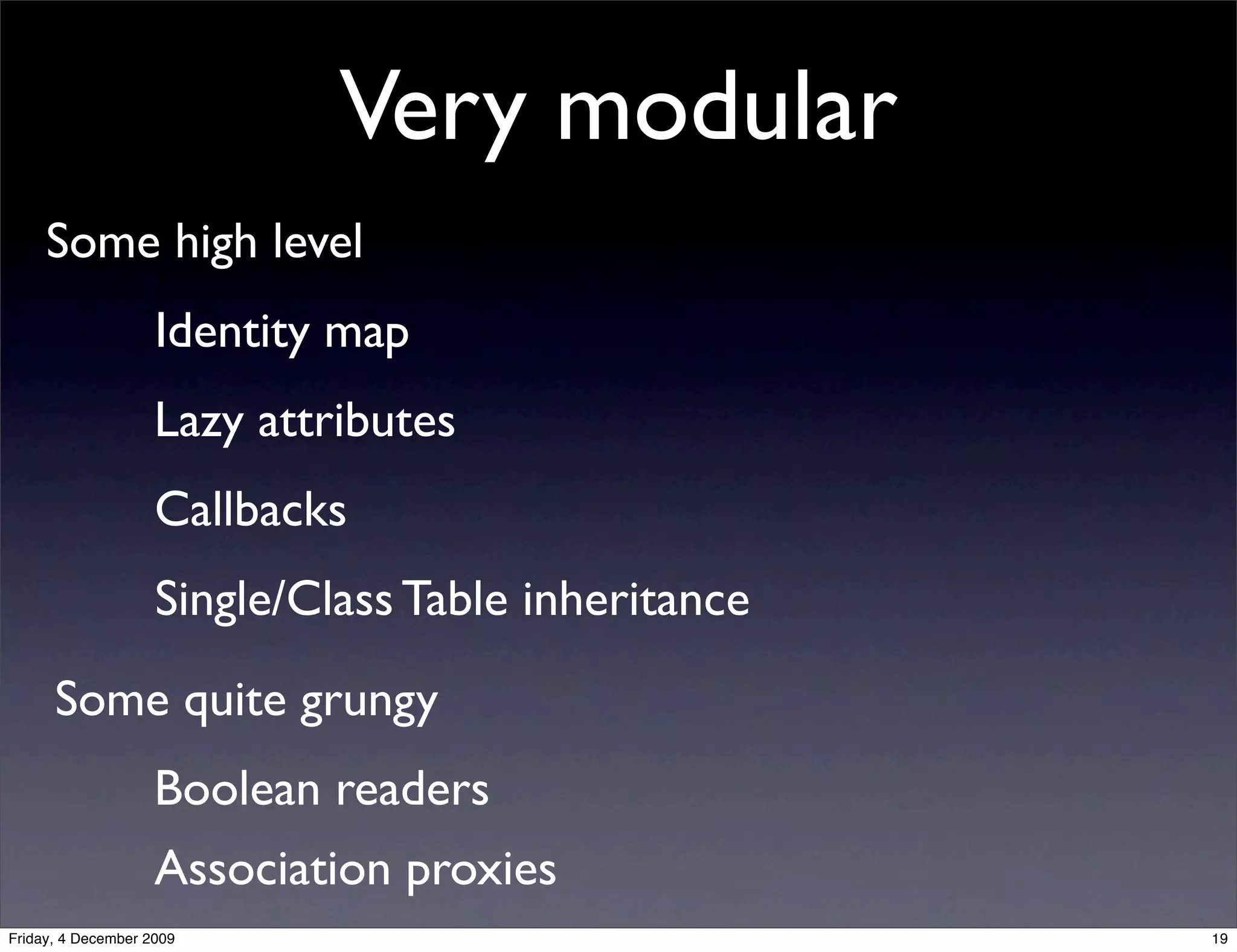

31. Very modular
Some high level
Identity map
Lazy attributes
Callbacks
Single/Class Table inheritance
Some quite grungy
Boolean readers
Association proxies
Friday, 4 December 2009 19

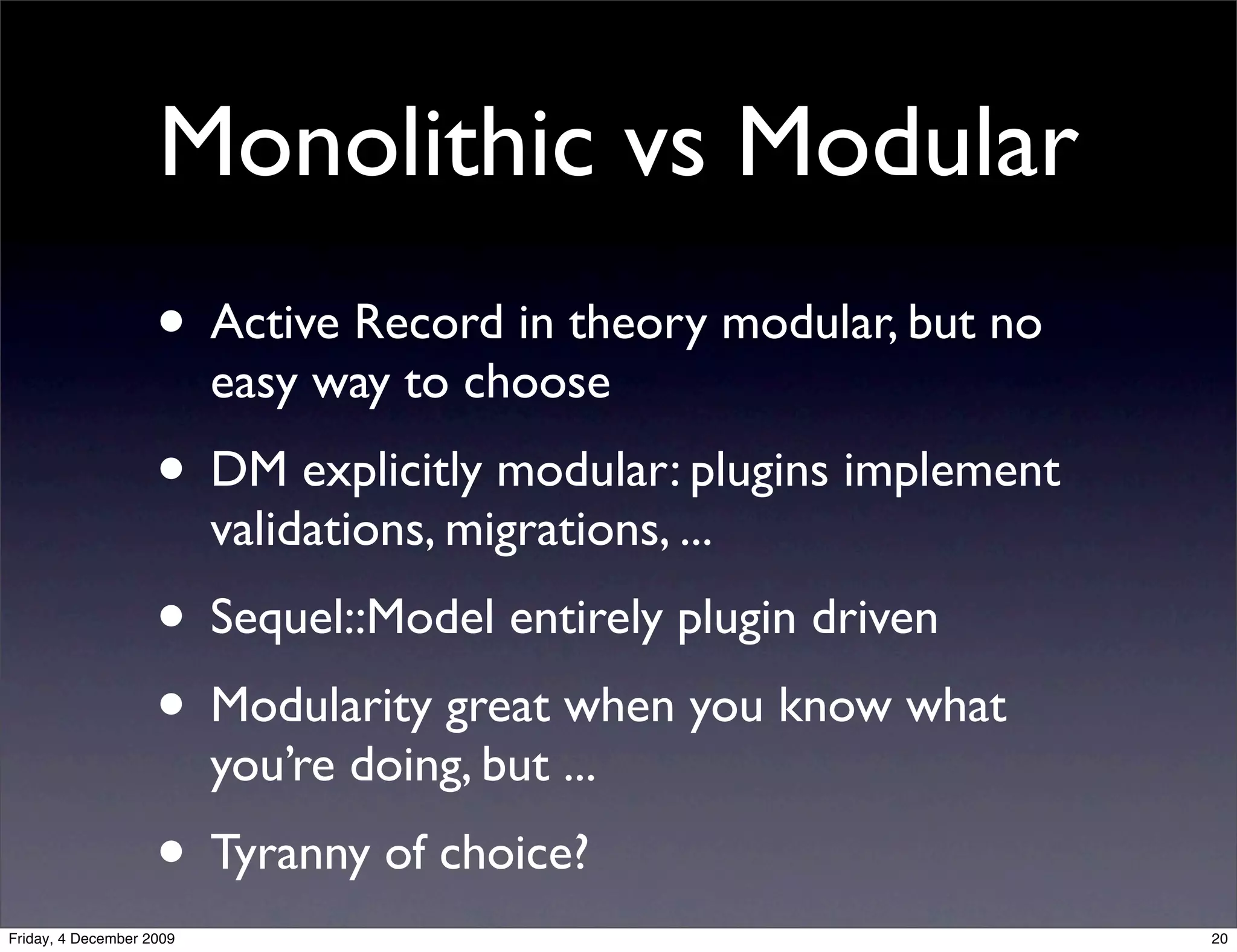

32. Monolithic vs Modular
• Active Record in theory modular, but no
easy way to choose
• DM explicitly modular: plugins implement
validations, migrations, ...
• Sequel::Model entirely plugin driven
• Modularity great when you know what
you’re doing, but ...
• Tyranny of choice?
Friday, 4 December 2009 20

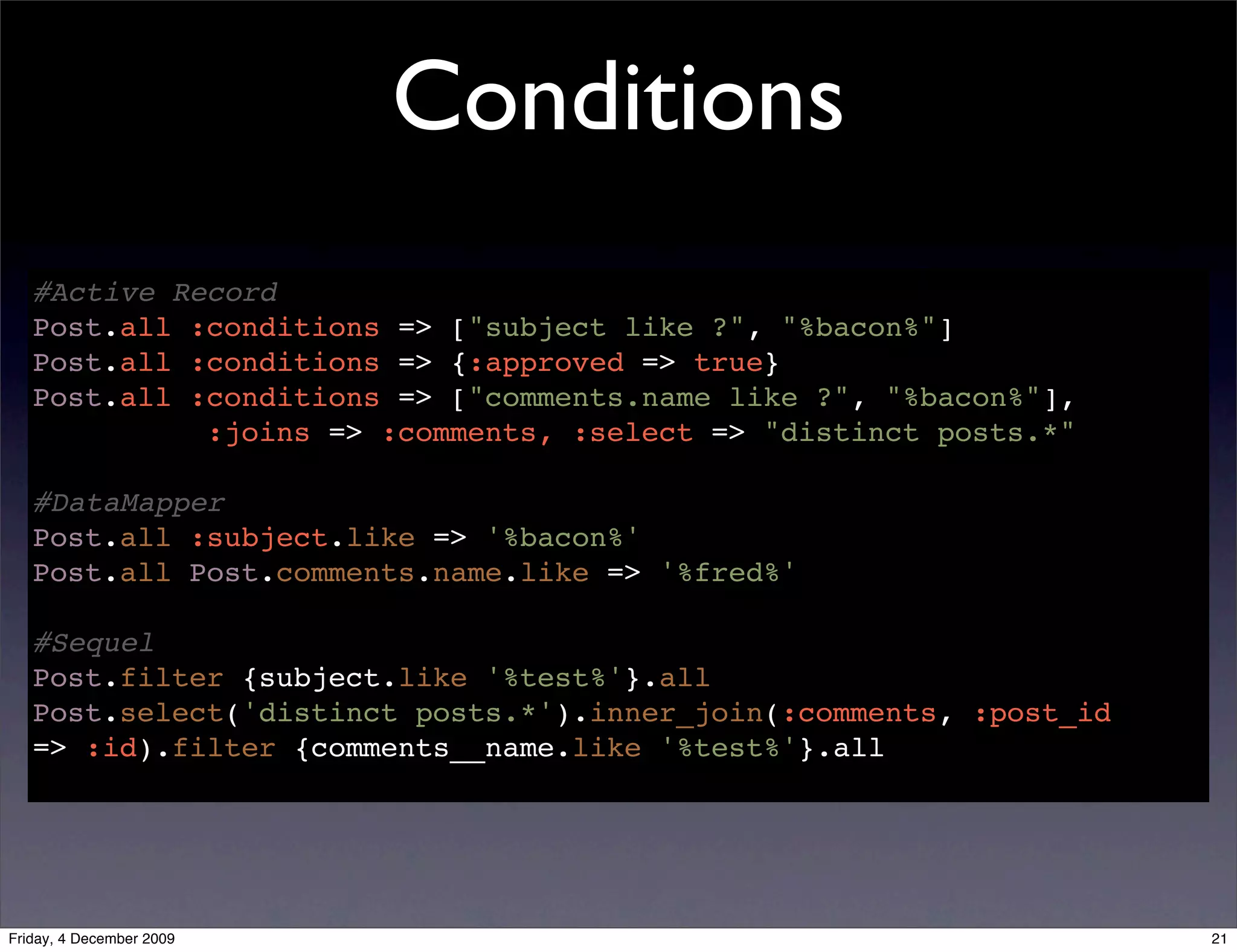

33. Conditions
#Active Record
Post.all :conditions => ["subject like ?", "%bacon%"]
Post.all :conditions => {:approved => true}
Post.all :conditions => ["comments.name like ?", "%bacon%"],
:joins => :comments, :select => "distinct posts.*"
#DataMapper
Post.all :subject.like => '%bacon%'
Post.all Post.comments.name.like => '%fred%'
#Sequel
Post.filter {subject.like '%test%'}.all
Post.select('distinct posts.*').inner_join(:comments, :post_id
=> :id).filter {comments__name.like '%test%'}.all
Friday, 4 December 2009 21

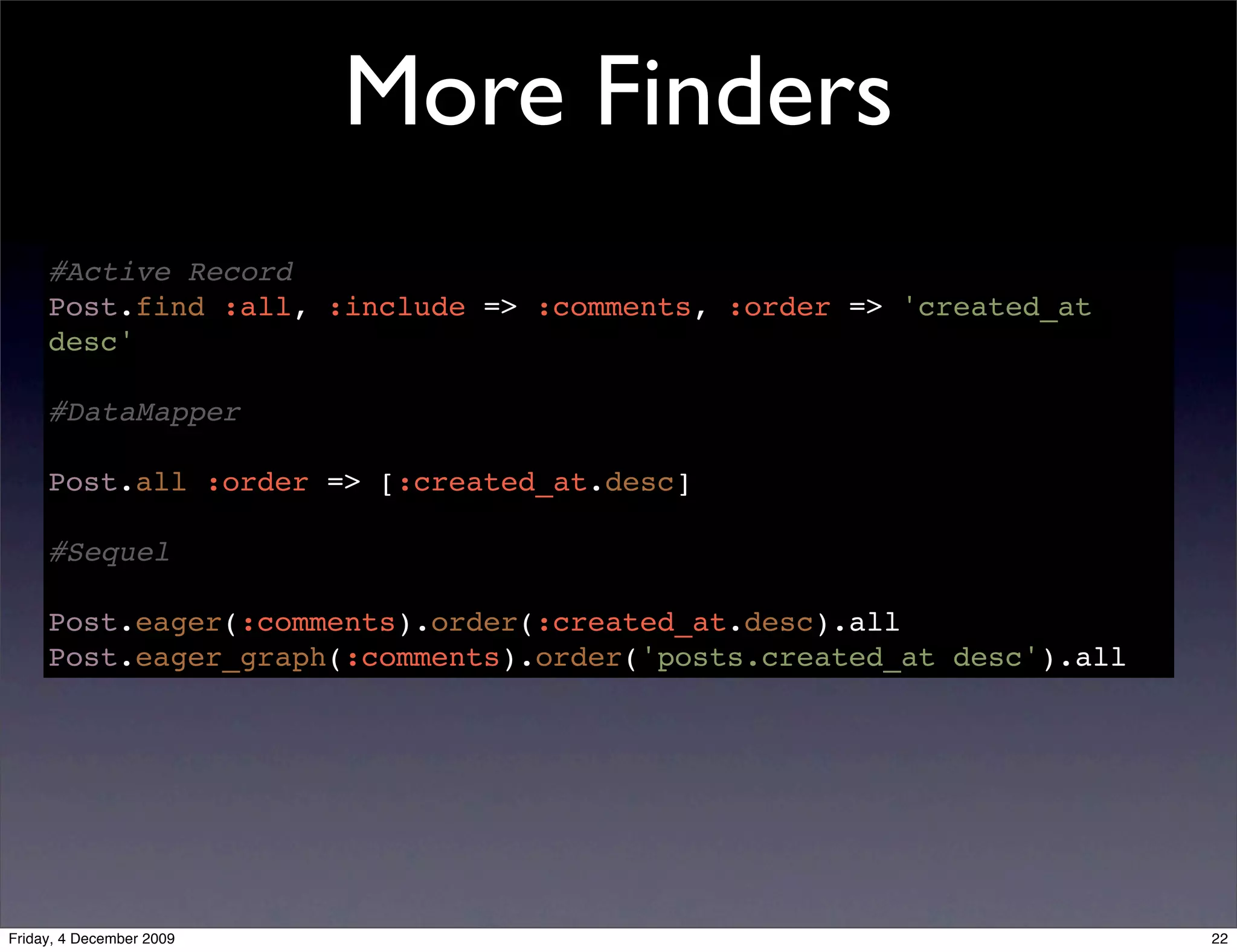

34. More Finders
#Active Record
Post.find :all, :include => :comments, :order => 'created_at
desc'
#DataMapper
Post.all :order => [:created_at.desc]
#Sequel
Post.eager(:comments).order(:created_at.desc).all
Post.eager_graph(:comments).order('posts.created_at desc').all
Friday, 4 December 2009 22

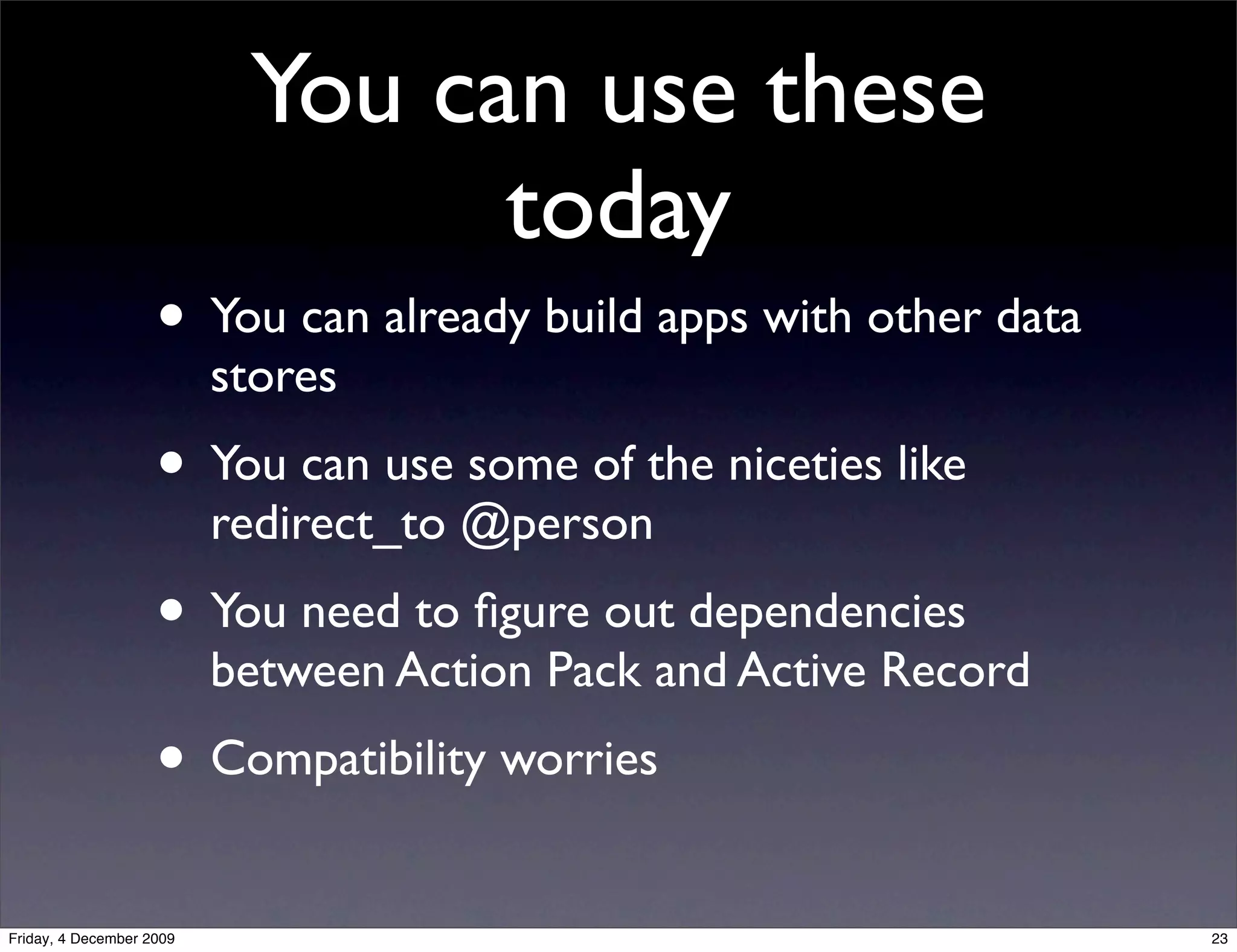

35. You can use these
today
• You can already build apps with other data
stores
• You can use some of the niceties like
redirect_to @person
• You need to figure out dependencies
between Action Pack and Active Record
• Compatibility worries
Friday, 4 December 2009 23

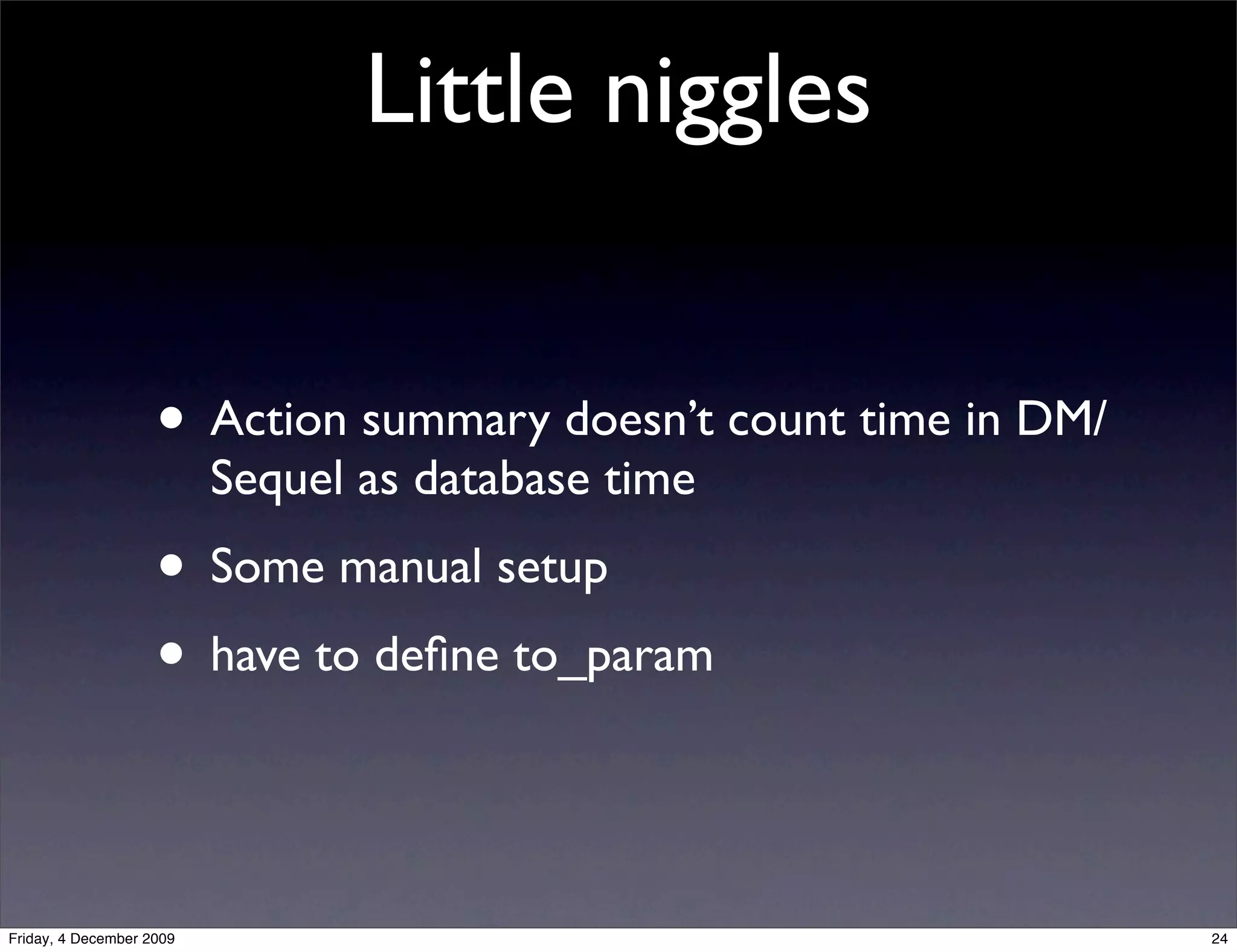

36. Little niggles
• Action summary doesn’t count time in DM/
Sequel as database time
• Some manual setup
• have to define to_param
Friday, 4 December 2009 24

37. Code time!
Friday, 4 December 2009 25

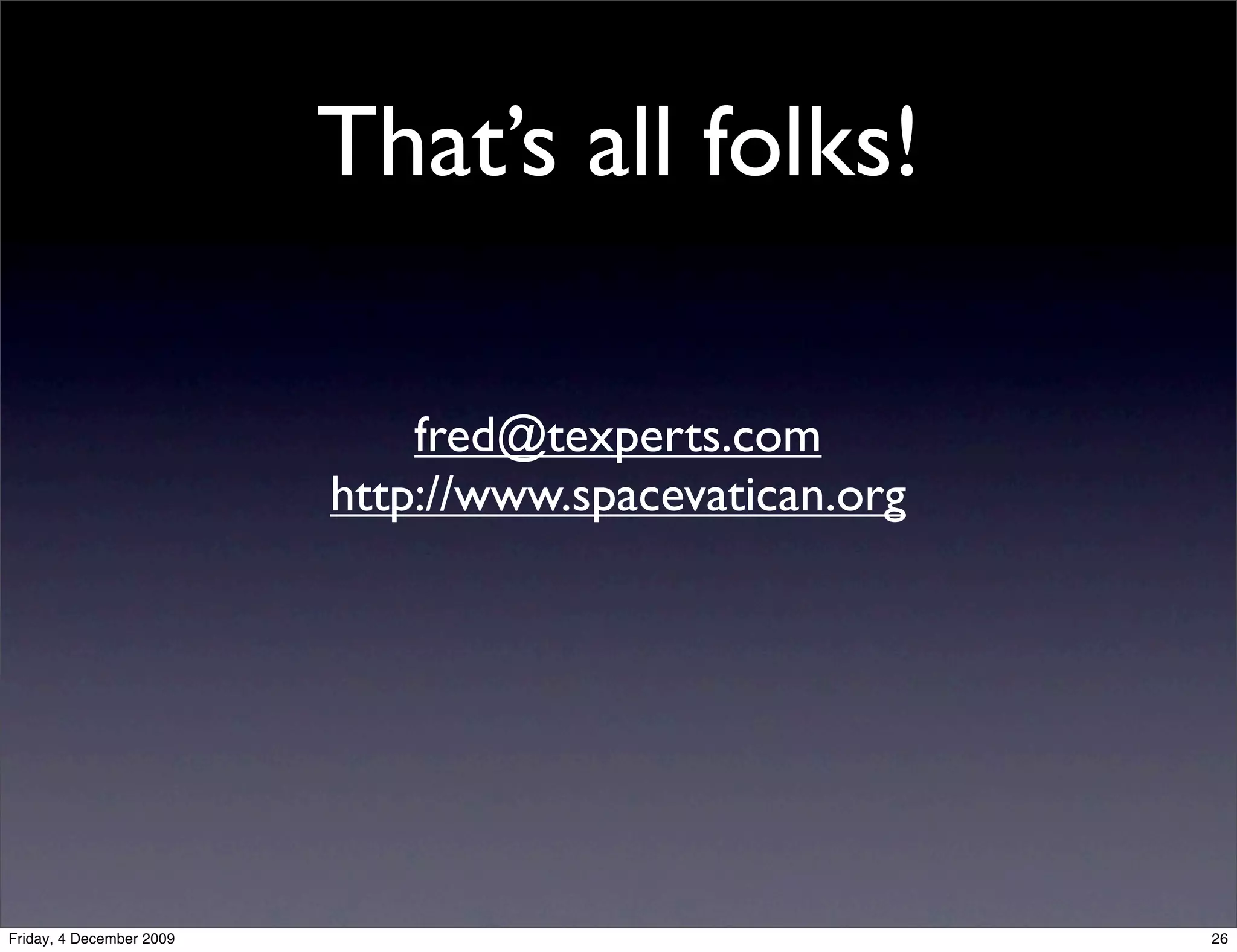

38. That’s all folks!
fred@texperts.com
http://www.spacevatican.org
Friday, 4 December 2009 26
