MANUAL DE SERVICIO

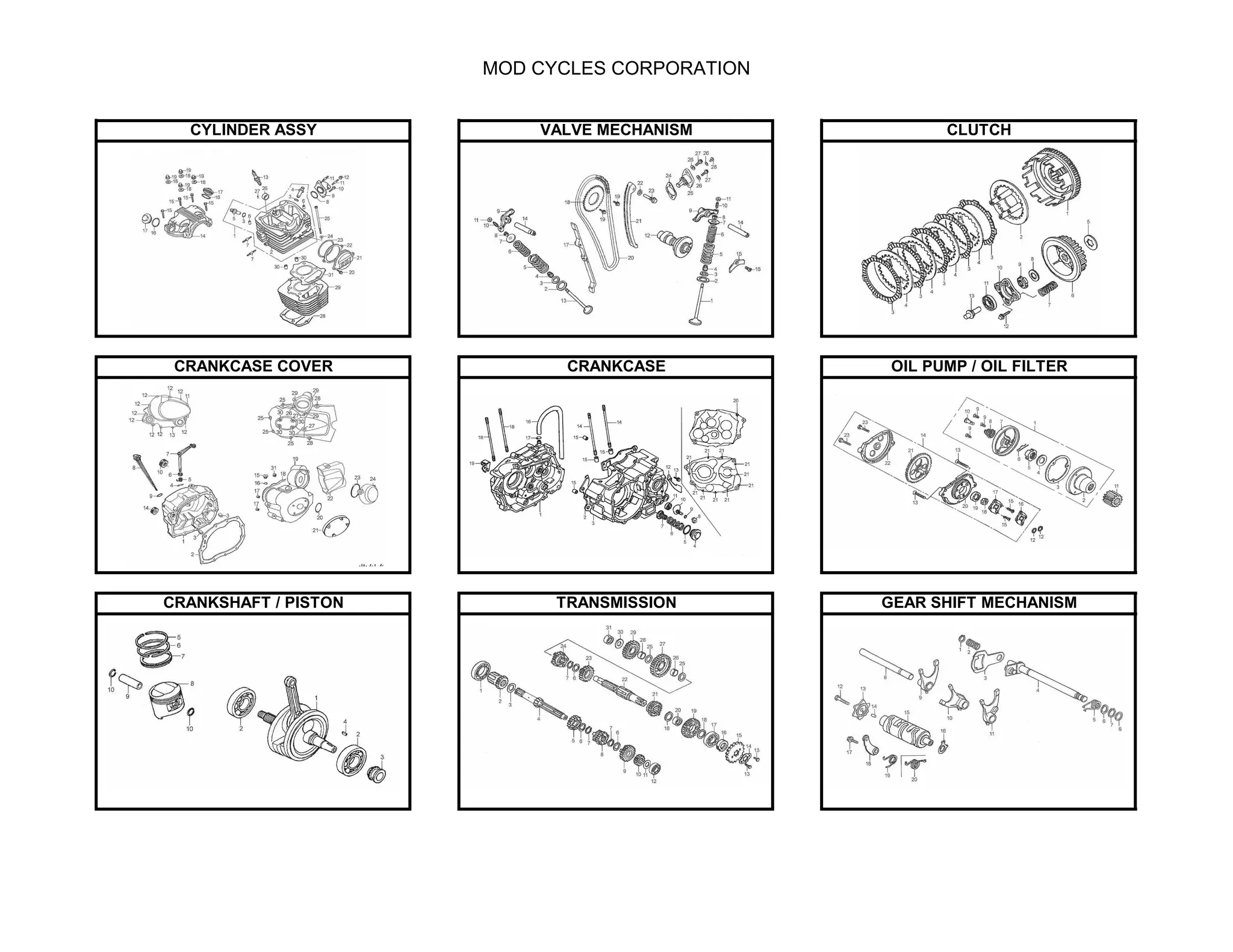

1. CYLINDER ASSY VALVE MECHANISM CLUTCH
CRANKCASE COVER CRANKCASE OIL PUMP / OIL FILTER
CRANKSHAFT / PISTON TRANSMISSION GEAR SHIFT MECHANISM
MOD CYCLES CORPORATION
NEXT

2. KICK STARTER MAGNETO ELECTRIC STARTER
CARBURETOR
MOD CYCLES CORPORATION
NEXTBACK

3. HEADLIGHT METER TURNING LIGHT
TAIL LIGHT ELECTRIC HANDLE CONTRALOR
PADLE CONTRALOR AIR CLEANER MUFFLER
MOD CYCLES CORPORATION
NEXTBACK

4. HANDLE BAR / STEERING STEM
FUEL TANK / FUEL COCK SEAT FR DAMPER
BODY COVER FR WHEEL / FR. DISK BRAKE
RR. SWINGARM / RR. DAMPER RR WHEEL FRAME COMP
MOD CYCLES CORPORATION
NEXTBACK

5. FOOT REST
MOD CYCLES CORPORATION
NEXTBACK

6. Ref No. Part No. Description Qty Ref No. Part No. Description Qty
1 1122B-L044-000082 CYLINDER HEAD ASSY 1 21 11227-I006-00000G L. COVER CYLINDER HEAD 1
2 11221-I006-000082 CYLINDER HEAD 1 22 90202-I006-0000 GASKET 1
3 90119-I006-0000 0-RING 9 X 1.5 2 23 90124-I006-0000 O-RING 75 x 2.5 1
4 11224-I006-0000 IN. VALVE GUIDE 1 24 GB/T848-1985 WASHER 6 1
5 11225-I006-0000 EX. GUIDE 1 25 91113-L044-00000H BOLT M6 x 110 1
6 91502-I006-0000 POSITION PIN 8 X 14 2 26 92101-I006-0000 SLIDING BEARING 1
7 GB/T900-1988 STUD M6 x 25 2 27 91506-I006-0000 POSITION PIN 1
8 90123-I006-0000 O-RING 33.5 x 3 1 28 90205-L044-0000 GASKETCYLINDER 1
9 1581A-L044-0000 INTAKE PIPE COMP 1 29 1110B-L044-000082 BODY CYLINDER ASSY 1
10 GB/T16674-1996 BOLT M6 x 22 2 30 91502-I006-0000 POSITION PIN 8 x 14 2
11 GB/T899-1988 STUD M6 x 20 2 31 90204-L044-0000 GASKET, CYLINDER HEAD 1
12 GB/T6170-1986 NUT M6 2
13 8130A-I006-0000 SPARK PLUG COMP. 1
14 11226-L044-000082 UPPER COVER, CYLINDER HEAD 1
15 GB/T16674-1996 BOLT M6 x 35 4
16 90104-I006-0000 O-RING 35 x 3 2
17 11229-I066-00000G CAP. TAPPET ADJUST HOLE 2
18 GB/T96-1985 WASHER 8 4
19 91201-I006-00000G NUT M8 4
20 GB/T5878-1988 BOLT M6 x 25 2
CYLINDER ASSY
MOD CYCLES CORPORATION
NEXTBACKINDEX

7. CYLINDER ASSY
MOD CYCLES CORPORATION
NEXTBACKINDEX

8. Ref No. Part No. Description Qty Ref No. Part No. Description Qty
1 15701-I006-0000 VALVE IN. 1 21 1552A-I006-0000 TENSIONER PLATE CAM CHAIN 1
2 15706-I006-0000 SEAT VALVE SPRING OUTER 2 22 GB/T97.1-1985 WASHER 8 1
3 15708-I006-0000 SEAT VALVE SPRING INNER 2 23 91126-I006-00000B BOLT M6 x 25 1
4 1572B-I008-0000 SEAL VALVE STEM 2 24 90213-I006-0000 GASKET 1
5 15703-I006-0000 SPRING VALVE OUTER 2 25 1550B-I006-0000 TENSIONER 1
6 15704-I006-0000 SPRING VALVE INNER 2 26 GB/T848-1985 WASHER 6 1
7 15705-I006-0000 RETAINER VALVE SPRING 2 27 GB/T16674-1996 BOLT M6 x 18 2
8 15707-I006-0000 COTTER VALVE 4 28 GB/T5783-2000 BOLT M6 x 10 1
9 15401-I006-0000 ARM VALVE ROCKER 2
10 15404-I006-0000 SCREW ADJUST 2
11 15403-I006-0000 NUT ADJUST 2
12 15100-L044-0000 CAMSHAFT COMP 1
13 15702-I006-0000 VALVE EX 1
14 15402-L044-0000 SHAFT VALVE ROCKER 2
15 15409-I00-6-0000 ARM POSITION PLATE ROCKER ARM 1
16 GB/T8191-2000 SCREW M6 x 16 1
17 1553A-I006-0000 GUIDE CAM CHAIN 1
18 15301-L004-0000 TIME DRIVEN SPROCKET 1
19 GB/T701.1-2000 BOLT M6 x 10 2
20 1530A-I006-0000 CAM CHAIN 1
VALVE MECHANISM
MOD CYCLES CORPORATION
NEXTBACKINDEX

9. VALVE MECHANISM
MOD CYCLES CORPORATION
NEXTBACKINDEX

10. Ref No. Part No. Description Qty
1 22320-I006-0000 DISK COMP CLUTCH 1
2 22224-I006-0000 DTSK CLUTCH SPRING 1
3 2223A-I006-0000 DRIVEN DISK CLUTCH FRICTION COMP 5
4 22201-I006-0000 DRIVEN PLATE CLUTCH 4
5 91306-I006-0000 WASHER SPLINE 20 1
6 2222A-I006-0000 DRIVEN HUB CLUTCH 1
7 22204-I006-00000H SPRING 4
8 91383-I006-00000H WASHER 16 1
9 91205-i006-00000H NUT M16 x 1.25 1
10 22203-I006-0000 CLUTCH END PLATE 1
11 GB/T276-1994 BEARING 16003 1
12 GB/T16674-1996 BOLT M6 x 20 4
13 22403-I006-00007 LIFTER ROD CLUTCH 1
CLUTCH
MOD CYCLES CORPORATION
NEXTBACKINDEX

11. CLUTCH
MOD CYCLES CORPORATION
NEXTBACKINDEX

12. Ref No. Part No. Description Qty Ref No. Part No. Description Qty
1 1242A-I049-830082 R.CRANKCASE COVER ASSY 1 21 12307-I049-03000G 1
2 90207-I006-0000 GASKET R. CRANKCASE COVER 1 22 12302-I049-020082 1
3 91504-I006-0000 LOCATING PIN 10 x 14 2 23 90113-I006-0000 O-RING 63 x 3 1
4 GB/T879-2000 SPLIT PIN 3 x 10 1 24 12308-I049-0000 COVER 1
5 22427-I006-0000 SPRING CLUTCH LEVER 1 25 GB/T16674-1996 M6 X 40 4
6 90306-I006-0000 OIL SEAL 12 x 22 x 5 1 26 GB/T16674-1996 M6 X 55 1
7 2242A-I006-0000 LEVER CLUTCH COMP 1 27 GB/T16674-1996 M6 X 60 2
8 14301-I006-0000 GAUGE OIL LEVEL 1 28 GB/T16674-1996 M6 X 20 2
9 90109-I006-0000 O-RING 18 x 3 4 29 GB/T16674-1996 M6 X 25 3
10 90305-I006-0000 OIL SEAL 16 x 28 x 7 1 30 GB/T818-2000 M6 X 12 4
11 GB/T820-2000 SCREW 5 x 25 1 31 GB/T290-1998 HK101410 1
12 GB/T16674-1996 BOLT 6 x 30 9
13 GB/T16674-1996 BOLT 6 x 45 1
14 14310-I006-0000 VIEW WINDOW,OIL LEVEL 1
15 12303-I006-0000 SMALL CAP 1
16 90106-I006-0000 O-RING 13.8 x 2.5 1
17 91502-I006-0000 LOCATING PIN 8 x 14 2
18 90206-I006-0000 GASKET 1
19 12301-I006-030082 F.COVER L. CRANKCASE 1
20 90104-I006-0000 O-RING 27.4 x 2.4 1
CRANKCASE COVER
MOD CYCLES CORPORATION
NEXTBACKINDEX

13. CRANKCASE COVER
MOD CYCLES CORPORATION
NEXTBACKINDEX

14. Ref No. Part No. Description Qty
1 1222B-L044-000082 CRANKCASE COMP R 1
2 90208-L044-0000 GASKET CRANKCASE 1
3 1212B-L044-000082 CRANKCASE COMP., L. 1
4 11229-I006-0000 SCREW CAP 1
5 90112-I006-0000 O-RING 18 x 3 1
6 14221-I006-0000 SPRING 1
7 1420B-I006-0000 SCREEN, OIL FILTER 1
8 GB/T9074.3 NUT M10 1
9 90114-I006-0000 0-RING 7 x 1.7 1
10 8802B-I00006-0100 CONTACT 1
11 90315—1006-0000 OIL SEAL 14 x 28 x 7 1
12 12101-I006-0000 PLATE 1
13 GB/T820-2000 SCREW M5 x 25 1
14 91102-L044-0000OC STUD B, CYLINDER 2
15 91507-I006-0000 LOCATING PIN 10 x 20 4
16 12105-I006-0000 DRAIN TUBE 1
17 12103-I006-0000 CIRCLIP 1
18 91101-L044-00000H STUD A CYLINDER 2
19 22422-L044-0000 HOLDER CLUTCH WIRE 1
20 GB/T16674-1996 BOLT M6 x 60 1
CRANKCASE
MOD CYCLES CORPORATION
NEXTBACKINDEX

15. CRANKCASE
MOD CYCLES CORPORATION
NEXTBACKINDEX

16. Ref No. Part No. Description Qty
1 14200-I006-0000 OIL FILTER COMP. 1
2 1421B-I006-0000 ROTOR, OIL FILTER 1
3 90218-I006-0000 GASKET, OIL FILTER COVER 1
4 91342-I006-0000 WASHER 16 1
5 91207-I006-00000H NUT M16 x 1.00 1
6 14209-I006-00000B PIN LOCK 1.5 x 16 1
7 14208-I006-0000 COVER FILTER ROTOR 1
8 14207-I006-0000 SPRING OIL GUIDE 1
9 GB/T820-2000 SCREW M5 x 12 1
10 14206-I006-0000 OIL GUIDE 3
11 23101-I006-0000 DRIVE GEAR 1
12 90112-I006-0000 0-RING 9.4 x 2.4 1
13 GB/T819.1-2000 SCREW M6 x 30 2
14 14100-I006-0000 OIL PUMP COMP 2
15 GB/T819.1-2000 SCREW M4 X 12 1
16 90212-I006-0000 GASKET. OIL PUMP COVER 2
17 14102-I006-0000 COVER OIL PUMP 1
18 14104-I006-0000 INNER ROTOR. OIL PUMP 1
19 14105-I006-0000 OUTER ROTOR, OIL PUMP 1
20 14108-I006-0000 OIL PUMP BODY 1
21 14120-I006-0000 GEAR OIL PUMP 1
22 14113-I006-0000 COVER OIL PUMP 1
23 GB/T5782-2000 GEARBOLT M5 x 20 2
OIL PUMP/OIL FILTER
MOD CYCLES CORPORATION
NEXTBACKINDEX

17. OIL PUMP/OIL FILTER
MOD CYCLES CORPORATION
NEXTBACKINDEX

18. Ref No. Part No. Description Qty
1 1320B-L044-0000 CONNECTING ROD, CRANKSHAFT COMP 1
2 GB/T276-1994 BEARING 63/28 2
3 15301-L044-0000 TIMING DRIVE SPROCKET 1
4 91601-L044-0000 SEMICIRCLE KEY 25x4x14 1
5 13103-L044-0000 PISTON RING I 1
6 13104-L044-0000 PISTON RING II 1
7 13120-L044-0000 OIL RING COMP 1
8 13101-L044-0000 PISTON 1
9 13102-L044-0000 PISTON PIN 1
10 91401-L044-0000 CIRCLIP PISTON PIN 15 2
CRANKSHAFT/PISTON
MOD CYCLES CORPORATION
NEXTBACKINDEX

19. CRANKSHAFT/PISTON
MOD CYCLES CORPORATION
NEXTBACKINDEX

20. Ref No. Part No. Description Qty Ref No. Part No. Description Qty
1 GB/T276-1994 BEARING 6006 1 21 23247-I006-0000 5TH COUNTER SHAFT 1
2 2323A-I006-0000 STARTING GEAR, MAINSHAFT 1 22 23241-I006-0000 COUNTER SHAFT 1
3 23228-I006-0000 WASHER THRUST 20 1 23 23245-I006-0000 4TH COUNTER SHAFT 1
4 23221-I006-0000 MAIN SHAFT 1 24 23244-I006-0000 3RD GEAR COUNTER SHAFT 1
5 23223-I006-0000 3RD MAIN SHAFT 1 25 23251-I006-0000 WASHER THRUST 16.5 2
6 23254-I006-0000 WASHER, SPLINE 20 3 26 23252-I006-0000 COLLAR COUNTER SHAFT 1ST GEAR 1
7 GB/T849.1-1986 CIRCLIP 20 3 27 23242-I006-0000 1ST GEAR,COUNTER SHAFT 1
8 23224-I006-0000 4TH MAIN SHAFT 1 28 23251-I006-0000 BUSH 1
9 23225-I006-0000 5TH MAIN SHAFT 1 29 232447-I006-0000 STARTING GEAR COUNTER SHAFT 1
10 23222-I006-0000 2ND MAIN SHAFT 1 30 23253-I006-0000 WASHER 15 1
11 23226-I006-0000 WASHER 15 1 31 92151-I006-0000 NEEDLE BEARING HK152112 1
12 GB/T276-1996 BEARING 6202 1
13 GB/T5783-2000 BOLT M6 x 10 2
14 23402-I006-0000 FIXING PLATE 1
15 23401-I006-0000 SPROCKET DRIVE 1
16 90301-I006-0000 OIL SEAL 16 x 28 x 7 1
17 GB/T276-1996 BEARING 6204 1
18 91411-I006-0000 WASHER 20 2
19 23243-I006-0000 2ND GEAR COUNTER SHAFT 1
20 23253-I006-0000 BUSH 1
TRANSMISSION
MOD CYCLES CORPORATION
NEXTBACKINDEX

21. TRANSMISSION
MOD CYCLES CORPORATION
NEXTBACKINDEX

22. Ref No. Part No. Description Qty
1 GB/T894.1-1986 RETAINING RING 12 1
2 24302-I006-0000 SPRING SHIFT PLATE 1
3 24301-I006-0000 SHIFT PLATE 1
4 2432A-I006-0000 SHIFT SHAFT COMP. 1
5 24303-I006-0000 RETURN SPRING SHIFT PLATE 1
6 91325-I006-0000 STOPPING WASHER 16 2
7 GB/T894.1-1986 RETAINING RING 14 1
8 24107-I006-0000 SHAFT GEARSHIFT FORK GUIDE 1
9 24104-I006-0000 FORK R GEARSHIFT 1
10 24106-I006-0000 FORK CENTER GEARSHIFT 1
11 24105-I006-0000 FORK L GEARSHIFT 1
12 GB/T16674-1996 BOLT M6 x 25 1
13 24203-I006-0000 CAM PLATE, GEARSHIFT 1
14 GB/T119-2000 PIN 4 x 10 1
15 24201-I006-0000 DRUM GEARSHIFT 1
16 88002-I006-0000 ROTOR NEUTRAL SWITCH 1
17 GB/T5783-2000 BOLT M6 x 22 1
18 2434A-I006-0000 POSITION PLATE, GEARSHIFT DRUM 1
19 24304-I006-0000 SPRING 1
20 24304-I006-0100 SPRING 1
GEAR SHIFT MECHANISM
MOD CYCLES CORPORATION
NEXTBACKINDEX

23. GEAR SHIFT MECHANISM
MOD CYCLES CORPORATION
NEXTBACKINDEX

24. Ref No. Part No. Description Qty
1 21107-I006-0000 SLEEVE 1
2 21106-I006-0000 SPRING. KICK STARTER 1
3 21108-I006-0000 SPRING RETAINER 1
4 21103-I006-0000 SHAFT STARTER 1
5 21101-I006-0000 GEAR KICK STARTER 1
6 91323-I006-0000 WASHER 16 1
7 GB/T894.1-1986 CIRCLIP 16 1
8 21102-I006-0000 RATCHET. KICK STARTER 1
9 21104-I006-0000 SPRING KICK STARTER RATCHET 1
10 21105-I006-0000 DISC SPRING 1
11 GB/T894.1-1986 WASHER 12 1
12 91324-I006-0000 WASHER 12 1
13 90132-I006-0000 O-RING 8 x 1.6 1
14 91125-I006-0000 BOLT M8 x 33 1
15 GB/T97.1-1985 WASHER 8 1
KICK STARTER
MOD CYCLES CORPORATION
NEXTBACKINDEX

25. KICK STARTER
MOD CYCLES CORPORATION
NEXTBACKINDEX

26. Ref No. Part No. Description Qty
1 82120-L044-0000 STATOR COMP 1
2 82130-I006-0000 ROTATOR COMP 1
3 91111-I006-00000B BOLT M10 x 1.25 x 35 1
4 91382-I006-0000 WASHER 10 1
5 GB/T16674-1996 BOLT M6 X 20 2
6 GB/T819.1-2000 SCREW M6 X 30 2
MAGNETO
MOD CYCLES CORPORATION
NEXTBACKINDEX

27. MAGNETO
MOD CYCLES CORPORATION
NEXTBACKINDEX

28. Ref No. Part No. Description Qty
1 82200-L044-0000 STARTING MOTOR ASSY. 1
2 21402-I049-0000 DUAL GEAR (1) AXLE 1
3 GB/T119-2000 PIN A3 X 6 1
4 GB/T290-1998 NEEDLE BEARING HK101410 2
5 21403-I049-0000 DUAL GEAR (1) 1
6 21401-I049-0000 DUAL GEAR (2) 1
7 GB/T70.1-2000 SCREW M6 x 12 3
8 21306-I008-0000 SPRING SEAT 3
9 21303-I008-0000 SPRING 3
10 21302-I008-0000 SPRING SOCKET 3
11 21304-I008-0000 ROLLER 10 3
12 21301-I008-0000 STARTING CLUTCH BODY 1
13 21305-I008-0000 SHIELD 1
14 2142A-I049-0000 GEAR BAFFLER, STARTING CLUTCH 1
15 21403-I008-0000 GEAR WASHER 10 4
16 21409-I049-0000 STOP PLATE 1
17 GB/T5783-2000 BOLT M6 X 12 1
ELECTRIC STARTER
MOD CYCLES CORPORATION
NEXTBACKINDEX

29. ELECTRIC STARTER
MOD CYCLES CORPORATION
NEXTBACKINDEX

30. Ref No. Part No. Description Qty Ref No. Part No. Description Qty
1 17100-L044-0000 CARBURETOR COMP. 1 21 90108-L044-0000 GASKET RING 1
2 17101-L044-0000 DUST PROTECTOR 1 22 17150-L044-0000 FLOAT 1
3 17102-L044-0000 MIXING CHAMBER COVER 1 23 17145-L044-0000 FLOAT PIN 1
4 90202-L044-0000 GASKET 1 24 17143-L044-0000 FLOAT NEEDLE 1
5 17149-L044-0000 CARBURETOR SPRING 1 25 17148-L044-0000 TUBE 1
6 17104-L044-0000 "V" CLIP 1 26 GB/T9074.1 SCREW & WASHER M4 X 14 3
7 GB/T896-1986 "E" RING 1.5 1 27 17149-L044-0000 CLIP TUBE 2
8 17107-L044-0000 OIL NEEDLE 1 28 90104-L044-0000 GASKET RING 4 1
9 17105-L044-0000 VALVE 1 29 17146-L044-0000 OIL DRAIN SCREW 1
10 17110-L044-0000 CARBURETOR BODY 1 30 GB/818-2000 SCREW M5 X 12 1
11 17111-L044-0000 ADJUSTING SCREW IDLE 1 31 17130-L044-0000 ONE-WAY VALVE 1
12 17112-L044-0000 SPRING 1 32 17300-L044-0000 STEEPED-UP PUMP 1
13 17113-L044-0000 ADJUSTING SCREW MIXING RATIO 1 33 17120-L044-0000 ADJUSTER 1
14 17114-L044-0000 RETURN SPRING 1 34 90107-L044-0000 0-RING 30 X 2.5 1
15 17118-L044-0000 MAIN MEASURING HOLE 1 35 17121-L044-0000 TUBE 1
16 17117-L044-0000 MAIN NOZZLE 1 36 17170-L044-0000 SCREW M5 X 12 1
17 17116-L044-0000 MAIN JET 1 37 L3052-0000-00000C SCREW M4 X 16 1
18 17115-L044-0000 IDLE NOZZLE 1 38 GB/T818-2000 3
19 17140-L044-0000 FLOAT CHAMBER 1
20 17142-L044-0000 GASKET 1
CARBURETOR
MOD CYCLES CORPORATION
NEXTBACKINDEX

31. CARBURETOR
MOD CYCLES CORPORATION
NEXTBACKINDEX

32. Ref No. Part No. Description Qty
1 86130-I111-0000 HEADLIGHT ASSY 1
2 86160-I111-0000 BULB 12V/35W 1
3 86117-I111-0000 SPRING 1
4 86140-I111-0000 SEAT HEADLIGHT 1
5 GB/T818-2000 SCREW M5 X 50 1
6 71300-I111-0000 CASE HEADLIGHT 1
7 GB/T818-2000 SCREW M5 X 12 2
8 86110-I111-0000 BRACKET. HEADLIGHT 1
9 GB/T845-1985 SCREW ST3.5 X 13 2
10 71164-I111-0000 BRACKET. FR FORK(1) 2
11 71165-I111-0000 BRACKET, FR.FORK(2) 1
12 86170-I111-0000 BULB 12V/3.4W 1
13 GB/T5783-2000 BOLT M6 X 12 2
14 GB/T818-2000 SCREW M6 X 12 2
15 71162-I111-0000 RUBBER SLEEVE 2
HEADLIGHT
MOD CYCLES CORPORATION
NEXTBACKINDEX

33. HEADLIGHT
MOD CYCLES CORPORATION
NEXTBACKINDEX

34. Ref No. Part No. Description Qty
1 87100-I111-0000 METER ASSY 1
2 87150-I111-0000 INDICATOR GEARSHIFT 1
3 87158-I111-0000 BRACKET SPEED0METER 1
4 87180-I111-0000 WIRE METER 1
5 87300-I111-0000 CABLE ASSY 1
6 87111-I111-0000 DAMPER 2
7 GB/T6170-2000 NUT M5 2
8 GB/T96-1985 WASHER 2
METER
MOD CYCLES CORPORATION
NEXTBACKINDEX

35. METER
MOD CYCLES CORPORATION
NEXTBACKINDEX

36. Ref No. Part No. Description Qty
1 86300-I111-0000 L F TURNING LIGHT 1
2 86304-I111-0000 SEAT 4
3 86305-I111-0000 CAP TURNING LIGHT 4
4 86301-I111-0000 RUBBER SLEEVE TURNING LAMP 4
5 86350-I111-0000 BULB 12V/10W 4
6 GB/T6187.1-2000 NUT M10 4
7 86360-I111-0000 WIRE ASSY 4
8 GB/T845-1985 SCREW ST4.2 X 13 4
9 G0010-0000-0000 SCREW ST2.9 X 19 8
10 87101-I111-0000 BRACKET.METER 1
11 GB/T5783-2000 BOLT M6 X 20 2
12 GB/T96-1985 WASHER 6 2
13 GB/T6170-2000 NUT M6 2
14 86400-I111-0000 R F TURNING LIGHT 1
15 86500-I111-0000 L RR TURNING LIGHT 1
16 86600-I111-0000 RR R TURNING LIGHT 1
17 86450-I111-0000 R F WIRE ASSY 1
18 86550-I111-0000 L RR WIRE ASSY 1
19 86650-I111-0000 RR R WIRE ASSY 1
TURNING LIGHT
MOD CYCLES CORPORATION
NEXTBACKINDEX

37. TURNING LIGHT
MOD CYCLES CORPORATION
NEXTBACKINDEX

38. Ref No. Part No. Description Qty
1 86200-I111-0000 TAIL LIGHT 1
2 86260-I111-0000 BULB, TAILLIGHT 12V21W/5W 1
3 86201-I111-0000 SEAT BULB 1
4 GB/T845-1985 SCREW ST4.2 X 16 2
5 GB/T96-1985 WASHER 5 2
6 86204-I111-0000 COVERTAIL LIGHT 1
7 86202-I111-0000 CASE TAIL LIGHT 1
8 86290-I111-0000 WIRE ASSY 1
9 GB/T813-2000 SCREW M6 X 20 2
10 91211-I111-0000 CLIP 2
TAIL LIGHT
MOD CYCLES CORPORATION
NEXTBACKINDEX

39. TAIL LIGHT
MOD CYCLES CORPORATION
NEXTBACKINDEX

40. Ref No. Part No. Description Qty
1 83100-I111-0000 RECTIFIER 1
2 GB/T16674-1996 BOLT M6 X 16 1
3 81110-I111-0000 COIL ASSY, IGNITION 1
4 85170-I111-0000 PROTECTOR 1
5 81130-I111-0000 CAP, SPARKPLUG 1
6 81200-I111-0000 IGNITION 1
7 GB/T16674-1996 BOLT M6 X 12 2
8 81211-I111-0000 RUBBER SLEEVE IGNITION 1
9 85600-I126-0000 FLASHER 1
10 85601-I111-0000 RUBBER SLEEVE FLASHER 1
11 85100-I111-0000 HARNESS 1
12 85500-I111-0000 HORN 1
13 GB/T16674-1996 BOLT M6 X 30 2
14 GB/T16674-1996 BOLT M6 X 25 1
15 GB/T6170-2000 NUT M6 2
16 GB/T93-1987 SPRING WASHER 6 2
17 82291-I111-0000 RUBBER SLEEVE, RELAY 1
18 84200-I111-0000 IGNITION LOCK 1
19 84210-I111-0000 KEYS 1
20 GB/T96-1985 WASHER 6 2
21 83200-G127-0000 BATTERY 1
22 83230-I111-0000 BATTERY BOX 1
23 83210-I111-0000 BAND 1
24 82290-I111-0000 STARTING RELAY 1
ELECTRIC
MOD CYCLES CORPORATION
NEXTBACKINDEX

41. ELECTRIC
MOD CYCLES CORPORATION
NEXTBACKINDEX

42. Ref No. Part No. Description Qty
1 72600-I111-0000 CABLE ASSY CLUTCH 1
2 69120-I111-0000 R. BACK VIEW MIRROR ASSY 1
3 69110-I111-0000 L. BACK VIEW MIRROR ASSY 1
4 72011-I111-0000 L GRIP 1
5 72200-I111-0000 L SWITCH ASSY 1
6 72209-I111-0000 CLUTCH LEVER 1
7 72224-I111-0000 BOLT 2
8 72272-I111-0000 LOCK NUT 1
9 72275-I111-0000 ADJUST BOLT 1
10 GB/T6170-2000 NUT M6 2
11 72309-I111-0000 BRAKE LEVER 1
12 72020-I111-0000 GRIP COMP R 1
13 GB/T923-1988 NUT M5 1
14 72300-I111-0000 R SWITCH ASSY 1
15 72317-I111-0000 HOLDER. R. BACK VIEW MIRROR 1
16 72222-I111-0000 CONNECTOR 1
17 GB/T823-1998 SCREW M4 X 12 1
18 72021-I111-0000 FIX THROTTLE 1
19 72217-I111-0000 HOLDER. L. BACK VIEW MIRROR 1
20 72400-I111-0000 CABLE ASSY. THROTTLE 1
21 72322-I111-0000 PROTECTOR. CABLE 1
22 72221-I111-0000 PROTECTOR CABLE 1
HANDLE CONTRALOR
MOD CYCLES CORPORATION
NEXTBACKINDEX

43. HANDLE CONTRALOR
MOD CYCLES CORPORATION
NEXTBACKINDEX

44. Ref No. Part No. Description Qty
1 52100-I111-0000 PEDAL COMP RR BRAKE 1
2 84600-I111-0000 SWITCH, RR BRAKE LAMP 1
3 52200-I111-0000 ROD ASSY RR BRAKE 1
4 GB/T97.1-1985 WASHER 6 2
5 52203-I111-0000 SPRING RR. BRAKE ROD 1
6 52204-I111-0000 PIN RR. BRAKE ROD 1
7 52205-I111-0000 ADJUST NUT 1
8 52208-I111-0000 PIN 1
9 GB/T91-2000 COTTER PIN 2 X 20 1
10 84602-I111-0000 SPRING, RR. BRAKE SWITCH 1
11 52001-I111-0000 RETURN SPRING 1
12 GB/T6187.1-2000 NUT M10 1
13 21200-I111-0000 STARTING ARM 1
14 GB/T5783-2000 BOLT M8 X 25 1
15 24400-I111-0000 PADLE, GEAR SHIFT 1
16 GB/T5783-2000 BOLT M6 X 20 1
PADLE CONTRALOR
MOD CYCLES CORPORATION
NEXTBACKINDEX

45. PADLE CONTRALOR
MOD CYCLES CORPORATION
NEXTBACKINDEX

46. Ref No. Part No. Description Qty Ref No. Part No. Description Qty
1 16101-I111-0000 CASE, AIR CLEANER 1 18 18000-I111-0000 MUFFLER 1
2 16111-I111-0000 CAP COMP. AIR CLEANER 1 19 18117-I111-0000 MUFFLER ASSY 1
3 16103-I111-0000 CONNECTING PIPE 1 20 18030-I111-0000 GASKET MUFFLER 1
4 16104-I111-0000 INNER PIPE 1 21 18104-I111-0000 PRESS PLATE. CONNECTOR 1
5 16106-I111-0000 TILTER COMP. AIR CLEANER 1 22 GB/T923-1988 NUT M6 2
6 16107-I111-0000 PRESS PLATE 1 23 GB/T16674-1996 BOLT M8 X 12 1
7 16108-I111-0000 FRAME COMP FILTER TRAP 1 24 GB/T818-2000 BOLT M8 X 16 2
8 16111-I111-0000 ROD 1 25 L3061-0000-0000 SCREW M6 X 10 4
9 16139-I111-0000 DAMPER 3 26 18003-I111-0000 COVER, EXHAUST 1
10 16149-I111-0000 FLANGE WASHER 3 27 18005-I111-0000 PIPE EXHAUST 1
11 16160-I111-0000 FR FILTER ELEMENT 1 28 18010-I111-0000 CONNECTOR, EXHAUST 1
12 16180-I111-0000 CIRCLIP 1 29 18004-I111-0000 GASKET EXHAUST PIPE 1
13 GB/T818-2000 SCREW M6 X 12 3 30 GB/T93-1987 SPRING WASHER 6 4
14 GB/T845-1985 SCREW ST4.2 X 13 4 31 18001-I111-0000 COVER MUFFLER 1
15 GB/T6170-2000 NUT M6 2
16 GB/T97.1-19850 WASHER 6 2
17 16100-I111-0000 AIR CLEANER 1
AIR CLEANER MUFFLER
MOD CYCLES CORPORATION
NEXTBACKINDEX

47. AIR CLEANER MUFFLER
MOD CYCLES CORPORATION
NEXTBACKINDEX

48. Ref No. Part No. Description Qty
1 61100-I111-0000 FUEL TANK 1
2 63374-I111-0000 L COVER FUEL TANK 1
3 63375-I111-0000 R COVER FUEL TANK 1
4 GB/T16674-1996 BOLT M6 X 16 4
5 61110-I111-0000 LOCK FUEL TANK 1
6 63378-I111-0000 CLIP 1
7 GB/T845-1985 SCREW ST4.8 X 13 1
8 GB/T845-1985 SCREW ST2.9 X 9.5 1
9 GB/T5783-1986 BOLT M6 X 20 2
10 61111-I111-0000 RUBBER DAMPER 2
11 61113-I111-0000 SPACER 2
12 61150-I111-0000 COCK ASSY 1
13 61180-F121-0000 FUEL FILTER 1
14 GB/T818-2000 SCREW M6 X 12 2
15 61302-0000-0000 FUEL HOSE 8 X 100 2
16 91109-F121-0000 CLIP FUEL HOSE 8 4
FUEL TANK / FUEL COCK
MOD CYCLES CORPORATION
NEXTBACKINDEX

49. FUEL TANK / FUEL COCK
MOD CYCLES CORPORATION
NEXTBACKINDEX

50. Ref No. Part No. Description Qty
1 41100-I111-0000 SEAT 1
2 63601-I111-0000 TAIL COVER 1
3 GB/T70.1-2000 SCREW M6 X 16 1
4 63306-G129-0000 RUBBER RING 1
5 42200-I111-0000 GOODS FRAME 1
6 GB/T16674-1996 BOLT M8 X 50 2
7 GB/T16674-1996 BOLT M8 X 16 2
8 GB/T97.1-1985 WASHER 8 2
SEAT
MOD CYCLES CORPORATION
NEXTBACKINDEX

51. SEAT
MOD CYCLES CORPORATION
NEXTBACKINDEX

52. Ref No. Part No. Description Qty
1 34200-I111-0000 DAMPER ASSY FR FORK R
2 63106-I111-0000 BRACKET FR LICENSE PLATE 1
3 GB/T5783-1986 BOLT M6 X 16 1
4 34101-I111-0000 CLAMP 4
5 34202-I111-0000 END COVER 1
6 34203-I111-0000 O-RING 2
7 34204-I111-0000 SPRING 2
8 34230-I111-0000 FR FORK COMP 2
9 34205-I111-0000 DUST SEAL 2
10 34240-I111-0000 PISTION GUIDE 2
11 34207-I111-0000 OIL SEAL 2
12 34208-I111-0000 SPRING 2
13 34209-I111-0000 CIRCLIP 2
14 34211-I111-0000 SPACER 2
15 34214-I111-0000 PISTON RING 2
16 34215-I111-0000 SPRING 2
17 GB/T70.1-2000 BOLT M8 X 30 2
18 34212-I111-0100 LOWER PIPE R. (F DISK BRAKE) 2
19 34100-I111-0000 DAMPER ASSY FR FORK L 1
FR. DAMPER
MOD CYCLES CORPORATION
NEXTBACKINDEX

53. FR. DAMPER
MOD CYCLES CORPORATION
NEXTBACKINDEX

54. Ref No. Part No. Description Qty Ref No. Part No. Description Qty
1 63371-I111-0000 COVER FR L 1 21 GB/T4393-84 SPANNER 12 X 14 1
2 63372-I111-0000 COVER FR R 1 22 06020-I111-0000 TOOL BAG 1
3 63301-I111-0000 L SIDE COVER 1 23 06004-I111-0000 WRENCH BAR 1
4 63332-I111-0000 R SIDE COVER 1 24 06005-I111-0000 DOUBLE END SCREW DRIVER 1
5 GB/T818-2000 SCREW M6 X 12 6 25 06001-I111-0000 WRENCH 1
6 63306-G129-0000 RUBBER RING 6 20 06010-I111-0000 CRIP 1
7 63217-I111-0000 HEAT PROTECT PLATE 1 27 GB/T4393-84 SPANNER 8 X 10 1
8 63213-I111-0000 RUBBER CLIP 1
9 63212-I111-0000 RUBBER RING 1
10 63201-I111-0000 RR.FENDER FR 1
11 GB/T5783-1986 BOLT M6 x 16 4
12 GB/T6170-2000 NUT M6 3
13 GB/T96-1985 WASHER 6 7
14 63202-I111-0000 RR. FENDER RR 1
15 63206-I111-0000 BRACKET RR. LICENSE PLATE 1
16 GB/T6170-2000 NUT M6 1
17 85830-I138-0000 RR. REFLECTOR 1
18 08214-0000-0000 BAND. TOOL BOX 220 1
19 06000-I111-0000 TOOLS 1
20 GB/T16674-1996 BOLT M6 X 16 1
BODY COVER
MOD CYCLES CORPORATION
NEXTBACKINDEX

55. BODY COVER
MOD CYCLES CORPORATION
NEXTBACKINDEX

56. Ref No. Part No. Description Qty Ref No. Part No. Description Qty
1 72100-I111-0000 HANDLE BAR COMP 1 21 63104-I111-0000 FR FENDER 1
2 72143-I111-0000 PAD CROSS BAR 1 22 72117-I111-0000 FIX. HANDLE BAR 2
3 72109-I111-0000 HOLDER, HANDLE BAR 2 23 GB/T308 STEEL BALL 3/16" 40
4 GB/T5487-1986 BOLT M8 X 35 4 24 GB/T6177.2-2000 NUT M8 2
5 71101-I111-0000 UPPER BRACKET FR FORK 1 25 GB/T6187.1-2000 NUT M8 2
6 GB/T16674-1996 BOLT M8 X 55 2 26 71107-I111-0000 DUATPROOF 1
7 71203-I111-0000 UPPER COLLAR BEARING 1
8 71202-I111-0000 LOWER RACE BEARING 1
9 71110-I111-0000 STEERING STEM ASSY 1
10 85850-I138-0000 FR REFLECTOR 2
11 71204-I111-0000 LOWER COLLAR BEARING 1
12 S3030-0000-0000 BOLT M6 X 20 3
13 63115-I111-0000 SPACER. FR. FENDER 3
14 63114-I111-0000 RUBBER RING. FR FENDER 3
15 71105-I111-0000 NUT STEERING STEM 1
16 72501-I111-0000 CLAMP 1
17 71102-I111-0000 NUT STEERING UPPER 1
18 71103-I111-0000 PLANE WASHER 1
19 71201-I111-0000 UPPER RACE BEARING 1
20 GB/T16674-1996 BOLT M8 X 35 2
HANDLE BAR / STEERING STEM
MOD CYCLES CORPORATION
NEXTBACKINDEX

57. HANDLE BAR / STEERING STEM
MOD CYCLES CORPORATION
NEXTBACKINDEX

58. Ref No. Part No. Description Qty Ref No. Part No. Description Qty
1 51111-I111-0100 FR. HUB 1 21 53040-I111-0000 BRAKE TUBE 1
2 51112-I111-0100 RIM. FR. WHEEL 1 22 53020-I111-0000 UPPER BRAKE CYLINDER 1
3 51113-I111-0100 INNER SPOKE, FR. WHEEL 18 23 53021-I111-0000 FIXING PLATE 1
4 51113-I111-0100 OUTER SPOKE, FR. WHEEL 18 24 S7014-0000-0000H BOLT M6 X 25 2
5 51115-I111-0100 NIPPLE, FR. SPOKE 36 25 53001-I111-0000 F. BRAKE DISK 1
6 GB/T276-1994 BEARING 6300RS 2 26 GB/T70.1-2000 SCREW M8 X 6 4
7 51117-I111-0100 SPACER 1 27 87330-I111-0000 COUNTER 1
8 51116-I111-0000 OIL SEAL 1
9 GB/T6187.1-2000 NUT M10 1
10 51181-I111-0000 AXLE. FR. WHEEL 1
11 51102-I111-0100 R. SPACER FR WHEEL 1
12 51103-I111-0000 FR TIRE COMP 2.75 - 18 1
13 51104-I111-0000 TR. TUBE ASSY 1
14 51105-I111-0000 PROTECTOR. FR. WHEEL 1
15 GB/T16674-1996 BOLT M10 X 25 2
16 53000-I111-0000 F DISK BRAKE ASSY 1
17 GB/T16674-1996 BOLT M8 X 35 2
18 53330-I111-0000 FRICTION PLATE ASSY 1
19 53001-I111-0000 FIXING BRACKET 1
20 53010-I111-0000 LOWER BRAKE CYLINDER 1
FR WHEEL / FR DISK BRAKE
MOD CYCLES CORPORATION
NEXTBACKINDEX

59. FR WHEEL / FR DISK BRAKE
MOD CYCLES CORPORATION
NEXTBACKINDEX

60. Ref No. Part No. Description Qty Ref No. Part No. Description Qty
1 35220-I111-0100 SWING ARM COMP 1 21 35030-I111-0000 PRESS PLATE 2
2 35001-I111-0000 BUFFER CHAIN 1 22 35003-I111-0000 PLATE, CHAIN 1
3 GB/T818-2000 SCREW M6 X 16 2 23 GB/T5783-2000 BOLT M6 x 16 2
4 35010-I111-0000 L. ADJUSTER COMP CHAIN 1 24 GB/T96-1985 WASHER 6 2
5 35281-I111-0000 SHAFT RR. SWING ARM 1 25 33000-I111-0100 RR. ABSORBER 1
6 35282-I111-0000 SPACER 2 26 GB/T16674-1996 BOLT M10 X 35 1
7 GB/T6170-2000 NUT M6 2 27 GB/T6187.1-2000 NUT M10 2
8 GB/T91-2000 COTTER PIN 2 X 20 1 28 GB/T96-1985 WASHER 6 3
9 GB/T6187.1 NUT M12 1 29 35100-I111-0000 CHAIN CASE 1
10 GB/T848-1985 WASHER 8 1 30 GB/T5783-1986 BOLT M6 x 12 3
11 35201-I111-0000 DUST SEAL 2 31 26400-I111-0000 CHAIN 428H X 122 1
12 GB/T6170-2000 NUT M8 1 32 35102-I111-0000 RUBBER RING CHAIN BOX 2
13 35212-I111-0000 TORQUE LINK COMP 1 33 35101-I111-0000 DAMPER RING, CHAIN BOX 1
14 91121-I111-0000 BOLT M10 X 1.25-6g 1 34 GB/T5783-2000 BOLT M12 X 70 1
15 91122-I111-0000 BOLT M8 x 14 1 35 GB/T93-1987 WASHER 12 1
16 GB/T6187.1-2000 NUT M10 2 36 GB/T96-1985 WASHER 12 2
17 GB/T91-2000 COTTER PIN 2 X 16 1 37 GB/T6187.1-2000 NUT M12 1
18 GB/T96-1985 WASHER 10 2 38 GB/T93-1987 WASHER 10 1
19 35010-I111-0000 R ADJUSTER COMP CHAIN 1 39 GB/T96-1985 WASHER 10 1
20 35020-I111-0000 GUIDE PLATE CHAIN ADJUSTER 2
RR SWINGARM (SIGNAL RR. DAMPER)
MOD CYCLES CORPORATION
NEXTBACKINDEX

61. RR SWINGARM (SIGNAL RR. DAMPER)
MOD CYCLES CORPORATION
NEXTBACKINDEX

62. Ref No. Part No. Description Qty Ref No. Part No. Description Qty
1 51211-I111-0000 RR. HUB 1 21 54240-I111-0000 PANEL COMP RR. BRAKE 1
2 51212-I111-0000 RIM RR WHEEL 1 22 51203-I111-0000 RR. TIRE COMP 3.00-16 1
3 GB/T6187.1-2000 NUT M14 1 23 51204-I111-0000 RR. TUBE 1
4 51217-I111-0000 SPACER 1 24 51205-I111-0000 PROTECTOR, RR WHEEL INNER 1
5 51213-I111-0000 INNER SPOKE, RR WHEEL 18 25 54205-I111-0000 INDICATOR, RR. BRAKE 1
6 51213-I111-0000 OUTER SPOKE. RR WHEEL 18
7 51214-I111-0000 NIPPLE WHEEL SPOKE 36
8 GB/T276-1994 BEARING 6300RS 2
9 55002-I111-0000 SPROCKET 1
10 51281-I111-0000 RR AXLE 1
11 54220-I111-0000 SHOE COMP RR BRAKE 2
12 54204-I111-0000 SPRING RR BRAKE SHOE 2
13 54206-I111-0000 CAM RR BRAKE 1
14 54203-I111-0000 LEVER RR BRAKE 1
15 90118-I111-0000 SEAL 1
16 GB/T848-1985 WASHER 6 1
17 GB/T5782-2000 BOLT M6 X 35 1
18 GB/T6170-2000 BOLT M6 1
19 GB/T6177.2-2000 NUT M10 4
20 91118-I111-0000 STUD 4
RR WHEEL
MOD CYCLES CORPORATION
NEXTBACKINDEX

63. RR WHEEL
MOD CYCLES CORPORATION
NEXTBACKINDEX

64. Ref No. Part No. Description Qty Ref No. Part No. Description Qty
1 31100-I111-0000 FRAME COMP 1 21 62120-I111-0000 BRACKET COMP R 1
2 32302-I111-0000 R UPPER CONNECTOR PLATE 1 22 62110-I111-0000 BRACKET COMP L 1
3 32301-I111-0000 L UPPER CONNECTOR PLATE 1 23 62140-I111-0000 GRILLE R 1
4 GB/T16674-1996 BOLT M8 X 70 3 24 62130-I111-0000 GRILLE L 1
5 GB/T93-1987 SPRING WASHER 8 7 25 63401-I111-0000 SPRING GRILLE 4
6 GB/T6187.1-2000 NUT M8 7 26 GB/T6170-2000 NUT M6 4
7 GB/T16674-1996 BOLT M8 X 60 2 27 31100-I111-0100 FRAME COMP (SINGAL RR DAMPER) 1
8 32303-I111-0000 FR SUSPENDER, ENGINE 1
9 GB/T16674-1996 BOLT M8 X 90 2
10 GB/T79.1-1985 WASHER 8 7
11 32308-I111-0000 R SPACER ENGINE 1
12 32309-I111-0000 L SPACER ENGINE 1
13 31110-I111-0000 LOWER PROTECTOR ENGINE 1
14 GB/T5783-2000 BOLT M6 X 16 2
15 GB/T5783-2000 BOLT M8 X 20 1
16 31114-I111-0000 RR RUBBER SLEEVE PROTECTOR 2
17 31115-I111-0000 FR RUBBER SLEEVE PROTECTOR 1
18 31116-I111-0000 DAMPER ENGINE 4
19 31117-I111-0000 SPACER 2
20 31118-I111-0000 SPACER 1
FRAME COMP
MOD CYCLES CORPORATION
NEXTBACKINDEX

65. FRAME COMP
MOD CYCLES CORPORATION
NEXTBACKINDEX

66. Ref No. Part No. Description Qty
1 GB/T118-2000 PIN 6 X 30 2
2 GB/T5783-2000 BOLT M10 X 30 2
3 GB/T97.1-1985 WASHER 6 4
4 32417-I111-0000 LIMIT PLATE, RR. FOOTREST 2
5 32414-I111-0000 BAR COMP RR FOOTREST L 1
6 32424-I111-0000 BAR COMP RR FOOTREST R 1
7 32416-I111-0000 RUBBER SLEEVE, RR FOOTREST 2
8 32161-I111-0000 FIX PLATE, FR. FOOTREST R 1
9 32153-I111-0000 PADLE FR FOOTREST L 1
10 32151-I111-0000 FIX PLATE, FR. FOOTREST L 1
11 32163-I111-0000 PADLE FR FOOTREST R 1
12 GB/T91-2000 COTTER PIN 2 X 16 4
13 32169-I111-0000 SPRING, FR. FOOTREST 2
14 GB/T118-2000 PIN 6 X 30 2
15 32130-I111-0000 SIDE STAND 1
16 32131-I111-0000 SIDE STAND BOLT 1
17 32109-I111-0000 SPRING 1
18 GB/T6170-2000 NUT M8 1
FOOTREST
MOD CYCLES CORPORATION
NEXTBACKINDEX

67. FOOTREST
MOD CYCLES CORPORATION
BACKINDEX
