1. Dan Wahlin

2. Dan Wahlin
Blog
http://weblogs.asp.net/dwahlin
Twitter
@DanWahlin

3. Get 60% off the video course!
http://tinyurl.com/ngDirectives60

4. http://codepen.io/danwahlin
https://github.com/DanWahlin/AngularCustomDirectives

5. Agenda
• The Role of Directives
• Peeking Under the Hood
• Shared vs. Isolate Scope
• Linking to the DOM
• Controller Love
• Directive Examples

6. Key AngularJS Directives
Application
• ng-app
• ng-controller
Forms
• ng-maxlength
• ng-minlength
• ng-pattern
• ng-required
• ng-submit
Templates
• ng-disabled
• ng-cloak
• ng-hide
• ng-if
• ng-repeat
• ng-show
• ng-switch
• ng-view
Data Binding
• ng-bind
• ng-href
• ng-init
• ng-model
• ng-src
• ng-style
Behavior
• ng-blur
• ng-change
• ng-checked
• ng-click
• ng-key*
• ng-mouse*

7. Using AngularJS Directives
• Attribute directives
<span my-dir="exp"></span>
• Element directives
<my-dir></my-dir>
• CSS class directives
<span class="my-dir: exp;"></span>
• Comment directives
<!-- directive: my-dir exp -->

8. Custom Directives
Data-Driven Directives
All about data, using
other directives and a
controller
DOM-Driven Directives
All about DOM
Manipulation
Behavior-Driven
Directives
All about events and
behaviors

9. Agenda
• The Role of Directives
• Peeking Under the Hood
• Shared vs. Isolate Scope
• Linking to the DOM
• Controller Love
• Directive Examples

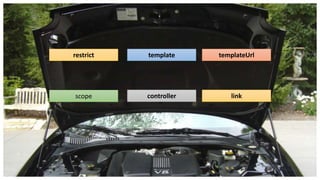

10. templateUrl
scope
restrict template
controller link

11. angular.module('moduleName')
.directive('myDirective', function () {
return {
restrict: 'EA', //E = element, A = attribute, C = class, M = comment
scope: {
//@ reads the attribute string value,
//= provides two-way binding,
//& works with functions
title: '@'
},
template: '<div>{{ myVal }}</div>',
templateUrl: 'mytemplate.html',
controller: controller,
link: function ($scope, element, attrs) { } //DOM manipulation
}
});
http://docs.angularjs.org/api/ng/service/$compile

12. Agenda
• The Role of Directives
• Peeking Under the Hood
• Shared vs. Isolate Scope
• Linking to the DOM
• Controller Love
• Directive Examples

13. Shared Scope
Parent Scope
Child Scope

14. Isolate Scope

15. Parent Scope
Child Scope
Wall Blocks Parent Scope

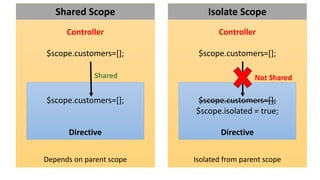

16. Controller
$scope.customers=[];
Depends on parent scope
$scope.customers=[];
Directive
Shared
Controller
$scope.customers=[];
Isolated from parent scope
$scope.customers=[];
$scope.isolated = true;
Directive
Not Shared
Shared Scope Isolate Scope

17. Shared Scope Directive Example
var app = angular.module('myModule', []);
app.controller('Controller', ['$scope', function ($scope) {
$scope.customer = {
name: 'David',
street: '1234 Anywhere St.'
};
}]);
app.directive('sharedScope', function () {
return {
template: 'Name: {{customer.name}} Street: {{customer.street}}'
};
});
Scope is inherited
<div shared-scope></div>

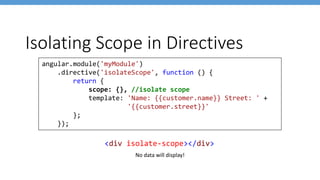

18. Isolating Scope in Directives
angular.module('myModule')
.directive('isolateScope', function () {
return {
scope: {}, //isolate scope
template: 'Name: {{customer.name}} Street: ' +
'{{customer.street}}'
};
});
<div isolate-scope></div>
No data will display!

19. Hi, I'm Dan
String with one-way binding
@
$scope.first='James';
Directive can access a string value
scope: { name: '@' }
Directive
@ isolate scope property
<my-directive name="{{first}}" />

20. Hi, I'm Dan
No, you're Jim
Bi-directional Binding
=
$scope.person={name:'Dan'};
Two-way binding created
scope: { customer: '=' }
Directive
= isolate scope property
<my-directive customer="person" />

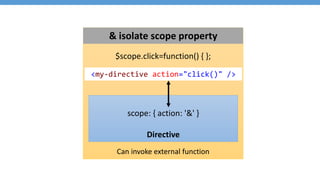

21. Call me back at: 123-1234
Calling 123-1234
Function Callback
&
$scope.click=function() { };
Can invoke external function
scope: { action: '&' }
Directive
& isolate scope property
<my-directive action="click()" />

22. @ Bind a local scope property to the value of a DOM attribute. The result
is always a string.
scope: { name: '@' }  <my-directive name="{{name}}" />
= Creates a bi-directional binding between a local scope property and the
parent scope property.
scope: { customer: '=' }  <my-directive
customer="person" />
& Execute an expression/function in the context of the parent scope.
scope: { click: '&' }  <my-directive click="click()" />

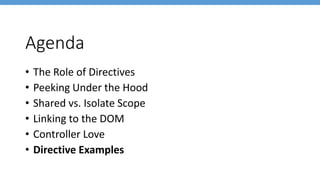

23. Agenda
• The Role of Directives
• Peeking Under the Hood
• Shared vs. Isolate Scope
• Linking to the DOM
• Controller Love
• Examples

24. angular.module('directivesModule')
.directive('domDirective', function () {
return {
restrict: 'A',
link: function ($scope, element, attrs) {
element.bind('click', function () {
element.html('You clicked me!');
});
element.bind('mouseenter', function () {
element.css('background-color', 'yellow');
});
element.bind('mouseleave', function () {
element.css('background-color', 'white');
});
}
};
});
<div dom-directive>Click Me!</div>

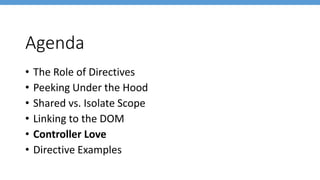

25. Agenda
• The Role of Directives
• Peeking Under the Hood
• Shared vs. Isolate Scope
• Linking to the DOM
• Controller Love
• Directive Examples

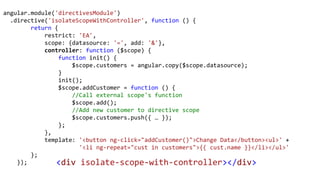

26. angular.module('directivesModule')
.directive('isolateScopeWithController', function () {
return {
restrict: 'EA',
scope: {datasource: '=', add: '&'},
controller: function ($scope) {
function init() {
$scope.customers = angular.copy($scope.datasource);
}
init();
$scope.addCustomer = function () {
//Call external scope's function
$scope.add();
//Add new customer to directive scope
$scope.customers.push({ … });
};
},
template: '<button ng-click="addCustomer()">Change Data</button><ul>' +
'<li ng-repeat="cust in customers">{{ cust.name }}</li></ul>'
};
}); <div isolate-scope-with-controller></div>

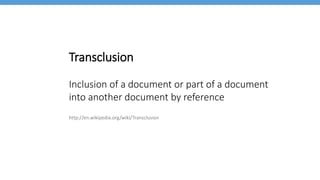

27. Transclusion
Inclusion of a document or part of a document
into another document by reference
http://en.wikipedia.org/wiki/Transclusion

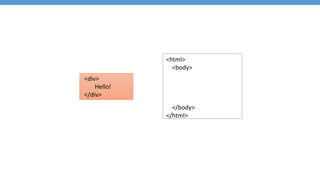

28. <html>
<body>
</body>
</html>
<div>
Hello!
</div>

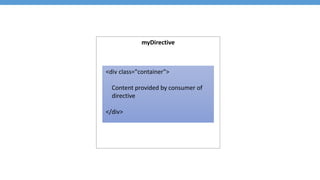

29. myDirective
<div class="container">
Content provided by consumer of
directive
</div>

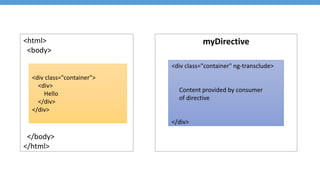

30. myDirective
<div class="container" ng-transclude>
Content provided by consumer
of directive
</div>
<html>
<body>
<my-directive>
</my-directive>
</body>
</html>
<div>
Hello!
</div>
<div class="container">
<div>
Hello
</div>
</div>

31. Agenda
• The Role of Directives
• Peeking Under the Hood
• Shared vs. Isolate Scope
• Linking to the DOM
• Controller Love
• Directive Examples

32. https://github.com/DanWahlin/CustomerManagerStandard

33. Find more ngularJS content at:
Blog
http://weblogs.asp.net/dwahlin
Twitter
@DanWahlin

34. If you read this far you deserve a bigger discount!
Get 60% 70% off the video course!
http://tinyurl.com/ngDirectives70
