1. 20th Feb 2021
Kolkata MuleSoft Meetup #6
Custom Connector using Java and
XML SDK in MuleSoft

2. 2

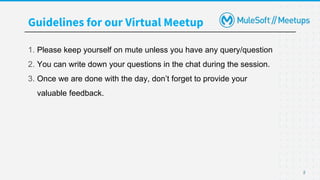

Guidelines for our Virtual Meetup
1. Please keep yourself on mute unless you have any query/question
2. You can write down your questions in the chat during the session.
3. Once we are done with the day, don’t forget to provide your
valuable feedback.

3. 3
●About the organizers:
○ Jiten Chawla
○ Brojeswar Roy
○ Roikka Hazarika
Introductions
A SHOW OF HANDS:
Who is new to this Meetup?

4. Speaker
4
Technical Expertise:
➢ 10+ years of Technical Experience.
➢ 5+ years of Experience in the Integration Domain.
➢ Certified Mulesoft Developer - Level 1.
➢ Certified Integration Developer in Dell Boomi.
➢ Member, Alumni Association IIT Bombay.
➢ Mule Meetup Speaker.
Linkedin Profile for more details: https://www.linkedin.com/in/ashishpardhi/

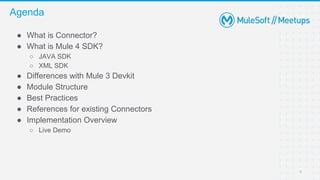

5. ● What is Connector?
● What is Mule 4 SDK?
○ JAVA SDK
○ XML SDK
● Differences with Mule 3 Devkit
● Module Structure
● Best Practices
● References for existing Connectors
● Implementation Overview
○ Live Demo
Agenda
5

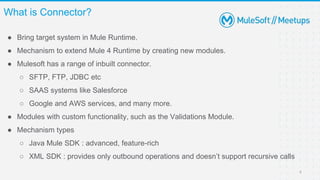

6. ● Bring target system in Mule Runtime.
● Mechanism to extend Mule 4 Runtime by creating new modules.
● Mulesoft has a range of inbuilt connector.
○ SFTP, FTP, JDBC etc
○ SAAS systems like Salesforce
○ Google and AWS services, and many more.
● Modules with custom functionality, such as the Validations Module.
● Mechanism types
○ Java Mule SDK : advanced, feature-rich
○ XML SDK : provides only outbound operations and doesn’t support recursive calls
What is Connector?
6

7. ● The Mule SDK allows Mule developers to create modules
that can be used just like any other module in Mule (e.g.,
HTTP module, Java module, Validation module).
● Modules enable reuse, offload complexity and deliver
consistent behavior.
● Mule Extensions API
○ This API is a well-defined contract for how modules can
interact with the Mule Runtime.
What is the Mule SDK?
7

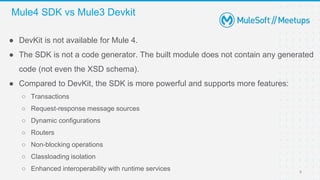

8. ● DevKit is not available for Mule 4.
● The SDK is not a code generator. The built module does not contain any generated
code (not even the XSD schema).
● Compared to DevKit, the SDK is more powerful and supports more features:
○ Transactions
○ Request-response message sources
○ Dynamic configurations
○ Routers
○ Non-blocking operations
○ Classloading isolation
○ Enhanced interoperability with runtime services
Mule4 SDK vs Mule3 Devkit
8

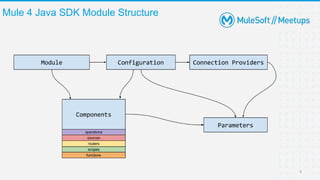

9. Mule 4 Java SDK Module Structure
9

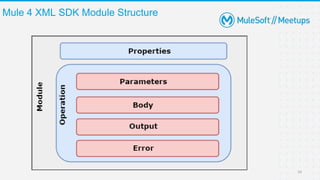

10. Mule 4 XML SDK Module Structure
10

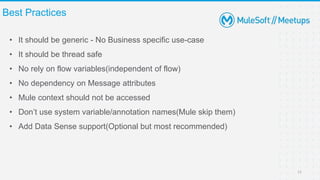

11. • It should be generic - No Business specific use-case
• It should be thread safe
• No rely on flow variables(independent of flow)
• No dependency on Message attributes
• Mule context should not be accessed
• Don’t use system variable/annotation names(Mule skip them)
• Add Data Sense support(Optional but most recommended)
Best Practices
11

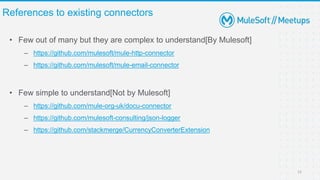

12. • Few out of many but they are complex to understand[By Mulesoft]
– https://github.com/mulesoft/mule-http-connector
– https://github.com/mulesoft/mule-email-connector
• Few simple to understand[Not by Mulesoft]
– https://github.com/mule-org-uk/docu-connector
– https://github.com/mulesoft-consulting/json-logger
– https://github.com/stackmerge/CurrencyConverterExtension
References to existing connectors
12

13. Demo

14. Q&A

15. Thank you

16. 16
Get Ready for the Trivia
Trivia Quiz

17. 17
● Share:
○ Tweet using the hashtag #MuleSoftMeetups
○ Invite your network to join: https://meetups.mulesoft.com/kolkata/
● Feedback:
○ Fill out the survey feedback and suggest topics for upcoming events
○ Contact MuleSoft at meetups@mulesoft.com for ways to improve the program
What’s next?

18. Thank you
