This document discusses migrating a Rails application from using the webpack-rails gem to the webpacker gem for asset packaging. Some key challenges included non-deterministic builds, broken deploys, and a complex webpack configuration. The migration involved moving configuration files, updating helper methods in views, and resolving issues with the JavaScript bundle splitting behavior. While the migration was successful, the author notes ongoing challenges of dependency on tools that are constantly changing and not fully deterministic.

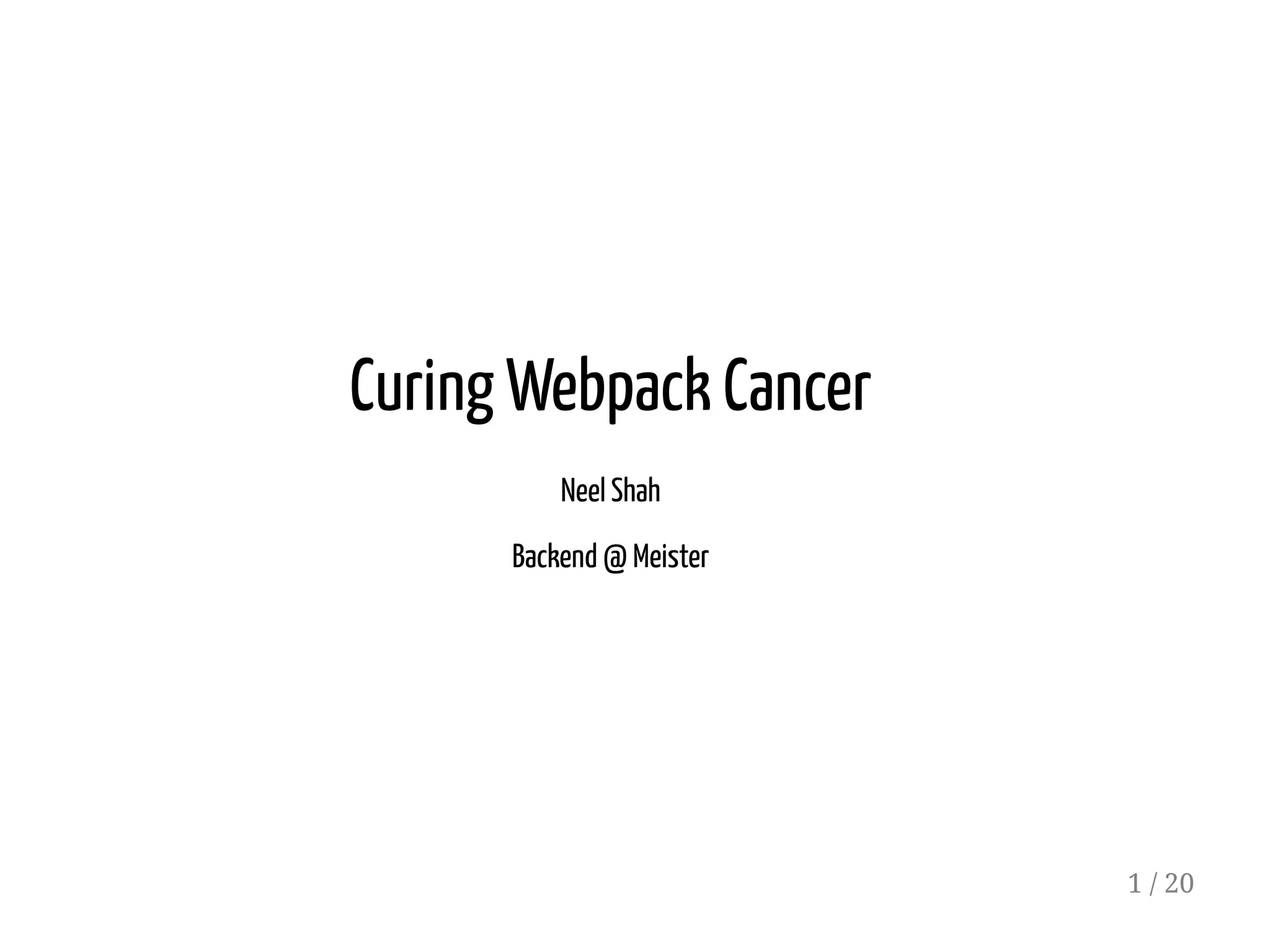

1. Curing Webpack Cancer
Neel Shah
Backend @ Meister
1 / 20

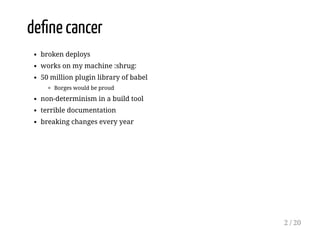

2. define cancer
broken deploys
works on my machine :shrug:
50 million plugin library of babel
Borges would be proud
non-determinism in a build tool
terrible documentation
breaking changes every year
2 / 20

3. what we wanted to do
upgrade to rails 5.2 and then 6 (currently on 5.0.7.2)
move from webpack-rails (non-standard gem)
to webpacker (standard gem and optional rails dependency)
3 / 20

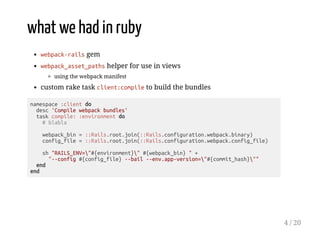

4. what we had in ruby
webpack-rails gem
webpack_asset_paths helper for use in views
using the webpack manifest
custom rake task client:compile to build the bundles
namespace :client do
desc 'Compile webpack bundles'
task compile: :environment do
# blabla
webpack_bin = ::Rails.root.join(::Rails.configuration.webpack.binary)
config_file = ::Rails.root.join(::Rails.configuration.webpack.config_file)
sh "RAILS_ENV="#{environment}" #{webpack_bin} " +
"--config #{config_file} --bail --env.app-version="#{commit_hash}""
end
end
4 / 20

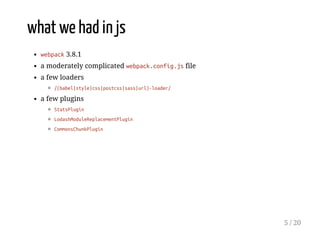

5. what we had in js
webpack 3.8.1
a moderately complicated webpack.config.js file
a few loaders
/(babel|style|css|postcss|sass|url)-loader/
a few plugins
StatsPlugin
LodashModuleReplacementPlugin
CommonsChunkPlugin
5 / 20

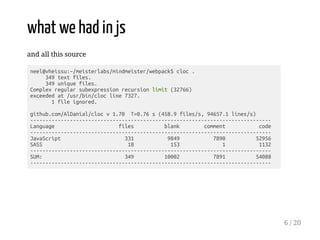

6. what we had in js
and all this source
neel@vheissu:~/meisterlabs/mindmeister/webpack$ cloc .
349 text files.
349 unique files.
Complex regular subexpression recursion limit (32766)
exceeded at /usr/bin/cloc line 7327.
1 file ignored.
github.com/AlDanial/cloc v 1.70 T=0.76 s (458.9 files/s, 94657.1 lines/s)
-------------------------------------------------------------------------------
Language files blank comment code
-------------------------------------------------------------------------------
JavaScript 331 9849 7890 52956
SASS 18 153 1 1132
-------------------------------------------------------------------------------
SUM: 349 10002 7891 54088
-------------------------------------------------------------------------------
6 / 20

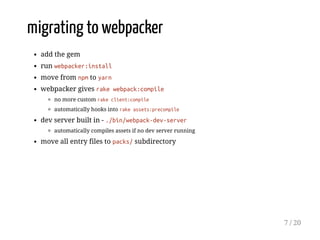

7. migrating to webpacker
add the gem
run webpacker:install
move from npm to yarn
webpacker gives rake webpack:compile
no more custom rake client:compile
automatically hooks into rake assets:precompile
dev server built in - ./bin/webpack-dev-server
automatically compiles assets if no dev server running
move all entry files to packs/ subdirectory
7 / 20

8. migrating views
instead of webpack_asset_paths, webpacker gives us
<%= javascript_pack_tag 'application' %>
<%= stylesheet_pack_tag 'application' %>
<img src="<%= asset_pack_path 'images/logo.svg' %>" />
<%= javascript_packs_with_chunks_tag 'calendar', 'map' %>
and the diffs look like
diff --git a/app/views/developers/embed.html.erb b/app/views/developers/embed.html
index cd046d31cc..fee56083eb 100755
--- a/app/views/developers/embed.html.erb
+++ b/app/views/developers/embed.html.erb
@@ -1,7 +1,7 @@
<% content_for :page_includes do %>
- <%= javascript_include_tag *webpack_runtime_vendor, crossorigin: 'anonymous' %>
- <%= javascript_include_tag *webpack_asset_paths('embed'), crossorigin: 'anonymo
+ <%= javascript_packs_with_chunks_tag 'embed', crossorigin: 'anonymous' %>
<% end %>
+
8 / 20

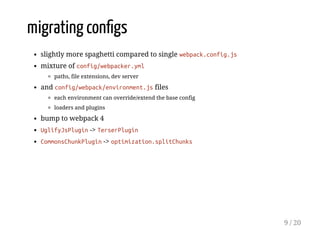

9. migrating configs
slightly more spaghetti compared to single webpack.config.js
mixture of config/webpacker.yml
paths, file extensions, dev server
and config/webpack/environment.js files
each environment can override/extend the base config
loaders and plugins
bump to webpack 4
UglifyJsPlugin -> TerserPlugin
CommonsChunkPlugin -> optimization.splitChunks
9 / 20

10. chunks
10 / 20

11. chunks
before - single commons, vendor, runtime
after - multiple commons/vendor
decided automagically by webpack
based on the module/chunk dependency graph
environment.config.set('optimization', {
splitChunks: {
chunks: 'all',
name: true
},
runtimeChunk: 'single'
});
11 / 20

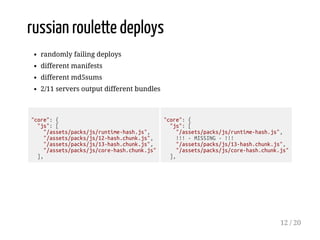

12. russian roulette deploys
randomly failing deploys
different manifests
different md5sums
2/11 servers output different bundles
"core": {
"js": [
"/assets/packs/js/runtime-hash.js",
"/assets/packs/js/12-hash.chunk.js",
"/assets/packs/js/13-hash.chunk.js",
"/assets/packs/js/core-hash.chunk.js"
],
"core": {
"js": [
"/assets/packs/js/runtime-hash.js",
!!! - MISSING - !!!
"/assets/packs/js/13-hash.chunk.js",
"/assets/packs/js/core-hash.chunk.js"
],
12 / 20

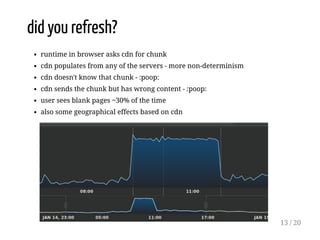

13. did you refresh?
runtime in browser asks cdn for chunk
cdn populates from any of the servers - more non-determinism
cdn doesn't know that chunk - :poop:
cdn sends the chunk but has wrong content - :poop:
user sees blank pages ~30% of the time
also some geographical effects based on cdn
13 / 20

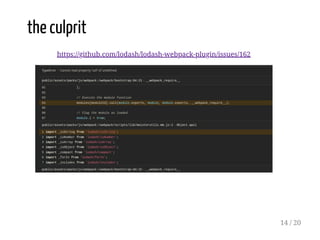

14. the culprit
https://github.com/lodash/lodash-webpack-plugin/issues/162
14 / 20

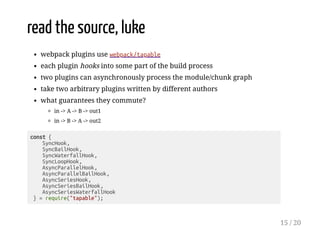

15. read the source, luke
webpack plugins use webpack/tapable
each plugin hooks into some part of the build process
two plugins can asynchronously process the module/chunk graph
take two arbitrary plugins written by different authors
what guarantees they commute?
in -> A -> B -> out1
in -> B -> A -> out2
const {
SyncHook,
SyncBailHook,
SyncWaterfallHook,
SyncLoopHook,
AsyncParallelHook,
AsyncParallelBailHook,
AsyncSeriesHook,
AsyncSeriesBailHook,
AsyncSeriesWaterfallHook
} = require("tapable");
15 / 20

16. diving into the chunk graph
debugger; inside webpack source and chrome://inspect
node equivalent of binding.pry
hundreds of chunks with no metadata
metadata = modules depending on chunk, chunk reason
coming from dynamic imports - import()
/**
* lib/optimize/SplitChunksPlugin.js
* @param {Compiler} compiler webpack compiler
* @returns {void}
*/
apply(compiler) {
compiler.hooks.thisCompilation.tap("SplitChunksPlugin", compilation => {
debugger;
//blabla
GraphHelpers.connectChunkAndModule(newChunk, module);
}
}
16 / 20

17. dynamic imports
dynamic imports with dynamic expressions
created a chunk for every single file within app/
blew up the chunk graph
bigger / denser graph = confused SplitChunksPlugin
loadModule: function(asset, callback) {
import(`app/${asset}`)
.then(module => {
if (callback) {
callback(module)
}
});
}
17 / 20

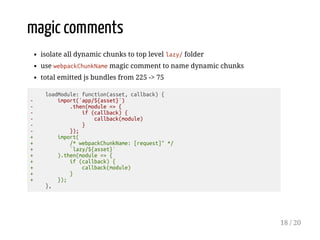

18. magic comments
isolate all dynamic chunks to top level lazy/ folder
use webpackChunkName magic comment to name dynamic chunks
total emitted js bundles from 225 -> 75
loadModule: function(asset, callback) {
- import(`app/${asset}`)
- .then(module => {
- if (callback) {
- callback(module)
- }
- });
+ import(
+ /* webpackChunkName: [request]" */
+ `lazy/${asset}`
+ ).then(module => {
+ if (callback) {
+ callback(module)
+ }
+ });
},
18 / 20

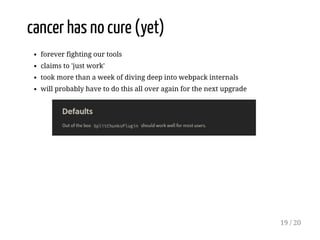

19. cancer has no cure (yet)
forever fighting our tools
claims to 'just work'
took more than a week of diving deep into webpack internals
will probably have to do this all over again for the next upgrade
19 / 20

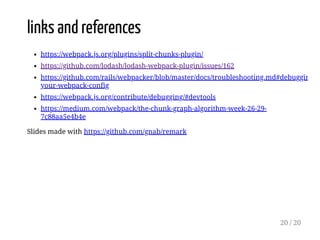

20. links and references
https://webpack.js.org/plugins/split-chunks-plugin/
https://github.com/lodash/lodash-webpack-plugin/issues/162
https://github.com/rails/webpacker/blob/master/docs/troubleshooting.md#debuggin
your-webpack-config
https://webpack.js.org/contribute/debugging/#devtools
https://medium.com/webpack/the-chunk-graph-algorithm-week-26-29-
7c88aa5e4b4e
Slides made with https://github.com/gnab/remark
20 / 20
