This document is a past exam for an Introduction to Software Engineering course. It contains 5 questions: 1. Design data flow diagrams, software requirements specification, entity relationship diagram, and PERT chart for a project proposal management system. Also specify an appropriate software development life cycle model. 2. Discuss the key process areas of the Capability Maturity Model and explain project tracking charts. 3. Discuss the role of a systems analyst and define fourth-generation languages. 4. Explain the concept of modularity and discuss categories of computer-aided software engineering tools. 5. Write short notes on software reviews, software upgradation, and the software crisis

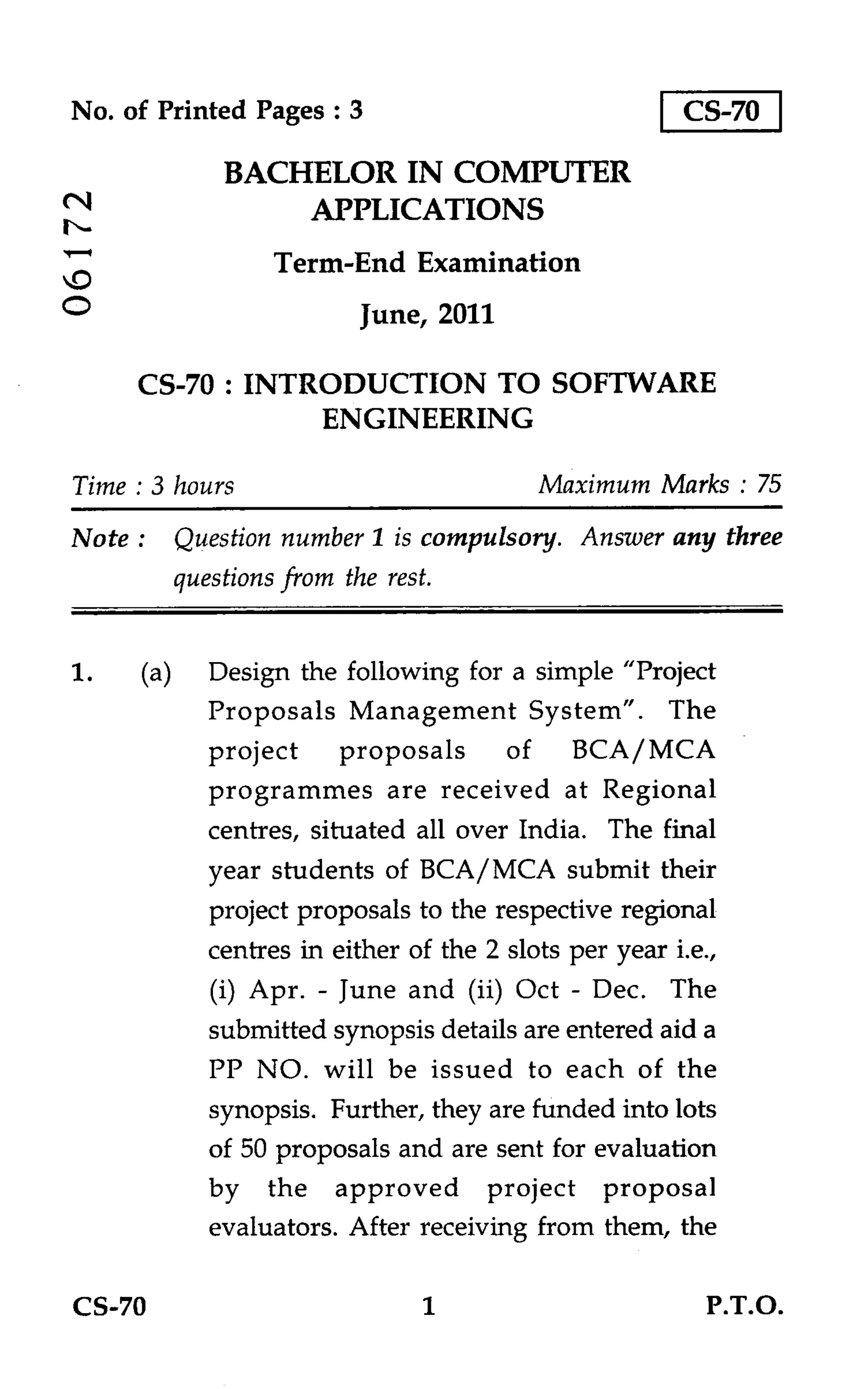

1. No. of Printed Pages : 3 CS-70
BACHELOR IN COMPUTER
N APPLICATIONS
Term-End Examination
O June, 2011
CS-70 : INTRODUCTION TO SOFTWARE
ENGINEERING
Time : 3 hours Maximum Marks : 75
Note : Question number 1 is compulsory. Answer any three
questions from the rest.
1. (a) Design the following for a simple "Project
Proposals Management System". The
project proposals of BCA/MCA
programmes are received at Regional
centres, situated all over India. The final
year students of BCA/MCA submit their
project proposals to the respective regional
centres in either of the 2 slots per year i.e.,
(i) Apr. - June and (ii) Oct - Dec. The
submitted synopsis details are entered aid a
PP NO. will be issued to each of the
synopsis. Further, they are funded into lots
of 50 proposals and are sent for evaluation
by the approved project proposal
evaluators. After receiving from them, the
CS-70 1 P.T.O.

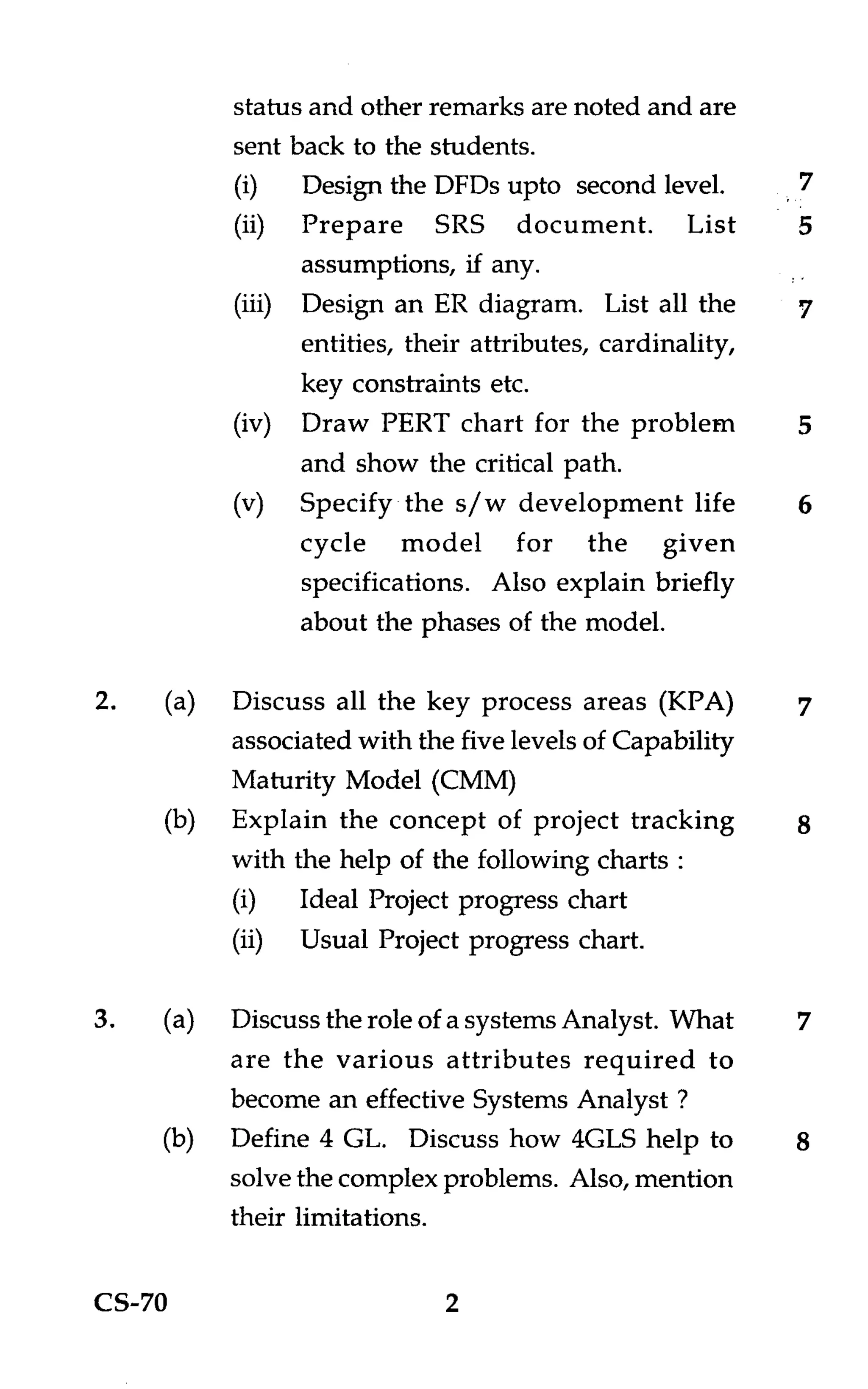

2. status and other remarks are noted and are
sent back to the students.
(i) Design the DFDs upto second level.
(ii) Prepare SRS document. List
assumptions, if any.
(iii) Design an ER diagram. List all the
entities, their attributes, cardinality,
key constraints etc.
(iv) Draw PERT chart for the problem 5
and show the critical path.
(v) Specify the s/w development life 6
cycle model for the given
specifications. Also explain briefly
about the phases of the model.
2. (a) Discuss all the key process areas (KPA) 7
associated with the five levels of Capability
Maturity Model (CMM)
(b) Explain the concept of project tracking 8
with the help of the following charts :
(i) Ideal Project progress chart
(ii) Usual Project progress chart.
3. (a) Discuss the role of a systems Analyst. What 7
are the various attributes required to
become an effective Systems Analyst ?
(b) Define 4 GL. Discuss how 4GLS help to 8
solve the complex problems. Also, mention
their limitations.
CS-70 2

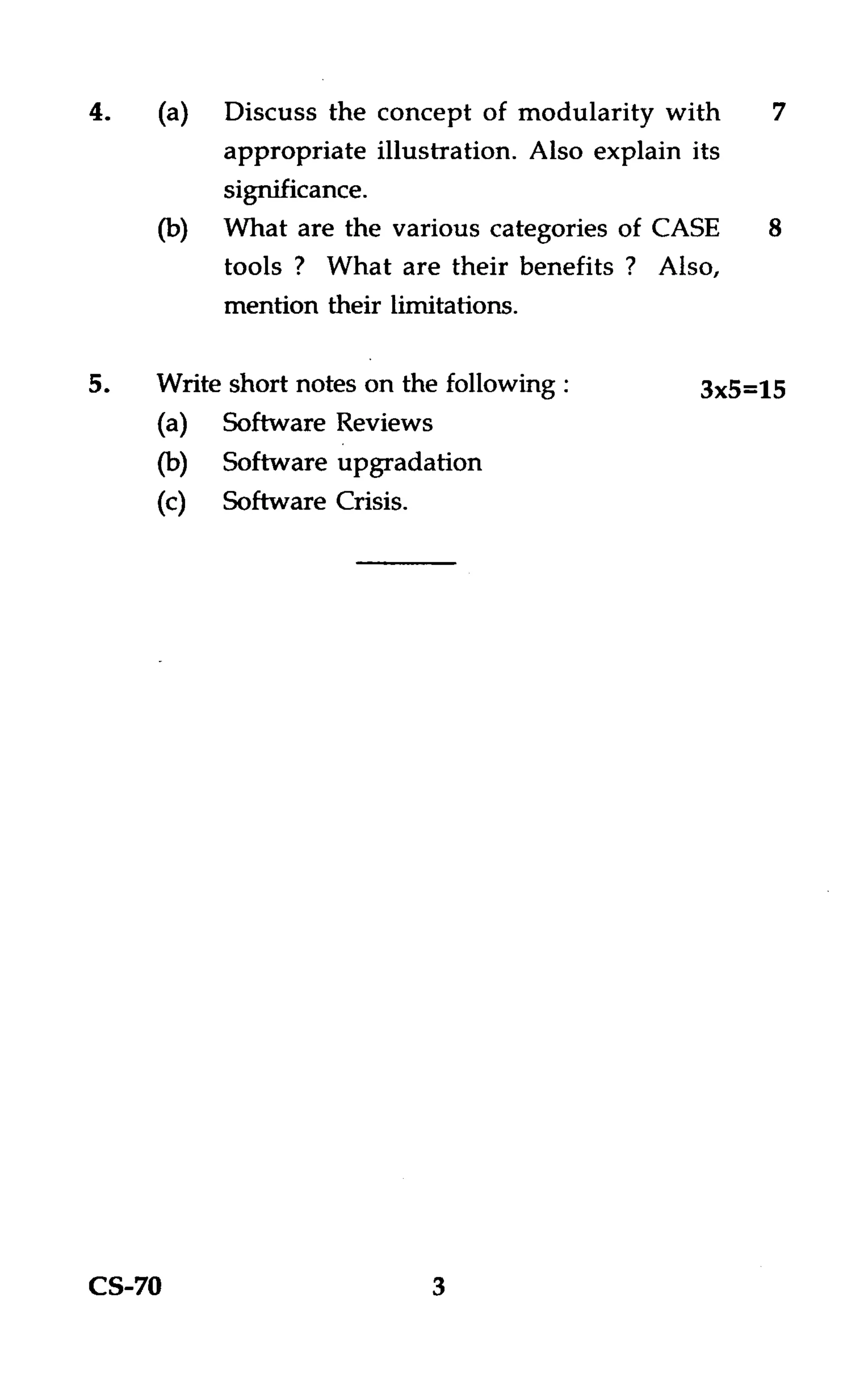

3. Discuss the concept of modularity with 7
appropriate illustration. Also explain its
significance.
What are the various categories of CASE 8
tools ? What are their benefits ? Also,
mention their limitations.
5. Write short notes on the following : 3x5=15
(a) Software Reviews
(b) Software upgradation
(c) Software Crisis.
CS-70 3
