Cross platform native mobile app development for iOS, Android and Windows using the power of C#
This document discusses using Xamarin to build cross-platform native mobile apps for iOS, Android, and Windows using C#. It covers creating a first app for iOS and Android, code sharing tips, and summarizes that Xamarin allows building native mobile apps that provide a native user experience while sharing most of the code across platforms.
More Related Content
Similar to Cross platform native mobile app development for iOS, Android and Windows using the power of C#
![[XamarinDay] Xamarin History - From 0 to microsoft acquisition !](https://cdn.slidesharecdn.com/ss_thumbnails/1-xamarinhistory-from0tomicrosoftacquisition-160916160947-thumbnail.jpg?width=640&height=640&fit=bounds)
Cross platform native mobile app development for iOS, Android and Windows using the power of C#
- 1. Cross Platform NativeMobile App Development for iOS, Android and Windows Using the Power of C# Marcel de Vries Technology Manager @marcelv

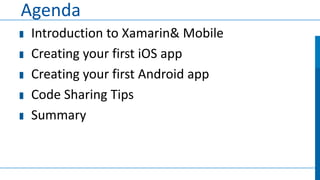

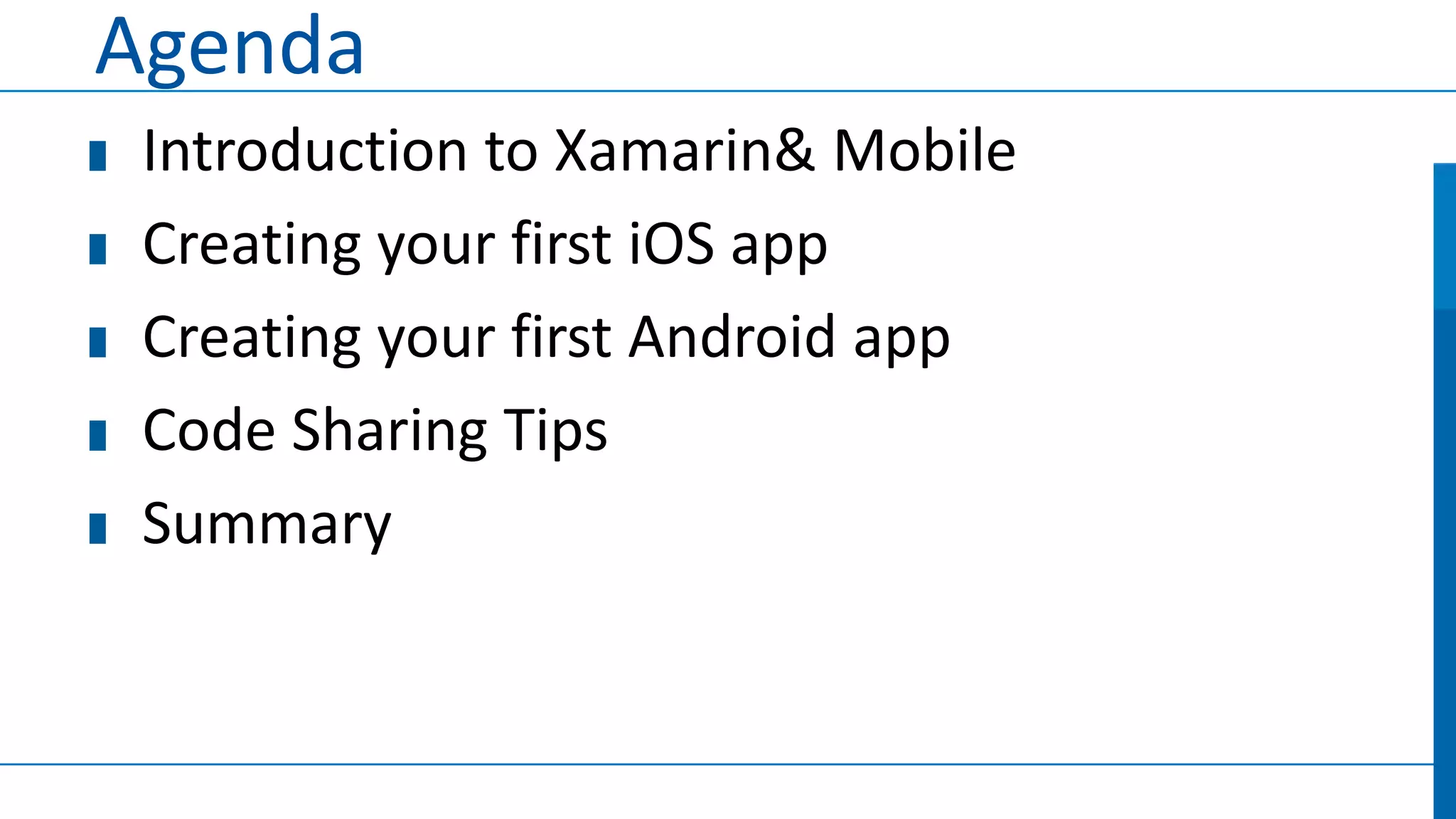

- 2. Agenda Introduction to Xamarin&Mobile Creating your first iOS app Creating your first Android app Code Sharing Tips Summary
- 4. Building apps forthe Mobile Space Developer User Experience productivity Security & privacy Distribution: Public or private Corporate? Which platforms? Application Lifecycle Management
- 5.

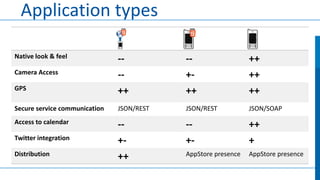

- 6. Application types Native look& feel -- -- ++ Camera Access -++ +++ ++ ++ Secure service communication JSON/REST JSON/REST JSON/SOAP Access to calendar -- -- ++ Twitter integration +- +- + Distribution ++ AppStore presence AppStore presence GPS

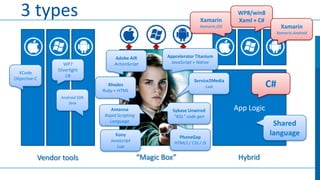

- 7. 3 types Xamarin WP8/win8 Xaml +C# Xamarin Xamarin.iOS Xamarin.Android XCode Objective-C WP7 Silverlight C# Adobe AIR ActionScript Appcelerator Titanium JavaScript > Native Service2Media Lua Rhodes Ruby + HTML Android SDK Java Antenna Rapid Scripting Language Kony Javascript Lua Vendor tools Sybase Unwired “4GL” code gen C# App Logic PhoneGap HTML5 / CSS / JS “Magic Box” Shared language Hybrid

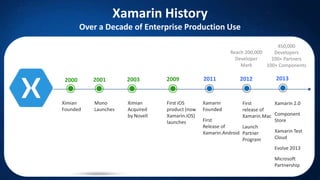

- 8. Xamarin History Over aDecade of Enterprise Production Use 450,000 Reach 200,000 Developers Developer 100+ Partners Mark 100+ Components 2000 Ximian Founded 2001 2003 2009 2011 Mono Launches Ximian Acquired by Novell First iOS product (now Xamarin.iOS) launches 2013 Xamarin Founded 2012 First Xamarin 2.0 release of Xamarin.Mac Component First Store Release of Launch Xamarin Test Xamarin.Android Partner Cloud Program Evolve 2013 Microsoft Partnership

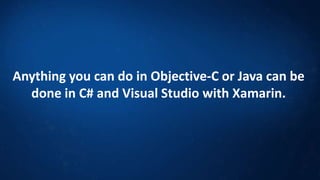

- 9. Anything you cando in Objective-C or Java can be done in C# and Visual Studio with Xamarin.

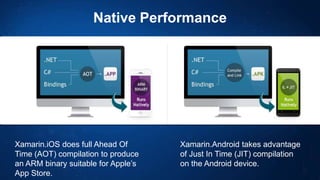

- 10. Native Performance Xamarin.iOS doesfull Ahead Of Time (AOT) compilation to produce an ARM binary suitable for Apple’s App Store. Xamarin.Android takes advantage of Just In Time (JIT) compilation on the Android device.

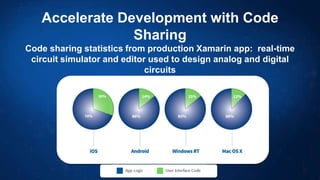

- 11. Accelerate Development withCode Sharing Code sharing statistics from production Xamarin app: real-time circuit simulator and editor used to design analog and digital circuits
- 12. Completely Up-to-Date withDevice OS releases Always up-to-date with the latest APIs from Apple and Google. Track record of offering sameday support: iOS 5, iOS 6, iOS ✔ 6.1 and iOS 7.
- 14. UIKit 3rd party app Tapapp icon main() AppDelegate UIApplicationMain() FinishedLaunching Event loop HandleEvent Quit foreground msg OnActivated OnResignActivation Background DidEnterBackground WillTerminate Restart tasks Reload state Refresh Pause tasksUI Throttle down frame rates Save state Save data Free resources
- 15.
- 16.

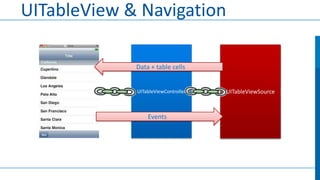

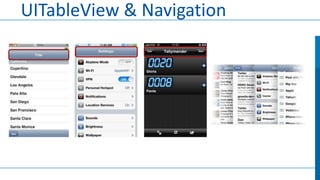

- 17. UITableView & Navigation Data+ table cells UITableViewDataSource UITableViewController UITableViewSource Events UITableViewDelegate
- 18.
- 20. Android Mobile OS madeby google Targets: Tablets and mobile phones
- 21. Mono for Android Architecturalpicture of Mono for Android .NET APIs Android Bindings Mono (.NET Runtime) MCW ACW Linux Kernel Android. * Java.* Dalvik (Java Runtime)
- 22. App model -Activity lifecycle Activity Launched Restore state here Initialize layout here onCreate() User navigates to the activity onStart() onRestart() onResume() Another activity App process comes into the foreground killed Activity running The activity is no longer visible Apps with higher state The activitySave is finishing or being onPause() priority need destroyed by the system memory here onStop() onDestroy() Activity shut down User returns to the activity User navigates to the activity

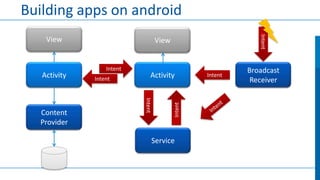

- 23. Building apps onandroid Intent Intent Activity Intent Content Provider View Intent Activity Intent View Service Intent Broadcast Receiver
- 24.
- 25.

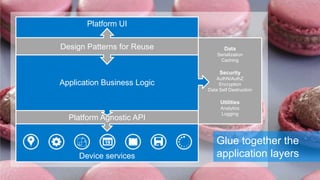

- 26. Platform UI Design Patternsfor Reuse Data Serialization Caching Security Application Business Logic AuthN/AuthZ Encryption Data Self Destruction Utilities Platform Agnostic API Device services Analytics Logging Glue together the application layers

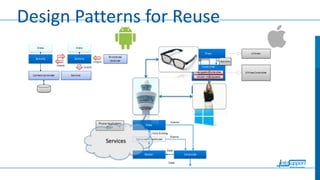

- 27. Design Patterns forReuse
- 28.

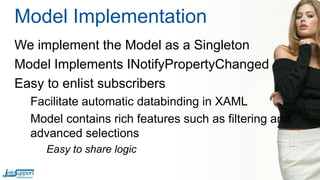

- 29. Model Implementation We implementthe Model as a Singleton Model Implements INotifyPropertyChanged Easy to enlist subscribers Facilitate automatic databinding in XAML Model contains rich features such as filtering and advanced selections Easy to share logic

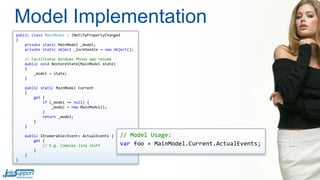

- 30. Model Implementation public classMainModel : INotifyPropertyChanged { private static MainModel _model; private static object _lockHandle = new object(); // Facilitates Windows Phone app resume public void RestoreState(MainModel state) { _model = state; } public static MainModel Current { get { if (_model == null) { _model = new MainModel(); } return _model; } } public IEnumerable<Event> ActualEvents { get { // E.g. Complex linq stuff } } } // Model Usage: var foo = MainModel.Current.ActualEvents;
- 31. Check your waterlevel XAML / Device Specific ValueConverter Reusable Business Logic Model Property Value Transformation

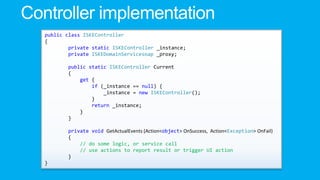

- 33. public class ISKEController { privatestatic ISKEController _instance; private ISKEDomainServicesoap _proxy; public static ISKEController Current { get { if (_instance == null) { _instance = new ISKEController(); } return _instance; } } private void GetActualEvents (Action<object> OnSuccess, Action<Exception> OnFail) { // do some logic, or service call // use actions to report result or trigger UI action } }

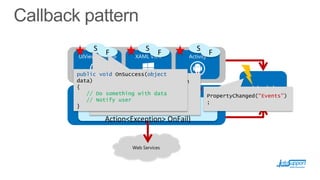

- 34. S F UIViewControlle r S F XAML View Activity public voidOnSuccess(object data)public void OnFailed(Exception { e) //{Do something with data Shared Controller // Notify user // Do GetActualEvents something with error } } (Action<object> OnSuccess, Action<Exception> OnFail) Web Services S F Model PropertyChanged(“Events”) ;
- 35.
- 37.
- 38.

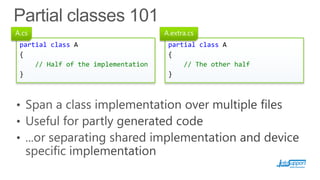

- 39. A.cs partial class A { //Half of the implementation } A.extra.cs partial class A { // The other half }

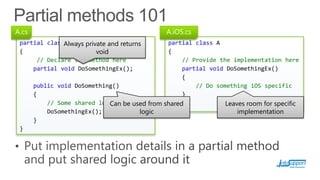

- 40. A.cs A.iOS.cs partial classAlways privateand returns A { void // Declare the method here partial void DoSomethingEx(); partial class A { // Provide the implementation here partial void DoSomethingEx() { public void DoSomething() // Do something iOS specific { } // Some shared logic be used from shared } Can Leaves room for specific DoSomethingEx(); logic implementation } }
- 42.

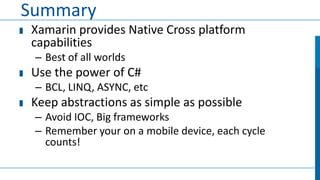

- 43. Summary Xamarin provides NativeCross platform capabilities – Best of all worlds Use the power of C# – BCL, LINQ, ASYNC, etc Keep abstractions as simple as possible – Avoid IOC, Big frameworks – Remember your on a mobile device, each cycle counts!
Editor's Notes
- #7 Rhodes – rhomobile ; Ruby + HTML; MVC architectuur met extra framework zakenvoor sync en ORMAntenna: Appcellerator: pure javascriptoplossing met cross platform API. Wel: native UI bindings. Interpreted door meegedeployde interpreter
- #27 Data Self Destruction: when a device gets compromised, you’d want some way built into the app to enable data self destruction. This might be some generic security class that is able to wipe the data portion of the application based on some (remote) signal.
- #28 Controller acts as a Mediator in Cocoa interpretation of MVC
