The document discusses how to integrate Amazon S3 storage with MuleSoft applications using the Amazon S3 connector. It explains that the connector allows accessing and storing objects in S3 buckets from within MuleSoft. It provides steps for configuring the connector with AWS keys, creating an S3 bucket, and using the connector in Mule flows to upload and download objects from S3.

1. Create Object in Amazon

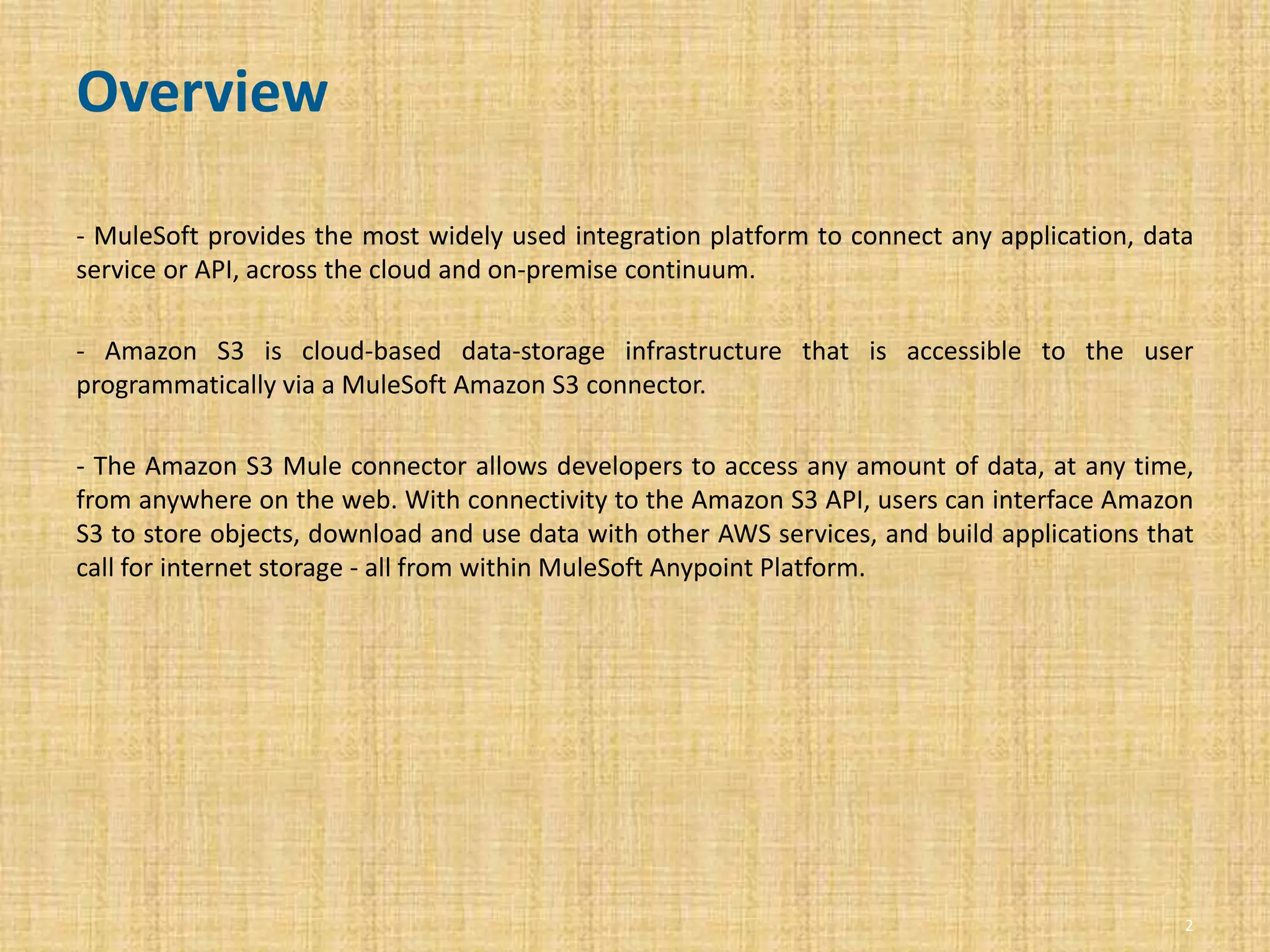

2. Overview
- MuleSoft provides the most widely used integration platform to connect any application, data
service or API, across the cloud and on-premise continuum.
- Amazon S3 is cloud-based data-storage infrastructure that is accessible to the user
programmatically via a MuleSoft Amazon S3 connector.
- The Amazon S3 Mule connector allows developers to access any amount of data, at any time,
from anywhere on the web. With connectivity to the Amazon S3 API, users can interface Amazon
S3 to store objects, download and use data with other AWS services, and build applications that
call for internet storage - all from within MuleSoft Anypoint Platform.
2

3. Prerequisites
• Amazon Account
• Amazon Access and Secret keys
• Mule Anypoint Amazon Connector
Creating Amazon S3 Bucket - Before you start integrating S3, you need to create an S3 Bucket.
Every object in Amazon S3 is stored in a bucket. Follow below steps to create a bucket:
• Enter a bucket name in the ‘Bucket Name’ field
• In the Region box, select a region
• If you want to setup-logging, then click on ‘Set Up Logging’, Else, go to ‘Create‘ to create the
bucket
3

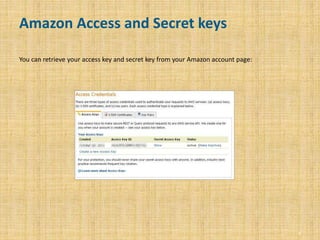

4. Amazon Access and Secret keys
You can retrieve your access key and secret key from your Amazon account page:
4

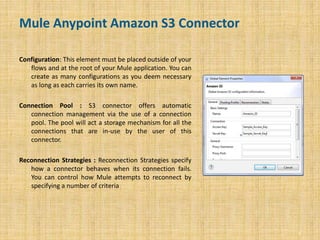

5. Mule Anypoint Amazon S3 Connector
Configuration: This element must be placed outside of your
flows and at the root of your Mule application. You can
create as many configurations as you deem necessary
as long as each carries its own name.
Connection Pool : S3 connector offers automatic
connection management via the use of a connection
pool. The pool will act a storage mechanism for all the
connections that are in-use by the user of this
connector.
Reconnection Strategies : Reconnection Strategies specify
how a connector behaves when its connection fails.
You can control how Mule attempts to reconnect by
specifying a number of criteria
5

6. Mule flow
• Steps to be followed for integrating 'Amazon S3' with MuleSoft Applications:
• Install the Amazon S3 Connector in Anypoint Studio (3.5 and above)
http://repository.mulesoft.org/connectors/releases/3.5
• Create a new Anypoint Studio Project and Flow.
• Before using the Amazon S3 Connector in the Mule Flows, create a global element for
Amazon S3 configuration which can be reused in all other flows across the Mule project -
wherever the objects are created & deleted to & from Amazon S3 cloud server.
6

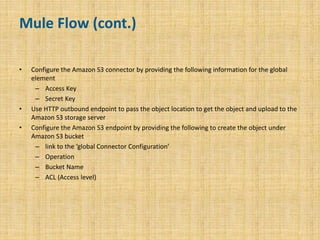

7. Mule Flow (cont.)
• Configure the Amazon S3 connector by providing the following information for the global
element
– Access Key
– Secret Key
• Use HTTP outbound endpoint to pass the object location to get the object and upload to the
Amazon S3 storage server
• Configure the Amazon S3 endpoint by providing the following to create the object under
Amazon S3 bucket
– link to the ‘global Connector Configuration’
– Operation
– Bucket Name
– ACL (Access level)
7

8. Mule Flow (cont.)
Mule XML -
8
