COSCUP 2016 - LLVM 由淺入淺
- 1.
- 2.

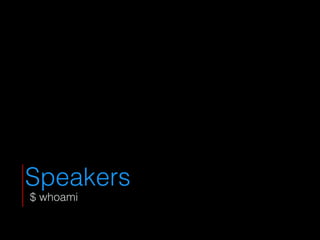

- 3. 楊宗凡 — 浪打 ‣成功⼤大學電機系四年級 ‣ sonic.tw.tp (at) gmail.com 戴宏穎 — Hydai ‣ 清華⼤大學資⼯工碩⼀一年級 ‣ z54981220 (at) gmail.com

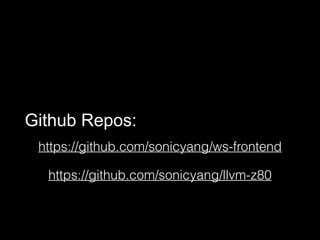

- 4.
- 5. Code to Executable $gcc helloworld.c

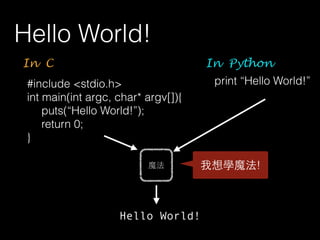

- 6. #include <stdio.h> int main(intargc, char* argv[]){ puts(“Hello World!”); return 0; } In C Hello World! print “Hello World!” In Python Hello World! 魔法 我想學魔法!

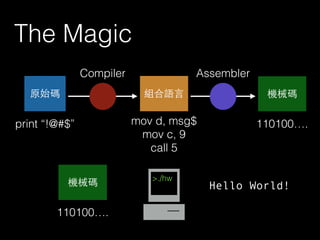

- 7. The Magic 原始碼 組合語⾔言機械碼 AssemblerCompiler print “!@#$” mov d, msg$ mov c, 9 call 5 110100…. >./hw 機械碼 110100…. Hello World!
- 8.

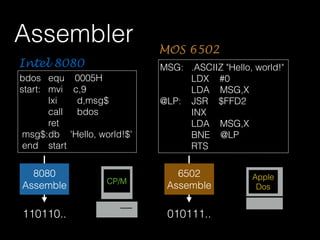

- 9. bdos equ 0005H start:mvi c,9 lxi d,msg$ call bdos ret msg$:db 'Hello, world!$' end start Intel 8080 Assembler MSG: .ASCIIZ "Hello, world!" LDX #0 LDA MSG,X @LP: JSR $FFD2 INX LDA MSG,X BNE @LP RTS MOS 6502 8080 Assemble 6502 Assemble 110110.. 010111.. CP/M Apple Dos

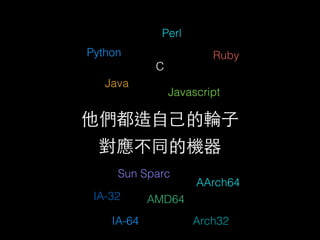

- 10.

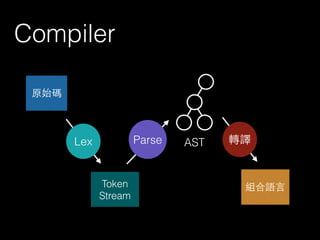

- 11.
- 12. Modern Compiler $ exportCFLAGS = “-O3”

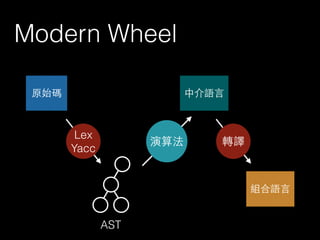

- 13.
- 14.

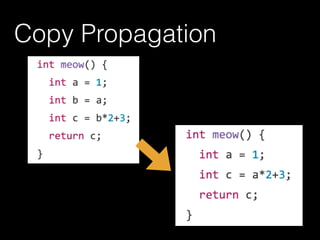

- 15.

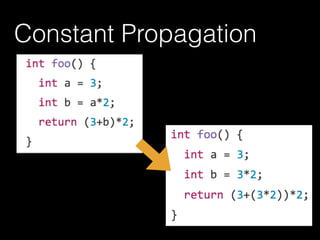

- 16.

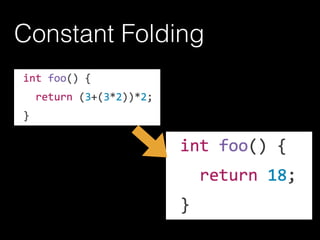

- 17.

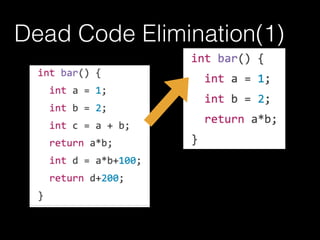

- 18.

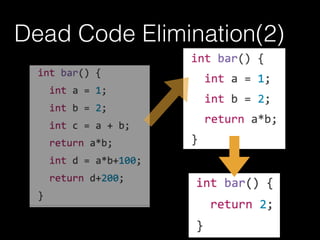

- 19.

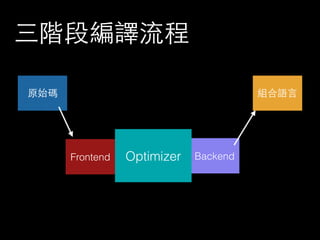

- 20.

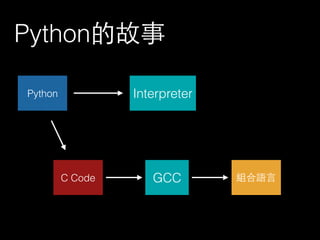

- 21.

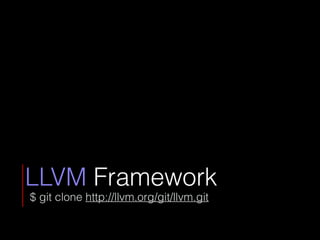

- 22. LLVM Framework $ gitclone http://llvm.org/git/llvm.git
- 23.

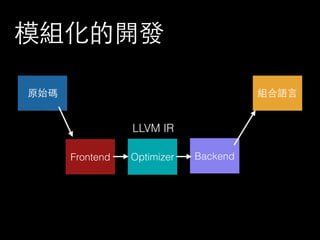

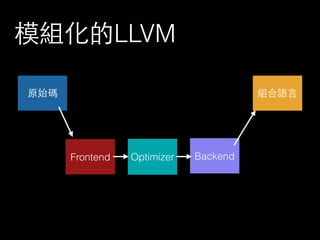

- 24. IR LLVM Framework - FrontEnd 原始碼 Backend 組合語⾔言Frontend IRPass IR Pass … Pass IR Pass
- 25. IR LLVM Framework - Optimizer 原始碼Backend 組合語⾔言Frontend IRPass IR Pass … Pass IR Pass

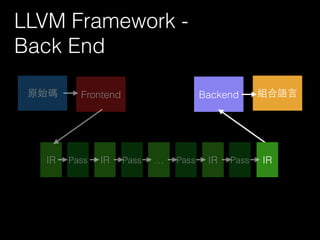

- 26. IR LLVM Framework - BackEnd 原始碼 Backend 組合語⾔言Frontend IRPass IR Pass … Pass IR Pass
- 27.
- 28. Front End $ clang-S -emit-llvm main.c
- 29.
- 30.
- 31.

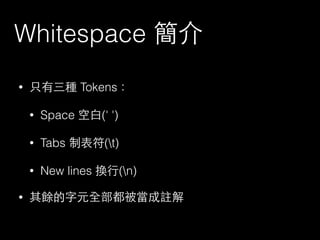

- 32. Whitespace 簡介 • 只有三種Tokens： • Space 空⽩白(' ') • Tabs 制表符(t) • New lines 換⾏行(n) • 其餘的字元全部都被當成註解

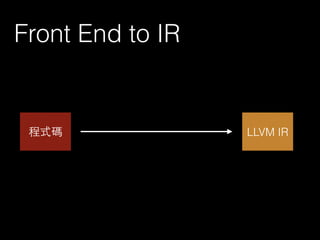

- 33. Front End toIR 程式碼 LLVM IR

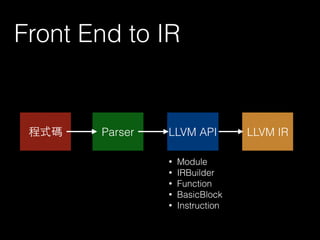

- 34. Front End toIR 程式碼 LLVM IRParser LLVM API • Module • IRBuilder • Function • BasicBlock • Instruction
- 35. LLVM IR $ catmain.ll

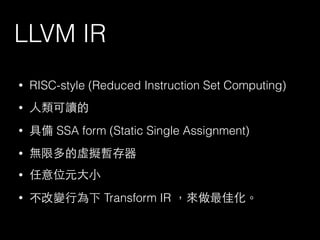

- 36. LLVM IR • RISC-style(Reduced Instruction Set Computing) • ⼈人類可讀的 • 具備 SSA form (Static Single Assignment) • 無限多的虛擬暫存器 • 任意位元⼤大⼩小 • 不改變⾏行為下 Transform IR ，來做最佳化。
- 37.

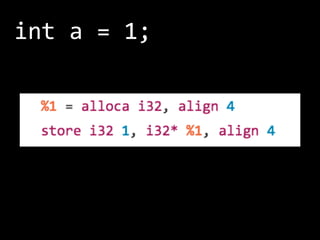

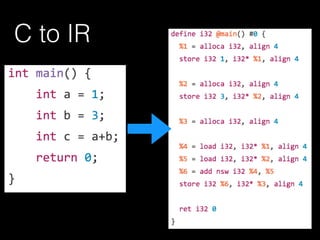

- 39. int a = 1;

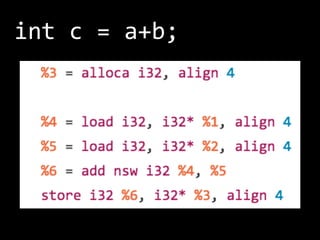

- 40. int c = a+b;

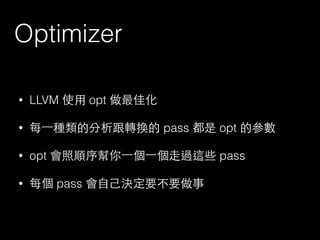

- 41. Optimizer • LLVM 使⽤用opt 做最佳化 • 每⼀一種類的分析跟轉換的 pass 都是 opt 的參數 • opt 會照順序幫你⼀一個⼀一個⾛走過這些 pass • 每個 pass 會⾃自⼰己決定要不要做事

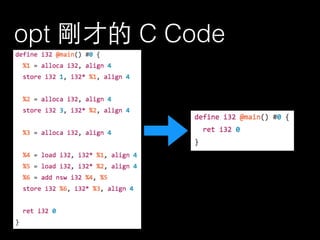

- 42. opt 剛才的 CCode
- 43. Backend $ llc -march=z80main.ll

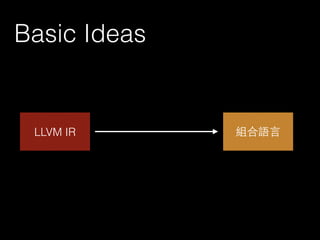

- 44. Basic Ideas LLVM IR組合語⾔言

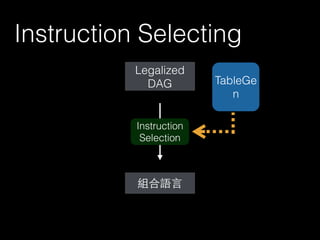

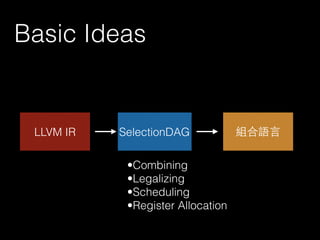

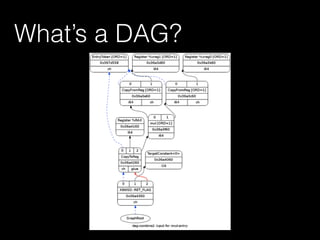

- 45. Basic Ideas SelectionDAGLLVM IR組合語⾔言 •Combining •Legalizing •Scheduling •Register Allocation
- 46.

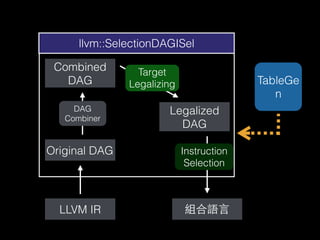

- 47. llvm::SelectionDAGISel LLVM IR 組合語⾔言 OriginalDAG Combined DAG Legalized DAG Target Legalizing DAG Combiner Instruction Selection TableGe n
- 48. llvm::SelectionDAGISel LLVM IR 組合語⾔言 OriginalDAG Combined DAG Legalized DAG Target Legalizing DAG Combiner Instruction Selection TableGe n

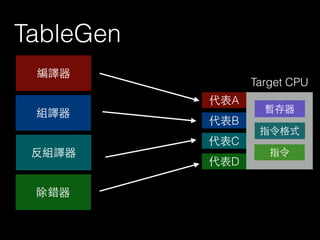

- 49.

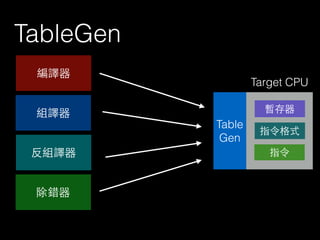

- 50.

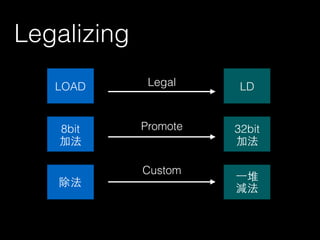

- 51.
- 52.

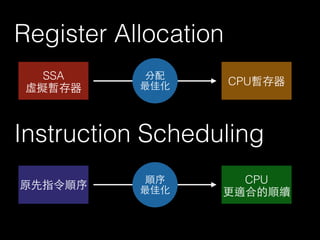

- 53.
- 54. llvm::SelectionDAGISel LLVM IR 組合語⾔言 OriginalDAG Combined DAG Legalized DAG Target Legalizing DAG Combiner Instruction Selection TableGe n
- 55. Demo A 40 yearsportal by LLVM, Linking 1976 and 2016

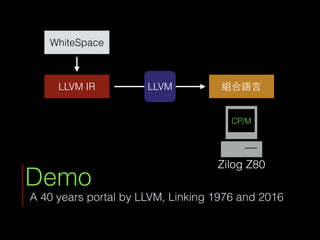

- 56. Demo A 40 yearsportal by LLVM, Linking 1976 and 2016 WhiteSpace LLVM IR 組合語⾔言 CP/M LLVM Zilog Z80
- 57.
- 58.
- 59. 1. Architecture forNext Generation GCC ftp://gcc.gnu.org/pub/gcc/summit/2003/Architecture%20for%20a%20Next-Generation %20GCC.pdf 2. Life of an Instruction in LLVM http://eli.thegreenplace.net/2012/11/24/life-of-an-instruction-in-llvm 3. A deeper look into the LLVM code generator http://eli.thegreenplace.net/2013/02/25/a-deeper-look-into-the-llvm-code-generator- part-1 4. LLVM TableGen Documentation http://llvm.org/docs/TableGen/index.html 5. LLVM TableGen Introduction http://llvm.org/docs/TableGen/LangIntro.html 6. Independent Code Generator http://llvm.org/docs/CodeGenerator.html 7. The Relationship between selectiondag and selectiondagisel http://stackoverflow.com/questions/26814062/the-relationship-between-selectiondag- and-selectiondagisel 8. How TableGen’s DAGISel Backend Works https://github.com/draperlaboratory/fracture/wiki/How-TableGen's-DAGISel-Backend- Works 9. ZASM - Z80 Assembler http://k1.spdns.de/Develop/Projects/zasm/Documentation/ 10. LLVM Z80 Backend https://github.com/mostlyuseful/llvm-z80/network 11. Whitespace LLVM https://github.com/Subv/Whitespace-LLVM
