The document discusses different types of shipping containers designed by Intermodal Solutions Group for transporting bulk materials. It describes containers for copper concentrate, iron ore, nickel concentrate, mineral sands, coal, multi-purpose containers with hard lids, coke and anode containers, open top containers, sulphur concentrate, salt, grains, and multipurpose open top containers. Each container type is designed for efficient loading and discharge of specific bulk products and materials.

1. Containers
Intermodal Solutions Group - Pit to Ship Solutions Australia
www.pittoship.com

2. Container Types
Copper Concentrate Containers
Iron Ore Containers
Nickel Concentrate Containers
Mineral Sands Containers
Coal Shipping containers
Multi Purpose Shipping Container with Hard Lid
Coke & Anode Bulk Shipping Container
20’ Bulk Open Top Shipping Container
Sulphur Concentrate Shipping Container
Salt Shipping Container
Grain Shipping Containers
Multipurpose Open Top Container
www.pittoship.com

3. Copper Concentrate Containers
Intermodal Solutions Group (ISG) is the
Global market leader in Open Top half
heights for Copper Concentrate shipping
containers. This shipping container has
been designed, manufactured and tested in
conjunction with some of the world’s
leading mining companies.
The shipping container is designed for
minimum product hang-up which includes
curved gussets in all corners, and tapered
side and end walls. The shipping container
is designed to be suitable with all Tipplers
in the Global market, and includes a
pioneering lid, which is automatically
locked and unlocked by the Tipplers.
The shipping container is also the first
Open Top half height in the global market
to be certified to BK2 requirements and
ADG7. The container also includes our
special anti- abrasion coating.
http://pittoship.com/containers/copper-concentrate-containers/

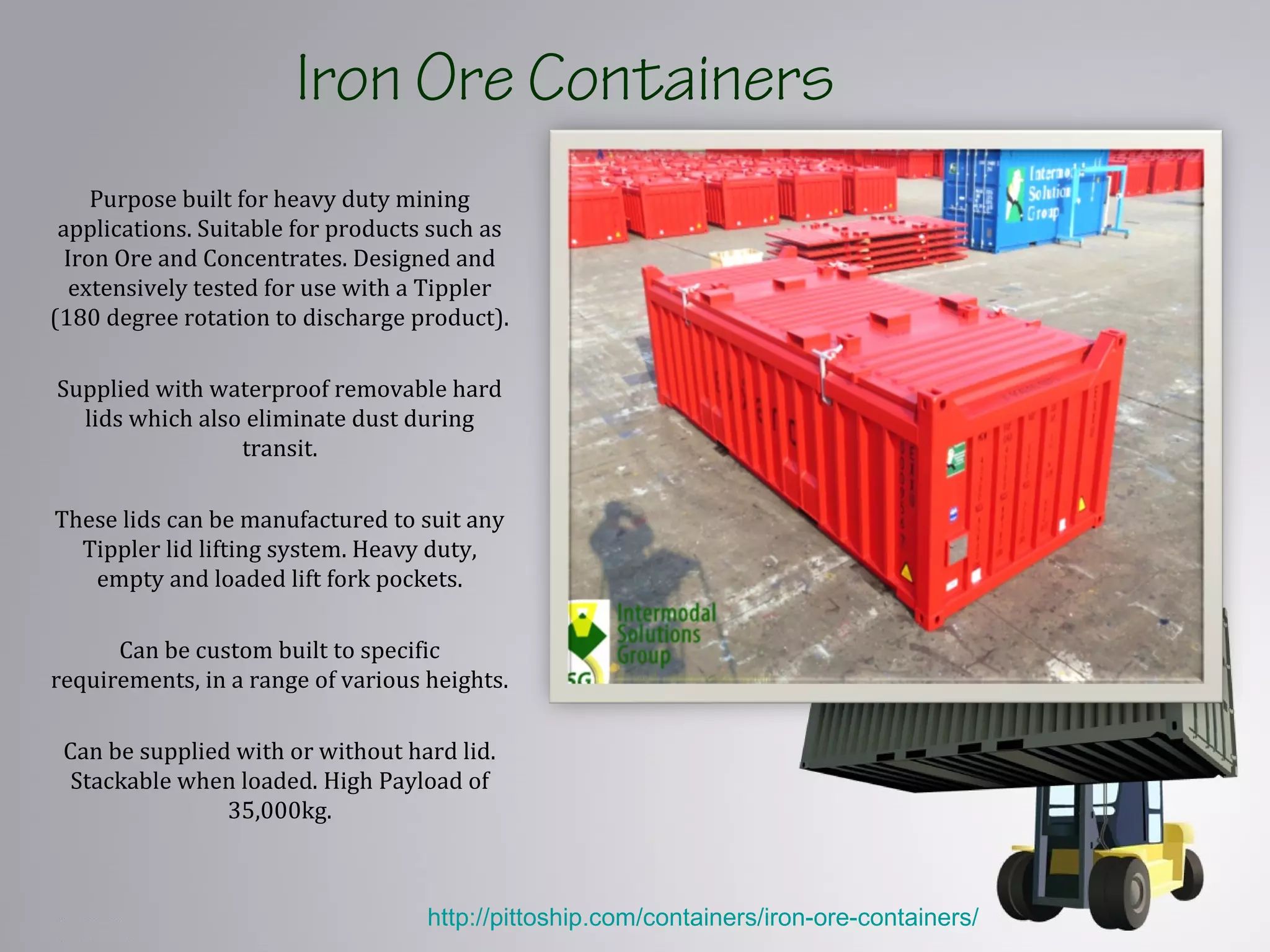

4. Iron Ore Containers
Purpose built for heavy duty mining
applications. Suitable for products such as
Iron Ore and Concentrates. Designed and
extensively tested for use with a Tippler
(180 degree rotation to discharge product).
Supplied with waterproof removable hard
lids which also eliminate dust during
transit.
These lids can be manufactured to suit any
Tippler lid lifting system. Heavy duty,
empty and loaded lift fork pockets.
Can be custom built to specific
requirements, in a range of various heights.
Can be supplied with or without hard lid.
Stackable when loaded. High Payload of
35,000kg.
http://pittoship.com/containers/iron-ore-containers/

5. Nickel Concentrate Containers
Intermodal Solutions Group (ISG) has
designed, tested and manufactured a high
cubic capacity container suitable for use
with a Tippler. The shipping container suits
products with a lower density such as
Nickel Concentrate and Coal, which require
a high cubic capacity.
The shipping container is fitted with a
removable hard lid, which can be lifted
automatically and can be modified to suit
any tippler in the Global marketplace. The
unit is tested and certified to BK, IMDG and
ADG7 requirements for transporting
dangerous cargo, on road, rail or sea.
The shipping container includes our special
anti-abrasion coating.
*In 2011 Intermodal Solutions Group (ISG)
supplied 1,000 units to Queensland Nickel
and Vale.
http://pittoship.com/containers/nickel-concentrate-containers/

6. Mineral Sands Containers
http://pittoship.com/containers/mineral-sands-containers/

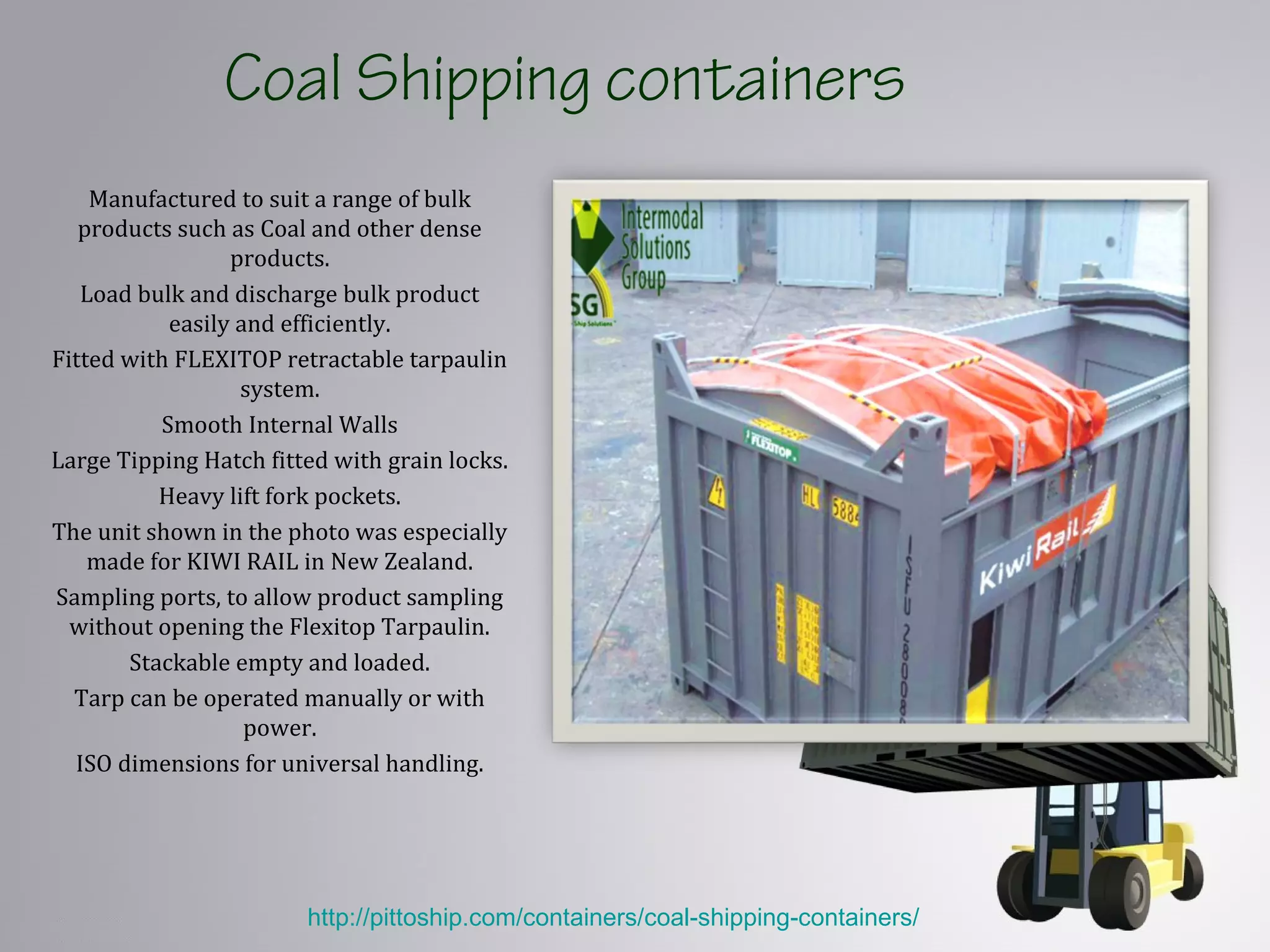

7. Coal Shipping containers
Manufactured to suit a range of bulk
products such as Coal and other dense
products.
Load bulk and discharge bulk product
easily and efficiently.
Fitted with FLEXITOP retractable tarpaulin
system.
Smooth Internal Walls
Large Tipping Hatch fitted with grain locks.
Heavy lift fork pockets.
The unit shown in the photo was especially
made for KIWI RAIL in New Zealand.
Sampling ports, to allow product sampling
without opening the Flexitop Tarpaulin.
Stackable empty and loaded.
Tarp can be operated manually or with
power.
ISO dimensions for universal handling.
http://pittoship.com/containers/coal-shipping-containers/

8. Multi Purpose Shipping Container with Hard Lid
Intermodal Solutions Group (ISG) has
included in its product range a 20’ Pallet
Wide Multi purpose container.
This unit is suitable for bulk products as
well as palletized freight. It can be used as a
standard hard top container or the lid can
be removed for use as a bulk Open Top
container.
Features include:
• Smooth internal walls
• Large tipping hatch with grain locks
• Rear doors
• Pallet wide and capable of ten pallets on
the floor
• Heavy lift for pockets
• Steel floor
• Removable Hard Lid – operated from the
ground
http://pittoship.com/containers/multi-purpose-shipping-container-with-hard-lid/

9. Coke & Anode Bulk Shipping Container
In 2009 and 2010 Intermodal Solutions
engineering team worked with ARG a
Division of QR National to develop a unique
container.
The Coke and Anode container is designed
to transport coke and coal one way, and
then Copper anodes on the return leg.
These containers are in service for XTRATA
mines and refineries in far north
Queensland.
Features are:
Smooth Internal Walls, 3mm Thick
Steel Floor – 5mm Thick
Large Tipping Hatch fitted with grain locks.
Heavy duty racks for carrying packs of
Copper anodes,
Side access doors for loading of Anode
Racks.
Heavy lift fork pockets.
Stackable empty and loaded.
ISO dimensions for universal handling.
http://pittoship.com/containers/coke-anode-bulk-shipping-container/

10. 20’ Bulk Open Top Shipping Container
Intermodal Solutions Group (ISG)
specialized 20’ Open Top Containers for
Bulk applications are purpose build for the
harsh conditions in Australia.
Features include:
• 1200mm High rear tipping hatch
• Hatch locking mechanism is operated
from the side of the container
• Hatches fitted with “Grain Locks” for
maximum safety on road and rail.
• 5mm thick Steel floor plate
• Deflectors fitted to top rails of container
• Fork pockets for loaded lifting
• Can be fitted with Tarpaulin
• Heavy duty construction for harsh
products like Coal.
http://pittoship.com/containers/20-bulk-open-top-shipping-container/

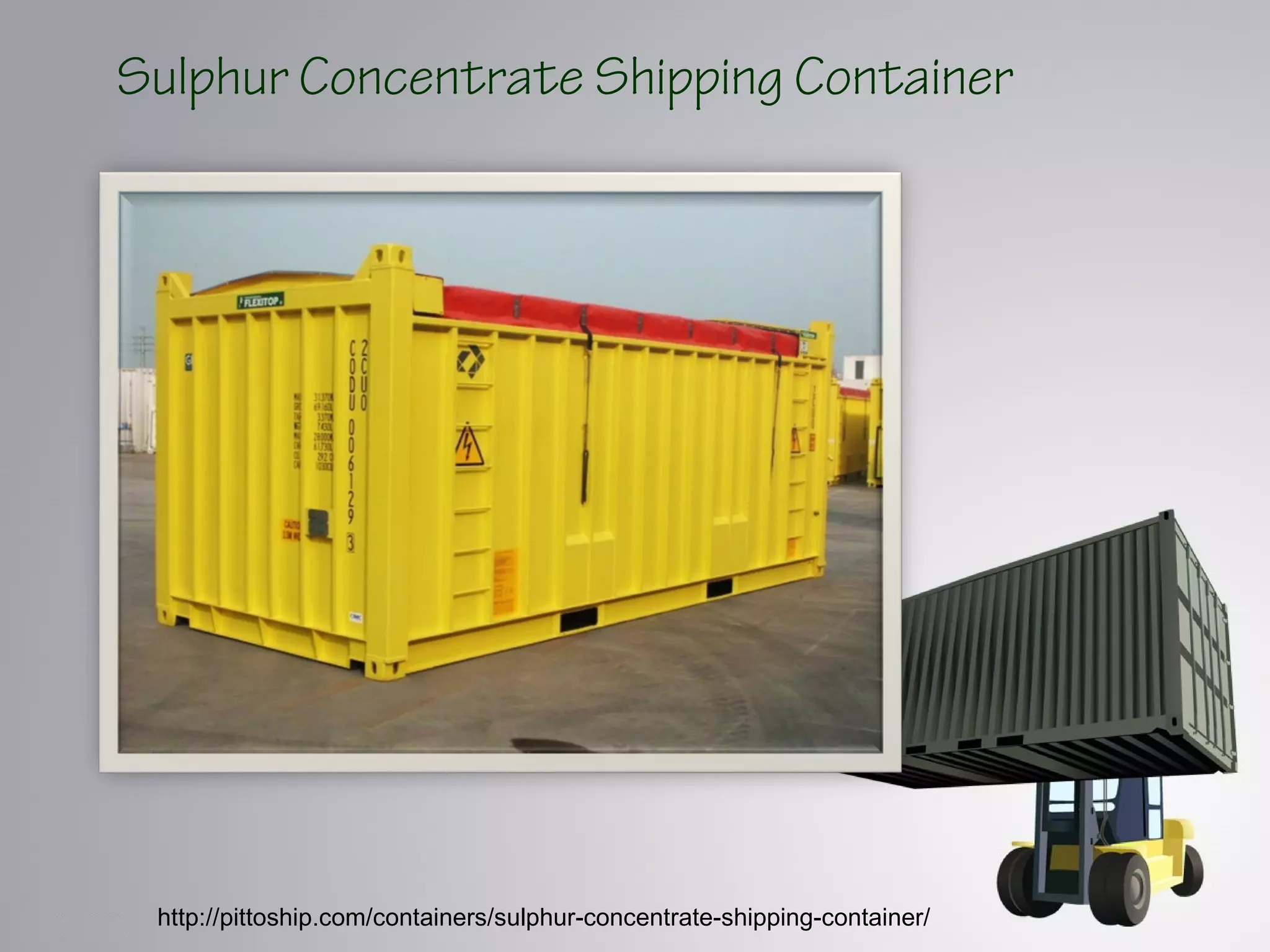

11. Sulphur Concentrate Shipping Container
http://pittoship.com/containers/sulphur-concentrate-shipping-container/

12. Salt Shipping Container
http://pittoship.com/containers/salt-shipping-container/

13. Grain Shipping Containers
Manufactured to suit a range of bulk
products such as Wheat and other grain
crops. Load bulk and discharge bulk
product easily and efficiently.
Fitted with FLEXITOP retractable tarpaulin
system.
Smooth Internal Walls
Large Tipping Hatch fitted with grain locks.
Heavy lift fork pockets.
Sampling ports, to allow product sampling
without opening the Flexitop Tarpaulin.
Stackable empty and loaded.
Tarp can be operated manually or with
power.
http://pittoship.com/containers/grain-shipping-containers/

14. Multipurpose Open Top Container
In 2013 Rio Tinto asked ISG to design a multipurpose container for
their mine sites.
The engineering team of ISG designed and delivered the containers to
Western Australia where trials are now being completed.
http://pittoship.com/containers/multipurpose-open-top-container/

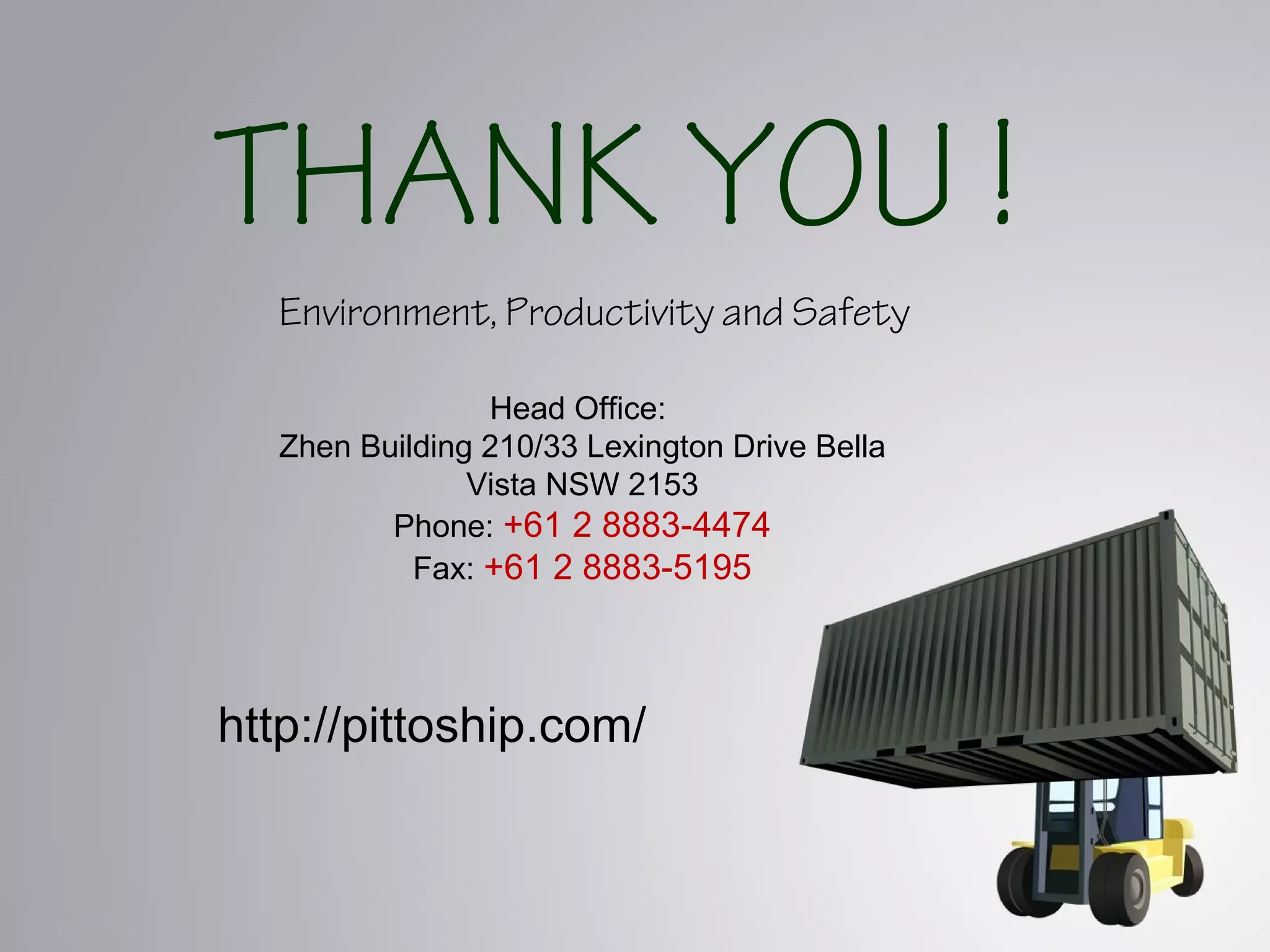

15. THANK YOU !
Environment, Productivity and Safety
http://pittoship.com/
Head Office:
Zhen Building 210/33 Lexington Drive Bella
Vista NSW 2153
Phone: +61 2 8883-4474
Fax: +61 2 8883-5195
