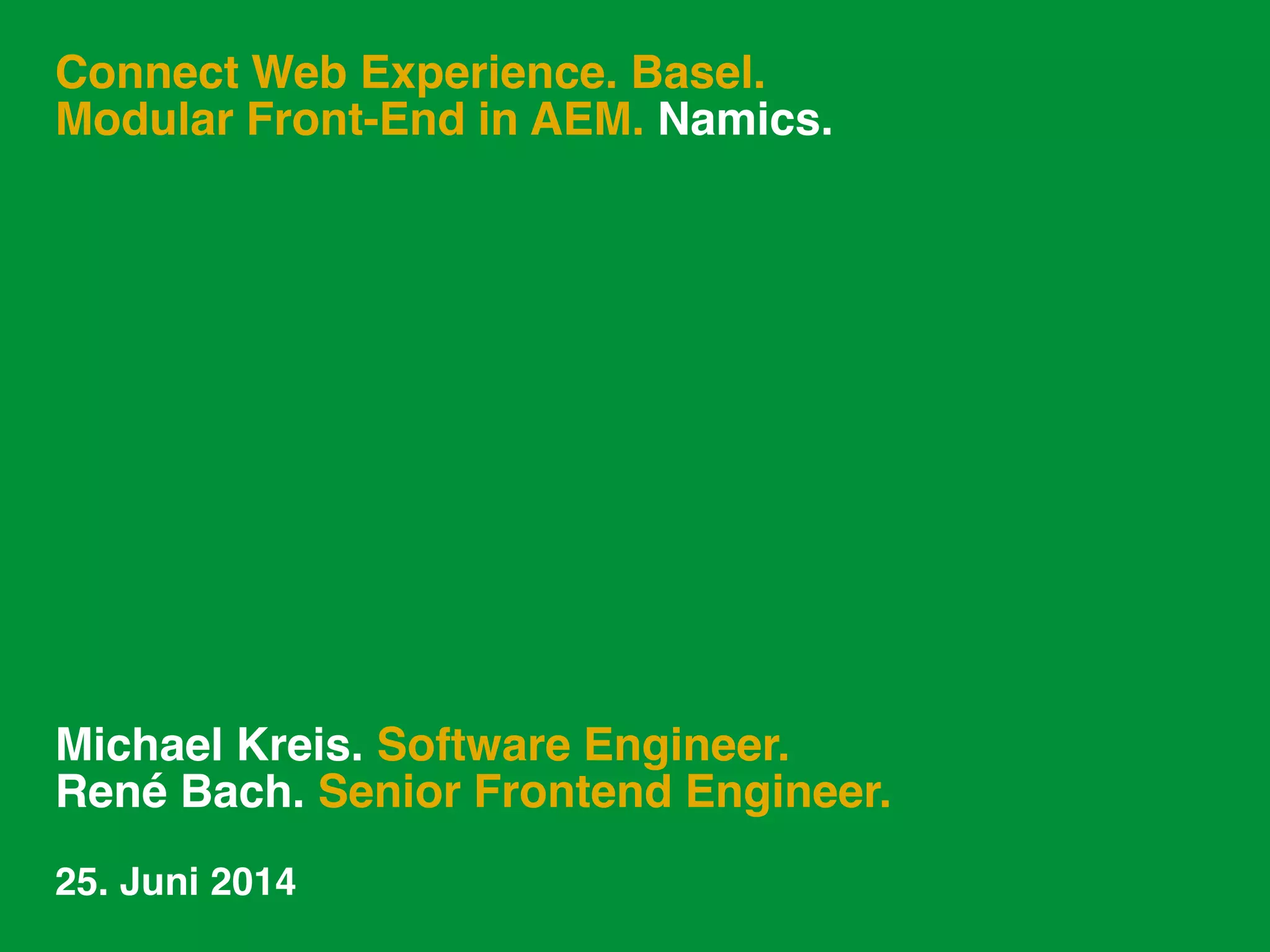

1. Connect Web Experience. Basel.
Modular Front-End in AEM. Namics.
Michael Kreis. Software Engineer.
René Bach. Senior Frontend Engineer.
25. Juni 2014

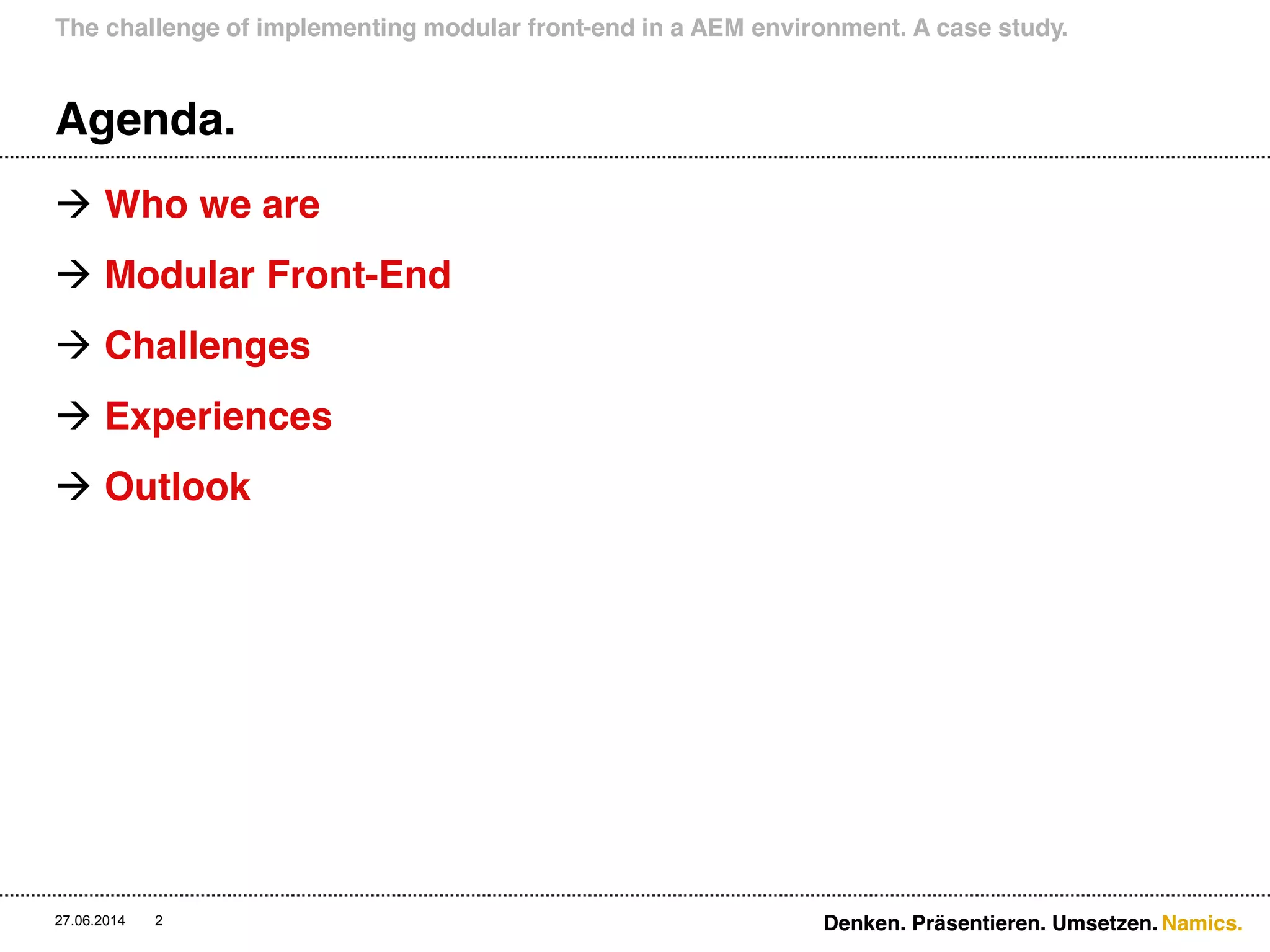

2. Namics.
Agenda.
 Who we are
 Modular Front-End
 Challenges
 Experiences
 Outlook
The challenge of implementing modular front-end in a AEM environment. A case study.
27.06.2014 Denken. Präsentieren. Umsetzen.2

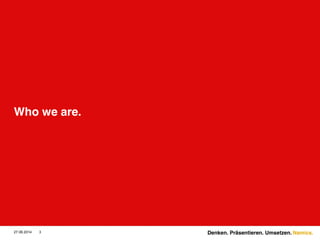

3. Namics.
Who we are.
27.06.2014 3 Denken. Präsentieren. Umsetzen.

4. Namics.
Michael Kreis.
Software Engineer
Namics, St. Gallen
The challenge of implementing modular front-end in a AEM environment. A case study.
27.06.2014 Denken. Präsentieren. Umsetzen.4

5. Namics.
René Bach.
Senior Frontend
Engineer
Namics, Zürich
The challenge of implementing modular front-end in a AEM environment. A case study.
27.06.2014 5 Denken. Präsentieren. Umsetzen.

6. Namics.
Namics.
 Leading Swiss Internet consultancy with a strong
presence in the German market.
 Focus
 Internet Strategy
 Design and implementation of user-centered, efficient and
compelling internet applications
 Marketing and launch support of online activities
 Standards based approach, pragmatic realization
The challenge of implementing modular front-end in a AEM environment. A case study.
27.06.2014 6 Denken. Präsentieren. Umsetzen.

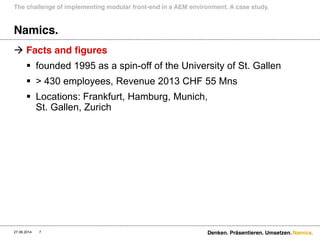

7. Namics.
Namics.
 Facts and figures
 founded 1995 as a spin-off of the University of St. Gallen
 > 430 employees, Revenue 2013 CHF 55 Mns
 Locations: Frankfurt, Hamburg, Munich,
St. Gallen, Zurich
The challenge of implementing modular front-end in a AEM environment. A case study.
27.06.2014 7 Denken. Präsentieren. Umsetzen.

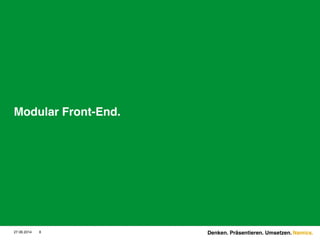

8. Namics.
Modular Front-End.
27.06.2014 8 Denken. Präsentieren. Umsetzen.

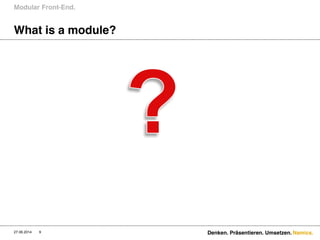

9. Namics.
What is a module?
Modular Front-End.
27.06.2014 Denken. Präsentieren. Umsetzen.9

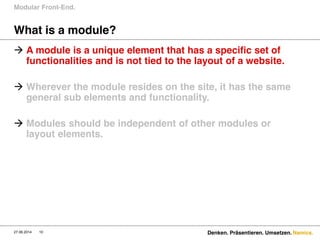

10. Namics.
What is a module?
Modular Front-End.
27.06.2014 10 Denken. Präsentieren. Umsetzen.
 A module is a unique element that has a specific set of
functionalities and is not tied to the layout of a website.
 Wherever the module resides on the site, it has the same
general sub elements and functionality.
 Modules should be independent of other modules or
layout elements.

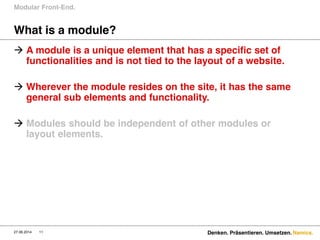

11. Namics.
What is a module?
Modular Front-End.
27.06.2014 11 Denken. Präsentieren. Umsetzen.
 A module is a unique element that has a specific set of
functionalities and is not tied to the layout of a website.
 Wherever the module resides on the site, it has the same
general sub elements and functionality.
 Modules should be independent of other modules or
layout elements.

12. Namics.
What is a module?
Modular Front-End.
27.06.2014 12 Denken. Präsentieren. Umsetzen.
 A module is a unique element that has a specific set of
functionalities and is not tied to the layout of a website.
 Wherever the module resides on the site, it has the same
general sub elements and functionality.
 Modules should be independent of other modules or
layout elements.

13. Namics.
Why using modules?
Modular Front-End.
27.06.2014 Denken. Präsentieren. Umsetzen.13

14. Namics.
Why using modules?
 The code will be cleaner, because CSS and JS of
modules are bundled in an own module-file-structure
 Changes in markup, CSS and JS can be done very
quick, because it's clear where to find it in the code
 Modules are reusable
 Modules can have different representations (“skins”)
Modular Front-End.
27.06.2014 Denken. Präsentieren. Umsetzen.14

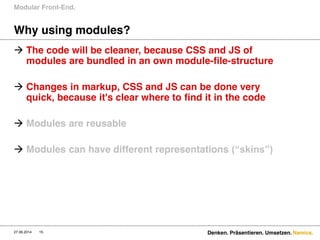

15. Namics.
Why using modules?
 The code will be cleaner, because CSS and JS of
modules are bundled in an own module-file-structure
 Changes in markup, CSS and JS can be done very
quick, because it's clear where to find it in the code
 Modules are reusable
 Modules can have different representations (“skins”)
Modular Front-End.
27.06.2014 Denken. Präsentieren. Umsetzen.15

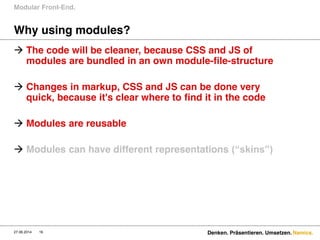

16. Namics.
Why using modules?
 The code will be cleaner, because CSS and JS of
modules are bundled in an own module-file-structure
 Changes in markup, CSS and JS can be done very
quick, because it's clear where to find it in the code
 Modules are reusable
 Modules can have different representations (“skins”)
Modular Front-End.
27.06.2014 Denken. Präsentieren. Umsetzen.16

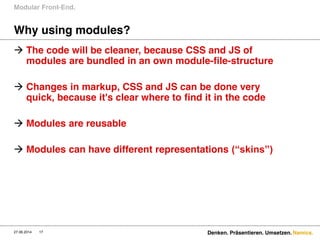

17. Namics.
Why using modules?
 The code will be cleaner, because CSS and JS of
modules are bundled in an own module-file-structure
 Changes in markup, CSS and JS can be done very
quick, because it's clear where to find it in the code
 Modules are reusable
 Modules can have different representations (“skins”)
Modular Front-End.
27.06.2014 Denken. Präsentieren. Umsetzen.17

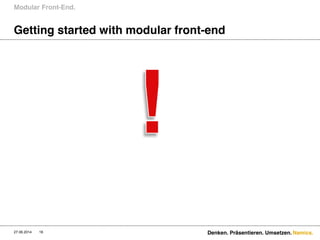

18. Namics.
Getting started with modular front-end
Modular Front-End.
27.06.2014 Denken. Präsentieren. Umsetzen.18

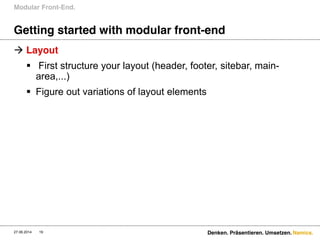

19. Namics.
Getting started with modular front-end
Modular Front-End.
27.06.2014 19 Denken. Präsentieren. Umsetzen.
 Layout
 First structure your layout (header, footer, sitebar, main-
area,...)
 Figure out variations of layout elements

20. Namics.
Getting started with modular front-end
Modular Front-End.
27.06.2014 20 Denken. Präsentieren. Umsetzen.
 Layout

21. Namics.
Getting started with modular front-end
Modular Front-End.
27.06.2014 21 Denken. Präsentieren. Umsetzen.
 Modules
 Figure out modules
 Don't be to general
 Don't be to specific

22. Namics.
Getting started with modular front-end
Modular Front-End.
27.06.2014 22 Denken. Präsentieren. Umsetzen.
 Modules

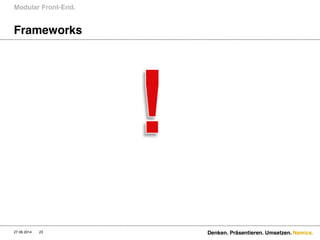

23. Namics.
Frameworks
Modular Front-End.
27.06.2014 Denken. Präsentieren. Umsetzen.23

24. Namics.
Frameworks
Modular Front-End.
27.06.2014 24 Denken. Präsentieren. Umsetzen.

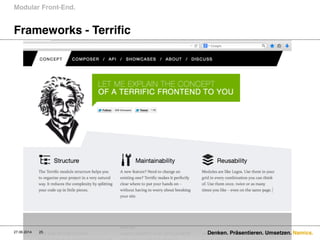

25. Namics.
Frameworks - Terrific
Modular Front-End.
27.06.2014 Denken. Präsentieren. Umsetzen.25

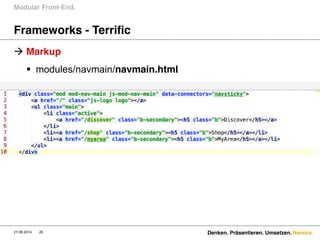

26. Namics.
Frameworks - Terrific
 Markup
 modules/navmain/navmain.html
Modular Front-End.
27.06.2014 Denken. Präsentieren. Umsetzen.26

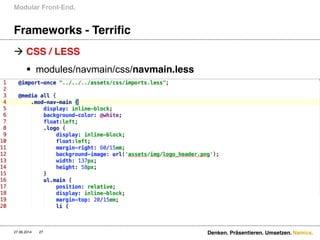

27. Namics.
Frameworks - Terrific
 CSS / LESS
 modules/navmain/css/navmain.less
Modular Front-End.
27.06.2014 Denken. Präsentieren. Umsetzen.27

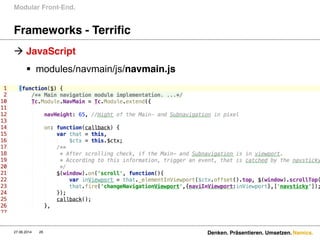

28. Namics.
Frameworks - Terrific
 JavaScript
 modules/navmain/js/navmain.js
Modular Front-End.
27.06.2014 Denken. Präsentieren. Umsetzen.28

29. Namics.
Frameworks – Terrific-Micro
Modular Front-End.
27.06.2014 29 Denken. Präsentieren. Umsetzen.
 Boilerplate for Terrific Modules
 Module template generator
 Features
 CSS/JS concatenation & minification
 LESS/SASS support (optional)
 Caching (LESS/SASS) for optimal performance
 Written in PHP
https://github.com/rogerdudler/terrific-micro

30. Namics.
Challenges.
27.06.2014 30 Denken. Präsentieren. Umsetzen.

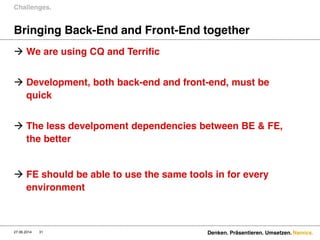

31. Namics.
Bringing Back-End and Front-End together
 We are using CQ and Terrific
 Development, both back-end and front-end, must be
quick
 The less develpoment dependencies between BE & FE,
the better
 FE should be able to use the same tools in for every
environment
Challenges.
27.06.2014 Denken. Präsentieren. Umsetzen.31

32. Namics.
Experiences.
27.06.2014 32 Denken. Präsentieren. Umsetzen.

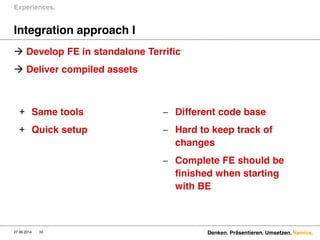

33. Namics.
Integration approach I
 Develop FE in standalone Terrific
 Deliver compiled assets
Experiences.
27.06.2014 Denken. Präsentieren. Umsetzen.33
+ Same tools
+ Quick setup
 Different code base
 Hard to keep track of
changes
 Complete FE should be
finished when starting
with BE

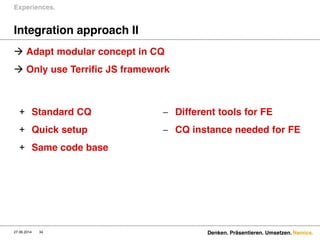

34. Namics.
Integration approach II
 Adapt modular concept in CQ
 Only use Terrific JS framework
Experiences.
27.06.2014 Denken. Präsentieren. Umsetzen.34
+ Standard CQ
+ Quick setup
+ Same code base
 Different tools for FE
 CQ instance needed for FE

35. Namics.

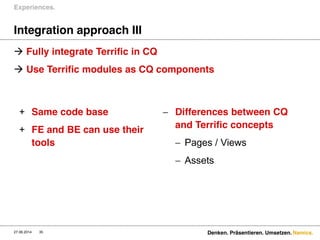

Integration approach III
 Fully integrate Terrific in CQ
 Use Terrific modules as CQ components
Experiences.
27.06.2014 Denken. Präsentieren. Umsetzen.35
+ Same code base
+ FE and BE can use their
tools
 Differences between CQ
and Terrific concepts
 Pages / Views
 Assets

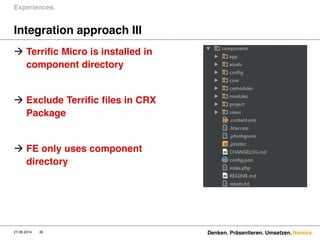

36. Namics.
Integration approach III
 Terrific Micro is installed in
component directory
 Exclude Terrific files in CRX
Package
 FE only uses component
directory
Experiences.
27.06.2014 Denken. Präsentieren. Umsetzen.36

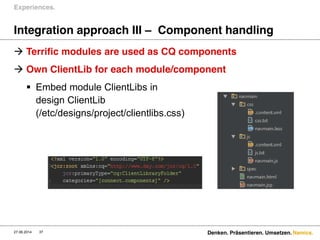

37. Namics.
Integration approach III – Component handling
 Terrific modules are used as CQ components
 Own ClientLib for each module/component
 Embed module ClientLibs in
design ClientLib
(/etc/designs/project/clientlibs.css)
Experiences.
27.06.2014 Denken. Präsentieren. Umsetzen.37

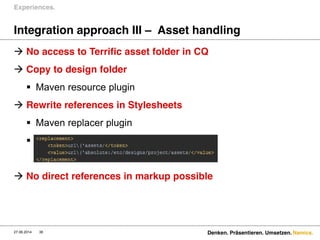

38. Namics.
Integration approach III – Asset handling
 No access to Terrific asset folder in CQ
 Copy to design folder
 Maven resource plugin
 Rewrite references in Stylesheets
 Maven replacer plugin

 No direct references in markup possible
Experiences.
27.06.2014 Denken. Präsentieren. Umsetzen.38

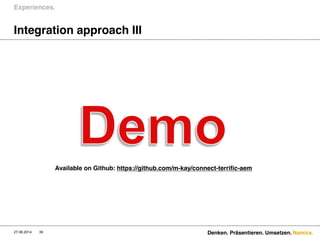

39. Namics.
Integration approach III
Experiences.
27.06.2014 Denken. Präsentieren. Umsetzen.39
Available on Github: https://github.com/m-kay/connect-terrific-aem

40. Namics.
Perfect world???
Experiences.
27.06.2014 Denken. Präsentieren. Umsetzen.40

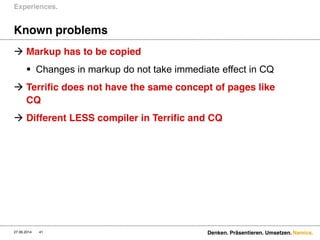

41. Namics.
Known problems
 Markup has to be copied
 Changes in markup do not take immediate effect in CQ
 Terrific does not have the same concept of pages like
CQ
 Different LESS compiler in Terrific and CQ
Experiences.
27.06.2014 Denken. Präsentieren. Umsetzen.41

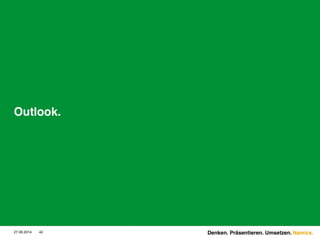

42. Namics.
Outlook.
27.06.2014 42 Denken. Präsentieren. Umsetzen.

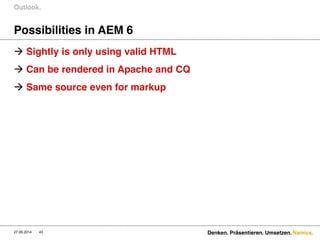

43. Namics.
Possibilities in AEM 6
 Sightly is only using valid HTML
 Can be rendered in Apache and CQ
 Same source even for markup
Outlook.
27.06.2014 Denken. Präsentieren. Umsetzen.43

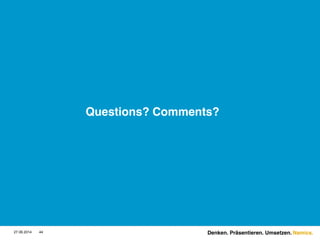

44. Namics.
Questions? Comments?
27.06.2014 44 Denken. Präsentieren. Umsetzen.

45. Namics.
Thank you for your attention.
michael.kreis@namics.com
rene.bach@namics.com
© Namics
27.06.2014 45 Denken. Präsentieren. Umsetzen.
