AGRICULTURAL MACHINERY YOU HAVE NEVER IMAGINED !

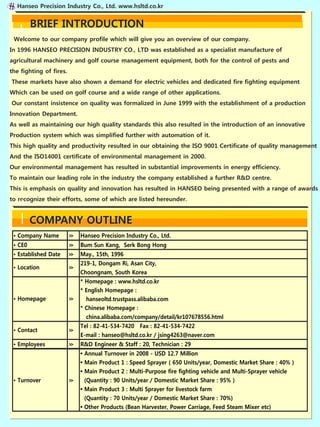

BRIEF INTRODUCTION
Welcome to our company profile which will give you an overview of our company.
In 1996 HANSEO PRECISION INDUSTRY CO., LTD was established as a specialist manufacture of
agricultural machinery and golf course management equipment, both for the control of pests and
the fighting of fires.
These markets have also shown a demand for electric vehicles and dedicated fire fighting equipment
Which can be used on golf course and a wide range of other applications.
Our constant insistence on quality was formalized in June 1999 with the establishment of a production
Innovation Department.
As well as maintaining our high quality standards this also resulted in the introduction of an innovative
Production system which was simplified further with automation of it.
This high quality and productivity resulted in our obtaining the ISO 9001 Certificate of quality management
And the ISO14001 certificate of environmental management in 2000.
Our environmental management has resulted in substantial improvements in energy efficiency.
To maintain our leading role in the industry the company established a further R&D centre.
This is emphasis on quality and innovation has resulted in HANSEO being presented with a range of awards
to recognize their efforts, some of which are listed hereunder.

COMPANY OUTLINE
• Company Name ≫ Hanseo Precision Industry Co., Ltd.
• CE0 ≫ Bum Sun Kang, Serk Bong Hong
• Established Date ≫ May., 15th, 1996
219-1, Dongam Ri, Asan City,
• Location ≫
Choongnam, South Korea
* Homepage : www.hsltd.co.kr
* English Homepage :
• Homepage ≫ hanseoltd.trustpass.alibaba.com
* Chinese Homepage :
china.alibaba.com/company/detail/kr107678556.html
Tel : 82-41-534-7420 Fax : 82-41-534-7422
• Contact ≫
E-mail : hanseo@hsltd.co.kr / jsing4263@naver.com
• Employees ≫ R&D Engineer & Staff : 20, Technician : 29
▪ Annual Turnover in 2008 - USD 12.7 Million
▪ Main Product 1 : Speed Sprayer ( 650 Units/year, Domestic Market Share : 40% )
▪ Main Product 2 : Multi-Purpose fire fighting vehicle and Multi-Sprayer vehicle
• Turnover ≫ (Quantity : 90 Units/year / Domestic Market Share : 95% )
▪ Main Product 3 : Multi Sprayer for livestock farm
(Quantity : 70 Units/year / Domestic Market Share : 70%)
▪ Other Products (Bean Harvester, Power Carriage, Feed Steam Mixer etc)

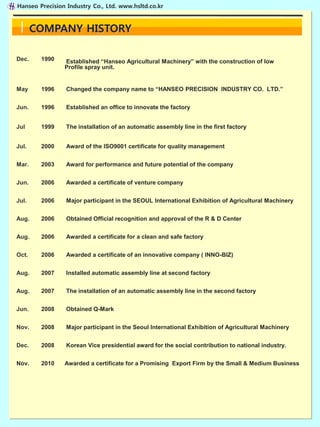

COMPANY HISTORY

Dec. 1990 Established “Hanseo Agricultural Machinery” with the construction of low
Profile spray unit.

May 1996 Changed the company name to “HANSEO PRECISION INDUSTRY CO. LTD.”

Jun. 1996 Established an office to innovate the factory

Jul 1999 The installation of an automatic assembly line in the first factory

Jul. 2000 Award of the ISO9001 certificate for quality management

Mar. 2003 Award for performance and future potential of the company

Jun. 2006 Awarded a certificate of venture company

Jul. 2006 Major participant in the SEOUL International Exhibition of Agricultural Machinery

Aug. 2006 Obtained Official recognition and approval of the R & D Center

Aug. 2006 Awarded a certificate for a clean and safe factory

Oct. 2006 Awarded a certificate of an innovative company ( INNO-BIZ)

Aug. 2007 Installed automatic assembly line at second factory

Aug. 2007 The installation of an automatic assembly line in the second factory

Jun. 2008 Obtained Q-Mark

Nov. 2008 Major participant in the Seoul International Exhibition of Agricultural Machinery

Dec. 2008 Korean Vice presidential award for the social contribution to national industry.

Nov. 2010 Awarded a certificate for a Promising Export Firm by the Small & Medium Business

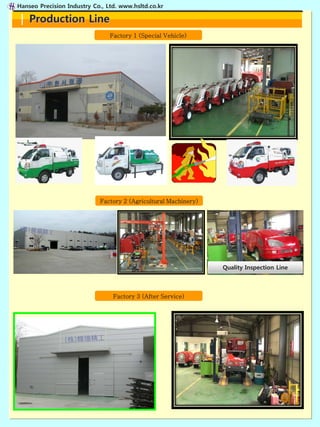

Production Line
Factory 1 (Special Vehicle)

Factory 2 (Agricultural Machinery)

Quality Inspection Line

Factory 3 (After Service)

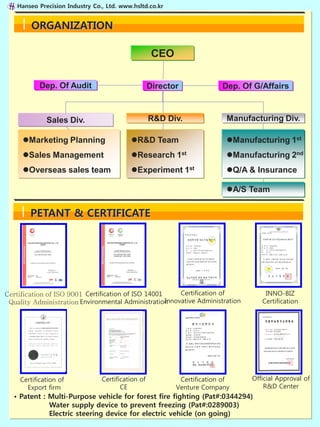

ORGANIZATION

CEO

Dep. Of Audit Director Dep. Of G/Affairs

Sales Div. R&D Div. Manufacturing Div.

Marketing Planning R&D Team Manufacturing 1st
Sales Management Research 1st Manufacturing 2nd
Overseas sales team Experiment 1st Q/A & Insurance

A/S Team

PETANT & CERTIFICATE

Certification of ISO 9001 Certification of ISO 14001 Certification of INNO-BIZ
Quality Administration Environmental Administration Innovative Administration Certification

품질을 걱정하는 기 of
업
Certification
Certification of Certification of Official Approval of
Export firm CE Venture Company R&D Center
• Patent : Multi-Purpose vehicle for forest fire fighting (Pat#:0344294)
Water supply device to prevent freezing (Pat#:0289003)
Electric steering device for electric vehicle (on going)

Hanseo Precision Industry Co., Ltd. www.hsltd.co.kr AGRICULTURAL MACHINERY

Self propelled Sprayer Cabin type HSC-1000DW

Features
•Specification
-It take back view camera
-Air conditioner, Car Audio, LCD Monitor, Air cleaner
-Strong turbo engine
-Square frame structure solid and long-term use as no
deformation or damage

Special Functions
Specification

Model HSC-1000 DW

Dimension 4245 X 1465 X 1340
Meter gauge
weight 1,595 kg

Water tank 1,000 kg
capacity

type D4BB-TC
Monitor
Drive Engine
Kw/rpm 39/2500~44.1/2900
kw/rpm

Fuel type diesel

mission Forward 5
Back 1 Interior room
Drive device Drive 1.0~15km/h
speed

Drive type 4 wheel steering

Blow device M3 / min 600~700
view Camera
Tire dimension 26 X 10,00-12 8 PR

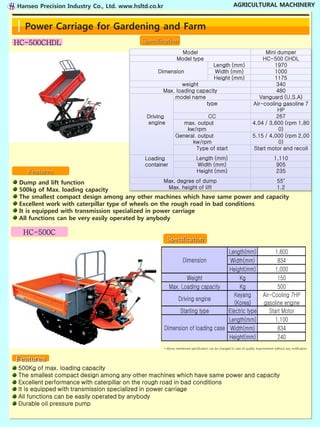

Power Carriage for Gardening and Farm
HC-500CHDL Specification
Model Mini dumper
Model type HC-500 CHDL
Length (mm) 1970
Dimension Width (mm) 1000
Height (mm) 1175
weight 340
Max. loading capacity 480
model name Vanguard (U.S.A)
type Air-cooling gasoline 7
HP
Driving CC 267
engine max. output 4.04 / 3,600 (rpm 1,80
kw/rpm 0)
General. output 5.15 / 4,000 (rpm 2,00
kw/rpm 0)
Type of start Start motor and recoil
Loading Length (mm) 1,110
container Width (mm) 905
Features Height (mm) 235

Dump and lift function Max. degree of dump 55˚
500kg of Max. loading capacity Max. height of lift 1.2
The smallest compact design among any other machines which have same power and capacity
Excellent work with caterpillar type of wheels on the rough road in bad conditions
It is equipped with transmission specialized in power carriage
All functions can be very easily operated by anybody

HC-500C
Specification

Length(mm) 1,800
Dimension Width(mm) 834
Height(mm) 1,000
Weight Kg 150
Max. Loading capacity Kg 500
Keyang Air-Cooling 7HP
Driving engine
(Korea) gasoline engine
Starting type Electric type Start Motor
Length(mm) 1,100
Dimension of loading case Width(mm) 834
Height(mm) 240
▪ Above mentioned specification can be changed in case of quality improvement without any notification.

Features
500Kg of max. loading capacity
The smallest compact design among any other machines which have same power and capacity
Excellent performance with caterpillar on the rough road in bad conditions
All functions can be easily operated by anybody
Durable oil pressure pump

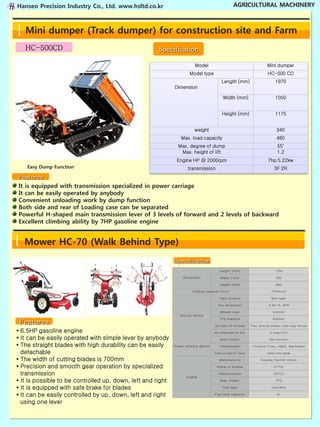

Mini dumper (Track dumper) for construction site and Farm
HC-500CD Specification

Model Mini dumper
Model type HC-500 CD
Length (mm) 1970
Dimension

Width (mm) 1000

Height (mm) 1175

weight 340
Max. load capacity 480
Max. degree of dump 55˚
Max. height of lift 1.2
Engine HP @ 2000rpm 7hp 5.22kw
Easy Dump Function ▪ Above mentioned specification can be changed in case of quality improvement3F 2Rany notification.
transmission without

Features
It can be easily operated by anybody
Convenient unloading work by dump function
Both side and rear of Loading case can be separated
Powerful H-shaped main transmission lever of 3 levels of forward and 2 levels of backward
Excellent climbing ability by 7HP gasoline engine

Mower HC-70 (Walk Behind Type)
Specification

Features
▪ 6.5HP gasoline engine
▪ It can be easily operated with simple lever by anybody
▪ The straight blades with high durability can be easily
detachable
▪ The width of cutting blades is 700mm
▪ Precision and smooth gear operation by specialized
transmission
▪ It is possible to be controlled up, down, left and right
▪ It is equipped with safe brake for blades
▪ It can be easily controlled by up, down, left and right
using one lever

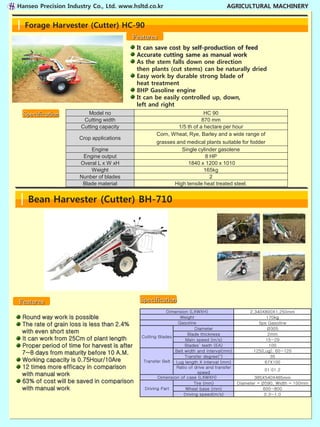

Forage Harvester (Cutter) HC-90
Features
It can save cost by self-production of feed
Accurate cutting same as manual work
As the stem falls down one direction
then plants (cut stems) can be naturally dried
Easy work by durable strong blade of
heat treatment
8HP Gasoline engine
It can be easily controlled up, down,
left and right
Specification Model no HC 90
Cutting width 870 mm
Cutting capacity 1/5 th of a hectare per hour
Corn, Wheat, Rye, Barley and a wide range of
Crop applications
grasses and medical plants suitable for fodder
Engine Single cylinder gasolene
Engine output 8 HP
Overal L x W xH 1840 x 1200 x 1010
Weight 165kg
Nunber of blades 2
Blade material High tensile heat treated steel.

Bean Harvester (Cutter) BH-710

Features Specification
Dimension (LXWXH) 2,340X800X1,250mm
Round way work is possible Weight 170kg
The rate of grain loss is less than 2.4% Gasoline 5ps Gasoline
Diameter Ø305
with even short stem Blade thickness 2mm
Cutting Blades
It can work from 25Cm of plant length Main speed (m/s) 15~29
Proper period of time for harvest is after Blades’ teeth (EA) 100
Belt width and interval(mm) 125(Lug), 60~120
7~8 days from maturity before 10 A.M.
Transfer degree(°) 35
Working capacity is 0.75Hour/10Are Transfer Belt Lug length X interval (mm) 67X100
12 times more efficacy in comparison Ratio of drive and transfer
01:01.2
with manual work speed
Dimension of case (LXWXH) 385X540X485mm
63% of cost will be saved in comparison Tire (mm) Diameter = Ø590, Width = 100mm
with manual work Driving Part Wheel base (mm) 600~800
Driving speed(m/s) 0.3~1.0

Hanseo Precision Industry Co., Ltd. www.hsltd.co.kr SPECIAL VEHICLE

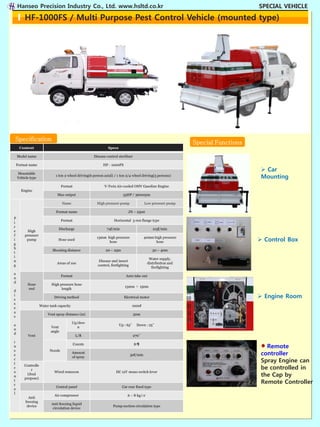

HF-1000FS / Multi Purpose Pest Control Vehicle (mounted type)

Specification
Special Functions
Content Specs

Model name Disease control sterilizer

Format name HF - 1000FS
 Car
Mountable
Vehicle type
1 ton 2 wheel driving(6 person axial) / 1 ton 2/4 wheel driving(3 persons)
Mounting
Format V-Twin Air-cooled OHV Gasoline Engine
Engine
Max output 35HP / 3600rpm

Name High pressure pump Low pressure pump

Format name JN – 2500
F
Format Horizontal 3 run flange type
i
r
Discharge 74ℓ/min 215ℓ/min
e High
f pressure
13mm high pressure 40mm high pressure
i pump Hose used
hose hose  Control Box
g
h
Shooting distance 20 ~ 25m 30 ~ 40m
t
i
Water supply,
n Disease and insect
Areas of use distribution and
g control, firefighting
firefighting
a
Format Auto take out
n
d
Hose High pressure hose
13mm × 150m
reel length
d
i
s
Driving method Electrical motor  Engine Room
s
Water tank capacity 1000ℓ
e
a
Vent spray distance (m) 30m
s
Up/dow
a Up : 65˚ Down : 25˚
Vent n
n
angle
d
Vent L/R 270˚
i
Counts 8개
n Remote
s Nozzle
e
Amount
of spray
30ℓ/min controller
c
t
Spray Engine can
Controlle
c
r be controlled in
o Wired remocon DC 12V mono switch lever
n
(dual
purpose)
the Cap by
t
r
Remote Controller
Central panel Car rear fixed type
o
l
Air compressor 6 ~ 8 kg/㎠
Anti
freezing
Anti freezing liquid
device Pump suction circulation type
circulation device

Hanseo Precision Industry Co., Ltd. www.hsltd.co.kr FIRE FIGHTING VEHICLE

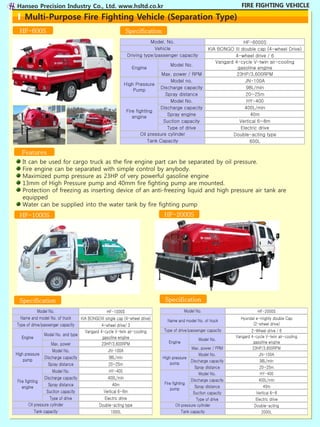

Multi-Purpose Fire Fighting Vehicle (Separation Type)
HF-600S Specification
Model. No. HF-6000S
Vehicle KIA BONGO III double cap (4-wheel Drive)
Driving type/passenger capacity 4-wheel drive / 6
Vangard 4-cycle V-twin air-cooling
Model No.
Engine gasoline engine
Max. power / RPM 23HP/3,600RPM
Model no. JN-100A
High Pressure
Discharge capacity 98L/min
Pump
Spray distance 20~25m
Model No. HY-400
Discharge capacity 400L/min
Fire fighting
Spray engine 40m
engine
Suction capacity Vertical 6~8m
Type of drive Electric drive
Oil pressure cylinder Double-acting type
Tank Capacity 600L

Features
It can be used for cargo truck as the fire engine part can be separated by oil pressure.
Fire engine can be separated with simple control by anybody.
Maximized pump pressure as 23HP of very powerful gasoline engine
13mm of High Pressure pump and 40mm fire fighting pump are mounted.
Protection of freezing as inserting device of an anti-freezing liquid and high pressure air tank are
equipped
Water can be supplied into the water tank by fire fighting pump
HF-1000S HF-2000S

Specification Specification
Model No. HF-1000S Model No. HF-2000S
Name and model No. of truck KIA BONGOIII single cap (4-wheel drive) Hyundai e-mighty double Cap
Name and model No. of truck
Type of drive/passenger capacity 4-wheel drive/ 3 (2-wheel drive)
Vangard 4-cycle V-twin air-cooling Type of drive/passenger capacity 2-Wheel drive / 6
Model No. and type Vangard 4-cycle V-twin air-cooling
Engine gasoline engine Model No.
Max. power 23HP/3,600RPM Engine gasoline engine
Max. power / PRM 23HP/3,600RPM
Model No. JN-100A
High pressure Model No. JN-100A
Discharge capacity 98L/min High pressure
pump Discharge capacity 98L/min
Spray distance 20~25m pump
Spray distance 20~25m
Model No. HY-400
Model No. HY-400
Discharge capacity 400L/min Discharge capacity 400L/min
Fire fighting Fire fighting
Spray distance 40m Spray distance 40m
engine pump
Suction capacity Vertical 6~8m Suction capacity Vertical 6~8
Type of drive Electric drive Type of drive Electric drive
Oil pressure cylinder Double-acting type Oil pressure cylinder Double-acting
Tank capacity 1000L Tank capacity 2000L

Company

More Related Content

Similar to Company

Company
