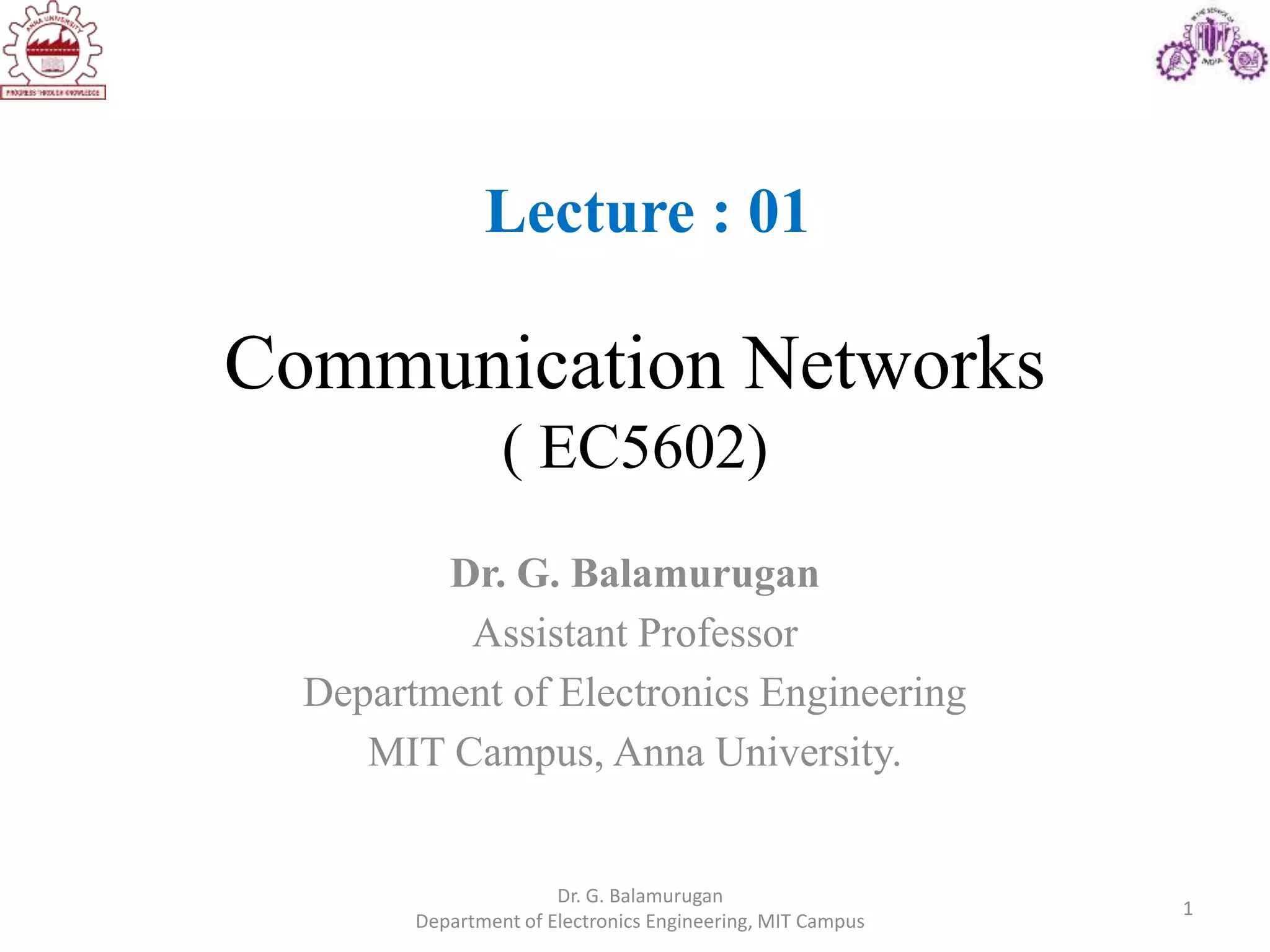

- 1. 1 Communication Networks ( EC5602) Dr.G. Balamurugan Assistant Professor Department of Electronics Engineering MIT Campus, Anna University. Dr. G. Balamurugan Department of Electronics Engineering, MIT Campus Lecture : 01

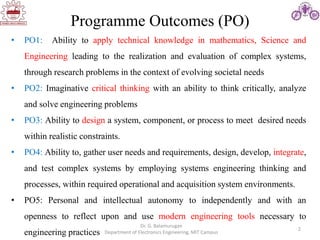

- 2. 2 Programme Outcomes (PO) Dr.G. Balamurugan Department of Electronics Engineering, MIT Campus • PO1: Ability to apply technical knowledge in mathematics, Science and Engineering leading to the realization and evaluation of complex systems, through research problems in the context of evolving societal needs • PO2: Imaginative critical thinking with an ability to think critically, analyze and solve engineering problems • PO3: Ability to design a system, component, or process to meet desired needs within realistic constraints. • PO4: Ability to, gather user needs and requirements, design, develop, integrate, and test complex systems by employing systems engineering thinking and processes, within required operational and acquisition system environments. • PO5: Personal and intellectual autonomy to independently and with an openness to reflect upon and use modern engineering tools necessary to engineering practices
- 3. 3 Programme Outcomes Dr. G.Balamurugan Department of Electronics Engineering, MIT Campus • PO7: An active and committed global citizen with an awareness of contemporary issues and their Impact on economic, environmental, social, political, ethical, health and safety, manufacturability and sustainability. • PO8: An understanding of professional, ethical, legal issues and responsibilities • PO9: A creative, enterprising team player and engaged participative leader able to effect change. • PO10: A confident, resilient and adaptable individual with good communication skills • PO11: Exercise their responsibilities in the management of cost-effective systems product development by leading and participating in interdisciplinary teams • PO12: Active exploration of new ideas through lifelong learning.
- 4. 4 Programme Specific Outcomes(PSOs) Dr. G. Balamurugan Department of Electronics Engineering, MIT Campus • After the completion of B.E. Electronics and Communication Engineering programme, the student will process the follow program Specific Outcomes: • PSO1 The curriculum of ECE includes mathematics and Engineering topics necessary to analyse and design complex Electronic Systems containing Hardware and Software components. • PSO2 The curriculum of ECE includes mathematics and Engineering topics necessary to analyse and design complex Communication Systems containing Hardware and Software components.

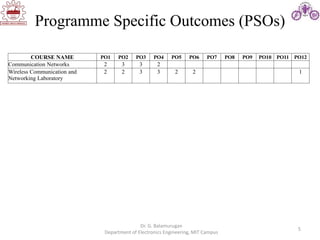

- 5. 5 Programme Specific Outcomes(PSOs) Dr. G. Balamurugan Department of Electronics Engineering, MIT Campus COURSE NAME PO1 PO2 PO3 PO4 PO5 PO6 PO7 PO8 PO9 PO10 PO11 PO12 Communication Networks 2 3 3 2 Wireless Communication and Networking Laboratory 2 2 3 3 2 2 1
- 6. 6 Objectives of theCourse Dr. G. Balamurugan Department of Electronics Engineering, MIT Campus • To introduce the relevance of this course to the existing technology through demonstrations, case studies, simulations, contributions of scientist, national/international policies with a futuristic vision along with socio- economic impact and issues ( Unit : 1) • To introduce the layered communication architectures ( Unit : 1) • To understand various physical, data link and routing layer protocols ( Unit : 1,2,3) • To understand application layer protocols and security issues . ( Unit : 4) • To understand various digital switching techniques. ( Unit : 5) Functionalities Protocols Network Architecture

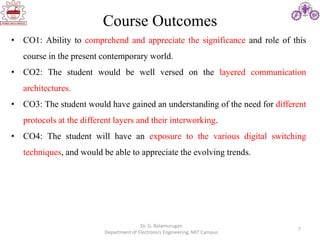

- 7. 7 Course Outcomes Dr. G.Balamurugan Department of Electronics Engineering, MIT Campus • CO1: Ability to comprehend and appreciate the significance and role of this course in the present contemporary world. • CO2: The student would be well versed on the layered communication architectures. • CO3: The student would have gained an understanding of the need for different protocols at the different layers and their interworking. • CO4: The student will have an exposure to the various digital switching techniques, and would be able to appreciate the evolving trends.
- 8. 8 Text Books Dr. G.Balamurugan Department of Electronics Engineering, MIT Campus • Behrouz.A. Forouzan, "Data Communication and Networking", Tata McGraw Hill, 5th Edition 2007. • John C. Bellamy, Digital Telephony, John Wiley, 3rd Edition, 2006. • Stallings.W., "Data and Computer Communication", Prentice Hall of India, 10th Edition, 1996 • Tanenboum, A.S, "Computer Networks", Prentice Hall Of India, 6th Edition , 1996 • Keshav.S. An Engineering Approach To Computer Networking, Addision – Wesley,1999. • J.E.Flood, Telecommunication Switching, Traffic and networks, Pearson Education, 1stEdition,2006

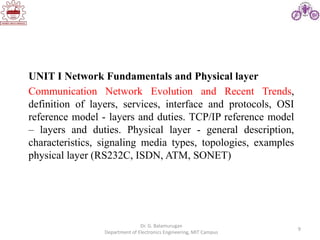

- 9. 9 UNIT I NetworkFundamentals and Physical layer Communication Network Evolution and Recent Trends, definition of layers, services, interface and protocols, OSI reference model - layers and duties. TCP/IP reference model – layers and duties. Physical layer - general description, characteristics, signaling media types, topologies, examples physical layer (RS232C, ISDN, ATM, SONET) Dr. G. Balamurugan Department of Electronics Engineering, MIT Campus
- 10. 10 Introduction : DataCommunication Dr. G. Balamurugan Department of Electronics Engineering, MIT Campus • The term telecommunication means communication at a distance. The word data refers to information presented in whatever form is agreed upon by the parties creating and using the data • Data communications are the exchange of data between two devices via some form of transmission medium such as a wire cable. • For data communications to occur, the communicating devices must be part of a communication system made up of a combination of hardware and software Evolution of Telecommunication:
- 11. 11 Fundamental Characteristics Dr. G.Balamurugan Department of Electronics Engineering, MIT Campus • The effectiveness of data communication system depends on 4 fundamental characteristics. 1. Delivery Deliver data to the correct destination Intended device or user 2. Accuracy Deliver the data accurately Altered in transmission and left uncorrected 3. Timeliness Deliver data in a timely manner Ex: Real-time transmission (video and audio) – without delay. 4. Jitter Jitter refers to the variation in the packet arrival time. Uneven delay in the delivery of audio or video packets
- 12. 12 Data Communication SystemComponents Dr. G. Balamurugan Department of Electronics Engineering, MIT Campus • Message - text, numbers, pictures, audio, and video • Sender – computer, workstation, telephone handset, video camera • Receiver - computer, workstation, telephone handset, TV • Transmission Medium - twisted-pair wire, coaxial cable, radio waves • Protocol - set of rules that govern data communications

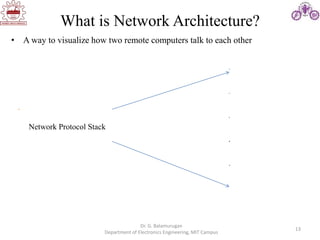

- 13. 13 What is NetworkArchitecture? Dr. G. Balamurugan Department of Electronics Engineering, MIT Campus • A way to visualize how two remote computers talk to each other Physical Data Link Network Transport Application Network Protocol Stack
- 14. 14 Network Architecture Dr. G.Balamurugan Department of Electronics Engineering, MIT Campus • Requirement : Convert digital data to analog signal and vice versa Physical Physical Data Link • Requirement : Ensure proper scheduling in media access
- 15. 15 Network Architecture Dr. G.Balamurugan Department of Electronics Engineering, MIT Campus • Requirement: Find out a suitable path to forward data Physical Data Link Network
- 16. 16 Network Architecture Dr. G.Balamurugan Department of Electronics Engineering, MIT Campus • Requirement: End to end traffic control in the network Physical Data Link Network Transport Source to destination delivery from specific process (running program) on one computer to a specific process on the other

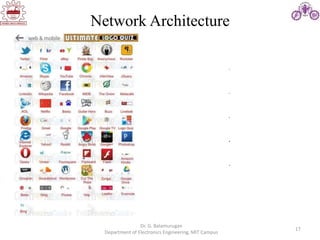

- 17. 17 Network Architecture Dr. G.Balamurugan Department of Electronics Engineering, MIT Campus Physical Data Link Network Transport Application
- 18. 18 Data Transfer BetweenTwo Remote Machines Dr. G. Balamurugan Department of Electronics Engineering, MIT Campus
- 19. 19 Data Transfer BetweenTwo Remote Machines Dr. G. Balamurugan Department of Electronics Engineering, MIT Campus Picture Resource: NPTEL Computer Networks And Internet Protocols, IIT Kharagpur

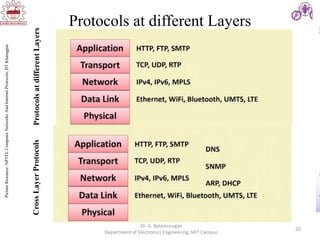

- 20. 20 Protocols at differentLayers Dr. G. Balamurugan Department of Electronics Engineering, MIT Campus Protocols at different Layers Cross Layer Protocols Picture Resource: NPTEL Computer Networks And Internet Protocols, IIT Kharagpur
- 21. 21 Two ways tolearn Computer Networks Dr. G. Balamurugan Department of Electronics Engineering, MIT Campus Physical Data Link Network Transport Application Physical Data Link Network Transport Application

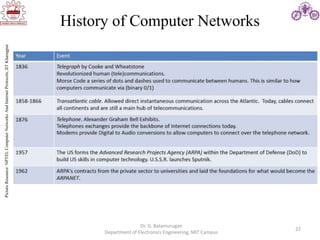

- 22. 22 History of ComputerNetworks Dr. G. Balamurugan Department of Electronics Engineering, MIT Campus Picture Resource: NPTEL Computer Networks And Internet Protocols, IIT Kharagpur

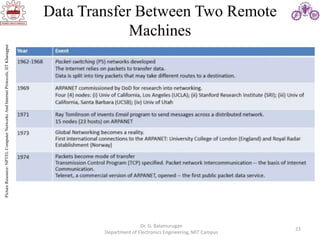

- 23. 23 Data Transfer BetweenTwo Remote Machines Dr. G. Balamurugan Department of Electronics Engineering, MIT Campus Picture Resource: NPTEL Computer Networks And Internet Protocols, IIT Kharagpur
- 24. 24 Data Transfer BetweenTwo Remote Machines Dr. G. Balamurugan Department of Electronics Engineering, MIT Campus Picture Resource: NPTEL Computer Networks And Internet Protocols, IIT Kharagpur

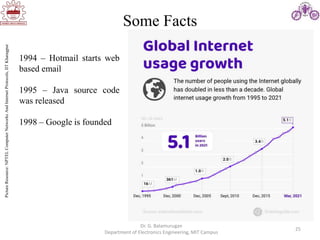

- 25. 25 Some Facts Dr. G.Balamurugan Department of Electronics Engineering, MIT Campus Picture Resource: NPTEL Computer Networks And Internet Protocols, IIT Kharagpur 1994 – Hotmail starts web based email 1995 – Java source code was released 1998 – Google is founded
- 26. 26 Dr. G. Balamurugan Departmentof Electronics Engineering, MIT Campus
