Coiled Tubing Scale Cleanout
Operation

• The CT is a continuous length of steel or composite tubing that is supplied
spooled on a large reel.
• The CT unit is composed of a reel with the CT, an injector, control console,
power supply and well-control stack.
• CT is used for intervention in oil and gas wells and sometimes as
production tubing in depleted wells.

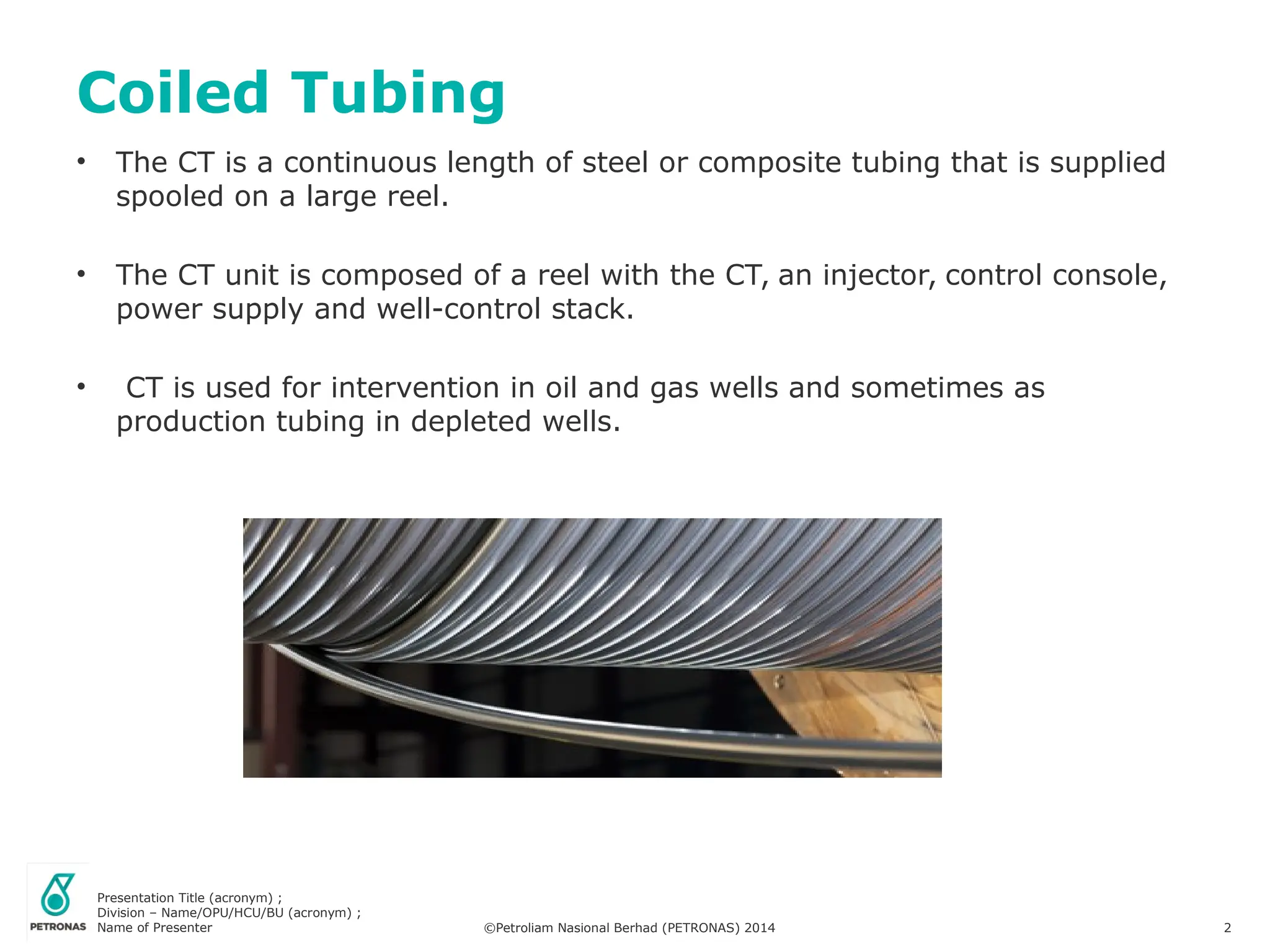

Coiled Tubing

• Steel pipe 1” OD to 3.5” OD
• Yield strengths of 70,000, 80,000, 90,000, 100,000 psi
• Relatively thin wall
• Finite life due to fatigue cycles (bending)

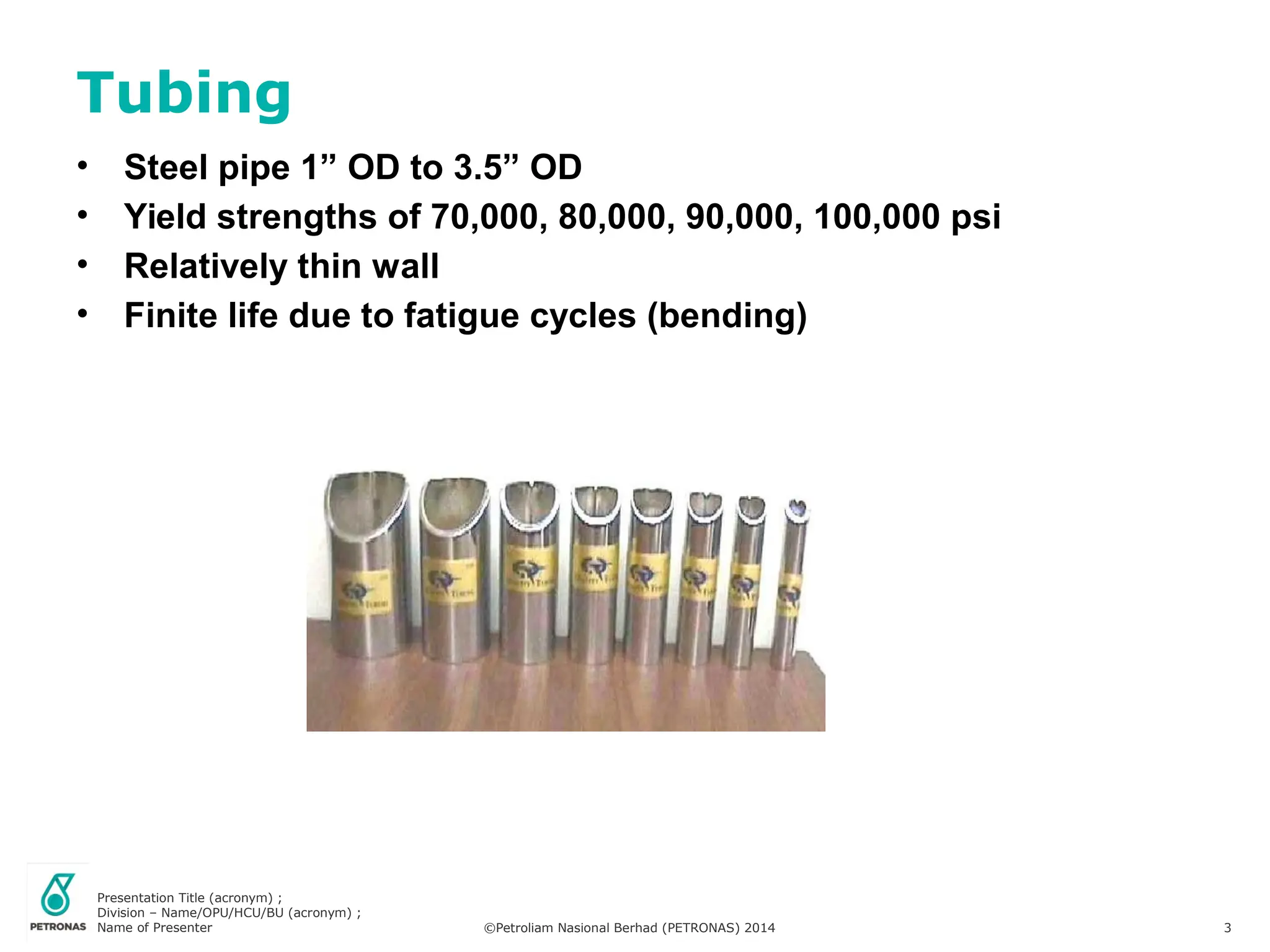

Tubing

Basic CT unit comprises:
– Injector head
– CT reel
– Power pack
– Control cabin
– Pressure control equipment(PCE)

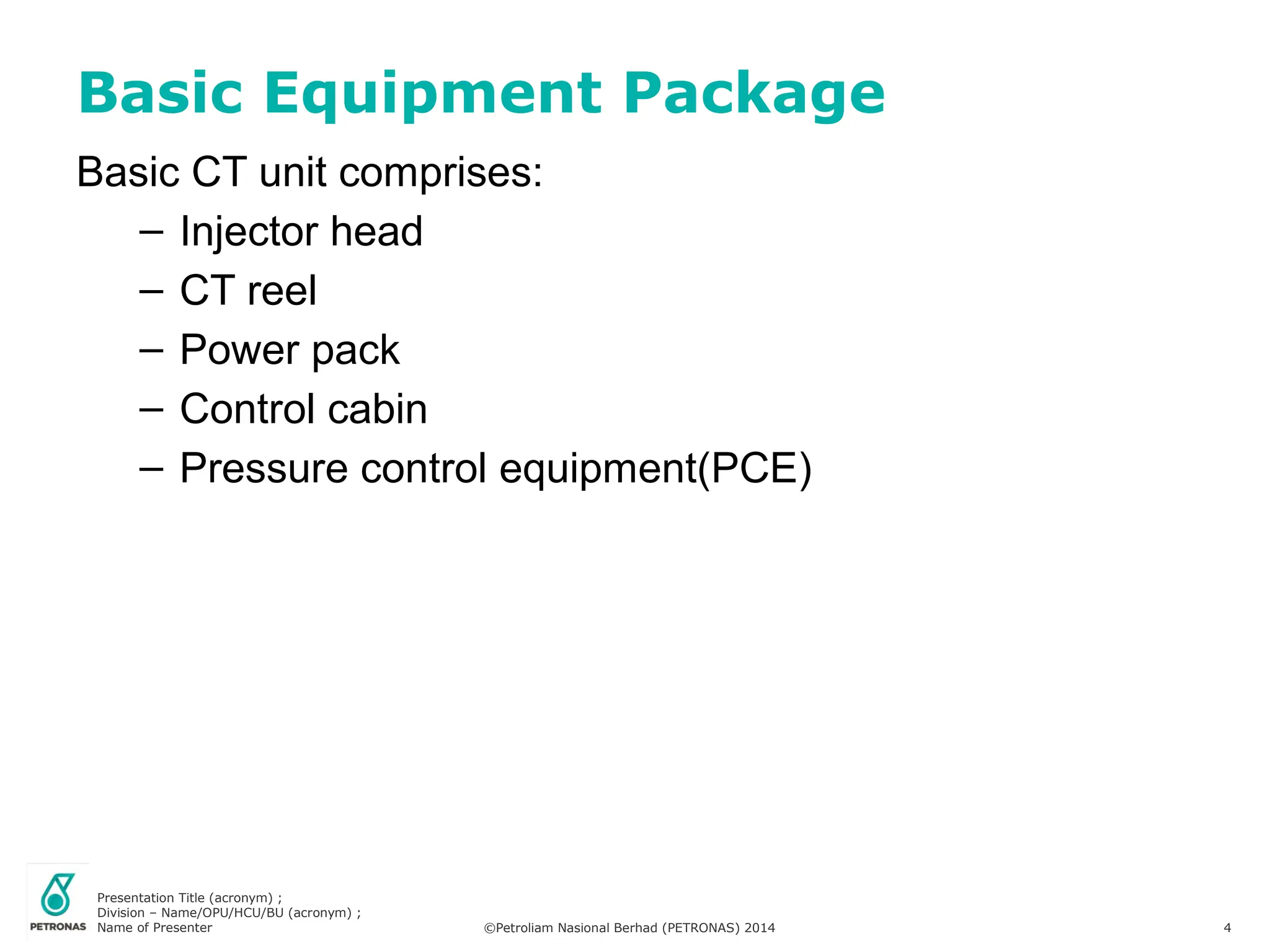

Basic Equipment Package

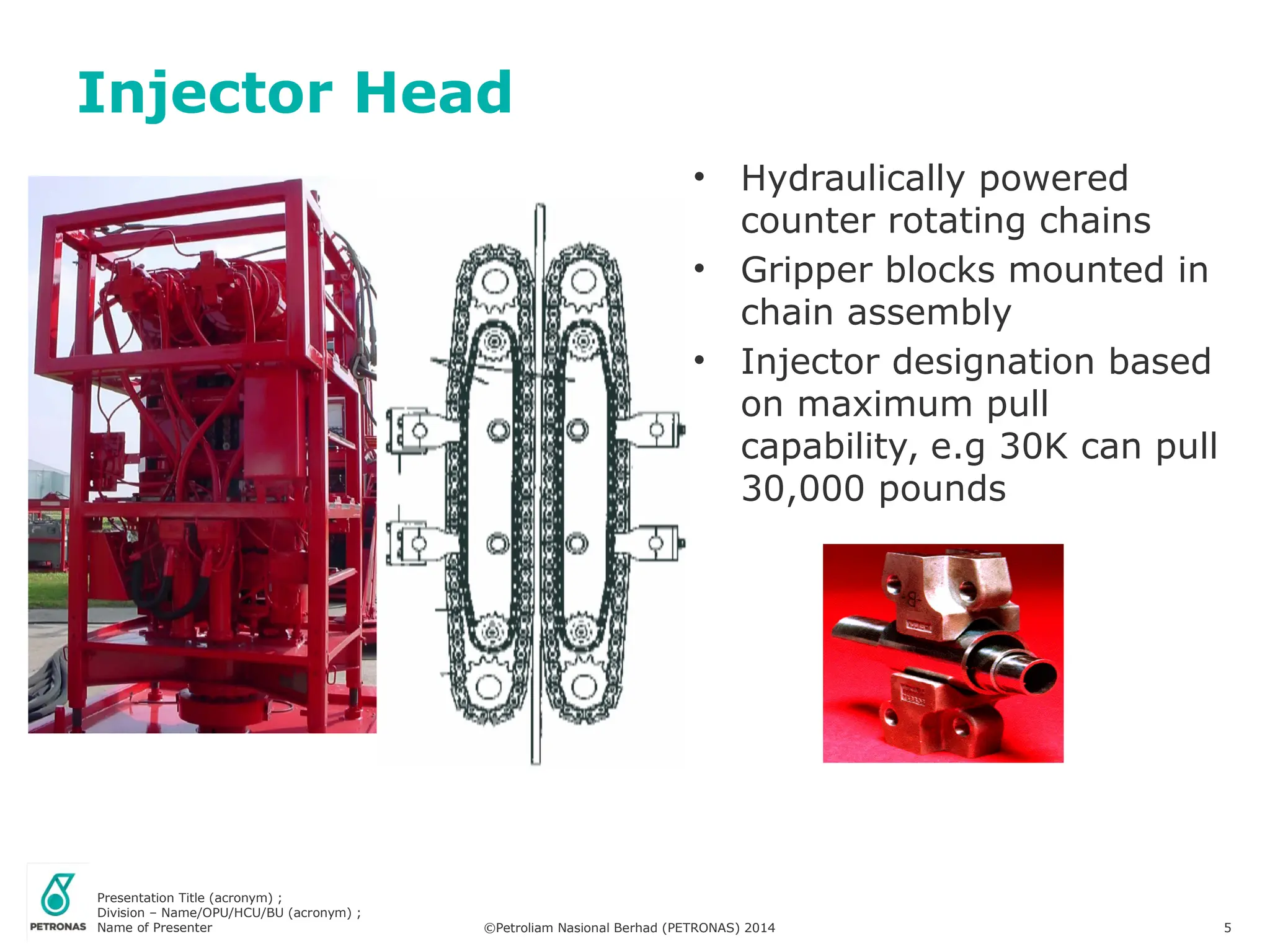

Injector Head
• Hydraulically powered
counter rotating chains
• Gripper blocks mounted in
chain assembly
• Injector designation based
on maximum pull
capability, e.g 30K can pull
30,000 pounds

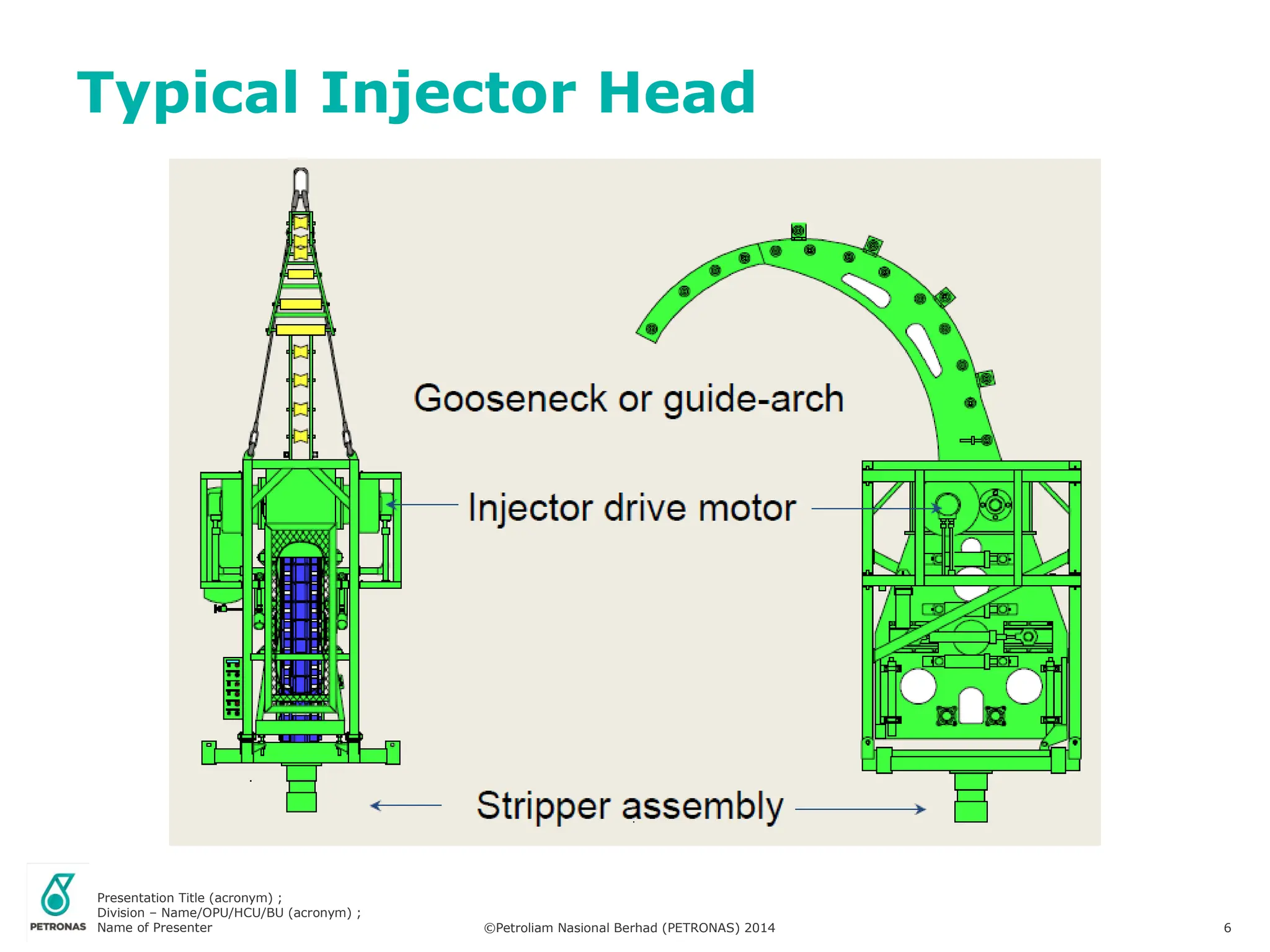

Typical Injector Head

Most injector heads have two sets of opposing endless chains
• Series of gripper blocks mounted on each chain
• Gripping profile of each suits a specific tubing size

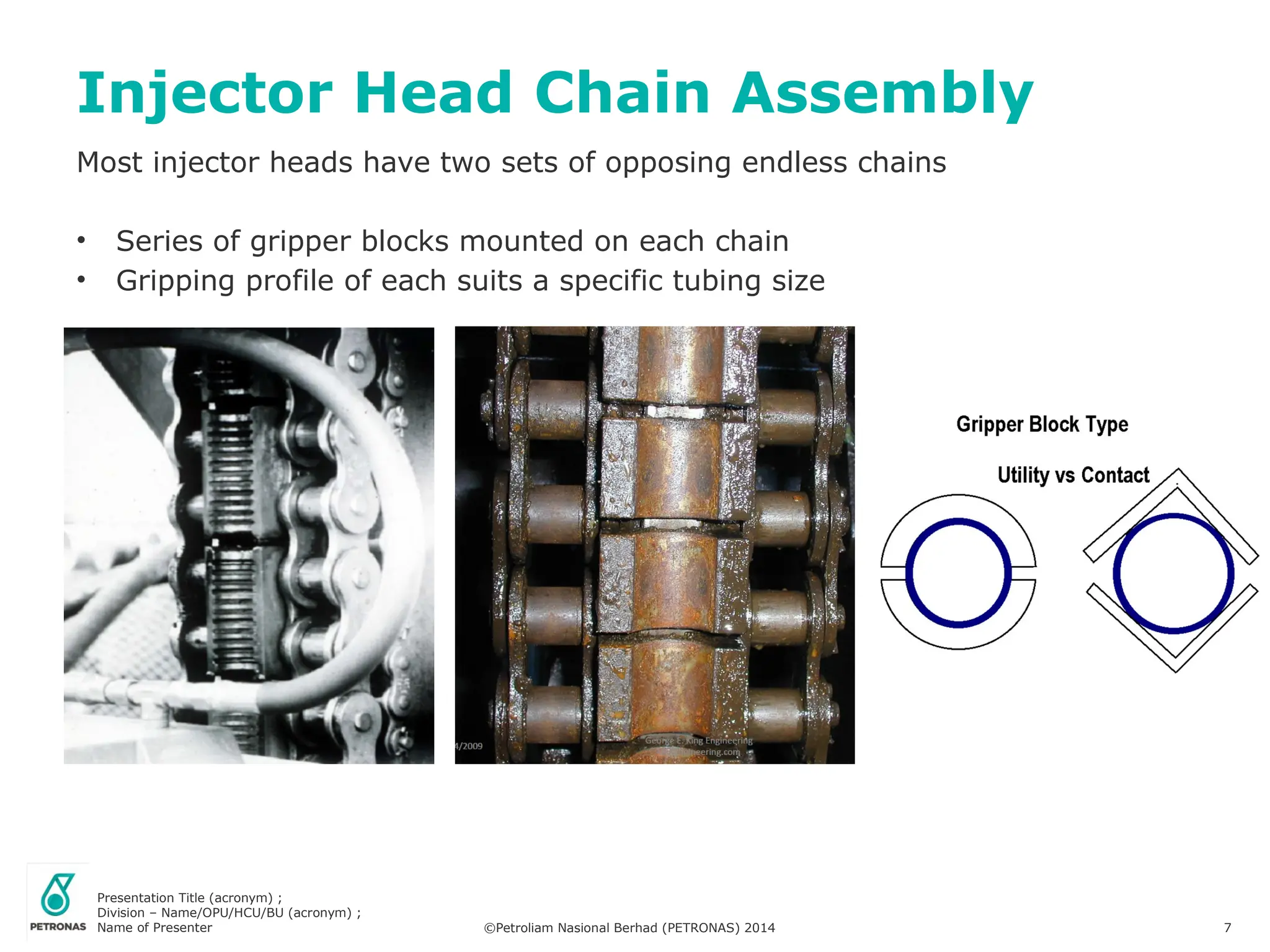

Injector Head Chain Assembly

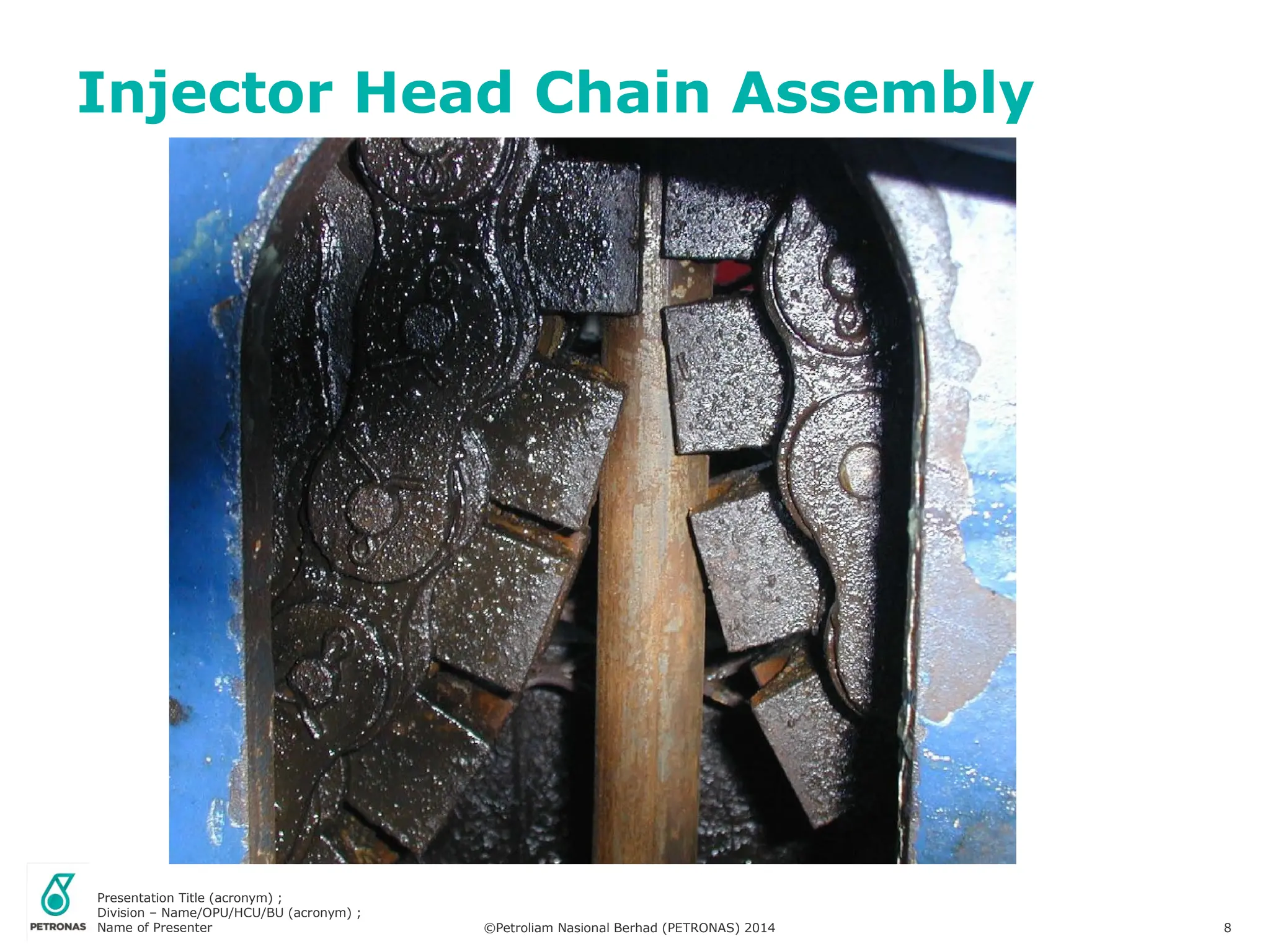

Injector Head Chain Assembly

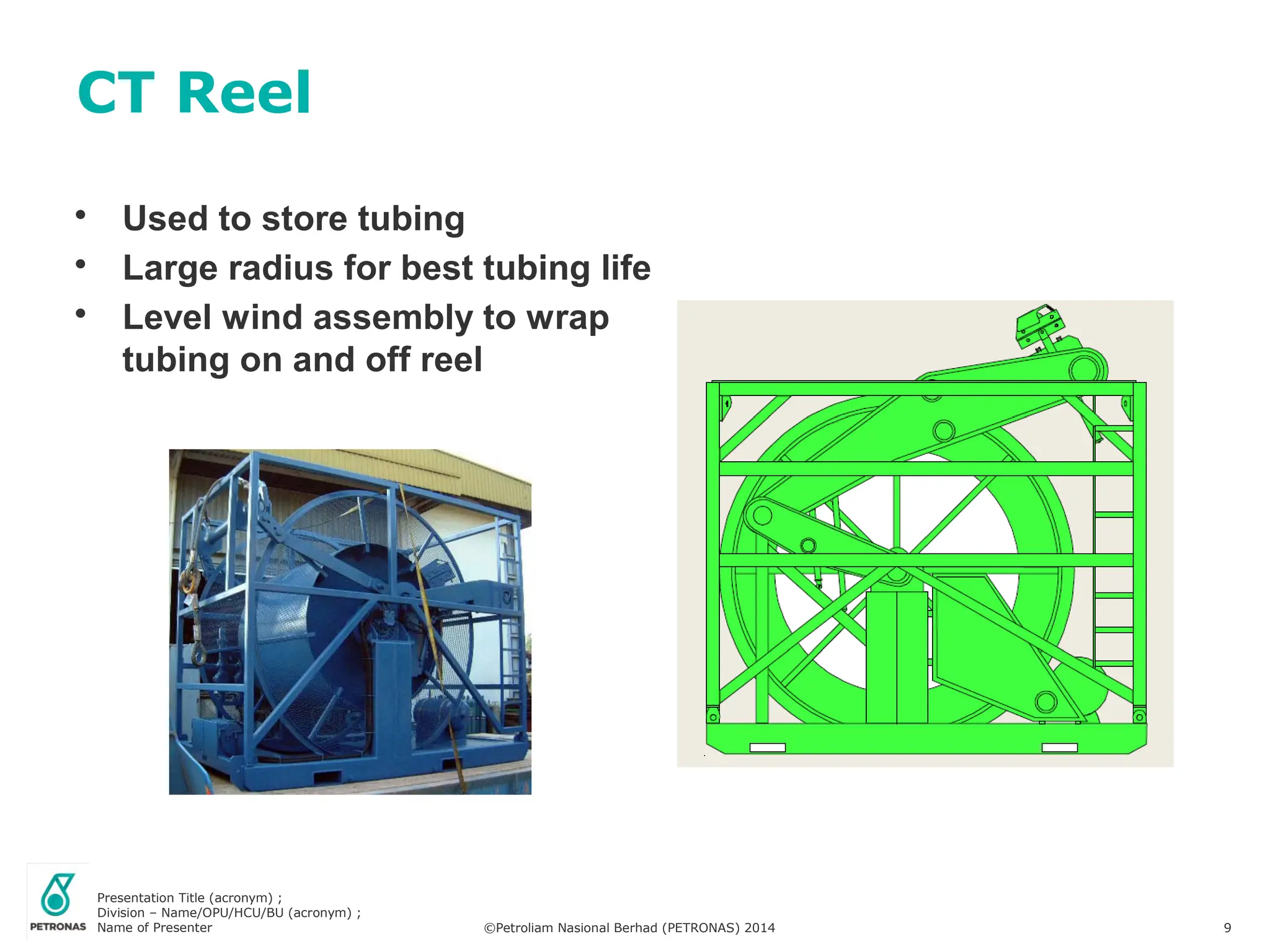

CT Reel
• Used to store tubing
• Large radius for best tubing life
• Level wind assembly to wrap
tubing on and off reel

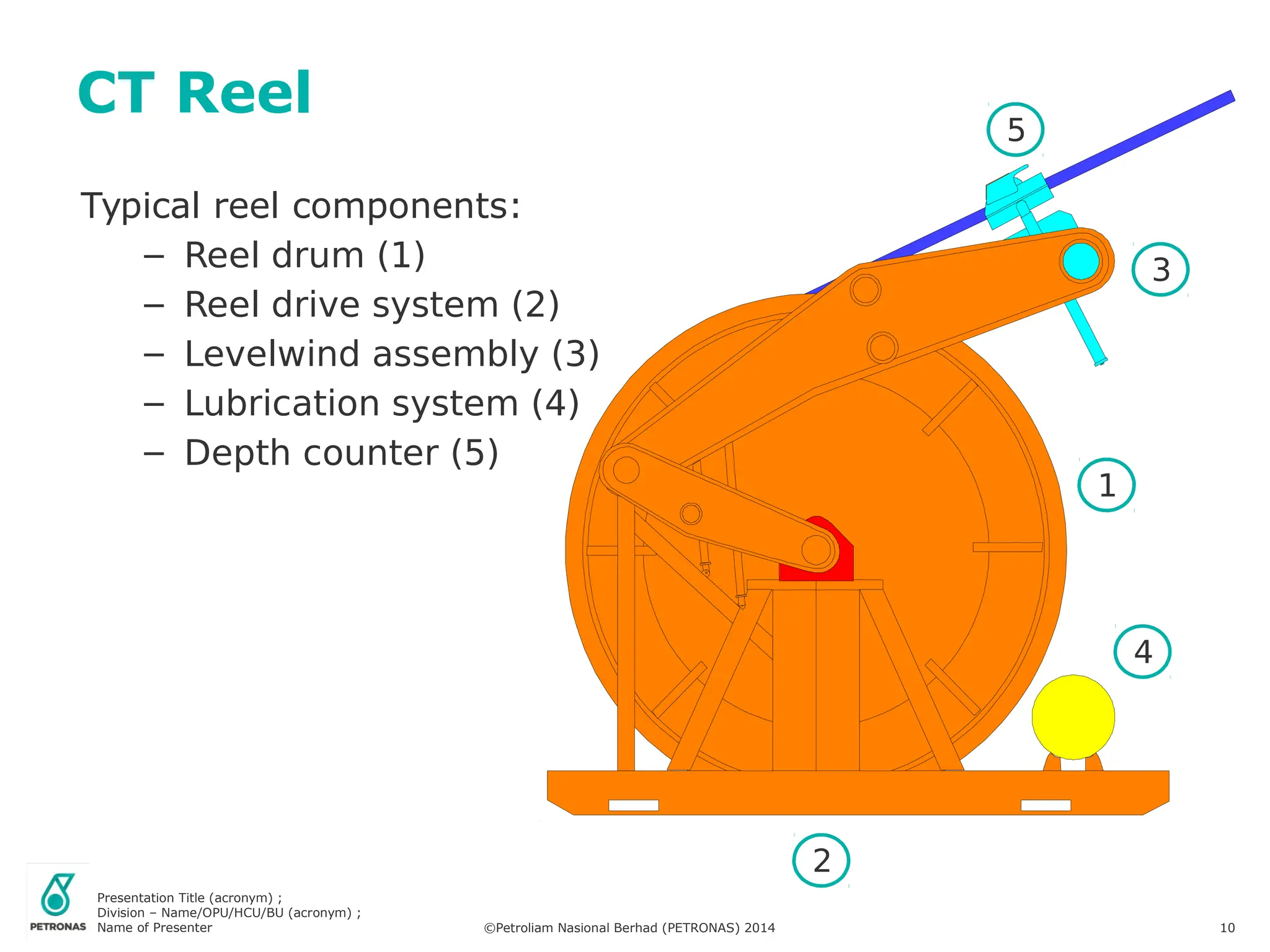

Typical reel components:
– Reel drum (1)
– Reel drive system (2)
– Levelwind assembly (3)
– Lubrication system (4)
– Depth counter (5)
CT Reel
1
2
3
4
5

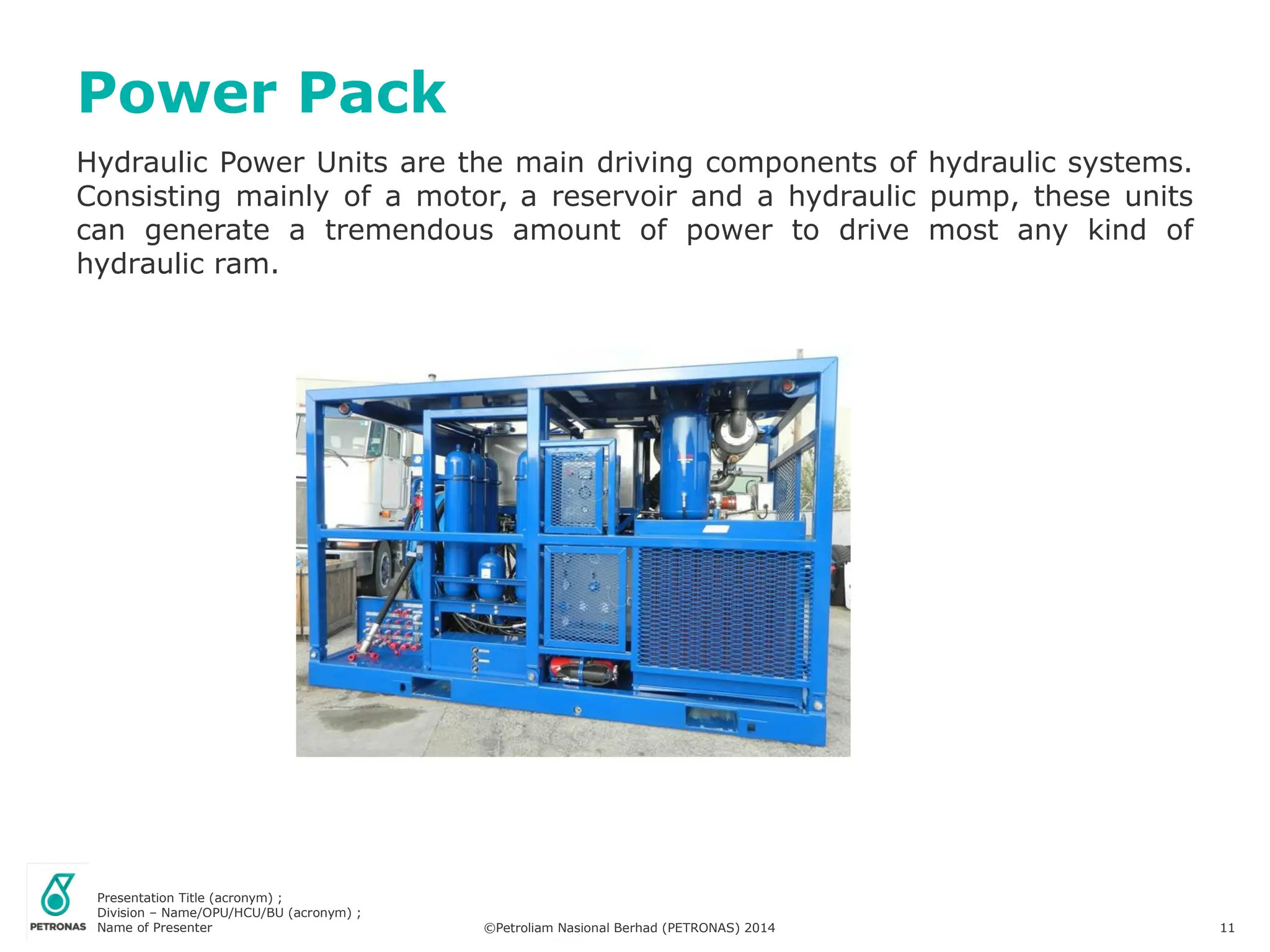

Hydraulic Power Units are the main driving components of hydraulic systems.
Consisting mainly of a motor, a reservoir and a hydraulic pump, these units
can generate a tremendous amount of power to drive most any kind of
hydraulic ram.
Power Pack

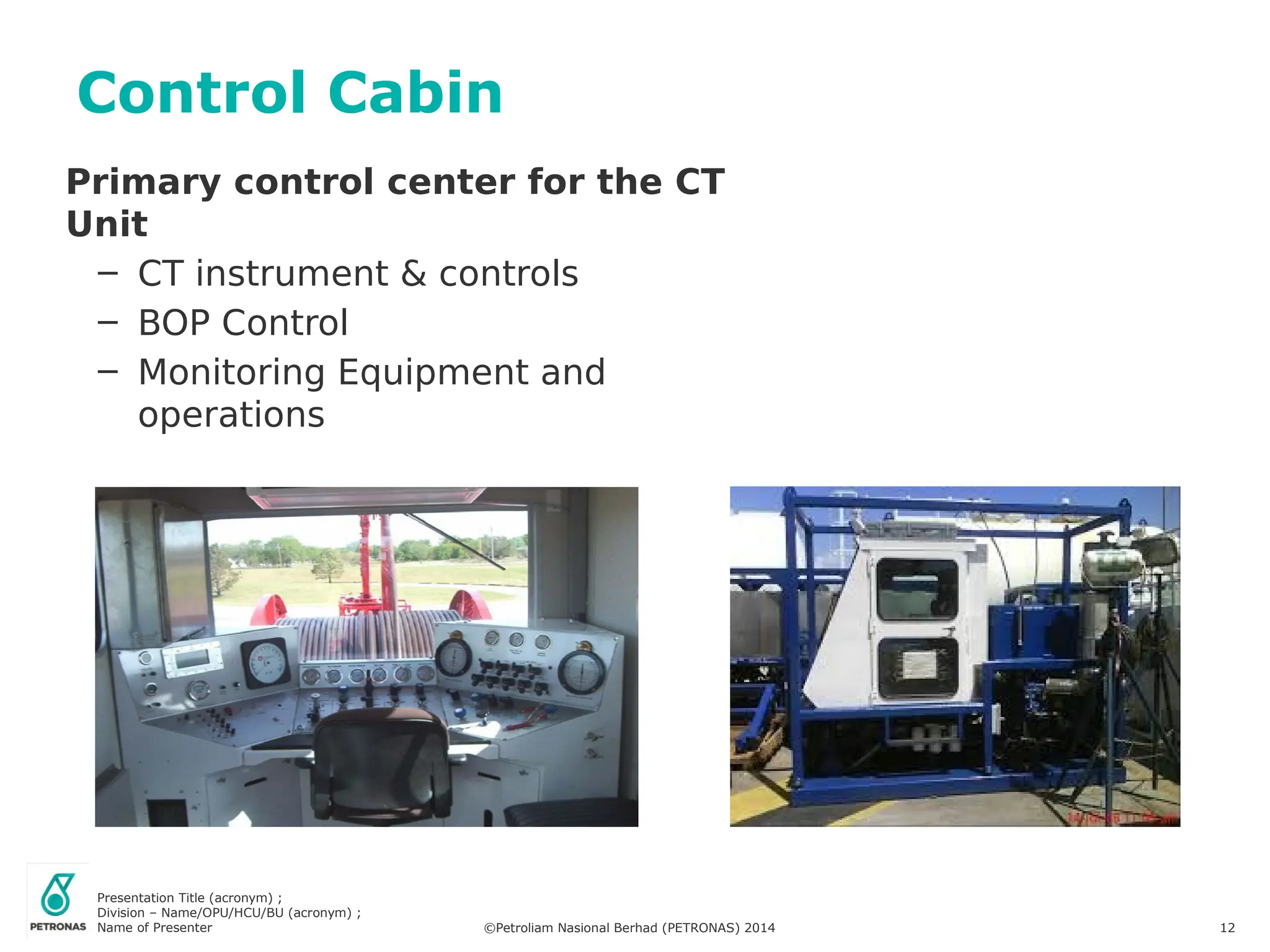

Control Cabin
Primary control center for the CT
Unit
– CT instrument & controls
– BOP Control
– Monitoring Equipment and
operations

CTU Instruments and Controls
 Primary instruments and controls
Weight indicator, circulating and wellhead pressures
 Secondary instruments and controls
Depth/speed indicator, chain tensioner pressures, stripper
system pressure
 Support instruments and controls
drive system pressures, BOP system pressure,

Consists of two Main Parts
• Blowout Preventer (Secondary PCE)
• Stripper Packer (Primary PCE)
Accessories
• Hydraulic quick latches
• Lubricator risers
• Adapter flanges
• Crossovers
• Flow tees
• In-situ test subs

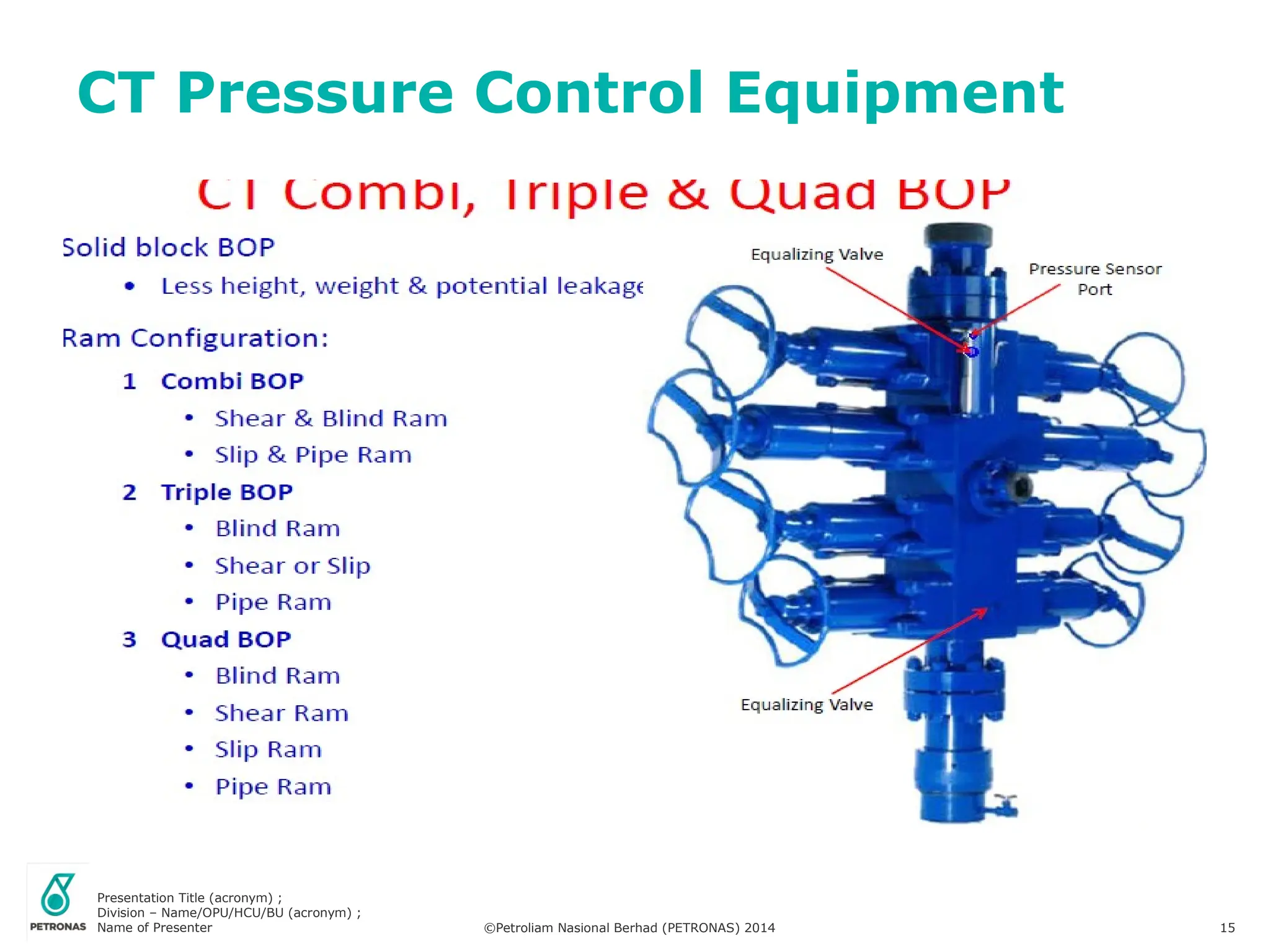

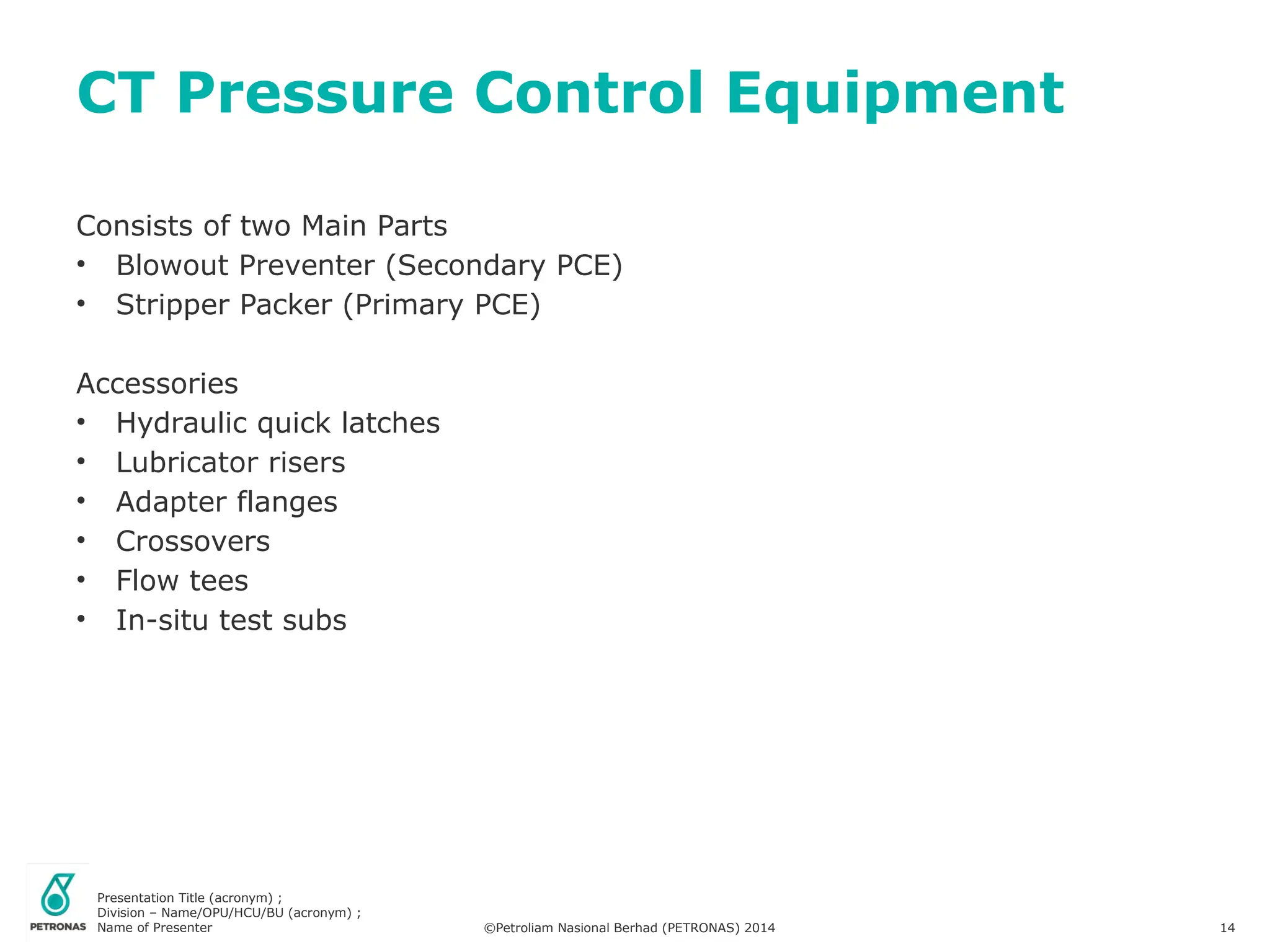

CT Pressure Control Equipment

CT BOP

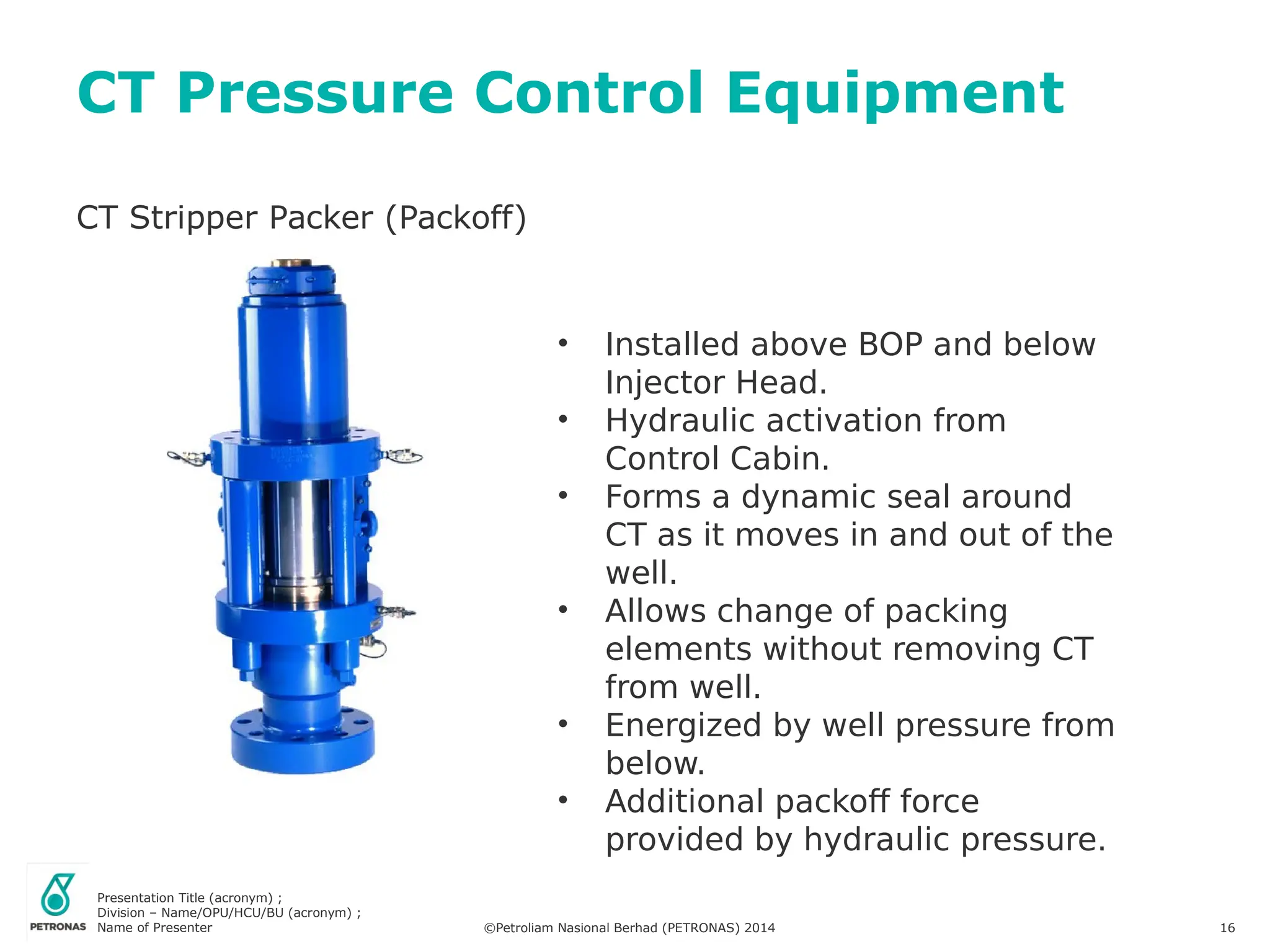

CT Stripper Packer (Packoff)
• Installed above BOP and below
Injector Head.
• Hydraulic activation from
Control Cabin.
• Forms a dynamic seal around
CT as it moves in and out of the
well.
• Allows change of packing
elements without removing CT
from well.
• Energized by well pressure from
below.
• Additional packoff force
provided by hydraulic pressure.

CT BHA

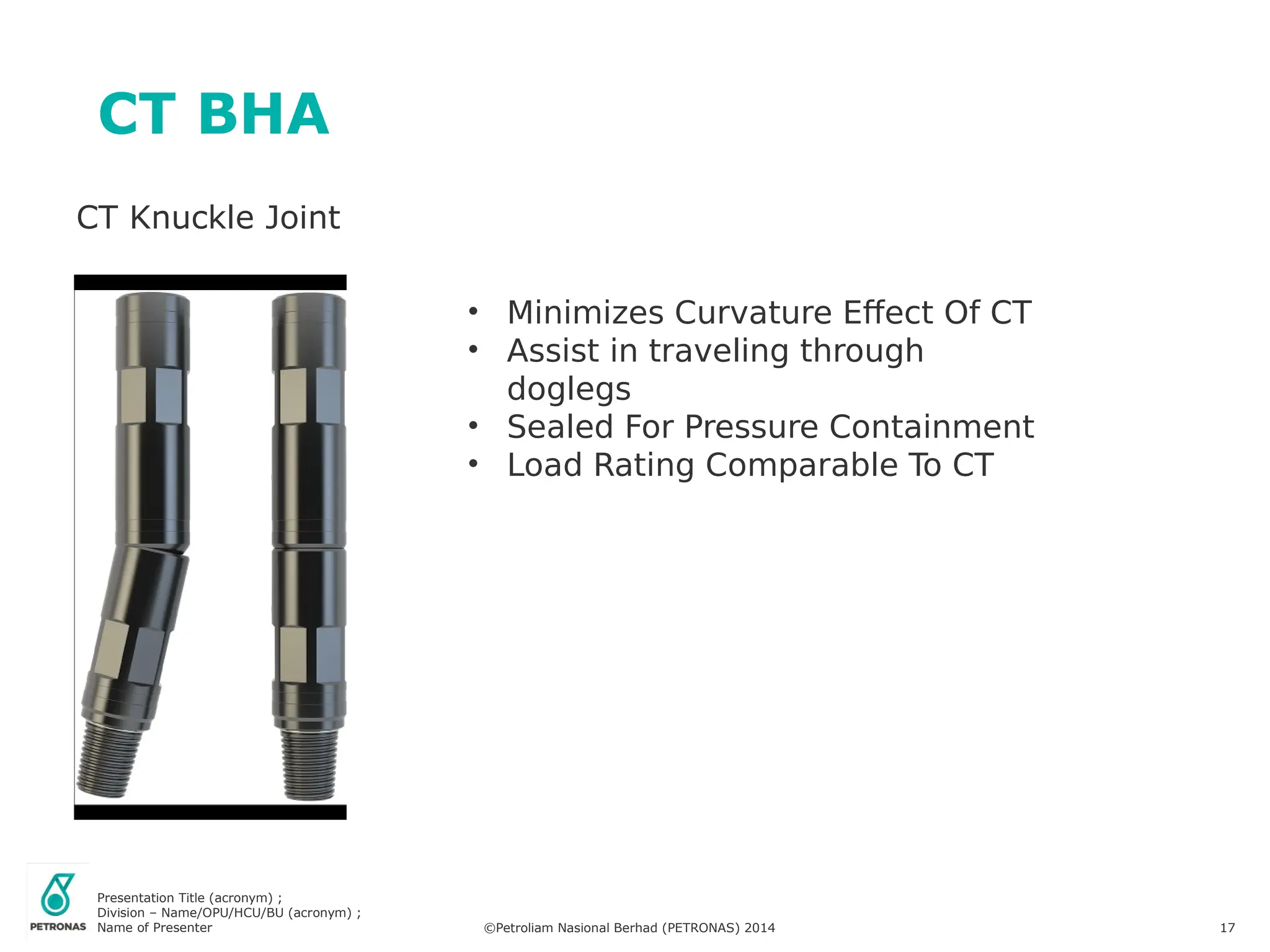

CT Knuckle Joint
• Minimizes Curvature Effect Of CT
• Assist in traveling through
doglegs
• Sealed For Pressure Containment
• Load Rating Comparable To CT

CT BHA

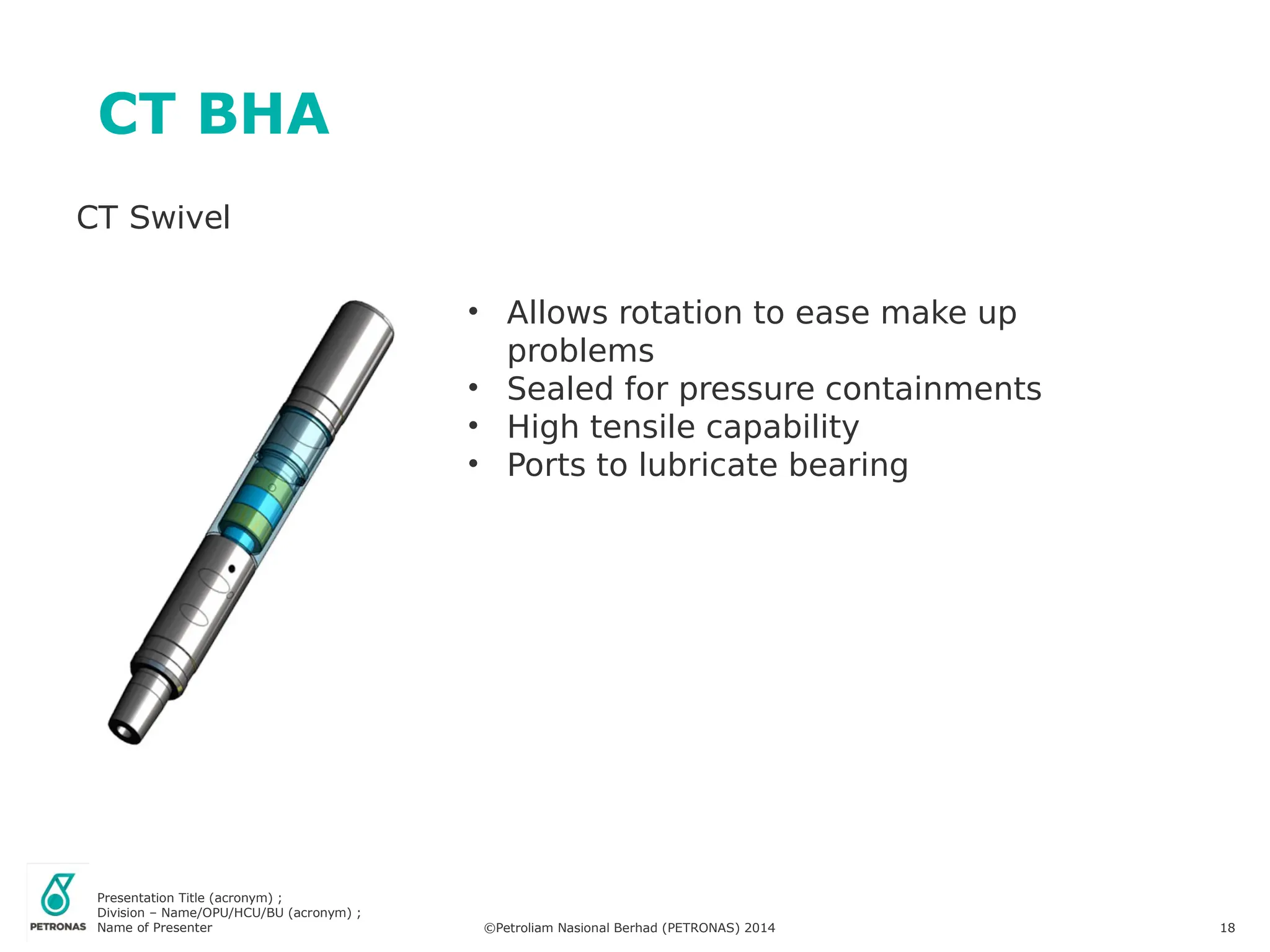

CT Swivel
• Allows rotation to ease make up
problems
• Sealed for pressure containments
• High tensile capability
• Ports to lubricate bearing
