1. Testing Strategies for Docker Driven
Development
alexei@codefresh.io

2. Testing Strategies for
Docker Containers
Alexei Ledenev
alexei@codefresh.io

3. About me…
•@codefresh.io
•github.com/alexei-led/pumba
•#docker, #golang, #aws
•medium.com/@alexeiled
•@alexeiled

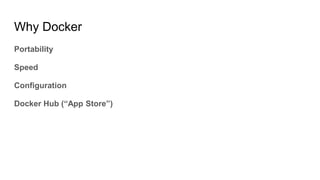

4. Why Docker
Portability
Speed
Configuration
Docker Hub (“App Store”)

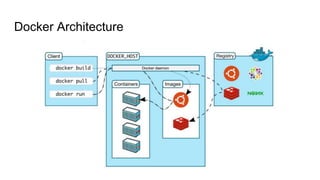

5. Docker Architecture

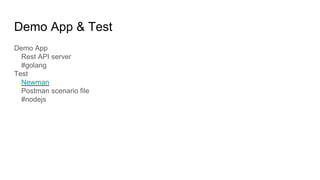

6. Demo App & Test
Demo App
Rest API server
#golang
Test
Newman
Postman scenario file
#nodejs

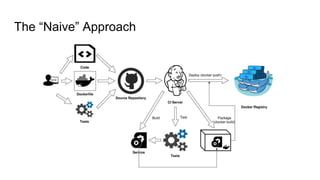

7. The “Naive” Approach

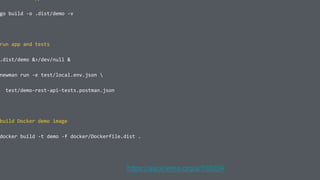

8. go build -o .dist/demo -v
run app and tests
.dist/demo &>/dev/null &
newman run -e test/local.env.json
test/demo-rest-api-tests.postman.json
build Docker demo image
docker build -t demo -f docker/Dockerfile.dist .
https://asciinema.org/a/100204

9. Benefits and Drawbacks
Familiar CI flow
Application portability
Smaller Docker image
• Non portable DEV
environment
• Non portable TEST
environment

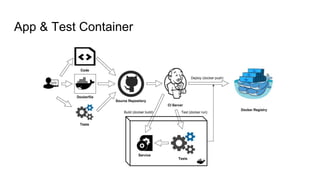

10. App & Test Container

12. # build demo app & test container
$ docker build -t demo:apptest -f docker/Dockerfile.build.apptest .
# run tests
$ docker run -it --rm demo:apptest script/test.sh
# run app
$ docker run -d -p 10000:10000 demo:apptest demo
https://asciinema.org/a/100216

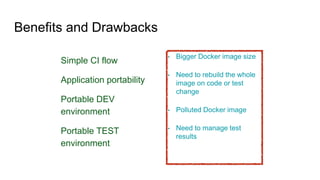

13. Benefits and Drawbacks
Simple CI flow
Application portability
Portable DEV
environment
Portable TEST
environment
• Bigger Docker image size
• Need to rebuild the whole
image on code or test
change
• Polluted Docker image
• Need to manage test
results

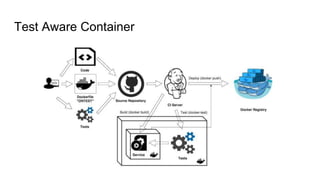

14. Test Aware Container

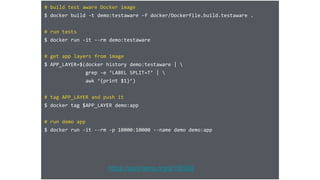

16. # build test aware Docker image
$ docker build -t demo:testaware -f docker/Dockerfile.build.testaware .
# run tests
$ docker run -it --rm demo:testaware
# get app layers from image
$ APP_LAYER=$(docker history demo:testaware |
grep -e ‘LABEL SPLIT=T’ |
awk ‘{print $1}’)
# tag APP_LAYER and push it
$ docker tag $APP_LAYER demo:app
# run demo app
$ docker run -it --rm -p 10000:10000 --name demo demo:app
https://asciinema.org/a/100260

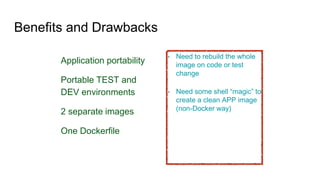

17. Benefits and Drawbacks
Application portability
Portable TEST and
DEV environments
2 separate images
One Dockerfile
• Need to rebuild the whole
image on code or test
change
• Need some shell “magic” to
create a clean APP image
(non-Docker way)

18. – Me :-)
“After trying multiple approaches, the
following is the one that I can
recommend.”

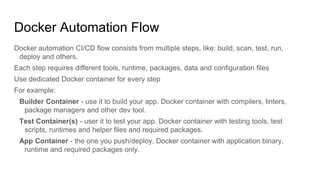

19. Docker Automation Flow
Docker automation CI/CD flow consists from multiple steps, like: build, scan, test, run,
deploy and others.
Each step requires different tools, runtime, packages, data and configuration files
Use dedicated Docker container for every step
For example:
Builder Container - use it to build your app. Docker container with compilers, linters,
package managers and other dev tool.
Test Container(s) - user it to test your app. Docker container with testing tools, test
scripts, runtimes and helper files and required packages.
App Container - the one you push/deploy. Docker container with application binary,
runtime and required packages only.

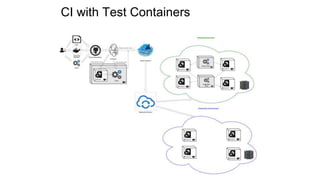

21. CI with Test Containers

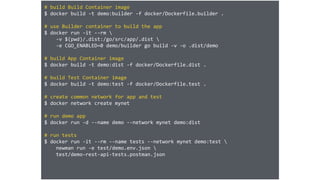

22. # build Build Container image
$ docker build -t demo:builder -f docker/Dockerfile.builder .
# use Builder container to build the app
$ docker run -it --rm
-v $(pwd)/.dist:/go/src/app/.dist
-e CGO_ENABLED=0 demo/builder go build -v -o .dist/demo
# build App Container image
$ docker build -t demo:dist -f docker/Dockerfile.dist .
# build Test Container image
$ docker build -t demo:test -f docker/Dockerfile.test .
# create common network for app and test
$ docker network create mynet
# run demo app
$ docker run -d --name demo --network mynet demo:dist
# run tests
$ docker run -it --rm --name tests --network mynet demo:test
newman run -e test/demo.env.json
test/demo-rest-api-tests.postman.json

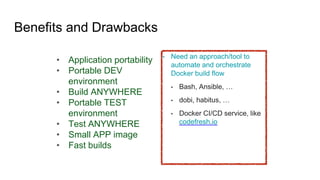

23. Benefits and Drawbacks
• Application portability
• Portable DEV
environment
• Build ANYWHERE
• Portable TEST
environment
• Test ANYWHERE
• Small APP image
• Fast builds
• Need an approach/tool to
automate and orchestrate
Docker build flow
• Bash, Ansible, …
• dobi, habitus, …
• Docker CI/CD service, like
codefresh.io

24. Q&A
