1. Rock, Paper,
Scissors

2. https://crossnative.github.io/cloudland-rps/

3. The Plan
Build a RESTful API forRock, Paper, Scissors
Learn more about Go and Spring
Learn cloud-native Development
#
#
#

4. How?
2 Sessions: Go and Spring
Collaborative programming of the API
Frontend is provided
You may workin groups
Successive fishbowl fordiscussing results
#
#
#
#
#

5. What's
cloud-native?

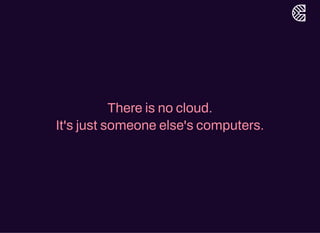

6. There is no cloud.
It's just someone else's computers.

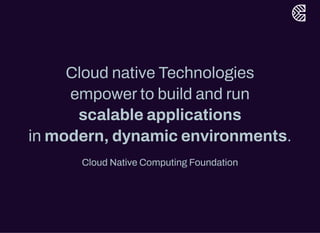

7. Cloud native Technologies
empowerto build and run
scalable applications
in modern, dynamic environments.
Cloud Native Computing Foundation

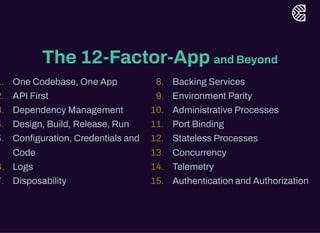

8. The 12-Factor-App and Beyond
1. One Codebase, One App
2. API First
3. Dependency Management
4. Design, Build, Release, Run
5. Configuration, Credentials and
Code
6. Logs
7. Disposability
8. Backing Services
9. Environment Parity
10. Administrative Processes
11. Port Binding
12. Stateless Processes
13. Concurrency
14. Telemetry
15. Authentication and Authorization

9. Getting Started

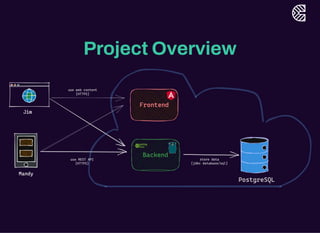

10. Project Overview

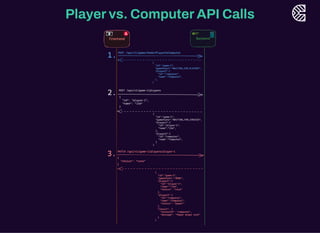

11. Playervs. ComputerAPI Calls

12. >_ Demo

13. Split into Session
# Go Session
# Spring Session

14. Go Session

15. Prerequisites Go Session
Editor
Clone ,
checkout branch go-start
Go
optional: forhot reload
go install github.com/cosmtrek/air@latest
Frontend
# Visual Studio Code
# Postman
# github.com/crossnative/cloudland-rps
# Go Compiler
# air
# Node.js

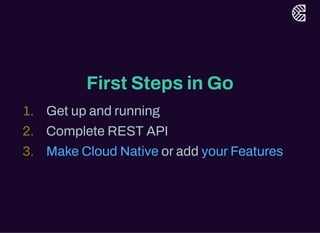

16. First Steps in Go
1. Get up and running
2. Complete REST API
3. oradd
Make Cloud Native yourFeatures

17. Go Cloud Native Path
...
# Configure Port from
Environment Variable
# Handle Errors properly
# Middleware forLogging
and Recovery
# Add a Health Check
# Run in Container
# Use PostgreSQL for
Storage
# Deploy to the cloud
# Add OpenTelemetry
#

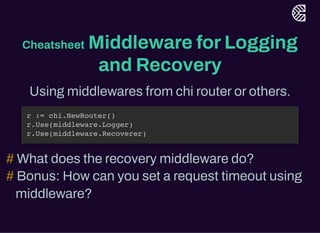

18. Cheatsheet Middleware forLogging
and Recovery
Using middlewares from chi routerorothers.
What does the recovery middleware do?
Bonus: How can you set a request timeout using
middleware?
r := chi.NewRouter()
r.Use(middleware.Logger)
r.Use(middleware.Recoverer)
#
#

19. Cheatsheet Configure Port
from Environment Variable
Using the Standard Library
Using envconfig
github.com/kelseyhightower/envconfig
func main() {
http.ListenAndServe(fmt.Sprintf(":%v", os.Getenv("PORT")), r)
}
// Application Configuration
type Config struct {
Port string `envconfig:"PORT" default:"8080"`
}
func main() {
http.ListenAndServe(fmt.Sprintf(":%v", c.Port), r)
}

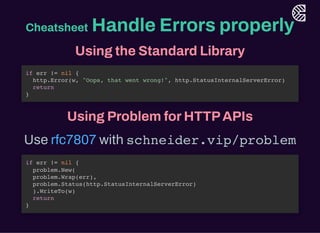

20. Cheatsheet Handle Errors properly
Using the Standard Library
Using Problem forHTTPAPIs
Use with schneider.vip/problem
if err != nil {
http.Error(w, "Oops, that went wrong!", http.StatusInternalServerError)
return
}
rfc7807
if err != nil {
problem.New(
problem.Wrap(err),
problem.Status(http.StatusInternalServerError)
).WriteTo(w)
return
}

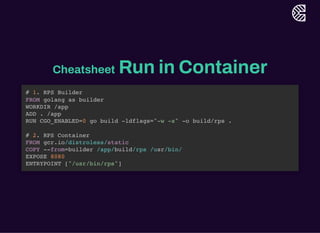

21. Cheatsheet Run in Container
# 1. RPS Builder
FROM golang as builder
WORKDIR /app
ADD . /app
RUN CGO_ENABLED=0 go build -ldflags="-w -s" -o build/rps .
# 2. RPS Container
FROM gcr.io/distroless/static
COPY --from=builder /app/build/rps /usr/bin/
EXPOSE 8080
ENTRYPOINT ["/usr/bin/rps"]

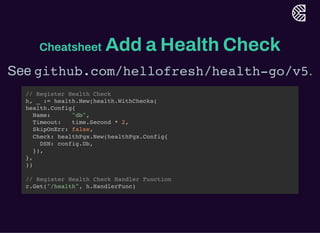

22. Cheatsheet Add a Health Check
See github.com/hellofresh/health-go/v5.
// Register Health Check
h, _ := health.New(health.WithChecks(
health.Config{
Name: "db",
Timeout: time.Second * 2,
SkipOnErr: false,
Check: healthPgx.New(healthPgx.Config{
DSN: config.Db,
}),
},
))
// Register Health Check Handler Function
r.Get("/health", h.HandlerFunc)

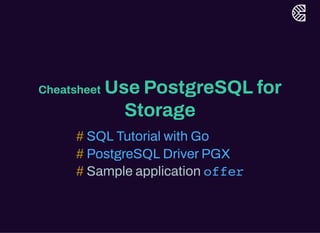

23. Cheatsheet Use PostgreSQL for
Storage
Sample application
# SQL Tutorial with Go
# PostgreSQL DriverPGX
# offer

24. Cheatsheet Cloud Deployment
Example Deployment forrender
services:
- type: web
name: backend-go
env: go
plan: free
rootDir: backend-go
buildCommand: go build -o rps .
startCommand: ./rps

25. Cheatsheet OpenTelemetry
Use otelchi

26. Spring Session

27. Prerequisites Spring Session
Install some IDE (e.g. or )
Install
Install Java JDK(e.g. )
Clone and checkout branch
spring-start
Frontend
(npm is included)
# IntelliJ Visual Studio Code
# Postman
# Temurin
# github.com/crossnative/cloudland-rps
# Node.js

28. First Steps Spring Session
1. Run local Frontend togetherwith example backend
https://backend-spring.onrender.com/api/v1
2. Build and Run Spring Backend
3. Implement REST API
4. oradd
Make Cloud Native furtherFeatures

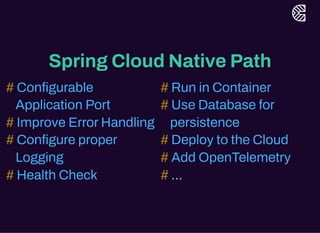

29. Spring Cloud Native Path
...
# Configurable
Application Port
# Improve ErrorHandling
# Configure proper
Logging
# Health Check
# Run in Container
# Use Database for
persistence
# Deploy to the Cloud
# Add OpenTelemetry
#

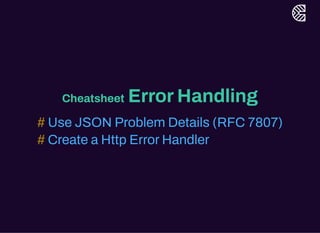

30. Cheatsheet ErrorHandling
# Use JSON Problem Details (RFC 7807)
# Create a Http ErrorHandler

31. Cheatsheet Run in Container
With Buildpacks run
./mvnw spring-boot:build-image -Dspring-
boot.build-image.imageName=myorg/myapp
# Spring Official Guide
# Baeldung: Dockerizing a Spring Boot Application

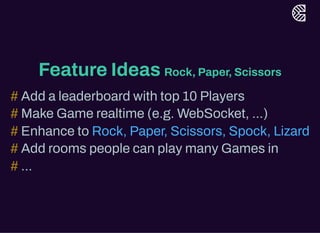

32. Feature Ideas Rock, Paper, Scissors
Add a leaderboard with top 10 Players
Make Game realtime (e.g. WebSocket, ...)
Enhance to
Add rooms people can play many Games in
...
#
#
# Rock, Paper, Scissors, Spock, Lizard
#
#

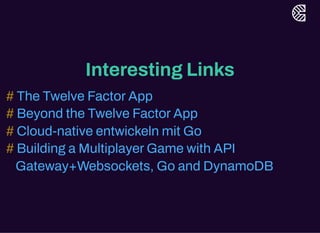

33. Interesting Links
# The Twelve FactorApp
# Beyond the Twelve FactorApp
# Cloud-native entwickeln mit Go
# Building a MultiplayerGame with API
Gateway+Websockets, Go and DynamoDB

34. Jan Stamer
Lena Grimm
Fynn JasparStempel
