- Windows Azure provides a cloud computing platform for building and hosting applications and services. It includes an operating system, programming languages, databases, and development tools. - .NET Services offers cloud services for authentication, service bus, and workflow that can be used by both cloud and on-premises applications. - Live Services provides the Live Framework for accessing user data and synchronizing across devices through APIs. It enables social applications to integrate with services like contacts and calendars.

1. Joseph Hofstader Architect Developer & Platform Evangelism [email_address] Blog: http://blogs.msdn.com/joe_hofstader

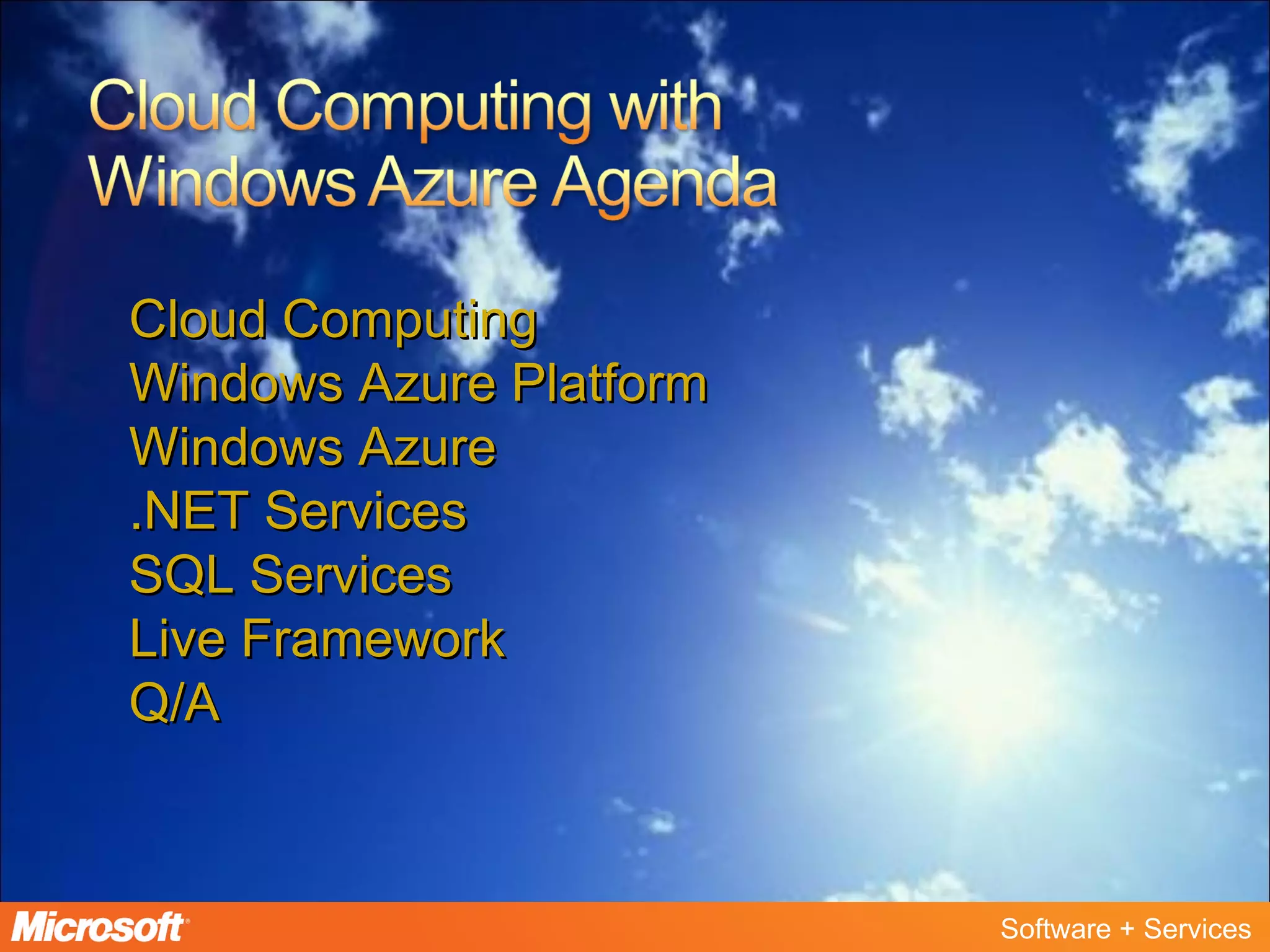

2. Cloud Computing Windows Azure Platform Windows Azure .NET Services SQL Services Live Framework Q/A

3. UC Berkeley “ the combination of Software as a Service applications and the requisite infrastructure.” Cloud offerings: Illusion of infinite computing resources No up-front commitment by cloud users Pay-per use on a short-term basis Cloud Application Needs: Model of computation Model of storage Model of communication

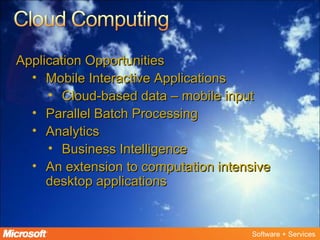

4. Application Opportunities Mobile Interactive Applications Cloud-based data – mobile input Parallel Batch Processing Analytics Business Intelligence An extension to computation intensive desktop applications

5. .NET Services Windows Azure Live Services Applications Applications SQL Services Others Windows Mobile Windows Vista/XP Windows Server

6. .NET Services Windows Azure Live Services Applications Applications SQL Services Others Windows Mobile Windows Vista/XP Windows Server … Fabric Compute Storage Config Application

7. Windows Azure Fabric Load Balancer HTTP IIS VMs VMs Web Role Instance Worker Role Instance VMs … Fabric Compute Storage Application

8. Blobs Queues Tables HTTP … Fabric Compute Storage Application

9. A start-up creating a new Web site . Saves time and money addressing infrastructure design/implementation. An ISV creating a software-as-a-service (SaaS) version of an existing on-premises .NET application. An enterprise creating an application for its customers. Frees the enterprise from the responsibility and expense of managing its own servers, turning capital expenses into operating expenses.

10. .NET Services Windows Azure Live Services Applications Applications SQL Services Others Windows Mobile Windows Vista/XP Windows Server .NET Services Access Control Service Bus Workflow ?

11. Access Control Service 1) Present SAML token 2) STS creates new SAML token according to rules 3) Return new SAML token 4) Present new SAML token User Browser 5) Use new SAML token to determine what this user can do Application STS Rules Access Control Service Bus Workflow ?

12. Service Bus Registry Endpoints 1) Register endpoints 2) Discover endpoints 3) Access application Organization Y Organization X Application Application Access Control Service Bus Workflow

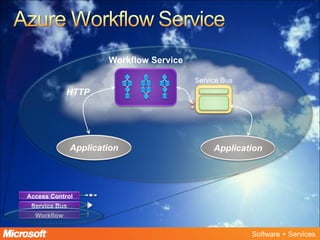

13. Workflow Service Application Application HTTP Access Control Service Bus Workflow Service Bus

14. An ISV that provides an application used by customers in many different organizations . Translate diverse claims used in the various customer organizations into a consistent set that the ISV’s application could use. An enterprise can let software at its trading partners access one of its applications. Register Web service endpoints with Service Bus. An enterprise in a B2B scenario needs to allow its trading partners to adapt their business process to a service they expose.

15. .NET Services Windows Azure Live Services Applications Applications SQL Services Others Windows Mobile Windows Vista/XP Windows Server SQL Data Services SQL Services Others (Future)

16. SQL Data Services Authorities Data Center HTTP/ SOAP . . . . . .

17. An application might archive older data to SQL Data Services. A manufacturer wishes to make product information available directly to customers. REST based APIs allow data to be consumed across platforms.

18. .NET Services Windows Azure Live Services Applications Applications SQL Services Others Windows Mobile Windows Vista/XP Windows Server Data Sync Application Cloud Desktop/Device

20. HTTP

21. A Java application running on Linux could rely on the Live Framework to access a user’s contacts information. A .NET Framework application might use the Live Framework as a data caching and synchronization service. An ISV can create a mesh-enabled Web application that lets people keep track of what their friends are doing.

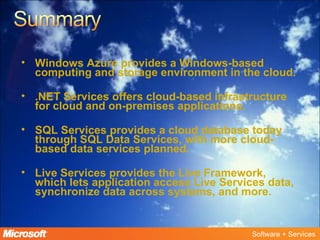

22. Windows Azure provides a Windows-based computing and storage environment in the cloud. .NET Services offers cloud-based infrastructure for cloud and on-premises applications. SQL Services provides a cloud database today through SQL Data Services, with more cloud-based data services planned. Live Services provides the Live Framework, which lets application access Live Services data, synchronize data across systems, and more.
