PTM-120B is designed in the needs of chip encapsulation & testing companies and smart card
manufacturers. It integrates short-circuit punching, chip initialization, chip pre-personalization, open and
short test, as well as reject chip punching and marking. Reject chip can also be marked manually according
to customer’s requirement.
 Short-circuit punching
- Realizing disconnection punching;
- Module tapes with different specifications can be disconnected by quick switch of
mould during production;
- The module can be set up with a standalone style.
 Personalization
- It only takes 60s to realize initialization and pre-personalization production witch
between 6pin & 8pin chip tasks by patented pin-board switcher of Piotec;
- 120 heads at most can be configured simultaneously;
- The module can be set up with a standalone style.
PRODUCT: Chip Module Initialization & Pre-personalization Machine
MODEL: PTM-120B
MAIN FUNCTIONS
OVERVIEW

2. (86) 21 5299 9232 (86) 21 5299 9237 Inquiry@RSID-solutions.com www.RSID-solutions.com

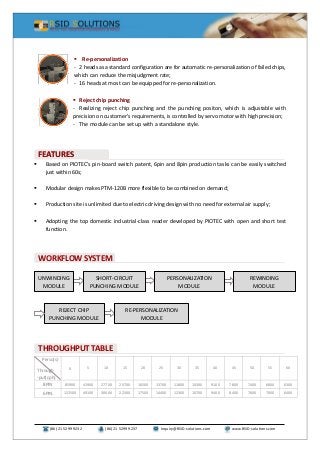

 Re-personalization
- 2 heads as a standard configuration are for automatic re-personalization of failed chips,
which can reduce the misjudgment rate;
- 16 heads at most can be equipped for re-personalization.
 Reject chip punching
- Realizing reject chip punching and the punching positon, which is adjustable with
precision on customer’s requirements, is controlled by servo motor with high precision;
- The module can be set up with a standalone style.
 Based on PIOTEC’s pin-board switch patent, 6pin and 8pin production tasks can be easily switched
just within 60s;
 Modular design makes PTM-120B more flexible to be combined on demand;
 Production site is unlimited due to electric driving design with no need for external air supply;
 Adopting the top domestic industrial-class reader developed by PIOTEC with open and short test
function.
Perso(s)
Through
-put(cph)
0 5 10 15 20 25 30 35 40 45 50 55 60
8PIN 85900 41900 27700 20700 16500 13700 11800 10300 9100 7800 7400 6800 6300
6PIN 122500 49100 30600 22300 17500 14400 12300 10700 9400 8400 7600 7000 6400
WORKFLOW SYSTEM
UNWINDING
MODULE
SHORT-CIRCUIT
PUNCHING MODULE
PERSONALIZATION
MODULE
REWINDING
MODULE
REJECT CHIP
PUNCHING MODULE
RE-PERSONALIZATION
MODULE
THROUGHPUT TABLE
FEATURES

3. (86) 21 5299 9232 (86) 21 5299 9237 Inquiry@RSID-solutions.com www.RSID-solutions.com

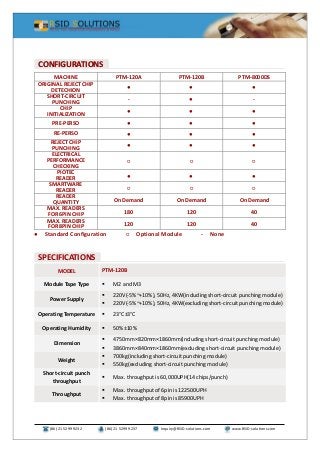

MACHINE PTM-120A PTM-120B PTM-8000DS
ORIGINAL REJECT CHIP
DETECHION ● ● ●
SHORT-CIRCUIT
PUNCHING - ● -
CHIP
INITIALIZATION ● ● ●
PRE-PERSO ● ● ●
RE-PERSO ● ● ●
REJECT CHIP
PUNCHING ● ● ●
ELECTRICAL
PERFORMANCE
CHECKING
○ ○ ○
PIOTEC
READER ● ● ●
SMARTWARE
READER ○ ○ ○
READER
QUANTITY On Demand On Demand On Demand
MAX. READERS
FOR 6PIN CHIP 180 120 40
MAX. READERS
FOR 8PIN CHIP 120 120 40
● Standard Configuration ○ Optional Module - None
MODEL PTM-120B
Module Tape Type  M2 and M3
Power Supply
 220V(-5%~+10%), 50Hz, 4KW(including short-circuit punching module)
 220V(-5%~+10%), 50Hz, 4KW(excluding short-circuit punching module)
Operating Temperature  23°C±3°C
Operating Humidity  50%±10%
Dimension
 4750mm×820mm×1860mm(including short-circuit punching module)
 3860mm×840mm×1860mm(excluding short-circuit punching module)
Weight
 700kg(including short-circuit punching module)
 550kg(excluding short-circuit punching module)
Short-circuit punch
throughput
 Max. throughput is 60,000UPH(14 chips/punch)
Throughput
 Max. throughput of 6pin is 122500UPH
 Max. throughput of 8pin is 85900UPH
SPECIFICATIONS
CONFIGURATIONS
