The EMP-1100C is a portable card counter capable of counting various plastic cards thicker than 0.48 mm, offering features like wireless charging, dual counting modes, and an ergonomic design for both right and left-handed users. It utilizes advanced low power consumption digital circuits and includes high-resolution sensors for accuracy, along with visual and audio signals for feedback. The device supports a wide range of card materials and has a maximum counting capacity of 99,999 cards.

1. (86) 21 5299 9232 (86) 21 5299 9237 Inquiry@RSID-solutions.com www.RSID-solutions.com
EMP-1100C Portable Card Counter is one of the latest
developments which provides brand new functions
such as Operation Menu, and Wireless Battery charging.
It is made of advanced low power consumption digital
circuit with photoelectric theory technical design, and
can count almost all plastic cards thicker than 0.48 mm.
The compact style comes with its function. EMP-1100C
could be adopted by various places which are related to
cards.
 Universal Li-battery
 Count Modes: Single Count and Accumulation Count
 Battery charging method: Plug, USB or wireless charging
 Integrates counting modes menu for different types of cards.
 Visual display and audio signal help judging the counting results.
 Power Save: Auto power off if no operation within 30 seconds; power on by pressing any key
 Two high-resolution counting sensors ensures the high accuracy to count 0.48mm to 3mm cards.
 Two bidirectional counting keys and self-oriented LCD display make right-hand and left-hand users
comfortable, convenient.
 Ergonomic Keys: Two scan keys, two accumulation keys Intelligent keys on the left and right side,
compatible for left and right hand user

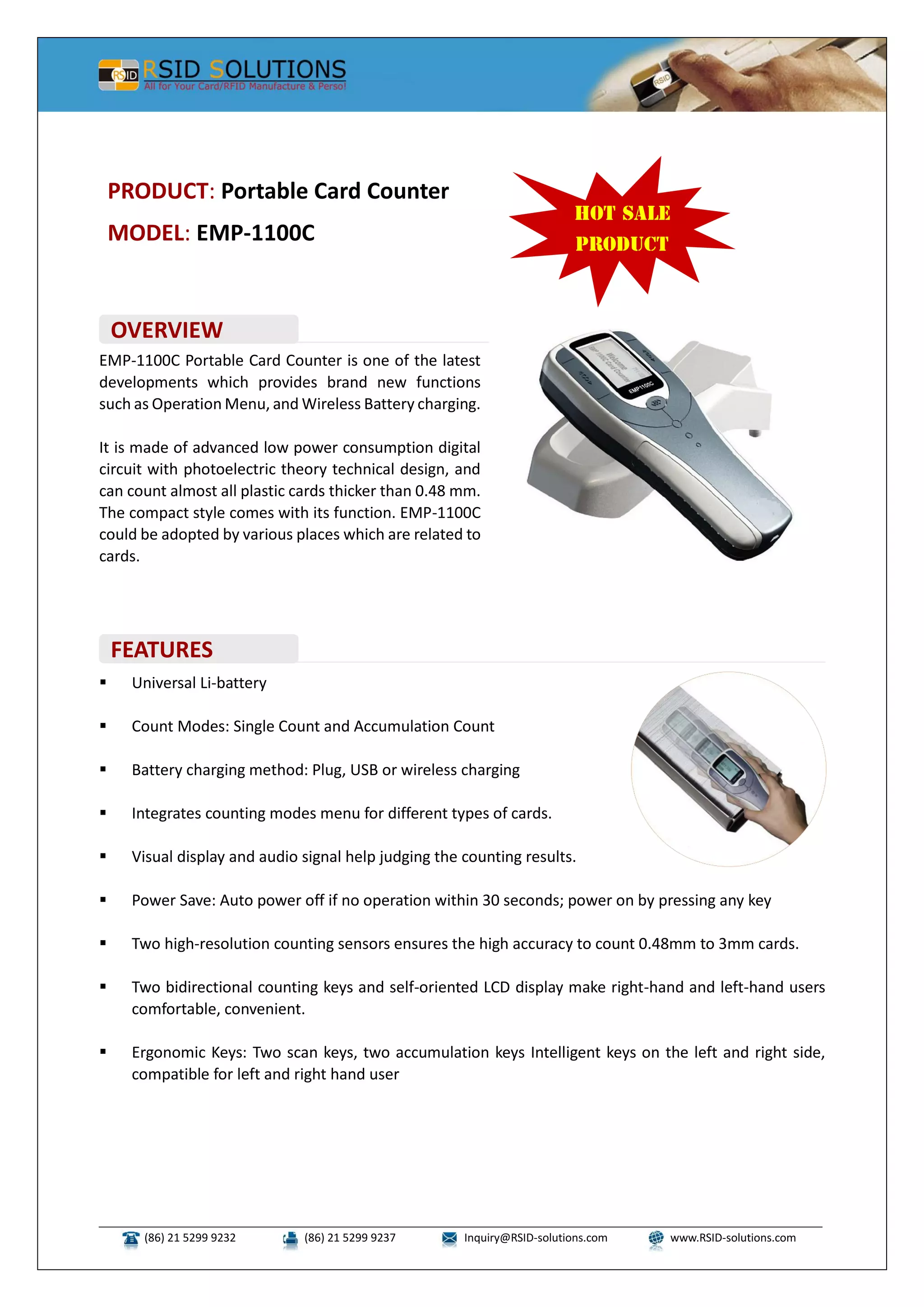

PRODUCT: Portable Card Counter
MODEL: EMP-1100C
OVERVIEW
FEATURES

2. (86) 21 5299 9232 (86) 21 5299 9237 Inquiry@RSID-solutions.com www.RSID-solutions.com
MODEL EMP-1100C
Card Material
 All regular plastic cards (ABS, PVC, PC PET, etc.) incl. white cards
and paper board cards (depending on kind of material and die-
cutting burr)
Card Thickness  0.48mm ~ 1.5mm
Power Supply
 Battery Li-ion 3.7V/1200mAh (BL-5C)
 Compatible of NOKIA 6100 (BL-5C)
Working Temperature  10 ~ 40℃
Working Humidity  30% ~ 90%
Single Counting Capacity  1 ~ 2000 pcs
Maximum Accumulation  99,999 cards
Dimension  L 175×W 70×H 36 mm
Net Wight  200 g
SPECIFICATIONS

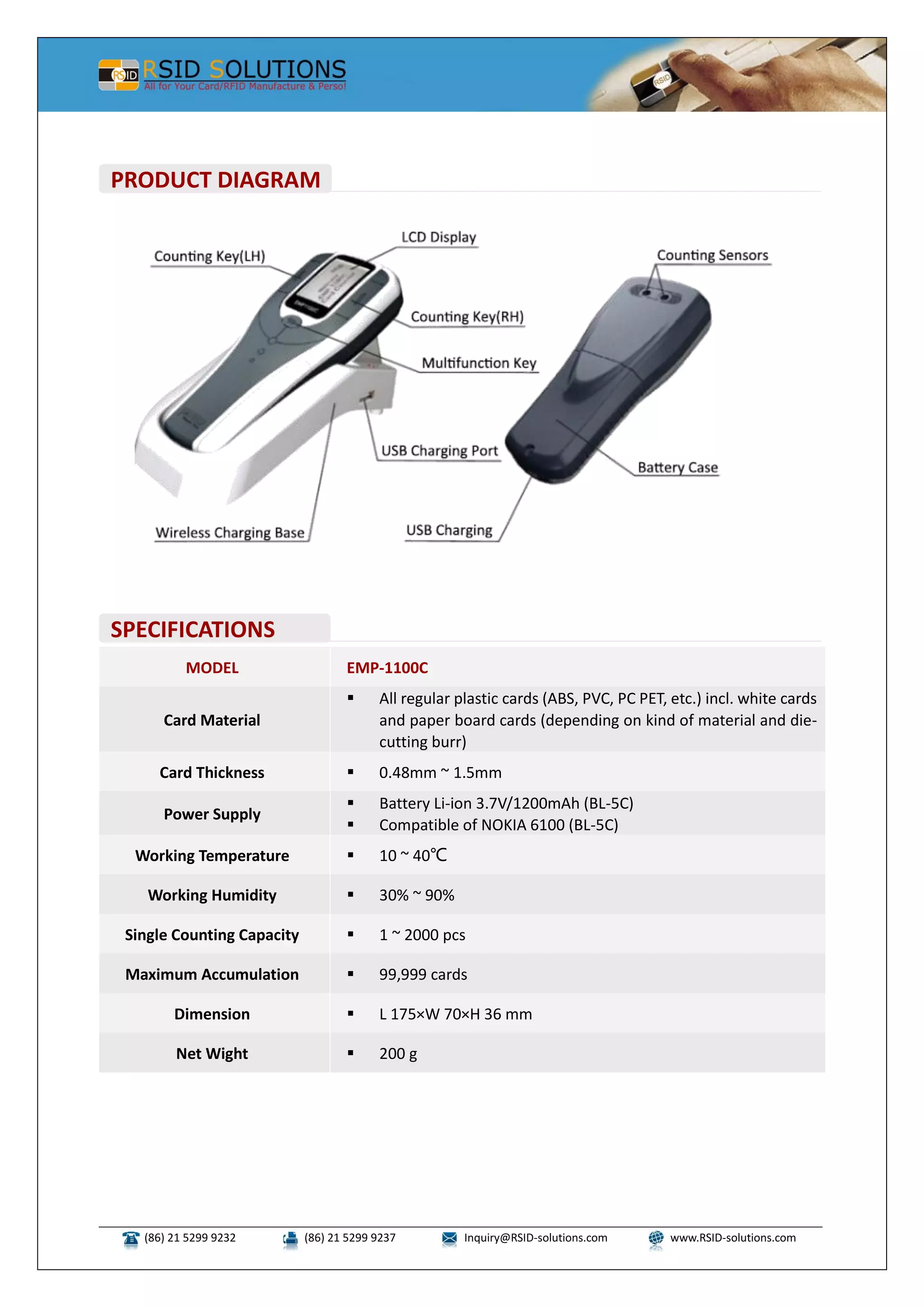

PRODUCT DIAGRAM
