1. SYNTHESIS OF BIOELECTRODE FOR THE
TREATMENT OF WASTEWATER
Guided by
Dr. T SANTHOSHINI PRIYA
Assistant Professor
Department of Chemical Engineering,
Alagappa College of Technology,
Anna University, Chennai 600 025.
Team members:
1. Myleshwari.S (2021303534)
2. Akshaya .S(2021303005)
1
PRESENTATION FOR PROJECT PHASE– 1 (CH5714)
September 2024

2. 1. INTRODUCTION:
• Water scarcity poses a significant threat to global societies, necessitating innovative solutions.
• One promising approach involves harnessing non-conventional sources for drinking water
production. Desalination by Capacitive Deionization (CDI) emerges as a viable, eco-friendly, and
energy-efficient method.
• However, CDI faces challenges related to electrode scalability, salinity limits, and cost
effectiveness. To address these, this project focuses on developing novel bio-based carbon
electrodes for CDI systems.
• By leveraging bio-based carbon compounds, these electrodes aim to enhance desalination
performance, durability, and electrochemical stability. The integration of solar energy further
reduces energy requirements.
2

3. 3

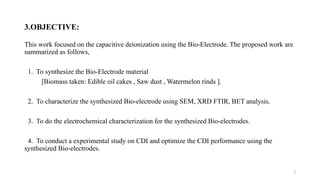

3.OBJECTIVE:
This work focused on the capacitive deionization using the Bio-Electrode. The proposed work are
summarized as follows,
1. To synthesize the Bio-Electrode material
[Biomass taken: Edible oil cakes , Saw dust , Watermelon rinds ].
2. To characterize the synthesized Bio-electrode using SEM, XRD FTIR, BET analysis.
3. To do the electrochemical characterization for the synthesized Bio-electrodes.
4. To conduct a experimental study on CDI and optimize the CDI performance using the
synthesized Bio-electrodes.

4. 4

5. 5
4. PROXIMATE ANALYSIS :
4.1 PROCEDURE:
* Each biomass of 3 grams is weighed and taken in the crucible.
* The weighed biomass is kept in the hot air oven at 110 for 1 hour to
℃
remove the moisture content , the final weight is weighed and noted.
* The biomass taken from hot air oven is kept in muffle furnace at
600 for 10 minutes to remove the volatile matter and biochar is
℃
prepared. The biochar is weighed and noted.
*The formed biochar is again kept in muffle furnace at 600 for 40
℃
minutes to remove the carbon content so that the ash is formed. It is
noted and weighed

6. 6
1.Moisture content :
* Saw dust = 7%
* Watermelon rinds = 11.3%
2.Volatile matter% :
* Saw dust = 51%
* Watermelon rinds = 65.8%
3.Ash content % :
* Saw dust = 4.6%
* Watermelon rinds = 8%
4.Percent Carbon content :
* Saw dust = 44.4%
* Watermelon rinds = 26.2%
4.2 RESULTS:
4.3 INFERENCE:
• Proximate analysis reveal that carbon content of both biomass is greater than the ash content.
• Therefore, both the biomass can be used for the preparation of biochar and further bio electrodes

7. 7
5. REFERENCES:
• Novel flow-electrode capacitive deionization system employing modified MOF-derived carbon electrodes for metal Ion
removal ,Yan Zhao a, Tianwen Song a, Xinyu Fan a, Dahan Yang c, Guangsheng Qian b,Science and technology of
desalting and water purification journal, Volume 585, 20 September 2024. https://doi.org/10.1016/j.desal.2024.117787
• A novel two-stage continuous capacitive deionization system with connectedflow electrode and freestanding
electrode,Rui Chen a b, Xun Liu a b c, Mengxia Wang a b c, Yufei Shu a b, Meng Zhang a b, Bei Liu a b, Zhongying
Wang a,Chemical Engineering Journal,Volume 491, 1 July 2024. https://doi.org/10.1016/j.cej.2024.152133
• Carbon felt (CF) acted as an “ionic capacitor” to enhance flow electrodecapacitive deionization (FCDI) desalination
performance (2023),Yunke Li,Junjun Ma, Minghao Yu,Jianrui Niu, Jiarong Gu, Meng Chen, Puming Zhang, Jing Zhang,
Chun Liu,Science and technology of desalination and purification journal, Volume 575, 16 April 2024 .
https://doi.org/10.1016/j.desal.2024.117341
• Superiority of a novel flow-electrode capacitive deionization (FCDI) based ona battery material at high applied
voltage,Yunke Li, Chenxu Yang, MengChen, Yonghuan Bian, Jianrui Niu, Situ Mu, Jing Zhang, Chun Liu, JunjunMa
Science and Technology of Desalting and Water Purification ,Volume 584, 12 September 2024.
https://doi.org/10.1016/j.desal.2024.117743
• Advances in capacitive deionization (CDI) systems for nutrient recovery from wastewater: Paving the path towards a
circular economy,Mohsen Askari a b, Saeid Rajabzadeh a, Leonard Tijing a b, Ho Kyong Shon a b ,Separation and
Purification Technology journal, Volume 583 ,19 August 2024, https://doi.org/10.1016/j.desal.2024.117695

8. 8
• Capacitive deionization and electrosorption techniques with different electrodes for wastewater treatment applications,
PratimaDevi Sivasubramanian a b 1,Mohanraj Kumar a 1, V.S. Kirankumar c, Melvin S. Samuel d, Cheng-Di Dong e,Jih-
Hsing Chang a,Science and technology of desalination and purificationjournal, Volume 559,1 August 2023,
https://doi.org/10.1016/j.desal.2023.116652
• The optimized flow-electrode capacitive deionization (FCDI) performance by ZIF-8 derived nano porous carbon
polyhedron ,Jian Wang a , b Fuming Chen a , Zhenglu Shi a , b a , Jie Fang a , Benli Chu a , Na Li c , Lingling Shui c ,
Guannan Wang d ‘,Separation and Purification Technology journal, volume 327, 5 July2021,
https://doi.org/10.1016/j.seppur.2021.119345
• Electrodialysis desalination for water and wastewater A review ,Sajjad Al-Amshawee a, Mohd Yusri Bin Mohd Yunus a b,
Abdul Aziz Mohd Azoddein a,David Geraint Hassell c, Ihsan Habib Dakhil d, Hassimi Abu Hasane,ChemicalEngineering
Journal,Volume 380, 15 January 2020, https://doi.org/10.1016/j.cej.2019.122231
• Feasibility study of reverse osmosis–flow capacitive deionization (RO-FCDI) for energy-efficient desalination using
seawater as the flow-electrode aqueous electrolyte,Hyun Jun Chung, Jungbin Kim, David Inhyuk Kim, Gimun Gwak
Seungkwan Hong , Science and technology of desalination and purification,Volume 479, 1April 2020 h
ttps://doi.org/10.1016/j.desal.2020.114326

9. 9
• Date seeds biomass-derived activated carbon for efficient removal of NaCl from saline solution,Abdul Hai a, G. Bharath a,
K. Ram Babu a, Hanifa Taher a, Mu.Naushad b, Fawzi Banat a,,Process Safety and Environmental Protection,Volume 129,
September 2019, https://doi.org/10.1016/j.psep.2019.06.024.
• Influence of operating conditions and cathode parameters on desalination performance of hybrid CDI systems,Lutfi
Agartan a, Brendan Hayes-Oberst b,Bryan W. Byles b, Bilen Akuzum a, Ekaterina Pomerantseva b, E. Caglan
Kumbur ,Science and technology of desalination and purification, Volume452, 15 February 2019 ,
https://doi.org/10.1016/j.desal.2018.10.025.
• Progress and outlook for bio-flow electrodes in capacitive deionization technology,James Landon et.al., Current Opinion
in Chemical Engineering,Volume 25, 22 september 2019 , https://doi.org/10.1016/j.desal.2019.114326
