Chamber production at cern 904
The document summarizes the status of chamber production at CERN 904. It reports that 20 chambers have been built for RE 4/2, with 10 sent to QC4 and 6 waiting for tripolar installation. For RE 4/3, 8 chambers have been built total, with 7 sent to QC4 and 1 remaining in QC3. It also notes that mechanical preparations are ongoing, with 10 gaps rejected due to issues like broken gas inlets or bending, and new gaps having arrived on June 17th.
Chamber production at cern 904

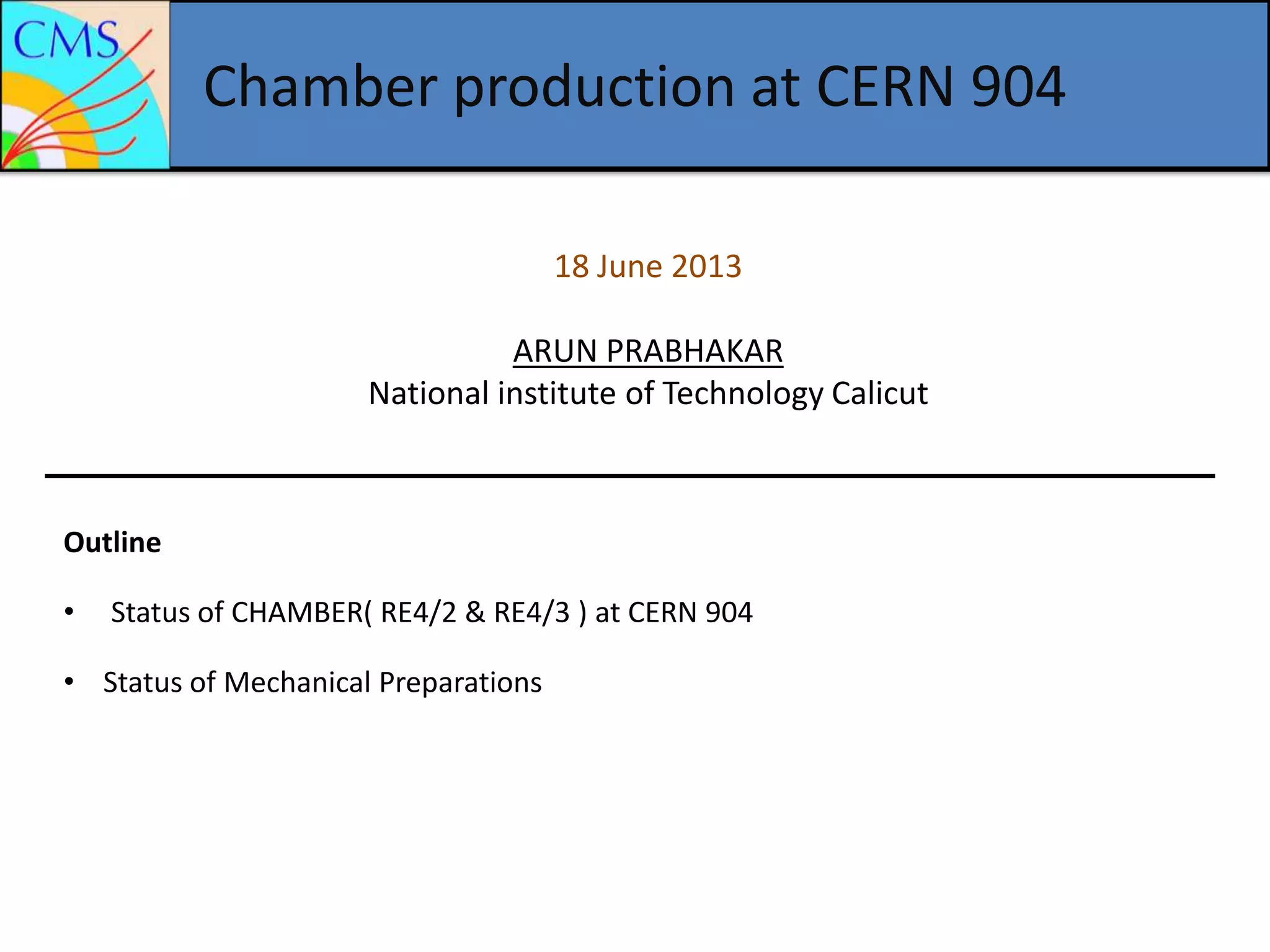

- 1. 18 June 2013 ARUNPRABHAKAR National institute of Technology Calicut Outline • Status of CHAMBER( RE4/2 & RE4/3 ) at CERN 904 Chamber production at CERN 904 • Status of Mechanical Preparations

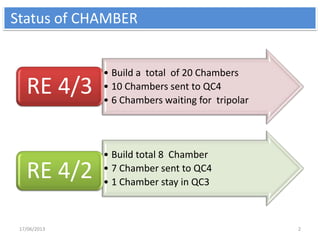

- 2. 17/06/2013 2 Status ofCHAMBER • Build a total of 20 Chambers • 10 Chambers sent to QC4 • 6 Chambers waiting for tripolar RE 4/3 • Build total 8 Chamber • 7 Chamber sent to QC4 • 1 Chamber stay in QC3 RE 4/2

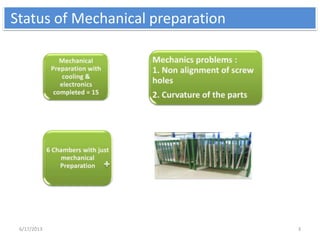

- 3. 6/17/2013 3 Status ofMechanical preparation

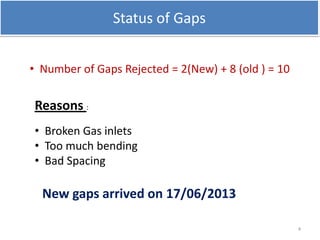

- 4. Status of Gaps 4 •Number of Gaps Rejected = 2(New) + 8 (old ) = 10 Reasons : • Broken Gas inlets • Too much bending • Bad Spacing New gaps arrived on 17/06/2013

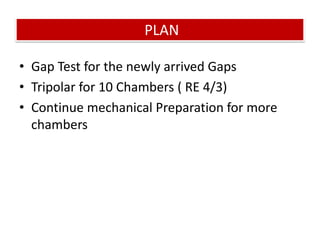

- 5. • Gap Testfor the newly arrived Gaps • Tripolar for 10 Chambers ( RE 4/3) • Continue mechanical Preparation for more chambers PLAN
