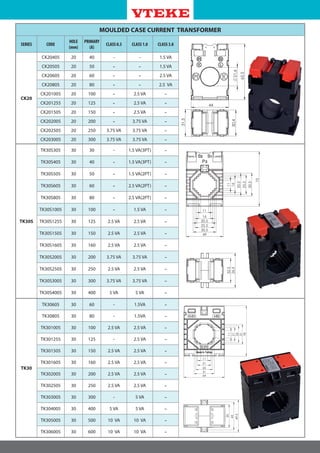

MOULDED CASE CURRENT TRANSFORMER
SERIES CODE
HOLE
(mm)
PRIMARY
(A)
CLASS 0.5 CLASS 1.0 CLASS 3.0
CK20
CK20405 20 40 - - 1.5 VA
CK20505 20 50 - - 1.5 VA
CK20605 20 60 - - 2.5 VA
CK20805 20 80 - - 2.5 VA
CK201005 20 100 - 2.5 VA -
CK201255 20 125 - 2.5 VA -
CK201505 20 150 - 2.5 VA -
CK202005 20 200 - 3.75 VA -
CK202505 20 250 3.75 VA 3.75 VA -
CK203005 20 300 3.75 VA 3.75 VA -
TK30S
TK30S305 30 30 - 1.5 VA(3PT) -
TK30S405 30 40 - 1.5 VA(3PT) -
TK30S505 30 50 - 1.5 VA(2PT) -
TK30S605 30 60 - 2.5 VA(2PT) -
TK30S805 30 80 - 2.5 VA(2PT) -
TK30S1005 30 100 - 1.5 VA -
TK30S1255 30 125 2.5 VA 2.5 VA -
TK30S1505 30 150 2.5 VA 2.5 VA -
TK30S1605 30 160 2.5 VA 2.5 VA -
TK30S2005 30 200 3.75 VA 3.75 VA -
TK30S2505 30 250 2.5 VA 2.5 VA -
TK30S3005 30 300 3.75 VA 3.75 VA -
TK30S4005 30 400 5 VA 5 VA -
TK30
TK30605 30 60 - 1.5VA -
TK30805 30 80 - 1.5VA -
TK301005 30 100 2.5 VA 2.5 VA -
TK301255 30 125 - 2.5 VA -
TK301505 30 150 2.5 VA 2.5 VA -
TK301605 30 160 2.5 VA 2.5 VA -
TK302005 30 200 2.5 VA 2.5 VA -
TK302505 30 250 2.5 VA 2.5 VA -
TK303005 30 300 - 5 VA -
TK304005 30 400 5 VA 5 VA -
TK305005 30 500 10 VA 10 VA -
TK306005 30 600 10 VA 10 VA -

MOULDED CASE CURRENT TRANSFORMER
SERIES CODE
HOLE
(mm)
PRIMARY
(A)
TK40
TK402005 40 200 2.5 VA 2.5 VA -
TK402505 40 250 2.5 VA 2.5 VA -
TK403005 40 300 2.5 VA 3.75 VA -
TK404005 40 400 5 VA 5 VA -
TK405005 40 500 5 VA 5 VA -
TK406005 40 600 5 VA 5 VA -
TK408005 40 800 10 VA 10 VA -
TK60
TK606005 60 600 10 VA 12.5 VA -
TK608005 60 800 15 VA 15 VA -
TK6010005 60 1000 15 VA 20 VA -
TK6012005 60 1200 20 VA 25 VA -
TK6012505 60 1250 20 VA 25 VA -
TK80
TK808005 80 800 15 VA 20 VA -
TK8010005 80 1000 15 VA 15 VA -
TK8012005 80 1200 15 VA 20 VA -
TK8012505 80 1250 15 VA 20 VA -
TK8015005 80 1500 20 VA 25 VA -
TK8016005 80 1600 20 VA 25 VA -
TK8020005 80 2000 15 VA 25 VA -
TK8025005 80 2500 30 VA 30 VA -
TK100
TK10010005 100 1000 15 VA 20 VA -
TK10012005 100 1200 10 VA 15 VA -
TK10012505 100 1250 15 VA 15 VA -
TK10015005 100 1500 10 VA 15 VA -
TK10016005 100 1600 10 VA 15 VA -
TK10020005 100 2000 30 VA 30 VA -
TK10025005 100 2500 30 VA 40 VA -
TK10030005 100 3000 30 VA 30 VA -
TK10032005 100 3200 30 VA 30 VA -
TK10040005 100 4000 30 VA 30 VA -

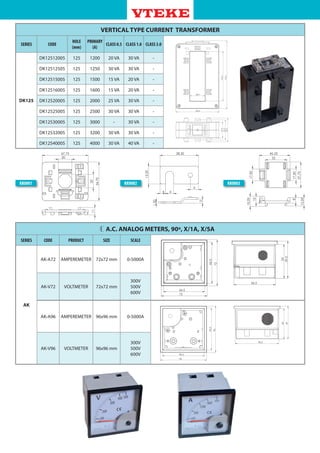

A.C. ANALOG METERS, 90º, X/1A, X/5A
SERIES CODE PRODUCT SIZE SCALE
AK
AK-A72 AMPEREMETER 72x72 mm 0-5000A
AK-V72 VOLTMETER 72x72 mm
300V
500V
600V
AK-A96 AMPEREMETER 96x96 mm 0-5000A
AK-V96 VOLTMETER 96x96 mm
300V
500V
600V
VERTICAL TYPE CURRENT TRANSFORMER
SERIES CODE
HOLE
(mm)
PRIMARY
(A)
DK125
DK12512005 125 1200 20 VA 30 VA -
DK12512505 125 1250 30 VA 30 VA -
DK12515005 125 1500 15 VA 20 VA -
DK12516005 125 1600 15 VA 20 VA -
DK12520005 125 2000 25 VA 30 VA -
DK12525005 125 2500 30 VA 30 VA -
DK12530005 125 3000 - 30 VA -
DK12532005 125 3200 30 VA 30 VA -
DK12540005 125 4000 30 VA 40 VA -
KK0001 KK0002 KK0003

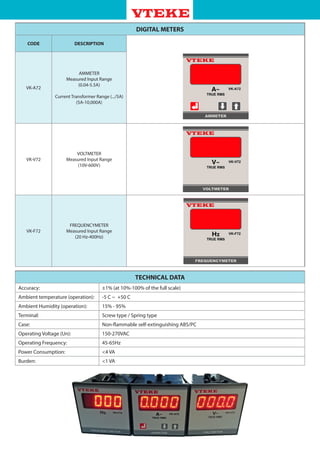

DIGITAL METERS
CODE DESCRIPTION
VK-A72
AMMETER
Measured Input Range
(0.04-5.5A)
Current Transformer Range (.../5A)
(5A-10,000A)
VK-V72
VOLTMETER
(10V-600V)
VK-F72
FREQUENCYMETER
(20 Hz-400Hz)
TECHNICAL DATA
Accuracy: ±1% (at 10%-100% of the full scale)
Ambient temperature (operation): -5 C ~ +50 C
Ambient Humidity (operation): 15% - 95%
Terminal: Screw type / Spring type
Case: Non-flammable self-extinguishing ABS/PC
Operating Voltage (Un): 150-270VAC
Operating Frequency: 45-65Hz
Power Consumption: <4 VA
Burden: <1 VA

MEASUREMENT CAM SWITCHES
CODE APPLIONATION POSITION CURRENT
CAV10301 Voltmeter (L-N) 3+0 10
CAV10302 Voltmeter (L-L) 3+0 10
CAV10401 Voltmeter (L-L & L1-N) 4 10
CAV10701 Voltmeter (L-L & L-N) 7 10
CAV10403 Amperemeter 3+0 10
DIN RAIL
CODE DESCRIPTION
STEEL DIN RAIL 35 x7.5 mm
SPR35751 Perforated Steel DIN Rail 35x7.5 mm 1 mt.
SPR35752 Perforated Steel DIN Rail 35x7.5 mm 2 mt.
SUR35751 Unperforated Steel DIN Rail 35x7.5 mm 1 mt.
SUR35752 Unperforated Steel DIN Rail 35x7.5 mm 2 mt.
ALUMINUM DIN RAIL 35x7.5 mm
APR35751 Perforated Aluminum DIN Rail 35x7.5 mm 1 mt.
APR35752 Perforated Aluminum DIN Rail 35x7.5 mm 2 mt.
AUR35751 Unperforated Aluminum DIN Rail 35x7.5 mm 1 mt.
AUR35752 Unperforated Aluminum DIN Rail 35x7.5 mm 2 mt.
STEEL DIN RAIL 35x15 mm
SPR35151 Perforated Steel DIN Rail 35x15 mm 1 mt.
SPR35152 Perforated Steel DIN Rail 35x15 mm 2 mt.
SUR35151 Unperforated Steel DIN Rail 35x15 mm 1 mt.
SUR35152 Unperforated Steel DIN Rail 35x15 mm 2 mt.
RH001 RAIL HOLDER

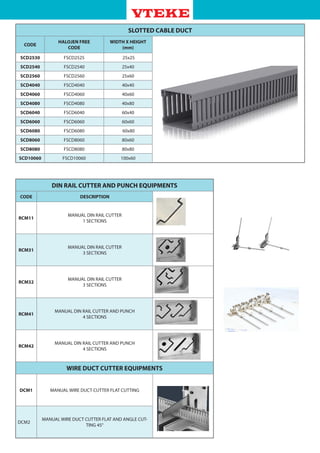

SLOTTED CABLE DUCT
CODE
HALOJEN FREE
CODE
WIDTH X HEIGHT
(mm)
SCD2530 FSCD2525 25x25
SCD2540 FSCD2540 25x40
SCD2560 FSCD2560 25x60
SCD4040 FSCD4040 40x40
SCD4060 FSCD4060 40x60
SCD4080 FSCD4080 40x80
SCD6040 FSCD6040 60x40
SCD6060 FSCD6060 60x60
SCD6080 FSCD6080 60x80
SCD8060 FSCD8060 80x60
SCD8080 FSCD8080 80x80
SCD10060 FSCD10060 100x60
DIN RAIL CUTTER AND PUNCH EQUIPMENTS
CODE DESCRIPTION
RCM11
MANUAL DIN RAIL CUTTER
1 SECTIONS
RCM31
3 SECTIONS
RCM32
3 SECTIONS
RCM41
MANUAL DIN RAIL CUTTER AND PUNCH
4 SECTIONS
RCM42
MANUAL DIN RAIL CUTTER AND PUNCH
4 SECTIONS
WIRE DUCT CUTTER EQUIPMENTS
DCM1 MANUAL WIRE DUCT CUTTER FLAT CUTTING
DCM2
MANUAL WIRE DUCT CUTTER FLAT AND ANGLE CUT-
TING 45°

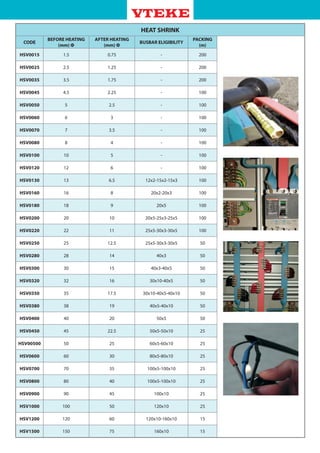

HEAT SHRINK
CODE
BEFORE HEATING
(mm) Φ
AFTER HEATING
(mm) Φ
BUSBAR ELIGIBILITY
PACKING
(m)
HSV0015 1.5 0.75 - 200
HSV0025 2.5 1.25 - 200
HSV0035 3.5 1.75 - 200
HSV0045 4.5 2.25 - 100
HSV0050 5 2.5 - 100
HSV0060 6 3 - 100
HSV0070 7 3.5 - 100
HSV0080 8 4 - 100
HSV0100 10 5 - 100
HSV0120 12 6 - 100
HSV0130 13 6.5 12x2-15x2-15x3 100
HSV0160 16 8 20x2-20x3 100
HSV0180 18 9 20x5 100
HSV0200 20 10 20x5-25x3-25x5 100
HSV0220 22 11 25x5-30x3-30x5 100
HSV0250 25 12.5 25x5-30x3-30x5 50
HSV0280 28 14 40x3 50
HSV0300 30 15 40x3-40x5 50
HSV0320 32 16 30x10-40x5 50
HSV0350 35 17.5 30x10-40x5-40x10 50
HSV0380 38 19 40x5-40x10 50
HSV0400 40 20 50x5 50
HSV0450 45 22.5 50x5-50x10 25
HSV00500 50 25 60x5-60x10 25
HSV0600 60 30 80x5-80x10 25
HSV0700 70 35 100x5-100x10 25
HSV0800 80 40 100x5-100x10 25
HSV0900 90 45 100x10 25
HSV1000 100 50 120x10 25
HSV1200 120 60 120x10-160x10 15
HSV1500 150 75 160x10 15

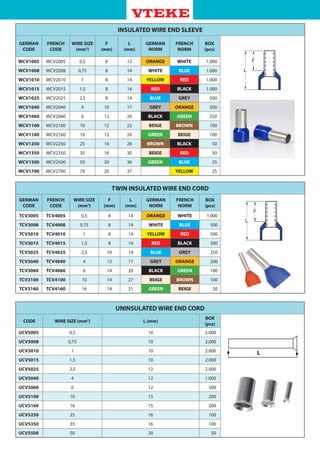

UNINSULATED WIRE END CORD
CODE WIRE SIZE (mm2
) L (mm)
BOX
(pcs)
UCV5005 0,5 10 2.000
UCV5008 0,75 10 2.000
UCV5010 1 10 2.000
UCV5015 1,5 10 2.000
UCV5025 2,5 12 2.000
UCV5040 4 12 1.000
UCV5060 6 12 500
UCV5100 10 15 200
UCV5160 16 15 200
UCV5250 25 16 100
UCV5350 35 16 100
UCV5500 50 20 50
INSULATED WIRE END SLEEVE
GERMAN
CODE
FRENCH
CODE
WIRE SIZE
(mm2
)
F
(mm)
L
(mm)
GERMAN
NORM
FRENCH
NORM
BOX
(pcs)
WCV1005 WCV2005 0,5 8 12 ORANGE WHITE 1.000
WCV1008 WCV2008 0,75 8 14 WHITE BLUE 1.000
WCV1010 WCV2010 1 8 14 YELLOW RED 1.000
WCV1015 WCV2015 1,5 8 14 RED BLACK 1.000
WCV1025 WCV2025 2,5 8 14 BLUE GREY 500
WCV1040 WCV2040 4 10 17 GREY ORANGE 500
WCV1060 WCV2060 6 12 20 BLACK GREEN 250
WCV1100 WCV2100 10 12 22 BEIGE BROWN 100
WCV1160 WCV2160 16 12 24 GREEN BEIGE 100
WCV1250 WCV2250 25 16 28 BROWN BLACK 50
WCV1350 WCV2350 35 16 30 BEIGE RED 50
WCV1500 WCV2500 50 20 36 GREEN BLUE 25
WCV1700 WCV2700 70 20 37 YELLOW 25
TWIN INSULATED WIRE END CORD
GERMAN
CODE
FRENCH
CODE
WIRE SIZE
(mm2
)
F
(mm)
L
(mm)
GERMAN
NORM
FRENCH
NORM
BOX
(pcs)
TCV3005 TCV4005 0,5 8 14 ORANGE WHITE 1.000
TCV3008 TCV4008 0,75 8 14 WHITE BLUE 500
TCV3010 TCV4010 1 8 14 YELLOW RED 500
TCV3015 TCV4015 1,5 8 14 RED BLACK 500
TCV3025 TCV4025 2,5 10 14 BLUE GREY 250
TCV3040 TCV4040 4 12 17 GREY ORANGE 200
TCV3060 TCV4060 6 14 20 BLACK GREEN 100
TCV3100 TCV4100 10 14 27 BEIGE BROWN 100
TCV3160 TCV4160 16 14 31 GREEN BEIGE 50
L

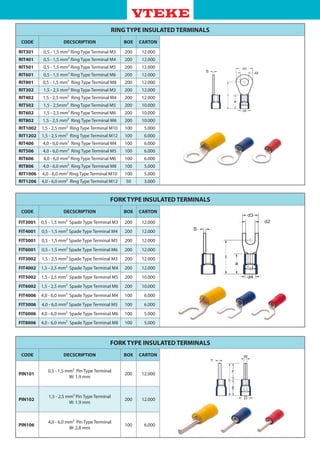

RING TYPE INSULATED TERMINALS
CODE DECSCRIPTION BOX CARTON
RIT301 0,5 - 1,5 mm² Ring Type Terminal M3 200 12.000
RIT502 1,5 - 2,5mm² Ring Type Terminal M5 200 10.000
FORK TYPE INSULATED TERMINALS
FIT3001 0,5 - 1,5 mm² Spade Type Terminal M3 200 12.000
FORK TYPE INSULATED TERMINALS
PIN101
0,5 - 1,5 mm² Pin Type Terminal
W: 1.9 mm
200 12.000
PIN102
W: 1.9 mm
200 12.000
PIN106
W: 2.8 mm
100 6.000

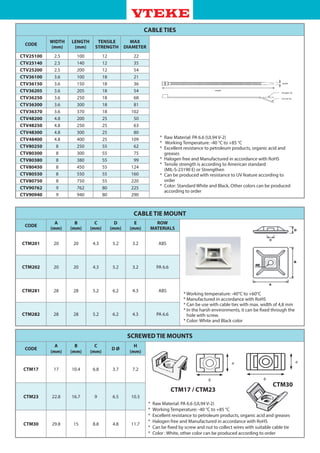

SCREWED TIE MOUNTS
CODE
A
(mm)
B
(mm)
C
(mm)
D Ø
H
(mm)
CTM17 17 10.4 6.8 3.7 7.2
CTM23 22.8 16.7 9 6.5 10.3
CTM30 29.8 15 8.8 4.8 11.7
CABLE TIES
CODE
WIDTH
(mm)
LENGTH
(mm)
TENSILE
STRENGTH
MAX
DIAMETER
CTV25100 2.5 100 12 22
CTV25140 2.5 140 12 35
CTV25200 2.5 200 12 54
CTV36100 3.6 100 18 21
CTV36150 3.6 150 18 36
CTV36205 3.6 205 18 54
CTV36250 3.6 250 18 68
CTV36300 3.6 300 18 81
CTV36370 3.6 370 18 102
CTV48200 4.8 200 25 50
CTV48250 4.8 250 25 63
CTV48300 4.8 300 25 80
CTV48400 4.8 400 25 109
CTV80250 8 250 55 62
CTV80300 8 300 55 75
CTV80380 8 380 55 99
CTV80450 8 450 55 124
CTV80550 8 550 55 160
CTV80750 8 750 55 220
CTV90762 9 762 80 225
CTV90940 9 940 80 290
* Raw Material: PA 6.6 (UL94 V-2)
* Working Temperature: -40 °C to +85 °C
* Excellent resistance to petroleum products, organic acid and
greases
* Halogen free and Manufactured in accordance with RoHS
* Tensile strength is according to American standard
(MIL-S-23190 E) or Strengthen
* Can be produced with resistance to UV feature according to
order
* Color: Standard White and Black, Other colors can be produced
according to order
CABLE TIE MOUNT
CODE
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
ROW
MATERIALS
CTM201 20 20 4.3 5.2 3.2 ABS
CTM202 20 20 4.3 5.2 3.2 PA 6.6
CTM281 28 28 5.2 6.2 4.3 ABS
CTM282 28 28 5.2 6.2 4.3 PA 6.6
* Working temperature: -40°C to +60°C
* Manufactured in accordance with RoHS
* Can be use with cable ties with max. width of 4,8 mm
* In the harsh environments, it can be fixed through the
hole with screw.
* Color: White and Black color
* Raw Material: PA 6.6 (UL94 V-2)
* Working Temperature: -40 °C to +85 °C
* Excellent resistance to petroleum products, organic acid and greases
* Halogen free and Manufactured in accordance with RoHS
* Can be fixed by screw and nut to collect wires with suitable cable tie
* Color : White, other color can be produced according to order
CTM17 / CTM23
CTM30

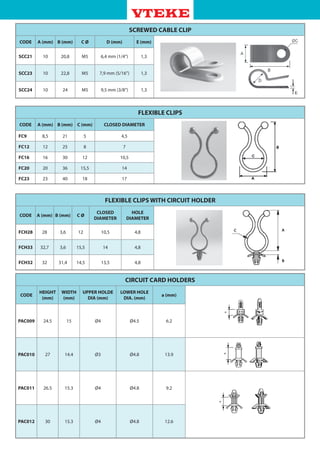

CIRCUIT CARD HOLDERS
CODE
HEIGHT
(mm)
WIDTH
(mm)
UPPER HOLDE
DIA (mm)
LOWER HOLE
DIA. (mm)
a (mm)
PAC009 24.5 15 Ø4 Ø4.5 6.2
PAC010 27 14.4 Ø3 Ø4.8 13.9
PAC011 26.5 15.3 Ø4 Ø4.8 9.2
PAC012 30 15.3 Ø4 Ø4.8 12.6
SCREWED CABLE CLIP
CODE A (mm) B (mm) C Ø D (mm) E (mm)
SCC21 10 20,8 M5 6,4 mm (1/4”) 1,3
SCC23 10 22,8 M5 7,9 mm (5/16”) 1,3
SCC24 10 24 M5 9,5 mm (3/8”) 1,3
FLEXIBLE CLIPS WITH CIRCUIT HOLDER
CODE A (mm) B (mm) C Ø
CLOSED
DIAMETER
HOLE
DIAMETER
FCH28 28 3,6 12 10,5 4,8
FCH33 32,7 3,6 15,5 14 4,8
FCH32 32 31,4 14,5 13,5 4,8
FLEXIBLE CLIPS
CODE A (mm) B (mm) C (mm) CLOSED DIAMETER
FC9 8,5 21 5 4,5
FC12 12 25 8 7
FC16 16 30 12 10,5
FC20 20 36 15,5 14
FC23 23 40 18 17

PANEL MARKER
CODE A (mm) B (mm)
Tag Width
(mm)
Tag Length
(mm)
PM30 30 17 27,5 14,4
PM60 50 17 49 15
PM75 75 17 72 15
PUSH TIE MOUNT
CODE a(mm) b(mm) MOUNT HOLE DIA.
MAX. BUN-
DLE DIA.
PAC001 17.8 16.3 Ø6 4.8
CABLE TIE MARKER
CODE A (mm) B (mm) C (mm)
Tag Width
(mm)
Tag Length
(mm)
CTM35 35 10 8 32 7
CTM45 45 20 8 42 17
BUTTON MARKER
CODE A (mm) B (mm) C (mm)
Tag Width
(mm)
Tag Length
(mm)
BM40 30 40 22 26 8
BM50 30 50 22 26 18

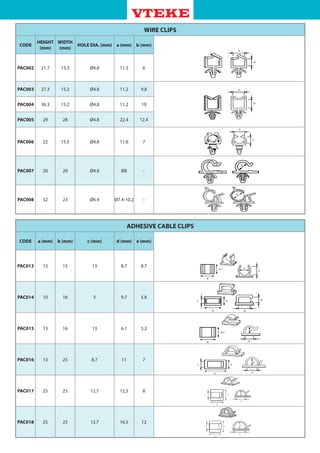

ADHESIVE CABLE CLIPS
CODE a (mm) b (mm) c (mm) d (mm) e (mm)
PAC013 13 15 13 8.7 8.7
PAC014 10 16 5 9.7 5.8
PAC015 13 16 13 6.1 5.2
PAC016 13 25 8.7 11 7
PAC017 25 25 12.7 12.5 8
PAC018 25 25 12.7 16.5 12
WIRE CLIPS
CODE
HEIGHT
(mm)
WIDTH
(mm)
HOLE DIA. (mm) a (mm) b (mm)
PAC002 21.7 15.3 Ø4.8 11.3 6
PAC003 27.3 15.2 Ø4.8 11.2 9.8
PAC004 36.3 15.2 Ø4.8 11.2 19
PAC005 29 28 Ø4.8 22.4 12.4
PAC006 22 15.5 Ø4.8 11.6 7
PAC007 20 20 Ø4.8 Ø8 -
PAC008 32 23 Ø6.4 Ø7.4-10.2 -

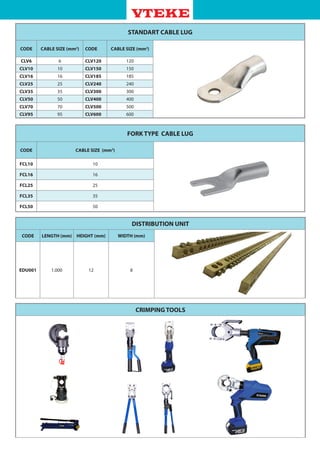

STANDART CABLE LUG
CODE CABLE SIZE (mm2
) CODE CABLE SIZE (mm2
)
CLV6 6 CLV120 120
CLV10 10 CLV150 150
CLV16 16 CLV185 185
CLV25 25 CLV240 240
CLV35 35 CLV300 300
CLV50 50 CLV400 400
CLV70 70 CLV500 500
CLV95 95 CLV600 600
FORK TYPE CABLE LUG
CODE CABLE SIZE (mm2
)
FCL10 10
FCL16 16
FCL25 25
FCL35 35
FCL50 50
DISTRIBUTION UNIT
CODE LENGTH (mm) HEIGHT (mm) WIDTH (mm)
EDU001 1.000 12 8
CRIMPING TOOLS

Merkez Mah. Aldemir Çk. Sk. No: 6/3 Gaziosmanpaşa - İSTANBUL / TURKEY
Tel: +90 212 544 00 04
Web: www.vteke.com.tr E-mail: info@vteke.com.tr
VTEK Elektrik İth. İhr. San. ve Tic. Ltd. Şti.

Catalog thiết bị điện Veteke

Recommended

Recommended

More Related Content

What's hot

What's hot (14)

Similar to Catalog thiết bị điện Veteke

Similar to Catalog thiết bị điện Veteke (20)

More from CTY TNHH HẠO PHƯƠNG

More from CTY TNHH HẠO PHƯƠNG (20)

Recently uploaded

Recently uploaded (20)

Catalog thiết bị điện Veteke
