1. HAUL MORELOAD FASTERSKID LONGERFELL MORE
Caterpillar Confidential Yellow

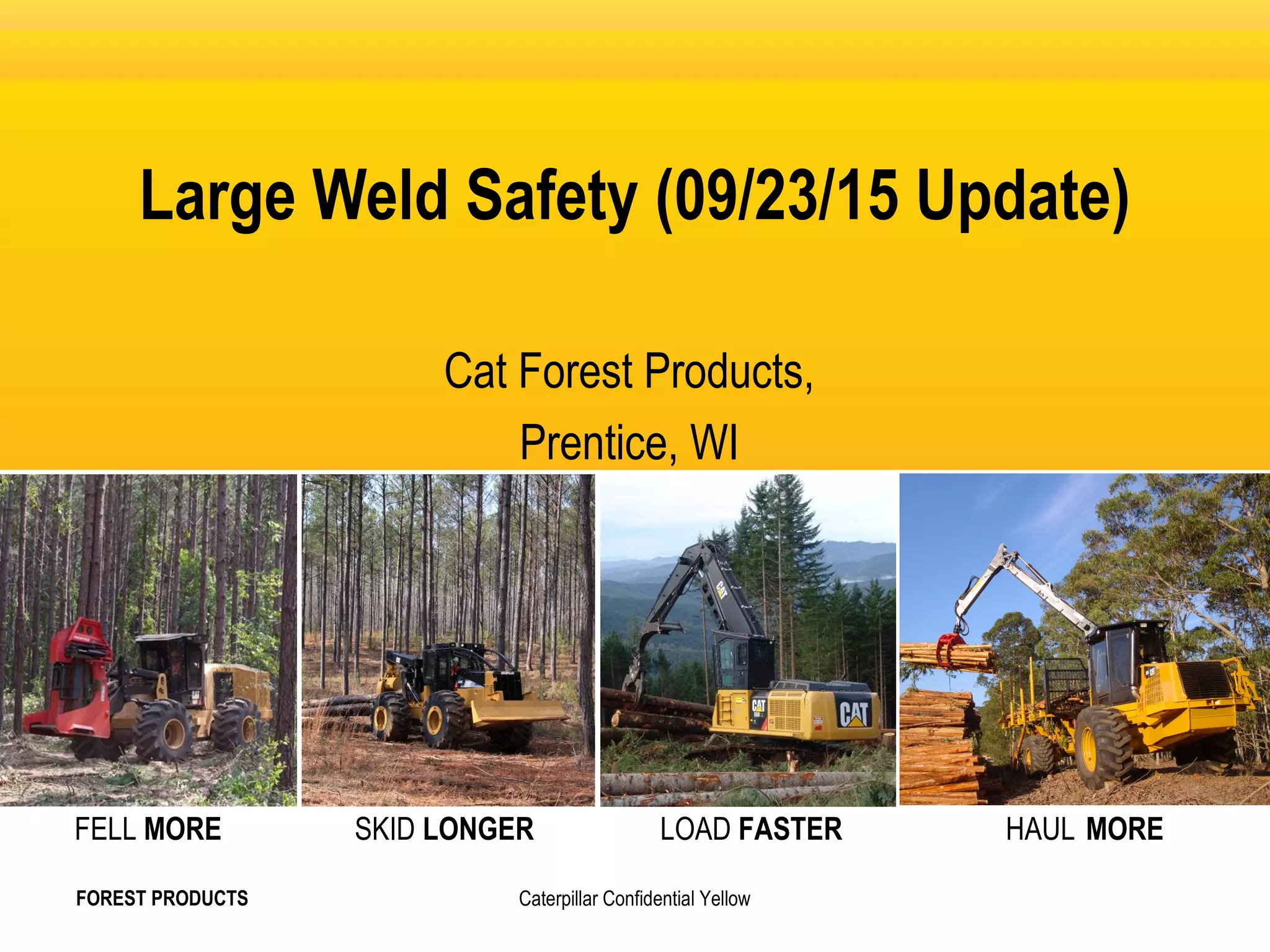

Large Weld Safety (09/23/15 Update)
Cat Forest Products,
Prentice, WI
FOREST PRODUCTS

2. Caterpillar Confidential Yellow
Caterpillar: 559D Tooling Design &
Development
2 FOREST PRODUCTS
1) Receive DCAR (Tool
Request) and part
drawing.
2) Review drawing for
• CTQ’s: Critical to
Quality.
• Identify Datums
• Review piece
parts/manufacturabili
ty.
• Conduct Tolerance
Stack-up Study to
implement into
tooling design.
• Obtain 3D Solid
Model.
1) Lower
Frame: P/N
10042564 being
removed from
roll over in the
horizontal
position.
2) Lower
Frame: after
being flipped
using bridge
crane. Note:
from here,
lower is sent
to machine
(Boring Bar).
2) Lower
Frame: after
being flipped
using bridge
crane. Note:
from here,
lower is sent
to machine
(Boring Bar).
