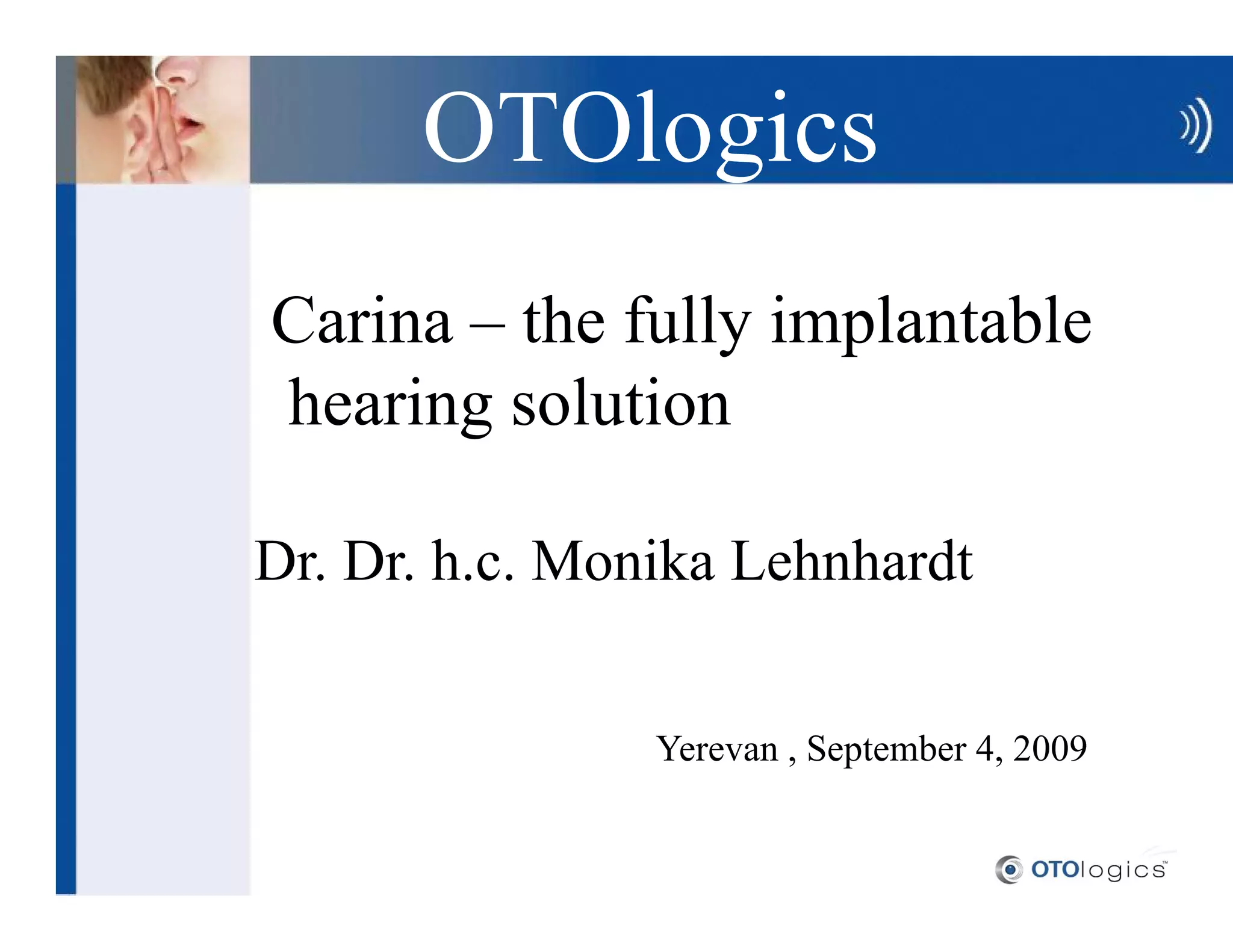

1. OTOlogics
Carina the fully implantable
hearing solution
Dr. Dr. h.c. Monika Lehnhardt
Yerevan , September 4, 2009

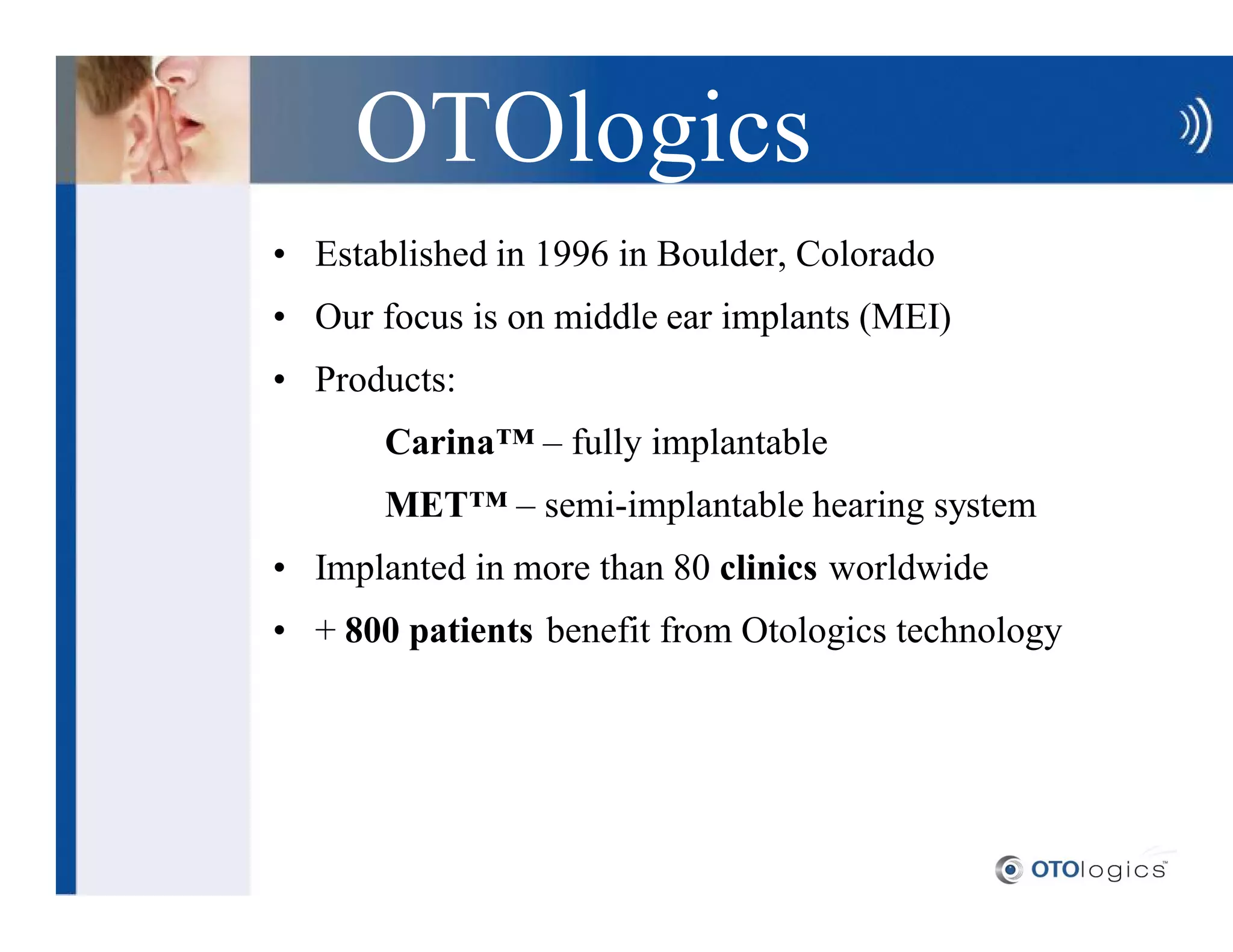

2. OTOlogics
Established in 1996 in Boulder, Colorado
Our focus is on middle ear implants (MEI)
Products:
Carina fully implantable
MET semi-implantable hearing system
Implanted in more than 80 clinics worldwide
+ 800 patients benefit from Otologics technology

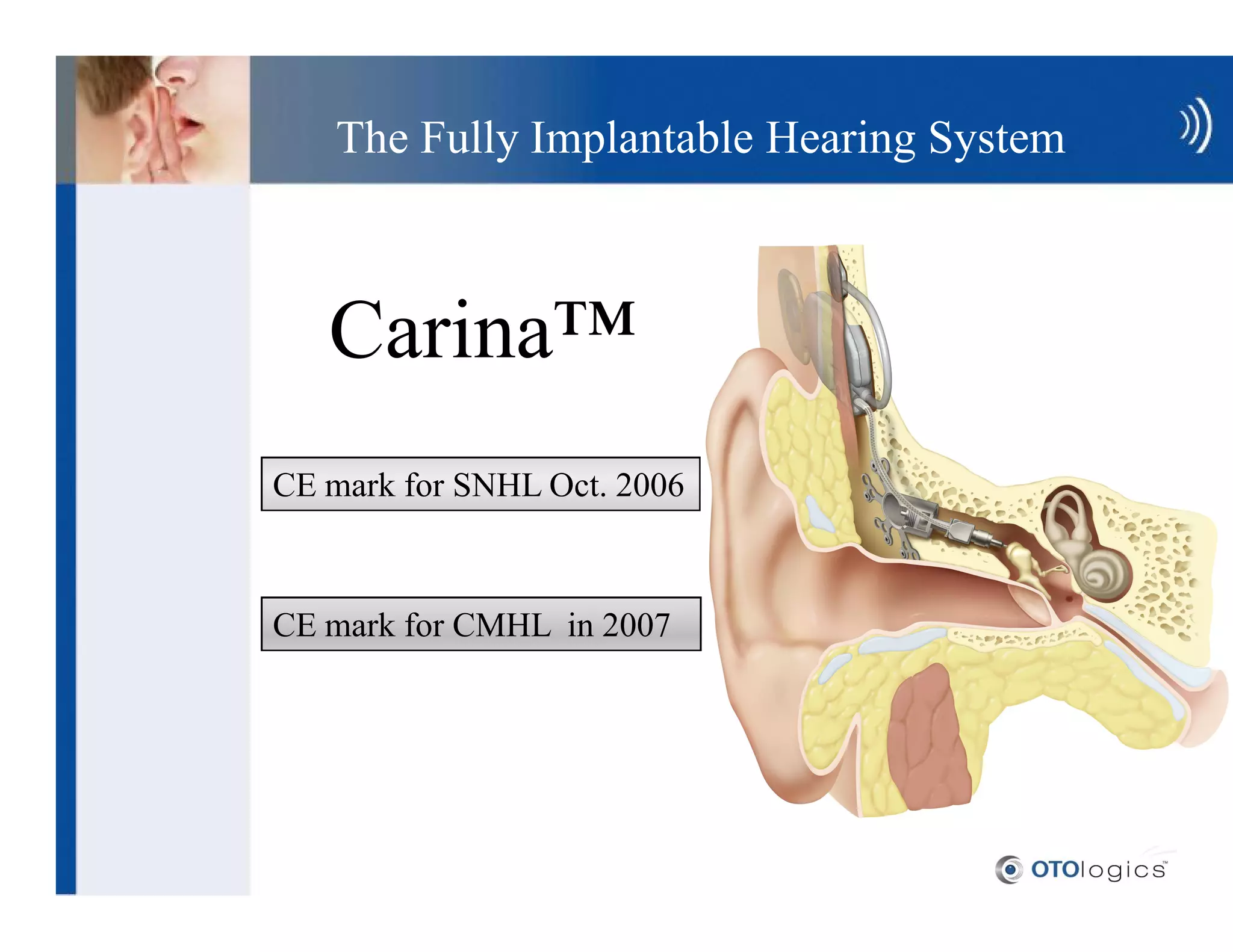

3. The Fully Implantable Hearing System
Carina
CE mark for SNHL Oct. 2006
CE mark for CMHL in 2007

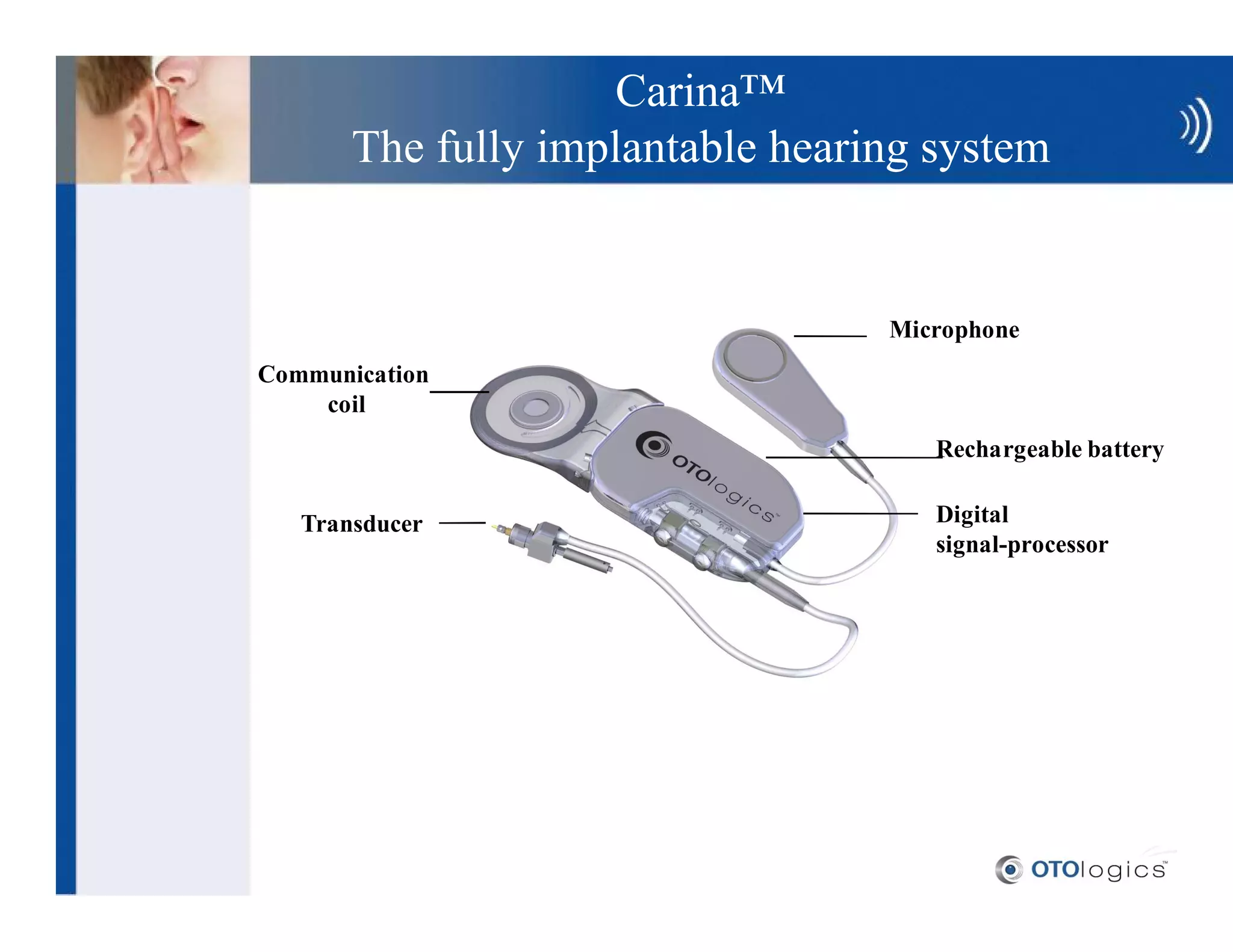

4. Carina
The fully implantable hearing system
Microphone
Communication
coil
Rechargeable battery
Transducer Digital
signal-processor

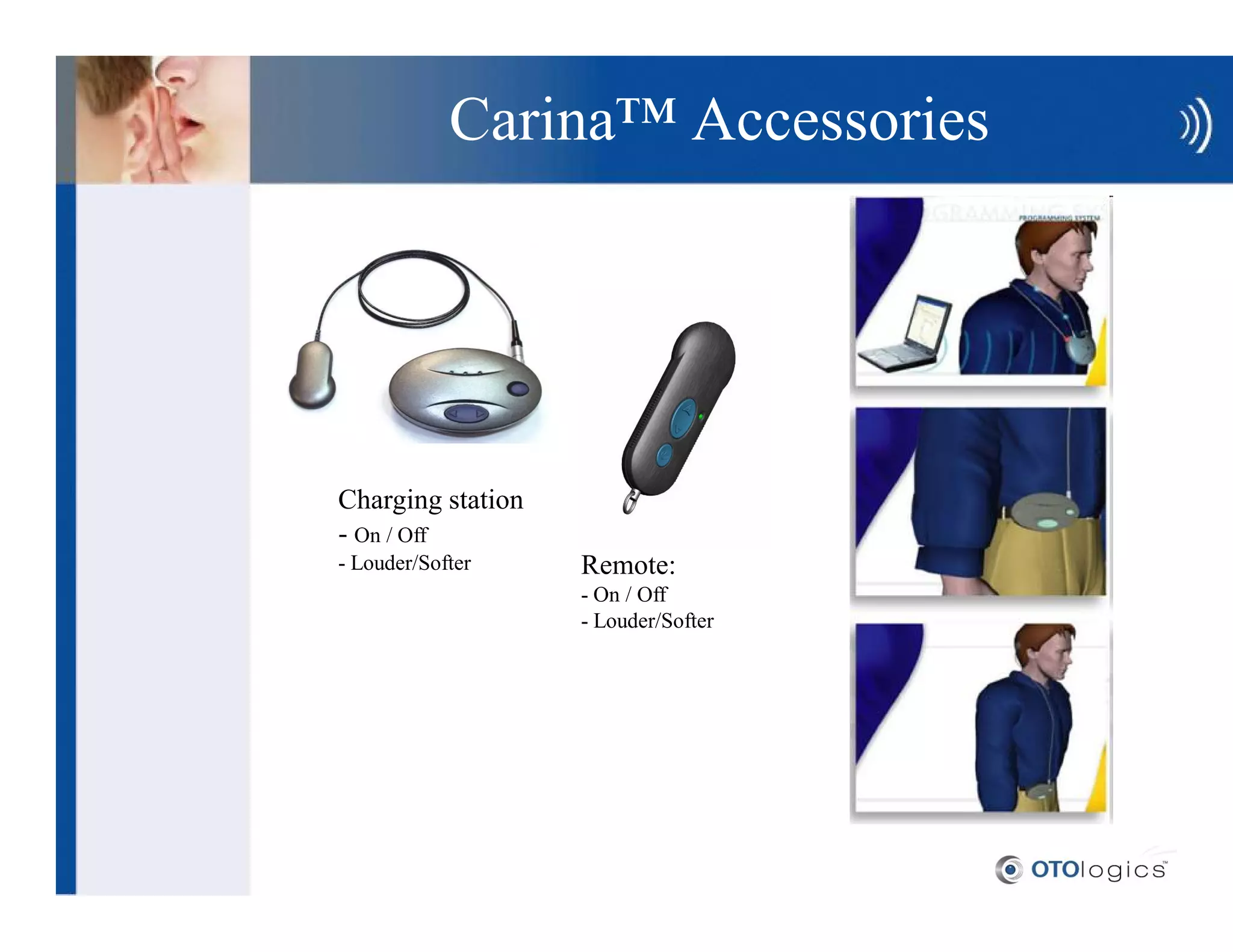

5. Carina Accessories
Charging station
- On / Off
- Louder/Softer Remote:
- On / Off
- Louder/Softer

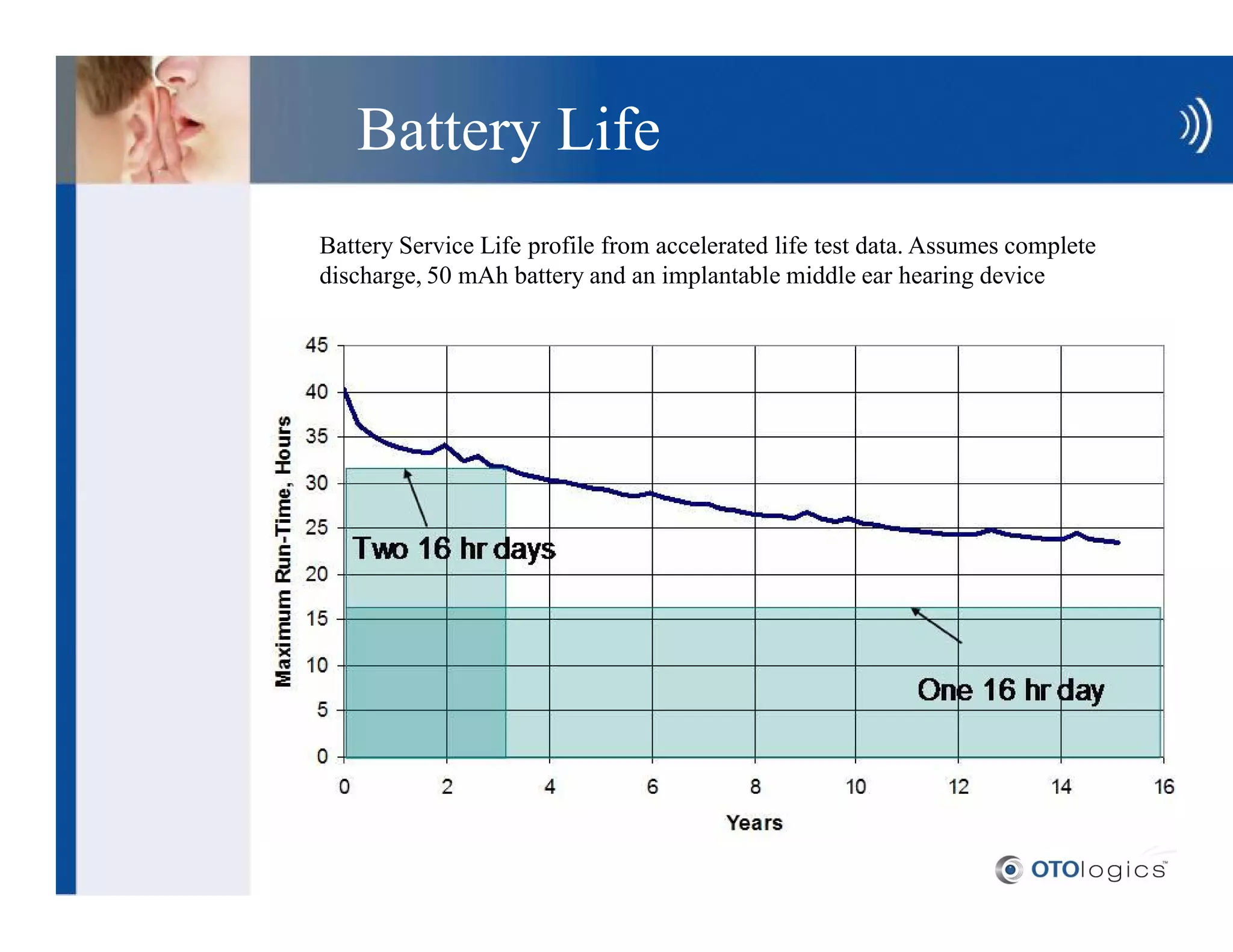

6. Battery Life
Battery Service Life profile from accelerated life test data. Assumes complete
discharge, 50 mAh battery and an implantable middle ear hearing device

7. Location of the microphone
Mounting plate Transducer
Capsule
Microphone

8. Sensorineural Hearing Loss
Patients with a normal middle ear anatomy
And with a mobile ossicular chain
Transducer simply placed in contact with the incus

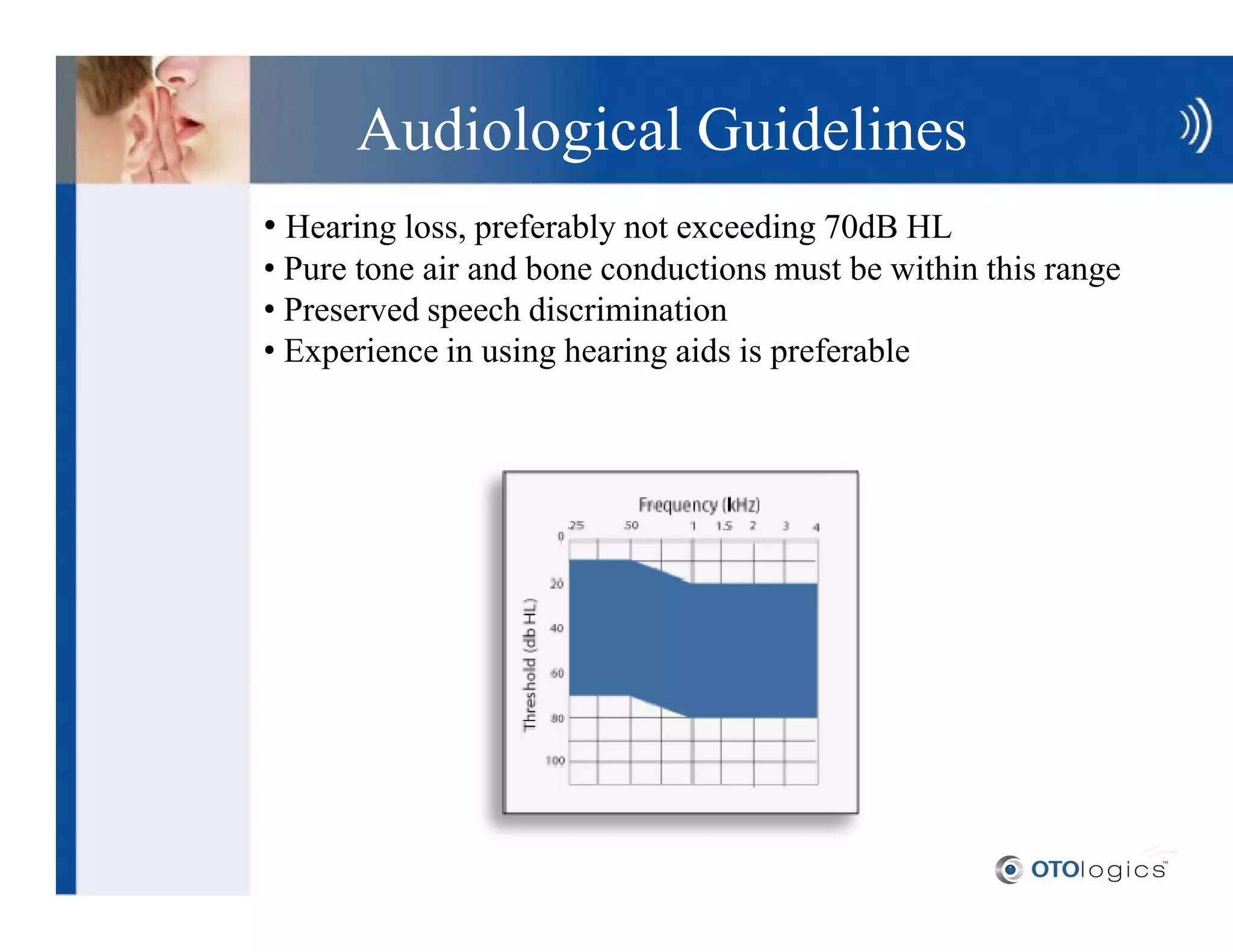

9. Audiological Guidelines
Hearing loss, preferably not exceeding 70dB HL
Pure tone air and bone conductions must be within this range
Preserved speech discrimination
Experience in using hearing aids is preferable

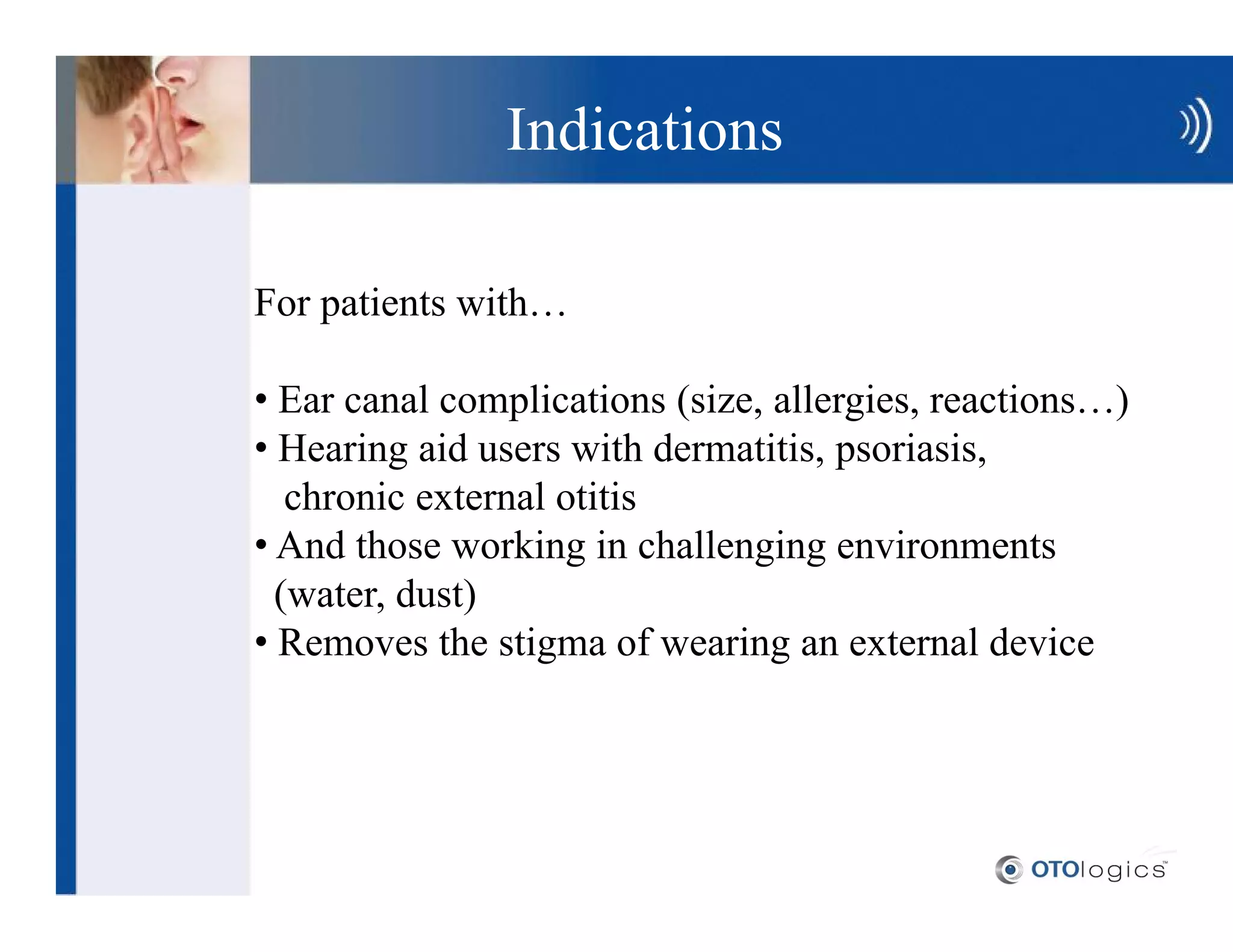

10. Indications
For patients with
Ear canal complications (size, allergies, reactions )
Hearing aid users with dermatitis, psoriasis,
chronic external otitis
And those working in challenging environments
(water, dust)
Removes the stigma of wearing an external device

11. Conductive Hearing Loss
Flexible placement options of the transducer
Delivers clear and powerful acoustic signals to the cochlea
Stapes Round Window Oval Window

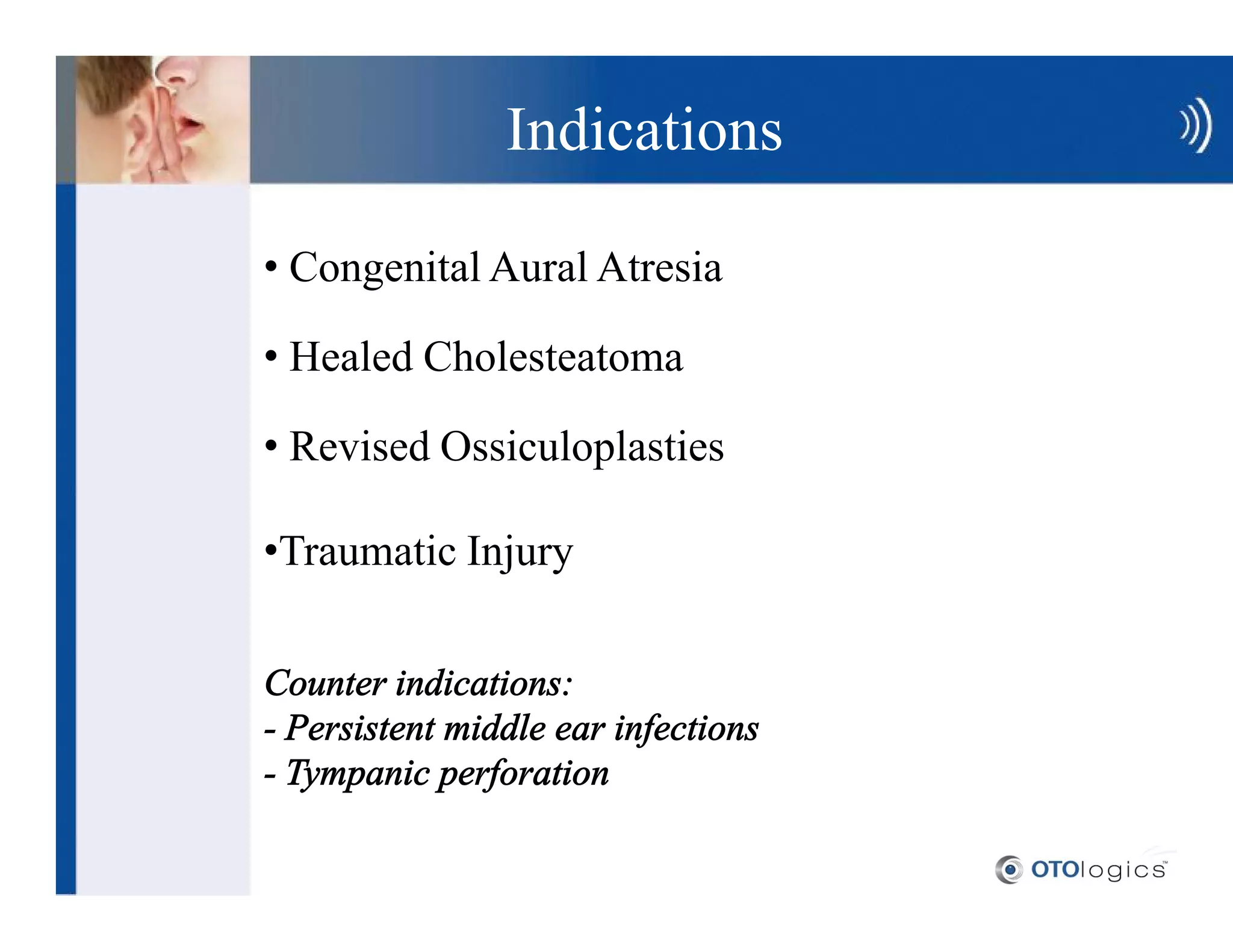

12. Indications
Congenital Aural Atresia
Healed Cholesteatoma
Revised Ossiculoplasties
Traumatic Injury
Counter indications:
- Persistent middle ear infections
- Tympanic perforation

13. Mixed Hearing Loss
Audiological guidelines:
SNHL preferably not exceeding 70dB HL
Preserved speech discrimination scores
Indications:
Otosclerosis
Healed cholesteatoma with a sensorineural component
Stabilized chronic otitis media with a sensorineural
component
Cases of conductive hearing loss with a growing
deterioration of sensorineural hearing

14. Conclusions
MET and Carina cover a broad range of the hearing loss
Safe surgeries - no risk - fully reversible
Very stable implanting systems
Carina:
ü indicated for multiple hearing loss profiles
ü many options for middle ear stimulation
ü an invisible hearing system
ü a unique alternative for
severe mixed hearing loss
working in challenging conditions

15. c
