This document outlines the components and setup of an IP network intercom system for a school application. It includes an IP-9000CA master station, IP-9000CS slave stations located in classrooms and offices, and an IP-9000SF server located in the electricity room to connect the 20 units over the LAN/WAN/Internet network. An optional IP-9000MC master controller can also be included.

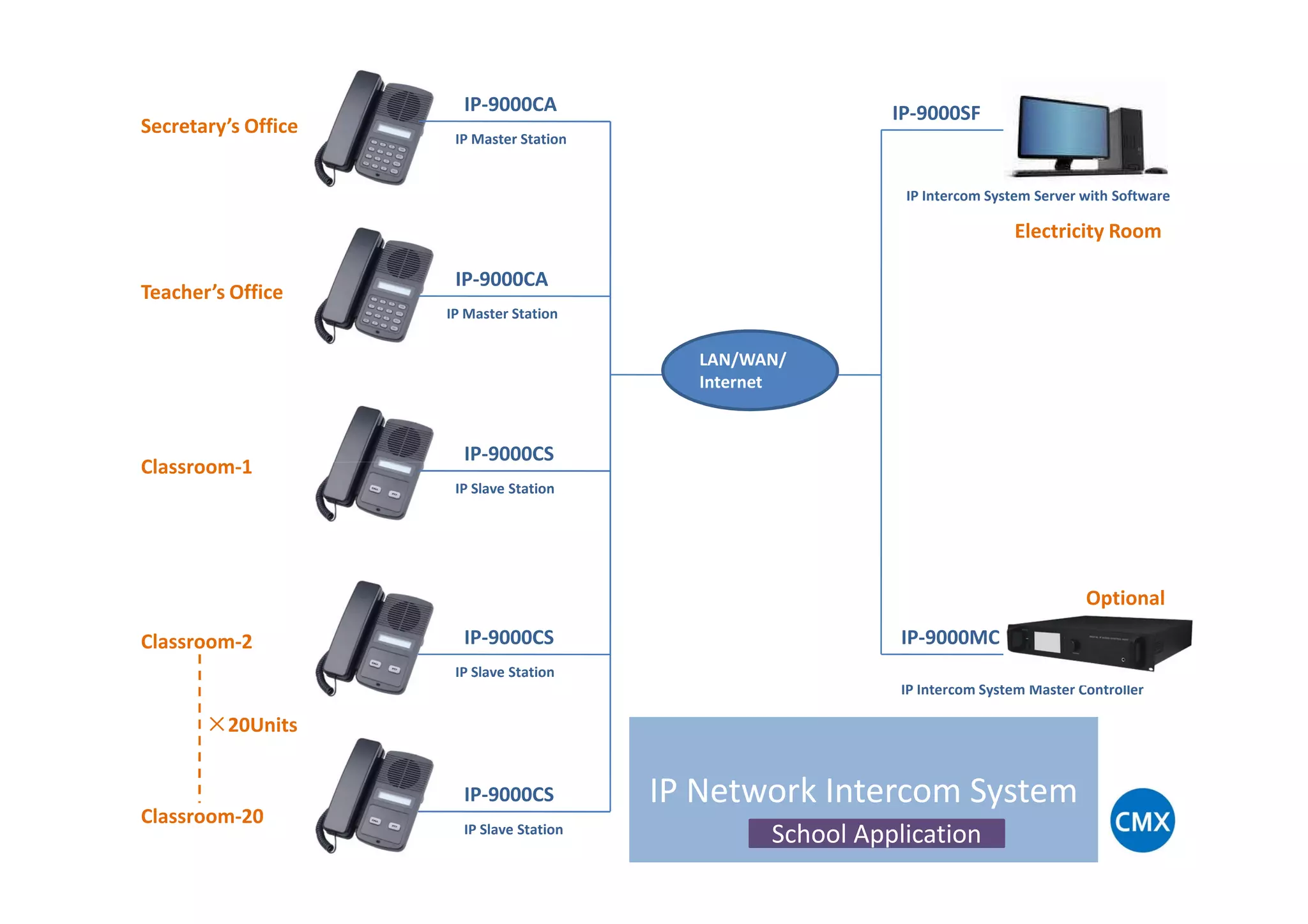

1. LAN/WAN/
Internet
IP-9000CA
IP Master Station
IP-9000CA
IP-9000CS
IP Master Station
Secretary’s Office
Teacher’s Office
Classroom-1
IP-9000SF
IP Intercom System Server with Software
Electricity Room
×20Units
IP Intercom System Master Controller
IP-9000CS
IP Slave Station
IP-9000CS
IP Slave Station
IP Slave Station
IP-9000CS
Classroom-1
Classroom-2
Classroom-20
IP-9000MC
Optional
IP Network Intercom System
School Application
