The document discusses various caching strategies and technologies including HDD, CPU, DNS, and web caching, emphasizing their importance for improving performance and saving bandwidth. It highlights HTTP response headers like 'Expires', 'Last-Modified', and 'ETag' that control caching behavior, as well as application-level caching techniques such as using APC and memcached. The presentation concludes by addressing the complexities of cache invalidation and management, indicating that while caching is beneficial, it requires careful implementation.

1. Caching Strategies Michal Špaček, Skype; WebExpo 2011 , Prague @spazef0rze, www.michalspacek.cz

2. What the... Cache ? HDD cache, CPU cache, DNS cache, web cache, geocache

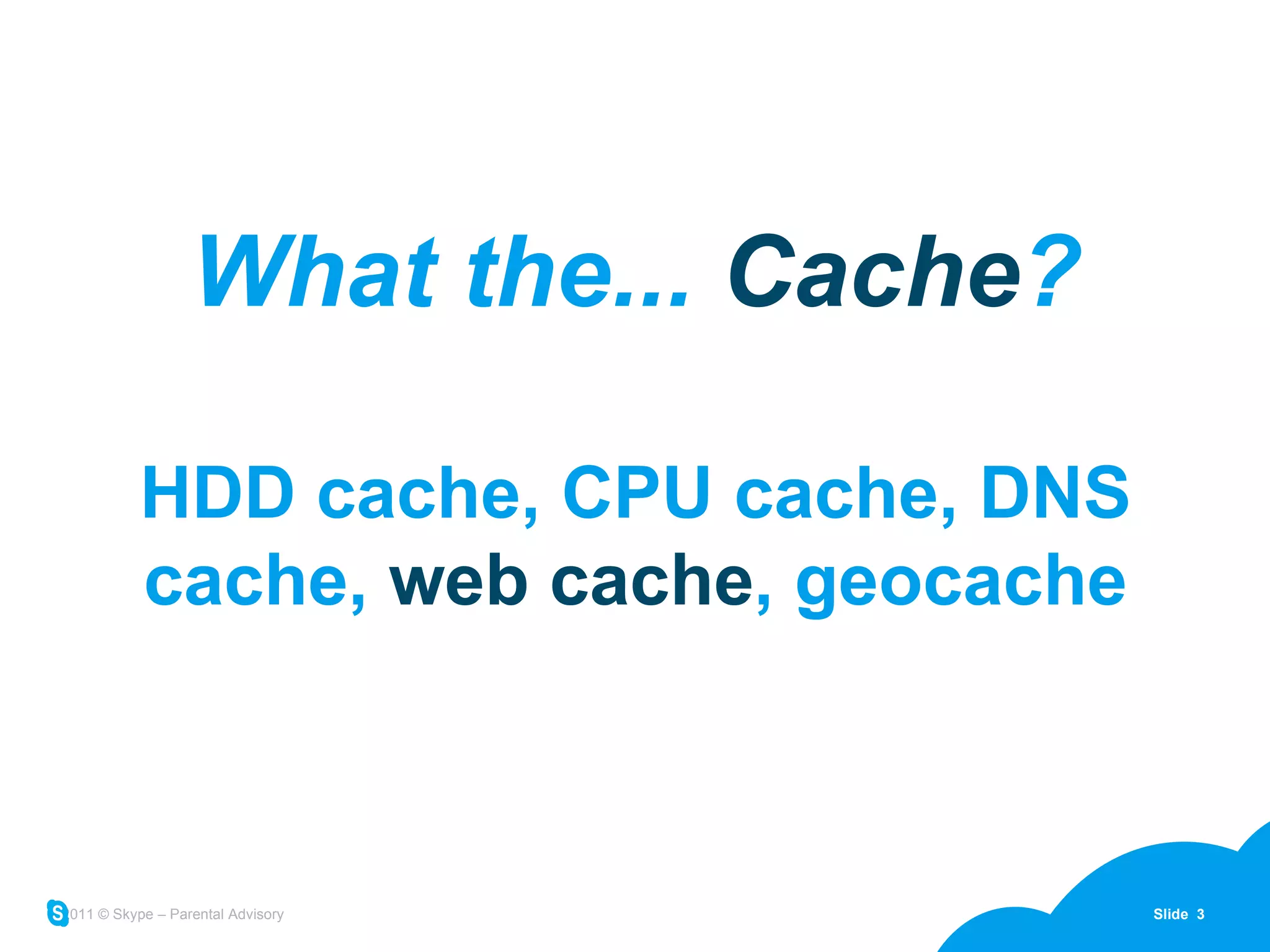

3. What the... Cache ? HDD cache, CPU cache, DNS cache, web cache , geocache

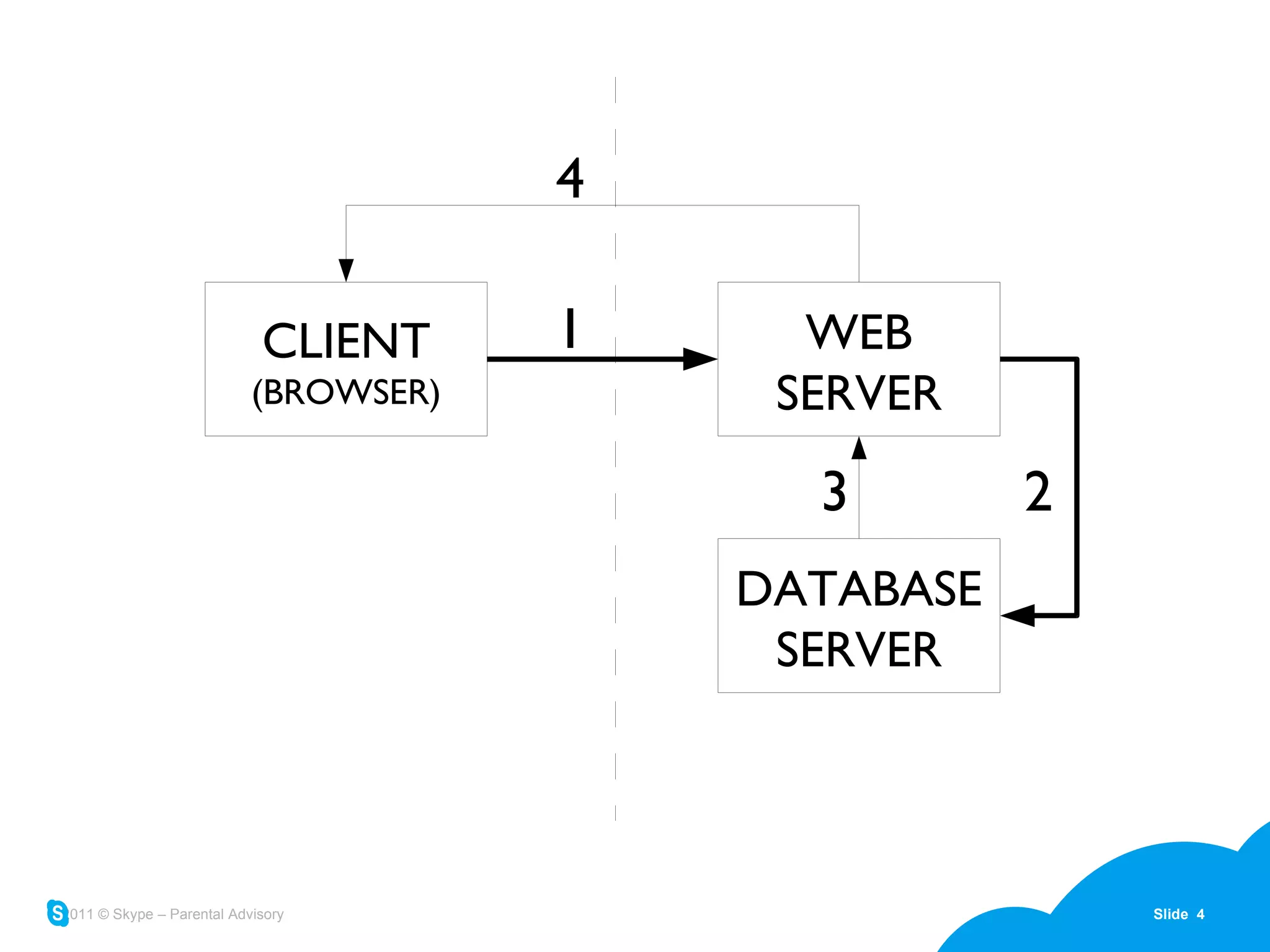

4. CLIENT (BROWSER) WEB SERVER DATABASE SERVER

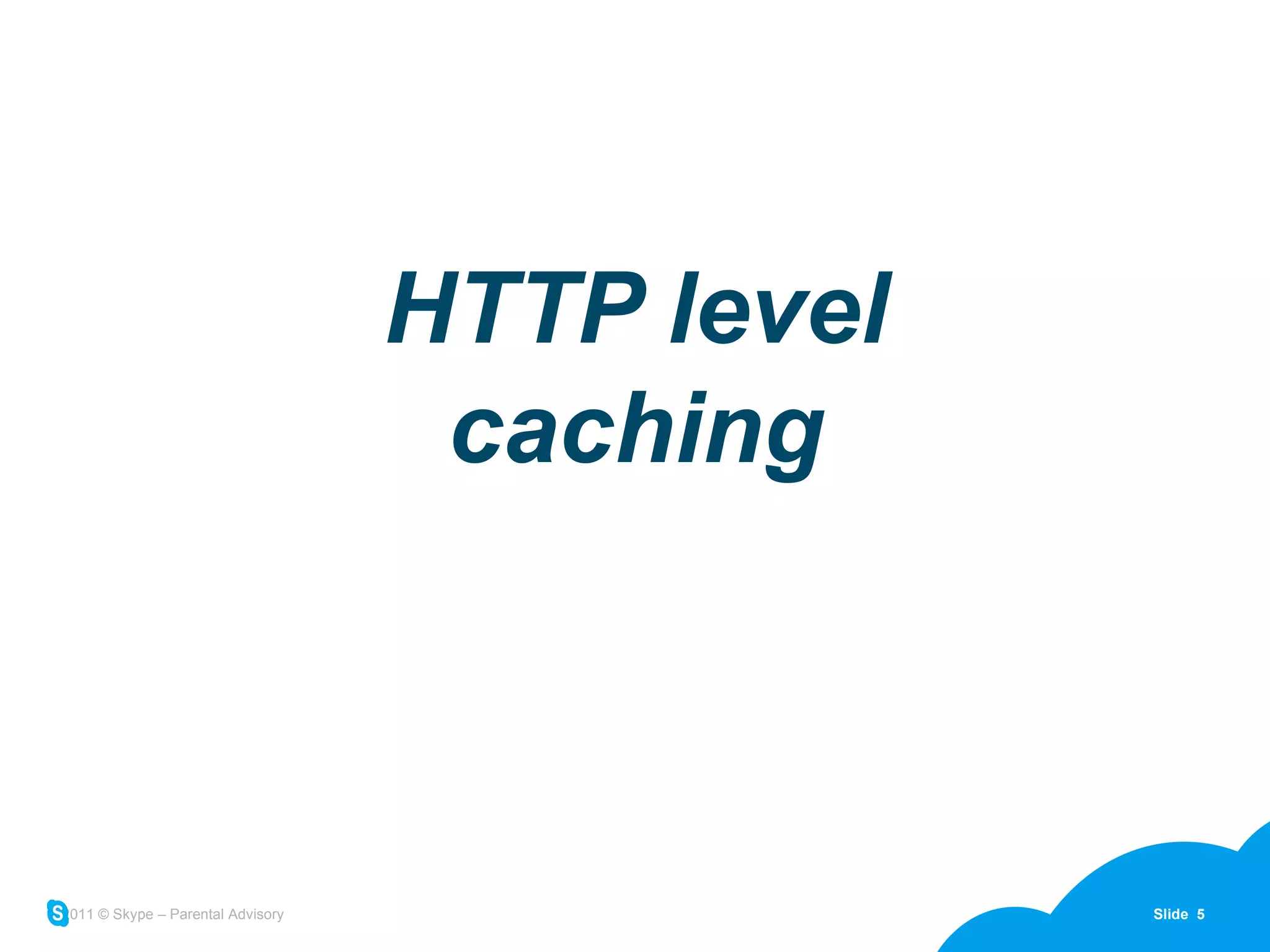

5. HTTP level caching

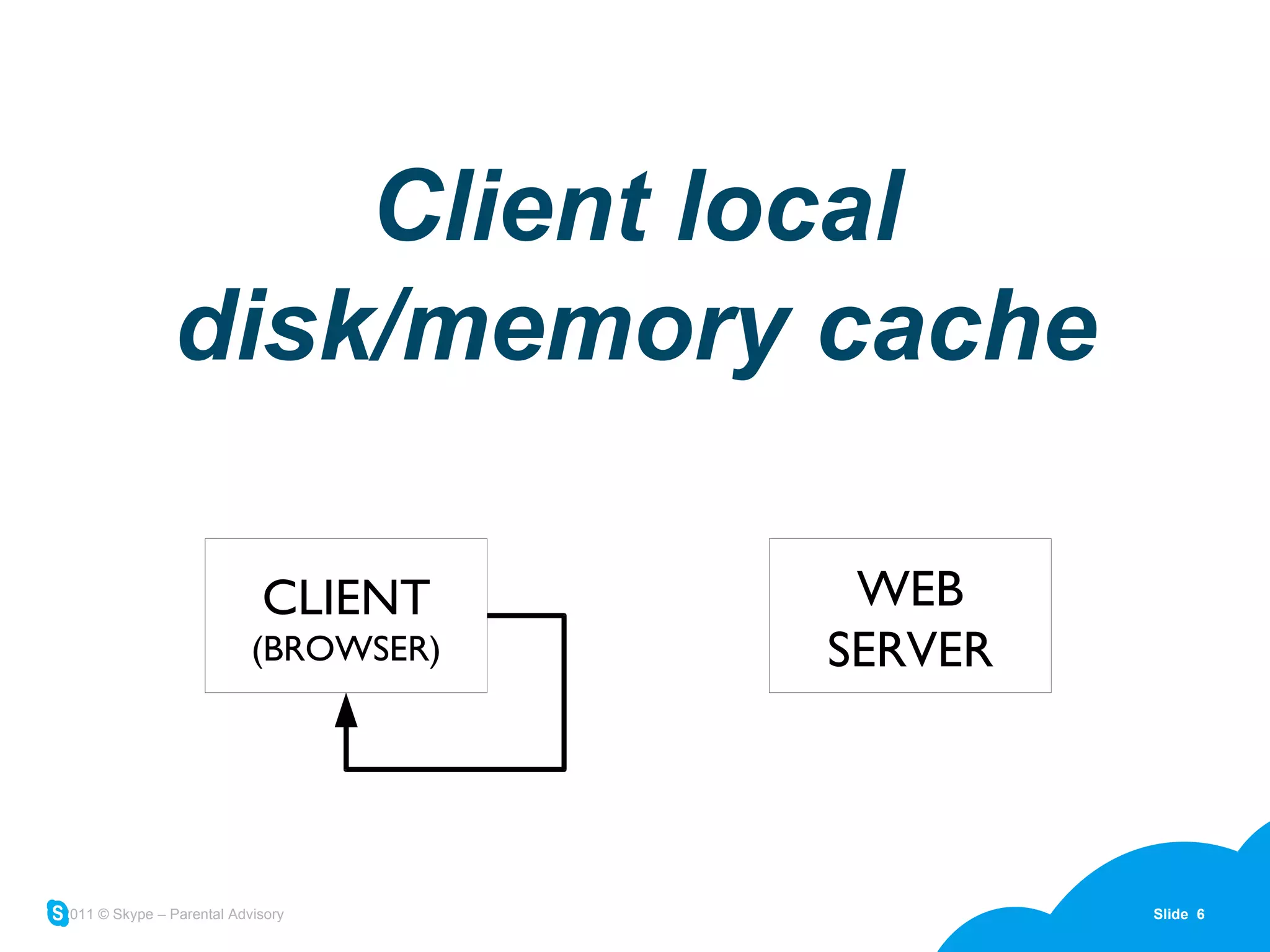

6. Client local disk/memory cache CLIENT (BROWSER) WEB SERVER

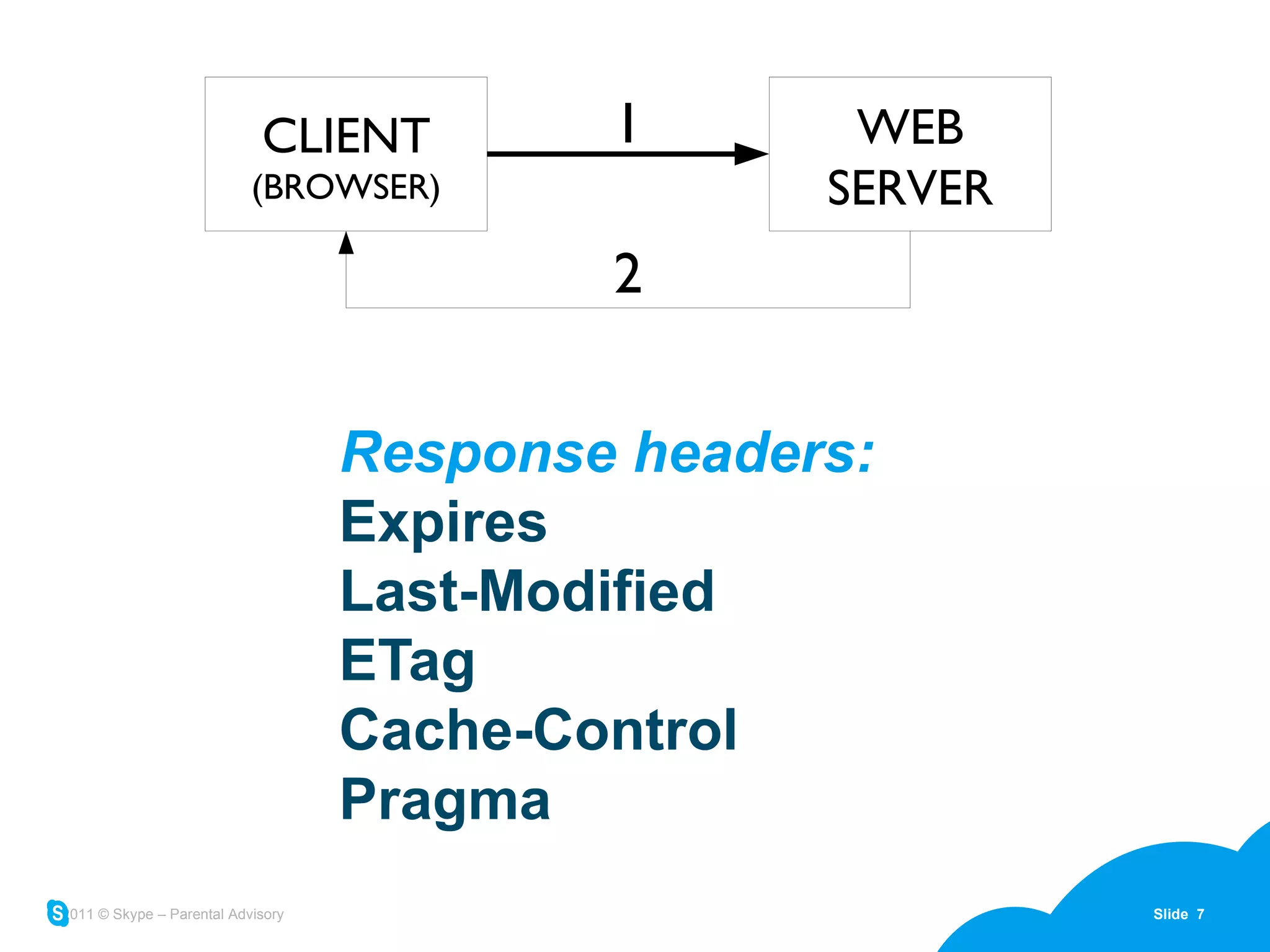

7. Response headers: Expires Last-Modified ETag Cache-Control Pragma CLIENT (BROWSER) WEB SERVER

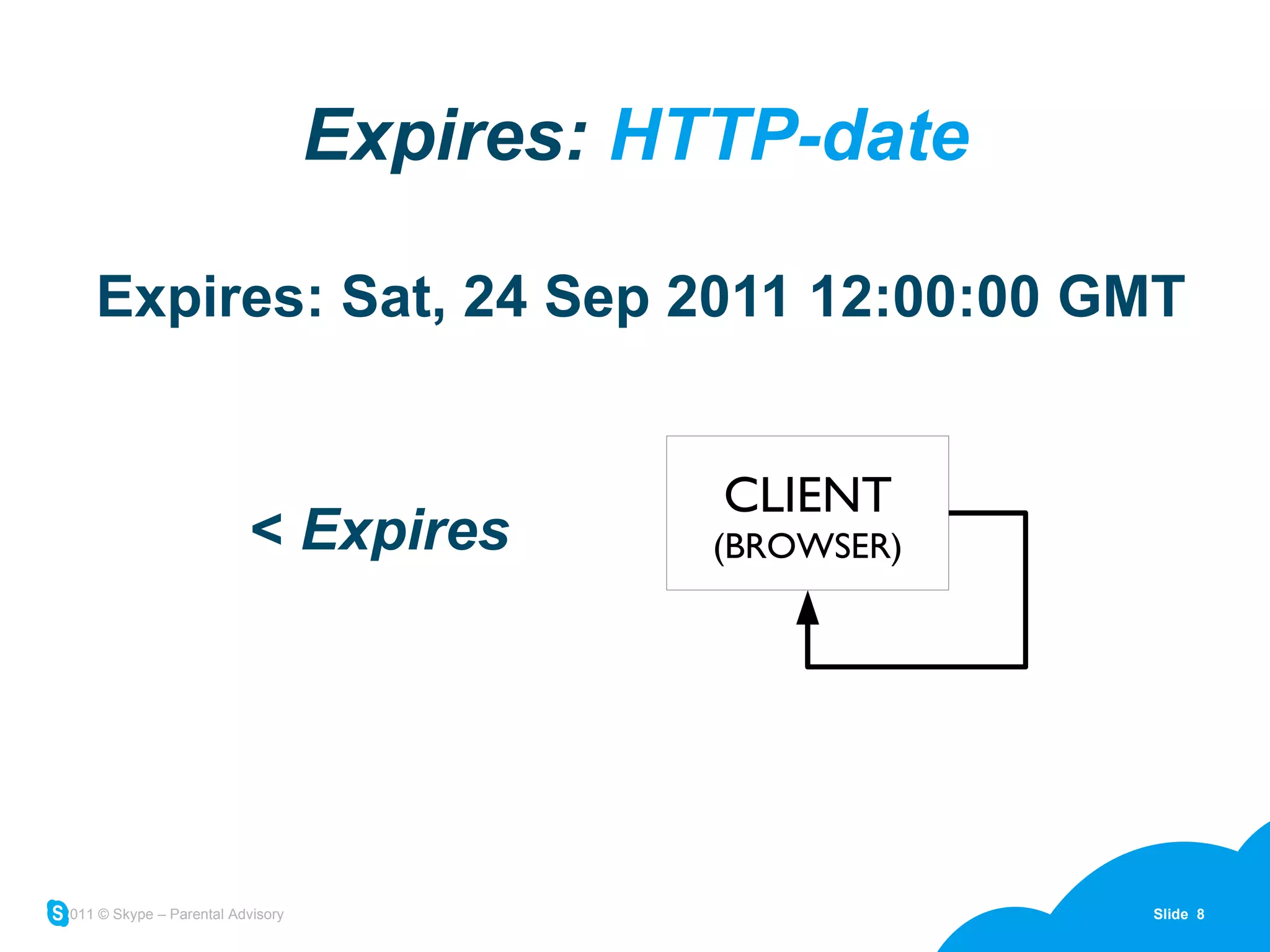

8. Expires: HTTP-date Expires: Sat, 24 Sep 2011 12:00:00 GMT < Expires CLIENT (BROWSER)

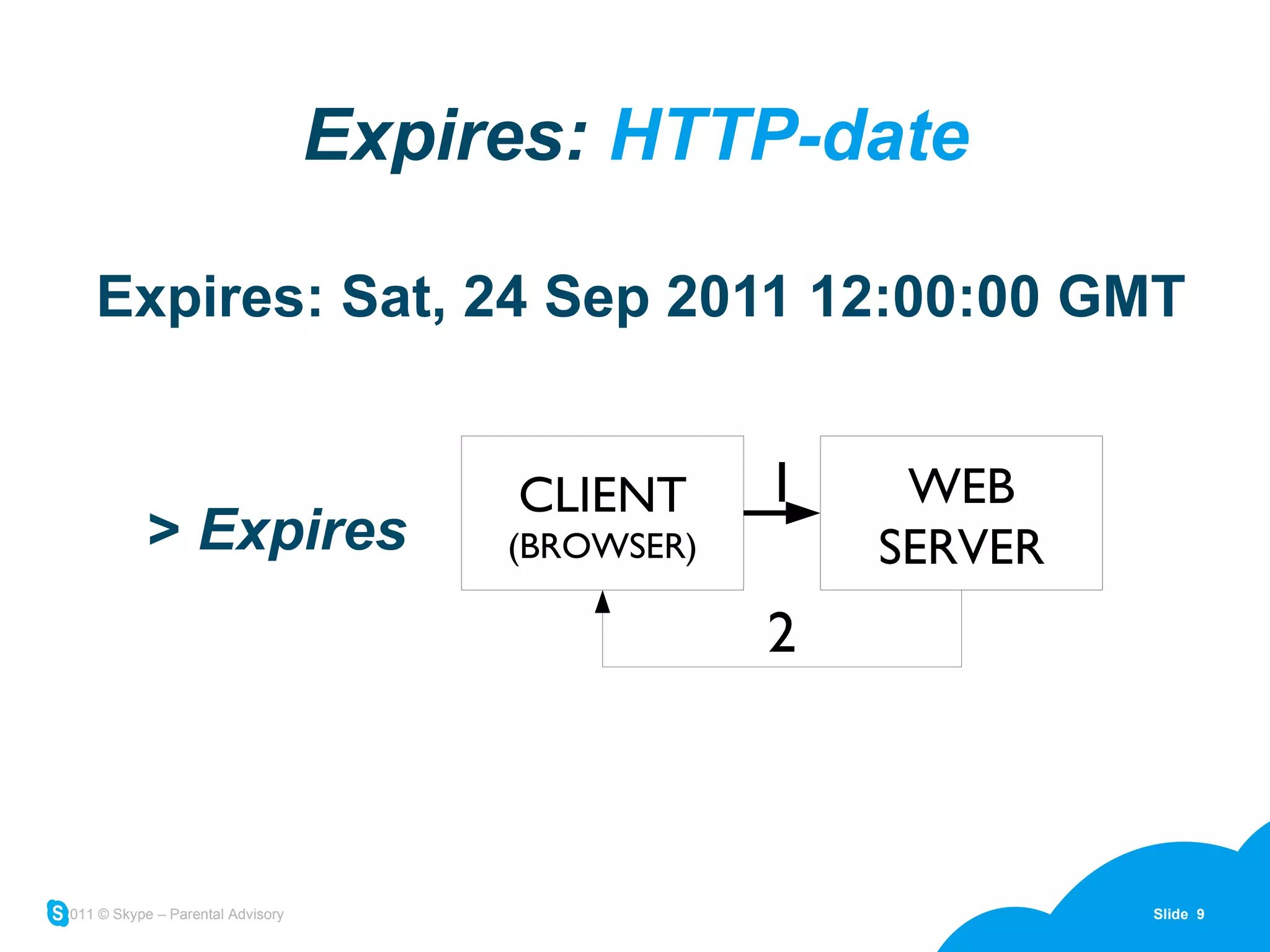

9. Expires: HTTP-date Expires: Sat, 24 Sep 2011 12:00:00 GMT > Expires CLIENT (BROWSER) WEB SERVER

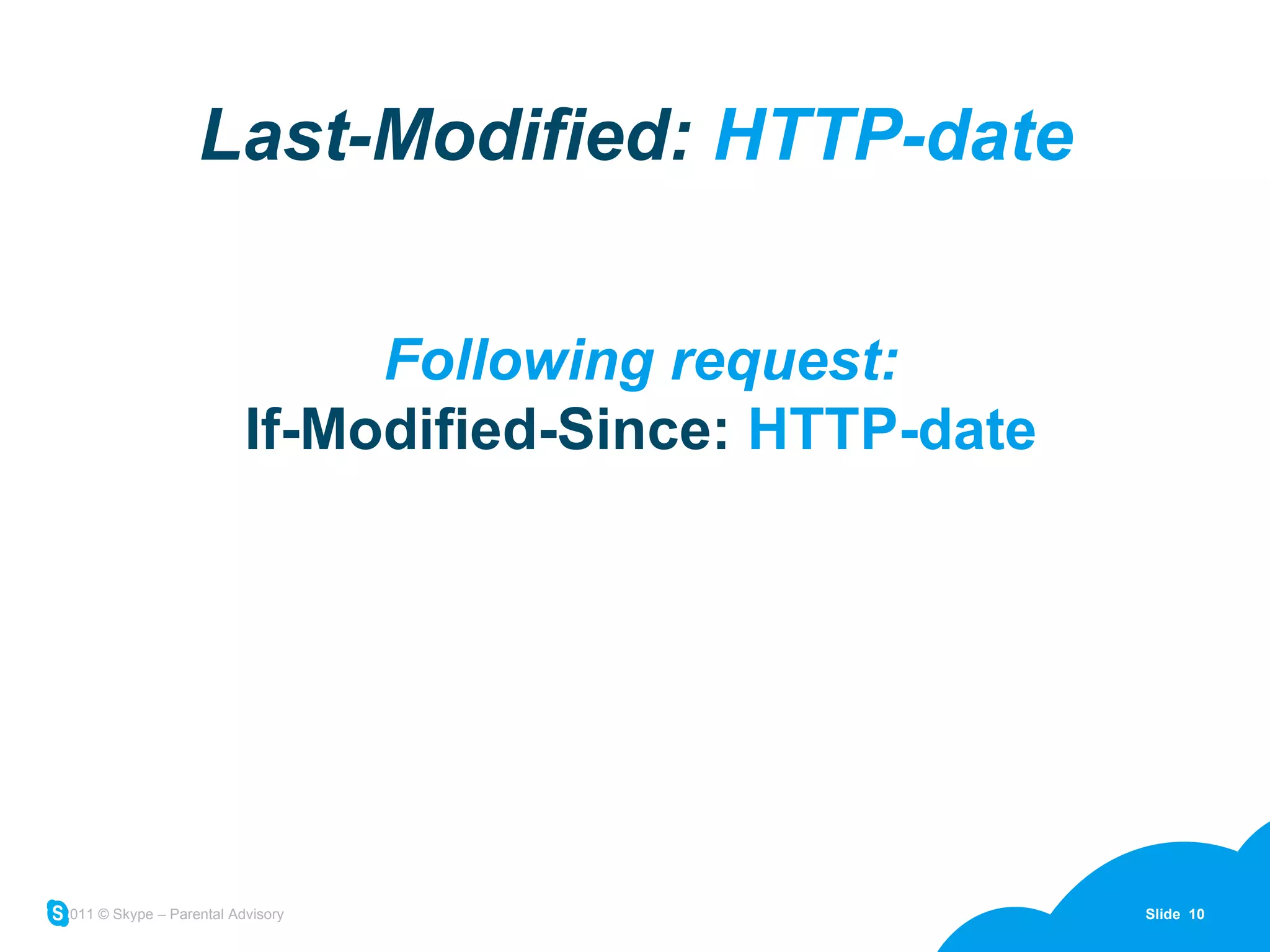

10. Last-Modified: HTTP-date Following request: If-Modified-Since: HTTP-date

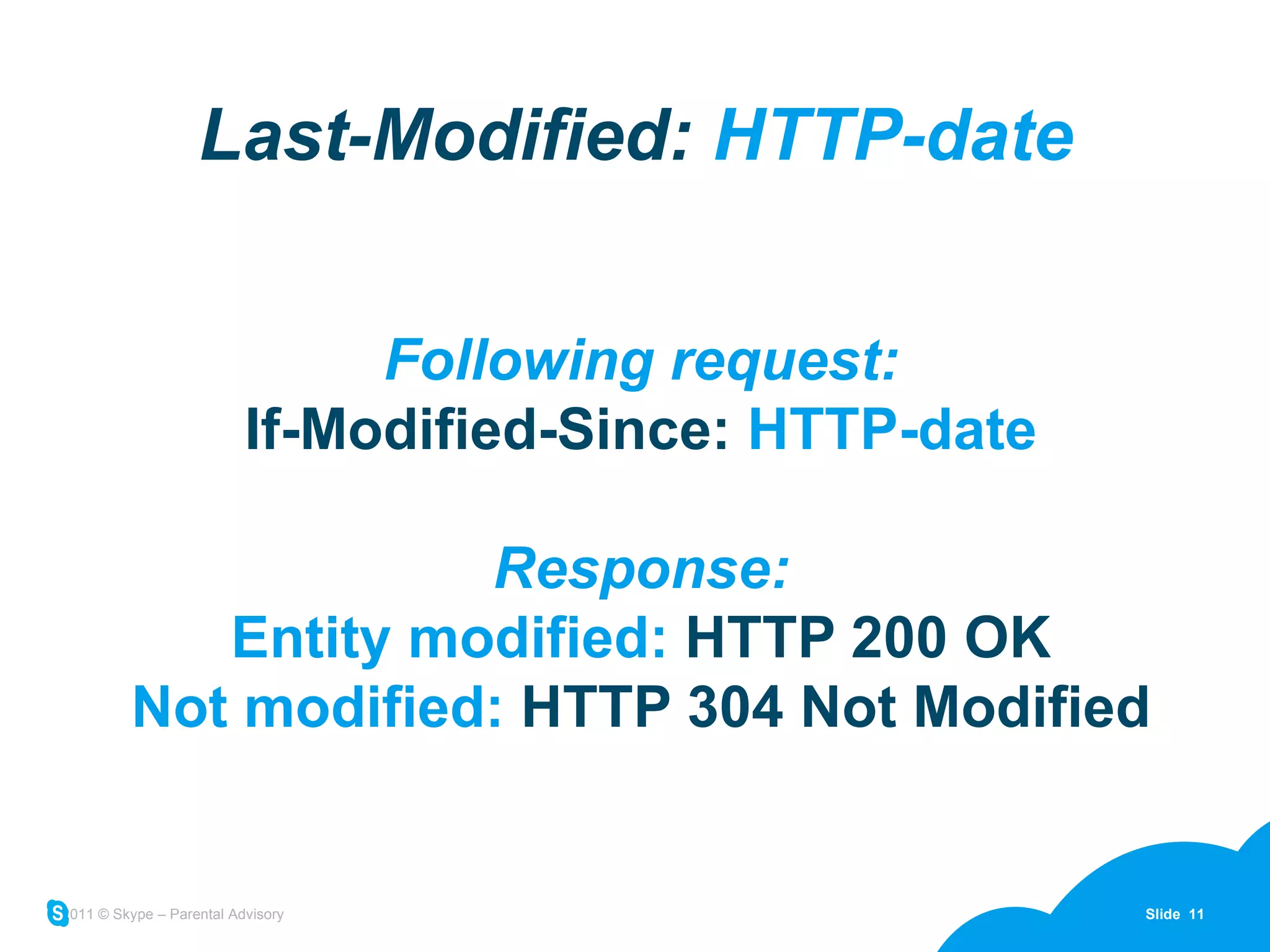

11. Last-Modified: HTTP-date Following request: If-Modified-Since: HTTP-date Response: Entity modified: HTTP 200 OK Not modified: HTTP 304 Not Modified

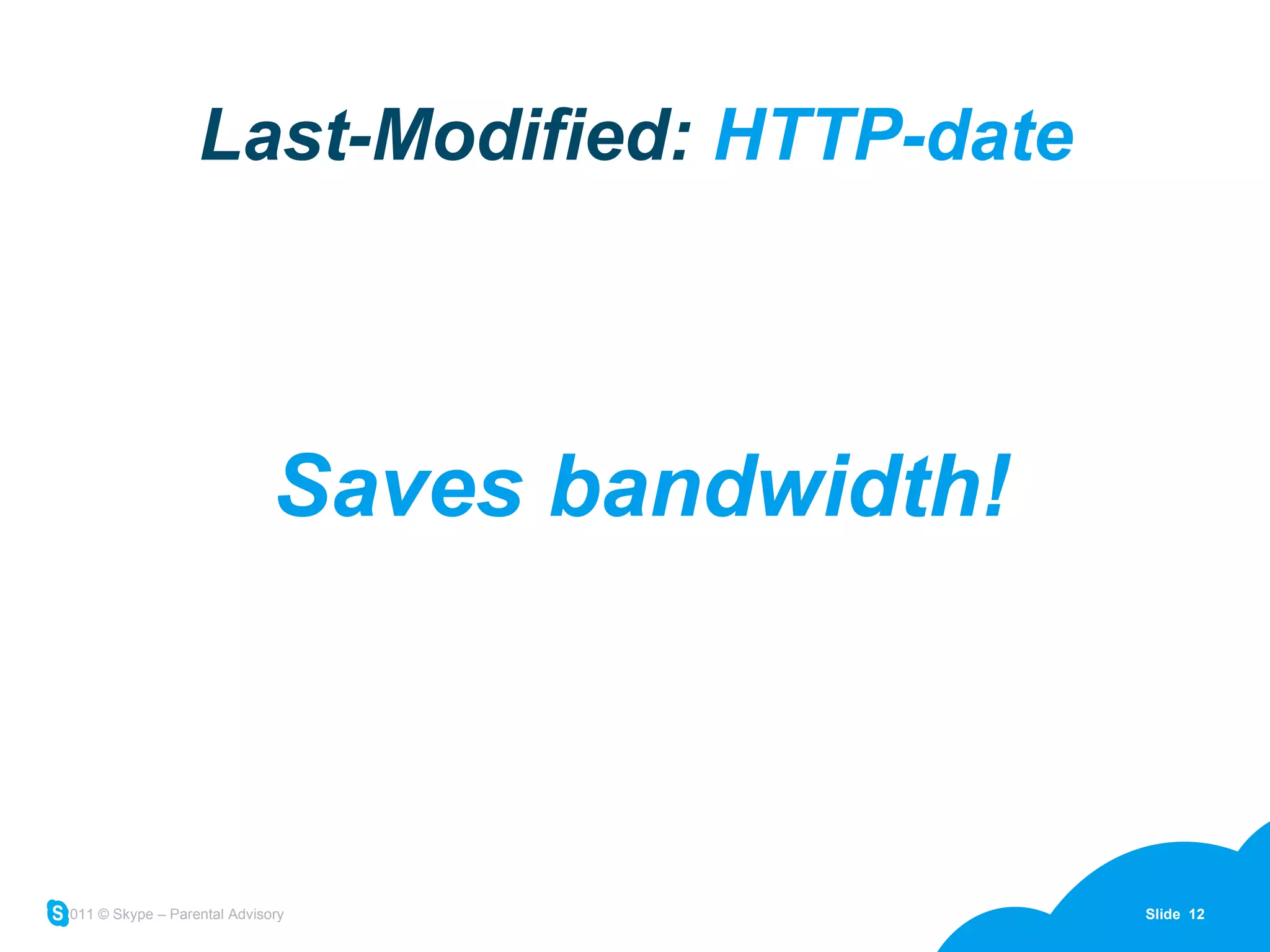

12. Last-Modified: HTTP-date Saves bandwidth!

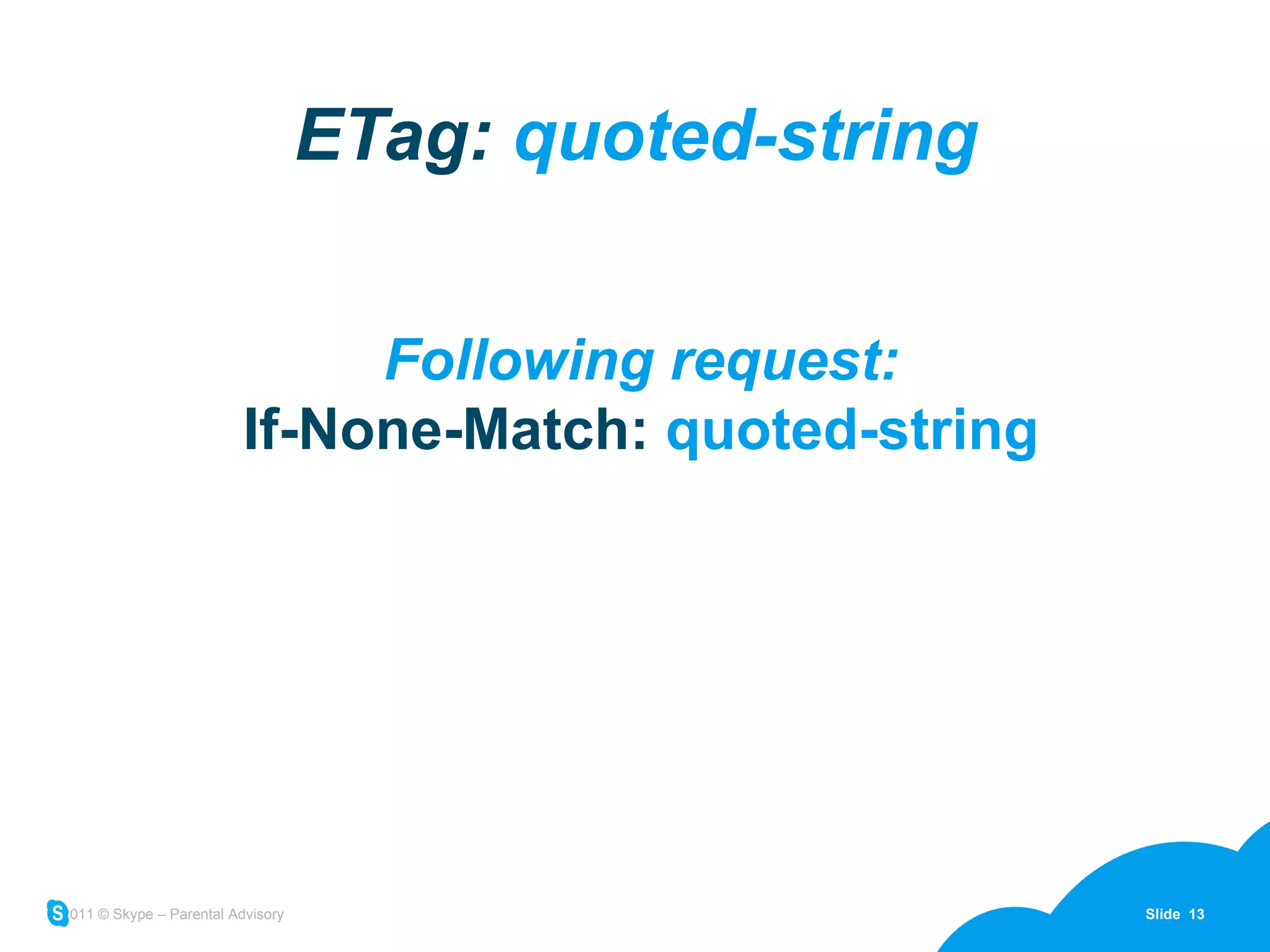

13. ETag: quoted-string Following request: If-None-Match: quoted-string

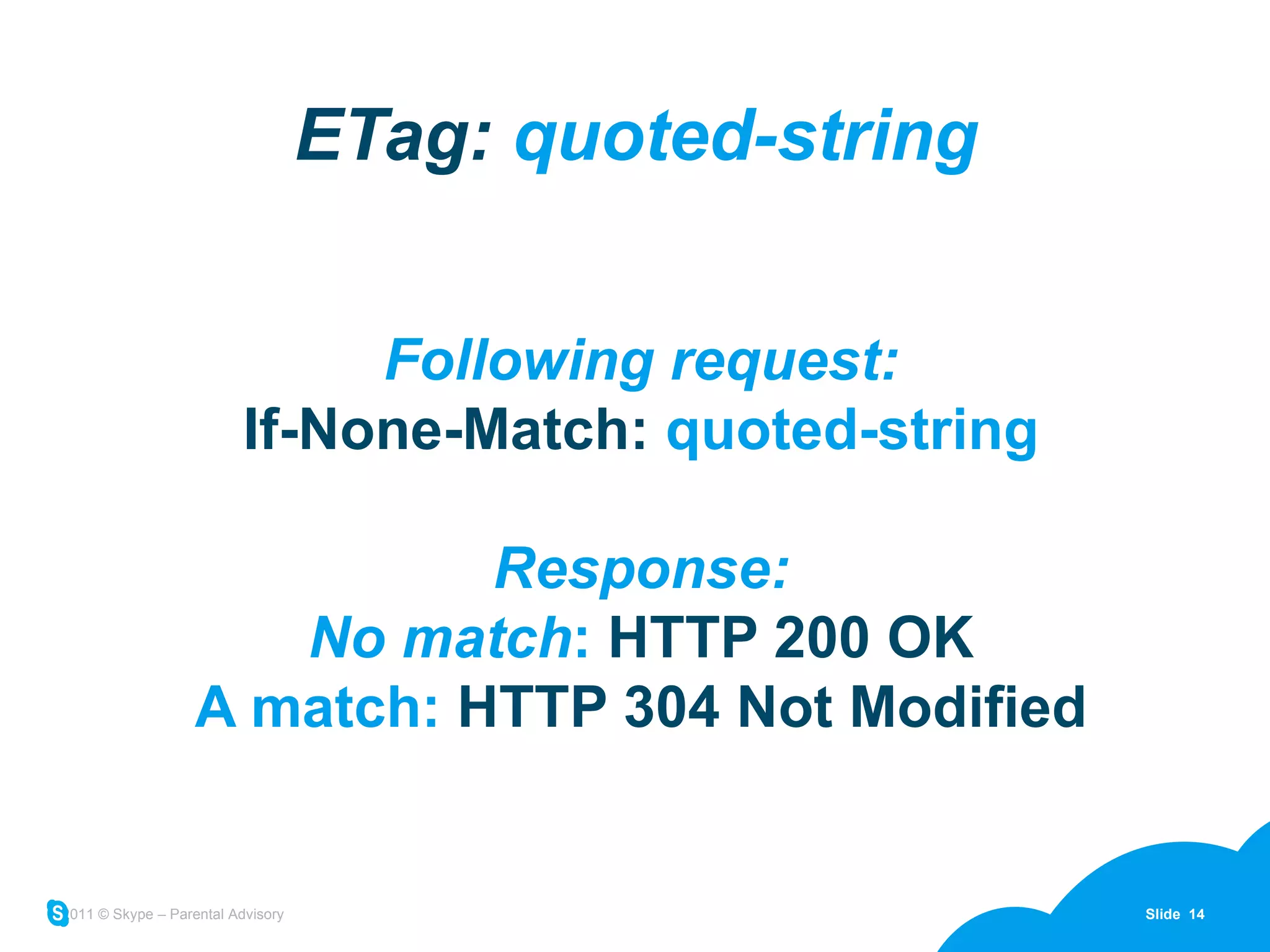

14. ETag: quoted-string Following request: If-None-Match: quoted-string Response: No match : HTTP 200 OK A match: HTTP 304 Not Modified

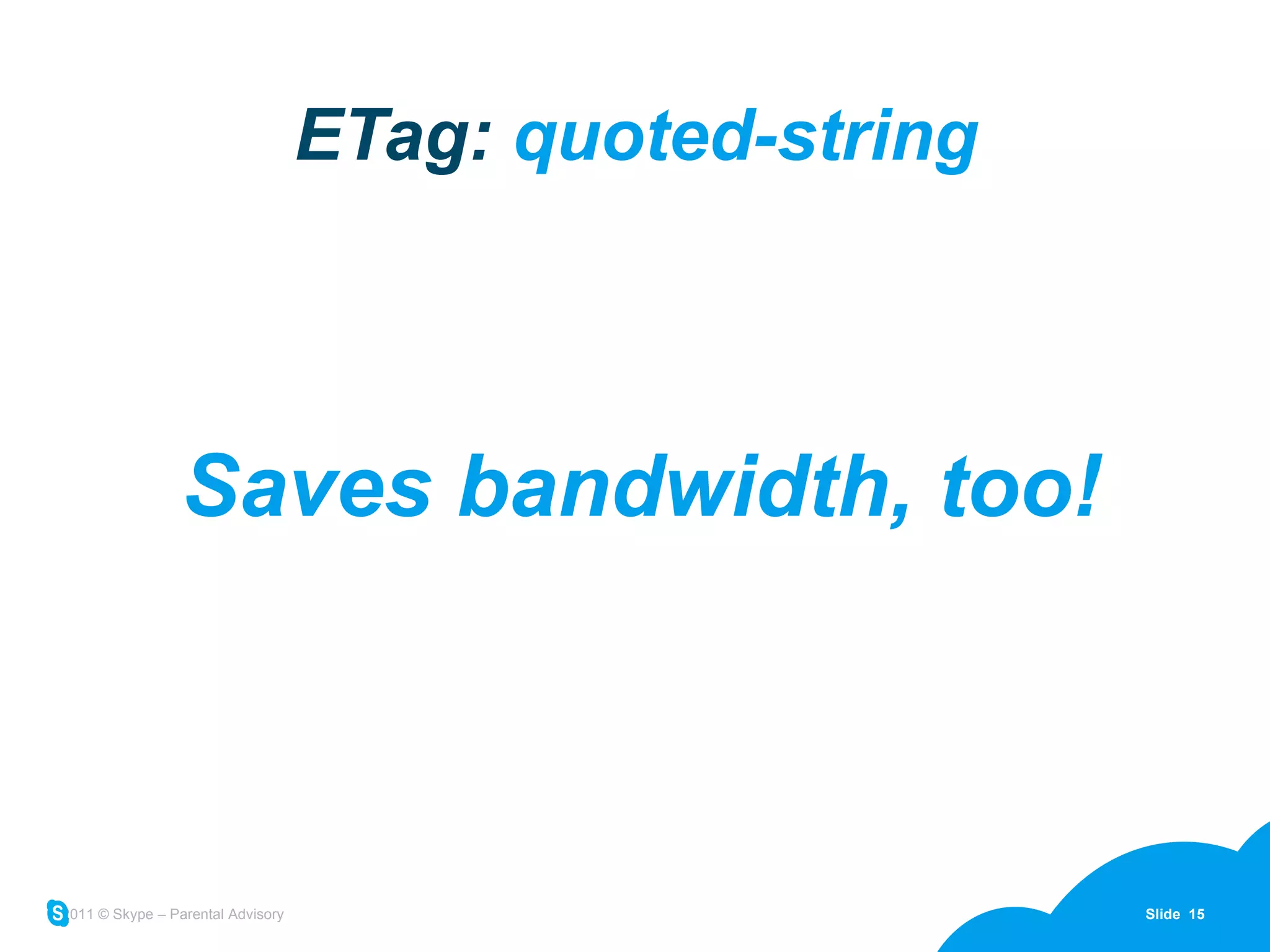

15. Saves bandwidth, too! ETag: quoted-string

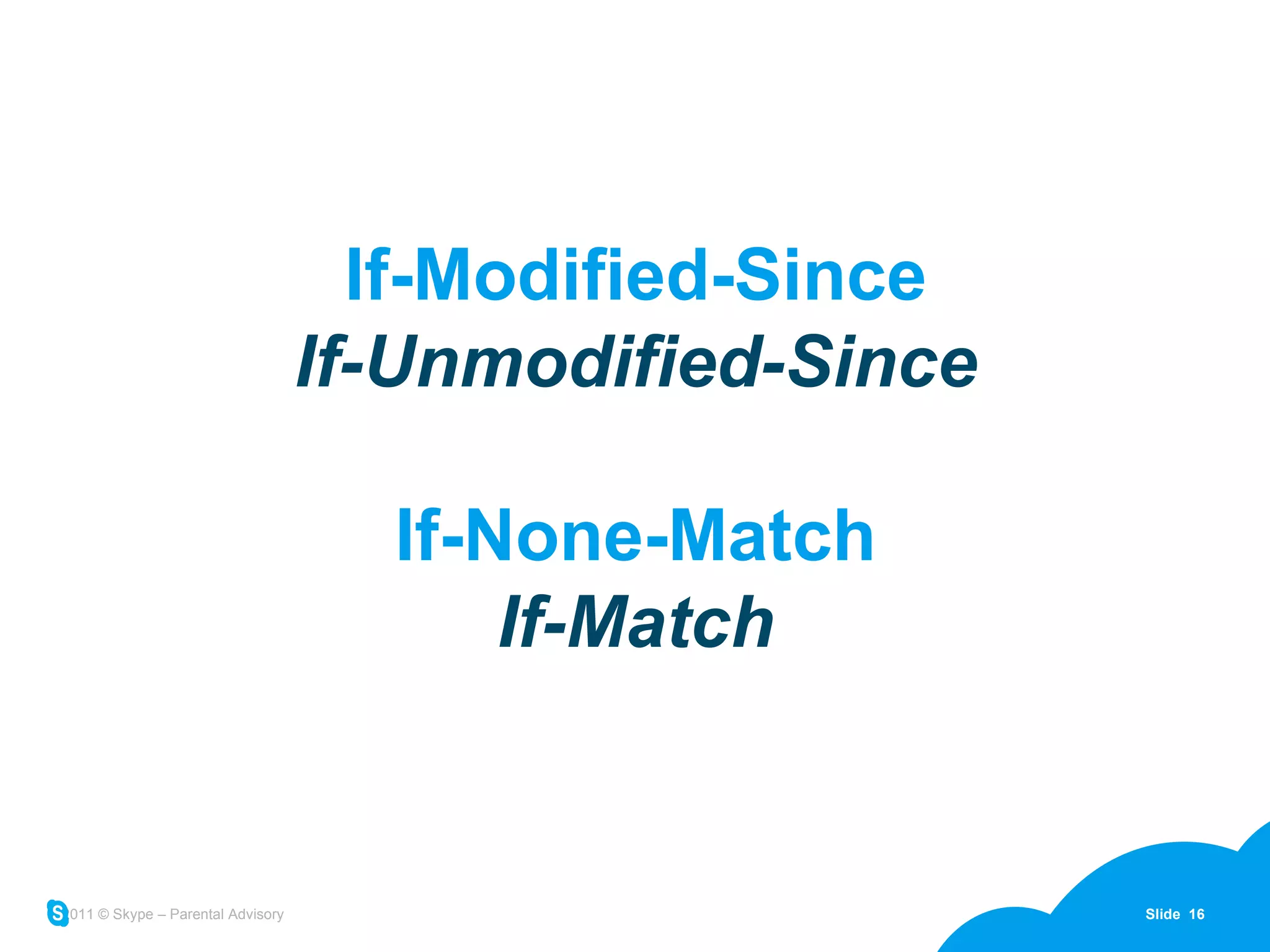

16. If-Modified-Since If-Unmodified-Since If-None-Match If-Match

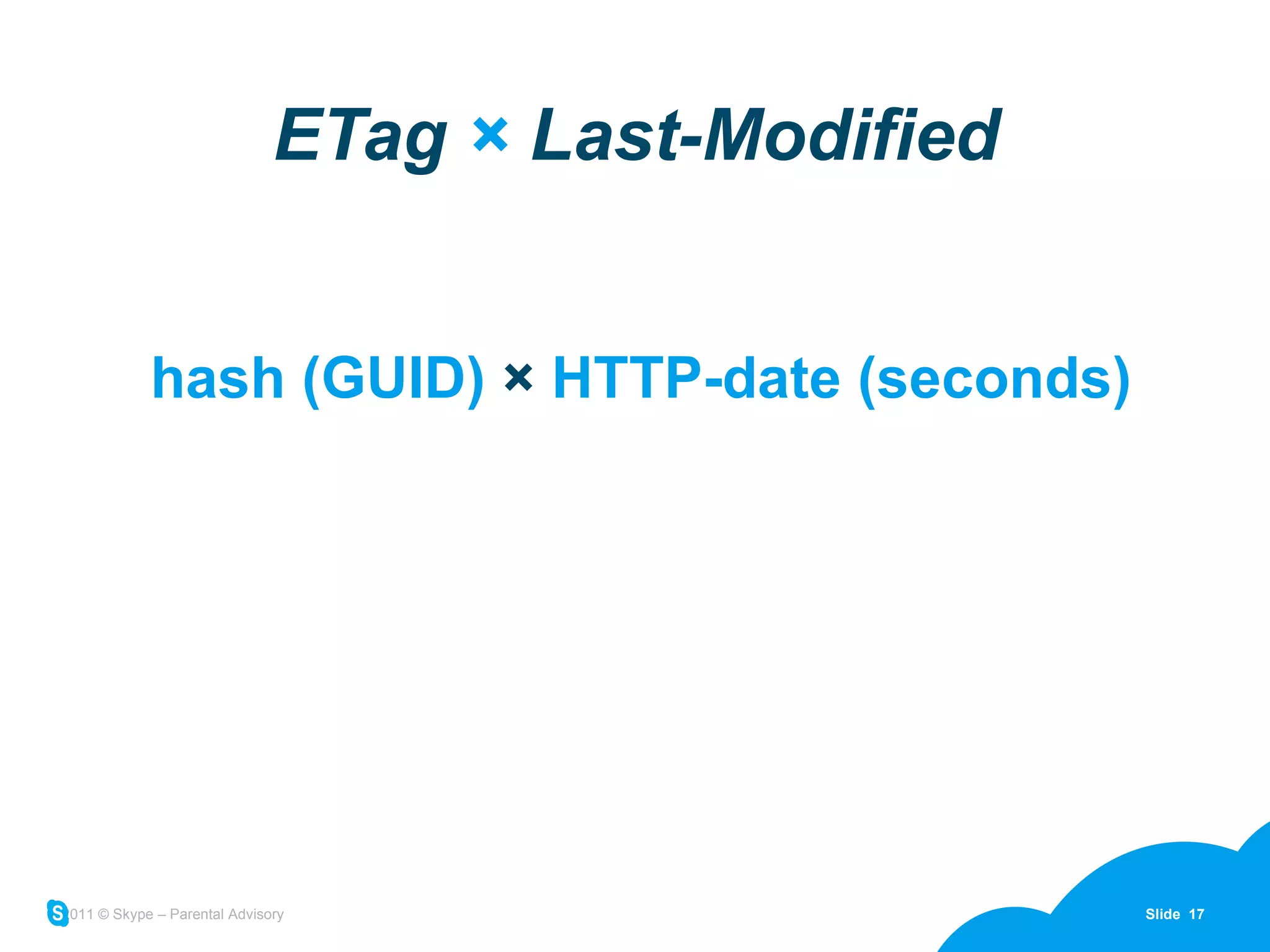

17. ETag × Last-Modified hash (GUID) × HTTP-date (seconds)

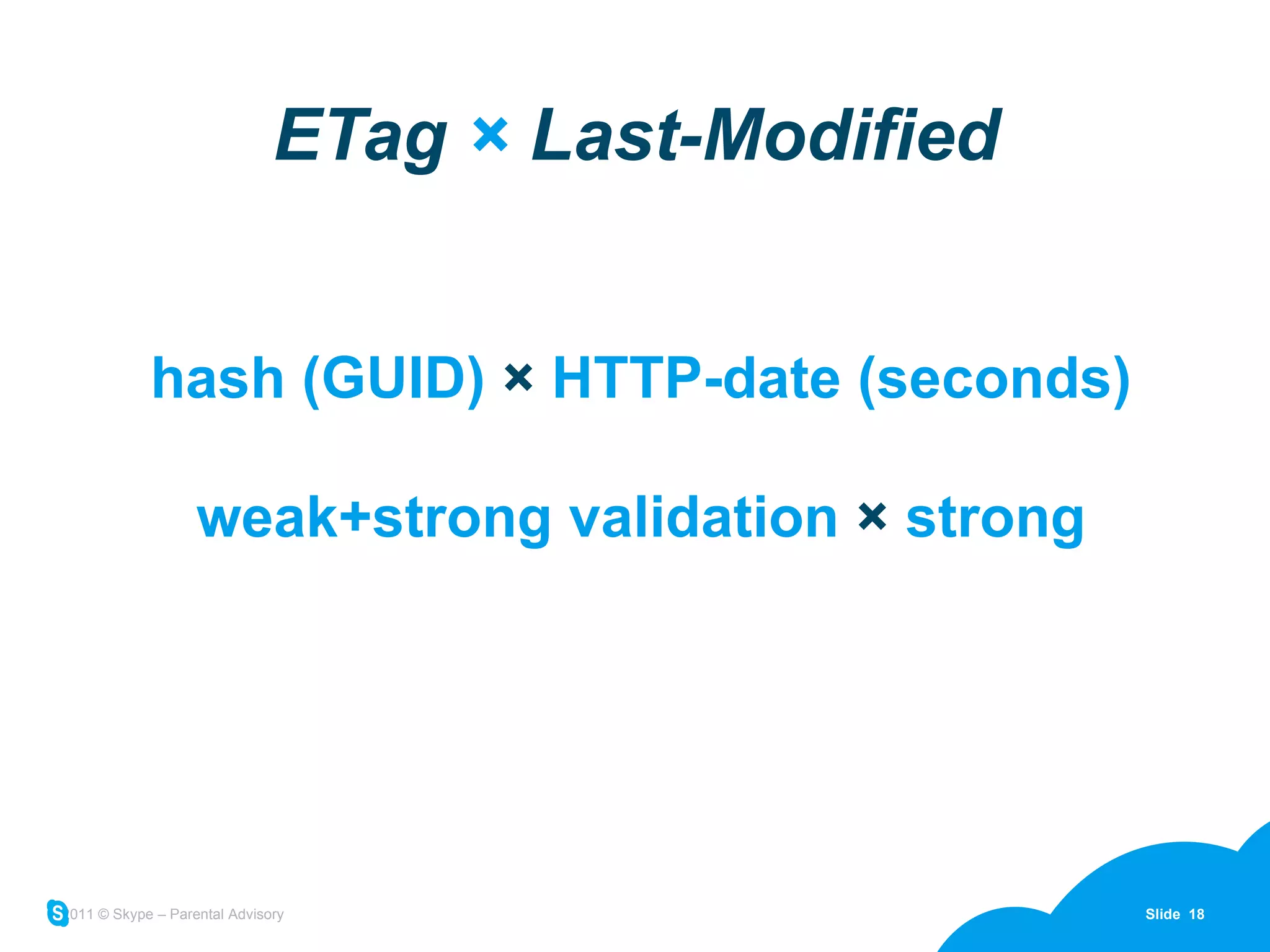

18. ETag × Last-Modified hash (GUID) × HTTP-date (seconds) weak+strong validation × strong

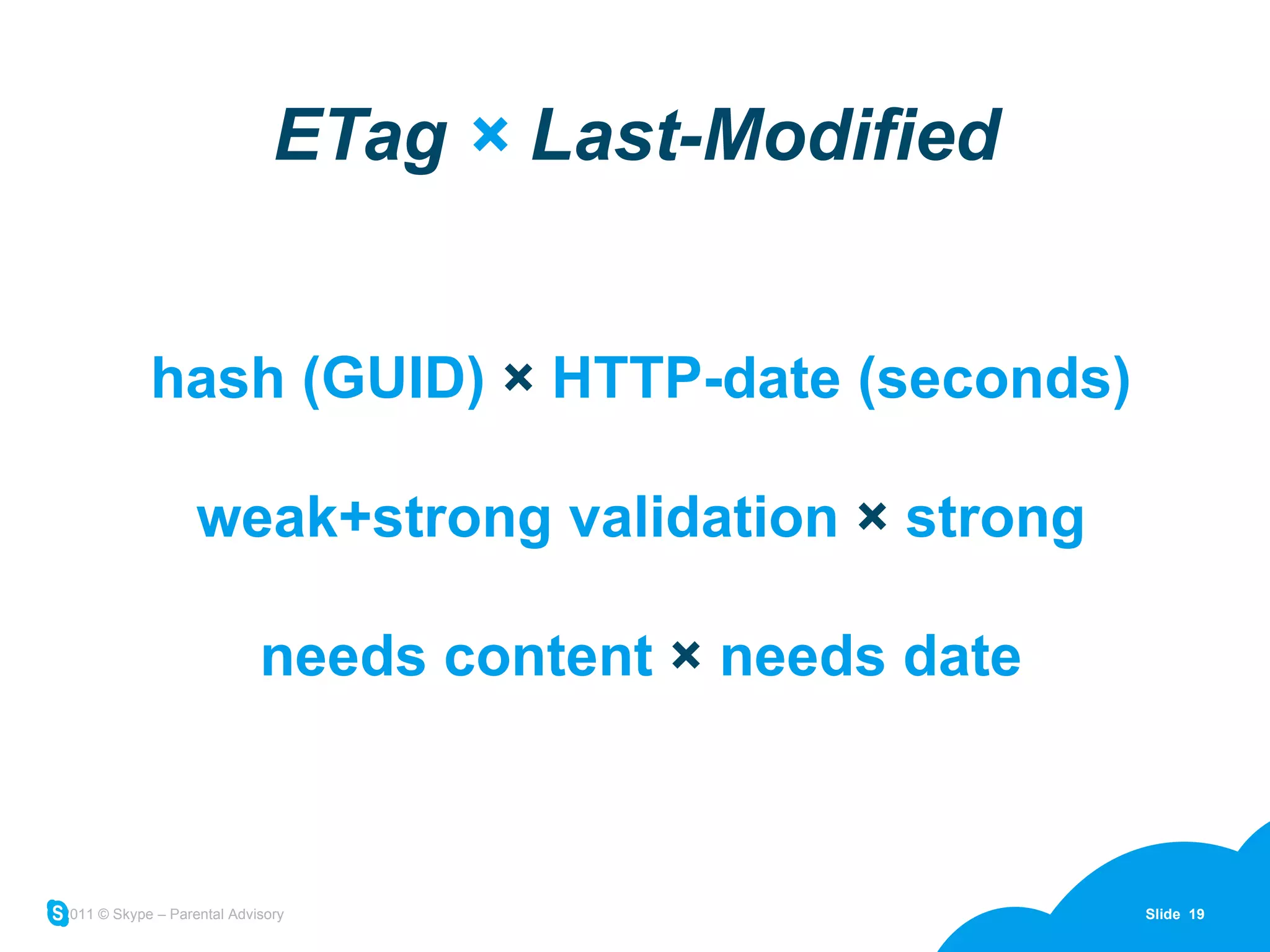

19. ETag × Last-Modified hash (GUID) × HTTP-date (seconds) weak+strong validation × strong needs content × needs date

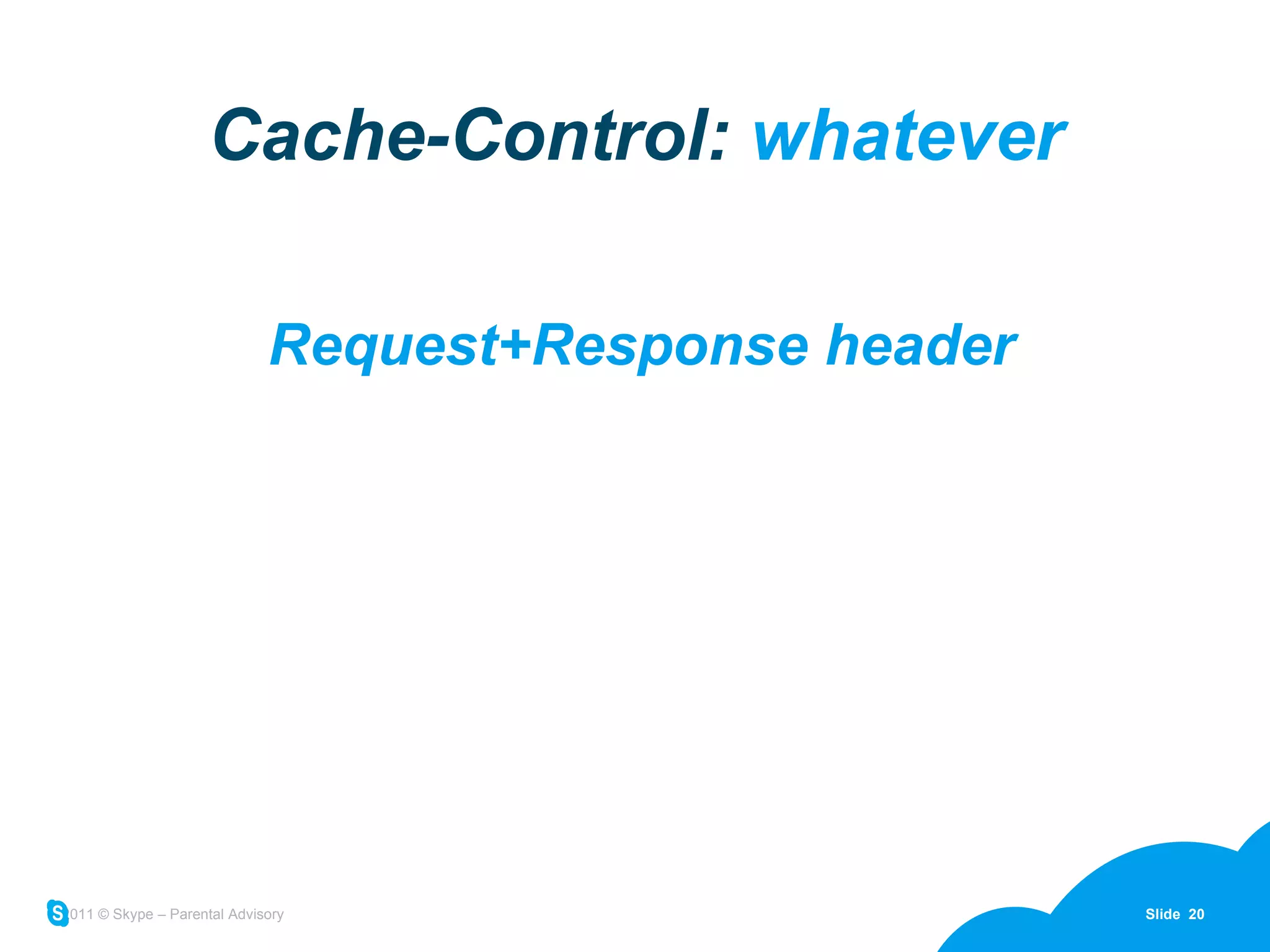

20. Request+Response header Cache-Control: whatever

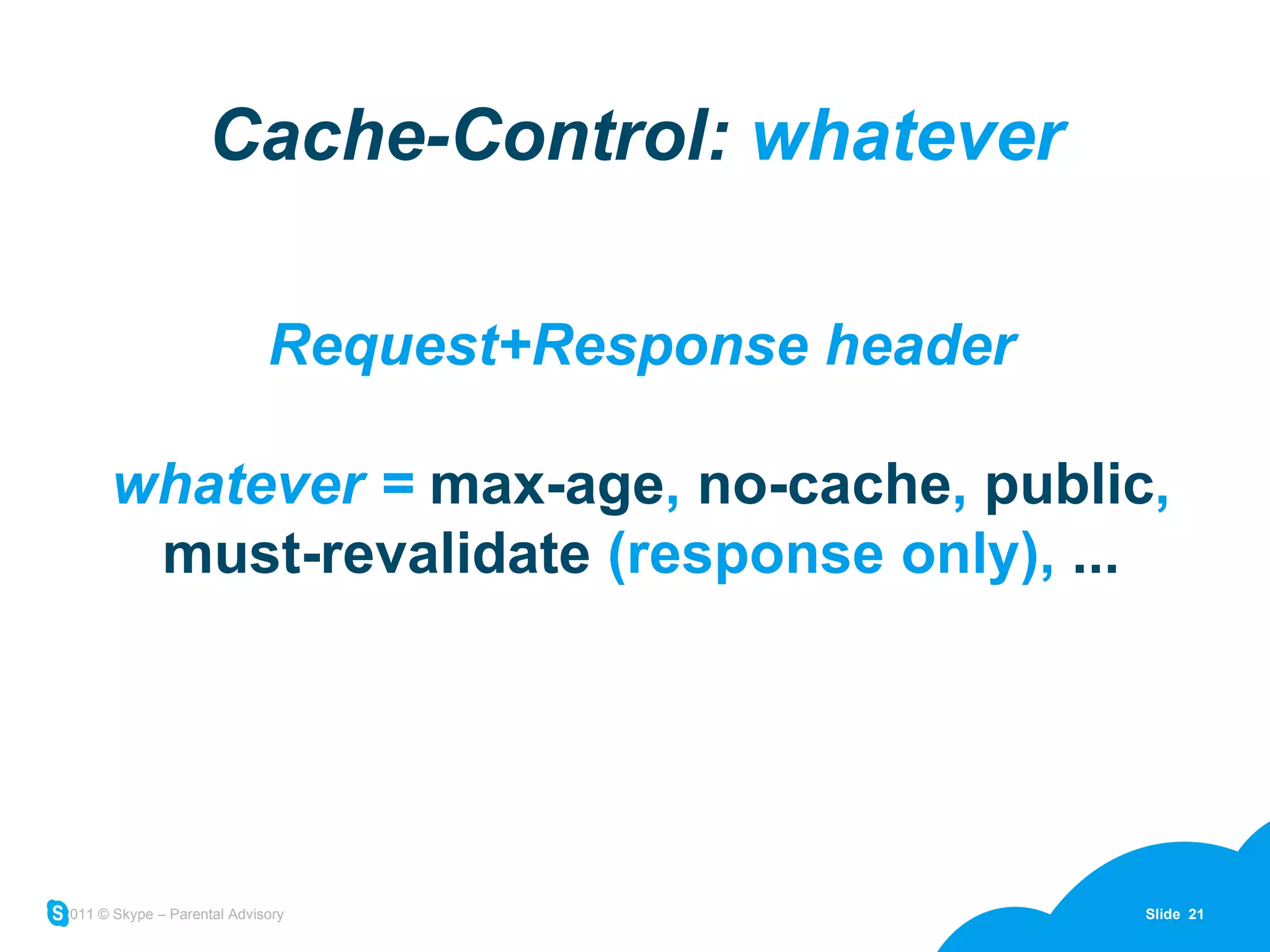

21. Request+Response header whatever = max-age , no-cache , public , must-revalidate (response only), ... Cache-Control: whatever

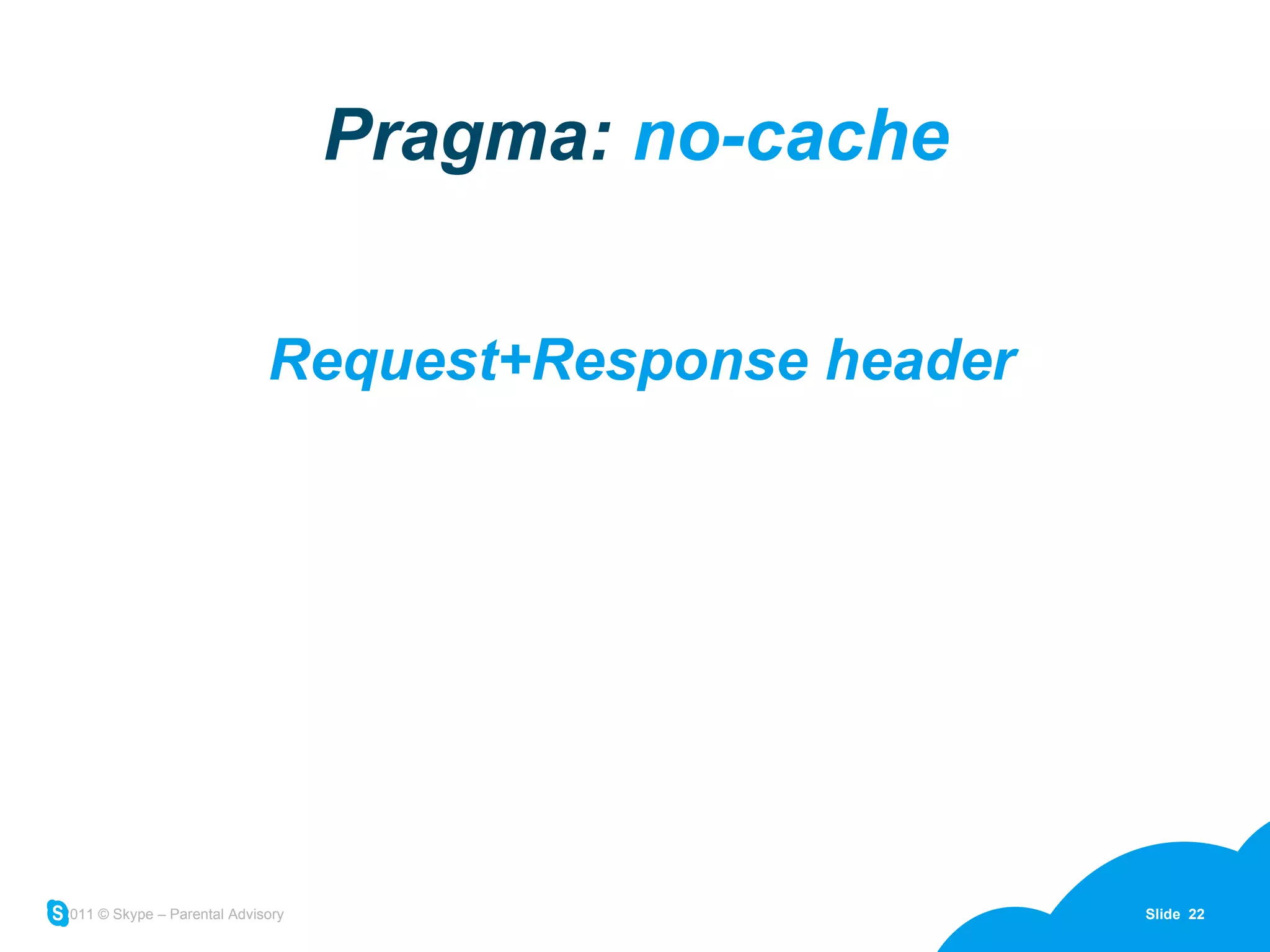

22. Pragma: no-cache Request+Response header

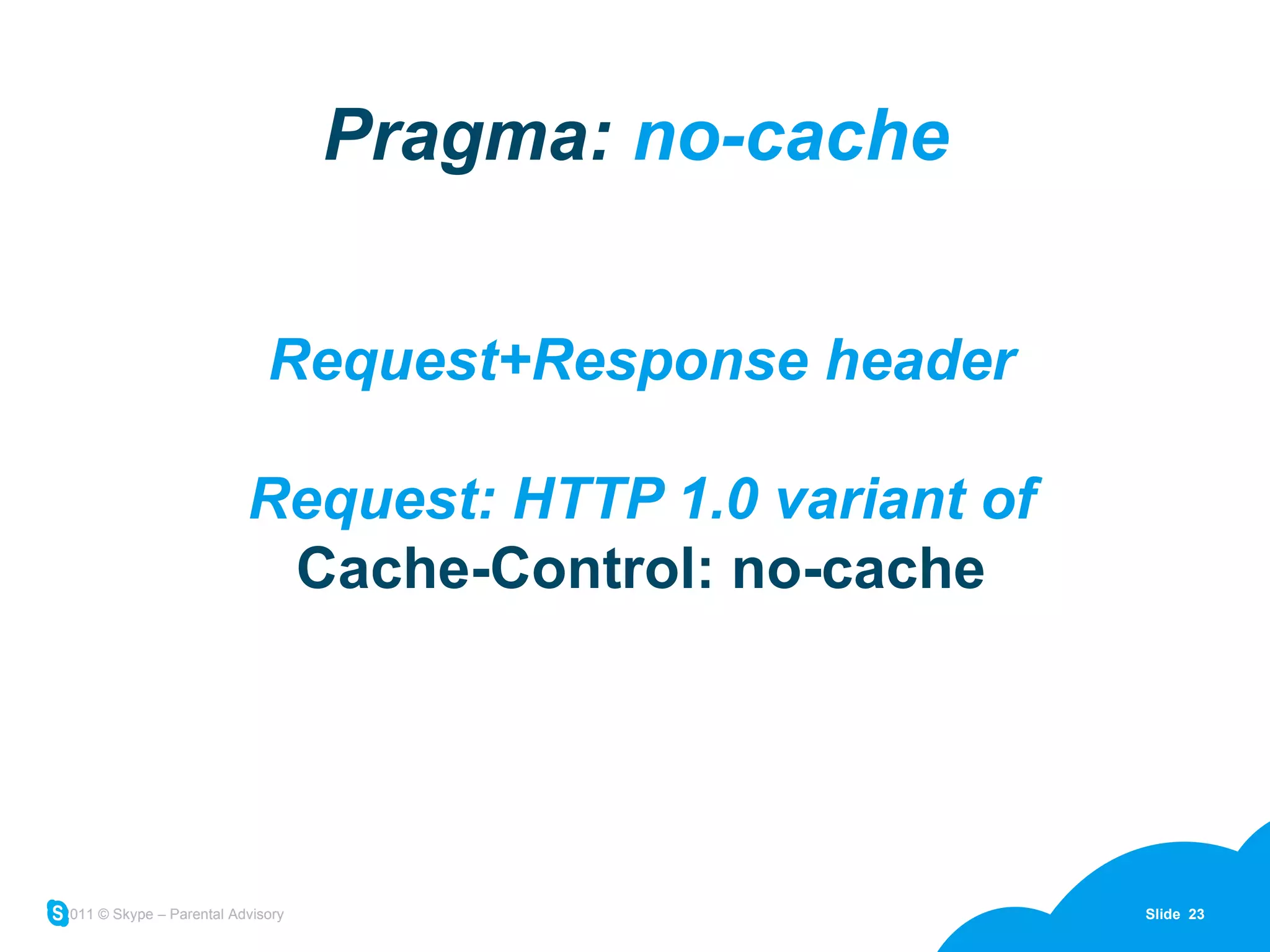

23. Pragma: no-cache Request+Response header Request: HTTP 1.0 variant of Cache-Control: no-cache

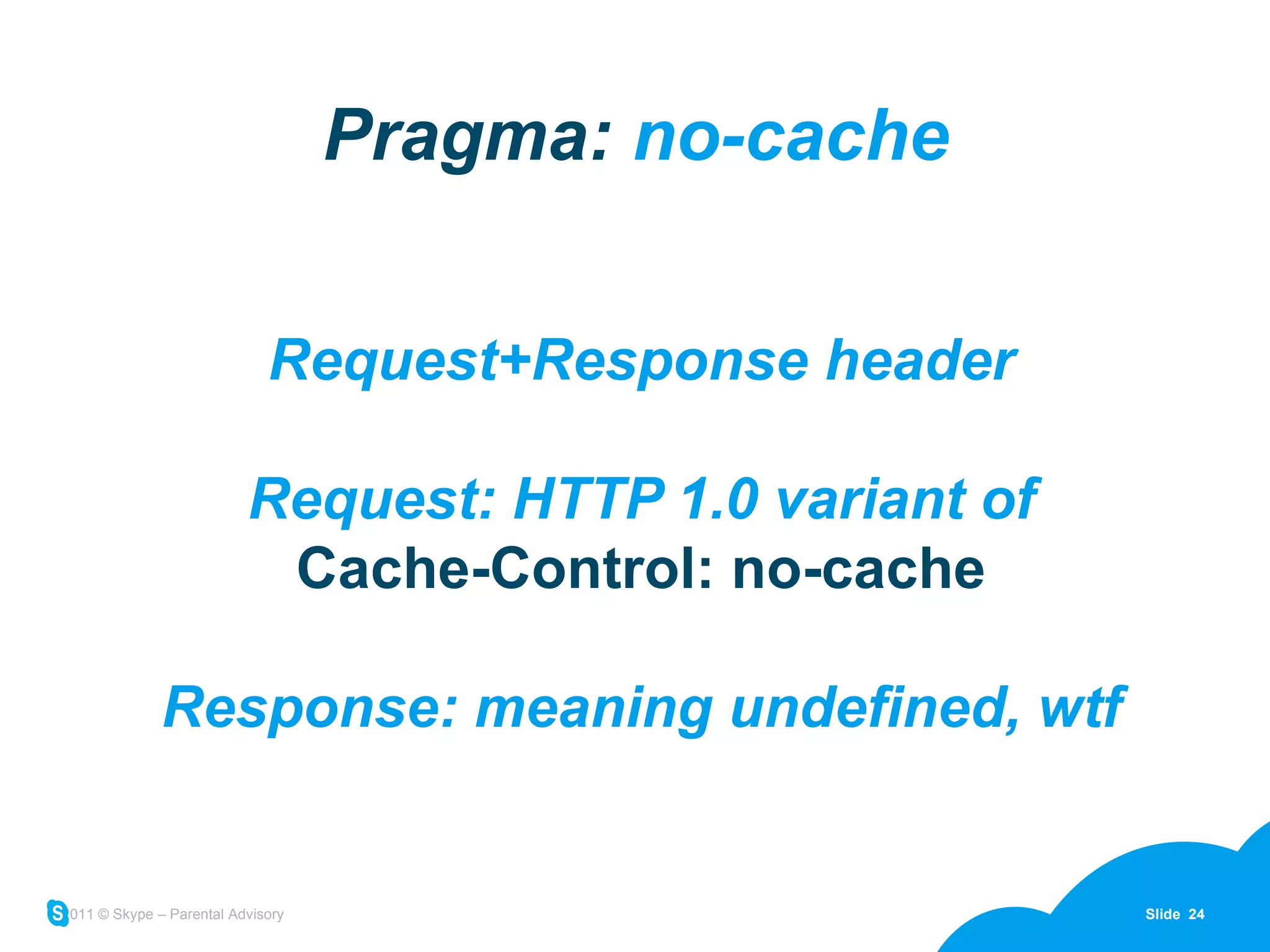

24. Pragma: no-cache Request+Response header Request: HTTP 1.0 variant of Cache-Control: no-cache Response: meaning undefined, wtf

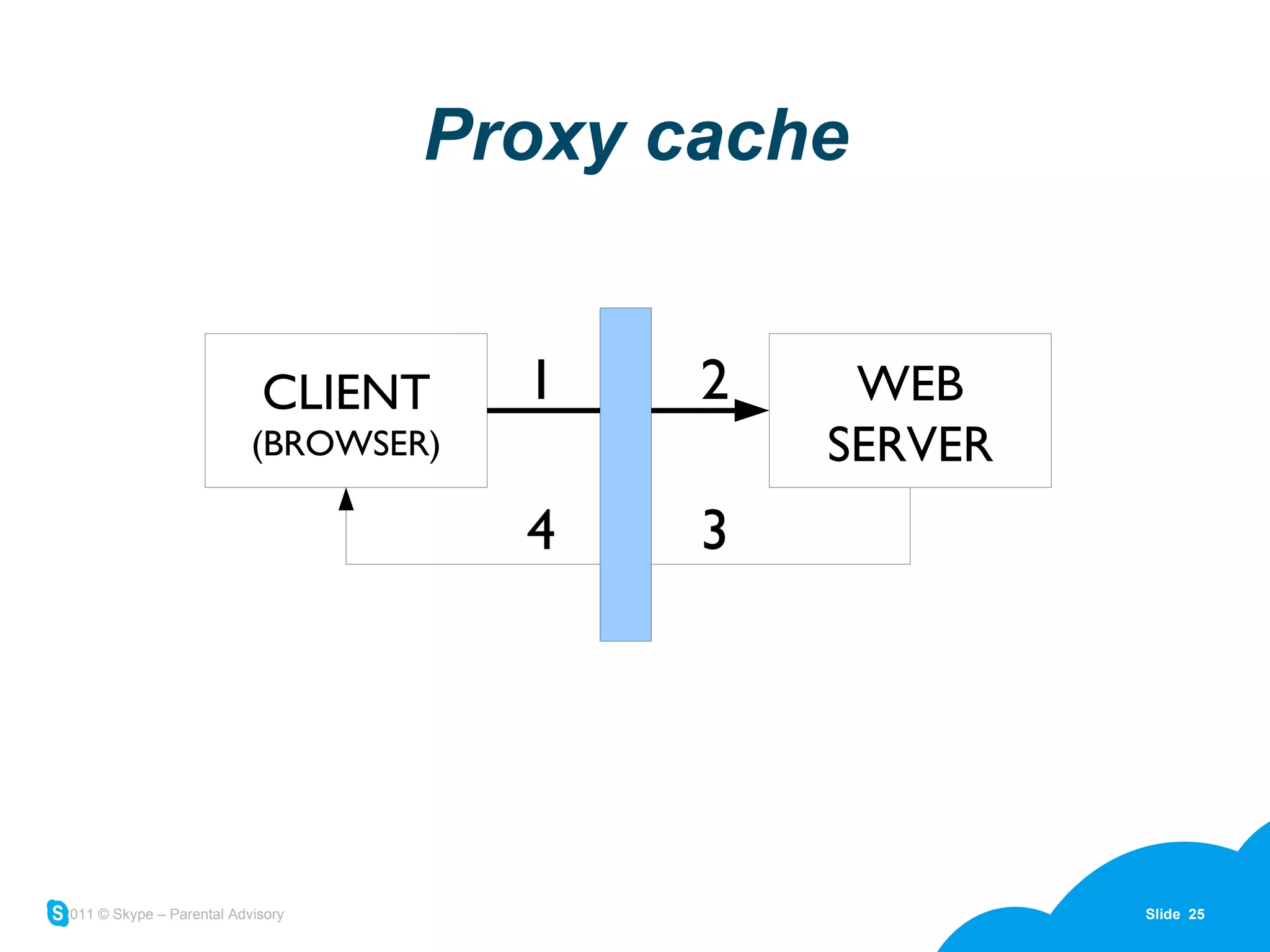

25. Proxy cache CLIENT (BROWSER) WEB SERVER

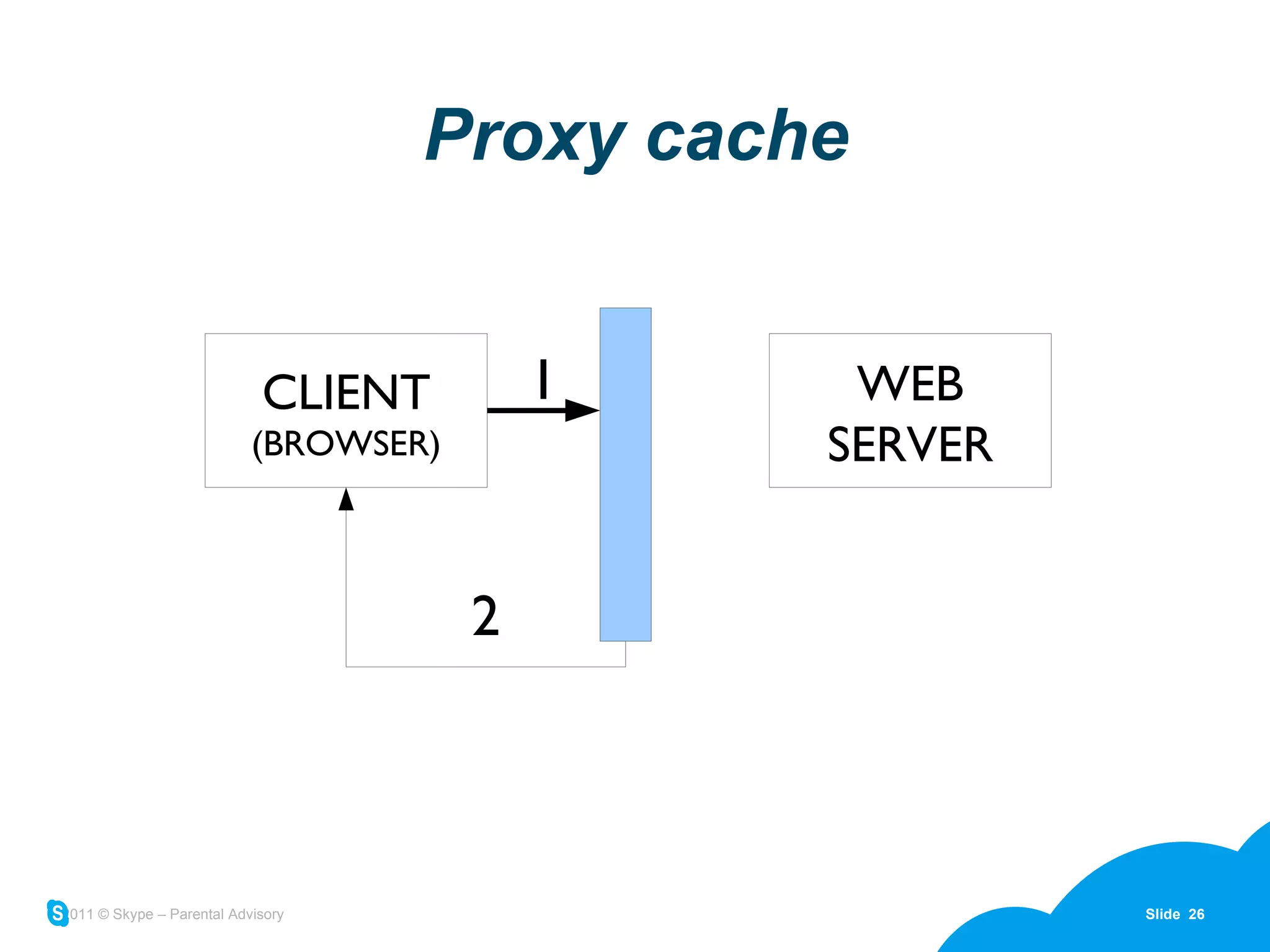

26. Proxy cache CLIENT (BROWSER) WEB SERVER

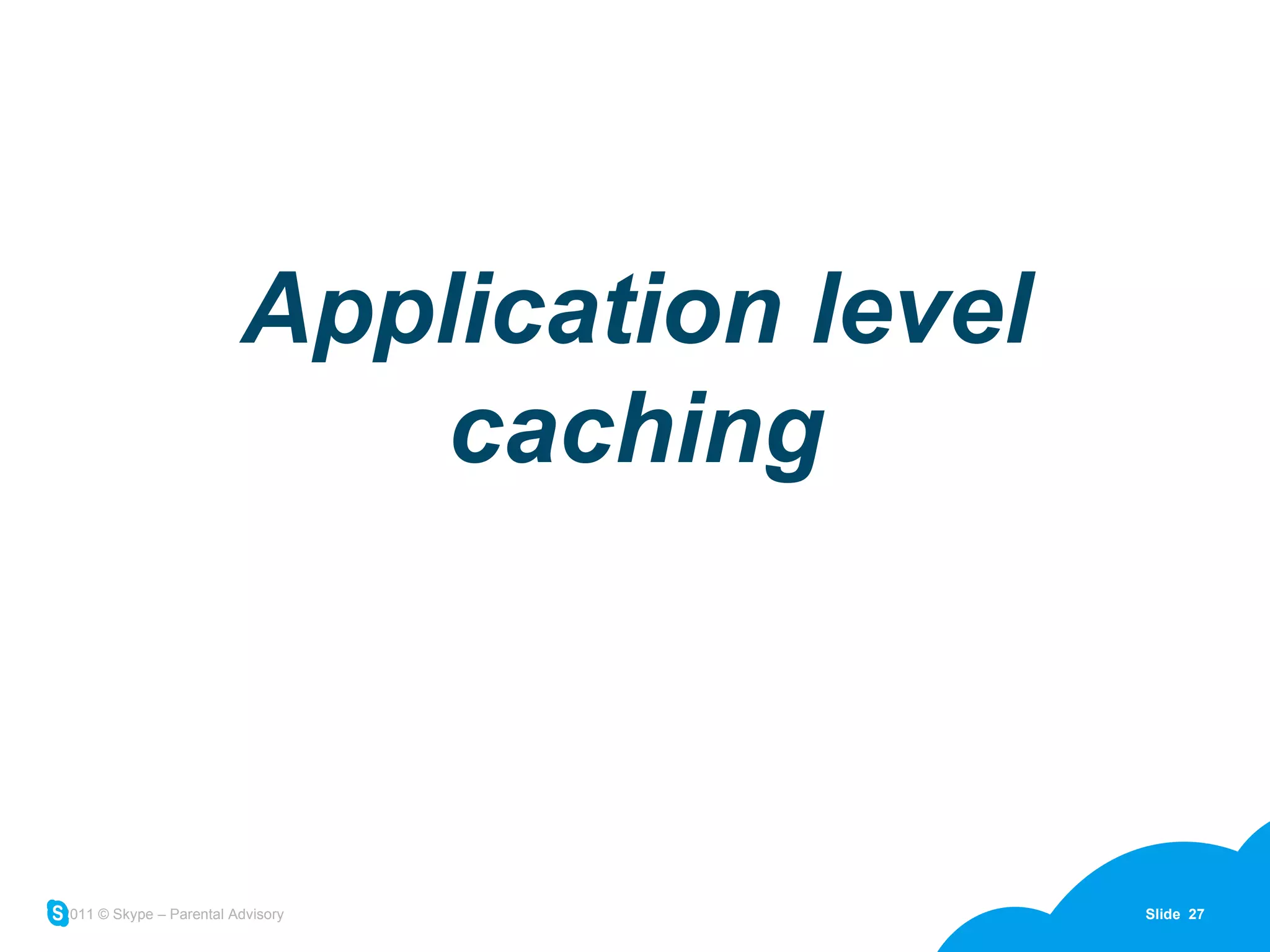

27. Application level caching

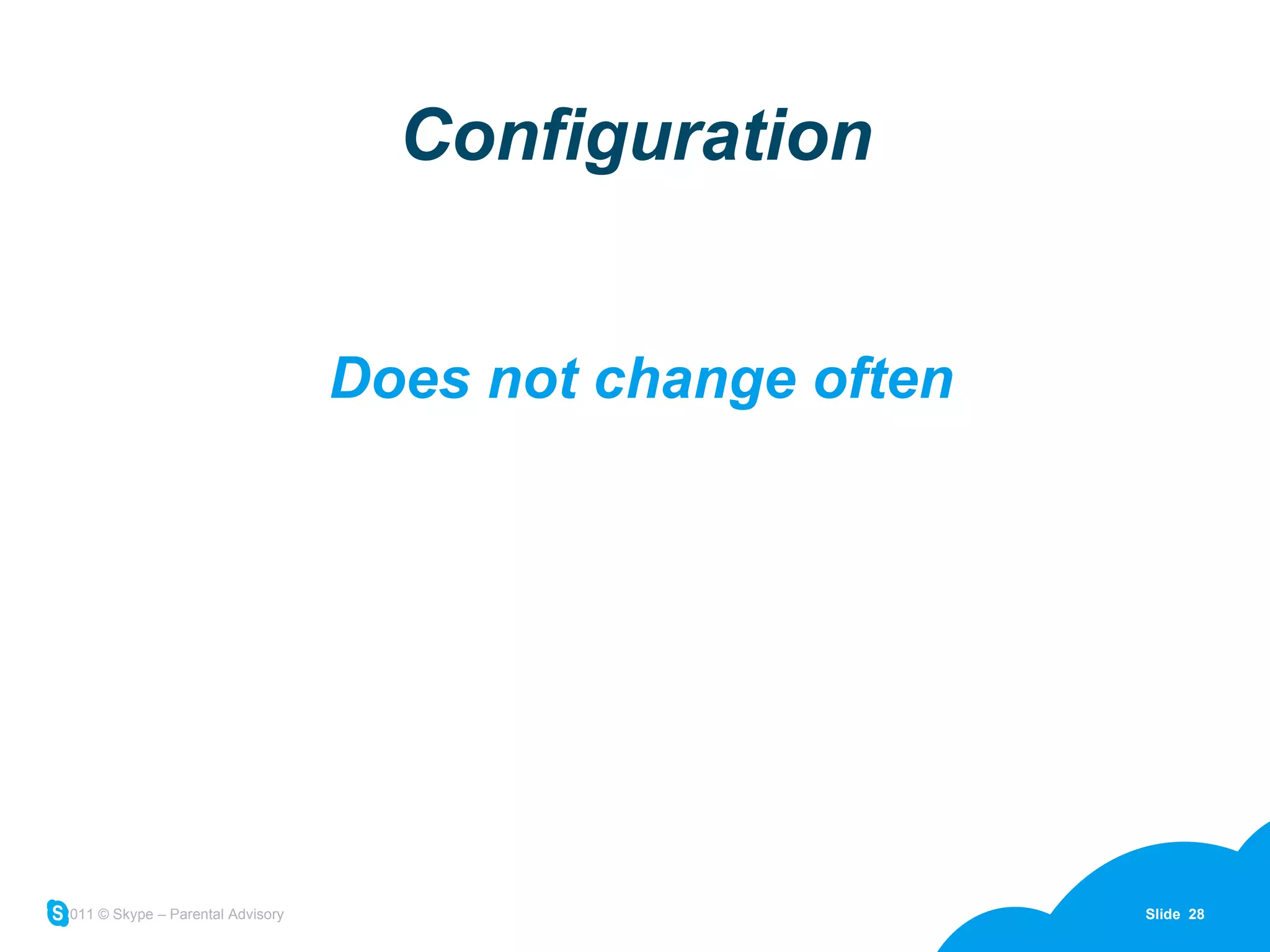

28. Configuration Does not change often

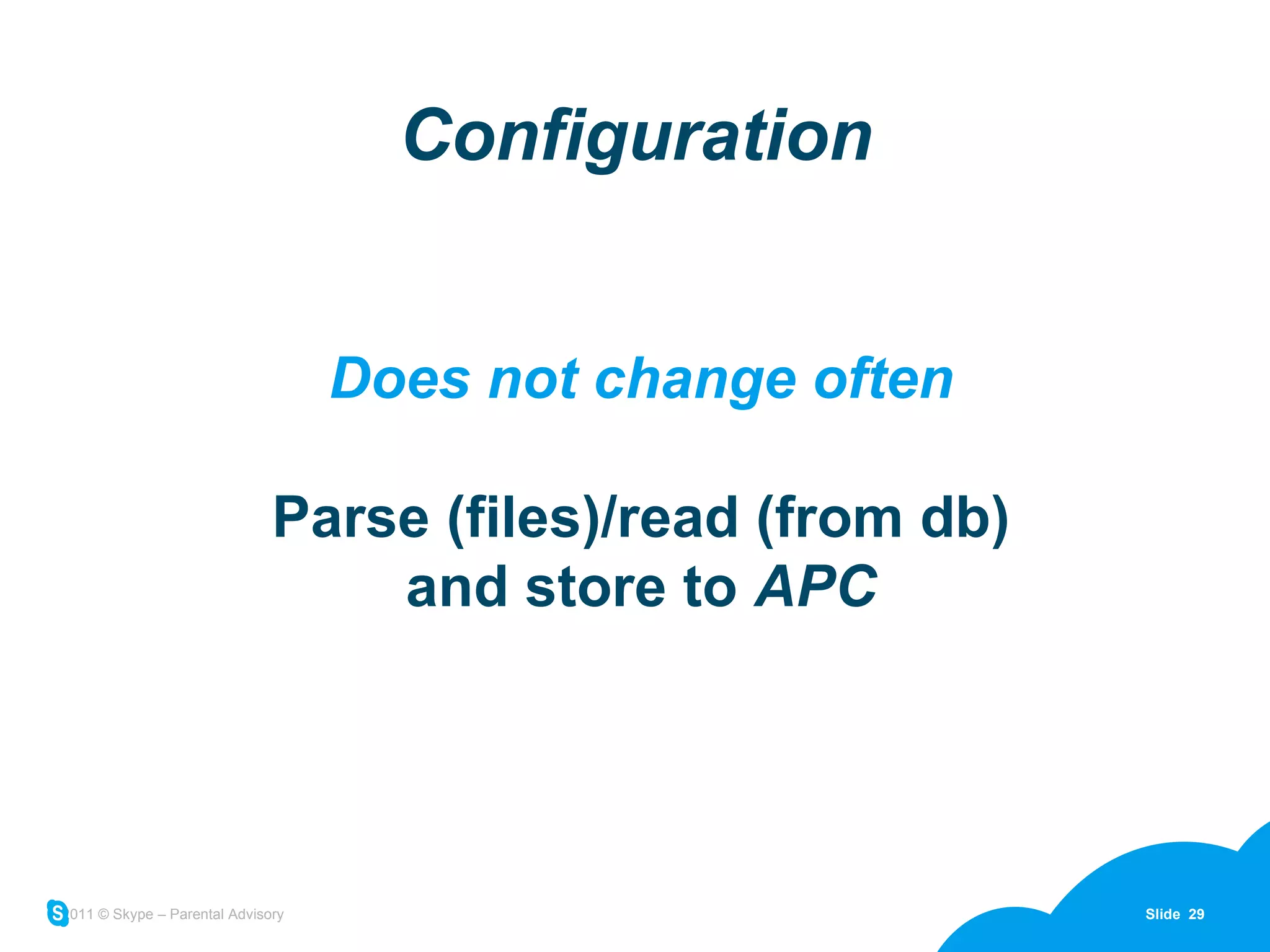

29. Configuration Does not change often Parse (files)/read (from db) and store to APC

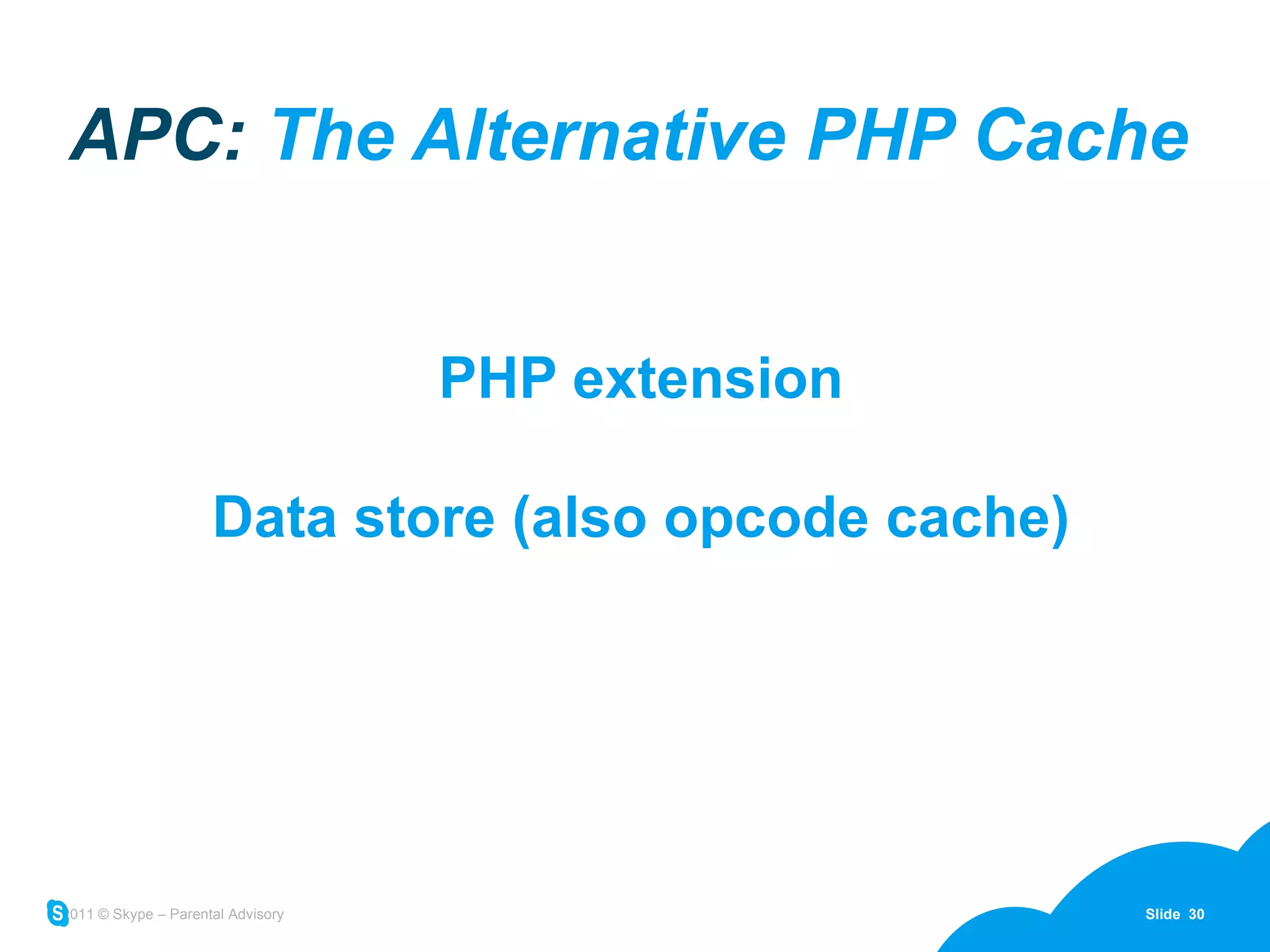

30. APC: The Alternative PHP Cache PHP extension Data store (also opcode cache)

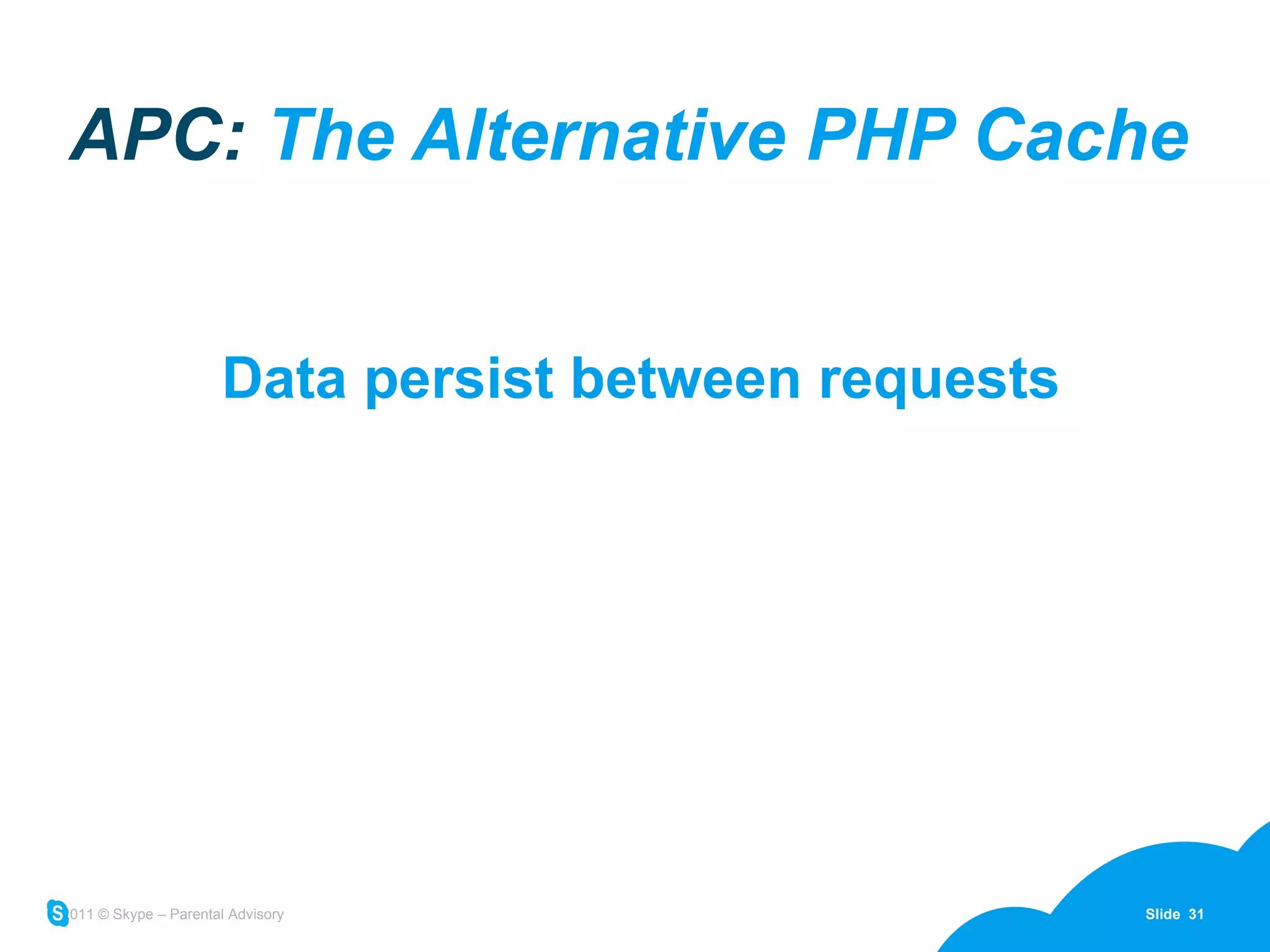

31. APC: The Alternative PHP Cache Data persist between requests

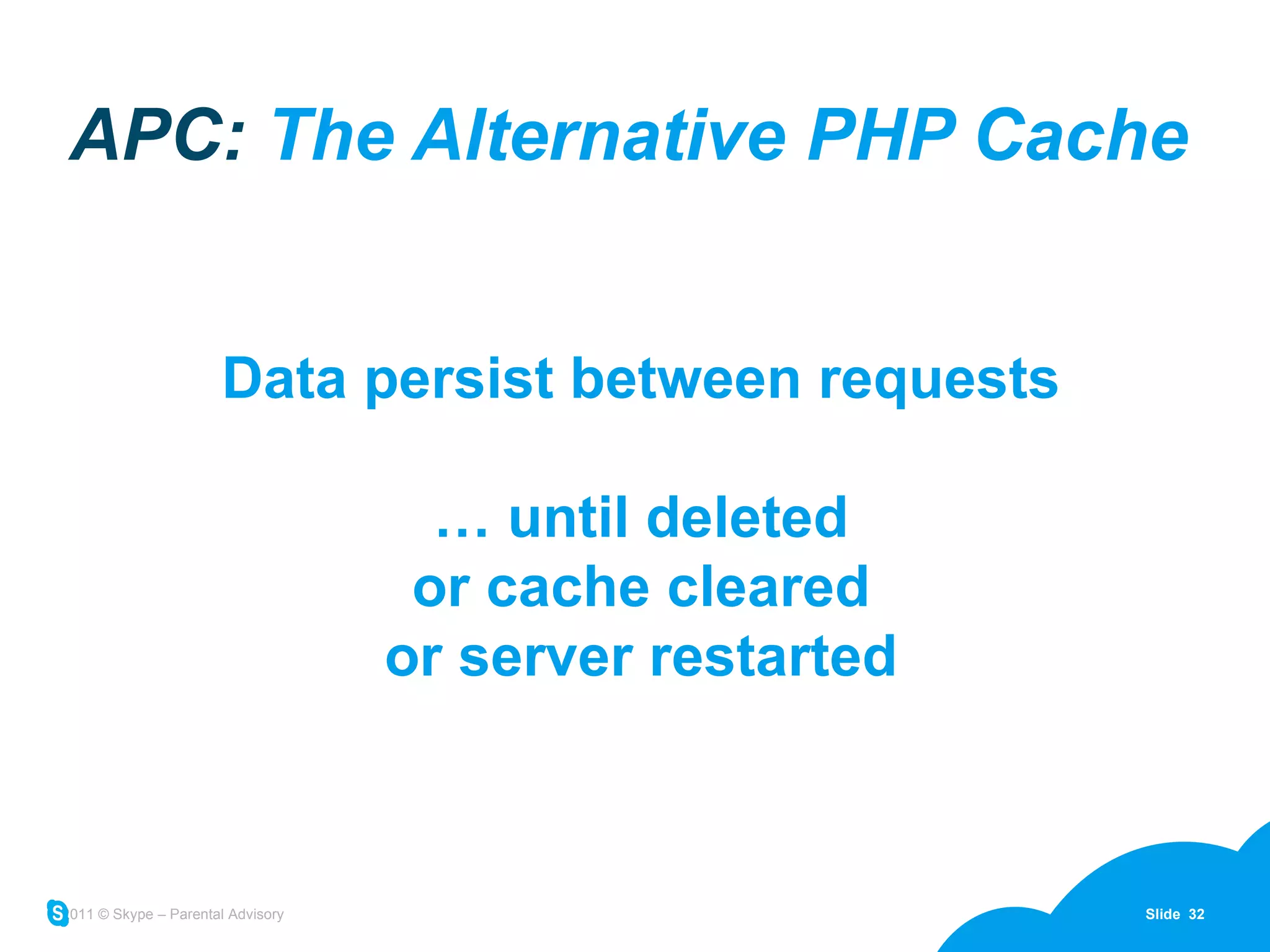

32. APC: The Alternative PHP Cache Data persist between requests … until deleted or cache cleared or server restarted

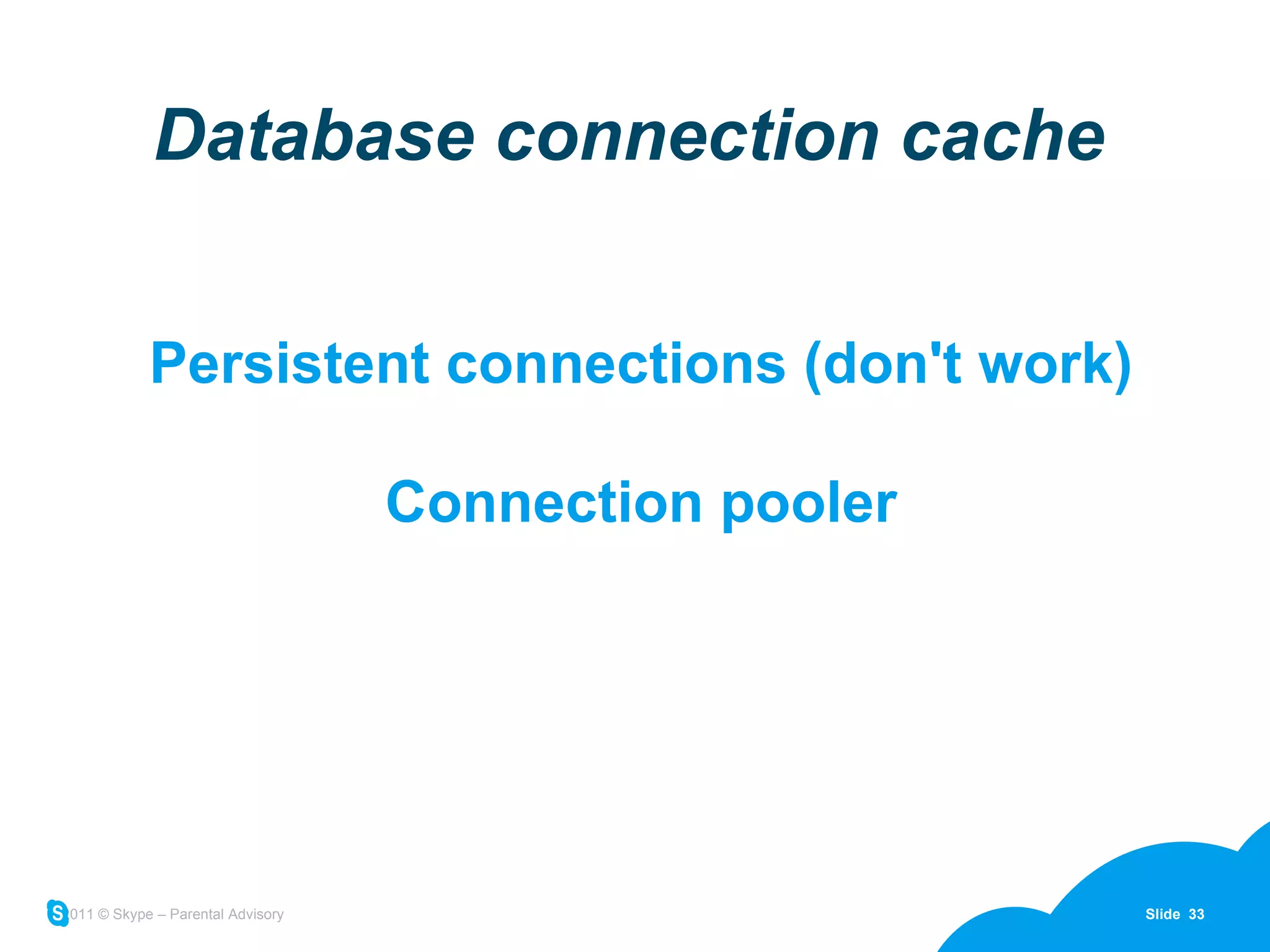

33. Database connection cache Persistent connections (don't work) Connection pooler

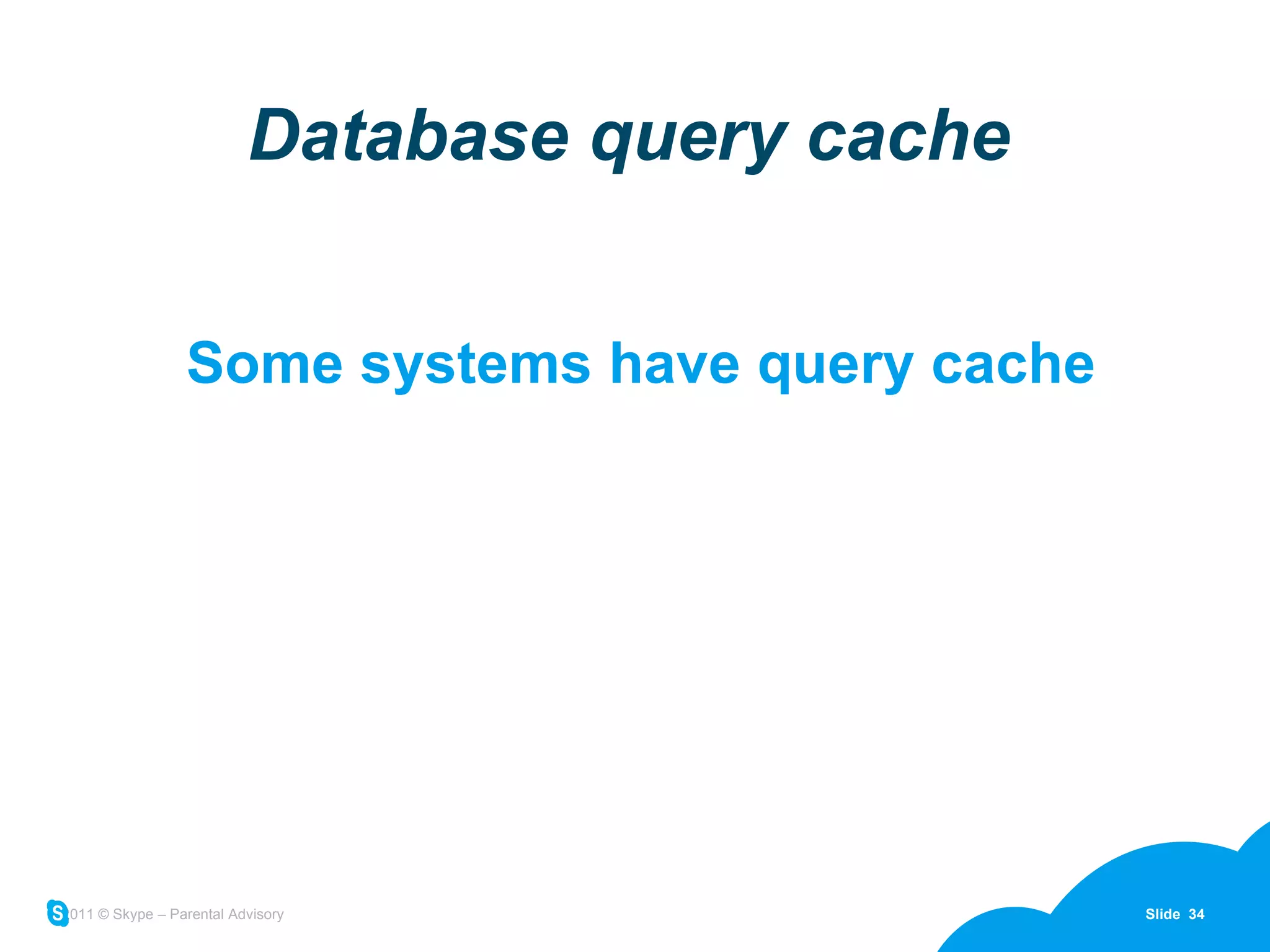

34. Database query cache Some systems have query cache

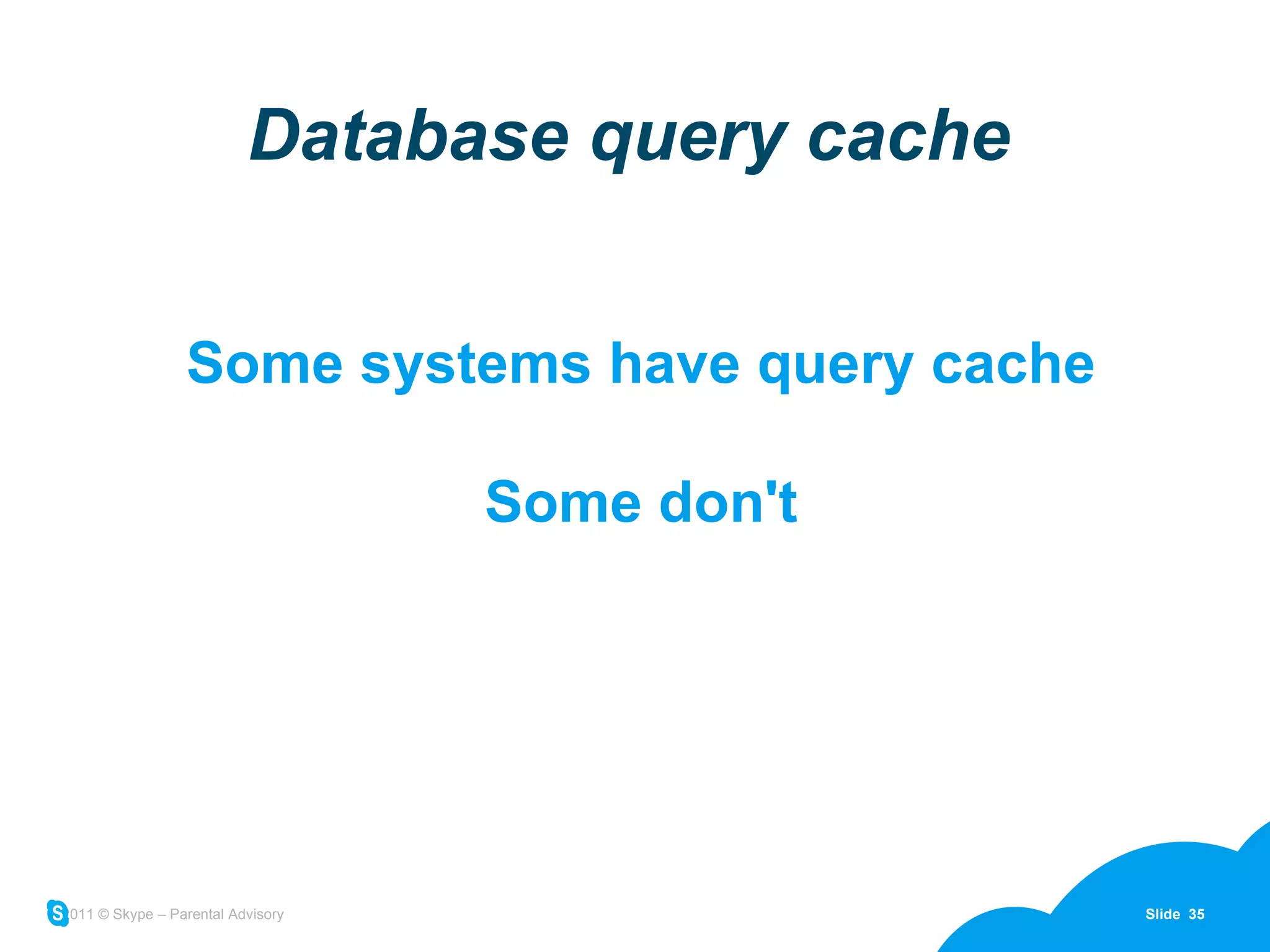

35. Database query cache Some systems have query cache Some don't

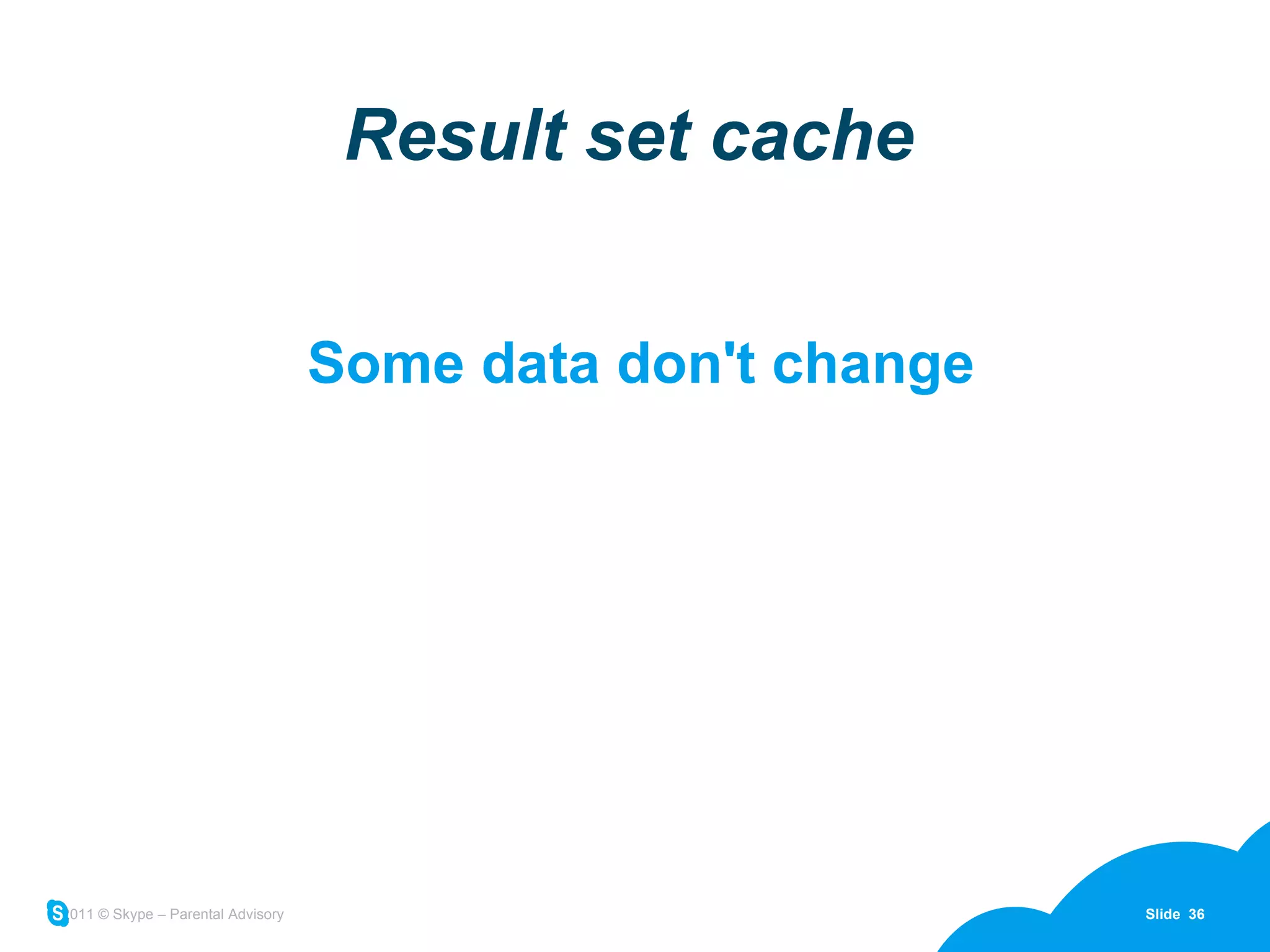

36. Result set cache Some data don't change

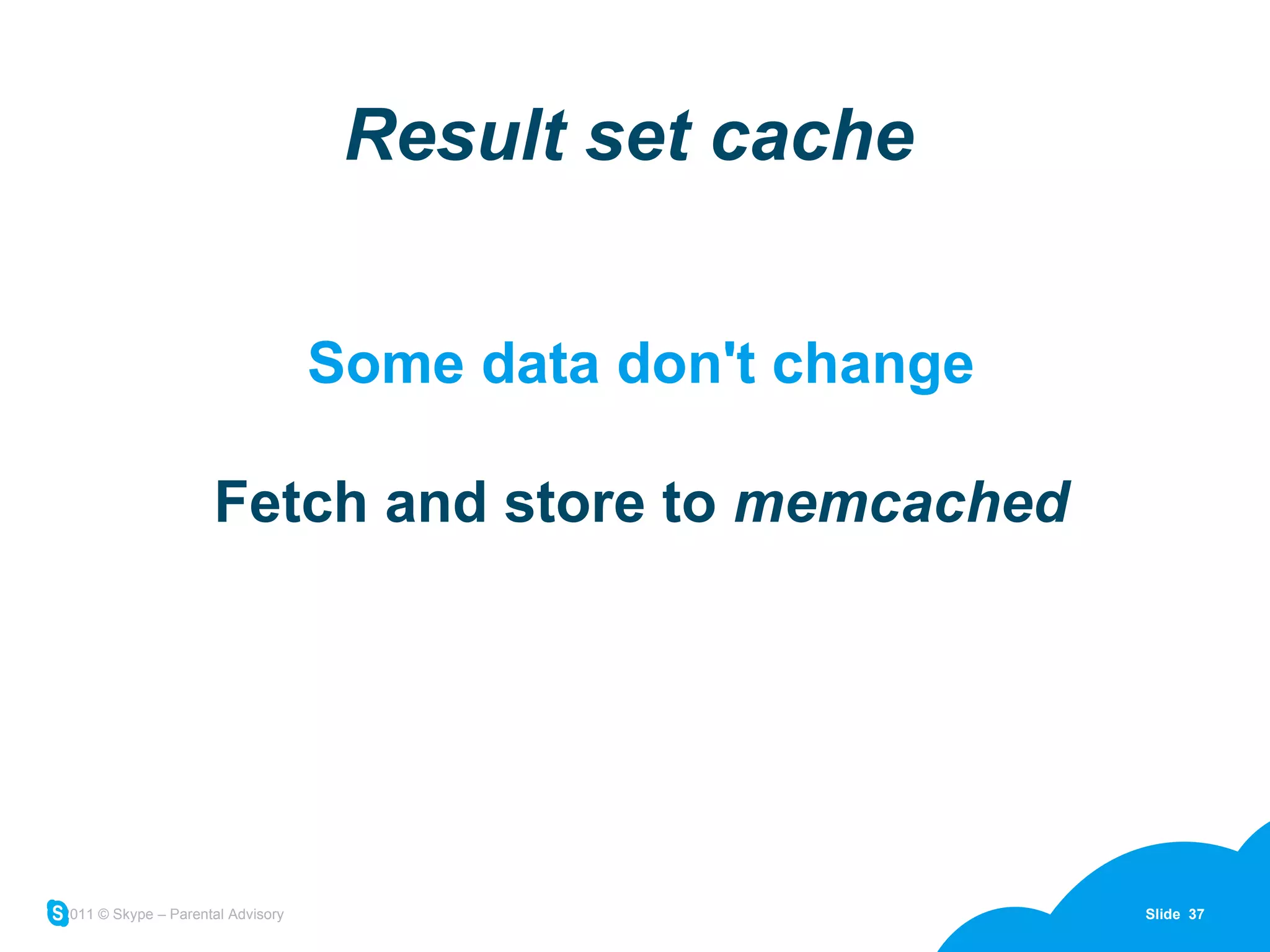

37. Result set cache Some data don't change Fetch and store to memcached

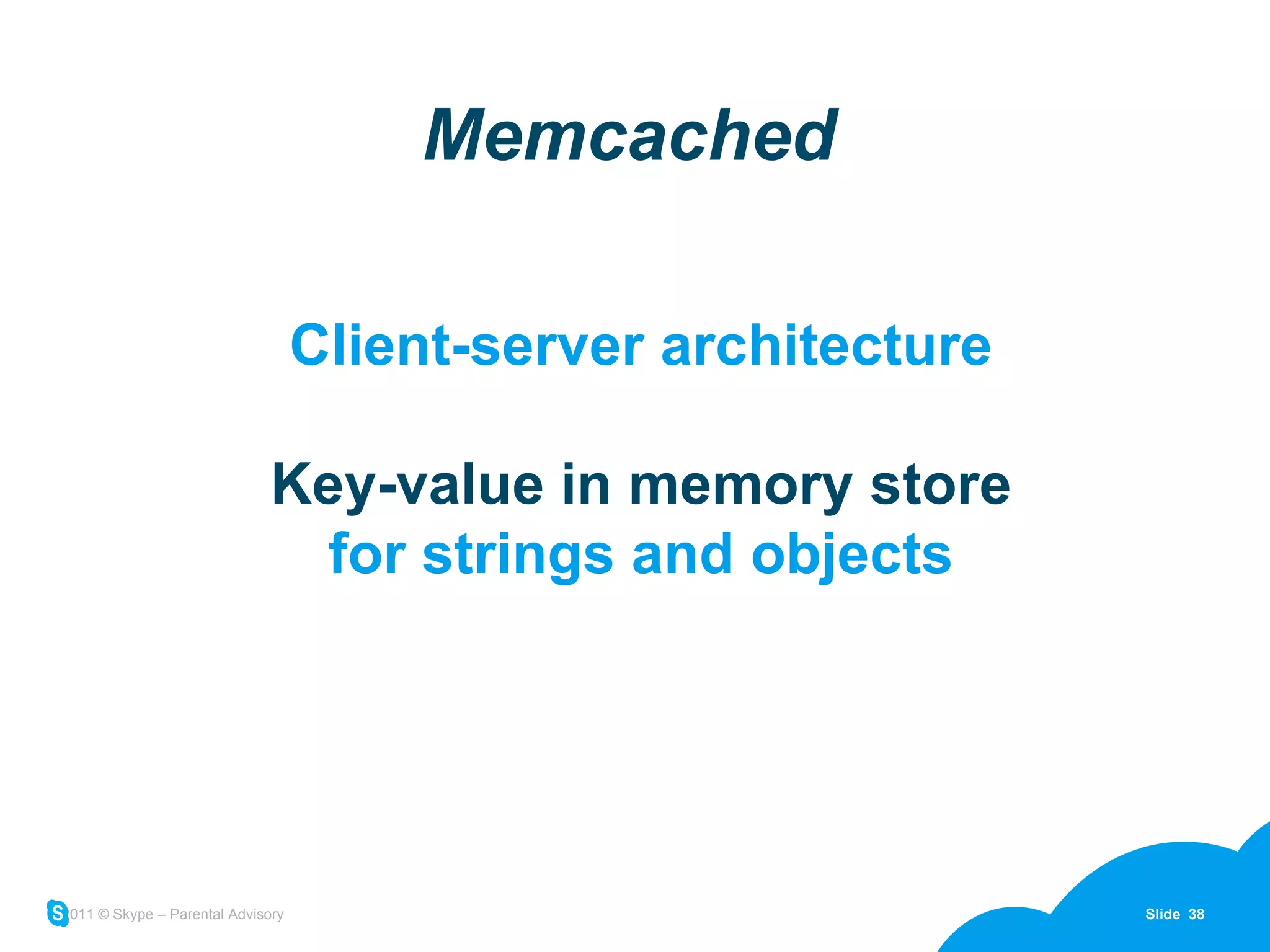

38. Memcached Client-server architecture Key-value in memory store for strings and objects

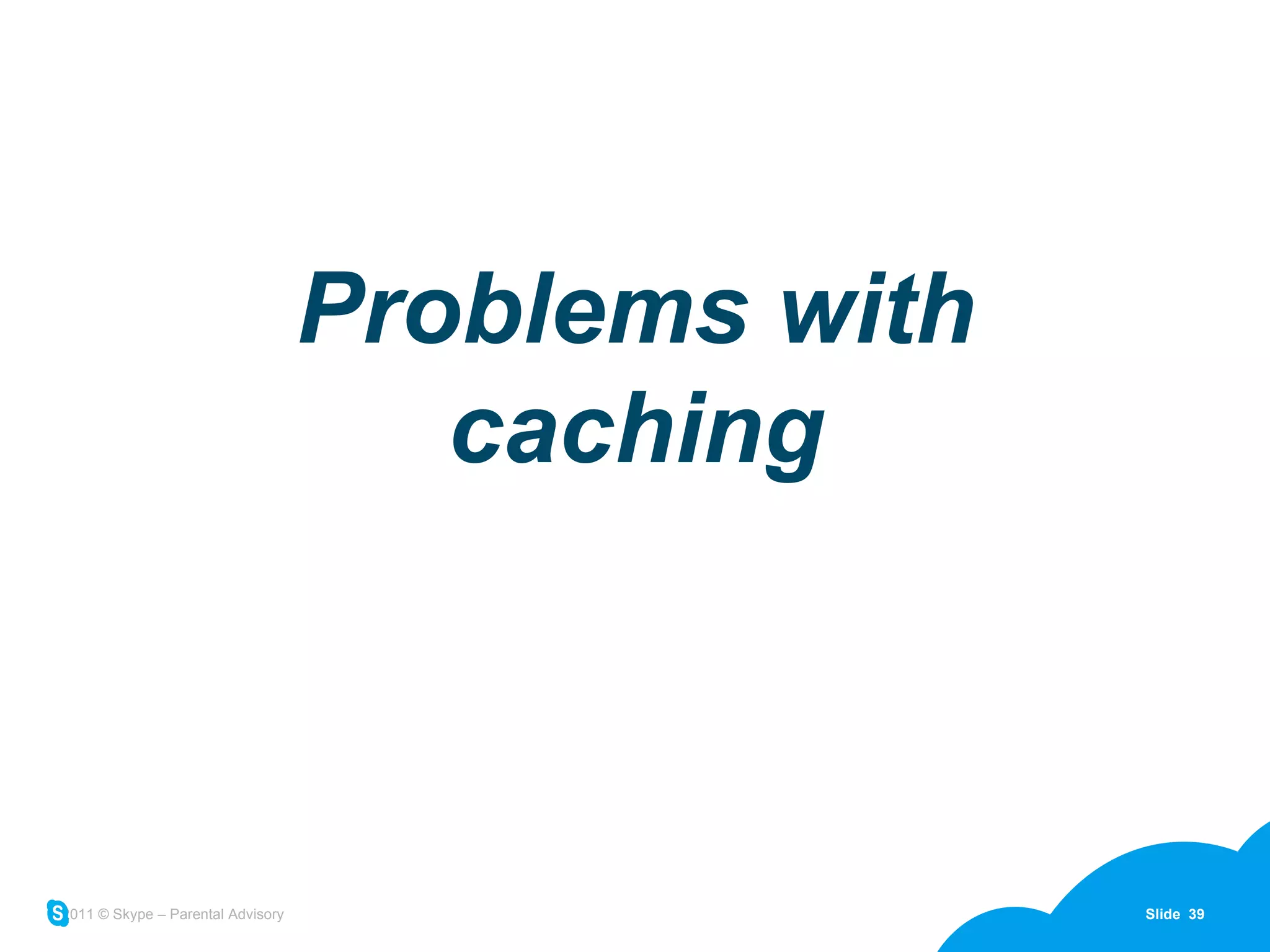

39. Problems with caching

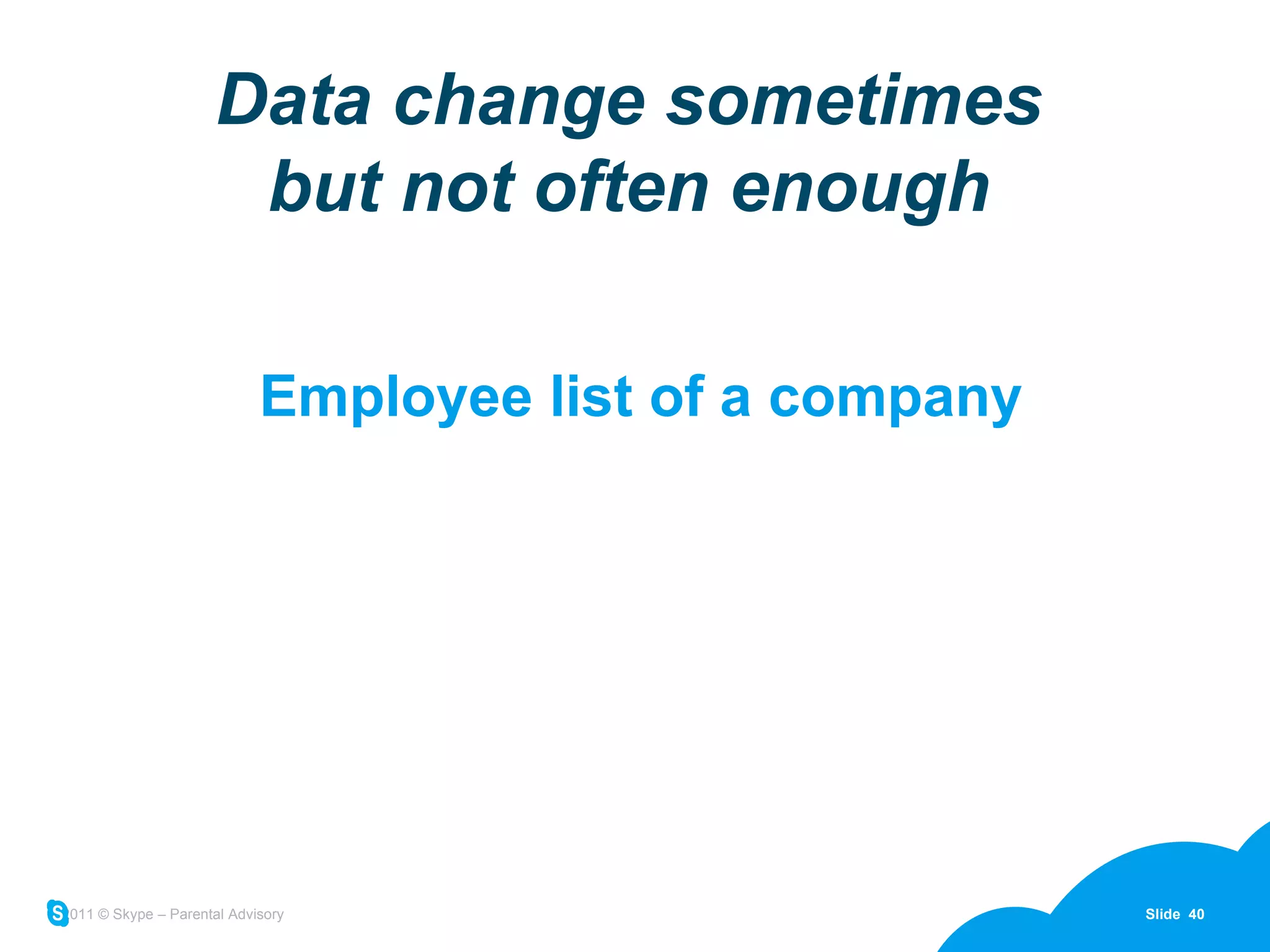

40. Data change sometimes but not often enough Employee list of a company

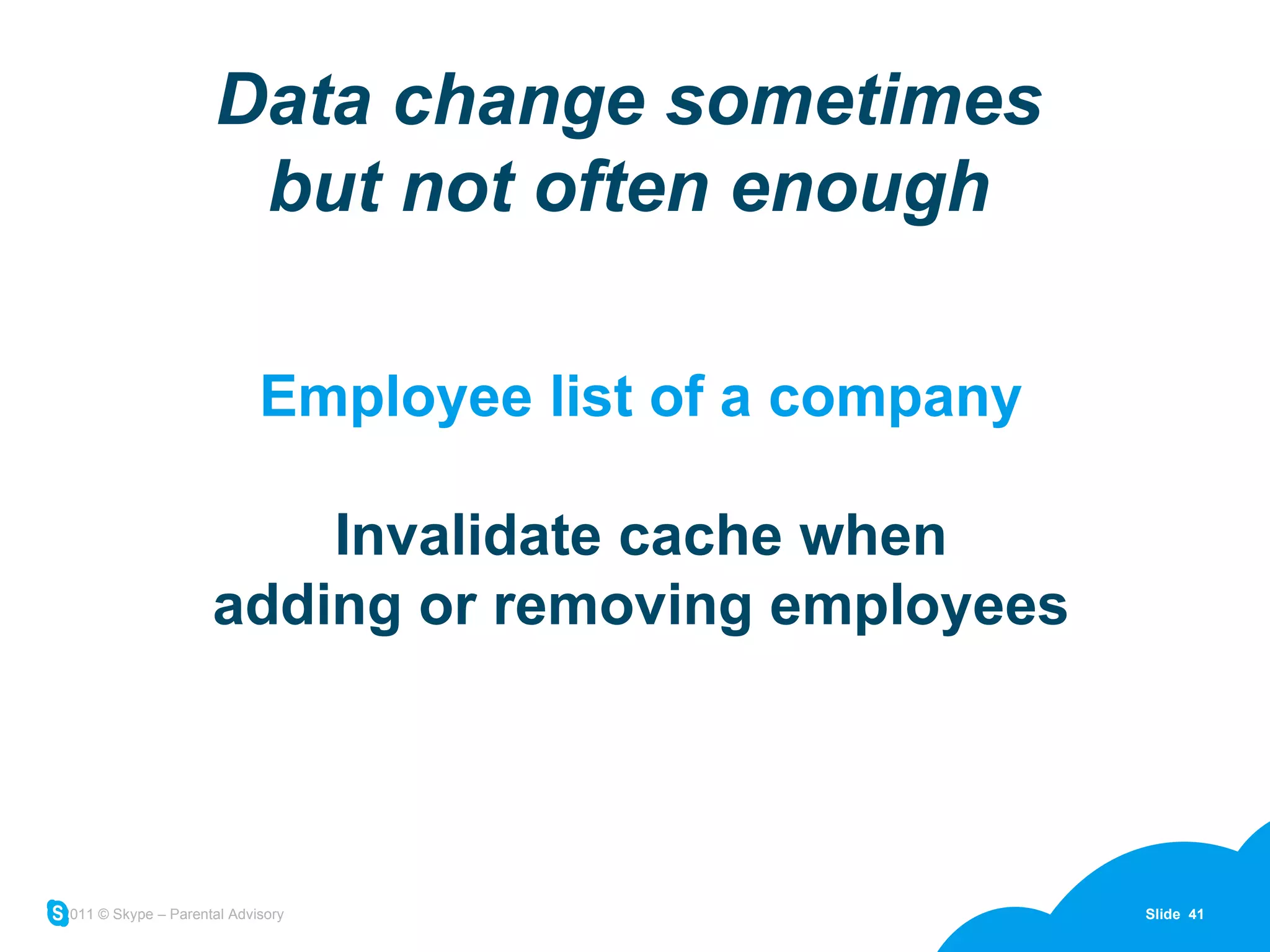

41. Data change sometimes but not often enough Employee list of a company Invalidate cache when adding or removing employees

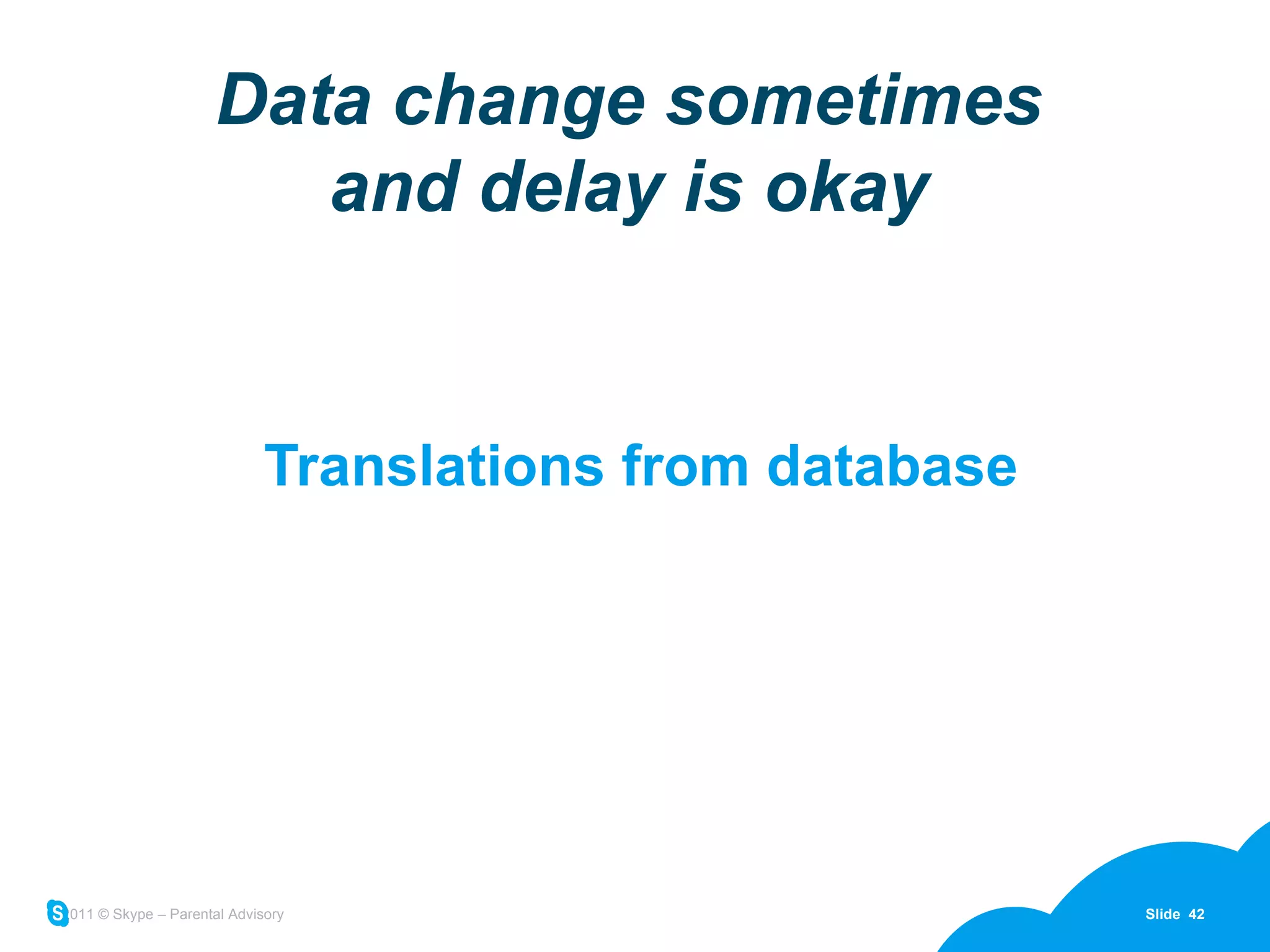

42. Data change sometimes and delay is okay Translations from database

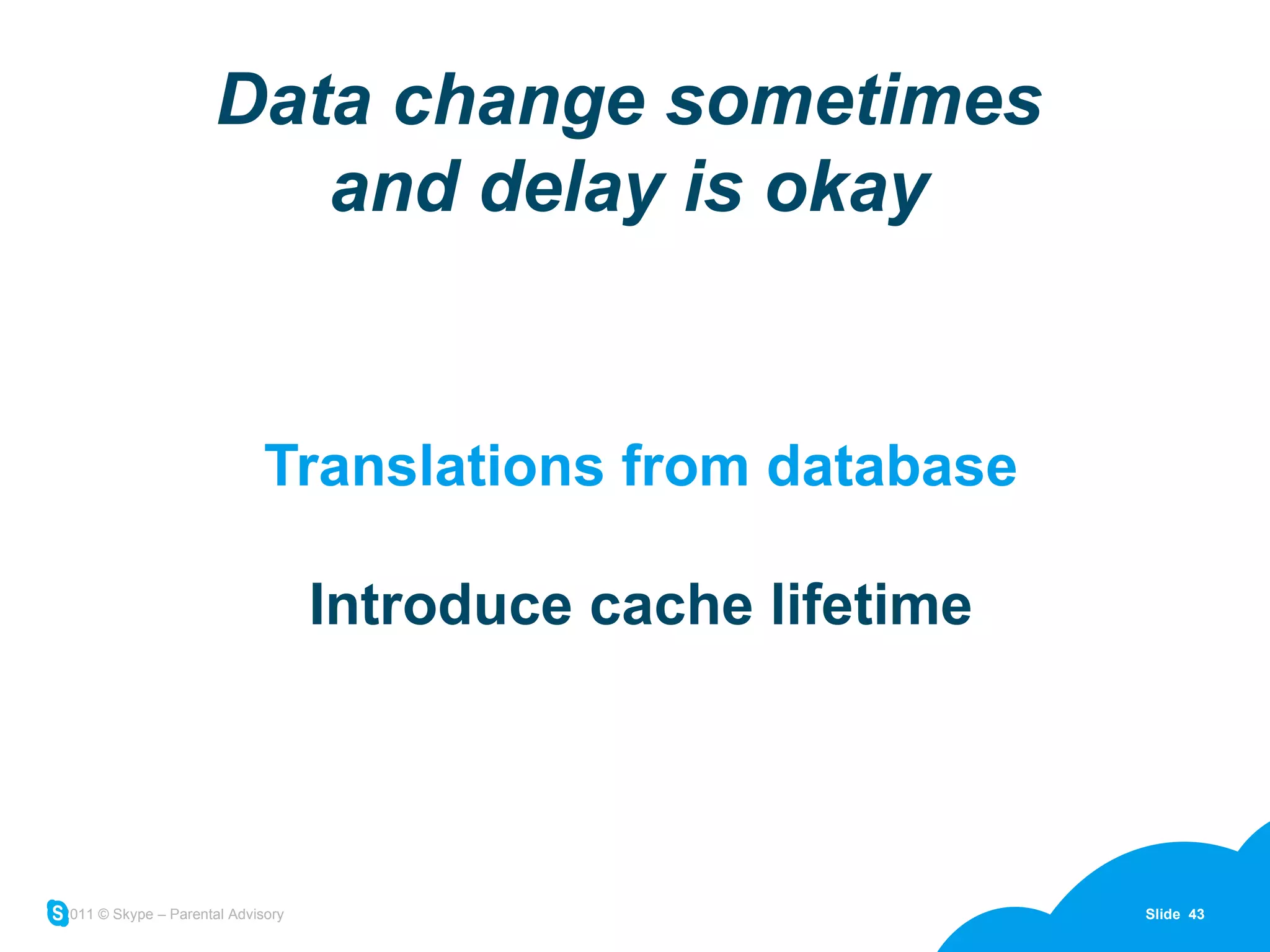

43. Data change sometimes and delay is okay Translations from database Introduce cache lifetime

44. Moar cache keys for the same data Sorted employee list (asc, desc)

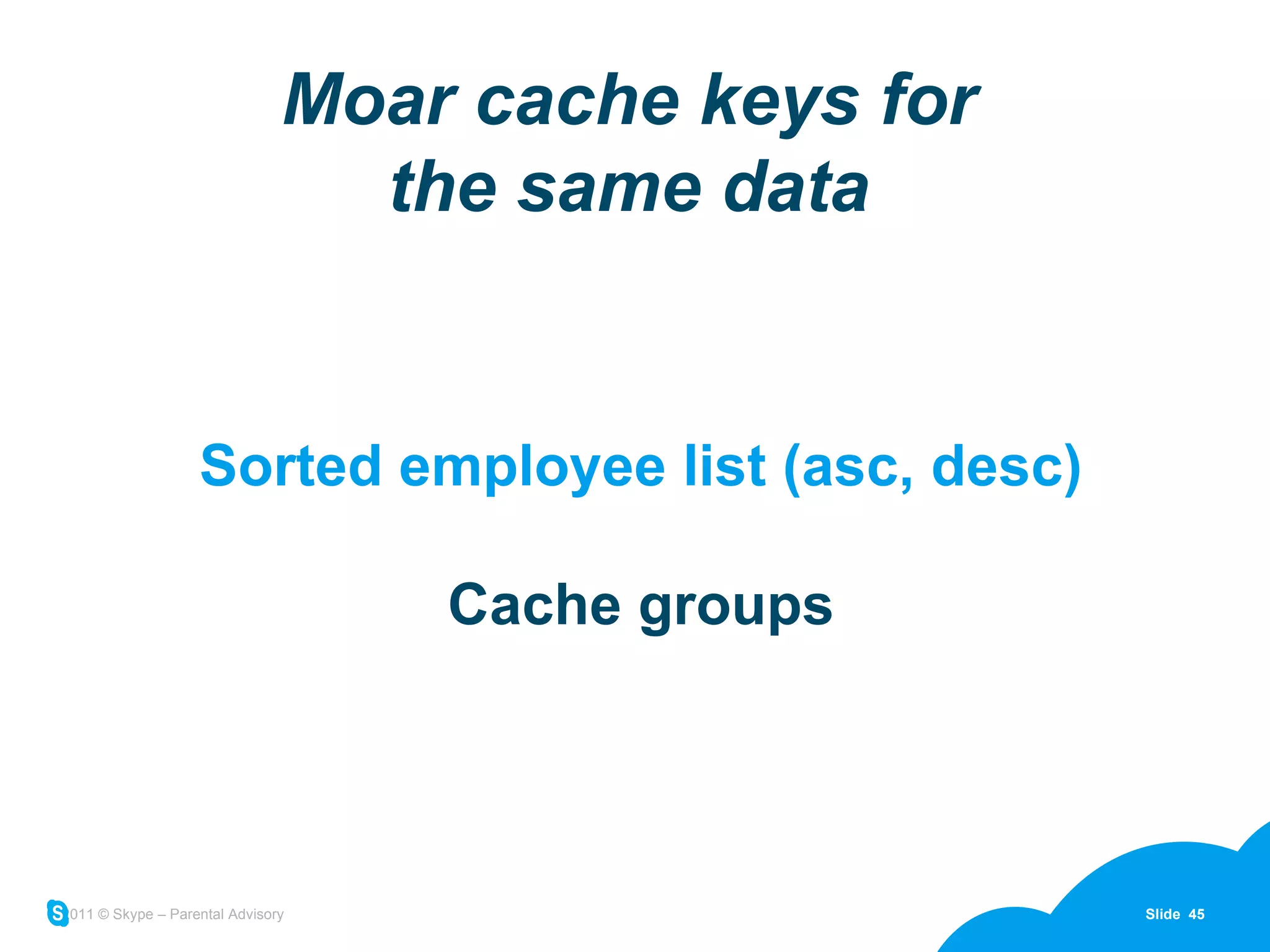

45. Moar cache keys for the same data Sorted employee list (asc, desc) Cache groups

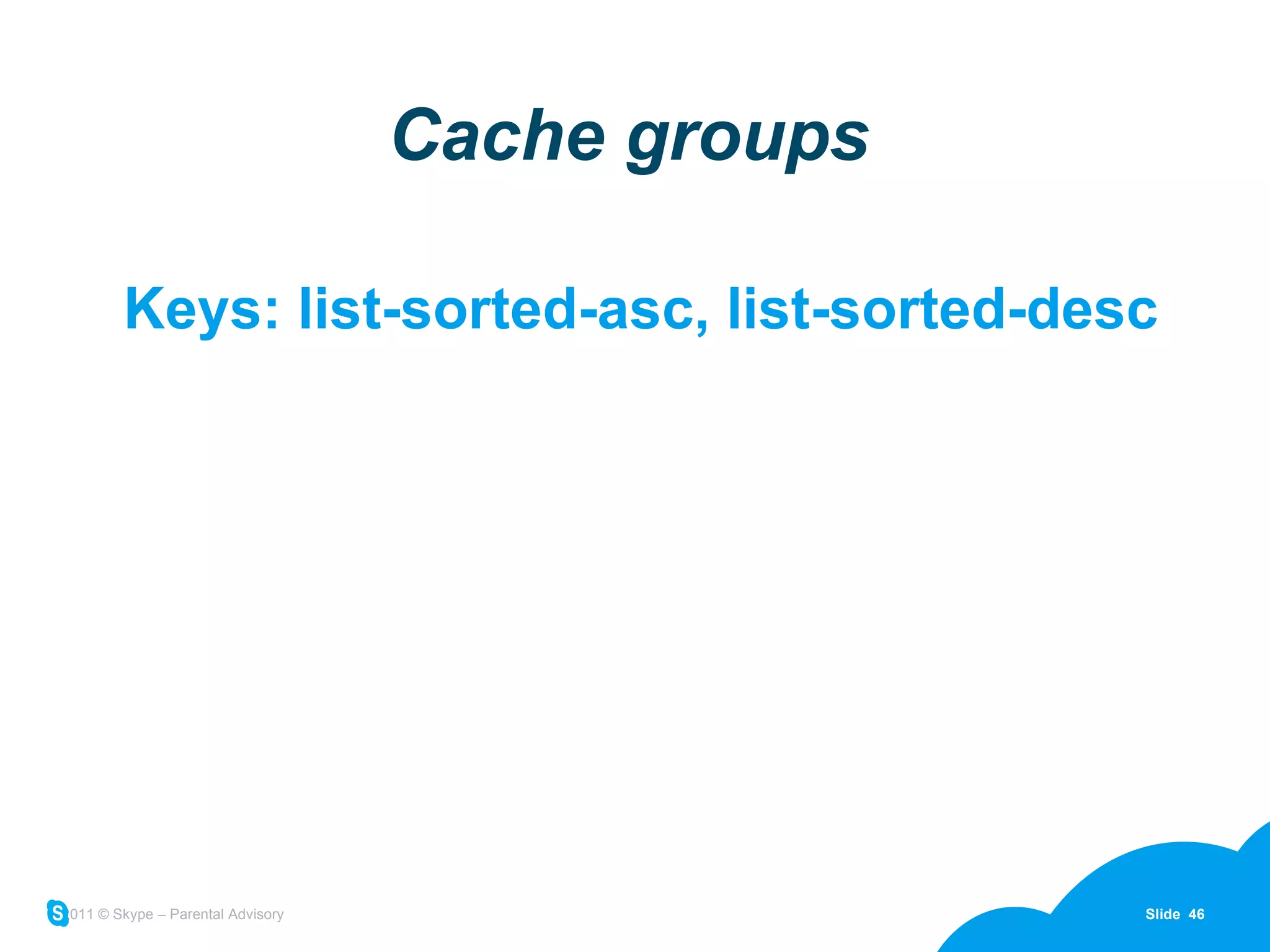

46. Cache groups Keys: list-sorted-asc, list-sorted-desc

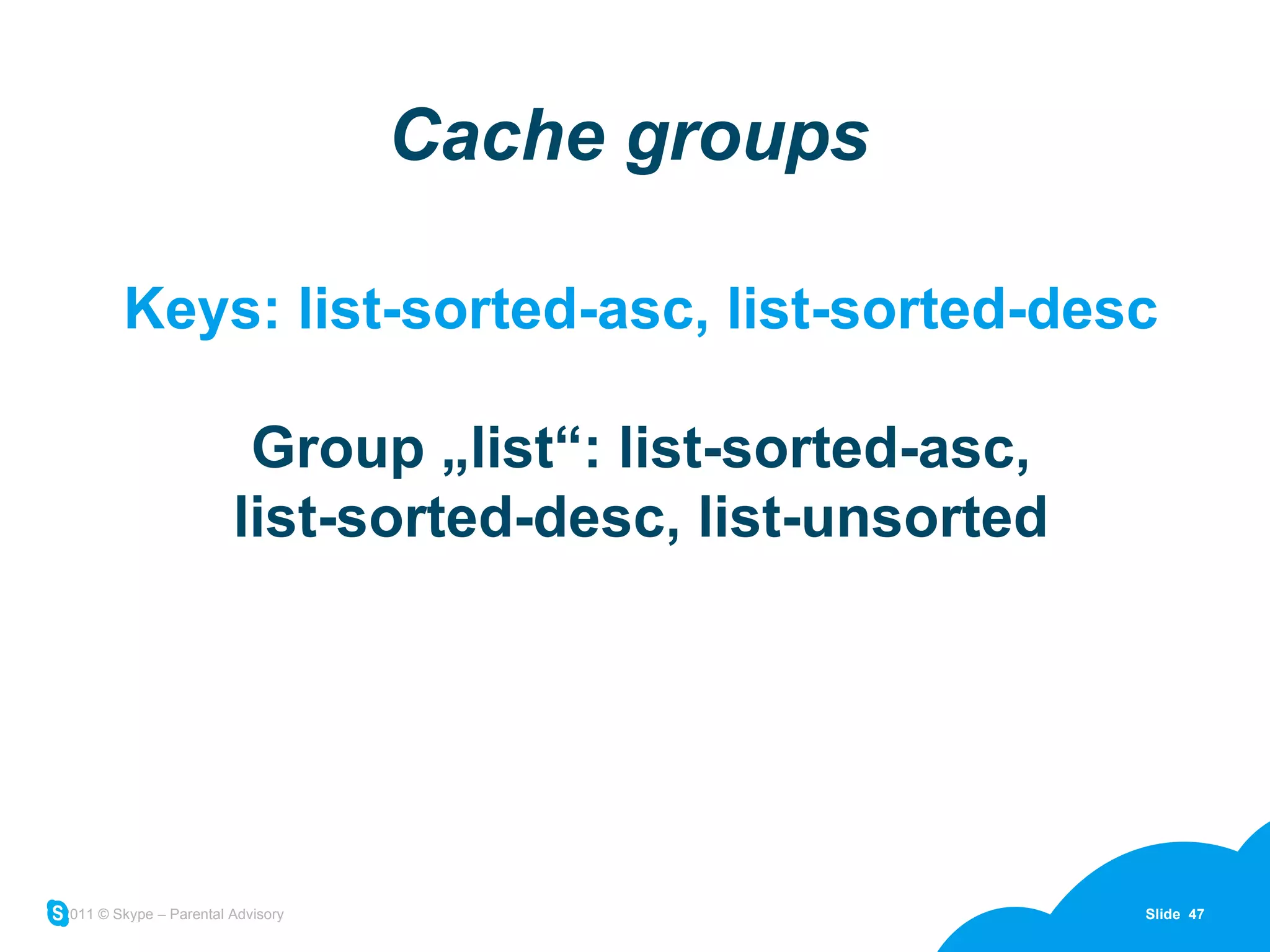

47. Cache groups Keys: list-sorted-asc, list-sorted-desc Group „list“: list-sorted-asc, list-sorted-desc, list-unsorted

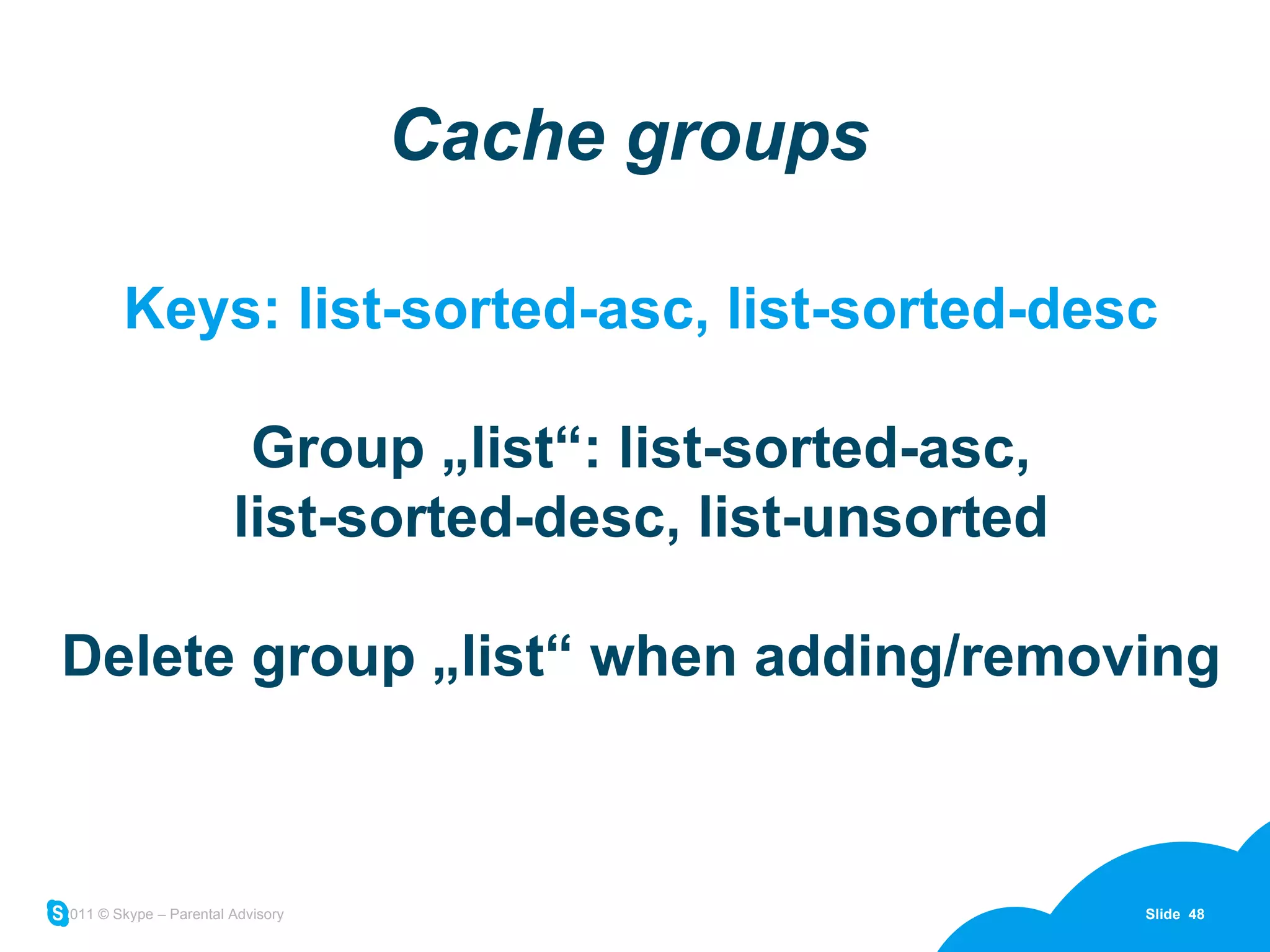

48. Cache groups Keys: list-sorted-asc, list-sorted-desc Group „list“: list-sorted-asc, list-sorted-desc, list-unsorted Delete group „list“ when adding/removing

49. Cache wherever and whatever

50. … but delete your whatever when needed

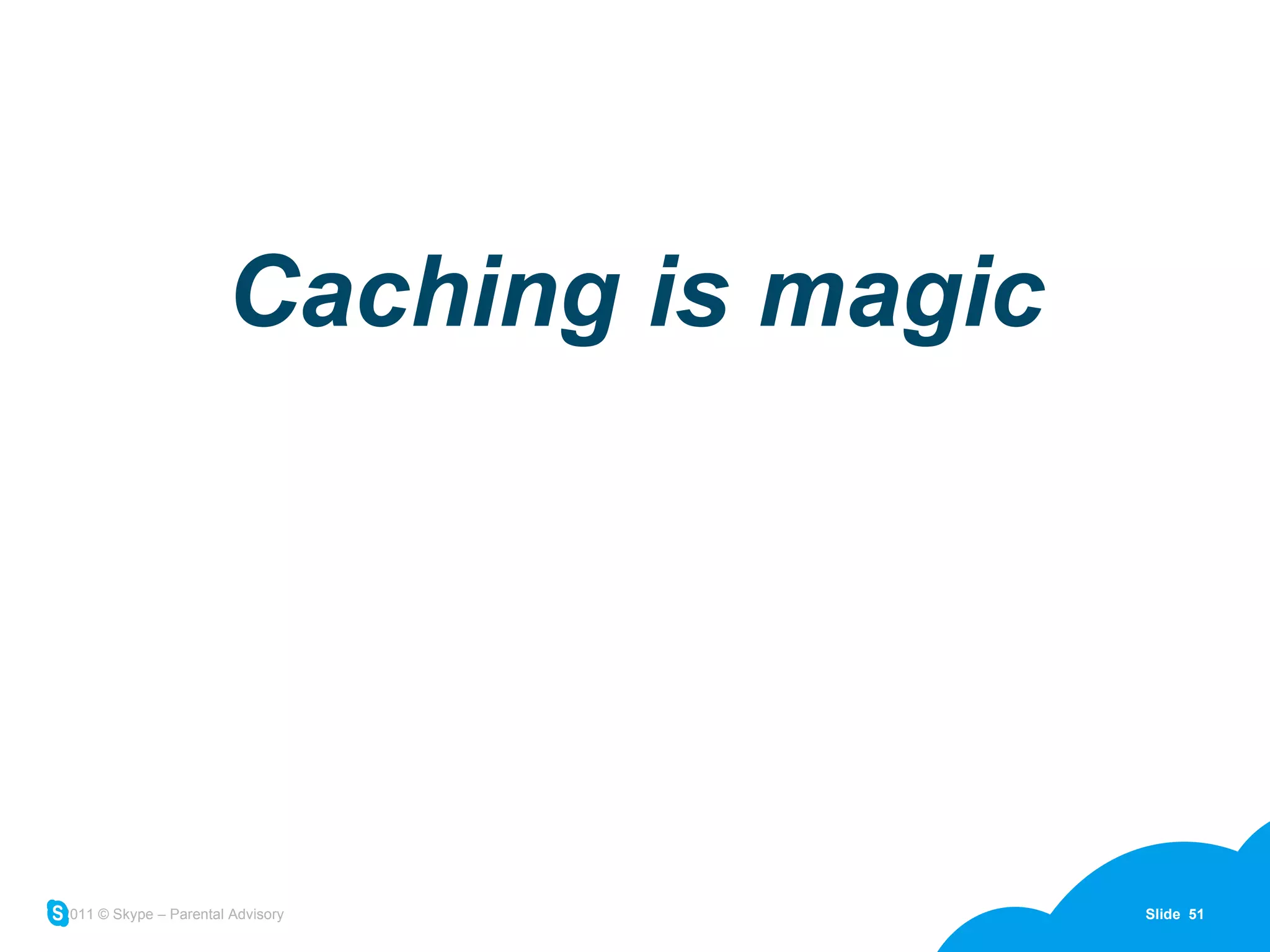

51. Caching is magic

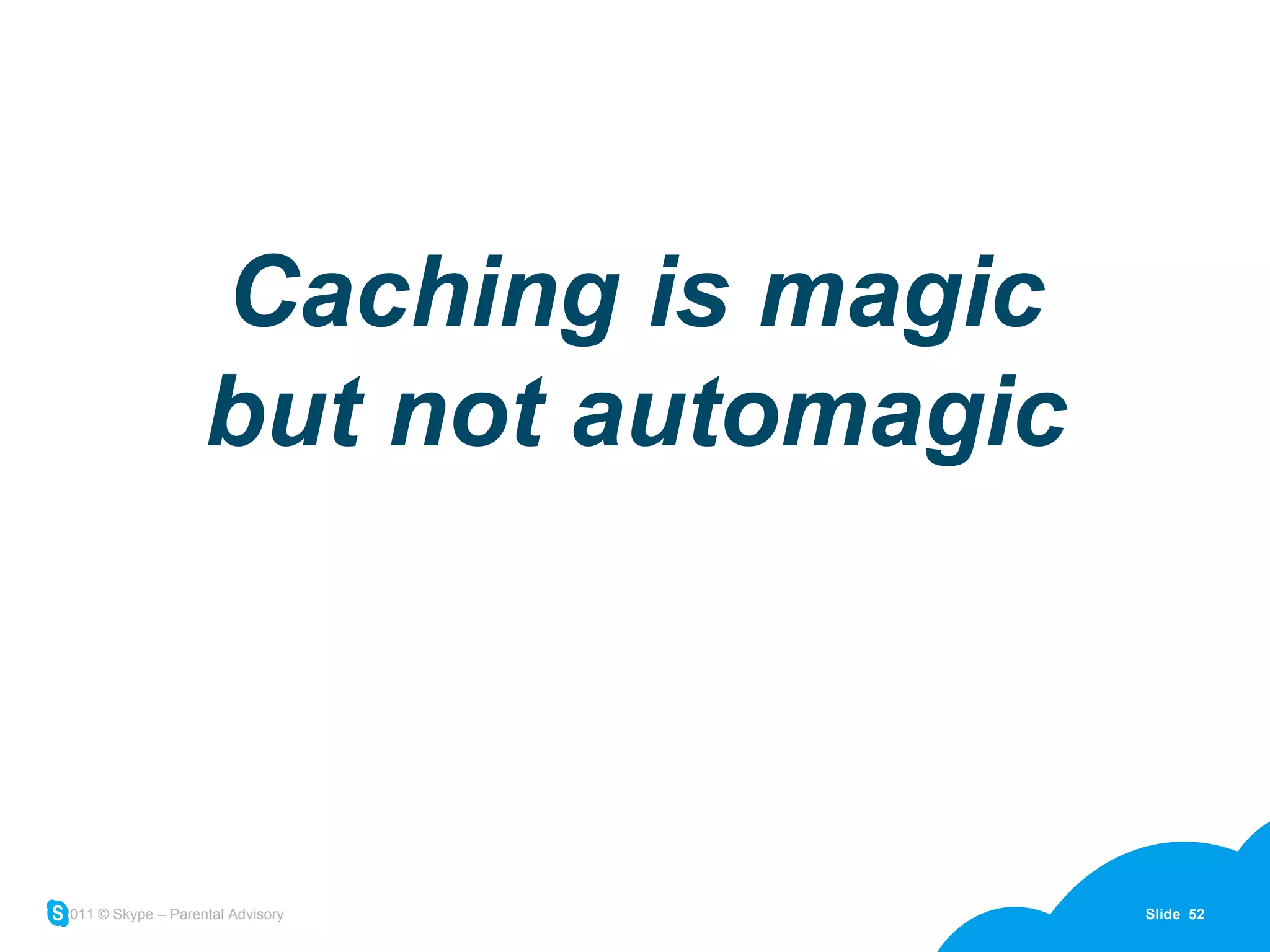

52. Caching is magic but not automagic

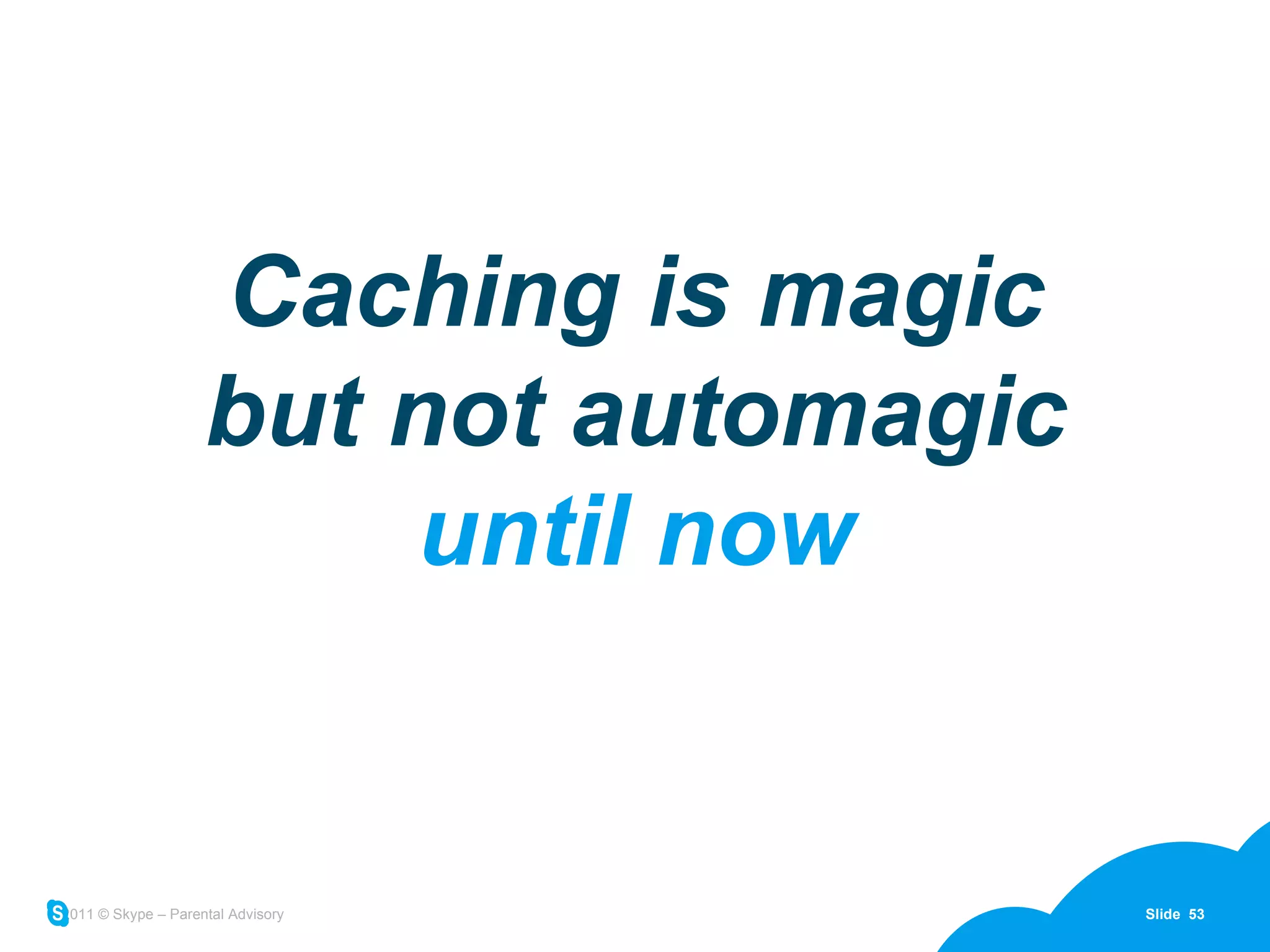

53. Caching is magic but not automagic until now

54. www.phpguru.cz/kaskadova-cache 2010 © Skype – As seen on TV Slide

55. Practical implementation, anyone ? 2010 © Skype – As seen on TV Slide

56. Thanks for listening Michal Špaček, @spazef0rze BTW, love caching? skypecareers.com!
