- 1. CABIN AIR FILTER ParticulateAir Filter - Compass, Patriot REMOVAL & INSTALLATION Glove Box Removal 1. Open the glove box and squeeze the stop tabs inward. See Fig. 1 Fig. 1: Locating Glove Box Stop Tabs Courtesy of CHRYSLER LLC 2. Lower the glove box and release the hinges (1) using a twisting motion and remove the glove box. See Fig. 2 NOTE: Manufacturer's terminology for this filter is Particulate Air Filter. 2009 Jeep Patriot Limited CABIN AIR FILTER Particulate Air Filter - Compass, Patriot 2009 Jeep Patriot Limited CABIN AIR FILTER Particulate Air Filter - Compass, Patriot a Saturday, September 08, 2012 1:44:55 PM Page 1 © 2006 Mitchell Repair Information Company, LLC. a Saturday, September 08, 2012 1:44:58 PM Page 1 © 2006 Mitchell Repair Information Company, LLC.

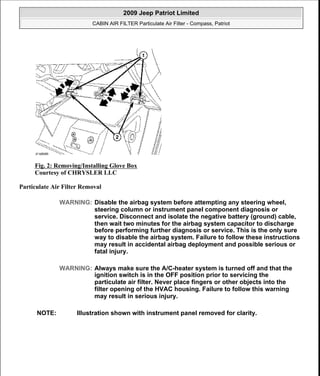

- 2. Fig. 2: Removing/InstallingGlove Box Courtesy of CHRYSLER LLC Particulate Air Filter Removal WARNING: Disable the airbag system before attempting any steering wheel, steering column or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury. WARNING: Always make sure the A/C-heater system is turned off and that the ignition switch is in the OFF position prior to servicing the particulate air filter. Never place fingers or other objects into the filter opening of the HVAC housing. Failure to follow this warning may result in serious injury. NOTE: Illustration shown with instrument panel removed for clarity. 2009 Jeep Patriot Limited CABIN AIR FILTER Particulate Air Filter - Compass, Patriot a Saturday, September 08, 2012 1:44:55 PM Page 2 © 2006 Mitchell Repair Information Company, LLC.

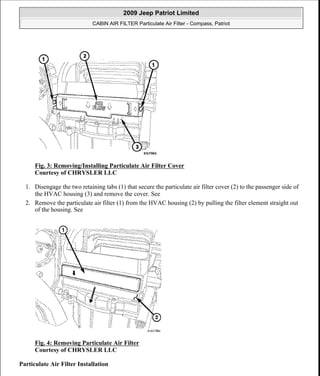

- 3. Fig. 3: Removing/InstallingParticulate Air Filter Cover Courtesy of CHRYSLER LLC 1. Disengage the two retaining tabs (1) that secure the particulate air filter cover (2) to the passenger side of the HVAC housing (3) and remove the cover. See 2. Remove the particulate air filter (1) from the HVAC housing (2) by pulling the filter element straight out of the housing. See Fig. 4: Removing Particulate Air Filter Courtesy of CHRYSLER LLC Particulate Air Filter Installation 2009 Jeep Patriot Limited CABIN AIR FILTER Particulate Air Filter - Compass, Patriot a Saturday, September 08, 2012 1:44:55 PM Page 3 © 2006 Mitchell Repair Information Company, LLC.

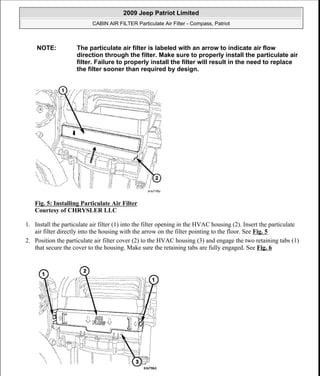

- 4. Fig. 5: InstallingParticulate Air Filter Courtesy of CHRYSLER LLC 1. Install the particulate air filter (1) into the filter opening in the HVAC housing (2). Insert the particulate air filter directly into the housing with the arrow on the filter pointing to the floor. See Fig. 5 2. Position the particulate air filter cover (2) to the HVAC housing (3) and engage the two retaining tabs (1) that secure the cover to the housing. Make sure the retaining tabs are fully engaged. See Fig. 6 NOTE: The particulate air filter is labeled with an arrow to indicate air flow direction through the filter. Make sure to properly install the particulate air filter. Failure to properly install the filter will result in the need to replace the filter sooner than required by design. 2009 Jeep Patriot Limited CABIN AIR FILTER Particulate Air Filter - Compass, Patriot a Saturday, September 08, 2012 1:44:55 PM Page 4 © 2006 Mitchell Repair Information Company, LLC.

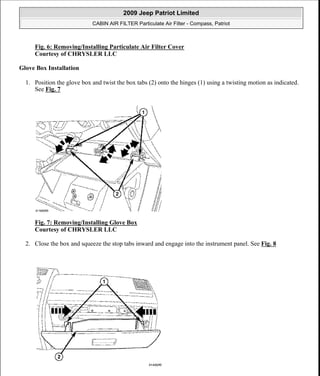

- 5. Fig. 6: Removing/InstallingParticulate Air Filter Cover Courtesy of CHRYSLER LLC Glove Box Installation 1. Position the glove box and twist the box tabs (2) onto the hinges (1) using a twisting motion as indicated. See Fig. 7 Fig. 7: Removing/Installing Glove Box Courtesy of CHRYSLER LLC 2. Close the box and squeeze the stop tabs inward and engage into the instrument panel. See Fig. 8 2009 Jeep Patriot Limited CABIN AIR FILTER Particulate Air Filter - Compass, Patriot a Saturday, September 08, 2012 1:44:55 PM Page 5 © 2006 Mitchell Repair Information Company, LLC.
- 6. Fig. 8: LocatingGlove Box Stop Tabs Courtesy of CHRYSLER LLC 2009 Jeep Patriot Limited CABIN AIR FILTER Particulate Air Filter - Compass, Patriot a Saturday, September 08, 2012 1:44:55 PM Page 6 © 2006 Mitchell Repair Information Company, LLC.
