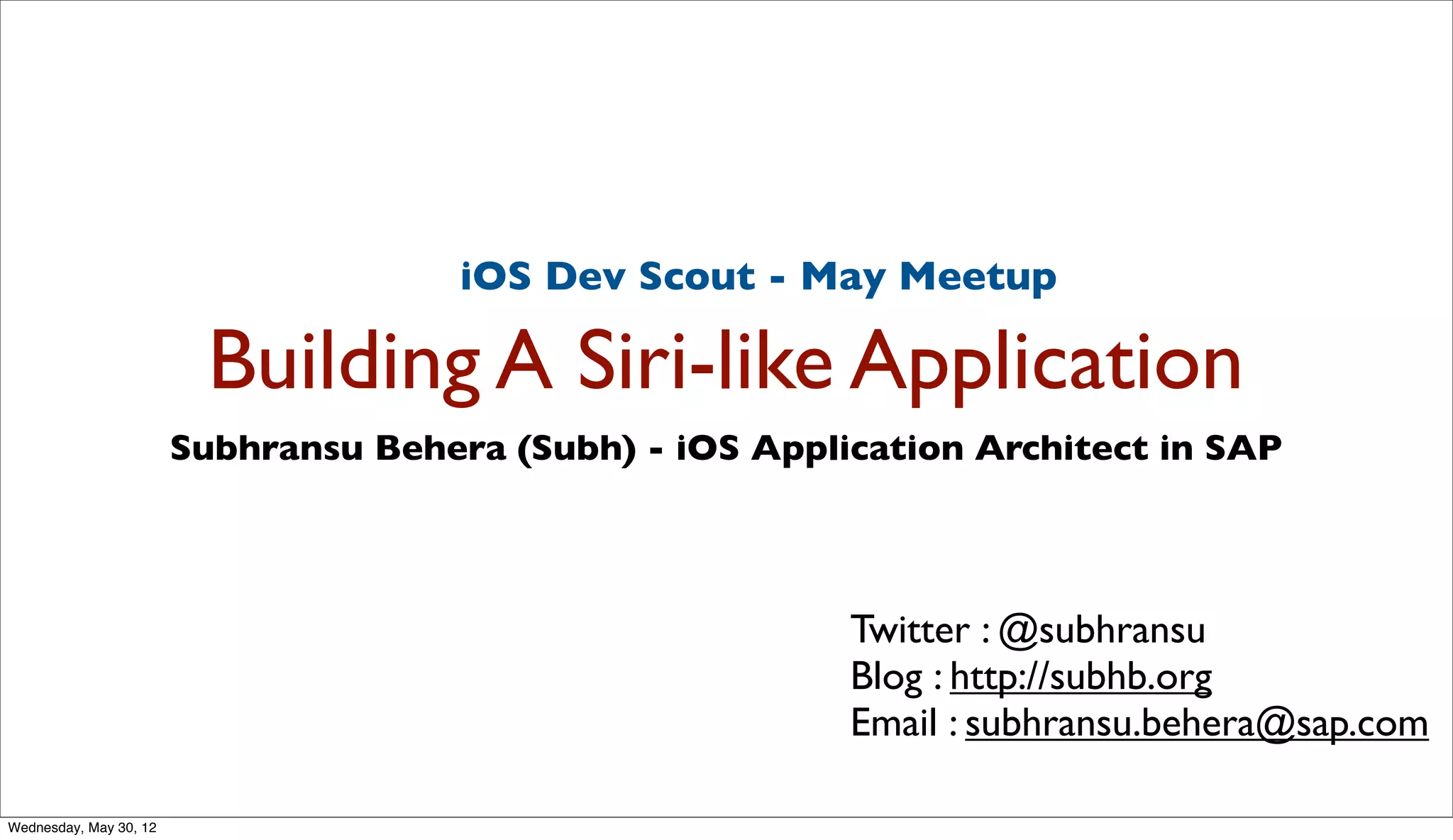

1. iOS Dev Scout - May Meetup
Building A Siri-like Application
Subhransu Behera (Subh) - iOS Application Architect in SAP
Twitter : @subhransu
Blog : http://subhb.org
Email : subhransu.behera@sap.com
Wednesday, May 30, 12

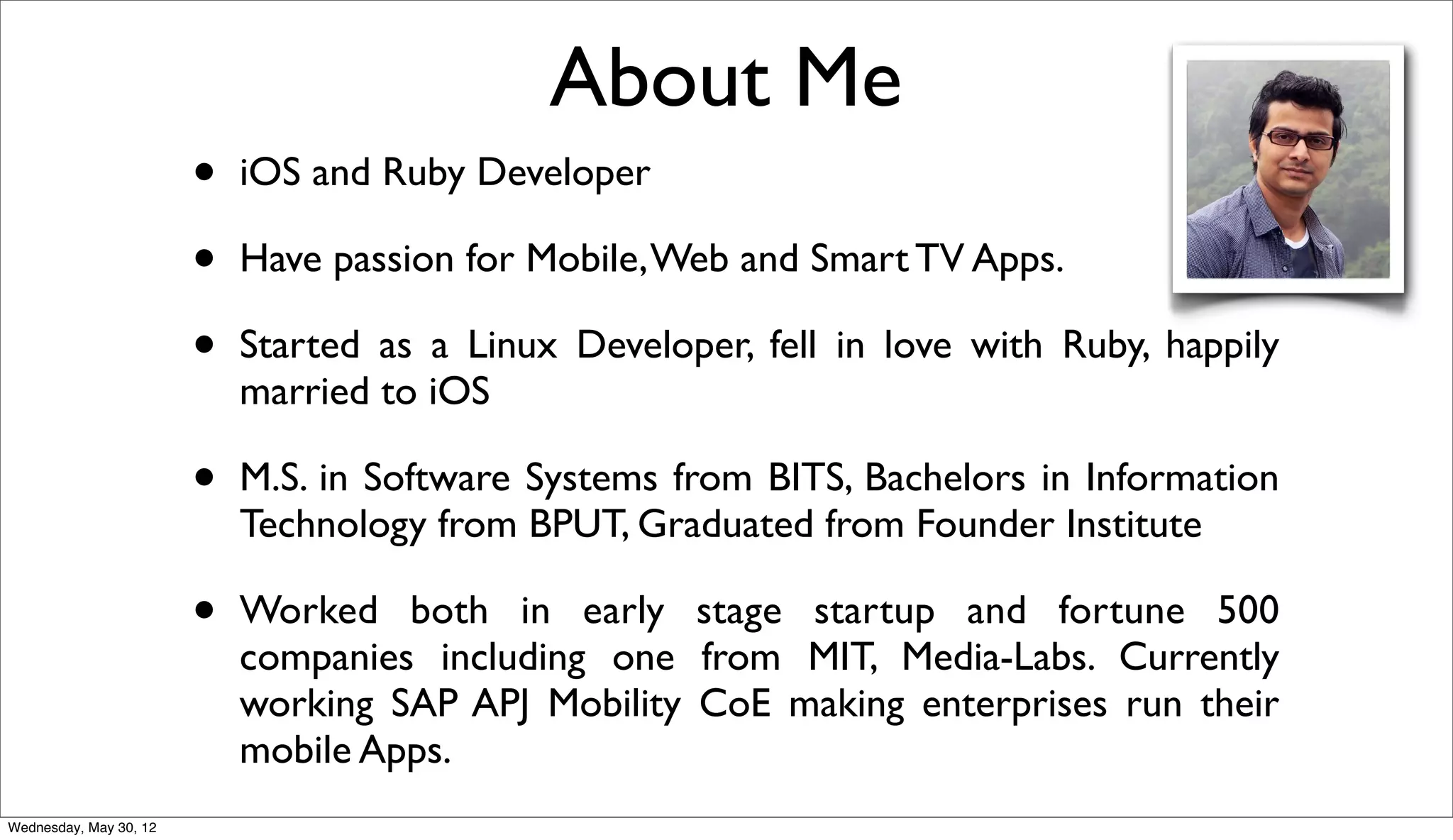

2. About Me
• iOS and Ruby Developer
• Have passion for Mobile, Web and Smart TV Apps.
• Started as a Linux Developer, fell in love with Ruby, happily
married to iOS
• M.S. in Software Systems from BITS, Bachelors in Information
Technology from BPUT, Graduated from Founder Institute
• Worked both in early stage startup and fortune 500
companies including one from MIT, Media-Labs. Currently
working SAP APJ Mobility CoE making enterprises run their
mobile Apps.
Wednesday, May 30, 12

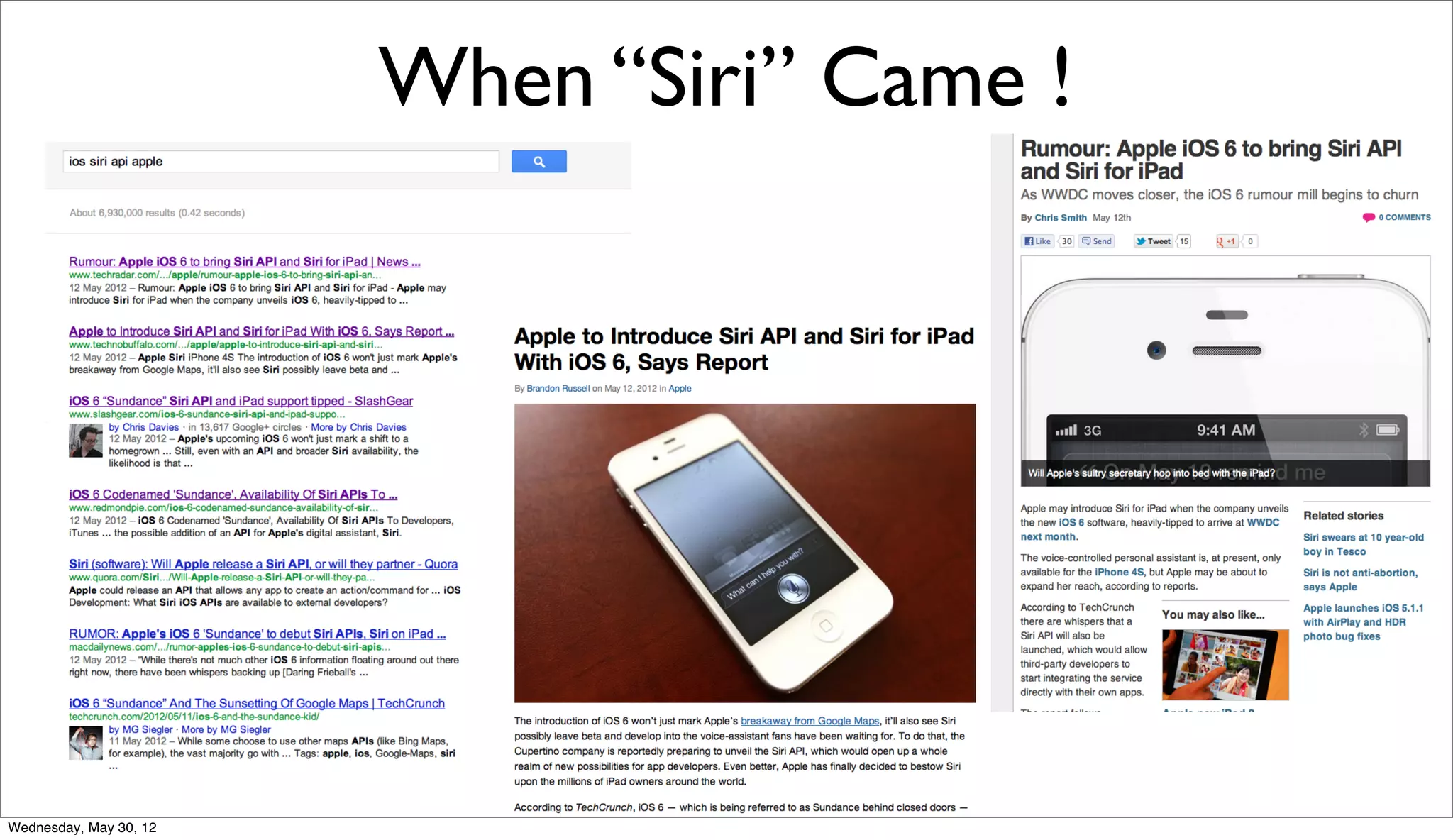

3. When “Siri” Came !
Wednesday, May 30, 12

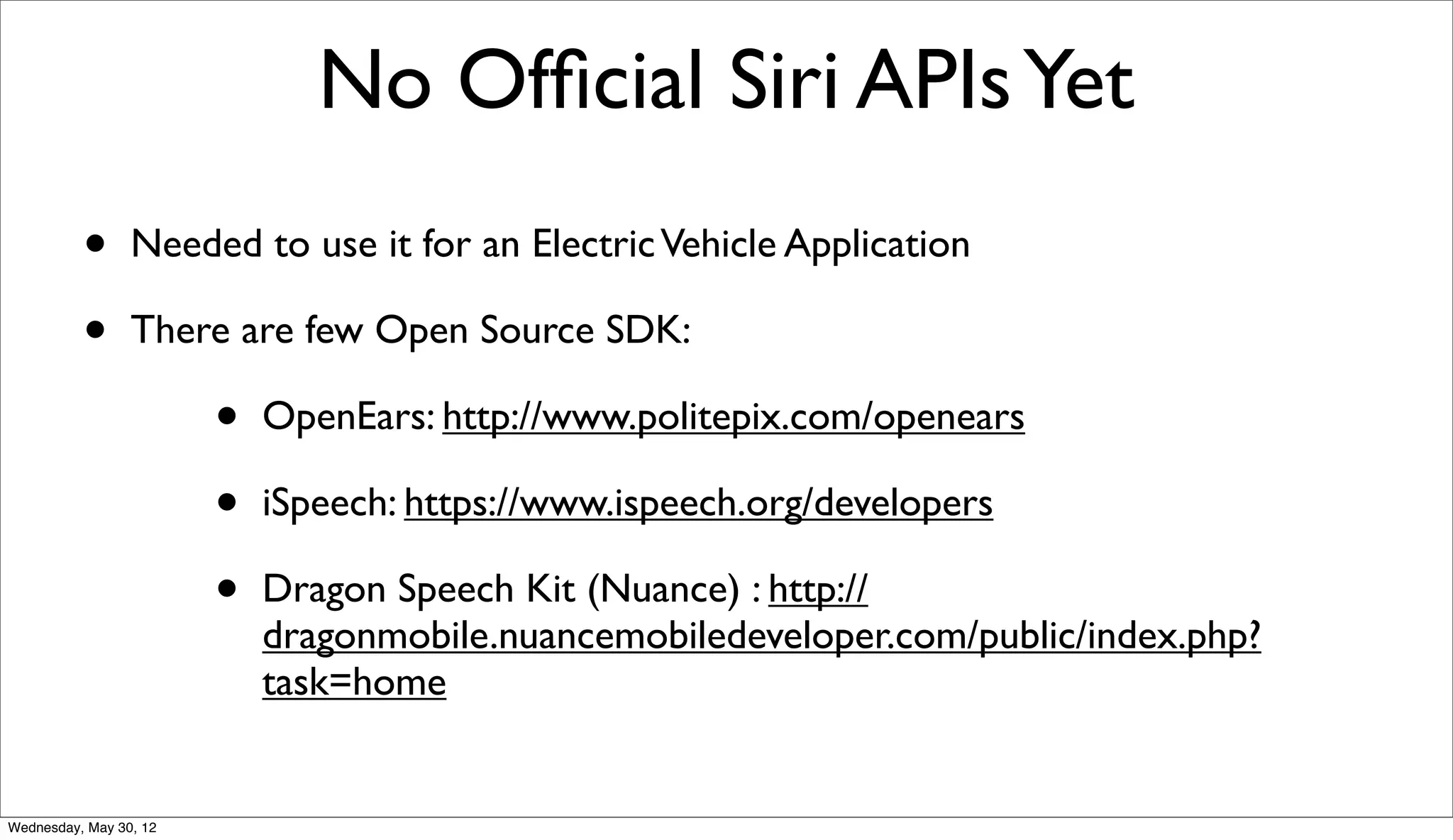

4. No Official Siri APIs Yet
• Needed to use it for an Electric Vehicle Application
• There are few Open Source SDK:
• OpenEars: http://www.politepix.com/openears
• iSpeech: https://www.ispeech.org/developers
• Dragon Speech Kit (Nuance) : http://
dragonmobile.nuancemobiledeveloper.com/public/index.php?
task=home
Wednesday, May 30, 12

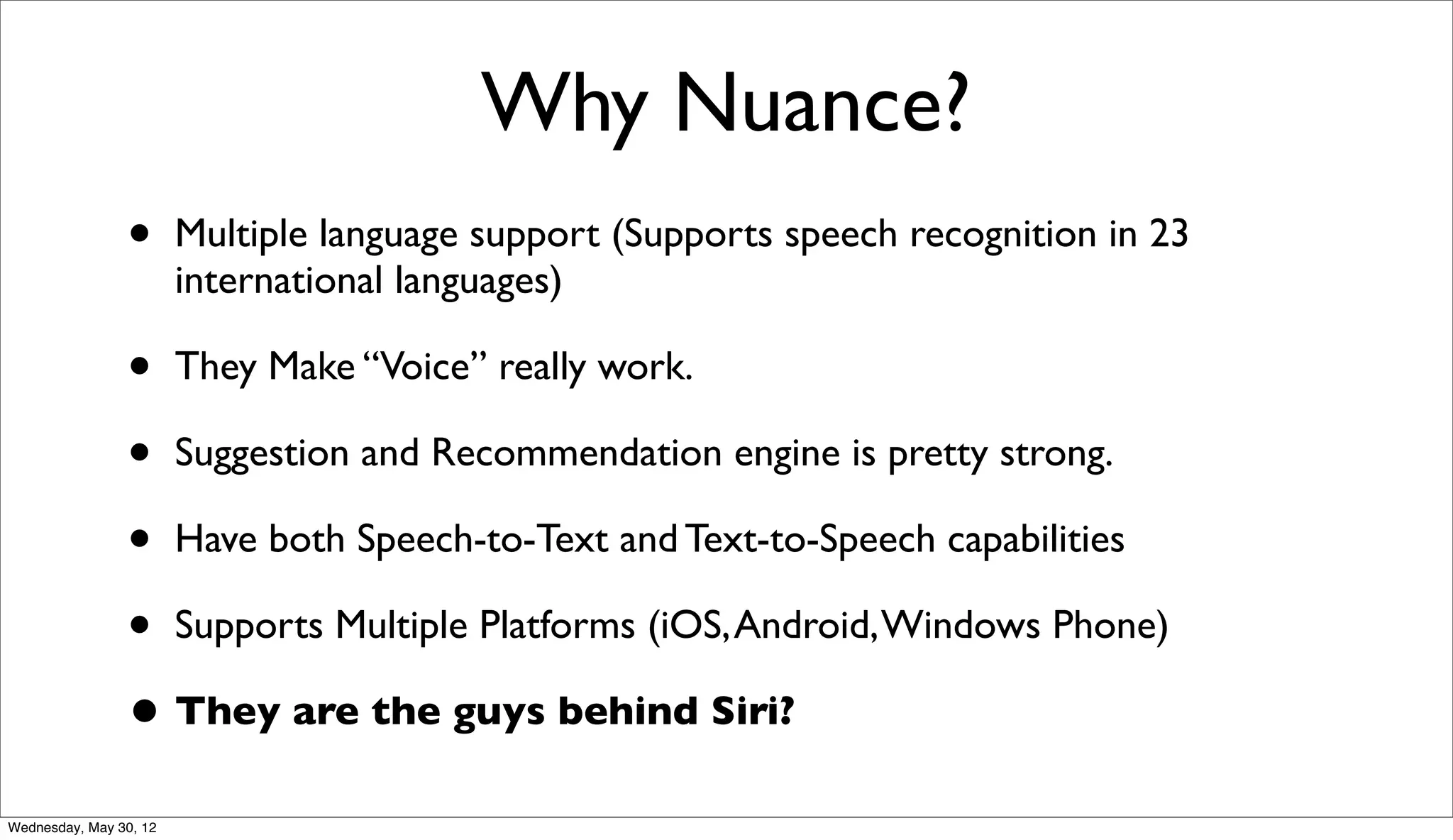

5. Why Nuance?
• Multiple language support (Supports speech recognition in 23
international languages)
• They Make “Voice” really work.
• Suggestion and Recommendation engine is pretty strong.
• Have both Speech-to-Text and Text-to-Speech capabilities
• Supports Multiple Platforms (iOS, Android, Windows Phone)
• They are the guys behind Siri?
Wednesday, May 30, 12

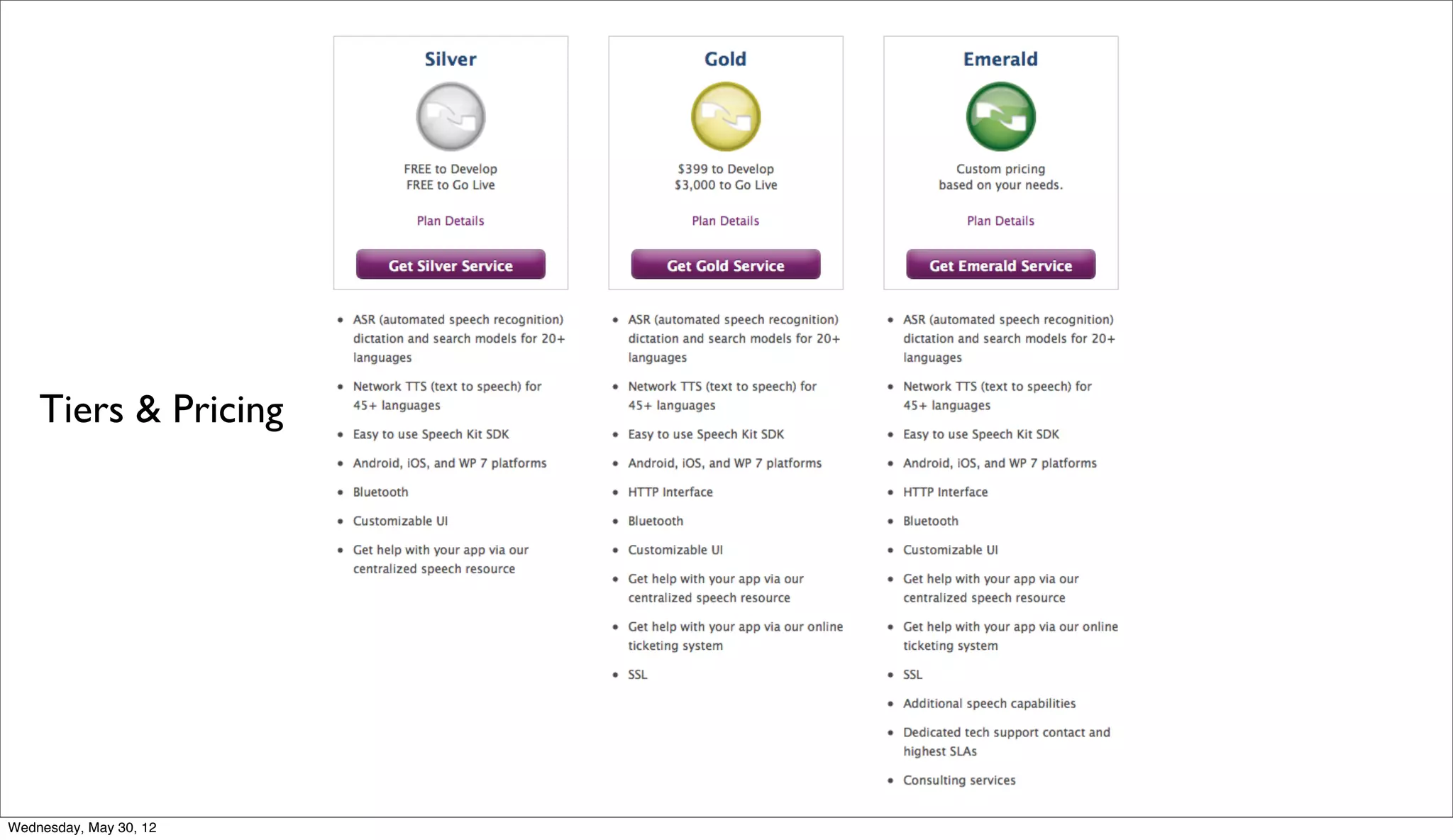

6. Tiers & Pricing
Wednesday, May 30, 12

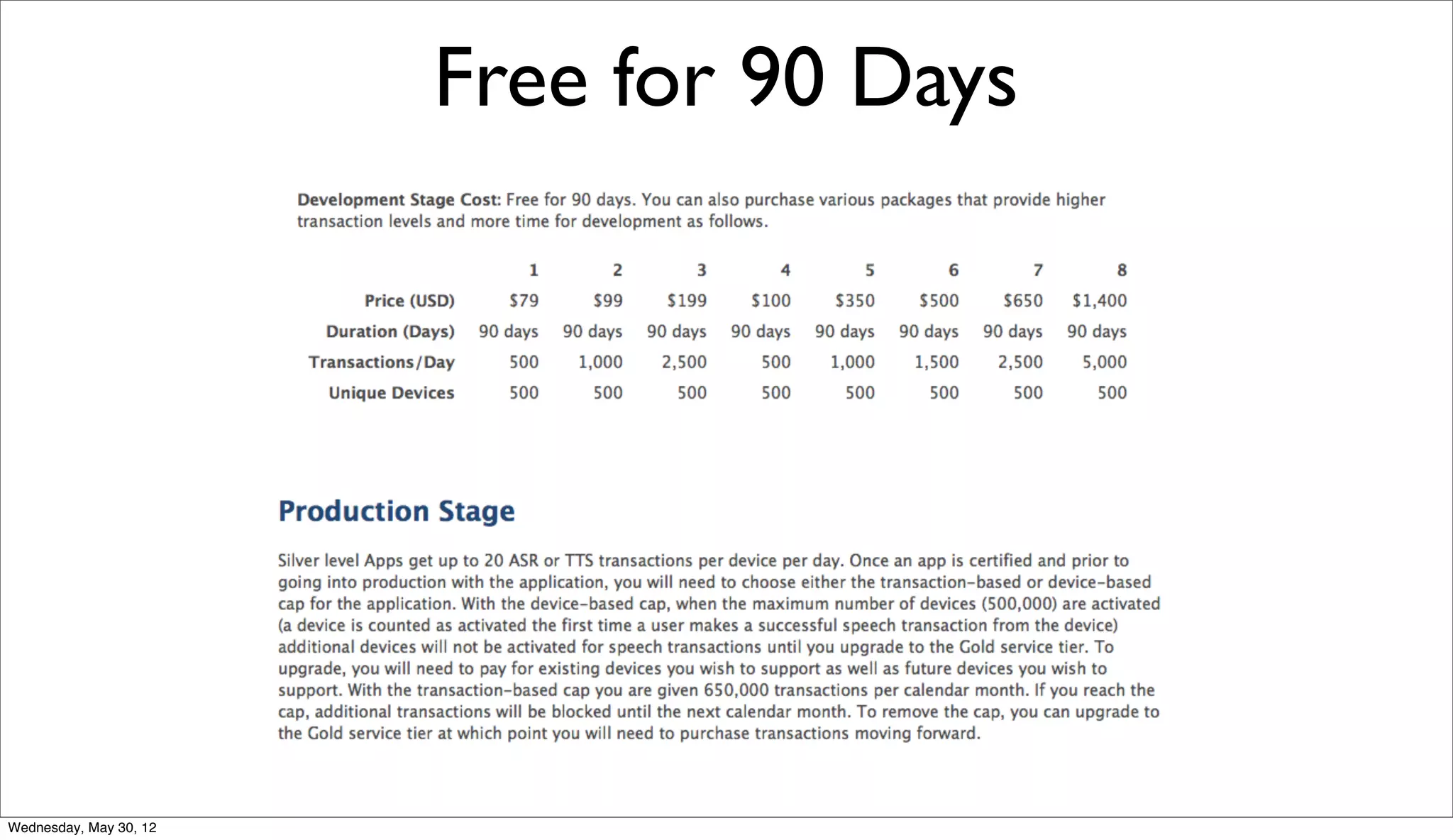

7. Free for 90 Days
Wednesday, May 30, 12

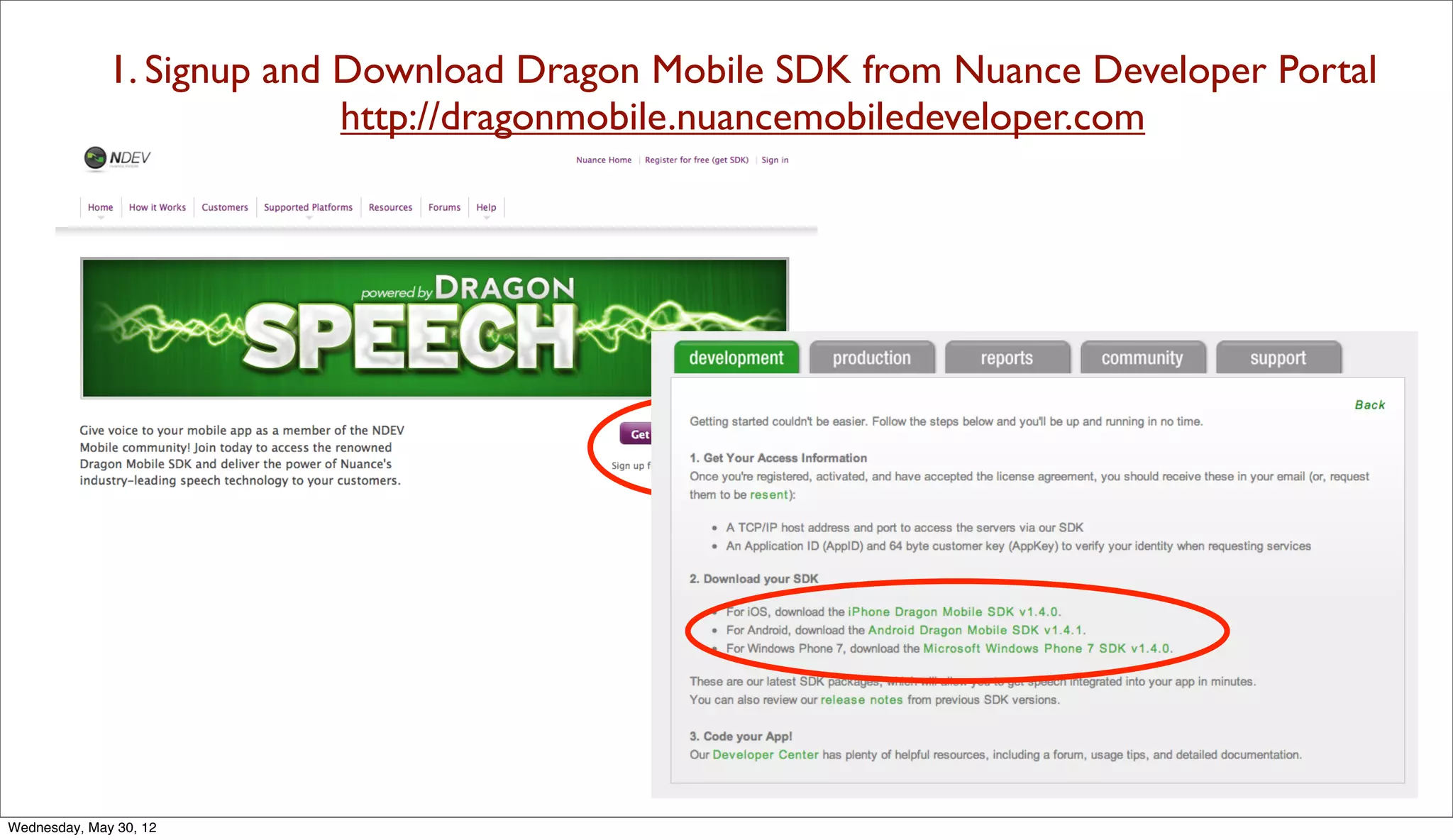

8. 1. Signup and Download Dragon Mobile SDK from Nuance Developer Portal
http://dragonmobile.nuancemobiledeveloper.com
Wednesday, May 30, 12

9. Get Application Key from Email
Wednesday, May 30, 12

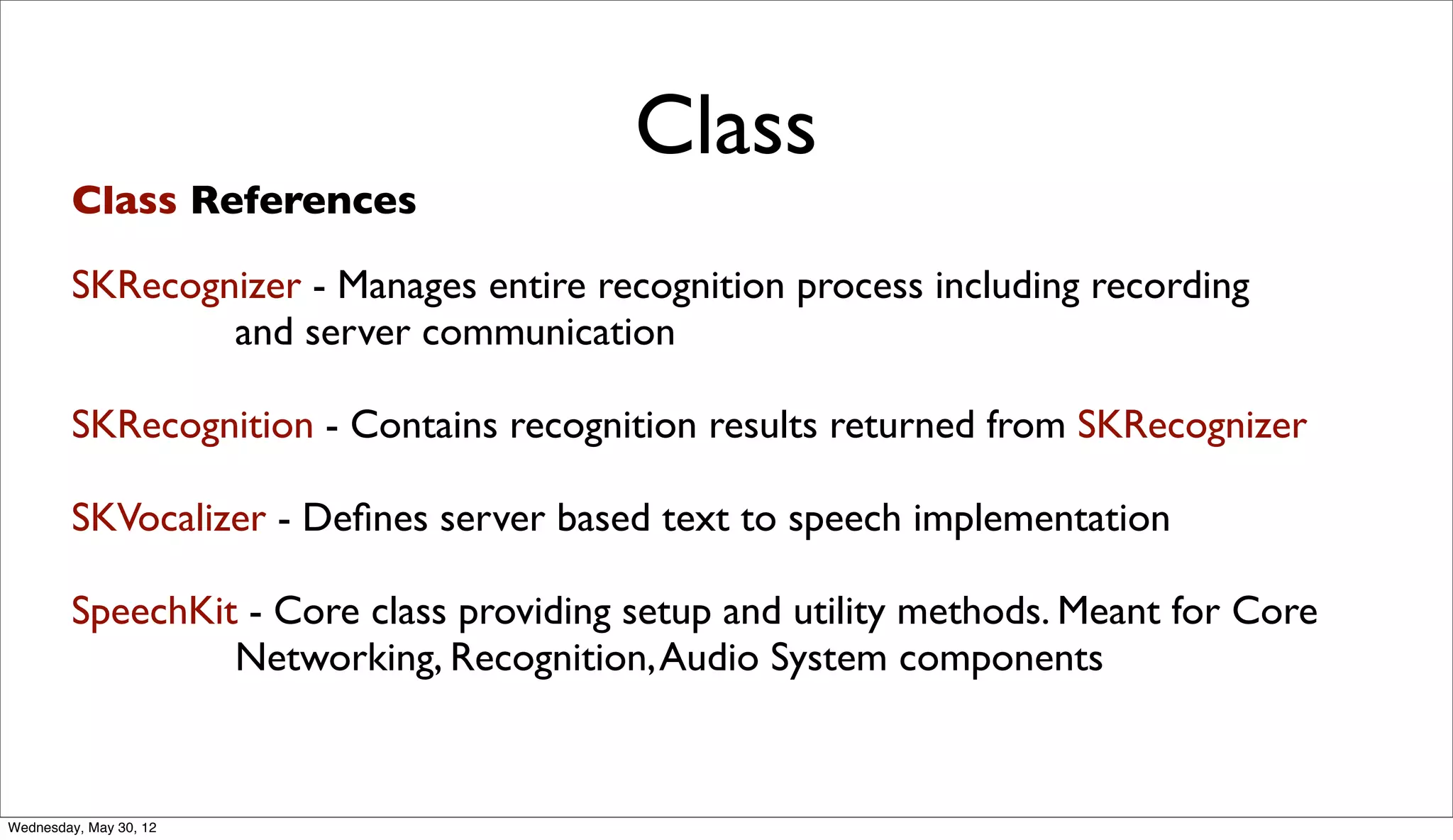

10. Class
Class References
SKRecognizer - Manages entire recognition process including recording
and server communication
SKRecognition - Contains recognition results returned from SKRecognizer
SKVocalizer - Defines server based text to speech implementation
SpeechKit - Core class providing setup and utility methods. Meant for Core
Networking, Recognition, Audio System components
Wednesday, May 30, 12

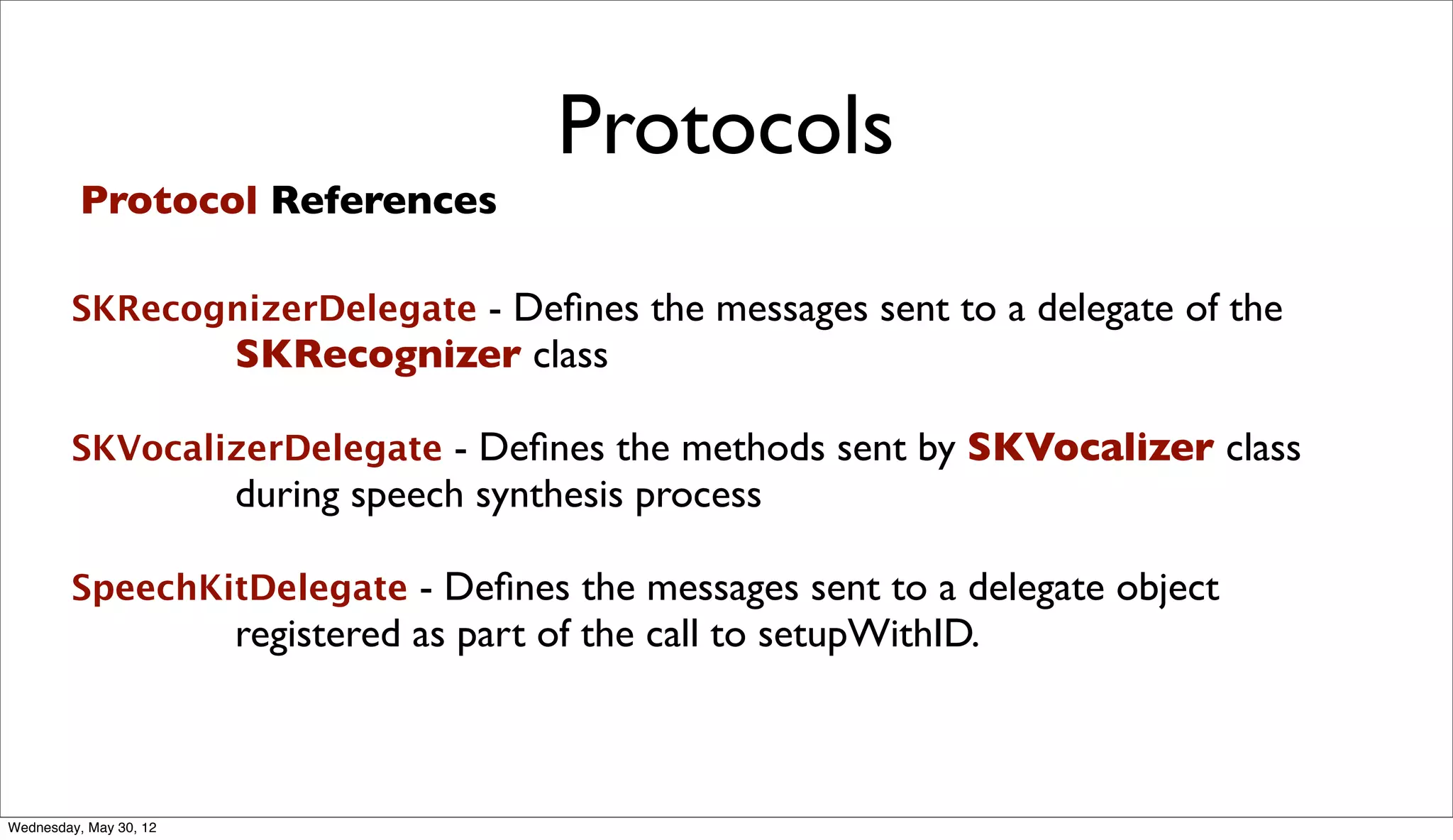

11. Protocols
Protocol References
SKRecognizerDelegate - Defines the messages sent to a delegate of the
SKRecognizer class
SKVocalizerDelegate - Defines the methods sent by SKVocalizer class
during speech synthesis process
SpeechKitDelegate - Defines the messages sent to a delegate object
registered as part of the call to setupWithID.
Wednesday, May 30, 12

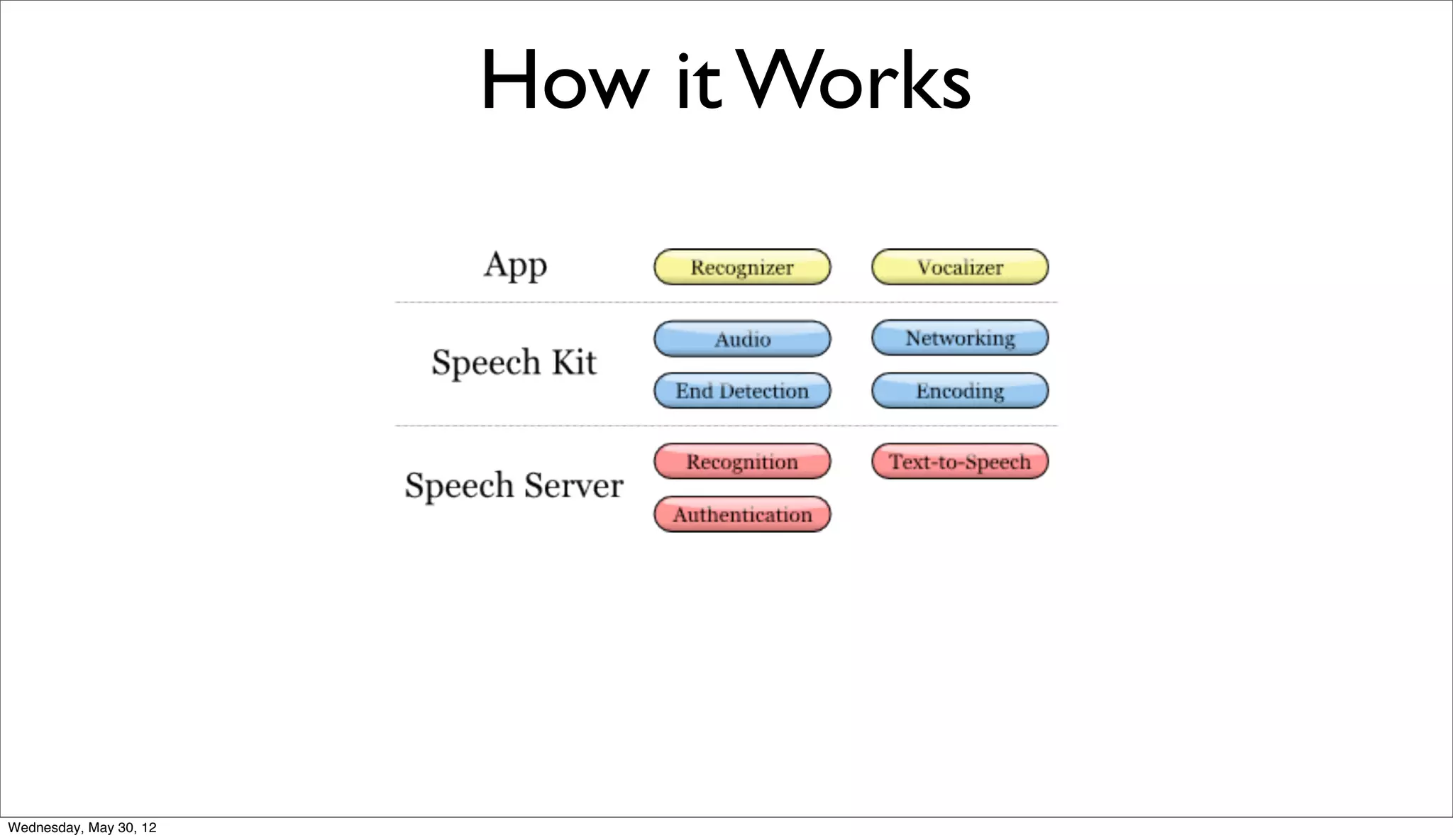

12. How it Works
Wednesday, May 30, 12

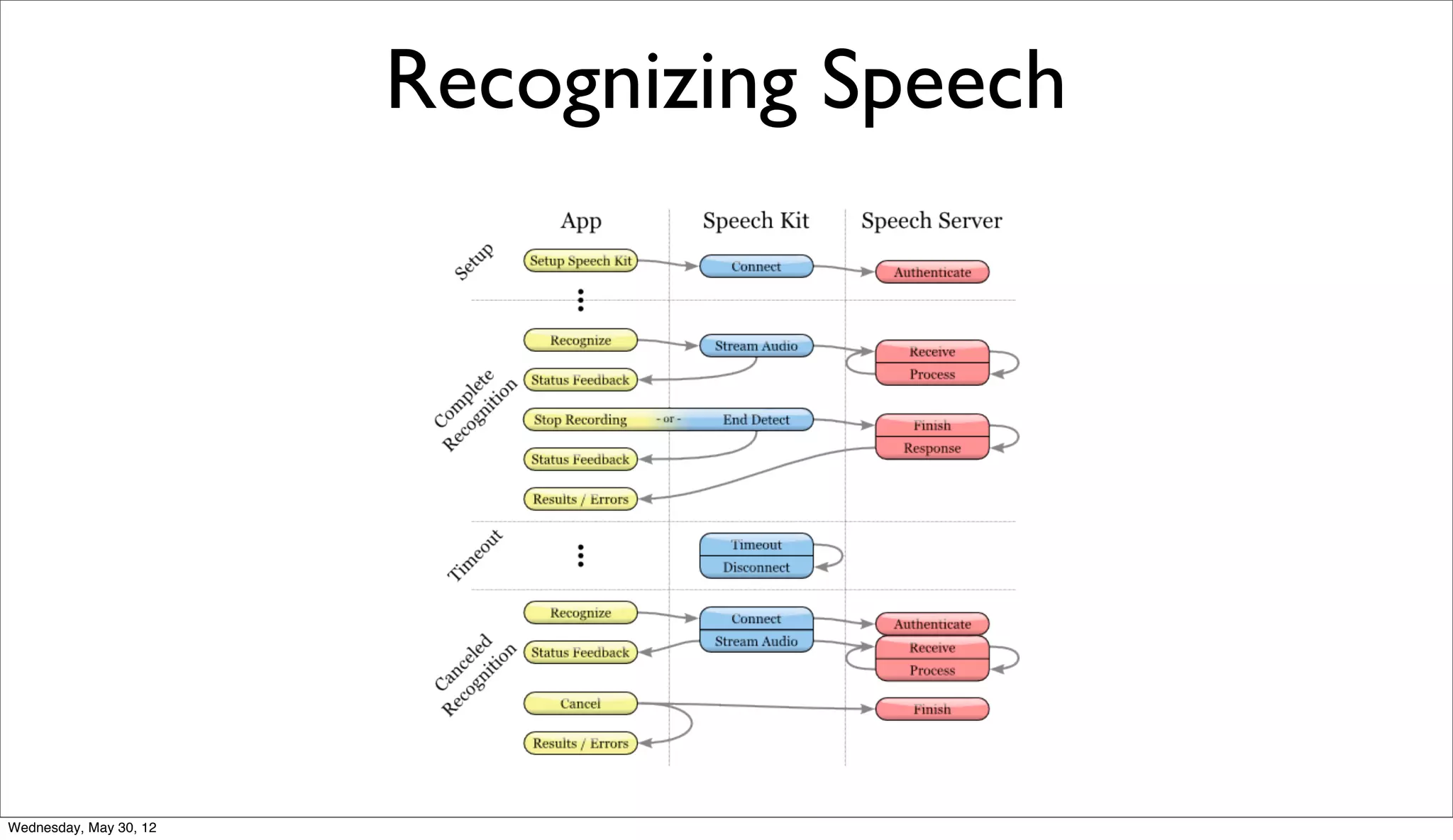

13. Recognizing Speech
Wednesday, May 30, 12

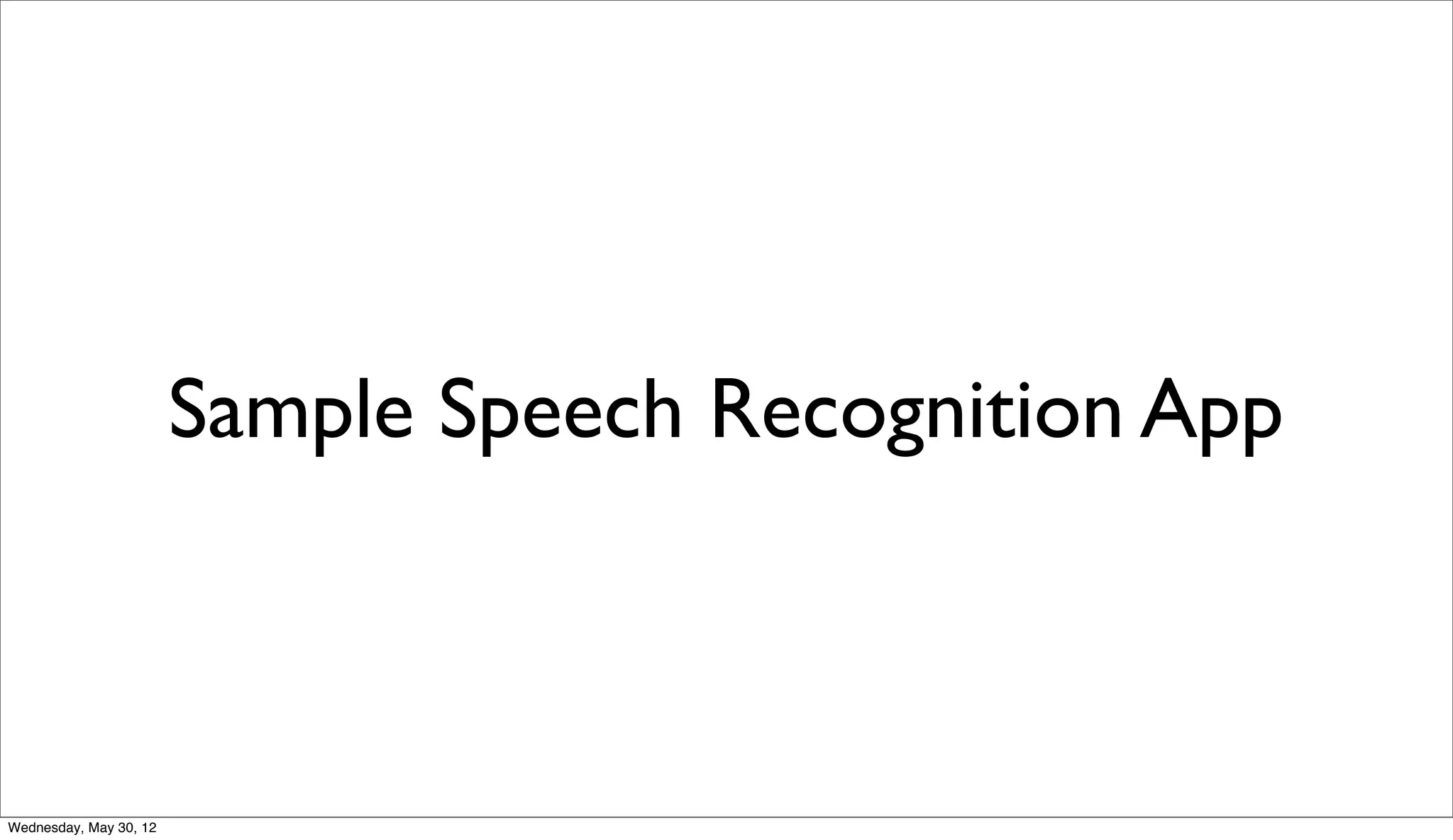

14. Sample Speech Recognition App
Wednesday, May 30, 12

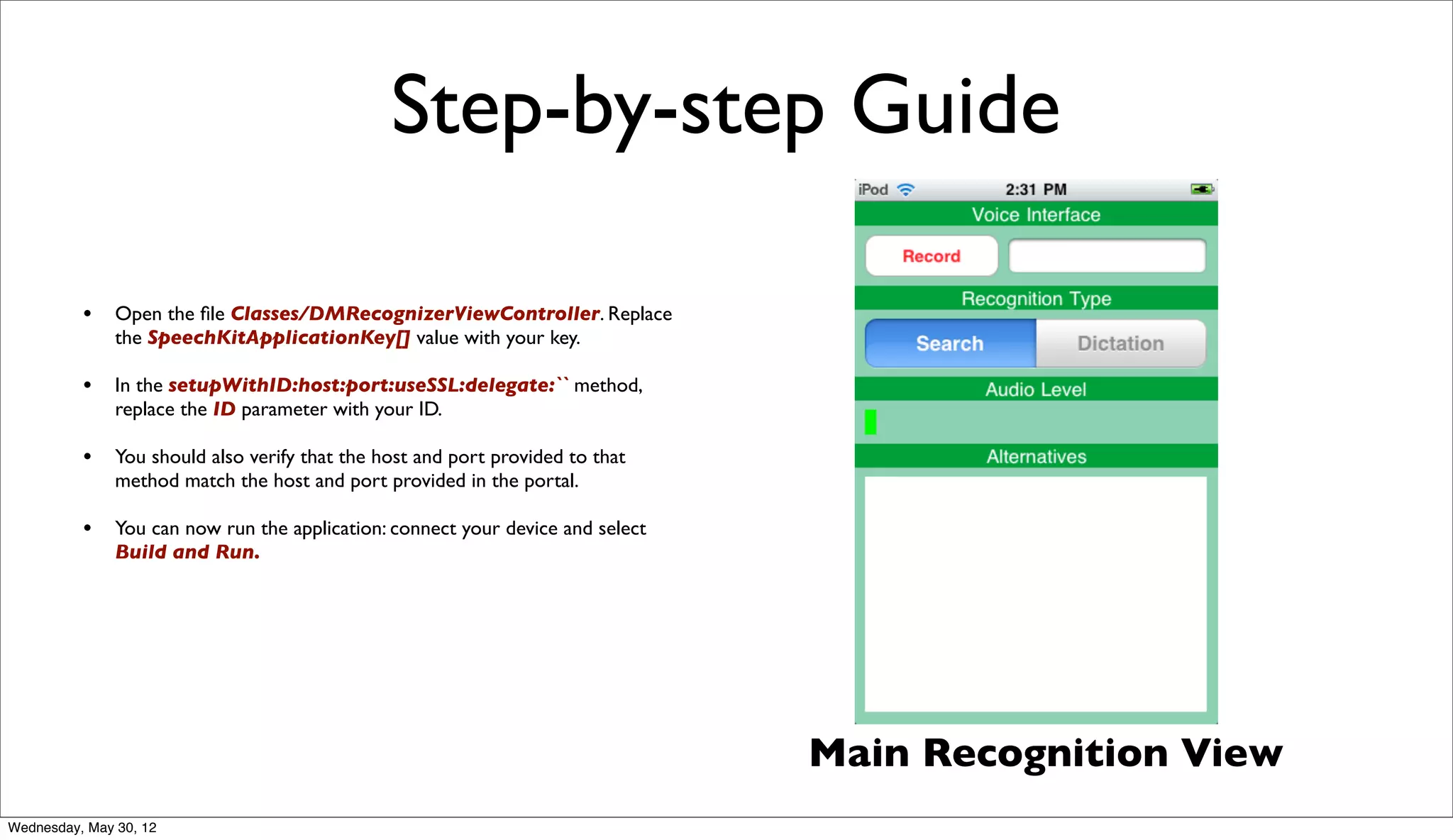

15. Step-by-step Guide
• Open the file Classes/DMRecognizerViewController. Replace
the SpeechKitApplicationKey[] value with your key.
• In the setupWithID:host:port:useSSL:delegate:`` method,
replace the ID parameter with your ID.
• You should also verify that the host and port provided to that
method match the host and port provided in the portal.
• You can now run the application: connect your device and select
Build and Run.
Main Recognition View
Wednesday, May 30, 12

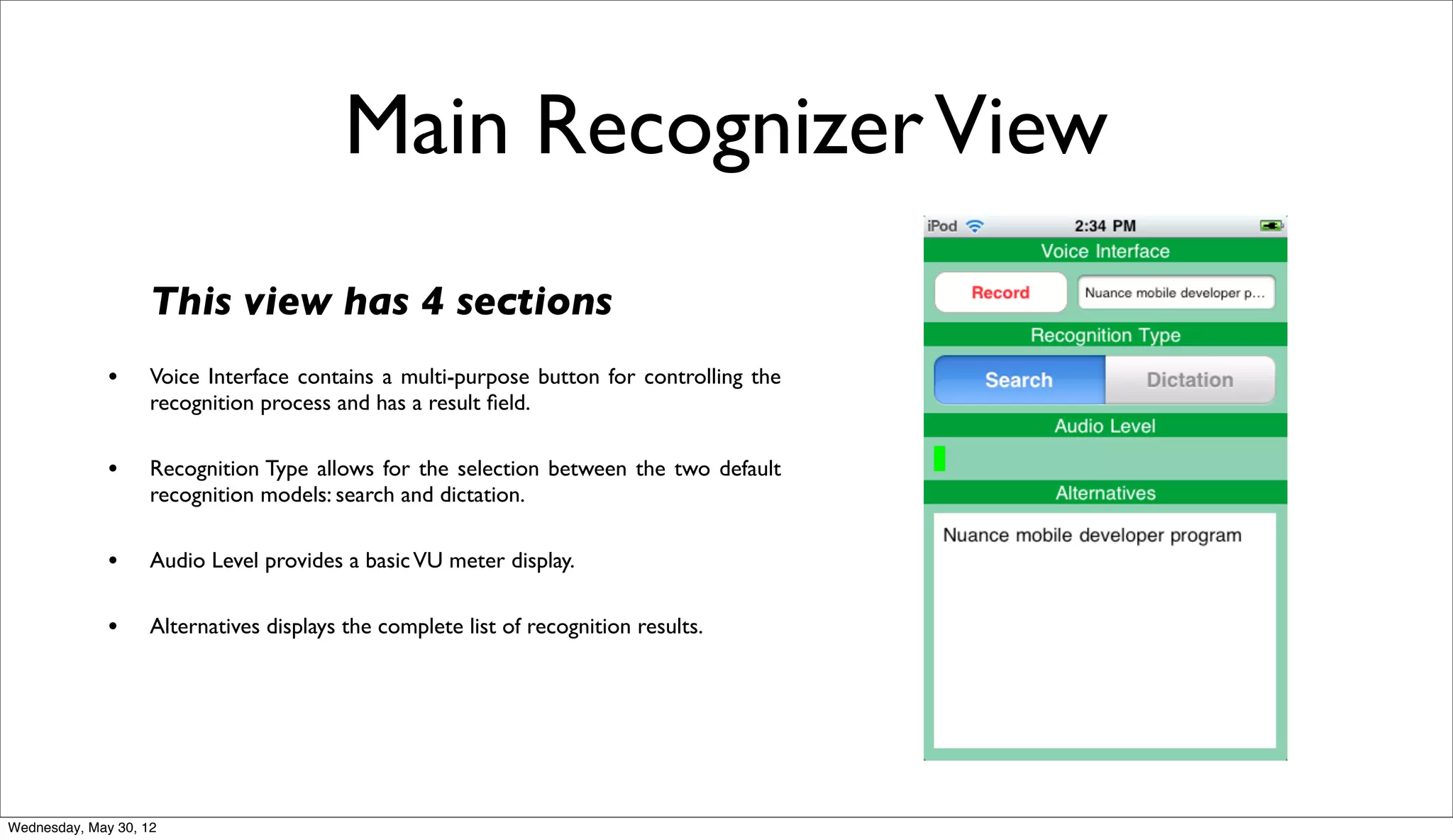

16. Main Recognizer View
This view has 4 sections
• Voice Interface contains a multi-purpose button for controlling the
recognition process and has a result field.
• Recognition Type allows for the selection between the two default
recognition models: search and dictation.
• Audio Level provides a basic VU meter display.
• Alternatives displays the complete list of recognition results.
Wednesday, May 30, 12

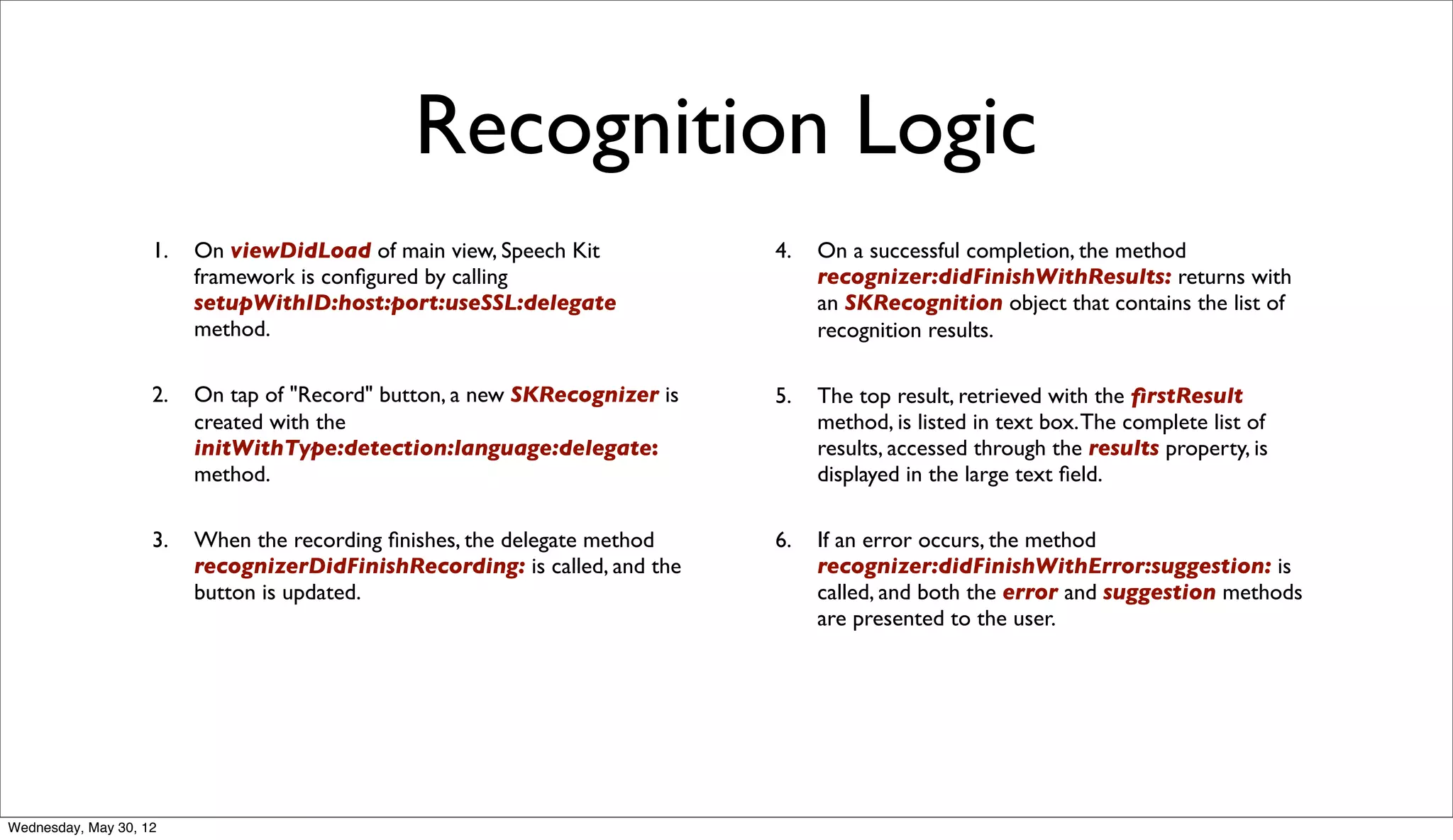

17. Recognition Logic
1. On viewDidLoad of main view, Speech Kit 4. On a successful completion, the method
framework is configured by calling recognizer:didFinishWithResults: returns with
setupWithID:host:port:useSSL:delegate an SKRecognition object that contains the list of
method. recognition results.
2. On tap of "Record" button, a new SKRecognizer is 5. The top result, retrieved with the firstResult
created with the method, is listed in text box. The complete list of
initWithType:detection:language:delegate: results, accessed through the results property, is
method. displayed in the large text field.
3. When the recording finishes, the delegate method 6. If an error occurs, the method
recognizerDidFinishRecording: is called, and the recognizer:didFinishWithError:suggestion: is
button is updated. called, and both the error and suggestion methods
are presented to the user.
Wednesday, May 30, 12

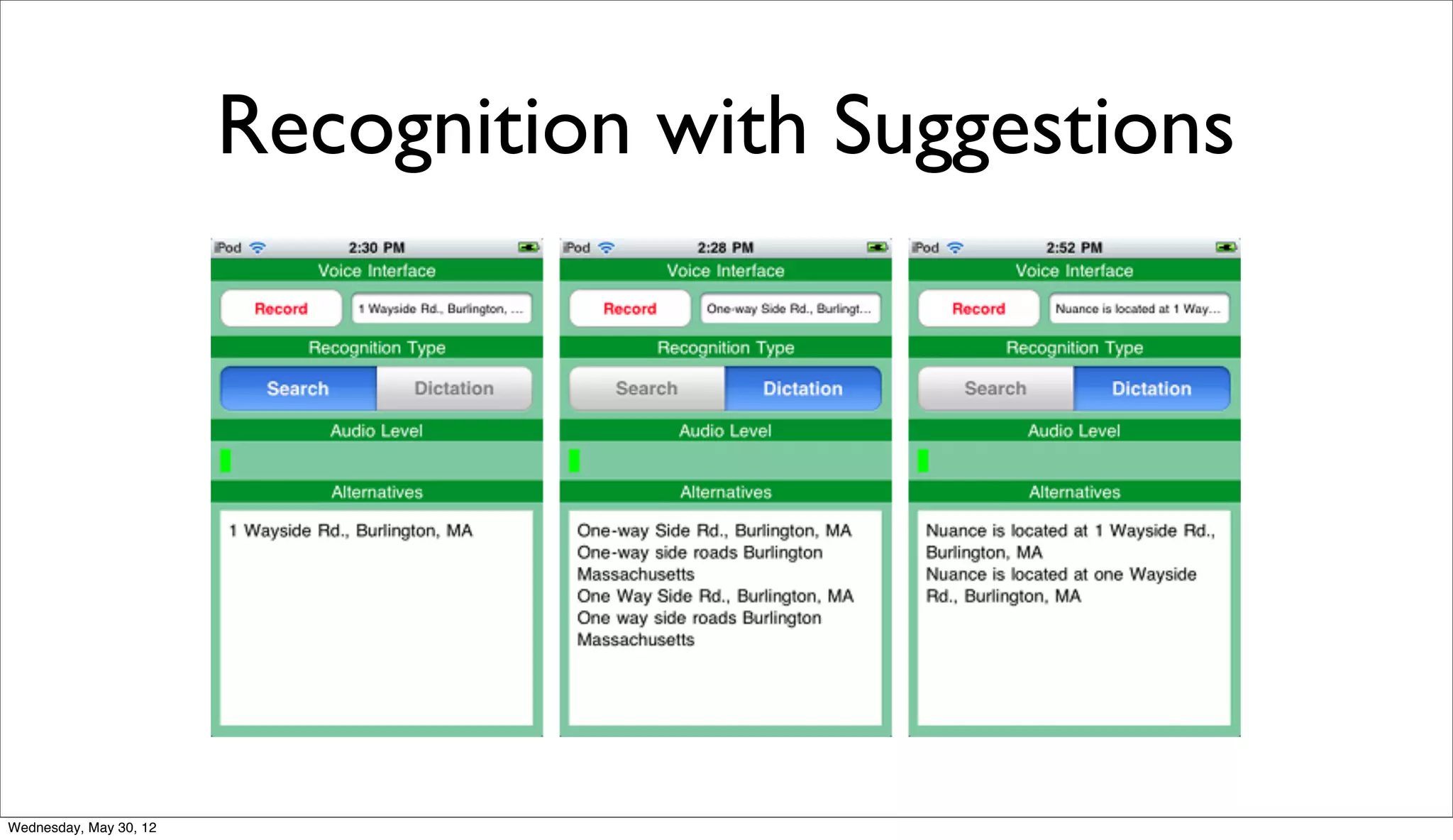

18. Recognition with Suggestions
Wednesday, May 30, 12

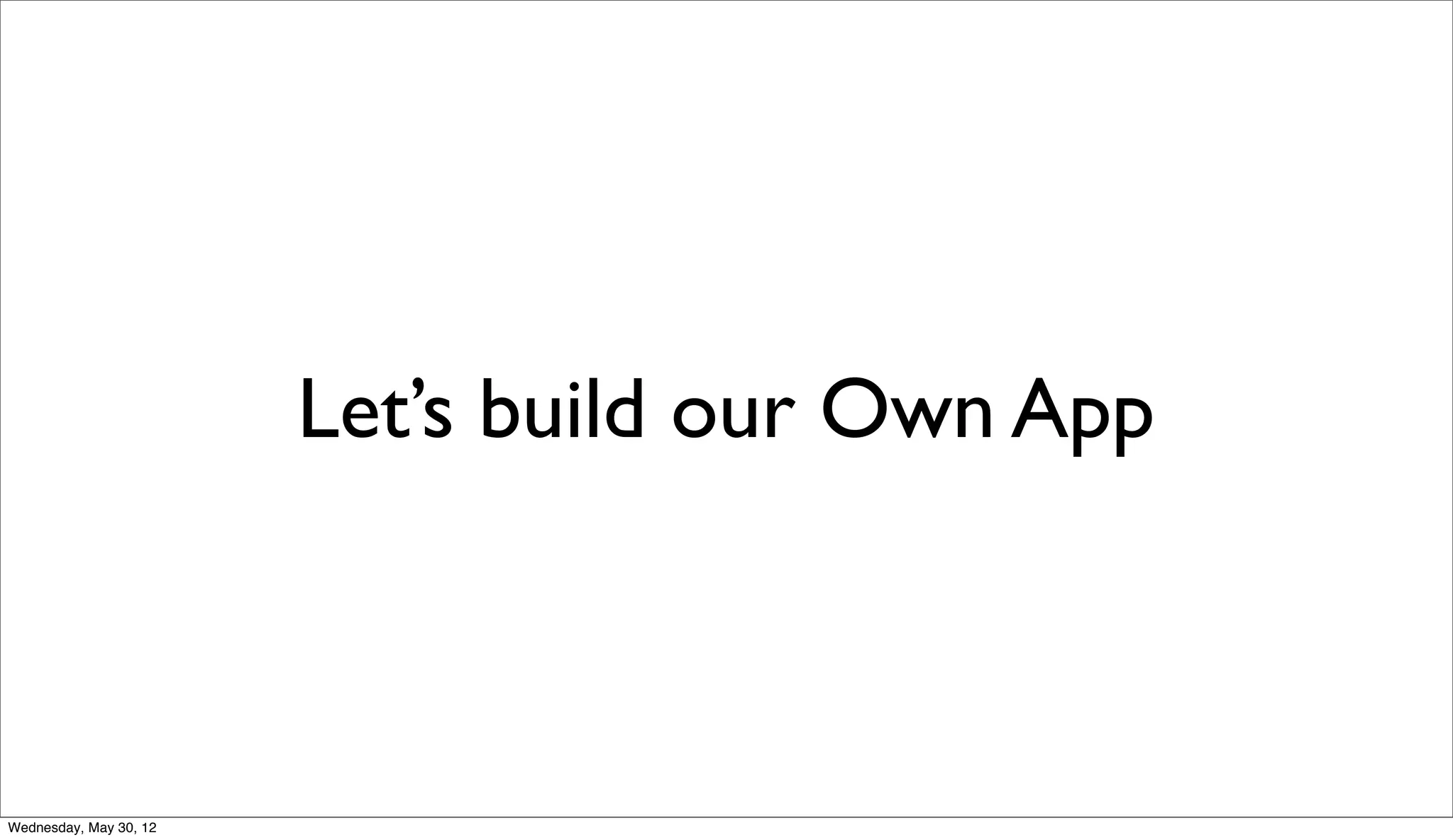

19. Let’s build our Own App
Wednesday, May 30, 12

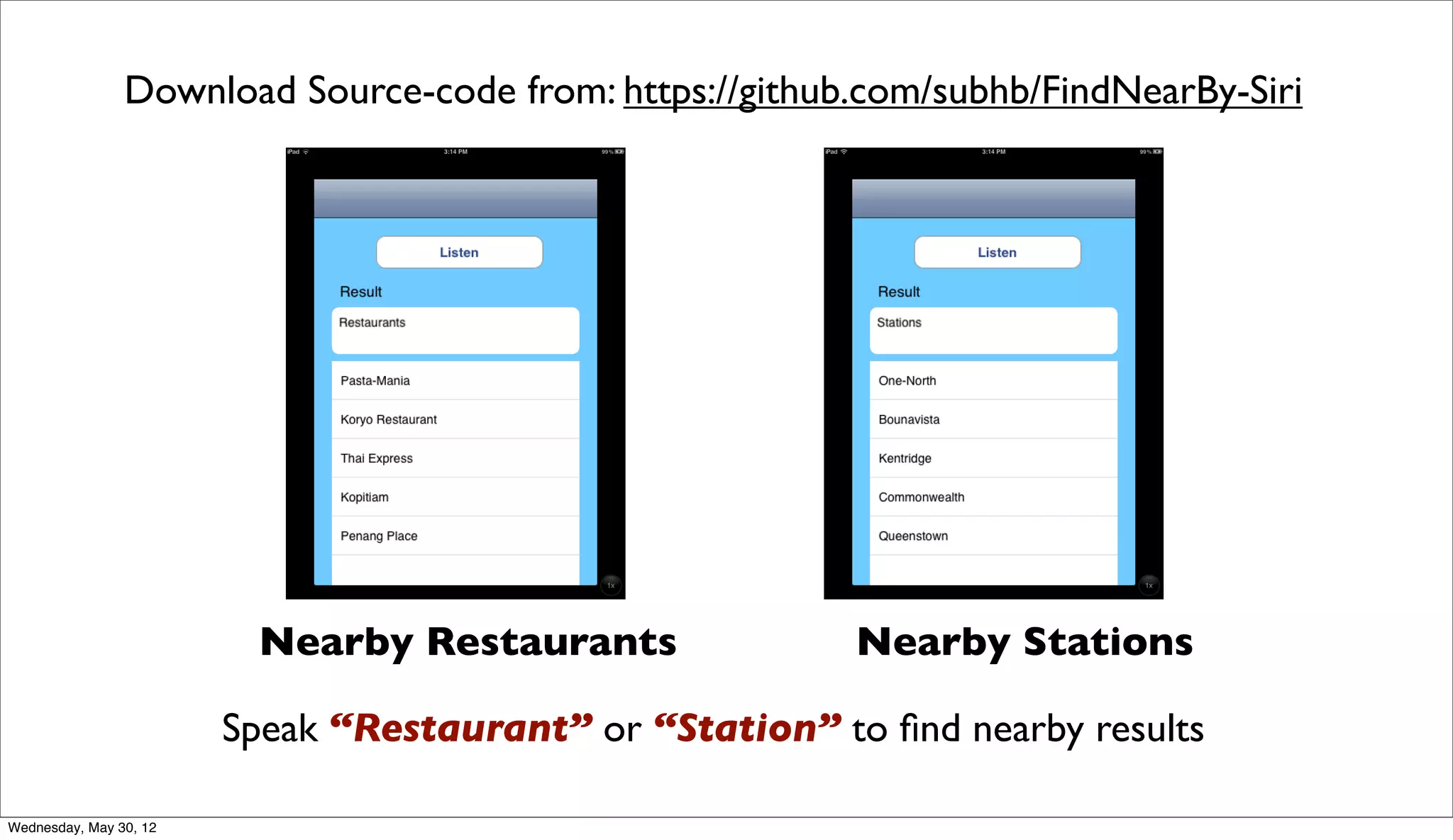

20. Download Source-code from: https://github.com/subhb/FindNearBy-Siri
Nearby Restaurants Nearby Stations
Speak “Restaurant” or “Station” to find nearby results
Wednesday, May 30, 12

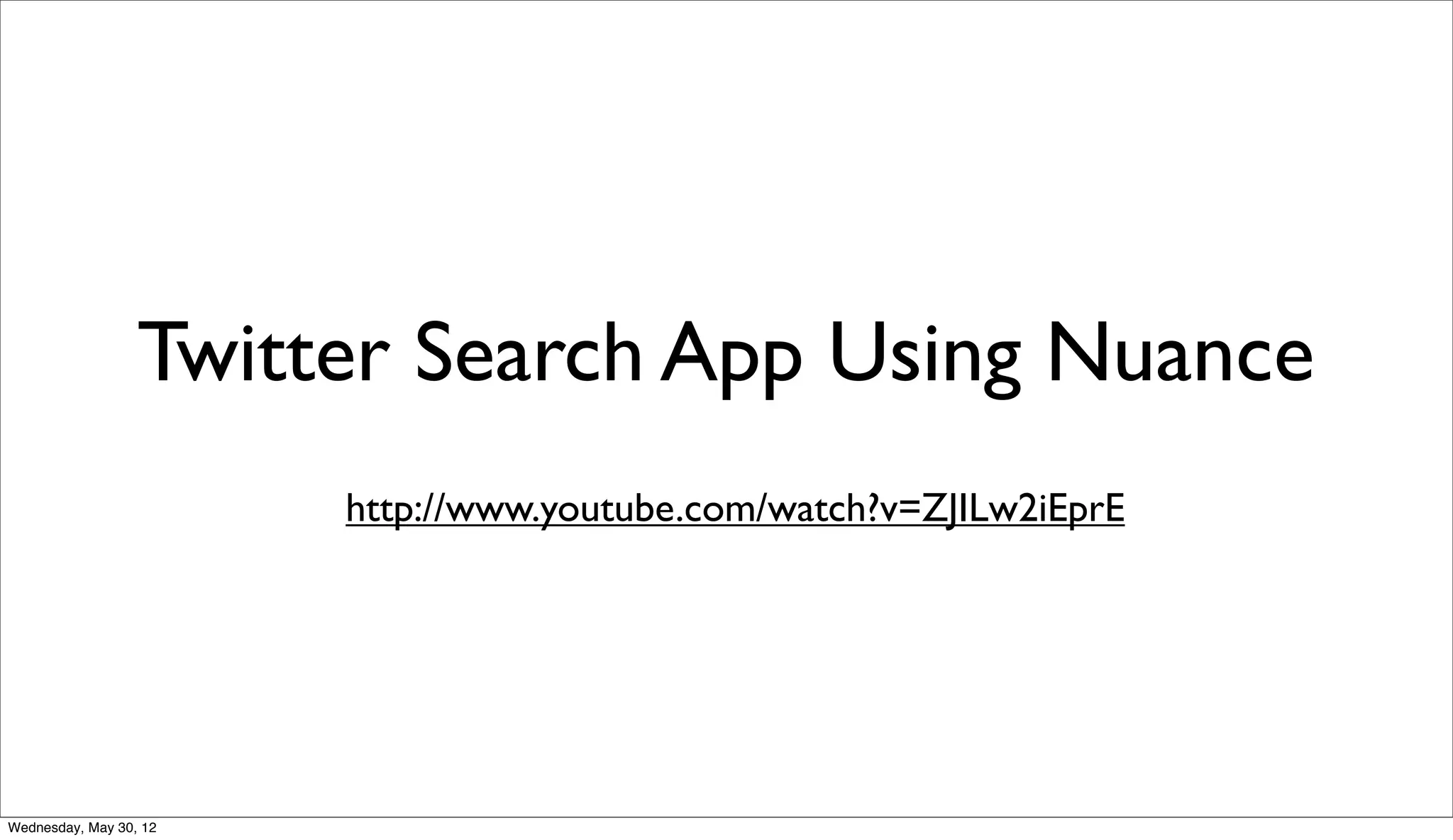

21. Twitter Search App Using Nuance
http://www.youtube.com/watch?v=ZJILw2iEprE
Wednesday, May 30, 12

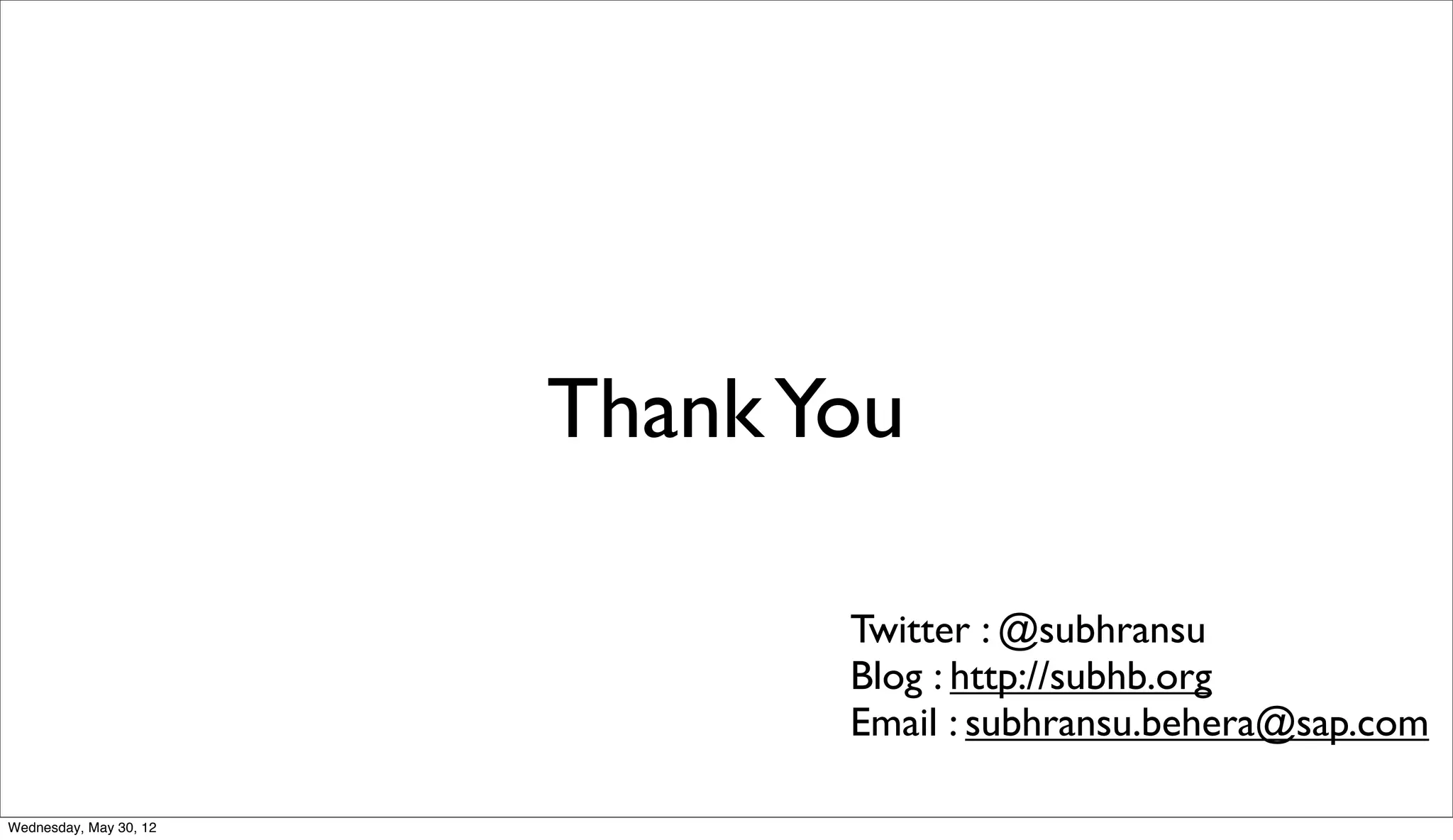

22. Thank You
Twitter : @subhransu
Blog : http://subhb.org
Email : subhransu.behera@sap.com
Wednesday, May 30, 12
