1. Saturday, 1 October 2011

2. Bonfire
Howʼd you do that?
Ian Grunert
Developer, Atlassian
2
Saturday, 1 October 2011

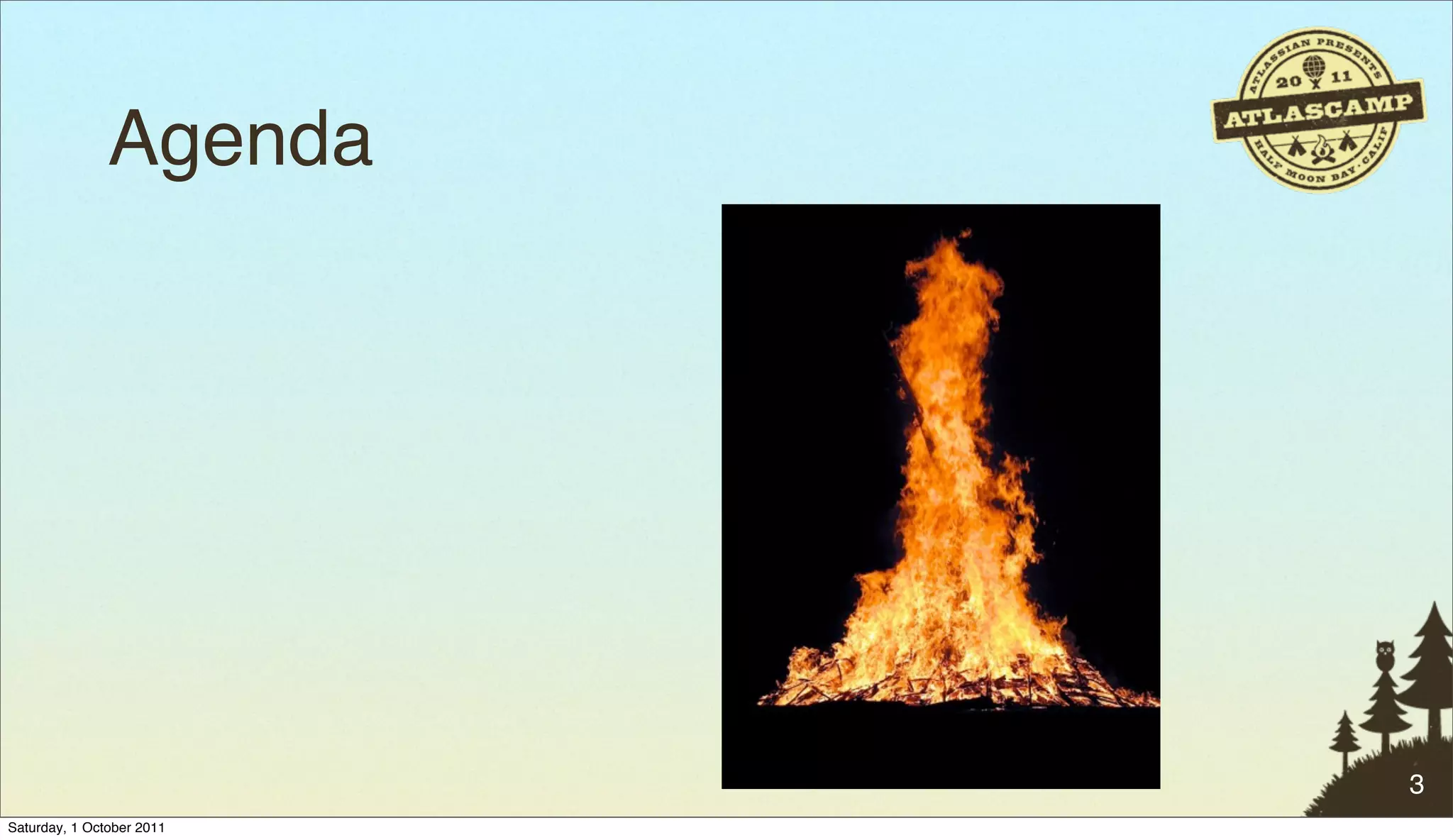

3. Agenda
3
Saturday, 1 October 2011

4. Agenda
• What is Bonfire?
3
Saturday, 1 October 2011

5. Agenda
• What is Bonfire?
• Building plugins for
multiple JIRA
versions
3
Saturday, 1 October 2011

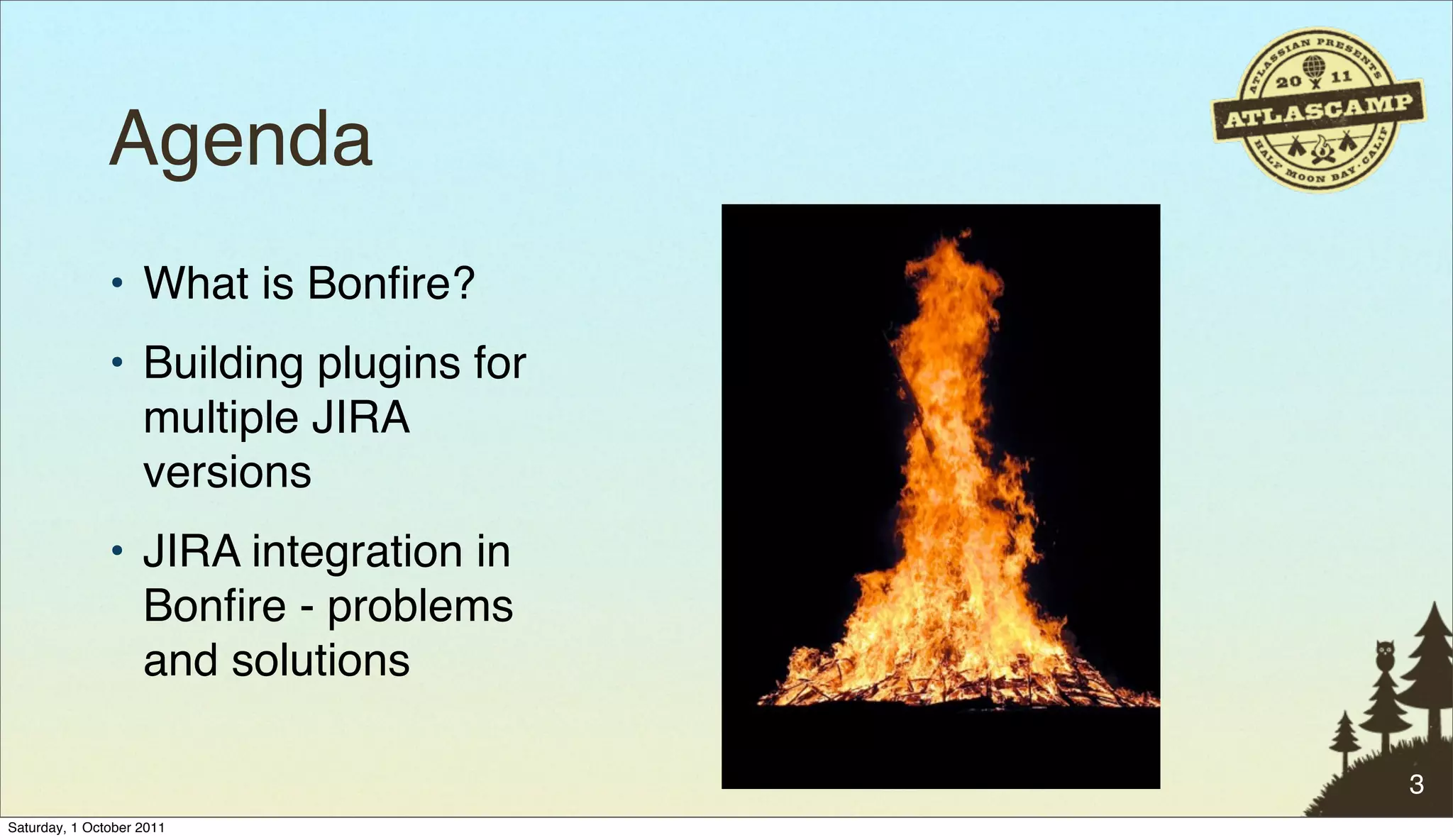

6. Agenda
• What is Bonfire?
• Building plugins for
multiple JIRA
versions
• JIRA integration in
Bonfire - problems
and solutions
3
Saturday, 1 October 2011

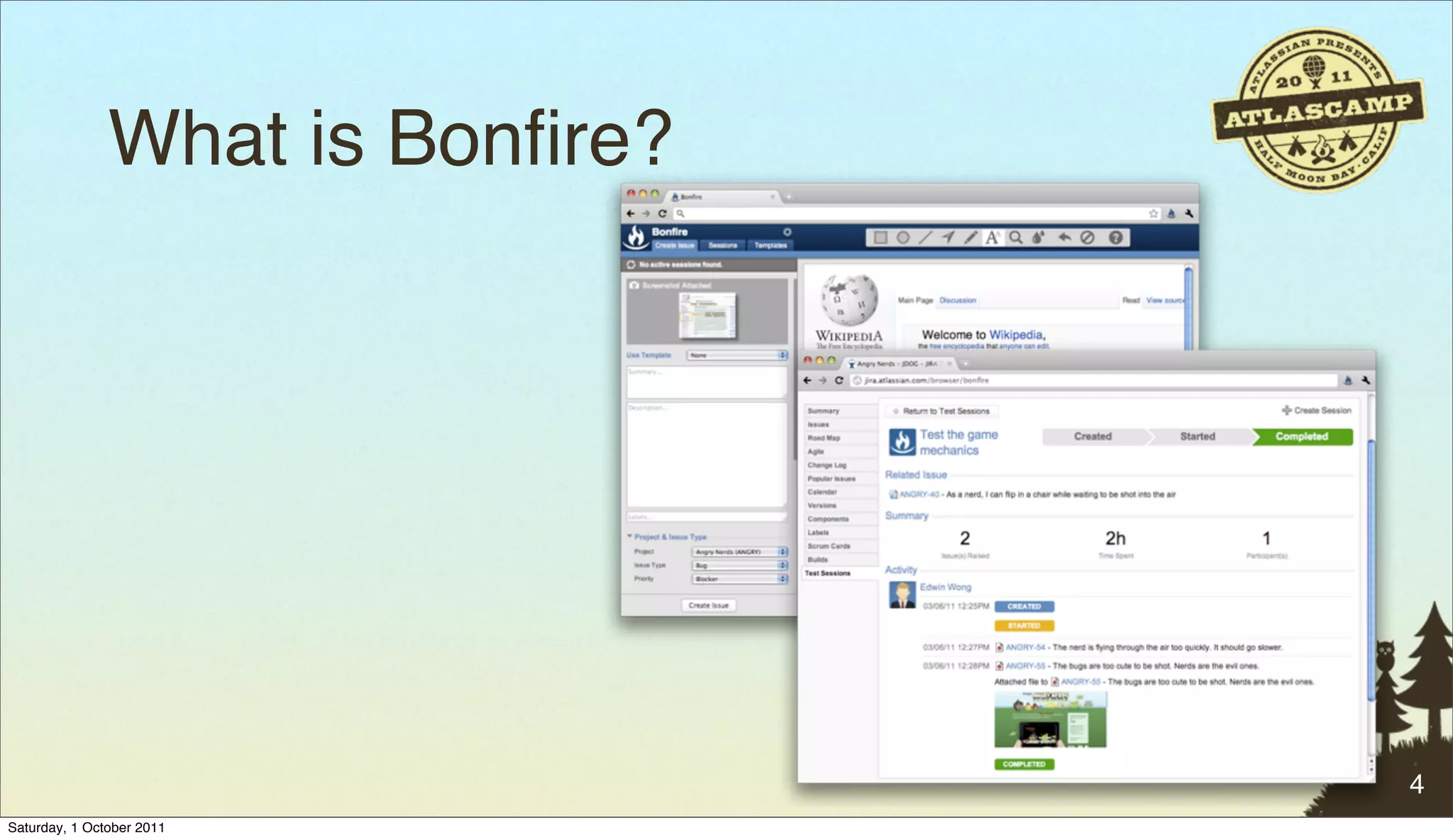

7. What is Bonfire?
4
Saturday, 1 October 2011

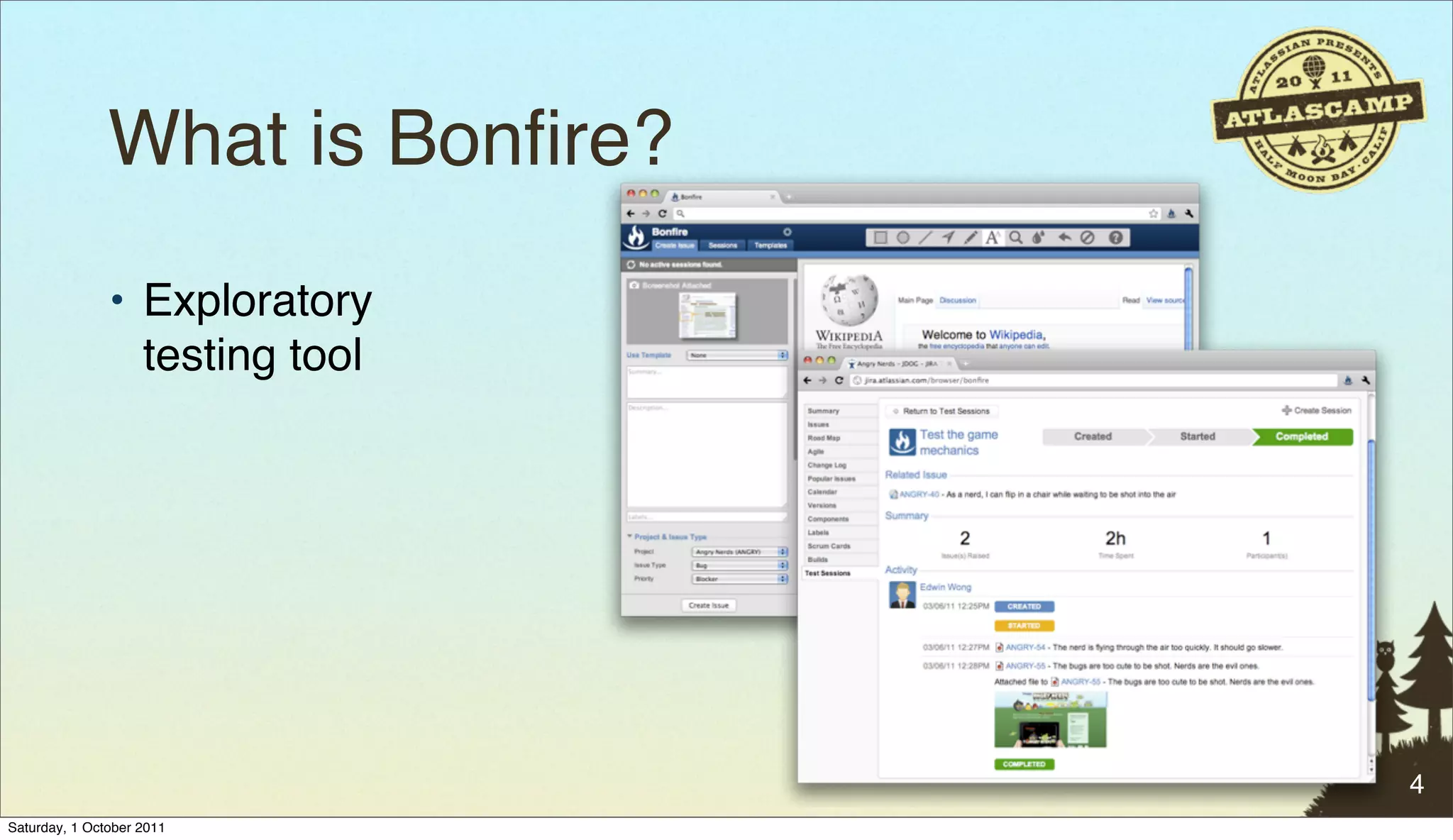

8. What is Bonfire?
• Exploratory
testing tool
4
Saturday, 1 October 2011

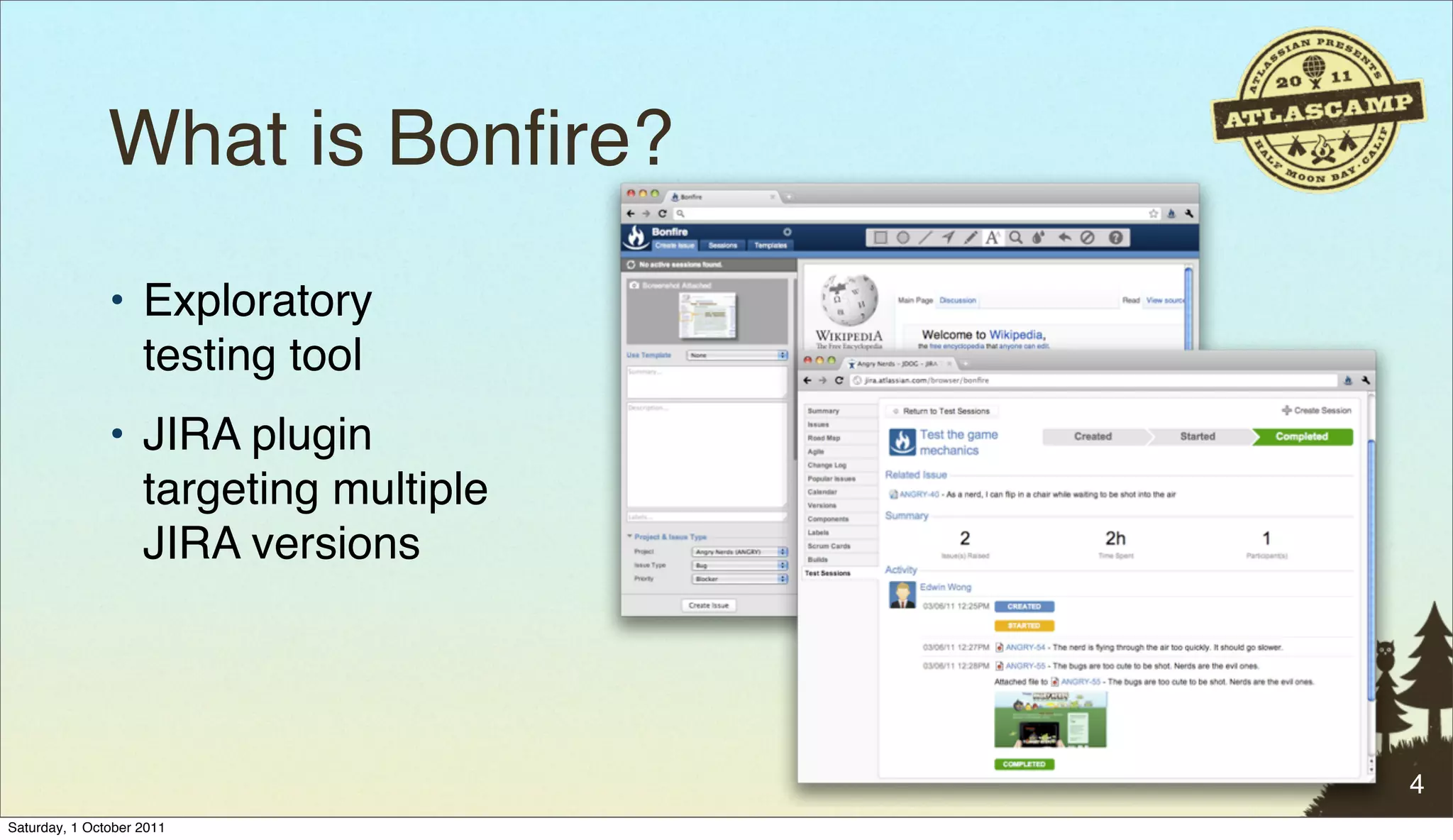

9. What is Bonfire?
• Exploratory
testing tool
• JIRA plugin
targeting multiple
JIRA versions
4
Saturday, 1 October 2011

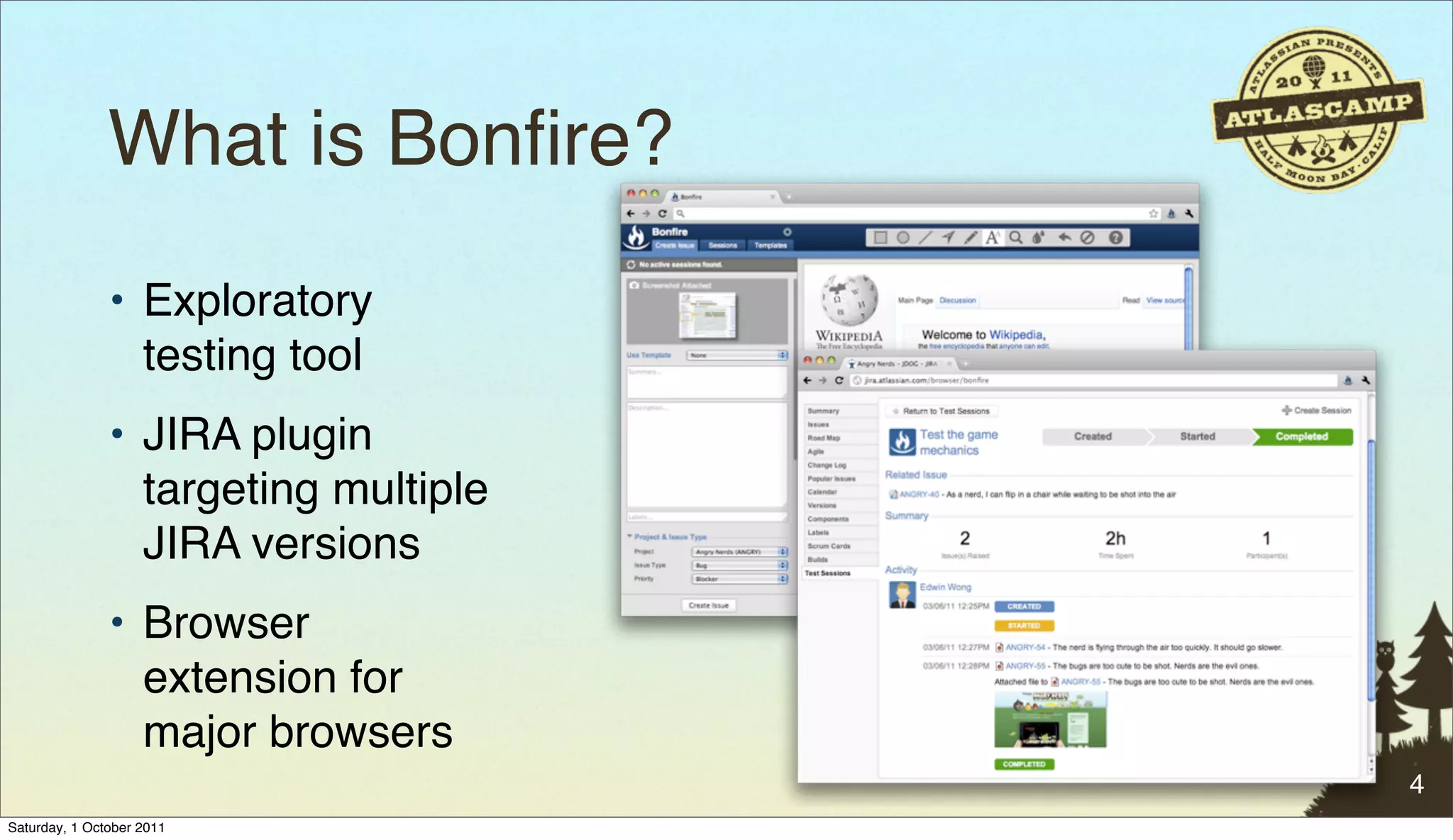

10. What is Bonfire?
• Exploratory
testing tool
• JIRA plugin
targeting multiple
JIRA versions
• Browser
extension for
major browsers
4
Saturday, 1 October 2011

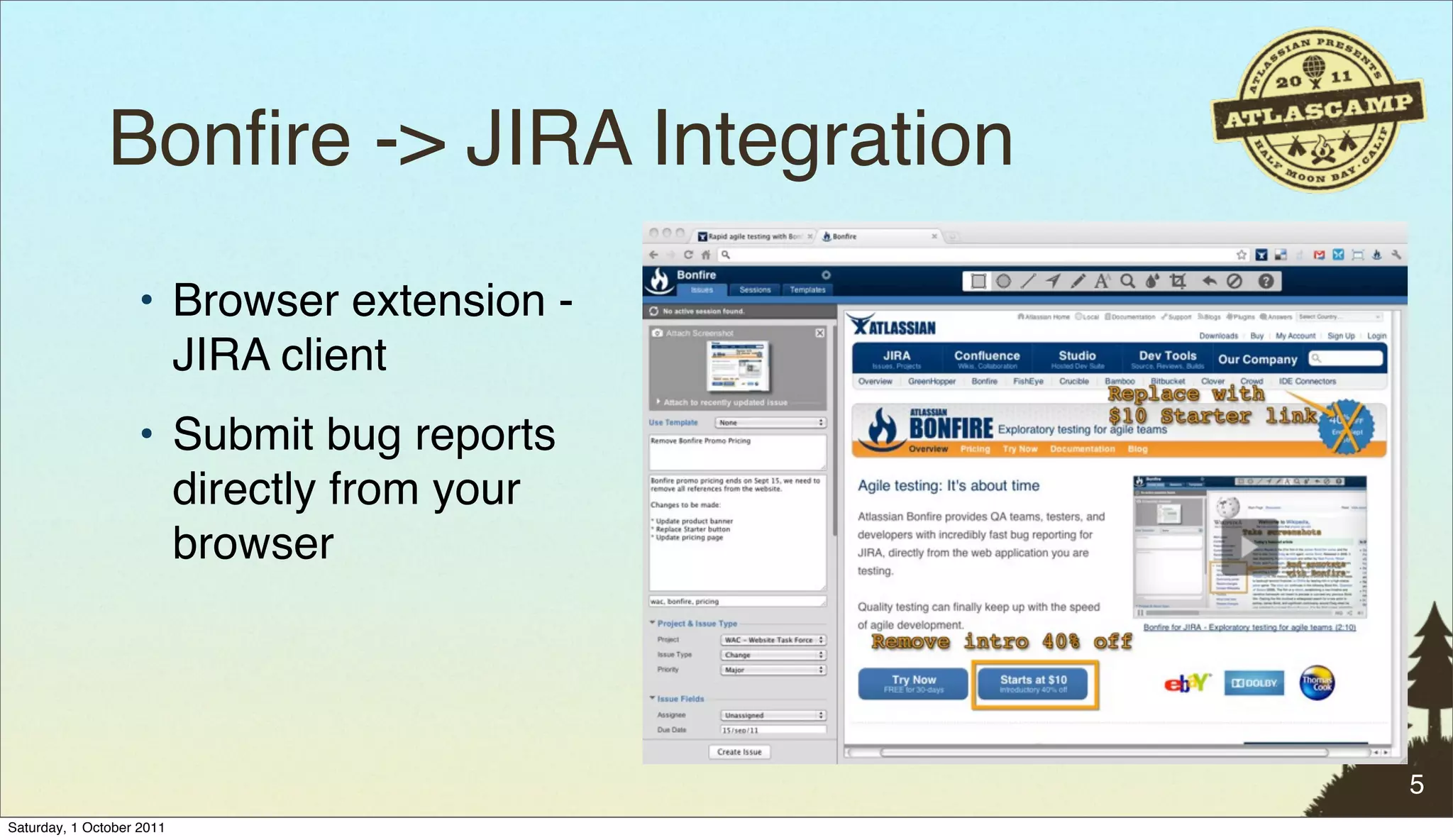

11. Bonfire -> JIRA Integration
• Browser extension -
JIRA client
• Submit bug reports
directly from your
browser
5
Saturday, 1 October 2011

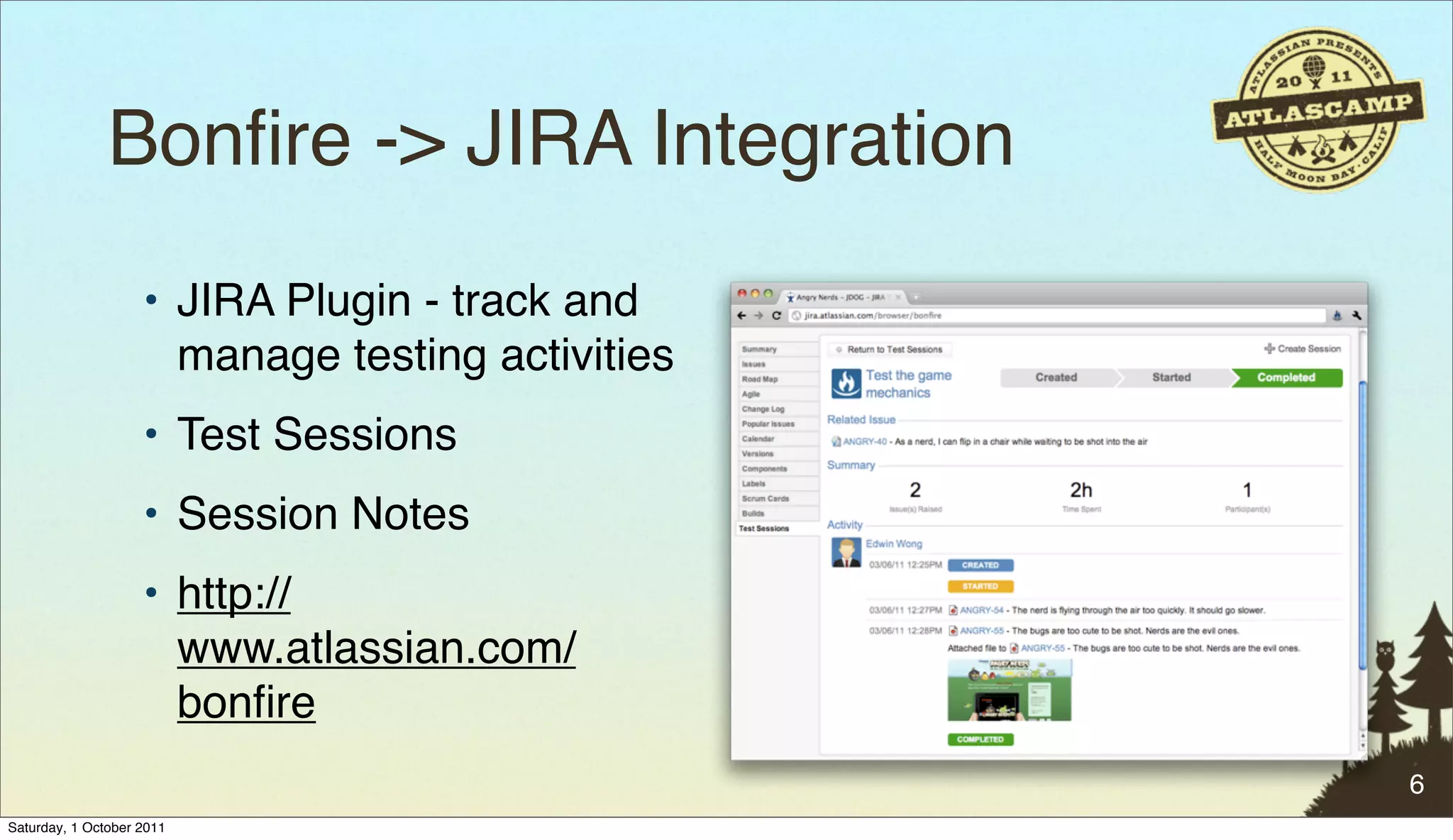

12. Bonfire -> JIRA Integration
• JIRA Plugin - track and
manage testing activities
• Test Sessions
• Session Notes
• http://
www.atlassian.com/
bonfire
6
Saturday, 1 October 2011

13. Building multiple JIRA version
supported plugins"
7
Saturday, 1 October 2011

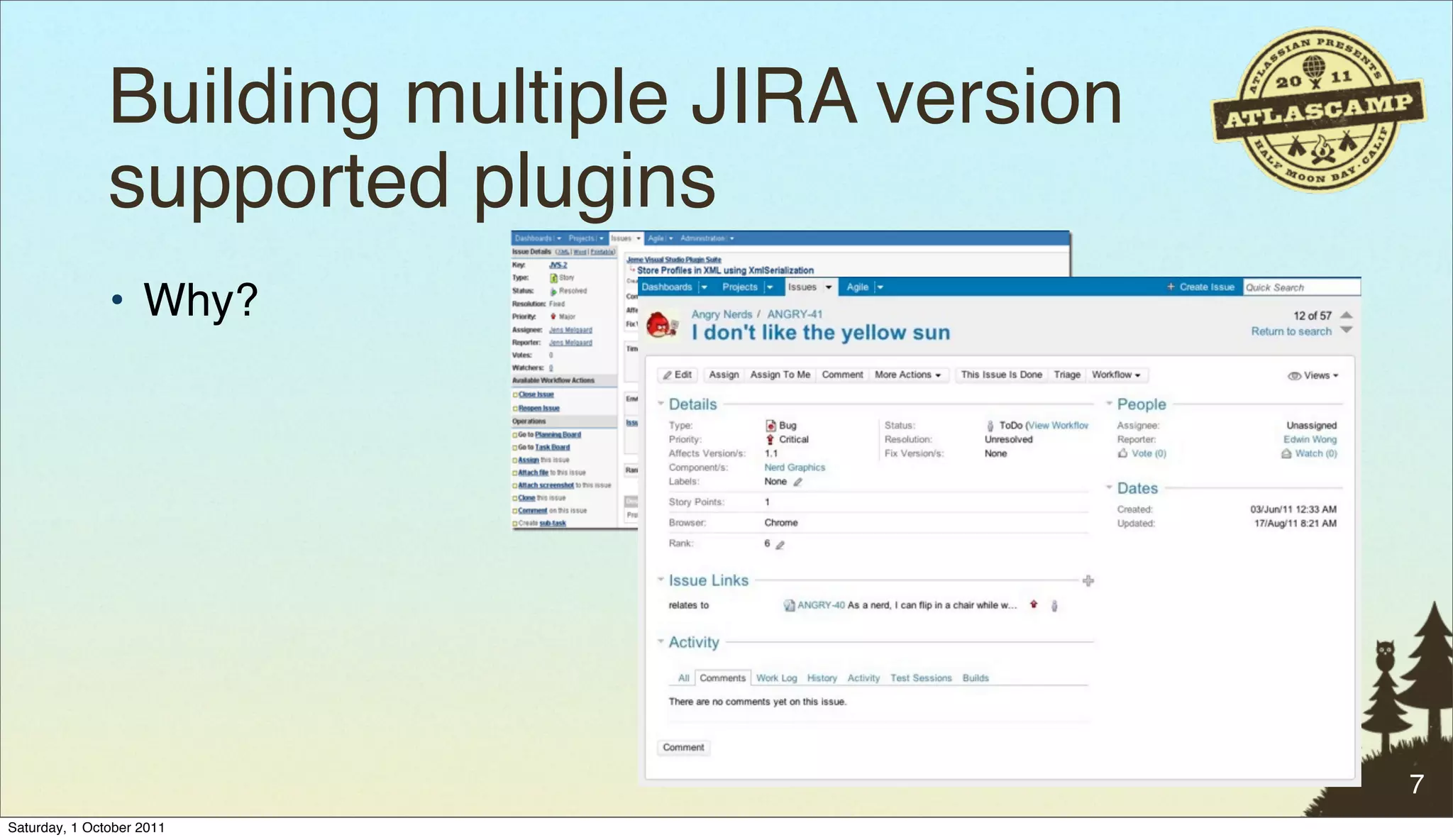

14. Building multiple JIRA version
supported plugins"
• Why?
7
Saturday, 1 October 2011

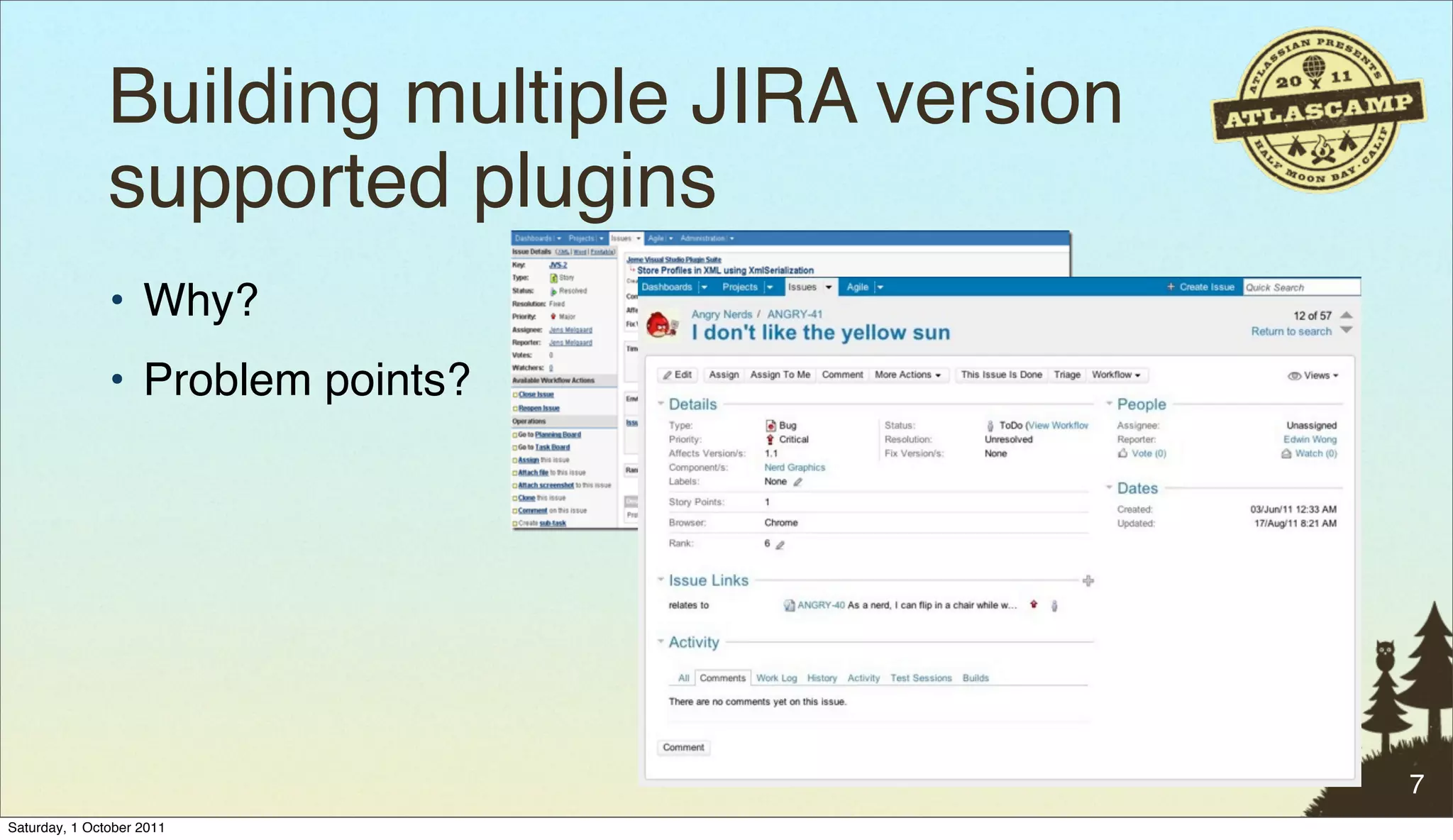

15. Building multiple JIRA version
supported plugins"
• Why?
• Problem points?
7
Saturday, 1 October 2011

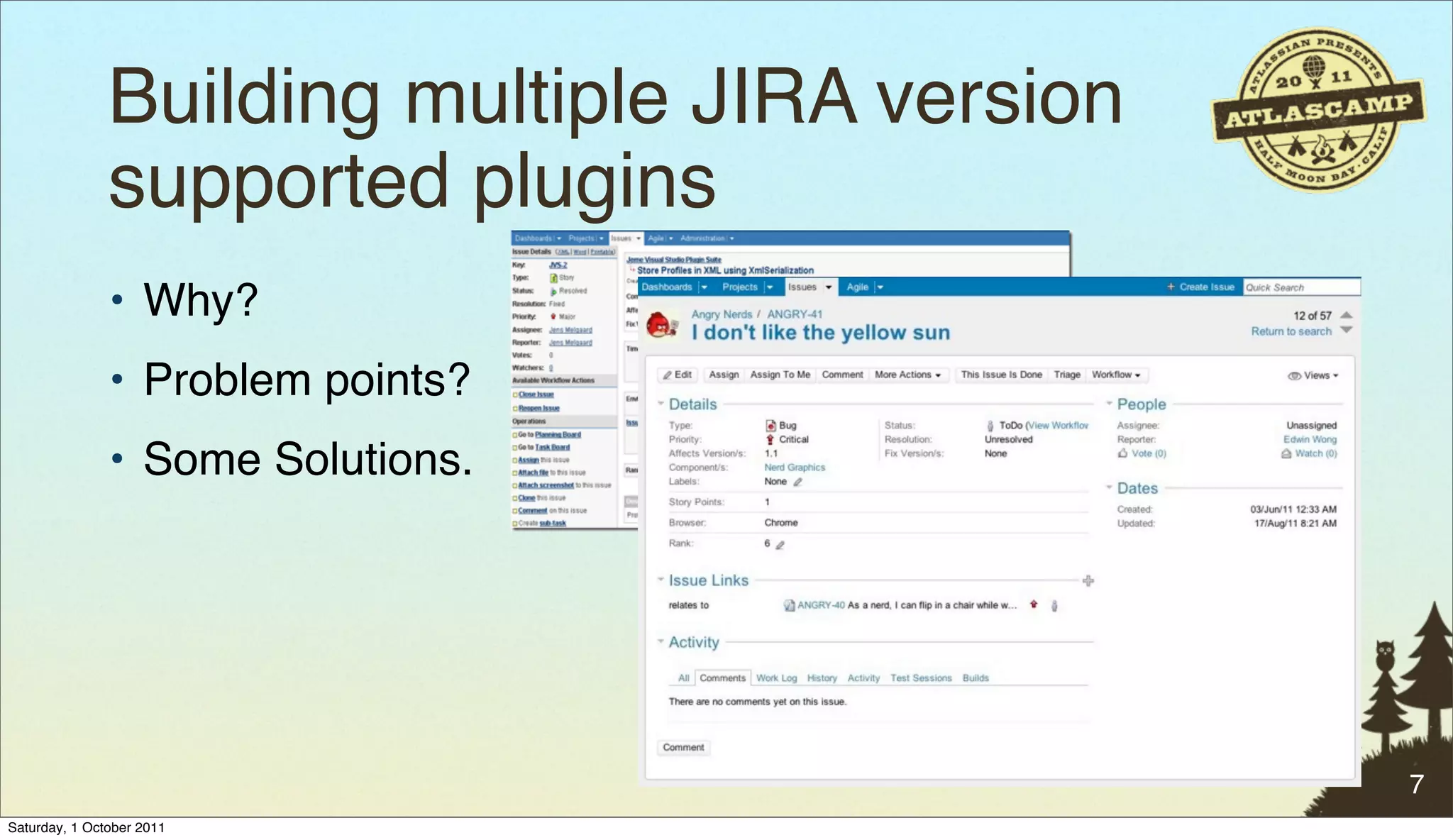

16. Building multiple JIRA version
supported plugins"
• Why?
• Problem points?
• Some Solutions.
7
Saturday, 1 October 2011

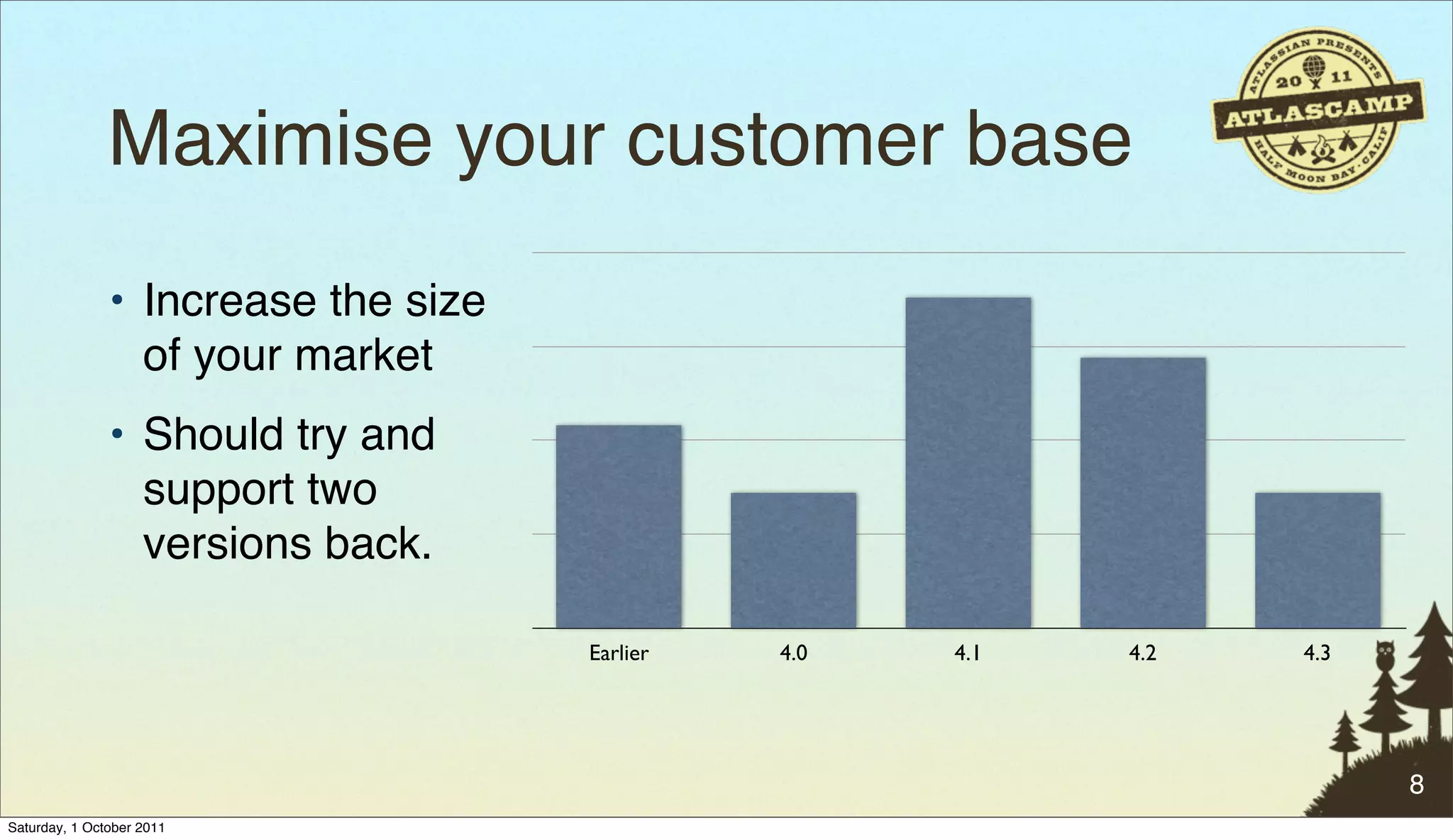

17. Maximise your customer base
• Increase the size
of your market
• Should try and
support two
versions back.
Earlier 4.0 4.1 4.2 4.3
8
Saturday, 1 October 2011

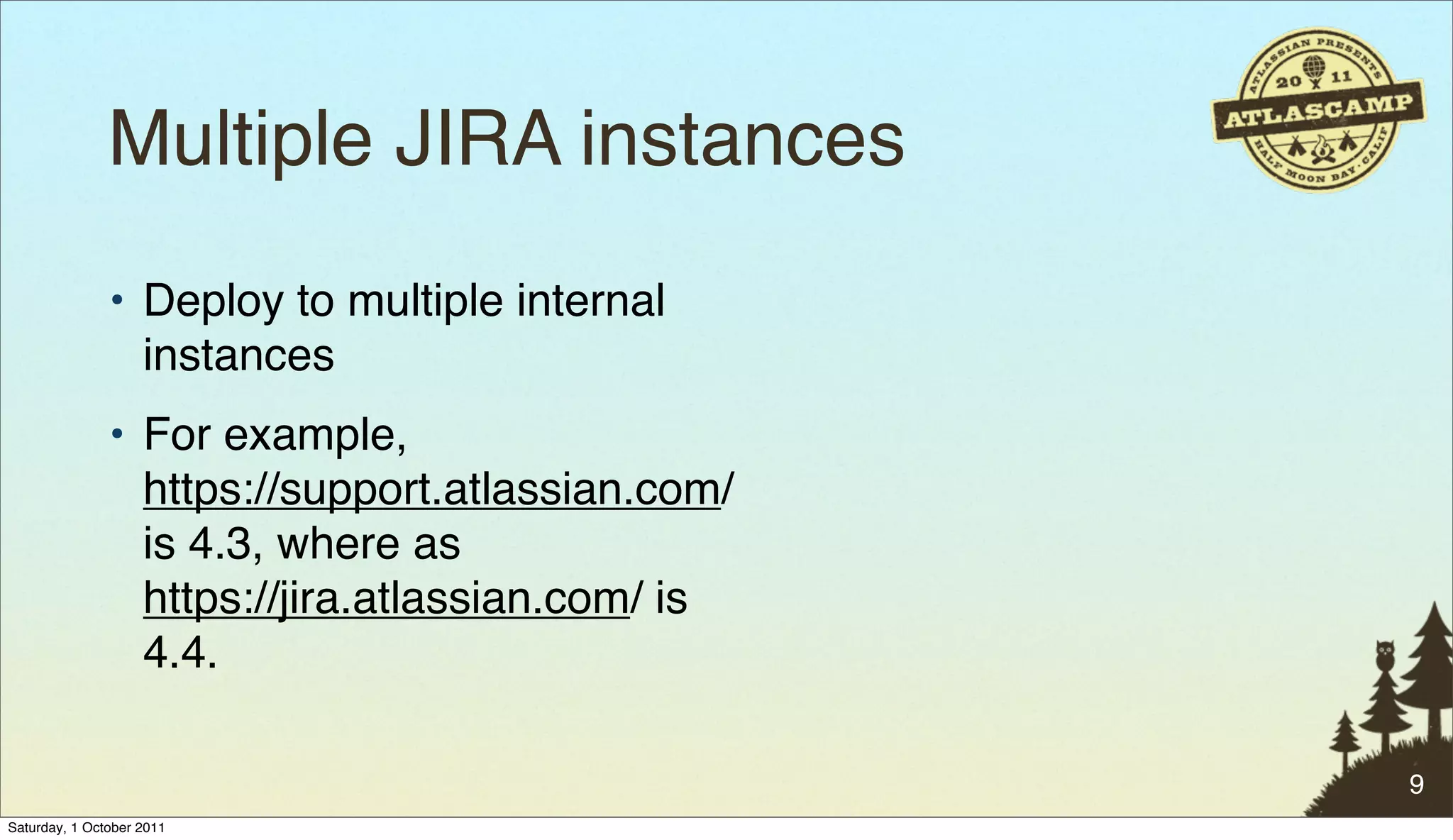

18. Multiple JIRA instances
• Deploy to multiple internal
instances
• For example,
https://support.atlassian.com/
is 4.3, where as
https://jira.atlassian.com/ is
4.4.
9
Saturday, 1 October 2011

19. Be ready for upgrades
• Test against EAPs!
• Give feedback.
• Participate in API building
• Support JIRA 5.0 from
launch
10
Saturday, 1 October 2011

20. Problems
11
Saturday, 1 October 2011

21. Problems
• Java API changes
11
Saturday, 1 October 2011

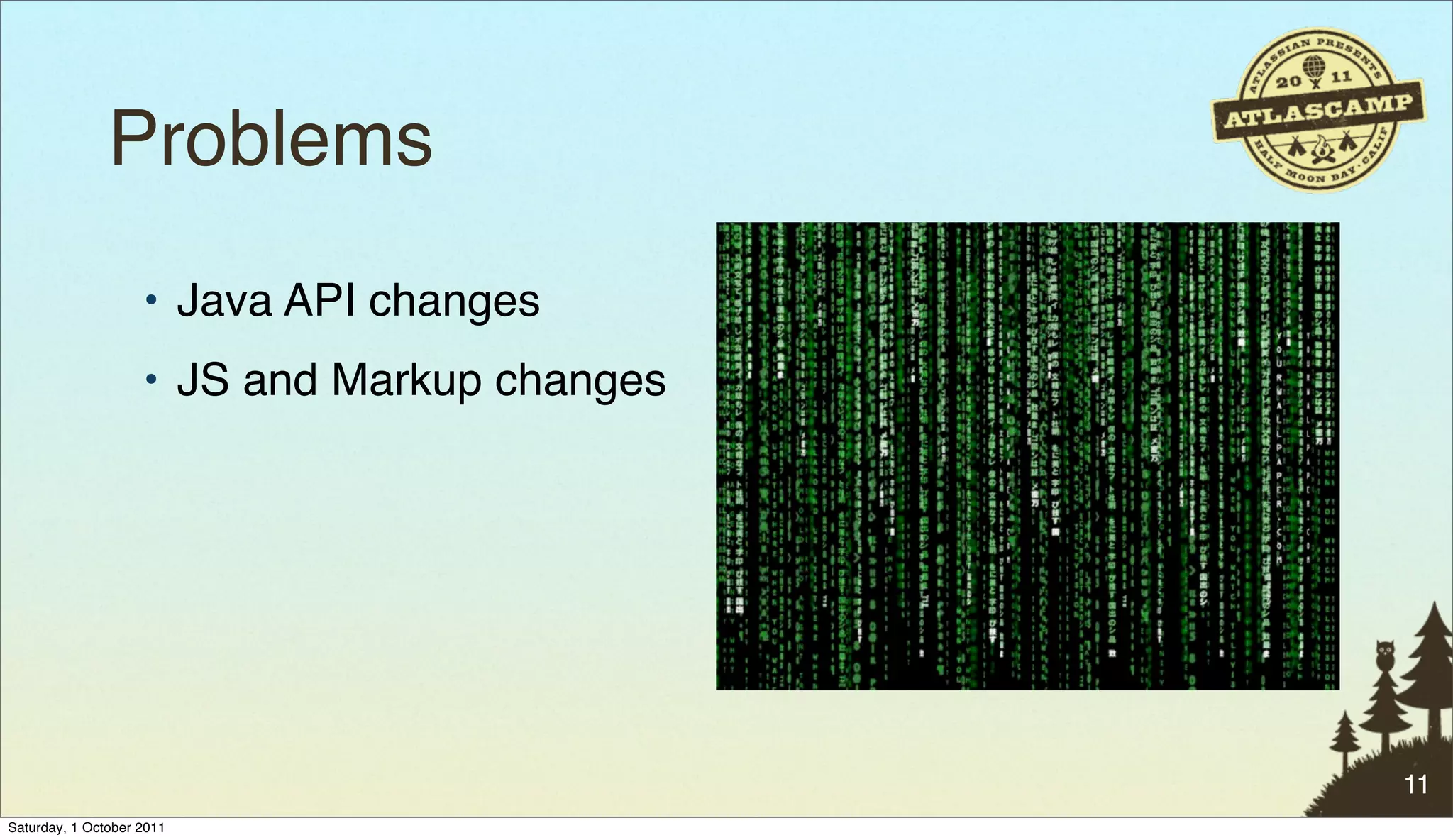

22. Problems
• Java API changes
• JS and Markup changes
11
Saturday, 1 October 2011

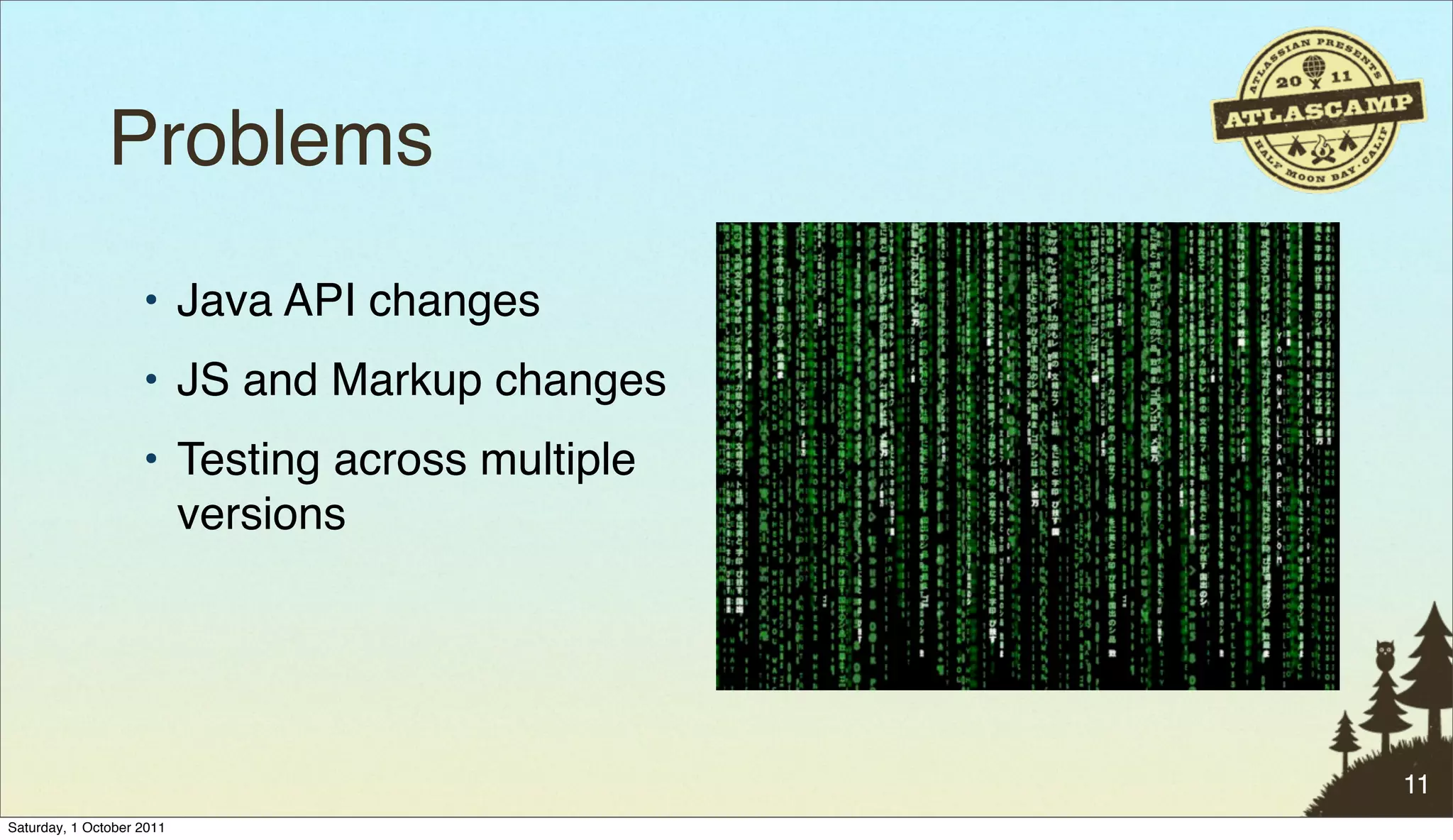

23. Problems
• Java API changes
• JS and Markup changes
• Testing across multiple
versions
11
Saturday, 1 October 2011

24. Branching
12
Saturday, 1 October 2011

25. Branching
• Cleaner code
12
Saturday, 1 October 2011

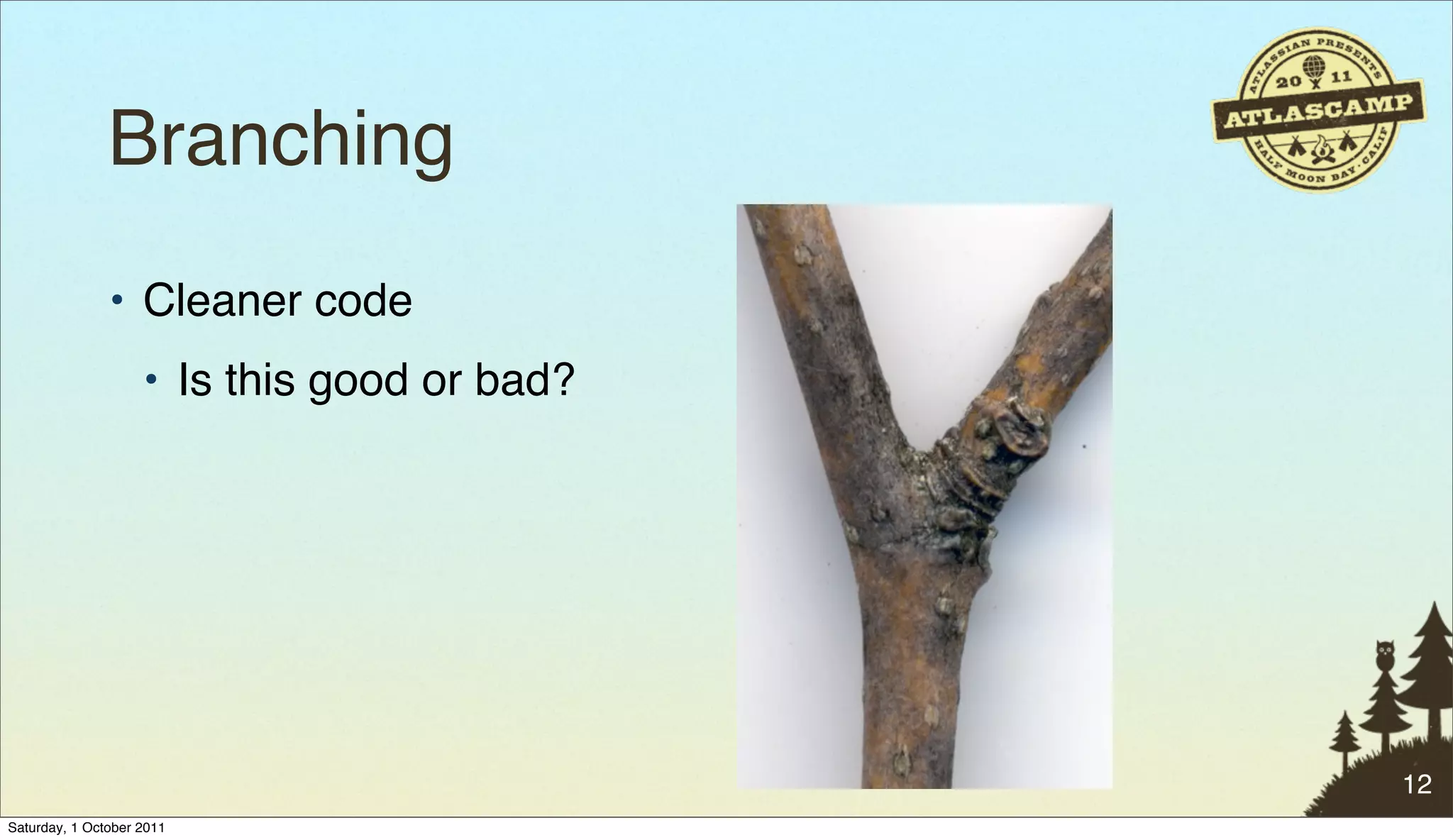

26. Branching
• Cleaner code
• Is this good or bad?
12
Saturday, 1 October 2011

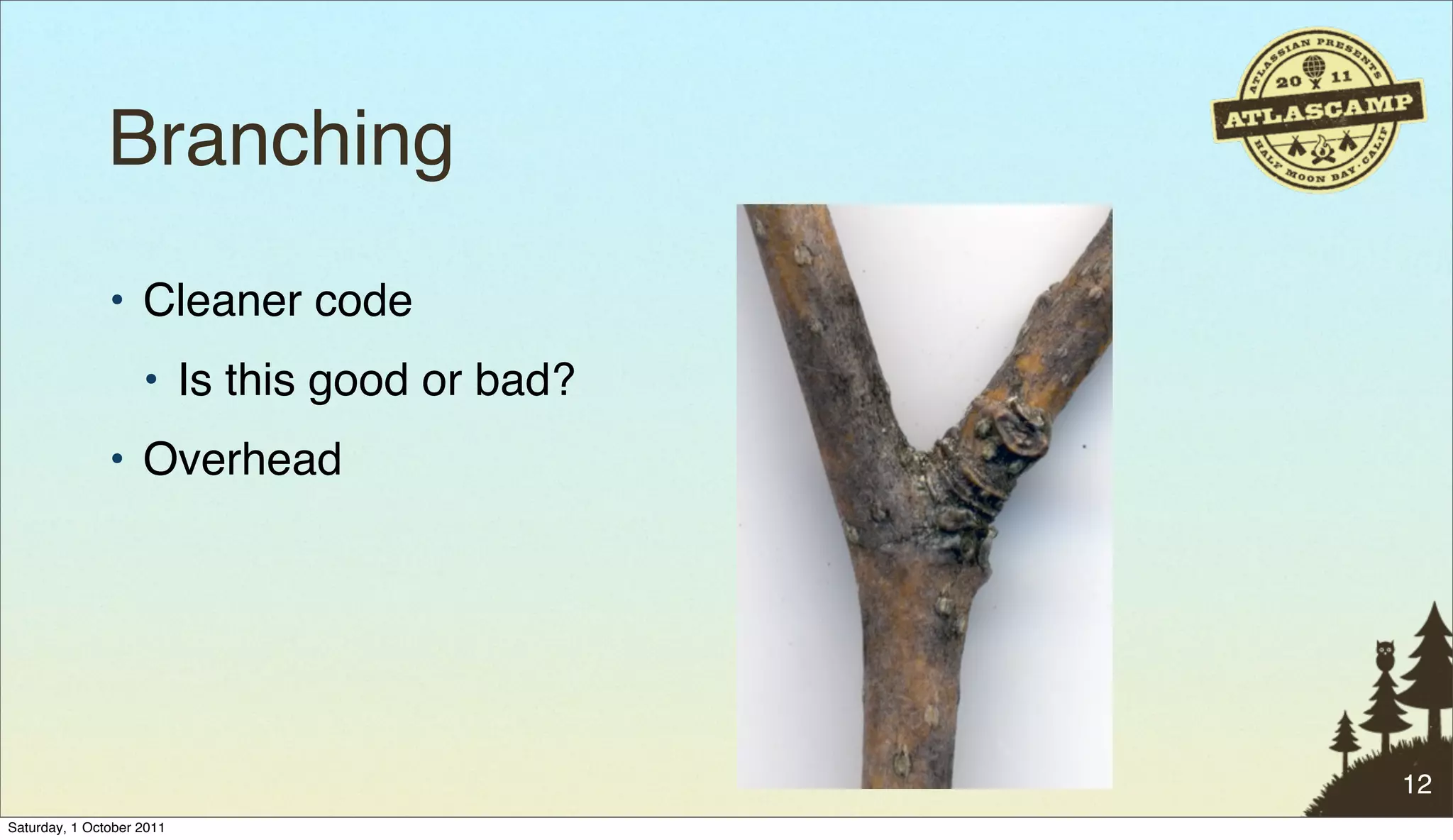

27. Branching
• Cleaner code
• Is this good or bad?
• Overhead
12
Saturday, 1 October 2011

28. Branching
• Cleaner code
• Is this good or bad?
• Overhead
• Builds
12
Saturday, 1 October 2011

29. Branching
• Cleaner code
• Is this good or bad?
• Overhead
• Builds
• Merging
12
Saturday, 1 October 2011

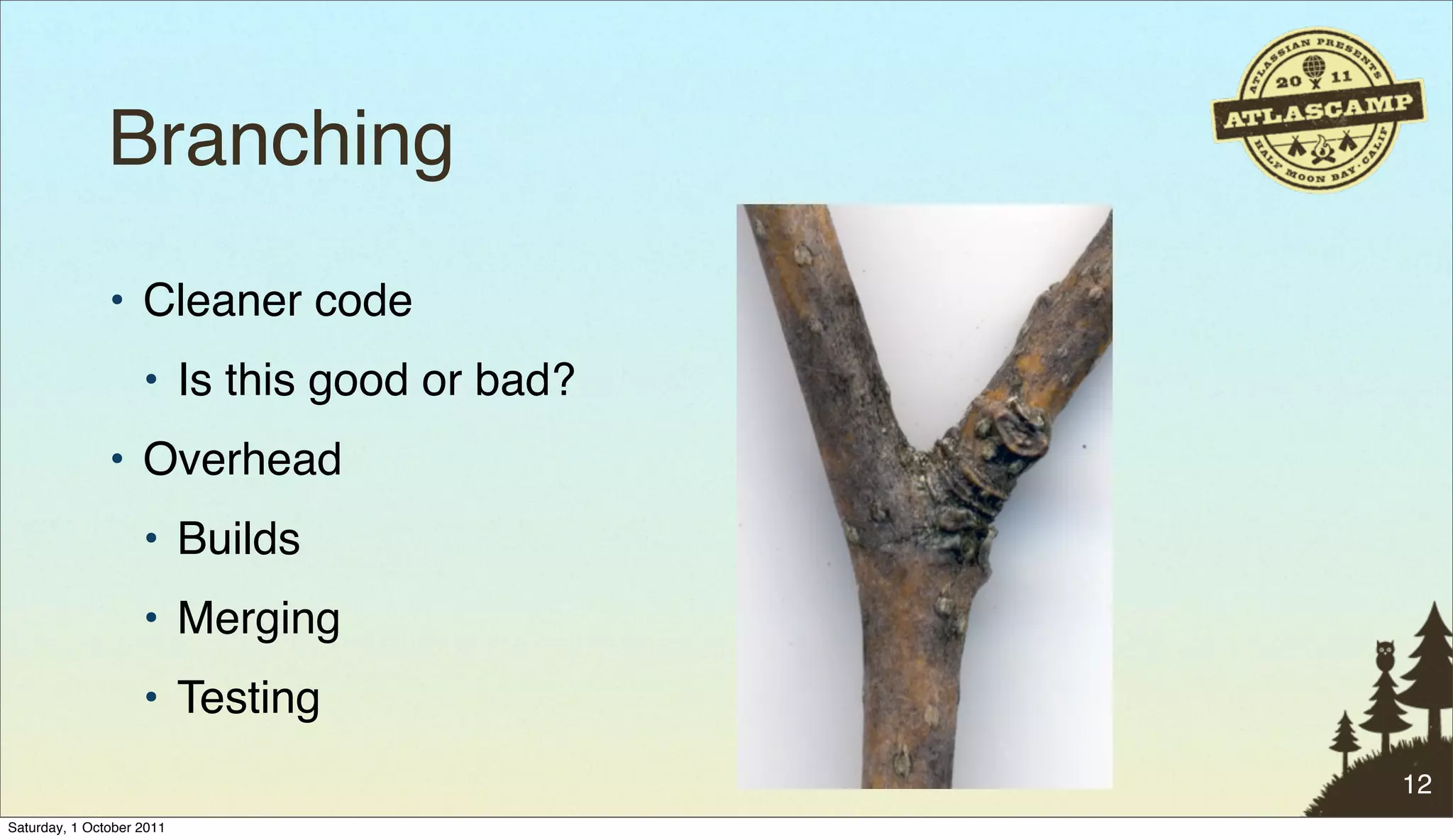

30. Branching
• Cleaner code
• Is this good or bad?
• Overhead
• Builds
• Merging
• Testing
12
Saturday, 1 October 2011

31. One build, multiple versions
13
Saturday, 1 October 2011

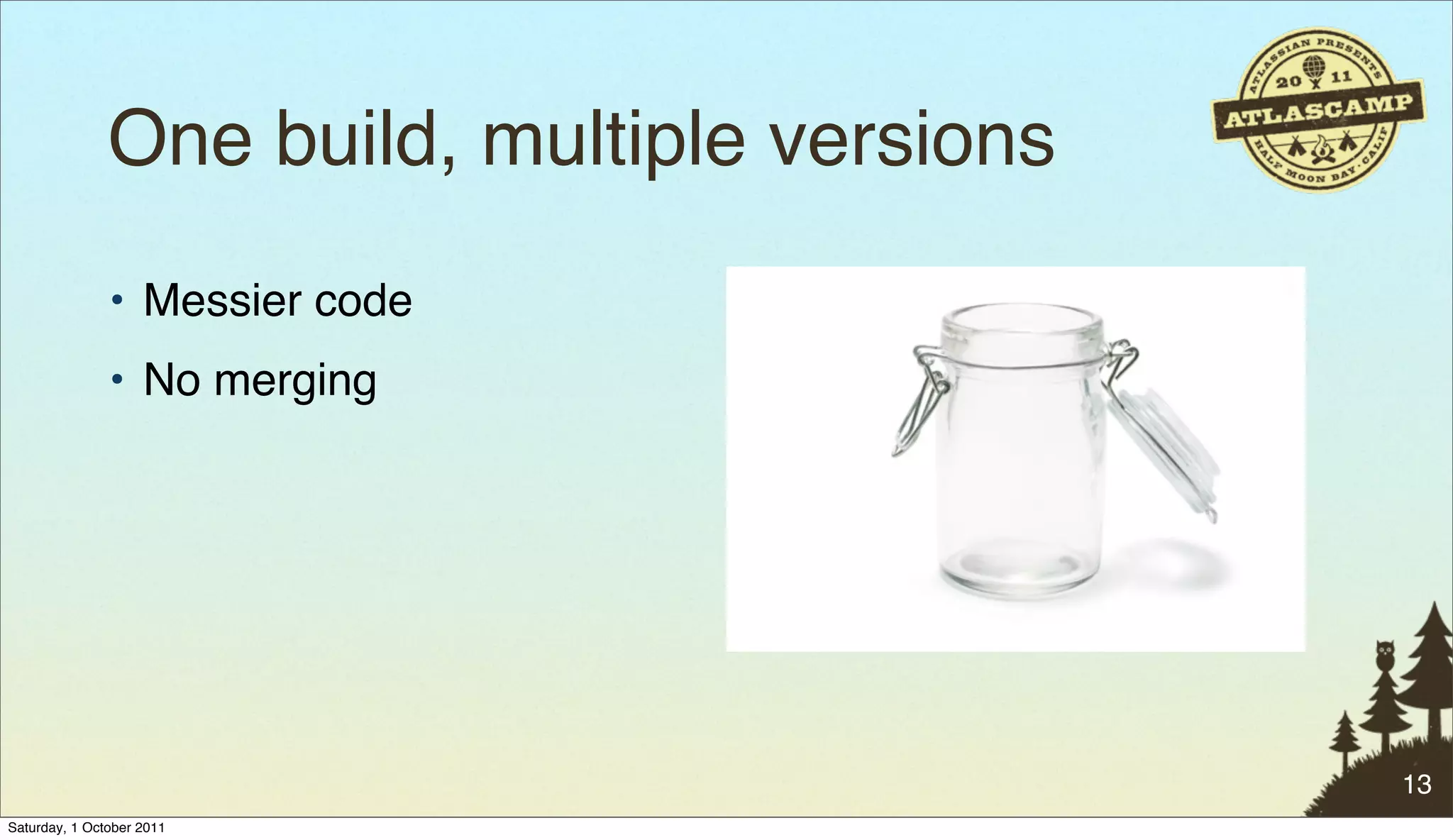

32. One build, multiple versions
• Messier code
13
Saturday, 1 October 2011

33. One build, multiple versions
• Messier code
• No merging
13
Saturday, 1 October 2011

34. One build, multiple versions
• Messier code
• No merging
• Shipping one jar
13
Saturday, 1 October 2011

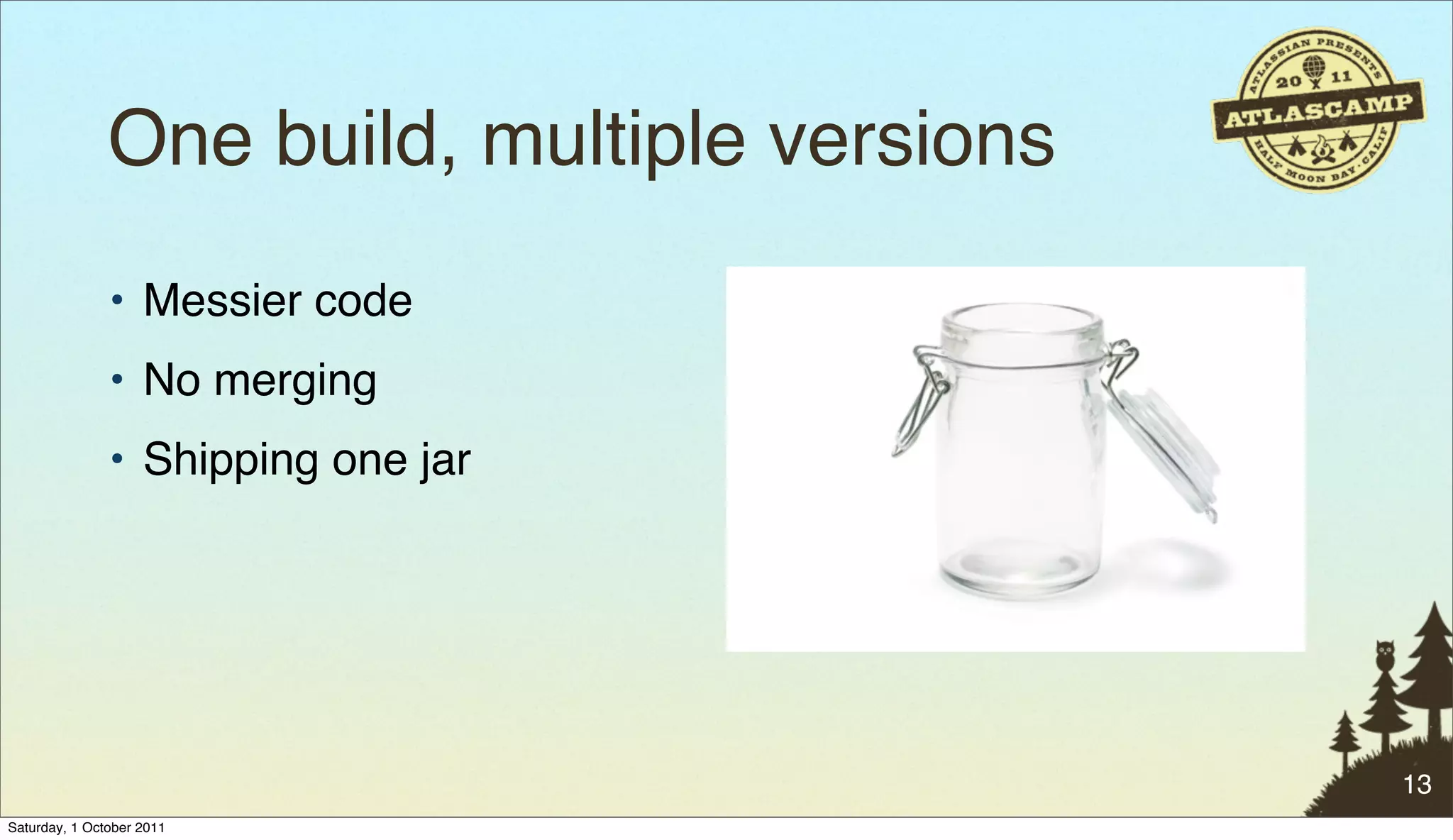

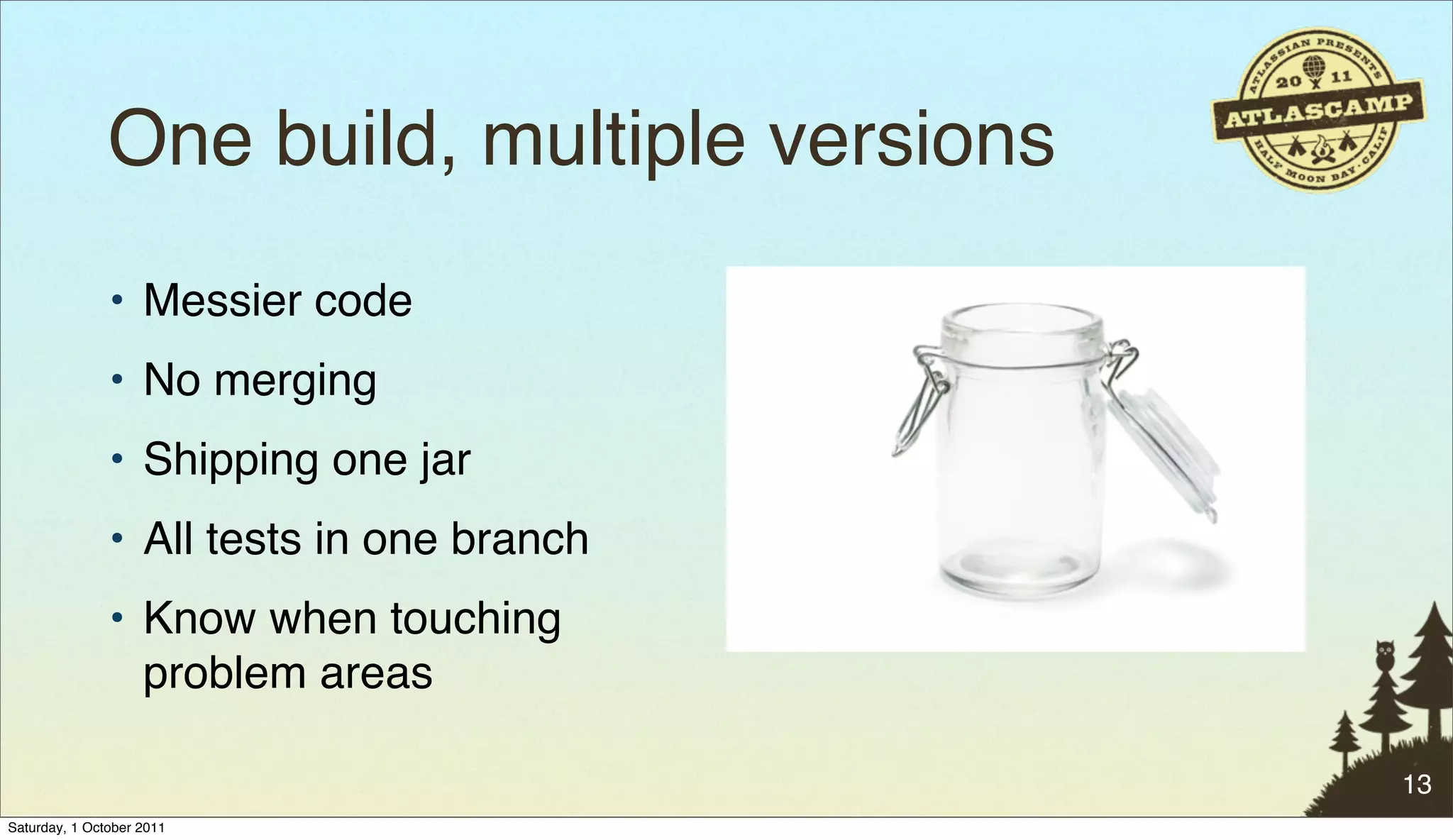

35. One build, multiple versions
• Messier code
• No merging
• Shipping one jar
• All tests in one branch
13
Saturday, 1 October 2011

36. One build, multiple versions
• Messier code
• No merging
• Shipping one jar
• All tests in one branch
• Know when touching
problem areas
13
Saturday, 1 October 2011

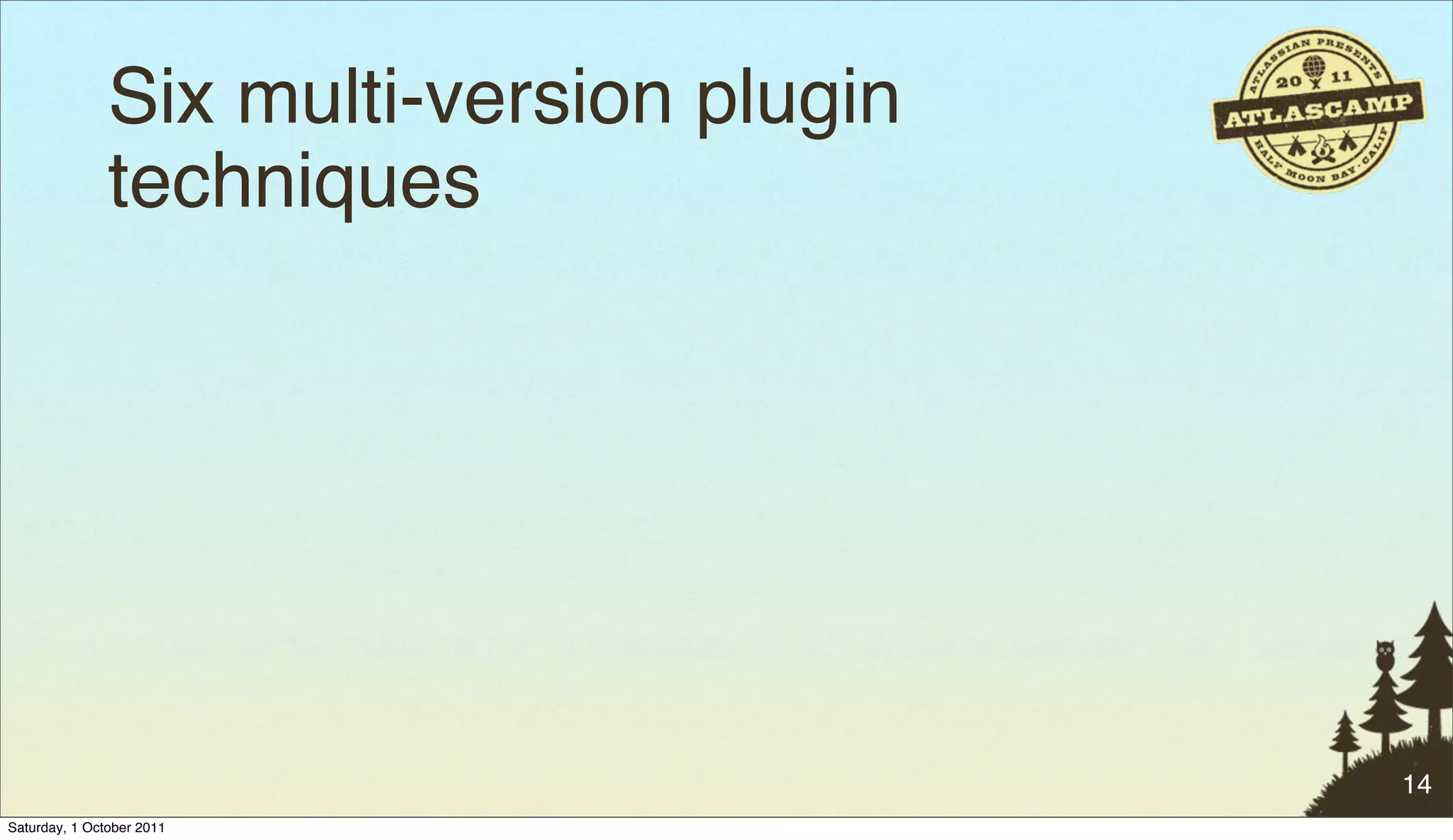

37. Six multi-version plugin
techniques
14
Saturday, 1 October 2011

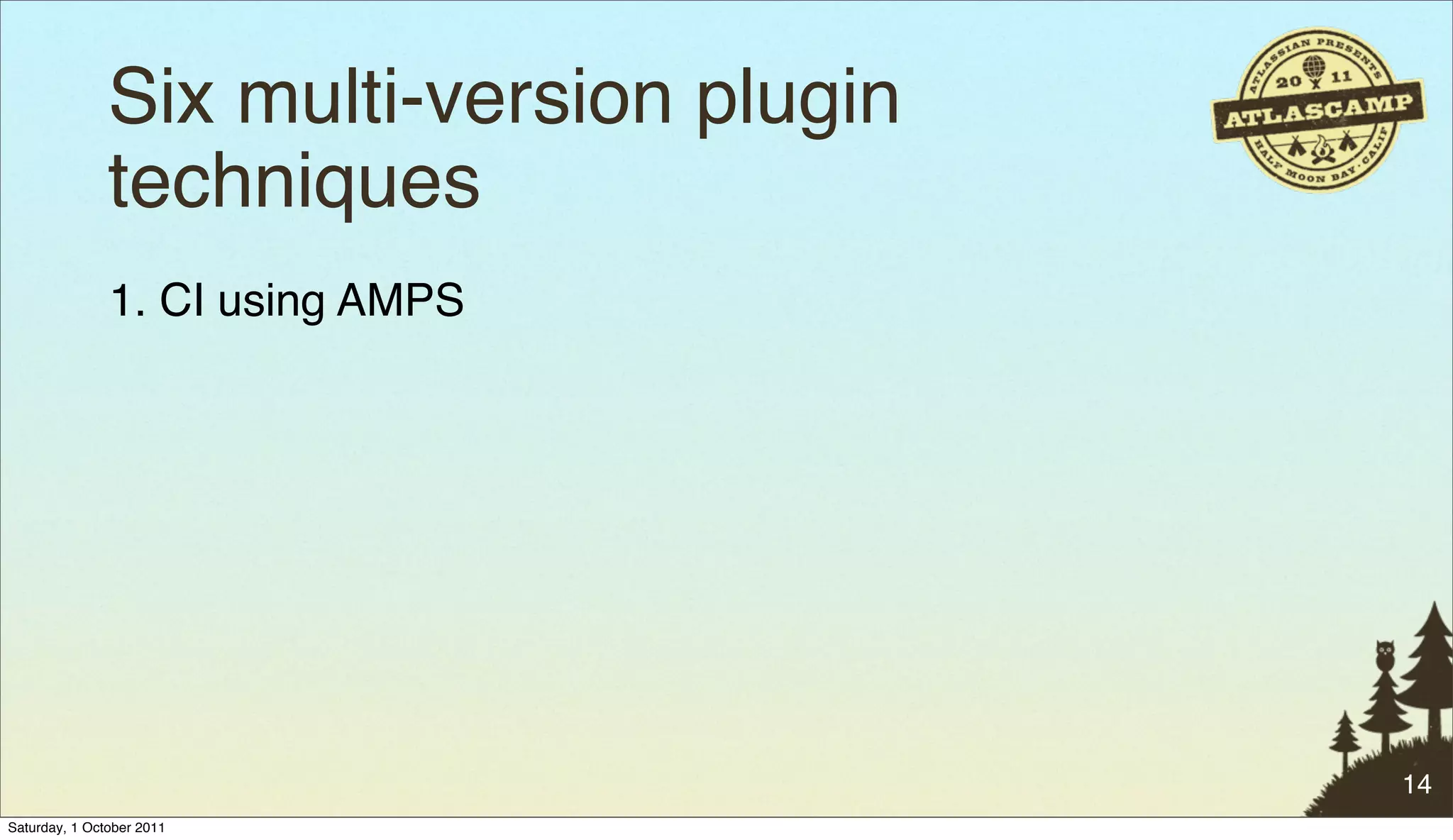

38. Six multi-version plugin
techniques
1. CI using AMPS
14
Saturday, 1 October 2011

39. Six multi-version plugin
techniques
1. CI using AMPS
2. Javascript / Markup changes - AJS.version
14
Saturday, 1 October 2011

40. Six multi-version plugin
techniques
1. CI using AMPS
2. Javascript / Markup changes - AJS.version
3. Non-compile breaking API changes - BuildUtilsInfo
14
Saturday, 1 October 2011

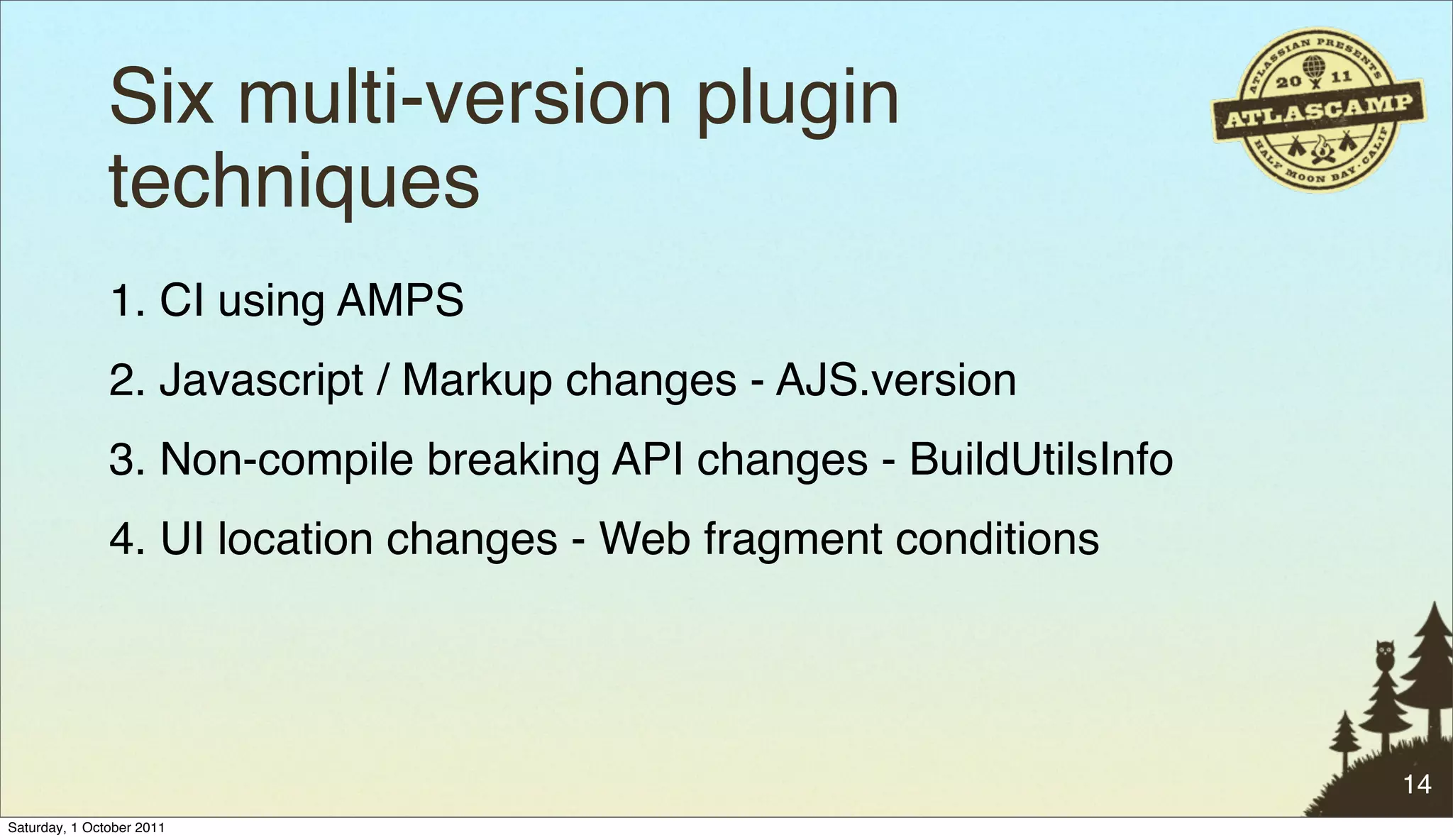

41. Six multi-version plugin
techniques
1. CI using AMPS
2. Javascript / Markup changes - AJS.version
3. Non-compile breaking API changes - BuildUtilsInfo
4. UI location changes - Web fragment conditions
14
Saturday, 1 October 2011

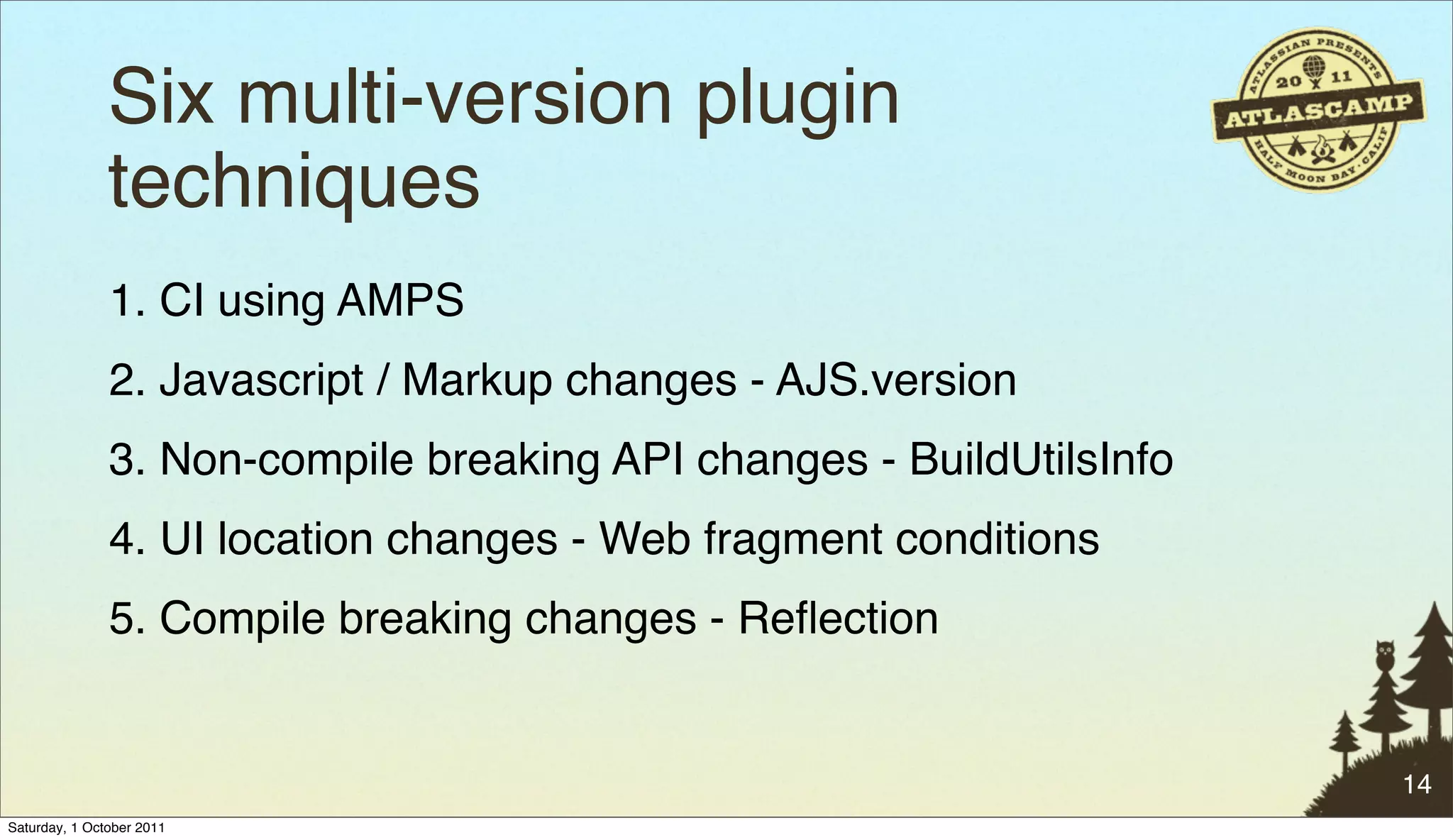

42. Six multi-version plugin
techniques
1. CI using AMPS
2. Javascript / Markup changes - AJS.version
3. Non-compile breaking API changes - BuildUtilsInfo
4. UI location changes - Web fragment conditions
5. Compile breaking changes - Reflection
14
Saturday, 1 October 2011

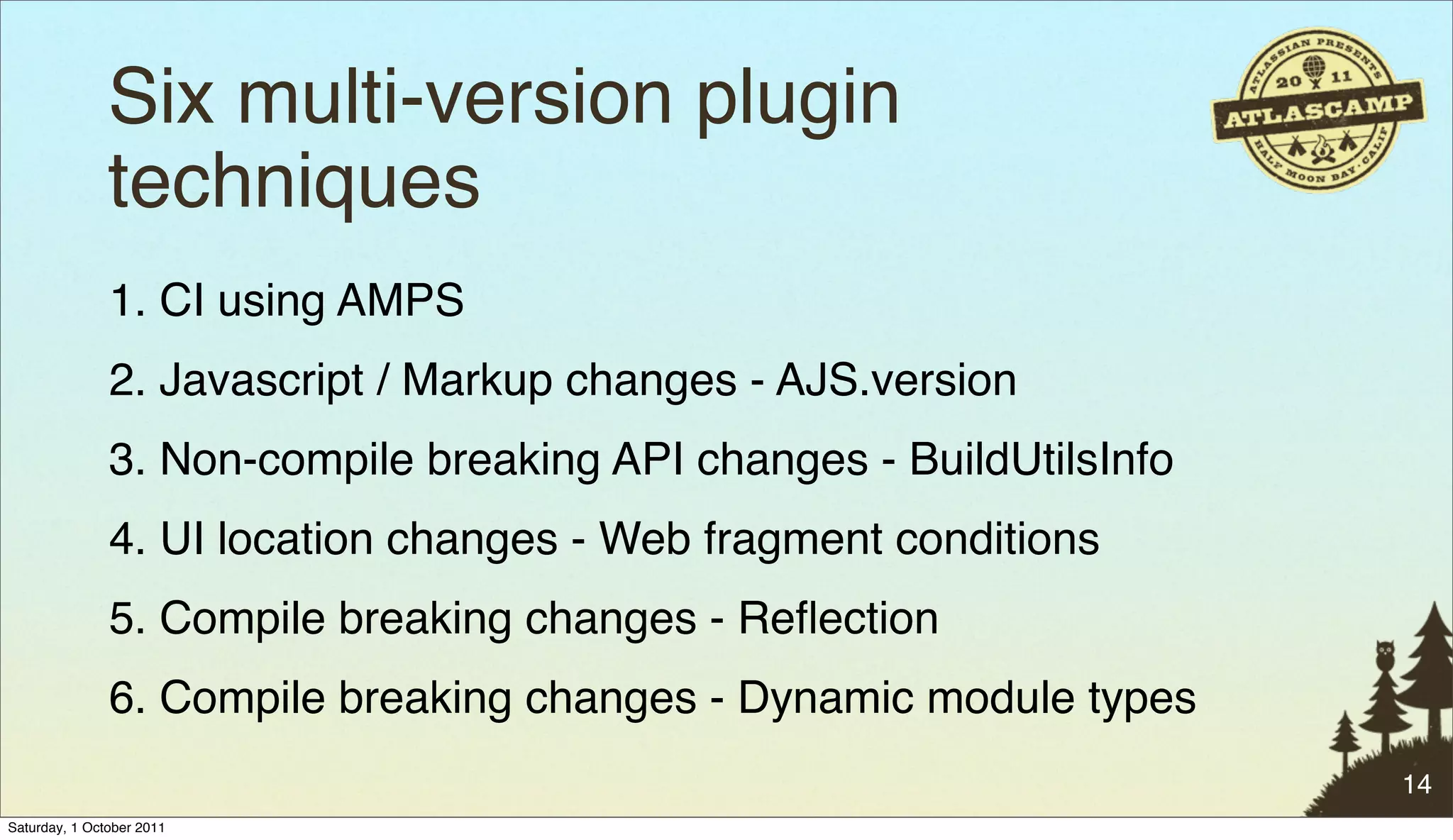

43. Six multi-version plugin
techniques
1. CI using AMPS
2. Javascript / Markup changes - AJS.version
3. Non-compile breaking API changes - BuildUtilsInfo
4. UI location changes - Web fragment conditions
5. Compile breaking changes - Reflection
6. Compile breaking changes - Dynamic module types
14
Saturday, 1 October 2011

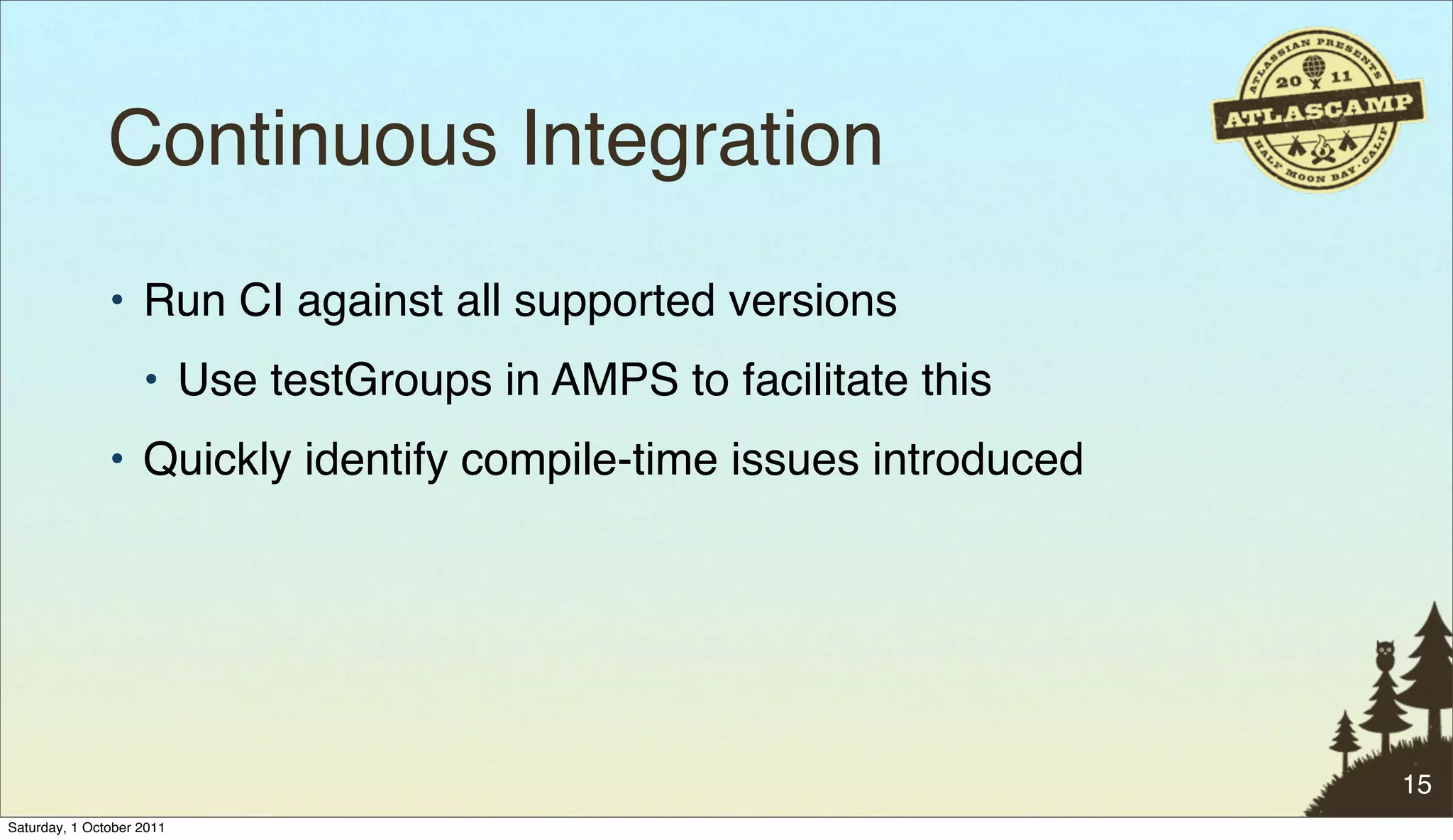

44. Continuous Integration
• Run CI against all supported versions
• Use testGroups in AMPS to facilitate this
• Quickly identify compile-time issues introduced
15
Saturday, 1 October 2011

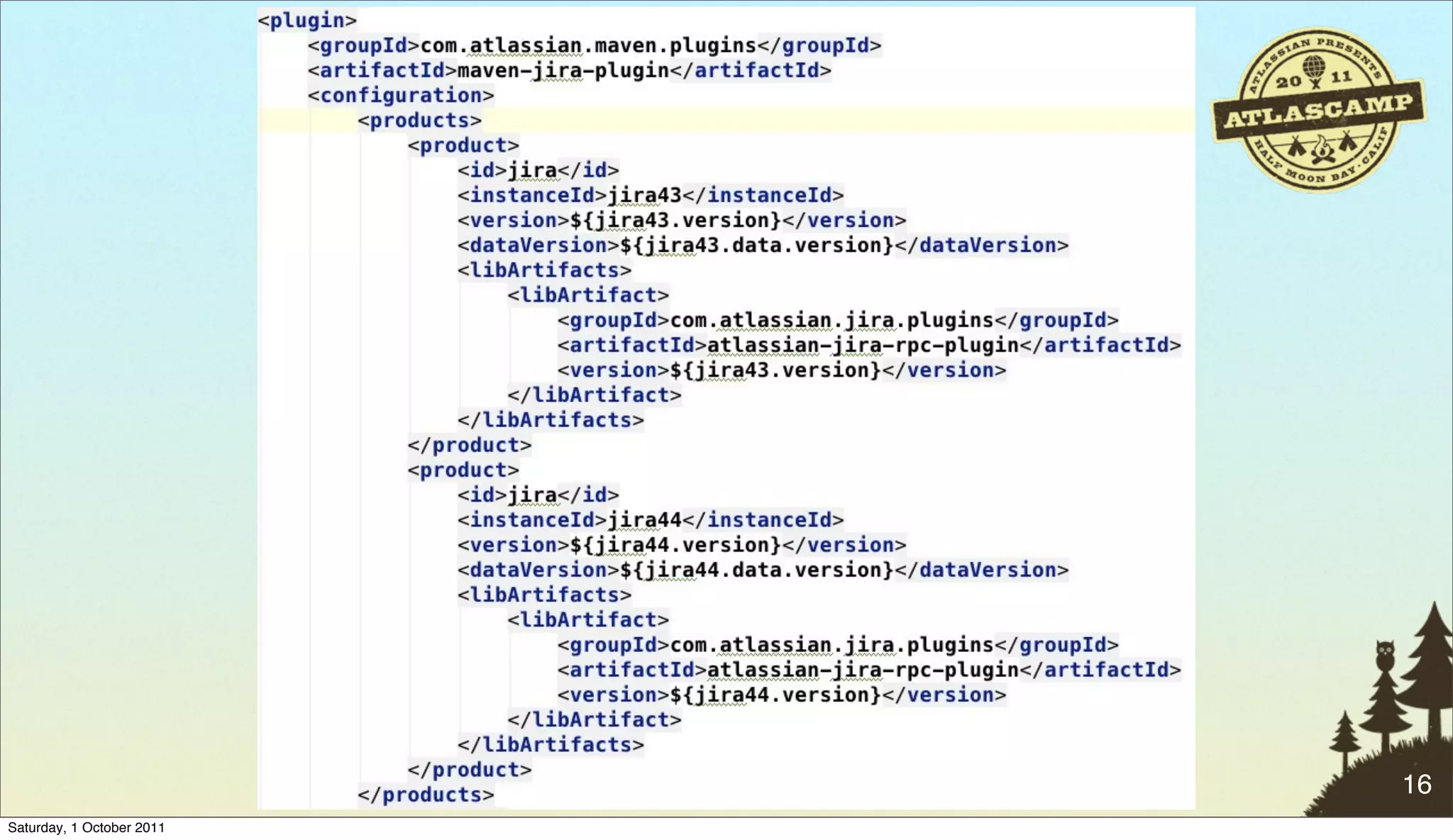

45. 16
Saturday, 1 October 2011

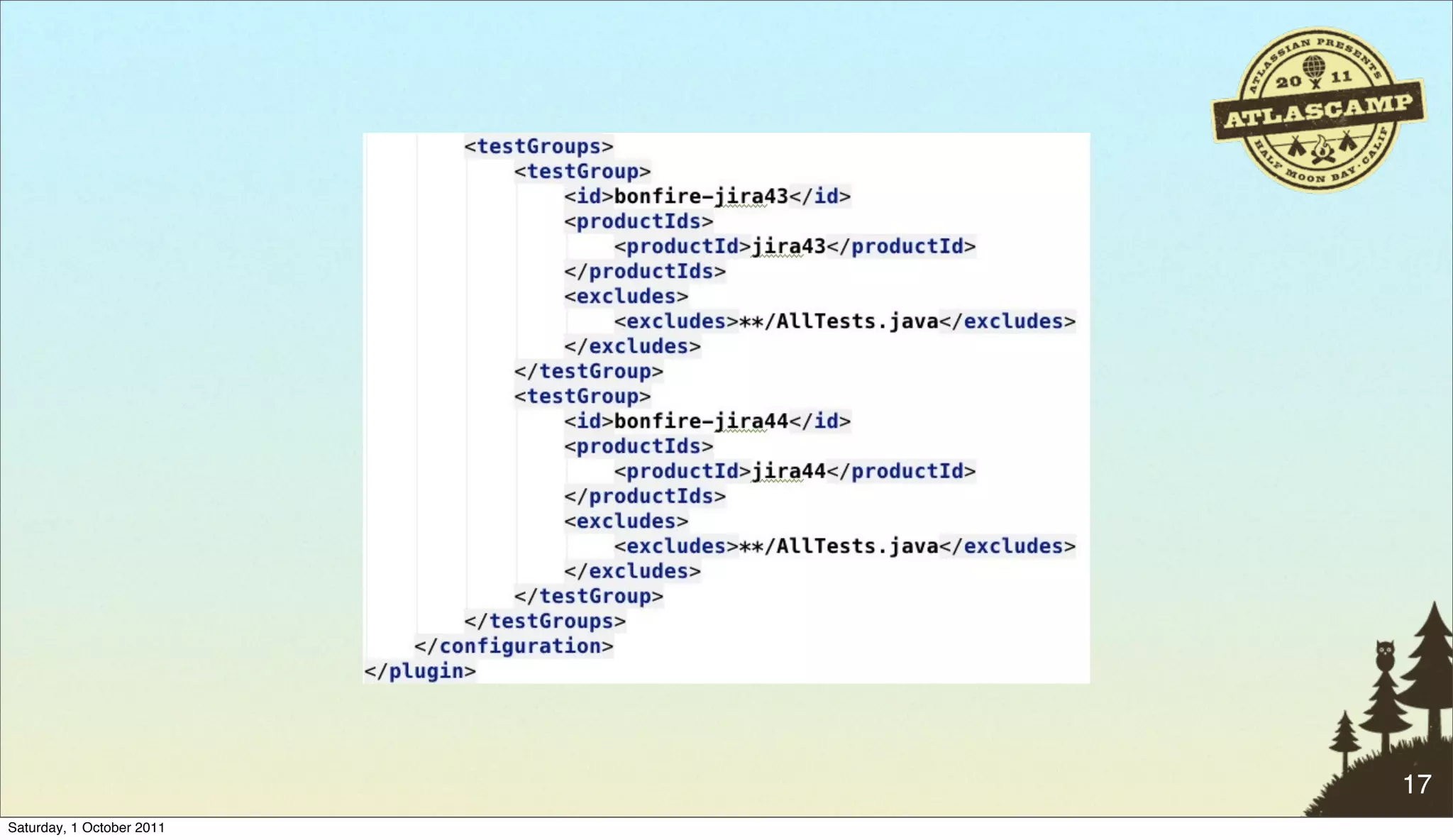

46. 17
Saturday, 1 October 2011

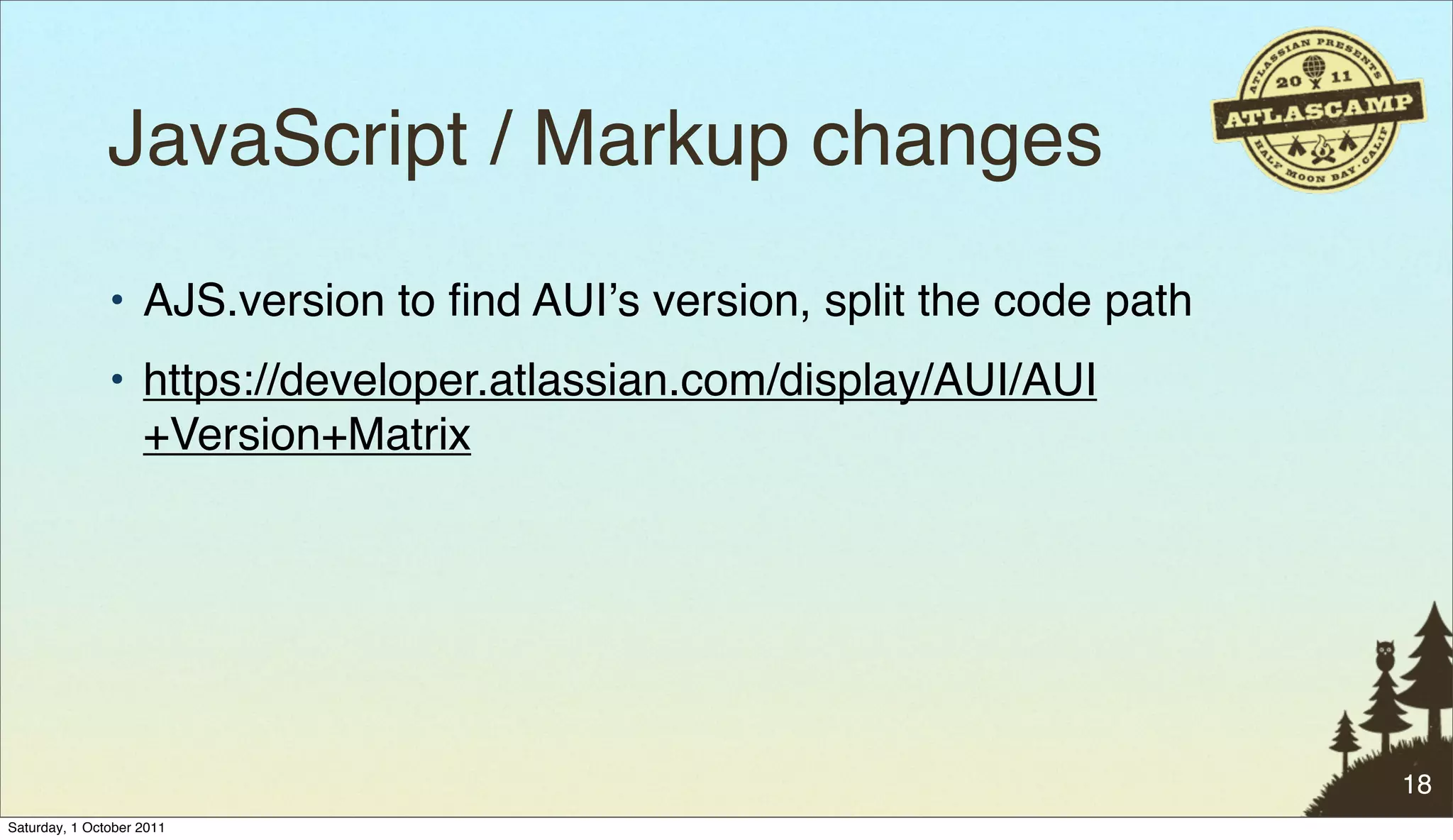

47. JavaScript / Markup changes
• AJS.version to find AUIʼs version, split the code path
• https://developer.atlassian.com/display/AUI/AUI
+Version+Matrix
18
Saturday, 1 October 2011

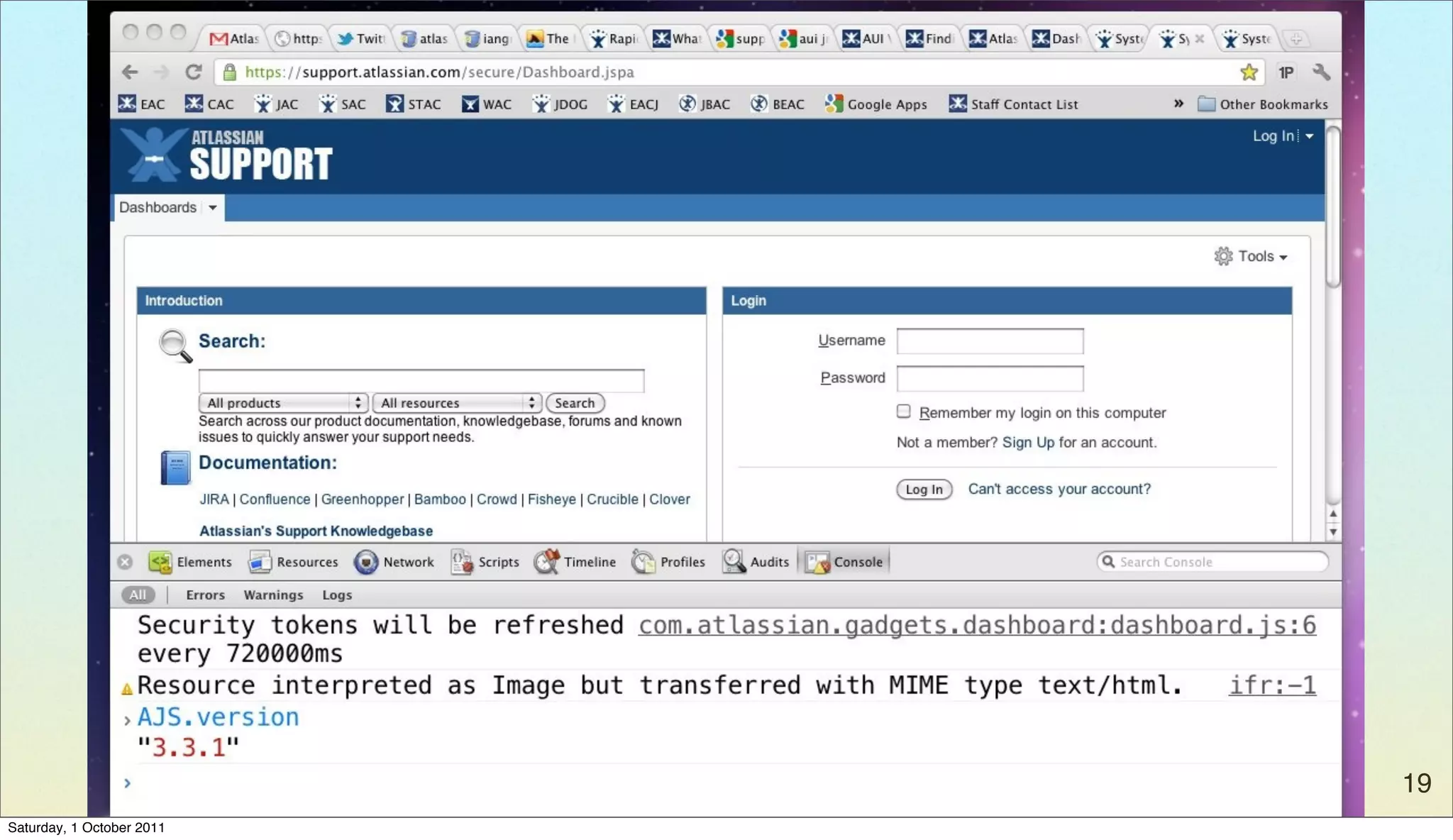

48. 19
Saturday, 1 October 2011

49. 20
Saturday, 1 October 2011

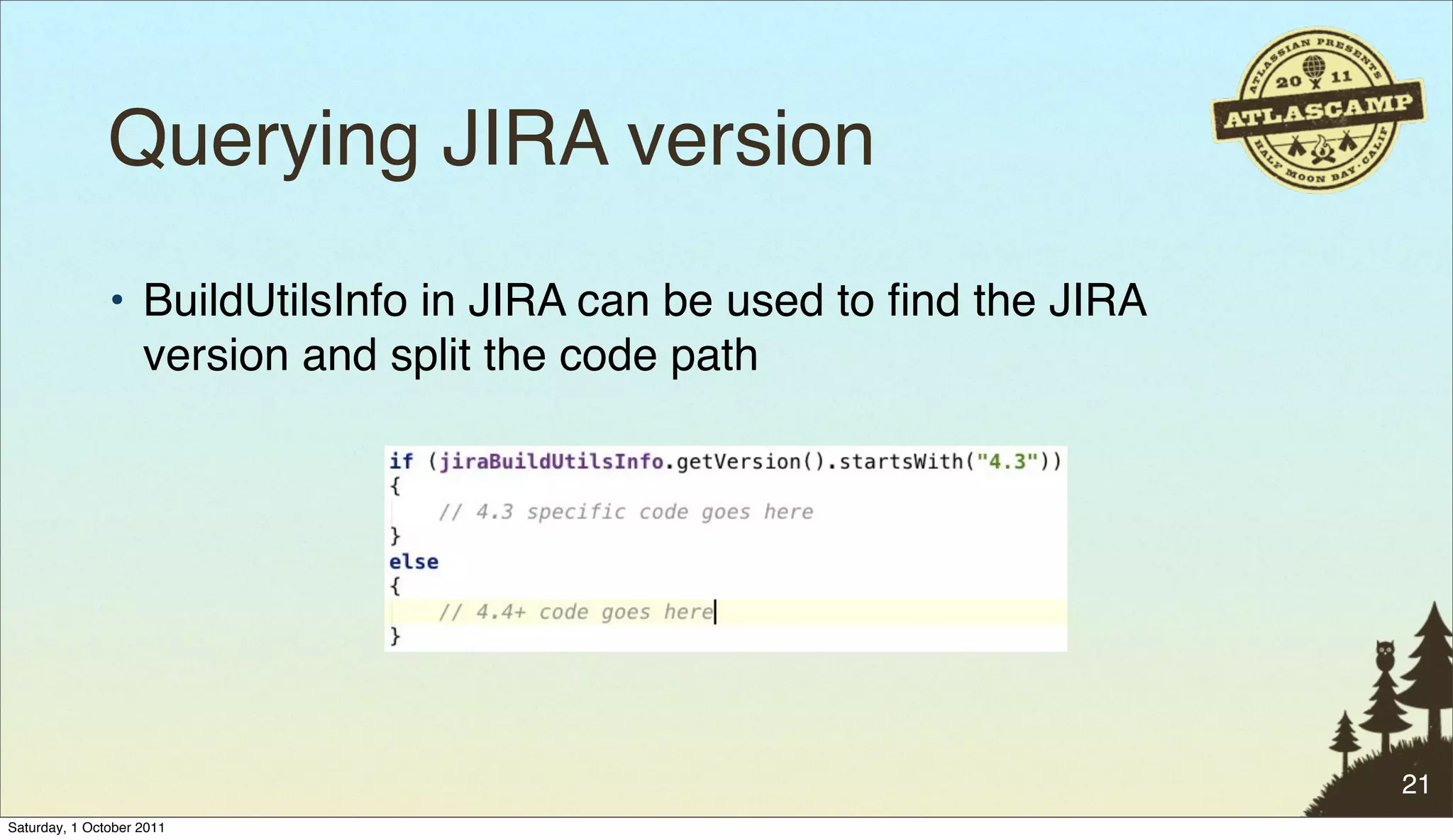

50. Querying JIRA version
• BuildUtilsInfo in JIRA can be used to find the JIRA
version and split the code path
21
Saturday, 1 October 2011

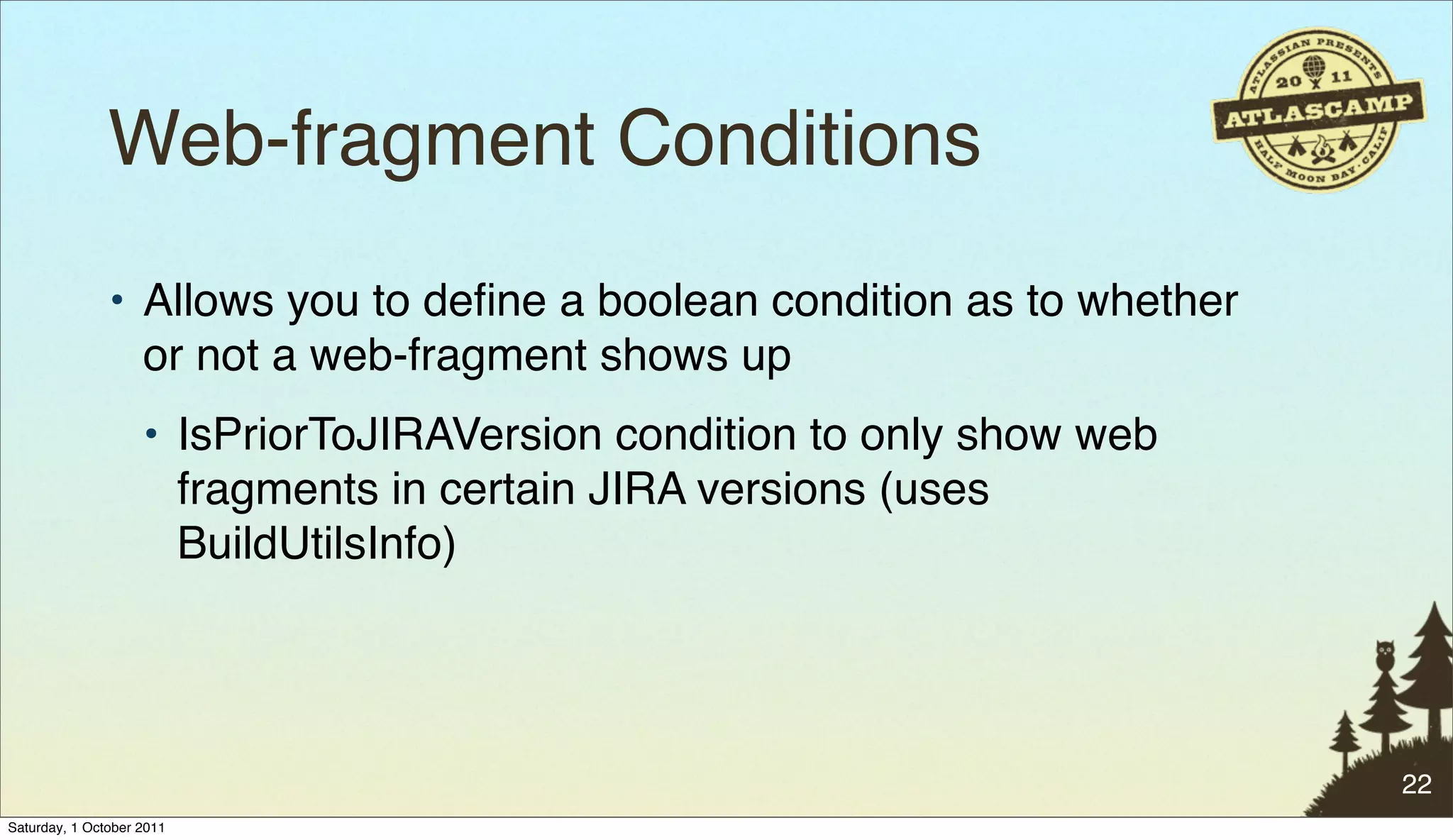

51. Web-fragment Conditions
• Allows you to define a boolean condition as to whether
or not a web-fragment shows up
• IsPriorToJIRAVersion condition to only show web
fragments in certain JIRA versions (uses
BuildUtilsInfo)
22
Saturday, 1 October 2011

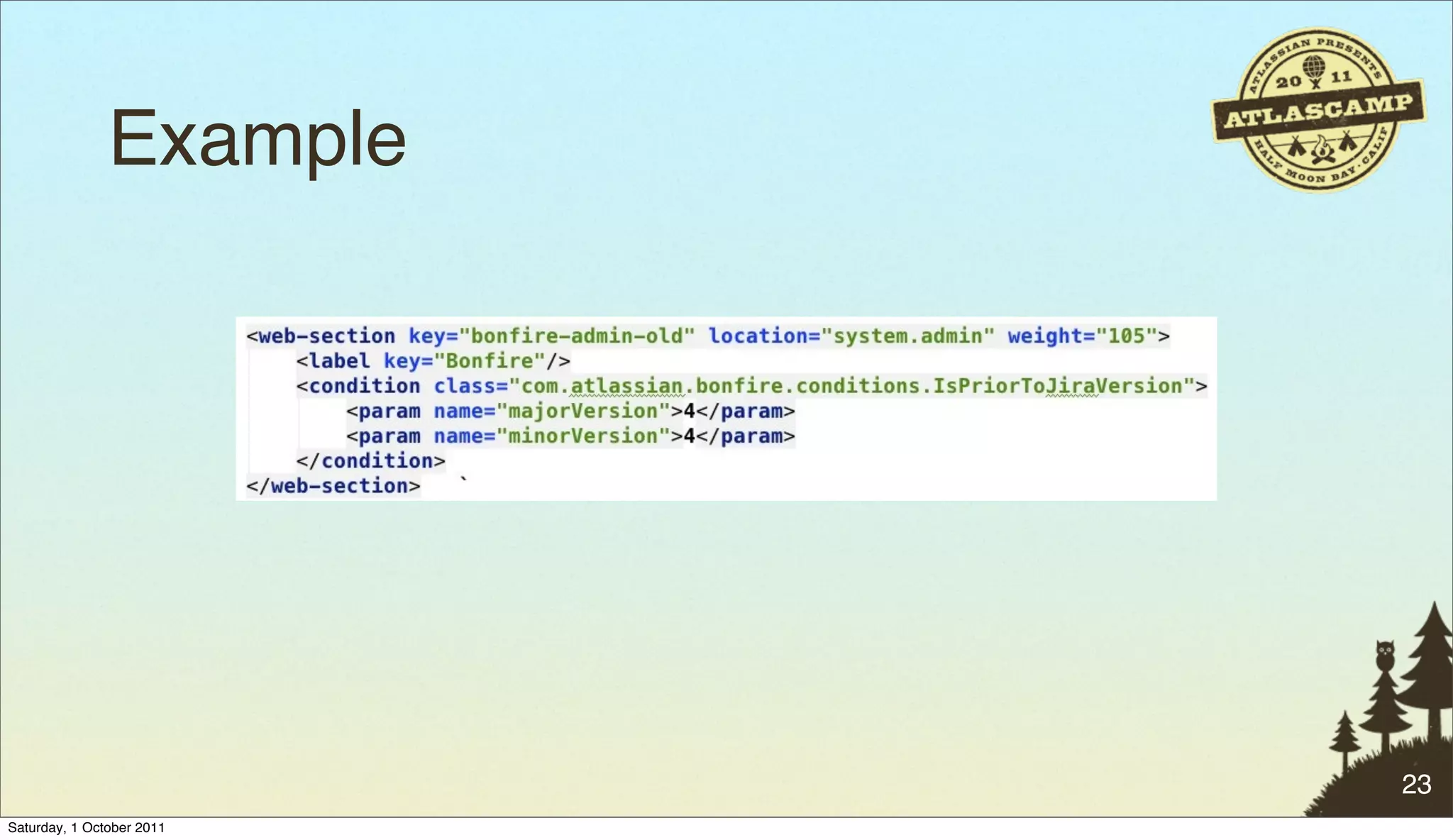

52. Example
23
Saturday, 1 October 2011

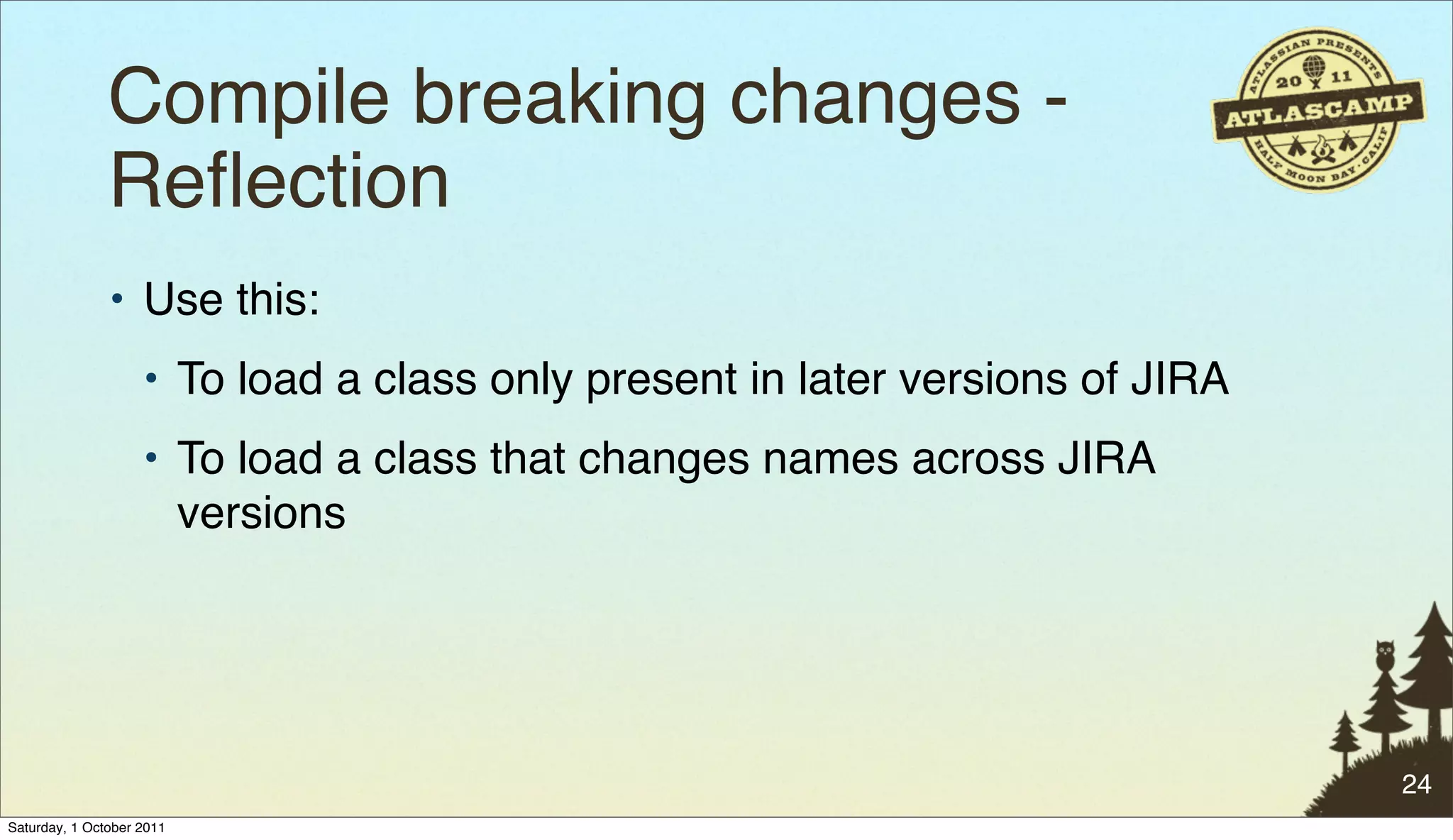

53. Compile breaking changes -
Reflection"
• Use this:
• To load a class only present in later versions of JIRA
• To load a class that changes names across JIRA
versions
24
Saturday, 1 October 2011

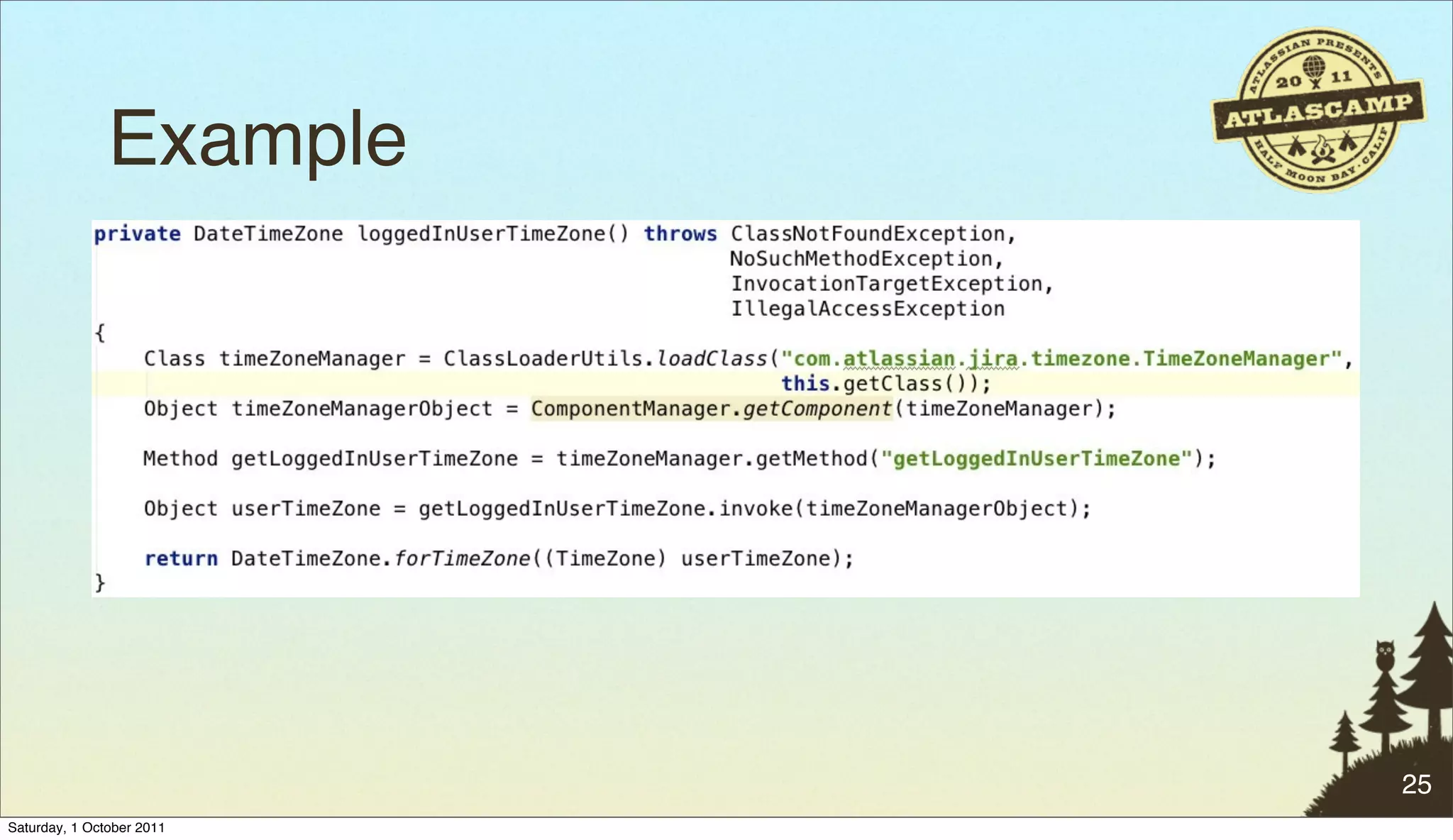

54. Example
25

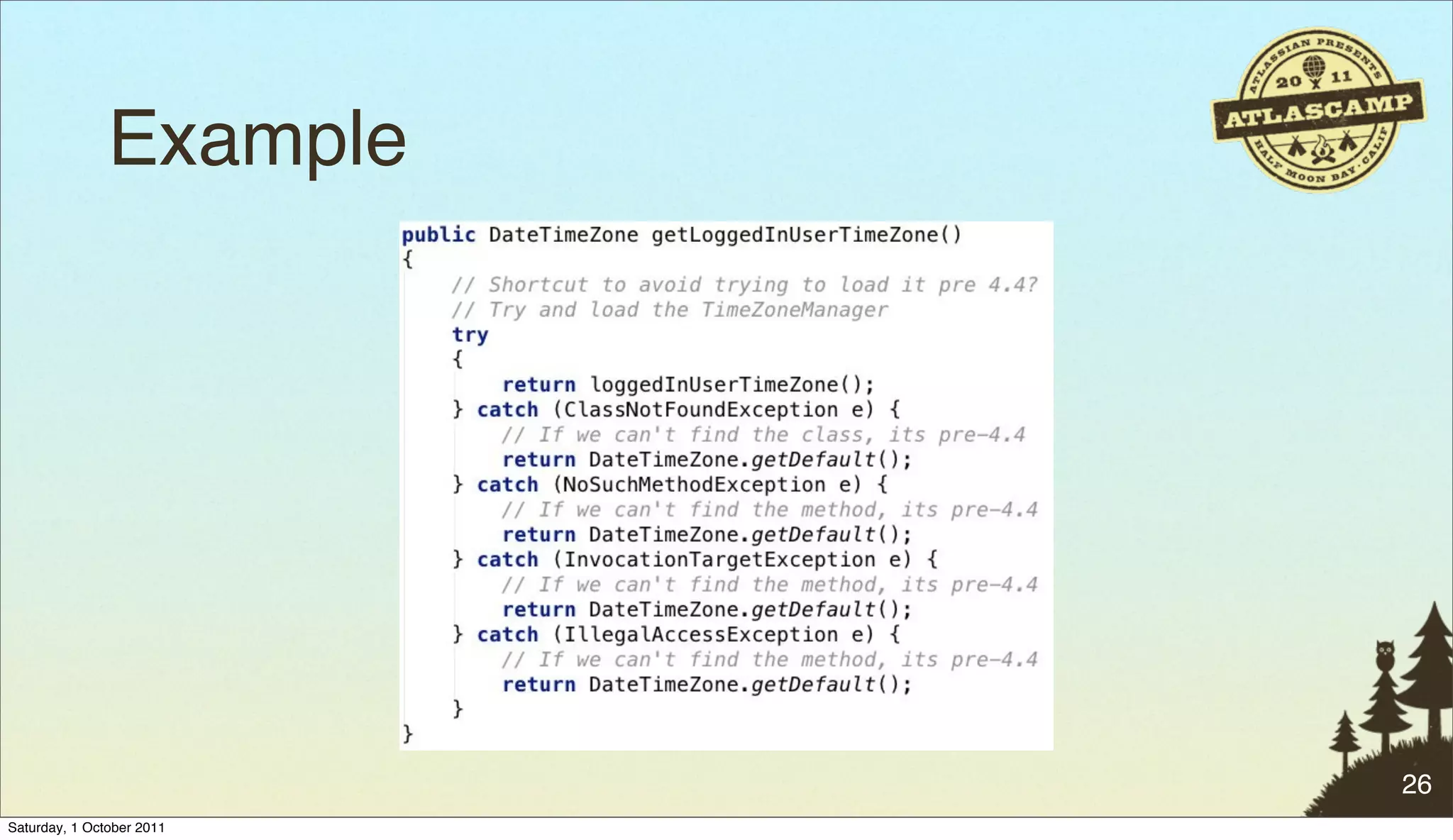

Saturday, 1 October 2011

55. Example
26
Saturday, 1 October 2011

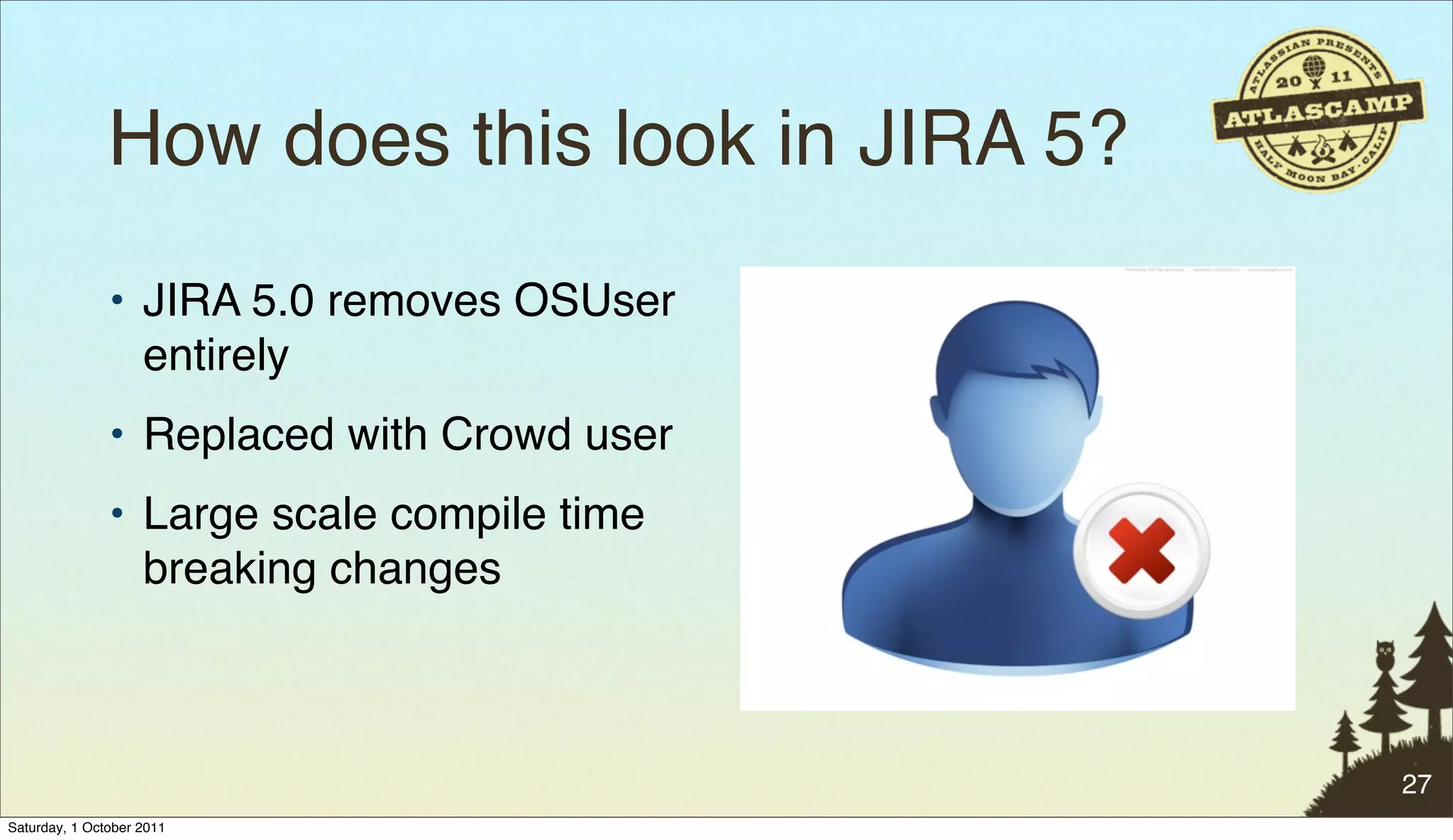

56. How does this look in JIRA 5?
• JIRA 5.0 removes OSUser
entirely
• Replaced with Crowd user
• Large scale compile time
breaking changes
27
Saturday, 1 October 2011

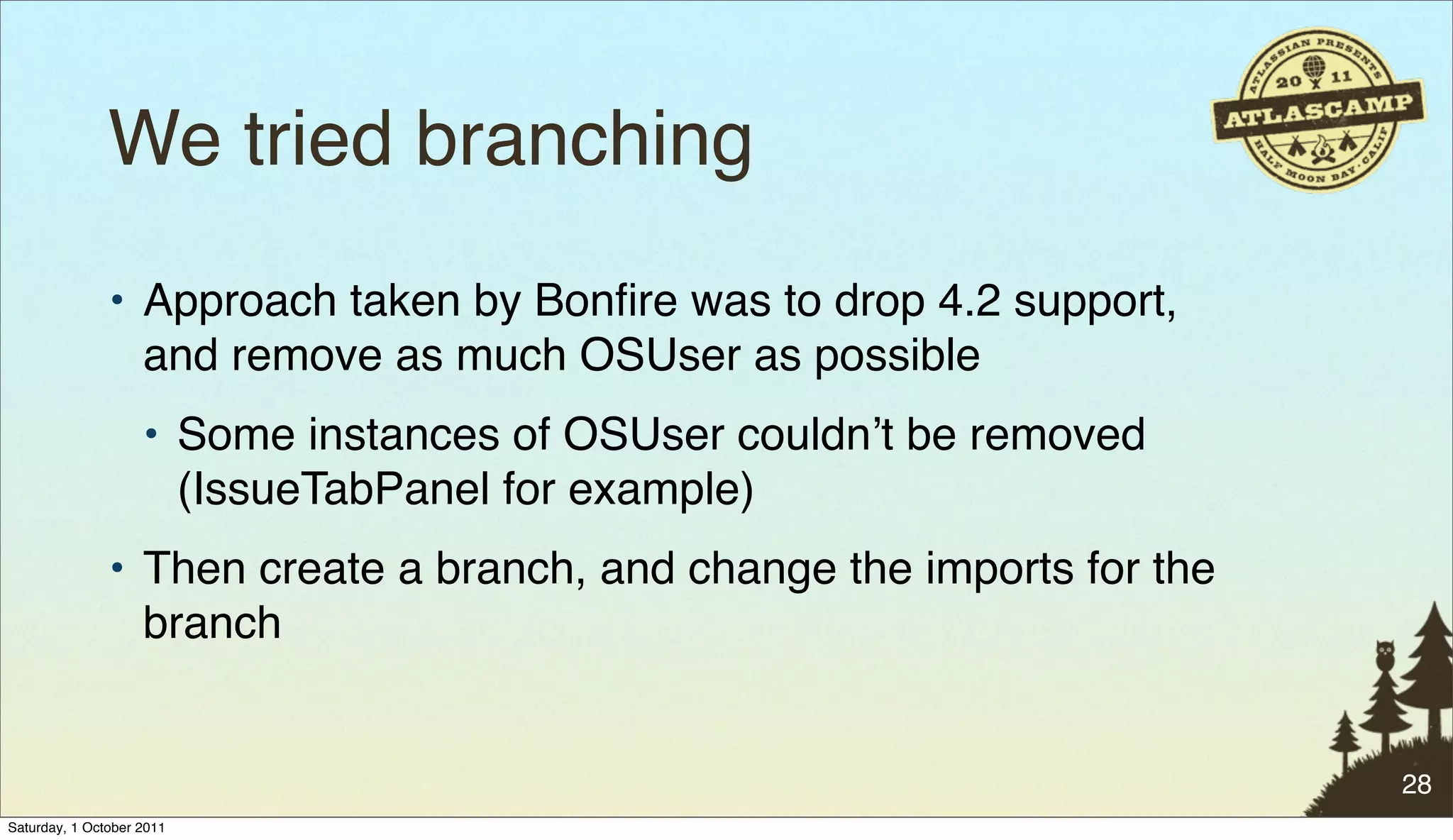

57. We tried branching
• Approach taken by Bonfire was to drop 4.2 support,
and remove as much OSUser as possible
• Some instances of OSUser couldnʼt be removed
(IssueTabPanel for example)
• Then create a branch, and change the imports for the
branch
28
Saturday, 1 October 2011

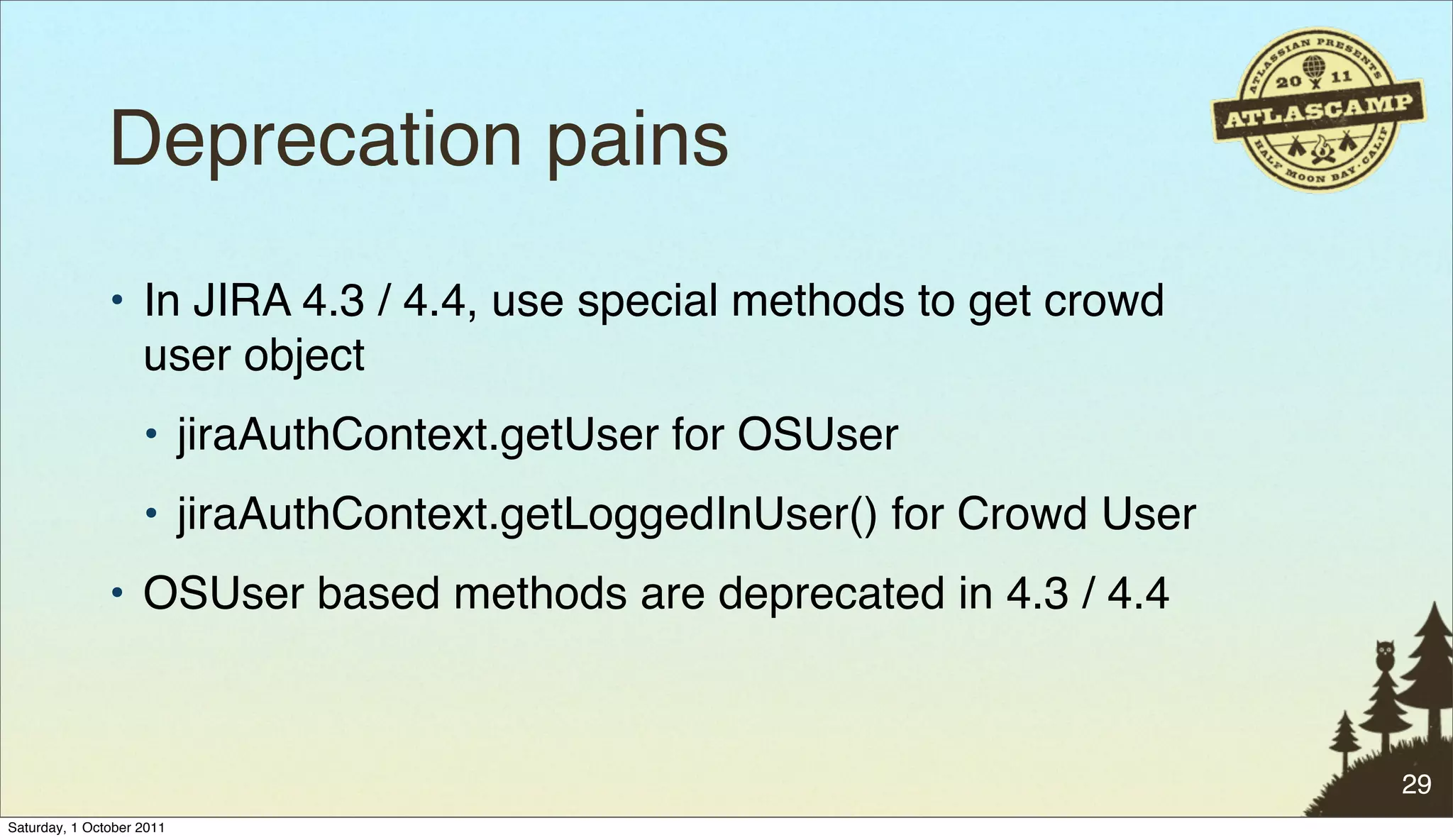

58. Deprecation pains
• In JIRA 4.3 / 4.4, use special methods to get crowd
user object
• jiraAuthContext.getUser for OSUser
• jiraAuthContext.getLoggedInUser() for Crowd User
• OSUser based methods are deprecated in 4.3 / 4.4
29
Saturday, 1 October 2011

59. Deprecation pains
• In JIRA 5.0, the better 4.3/4.4
Crowd user methods are now
deprecated (moved to nicer
named methods)
• Doing the right thing yields
lots of warnings
30
Saturday, 1 October 2011

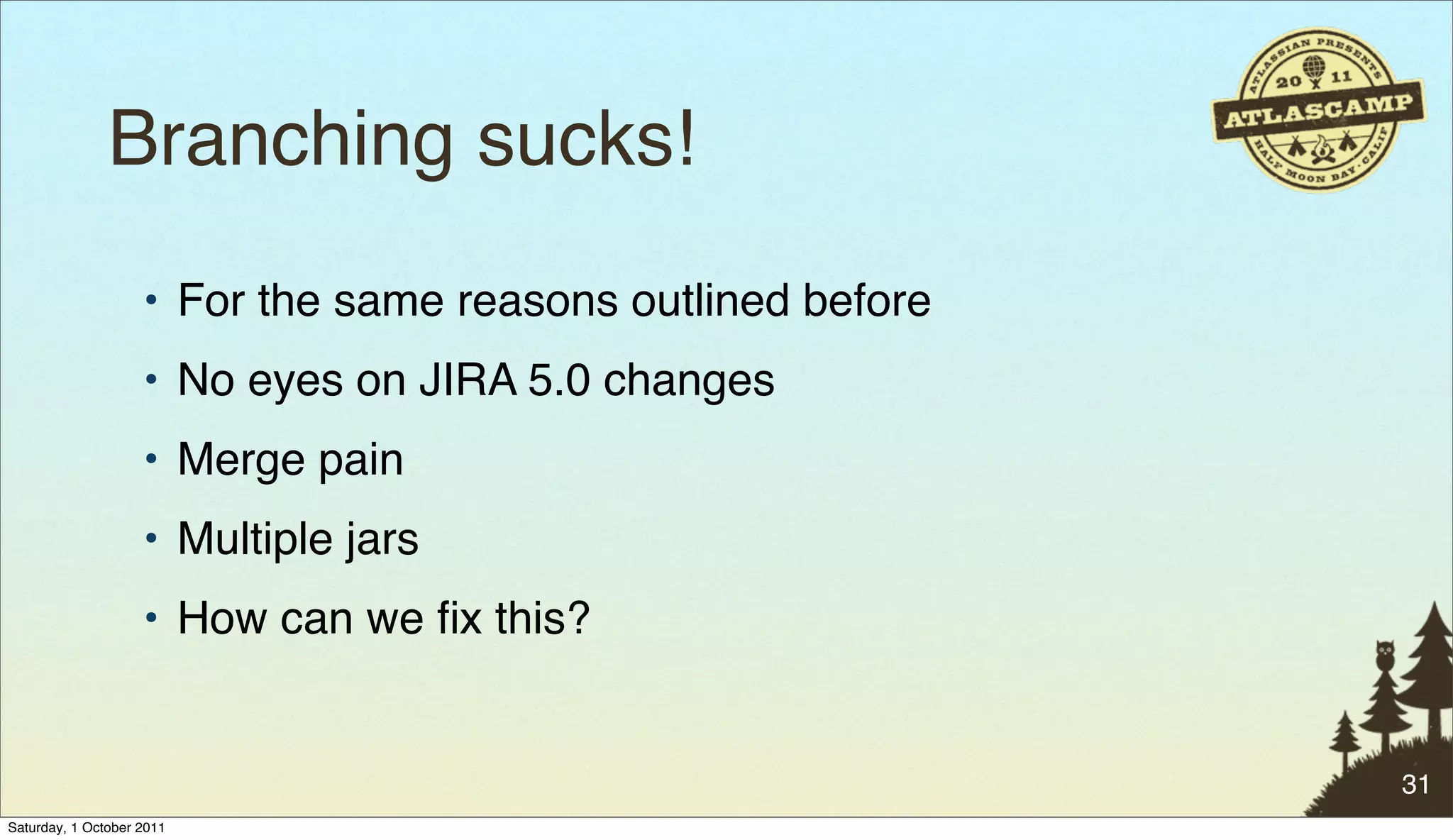

60. Branching sucks!
• For the same reasons outlined before
• No eyes on JIRA 5.0 changes
• Merge pain
• Multiple jars
• How can we fix this?
31
Saturday, 1 October 2011

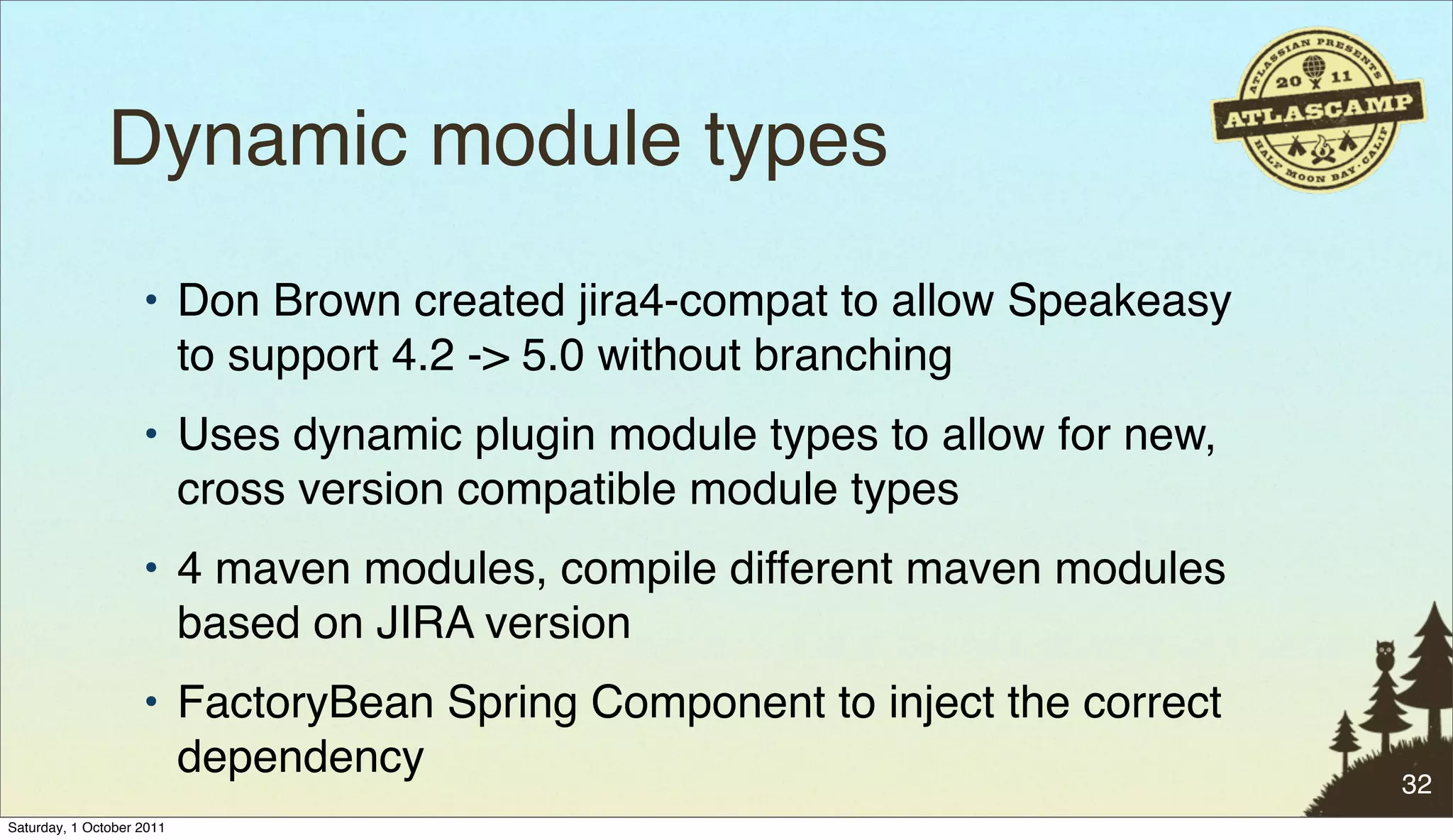

61. Dynamic module types
• Don Brown created jira4-compat to allow Speakeasy
to support 4.2 -> 5.0 without branching
• Uses dynamic plugin module types to allow for new,
cross version compatible module types
• 4 maven modules, compile different maven modules
based on JIRA version
• FactoryBean Spring Component to inject the correct
dependency 32
Saturday, 1 October 2011

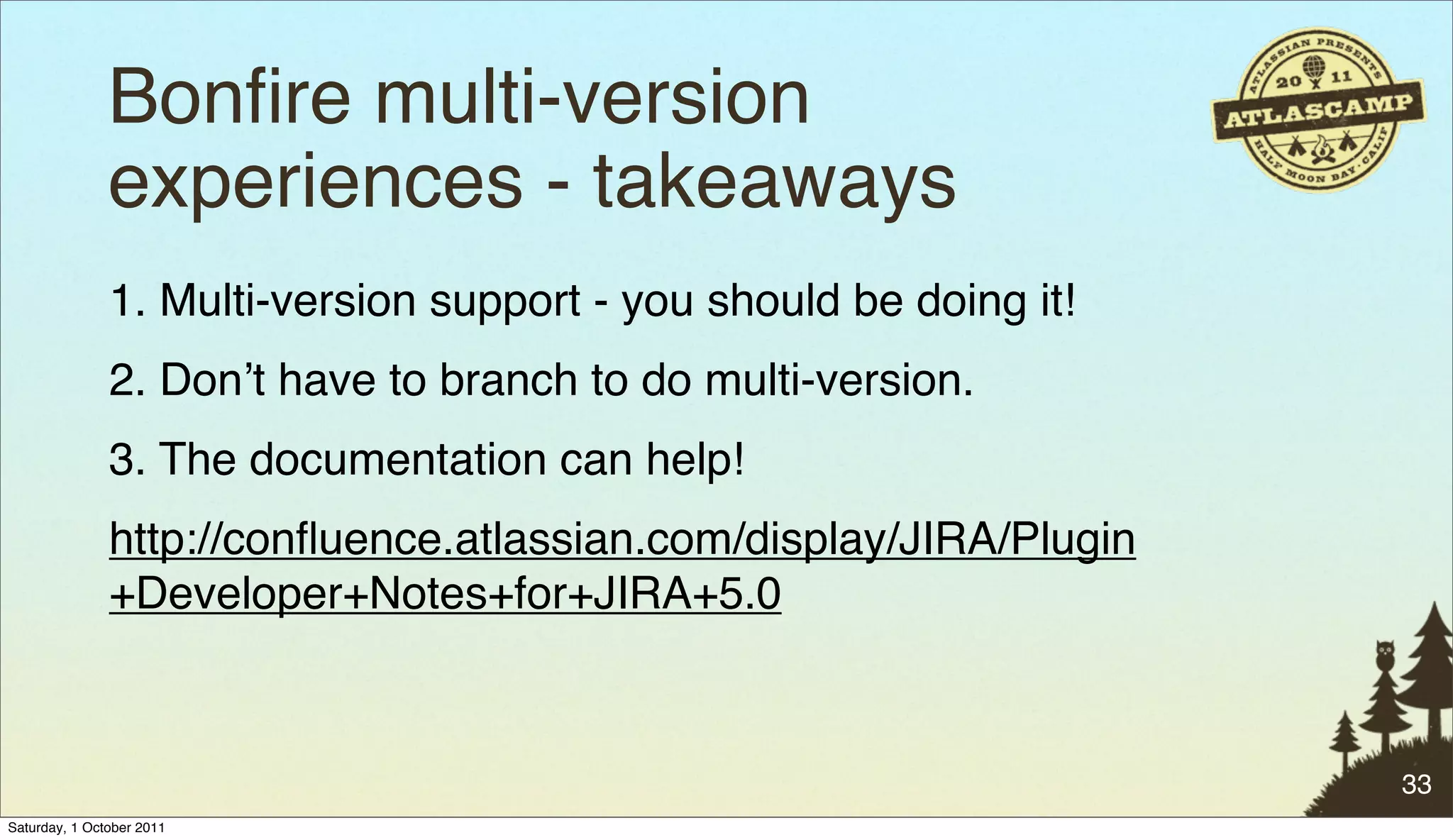

62. Bonfire multi-version
experiences - takeaways
1. Multi-version support - you should be doing it!
2. Donʼt have to branch to do multi-version.
3. The documentation can help!
http://confluence.atlassian.com/display/JIRA/Plugin
+Developer+Notes+for+JIRA+5.0
33
Saturday, 1 October 2011

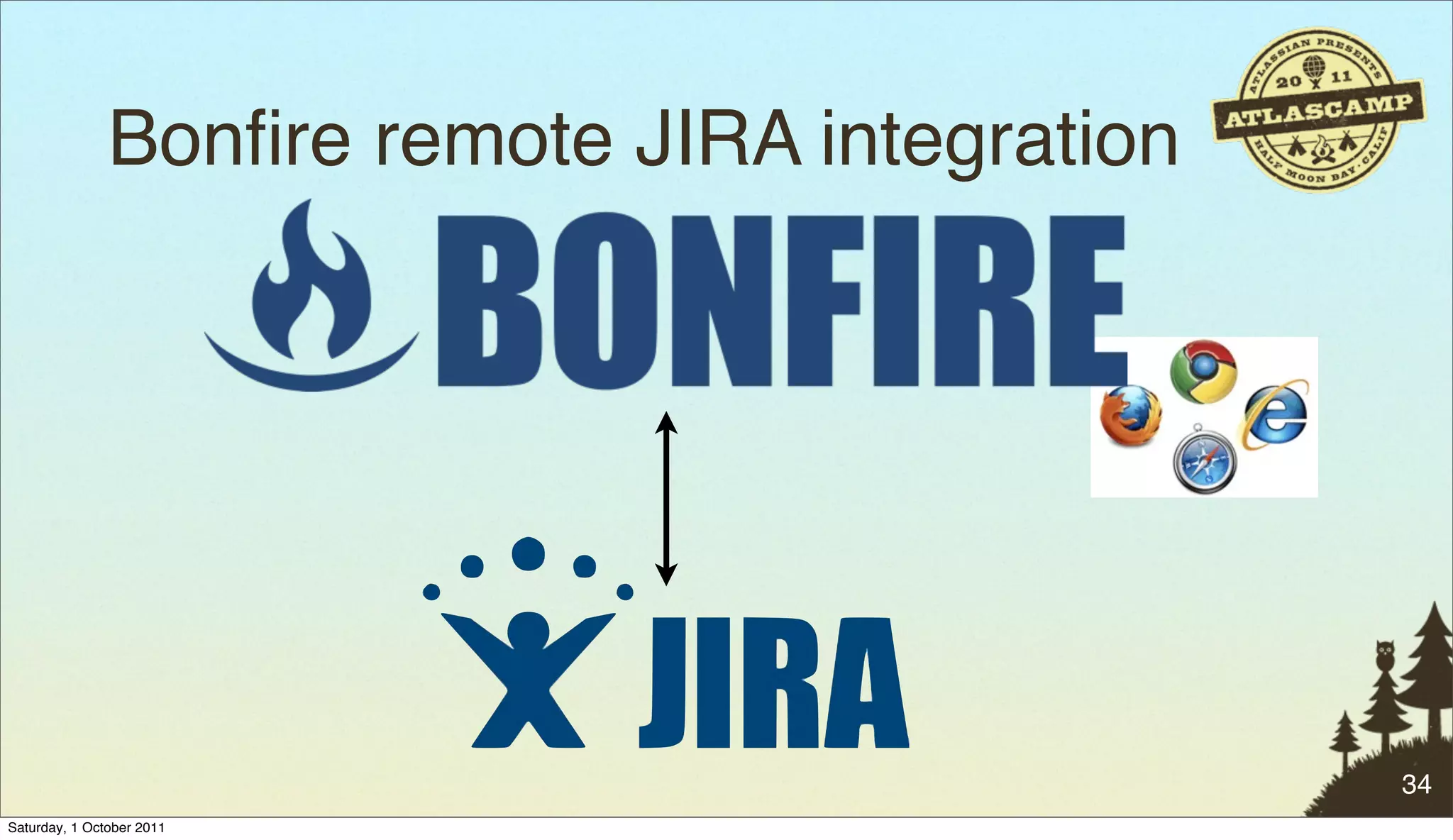

63. Bonfire remote JIRA integration
34
Saturday, 1 October 2011

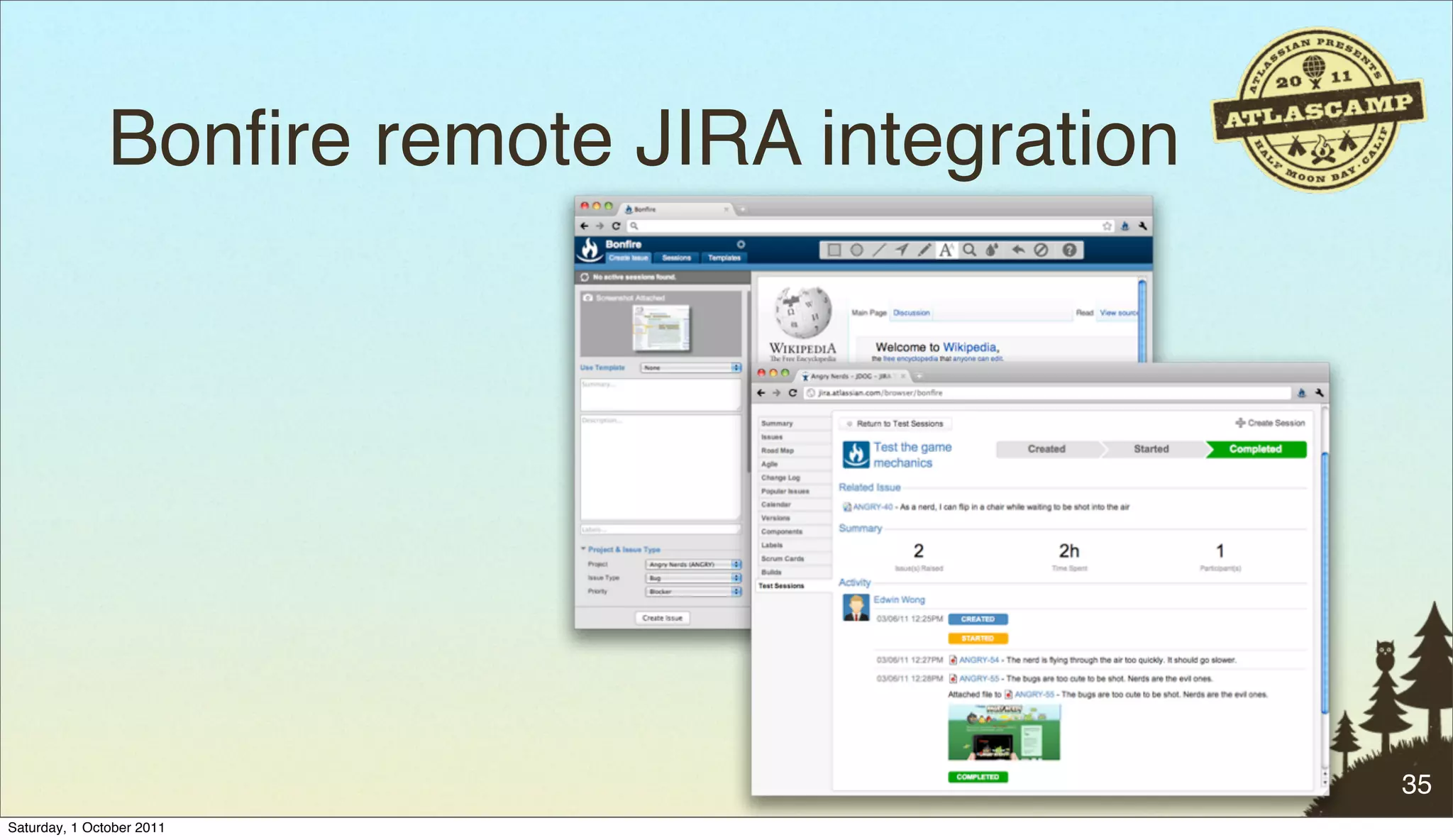

64. Bonfire remote JIRA integration
35
Saturday, 1 October 2011

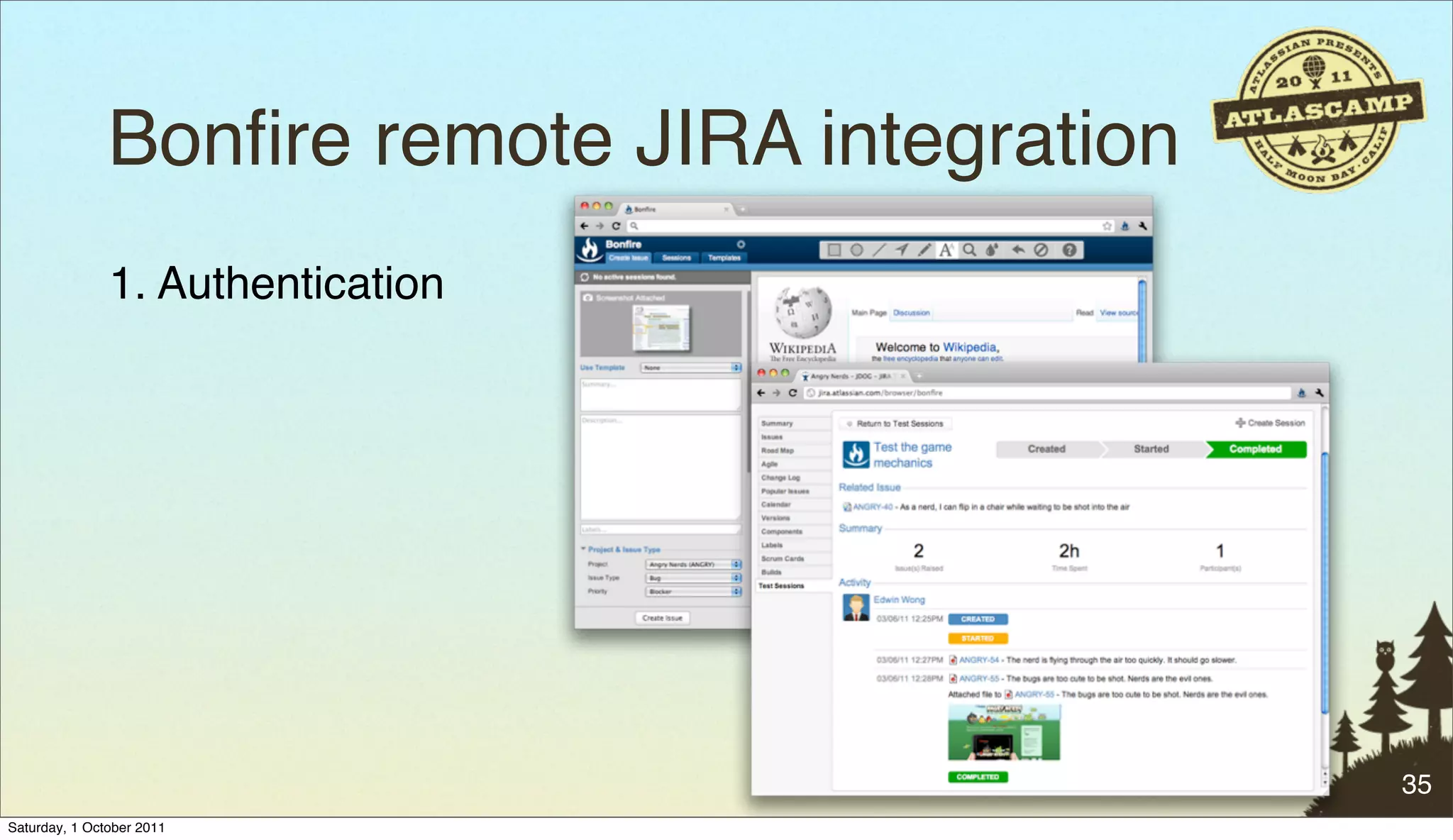

65. Bonfire remote JIRA integration
1. Authentication
35
Saturday, 1 October 2011

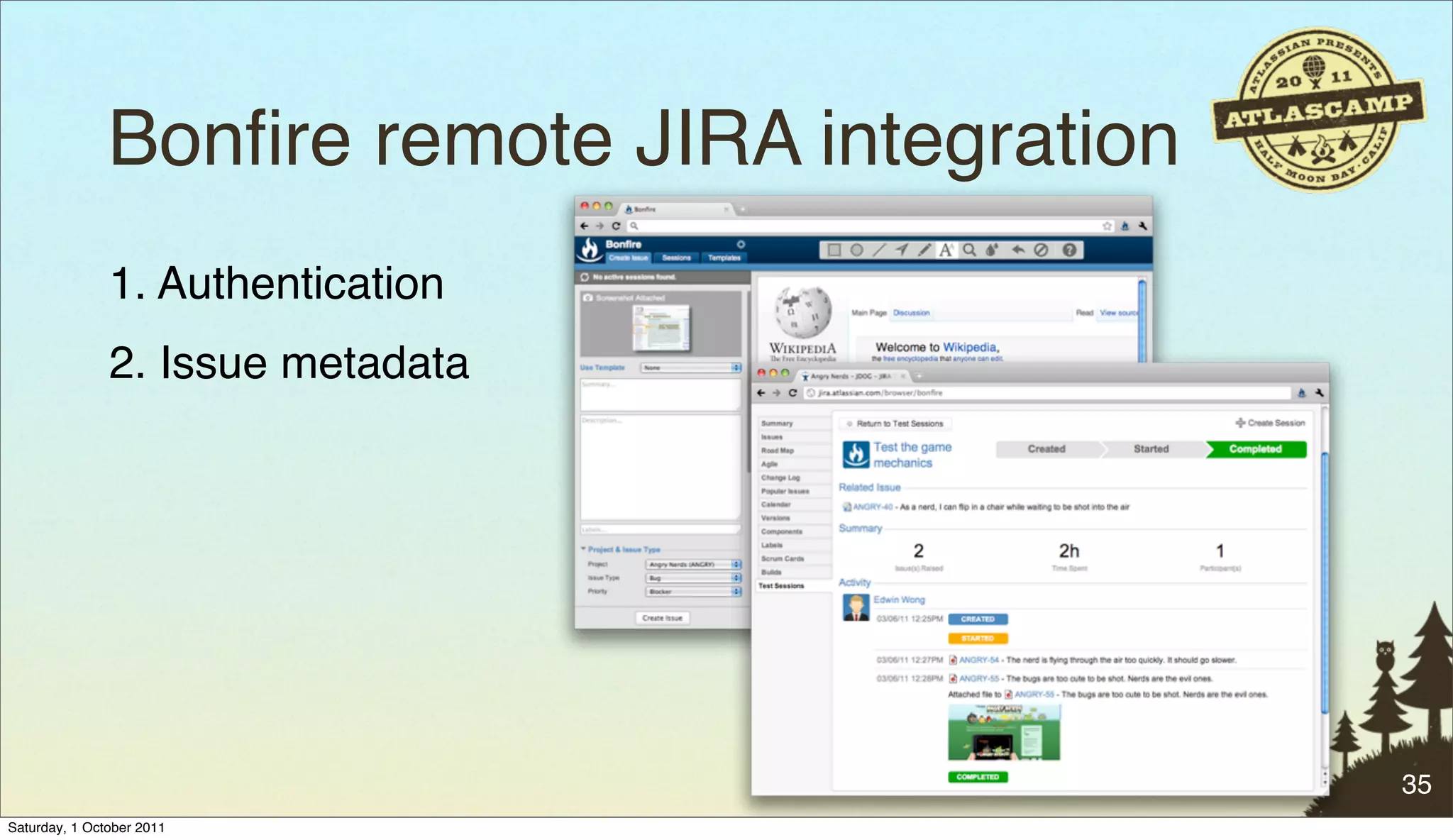

66. Bonfire remote JIRA integration
1. Authentication
2. Issue metadata
35
Saturday, 1 October 2011

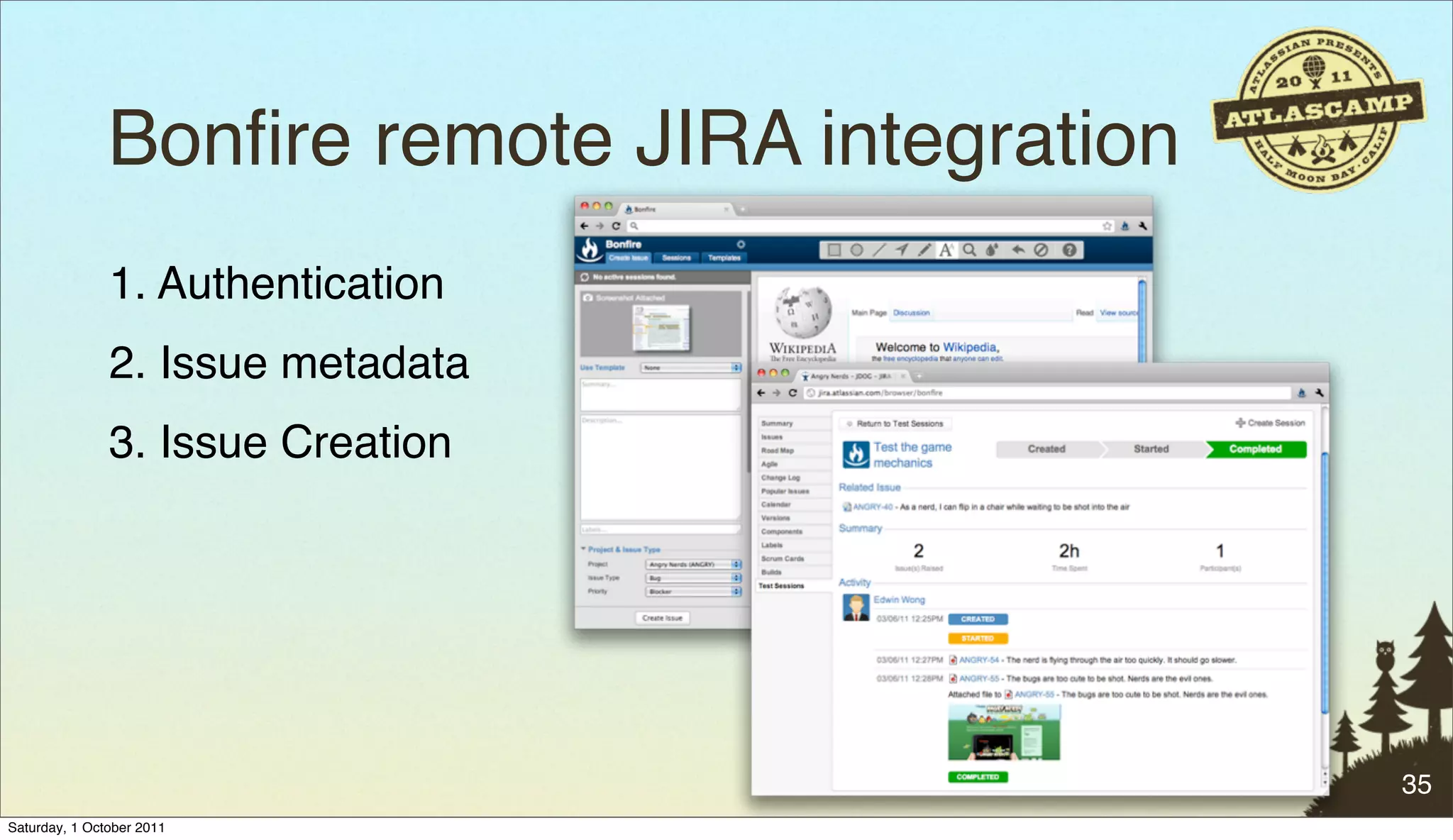

67. Bonfire remote JIRA integration
1. Authentication
2. Issue metadata
3. Issue Creation
35
Saturday, 1 October 2011

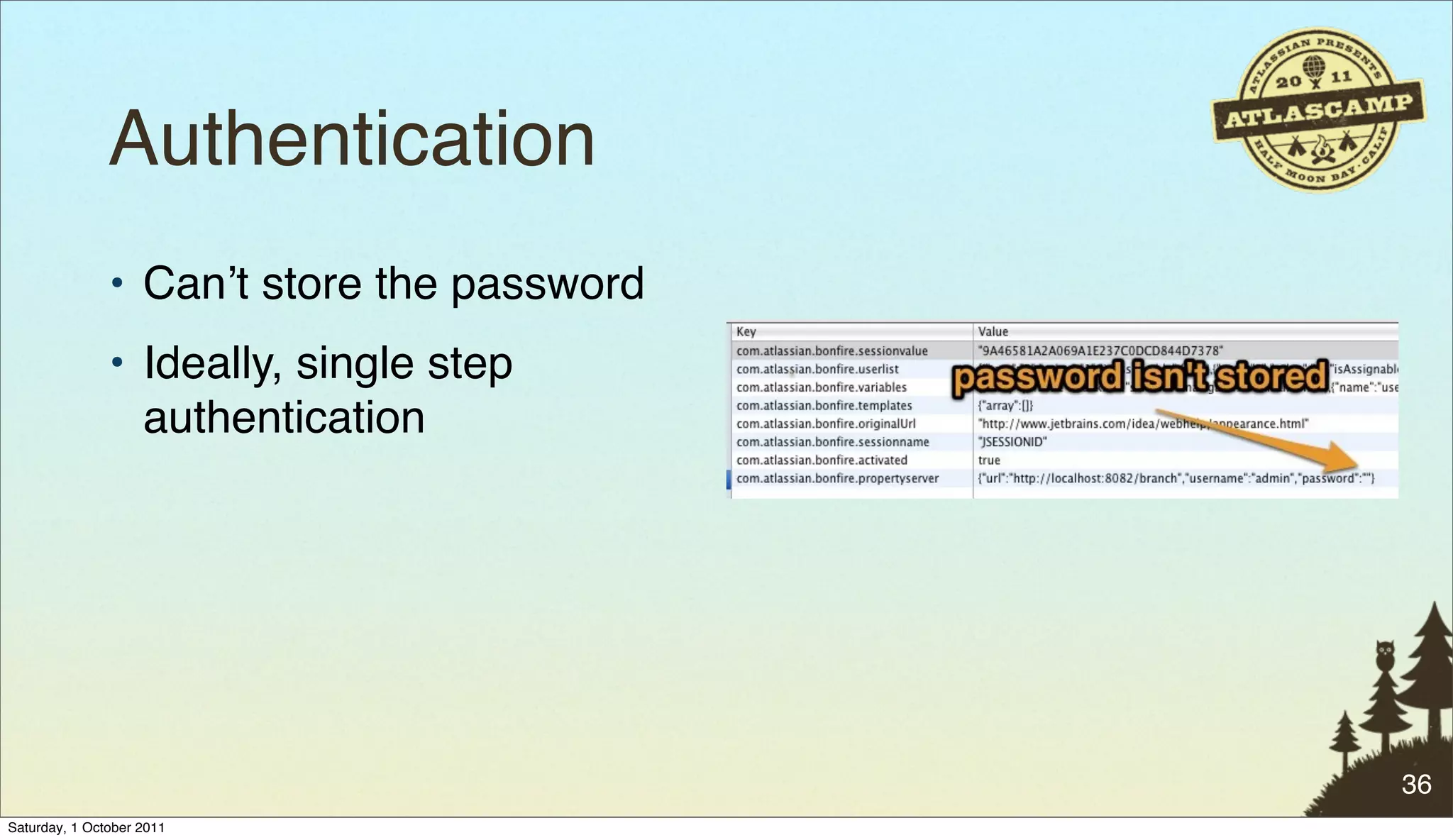

68. Authentication
• Canʼt store the password
• Ideally, single step
authentication
36
Saturday, 1 October 2011

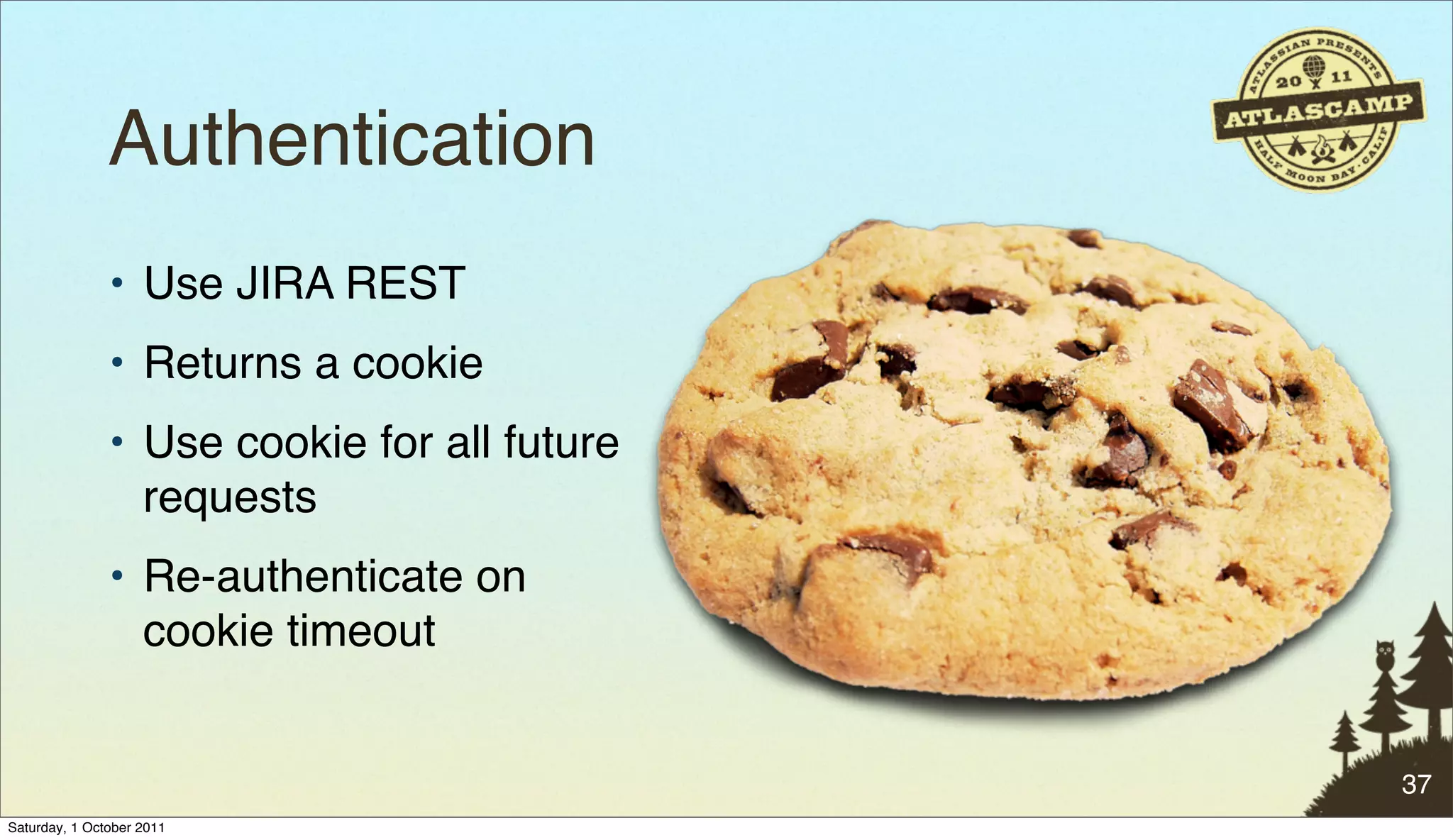

69. Authentication
• Use JIRA REST
• Returns a cookie
• Use cookie for all future
requests
• Re-authenticate on
cookie timeout
37
Saturday, 1 October 2011

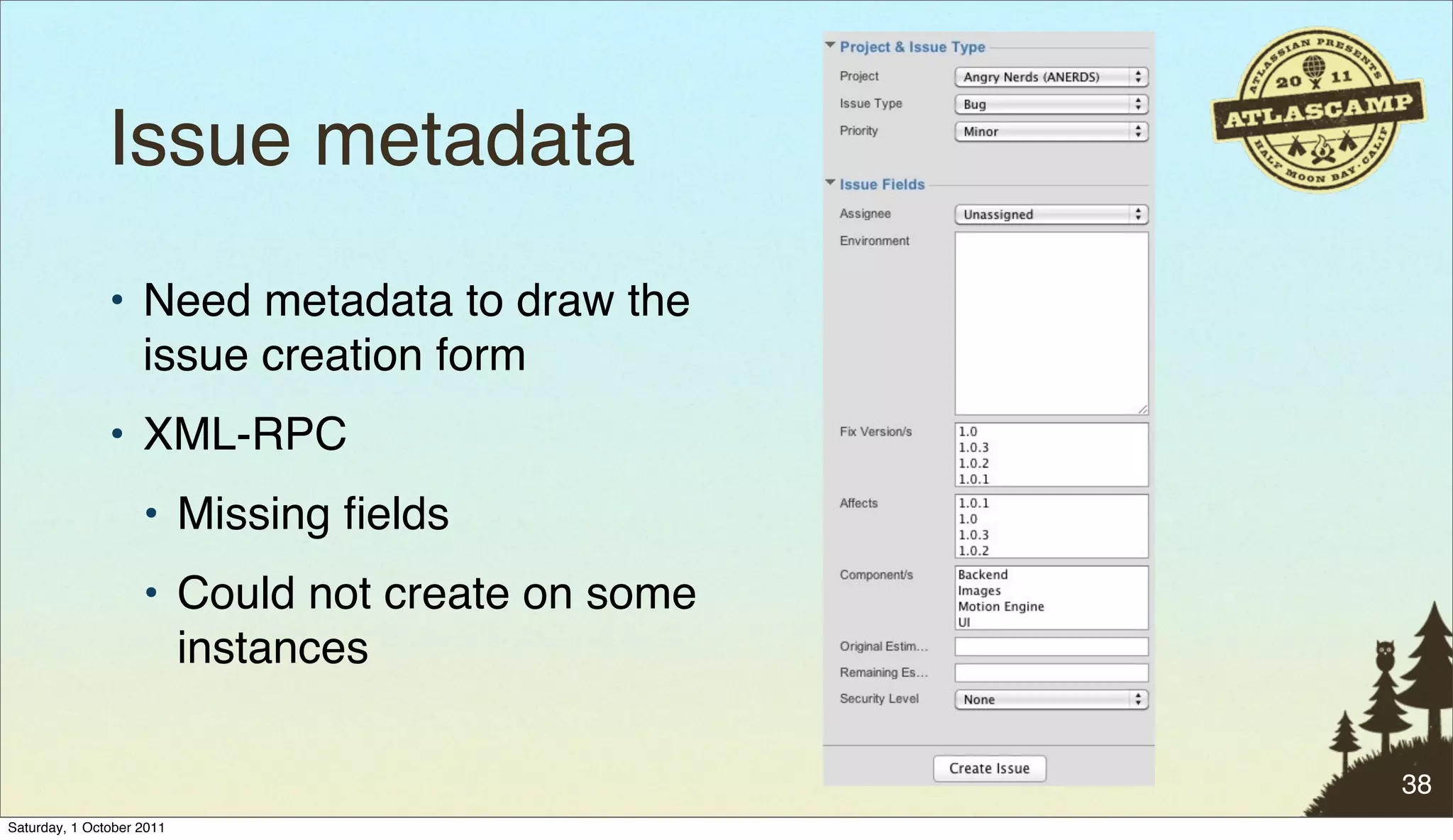

70. Issue metadata
• Need metadata to draw the
issue creation form
• XML-RPC
• Missing fields
• Could not create on some
instances
38
Saturday, 1 October 2011

71. Issue metadata
• Now on custom REST
• Bad: extra code
• Good: In control, works on
all instances, can add new
Bonfire specific features
39
Saturday, 1 October 2011

72. Issue creation
• XML-RPC
• Gaps filled with REST
(e.g. labels)
• SOAP for attachments
40
Saturday, 1 October 2011

73. Issue creation
• Now on custom REST
• Bad: extra code
• Good: In control, works on
all instances, can add new
Bonfire specific features
• Déjà vu?
41
Saturday, 1 October 2011

74. Good news, everyone!
• In JIRA 5.0, neither custom
REST resource would be
required
42
Saturday, 1 October 2011

75. Bonfire Remote API
experiences - takeaways
1. Test on real / complex data!
(use atlas-create-home-zip)
2. Favour REST
3. Donʼt fear custom REST resources
43
Saturday, 1 October 2011

76. Thank you!
Saturday, 1 October 2011
