Blue eyes technology aims to create machines that can perceive and understand users through cameras, microphones, and sensors. It uses technologies like emotion mouse, MAGIC pointing, speech recognition, and SUITOR to analyze facial expressions, eye movements, speech, and focus to interact with and understand users. Potential applications include retail to analyze customer behavior, automotive, gaming, and control rooms. The goal is to build more intuitive human-computer interaction.

1. BLUE EYES TECHNOLOGY
Presented By:
MADHAV SINGH SOLANKI
M.Tech(CSE) 1ST
YEAR
ROLL NO: 148150002
1

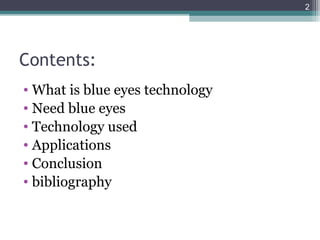

2. Contents:
• What is blue eyes technology
• Need blue eyes
• Technology used
• Applications
• Conclusion
• bibliography
2

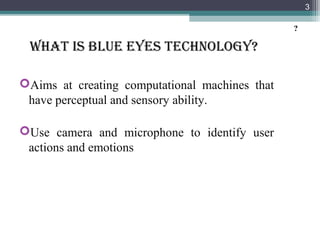

3. WHAT IS BLUE EYES TECHNOLOGY?
Aims at creating computational machines that
have perceptual and sensory ability.
Use camera and microphone to identify user
actions and emotions
3
?

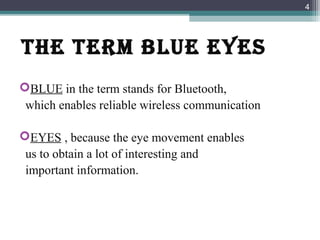

4. THE TErm BLUE EYES
BLUE in the term stands for Bluetooth,
which enables reliable wireless communication
EYES , because the eye movement enables
us to obtain a lot of interesting and
important information.
4

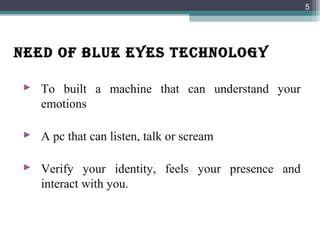

5. NEED OF BLUE EYES TECHNOLOGY
 To built a machine that can understand your
emotions
 A pc that can listen, talk or scream
 Verify your identity, feels your presence and
interact with you.
5

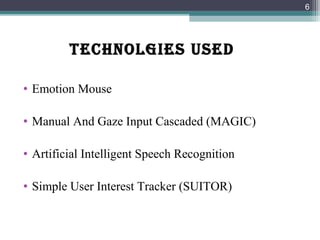

6. TECHNOLGIES USED
• Emotion Mouse
• Manual And Gaze Input Cascaded (MAGIC)
• Artificial Intelligent Speech Recognition
• Simple User Interest Tracker (SUITOR)
6

7. EMOTION MOUSE
People spend approximately
1/3 of their total computer
time touching input device
Physiological data is
obtained and emotional
state is determined
7

8. MAGIC POINTING
Reduce the cursor movement needed for target
selection
The user does not have to be aware of the role of
the eye gaze.(automated)
Click on the target with a regular manual input
device
8

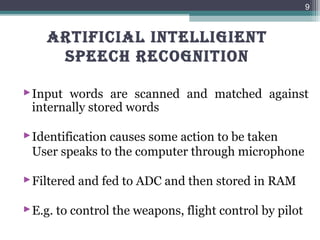

9. ARTIFICIAL INTELLIGIENT
SPEECH RECOGNITION
Input words are scanned and matched against
internally stored words
Identification causes some action to be taken
User speaks to the computer through microphone
Filtered and fed to ADC and then stored in RAM
E.g. to control the weapons, flight control by pilot
9

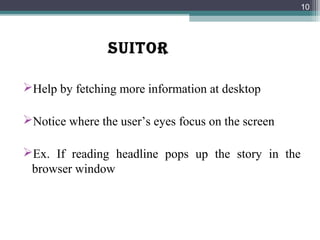

10. SUITOR
Help by fetching more information at desktop
Notice where the user’s eyes focus on the screen
Ex. If reading headline pops up the story in the
browser window
10

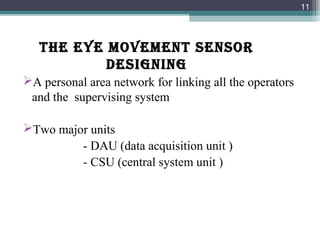

11. THE EYE MOVEMENT SENSOR
DESIGNING
A personal area network for linking all the operators
and the supervising system
Two major units
- DAU (data acquisition unit )
- CSU (central system unit )
11

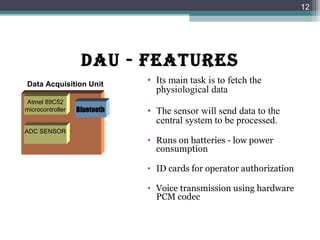

12. DAU - fEATURES
• Its main task is to fetch the
physiological data
• The sensor will send data to the
central system to be processed.
• Runs on batteries - low power
consumption
• ID cards for operator authorization
• Voice transmission using hardware
PCM codec
12
Data Acquisition Unit
Atmel 89C52
microcontroller
ADC SENSOR
Bluetooth

13. DAU
• ATMEL 8952 microcontroller
• BLUE TOOTH MODULE – supports
synchronous voice
• ALPHANUMERIC LCD display
• LED indicators
• ID CARD interface
13

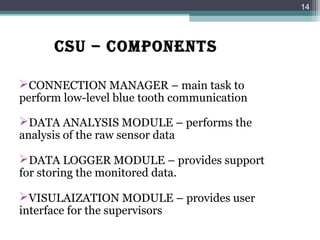

14. CSU – COMpONENTS
CONNECTION MANAGER – main task to
perform low-level blue tooth communication
DATA ANALYSIS MODULE – performs the
analysis of the raw sensor data
DATA LOGGER MODULE – provides support
for storing the monitored data.
VISULAIZATION MODULE – provides user
interface for the supervisors
14

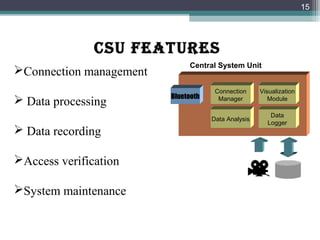

15. CSU fEATURES
15
Central System Unit
Connection
Manager
Data Analysis
Visualization
ModuleBluetooth
Connection
Manager
Data
Logger
Connection management
 Data processing
 Data recording
Access verification
System maintenance

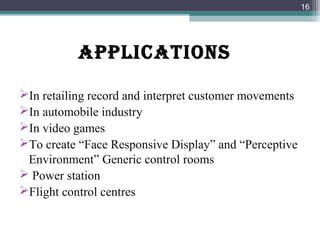

16. applications
In retailing record and interpret customer movements
In automobile industry
In video games
To create “Face Responsive Display” and “Perceptive
Environment” Generic control rooms
 Power station
Flight control centres
16

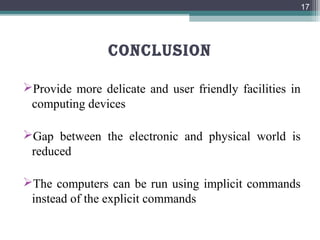

17. conclUsion
Provide more delicate and user friendly facilities in
computing devices
Gap between the electronic and physical world is
reduced
The computers can be run using implicit commands
instead of the explicit commands
17

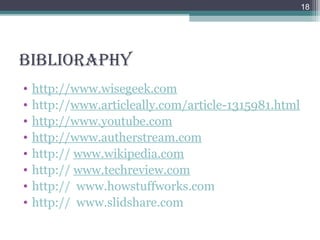

18. BiBlioRapHY
• http://www.wisegeek.com
• http://www.articleally.com/article-1315981.html
• http://www.youtube.com
• http://www.autherstream.com
• http:// www.wikipedia.com
• http:// www.techreview.com
• http:// www.howstuffworks.com
• http:// www.slidshare.com
18

19. tHank
U…..
19
