1. Beyond Metrics – Oracle AHF Insights for
Proactive Database Management
Sandesh Rao
VP AIOps and Machine Learning , Autonomous Database
@sandeshr
https://www.linkedin.com/in/raosandesh/
https://www.slideshare.net/SandeshRao4

2. Confidential - Oracle Restricted
Confidential - Oracle Restricted

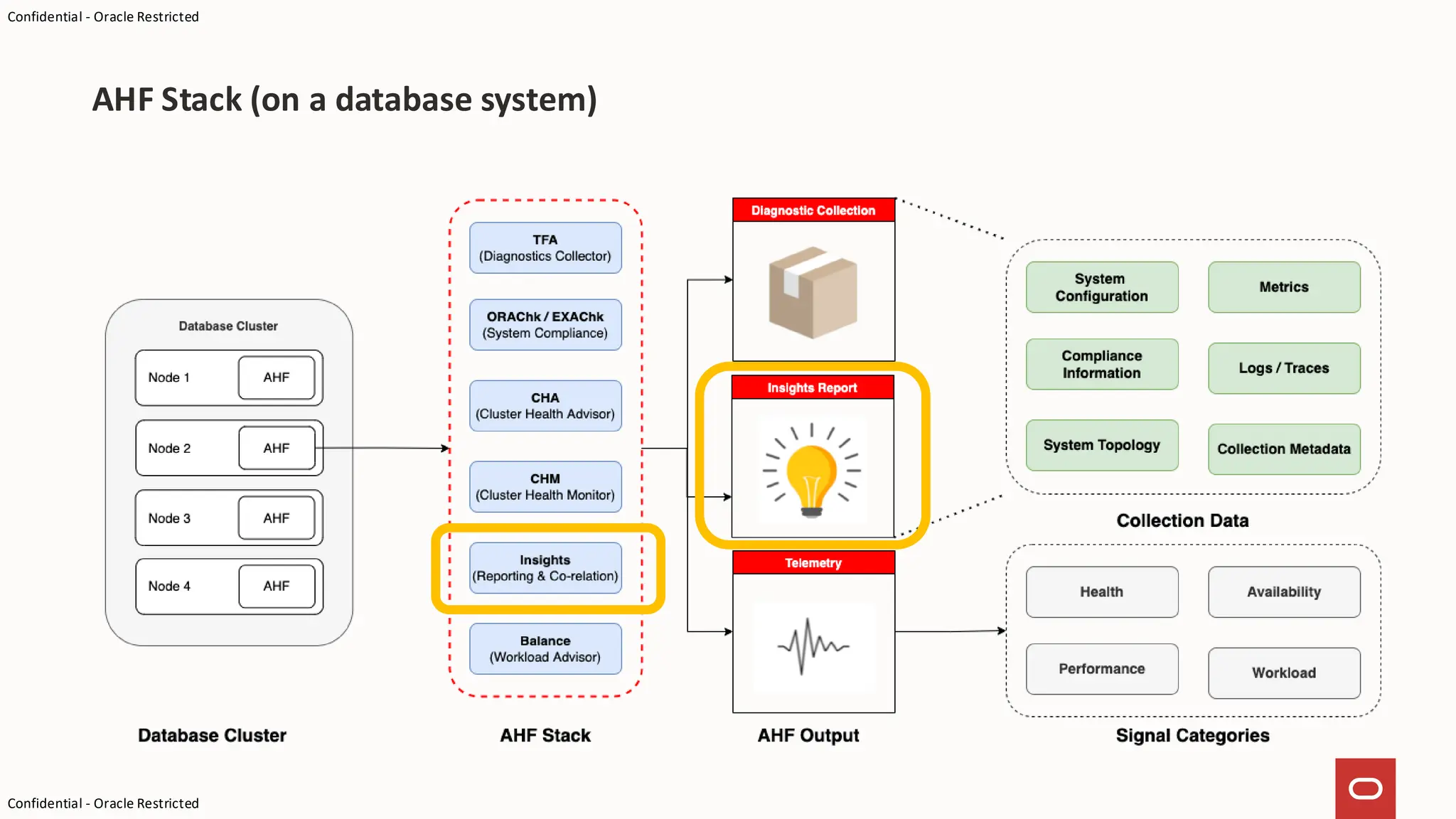

AHF Stack (on a database system)

3. Confidential - Oracle Restricted
Confidential - Oracle Restricted

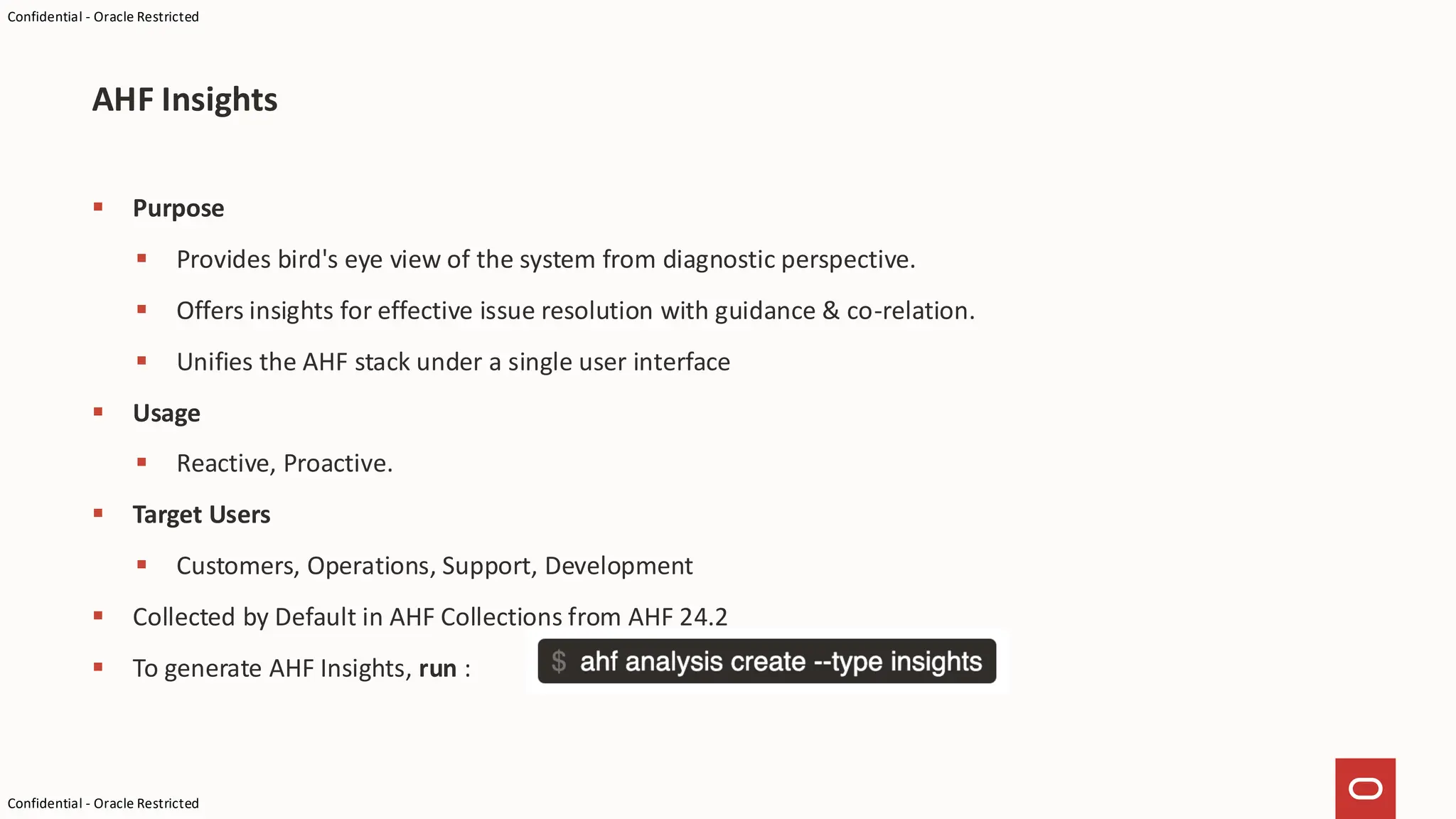

▪ Purpose
▪ Provides bird's eye view of the system from diagnostic perspective.
▪ Offers insights for effective issue resolution with guidance & co-relation.
▪ Unifies the AHF stack under a single user interface
▪ Usage
▪ Reactive, Proactive.
▪ Target Users
▪ Customers, Operations, Support, Development
▪ Collected by Default in AHF Collections from AHF 24.2
▪ To generate AHF Insights, run :
AHF Insights

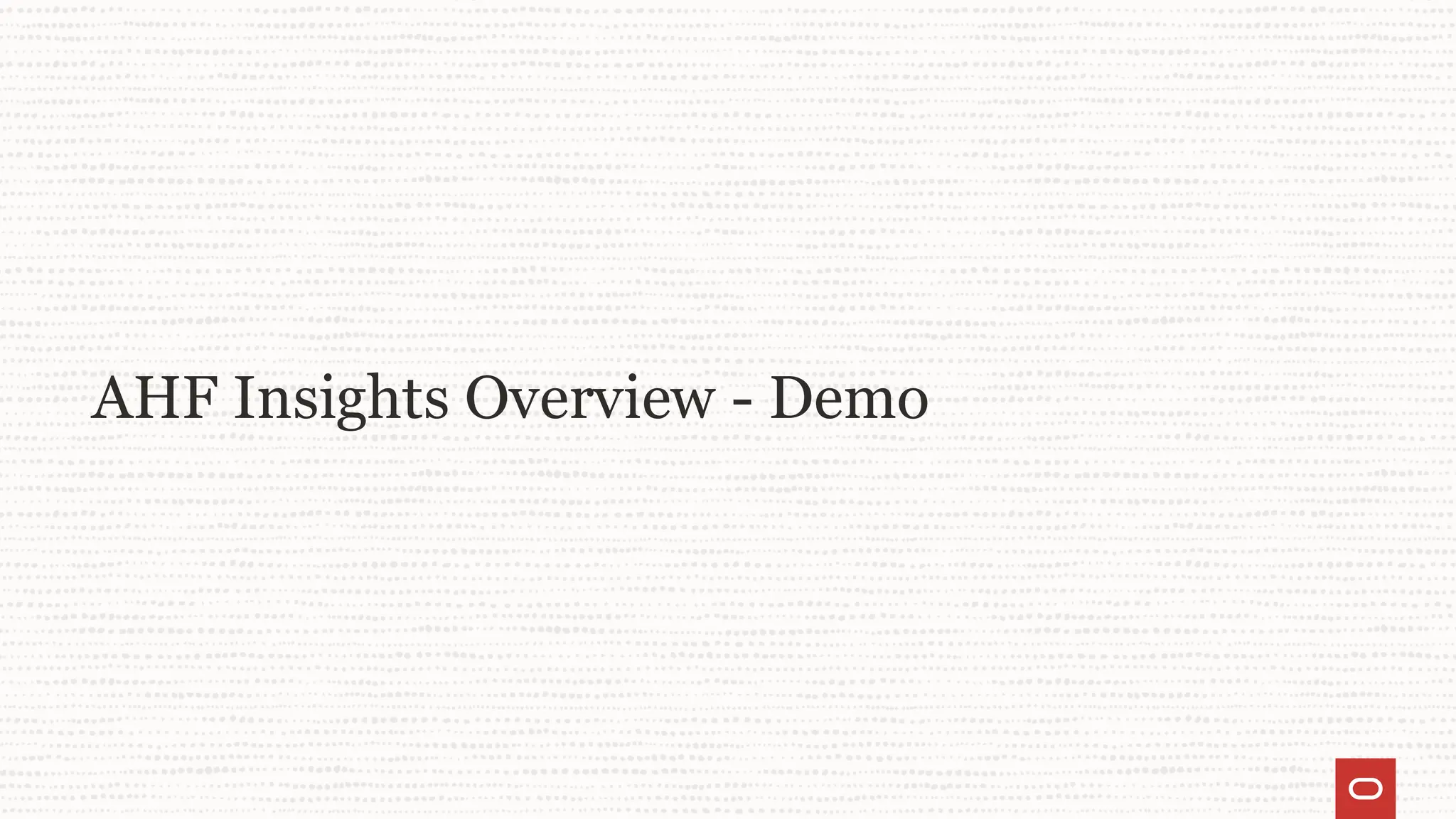

4. AHF Insights Overview - Demo

5. Confidential - Oracle Restricted
Confidential - Oracle Restricted

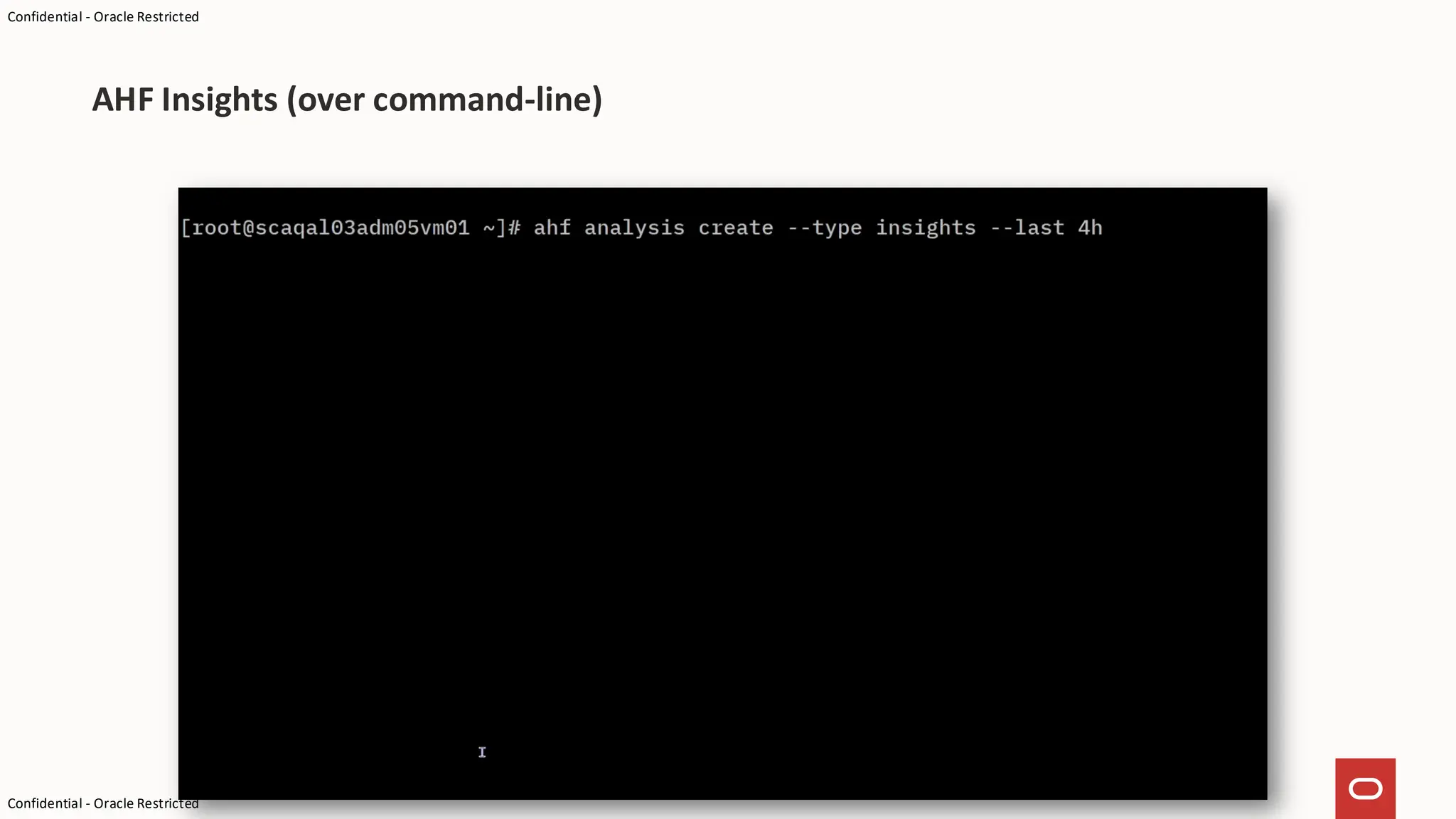

AHF Insights (over command-line)

6. Confidential - Oracle Restricted
Confidential - Oracle Restricted

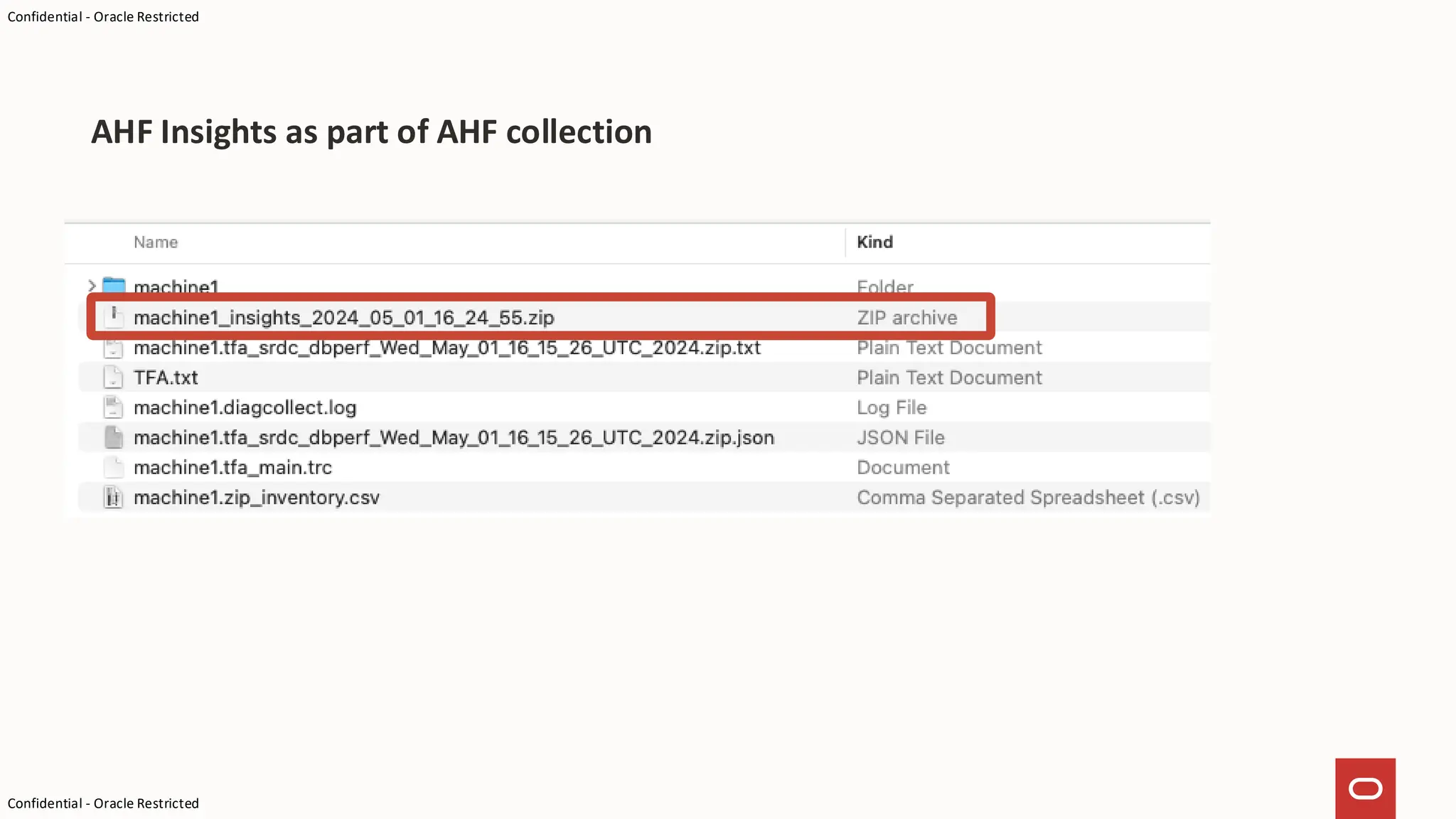

AHF Insights as part of AHF collection

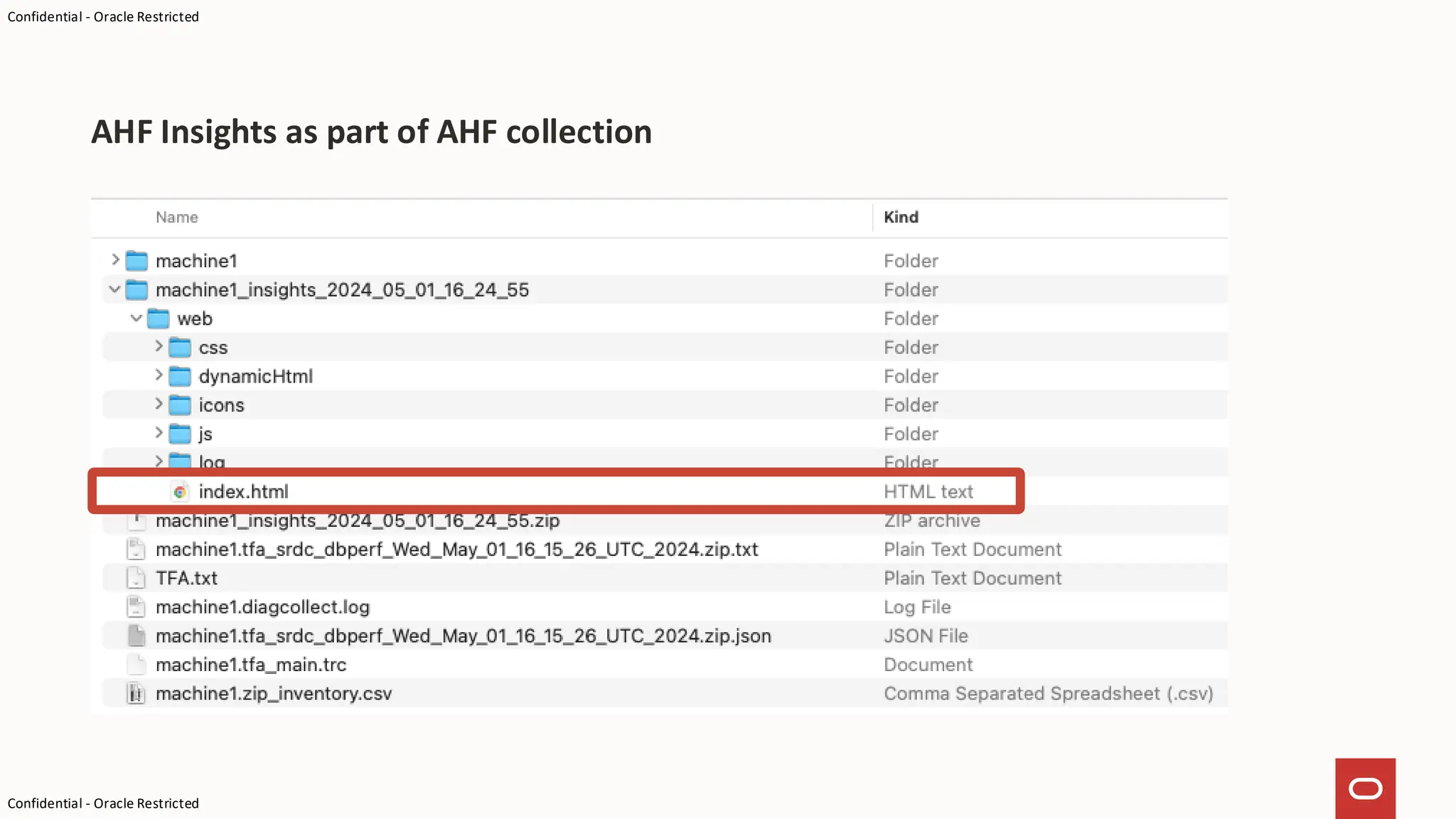

7. Confidential - Oracle Restricted
Confidential - Oracle Restricted
AHF Insights as part of AHF collection

8. Confidential - Oracle Restricted
Confidential - Oracle Restricted

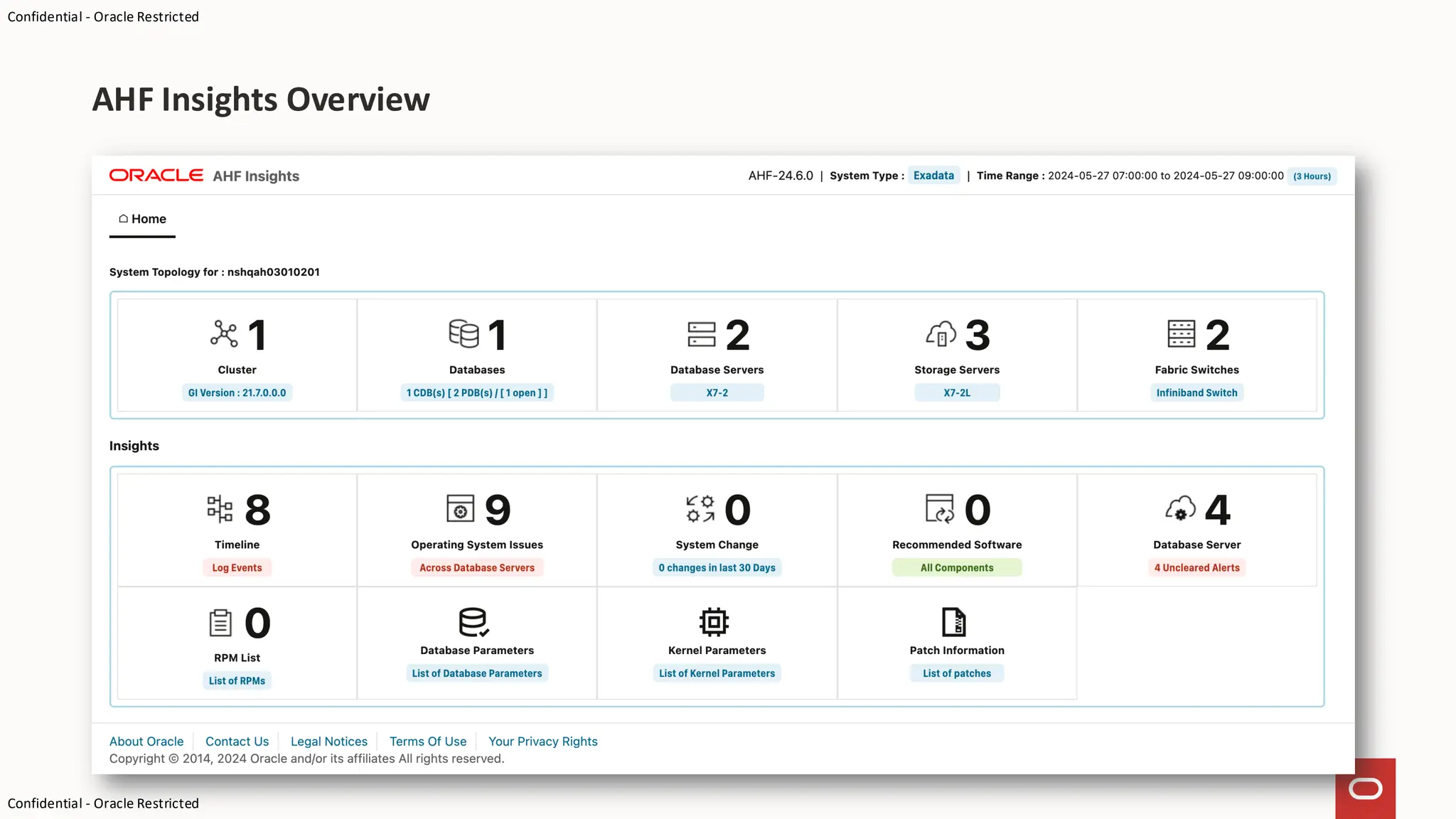

AHF Insights Overview

9. Need configurations details while
troubleshooting an issue

10. Confidential - Oracle Restricted
Confidential - Oracle Restricted

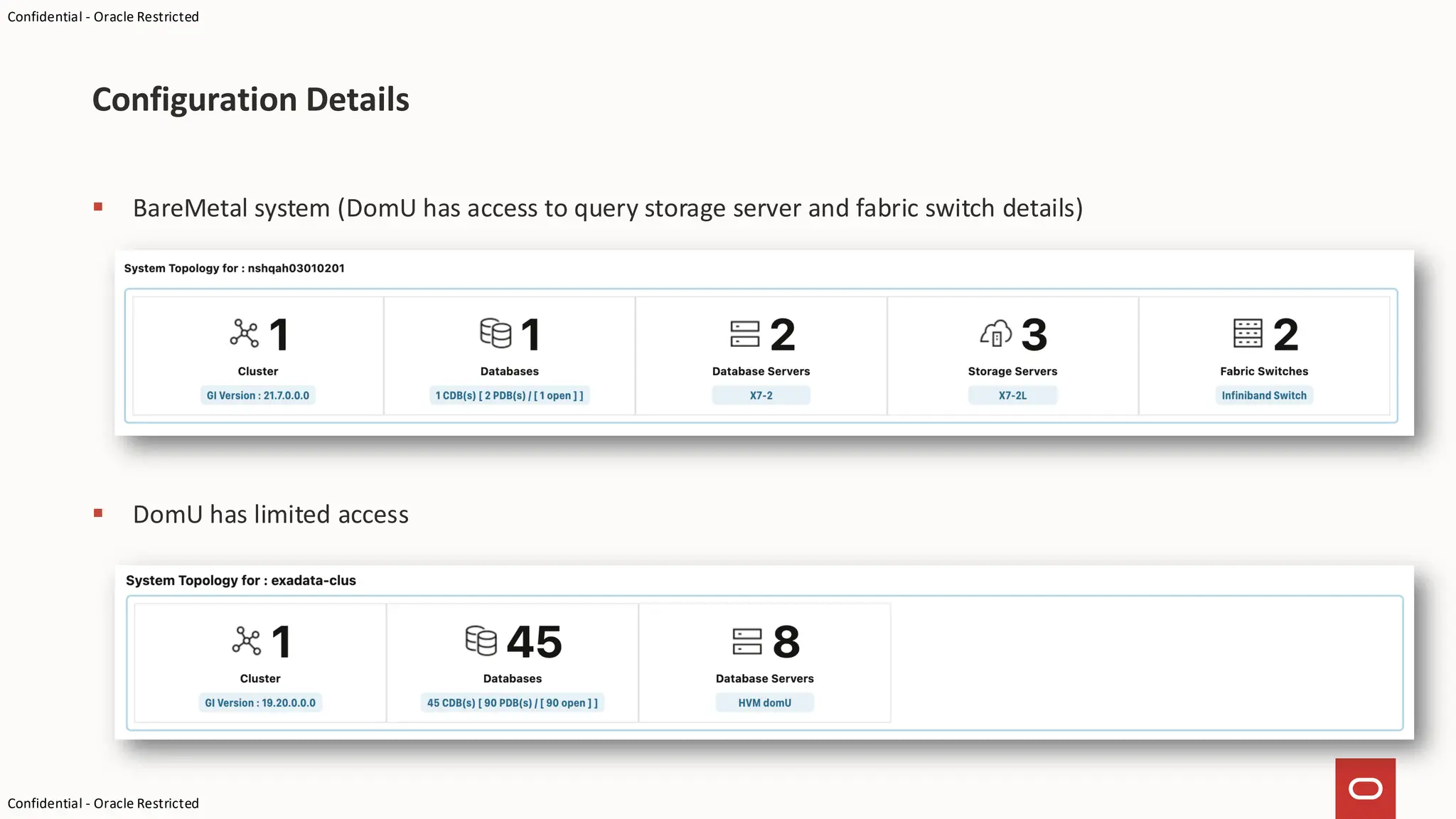

▪ BareMetal system (DomU has access to query storage server and fabric switch details)
▪ DomU has limited access
Configuration Details

11. Confidential - Oracle Restricted
Confidential - Oracle Restricted

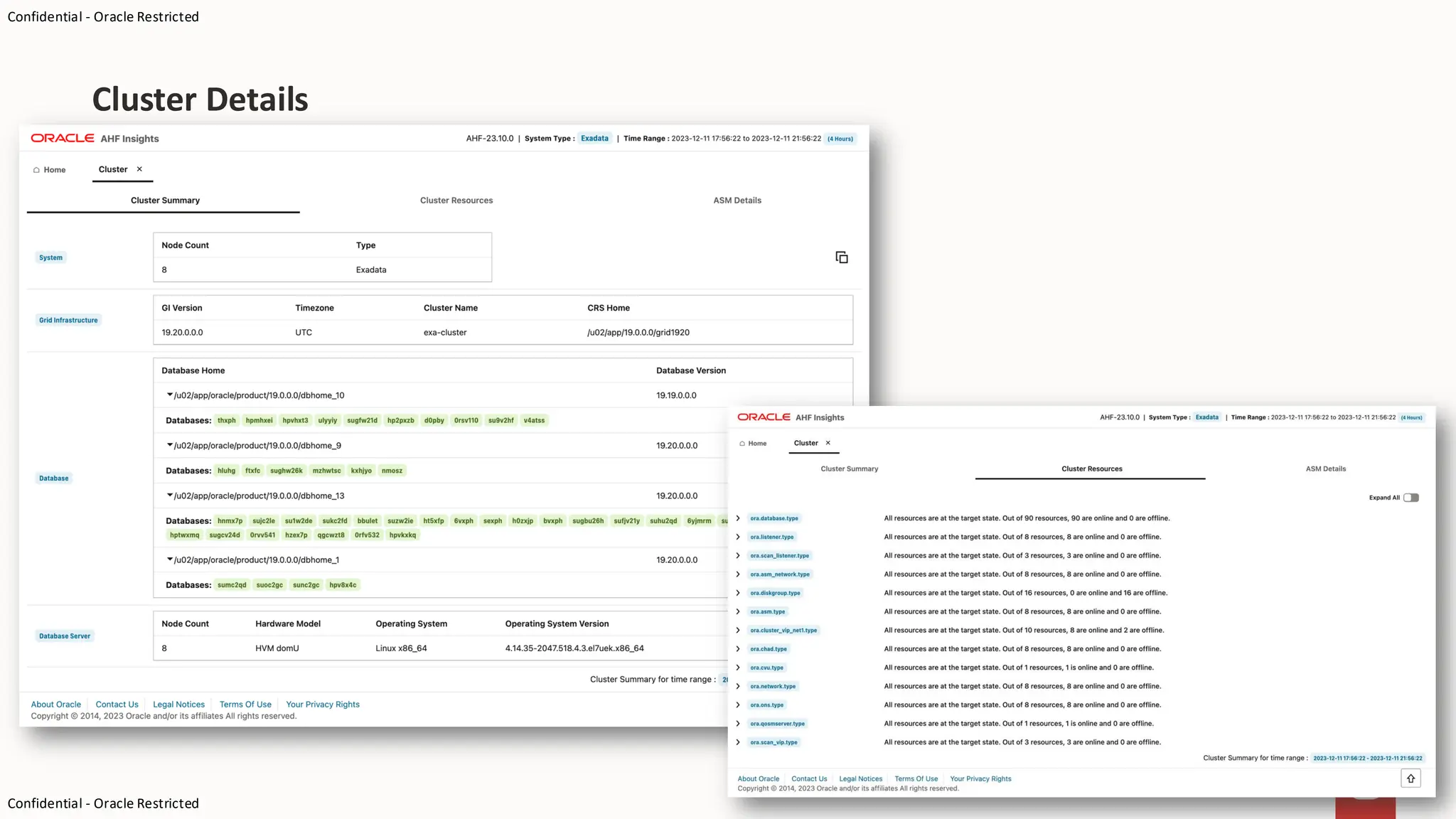

Cluster Details

12. Confidential - Oracle Restricted
Confidential - Oracle Restricted

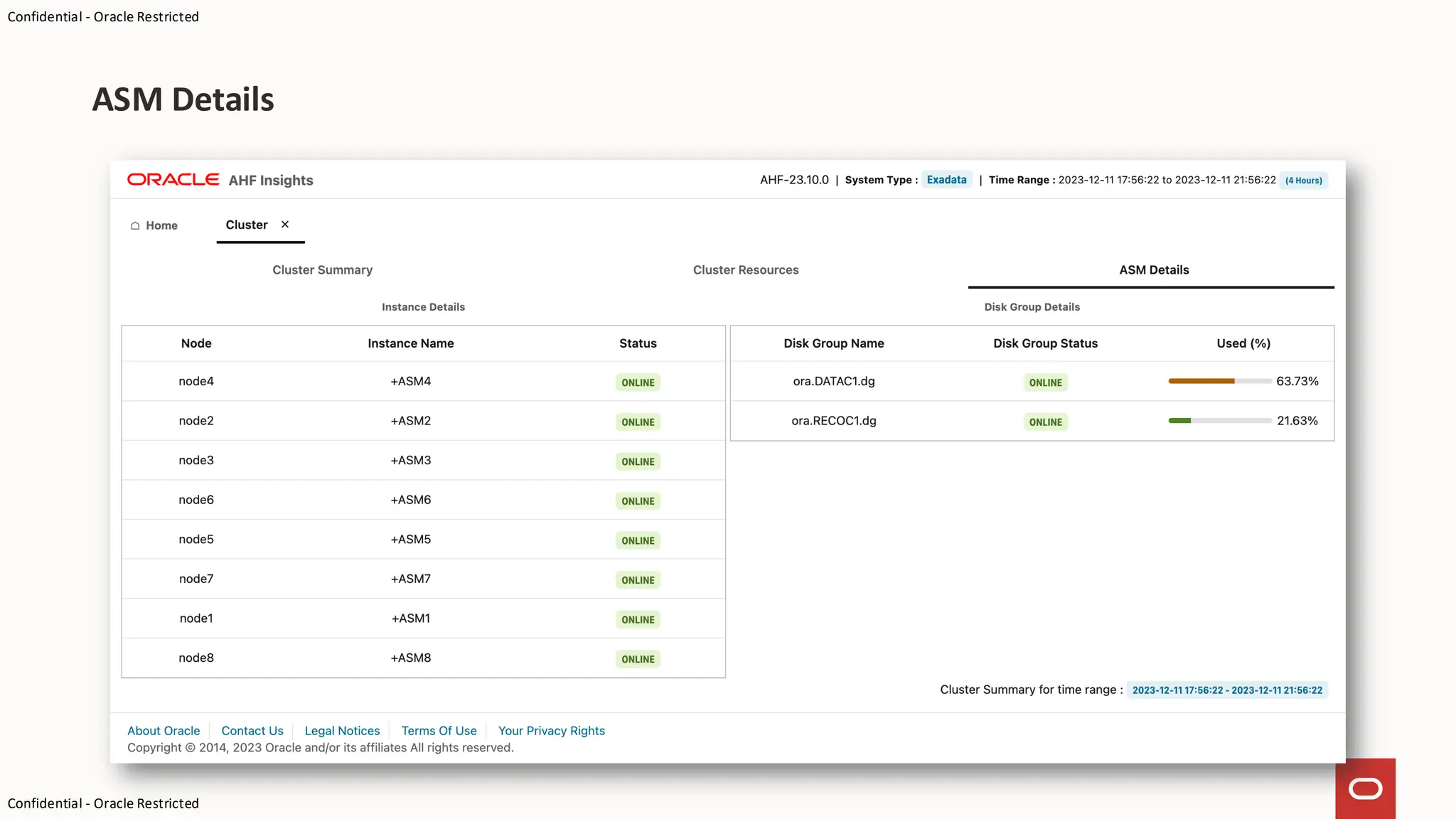

ASM Details

13. Confidential - Oracle Restricted
Confidential - Oracle Restricted

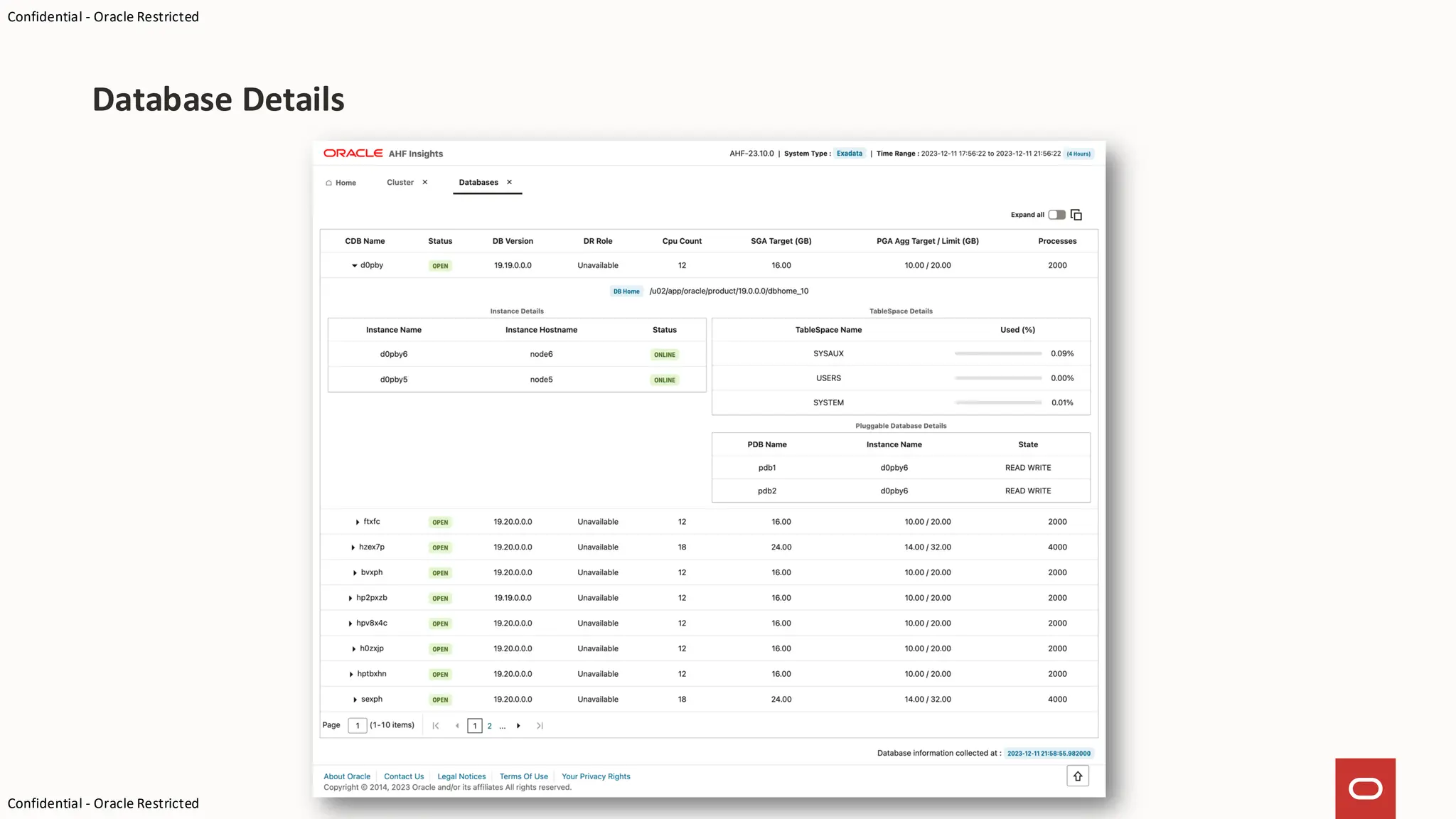

Database Details

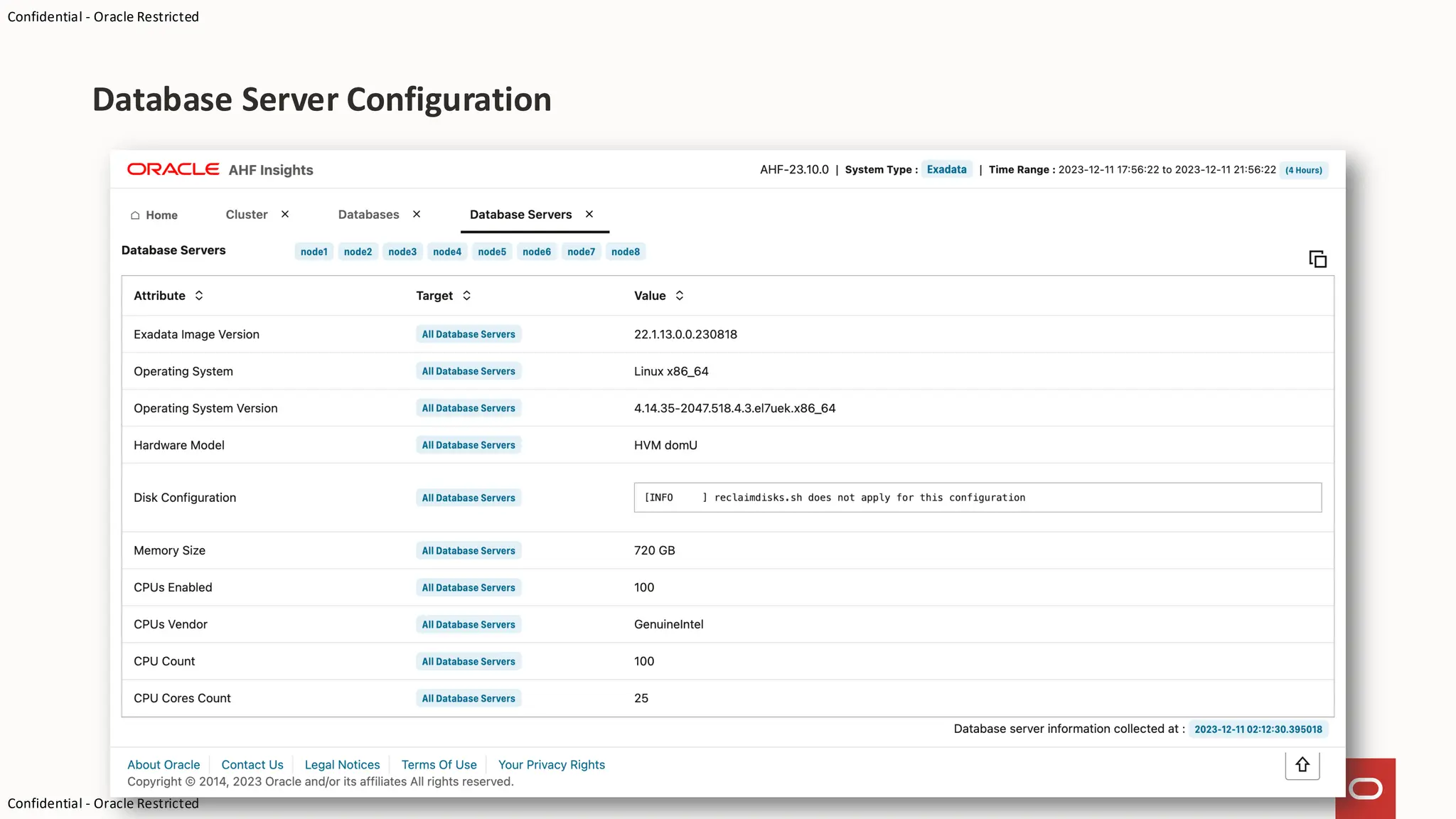

14. Confidential - Oracle Restricted
Confidential - Oracle Restricted

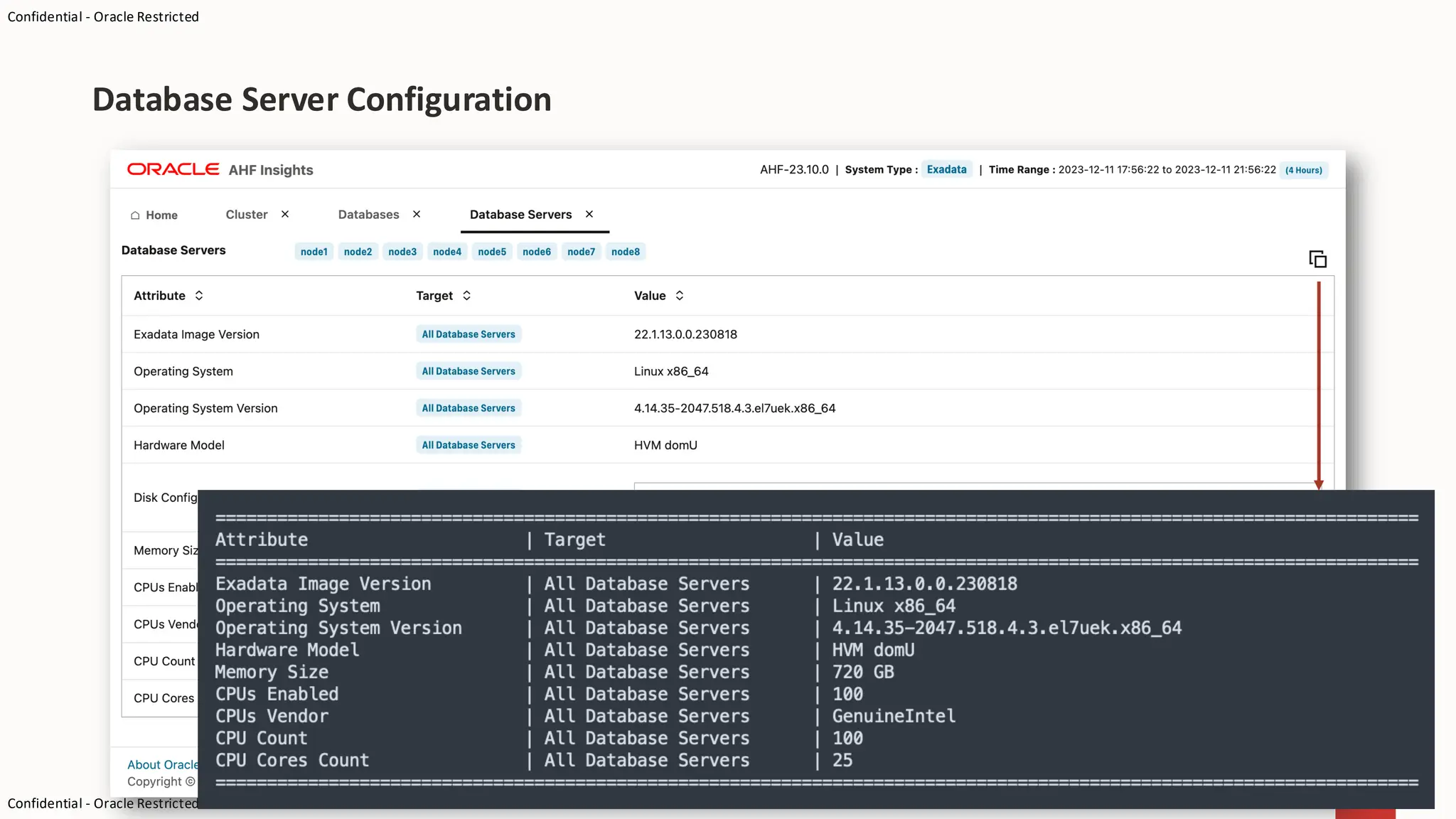

Database Server Configuration

15. Confidential - Oracle Restricted
Confidential - Oracle Restricted
Database Server Configuration

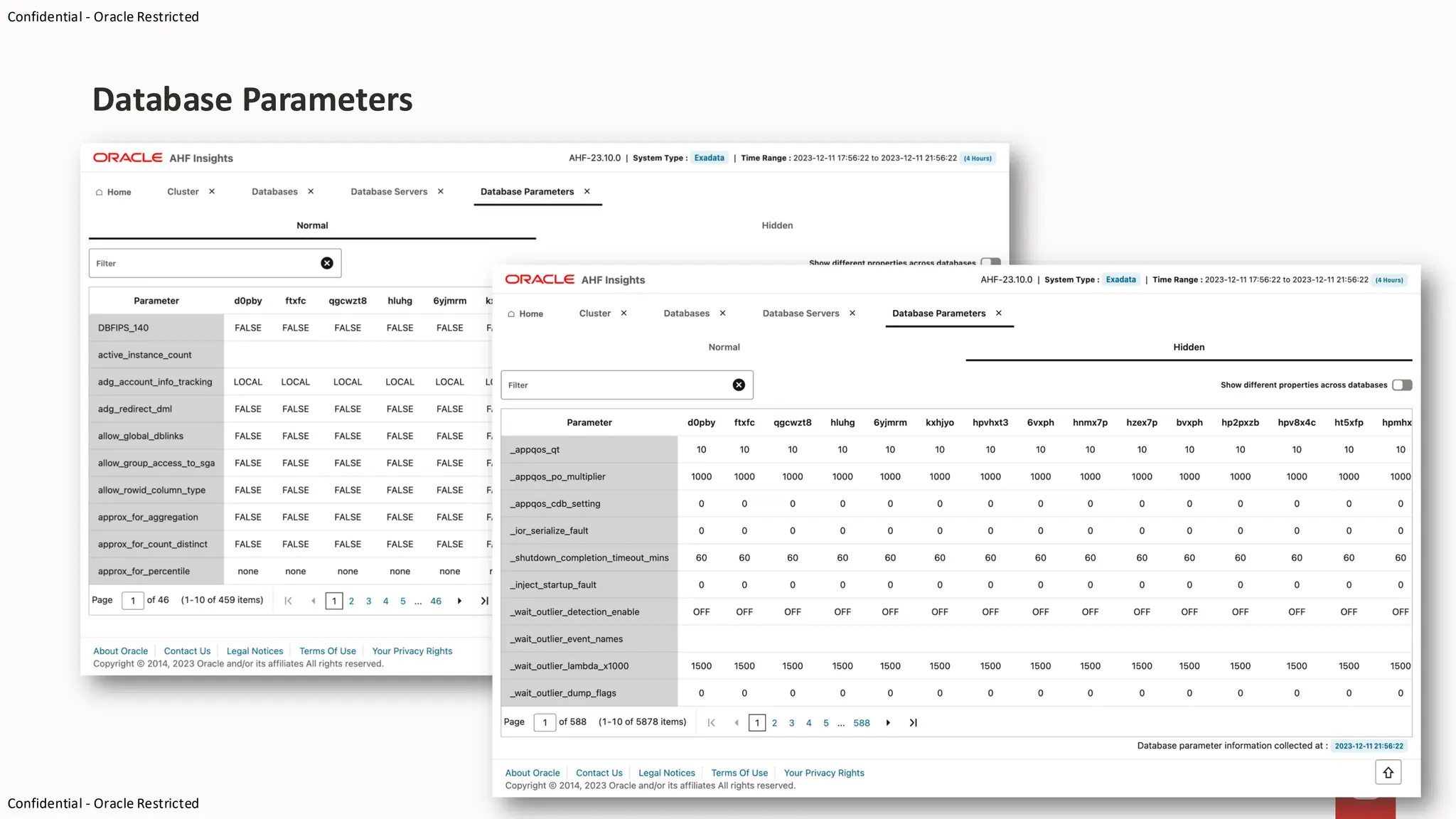

16. Confidential - Oracle Restricted
Confidential - Oracle Restricted
Database Parameters

17. Confidential - Oracle Restricted
Confidential - Oracle Restricted

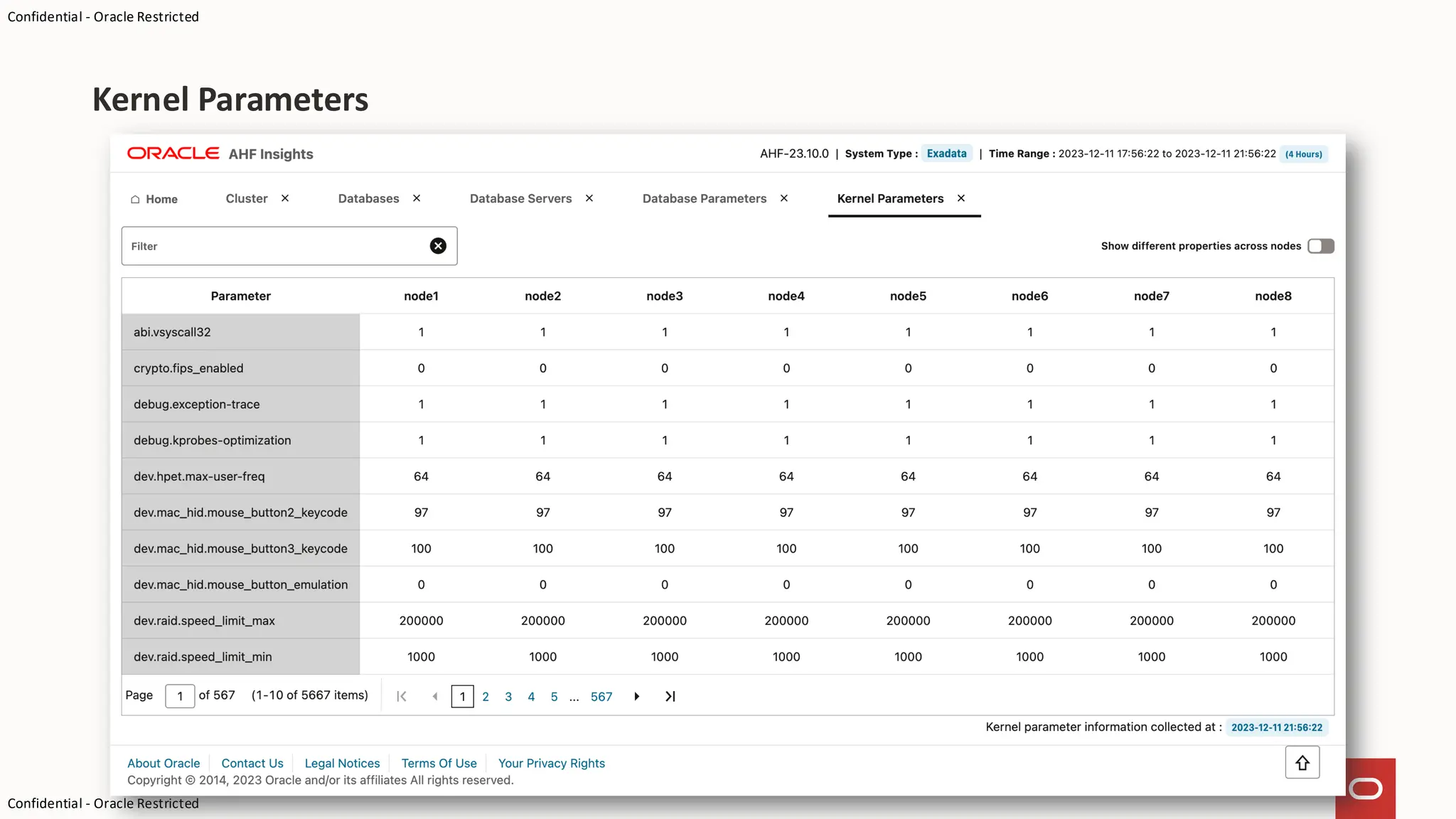

Kernel Parameters

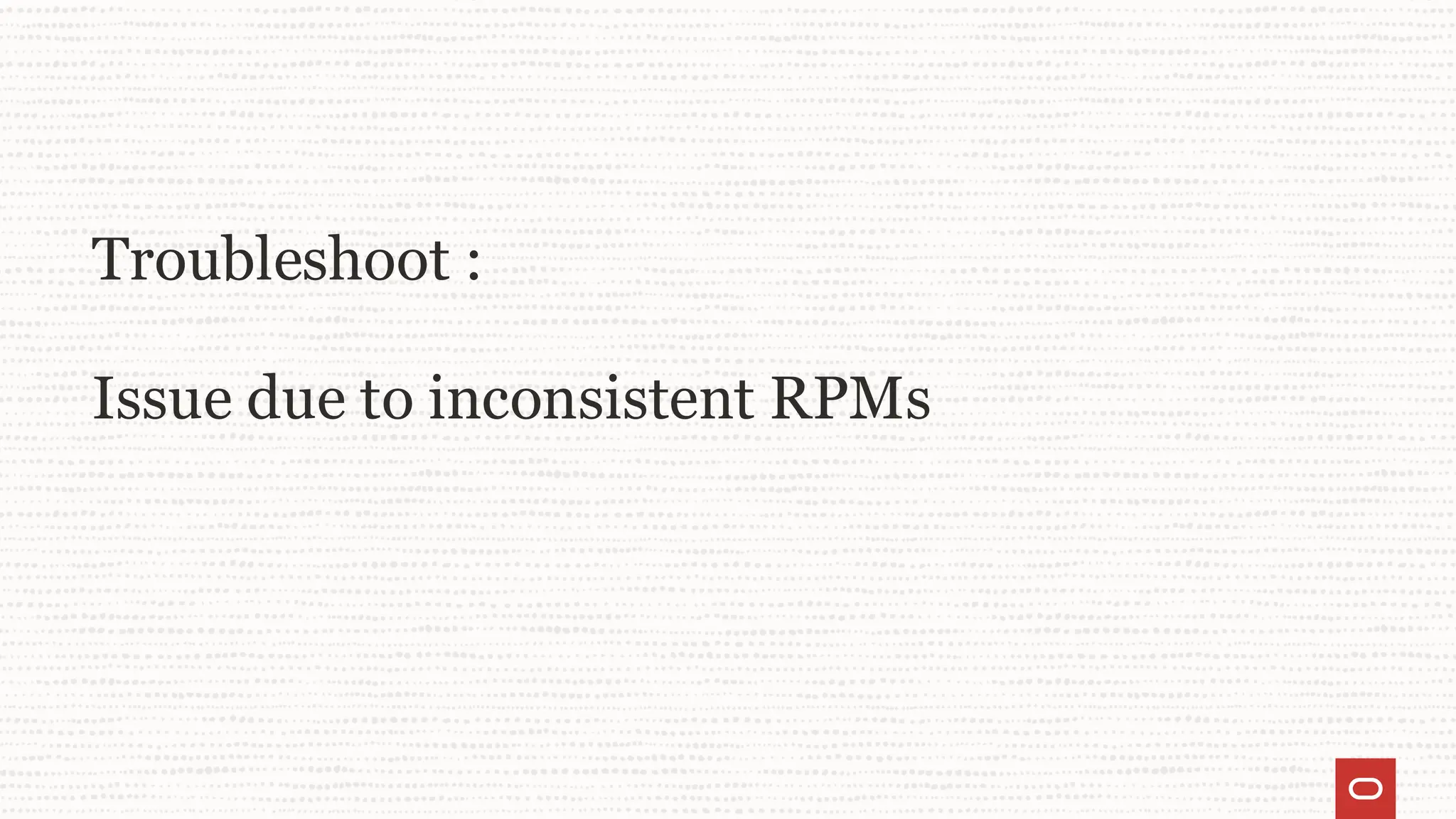

18. Troubleshoot :
Issue due to inconsistent RPMs

19. Confidential - Oracle Restricted
Confidential - Oracle Restricted

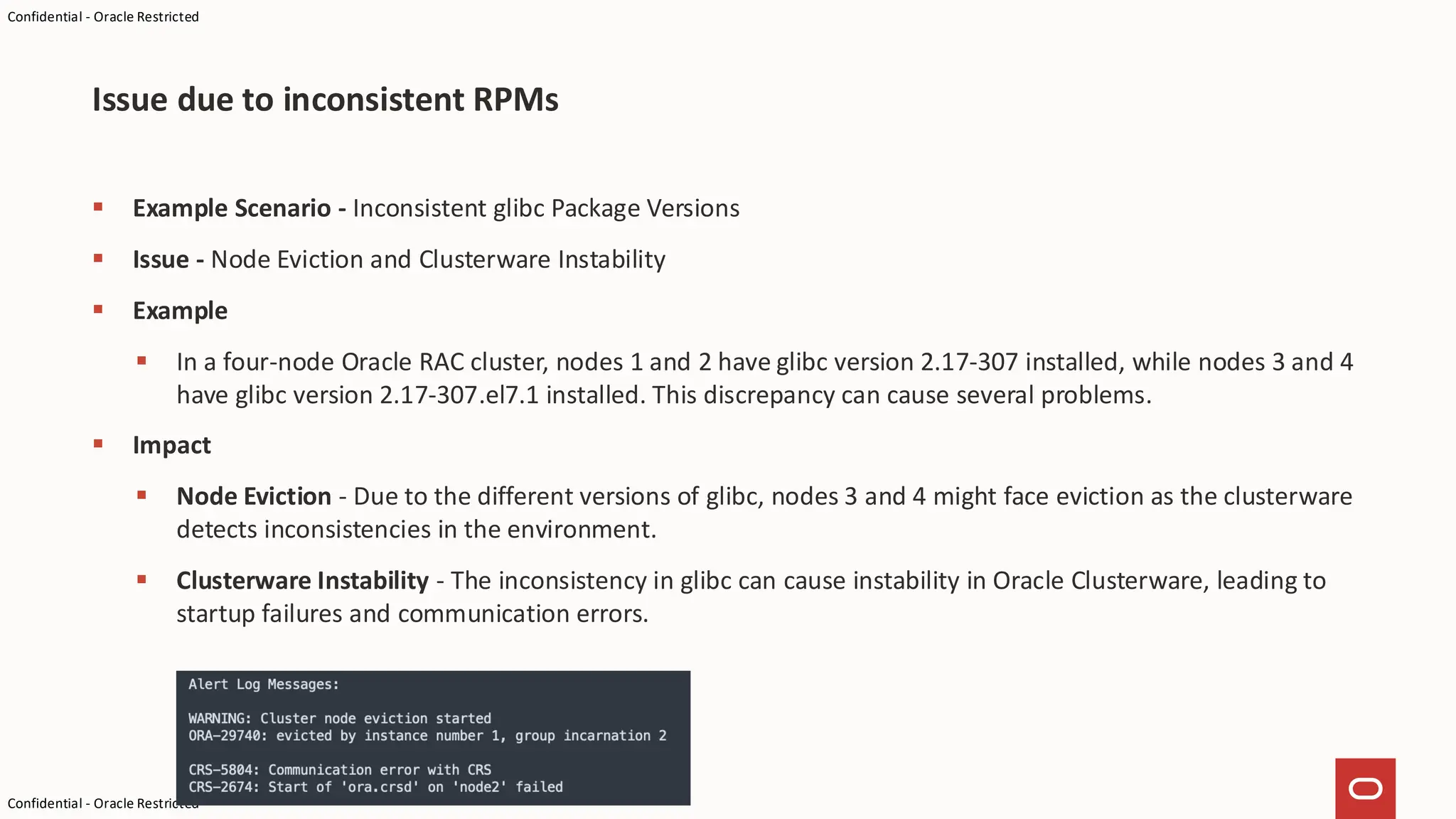

▪ Example Scenario - Inconsistent glibc Package Versions
▪ Issue - Node Eviction and Clusterware Instability
▪ Example
▪ In a four-node Oracle RAC cluster, nodes 1 and 2 have glibc version 2.17-307 installed, while nodes 3 and 4
have glibc version 2.17-307.el7.1 installed. This discrepancy can cause several problems.
▪ Impact
▪ Node Eviction - Due to the different versions of glibc, nodes 3 and 4 might face eviction as the clusterware
detects inconsistencies in the environment.
▪ Clusterware Instability - The inconsistency in glibc can cause instability in Oracle Clusterware, leading to
startup failures and communication errors.
Issue due to inconsistent RPMs

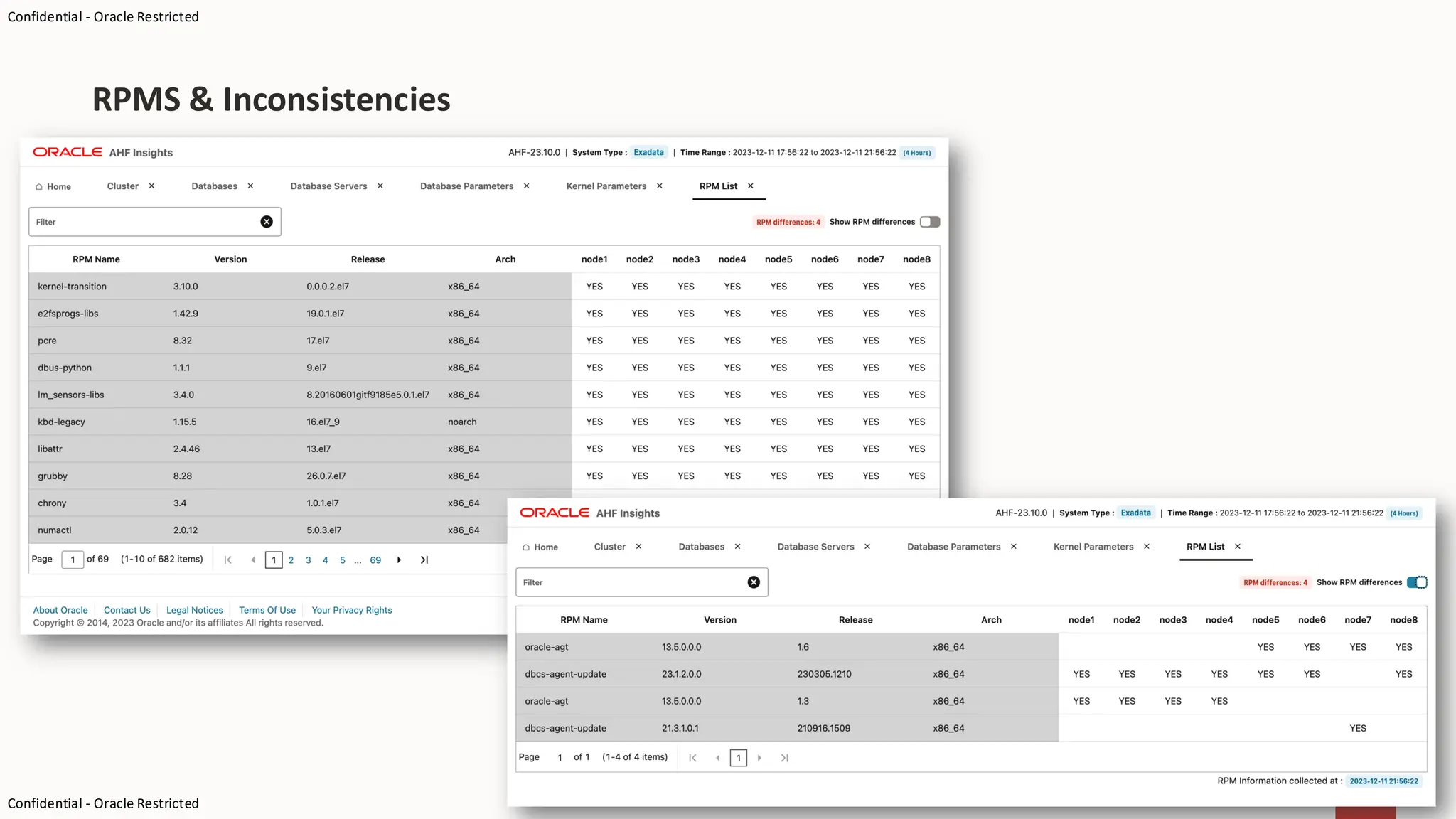

20. Confidential - Oracle Restricted
Confidential - Oracle Restricted
RPMS & Inconsistencies

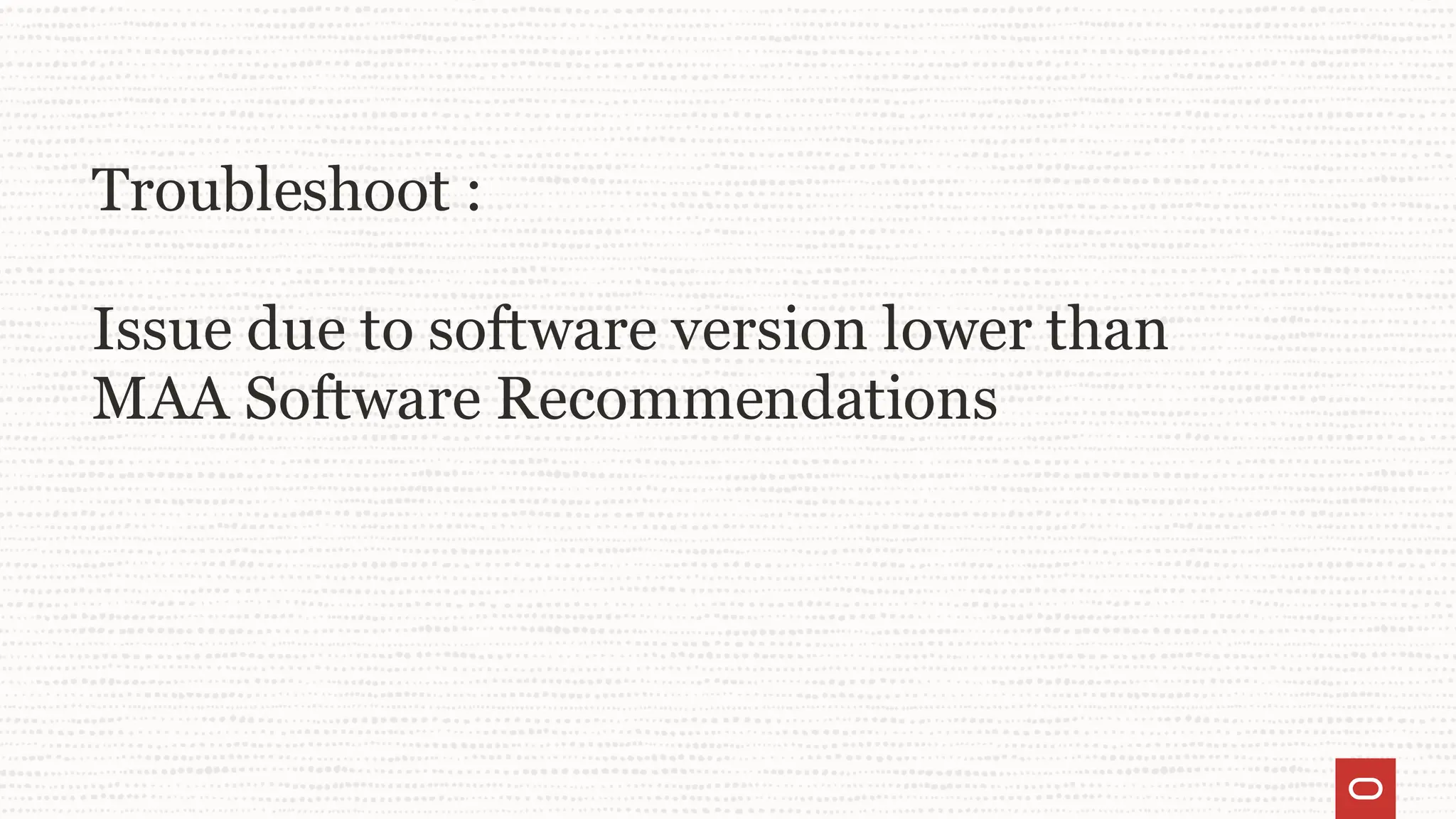

21. Troubleshoot :
Issue due to software version lower than
MAA Software Recommendations

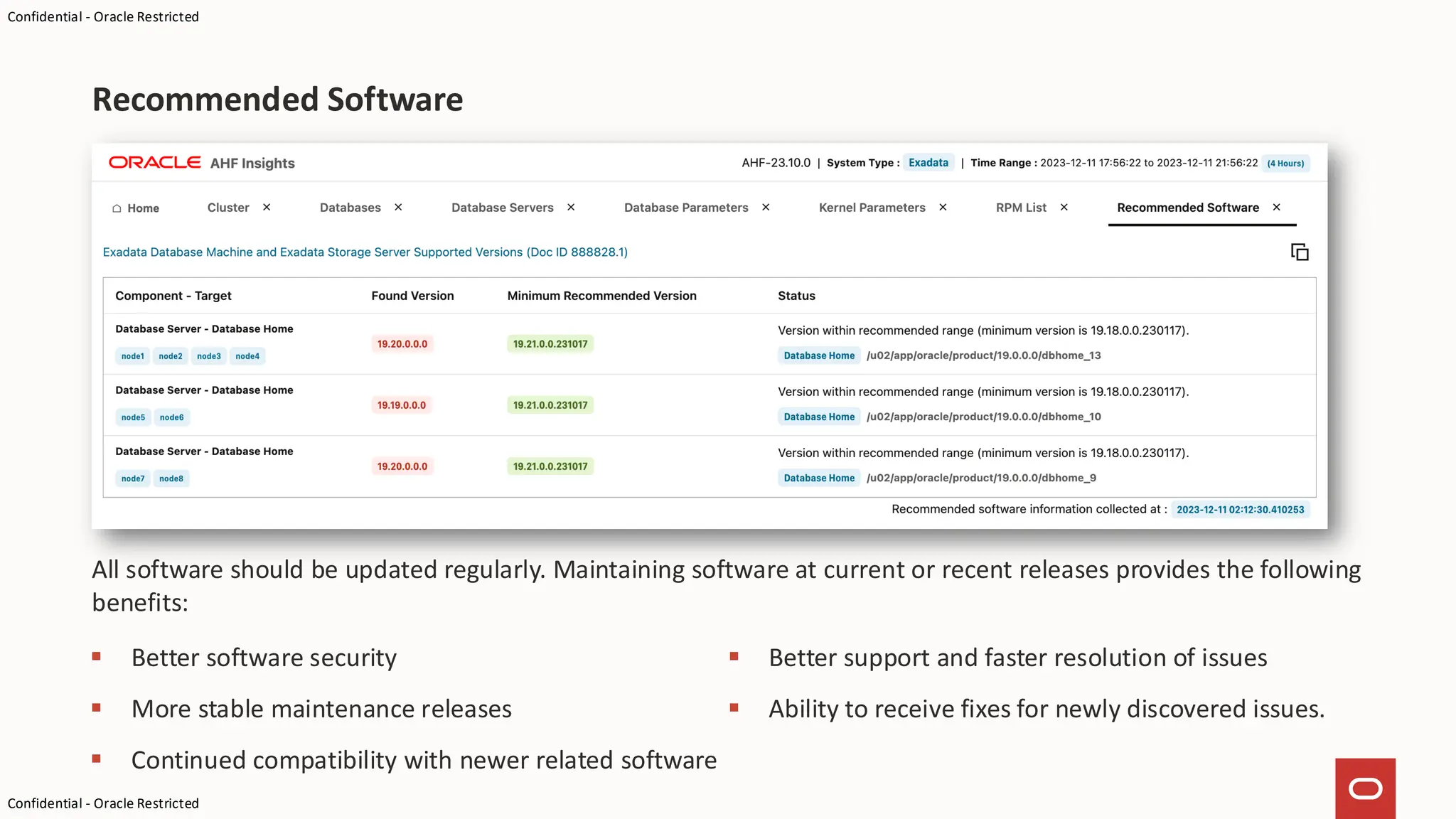

22. Confidential - Oracle Restricted
Confidential - Oracle Restricted
Recommended Software
All software should be updated regularly. Maintaining software at current or recent releases provides the following
benefits:
▪ Better software security
▪ More stable maintenance releases
▪ Continued compatibility with newer related software
▪ Better support and faster resolution of issues
▪ Ability to receive fixes for newly discovered issues.

23. Troubleshoot :
Issue due to recent changes on the system

24. Confidential - Oracle Restricted
Confidential - Oracle Restricted

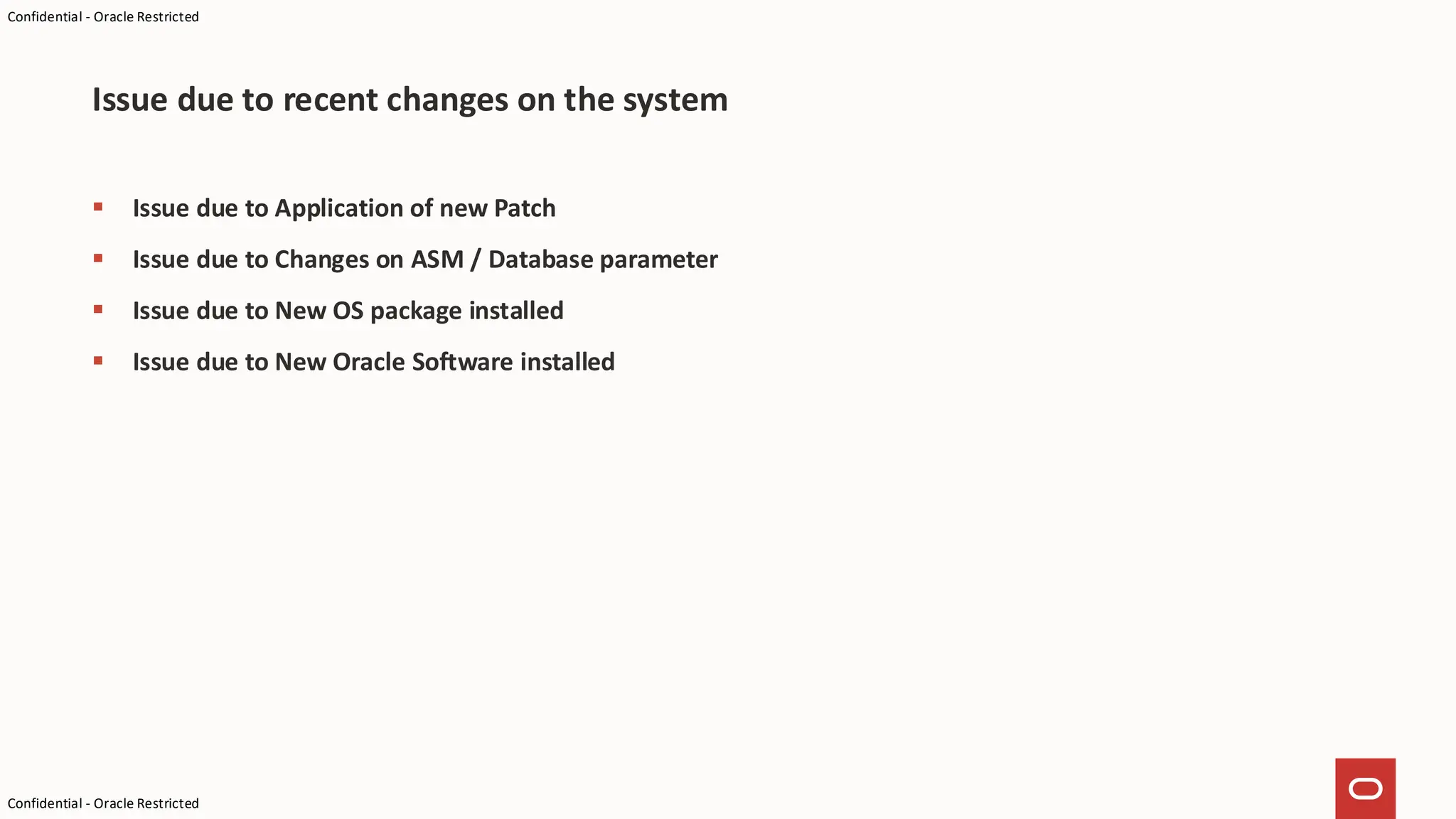

▪ Issue due to Application of new Patch
▪ Issue due to Changes on ASM / Database parameter
▪ Issue due to New OS package installed
▪ Issue due to New Oracle Software installed
Issue due to recent changes on the system

25. Confidential - Oracle Restricted
Confidential - Oracle Restricted

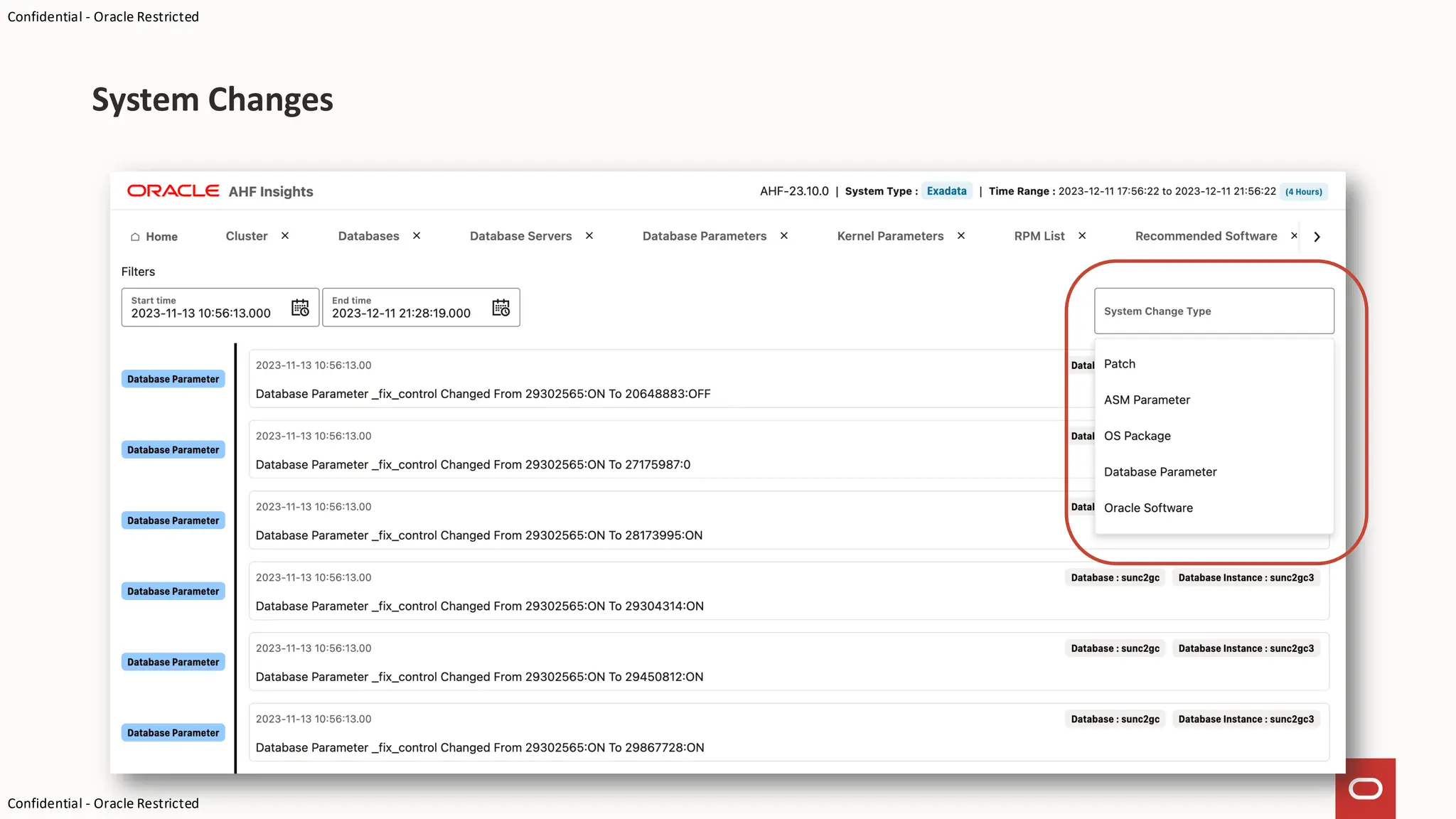

System Changes

26. Troubleshoot :
Space Usage Issues

27. Confidential - Oracle Restricted
Confidential - Oracle Restricted

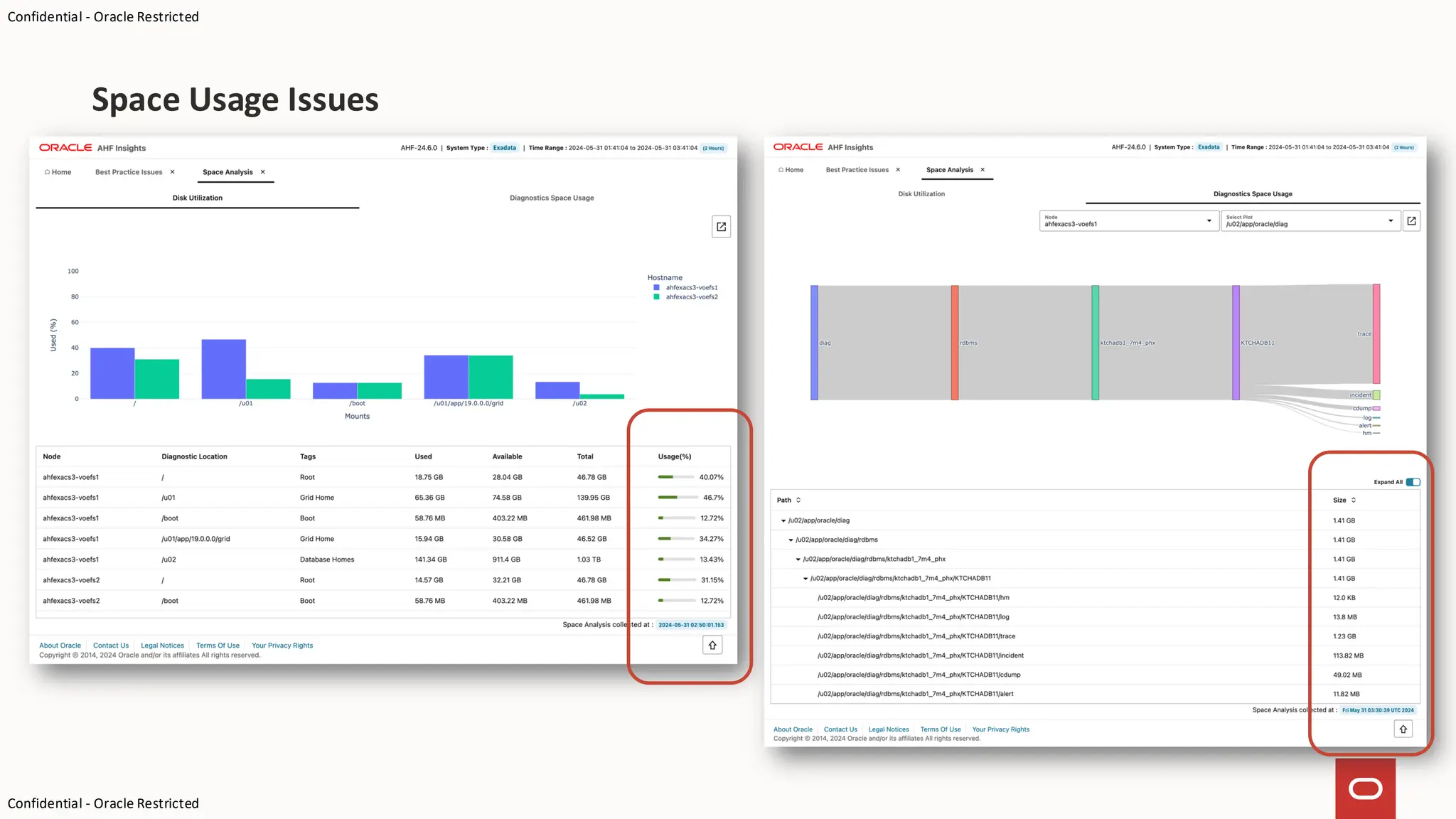

Space Usage Issues

28. Troubleshoot :
Issue due to Best Practice Violations

29. Confidential - Oracle Restricted
Confidential - Oracle Restricted

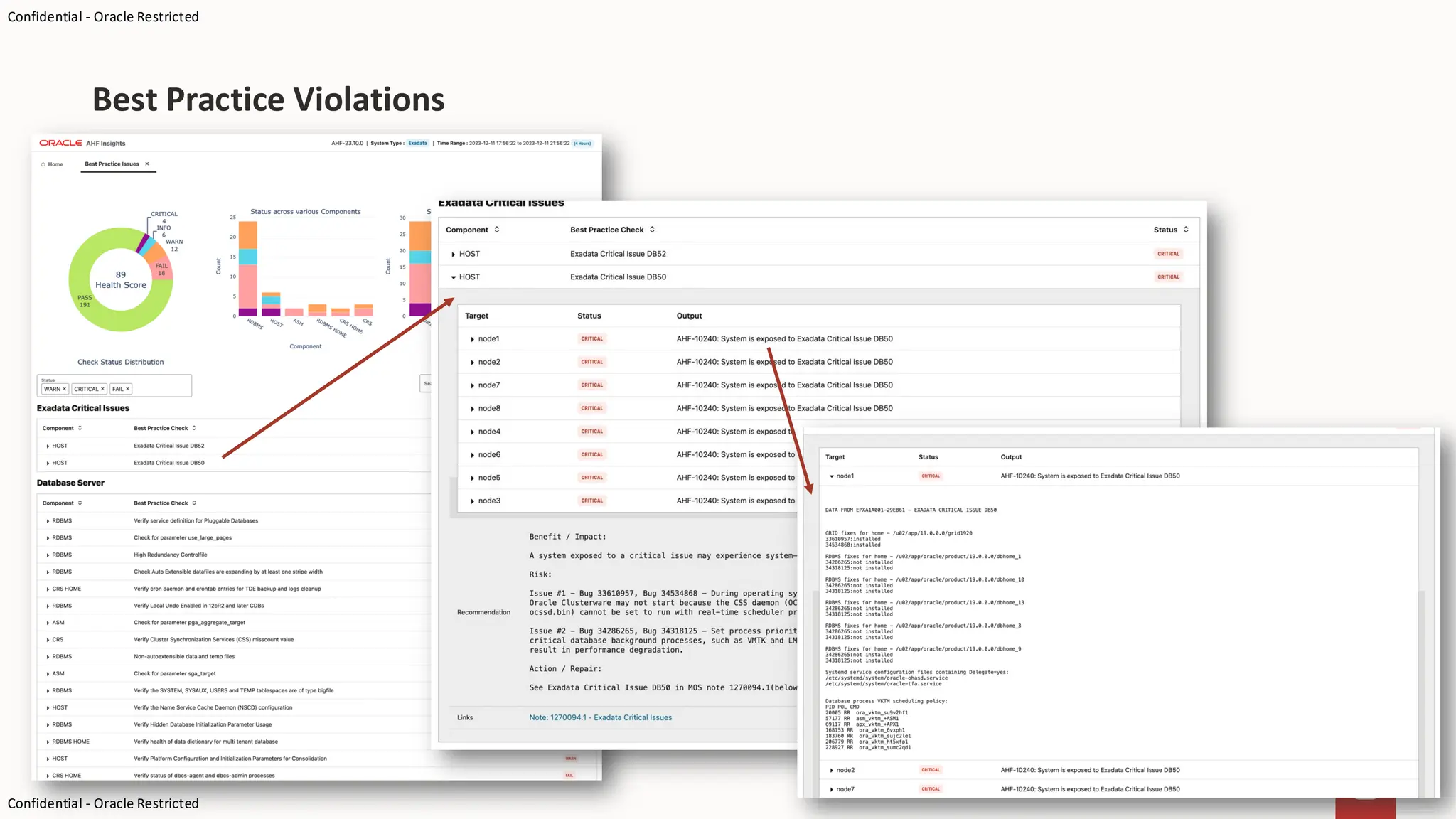

Best Practice Violations

30. Troubleshoot :
Major Events happening across the cluster

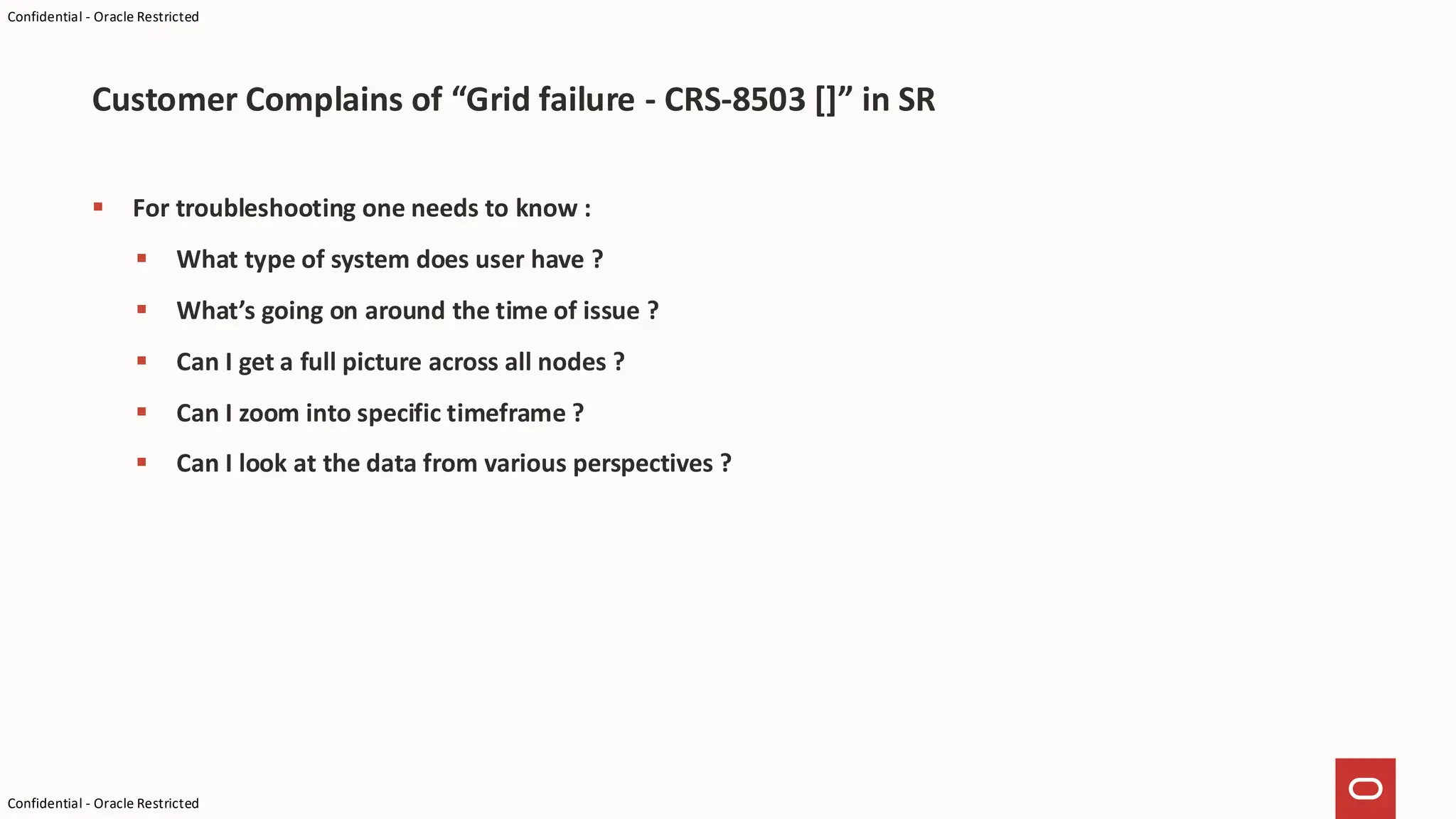

31. Confidential - Oracle Restricted
Confidential - Oracle Restricted
▪ For troubleshooting one needs to know :
▪ What type of system does user have ?
▪ What’s going on around the time of issue ?
▪ Can I get a full picture across all nodes ?
▪ Can I zoom into specific timeframe ?
▪ Can I look at the data from various perspectives ?
Customer Complains of “Grid failure - CRS-8503 []” in SR

32. Confidential - Oracle Restricted
Confidential - Oracle Restricted

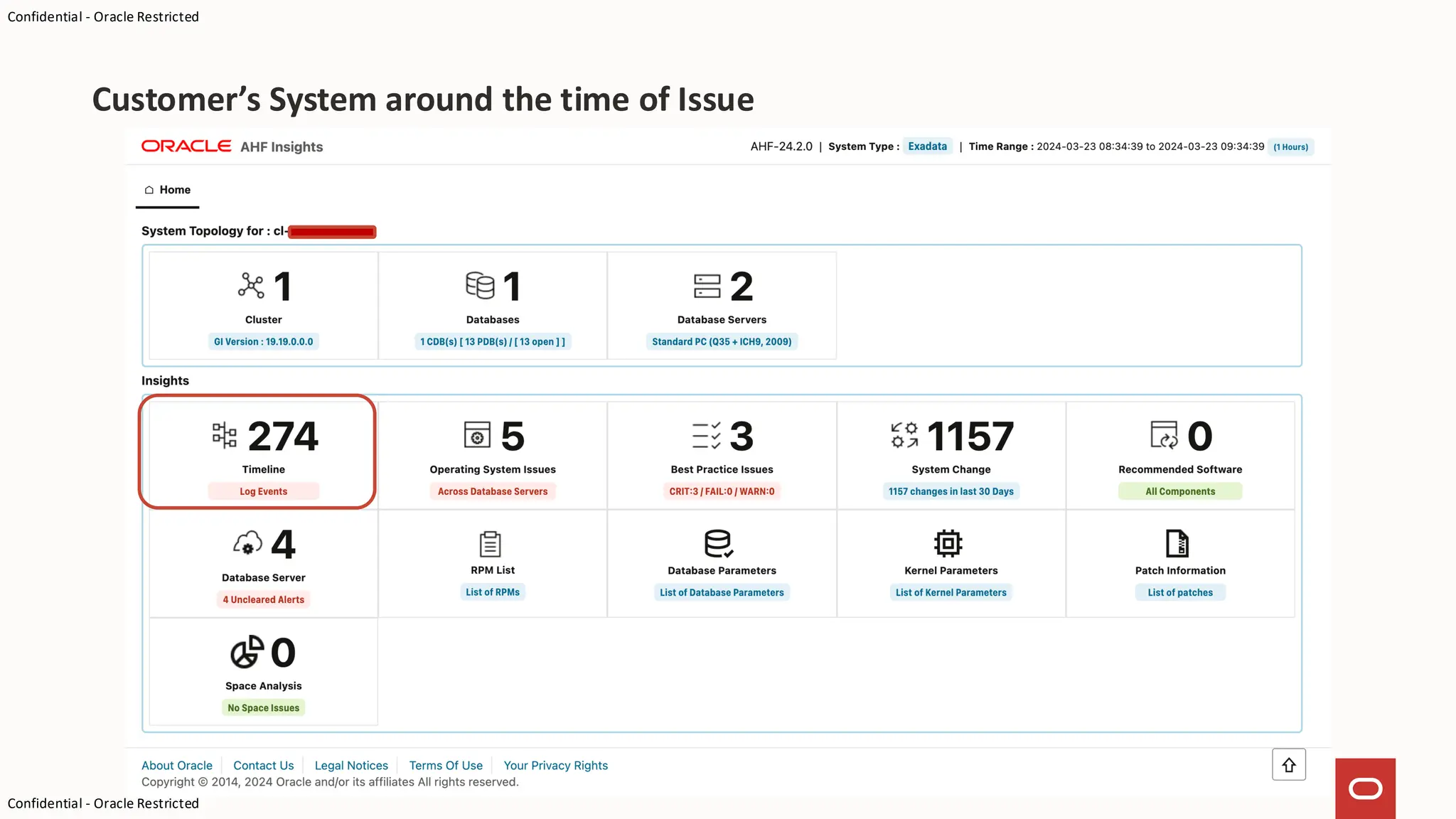

Customer’s System around the time of Issue

33. Confidential - Oracle Restricted
Confidential - Oracle Restricted

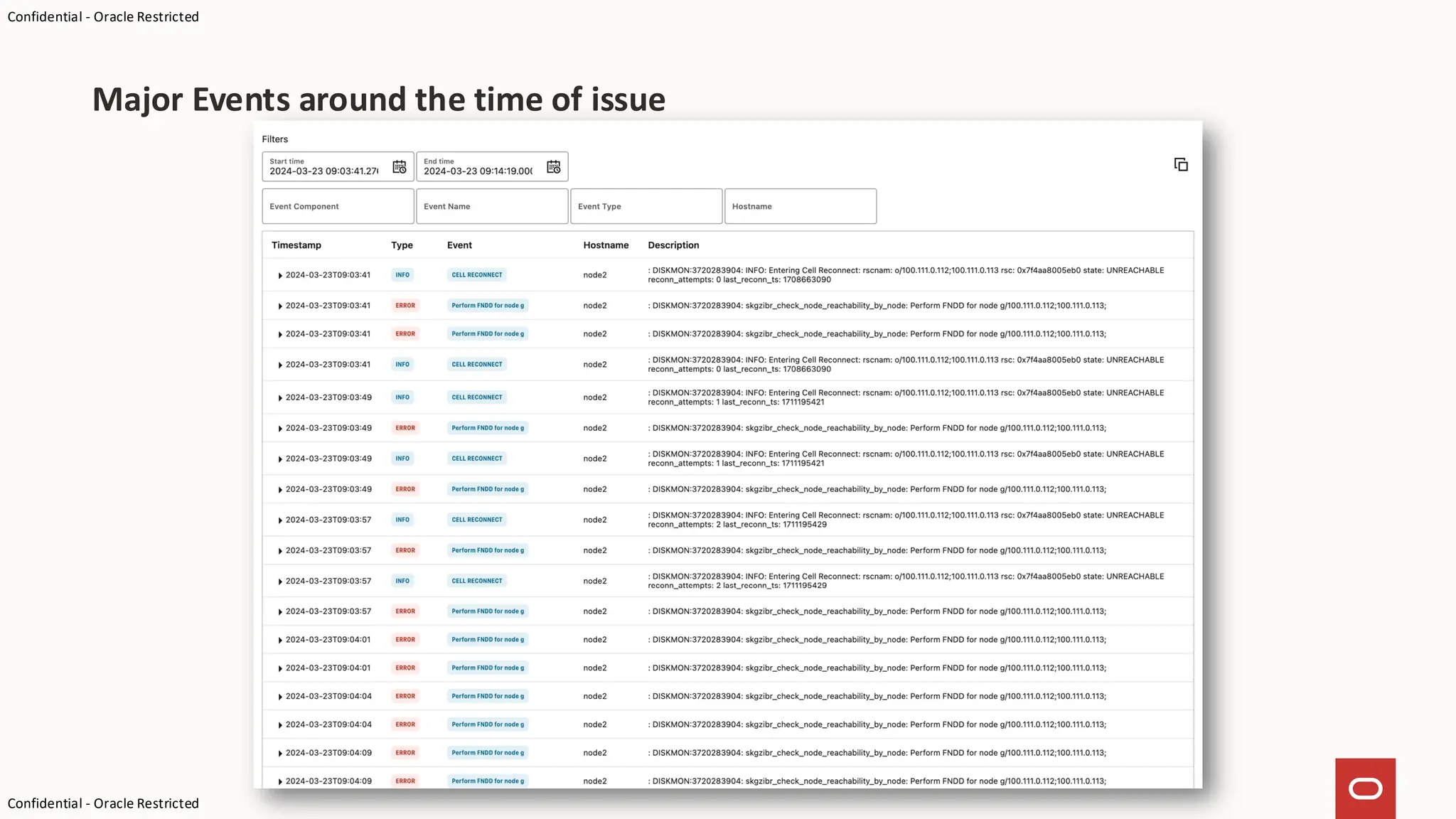

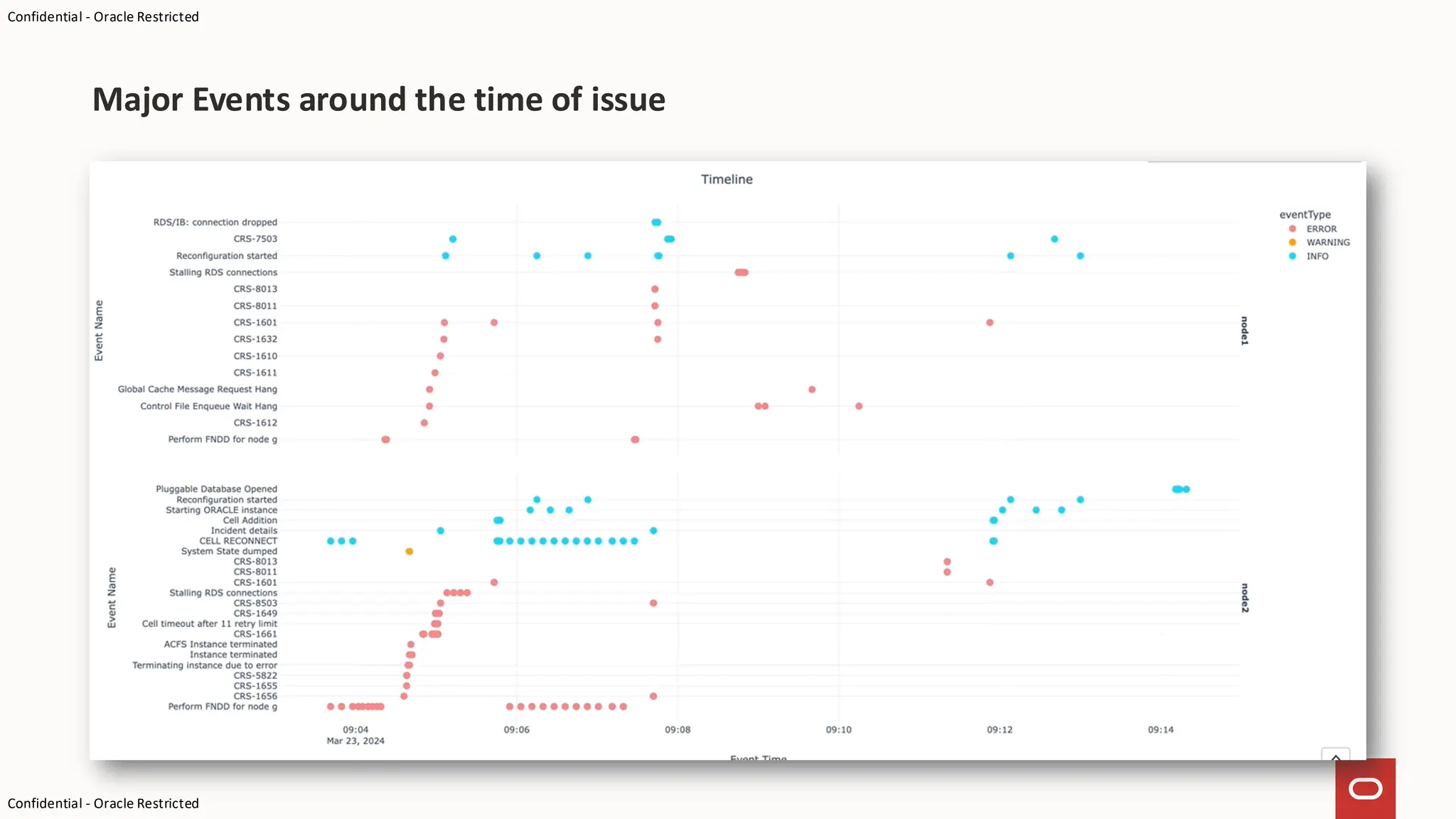

Major Events around the time of issue

34. Confidential - Oracle Restricted
Confidential - Oracle Restricted
Major Events around the time of issue

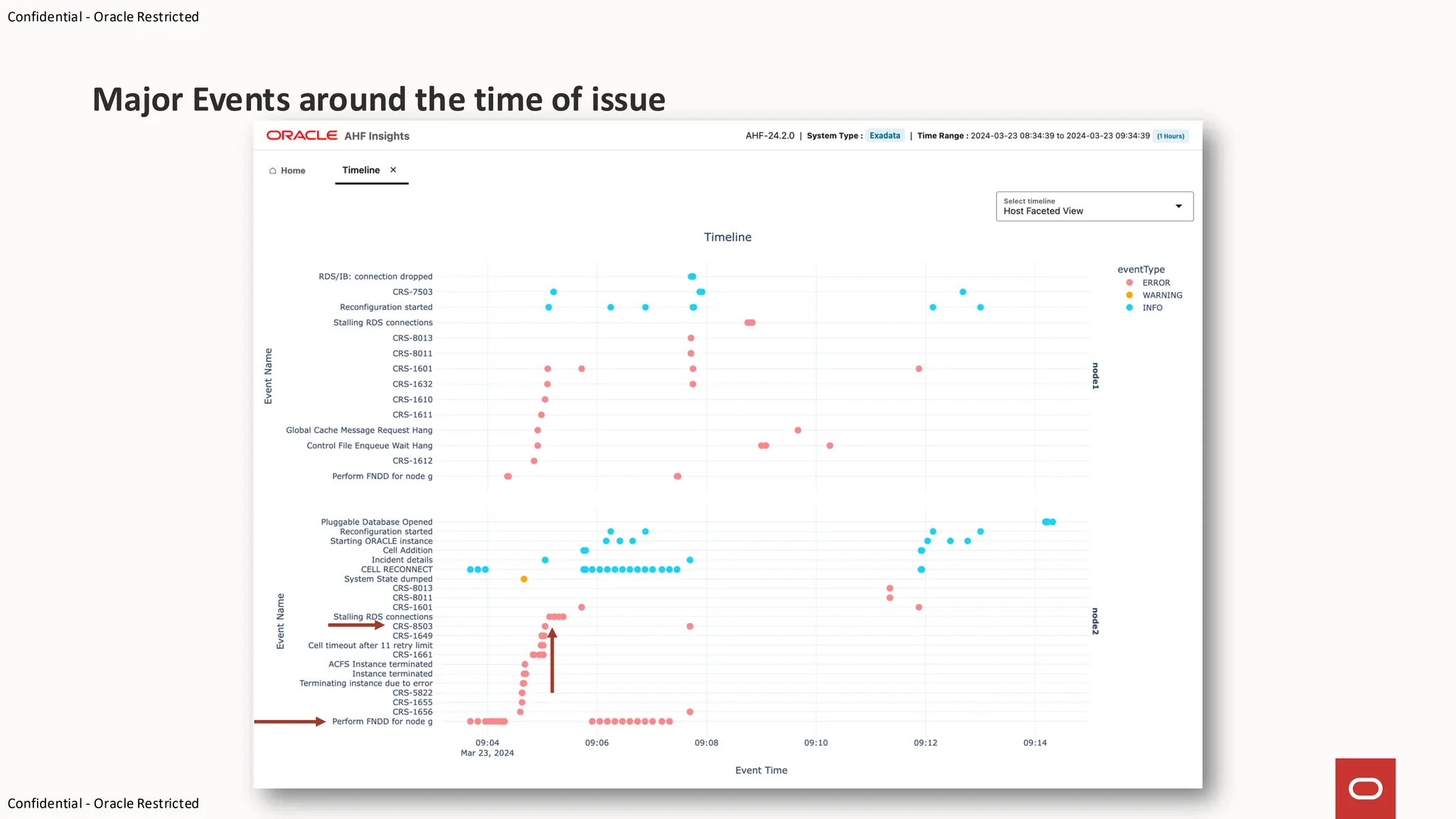

35. Confidential - Oracle Restricted
Confidential - Oracle Restricted
Major Events around the time of issue

36. Troubleshoot :
Operating System Issues

37. Confidential - Oracle Restricted
Confidential - Oracle Restricted

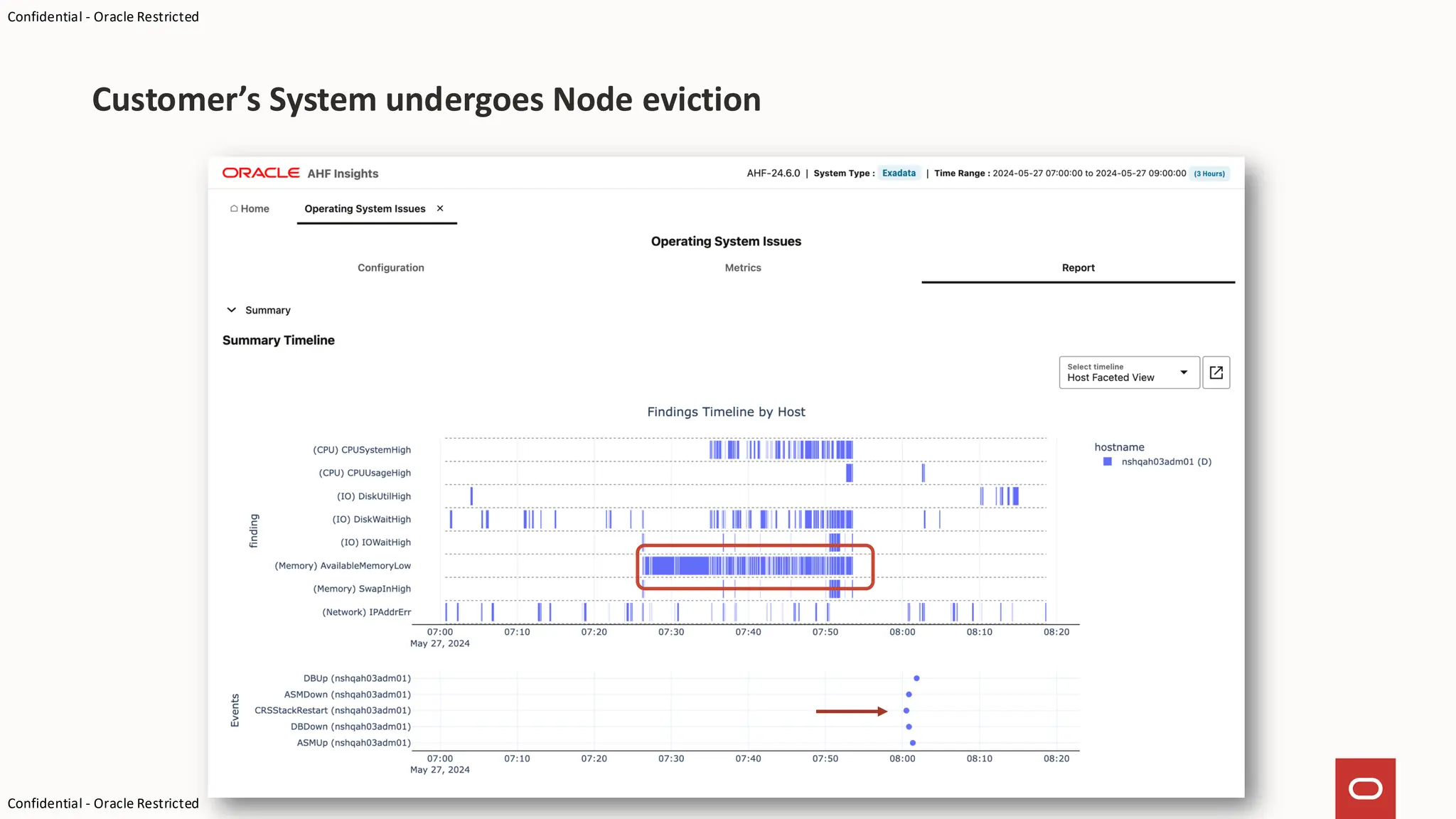

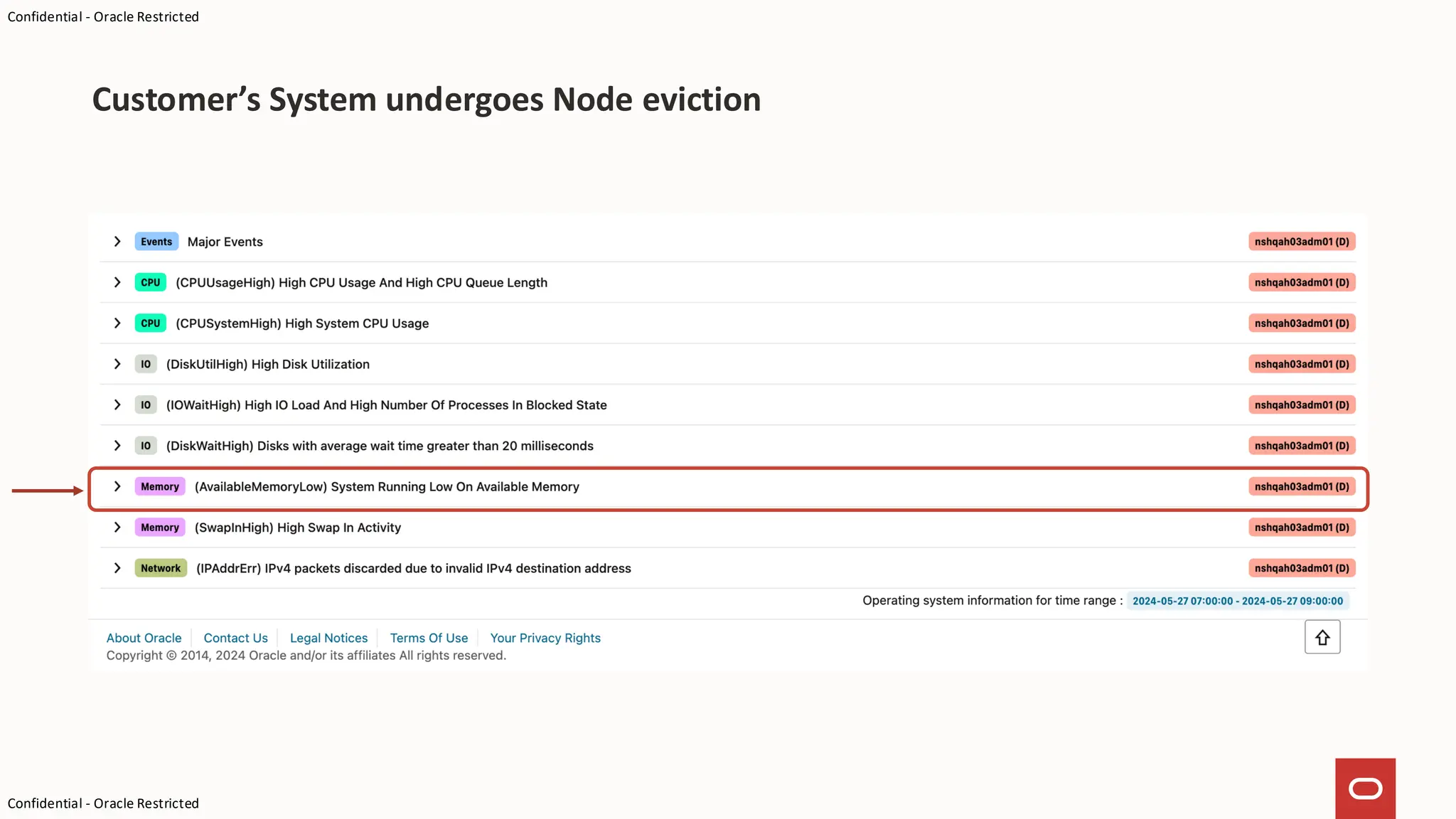

Customer’s System undergoes Node eviction

38. Confidential - Oracle Restricted
Confidential - Oracle Restricted
Customer’s System undergoes Node eviction

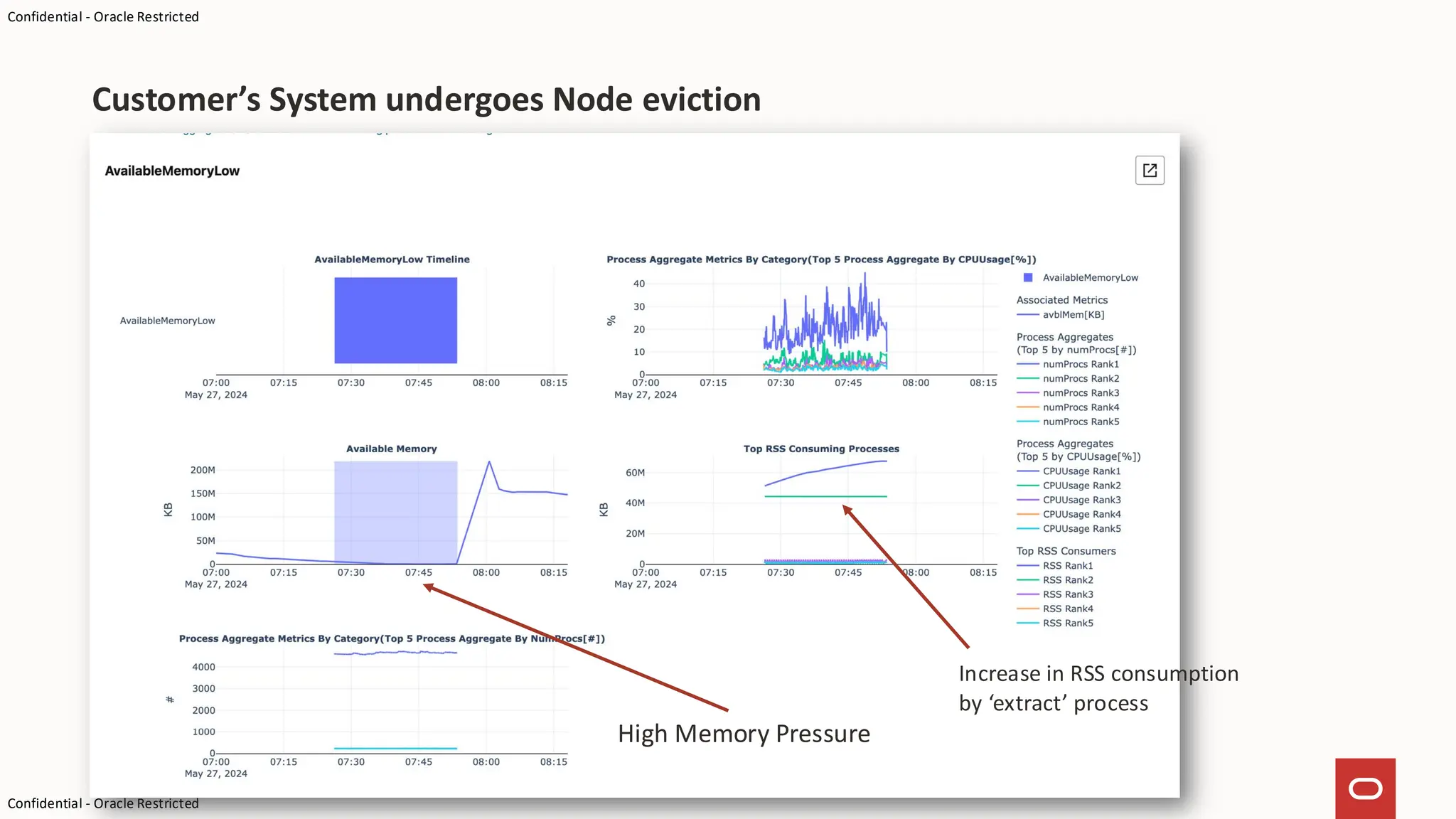

39. Confidential - Oracle Restricted
Confidential - Oracle Restricted
Customer’s System undergoes Node eviction
High Memory Pressure
Increase in RSS consumption
by ‘extract’ process

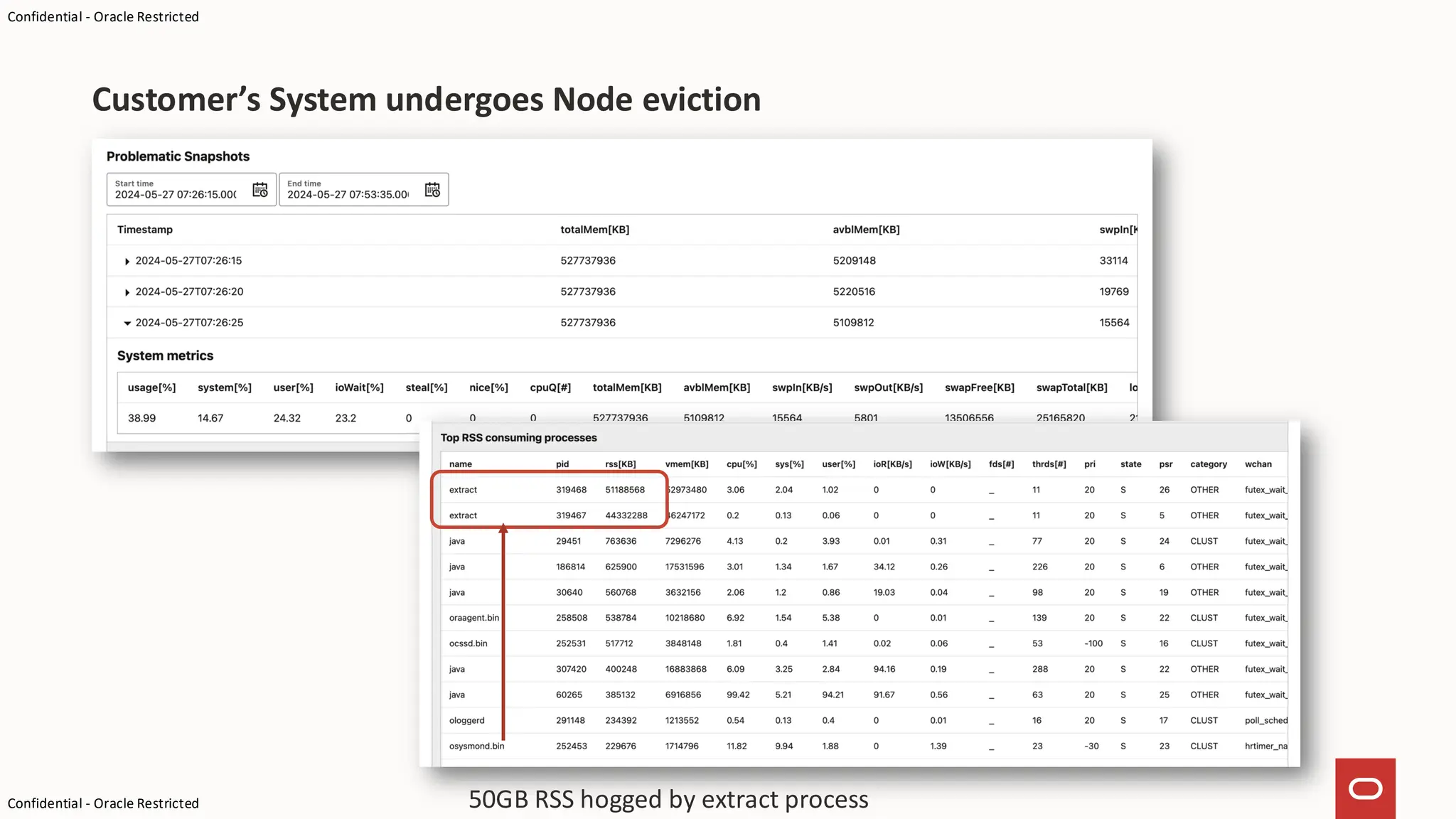

40. Confidential - Oracle Restricted
Confidential - Oracle Restricted
Customer’s System undergoes Node eviction
50GB RSS hogged by extract process

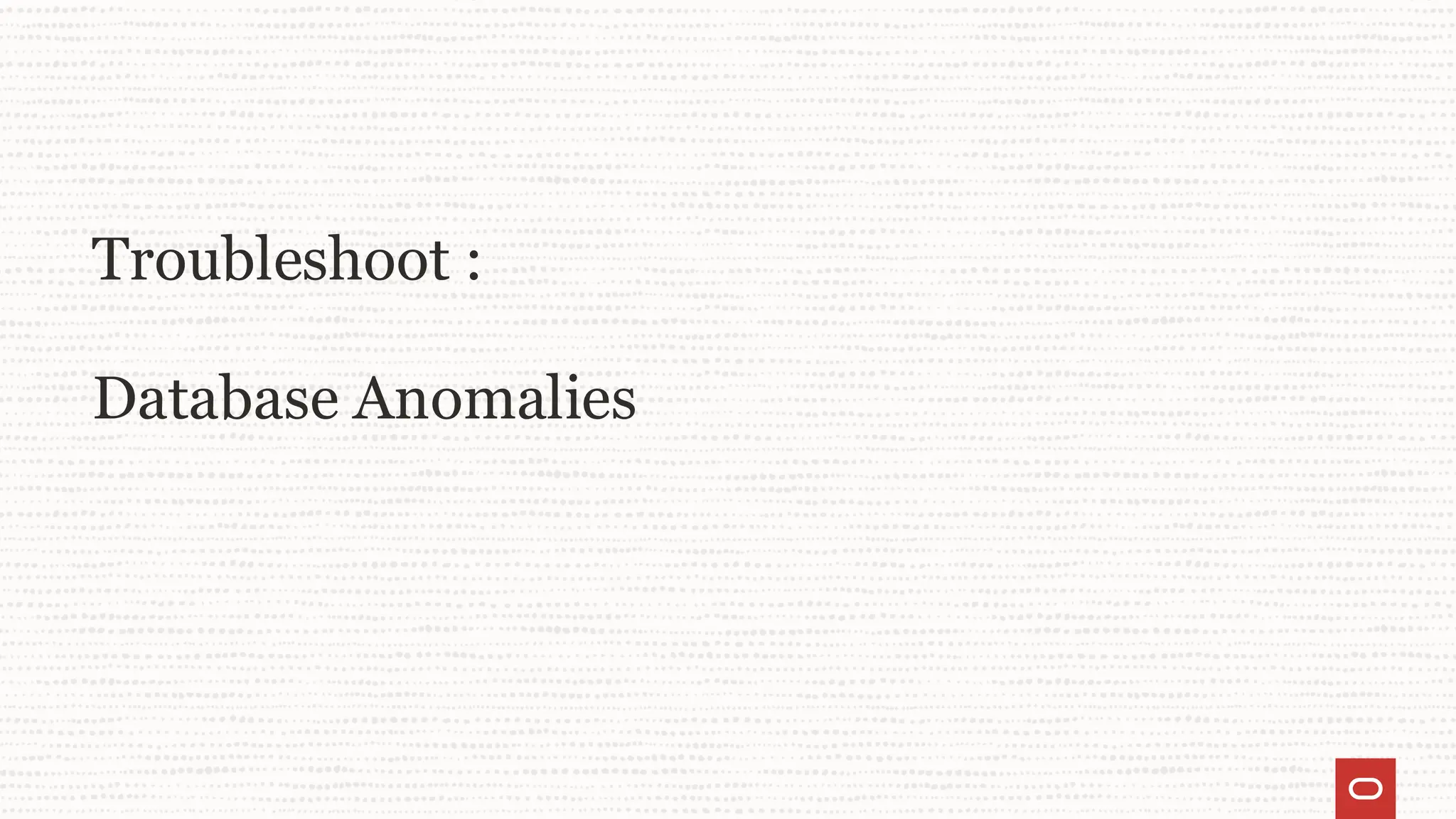

41. Troubleshoot :
Database Anomalies

42. Confidential - Oracle Restricted
Confidential - Oracle Restricted

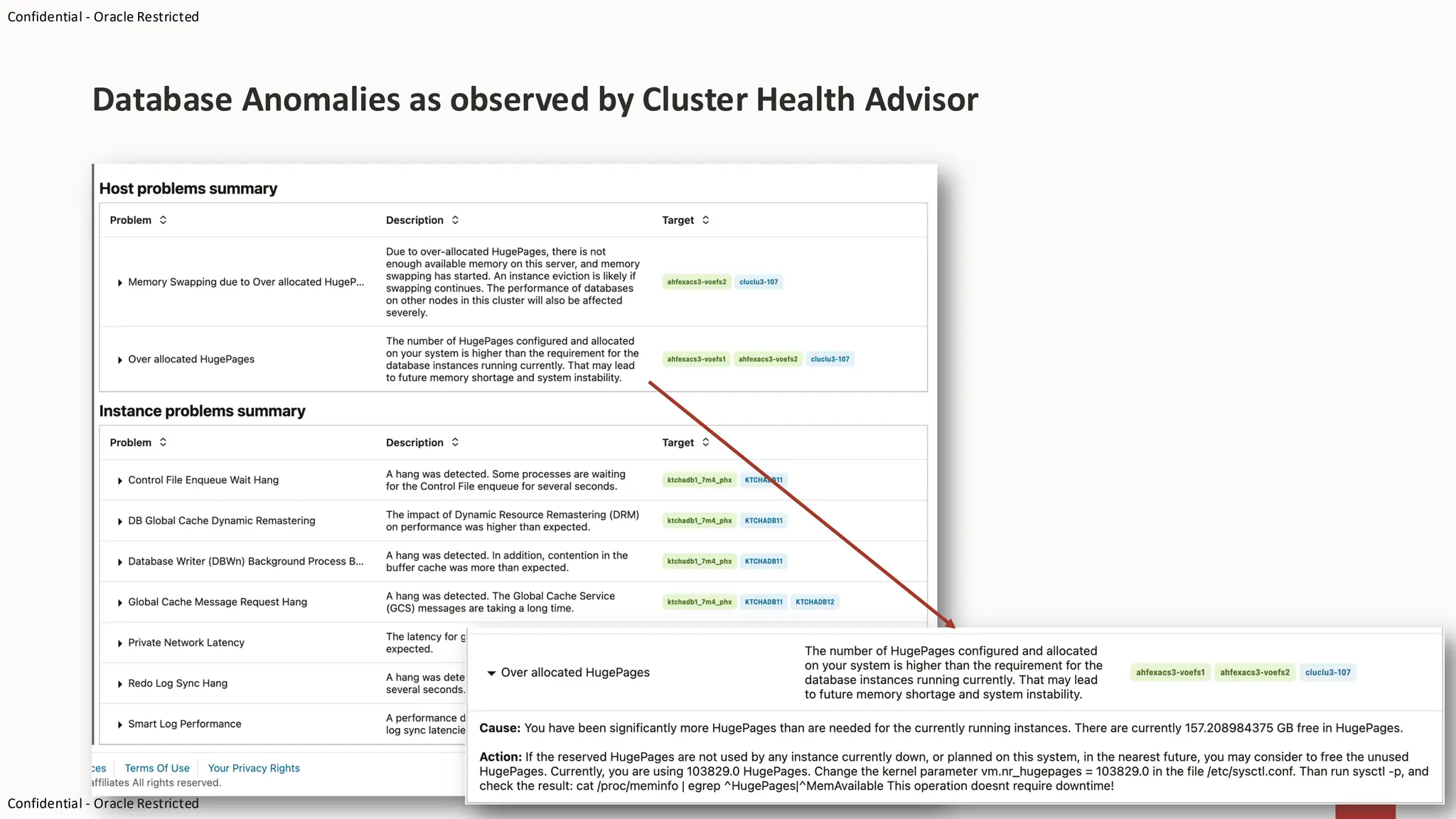

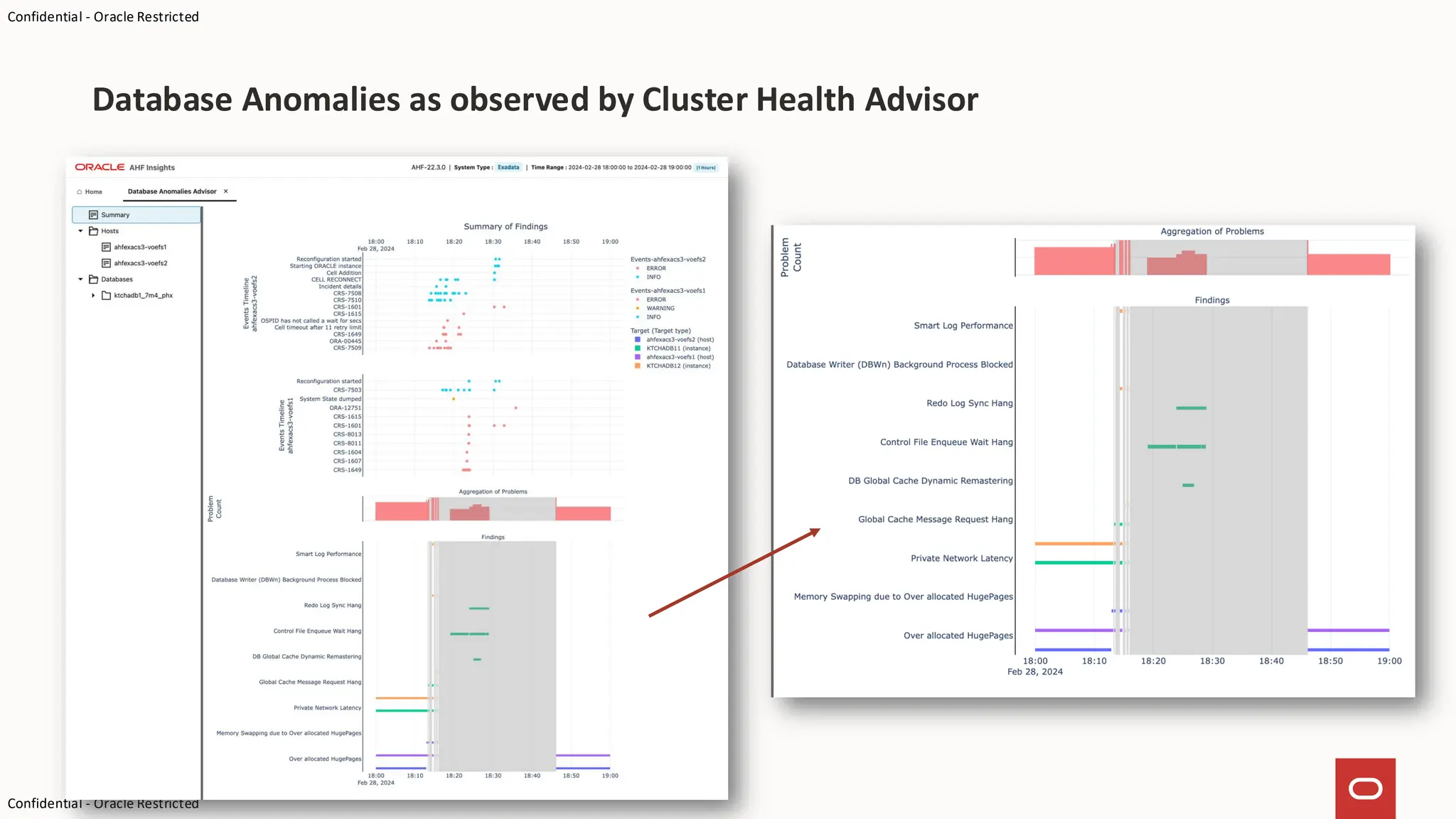

Database Anomalies as observed by Cluster Health Advisor

43. Confidential - Oracle Restricted
Confidential - Oracle Restricted
Database Anomalies as observed by Cluster Health Advisor

44. Troubleshoot :
Node Eviction Problems

45. Confidential - Oracle Restricted
Confidential - Oracle Restricted

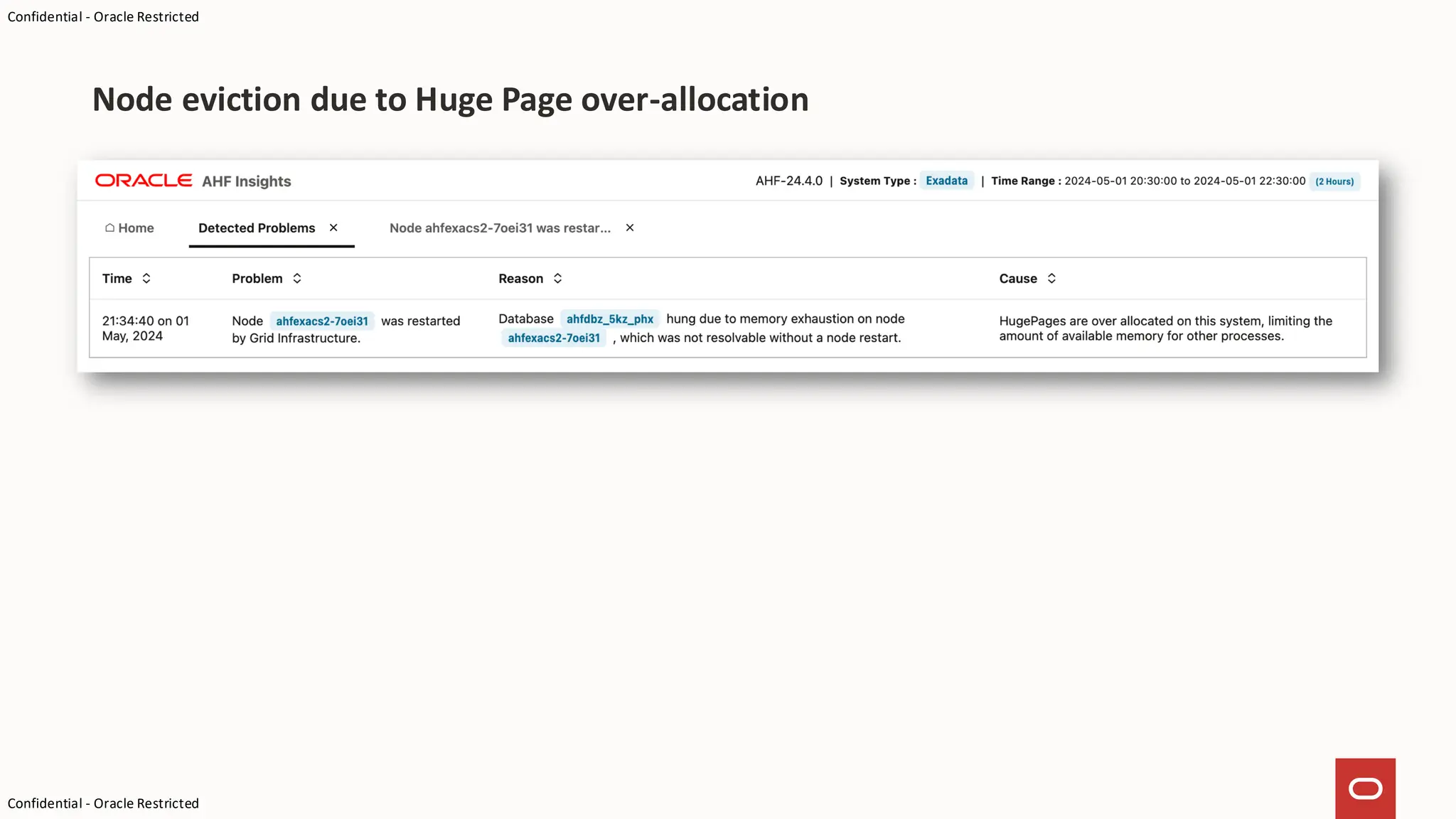

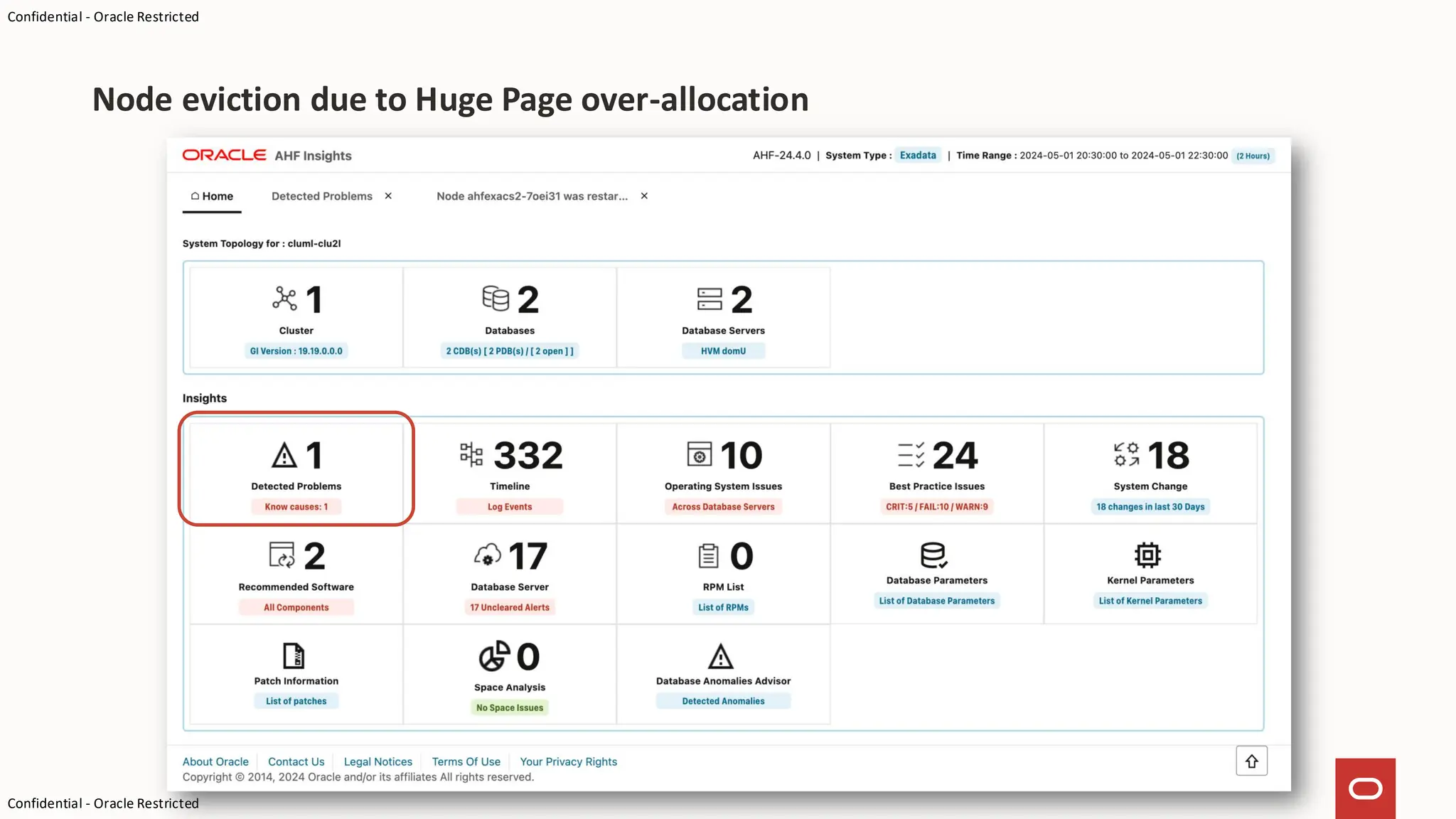

Node eviction due to Huge Page over-allocation

46. Confidential - Oracle Restricted
Confidential - Oracle Restricted

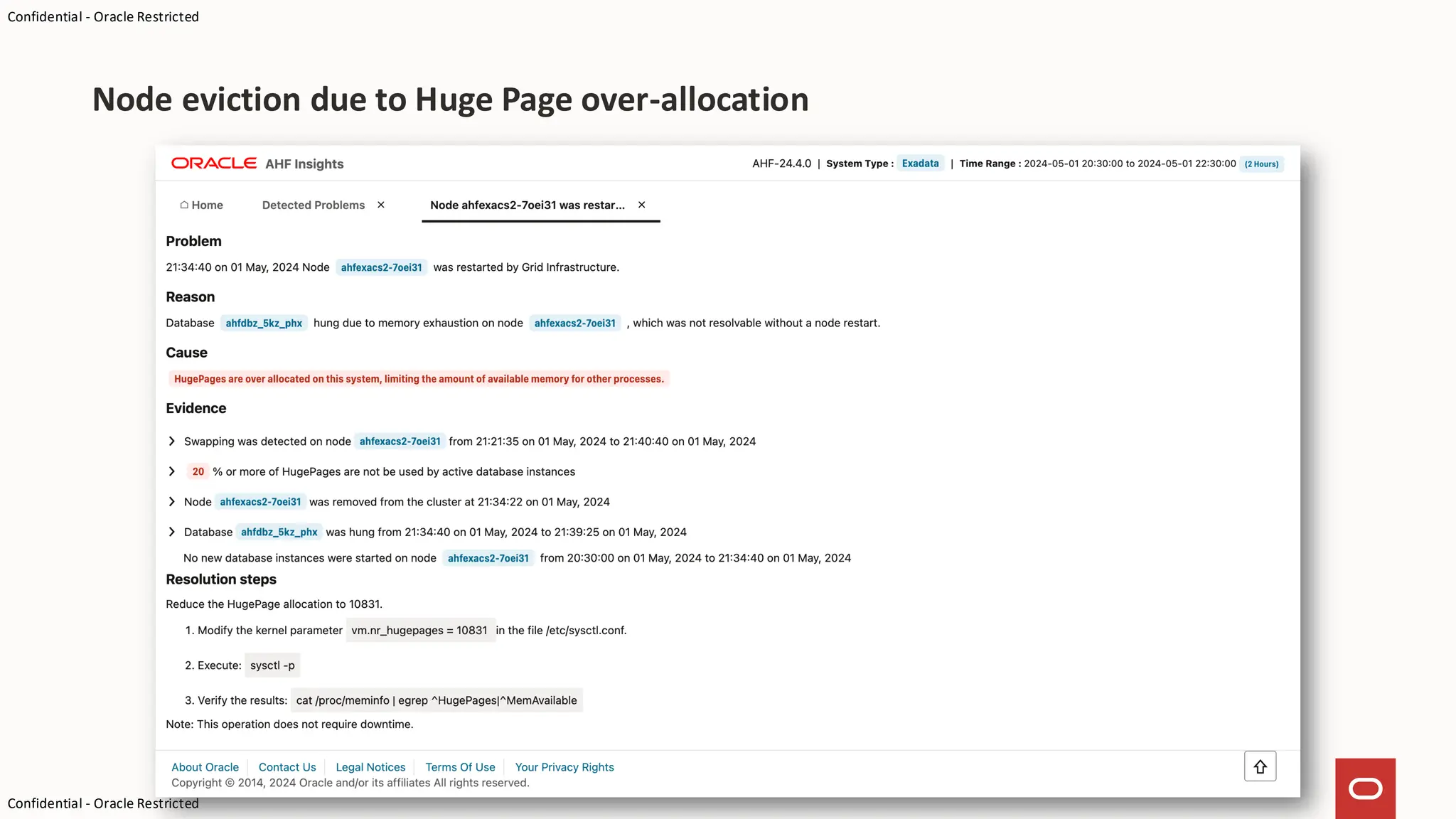

Node eviction due to Huge Page over-allocation

47. Confidential - Oracle Restricted
Confidential - Oracle Restricted
Node eviction due to Huge Page over-allocation

48. Confidential - Oracle Restricted
Confidential - Oracle Restricted

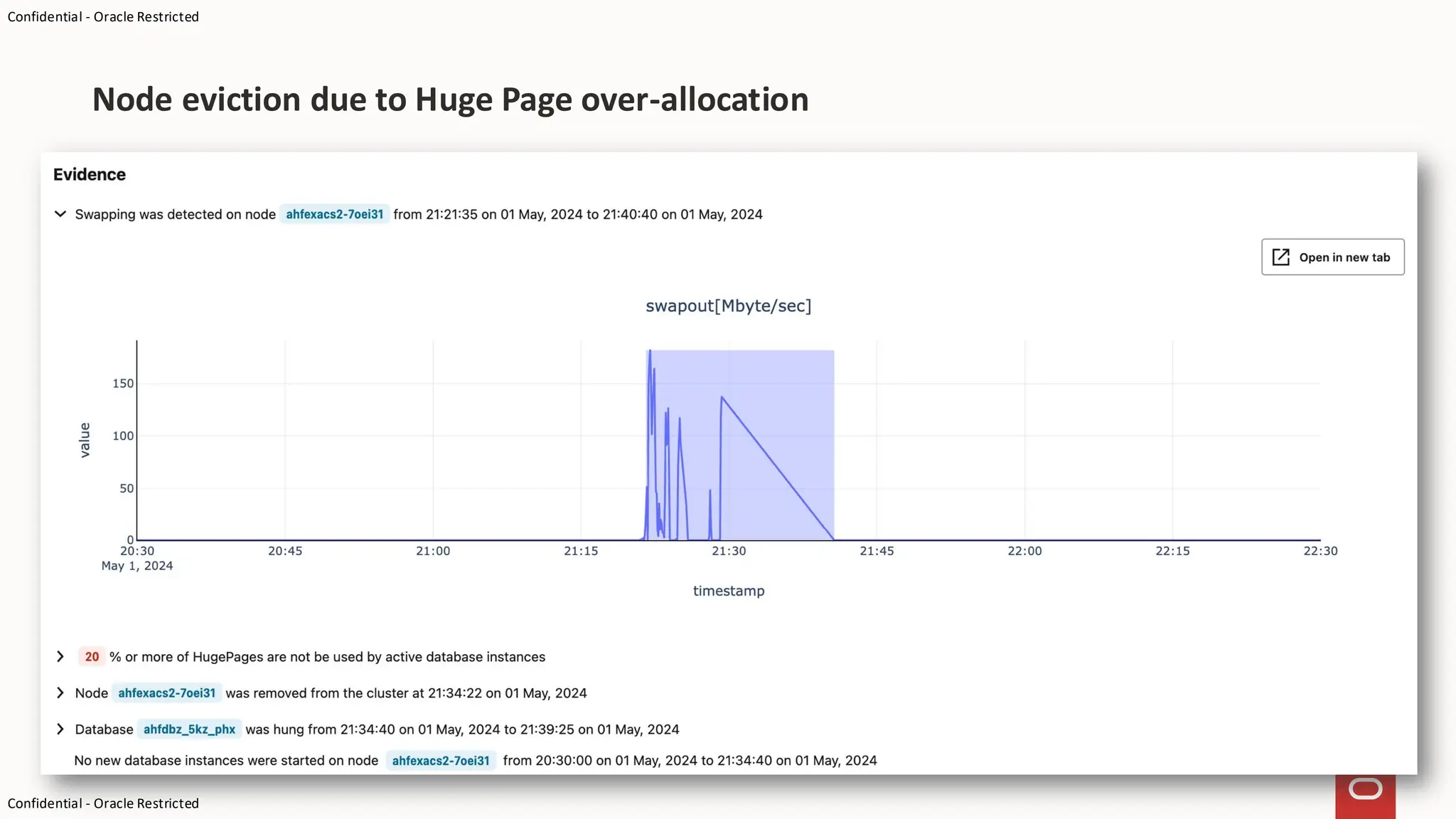

Node eviction due to Huge Page over-allocation

49. Confidential - Oracle Restricted
Confidential - Oracle Restricted
Node eviction due to Huge Page over-allocation

50. Confidential - Oracle Restricted
Confidential - Oracle Restricted

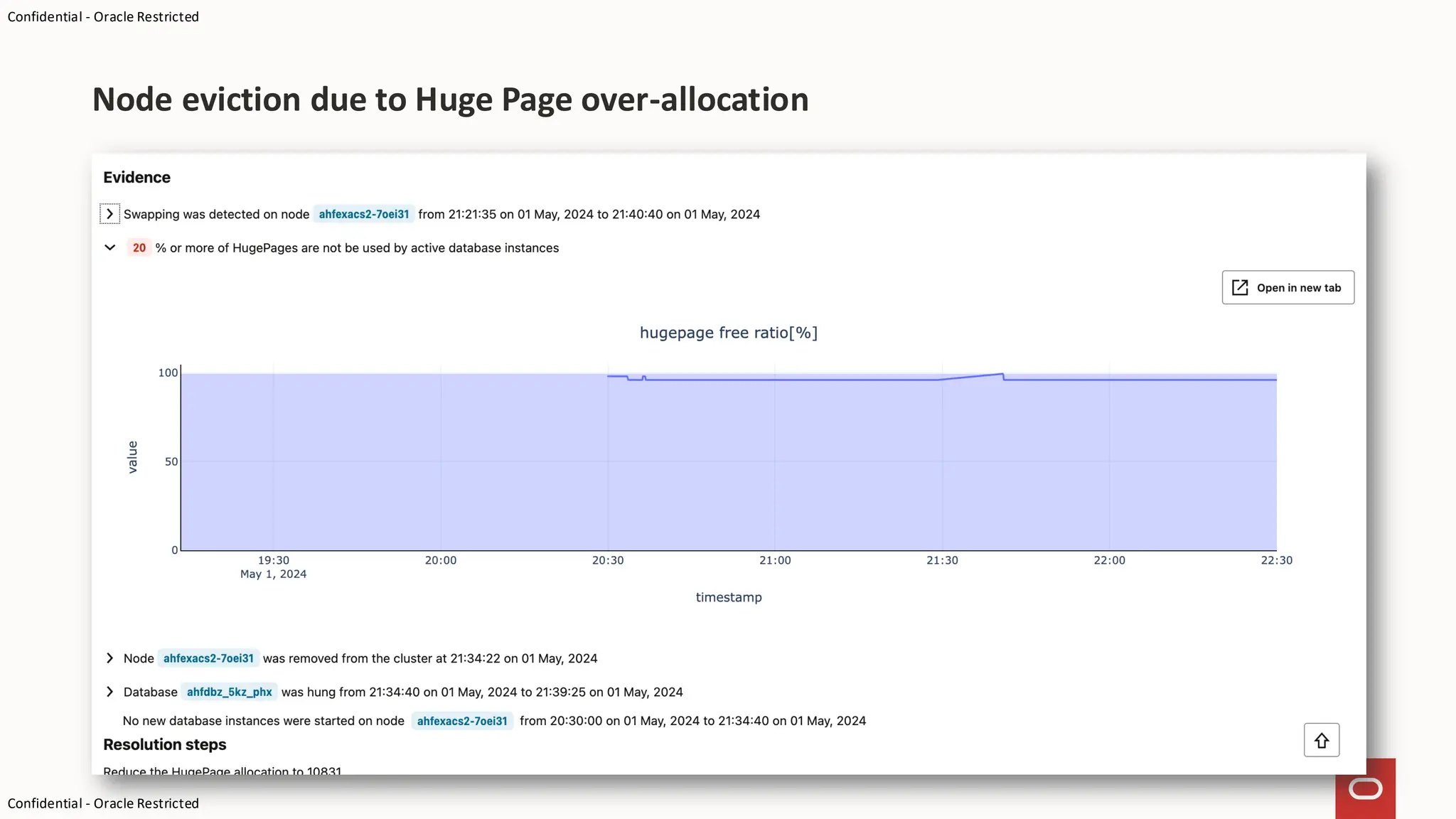

Node eviction due to Huge Page over-allocation

51. Confidential - Oracle Restricted
Confidential - Oracle Restricted

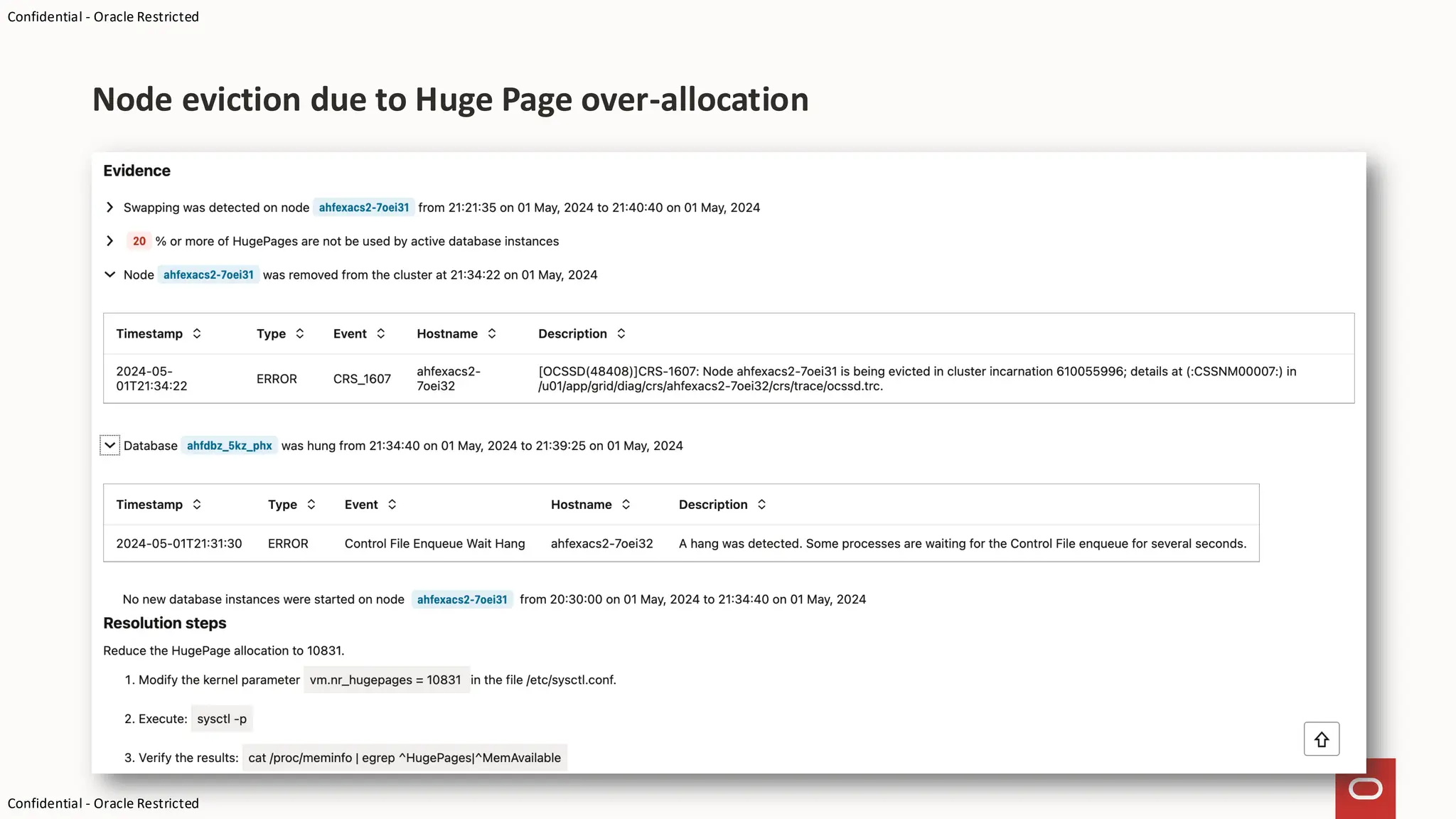

Node eviction due to Huge Page over-allocation

52. Confidential - Oracle Restricted
Confidential - Oracle Restricted

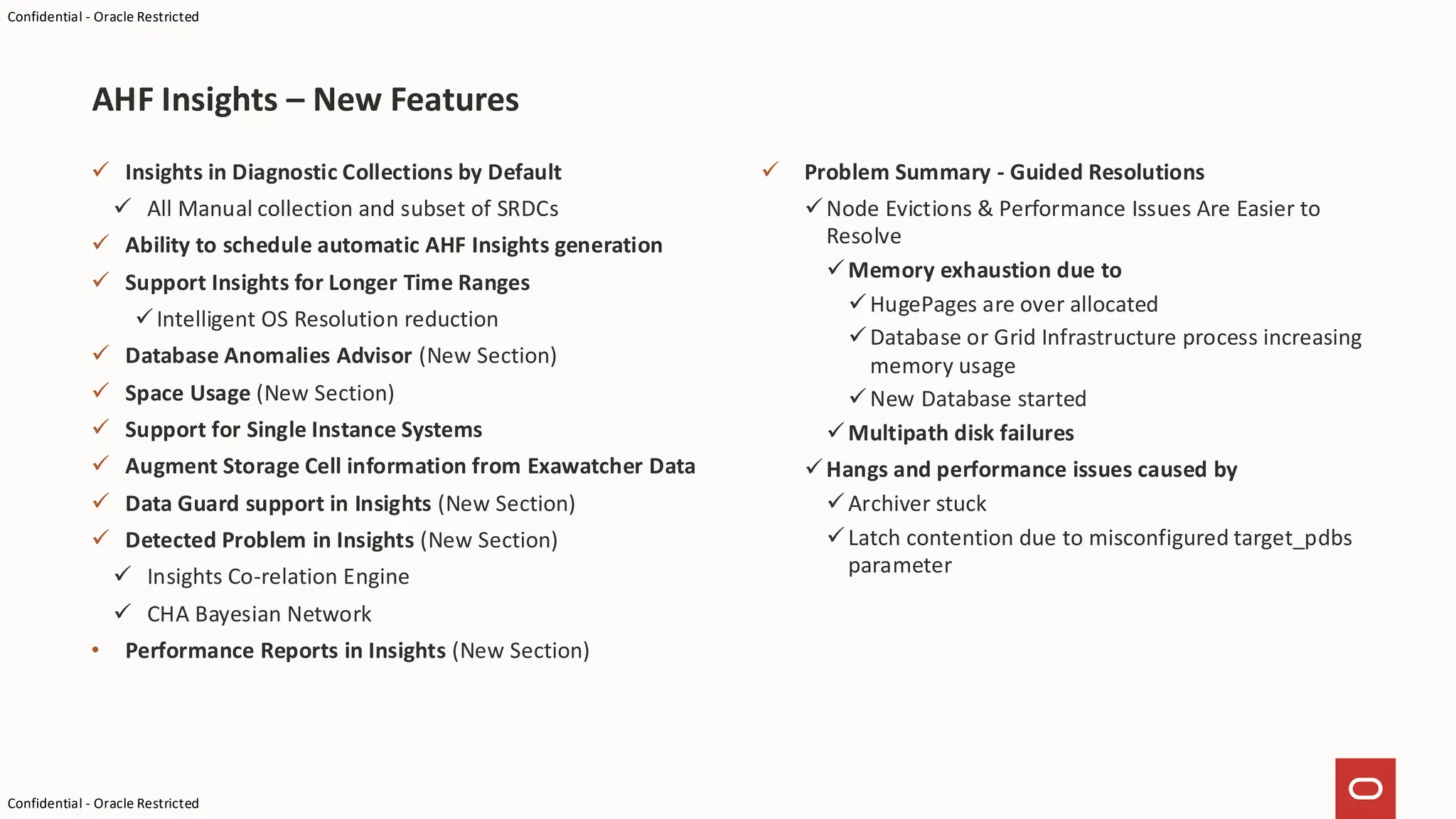

✓ Insights in Diagnostic Collections by Default
✓ All Manual collection and subset of SRDCs
✓ Ability to schedule automatic AHF Insights generation
✓ Support Insights for Longer Time Ranges
✓Intelligent OS Resolution reduction
✓ Database Anomalies Advisor (New Section)
✓ Space Usage (New Section)
✓ Support for Single Instance Systems
✓ Augment Storage Cell information from Exawatcher Data
✓ Data Guard support in Insights (New Section)
✓ Detected Problem in Insights (New Section)
✓ Insights Co-relation Engine
✓ CHA Bayesian Network
• Performance Reports in Insights (New Section)
AHF Insights – New Features
✓ Problem Summary - Guided Resolutions
✓Node Evictions & Performance Issues Are Easier to
Resolve
✓Memory exhaustion due to
✓HugePages are over allocated
✓Database or Grid Infrastructure process increasing
memory usage
✓New Database started
✓Multipath disk failures
✓Hangs and performance issues caused by
✓Archiver stuck
✓Latch contention due to misconfigured target_pdbs
parameter

53. Confidential - Oracle Restricted
Confidential - Oracle Restricted

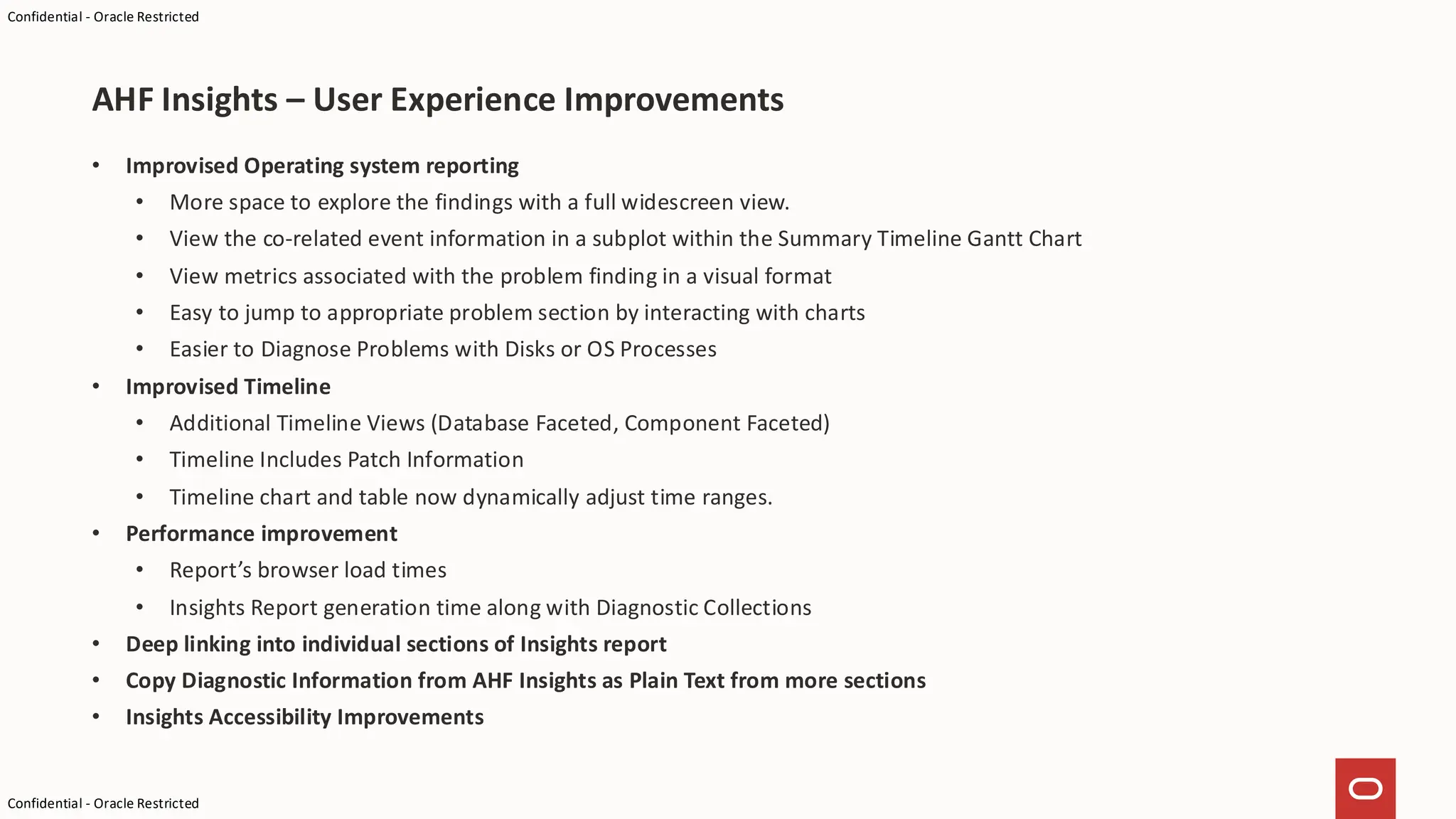

• Improvised Operating system reporting
• More space to explore the findings with a full widescreen view.
• View the co-related event information in a subplot within the Summary Timeline Gantt Chart
• View metrics associated with the problem finding in a visual format
• Easy to jump to appropriate problem section by interacting with charts
• Easier to Diagnose Problems with Disks or OS Processes
• Improvised Timeline
• Additional Timeline Views (Database Faceted, Component Faceted)
• Timeline Includes Patch Information
• Timeline chart and table now dynamically adjust time ranges.
• Performance improvement
• Report’s browser load times
• Insights Report generation time along with Diagnostic Collections
• Deep linking into individual sections of Insights report
• Copy Diagnostic Information from AHF Insights as Plain Text from more sections
• Insights Accessibility Improvements
AHF Insights – User Experience Improvements
