Basics of artificial intelligence and machine learning

ARTIFICIAL INTELLIGENCE
AND
MACHINE LEARNING
21CS52
By Prof. Sanjay Kumar N V
KIT ,Tiptur

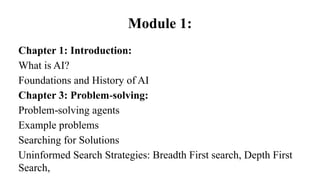

Module 1:
Chapter 1: Introduction:
What is AI?
Foundations and History of AI
Chapter 3: Problem solving:
‐

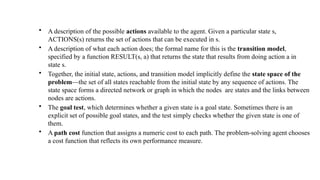

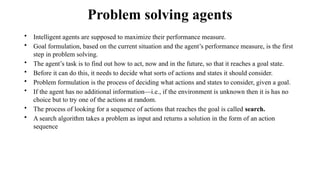

Problem solving agents
‐

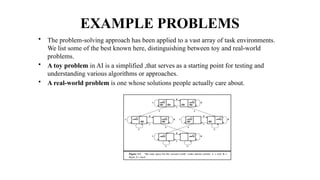

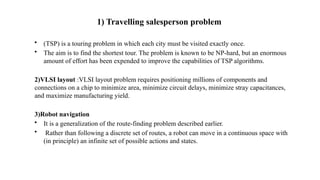

Example problems

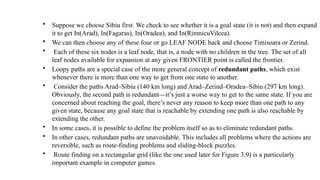

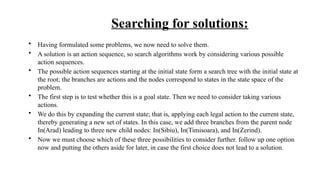

Searching for Solutions

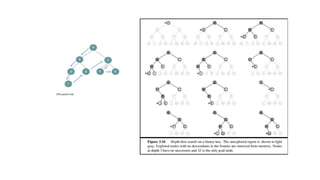

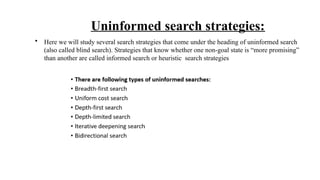

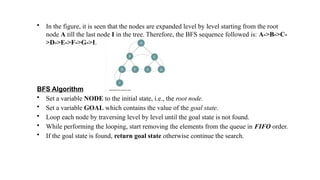

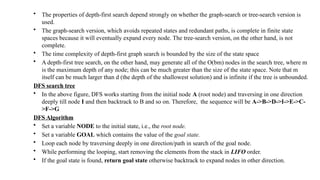

Uninformed Search Strategies: Breadth First search, Depth First
Search,

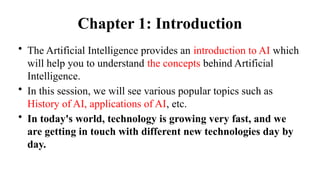

Chapter 1: Introduction
• The Artificial Intelligence provides an introduction to AI which
will help you to understand the concepts behind Artificial
Intelligence.
• In this session, we will see various popular topics such as
History of AI, applications of AI, etc.
• In today's world, technology is growing very fast, and we
are getting in touch with different new technologies day by
day.

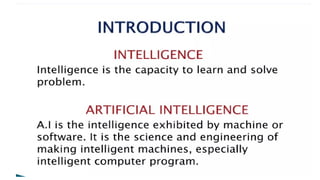

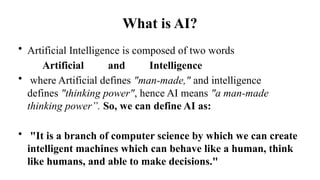

What is AI?
• Artificial Intelligence is composed of two words
Artificial and Intelligence
• where Artificial defines "man-made," and intelligence
defines "thinking power", hence AI means "a man-made
thinking power”. So, we can define AI as:
• "It is a branch of computer science by which we can create
intelligent machines which can behave like a human, think
like humans, and able to make decisions."

Introduction
• Here, one of the booming technologies of computer science is
Artificial Intelligence which is ready to create a new revolution
in the world by making intelligent machines.
• The Artificial Intelligence is now all around us.
• It is currently working with a variety of subfields, ranging from
general to specific, such as self-driving cars, playing chess,
proving theorems, playing music, Painting, etc.

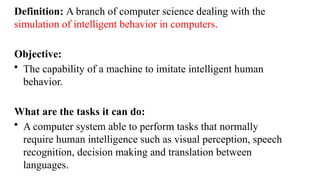

Definition: A branch of computer science dealing with the
simulation of intelligent behavior in computers.
Objective:
• The capability of a machine to imitate intelligent human
behavior.
What are the tasks it can do:
• A computer system able to perform tasks that normally
require human intelligence such as visual perception, speech
recognition, decision making and translation between
languages.

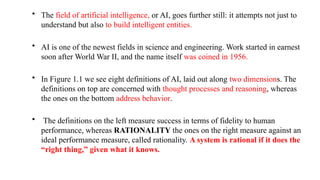

• The field of artificial intelligence, or AI, goes further still: it attempts not just to
understand but also to build intelligent entities.
• AI is one of the newest fields in science and engineering. Work started in earnest
soon after World War II, and the name itself was coined in 1956.

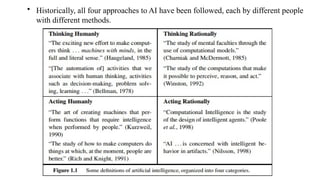

• In Figure 1.1 we see eight definitions of AI, laid out along two dimensions. The
definitions on top are concerned with thought processes and reasoning, whereas
the ones on the bottom address behavior.
• The definitions on the left measure success in terms of fidelity to human
performance, whereas RATIONALITY the ones on the right measure against an
ideal performance measure, called rationality. A system is rational if it does the
“right thing,” given what it knows.

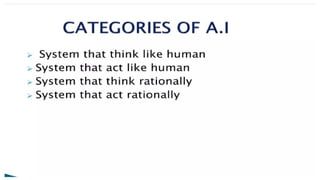

• Historically, all four approaches to AI have been followed, each by different people
with different methods.

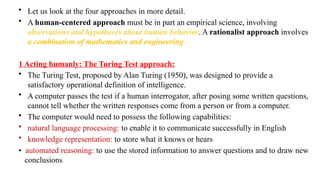

• Let us look at the four approaches in more detail.
• A human-centered approach must be in part an empirical science, involving
observations and hypotheses about human behavior. A rationalist approach involves
a combination of mathematics and engineering

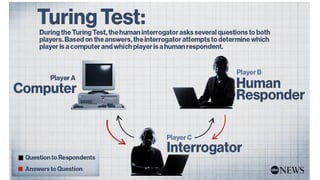

1 Acting humanly: The Turing Test approach:
• The Turing Test, proposed by Alan Turing (1950), was designed to provide a
satisfactory operational definition of intelligence.
• A computer passes the test if a human interrogator, after posing some written questions,
cannot tell whether the written responses come from a person or from a computer.
• The computer would need to possess the following capabilities:
• natural language processing: to enable it to communicate successfully in English
• knowledge representation: to store what it knows or hears
• automated reasoning: to use the stored information to answer questions and to draw new
conclusions

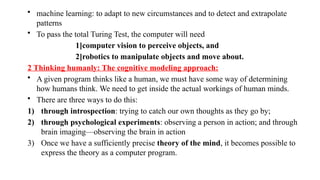

• machine learning: to adapt to new circumstances and to detect and extrapolate
patterns
• To pass the total Turing Test, the computer will need
1]computer vision to perceive objects, and
2]robotics to manipulate objects and move about.
2 Thinking humanly: The cognitive modeling approach:
• A given program thinks like a human, we must have some way of determining
how humans think. We need to get inside the actual workings of human minds.
• There are three ways to do this:
1) through introspection: trying to catch our own thoughts as they go by;
2) through psychological experiments: observing a person in action; and through
brain imaging—observing the brain in action
3) Once we have a sufficiently precise theory of the mind, it becomes possible to
express the theory as a computer program.

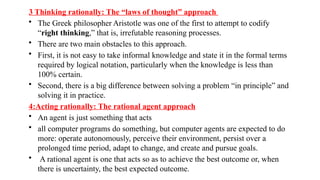

3 Thinking rationally: The “laws of thought” approach
• The Greek philosopher Aristotle was one of the first to attempt to codify
“right thinking,” that is, irrefutable reasoning processes.
• There are two main obstacles to this approach.
• First, it is not easy to take informal knowledge and state it in the formal terms
required by logical notation, particularly when the knowledge is less than
100% certain.
• Second, there is a big difference between solving a problem “in principle” and
solving it in practice.
4:Acting rationally: The rational agent approach
• An agent is just something that acts
• all computer programs do something, but computer agents are expected to do
more: operate autonomously, perceive their environment, persist over a
prolonged time period, adapt to change, and create and pursue goals.
• A rational agent is one that acts so as to achieve the best outcome or, when
there is uncertainty, the best expected outcome.

Foundation of AI
1.Philosophy
2.Mathematics
3.Economics
4.Neuroscience
5.Psychology
6.Computer engineering
7.Control theory and cybernetics
8.Linguistics

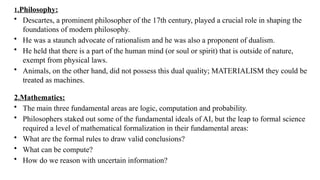

1.Philosophy:
• Descartes, a prominent philosopher of the 17th century, played a crucial role in shaping the
foundations of modern philosophy.
• He was a staunch advocate of rationalism and he was also a proponent of dualism.
• He held that there is a part of the human mind (or soul or spirit) that is outside of nature,
exempt from physical laws.
• Animals, on the other hand, did not possess this dual quality; MATERIALISM they could be
treated as machines.
2.Mathematics:
• The main three fundamental areas are logic, computation and probability.
• Philosophers staked out some of the fundamental ideals of AI, but the leap to formal science
required a level of mathematical formalization in their fundamental areas:
• What are the formal rules to draw valid conclusions?
• What can be compute?
• How do we reason with uncertain information?

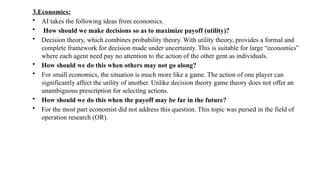

3.Economics:
• AI takes the following ideas from economics.
• How should we make decisions so as to maximize payoff (utility)?
• Decision theory, which combines probability theory. With utility theory, provides a formal and
complete framework for decision made under uncertainty. This is suitable for large “economics”
where each agent need pay no attention to the action of the other gent as individuals.
• How should we do this when others may not go along?
• For small economics, the situation is much more like a game. The action of one player can
significantly affect the utility of another. Unlike decision theory game theory does not offer an
unambiguous prescription for selecting actions.
• How should we do this when the payoff may be far in the future?
• For the most part economist did not address this question. This topic was pursed in the field of
operation research (OR).

4.Neuroscience
• Neuroscience is the study of the nervous system, particularly the brain.
• This study of how brain process information directly help in the development of AI.
• It has also long been known that human brains are somehow different; in about 335 B.C. Aristotle
wrote, “Of all the animals, man has the largest brain in proportion to his size.”
5.Psychology
• Psychology tries to answer the following question:
• How do humans and animals think and act?
• Modern science proves that computer models could be used to address the psychology of
memory, language and logical thinking respectively.
• It is now common view among psychologist that "a cognitive theory should be like a computer
program."

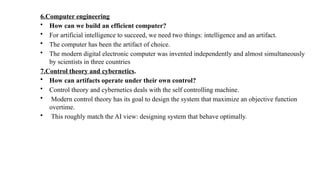

6.Computer engineering
• How can we build an efficient computer?
• For artificial intelligence to succeed, we need two things: intelligence and an artifact.
• The computer has been the artifact of choice.
• The modern digital electronic computer was invented independently and almost simultaneously
by scientists in three countries
7.Control theory and cybernetics.
• How can artifacts operate under their own control?
• Control theory and cybernetics deals with the self controlling machine.
• Modern control theory has its goal to design the system that maximize an objective function
overtime.
• This roughly match the AI view: designing system that behave optimally.

8. Linguistics:
• Language is directly related to thought. Modern linguistics and AI, were born at about the same
time and grew up together, intersecting in a hybrid field called computational linguistics or
natural language processing.

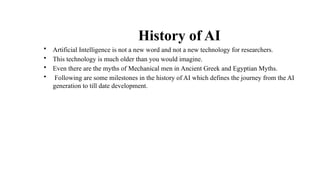

History of AI

History of AI
• Artificial Intelligence is not a new word and not a new technology for researchers.
• This technology is much older than you would imagine.
• Even there are the myths of Mechanical men in Ancient Greek and Egyptian Myths.
• Following are some milestones in the history of AI which defines the journey from the AI
generation to till date development.

Maturation of Artificial Intelligence (1943-1952)
Year 1943:
• The first work which is now recognized as AI was done by Warren McCulloch and Walter pits in
1943. They proposed a model of artificial neurons.
Year 1949:
• Donald Hebb demonstrated an updating rule for modifying the connection strength between
neurons. His rule is now called Hebbian learning.
Year 1950:
• The Alan Turing who was an English mathematician and pioneered Machine learning in 1950.
• Alan Turing publishes "Computing Machinery and Intelligence" in which he proposed a test.
• The test can check the machine's ability to exhibit intelligent behavior equivalent to human
intelligence, called a Turing test.

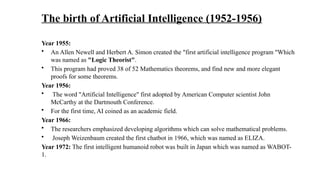

The birth of Artificial Intelligence (1952-1956)
Year 1955:
• An Allen Newell and Herbert A. Simon created the "first artificial intelligence program "Which
was named as "Logic Theorist".
• This program had proved 38 of 52 Mathematics theorems, and find new and more elegant
proofs for some theorems.
Year 1956:
• The word "Artificial Intelligence" first adopted by American Computer scientist John
McCarthy at the Dartmouth Conference.
• For the first time, AI coined as an academic field.
Year 1966:
• The researchers emphasized developing algorithms which can solve mathematical problems.
• Joseph Weizenbaum created the first chatbot in 1966, which was named as ELIZA.
Year 1972: The first intelligent humanoid robot was built in Japan which was named as WABOT-
1.

The first AI winter (1974-1980)
• The duration between years 1974 to 1980 was the first AI winter duration. AI winter refers
to the time period where computer scientist dealt with a severe shortage of funding from
government for AI researches.
• During AI winters, an interest of publicity on artificial intelligence was decreased.
A boom of AI (1980-1987)
• Year 1980: After AI winter duration, AI came back with "Expert System". Expert systems
were programmed that emulate the decision-making ability of a human expert.
• In the Year 1980, the first national conference of the American Association of Artificial
Intelligence was held at Stanford University.

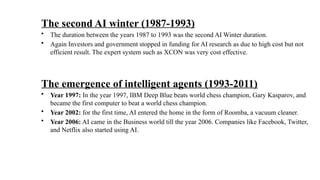

The second AI winter (1987-1993)
• The duration between the years 1987 to 1993 was the second AI Winter duration.
• Again Investors and government stopped in funding for AI research as due to high cost but not
efficient result. The expert system such as XCON was very cost effective.
The emergence of intelligent agents (1993-2011)
• Year 1997: In the year 1997, IBM Deep Blue beats world chess champion, Gary Kasparov, and
became the first computer to beat a world chess champion.
• Year 2002: for the first time, AI entered the home in the form of Roomba, a vacuum cleaner.
• Year 2006: AI came in the Business world till the year 2006. Companies like Facebook, Twitter,
and Netflix also started using AI.

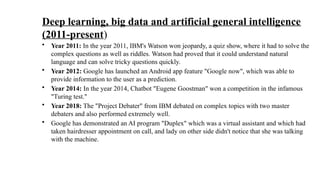

Deep learning, big data and artificial general intelligence
(2011-present)
• Year 2011: In the year 2011, IBM's Watson won jeopardy, a quiz show, where it had to solve the
complex questions as well as riddles. Watson had proved that it could understand natural
language and can solve tricky questions quickly.
• Year 2012: Google has launched an Android app feature "Google now", which was able to
provide information to the user as a prediction.
• Year 2014: In the year 2014, Chatbot "Eugene Goostman" won a competition in the infamous
"Turing test."
• Year 2018: The "Project Debater" from IBM debated on complex topics with two master
debaters and also performed extremely well.
• Google has demonstrated an AI program "Duplex" which was a virtual assistant and which had
taken hairdresser appointment on call, and lady on other side didn't notice that she was talking
with the machine.

Chapter 3: Problem solving:
‐
Contents:
Example problems
Searching for Solutions
Uninformed Search Strategies:
1.Breadth First search,
2.Depth First Search,

• Intelligent agents are supposed to maximize their performance measure.
• Goal formulation, based on the current situation and the agent’s performance measure, is the first
step in problem solving.
• The agent’s task is to find out how to act, now and in the future, so that it reaches a goal state.
• Before it can do this, it needs to decide what sorts of actions and states it should consider.
• Problem formulation is the process of deciding what actions and states to consider, given a goal.
• If the agent has no additional information—i.e., if the environment is unknown then it is has no
choice but to try one of the actions at random.
• The process of looking for a sequence of actions that reaches the goal is called search.
• A search algorithm takes a problem as input and returns a solution in the form of an action
sequence

• Once a solution is found, the actions it recommends can be carried out. This is called the
execution phase.
• We also assume the environment is discrete, so at any given state there are only finitely many
actions to choose from.
• We will assume the environment is known, so the agent knows which states are reached by each
action.
• Finally, we assume that the environment is deterministic, so each action has exactly one outcome.

1 .Well-defined problems and solutions:
• A problem can be defined formally by five components:
• The initial state that the agent starts in. For example, the initial state for our agent in Romania
might be described as In(Arad).

• A description of the possible actions available to the agent. Given a particular state s,
ACTIONS(s) returns the set of actions that can be executed in s.
• A description of what each action does; the formal name for this is the transition model,
specified by a function RESULT(s, a) that returns the state that results from doing action a in
state s.
• Together, the initial state, actions, and transition model implicitly define the state space of the
problem—the set of all states reachable from the initial state by any sequence of actions. The
state space forms a directed network or graph in which the nodes are states and the links between
nodes are actions.
• The goal test, which determines whether a given state is a goal state. Sometimes there is an
explicit set of possible goal states, and the test simply checks whether the given state is one of
them.
• A path cost function that assigns a numeric cost to each path. The problem-solving agent chooses
a cost function that reflects its own performance measure.

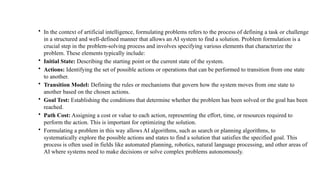

• In the context of artificial intelligence, formulating problems refers to the process of defining a task or challenge
in a structured and well-defined manner that allows an AI system to find a solution. Problem formulation is a
crucial step in the problem-solving process and involves specifying various elements that characterize the
problem. These elements typically include:
• Initial State: Describing the starting point or the current state of the system.
• Actions: Identifying the set of possible actions or operations that can be performed to transition from one state
to another.
• Transition Model: Defining the rules or mechanisms that govern how the system moves from one state to
another based on the chosen actions.
• Goal Test: Establishing the conditions that determine whether the problem has been solved or the goal has been
reached.
• Path Cost: Assigning a cost or value to each action, representing the effort, time, or resources required to
perform the action. This is important for optimizing the solution.
• Formulating a problem in this way allows AI algorithms, such as search or planning algorithms, to
systematically explore the possible actions and states to find a solution that satisfies the specified goal. This
process is often used in fields like automated planning, robotics, natural language processing, and other areas of
AI where systems need to make decisions or solve complex problems autonomously.

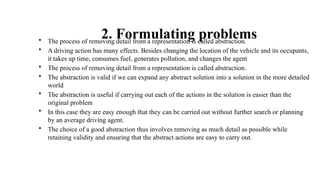

2. Formulating problems
• The process of removing detail from a representation is called abstraction.
• A driving action has many effects. Besides changing the location of the vehicle and its occupants,
it takes up time, consumes fuel, generates pollution, and changes the agent
• The process of removing detail from a representation is called abstraction.
• The abstraction is valid if we can expand any abstract solution into a solution in the more detailed
world
• The abstraction is useful if carrying out each of the actions in the solution is easier than the
original problem
• In this case they are easy enough that they can be carried out without further search or planning
by an average driving agent.
• The choice of a good abstraction thus involves removing as much detail as possible while
retaining validity and ensuring that the abstract actions are easy to carry out.

• Search: It identifies all the best possible sequence of actions to reach the goal state from the current
state. It takes a problem as an input and returns solution as its output.
• Solution: It finds the best algorithm out of various algorithms, which may be proven as the best
optimal solution.
• Execution: It executes the best optimal solution from the searching algorithms to reach the goal
state from the current state.

EXAMPLE PROBLEMS
• The problem-solving approach has been applied to a vast array of task environments.
We list some of the best known here, distinguishing between toy and real-world
problems.
• A toy problem in AI is a simplified ,that serves as a starting point for testing and
understanding various algorithms or approaches.
• A real-world problem is one whose solutions people actually care about.

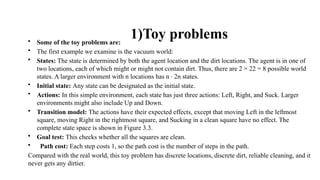

1)Toy problems
• Some of the toy problems are:
• The first example we examine is the vacuum world:
• States: The state is determined by both the agent location and the dirt locations. The agent is in one of
two locations, each of which might or might not contain dirt. Thus, there are 2 × 22 = 8 possible world
states. A larger environment with n locations has n · 2n states.
• Initial state: Any state can be designated as the initial state.
• Actions: In this simple environment, each state has just three actions: Left, Right, and Suck. Larger
environments might also include Up and Down.
• Transition model: The actions have their expected effects, except that moving Left in the leftmost
square, moving Right in the rightmost square, and Sucking in a clean square have no effect. The
complete state space is shown in Figure 3.3.
• Goal test: This checks whether all the squares are clean.
• Path cost: Each step costs 1, so the path cost is the number of steps in the path.
Compared with the real world, this toy problem has discrete locations, discrete dirt, reliable cleaning, and it
never gets any dirtier.

• The 8-puzzle, an instance of which is shown in Figure 3.4, consists of a 3×3 board with eight
numbered tiles and a blank space. A tile adjacent to the blank space can slide into the space.
• The object is to reach a specified goal state, such as the one shown on the right of the figure. The
standard formulation is as follows:

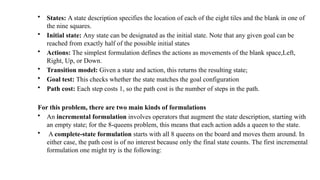

• States: A state description specifies the location of each of the eight tiles and the blank in one of
the nine squares.
• Initial state: Any state can be designated as the initial state. Note that any given goal can be
reached from exactly half of the possible initial states
• Actions: The simplest formulation defines the actions as movements of the blank space,Left,
Right, Up, or Down.
• Transition model: Given a state and action, this returns the resulting state;
• Goal test: This checks whether the state matches the goal configuration
• Path cost: Each step costs 1, so the path cost is the number of steps in the path.
For this problem, there are two main kinds of formulations
• An incremental formulation involves operators that augment the state description, starting with
an empty state; for the 8-queens problem, this means that each action adds a queen to the state.
• A complete-state formulation starts with all 8 queens on the board and moves them around. In
either case, the path cost is of no interest because only the final state counts. The first incremental
formulation one might try is the following:

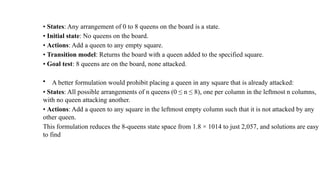

• States: Any arrangement of 0 to 8 queens on the board is a state.
• Initial state: No queens on the board.
• Actions: Add a queen to any empty square.
• Transition model: Returns the board with a queen added to the specified square.
• Goal test: 8 queens are on the board, none attacked.
• A better formulation would prohibit placing a queen in any square that is already attacked:
• States: All possible arrangements of n queens (0 ≤ n ≤ 8), one per column in the leftmost n columns,
with no queen attacking another.
• Actions: Add a queen to any square in the leftmost empty column such that it is not attacked by any
other queen.
This formulation reduces the 8-queens state space from 1.8 × 1014 to just 2,057, and solutions are easy
to find

2) Real word problems
• Route-finding algorithms are used in a variety of applications.
• Some, such as Web sites and in-car systems that provide driving directions ,Others, such as routing video streams in
computer networks, military operations planning, and airline travel-planning systems.
• Consider the airline travel problems that must be solved by a travel-planning Web site:
• States: Each state obviously includes a location (e.g., an airport) and the current time. The cost of an action(flight)
may depend on previous segments, their fare bases, and their status as domestic or international, the state must
record extra information about these “historical” aspects.
• Initial state: This is specified by the user’s query.
• Actions: Take any flight from the current location, in any seat class, leaving after the current time, leaving enough time
for within-airport transfer if needed.
• Transition model: The state resulting from taking a flight will have the flight’s destination as the
current location and the flight’s arrival time as the current time.
• Goal test: Are we at the final destination specified by the user?
• Path cost: This depends on monetary cost, waiting time, flight time, customs and immigration procedures, seat quality,
time of day, type of airplane, frequent-flyer mileage awards, and so on.

1) Travelling salesperson problem
• (TSP) is a touring problem in which each city must be visited exactly once.
• The aim is to find the shortest tour. The problem is known to be NP-hard, but an enormous
amount of effort has been expended to improve the capabilities of TSP algorithms.
2)VLSI layout :VLSI layout problem requires positioning millions of components and
connections on a chip to minimize area, minimize circuit delays, minimize stray capacitances,
and maximize manufacturing yield.
3)Robot navigation
• It is a generalization of the route-finding problem described earlier.
• Rather than following a discrete set of routes, a robot can move in a continuous space with
(in principle) an infinite set of possible actions and states.

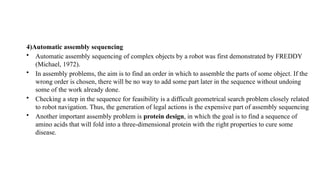

4)Automatic assembly sequencing
• Automatic assembly sequencing of complex objects by a robot was first demonstrated by FREDDY
(Michael, 1972).
• In assembly problems, the aim is to find an order in which to assemble the parts of some object. If the
wrong order is chosen, there will be no way to add some part later in the sequence without undoing
some of the work already done.
• Checking a step in the sequence for feasibility is a difficult geometrical search problem closely related
to robot navigation. Thus, the generation of legal actions is the expensive part of assembly sequencing
• Another important assembly problem is protein design, in which the goal is to find a sequence of
amino acids that will fold into a three-dimensional protein with the right properties to cure some
disease.

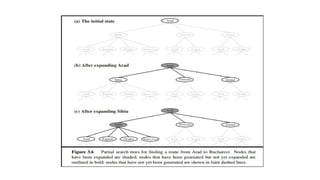

Searching for solutions:
• Having formulated some problems, we now need to solve them.
• A solution is an action sequence, so search algorithms work by considering various possible
action sequences.
• The possible action sequences starting at the initial state form a search tree with the initial state at
the root; the branches are actions and the nodes correspond to states in the state space of the
problem.
• The first step is to test whether this is a goal state. Then we need to consider taking various
actions.
• We do this by expanding the current state; that is, applying each legal action to the current state,
thereby generating a new set of states. In this case, we add three branches from the parent node
In(Arad) leading to three new child nodes: In(Sibiu), In(Timisoara), and In(Zerind).
• Now we must choose which of these three possibilities to consider further. follow up one option
now and putting the others aside for later, in case the first choice does not lead to a solution.

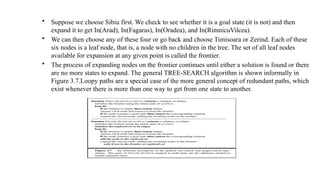

• Suppose we choose Sibiu first. We check to see whether it is a goal state (it is not) and then
expand it to get In(Arad), In(Fagaras), In(Oradea), and In(RimnicuVilcea).
• We can then choose any of these four or go back and choose Timisoara or Zerind. Each of these
six nodes is a leaf node, that is, a node with no children in the tree. The set of all leaf nodes
available for expansion at any given point is called the frontier.
• The process of expanding nodes on the frontier continues until either a solution is found or there
are no more states to expand. The general TREE-SEARCH algorithm is shown informally in
Figure 3.7.Loopy paths are a special case of the more general concept of redundant paths, which
exist whenever there is more than one way to get from one state to another.

• Suppose we choose Sibiu first. We check to see whether it is a goal state (it is not) and then expand
it to get In(Arad), In(Fagaras), In(Oradea), and In(RimnicuVilcea).
• We can then choose any of these four or go LEAF NODE back and choose Timisoara or Zerind.
• Each of these six nodes is a leaf node, that is, a node with no children in the tree. The set of all
leaf nodes available for expansion at any given FRONTIER point is called the frontier.
• Loopy paths are a special case of the more general concept of redundant paths, which exist
whenever there is more than one way to get from one state to another.
• Consider the paths Arad–Sibiu (140 km long) and Arad–Zerind–Oradea–Sibiu (297 km long).
Obviously, the second path is redundant—it’s just a worse way to get to the same state. If you are
concerned about reaching the goal, there’s never any reason to keep more than one path to any
given state, because any goal state that is reachable by extending one path is also reachable by
extending the other.
• In some cases, it is possible to define the problem itself so as to eliminate redundant paths.
• In other cases, redundant paths are unavoidable. This includes all problems where the actions are
reversible, such as route-finding problems and sliding-block puzzles.
• Route finding on a rectangular grid (like the one used later for Figure 3.9) is a particularly
important example in computer games.

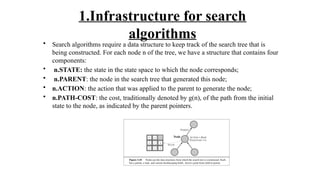

1.Infrastructure for search
algorithms
• Search algorithms require a data structure to keep track of the search tree that is
being constructed. For each node n of the tree, we have a structure that contains four
components:
• n.STATE: the state in the state space to which the node corresponds;
• n.PARENT: the node in the search tree that generated this node;
• n.ACTION: the action that was applied to the parent to generate the node;
• n.PATH-COST: the cost, traditionally denoted by g(n), of the path from the initial
state to the node, as indicated by the parent pointers.

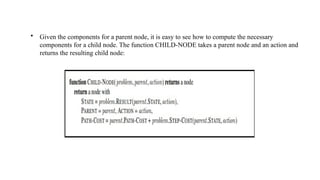

• Given the components for a parent node, it is easy to see how to compute the necessary
components for a child node. The function CHILD-NODE takes a parent node and an action and
returns the resulting child node:

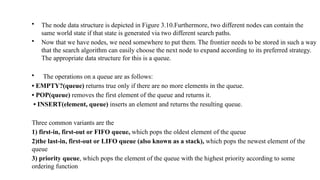

• The node data structure is depicted in Figure 3.10.Furthermore, two different nodes can contain the
same world state if that state is generated via two different search paths.
• Now that we have nodes, we need somewhere to put them. The frontier needs to be stored in such a way
that the search algorithm can easily choose the next node to expand according to its preferred strategy.
The appropriate data structure for this is a queue.
• The operations on a queue are as follows:
• EMPTY?(queue) returns true only if there are no more elements in the queue.
• POP(queue) removes the first element of the queue and returns it.
• INSERT(element, queue) inserts an element and returns the resulting queue.
Three common variants are the
1) first-in, first-out or FIFO queue, which pops the oldest element of the queue
2)the last-in, first-out or LIFO queue (also known as a stack), which pops the newest element of the
queue
3) priority queue, which pops the element of the queue with the highest priority according to some
ordering function

2. Measuring problem-solving performance
• Before we get into the design of specific search algorithms, we need to consider the criteria that
might be used to choose among them. We can evaluate an algorithm’s performance in four ways:
•Completeness: Is the algorithm guaranteed to find a solution when there is one?
• Optimality: Does the strategy find the optimal solution, as defined on page 68?
• Time complexity: How long does it take to find a solution?
• Space complexity: How much memory is needed to perform the search
• Time and space complexity are always considered with respect to some measure of the problem
difficulty.

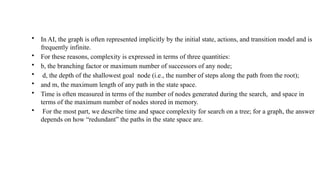

• In AI, the graph is often represented implicitly by the initial state, actions, and transition model and is
frequently infinite.
• For these reasons, complexity is expressed in terms of three quantities:
• b, the branching factor or maximum number of successors of any node;
• d, the depth of the shallowest goal node (i.e., the number of steps along the path from the root);
• and m, the maximum length of any path in the state space.
• Time is often measured in terms of the number of nodes generated during the search, and space in
terms of the maximum number of nodes stored in memory.
• For the most part, we describe time and space complexity for search on a tree; for a graph, the answer
depends on how “redundant” the paths in the state space are.

Uninformed search strategies:
• Here we will study several search strategies that come under the heading of uninformed search
(also called blind search). Strategies that know whether one non-goal state is “more promising”
than another are called informed search or heuristic search strategies

1)Breadth first search
Breadth-first search is a simple strategy in which the root node is expanded first, then all the successors of
the root node are expanded next, then their successors, and so on.
• BFS expands the shallowest (i.e., not deep) node first using FIFO (First in first out) order. Thus, new
nodes (i.e., children of a parent node) remain in the queue and old unexpanded node which are shallower
than the new nodes, get expanded first.
• In BFS, goal test (a test to check whether the current state is a goal state or not) is applied to each
node at the time of its generation rather when it is selected for expansion.
• In general, all the nodes are expanded at a given depth in the search tree before any nodes at the next
level are expanded.
• Breadth-first search is an instance of the general graph-search algorithm (Figure 3.7) in which the
shallowest unexpanded node is chosen for expansion.
• This is achieved very simply by using a FIFO queue for the frontier. Thus, new nodes go to the back of
the queue, and old nodes, which are shallower than the new nodes, get expanded first. There is one slight
tweak on the general graph-search algorithm, which is that the goal test is applied to each node when it is
generated rather than when it is selected for expansion.
• Pseudocode is given in Figure 3.11. Figure 3.12 shows the progress of the search on a simple binary tree.

• How does breadth-first search rate according to the four criteria from the previous section?
We can easily see that it is complete—if the shallowest goal node is at some finite depth d, breadth-
first search will eventually find it after generating all shallower nodes
• breadth-first search is optimal if the path cost is a nondecreasing function of the depth of the node.
The most common such scenario is that all actions have the same cost.
• So far, the news about breadth-first search has been good. The news about time and space is not so
good
• Imagine searching a uniform tree where every state has b successors. The root of the search tree
generates b nodes at the first level, each of which generates b more nodes, for a total of b2 at the
second level. Each of these generates b more nodes, yielding b3 nodes at the third level, and so on
• Then the total number of nodes generated is
• As for space complexity: for any kind of graph search, which stores every expanded node in the
explored set, the space complexity is always within a factor of b of the time complexity
• the space complexity is O(bd), i.e., it is dominated by the size of the frontier

• In the figure, it is seen that the nodes are expanded level by level starting from the root
node A till the last node I in the tree. Therefore, the BFS sequence followed is: A->B->C-
>D->E->F->G->I.
BFS Algorithm
• Set a variable NODE to the initial state, i.e., the root node.
• Set a variable GOAL which contains the value of the goal state.
• Loop each node by traversing level by level until the goal state is not found.
• While performing the looping, start removing the elements from the queue in FIFO order.
• If the goal state is found, return goal state otherwise continue the search.

The performance measure of BFS is as follows:
• Completeness: It is a complete strategy as it definitely finds the goal state.
• Optimality: It gives an optimal solution if the cost of each node is same.
• Space Complexity: The space complexity of BFS is O(bd
), i.e., it requires a huge amount of memory.
Here, b is the branching factor and d denotes the depth/level of the tree
• Time Complexity: BFS consumes much time to reach the goal node for large instances.
Disadvantages of BFS
• The biggest disadvantage of BFS is that it requires a lot of memory space, therefore it is a memory
bounded strategy.
• BFS is time taking search strategy because it expands the nodes breadthwise.

Depth-first search
• This search strategy explores the deepest node first, then backtracks to explore other nodes.
• Depth-first search always expands the deepest node in the current frontier of the search tree. The
progress of the search is illustrated in Figure 3.16.
• The search proceeds immediately to the deepest level of the search tree, where the nodes have no
successors.
• As those nodes are expanded, they are dropped from the frontier, so then the search “backs up” to
the next deepest node that still has unexplored successors.
• It uses LIFO (Last in First Out) order, which is based on the stack, in order to expand the
unexpanded nodes in the search tree.
• The search proceeds to the deepest level of the tree where it has no successors. This search expands
nodes till infinity, i.e., the depth of the tree.

• The properties of depth-first search depend strongly on whether the graph-search or tree-search version is
used.
• The graph-search version, which avoids repeated states and redundant paths, is complete in finite state
spaces because it will eventually expand every node. The tree-search version, on the other hand, is not
complete.
• The time complexity of depth-first graph search is bounded by the size of the state space
• A depth-first tree search, on the other hand, may generate all of the O(bm) nodes in the search tree, where m
is the maximum depth of any node; this can be much greater than the size of the state space. Note that m
itself can be much larger than d (the depth of the shallowest solution) and is infinite if the tree is unbounded.
DFS search tree
• In the above figure, DFS works starting from the initial node A (root node) and traversing in one direction
deeply till node I and then backtrack to B and so on. Therefore, the sequence will be A->B->D->I->E->C-
>F->G
DFS Algorithm
• Set a variable NODE to the initial state, i.e., the root node.
• Set a variable GOAL which contains the value of the goal state.
• Loop each node by traversing deeply in one direction/path in search of the goal node.
• While performing the looping, start removing the elements from the stack in LIFO order.
• If the goal state is found, return goal state otherwise backtrack to expand nodes in other direction.

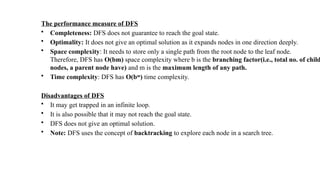

The performance measure of DFS
• Completeness: DFS does not guarantee to reach the goal state.
• Optimality: It does not give an optimal solution as it expands nodes in one direction deeply.
• Space complexity: It needs to store only a single path from the root node to the leaf node.
Therefore, DFS has O(bm) space complexity where b is the branching factor(i.e., total no. of child
nodes, a parent node have) and m is the maximum length of any path.
• Time complexity: DFS has O(bm
) time complexity.
Disadvantages of DFS
• It may get trapped in an infinite loop.
• It is also possible that it may not reach the goal state.
• DFS does not give an optimal solution.
• Note: DFS uses the concept of backtracking to explore each node in a search tree.

Basics of artificial intelligence and machine learning

More Related Content

Similar to Basics of artificial intelligence and machine learning

More from Sanjay Kumar

Recently uploaded

Basics of artificial intelligence and machine learning
