Aztec codes are 2D barcodes invented in 1995, utilizing technology that allows reading in multiple directions and offering features like high data capacity and error correction. While they include support for all ASCII characters, they have limitations such as difficulty in decoding and a lack of support for certain character sets. These barcodes are commonly used in sectors like transportation for electronic boarding passes and other applications like invoicing and mobile payments.

1. HTTPS://BARCODELIVE.ORG/
Aztec
Barcode

2. Table
of
Content
What Is An Aztec Bar Code?
What Are Features Of An Aztec Bar Code?
How Does An Aztec Bar Code Work?
How Are Aztec Bar Codes Used?
How To Read An Aztec Bar Code?

3. HTTPS://BARCODELIVE.ORG/
What Is An
Aztec Barcode?

4. HTTPS://BARCODELIVE.ORG/

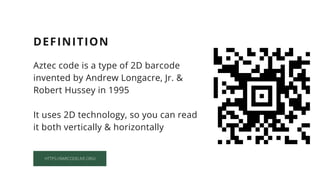

Aztec code is a type of 2D barcode
invented by Andrew Longacre, Jr. &
Robert Hussey in 1995
It uses 2D technology, so you can read
it both vertically & horizontally
DEFINITION

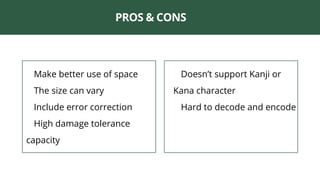

5. PROS & CONS
✅ Make better use of space
✅ The size can vary
✅ Include error correction
✅ High damage tolerance
capacity
❌ Doesn’t support Kanji or
Kana character
❌ Hard to decode and encode

6. What Are
Features Of
An Aztec Bar Code?
HTTPS://BARCODELIVE.ORG/

7. SYMBOL STRUCTURE

8. CHARACTER SET
All 255 ASCII characters (text, numbers 0 through 9, and binary
data), the FNC1 & Flag 7 symbols are supported by this
symbology
An Extended Channel Interpretation (ECI) protocol value is
represented by a Flag 7 with six digits, ^7nnnnnn, where
nnnnnn is the six-digit ECI number
HTTPS://BARCODELIVE.ORG/

9. Aztec Code has a range of 1 to 32
data layers
Smallest modules: 15x15
Largest modules: 151x151
SYMBOL DIMENSIONS
HTTPS://BARCODELIVE.ORG/

10. Aztec code uses the Reed-Solomon
algorithm to correct errors
The suggested level is 23% of the
symbol capacity with three
additional codewords
ERROR CORRECTION
HTTPS://BARCODELIVE.ORG/

11. How Does An Aztec
Bar Code Work?

12. A pattern of various layers surrounds
the core square in a barcode Aztec style.
These squares are put together to
encode the information the Aztec
barcode contains.
The "quiet zone" feature of other codes
is not required.
HTTPS://BARCODELIVE.ORG/

13. How Are
Aztec Bar Codes Used?

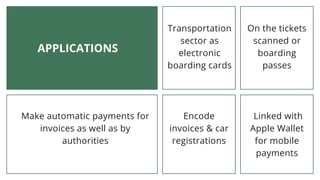

14. APPLICATIONS
Transportation
sector as
electronic
boarding cards
On the tickets
scanned or
boarding
passes
Linked with
Apple Wallet
for mobile
payments
Encode
invoices & car
registrations
Make automatic payments for
invoices as well as by
authorities

15. How To Read An
Aztec Bar Code?
HTTPS://BARCODELIVE.ORG/

16. Use a camera-based
barcode image reader
Tổng số người dùng
2 Ways To Read
Aztec Bar Code
Option 2
Use a third-party app on
Android/iOS tablets &
smartphones
Option 1
HTTPS://BARCODELIVE.ORG/

17. HTTPS://BARCODELIVE.ORG/
THANK YOU!
