Azure IoT Description

1. Click to edit Master title style
1
Internet of Things
A z u r e I o T

2. Click to edit Master title style
2
Introduction
W h a t , H o w a n d W h y ?
2

3. Click to edit Master title style
3

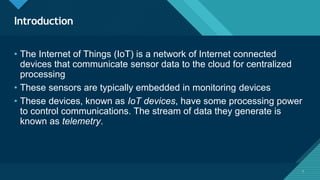

Introduction
3
• The Internet of Things (IoT) is a network of Internet connected
devices that communicate sensor data to the cloud for centralized
processing
• These sensors are typically embedded in monitoring devices
• These devices, known as IoT devices, have some processing power
to control communications. The stream of data they generate is
known as telemetry.

4. Click to edit Master title style
4

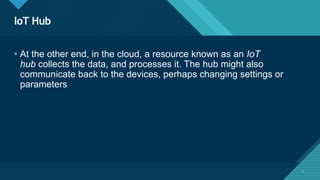

IoT Hub
4
• At the other end, in the cloud, a resource known as an IoT
hub collects the data, and processes it. The hub might also
communicate back to the devices, perhaps changing settings or
parameters

5. Click to edit Master title style
5

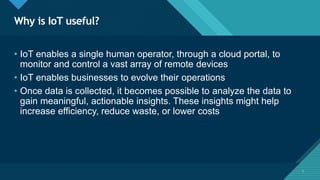

Why is IoT useful?
5
• IoT enables a single human operator, through a cloud portal, to
monitor and control a vast array of remote devices
• IoT enables businesses to evolve their operations
• Once data is collected, it becomes possible to analyze the data to
gain meaningful, actionable insights. These insights might help
increase efficiency, reduce waste, or lower costs

6. Click to edit Master title style
6
IoT Solutions
M a i n A r e a s
6

7. Click to edit Master title style
7

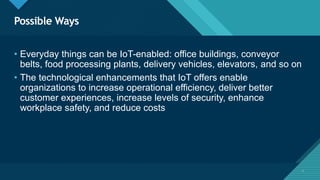

Possible Ways
7
• Everyday things can be IoT-enabled: office buildings, conveyor
belts, food processing plants, delivery vehicles, elevators, and so on
• The technological enhancements that IoT offers enable
organizations to increase operational efficiency, deliver better
customer experiences, increase levels of security, enhance
workplace safety, and reduce costs

8. Click to edit Master title style
8

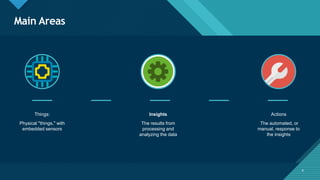

Main Areas
Things:
Physical "things," with
embedded sensors
Insights
The results from
processing and
analyzing the data
Actions
The automated, or
manual, response to
the insights
8

9. Click to edit Master title style
9
Azure IoT Architecture
9

10. Click to edit Master title style
10
“

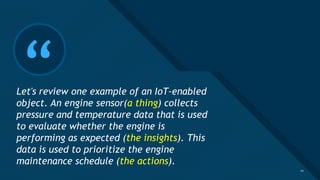

Let's review one example of an IoT-enabled
object. An engine sensor(a thing) collects
pressure and temperature data that is used
to evaluate whether the engine is
performing as expected (the insights). This
data is used to prioritize the engine
maintenance schedule (the actions).
10

11. Click to edit Master title style
11
Thank You
