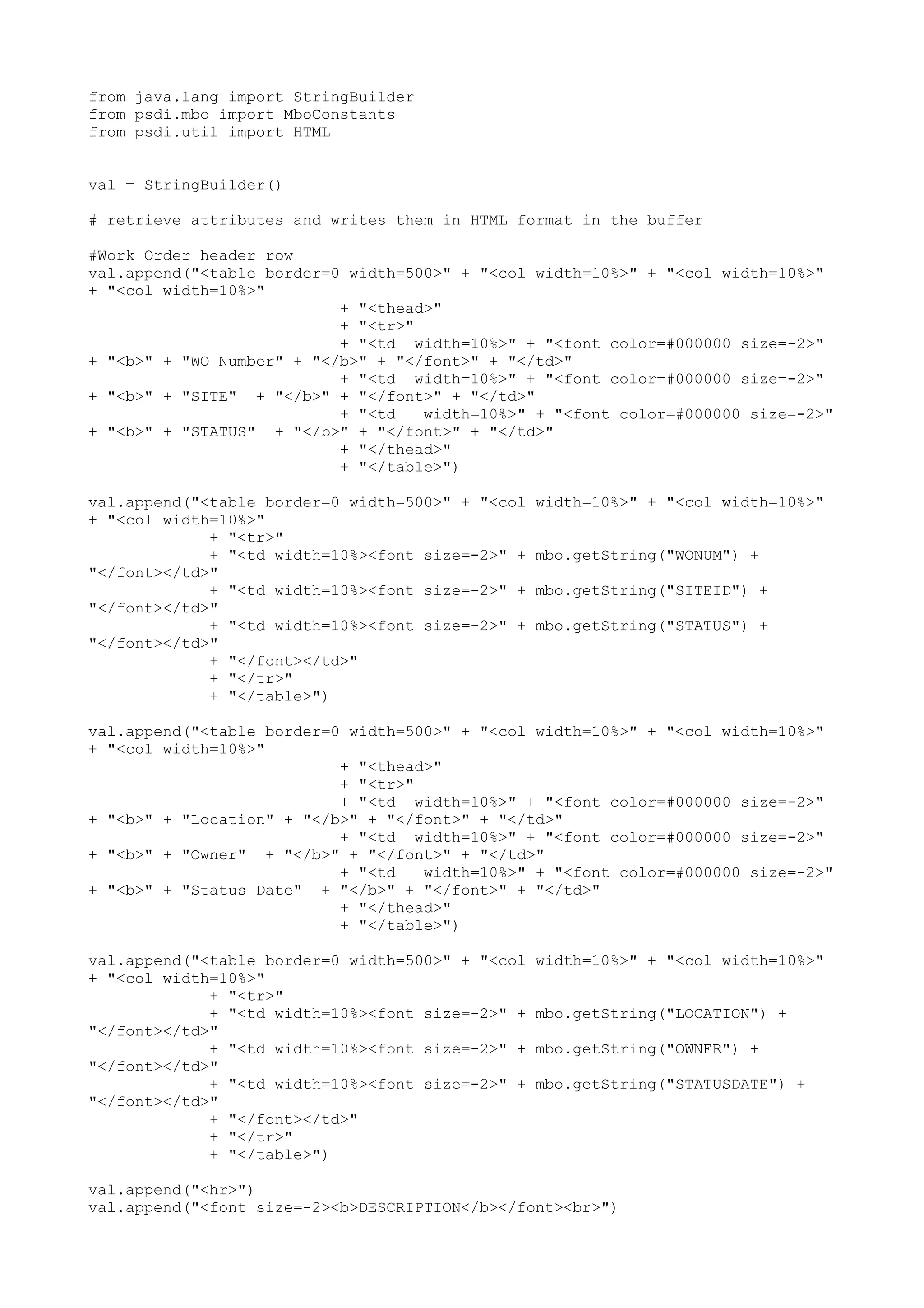

The document provides a Java code snippet that generates an HTML report for work order details, including headers for work order attributes such as number, site, status, location, owner, and status date. It retrieves related records and work logs, formatting this information into tables to ensure clarity. The final output is set into a specific mbo attribute, ensuring it bypasses access checks and validation.

1. from java.lang import StringBuilder
from psdi.mbo import MboConstants
from psdi.util import HTML
val = StringBuilder()
# retrieve attributes and writes them in HTML format in the buffer
#Work Order header row
val.append("<table border=0 width=500>" + "<col width=10%>" + "<col width=10%>"
+ "<col width=10%>"
+ "<thead>"
+ "<tr>"
+ "<td width=10%>" + "<font color=#000000 size=-2>"
+ "<b>" + "WO Number" + "</b>" + "</font>" + "</td>"
+ "<td width=10%>" + "<font color=#000000 size=-2>"
+ "<b>" + "SITE" + "</b>" + "</font>" + "</td>"
+ "<td width=10%>" + "<font color=#000000 size=-2>"
+ "<b>" + "STATUS" + "</b>" + "</font>" + "</td>"
+ "</thead>"
+ "</table>")
val.append("<table border=0 width=500>" + "<col width=10%>" + "<col width=10%>"
+ "<col width=10%>"
+ "<tr>"
+ "<td width=10%><font size=-2>" + mbo.getString("WONUM") +
"</font></td>"
+ "<td width=10%><font size=-2>" + mbo.getString("SITEID") +
"</font></td>"
+ "<td width=10%><font size=-2>" + mbo.getString("STATUS") +
"</font></td>"
+ "</font></td>"
+ "</tr>"
+ "</table>")
val.append("<table border=0 width=500>" + "<col width=10%>" + "<col width=10%>"
+ "<col width=10%>"
+ "<thead>"
+ "<tr>"
+ "<td width=10%>" + "<font color=#000000 size=-2>"
+ "<b>" + "Location" + "</b>" + "</font>" + "</td>"
+ "<td width=10%>" + "<font color=#000000 size=-2>"
+ "<b>" + "Owner" + "</b>" + "</font>" + "</td>"
+ "<td width=10%>" + "<font color=#000000 size=-2>"
+ "<b>" + "Status Date" + "</b>" + "</font>" + "</td>"
+ "</thead>"
+ "</table>")
val.append("<table border=0 width=500>" + "<col width=10%>" + "<col width=10%>"
+ "<col width=10%>"
+ "<tr>"
+ "<td width=10%><font size=-2>" + mbo.getString("LOCATION") +
"</font></td>"
+ "<td width=10%><font size=-2>" + mbo.getString("OWNER") +
"</font></td>"
+ "<td width=10%><font size=-2>" + mbo.getString("STATUSDATE") +
"</font></td>"
+ "</font></td>"
+ "</tr>"
+ "</table>")
val.append("<hr>")
val.append("<font size=-2><b>DESCRIPTION</b></font><br>")

2. val.append(mbo.getString("DESCRIPTION") + "<br>")
val.append("<hr>")
##------------------------------------------------------------------------------
----
val.append("<font size=-2><b>RELATED RECORDS</b></font><br>")
# retrieve Related Records records and writes them in the buffer
relatedrecSet = mbo.getMboSet("RELATEDWO")
#related records header row
val.append("<table border=0 width=1000>" + "<col width=10%>" + "<col width=10%>"
+ "<col width=10%>" + "<col width=70%>"
+ "<thead>"
+ "<tr>"
+ "<td width=10%>" + "<font color=#000000 size=-2>"
+ "<b>" + "Class" + "</b>" + "</font>" + "</td>"
+ "<td width=10%>" + "<font color=#000000 size=-2>"
+ "<b>" + "Recordkey" + "</b>" + "</font>" + "</td>"
+ "<td width=10%>" + "<font color=#000000 size=-2>"
+ "<b>" + "Status" + "</b>" + "</font>" + "</td>"
+ "<td width=70%>" + "<font color=#000000 size=-2>"
+ "<b>" + "Summary" + "</b>" + "</font>" + "</td>"
+ "</thead>"
+ "</table>")
currMbo=relatedrecSet.moveFirst()
while currMbo is not None:
val.append("<table border=0 width=1000>" + "<col width=10%>" +
"<col width=10%>" + "<col width=10%>" + "<col width=70%>"
+ "<tr>"
+ "<td width=10%><font size=-2>" +
relatedrecSet.getString("RELATEDRECWOCLASS") + "</font></td>"
+ "<td width=10%><font size=-2>" +
relatedrecSet.getString("RELATEDRECWONUM") + "</font></td>"
+ "<td width=10%><font size=-2>" +
relatedrecSet.getString("RELATEDRECWO.STATUS") + "</font></td>"
+ "<td width=70%><font size=-2>" +
relatedrecSet.getString("RELATEDRECWO.DESCRIPTION") + "</font></td>"
+ "</font></td>"
+ "</tr>"
+ "</table>")
currMbo=relatedrecSet.moveNext()
#retrieve work log records and writes them in the buffer
worklogSet = mbo.getMboSet("MODIFYWORKLOG")
worklogSet.setOrderBy("CREATEDATE")
val.append("<hr>")
val.append("<font size=-2><b>WORK LOG</b></font><br>")
# LOG records header row
#
# Changed the call from currmbo.getString for the longdescription to
HTML.toPlainText
# This is due to a problem with invalid HTML in the logs corrupting the
script and causing it to stop
#
val.append("<table border=0 width=1000>" + "<col width=10%>" + "<col width=10%>"
+ "<col width=10%>" + "<col width=70%>"
+ "<thead>"
+ "<tr>"

3. + "<td width=10%>" + "<font color=#000000 size=-2>"
+ "<b>" + "Date Created" + "</b>" + "</font>" + "</td>"
+ "<td width=10%>" + "<font color=#000000 size=-2>"
+ "<b>" + "Created By" + "</b>" + "</font>" + "</td>"
+ "<td width=10%>" + "<font color=#000000 size=-2>"
+ "<b>" + "Log Type" + "</b>" + "</font>" + "</td>"
+ "<td width=70%>" + "<font color=#000000 size=-2>"
+ "<b>" + "Summary" + "</b>" + "</font>" + "</td>"
+ "</thead>"
+ "</table>")
currMbo=worklogSet.moveFirst()
while currMbo is not None:
val.append("<table border=0 width=1000>" + "<col width=10%>" +
"<col width=10%>" + "<col width=10%>" + "<col width=10%>" + "<col width=70%>"
+ "<tr>"
+ "<td width=10%><font size=-2>" +
worklogSet.getString("CREATEDATE") + "</font></td>"
+ "<td width=10%><font size=-2>" + worklogSet.getString("CREATEBY")
+ "</font></td>"
+ "<td width=10%><font size=-2>" + worklogSet.getString("LOGTYPE")
+ "</font></td>"
+ "<td width=70%><font size=-2>" +
worklogSet.getString("DESCRIPTION") + "</font></td>"
+ "</font></td>"
+ "</tr>"
+ "<tr bgcolor=#C0C0C0>"
+ "<td COLSPAN=4 ><font size=-2>" +
HTML.toPlainText(currMbo.getString("DESCRIPTION_LONGDESCRIPTION")) +
"</font></td>"
+ "</tr>"
+ "</table>")
currMbo=worklogSet.moveNext()
# sets the formatted string in the attributes value
mbo.getMboValue("BPDSUMMARY").setValue(val.toString(),
MboConstants.NOACCESSCHECK | MboConstants.NOVALIDATION)
