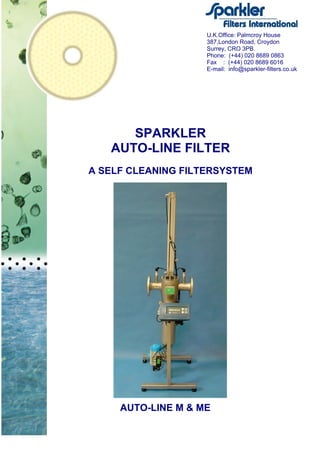

SPARKLER
AUTO-LINE FILTER
A SELF CLEANING FILTERSYSTEM
AUTO-LINE M & ME

2. Auto-line M & ME
The Sparkler Auto-Line filter is a continuously operating automatic self-cleaning filter. The
filtration principle is based on a asymmetric edge gap element where the particles are
retained on the inside of the filter element. In the cleaning cycle the particles are scraped to
a sludge chamber which can be drained at appropriate intervals. The Auto-line filter is
operated by a PLC or by a pneumatic controller. The Auto-line ME is a extended cylinder
version, which is developed to protect the cylinder for possible product contamination. This
version is the preferred model when filtering products like organic solvents, polymers,
adhesives etc.
The Sparkler Auto-line M & ME Filters are manufactured in stainless steel
316L. The design accommodates the standard and regulations for pressure
vessels PED 97/23 with CE marking. The filter is supplied with PLC or
pneumatic controller and automated drain valve, ready to use.
Design pressure: 16 bar
Test pressure: 24 bar
Max. Differential pressure: 3,0 bar
Design temperature.: 80°
C, 120°
C (150°
C)
Volume: 6 liter
Weight: 26 kg
Electricity requirement: 240VAC/50Hz
Pneumatic requirement: 5-7 bar, filtered air
Flange connections: DN 50 DIN 2633
Drain: Rp 1
Retention sizes: 30-50-100-150-300-500-1000 micron.
Standard available strainers are marked underlined.
Capacity
(For liquids with a
viscosity of 1 cSt)
Capacity in m
3
/hDifferential
Pressure
bar
Filtration
area
cm
2
30µ 50µ 100µ 150µ 300µ 500µ 1000µ
0,05 860 9,0 10,0 12,0 13,0 13,5 13,5 13,5
0,10 860 13,0 15,0 19,0 19,0 19,0 19,0 19,0
0,15 860 15,0 17,0 23,0 23,0 23,0 23,0 23,0
0,20 860 17,0 21,0 27,0 27,0 27,0 27,0 27,0
