The document describes an asset management solution implemented by Asset Trail at the University of Najran. It discusses the previous issues around tracking assets, outlines the project scope which included RFID tagging of assets across multiple campuses, and describes the Asset Trail software features. It then summarizes the achieved results such as reduced shrinkage and improved security. Finally it discusses potential additional services and tag options.

1. AIDC Platform
TM
Asset Trail - AMS
Asset Management Solution
University of Najran Case study

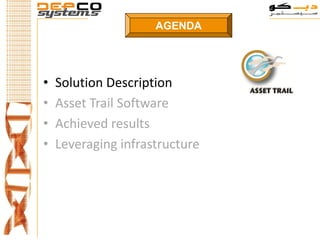

2. AGENDA
• Solution Description
• Asset Trail Software
• Achieved results
• Leveraging infrastructure

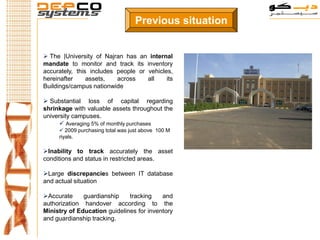

3. Previous situation
 The |University of Najran has an internal
mandate to monitor and track its inventory
accurately, this includes people or vehicles,
hereinafter assets, across all its
Buildings/campus nationwide
 Substantial loss of capital regarding
shrinkage with valuable assets throughout the
university campuses.
 Averaging 5% of monthly purchases
 2009 purchasing total was just above 100 M
riyals.
Inability to track accurately the asset
conditions and status in restricted areas.
Large discrepancies between IT database
and actual situation
Accurate guardianship tracking and
authorization handover according to the
Ministry of Education guidelines for inventory
and guardianship tracking.

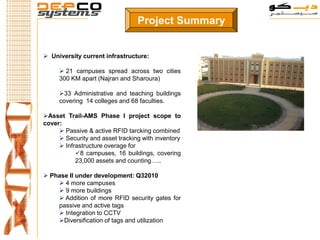

4. Project Summary
 University current infrastructure:
 21 campuses spread across two cities
300 KM apart (Najran and Sharoura)
33 Administrative and teaching buildings
covering 14 colleges and 68 faculties.
Asset Trail-AMS Phase I project scope to
cover:
 Passive & active RFID tarcking combined
 Security and asset tracking with inventory
 Infrastructure overage for
8 campuses, 16 buildings, covering
23,000 assets and counting…..
 Phase II under development: Q32010
 4 more campuses
 9 more buildings
 Addition of more RFID security gates for
passive and active tags
 Integration to CCTV
Diversification of tags and utilization

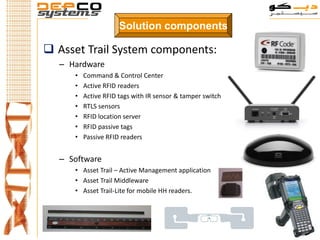

5. Solution components
 Asset Trail System components:
– Hardware
• Command & Control Center
• Active RFID readers
• Active RFID tags with IR sensor & tamper switch
• RTLS sensors
• RFID location server
• RFID passive tags
• Passive RFID readers
– Software
• Asset Trail – Active Management application
• Asset Trail Middleware
• Asset Trail-Lite for mobile HH readers.

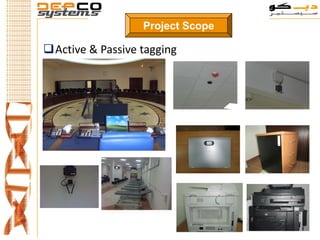

6. Project Scope
Active & Passive tagging

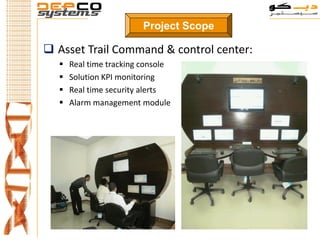

7. Project Scope
 Asset Trail Command & control center:
 Real time tracking console
 Solution KPI monitoring
 Real time security alerts
 Alarm management module

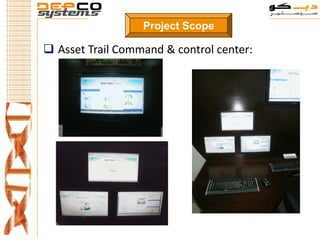

8. Project Scope
 Asset Trail Command & control center:

9. AGENDA
• Solution Description
• Asset Trail Software
• Achieved results
• Leveraging infrastructure

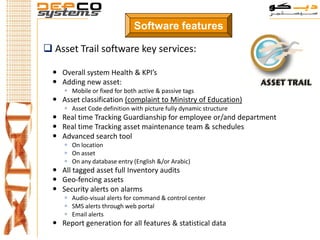

10. Software features
 Asset Trail software key services:
 Overall system Health & KPI’s
 Adding new asset:
 Mobile or fixed for both active & passive tags
 Asset classification (complaint to Ministry of Education)
 Asset Code definition with picture fully dynamic structure
 Real time Tracking Guardianship for employee or/and department
 Real time Tracking asset maintenance team & schedules
 Advanced search tool
 On location
 On asset
 On any database entry (English &/or Arabic)
 All tagged asset full Inventory audits
 Geo-fencing assets
 Security alerts on alarms
 Audio-visual alerts for command & control center
 SMS alerts through web portal
 Email alerts
 Report generation for all features & statistical data

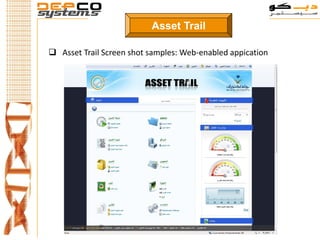

11. Asset Trail
 Asset Trail Screen shot samples: Web-enabled appication

12. Asset Trail
 Asset Trail Screen shot samples: Asset Tree classification

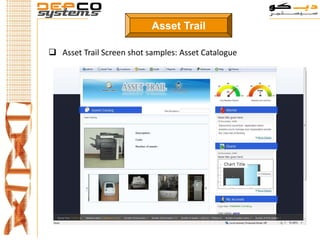

13. Asset Trail
 Asset Trail Screen shot samples: Asset Catalogue

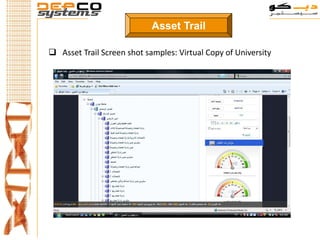

14. Asset Trail
 Asset Trail Screen shot samples: Virtual Copy of University

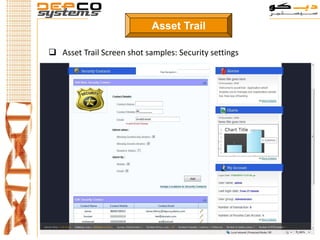

15. Asset Trail
 Asset Trail Screen shot samples: Security settings

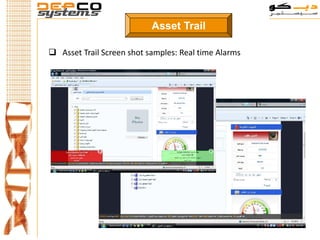

16. Asset Trail
 Asset Trail Screen shot samples: Real time Alarms

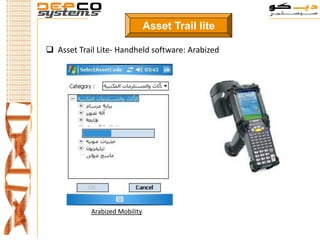

17. Asset Trail lite
 Asset Trail Lite- Handheld software: Arabized
Arabized Mobility

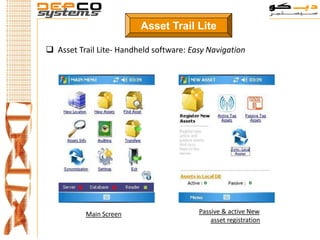

18. Asset Trail Lite
 Asset Trail Lite- Handheld software: Easy Navigation
Main Screen Passive & active New
asset registration

19. Asset Trail lite
 Asset Trail report Sample

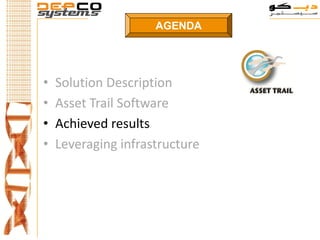

20. AGENDA
• Solution Description
• Asset Trail Software
• Achieved results
• Leveraging infrastructure

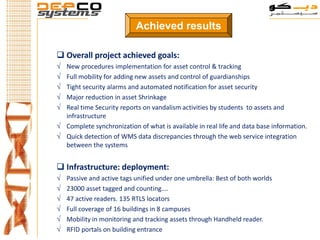

21. Achieved results
 Overall project achieved goals:
√ New procedures implementation for asset control & tracking
√ Full mobility for adding new assets and control of guardianships
√ Tight security alarms and automated notification for asset security
√ Major reduction in asset Shrinkage
√ Real time Security reports on vandalism activities by students to assets and
infrastructure
√ Complete synchronization of what is available in real life and data base information.
√ Quick detection of WMS data discrepancies through the web service integration
between the systems
 Infrastructure: deployment:
√ Passive and active tags unified under one umbrella: Best of both worlds
√ 23000 asset tagged and counting….
√ 47 active readers. 135 RTLS locators
√ Full coverage of 16 buildings in 8 campuses
√ Mobility in monitoring and tracking assets through Handheld reader.
√ RFID portals on building entrance

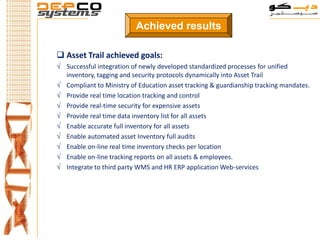

22. Achieved results
 Asset Trail achieved goals:
√ Successful integration of newly developed standardized processes for unified
inventory, tagging and security protocols dynamically into Asset Trail
√ Compliant to Ministry of Education asset tracking & guardianship tracking mandates.
√ Provide real time location tracking and control
√ Provide real-time security for expensive assets
√ Provide real time data inventory list for all assets
√ Enable accurate full inventory for all assets
√ Enable automated asset Inventory full audits
√ Enable on-line real time inventory checks per location
√ Enable on-line tracking reports on all assets & employees.
√ Integrate to third party WMS and HR ERP application Web-services

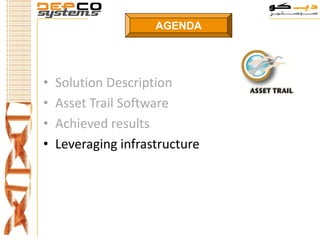

23. AGENDA
• Solution Description
• Asset Trail Software
• Achieved results
• Leveraging infrastructure

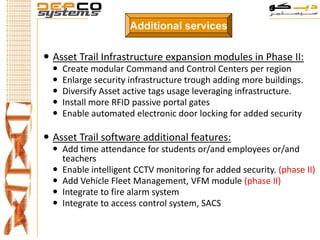

24. Additional services
 Asset Trail Infrastructure expansion modules in Phase II:
 Create modular Command and Control Centers per region
 Enlarge security infrastructure trough adding more buildings.
 Diversify Asset active tags usage leveraging infrastructure.
 Install more RFID passive portal gates
 Enable automated electronic door locking for added security
 Asset Trail software additional features:
 Add time attendance for students or/and employees or/and
teachers
 Enable intelligent CCTV monitoring for added security. (phase II)
 Add Vehicle Fleet Management, VFM module (phase II)
 Integrate to fire alarm system
 Integrate to access control system, SACS

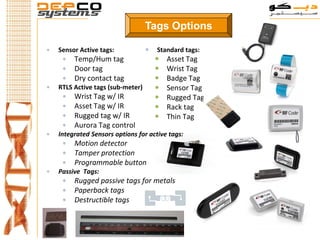

25. Tags Options
 Sensor Active tags:  Standard tags:
 Temp/Hum tag  Asset Tag
 Door tag  Wrist Tag
 Dry contact tag  Badge Tag
 RTLS Active tags (sub-meter)  Sensor Tag
 Wrist Tag w/ IR  Rugged Tag
 Asset Tag w/ IR  Rack tag
 Rugged tag w/ IR  Thin Tag
 Aurora Tag control
 Integrated Sensors options for active tags:
 Motion detector
 Tamper protection
 Programmable button
 Passive Tags:
 Rugged passive tags for metals
 Paperback tags
 Destructible tags

26. THANK YOU
Q&A
www.depcosystems.com.sa
