REAL-TIME DATA PROCESSING
AND ANALYSIS IN THE CLOUD
JERRY JALAVA - QVIK
JERRY@QVIK.FI | @W_I

2. MASSIVE AMOUNTS OF DATA
WE PRODUCE
@W_I @QVIK

3. HAS BEEN GENERATED IN THE
PAST FEW YEARS
OVER 90% OF ALL THE DATA
@W_I @QVIK

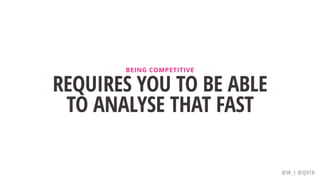

4. REQUIRES YOU TO BE ABLE
TO ANALYSE THAT FAST
BEING COMPETITIVE
@W_I @QVIK

5. BUILDING THESE KIND OF
INFRASTRUCTURES IS
EXPENSIVE
BUT,
@W_I @QVIK

6. MANY GREAT OPEN-SOURCE
PROJECTS AVAILABLE
THERE ARE
@W_I @QVIK

7. REFERENCE ARCHITECTURE
@W_I @QVIK
Ingest
Devices /
Systems
generating
events
Message
Queue
Processing
Data
Processing
Storage
Time-series
Database
Data
Warehouse

8. @W_I @QVIK
Cloud Pub/Sub - A fully managed, global and scalable publish and
subscribe service with guaranteed at-least-once message delivery
Cloud Dataflow - A fully managed, auto-scalable service for pipeline
data processing in batch or streaming mode
BigQuery - A fully managed, petabyte scale, low-cost enterprise data
warehouse for analytics

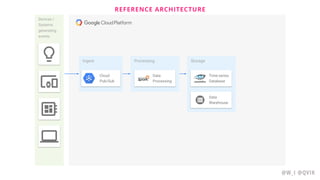

9. REFERENCE ARCHITECTURE
@W_I @QVIK
Ingest
Devices /
Systems
generating
events
Processing
Data
Processing
Storage
Time-series
Database
Data
Warehouse
Cloud
Pub/Sub

10. REFERENCE ARCHITECTURE
@W_I @QVIK
Ingest
Devices /
Systems
generating
events
Processing
Data
Processing
Storage
Cloud
Pub/Sub
BigQuery
Cloud
Bigtable

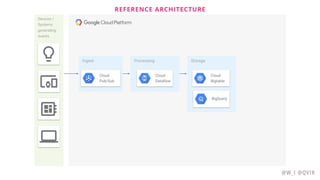

11. REFERENCE ARCHITECTURE
@W_I @QVIK
Ingest
Devices /
Systems
generating
events
Processing Storage
Cloud
Pub/Sub
BigQuery
Cloud
Bigtable
Cloud
Dataflow

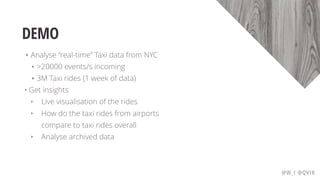

12. DEMO
‣ Analyse “real-time” Taxi data from NYC
‣ >20000 events/s incoming
‣ 3M Taxi rides (1 week of data)
‣ Get insights
‣ Live visualisation of the rides
‣ How do the taxi rides from airports
compare to taxi rides overall
‣ Analyse archived data
@W_I @QVIK

13. DEMO ARCHITECTURE
@W_I @QVIK
Ingest Processing
Messaging
Cloud Pub/Sub
Telemetry
Rides
Cloud Dataflow
Aggregate
Dashboard Application
Taxis
Messaging
Cloud Pub/Sub
Display Data

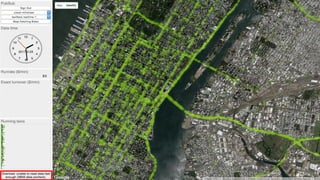

14. @W_I @QVIK

15. @W_I @QVIK

16. MULTIPLE DATA PROCESSING
REQUIREMENTS
‣ Correctness, completeness, reliability,
scalability, and performance
‣ Continuous event processing
‣ Continuous result delivery
‣ Scalable ETL for continuous archival
‣ Analyst-ready big data sets
@W_I @QVIK

17. @W_I @QVIK
COUNT RIDES Taxi Data
Output
(Lax X, Lon Y) @1:00, (Lat X, Lon Y) @1:01,
(Lat K, Lon M) @1:03, (Lat K, Lon M) @ 2:30

18. @W_I @QVIK
COUNT RIDES Taxi Data
Output
(Lax X, Lon Y) @1:00, (Lat X, Lon Y) @1:01,
(Lat K, Lon M) @1:03, (Lat K, Lon M) @ 2:30
Window In Time
{[1:00, 2:00) → (X, Y) @1:00, (X, Y) @1:01, (K, M) @1:03 }
{[2:00, 2:30) → (K, M) @2:30}

19. @W_I @QVIK
COUNT RIDES Taxi Data
Output
(Lax X, Lon Y) @1:00, (Lat X, Lon Y) @1:01,
(Lat K, Lon M) @1:03, (Lat K, Lon M) @ 2:30
Window In Time
{[1:00, 2:00) → (X, Y) @1:00, (X, Y) @1:01, (K, M) @1:03 }
{[2:00, 2:30) → (K, M) @2:30}
Group In Space
{ (X, Y), [1:00, 2:00) → (X, Y) @1:00, (X, Y) @1:01}
{ (K, M), [1:00, 2:00) → (K, M) @1:03 }
{ (K, M), [2:00, 3:00) → (K, M) @2:30 }

20. @W_I @QVIK
COUNT RIDES Taxi Data
Output
(Lax X, Lon Y) @1:00, (Lat X, Lon Y) @1:01,
(Lat K, Lon M) @1:03, (Lat K, Lon M) @ 2:30
Window In Time
{[1:00, 2:00) → (X, Y) @1:00, (X, Y) @1:01, (K, M) @1:03 }
{[2:00, 2:30) → (K, M) @2:30}
Group In Space
{ (X, Y), [1:00, 2:00) → (X, Y) @1:00, (X, Y) @1:01}
{ (K, M), [1:00, 2:00) → (K, M) @1:03 }
{ (K, M), [2:00, 3:00) → (K, M) @2:30 }
Count
{ (X, Y), [1:00, 2:00) → 2}
{ (K, M), [1:00, 2:00) → 1}
{ (K, M), [2:00, 3:00) → 1}

21. @W_I @QVIK
COUNT RIDES Taxi Data
Output
Window In Time
Group In Space
Count
p.apply(PubsubIO.Read.topic(taxiInTopic)
.apply("window 1s",
Window.into(FixedWindows.of(
Duration.standardSeconds(1))
)
)
.apply("condense rides",
MapElements.via(new CondenseRides())
)
.apply("count similar", Count.perKey())
.apply(PubsubIO.Write.topic(taxiOutTopic);

22. @W_I @QVIK
COUNT RIDES Taxi Data
Output
Window In Time
Group In Space
Count
p.apply(PubsubIO.Read.topic(taxiInTopic)
.apply("window 1s",
Window.into(FixedWindows.of(
Duration.standardSeconds(1))
)
)
.apply("condense rides",
MapElements.via(new CondenseRides())
)
.apply("count similar", Count.perKey())
.apply(PubsubIO.Write.topic(taxiOutTopic);
private static class CondenseRides
extends SimpleFunction<TableRow, KV<LatLon, TableRow>> {
public KV<LatLon, TableRow> apply(TableRow t) {
final float box = 0.001f; // very approximately 100m
float roundedLat = Math.floor(t.get("latitude") / box) * box + box / 2;
float roundedLon = Math.floor(t.get("longitude"). / box) * box + box / 2;
LatLon key = new LatLon(roundedLat, roundedLon);
return KV.of(key, t);
}
}

23. @W_I @QVIK

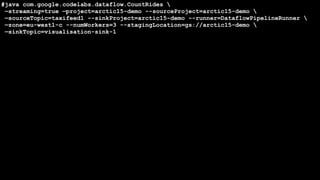

#java com.google.codelabs.dataflow.CountRides
—streaming=true —project=arctic15-demo --sourceProject=arctic15-demo
—sourceTopic=taxifeed1 --sinkProject=arctic15-demo --runner=DataflowPipelineRunner
—zone=eu-west1-c --numWorkers=3 --stagingLocation=gs://arctic15-demo
—sinkTopic=visualisation-sink-1

24. @W_I @QVIK

25. @W_I @QVIK
10X Reduction In
Messages per
Second

26. @W_I @QVIK

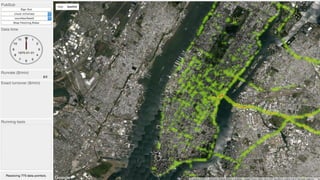

27. @W_I @QVIK

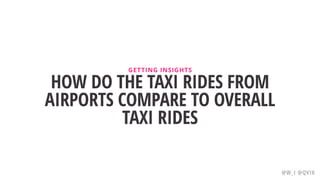

28. HOW DO THE TAXI RIDES FROM
AIRPORTS COMPARE TO OVERALL
TAXI RIDES
GETTING INSIGHTS
@W_I @QVIK

29. @W_I @QVIK

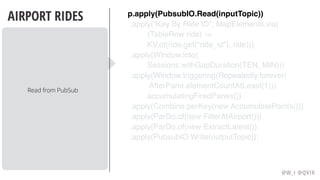

AIRPORT RIDES
Read from PubSub
p.apply(PubsubIO.Read(inputTopic))
.apply(“Key By Ride ID”, MapElements.via(
(TableRow ride) ->
KV.of(ride.get("ride_id"), ride)))
.apply(Window.into(
Sessions.withGapDuration(TEN_MIN)))
.apply(Window.triggering(Repeatedly.forever(
AfterPane.elementCountAtLeast(1)))
.accumulatingFiredPanes())
.apply(Combine.perKey(new AccumulatePoints()))
.apply(ParDo.of(new FilterAtAirport()))
.apply(ParDo.of(new ExtractLatest())
.apply(PubsubIO.Write(outputTopic));

30. @W_I @QVIK
AIRPORT RIDES
Key By Ride ID to group together
ride points from the same ride
p.apply(PubsubIO.Read(inputTopic))
.apply(“Key By Ride ID”, MapElements.via(
(TableRow ride) ->
KV.of(ride.get("ride_id"), ride)))
.apply(Window.into(
Sessions.withGapDuration(TEN_MIN)))
.apply(Window.triggering(Repeatedly.forever(
AfterPane.elementCountAtLeast(1)))
.accumulatingFiredPanes())
.apply(Combine.perKey(new AccumulatePoints()))
.apply(ParDo.of(new FilterAtAirport()))
.apply(ParDo.of(new ExtractLatest())
.apply(PubsubIO.Write(outputTopic));

31. @W_I @QVIK
AIRPORT RIDES
Sessions allow us to create a
window with all the same rides
grouped together, and then GC the
ride data once no more ride points
show up for ten minutes
p.apply(PubsubIO.Read(inputTopic))
.apply(“Key By Ride ID”, MapElements.via(
(TableRow ride) ->
KV.of(ride.get("ride_id"), ride)))
.apply(Window.into(
Sessions.withGapDuration(TEN_MIN)))
.apply(Window.triggering(Repeatedly.forever(
AfterPane.elementCountAtLeast(1)))
.accumulatingFiredPanes())
.apply(Combine.perKey(new AccumulatePoints()))
.apply(ParDo.of(new FilterAtAirport()))
.apply(ParDo.of(new ExtractLatest())
.apply(PubsubIO.Write(outputTopic));

32. @W_I @QVIK
AIRPORT RIDES
Triggering delivers the contents of
the ride window early and often:
elementCountAtLeast(1) ensures that
we get the first values after even a
single element shows up
Repeatedly.forever ensures we keep
getting updates
accumulatingFiredPanes ensures we
get full view of data
p.apply(PubsubIO.Read(inputTopic))
.apply(“Key By Ride ID”, MapElements.via(
(TableRow ride) ->
KV.of(ride.get("ride_id"), ride)))
.apply(Window.into(
Sessions.withGapDuration(TEN_MIN)))
.apply(Window.triggering(Repeatedly.forever(
AfterPane.elementCountAtLeast(1)))
.accumulatingFiredPanes())
.apply(Combine.perKey(new AccumulatePoints()))
.apply(ParDo.of(new FilterAtAirport()))
.apply(ParDo.of(new ExtractLatest())
.apply(PubsubIO.Write(outputTopic));

33. @W_I @QVIK
AIRPORT RIDES

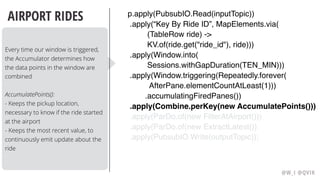

Every time our window is triggered,
the Accumulator determines how
the data points in the window are
combined
AccumulatePoints():
- Keeps the pickup location,
necessary to know if the ride started
at the airport
- Keeps the most recent value, to
continuously emit update about the
ride
p.apply(PubsubIO.Read(inputTopic))
.apply(“Key By Ride ID”, MapElements.via(
(TableRow ride) ->
KV.of(ride.get("ride_id"), ride)))
.apply(Window.into(
Sessions.withGapDuration(TEN_MIN)))
.apply(Window.triggering(Repeatedly.forever(
AfterPane.elementCountAtLeast(1)))
.accumulatingFiredPanes())
.apply(Combine.perKey(new AccumulatePoints()))
.apply(ParDo.of(new FilterAtAirport()))
.apply(ParDo.of(new ExtractLatest())
.apply(PubsubIO.Write(outputTopic));

34. @W_I @QVIK
AIRPORT RIDES
Look at the pickup point in the
accumulator, and compare it with
Lat/Long coordinates to determine
if its an airport pickup
p.apply(PubsubIO.Read(inputTopic))
.apply(“Key By Ride ID”, MapElements.via(
(TableRow ride) ->
KV.of(ride.get("ride_id"), ride)))
.apply(Window.into(
Sessions.withGapDuration(TEN_MIN)))
.apply(Window.triggering(Repeatedly.forever(
AfterPane.elementCountAtLeast(1)))
.accumulatingFiredPanes())
.apply(Combine.perKey(new AccumulatePoints()))
.apply(ParDo.of(new FilterAtAirport()))
.apply(ParDo.of(new ExtractLatest())
.apply(PubsubIO.Write(outputTopic));

35. @W_I @QVIK
AIRPORT RIDES
For writing output, we only care
about the latest point from the
accumulator
p.apply(PubsubIO.Read(inputTopic))
.apply(“Key By Ride ID”, MapElements.via(
(TableRow ride) ->
KV.of(ride.get("ride_id"), ride)))
.apply(Window.into(
Sessions.withGapDuration(TEN_MIN)))
.apply(Window.triggering(Repeatedly.forever(
AfterPane.elementCountAtLeast(1)))
.accumulatingFiredPanes())
.apply(Combine.perKey(new AccumulatePoints()))
.apply(ParDo.of(new FilterAtAirport()))
.apply(ParDo.of(new ExtractLatest())
.apply(PubsubIO.Write(outputTopic));

36. @W_I @QVIK
AIRPORT RIDES

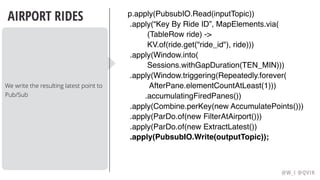

We write the resulting latest point to
Pub/Sub
p.apply(PubsubIO.Read(inputTopic))
.apply(“Key By Ride ID”, MapElements.via(
(TableRow ride) ->
KV.of(ride.get("ride_id"), ride)))
.apply(Window.into(
Sessions.withGapDuration(TEN_MIN)))
.apply(Window.triggering(Repeatedly.forever(
AfterPane.elementCountAtLeast(1)))
.accumulatingFiredPanes())
.apply(Combine.perKey(new AccumulatePoints()))
.apply(ParDo.of(new FilterAtAirport()))
.apply(ParDo.of(new ExtractLatest())
.apply(PubsubIO.Write(outputTopic));

37. @W_I @QVIK

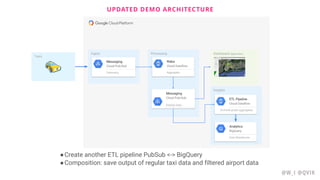

38. UPDATED DEMO ARCHITECTURE
@W_I @QVIK
Ingest Processing
Messaging
Cloud Pub/Sub
Telemetry
Rides
Cloud Dataflow
Aggregate
Dashboard Application
Taxis
Messaging
Cloud Pub/Sub
Display Data
Insights
Analytics
BigQuery
Data Warehouse
ETL Pipeline
Cloud Dataflow
Archival-grade aggregates
●Create another ETL pipeline PubSub <-> BigQuery
●Composition: save output of regular taxi data and filtered airport data

39. @W_I @QVIK

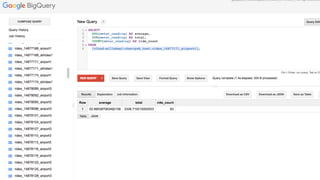

40. @W_I @QVIK

41. @W_I @QVIK
RIDE DATA OVER TIME

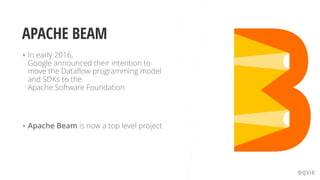

42. APACHE BEAM
‣ In early 2016,
Google announced their intention to
move the Dataflow programming model
and SDKs to the
Apache Software Foundation
‣ Apache Beam is now a top level project
@QVIK

43. SOME RESOURCES
‣ cloud.google.com/dataflow
‣ beam.apache.org
‣ codelabs.developers.google.com
‣ Big Data facts (forbes.com)
@QVIK

44. THANK YOU!
LET’S CREATE IT TOGETHER
jerry@qvik.fi | @W_I
